Operation Manual
Digital Photo Printer
CHC-S2245-6
English
![](/img.php?id=3743403&img=bg2.png)
Handling of this Manual
1. All rights reserved. No part of this operation manual covered by the copyright herein
maybe reproduced or copied in any form or by any means, including translation, without
the written permission of SINFONIA TECHNOLOGY Co., Ltd.
2. The specifications in this operation manual are subject to change without prior notice.
3. In case of having any difficulties or finding the fault in this manual, your information to
SINFONIA TECHNOLOGY will be highly appreciated.
Introduction
This manual describes detailed instructions for handling of and basic operation of Digital
Photo Printer CHC-S2245-6.
We will describe this product as “the printer” in the manual.
Read this manual thoroughly to understand how to install and operate the printer before
using it.
● Keep this manual near the printer and operators can refer to this manual
periodically.
● In case, lost or damaged this manual, contact your dealers.
● In the case of transfer, do not forget to put this manual together with the printer.
Notice
CONTENTS
PREFACE
Chapter 1. Important Safety Instruction ・・・・・・・・・・・・・・・・・ 1-1
Environments ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-1
Handling Instruction ・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-2
Handling Instruction for Consumable and Printed Output ・・・・・・ 1-3
Chapter 2. Installing and Set Up ・・・・・・・・・・・・・・・・・・・・・ 2-1
Unpacking and Checking the Accessories ・・・・・・・・・・・・・・・・ 2-1
Parts Name and Function ・・・・・・・・・・・・・・・・・・・・・・・・ 2-2
Printer Status Lamps Name and Printer Status ・・・・・・・・・・・・ 2-3
Connecting Power Cable ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4
Connecting USB Cable ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4
Installing Paper Guide ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4
Setting Ink Ribbon ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-5
Loading Paper ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-6
Installing Dust Box ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-7
Transporting the Printer ・・・・・・・・・・・・・・・・・・・・・・・・ 2-7
Chapter 3. Routine Maintenance ・・・・・・・・・・・・・・・・・・・・・ 3-1
Cleaning of Thermal Head and each Roller ・・・・・・・・・・・・・・・ 3-1
Cleaning of Outer Cover ・・・・・・・・・・・・・・・・・・・・・・・・・ 3-2
Cleaning of Filter ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 3-2
Chapter 4. Error Handling ・・・・・・・・・・・・・・・・・・・・・・・・ 4-1
Printer Status Lamps are displayed in red ・・・・・・・・・・・・・・・ 4-1
Failure Symptoms ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4-1
Paper Jam ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4-2
Power Supply Interrupted during Printing ・・・・・・・・・・・・・・・ 4-2
When the Ribbon is snapped ・・・・・・・・・・・・・・・・・・・・・・・ 4-2
Chapter 5. In order to more comfortably use ・・・・・・・・・・・・・・・・ 5-1
For longer Printer usage ・・・・・・・・・・・・・・・・・・・・・・・・・ 5-1
For the customers in U.S.A. ・・・・・・・・・・・・・・・・・・・・・・・ 5-2
For the customers in Canada ・・・・・・・・・・・・・・・・・・・・・・・ 5-2
For the customers in Europe ・・・・・・・・・・・・・・・・・・・・・・・ 5-2
Specification ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 6-1
After-sales Service ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 6-1
![](/img.php?id=3743403&img=bg4.png)
Chapter 1. Important Safety Instruction
1-1
This manual provides detailed instructions for
the safety use of the printer.
Read this manual before operating the printer
to ensure to have proper use.
◆In this manual, there are notes that require
special attention.
◆For your safety operation, Safety notices are
separated as follows;
◆It is difficult to forecast all the danger in
setting and use of the printer.
Therefore, warnings in this Operation
Manual, in the other documents on the
printer cannot cover all the cases.
In case of performing the operation or
maintenance which are not described in this
manual, all the concern for the safety have to
be taken care of at the customer side.
◆Operations and the notification for the
maintenance described in this manual and
other documents are for the proper use of the
printer.
In case of using the printer for the other
purpose, all the concern for the safety has to
be taken care of at the customer side.
◆Do not perform the operation which are
prohibited in this manual and other
documents.
◆The contents that cannot be printed due to a
failure while using the use of this printer are
not guaranteed.
Environments
To use the printer safety, please pay attention
to the followings:
Attention: Explanation about the cause of
the trouble and the environmental
condition.
Caution: Inappropriate handling
can cause the wound for the users
and/or cause the physical damage.
Warning: Inappropriate handling
can cause the death or serious
wound.
Attention: Do not place the printer under the
low temperature such as ski resort, skating
rink or open-air with direct sunlight.
Warning: Do not block the openings
of the printer. In case, the opening
blocked, the heat will remain inside
and it can cause the fire.
Caution: Do not place the printer
on rickety place and/or inclined
place.
Printer may fall down or tumble
and it can cause injury.
Caution: Do not place the printer
under humid or dusty place.
It can cause a fire, electric shock or
printer problem.
Do not place the printer with dust,
sand and high humidity such as
bathing place, bathroom, hot
spring, on the street.
Warning: Do not put any
containers such as a vase with
water or any metal objects on the
top of the unit, and make any
pressure from the top.
If the pressure is made, the top
surface may be bent and any
damage or injury may happen.
If something goes inside the
printer, there is a danger/risk for
fire or electric shock.
Warning: Do not insert or fall the
metallic items or flammable items
into the printer through the
openings of the printer, it can cause
the fire and electric shock.
Caution: Do not let children to
touch the printer or the cables.
It can cause accidents or electric
shock.
Warning: This equipment is not
suitable for use in locations where
children are likely to be present.
![](/img.php?id=3743403&img=bg5.png)
Chapter 1. Important Safety Instruction
1-2
Attention: At installation, appropriate
interface cable will be required with your
computer.
Warning: Secure the power cable
firmly.
Warning: The thermal head
reaches high temperature during
operation but this is normal. Do
not touch the thermal head.
Avertissement:La tête d’impression
thermique devient chaud, mais
ce n'est pas un dysfonctionnement
lors de l'utilisation.Ne touchez pas
la tête, sa température peut
devenir très chaud.
Warning: Do not attempt to
service the printer beyond the
instruction specified in this
document. In case, impossible to
recover from the problem, please
contact to the dealers or service
center.
Warning: This product must be
grounded, and always used with
only the specified power cable or
the power cable accompanying
this product.
If the product is used without
ground, and current leakage
occurs, fire or electrical shock is
most likely to result, and also
cause signal-receiving
interference to a radio, a
television receiver, and other
similar electric appliances.
If the proper grounding
connection is not possible, please
contact to the dealers or service
center.
Warning: Do not dismantle or
remodel the printer.
Some sections of the printer
contain a high voltage or become
very hot. Ignoring this warning
may cause electric shock, fire, or
burns.
Handling Instruction
In handling the printer, please pay attention to
the followings;
Warning: Lift the printer from its
box and put it onto a flat table or
desk.
Warning: Be careful when you
transport the printer on the
slippery floor.
Warning: In case you drop the
printer, firstly turn off the power
of the printer and remove the
power cable, then contact the
dealers or service center. To use
the printer without any checking,
can cause the fire or electric
shock.
Warning: At nearly 15Kg, the
printer is too heavy to be lifted by
one person.
Also please take a good care of
your hands and fingers when
lifting the printer from the box.
Attention: Touching the surface of the
thermal directly can cause the damage to
thermal head. When a hard object get
into the printer, it can cause the damage to
the printer mechanism. In such case,
please do not use the printer.
![](/img.php?id=3743403&img=bg6.png)
Chapter 1. Important Safety Instruction
1-3
Attention: Paper Handling
・Use the paper specified by SINFONIA
TECHNOLOGY.
・Store the paper flat.
・ Store the paper in a dry and dark place
to avoid the direct Sunlight.
(Temperature less than 30C, Humidity
less than 60%).
・Do not touch the paper surface before
printing to avoid the fingerprints.
Attention: Ink Ribbon Handling
・ Use the ink ribbon specified by
SINFONIA TECHNOLOGY.
・ Store the ink ribbon in cool place to
avoid the direct sunlight.
(Temperature less than 30C, Humidity
less than 60%)
Attention: Printed Output Handling
・Store the printed output in a dark place to
avoid the direct sunlight.
・Store the printed output away from the
organic fluid such as benzene, thinner
and alcohol which may change or
deteriorate the colors.
Caution: When abandon the ink
ribbon, please handle it as harmful
industrial waste.
Caution: Be careful not to injure
your hands with the paper edge
when handling paper.
Handling Instruction for Consumable and
Printed Output
In handling the ink ribbon, paper and printed
output, please pay attention to the followings;
![](/img.php?id=3743403&img=bg7.png)
Chapter 2. Installing and Set Up
2-1
This chapter explains the unpacking and set up of the printer.
Before proceeding to this chapter, please make sure to read Chapter 1. Important Safety
Instruction.

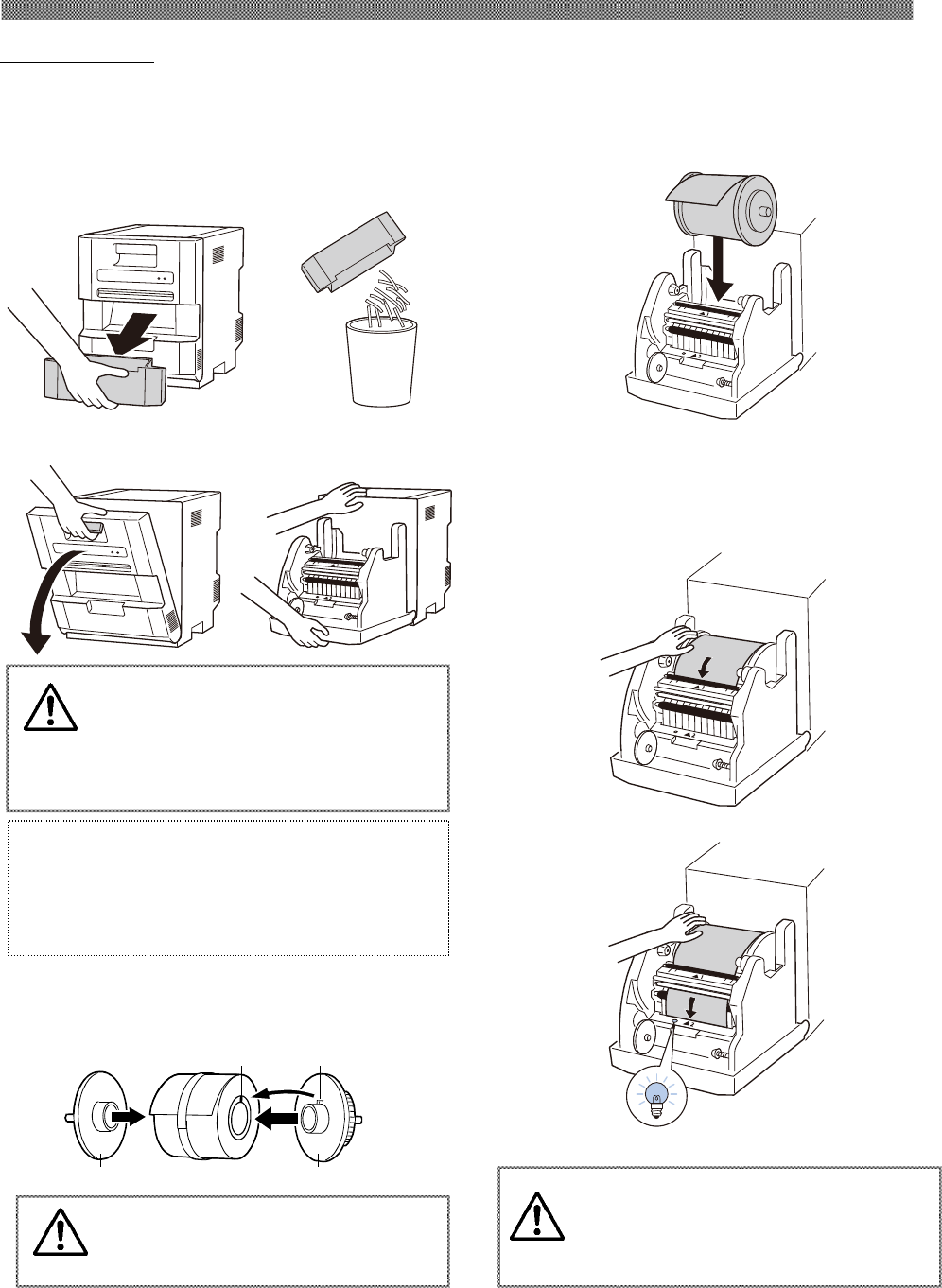

Unpacking and Checking the Accessories

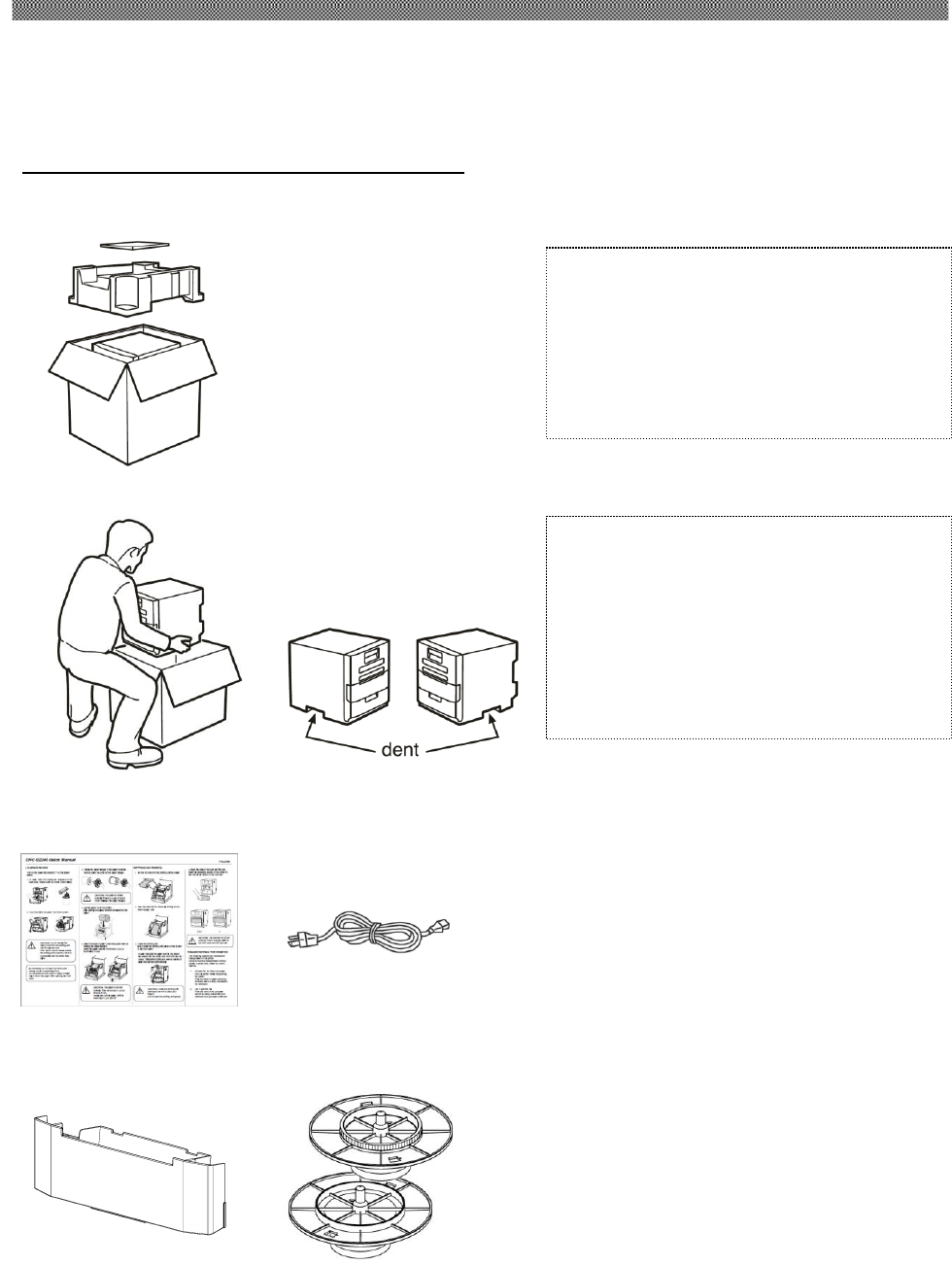

1.Open the box and remove the box containing the accessories and protection materials.
2.Take out the printer by holding dent at lower of the printer.
3.Take out the accessories from the accessory box and check the contents.
Quick Manual
Power Cable
4. Take out the accessories from the printer and check the contents.
Dust Box
Paper Flange
Attention: Keep the packaging
materials. The box and
protection materials are
necessary when moving or
transporting the printer.
Make sure that they are
retained.
Caution: This printer weighs about
15Kg. Please handle it
carefully.
When lifting the printer,
always grip dent at lower on
the left and right side of
printer. Otherwise, the
printer may be damaged.
![](/img.php?id=3743403&img=bg8.png)
Chapter 2. Installing and Set Up
2-2

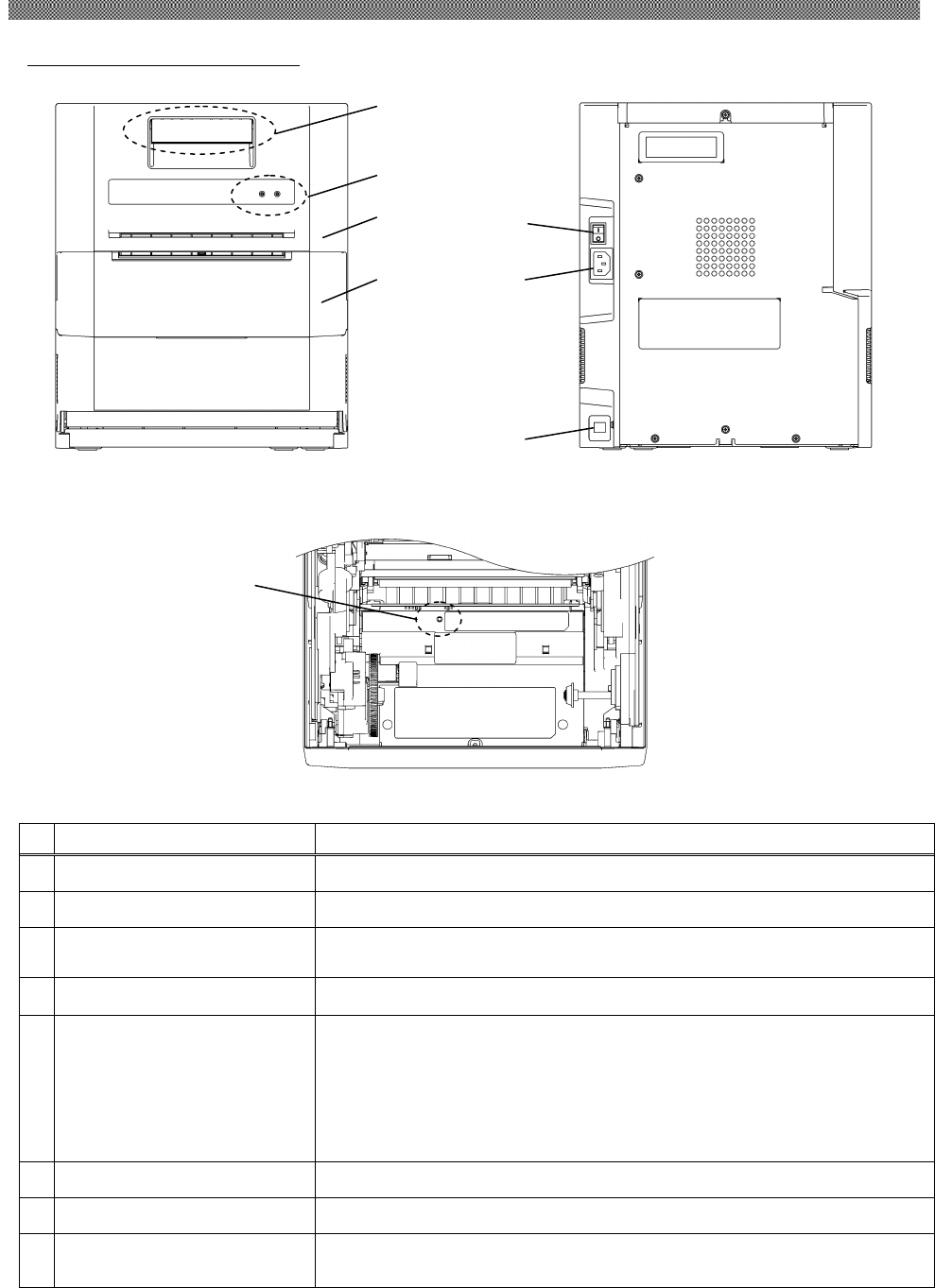

Parts Name and Function
(Front View) (Rear View)
(Internal View)
№
Name
Function
①
Open Lever
When open the Front Cover, hold this lever.
②

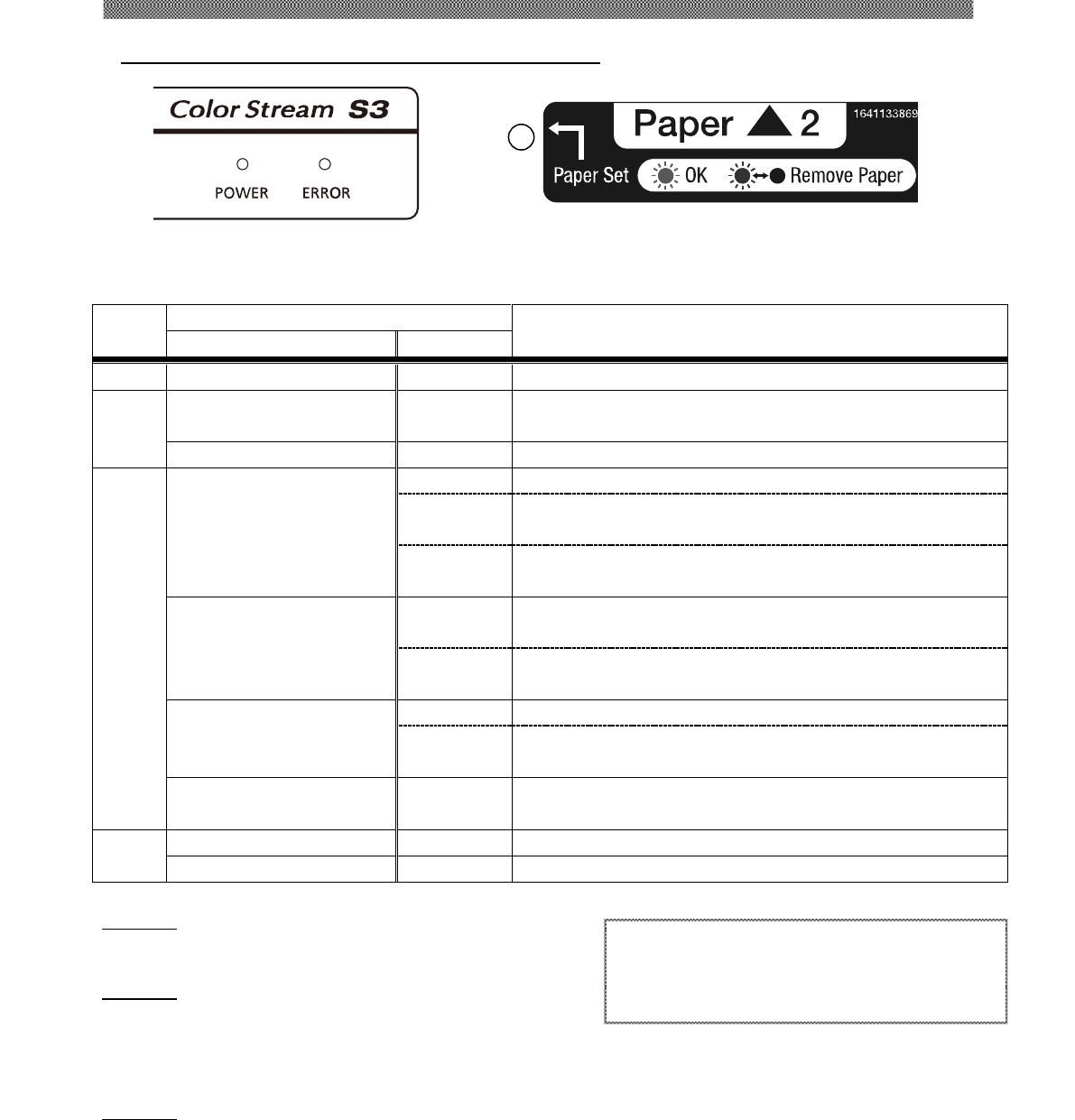

Printer Status Lamps
Printer status display lamps are located on the panel.
③
Front Cover
Open the Front Cover when replacing an ink ribbon or paper, or
when performing maintenance.
④
Dust Box
The Dust Box stacks trim dusts.
⑤
Power Switch
This switch turns on/off the power of the printer. When the “|”
marked side of the switch is pressed, the power is turned on.
When the “○” marked side of the switch is pressed, the power is
turned off.
<Caution> Once the printer is turned off, wait at least 3 seconds
before turning it on again.
⑥
Power Connector
To be used to connect the power cable.
⑦
USB Connector
To be used to connect the USB cable.
⑧
Paper Setting Lamp
When setting the paper, insert the paper until the lamp is lit.
When the lamp blinks, remove the paper until the lamp goes off.
②
③
①
⑤
⑥
⑦
⑧
④
![](/img.php?id=3743403&img=bg9.png)
Chapter 2. Installing and Set Up
2-3
Printer Status Lamps Name and Printer Status
●: ON ○: OFF *: Blink (Slow) x: Blink (Flashing)
Group
LED Display
Status
POWER
ERROR
Paper Set
-
○
○
○
The power of printer is off.
1
*
○
N/A
The printer is initializing after turn on the power, or the
thermal print head is cooling / heating during printing.
●
○
N/A
The printer is ready.
2
●
*
○
The paper is empty, or the paper is not loaded.
●
Yellow
The ink ribbon is empty, or the ink ribbon is not installed.
●
Purple
The ink ribbon loaded is not supported.
●
X
X
Yellow
The printer could not take up the ink ribbon.
X
Red
Paper jam is occurred.
*
*
N/A
The front cover is open.
(Concurrently)
●
Blue
The paper has been installed.
*
*
N/A
The front cover is not closed correctly.
(Alternately)
3
●
●
N/A
Trouble of printer control board.
*
●
N/A
The printer mechanical section is faulty.
Group1
The printer is initializing, ready or printing.
Group2
The paper or the ink ribbon is empty.
Paper jam occurred.
The front cover is opened.
Group3
Trouble of printer.
If it occurs frequently, consult with the service center.
Attention:When checking the
PAPERSET LED, please remove the
ribbon. Depending on the ribbon, it
may look different from LED
display.
![](/img.php?id=3743403&img=bga.png)
Chapter 2. Installing and Set Up
2-4
Connecting Power Cable
Connecting USB Cable
Warning: Make sure to turn off
the power of the printer before
inserting the power cable.
Warning: Make sure to insert the
power cable correctly. If not, it
can cause the fire or the printer
problem.
Warning: Do not insert or remove
the power cable with wet hands.
It can cause the electric leakage.
Warning: Do not make any
damage or any modification to
the power cable. Put the heavy
items on the power cable, give a
strong pull to the power cable and
twist the power cable can cause
the fire and electric shock.
Insert the power cable attached to the
printer into the power connector located on
the rear of the printer.
Warning: In case of not using the
printer for a long time, remove
the power cable for safety.
Warning: Avoid “piled up”
connection. It can cause the fire
and electric shock.
Warning: When moving the
printer, make sure to turn off the
power of the printer, remove the
power cable in order to have no
connection with other devices.
Otherwise, the power cable might
be damaged and it can cause the
fire and electric shock.
Also there is a possibility to fall
down caught by the cable.
Attention: To remove the USB cable, make
sure that the printer is in the waiting
status.
Removing the USB cable during data
transfer may not be able to print data
correctly.
Connect the USB cable from the personal
computer to the USB connector located on
the left rear side of the printer.
Be sure to insert the USB cable all the way.
![](/img.php?id=3743403&img=bgb.png)
Chapter 2. Installing and Set Up
2-5
Loading Paper
Caution: The paper is not set correctly if
the PAPERSET Lamp is flashing in red.
Please pull out the paper until the
PAPERSET Ramp turn off.
2. Pull the lever to open the Front Cover.
4. Set the paper in the printer.
After setting the paper, remove the seal
from the paper.
Turn on the power of the printer by
pressing "|" on the power switch.
3. Install the paper flange in the paper roll
while holding down the knob on the paper
flange.
Attention: Do not open the Front Cover
quickly or with unnecessary force.
Do not press the Front Cover or place a
heavy object other than paper after opening
the Front Cover.
Caution: The paper is not set correctly if
there is a gap of about 10mm between
the paper flange and paper.
5. Insert the edge of paper under the guide
roller by rotating the paper flanges.
Insert the paper until the PEPERSET Lamp
is lit in blue.
CAUTION: Do not release the hand’s hold
from the Front Cover until the Front
Cover is opened fully.
If the hand’s hold is released while the
Front Cover is opened, there is a
possibility that the printer falls down.
1. In case that trim dusts are stacked in the
dust box, make sure to throw them away.
Blue
White
Notch
Notch
![](/img.php?id=3743403&img=bgc.png)
Chapter 2. Installing and Set Up
2-6
Setting Ink Ribbon
Transporting the Printer

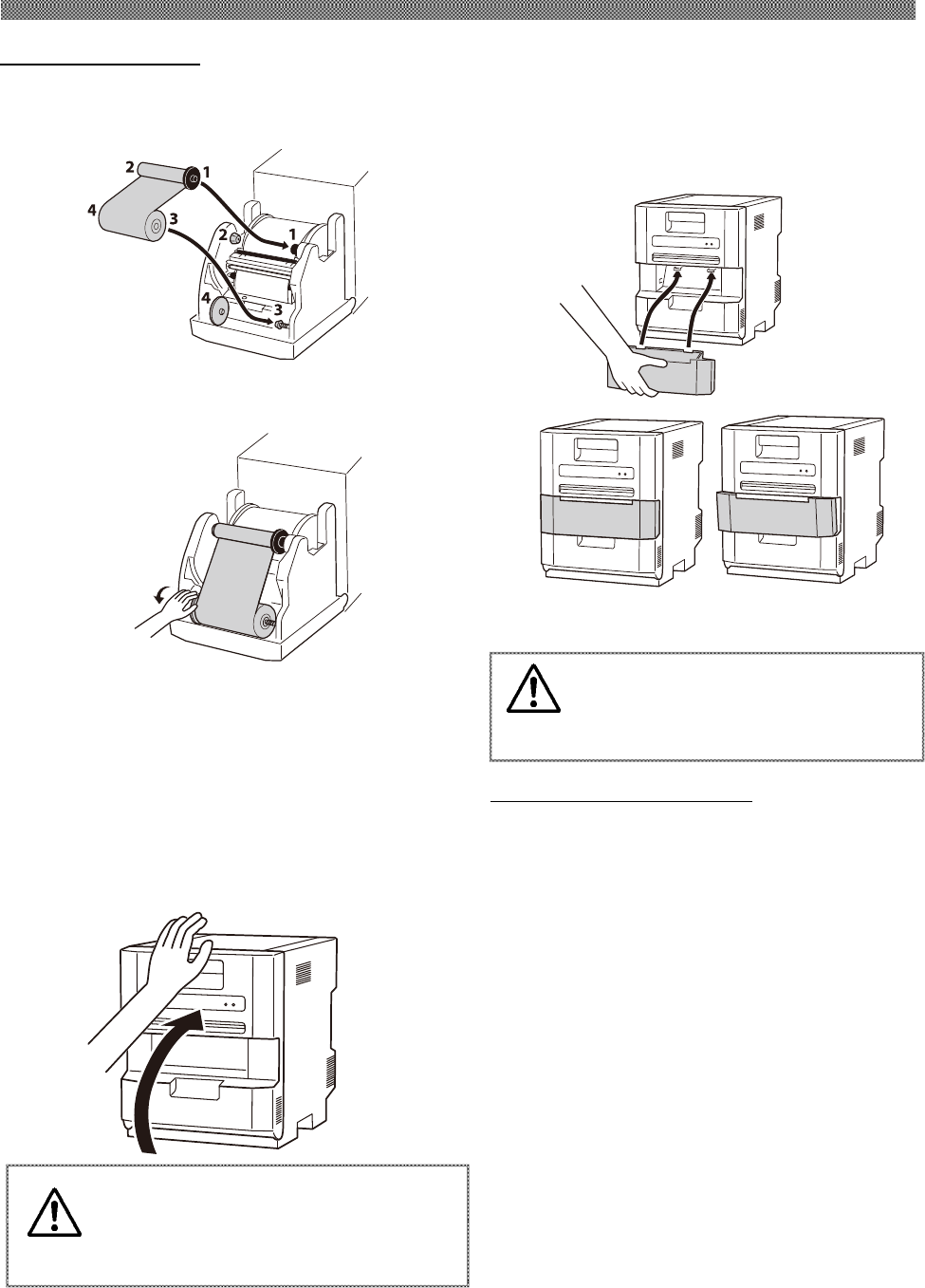

1. Set the ink ribbon to the Front Cover as shown
3. Close the Front Cover.
When close the Front Cover, press on the
center.
In case that both the paper and the ink
ribbon are loaded into the printer and the
Front Cover is closed, initialization starts
and several sheets of paper are ejected
automatically.
2. Take the slack the ink ribbon by turning
the ink ribbon supply core.
4.Insert the claw of the dust box first and
insert the projected section of the printer in
the hole at the bottom of the dust box.
Caution: Close the Front Cover
carefully so as not to catch your
fingers.
Do not close the Front Cover quickly.
The following cautions are necessary in
transportation of the printer.
Since an incorrect transportation method
causes a printer fault, follow the correct
method.

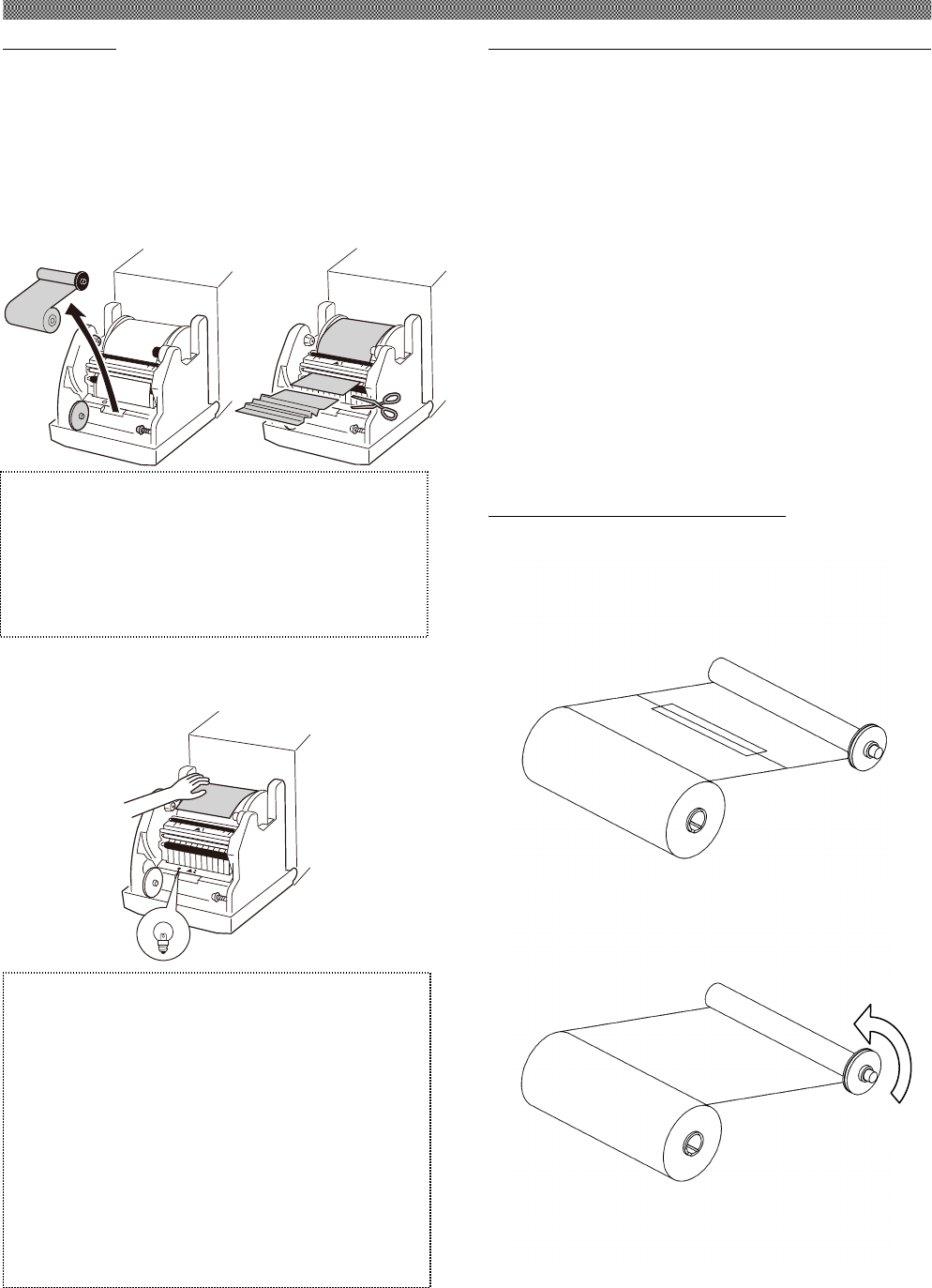

1. Remove the ink ribbon and paper from
the printer before transporting the
printer.
If the ink ribbon or paper cannot be
removed due to a fault, consult with the
distributor.
2. Use a genuine box.
If the box used at the purchase cannot
be used, consult with your distributor
and purchase a new box.
Caution: The dust box is not set
correctly if there is a gap between the
front cover and the dust box.
OK ×
![](/img.php?id=3743403&img=bgd.png)
Chapter 3. Routine Maintenance
3-1
Cleaning of Thermal Head and each Roller
By using thermal transfer technology, daily maintenance is not really necessary if the printer is
being use properly.
However, in order to keep the best print quality, it is recommended to do the cleaning of Thermal
Head, Peeling Roller, Platen, Main Pinch Roller and Cleaning Roller once in a month.
Using gauze, clean the heat element (glass
bar) of the thermal head with isopropyl
alcohol or ethyl alcohol.
Using gauze dipped with isopropyl alcohol or
ethyl alcohol, clean the peeling roller.
Using gauze dipped with isopropyl alcohol
or ethyl alcohol, clean the main pinch
roller.
Using gauze dipped with isopropyl alcohol or
ethyl alcohol, clean the rubber section of the
platen roller.
Caution: Make sure that the power is turned off before starting cleaning.
Thermal Head reaches high temperature just after printing. Do not touch directly
by hand. Make sure that the thermal head has been sufficiently cooled down before
starting cleaning.
When fingerprint stick to the heat element, it can damage the Thermal Head. Do
not touch directly by hand.
Be careful not to be hurt by the projections of the printer.
![](/img.php?id=3743403&img=bge.png)
Chapter 3. Routine Maintenance
3-2
Using gauze dipped with isopropyl alcohol or
ethyl alcohol, clean the rubber section of the
Cleaning roller.
Cleaning of Outer Cover
Wipe the printer outer cabinet with a soft cloth.
If the stains are not removed, wet the cloth and apply weakened neutral Detergent to it.
Cleaning of Filter
Attention: Printing should be performed after the alcohol dried up completely
(approx. 5 minutes)
Caution: Do not use volatile solvents or spray insecticide on the printer outer
cabinet. Otherwise, discoloration or crack may result.
Warning: Continuous use under the abnormal condition such as high
temperature, smoke and strange smell can cause the fire and electric
shock. Turn off the power and make sure to remove the power cable,
then contact the dealers or service center.
Warning: In case, the foreign substance get into the printer, turn off the power
of printer, remove the power cable and contact the dealers or service
center. Continuous use of the printer under such condition can cause
the fire and electric shock.

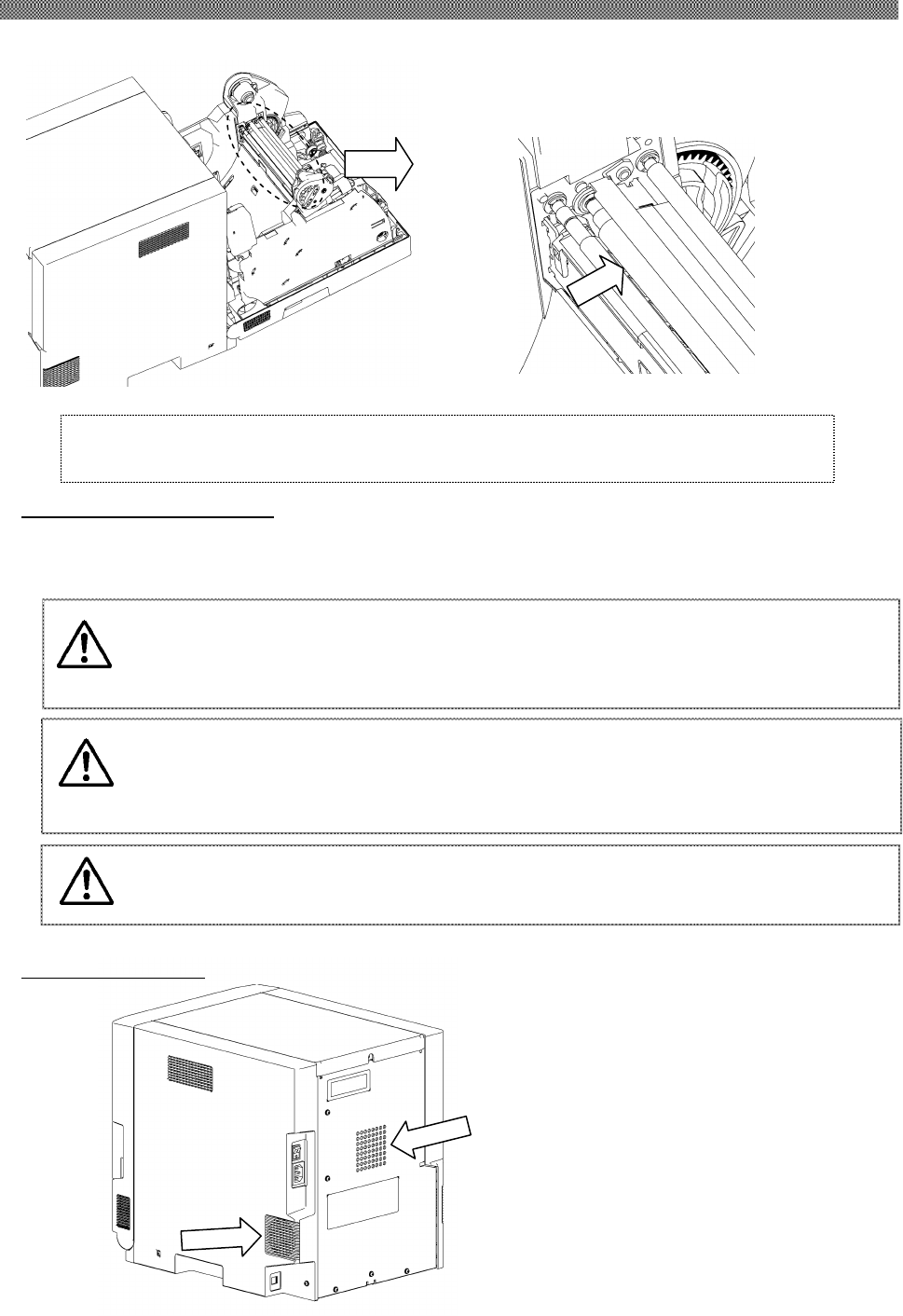

If the dust collects on the openings, clean it
with vacuum cleaner
![](/img.php?id=3743403&img=bgf.png)
Chapter 4. Error Handling
4-1
Printer Status lamps are displayed in red
When the error happens, the details of the error can be confirmed with the printer status lamps.
●: ON ○: OFF *: Blink (Slow) x: Blink (Flashing)
Group
LED Display
Status
Corrective Action
POWER
ERROR
Paper
Set
2
●
*
○
The paper is empty, or the
paper is not loaded.
Set paper.
Replace paper.
●
Yellow
The ink ribbon is empty, or
the ink ribbon is not installed.
Set the ink ribbon.
Replace the ink ribbon.
●
Purple
The ink ribbon loaded is not
supported.
Ink ribbon or printer abnormality is assumed.
Consult with the Service Department.
●
X
X
Yellow
The printer could not take up
the ink ribbon.
Confirm to the ink ribbon. If it occurs frequently,
consult with the service center.
X
Red
Paper jam is occurred.
Remove the paper. If it occurs frequently, consult
with the service center.
*
*
N/A
The front cover is open.
Close the Front Cover.
(Concurrently)
●
Blue
The paper has been installed.
Set the ink ribbon.
Close the Front Cover.
*
*
N/A
The front cover is not closed
correctly.
Close the Front Cover again.
(Alternately)
3
●
●
N/A
Trouble of printer control
board.
If it occurs frequently, consult with the service
center.
*
●
N/A
The printer mechanical
section is faulty.
Failure Symptoms
When detecting a failure symptom, check the printer using the following table.
Symptom
Action
Power is not turned on.
Check if the power cable is connected to the plug socket or the printer.
The personal computer does
not recognize the printer.
Check if the USB cable is connected to the personal computer or printer.
The printer does not become
ready.
Check if the drawer unit is closed.
Check if paper is jammed in the printer.
When the paper setting lamp is blinking, remove the edge of the paper until
the paper setting lamp goes off.
The Front Cover does not open.
Check if the printer is installed in a flat location.
Check if any object is placed in front of the Front Cover.
A straight stripe area is not
printed.
The thermal head may be dirty. Clean the thermal head as described in
Chapter 3, "Routine Maintenance".
If the blank area remains after cleaning the thermal head, the head may have
been disconnected. Consult with the Service Department.
Dotted areas are not printed.
The cleaning roller may be dirty. Clean the cleaning roller as described in
Chapter 3, "Routine Maintenance".
Periodic scratches and
indentations are occurred.
The main pinch roller may be dirty. Clean the main pinch roller as described in
Chapter 3, "Routine Maintenance".
![](/img.php?id=3743403&img=bg10.png)
Chapter 4. Error Handling
4-2

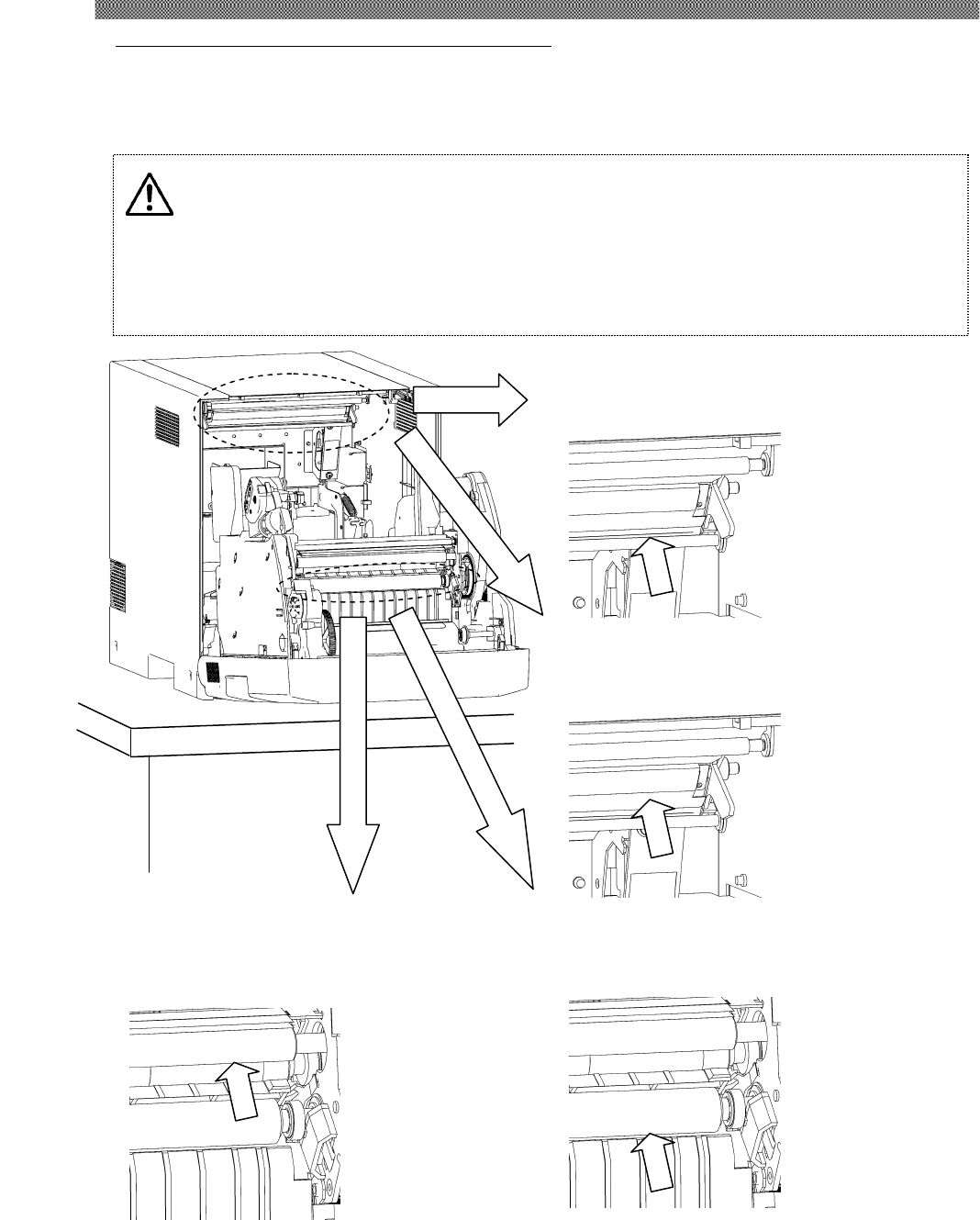

Paper Jam
1. Open the Front Cover.
2. Cut off the folded section or printed section
with scissors.
When the paper is folded inside of the printer,
pull it out slowly.
3. Pull out the paper until the paper setting
lamp goes off.
Power Supply Interrupted during Printing
In case, power supply interrupted during the
printing, Thermal Head will be kept pushing to
Platen. Leaving this situation for a long time,
shape of Platen can be warped. In order to avoid
this situation, please follow the instruction
below.
1. Turn off the power of the printer.
2. Turn on the power for 3 or more seconds
after turning off the power.
3. Paper Jam is displayed on the printer
status lamps, open the Front Cover and
take the necessary action according to
the instruction provided in 4-2, "Paper
Jam".
When the Ribbon is snapped
1. Remove the ink ribbon.
2. Stick the broken part of the ribbon with a
tape.
3. Turn the ribbon on the rewinding side and
rewind the taped section completely.
Attention:
・If the paper is used without cutting off the
folded section or printed section, paper jam
occurs again or the ink ribbon may snap
during printing. Always cut off the
creased section or printed section of the
paper.
・Cut off the paper straight and at right
angles to the roll paper direction.
・If paper jam occurs frequently, a defect in
the mechanical section is assumed.
Consult with the service center.
Attention: If the paper is can not pulled out
to the Ribbon side, pull out it to the Roll
paper side following the instruction in Step
3 and Step 4.
If the paper is pulled out to the Ribbon side
by force, the printer may break down.
![](/img.php?id=3743403&img=bg11.png)
Chapter 5. In order to more comfortably use
5-1
For longer Printer usage
Caution: Printing continuous pattern of high density image in limited part
may cause uneven density print. Recommend not to print those images
continuously.
![](/img.php?id=3743403&img=bg12.png)
Chapter 5. In order to more comfortably use
5-2
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
For the Customers in the U.S.A.
![](/img.php?id=3743403&img=bg13.png)
Chapter 5. In order to more comfortably use
5-3
For the Customers in Europe
This product shall not be used in the residential area.
This is a Class A product. In a domestic environment, this product may cause radio
interference in which case the user may be required to take adequate measures.
Hereby, SINFONIA TECHNOLOGY CO., LTD. declares that the radio equipment type
CHC-S2245-6(RFID 13.56MHz) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.sinfo-t.jp/eng/printers/red
Le soussigné, SINFONIA TECHNOLOGY CO., LTD., déclare que l'équipement radioélectrique du type
CHC-S2245-6( RFID 13.56MHz) est conforme à la directive 2014/53/UE.
Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante:
http://www.sinfo-t.jp/eng/printers/red
Hiermit erklärt SINFONIA TECHNOLOGY CO., LTD., dass der Funkanlagentyp CHC-S2245-6(RFID
13.56MHz) der Richtlinie 2014/53/EU entspricht.
Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:
http://www.sinfo-t.jp/eng/printers/red
The manufacturer of this product is Sinfonia Technology Co., Ltd.
1-1-30, Shiba-daimoncho, Minato-ku, Tokyo, Japan.
If you want to dispose this product, do not mix with general household
waste. There is a separate collection system for used electronics products
in accordance with legislation under the WEEE Directive
(Directive 2002/96/EC) and is effective only within European Union.
For details, consult your dealer.
![](/img.php?id=3743403&img=bg14.png)
Specification
6-1
Product name
Color Stream S3
Model name
CHC-S2245-6
Printing method
Dye sublimation thermal transfer
Resolution
12 dots/mm (300 dpi)
Print sizes
51 mm x 152 mm (2 x 6 size)
102 mm x 152 mm (4 x 6 size)
152 mm x 203 mm (6 x 8 size)
Print media
Paper
152 mm (6 in.) width roll paper for print
900 sheets/roll (in case of 4 x 6 size prints)
450 sheets/roll (in case of 6 x 8 size prints)
(Same as each printable size of dye-sub print.)
Ink ribbon
4 x 6 size ink ribbon
900 images/roll
6 x 8 size ink ribbon
450 images/roll
Operating
environment
Temperature
10 to 35 degrees C
Humidity
20% to 80% (RH) (There must be no condensation in both cases)
Paper feeding
Roll paper feed (Roll to Cut method)
Dimensions, with casters
Width,
290 mm
Depth
375 mm
Height
345 mm
Weight
15 kg or less (Excluding consumables and accessories)
Power voltage
100 to 240 V AC (Automatic switching)
Interface
USB 2.0
The above specifications are subject to change without notice.
After-sales Service
Contact your dealers or service center for the details about after-sales service.
YTE8-J0695E
Prepared date : December 21, 2017
Revision date : -
Revision Number : First edition
Ⓒ 2017
The manufacturer of this product is
SINFONIA TECHNOLOGY CO ., LTD.
1-1-30, Shiba-daimoncho, Minato-ku, Tokyo, Japan.
