ST Engineering Telematics Wireless FP101TB Mobile Transponder User Manual FP101TB Usrman 1
Telematics Wireless Ltd. Mobile Transponder FP101TB Usrman 1
Users Manual
![](/img.php?id=1110040&img=bg1.png)
User Manual
FP101TB
![](/img.php?id=1110040&img=bg2.png)
Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. Notice that:
The transponder must be installed to provide minimum separation distance of at least 20
cm from all persons and must not be co-located or operated in conjunction with any other
antenna or transmitter
Warning:
Changes or modifications to this equipment not expressly approved by Telematics
Wireless Ltd. could void the user’s authority to operate the equipment.
![](/img.php?id=1110040&img=bg3.png)

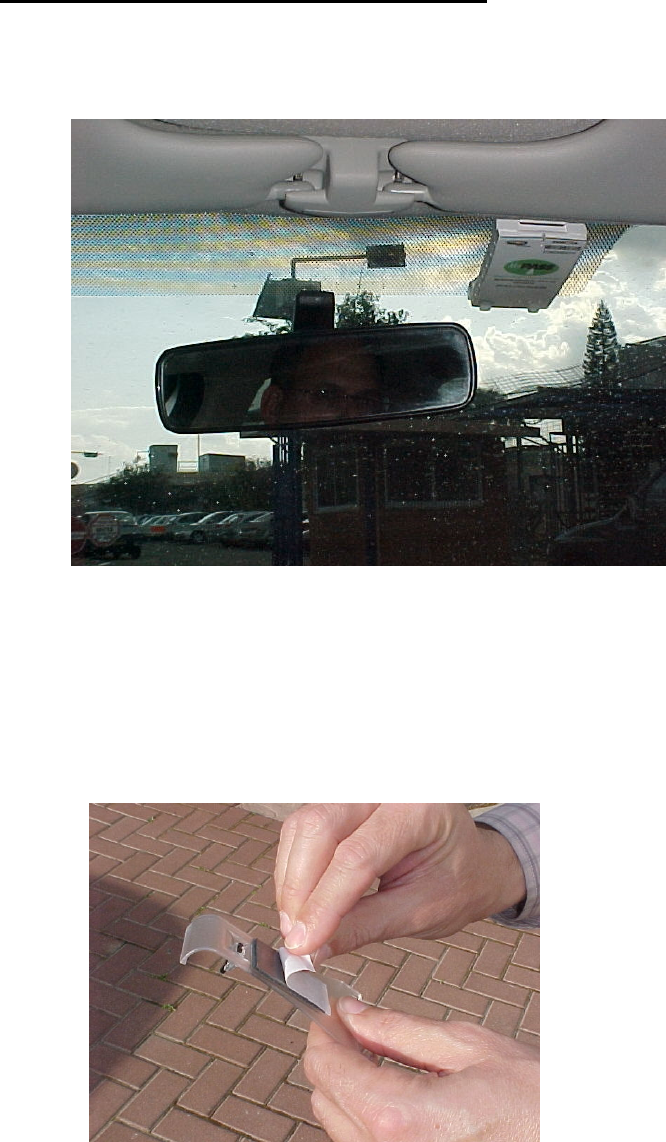

Installing your Transponder
1. Position your transponder on the windshield behind the rearview mirror, 2” to 4”
below the upper edge of the windshield.
2. If the windshield is divided, the transponder should be placed at least 2” away from
the windshield separation line
3. Clean the surface with the provided alcohol pad and let it dry for a few minutes.
4. Remove protective liner to expose adhesive tape.
5. Affix the clip onto the windshield. Press firmly against the windshield for 10
seconds.
6. Wait for 2 hours for optimal adhesion of the clip onto the windshield. Attach the
transponder to the clip.
