ST Microelectronics S R L IDB04A1 Bluetooth Low energy expansion board based on BlueNRG for STM32 Nucleo User Manual UM1765
ST Microelectronics S.R.L. Bluetooth Low energy expansion board based on BlueNRG for STM32 Nucleo UM1765
Manual
![](/img.php?id=2604122&img=bg1.png)
UM1765
User
manual
Bluetooth low energy expansion
board
based on BlueNRG for STM32
Nucleo
Introduction
This document provides detailed hardware requirements and board connections for the X-
NUCLEO-IDB04A1 Bluetooth
®
low energy (BLE) evaluation board based on BlueNRG for
STM32 Nucleo. This board is part of STMicroelectronics’ offering of evaluation boards
designed around the BlueNRG Bluetooth low energy wireless network processor.
The excellent performance of BlueNRG and the best matching between BlueNRG and
BALF-NRG, X-NUCLEO-IDB04A1 passed the RF TEST for Japan Radio Law certification
with higher margin above the specification values as well as it is FCC certified (FCC ID:
S9NIDB04A1).

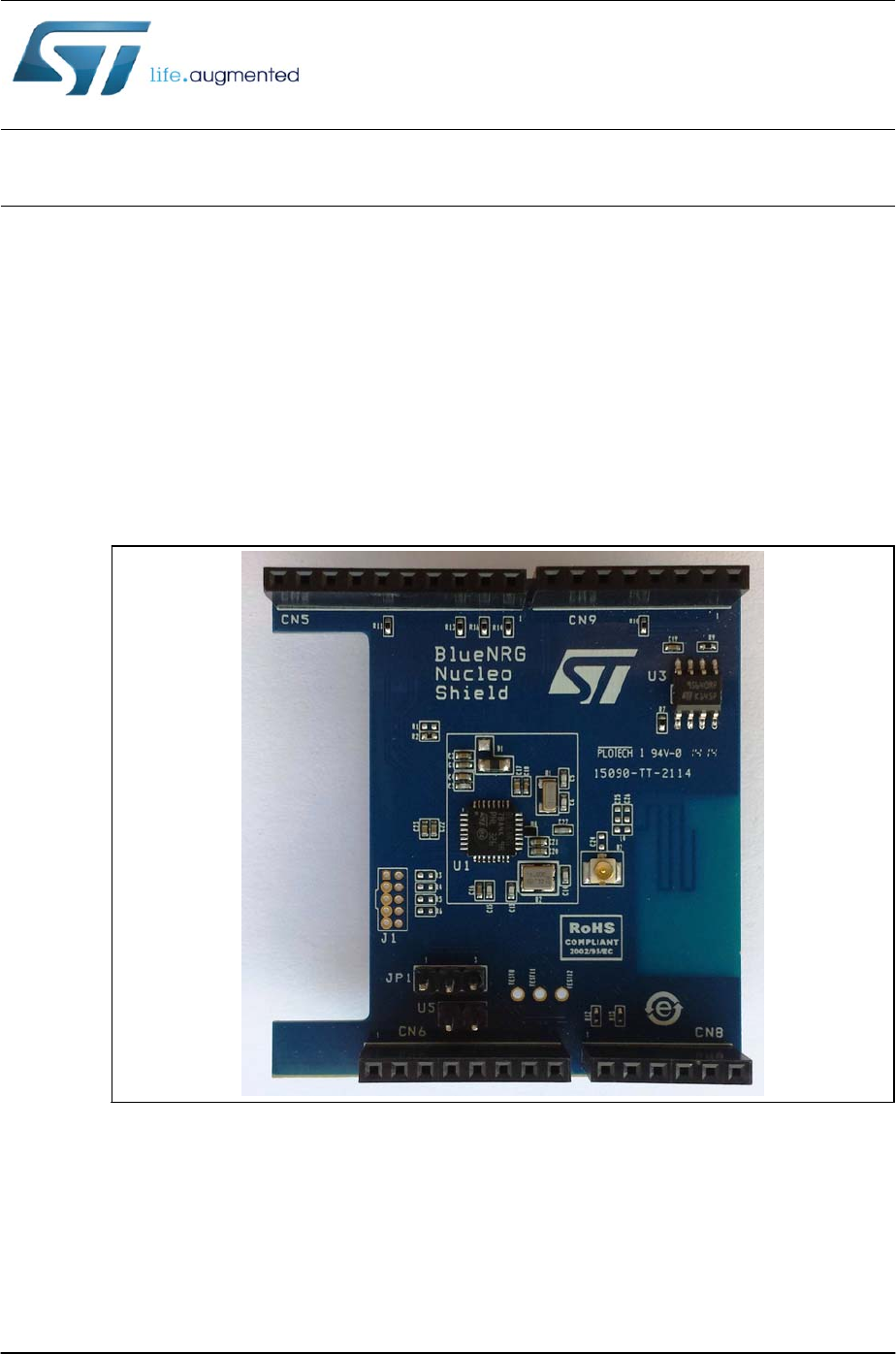

Figure 1. X-NUCLEO-IDB04A1 evaluation board
Other BlueNRG evaluation boards are available in the following kits:
STEVAL-IDB002V1: BlueNRG development platform
STEVAL-IDB003V1: BlueNRG USB dongle
April 2015 DocID026346 Rev 4 1/15
www.st.com
![](/img.php?id=2604122&img=bg2.png)
Contents UM1765
Contents
1 Board Description and Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Hardware requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Hardware description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 X-NUCLEO-IDB04A1 board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1.1 Current measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Formal Notices Required by the U.S. Federal
Communications Commission (“FCC”) . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Operational description and block diagram . . . . . . . . . . . . . . . . . . . . . . 8
5 List of acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Board schematic and bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2/15 DocID026346 Rev 4
![](/img.php?id=2604122&img=bg3.png)
UM1765 Getting sta
r
ted
1 Board Description and Getting started
TheX‐NUCLEO‐IDB04A1isaBluetoothlowenergyevaluationboardtoallowexpansionofthe
STM32Nucleoboards.ItiscompatiblewiththeArduinoUNOR3connectorlayout,andisdesigned
aroundBlueNRG,aBluetoothlowenergy,lowpowernetworkcoprocessorcompliantwithBTLE
4.0andtheBALF‐NRG‐01D3,anultra‐miniaturebalunoptimizedforSTBlueNRGRFIC,which
integratesmatchingnetworkandharmonicsfilter.TheX‐NUCLEO‐IDB04A1interfaceswiththe
STM32MCUviaSPIpin,andtheusercanchangethedefaultSPIclock,theSPIchipselectandSPI
IRQbychangingoneresistorontheevaluationboard.TheexcellentperformanceofBlueNRGand
thebestmatchingbetweenBlueNRGandBALF‐NRG,X‐NUCLEO‐IDB04A1passedtheRFTESTfor
JapanRadioLawcertificationwithhighermarginabovethespecificationvaluesaswellasitisFCC
certified(FCCID:S9NIDB04A1).
Key features:
BlueNRGlowpower,lowenergyBluetoothnetworkcoprocessor
BALF‐NRG‐01D3balun&harmonicfilter
FreecomprehensivedevelopmentfirmwarelibraryandexampleforBlueNRG,
compatiblewithSTM32Cubefirmware
Bluetoothlowenergy4.0masterandslavecompliant
CompatiblewithSTM32Nucleoboards
EquippedwithArduinoUNOR3connector
Verylowpowerconsumption:7.3mARXand8.3mATXat+0dBm
Maximumtransmissionpower:+8dBm
Excellentreceiversensitivity(‐88dBm)
X‐NUCLEO‐IDB04A1isofficiallycertificatedasaBTLE5mWmoduleforJapanRadio
Law“TYPE”CertificationbyJapangovernment.
X‐NUCLEO‐IDB04A1isFCCcertified(FCCID:S9NIDB04A1)
RoHScompliant

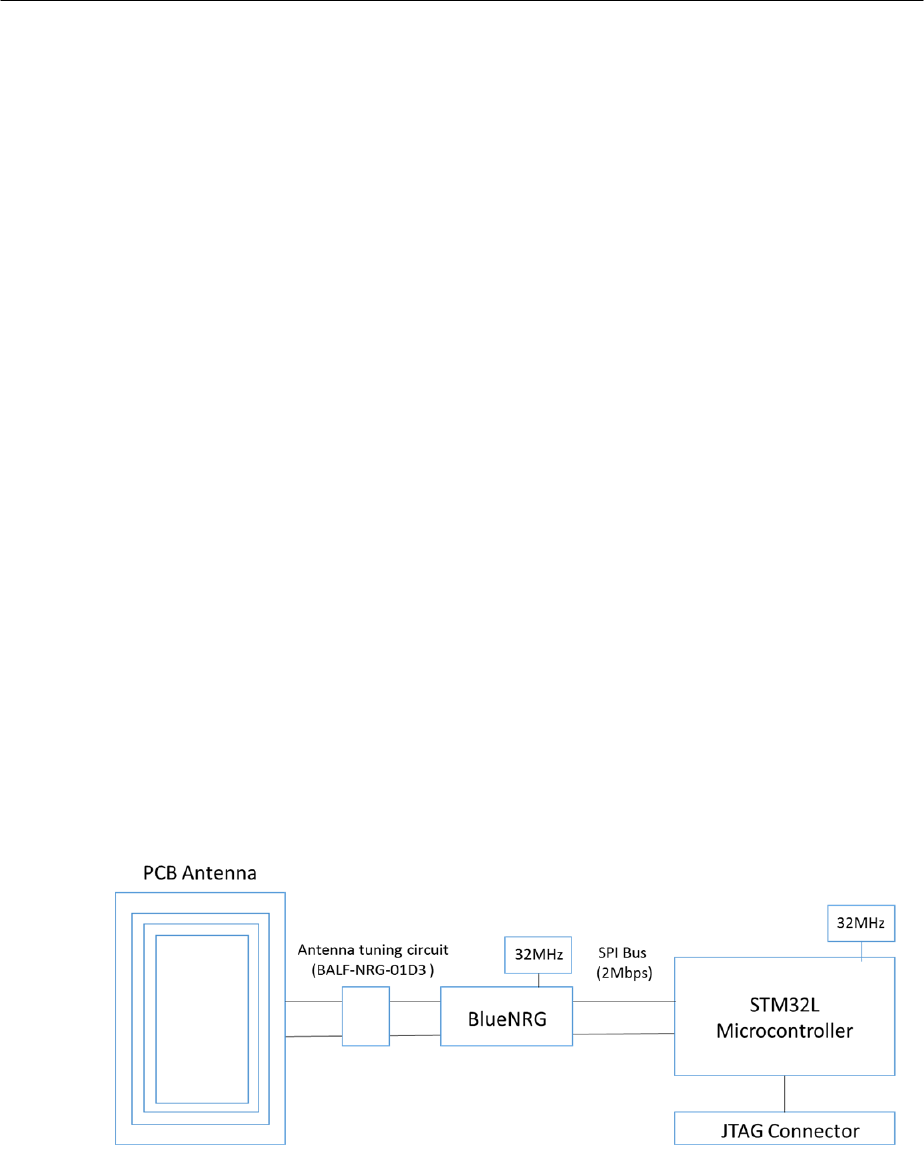

Figure 1 - Functional Block Diagram
This section describes the hardware requirements for the X-NUCLEO-IDB04A1 evaluation
board.
![](/img.php?id=2604122&img=bg4.png)
UM1765 Getting sta
r
ted
1.1 Hardware requirements
The
X-NUCLEO-IDB04A1
is an expansion board for use with STM32 Nucleo boards (please
refer to UM1724 on www.st.com for further information). To function correctly, the STM32
Nucleo board must be connected to the X-NUCLEO-IDB04A1 board as shown in Figure 2
below.

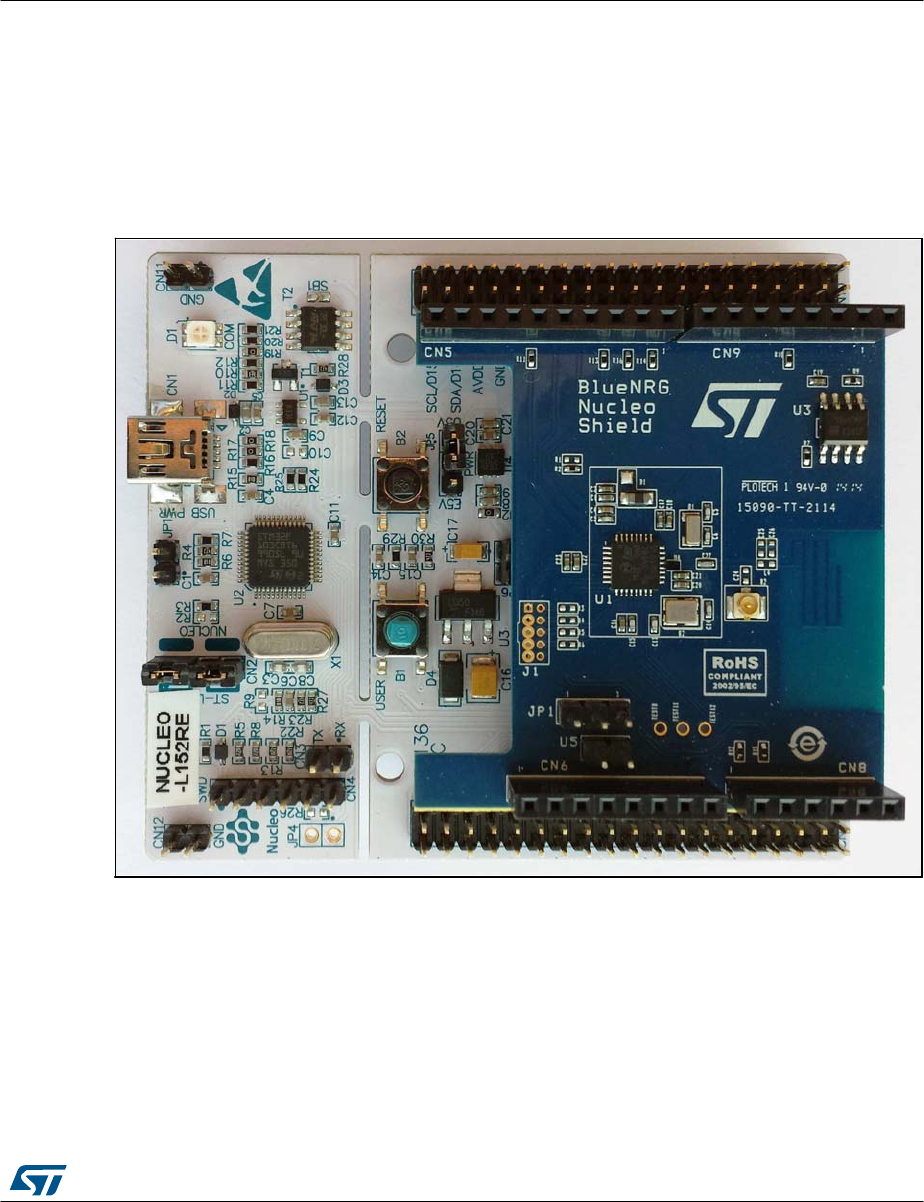

Figure 2. X-NUCLEO-IDB04A1 plugged to STM32 Nucleo
board
The interconnection between the STM32 Nucleo and the X-NUCLEO-IDB04A1 has been
designed to permit the use of any STM32 Nucleo board, although the optimal combination is
obtained using the NUCLEO-L152RE or NUCLEO-L053R8 hosting the ultra-low power
STM32.
DocID026346 Rev 4 3/15
![](/img.php?id=2604122&img=bg5.png)
Getting sta
r
ted UM1765
1.2 System requirements
Using the Nucleo boards with the X-NUCLEO-IDB04A1 expansion board requires the
following software and hardware:
a Windows PC (XP, Vista, 7, 8) to install the software package
a USB type A to Mini-B USB cable to connect the Nucleo to the PC
Installation of the board firmware package (order code: X-CUBE-BLE1) and the BlueNRG
graphical user interface utility on the user’s PC requires the following:
At least 128 MB of RAM
40 MB of hard disk space available
The X-CUBE-BLE1 firmware and related documentation is available on www.st.com.
4/15 DocID026346 Rev 4
![](/img.php?id=2604122&img=bg6.png)
UM1765 Ha
r
dwa
r
e desc
r
iption
2 Hardware description
This section describes the X-NUCLEO-IDB04A1 features and provides information which
could be useful for understanding the board schematics.
2.1 X-NUCLEO-IDB04A1 board
The board allows the user to test the functionality of the BlueNRG processor. It hosts the
innovative BALF-NRG-01D3 balun & harmonic filter and its functionality can be exploited
using the firmware package contained in the X-CUBE-BLE1. It is fundamental to program
the microcontroller on the STM32 Nucleo board. Please refer to user manuals UM1724 and
UM1725, available on www.st.com.
The BlueNRG processor and the STM32 Nucleo board are connected through connectors
CN5, CN6, CN8 and CN9 (see Table 1 for details). The pins indicated with an asterisk (*)
represent an alternative pin for that specific function, i.e. SPI_IRQ could be moved from
CN8.1 to CN5.2.
Table 1. Interconnection between STM32 Nucleo board and X-NUCLEO-IDB04A1
NC
IOREF
RESET
3V3
5V
GND
GND
VIN
A0
A1
A2
A3
A4
A5
Left
connectors
1
2
3
4
5
6
7
8
1
2
3
4
5
6
3V3
GND
GND
SPI_IRQ
SPI_CSN*
D15
D14
AREF
GND
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Right
connectors
CN5
digital
CN9
digital
10 9 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1
GND
SPI_CLK*
SPI_MISO
SPI_MOSI
SPI_IRQ*
SPI_MCSN
BNRG_RST
SPI_CLK
To change the default pin SPI_CLK, SPI_IRQ and SPI_CSN the user must disassemble,
respectively,R10, R12 and R15, and assemble R11, R16 and R13.
DocID026346 Rev 4 5/15
![](/img.php?id=2604122&img=bg7.png)
Ha
r
dwa
r
e desc
r
iption UM1765
The board also includes:
– a high frequency 16 MHz crystal
– a low frequency 32 kHz crystal for lowest power consumption
– a BALF-NRG-01D3 balun & harmonic filter
– an EEPROM M95640-RMN6P to store the board parameters
Not mounted:
– a JTAG connector to program the BlueNRG processor
– an SMA connector for the external antenna
2.1.1 Current measurements
To monitor the power consumption of entire BlueNRG X-NUCLEO-IDB04A1 board, jumper
U5 can be used, inserting an ammeter probe between pins 1 and 2 of the connector. Since
the power consumption of BlueNRG during most of its operating time is very low, an
accurate instrument in the range of few uA may be required.
6/15 DocID026346 Rev 4
![](/img.php?id=2604122&img=bg8.png)
UM1765 Fo
r
mal Notices Requi
r
ed by the U.S. Fede
r
al Communications Commission (“FCC”)
3 Formal Notices Required by the U.S. Federal
Communications Commission (“FCC”)
Any changes or modifications to this equipment not expressly approved by
STMicroelectronics may cause harmful interference and void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including any interference that may cause undesired
operation.
This device uses, generates and radiated radio frequency energy. The radio frequency
energy produced by this device is well below the maximum exposure allows by Federal
Communications Commission (FCC).
The X-NUCLEO-IDB04A1 is FCC certified (FCC ID: S9NIDB04A1).
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=2604122&img=bg9.png)
Revision histo
r
y UM1765
7 Revision history
Table 5. Document revision history
Date
Revision
Changes
16-May-2014
1
Initial release.
21-Jan-2015
2
Modified:
- Table 3 and Table 4.
19-Feb-2015
3
Modified:
- order code from STSW-IDB04V1 to X-CUBE-BLE1
Section 1.2 and Section 2.1.
13-Apr-2015
4
Updated:
- Part number item 27 Table 4.
22-Apr-2015
5
FCC
14/15 DocID026346 Rev 4
