Introduction
TheOsmoisaprofessionalhandheldgimbalwithcamera.Itscamerahasa20mmlensand
![](/img.php?id=2748995&img=bg4.png)
shootssharp12mpstillsandstablevideoatupto4K.Thelightandportabledesign,alongwith
accessiblebuttonsonthehandleallowsyoutocapturetheworldfromapersonalandunique
perspective.AhighspeedWiFivideodownlinkconnectsyourmobiledevicethatoffersaliveHD
viewwhilefilming.
TheOsmousesa3‐axisgimbalcoupledwithSmoothTracktechnologytoironoutcamerashake
fromhandmovement.ItcanbesetinLockedMode,inwhichcameramotionisbefixed.Osmo
allowsyouquicklyadjustthepanandtiltangleofthecamerabyhand.Thereisabuild‐in
microphoneandanexternalmicrophoneinput.
TheOsmocomeswithamobiledeviceholdertomountyoursmartphone,butthereareother
externalmountsavailablethatarewellsuitedforotherfilmingscenarios.Theseexternalmounts
includeextensionbar,vehiclemount,tripodandbicycleamount.

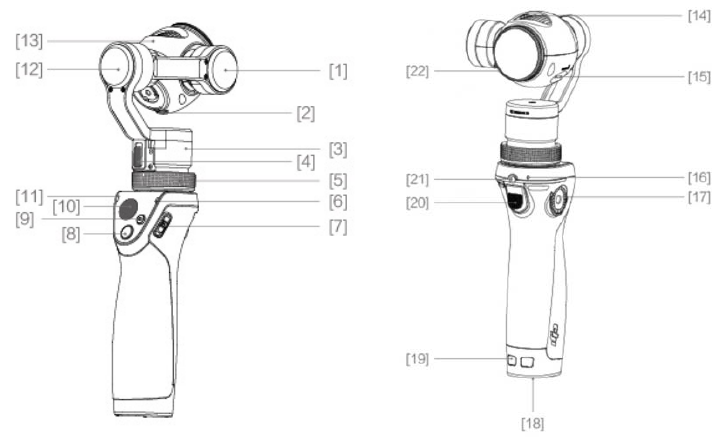

AtaGlance:
1.TiltMotor
2.MicroUSBPort
3.PanMotor
4.PanAxisLock
5.GimbalLock
6.SystemStatusLED
7.PowerSwitch
8.ShutterButton
9.RecordButton
10.ControlStick
11.CameraStatusLED
12.RollMotor
13.Camera
14.AirVents
15.MicroSDCardSlot
![](/img.php?id=2748995&img=bg5.png)
16.Built‐inMicrophone
17.GearMount
18.BatteryCover
19.LanyardHole
20.Trigger
21.ExternalMicrophoneInput
22.LensCover
GettingStarted
Intelligent Battery
BeforeyoustartusingyourOsmo,besuretofullychargetheIntelligentBattery.Thebatteryhasa
capacityof980mAh,andcanpowertheOsmoforabout65minutues.
IntelligentBatteryFunctions
BatteryBalancingThebatterybalancesthevoltageofeachcellduringcharging.
OvercurrentProtectionThebatterystopschargingifthechargingcurrentistoolarge.
OverchargeProtectionThebatterystopschargingifitsvoltageistoohigh.
Over‐dischargeProtectionThebatterystopsdischargingifitsvoltageistoolow.
ShortCircuitProtectionThebatterycutsthepowersupplyifashortcircuitisdetected.
TemperatureControlThechargingtemperaturerangeisbetween15°Cand40°C.The
batterywillstopchargingifthetemperatureisoutofrange.
BatteryLevelDisplayThebatterylevelisdisplayedintheDJIGOapp.
Battery Specifications
ModelHB01‐522365
TypeLiPo
Capacity10.8Wh,980mAh
ChargingTem p e ratu re15°to40°C
OperatingTe m perature0° to50°C
![](/img.php?id=2748995&img=bg6.png)
Charging the Battery
Placethebatteryintothebatterycharger,andthenconnectthechargertoapoweroutletusing
theprovidedcable.Onlychargethebatterywiththeprovidedbatterycharger.
TheLEDindicatoronthebatterychargerglowsgreenwheninstandby,andglowsredwhen
charging.Afterthebatteryisfullycharged,theLEDindicatorwillchangefromredtogreen.
BatteryChargerSpecifications
ModelSOY015A‐1260120
Input100‐240V,50/60Hz
Output12.6V,1.2A
Inserting the Battery
ToggletheswitchatthebaseoftheOsmotolockorunlockthebatterycover.Insertthebattery
andlockthebatterycover.
![](/img.php?id=2748995&img=bg7.png)
Mounting the Gimbal and Camera
TheOsmocomeswiththeZenmuseX3gimbalandcamera,whichshouldbemountedontothe
handlebeforeusingtheOsmo.

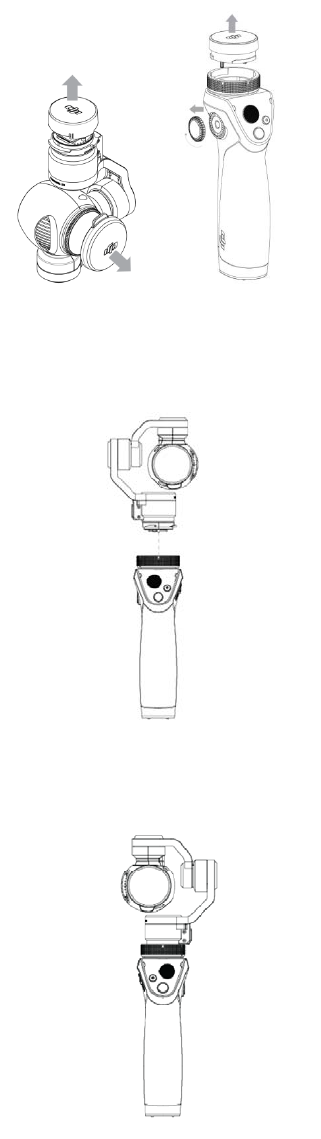

1.Removethegimbalcoverhandlecover.Loosenthegearmountcover.
2.RotatetheGimbalLocktotheunlockedposition(withthewhitemarkontheGimbalLock
alignedtothewhitelineonthehandle),theninsertthegimbalbyaligningthewhitemarkonthe
gimbalwithwhitemarkontheGimbalLock.Makesurethetwoendsmakegoodcontact.
3.RotatetheGimbalLocktothelockedposition(withtheredmarkontheGimbalLockalignedto
thewhitelineonthehandle).Ensurethegimbalismountedsecurely.
![](/img.php?id=2748995&img=bg8.png)
TheOsmosupportsthemorepowerfulDJIZenmuseX5gimbalandcamerawhichcanbe
mountedontotheOsmothroughanadaptor.RefertotheZenmuseX5UserManualformore
details.
Mounting the Mobile Device Holder

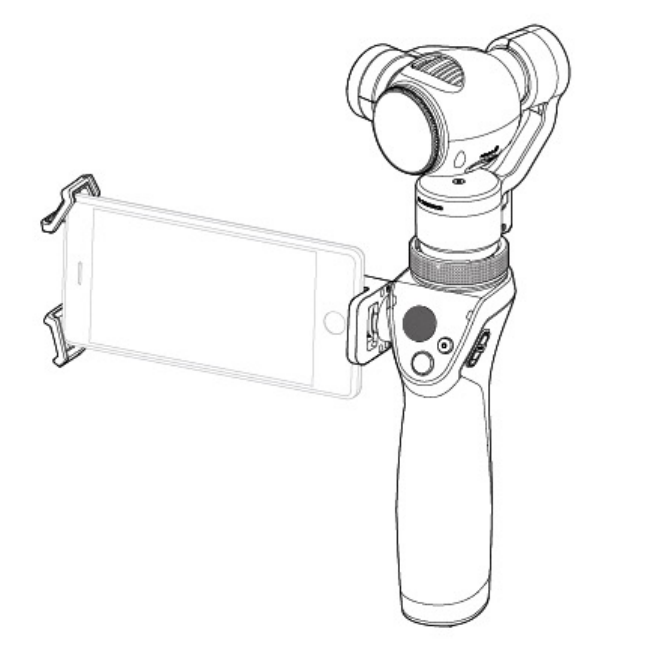

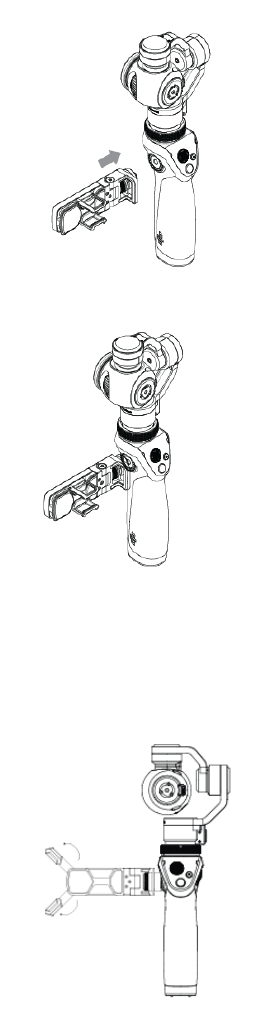

1.Attachtheendofthemobiledeviceholdertothegearmount.
2.Tightentheknobtosecure.
Mounting your Mobile Device

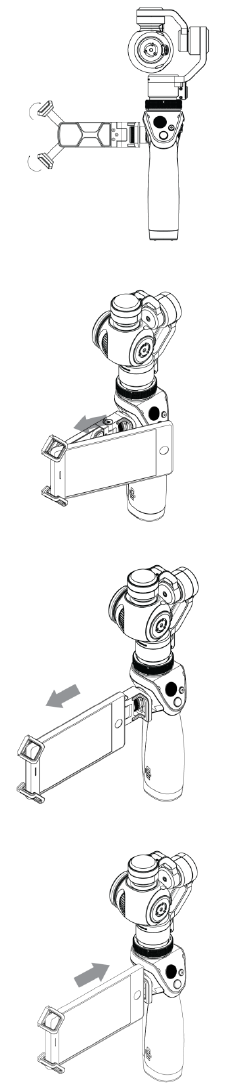

1.Releasethetwoclampsonthemobiledeviceholder.
2.Rotatetheclampstothedesiredposition.
![](/img.php?id=2748995&img=bg9.png)
3.Placeoneendofyourmobiledeviceintotheclamps.

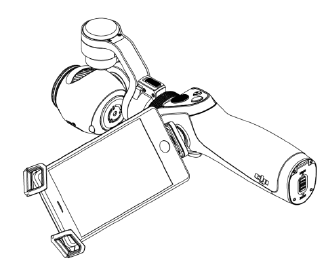

4.Extendtheclampssothatyourentiremobiledevicefitsintothemobiledeviceholder.
5.Releaseyourmobiledevicetosecureitinplace.

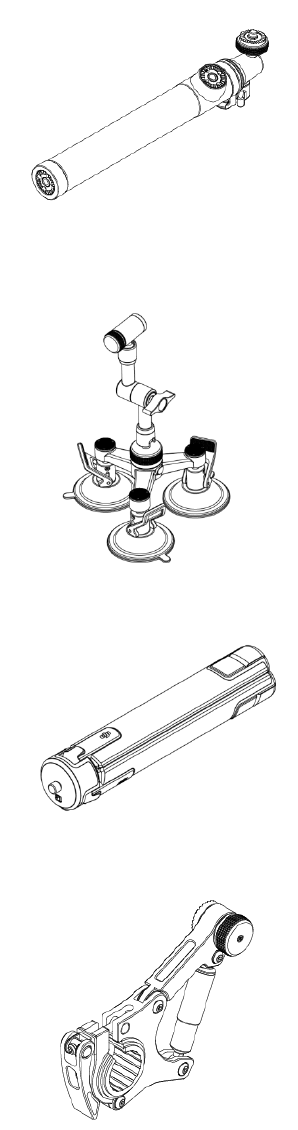

DifferenttypesofadapterscanbeattachedtothegearplateoftheOsmofilmingconditions.
ExtendHandle:thedistancebetweenyourhandandOsmocanbeadjustedconveniencewhen
usingtheextendhandle.
![](/img.php?id=2748995&img=bga.png)
VehicleMount:FormountingtheOsmoontopofvehiclesorbehindthewindowwherethe
Osmowillbesubjectedtoextrememovementoracceleration.
Tripod:Forcapturingsteadyfootage.
BicycleMount:FormountingtheOsmoonabicycle.
VisittheDJIStoretolearnmore.
Unlocking the Gimbal
Toprotectthegimbal,thethreemotoraxesarelockedoutofthepackage.Makesureyouunlock
thegimbalbeforeusingit.
![](/img.php?id=2748995&img=bgb.png)
1.G
e
2.Sl
U
s
H
a
Po
w
Tot
rele
a
hol
d
Pulli
Rep
e
e
ntlyrotate
t
●
Besure
maycau
●
Onlyr
o
idetheswit
c
s
ingt
h
a
ndle B
u
w
erSwitch
urnonort
u
a
seit.Iffors
d
for4secon
d
ngthepow
e
e
atthisactio
t
hetiltmoto
r
tounlockth
sefrictionto
o
tatethemo
t
c
honthepan
h
eOs
m
u
ttons
u
rnofftheO
omereason
t
d
stoforceit
t
e
rswitchwh
e
ntobringth
e
r
untilitcan
r
etiltmotor
p
thecamera
l
t
orsafewra
n
axisupward
m
o
smo,pullth
e
t
heOsmoca
t
opoweroff.
e
ntheOsm
o
e
Osmoout
o
r
otatefreel
y
.
p
riortounlo
c
l
ens.
n
getounlock
stounlockt
h
e
powerswi
t
nnotturnof
f
o
isturnedo
o
fhibernatio
n
Thendothe
c
ktherollm
them.
h
epanaxis.
t
chdown,h
o
f
normally,p
u
nwillcause
n
mode.
sameforth
e
otoreveryti
o
ldfor1.5s
e
u
llthepowe
r
ittoenterh
e
rollmotor.
me,otherwi
s
e
conds,and
r
switchdow
n
ibernation
m
s
eit
then
n
and
m
ode.
![](/img.php?id=2748995&img=bgc.png)
po
w
Con
t
Con
t
Shu
t
Pre
s
Rec
o
Pre
s
Ca
m
Indi
c
Ensureth
a
w
eringonthe
t
rolStick
t
rolsthepan
t
terButton
s
singthisbut
t
o
rdButton
s
sthisbutton
m
eraStatusL
E
c
atestheca
m
a
tthegimbal
Osmo.
andtiltmoti
t
onwilltake
oncetostar
t
E
D
m
era’ssyste
m
isunlocked
a
onsofthec
a
photosbase
d
t
recordingv
i
m
status.Refe
a
ndthethre
e
a
mera.Pushl
d
onyourset
t
i
deo,andag
a
rtothetabl
e
e
motoraxes
eftorrightt
o
t
ingsinthe
D
a
intostopre
e
belowford
e
canrotatefr
e
o
pan,upor
d
D
JIGOapp.
cording.
e
tails.
e
elybefore
d
owntotilt.
![](/img.php?id=2748995&img=bgd.png)
CameraStatusLEDDescription
SolidGreenCameraisfunctioningnormally/Successful
firmwareupgrade.
SolidRedCameraisnotmountedonOsmoproperly/
Firmwareupgradeoroperationerror.
BlinksGreenShootingPhoto.
BlinksGreenslowlyDelayinshooting.
BlinksGreenforeachshotBurstshooting.
BlinksRedandGreenalternatelyUpgradingfirmware.
BlinksYellow MicroSDcardwarning(suchasformatting
initialization)
SolidYellowMicroSDcarderror.
BlinksRedtwiceCameraerror.
SystemStatusLED
IndicatesthestatusoftheOsmo.Refertothetablebelowfordetails.
SystemStatusIndicatorDescription
BlinksYellowTherollangleofhandleislessthan45°,the
gimbalwillnotpoweron
BlinksGreenquickly TheOsmoisinitializing(alongwithbeeping)
SolidGreenTheOsmoisfunctioningnormally
SolidYellowLow‐batterylevelwarning
BlinksRedtwiceatatimeCriticallowbatterylevelwarning
BlinksGreen,YelloworReddependingonthe
currentbatterylevel
Thetriggerbuttonispressedandthegimbal
isinlockmode
SolidRedTheOsmoisfunctioningabnormally.
BlinksGreen,YelloworReddependingonthe
currentbatterylevel
TheOsmoisinhibernationmode.
BlinkingGreenquicklyExitinghibernationmode.
![](/img.php?id=2748995&img=bge.png)
Trig
g
The
cam
cam
Pre
s
posi
onc
e
Pre
s
Ext
e
Atta
Buil
t
Rec
o
g
erButton
SmoothTrac
k
erawillsmo
o
erawillsmo
o
s
stheTrigger
tion,nomat
t
e
thebutton
s
stheTrigger
e
rnalMicrop
h
chanextern
a
t
‐inMicroph
o
o
rdsaudio.Y
o
Theextern
a
k
modeisen
a
o
thlypanan
d
o
thlytiltand
Buttonand
h
t
erhowthe
h
isrelease.
Buttontwic
e
h
oneInput
a
lmictothis
o
ne
o
ucanturn
o
a
lmicrophon
e
a
bledbydef
a
d
slowdown
t
slowdownt
o
h
oldwillena
b
h
andleisrot
a
e
quicklytor
e
inputtorec
o
o
f
f
reception
e
willoverrid
a
ult.Whent
h
t
ostop,whe
n
o
stop.
b
leLockMo
d
a
ted.TheOs
m
e
turntheca
m
o
rdhighqual
intheDJIG
O
eaudiorece
p
h
ehandleisr
o
n
thehandle
d
e.Thecame
m
owillswitc
h
m
eratothec
e
ityaudio.
O
app.
p
tionofthe
b
o
tatedlefto
r
isrotatedu
p
rawillstaya
t
h
backtoSm
o
e
nter.
b
uilt‐inmicr
o
r
right,the
p
ordown,th
e
t
thecurrent
o
othTrackm
o
o
phone.
e
o
de
![](/img.php?id=2748995&img=bgf.png)
DJI GO App
YoumayseewhatthecameraseesinyourmobiledeviceinarealtimeHDthroughDJIGOapp,
camerasettingsandgimbalsettingscanbeconfiguredintheapptoo.
Download
Search‘DJIGO’ontheAppStoreorGooglePlayanddownloadtheapptoyourmobiledevice.
Connecting to the DJI GO App

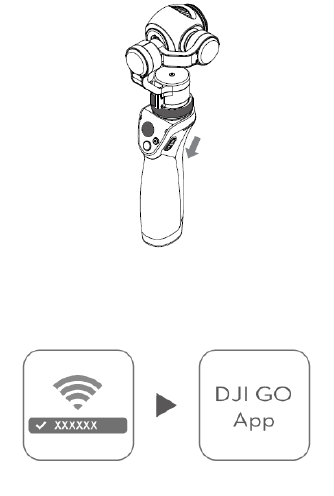

1.Pulldownthepowerswitchandholdfor1.5seconds,thenreleasetoturnontheOsmo.Do
nottouchthegimbalduringself‐check.
2.Onyourmobiledevice,select’xxx’fromtheWi‐Finetworks,andenterthedefaultpassword.
ThenlaunchtheDJIGOapp.
3.EnterCameraView,thenyouwillseewhatthecameracapturesinrealtimeifitisconnected
successfully.
![](/img.php?id=2748995&img=bg10.png)
DJI GO App Settings
1. Equipment-> Enter Camera View
[1]OsmoInformation
DisplayISO,ShutterSpeed,EV,CurrentBatteryLevel,Wi‐FisignalStrength.
[2]PhotoorVideo
Slidetoswitchphotoorvideomode.
[3]Photo/VideoSettings
PhotoSettings
Single
Singleshoot,delay5secordelay10secshoot.
Multiple
Burstshooting3/5/7framesorAutoExposureBracketing(AEB)3/5bracketedframesat0.7EV
Bias.
PANO
Auto:Thecamerawillautomaticallyrotate360degreetotakeapanoramicphoto.
Manual:Youmaysetupthestartandstopposition,thenthecamerawillrotatebetweenthetwo
positionsandtakeapanoramicphoto.
Selfie:Thecamerawillautomaticallyadjustthelenspointtoyouandrotate180degreestotakea
panoramicphoto.
Interval
5sec,10sec,30sec
VideoSettings
Auto:Thevideocanberecordingwithoutotherinput.
![](/img.php?id=2748995&img=bg11.png)
TimeLapse:Thevideocanberecordingafterthesettingdelaytime.
SlowMotion:Thevideocanberecordinginslowmotion.
[4]ShutterButtonandStart/StopRecordingButton
Taponcetoshootorstart/stoprecording.
[5]CameraParametersSettings
SettingCameramode,Iris(availablewhenusingZenmuseX5onOsmo),ISO,EV,andWB.
[6]PlayBackButton
Taptoviewyourphotoorvideo.
[7]TimeBar
Displaythevideorecordingtimeandremainrecordingtime.
[8]Settings
CameraSettings
VideoResolution,VideoFormat,PhotoScale,PhotoFormat,OverexposureWarning,Grid
Histogram,Anti‐Flicker,RecordAudio,EnhanceContrastandVideoStandardscouldbesetup
here.YoumayalsoviewtheSerialNumber,enableYouTubeLiveStreamandResetCamera.
GimbalSettings
PresetProfiles
ThreepresetprofilesareprovidedforuserstoquicklysetuptheSmoothTrackspeed,
SmoothTrackacceleration,deadband,controlsticksmoothing,andcontrolstickmaximumspeed.
Usersmayalsocreatetheircustomprofiles.
Deadband
Alargerdeadbandrequiresmorepan/tilt/rollhandlemovementtotranslateintogimbalmotion.
SmoothTrackSpeed
SmoothTrackspeeddetermineshowfastthegimbalwillcatchupwiththetranslatedpan/tilt/roll
handlemovement.
SmoothTrackAcceleration
TheSmoothTrackaccelerationdetermineshowcloselythecamerawillfollowthetranslated
pan/tilt/rollhandlemovement.
ControlStickSmoothing
![](/img.php?id=2748995&img=bg12.png)
Smoothingaffectsthedecelerationofthegimbal.Alowsmoothingvaluewillcausethegimbalto
stopabruptly.
MaxControlStickSpeed
Thissettingrepresentsthemaximumspeedofthetiltandpanaxiswhenthestickispushallthe
wayinanygivendirection.
RollAxisAdjustment
Adjusttherollaxisanglehere.Increasingthepositivevaluewillrotatetherollaxisclockwise
whileincreasingthenegativevaluewillrotatetherollaxiscounterclockwise.
GeneralSettings
YoumayresettheWi‐FipasswordandviewtheSSIDhere.
Othersettingssuchasvideocache,MicroSDcardformatcanbesetuphere.Youmayviewthe
currentfirmwareversionandrestoretodefaultsetting.
[9]PhotoFilters
Variousfilterstoenhanceyourphotos.
[10]GimbalFunctions
Tapanyobjectinthecameraview,thegimbalwillfollowtheselectedobjectallthetime.Tapto
enablelockmodeofthegimbal,thecamerawillalwayspointtooneposition.Taptoreposition
thecameratocenter.
[11]HDR
Turnonhighdynamicrangeimaging.
[12]Home
Taptonavigatetothehomescreen.
2. Library
View,editandshareyourartworkallinoneplace.TheLibraryhasarangeofsimplebutpowerful
toolsthatletyouedityourvideosandphotosbeforesharingthemonline,minutesaftertheyare
captured.
ViewallthephotosorvideoswhichcapturebyOsmointheLibrary.TheDJIGOappissupportto
synchronizephotosandvideostoyourmobiledevice.Thebestpartisyoumayeditandcreate
yourownmovieusetheeditingfeatureintheLibrary.
Synchronization
Allofthephotosandvideoswillbeautomaticallycachedtoyourmobiledevice.Tapthe□icon
ontherightupcornerandchoosethevideoorphototodownloadtoyourlocalalbum.
EditVideo
1.OriginalFootage
AllofthevideosyouhaverecordwillbeshowupintheOriginalFootage.Watchoneofthe
videosbytappingit.Extractyourbestfootagewithintheyellowrectanglebytappingthescissor
button.
Thetimeoftheyellowrectanglecanbeadjustfrom6secondsto60seconds.Youmaychoose
oneormorefootages.TapSave,thechosenfootageswillbeshowupintheVideos.
2.Videos
Taptochooseonevideo,youmayedit,download,shareordeletethevideo.Tap√onthevideo
toselecttwoormorevideos.TapCreateMovietoedit.
Tapanyofthefootagetoedit,PlaySpeed,BrightnessAdjustment,SaturationandContrastcould
beset.Pressandholdtomoveordeletethefootage.
Therearedifferentmusic,videonumberandtimeforeveryvideotemplate.Tap★toaddwater
marks,sharingthelocation,authoranddate.
TapSavethenyoureditvideoswillbesavetoyourmobiledevice.
EditPhotos
Toedityourphotos,youmayadjusttheparameters,editthephotosize,addingwatermarkand
filter.
UploadandShare
OnceyouloginorregisteryourDJIaccount,youmayuploadandshareyourartworkconvenience.
ThesavedphotoandvideocouldbeuploadtoSkypixel,andtheywillalwaysbefoundandeasyto
visitandsharetosocialnetworksuchasFacebook,Twitter,WeChat,momentsandSinaweibo.
3. Explore
Findoutaboutourlatestevents,featuredproductsandtrendingSkypixeluploadsintheExplore
page.
![](/img.php?id=2748995&img=bg14.png)
4. Me
IfyoualreadyhaveaDJIaccount,youwillbeabletoparticipateinforumdiscussions,earn
CreditsintheDJIStore,andshareyourartworkwiththecommunity.
Ifyouhaveanyfurtherquestions,contactDJIonthispage.
OperationModes
Standard Mode
StandardModecanbeusedwithoutanyuserinput.
Hanging Mode
HoldingtheOsmoupsidedownwillcauseittoenterHangingMode,thecamerawillbeableto
captureinlowerpositionwhilethefootageisseennormal.Pressingthemodebuttontwice
quicklywillcenterthecamera.
![](/img.php?id=2748995&img=bg15.png)
Flashlight Mode
RotatetheOsmofor90degreesfromtheStandModewillentertoFlashlightMode.
Upgrade
Using Micro SD card to Upgrade
1.Ensurethebatteryhasatleast50%powerandthereisenoughfreespaceontheMicroSD
card.
2.DownloadthenewestfirmwareupdatepackagefromdownloadpageofOsmoproductpage
onDJIwebsite.
3.InserttheSDcardintoyourcomputer.Extractthe.binfileintotherootdirectoryoftheSDcard.
RemovetheSDcardfromyourcomputerandinsertittotheMicroSDcardslotonthecamera
whenOsmoispoweredoff.
4.UpgradewillbeginautomaticallyafterOsmoispoweredon.
Itwilltakeapproximately10minutestocompleteupgrade.Thegimbalwillsoundsshort
‘Di‐Di‐Di‐Di”duringtheprocedure.Thegimbalwillsounds‘Di‐DiDi’whenupgradesuccessfully.If
theupgradeisfailed,thegimbalwillsounds‘Di‐‐‐‐‐‐‐‘,pleasetrytoupgradeagain.
Upgrade the Osmo through DJI GO App
ConnecttheOsmoandDJIGOapp,therewillbeareminderifthereisanewfirmwareversion.It
isneedtobeconnecttointernetwhendownloadthefirmwarepackage.UpgradetheOsmo
accordingtothetipspop‐upinDJIGOapp.
Itwilltakeapproximately10minutestocompleteupgrade.Thegimbalwillsoundsshort
![](/img.php?id=2748995&img=bg16.png)
‘Di‐Di‐Di‐Di”duringtheprocedure.Thegimbalwillsounds‘Di‐DiDi’whenupgradesuccessfully.If
theupgradeisfailed,thegimbalwillsounds‘Di‐‐‐‐‐‐‐“,pleasetrytoupgradeagain.
Youmayreadthe.txtfileontheSDcardtoconfirmtheupgraderesult.
Maintenance
ItisrecommendtolocktheOsmoduringtransportationtoprotectthegimbal.Switchthepan
axislockdownandrotatethepanaxistothelockedposition(untilitcouldnotrotate),andthen
adjusttherollmotorpriortotiltmotortolocktheminplace,asshownbelow.
Besuretounlockthegimbalandadjustthecameratostandardoperationmodebeforepowering
onagain.
TheOsmoisaprecisemachineanditisnotwaterresistant.Keepitawayfromsandanddust
duringusage.Afteruse,itisrecommendedtowipetheOsmodownwithasoftdrycloth.Never
sprayanycleaningliquidsontotheOsmo.
Specifications
Handle
Dimensions61.8x48.2x161.5mm
Weight(BatteryIncluded)205g
BicycleMountWeight 105.5g
BicycleMountDimensions113.5x79x29.3mm
MobileDeviceHolderWeight118g
![](/img.php?id=2748995&img=bg17.png)
MobileDeviceHolder
Dimensions
116x30x34mm
TripodWeight262.5g
TripodSize(Folded)φ36x171mm
Gimbal‐ZENMUSEX3
Weight215g
OutputPower(WithCamera)Static:9w;Dynamic:11w
AngularVibrationRange+‐0.03°
MountingDetachable
ControllableRangeTilt:-45°to+135°;Pan:+-320°;Roll-45°to+45°
MechanicalRangeTilt:-90°to+150°;Pan:+-330°;Roll-50°to +90°
MaxControllableSpeed
Camera‐X3/FC350h
SensorSonyExmorRCMOS;1/2.3”;Effectivepixel12.40M(Tota lpixel
12.76M)
PhotoResolution94°FOV20mm(35mmformatequivalent)f/2.8,focusat3.5m
ISORange100‐3200(video);100‐1600(photo)
ElectronicShutterSpeed8s‐1/8000s
MaxImageSize4000x3000pixels
StillPhotographyModesPhotoburstmode:3/5/7shots
AutoExposureBracketing(AEB):3/5bracketedframesat0.7EVbias
Time‐lapse
VideoRecordingModesUHD:4096x2160p24/25;3840x2160p24/25/30
2.7K:(2704x1520p30)
FHD:1920x1080p24/25/30/48/50/60
HD:1280x720p24/25/30/48/50/60
MaxVideoBitrate60Mbps
SupportedFileFormatsFAT32/exFAT
Photo:JPEG,DNG
Video:MP4/MOV(MPEG‐4AVC/H.264)
SupportedSDCardsMicroSD;MaxCapacity:64GB;Class10orUHS‐1
OperatingTe m perature 0°to40°C
AudioOutputDualtrack,48KHz,AAC
IntelligentBattery
ModelHB01‐522365
TypeLiPo
Capacity10.8Wh,980mAh
ChargingTem p e ratu re15°to40°C
OperatingTe m perature0°to50°C
BatteryCharger
Model SOY015A‐1260120
Input100-240V,50/60Hz
Output12.6V,1.2A
FCCWarningMessage
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
ICRSSwarning
ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).
Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcause
interference,and(2)thisdevicemustacceptanyinterference,includinginterference
thatmaycauseundesiredoperationofthedevice.
LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesaux
appareilsradioexemptsdelicence.
L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1)l'appareilnedoitpasproduiredebrouillage,et
(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,même
silebrouillageestsusceptibled'encompromettrelefonctionnement.
ICRadiationExposureStatement:
ThisequipmentcomplieswithICRFradiationexposurelimitssetforthforan
uncontrolledenvironment.Thistransmittermustnotbeco‐locatedoroperatingin
conjunctionwithanyotherantennaortransmitter.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.
KCCWarningMessage
“해당무선설비는운용중전파혼신가능성이있으므로인명안전과관련된
서비스는할수없습니다.”
“해당무선설비는운용중전파혼신가능성이”있음
NCCWarningMessage
低功率電波輻射性電機管理辦法
第十二條經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅
自變更頻率、加大功率或變更原設計之特性及功能。
第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象
時,應改善至無干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通
信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
