Portable Navigation System
Instruction Manual
NVM-4370
![](/img.php?id=930939&img=bg2.png)
1 Operating Basics
You can now turn it on to calibrate the screen. After screen
calibration, proceed to system settings configuration.

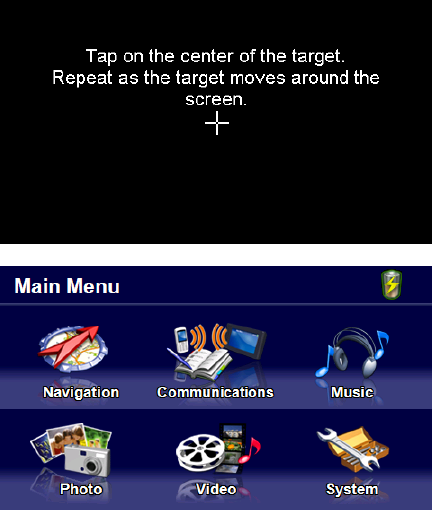

2 To turn on and calibrate the device
2.1 Turn on the Battery ON / OFF switch.
2.2 Tap the center of the target as it moves around the screen.
2.3 After calibration are finished, the “Main Menu” opens.
![](/img.php?id=930939&img=bg3.png)

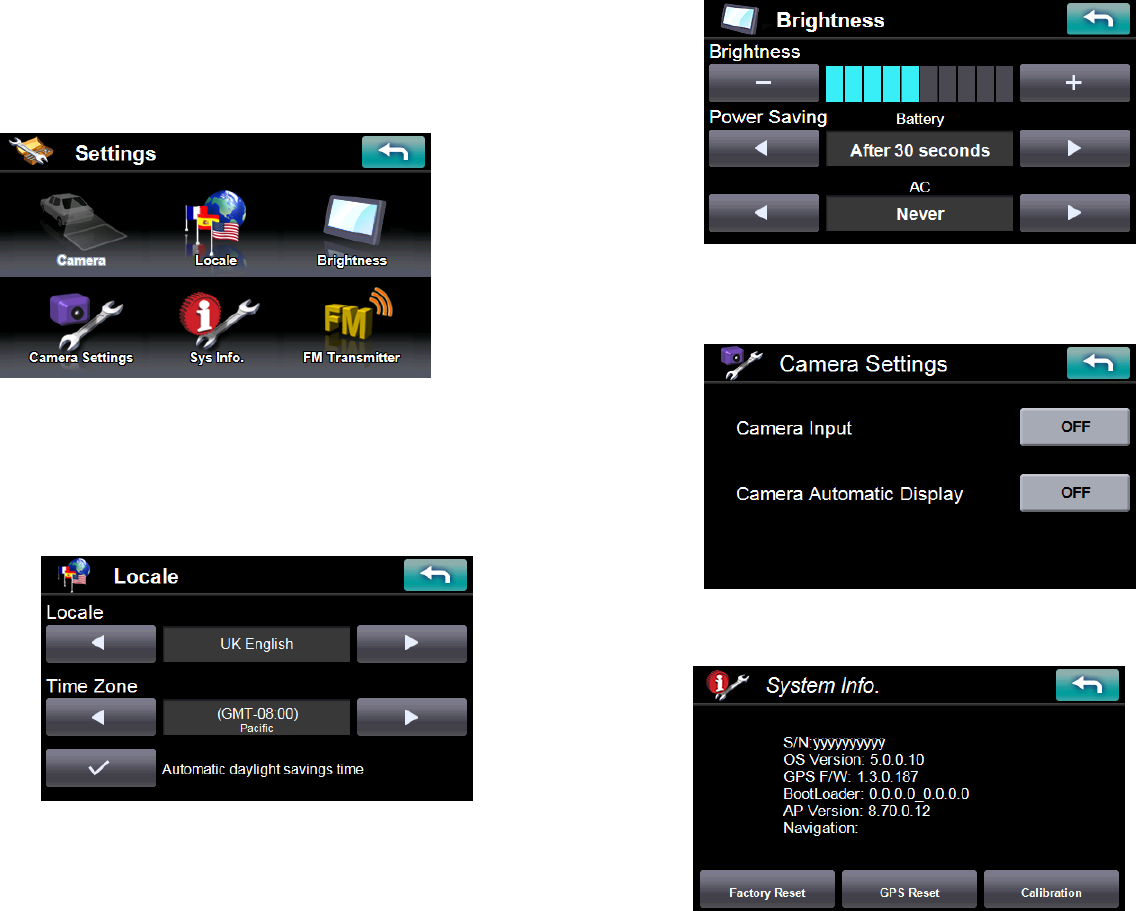

3 System Settings
System setting can be used to view and adjust your device
current preferences.
Navigate from the “Settings” Menu.
3.1 Camera
View the camera input image.
3.2 Local
3.2.1 To set the system language settings.
3.2.2 To set the time zone settings.
3.2.3 If you check “Automatic daylight saving time”, adjusts
clock for daylight saving automatically.
3.3 Brightness
3.3.1 Tap “+” or “-” to set the Backlight brightness.
3.3.2 Tap the left or right arrow to set the LCD power-save of
battery and AC power drive modes.
3.4 Camera Settings
3.4.1 Whether camera can input. Note:
3.4.2 Whether enable automatic display. If camera inputs,
display camera image on screen automatically.
3.5 System Information
3.5.1 You can view the OS version, GPS firmware version and
other system informations.

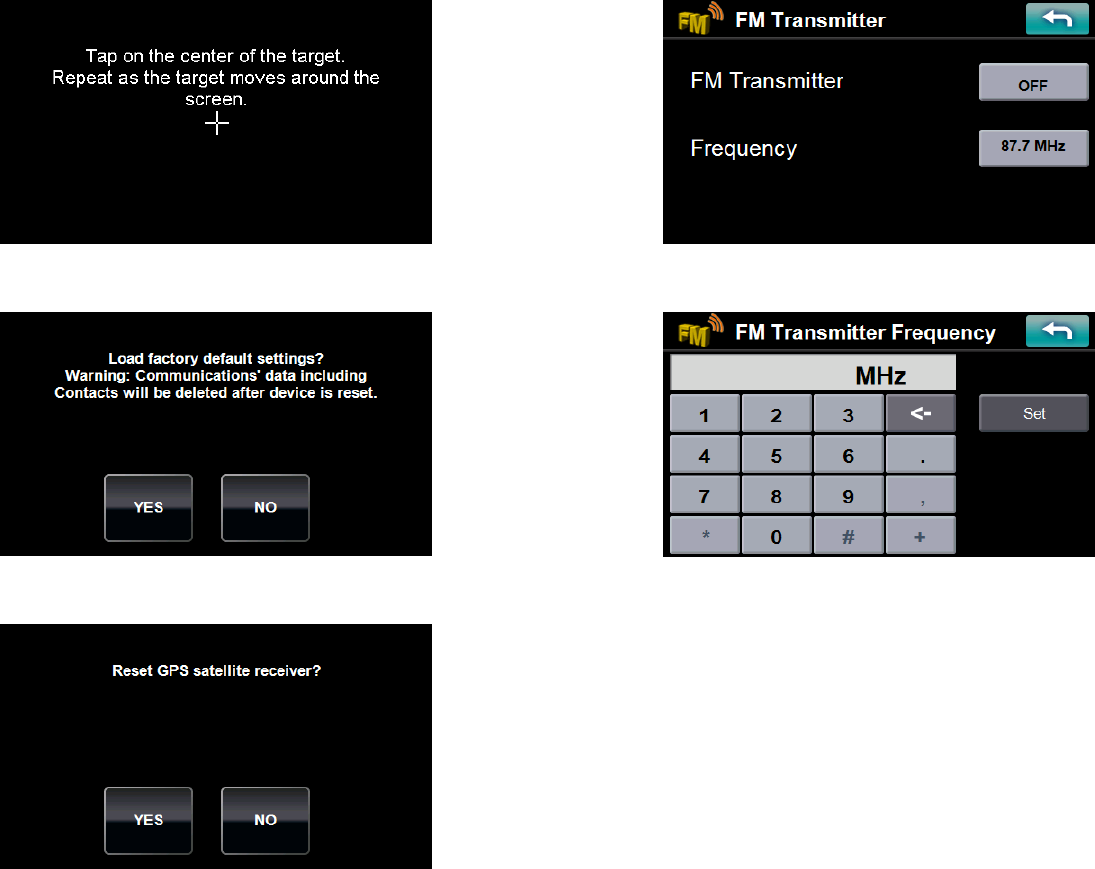

3.5.2 Tap “Calibration” to open the Calibration screen of the
touch panel. Tap the center of the target as it moves
around the screen.
![](/img.php?id=930939&img=bg4.png)
3.5.3 Tap “Factory Reset” to open a dialog box to select
whether to reset the settings. Tap “YES” to reset the
settings and “NO” not to reset the settings.
3.5.4 Tap “GPS Reset” to open a dialog box to select whether
to reset the GPS satellite receiver. Tap “YES” to reset the
receiver and “NO” not to reset the receiver.
3.6 FM Transmitter
3.6.1 Click ON/OFF button to switch FM Transmitter status.
3.6.2 Tap the “XX.X MHz” button.
3.6.3 Input frequency using “FM Transmitter Frequency”
screen and then tap “Set”.
![](/img.php?id=930939&img=bg5.png)
4 Communications
“Communications” provides the various functions with the
Bluetooth mobile phone. “Communications” main menu is as follows:
4.1 Connection
4.1.1 Set Bluetooth to “ON” in the “Settings”, and tap the
“Connection” button of the “Communications” screen.
4.1.2 Tap the “Search” button. NVM-4370 starts to search
available mobile phones.
4.1.3 The available phones are displayed on the phone list.
Select one of the mobile phones and tap the “Connect”
button.
4.1.4 The mobile phone will often require you to enter a
password to connect the device. Enter “0000” on the
mobile phone in this case.
4.1.5 The mobile phone will often require you to enter a
password to connect the device. Enter “0000” on the
mobile phone in this case.
4.2 Call-out (Hands-free Calling)
4.2.1 “Call-out” screen is as follows
N
o. Name Description
1 Dial-up Start to make a call.
2 History Call-out from the history of the incoming / outgoing
call
3 Contacts Call-out from the contacts. In detail, refer to 4.3.
4.2.2 “Call-out” (in a phone cell)
N
o. Name Description
4 Hang-up Close a phone call.
5Mute
Set the microphone muting. :Set the microphone
mute to ON. :Set the microphone mute to OFF.
4.2.3 Making a Call
4.2.3.1 Tap the “Call-out” button of the
“Communications”, the “Call-out” screen opens.
4.2.3.2 Input a phone number and tap Dial-up.NVM-4370
starts to make a call.
4.2.3.3 Tap Hang-up, the phone call quits.
![](/img.php?id=930939&img=bg6.png)

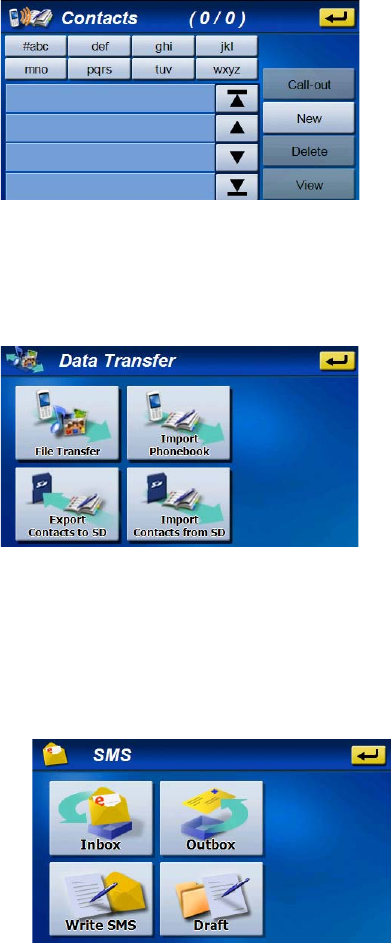

4.3 Contacts
“Contacts” screen is as follows:
4.3.1 New: add a new entry.
4.3.2 Delete: delete a entry
4.3.3 View: view the detail on entry.
4.3.4 Call-out: call-out according content of entry.
4.4 Data Transfer
4.4.1 File Transfer: get mp3 or photo from ceil phone.
4.4.2 Import Phonebook: get phonebook from ceil phone to
NVM-4370.
4.4.3 Export Contacts to SD: export contacts to SD as vCard
files.
4.4.4 Import Contacts from SD: import vCard files from SD.
4.5 SMS (Short Message Service)
4.5.1 Inbox: Save incoming SMS.
4.5.2 Outbox: Save outgoing SMS.
4.5.3 Draft: Save draft SMS.
4.5.4 Write SMS: Create a new SMS.
![](/img.php?id=930939&img=bg7.png)
5 Multimedia Players
NVM-4370 provides you with a full multi-media entertainment
system. Enjoy your favorite music, photo and movie on the road.
5.1 Music Player
5.1.1 Features
5.1.1.1 Support for MP3, WMA, and WAV files.
5.1.1.2 Music files on both of NVM-4370’s internal
memory and SD card can be played back
5.1.1.3 You can use navigation system while listening to
music. (Background music mode)
5.1.1.4 Folder repeat / Song repeat / Random play modes.
5.1.2 Using the Music Player
N
o. Function Description
1 Skip backwards/
forwards Advances one song backward and forward
2 Play / Pause Plays or Pauses the music
3 Random Play Sets play-mode to random order
4 Repeat Sets repeat mode (Song Repeat / Folder Repeat)
5 File Changes to File Explorer screen to select file
6 Memory/SD card Selects Data Storage (SD card / Internal Memory)
7 Volume Control Turns volume up/down
8 Slide-bar Changes playing location
9 Return Stops the music and returns to Main Menu
5.2 Photo Viewer
5.2.1 Features
5.2.1.1 Support for JPEG file.
5.2.1.2 Photo files on both of NVM-4370’s internal
memory and SD card can be displayed.
5.2.1.3 Slide-show mode and Rotation function.
5.2.2 Using the Photo Viewer
5.3 Video Player
5.3.1 Features
5.3.1.1 Support for MPEG4 files.
5.3.1.2 Movie files on both of NVM-4070’s internal
memory and SD card can be played back.
5.3.1.3 Fast Forward / Backward Play mode. (2x, 4x, 8x,
16x, 32x)
5.3.2 Using the Photo Viewer
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation
