This guide describes how to install the EchoPoint Signpost, including
hardware installation and using the software to configure the Signpost.
Signposts are short-range transmitters that provide their identity
information to the EchoPoint Series 600 tags (Tags) that are within
range. A Tag uses this information to relay positional information
about itself to an EchoPoint Reader SR-600-101 (Reader). The
Reader then provides this information to the Savi SmartChain system
software where it is used for asset management.
This chapter introduces the Signpost types, and provides references
to other chapters having detailed Signpost setup, installation,
and configuration information. EchoPoint Signposts are used in
conjunction with other Savi equipment, including the Savi Site
Managers and Readers. Installation and use of these components is
documented in their respective user guides. For information on setting
up the EchoPoint Reader SR-600-101, refer to the EchoPoint Reader
SR-600-101 Installation Guide. For information on setting up a Savi
Site Manager, refer to the Site Manager Installation Guide.
(FKR3RLQW6LJQSRVW'HVFULSWLRQ
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
(FKR3RLQW6LJQSRVW'HVFULSWLRQ
The EchoPoint Signpost is available in two configurations. Model
SP-600-201 has an external antenna, and SP-600-101 has an internal
antenna. Both configurations operate at a nominal frequency of 132 kHz.
0RGHO636LJQSRVW'HVFULSWLRQ
The EchoPoint Signpost SP-600-201 is a two-part assembly
consisting of a controller attached to an antenna. It is powered by AC
or DC, with the AC having a range of 85 to 264 Volts at 47 to 440 Hz,
while the DC range is 11 to 30 Volts.
0RGHO636LJQSRVW&DEOHVDQG
+DUGZDUH
Model SP-600-201 Signpost installation materials include:
• DC, 115 VAC, 220 VAC power cable (one supplied)
• Signpost configuration software
• Mounting kit
• Sensor cables (optional)
• Synchronization cables (optional)
(FKR3RLQW6LJQSRVW'HVFULSWLRQ
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
0RGHO636LJQSRVW'HVFULSWLRQ
The EchoPoint Signpost SP-600-101 is a one-part assembly
consisting of a controller with a built-in antenna. Like the Model
SP-600-201 Signpost, the Model SP-600-101 Signpost is powered
by AC or DC, with the AC having a range of 85 to 264 Volts at 47 to
440 Hz, while the DC range is 11 to 30 Volts.
0RGHO636LJQSRVW&DEOHVDQG
+DUGZDUH
Model SP-600-101 Signpost installation materials include:
•DC, 115 VAC, 220 VAC power cable (one supplied)
•Signpost configuration software
•Mounting feet
•Sensor cables (optional)
•Synchronization cables (optional)
![](/img.php?id=229184&img=bgc.png)
6SHFLILFDWLRQV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
6SHFLILFDWLRQV
EchoPoint Signpost specifications are documented in Table 1-1.
7DEOH 6LJQSRVW6SHFLILFDWLRQV
Signpost Type Specification
Model SP-600-201
Signpost Power AC or DC
AC range 85 to 264 Volts at 47 to 440 Hz, 800/400 ma
DC range 11 to 30 Volts, 800 ma
Weight 14.7 pounds (with controller mounted)
2 pounds (controller)
Dimensions 19.5" x 109.25" x 4.8"
19.5" x 109.25" x 2.5" (without controller)
7.5" x 7.5" x 3" (controller)
Model SP-600-101
Signpost Power AC or DC
AC range 85 to 264 Volts at 47 to 440 Hz, 800/400 ma
DC range 11 to 30 Volts, 800 ma
Weight 2.9 pounds
Dimensions 10.5" x 7" x 3" (includes the protrusion for
the connectors without the cables attached)
*HWWLQJ$VVLVWDQFH
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
*HWWLQJ$VVLVWDQFH
If you have trouble with the product, after you have checked your
connections and the EchoPoint Signpost Installation Guide,
contact Savi Technical Support.
7HFKQLFDO6XSSRUW
To contact Savi Technical Support:
•Telephone 1-888-994-SAVI (7284) between 8:00 a.m.
and5:00p.m.
, Pacific Time
•Or send e-mail to help@savi.com at any time
Whether you contact Savi by telephone or e-mail, please have
the exact sequence of operations (if possible) that caused the
problem and the following information available:
•Site location
•Incident description
•Estimated severity level of the incident
•Model number and version
•Serial number
•Computer type (Gateway, Dell, etc.) and model
•Operating system and service pack level
•Network protocol
![](/img.php?id=229184&img=bgf.png)
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
+DUGZDUH
,QVWDOODWLRQ 2
This chapter covers installing the EchoPoint Signpost Model
SP-600-201 and Model SP-600-101 hardware, including the
required tools and materials, site preparation, and making the
physical installation and power connections.
![](/img.php?id=229184&img=bg10.png)
5HTXLUHG0DWHULDOVDQG(TXLSPHQW
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
5HTXLUHG0DWHULDOVDQG
(TXLSPHQW
The required materials, equipment, and tools for installing both
EchoPoint Signpost models are listed in Table 2-1.
7DEOH 0DWHULDO(TXLSPHQWDQG7RROV5HTXLUHGIRU,QVWDOOLQJ6LJQSRVWV
Signpost Required material, equipment, and tools
SP-600-201 Model SP-600-201 Signpost
Power source: 115 to 220 VAC, or 11 to 30 VDC
Mounting hardware
RS-232 cable
Computer with Signpost configuration software installed
Note: Signpost configuration software is shipped with the Model
SP-600-201 Signpost.
Optional equipment, including sensor cable and synchronization
cables
SP-600-101 Model SP-600-101 Signpost
Power source: 115 to 220 VAC, or 11 to 30 VDC
Mounting feet
RS-232 cable
Computer with Signpost configuration software installed
Note: Signpost configuration software is shipped with the Model
SP-600-101 Signpost.
Optional equipment, including sensor cable and synchronization
cables
![](/img.php?id=229184&img=bg11.png)
3UHSDULQJWKH6LWH
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
3UHSDULQJWKH6LWH
Mounting a Signpost requires no specific site preparation. The criteria
for placement and the preparation include the considerations listed in
Table 2-2.
7DEOH 6LWH3UHSDUDWLRQ&RQVLGHUDWLRQV
Consideration Addressed by ...
Safety Avoid selecting a Signpost installation location where
harm to the equipment or personnel is possible.
Power Select an installation location where power is
accessible.
Space Allow sufficient space to install the Signpost.
Coverage Make sure that the installation location is appropriate
for capturing data.
Model SP-600-201 Signpost coverage is a rectangle
with rounded corners that is approximately 12 feet
by 10 feet, measured on the floor under the Signpost
antenna.
Model SP-600-101 Signpost coverage is a circle that
is approximately 6 feet in diameter.
Note: The exact size and shape of these patterns is
dependent on several parameters, such as initial power
settings during installation, ambient noise levels, and
nearby obstructions. When installing, you need to
experiment to determine actual performance based on
needs.
Placement Signposts should be placed adjacent to a portal or other
choke point, covering an area where the assets must
pass or be stored.
![](/img.php?id=229184&img=bg12.png)
3UHSDULQJWKH6LWH
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
Locations not
permitted
Signposts must not be used in areas not permitted by
government regulation. Savi can help with determining
applicable countries and locations.
Overhead support for
Model SP-600-201
Signposts
Determine the layout and capacity of the overhead
structure that will be supporting the Signpost.
Model SP-600-201 Signpost assemblies, including the
Signpost and antenna (weight 14.7 pounds). Securely
attach the mounting hardware to structural members
such as joists, girders, purlins, headers, and beams. For
more information on mounting the Model SP-600-201
Signpost, see “Mounting the Signposts” on page 2-5.
7DEOH 6LWH3UHSDUDWLRQ&RQVLGHUDWLRQV
Consideration Addressed by ...
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
0RXQWLQJWKH6LJQSRVWV
This section covers the installation procedures for Model SP-600-201
and Model SP-600-101 Signposts.
0RXQWLQJWKH0RGHO63
6LJQSRVW
Model SP-600-201 Signposts can be hung adjacent to a portal or
other choke point using the supplied installation hanger kit. The
actual installation is dependent on the individual circumstances
and how power is to be supplied, but a number of tasks need to
be performed in all cases.
![](/img.php?id=229184&img=bg14.png)
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
» To mount a Model SP-600-201 Signpost
1. Attach a removable 1/8 inch link to each of the four mounting
brackets at the four corners of the unit.
)LJXUH 5HPRYDEOH/LQN
2. Using two lengths of plastic chain, attach each at both ends to the
four removable links, as shown in Figure 2-1 and Figure 2-2.
5HPRYDEOH
OLQN
![](/img.php?id=229184&img=bg15.png)
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH

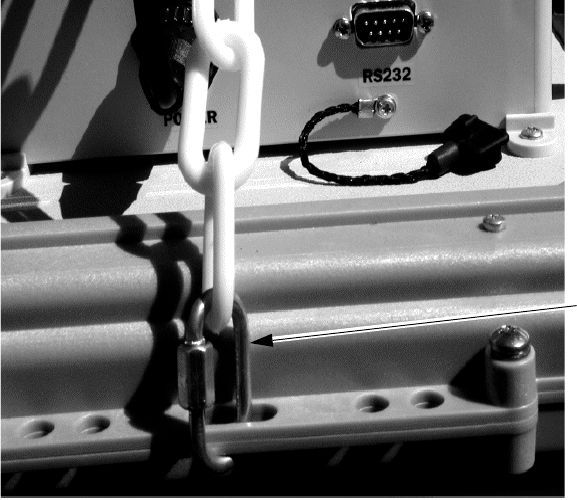

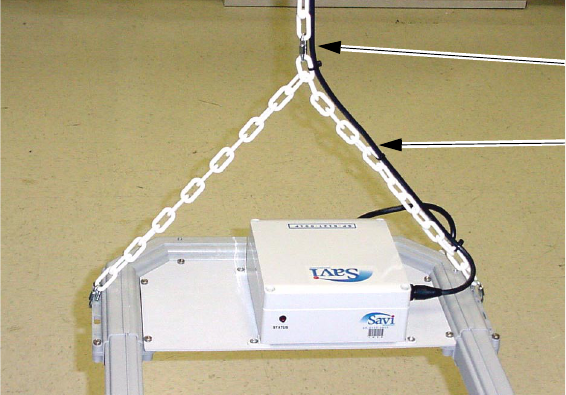

)LJXUH $WWDFKLQJ&KDLQ
3. Attach another removable link to the center of the chain, as
shown in Figure 2-2 above.
4. Attach the top removable link to an appropriate rope, cable, or
chain and fasten to a 3/8 inch eye screw or eye bolt (minimum
1-1/2 inch penetration into solid material, or through bolt).
5. Secure the power cord to the chain and route as required.
5HPRYDEOH
OLQN
3ODVWLFFKDLQ
![](/img.php?id=229184&img=bg16.png)
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
0RXQWLQJWKH0RGHO63
6LJQSRVW
Model SP-600-101 Signposts are supplied with mounting feet. The
actual installation is dependent on the individual circumstances and
how power is to be supplied, but a number of tasks need to be
performed in all cases.
»To mount a Model SP-600-101 Signpost
1. Attach the mounting feet.
Figure 2-3 below shows the mounting feet with the self-tapping
screws that attach them to the Signpost.
Figure 2-4 on page 2-9 shows a single mounting foot attached to
the Signpost. In this case it is mounted at an angle, but the foot
can be turned at different angles.

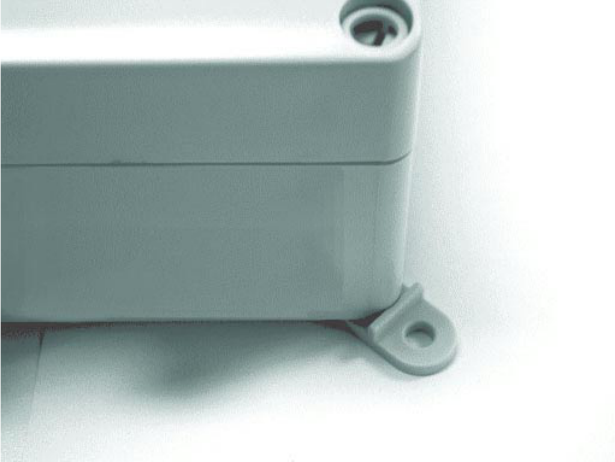

)LJXUH 0RXQWLQJ)RRWDQG$WWDFKPHQW6FUHZ
![](/img.php?id=229184&img=bg17.png)
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
)LJXUH 0RXQWLQJ)RRW$WWDFKHGWR0RGHO636LJQSRVW
2. Attach the mounting feet to the mounting surface.
DO NOT attach the mounting feet to drywall only, unless the
drywall is backed by solid structural material, in which case
screws need to penetrate a minimum of 3/4 inch into solid
material.
![](/img.php?id=229184&img=bg18.png)
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
&DEOLQJWKH0RGHO636LJQSRVW
The only cabling required for a basic installation is operating power.
This needs to be done in accordance with applicable safety
regulations. All cables should be routed and protected in a manner
which precludes damage to them or harm to personnel; for example,
unsecured extension cords left across access-ways or where assets or
asset moving equipment can damage them.
This section does not include connecting the Signpost to a computer
with a serial cable for Signpost software configuration. That activity
is covered in Chapter 3, “Signpost Configuration.”
The connectors and LED shown in Table 2-3 are available on a Model
SP-600-201 Signpost.
7DEOH 0RGHO636LJQSRVW&RQQHFWRUVDQG/('V
Connectors
and LEDs Description
Power The input power is connected here.
RS-232 Used to connect to a computer for setup and diagnostics by installers
and technicians.
Antenna The external loop antenna connects here
Sync In Used to synchronize 2 to 4 Model SP-600-201 Signposts to cover an
area larger than is possible with a single Signpost.This connector can
also accept DC volts from another Signpost to avoid running separate
power lines when two or more Signposts are synchronized
Sync Out Used to synchronize 2 to 4 Model SP-600-201 Signposts to cover an
area larger than is possible with a single Signpost. This connector can
also output DC volts to another Signpost to avoid running separate
power lines when two or more Signposts are synchronized
Sensor 1 A closure on these two pins will trigger a predefined Signpost action.
Sensor 2 A closure on these two pins will trigger a predefined Signpost action.
Status This LED indicates when power is applied and the Signpost mode of
operation:
On ½ second, off ½ second indicates normal operation
On 1 second, off 1 second indicates the Signpost is off but powered
On continuously indicates the Signpost is transmitting a CW signal
![](/img.php?id=229184&img=bg19.png)
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
»To cable a Model SP-600-201 Signpost:
No cabling is required for the Model SP-600-201 Signpost and
its antenna. This connection has already been made, as shown in
Figure 2-5.

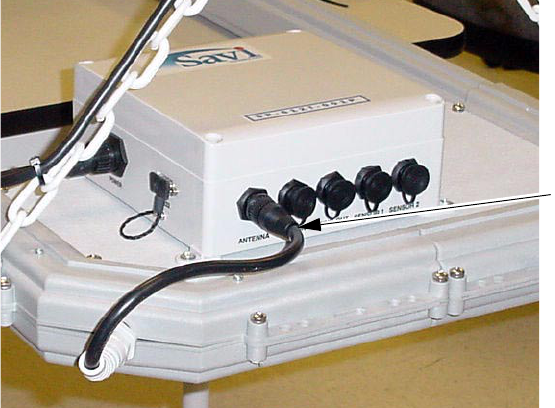

)LJXUH 0RGHO636LJQSRVW$QWHQQD&RQQHFWLRQ
1. Run the appropriate power cable to the Signpost.
2. Connect the power cable to the Signpost Power connector,

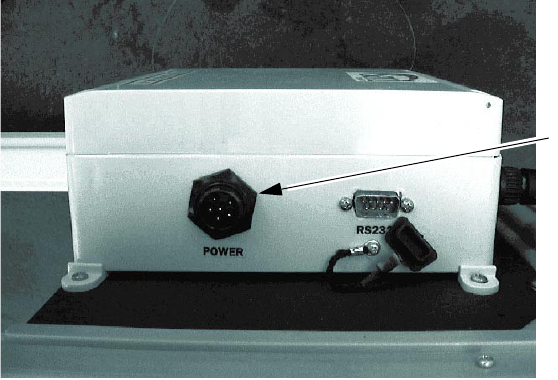

as shown in Figure 2-6.
Note: The socket-outlet shall be installed near the
equipment and shall be easily accessible.
$QWHQQD
FRQQHFWLRQ
![](/img.php?id=229184&img=bg1b.png)
0RXQWLQJWKH6LJQSRVWV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
&DEOLQJWKH0RGHO636LJQSRVW
The connectors and LED shown in Table 2-4 are available on a Model
SP-600-101 Signpost.
»To cable a Model SP-600-101 Signpost
1. Cable the Model SP-600-101 the same as the Model SP-600-201.
For cabling, the Model SP-600-101 is identical to the cabling
for the Model SP-600-201 except that the Model SP-600-101
has an internal antenna.
See “Cabling the Model SP-600-201 Signpost” on page 2-10.
2. Continue with configuration using the Signpost configuration
software.
See “Configuring Signpost Operation Settings” on page 3-3.
7DEOH 0RGHO636LJQSRVW&RQQHFWRUVDQG/('V
Connectors
and LEDs Description
Power The input power is connected here.
RS-232 Used to connect to a computer for setup and diagnostics by installers
and technicians.
Sync In Used to synchronize 2 to 4 Model SP-600-101 Signposts to cover an
area larger than is possible with a single Signpost. This connector can
also accept DC volts from another Signpost to avoid running separate
power lines when two or more Signposts are synchronized
Sync Out Used to synchronize 2 to 4 Model SP-600-101 Signposts to cover an
area larger than is possible with a single Signpost. This connector can
also output DC volts to another Signpost to avoid running separate
power lines when two or more Signposts are synchronized
Sensor 1 A closure on these two pins will trigger a predefined Signpost action.
Sensor 2 A closure on these two pins will trigger a predefined Signpost action.
Status This LED indicates when power is applied and the Signpost mode of
operation:
On ½ second, off ½ second indicates normal operation
On 1 second, off 1 second indicates the Signpost is off but powered
On continuously indicates the Signpost is transmitting a CW signal
6LJQSRVW6\QFKURQL]DWLRQ
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
6LJQSRVW6\QFKURQL]DWLRQ
For a transmit group to work, the Sync cable must be connected
between the Signposts. These optional cables are available from
Savi Technology in variable lengths.
»To cable a Signpost for synchronization:
1. Connect the female end of the cable to the Sync In connector
of the Signpost.
2. Connect the male end of the cable to the Sync Out connector
of another Signpost in the synchronized group.
3. Create group number assignments.
See “Configuring Signpost Operation Settings” on page 3-3.
![](/img.php?id=229184&img=bg1d.png)
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
6LJQSRVW
&RQILJXUDWLRQ 3
Signpost operation requires that you configure some Signpost
parameters using the Signpost configuration software application.
This chapter provides instructions for connecting Signposts to the
computer and configuring Signposts using the software.
Note: It is assumed that the Signpost configuration software
application is installed on the computer being used
to configure a Signpost.
![](/img.php?id=229184&img=bg1e.png)
&RQQHFWLQJ6LJQSRVWVWRD&RPSXWHU
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
&RQQHFWLQJ6LJQSRVWVWRD&RPSXWHU
Signposts are connected to a computer with an RS-232 serial
connection. Both Model SP-600-201 and Model SP-600-101
Signposts have an RS-232 port which is temporarily used for
configuration with Signpost configuration software when the
Signpost is installed. Figure 3-1 shows the serial ports for the Model
SP-600-201 Signpost. The Model SP-600-101 RS-232 is similar.

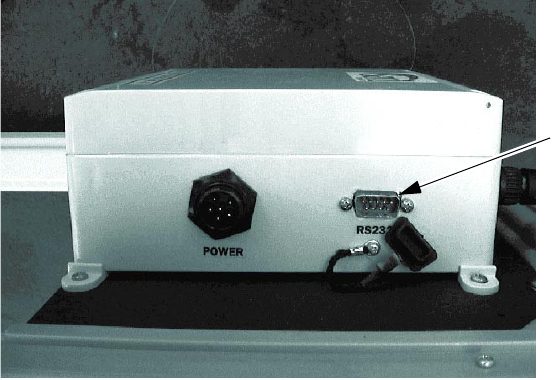

)LJXUH 0RGHO636LJQSRVW563RUW
56
SRUW
&RQILJXULQJ6LJQSRVW2SHUDWLRQ6HWWLQJV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
&RQILJXULQJ6LJQSRVW2SHUDWLRQ
6HWWLQJV
Either before or after the Signpost is installed, the installer should
set and verify the following settings for operation. This activity is
performed using a computer having the Signpost configuration
software application installed.
Before verifying these settings, you need to connect the computer
to the Signpost, which is documented in “Connecting Signposts to a
Computer” on page 3-2.
»To verify the operation settings:
The following Signpost configuration application parameters need
to be verified.
1. Configure the Signpost ID (1 to 65535)
The Signpost ID should be a unique number in the facility.
The Signpost can be identified in the system by associating this
number with a description in the Site Manager configuration.
2. Transmit group number (0 to 10)
The Transmit group number is used when a number of Signposts
are transmitting at the same time or a different time. The factory
setting is 0. The Signpost will not synchronize when the group
number is 0. When you program a number from 1 to 10, Signposts
having the same group number will transmit simultaneously.
Otherwise, they transmit at a different time.
3. Beacon Control on/off
The Beacon Control on/off option is used to program the tag
whenever changing the beacon mode of the tag is required.
When this option is disabled, the tag remains in the same mode.
When the option is enabled, the tag beacon mode will be changed
according to the command.
&RQILJXULQJ6LJQSRVW2SHUDWLRQ6HWWLQJV
(FKR3RLQW6LJQSRVW,QVWDOODWLRQ*XLGH
4. Power level
Generally, the maximum setting of 1023 is used, but this number
can be reduced to reduce power; the higher the number, the
higher the power. However, range does not increase linearly with
an increase in the power level, and may require a number of trial
settings to achieve the appropriate power level.
5. Tx Mode
The Tx mode should be set to normal mode.
6. Status
The version should be verified so that all Signposts are
compatible with the system.
