![](/img.php?id=482128&img=bg1.png)

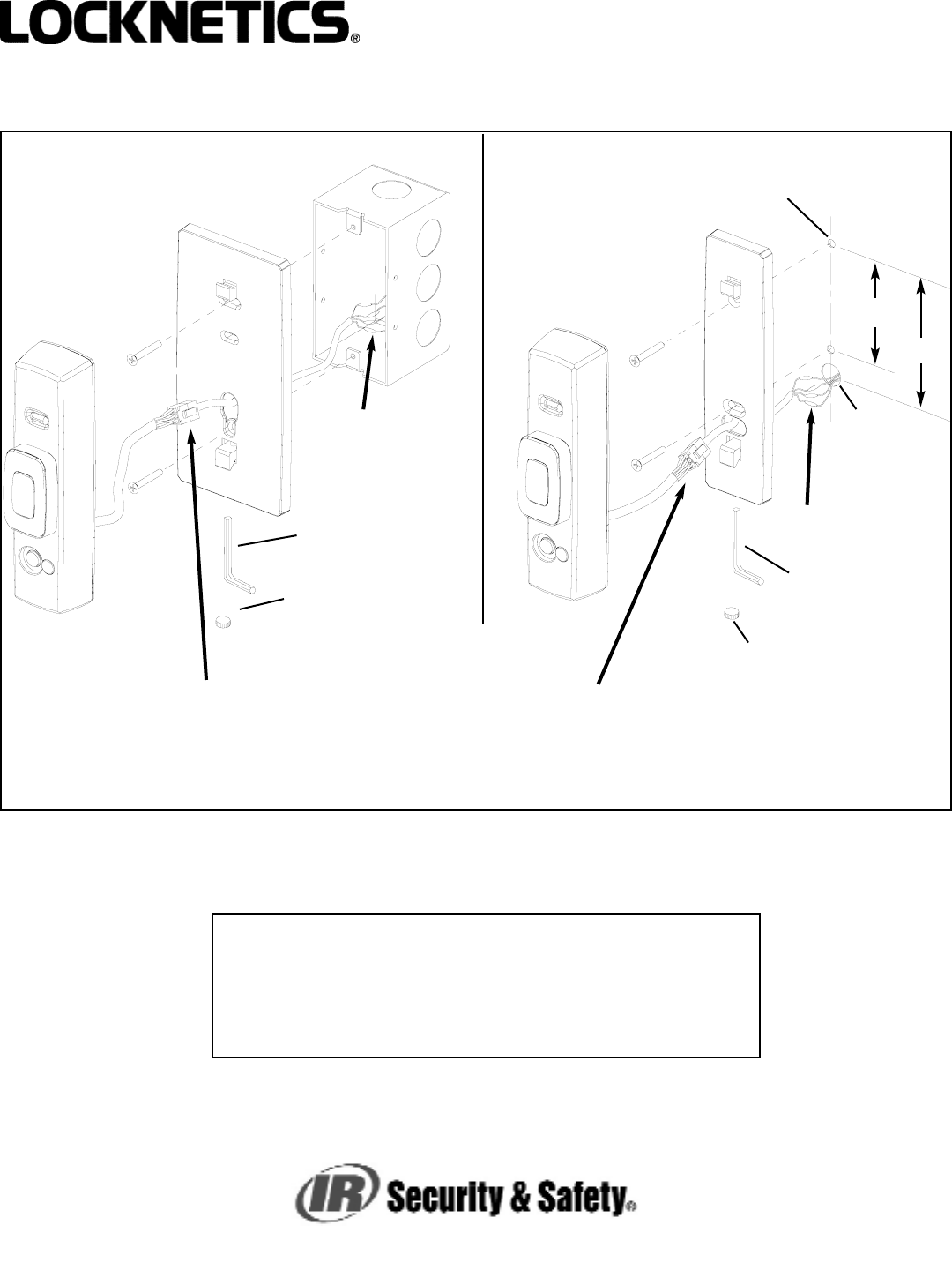

7/64” HEX
WRENCH
7/64” HEX
WRENCH
SG NS
ANT-TAMPER PLUG
FIELD CONNECTIONS
(IF REQUIRED)
DO NOT CUT THIS PLUG OFF. USE INTERFACE CABLE PROVIDED.
IT MAY BE NECESSARY TO CUT INTERFACE CABLE IN ORDER TO
PULL IT THROUGH CONDUIT, ETC. IF NECESSARY BE SURE TO
MAKE GOOD QUALITY FIELD CONNECTIONS.
ANT-TAMPER PLUG
2 3/4”
3 5/16”
3/4”
DRILL/TAP 6-32
TYP(2)
FIELD CONNECTIONS
(IF REQUIRED)
SEE SYSTEM INSTRUCTIONS FOR MORE INFORMATION.
FORM 77005 Rev. A 10/25/2004
MODULAR READER INSTRUCTIONS:
KP, MG, PXH
This device complies with part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including any interference that may cause undesired opera-
tion. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
FCC Note for PXH models only:
