www.schneider-electric.com

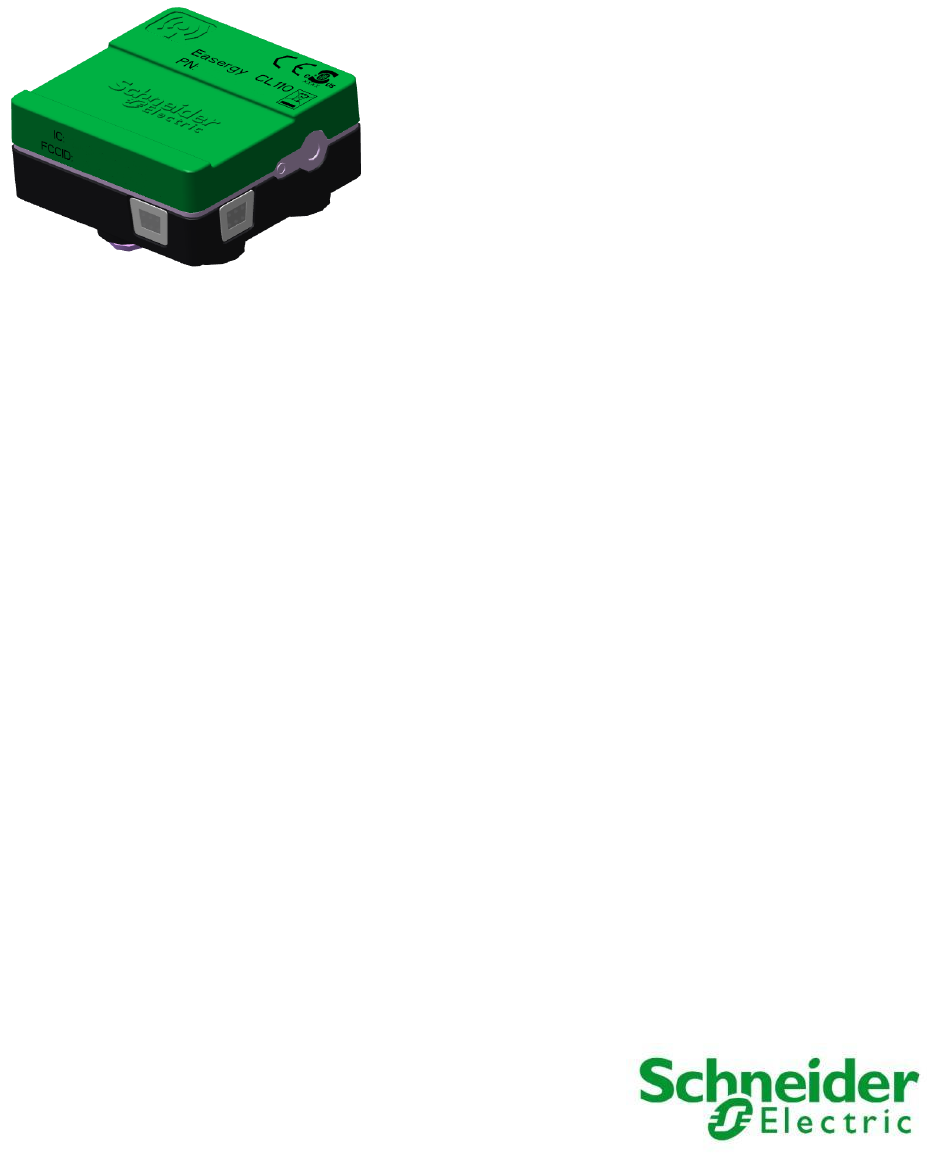

Easergy
CL110
Installation and Operation Manual
QGH40088 Rev A
05/2017
![](/img.php?id=3476390&img=bg2.png)
CL110 User Manual Legal Information
2
Legal Information
The Schneider Electric brand and any registered trademarks of Schneider
Electric Industries SAS referred to in this guide are the sole property of
Schneider Electric SA and its subsidiaries. They may not be used for any
purpose without the owner's permission, given in writing. This guide and its
content are protected, within the meaning of the French intellectual property
code (Code de la propriété intellectuelle français, referred to hereafter as "the
Code"), under the laws of copyright covering texts, drawings and models, as
well as by trademark law. You agree not to reproduce, other than for your own
personal, noncommercial use as defined in the Code, all or part of this guide on
any medium whatsoever without Schneider Electric's permission, given in
writing. You also agree not to establish any hypertext links to this guide or its
content. Schneider Electric does not grant any right or license for the personal
and noncommercial use of the guide or its content, except for a non-exclusive
license to consult it on an "as is" basis, at your own risk. All other rights are
reserved.
Electrical equipment should be installed, operated, serviced and maintained
only by qualified personnel. No responsibility is assumed by Schneider Electric
for any consequences arising out of the use of this material.
As standards, specifications and designs change from time to time, please ask
for confirmation of the information given in this publication.
![](/img.php?id=3476390&img=bg3.png)
CL110 User Manual Safety Information
3
Safety information
Important information
Read these instructions carefully, and look at the equipment to become
familiar with the device before trying to install, operate, or maintain it. The
following special messages may appear throughout this documentation or on
the equipment to warn of potential hazards or to call attention to information
that clarifies or simplifies a procedure.
The addition of either symbol to a "Danger" or "Warning" safety label indicates that
an electrical hazard exists, which will result in personal injury if the instructions are
not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death.
This is the symbol used for wireless communication based on radio frequency
technologies. It could be combined to the safety alert symbol when a minimum
distance is required.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury. The safety
alert symbol shall not be used with this signal word.
Please note:
Electrical equipment should be installed, operated, serviced and maintained only by
qualified personnel. No responsibility is assumed by Schneider Electric for any
consequences arising out of the use of this material.
A qualified person is one who has skills and knowledge related to the construction
and operation of electrical equipment and its installation, and has received safety
training to recognize and avoid the hazards involved.
![](/img.php?id=3476390&img=bg4.png)
CL110 User Manual Notices
4
Notices
FCC Part 15 Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception which can be determined by turning the equipment off
and on, the user is encouraged to try to correct interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Any change or modification of the product not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
IC
English: Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the transmitter
by Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
French: Conformément à la réglementation d'Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur)
approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de
brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
![](/img.php?id=3476390&img=bg5.png)
CL110 User Manual Table of Contents
5
Table of Contents
LEGAL INFORMATION ........................................................................ 2
SAFETY INFORMATION ...................................................................... 3
IMPORTANT INFORMATION ............................................................... 3
NOTICES ............................................................................................... 4
FCC PART 15 NOTICE .................................................................... 4
IC .................................................................................................. 4
TABLE OF CONTENTS ........................................................................ 5
1 SAFETY PRECAUTIONS ............................................................. 6
2 CAUTIONS ................................................................................... 6
3 INSTALLATION ........................................................................... 7
3.1 CHECK THE DELIVERY OF THE EASERGY CL110 SENSORS ........ 7
3.2 INSTALLATION OF THE SENSOR EASERGY CL110 ..................... 8
3.3 PAIRING OF THE SENSOR EASERGY CL110 .............................. 8
4 OPERATING MODES ................................................................ 10
4.1 GENERAL ............................................................................ 10
4.2 OPERATING MODES .............................................................. 10
5 MAINTENANCE ......................................................................... 12
5.1 GENERAL ............................................................................ 12
5.2 PERIODIC MAINTENANCE....................................................... 12
6 TROUBLESHOOTING ............................................................... 13
7 ENVIRONMENTAL IMPACTS ................................................... 14
7.1 PRODUCT ENVIRONMENTAL PROFILE ..................................... 14
7.2 PRODUCT OVERVIEW ........................................................... 14
7.3 END OF LIFE & RECYCLING ................................................... 14
8 PRODUCT TECHNICAL DATASHEET ...................................... 15
![](/img.php?id=3476390&img=bg6.png)
CL110 User Manual Safety Precautions
6
1 Safety Precautions
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices. See NFPA 70E or CSA Z462 or local applicable
regulation.
This equipment must only be installed and serviced by qualified electrical
personnel.
Turn off all power supplying this equipment before working on or inside
equipment.
Always use a properly rated voltage sensing device to confirm power is off.
Read and understand this guide and the guides according to the switchgear and
controlgear where the Easergy CL110 will be installed before performing any
installation or maintenance operation. If the installation and user guides of the
switchgear and controlgear do not cover the integration of the Easergy CL110,
contact the manufacturer of the switchgear.
DO NOT replace the Easergy CL110 by any similar product not specified within
this document.
DO NOT use the Easergy CL110 in a manner not specified by this document.
Check if the technical ratings of the Easergy sensor CL110 are adapted to the
application (See §5 Installation & Operation manual).
Replace all devices, doors and covers before turning on power to the
equipment.
Failure to follow these instructions will result in death or serious injury.
2 Cautions
CAUTION
EXPOSURE TO RADIO FREQUENCY
Read and understand this guide before performing any installation with the sensor Easergy
CL110.
FCC: This device complies with FCC RF radiation exposure limits set forth for general
population. This device must be installed to provide a separation distance of at least 20cm
from all persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.
IC: This device complies with Industry Canada RF radiation exposure limits set forth for
general population. This device must be installed to provide a separation distance of at least
20cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter. Le présent appareil est conforme aux niveaux limites d’exigences
d’exposition RF aux personnes définies par Industrie Canada. L’appareil doit être installé afin
d’offrir une distance de séparation d’au moins 20cm avec l’utilisateur, et ne doit pas être
installé à proximité ou être utilisé en conjonction avec une autre antenne ou un autre émetteur.
Failure to follow these instructions can result in injury.
![](/img.php?id=3476390&img=bg7.png)
CL110 User Manual Operating Modes
7

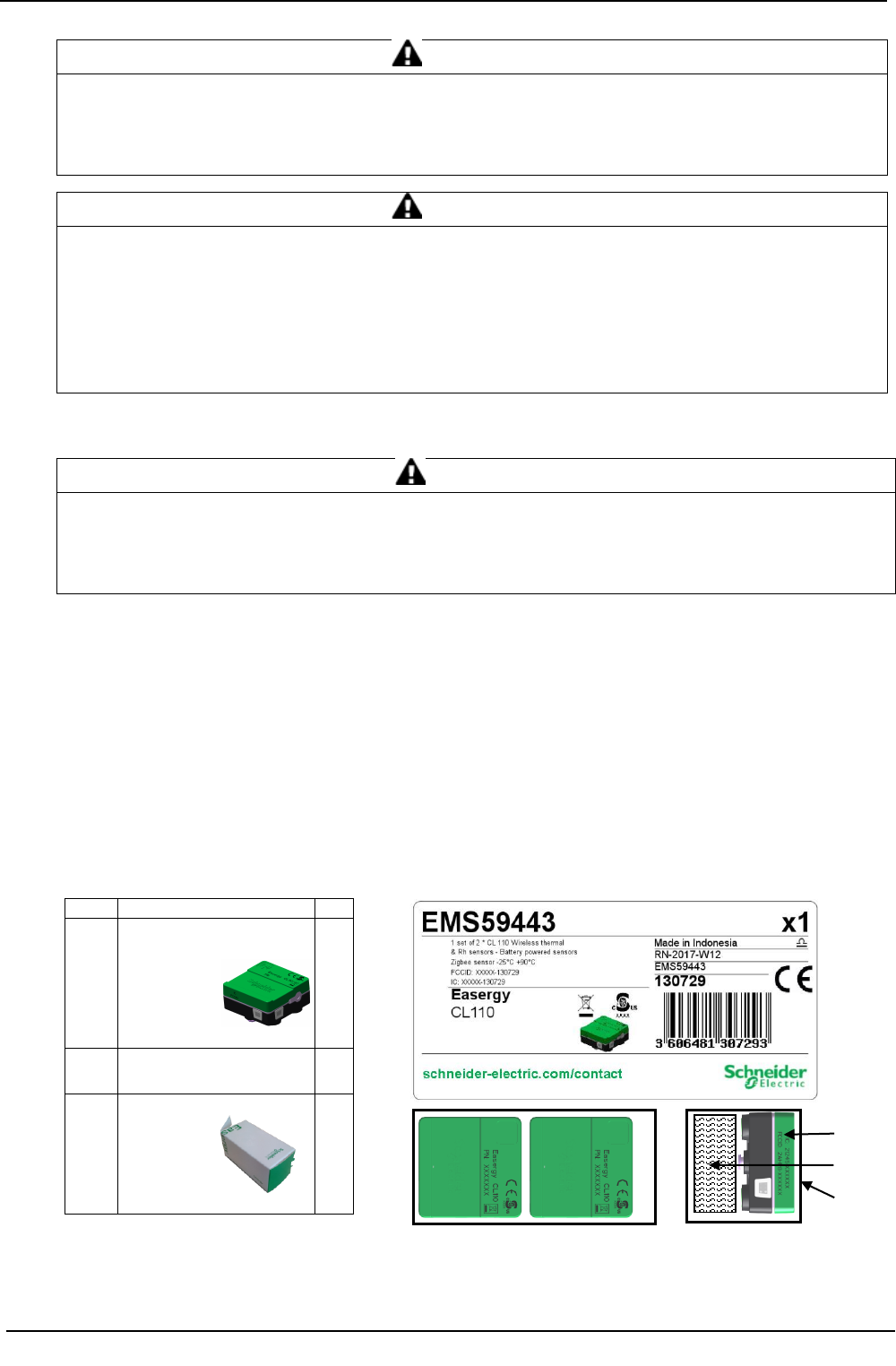

CAUTION
EXPOSURE TO CHEMICAL AGENT
DO NOT use chemical solvent or alcohol on the CL110 sensor.
Failure to follow these instructions can result in injury.
CAUTION
HOT SURFACES
As the sensor can measure temperatures above 50°C:
Use appropriate PPE when working with the sensor.
Allow surface to cool before servicing
Failure to follow these instructions can result in injury.
3 Installation
CAUTION
EXPOSURE TO HIGH TEMPERATURES
High temperature beyond the sensor rating may cause damage to the sensor.
Failure to follow these instructions can result in equipment damage.
The Easergy CL110 is a battery powered and wireless communication thermal and humidity
sensor using ZigBee Green Power 2.4GHz protocol according to the IEEE 802.15.4. The
Easergy CL110 is a mobile device as defined by FCC.
The purpose of this bulletin is to facilitate the Easergy CL110 sensors installation into validated
equipment.
3.1 Check the delivery of the Easergy CL110 sensors
Check that the reference printed on the label matches with the delivery and is corresponding
with the purchase order.
Remove the 2 Easergy CL110 sensors and the quick start guide from the packaging.
Ref
Detail
Qty
Easergy CL110 sensor
40*40*20mm
QGH39417
2
Quick start guide
QGH40089
1
Packaging
QGH40071
1
![](/img.php?id=3476390&img=bg8.png)
CL110 User Manual Safety Precautions
8
3.2 Installation of the sensor Easergy CL110
By default, the sensor is in “Factory mode” (sleeping mode) to be paired with any open access
point as soon as the button is pressed.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Apply appropriate personal protective equipment (PPE) and follow safe electrical
work practices. See NFPA 70E, CSA Z462, NOM-029-STPS-2011 or local
applicable regulation.
This equipment must only be installed and serviced by qualified electrical
personnel.
Turn off all power supplying this equipment before working on or inside
equipment.
Always use a properly rated voltage sensing device to confirm power is off.
Replace all devices, doors and covers before turning on power to equipment.
Failure to follow these instructions will result in death or serious injury.
3.3 Pairing of the sensor Easergy CL110
Before any installation in a restricted area and over non accessible surface, sensors must be
paired with its associated ZigBee Green Power access point. To associate the sensor to the
access point, refer to the “Operation modes” section of this document.

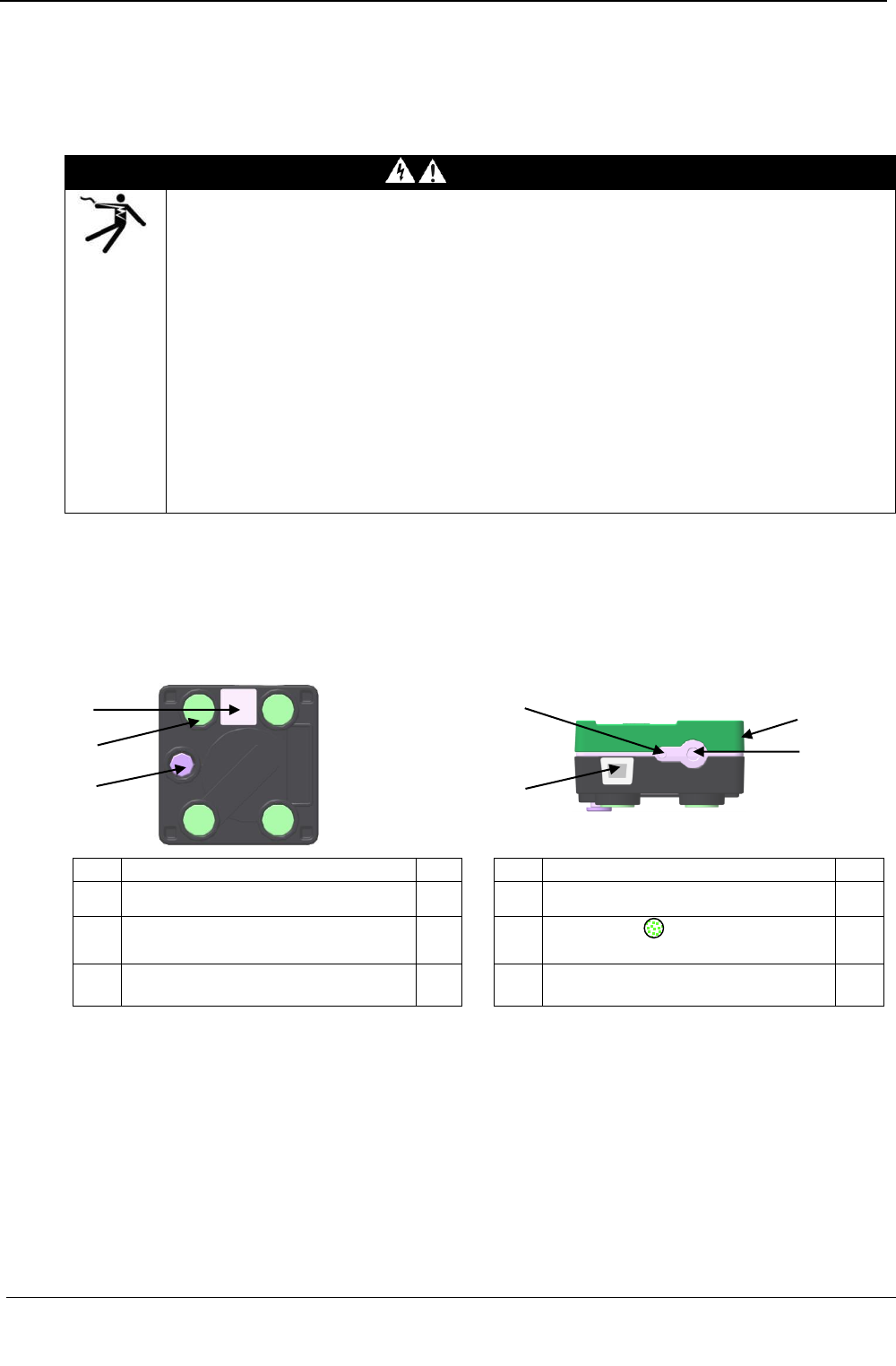

3.3.1 Product description & Human machine interface (HMI)
Ref
Detail
Qty
Ref
Detail
Qty
SN + ZigBee ID (QR Code or Text)
1
Push button for pairing
1
Magnets
4
Green LED helping
commissioning
1
Thermal sensor in contact with
measured surface
1
Humidity sensor protection
1
1) The QR code enables access to the sensor number and the ZigBee ID associated to the
layout of the sensor and to the electrical equipment or assembly (Functional unit number,
Busway enclosure, LV assembly number…).
2) The ZigBee ID will be used to ensure proper pairing of the sensor and not with another
access point device (e.g RF receiver).
3) Install the Easergy CL110 sensor over a cleaned surface, on the side or over the equipment
where the temperature measurement is required following the preferred orientations as
described (See Figure 1 below). Installation of the sensor under any equipment is not
recommended as the cooling of the sensor is not optimized for a longer lifetime.
![](/img.php?id=3476390&img=bg9.png)
CL110 User Manual Operating Modes
9

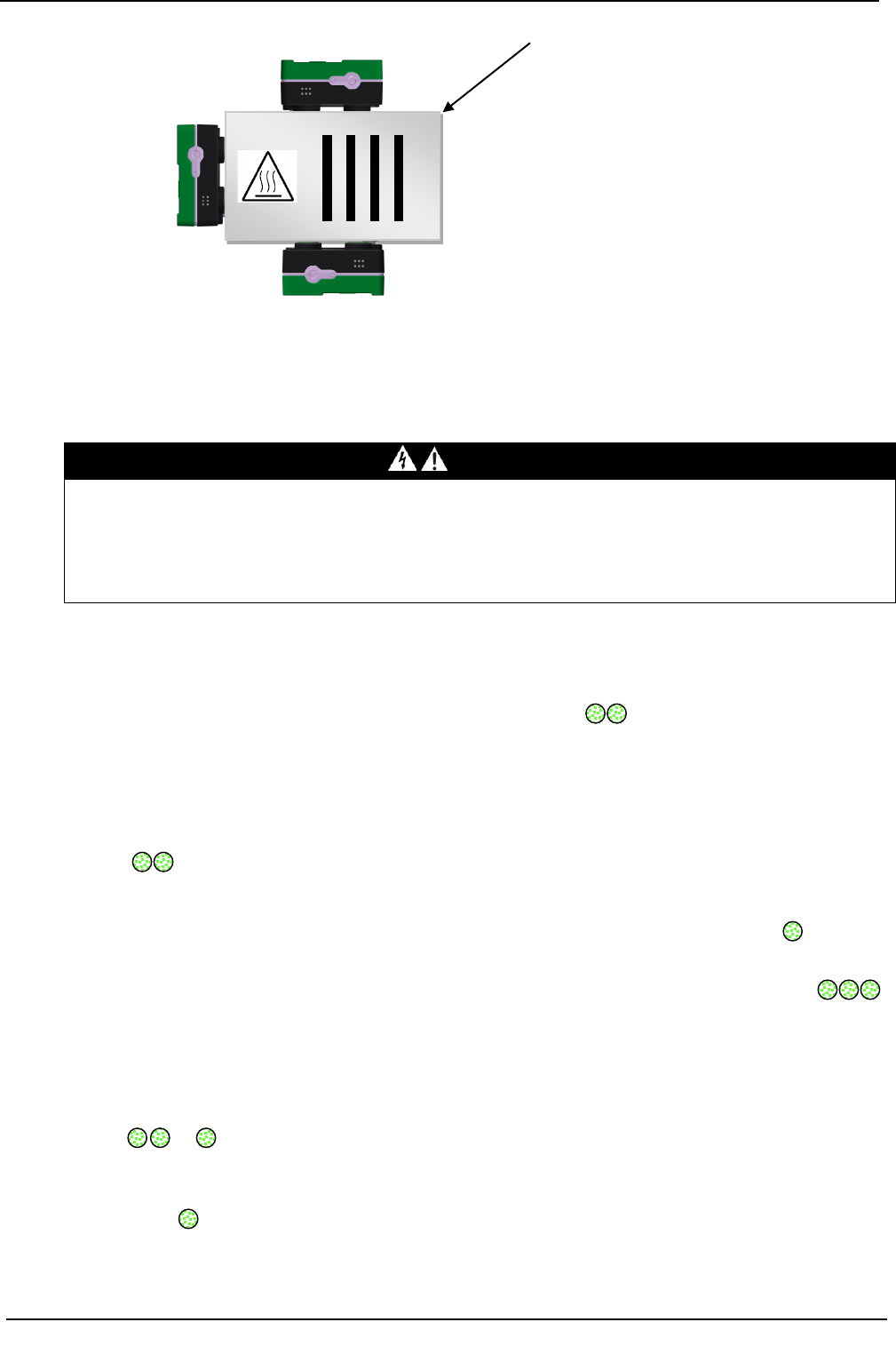

Figure 1: Installation of the CL110 sensor over a surface which is expected to
become warm where the best use case is the N°1 for optimal battery lifespan
and the worst is N°3.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Check the installation according to the installation guide of the switchgear and controlgear.
Failure to follow these instructions will result in death or serious injury.
4) Human Machine Interface (HMI)
The HMI is composed of a push button and a green LED .
The push button becomes active when pressed and starts the commissioning. Each
recorded button press is signaled by two green LED flashes .
Green LED is visible on the side of the sensor through the gasket, beside the push button.
Note the LED is off in "Normal" state in order to conserve the battery charge. It is only used
to signal the following special events:
Short button press:
1) Confirms each button short press.
2) If in “Factory" mode, the commissioning process for first time use will start,
3) After approximately 20 seconds, if the pairing is not fulfilled, a third LED flash confirms
pairing was unsuccessful,
4) After approximately 20 seconds, if the pairing is fulfilled, three LED flashes
confirm successful pairing,
5) If commissioned, places the sensor in "Demo" mode (after 5 minutes the sensor will
return to "Normal" mode).
Long button press:
1) + Acknowledges long button press. Release the button within 2 seconds after
the third flash to avoid any potential short button press detection by the sensor,
2) If the sensor is commissioned, the decommissioning procedure will start. A fourth LED
flash after approximately 20 seconds confirms the decommissioning procedure
(device reset) is complete and the sensor returns to "Factory" mode.
Metallic and magnetic
earthed connected enclosure
of the electrical assembly
(Busway, LV assembly, MV
functional unit…).
1.Side
2.Top
3.Bottom (Not recommended)
![](/img.php?id=3476390&img=bga.png)
CL110 User Manual Safety Precautions
10
LED indicators without button press:
Commissioning procedure unsuccessful. The sensor will then stay in "Factory" mode.
A short press is required to start again a commissioning.
Commissioning procedure success. The sensor will enter in the "Demo" mode
for 5 minutes then enter the "Normal" mode. Periodic transmission of measurements will
now be sent to the Zigbee Green Power receiver, each 120 s.
In the "Demo" or “Normal” modes, after a long button press, then after few seconds
(≈20 s) a 4th LED confirms a complete decommissioning.
In the "Demo" mode, acknowledges a valid command from the Zigbee Green Power
receiver to the sensor was received. While the acknowledge is received from the
Schneider-Electric ZigBee concentrator the LED flashes each 5s. This confirms the
sensor is within the communication range.
4 Operating modes
4.1 General
The Easergy CL110 is a wireless thermal and humidity sensor. It is intended to be used within
indoor high and low voltage electrical distribution products or assemblies to monitor temperature
and humidity change over a de-energized surface. The sensor shall be used with a Schneider-
Electric access point, which can be used for multiple sensors, using ZigBee Green Power
wireless communication protocol.
4.2 Operating modes

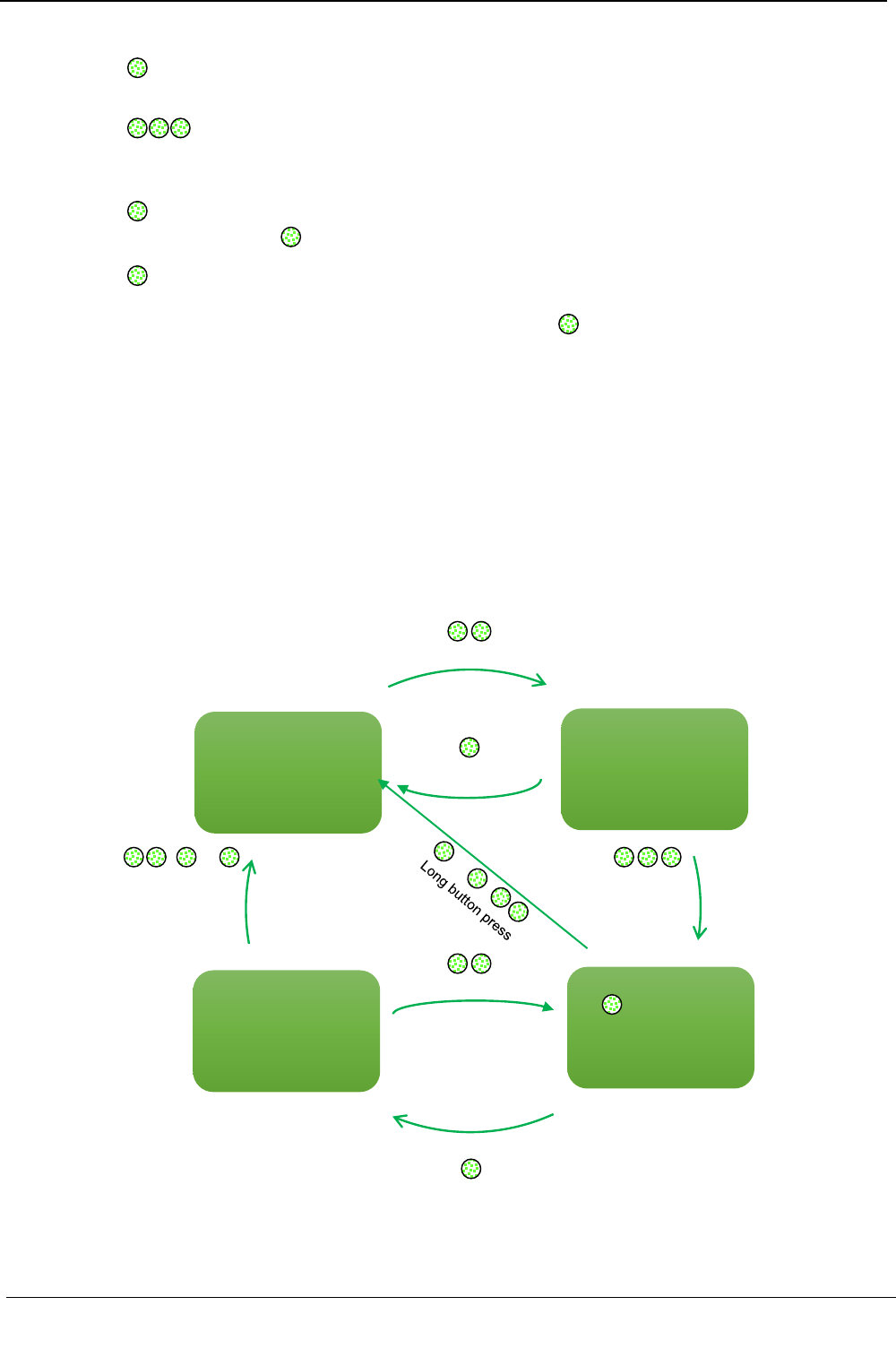

Figure 2: Operating modes and Green LED flash indicators (flash interval is 500 milliseconds)
4.2.1 Factory mode
The sensor is not commissioned and is in deep sleep mode. No measurement or radio
transmissions are performed. A short button press will start the "Commissioning" procedure.
Factory
(Deep Sleep)
decommisioning
Commissioning
(initiate Pairing)
Demo
Each 5s
transmission period if
acknowlegde received
Normal
After 5 minutes in
demo mode
Short button press
Pairing unsuccessful
Pairing
successful
Long button
press
(Reset)
Short button press
![](/img.php?id=3476390&img=bgb.png)
CL110 User Manual Operating Modes
11
4.2.2 Commissioning Mode
During commissioning the sensor will automatically find and pair with the nearest open,
compatible ZigBee Green Power receiver. ZigBee parameters (e.g. operational channel, Src-
ID, PAN-ID, security level and key) are exchanged between the sensor and receiver in order to
establish a reliable and secure link between the sensor and the receiver.
During commissioning the CL110 sensor is identified as
GP_TEMPERATURE_SENSOR_DEVICE (GP ModelID = 0x30) with the GP Product ID =
17302 (0x4396) and its unique source ID (SrcID). Note: The SrcID of each sensor is marked on
its side. The receiver should be ZigBee 3.0 compliant.
Commissioning procedure:
Note: The commission procedure can only be initiated from the "Factory" mode. (A short button
press for first time use, or long button press to reset sensor to "Factory" mode)
1. Set a ZigBee operational channel (11 - 26) and PAN-ID of your network (0xFFFF by default)
on your ZigBee 3.0 compliant receiver.
2. Place the Zigbee Green Power receiver into the automatic commissioning mode (open for
commissioning and accepting the commissioning with GP ModelID = 0x30 and GP Product
ID = 17302 devices).
3. In "Factory" mode, short button press once on the sensor to start the bidirectional Zigbee
Green Power commissioning. Confirmation is indicated by two (2) Green LED flashes
. Then sensor automatically scans all ZigBee channels (channel 11-26) in order to find the
nearest ZGP Proxy device (Zigbee Green Power receiver in commissioning mode) and to
initiate pairing.
4. Wait approximately 30 seconds. Commissioning success is indicated by three (3) Green
LED flashes . Measurement data reported from the sensor to the receiver can now
be checked.
5. If the commissioning is unsuccessful (indicated by one (1) green LED flash ), ensure the
sensor is in "Factory" mode and in proximity of the receiver, then repeat steps 3 and 4.
4.2.3 Demo mode
"Demo" mode can be entered either after successful Commissioning or by a short button press
in "Normal" mode. In this mode, a temperature transmission is submitted every 5 seconds,
independently of a set transmission period. The green led will flash once every 5 seconds to
confirm transmission to the receiver. This is useful to check if the device is in reception range
just after the installation. The sensor automatically enters "Normal" mode after a 5-minute
timeout has elapsed or if a new transmission period is configured.
4.2.4 Normal mode
The sensor periodically measures temperature and reports the measured value to the receiver.
By default, the nominal measurement and transmission period is 2 minutes (120 seconds).
Note: This parameter can be edited by a ZigBee command. The sensor is in sleep mode in
between data measurements and transmission. It can be woken at any time by a short button
press.
4.2.5 Sensor not installed in operating area
For restricted areas and over non accessible surfaces, sensors must be paired with its
associated ZigBee Green Power access point before its installation. If the sensor is not yet
installed at the final position, please refer to the “Installation” section of this manual.
![](/img.php?id=3476390&img=bgc.png)
CL110 User Manual Operating Modes
12
5 Maintenance
5.1 General
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices. See NFPA 70E or CSA Z462 or local applicable
regulation.
This equipment must only be installed and serviced by qualified electrical
personnel.
Turn off all power supplying this equipment before working on or inside
equipment.
Always use a properly rated voltage sensing device to confirm power is off.
Read and understand this guide and the guides according to the switchgear
and controlgear where the Easergy CL110 is installed before performing any
maintenance operation. If the maintenance and user guides of the switchgear
and controlgear do not cover the accessibility or the integration of the Easergy
CL110, contact the manufacturer of the switchgear.
DO NOT replace the Easergy CL110 by any similar product not specified within
this document.
DO NOT use the Easergy CL110 in a manner not specified by this document.
Check if the technical ratings of the Easergy sensor CL110 are adapted to the
application (see § 4).
Replace all devices, doors and covers before turning on power to this
equipment.
Failure to follow these instructions will result in death or serious injury.
5.2 Periodic maintenance
It is recommended (approximately every 2 years) to conduct several operating cycles on the
switchgear and controlgear, and confirm attachment and positioning of the Easergy CL110
sensor.
If the service condition is such that the outer membrane protecting the humidity sensor is
contaminated (e.g. dust), clean with a dry, soft cloth. This will improve the dynamic response of
this sensor. In harsh conditions (aggressive atmosphere, excessive dust, temperature greater
than 40°C), please consult the nearest Schneider Electric services center.
Contact the nearest Schneider Electric services center for additional help and information
regarding periodic maintenance.
![](/img.php?id=3476390&img=bgd.png)
CL110 User Manual Maintenance
13
6 Troubleshooting
Issue
Solution
Sensor is not visible by the Zigbee
Green Power receiver
Confirm if other sensors are experiencing the same
issue.
Check if the sensor was previously visible by the Zigbee
Green Power Receiver by confirming if data was
collected by the sensor.
Check for low battery on the sensor with a short button
press. Two LED flashes will confirm battery has a
charge.
Check if the sensor is visible to any other access point
(receiver).
Check the distance between the sensor and the Zigbee
Green Power Receiver according to the number of
enclosure layers. How?
_If the sensor can be moved, move it closer to the
receiver to verify communication. If the data is
transferred to the Zigbee Green Power Receiver, move
the sensor to its original location and check the
Received Signal Strength Indication (RSSI) value using
the interface software
Measurement is not received by the
Zigbee Green Power receiver.
Check if the sensor is paired with the access point.
Use short button press to enter "Demo" mode (data
should transfer every 5 seconds for a 5-minute duration)
Measurement is abnormal
compared to other measurements.
With the sensor mounted, check if the there is a gap
between the thermal sensor on the device and the
measured surface.
Check if the sensor located in the correct position for
measurements. If it is not possible to check please, call
the nearest Schneider Electric center.
Measurement is above the limits.
Check if the ambient temperature of the operating room
is lower than the upper limit of the service conditions.
Check if the load of the equipment is lower than the
rated current of the monitored equipment.
Use an infrared thermal measuring device to measure
the surface near the sensor, following safety work
practices.
![](/img.php?id=3476390&img=bge.png)
CL110 User Manual Environment
14
7 Environmental Impacts
7.1 Product environmental profile
The EIME (Environmental Impact and Management Explorer) software, version V3, and its
database, version 5.4 were used to assess the product environmental profile (PEP). The
assumed service life of the product is 20 years with a utilization rate based on the mission profile
of the Easergy CL110 and the electrical power model used is European.
The scope of the analysis was limited to the Easergy CL110 sensor and its accessories to be
supplied and installed.
The environmental impacts were analyzed for the Manufacturing (M) phases, including the
processing of raw materials, and for the Distribution (D) and Utilization (U) phases.
Easergy CL110 is compliant with the RoHS directive. RoHS restricts the use of six hazardous
materials in the manufacture of various types of electronic and electrical equipment.
7.2 Product Overview
The Easergy CL110 product is designed in accordance, and is compliant, with the RoHS
Directive (European Directive 2002/95/EC of 27 January 2003).
The Easergy CL110 uses an extended temperature range coin cell battery which complies with
the battery Directive (European directive 2013/56/EU of 20 November 2013).
The Easergy CL110 is designed to protect the battery by housing having a high degree of
protection and able to withstand against mechanical impacts. The CL110 requires a continuity
of power supply by a permanent connection with the battery and deals its sleep mode to optimize
its energy consumption.
This product can be incorporated without any restriction within an assembly or an installation.
7.3 End of Life & Recycling
At end of life, the products of the Easergy CL110 sensor shall be dismantled to facilitate the
recovery of the various constituent materials. Easergy CL110 can be processed, recycled and
its materials recovered in conformity with the draft European regulations on the end-of-life of
electronic and electrical products.
Schneider Electric is committed to a long term environmental approach. As part of this, the
Easergy CL110 sensor has been designed to be environmentally friendly, notably in terms of
the product’s recyclability. The materials used are identified in product environmental profile
(PEP) analysis and easily separable. It has been carried out in conformity with ISO 14040
“Environmental management: life cycle assessment - principle and framework”.
![](/img.php?id=3476390&img=bgf.png)
CL110 User Manual Product Technical Datasheet
8 Product Technical Datasheet
(2017-03 Draft – Final version after certification 2017-06)
Main
Range of product
Easergy
Product or component type
Indoor thermal and humidity sensor for wireless access point
Rated supply
3V (battery)
Complementary
Measured surfaces
Flat area wider than 50 mm x 100 mm
Power consumption
20mA during radio transmission mode
2A max in sleeping mode
Wireless communication protocol
ZigBee Green Power at 2.4 GHz according to IEEE 802.15.4
Transmission period
120s
Connection type
See associated ZigBee concentrator (e-access ZBRN32 ...)
Marking
CE (cf applicable Directives)
Height
20 mm
Depth
40 mm
Width
40 mm
Product weight
0.030 kg
Environment
Product certifications - compliance
CB IECEE ID: FRXXXXXX (In progress)
cBVus ID: XXXX (In progress)
FCC ID: 2AHP8-130729 (In progress)
IC : 21245-130729 (In progress)
LV Directive 2014/35/EU
EU RoHS directive
EU REACH directive
EU EMC directive 2004/108/EC
EU RED directive 2014/53/EU
EU WEEE directive 2012/19//EU
EU Battery directive 2013/56//EU
Main standards
EN / IEC 61010-1 2010
UL 61010 -1 2012
ETSI EN 300238 2012 V1.9.1
IEEE 802.15.4 2013
Power emission
EIRP= +5dBm
Resistance to electrostatic discharge
2-4-8kV (Direct & Indirect contact) according to EN/IEC 61000-4-2
2-4-8kV (in air) according to EN/IEC 61000-4-2
Resistance to electromagnetic fields
25V/m (80MHz...5.9 GHz) according to EN/IEC 61000-4-3
Resistance to conducted disturbances, induced by radio
frequency fields
20 V (0.15...80 MHz) according to EN/IEC 61000-4-6
Power frequency magnetic field immunity
1000A/m Pulse EN/IEC 61000-4-8
300A/m Continue EN/IEC 61000-4-8
Pulse magnetic field immunity
1000A/m Pulse EN/IEC 61000-4-9
Damped oscillatory magnetic field immunity
30A/m (0.1 & 1 MHz) EN/IEC 61000-4-10
Electrical fast transient/burst immunity
4kV 1 min EN/IEC 61000-4-4
2kV 5min (Marine) EN/IEC 61000-4-4
Damped oscillatory wave immunity
3kV (CM - 100kHz & 1MHz) EN/IEC 61000-4-18
2.5kV (CM - 3MHz, 10MHz, 30MHz) EN/IEC 61000-4-18
Surge immunity
0.5-1-2-4kV (Common mode) EN/IEC 61000-4-5
0.5-1-2-4kV (Differential mode) EN/IEC 61000-4-5
Immunity to conducted RF disturbances
30V Continuous (0 – 150kHz) EN/IEC 61000-4-16
![](/img.php?id=3476390&img=bg10.png)
16
300V Short duration (0 – 150kHz) EN/IEC 61000-4-16
Ambient air temperature for operation
-25...40°C
Accuracy within ambient air temperature for operation
+/-1°C
Measured temperature for operation
-25...90°C at 35°C
Any measured part shall be lower than IEC limits (75°C if the surface is
accessible and expected to be touched in normal operation during short
duration)
(50°C - IEC Guide 117 if the surface is accessible and expected to be
touched for long duration)
110°C max (limited time)
Ambient air temperature for storage
-40...35°C
Relative humidity measured
10...98% (Accuracy 2%)
Relative humidity for use
10...95 % over a period of 24h condensation may occasionally occur in
operation
10...90 % over a period of one month condensation may occasionally
occur in operation
IP degree of protection
IP54 EN/IEC 60529
Mechanical impact
IK07 EN/IEC 62262 (Exposed side vs Measuring side)
Pollution degree
2 IEC 61010-1
Operating altitude
0...2000 m
Storage altitude
0...3000 m
Vibrations sinusoidal during transport
5-200Hz 2g 200-500Hz 4g 20 cycles 7.5mm Test Fc according to IEC
60068-2-6 (2M3 according to IEC 60721-3-2)
Vibrations random during transport
10-2000Hz 0,1g/Hz 30 min/axe according to IEC 60068-2-64
Shocks
3 shocks 3 directions 40g 6ms (Ea)according to IEC 60068-2-27 (2M3)
1000 shocks 3 direction 20g 16ms (Ea)according to IEC 60068-2-27
Free falls
2m 2 free falls according to IEC 60068-2-31
Vibrations sinusoidal in operation (Installed on bar)
5-500Hz 1g 1cycle (13min) 3mm Test Fc according to IEC 60068-2-6
(3M5 according to IEC 60721-3-3)
Shocks in operation (Installed on bar)
3 shocks 3 directions 10g 11ms (Ea)according to IEC 60068-2-27 (3M5
according to IEC 60721-3-3)
Glow-wire flammability withstand
650°C
Maximum distance between sensor and the access point
100m in free field unobstructed
25m when the components are separated by one layer of metal
10m when the components are separated by two layers of metal
Offer Sustainability
Sustainable offer status
RoHS
REACH
Reference not containing SVHC above the threshold
Candidate list January 2017
Product environmental profile
ISO 14025
Product end of life instructions
WEEE
![](/img.php?id=3476390&img=bg11.png)
![](/img.php?id=3476390&img=bg12.png)
Schneider Electric
35 rue Joseph Monier
92500 Rueil Malmaison – France
Phone: +33 (0) 1 41 29 70 00
www.schneider-electric.com 18
As standards, specifications, and designs change from
time
to time, please ask for confirmation of the information given
in this publication.
© 2017 Schneider Electric. All rights reserved.
QGH40088 Rev A Draft
