SmartBeacon-4AA-C1 User Manual
Outlook
Sensoro Box series Beacon Sensor SmartBeacon-4AA have integrated Sensoro Tag as the PCB. The
build-in PCB Antenna is an ultra small form-factor, high-performance antenna for 2.4GHz. It
operates with high stability in wide temperature range and adjusts to temperature / humidity
changes, allowing SmartBeacon-4AA to work stably in complex environment.
Tech Specifications
Item Description
Appearance
*Length 64.0 mm
*Width 64.0 mm
* Thickness 23.5 mm
Board Info
*Layer 2Layer
*Size 53mm(L)*34mm(W)
*Thickness 1mm
*SurfaceTreatment Matt black ENIG PCB
Control & Display
*Control BLE SOC Chip
*Antenna 2.4G PCB Antenna
*LED LED*1
*Sensor Temperature Sensor Support
3 Axis G-Sensor Optional
Basic Info
*BT BLE Only
*Operating Voltage DC 2.1V ~ 3.6V,Typ 3.0V
*Operating Temperature -25°C ~ 60°C
*Sleep Mode Power Consumption 30uW
![](/img.php?id=3018827&img=bg2.png)
*Sleep
Mode
Current
10uA
*Power
Consumption
per
Broadcast
7.58
*
10
-6
mAh
(-8dBm
transmitting
power)
*RadiusPower -30dBm to +4dBm; applicable for signal coverage
optimization
*Transmission Range 0.15m to 80m
*Broadcast
Frequency
Broadcasting
time
interval,
Adjustable
(100~1285ms)
* Weight 132g
*
Resistances
A
nti-vibration
*TF Card Socket 1 Micro TF Card Socket
*Protocol
standard
Bluetooth
®
4.0,
Apple
iBeacon
,Google
Eddystone
*System Requirements iOS7.0/ Android 4.3 or above
*Upgrade
Support
for
Firmware
Over-The
Air
upgrade
*Security Support Password forConnection
Battery Usage Reference(Days)
And the preference data below, is based the button cell battery(CR2477).
Power\ Interval +4dBm 0dBm -8dBm -12dBm -30dBm
100ms 105 126 138 146 152
152.5ms 156 185 203 215 223
211.25ms 211 249 271 286 297
318.75ms 301 353 382 402 416
417.5ms 378 438 473 497 513
546.25ms 467 538 578 604 622
760ms 596 677 722 752 772
852.5ms 645 729 776 806 827
1022.5ms 727 815 864 895 916
1285ms 836 928 977 1009 1031
Main Features
1.
Easy
to
Use
SmartBeacon-4AA was powered by 4 AA batteries.
2.
Low
power
consumption
Employing Bluetooth® 4.0(Bluetooth® low energy) Nordic NFR51822 chip, and consuming
less power with better performance.
Equipped with energy-efficient sensors and by using intelligent energy saving solution, 4 AA
batteries will be able to power SmartBeacon-4AA continuously operating for around 3 years.
3.
Compatibility
Software and firmware completely fulfill Apple's iBeacon technical standards and can be
applied to systems including:
iOS 7.0 or above:
![](/img.php?id=3018827&img=bg3.png)
iPhone 4S,iPhone 5, iPhone 5S,iPad 3, iPad mini, iPad air.
Android 4.3 or above:
Samsung Galaxy S III, Galaxy S IV, Galaxy Note II, Galaxy Note III and Motorola RAZR,
HTC ONE, etc.
Download configuration tool
Scan QR code to get the App from www.sensoro.com
Signal stabilityand datatransmission
1.
Transmission
reliability
and
range
To achieve long-distance data transmission with more stable signals, we have conducted
numbers of testing and corresponding modifications. Tag works stable under complex
circumstances. Radius power is adjustable to fit the need, the largest signal coverage of which
can be ranged up to 80m with 2826 m2 area.
2.
Enterprise
level
device
management
support
Manage status of mass volume devices is an essential requirement for an enterprise level
deployment. By using our patent technology, you can gather status of each device that
deployed in a batch way. Assets management of beacon devices is an easy task now with our
solution.
Configuration tool
The configuration tool "Sensoro" is a mobile app designed for developers to check and modify
Sensoro SmartBeacon’s configurations. It is compatible with iOS 7.0 or above (iPhone 4S,iPhone 5,
iPhone 5S,iPad 3, iPad mini, iPad air) and Android 4.3 or above (Samsung Galaxy S III, Galaxy S
IV, Galaxy Note II, Galaxy Note III and Motorola RAZR, HTC ONE, etc.)

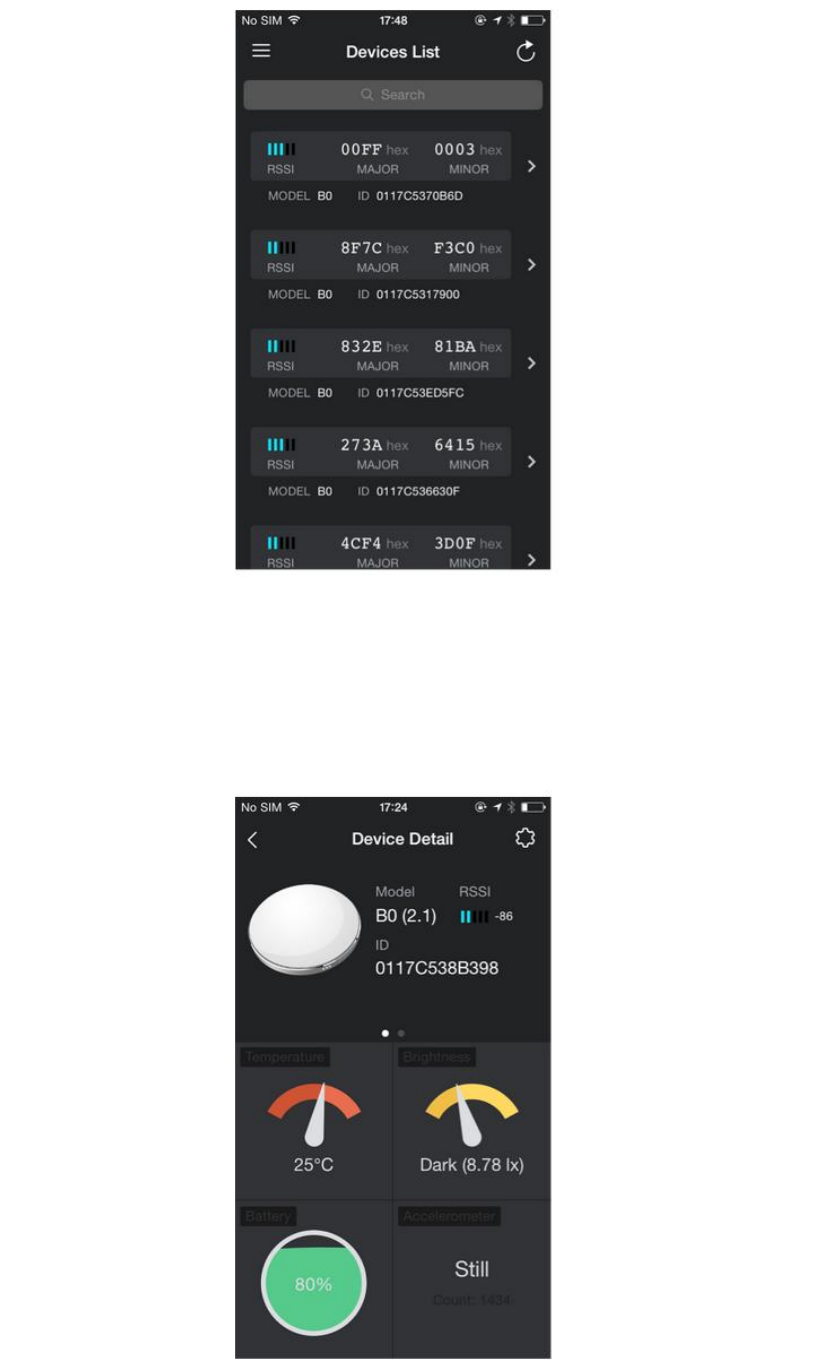

Open up the configuration tool, you will see all the SmartBeacons nearby. Each SmartBeacon's
Major, Minor and animated RSSI bar will be shown on the list.
![](/img.php?id=3018827&img=bg4.png)
In case you are deploying numbers of SmartBeacons within certain area, a specific function is
designed to help you select the one at hand - simply shake the SmartBeacon and its information
bar will perform a vibrating animation.
Select one SmartBeacon's info bar and enter the detail page. Every SmartBeacon is integrated
with a temperature sensor, and an accelerometer. Every sensor's data and the battery status are
real-time displayed, which reflect the operation status of specific SmartBeacon in a visualized and
direct manner.
![](/img.php?id=3018827&img=bg5.png)

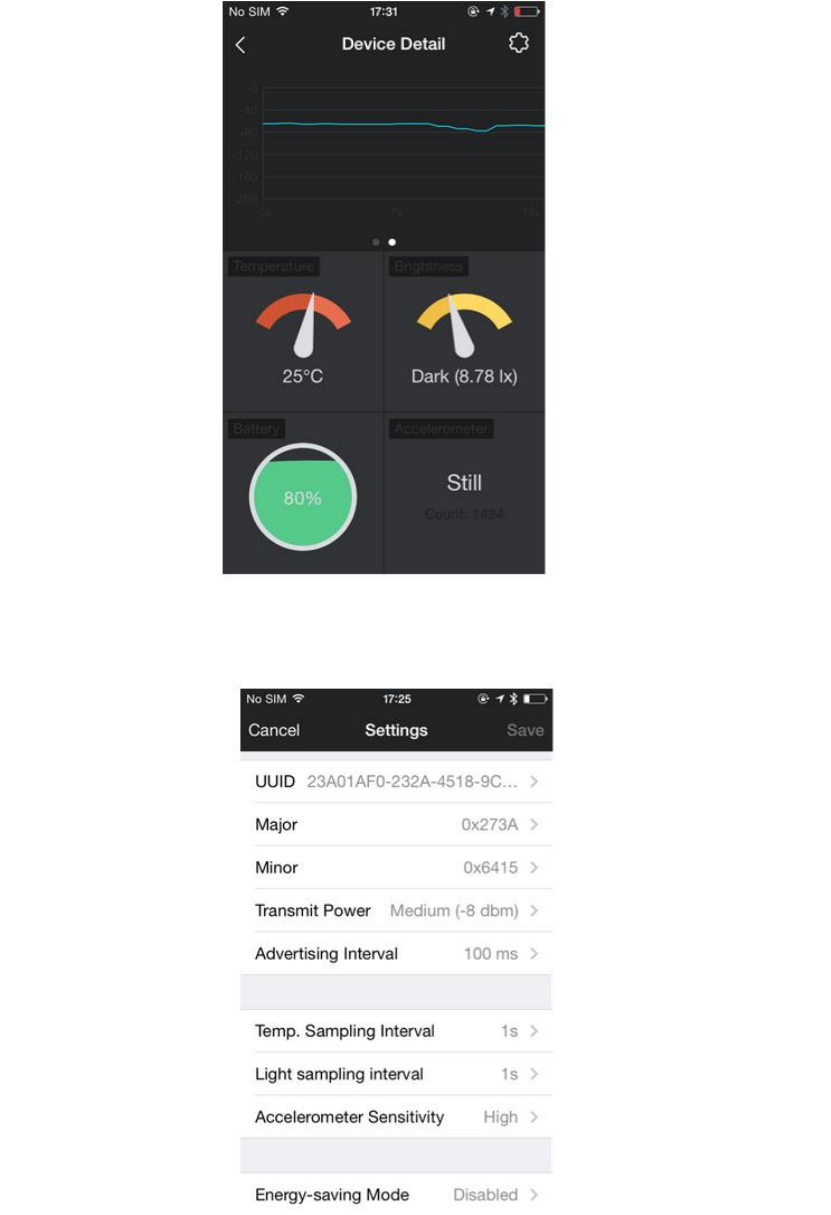

Flip the upper section of this page and you may check the RSSI signal graph accurately.
You can access to SmartBeacon's UUID, Major and Minor through this configuration tool and
revise them according to your need. Through this app, you may also setup SmartBeacon's radius
power, broadcasting frequencyand even modify the operation parameters of the sensors.
As to security considerations, you may setup password so that only authorized user can access to
SmartBeacon's settings.
![](/img.php?id=3018827&img=bg6.png)
Quality Guarantee
iBeacon,GoogleEddyStone, FCC, CE and TELEC
SmartBeacon has been certificated with FCC, CE and TELEC. To ensure the quality, every single
device has to pass through testing and must be scrupulously checked for imperfections (Defect
detection, frequency spectrum test, power consumption test, stability test, etc.).
Note
Trademark: SENSORO
Product Name: SmartBeacon
Model No: 4AA-C1
CustomerService
Tell :+86 010-8416 1077
Email :seattle@sensoro.com
