1 OVERVIEW
1.1 GASLOG System
The GASLOG System is a telemetry system designed to provide continuous monitoring of gas tank
installations. Tank level, meter reading, and other status information is transferred from the remote site to
the enterprise database according to a defined reporting schedule.
Sites communicate with a Server using the GSM mobile telephone network. The Server stores the site
information in an industry standard SQL database that can easily be integrated into other processes in
the supply chain.
The GASLOG system is highly scalable and capable of handling hundreds of thousands of customers,
sites and tanks.

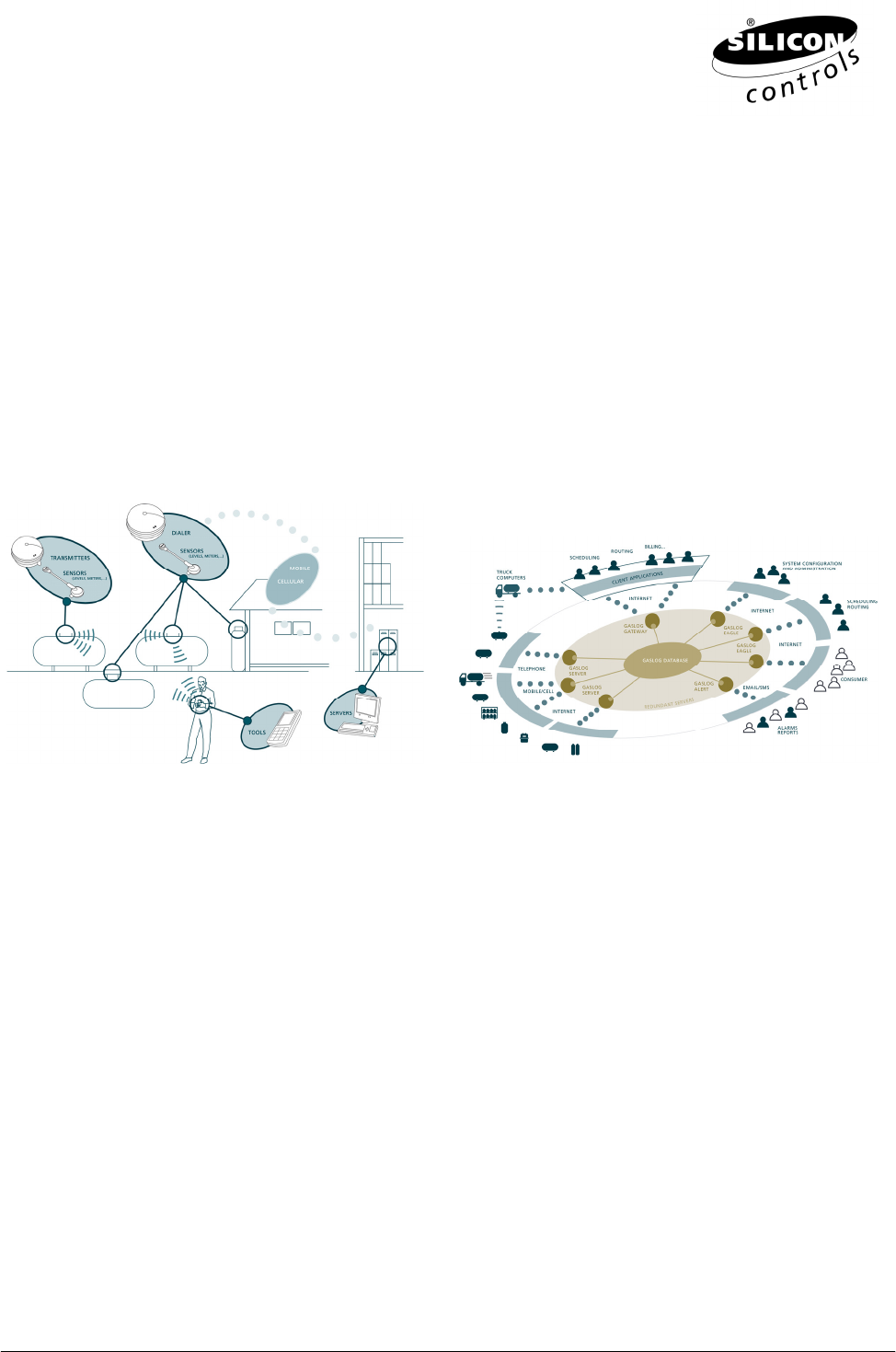

GASLOG System Architecture
1.2 GASLOG Site Equipment
Each GASLOG cellular site consists of two primary components:
• SC414 Cellular Dialer. Connects to sensors and performs data logging and Server communications
via a cellular network.
• Sensor(s). Senders provide locally wired tank level information for the SC414 Cellular Dialer.
![](/img.php?id=1223671&img=bg4.png)
Document: ML000043 Rev 1 Page 3 of 3
© 2009 Silicon Controls Pty Ltd All Rights Reserved
2 SC414 CELLULAR DIALER INSTALLATION
NOTE: This product should only be installed by qualified personnel.
2.1 Overview
The SC414 Cellular Dialer is specifically designed to mount on LP-Gas tanks and connect to existing tank
float gauges, eliminating the need for expensive intrinsic safety barriers and wiring to the tank. The
SC414 periodically communicates with the GASLOG Server via a cellular network, transferring all the
recorded tank level and gas usage data to the Server.
2.2 Location
The location of the Dialer is a prime consideration.
• Not close to pipes, metalwork or other solid obstacles (other than the body of the tank upon which it
is mounted).
• As high off the ground as possible.
• The location should minimise the chance of the Dialer being subject to physical shock or vibration.
NOTE: The cellular network signal strength is often improved by mounting the Dialer higher
or further away from metal objects.
2.3 Install Sender(s)
The Dialer comes with a mounting bracket attached to ease fixing of the Dialer in place. Detach the
bracket using an SC663A Removal Tool.

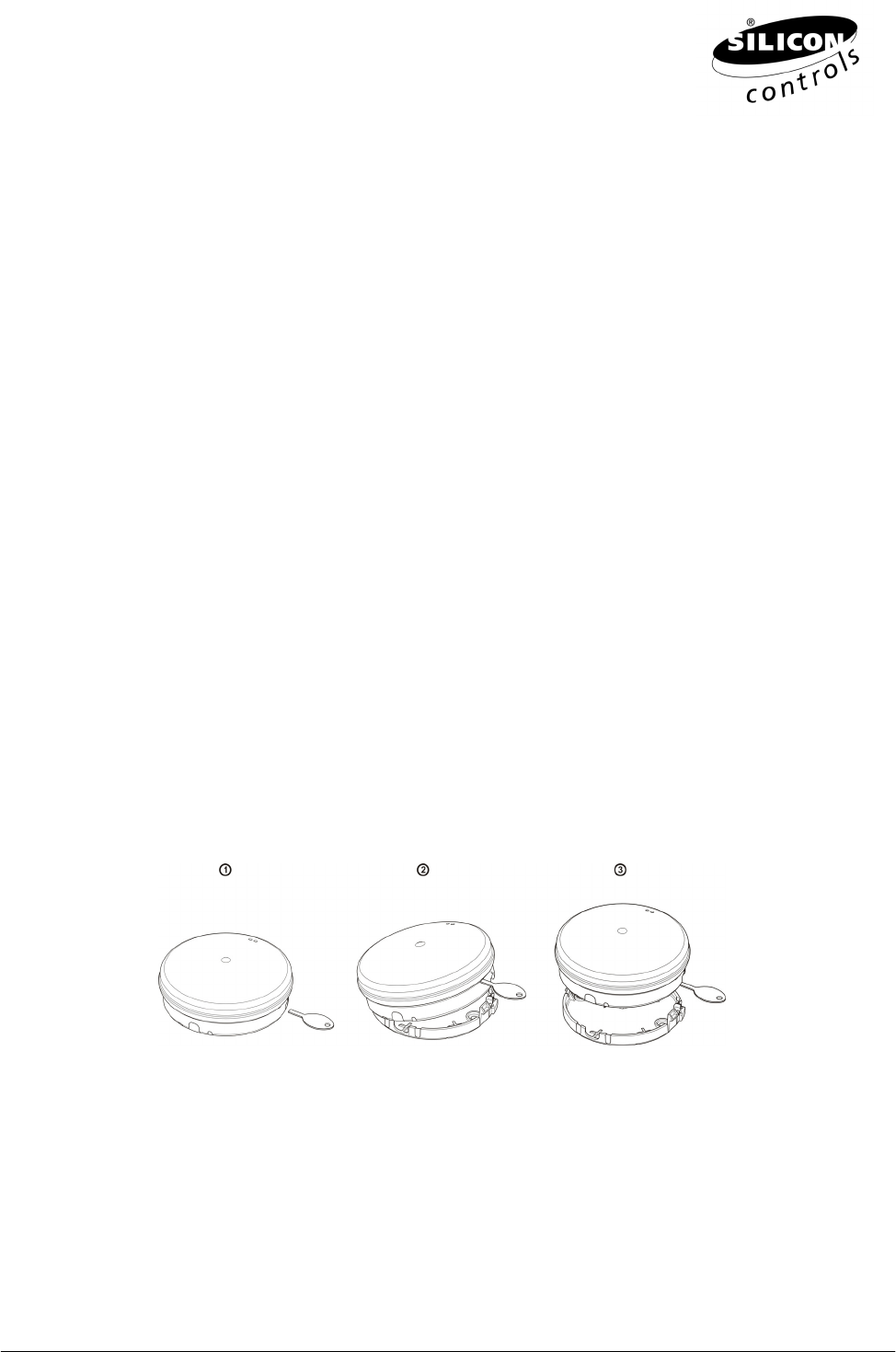

Detaching the mounting bracket
The underside of the Dialer contains two Field Sensor interface connectors and the battery compartment.
Plug the cable from the Sender to one of the Field connectors.
![](/img.php?id=1223671&img=bg5.png)
Document: ML000043 Rev 1 Page 4 of 4
© 2009 Silicon Controls Pty Ltd All Rights Reserved
2.4 Activation
To install the Dialer the SC414 needs to be manually activated from its normal power down state. This is
done using the SC664A Activation Tool. The activation point is on the side of the case near the LEDs, as
shown in the figure below. When the Activation Tool is sensed by the SC414 the red LED will illuminate.

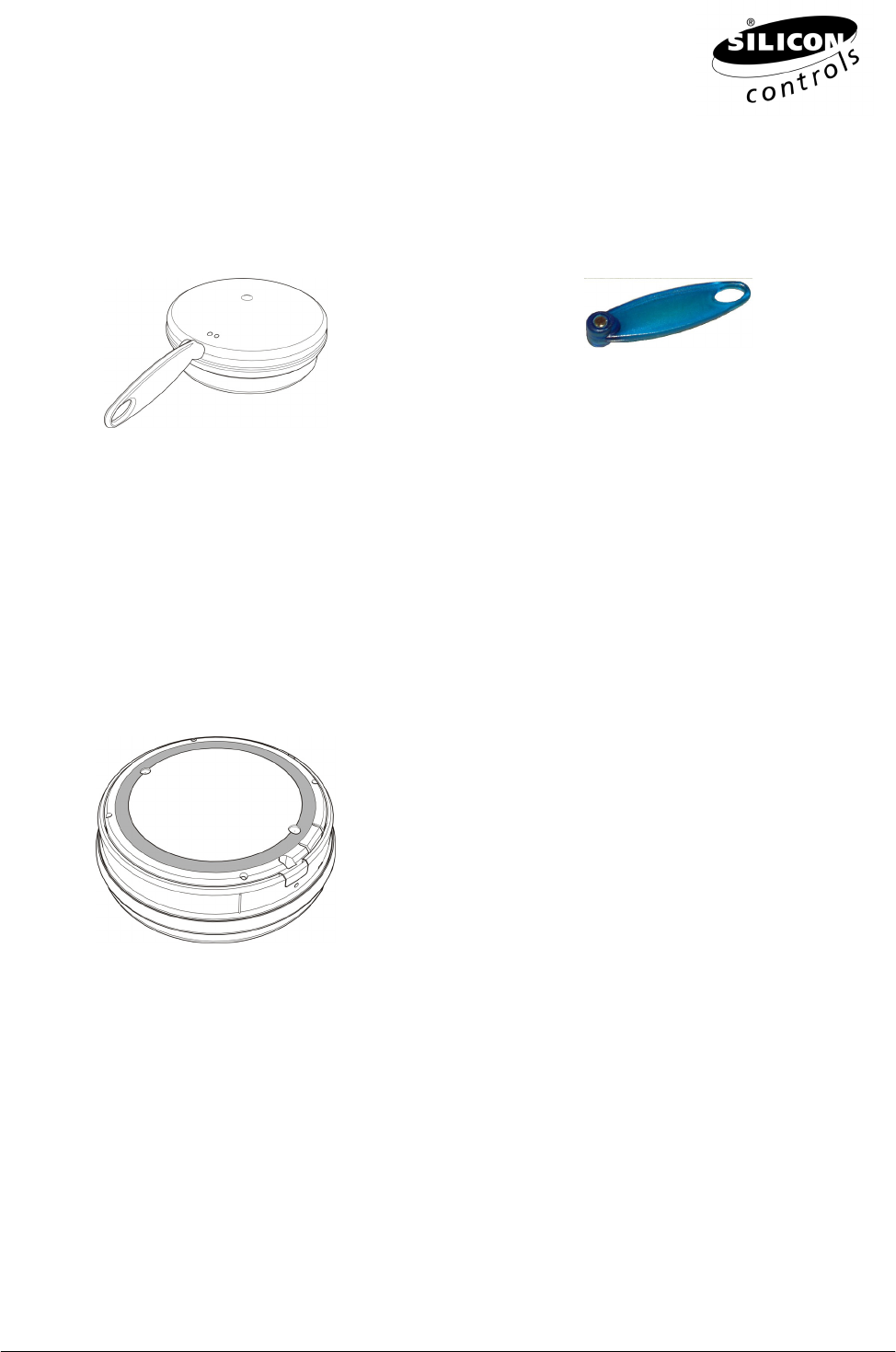

SC414 Activation
SC664A Activation Tool
The SC414 will retrieve its operational parameters from the GASLOG database during its initial activation.
Configuration parameters are verified by the GASLOG database and may be queried using the GASLOG
Explorer or EAGLE software tools.
2.5 Mounting a Dialer to a Tank (Adhesive Method)
Re-attach the mounting bracket to the Dialer.
Turn the Dialer upside down and apply adhesive to its base.
The mounting bracket has a defined channel
moulded in, along which adhesive may be
dispensed.
Turn the Dialer upright and press it lightly down onto the tank surface.
Maintain the Dialer in position until the adhesive cures
2.6 Mounting a Dialer (Screw Method)
NOTE: Do not screw into a tank!
The mounting bracket incorporates moulded features, in the form of bosses and break-out holes, to aid
the location of mounting screws.
Choose a self tapping screw appropriate for the material that the structure is made from.
Hold the mounting bracket against the locating surface and, screw through the break-out hole and into the
structure.
With the bracket secured in place, attach the Dialer by locating the bracket’s latching features into the
SC414 case and pressing the SC414 onto the bracket until the latch audibly “clicks” into place.
![](/img.php?id=1223671&img=bg6.png)
Document: ML000043 Rev 1 Page 5 of 5
© 2009 Silicon Controls Pty Ltd All Rights Reserved
3 MAINTAINING THE SC414 CELLULAR DIALER
3.1 Inspection and Cleaning
The following should be inspected every time the tank is filled:
• Housing is clean and has no cracks or significant abrasions
• Mounting plate is securely fastened to the mounting surface
• Outer sheath of the sensor cable(s) are not damaged
• Sensor(s) and Meter(s) are properly fitted and fixed in place
WARNING: Potential electrostatic charging hazard:
• Clean housing with damp cloth only to avoid static discharge
• Do not use solvents
3.2 Battery Replacement
If the battery needs replacement, it must only be replaced with an approved cell type. Contact Silicon
Controls for approved battery specifications (refer to document SP000017). Refer to Silicon Controls’
publication TN00007 for the battery replacement procedure.
![](/img.php?id=1223671&img=bg7.png)
Document: ML000043 Rev 1 Page 6 of 6
© 2009 Silicon Controls Pty Ltd All Rights Reserved
4 FCC PART 15 COMPLIANCE
The following instructions apply to SC414Cxx11 equipment:
GASLOG equipment has been tested and found to comply with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
GASLOG equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the installation manual, may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user may try to correct the interference by one or more of the following:
o Reorient or relocate the receiving antenna of the radio or television.
o Increase the separation between the equipment and the receiver.
o Connect the equipment onto an outlet on a different branch circuit than that of the receiver.
o Consult the dealer or an experienced radio/TV technician.
The user may find the following booklet helpful:
o How to Identify and Resolve Radio-TV Interference Problems
This booklet is available from the US Government Printing Office, Washington, D.C. 20402.
WARNING: changes or modifications to GASLOG equipment not expressly approved by Silicon Controls
could void the user's authority to operate the equipment.
