Sky Light Imaging Limited Toucan Surveillance Kit 2.0-Camera
User Manual
![](/img.php?id=3263556&img=bg1.png)
Toucan Surveillance Kit 2.0
Camera & Smart Socket
USER’S MANUAL
Model: TSK200KU
![](/img.php?id=3263556&img=bg2.png)
1 2
1. Key Features 2
2. What is Included 5
3. Positioning 8
4. Toucan Installation 9
5. Status LED Indicators 13
6. Specications 14
7. Troubleshooting & FAQ 15
8. Regulations & Compliance 16

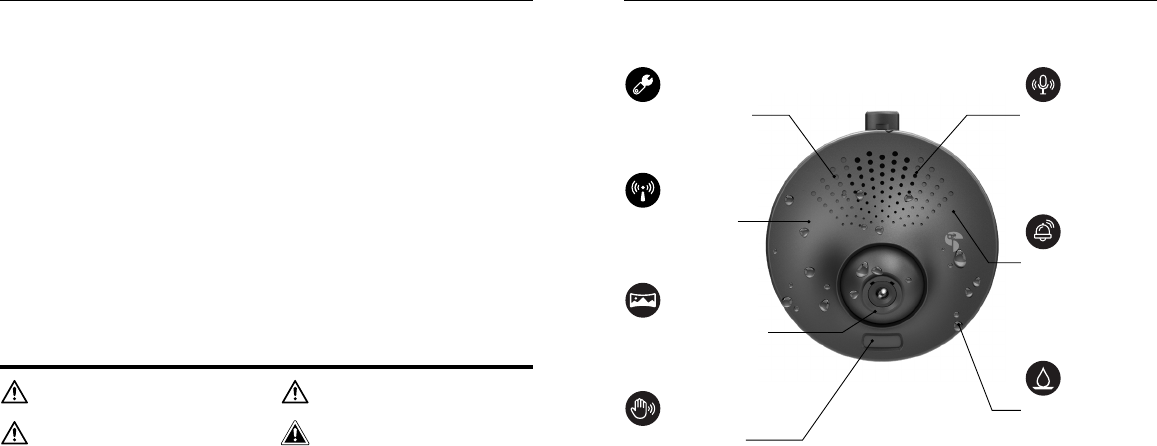

Table of Contents 1. Key Features
Easy 3-Steps Installation
· DIY installation in minutes;
no need to pull wires
WARNING: Toucan camera incompatible with motion
security light fixtures.
2-way communication
· Built-in microphone and
high-delity speaker for
clear audio communication
100dB Siren Alarm
· Sound the alarm instantly
to unwanted visitors
Durable Design
· Withstands high humidity
and house maintenance
year-round
Wireless Connectivity
· Built-in WiFi® and
Bluetooth® technology
Wide Angle Adjustable Lens
· Clear FHD LIVE video feed
and event recording capture
Passive Infrared Sensor
· Detects change in motion
Toucan Camera 2.0
Prevent a Break In, before it happens.
CAUTION: Smart Socket do not exceed 40 watt
maximum in CFL or LED load.
WARNING: FOR USE ONLY with 120 volt CFL or
LED bulb.
WARNING: For use in dry or damp locations.
![](/img.php?id=3263556&img=bg3.png)
3 4

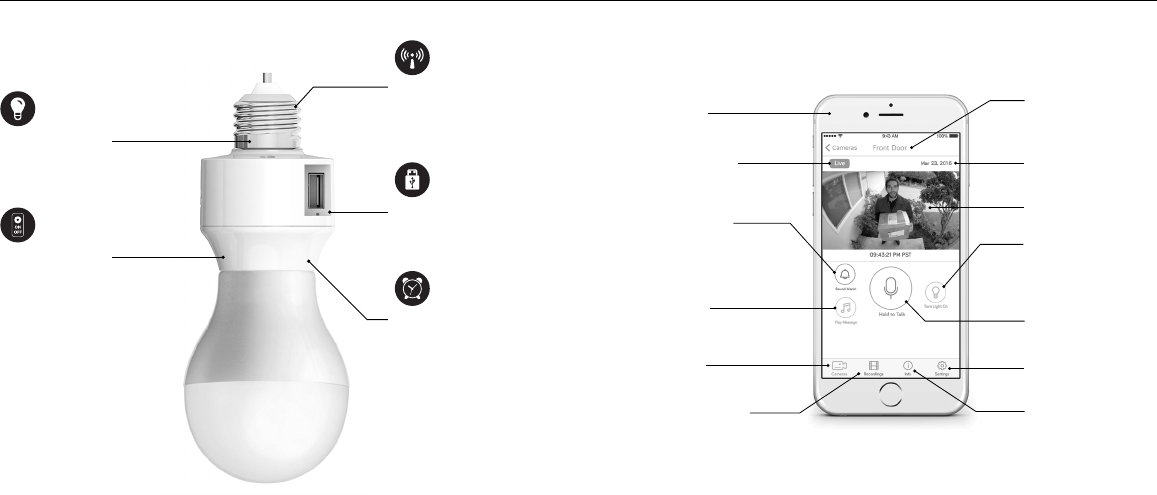

1. Key Features
Smart Socket Functions on the Kuna Light app
Adapt to lamp fixture
· Simply thread in E26 adapter
between fixture and the bulb
Mesh Network Connectivity
· Total security solution
for entire home with
Bluetooth® technology
USB power adapter
• Provides power to camera
Schedule dusk-to-dawn
• Timer feature to schedule
light to turn on at dust and
off at dawn through cloud
system
Remote Light Control
· Turn on and off the lights
Free app to receive automatic notifications, view live video, and speak directly to those at your door.
Events captured up to 2 hours and stored in Cloud Server. Never miss a moment!
*User interface is subject to change without prior notice.
Easy to install the smart socket
Automatic
Notifications
Toucan Camera Name
· Set up by user
Hold to talk
· 2-way communication
Light control
· Turn ON/OFF the lights
Date
Camera setting
Wide Angle LIVE view
App and Contact Info
Live video indicator
100dB Siren Alarm
· Sound the alarm instantly
to unwanted visitors
LIVE Camera
View Recorded Videos
Play Message
· Pre-recorded messages
![](/img.php?id=3263556&img=bg4.png)
5 6

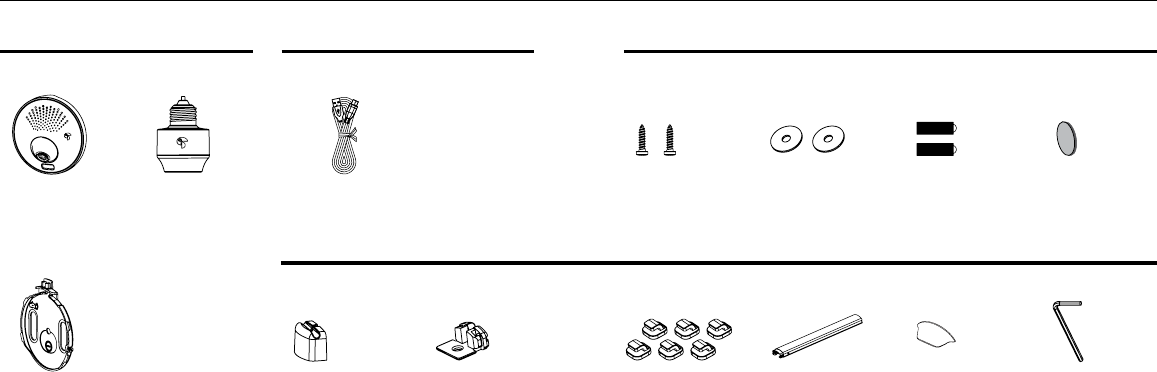

2. What is Included
Before installing Toucan, make sure all parts are present.
If any part is missing, please contact VuPoint Solutions at support@vupointsolutions.com.
Toucan Camera 2.0
· Mount camera under
light fixture
Camera Back Plate
· Fix the cable position
on back plate
Camera Products Accessory - Step 1
Accessory - Step 3
Accessory - Step 2
USB cable with Silicon sleeve
· Connect camera to socket for power source.
Silicon sleeve protects USB cable when installing
lamp sconce on fixture.
Mount Screws (2pcs)
· Wall mount purpose
Wall Inserts (2pcs)
· Wall mount purpose
Washers (2pcs)
· Wall mount purpose
Hexagonal Wrench
· Lock and unlock the
camera on back plate
Conduit
· Manage the cable
between cable and
light fixture with
adjustable length
Visor
· Prevents glare from
light bulb.
Positioning Sticker
· Indicator for camera’s
position on the wall
during installation
Back Plate Cover
· Fix the cable position
Conduit Cover
· Fix the conduit and
cable position
Cable Clips (6pcs)
· Manage the cable on
light base plate
Smart Socket
· Thread in between
light fixture and light
bulb. USB port provides
power to camera.
![](/img.php?id=3263556&img=bg5.png)
7 8

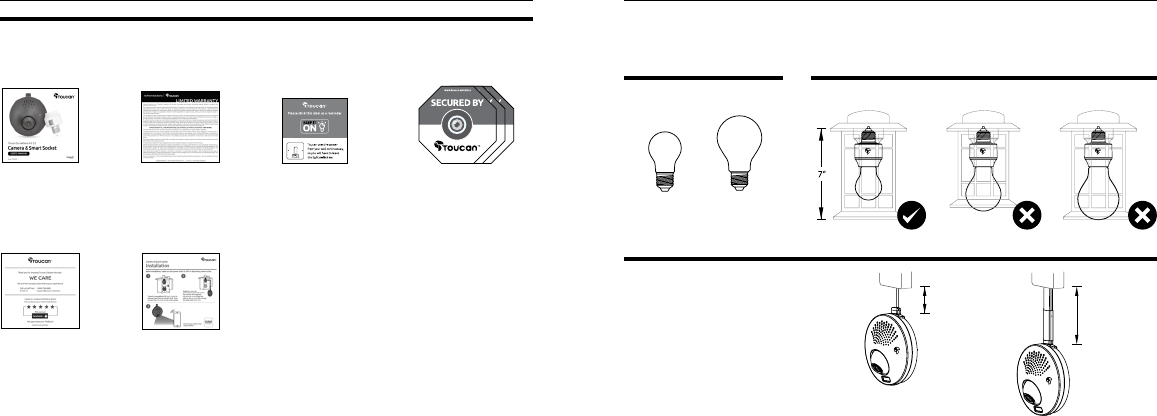

2. What is Included
Manual and Labels
Lightbulb
< 5”
> 5”
Light fixture with socket
A15 A19
3. Positioning
Smart Socket is compatible with standard A15 and A19 light bulbs. If your lamp sconce height is less than 7
inches, or if your light bulb protrudes from your light fixture after threading in Smart Socket and light bulb,
please consider changing to a smaller light bulb.
We recommend positioning the camera
beneath the light fixture. If the camera
is placed approx. 5” beneath the lamp
base against the wall, please install the
conduit to manage the cables.
*Placement recommendations may vary based on different light fixture’s designs, style, and size.
add
conduit
User’s Manual
5 Stars Care Card
Warranty Card
Quick Start Guide
Secure Stickers (3pcs)
· Alert intruder that home
is secured by Toucan
Power Sticker
· Stick on main power
switch
![](/img.php?id=3263556&img=bg6.png)
910
Lens mark for camera positioning and leveler to align
and balance back plate. You can use Positioning Sticker
(included) to mark placement before adhering to your wall.
Refer to Option 1 to mount camera to wall with adhesive or
Option 2 to mount camera to wall with screws.
STEP 2 Mounting the camera’s back plate
After using the Leveler to adjust
the orientation of the plate,
adhere the Positioning Sticker
to mark the center of the plate.
Remove *adhesives from back
plate for a more stable placement
of the camera to the wall.
Align back plate with the
Positioning Sticker on the wall
to center the plate.
1 2 3
OPTION 1 Mounting with adhesive
Before installation, make sure the power switch is OFF or disconnect power at the fuse.
Refer to “What Is Included” in Section 2 for part installation for the steps below:
STEP 1 Socket installation
Install Smart Socket to fixture.
Attach USB Cable to
Smart Socket.
Thread in light bulb.
Reattach lamp
sconce if necessary.
Remove USB cover. Before
installing the socket into light
fixture, disassemble the lamp
sconce if necessary.
Screw lamp sconce back in and
drag out USB cable through the
shade then adjust Silicon sleeve
from USB cable to protect cable.
1
4
2
5
3
6
4. Toucan Installation
Positioning
Sticker
After using the Leveler to adjust the orientation of the plate,
you can use a pencil to mark the placement for the screws.
**Drill holes for screws placement. Install Wall Inserts.
Mount back plate with Washers and Screws.
* This 3M tape is strong and it may peel off wall paint, especially if the paint was not applied properly.
** Usual case in drywall or wooden.
* For 2 sockets pack, one socket is for backup purpose.
** Do not over tighten the scone screw during reattached scone, it may cause the wire break.
OPTION 2 Mounting with screws
![](/img.php?id=3263556&img=bg7.png)
11 12

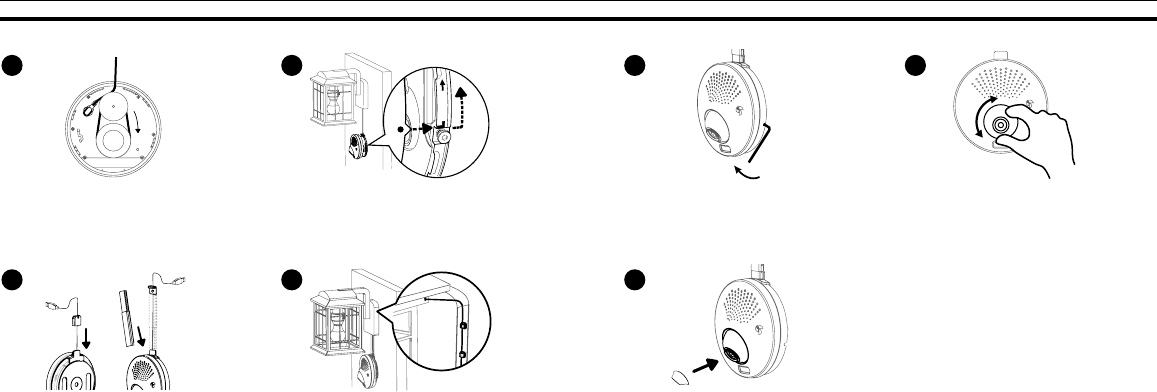

Plug USB Cable into the back of the camera
and loop the cable around the rings; continue
looping the cable if necessary.
Mount the camera to the back plate and align
the white dot to the left of the screw at the
tail of the white arrow and rotate camera
counter-clockwise to lock.
Manage the cable with optional Conduit.
1) Attach the Back Plate Cover to the back
plate if conduit is not used. 2) Attach conduit
then the Conduit Cover on top.
Tighten the security screw with hexagonal wrench.
Do not over-tighten the security screw.
Press lens down with fingers to turn the lens to
desired position.
Attach Visor to the top of the camera lens.Position camera and use Cable Clips to man-
age the cable if necessary.
1
4
2 5 6
73
4. Toucan Installation
STEP 3 Camera body installation
LOCK
Back Plate
Cover
Conduit
Cover
![](/img.php?id=3263556&img=bg8.png)
13 14
6. Specications
Toucan Camera (Model: TC200KU)
Toucan Smart Socket (Model: TS100WU)
Camera
Video resolution
Field of View
Wi-Fi®
Bluetooth®
Siren Alarm
Lighting Control
Weatherproof Design
Dimensions (L×H×W)
Microphone
Speaker
Input Voltage
Compatibility
Operating temperature
FHD 1080p resolution
1920x1080 at 30 fps. H.264
160 degrees (diagonal)
2.4GHz & 5GHz 802.11 a/b/g/n/ac
Bluetooth® BLE 4.0
100 dB
On/Off/Scheduling with app
Yes
4.6” x 4.6” x1.9”
Built-in
Built-in
DC:5V/1.0A
iOS: 5 or above / Android : 4.3 or above
-40°F - 113°F
Lamp Base Type
USB Output
Input
Lighting Control
Bluetooth®
Light bulb
Dimensions
Operating temperature:
Socket type E26
DC5V, 1A
AC120V, 60Hz
On/Off/Scheduling through BLE Mesh Network
Bluetooth® BLE 4.0
Support maximum 40W standard bulb;
Recommended 10W LED light bulb. (not included in both)
2”(Dia.) x 3”
-40°F - 113°F
5. Status LED Indicators
LED STATUS DESCRIPTION
In order to set up your Toucan, please make sure it’s successfully installed, and the status LED on the bottom
left side of your Toucan camera is flashing red. This means that your Toucan is ready to be set up!
Solid Red
Flashing Red
Flashing Yellow
Solid Blue
Solid Purple
Booting
Waiting for Wi-Fi Connection
Connected to Wi-Fi
Waiting for connection to Kuna Servers
Connected to Kuna Servers and operating normally
Firmware updating triggered by user
![](/img.php?id=3263556&img=bg9.png)
15 16
SAFETY & OPERATIONS
Please adhere to the following safety instructions. Failure to follow the instructions outlined in the user’s
manual may lead to serious personal injury and possible property damage.
Smart Socket USB power output max. up to 5W.
The socket must be installed in the listed lampholder.
USB connector use only with the Camera Model: TC200KU.
Class 2 output connections are not intended for supporting products or appliances.
Use only the USB cable packaged with the Camera Model: TSK200KU. The Smart Socket and USB cable
may become warm during normal use. Always allow adequate ventilation around the smart socket
and USB cable and use care when handing. Unplug the device if any of the following conditions exist:
• the USB cable or Smart Socket has become frayed or damaged
• the USB connector or Smart Socket is exposed to rain, liquid, or excessive moisture
• the USB cable or Smart Socket has become damaged
• you suspect the USB cable or Smart Socket needs service or repair
• you want to clean the USB cable or Smart Socket
7. Troubleshooting & FAQ
Frequently Asked Questions
1
2
3
4
5
6
7
How long will my recordings be available?
Do I have to leave my light switch on?
How many Toucan Cameras can I install
at home?
Can I use LED bulb with Toucan?
What is the maximum light bulb wattage
I can use with the Smart Socket?
I do not see any Toucan camera show up
in setup screen?
My Toucan is “offline”?
All Toucan units come standard with a two-hour download and “look back”
window. With premium subscription plans, you can “go back in time” to
access every event that your Toucan generated for up to 30 days.
Yes, Toucan uses power continuously, so you will have to leave the light
switch on. We have provided with your Toucan a “Keep it On” label as
reminder to leave the switch on.
There’s no limit. We recommend installing Toucan at all major entry
points. You can add multiple cameras to your Kuna Light app and man-
age each camera all in one app.
Yes, we recommend that you use an LED bulb.
Smart Socket supports up to maximum 40W.
Toucan uses Bluetooth® LE 4.0 for setup. You will need to be within
about 10 feet of the Toucan and have Bluetooth enabled on your mobile
device. Try rebooting your mobile device and launch the
Kuna Light app again.
1) Reboot your Toucan: Turn off your Toucan (using the light
switch it’s connected to) and wait at least 10 seconds.
Then, turn on the light switch back on.
2) Run through the set-up process: Re-add the Toucan camera again.
This may be caused by weak Wi-Fi signal. Improve performance
by moving your router closer to your Toucan, or adding a
Wi-Fi extender in between.
Note: If you need to change the router or ownership of your Toucan, please contact Kuna Customer Service to reset the Toucan.
8. Regulations & Compliance
Note: Model Number and Serial Number (S/N) is located on the packaging, instruction manual,
or on the product. Please have this information ready before contacting tech support.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
![](/img.php?id=3263556&img=bga.png)
17 18
App StoreSM is a service mark of Apple Inc. Google Play™ and Android™ are registered trademarks of
Google Inc. Wi-Fi® is a registered trademark of the Wi-Fi® Alliance. Kuna is a registered trademark
of Kuna Systems Corporation, Bluetooth® word mark and logo are registered trademarks owned by
Bluetooth SIG, Inc. Toucan is a registered trademark of VuPoint Solutions, Inc. All trademarks are the
property of their respective owner.
U.S. Patent Pending TSK200KU_Manual_16-0831
FCC STATEMENT
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
The transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This
equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any
part of your body.
(i) the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
8. Regulations & Compliance
Camera FCC ID:
Socket FCC ID:
Camera IC:
Socket IC:
2ABT4TC200KU
2ABT4TS100WU
21342-TC200KU
21342-TS100WU
IC CAUTION
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation estautorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareildoit accepter tout brouillageradioélectrique subi, mêmesi le brouillage est
susceptible d’en compromettre le fonctionnement.
(ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-
5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
(iii) the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set
forth in Section 6.2.2(3) shall be clearly indicated.
Until further notice, devices subject to this section shall not be capable of transmitting in the band 5600-5650
MHz. This restriction is for the protection of Environment Canada’s weather radars operating in this band.
www.toucan.solutions
