Sonim Technologies L23V013AA LTE phone User Manual
Sonim Technologies, Inc. LTE phone
User Manual
![](/img.php?id=3073315&img=bg1.png)
1
USER
GUIDE
SONIM XP5
English
![](/img.php?id=3073315&img=bg2.png)
2
Copyright © 2016 Sonim Technologies, Inc.
SONIM and the Sonim logo are trademarks of Sonim
Technologies, Inc. Other company and product names
may be trademarks or registered trademarks of the
respective owners with whom they are associated.
Disposal of Old Electrical and Electronic Equipment
This symbol indicates that within the
countries in the European Union, this
product, and any enhancements marked
with this symbol, can not be disposed
as unsorted waste but must be taken to
separate collection system at their end-of-
life.
Disposal of Battery
Please check local regulations for disposal
of batteries. The battery should never be
placed in municipal waste. Use a battery
disposal facility if available.
Guideline for Headphone and Earphone
To prevent possible hearing damage,
please do not listen at high volume levels
for long periods.
![](/img.php?id=3073315&img=bg3.png)
3
Contents
General Information———————— 7
Phone Models Covered
Sonim Support Information
Safety Guidelines———————— 8
SAR Information
Avoid High Temperatures
Battery Disposal
Personal Medical Devices
Child Safety
Emergency Calls
Battery Usage Guidelines———————— 13
Battery Usage
Charging the Battery
Verifying and Optimizing Battery Usage
Tips to Extend the Battery Life
Getting Started———————— 15
What Is In the Box?
Phone Specications
Your Sonim XP5———————— 16
Switching On
Setting Up Your Phone
Managing Home Screen
Notication Bar Icons
Phone Operations Without SIM Card
Setting Up and Using Lock Screen
Changing the Wallpaper
Taking a Screenshot
Text Entry Options
To Enter a Word
Keypad Functions
Managing Phone Settings———————— 24
Time and Date Settings
Language and Input Settings
Display Settings
Power Saving Settings
Connecting a PC Using USB Connection
Viewing Device Details
Optimizing Memory Usage
Managing Wireless and Network Settings———— 27
Connecting to Wi-Fi Network
Connecting to Bluetooth Devices
Optimizing Data Usage
Activating Airplane Mode
Setting Up Tethering & Portable Hotspot
Setting Up Wi-Fi Hotspot
Activating Bluetooth Tethering
Managing Mobile Network
Managing Personal and System Settings————— 31
Managing Security Settings
Locking Your Screen
Encrypting Phone Data
Locking Your SIM Card
Managing Credential Certicates
Managing Phone Security Settings———————— 32
Location Access
Backup and Restore Data
Protecting Your Phone from Harmful Applications
Managing Contacts———————— 33
Add a New Contact
Viewing Contact Details
Sending a Message from Contacts
Dialing a Number from Contacts
Editing the Contact Details
Importing SIM Card Contacts to Phone
Exporting Phone Contacts to SIM Card
Exporting Phone Contacts to Storage
Managing Contact Settings
Managing Phonebook Settings
Searching Contacts
![](/img.php?id=3073315&img=bg4.png)
4
Deleting a Contact
Managing Calls———————— 36
Making a Call
Dialing a Number via Contact
Adding a Contact from Phone Screen
Viewing Call History
Deleting Call History
Managing Call Settings
Changing Ringtones and Master Volume
Editing Quick Responses
Activating Vibrate Mode
SIP Accounts
Sending Messages———————— 39
Sending SMS/MMS Messages
Managing Message Settings
Deleting Messages
Emergency Alerts
Using the Phone Keypad———————— 42
Enter and Edit Text
Phone Dictionaries
Installing and Accessing Enhanced Push-To-Talk
Services———————— 43
Activating PTT+ Using Wi-Fi
Adding Contacts from Native Phonebook
Creating PTT+ Contacts———————— 46
Adding Contacts by Manual Input
Adding PTT+ Groups
Making an PTT+ Call to an Individual
Creating New PTT+ Groups———————— 49
Making an PTT+ Call to a Group
Making PTT+ Calls to Individuals and Groups——— 51
Making a Quick Group Call
Editing PTT+ Contact
Deleting PTT+ Contact
Managing PTT+ Groups and Contacts—————— 55

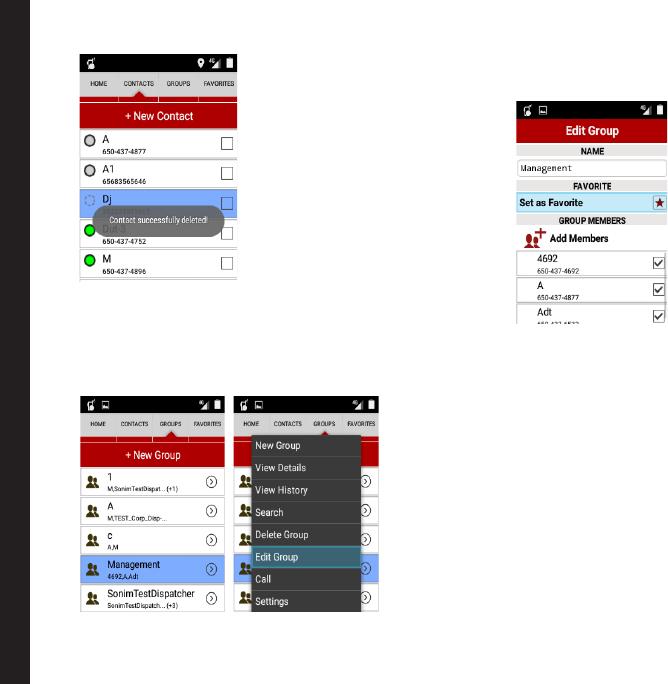

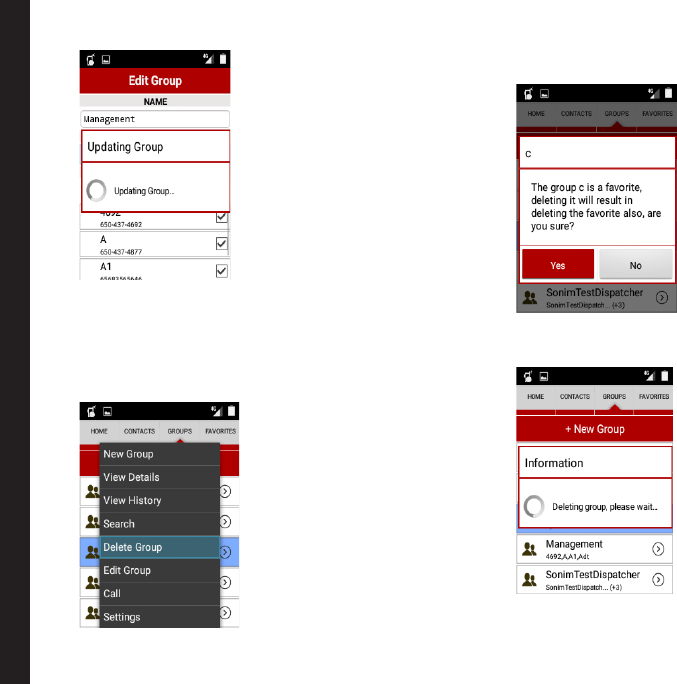

Editing PTT+ Group
Deleting PTT+ Group
Adding a Favorite Contact
Adding a Favorite Group
Sending Personal Alert

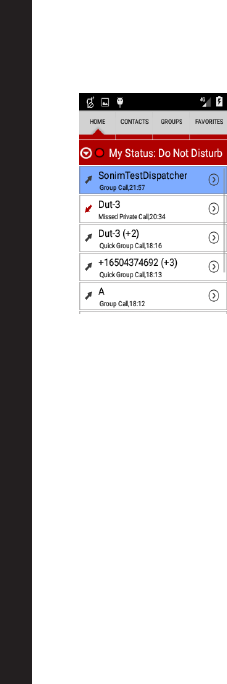

Managing PTT+ Presence———————— 60

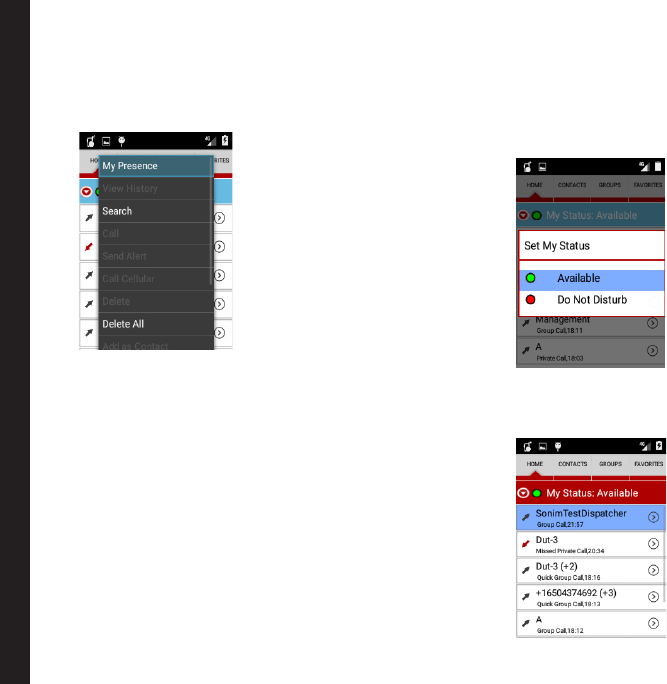

PTT+ Presence Status Change
Managing Alerts———————— 62

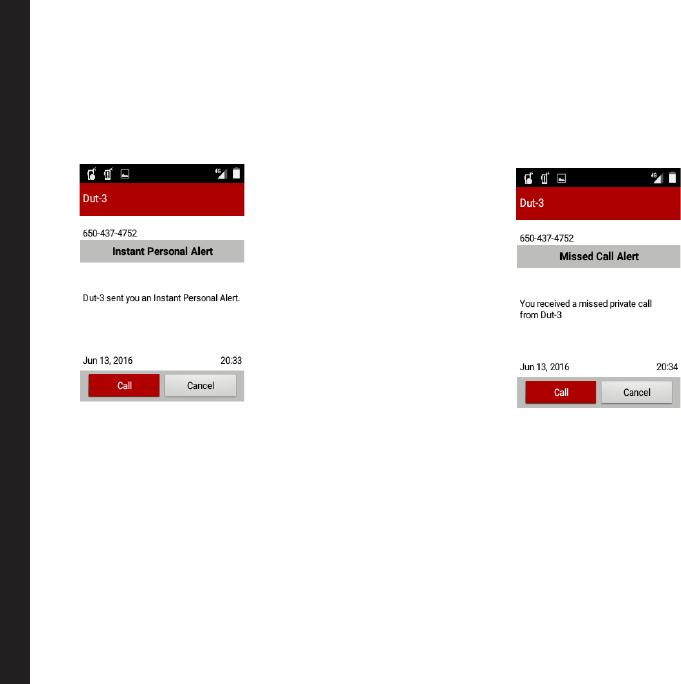

Receiving Personal Alert
Missed call Alert
PTT+ Presence Status Change———————— 64

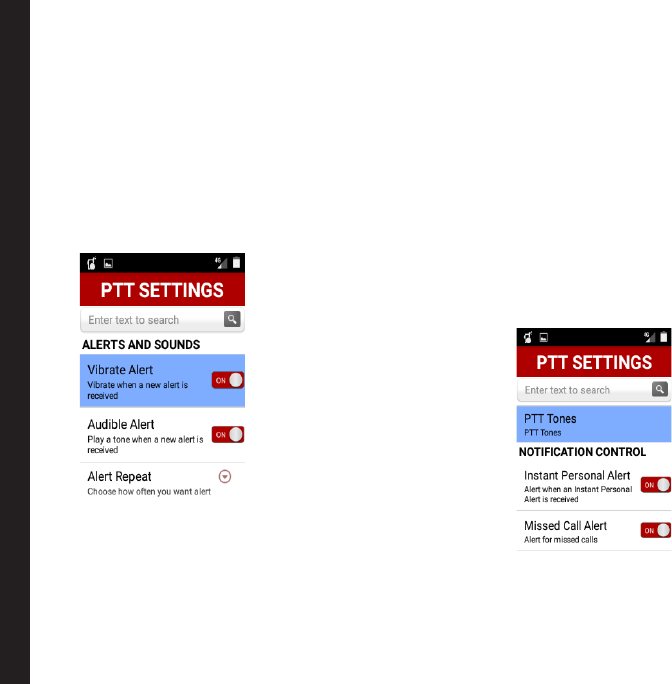

PTT+ Settings

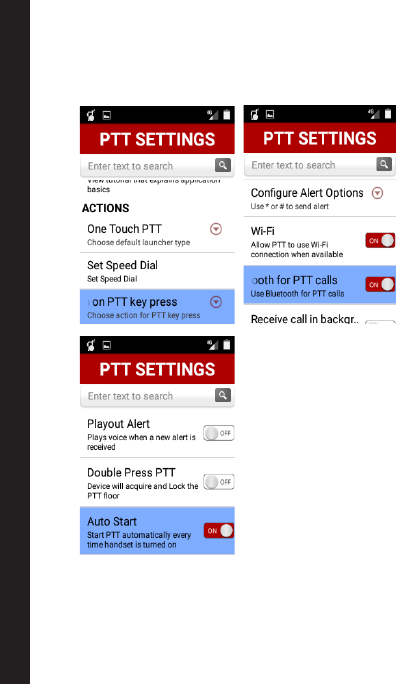

PTT+ Settings———————— 66

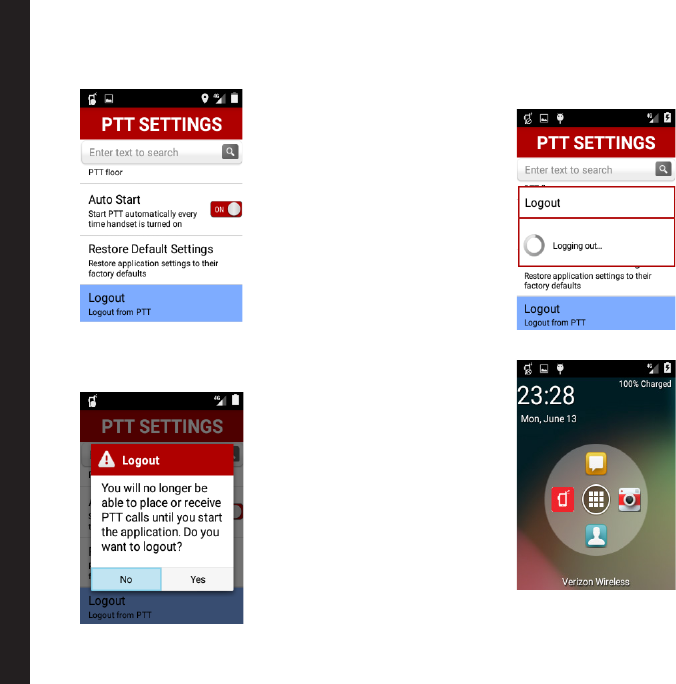

Logout of PTT+ Service———————— 68
Installing and Using Applications———————— 69
Camera
Calendar™
Alarm
Clock
Calculator
Sound Recorder
Music Player
End User License Agreement———————— 71
License
Comprehensive 3-Year Warranty
Warranty Registration Application
Our Warranty
What We Will Do
Phone Care
Conditions
Accessories
Contents
![](/img.php?id=3073315&img=bg6.png)
6
Please register your phone at www.sonimtech.com/register, to receive product information and updates.
Sonim devices are covered by a 3-year comprehensive warranty. The removable battery is covered by a
1-Year limited warranty. For more information related to the warranty, please refer to the warranty section
“Comprehensive 3-Year Warranty” on page 71.
![](/img.php?id=3073315&img=bg7.png)
7
Congratulations on the purchase of your Sonim XP5
LTE feature phone. It has an intuitive, feature-rich user
interface with a One-Touch Push-to-Talk design for
instant calls to your most frequent contacts. Your XP5
also boasts two front facing speakers, reaching up to
104dB, which enable clear communication in the loudest
environments.
Phone Models Covered
This user guide covers the Sonim XP5 phone with the
model number XP5700. The model name can be read on
the phone label under the battery.
Sonim Support Information
For additional product and support information,
visit www.sonimtech.com.
Options Commonly Used Across Menu Items
The following are common actions used across various
menu items:
OK Conrms an action. Use the Center
navigation key to perform this function.
BACK Use this key to display the previous
screen.
MENU Moves the current working application to
the recent applications list/background
and displays menu screen.
RECENT Displays the thumbnails of the applications
that you have worked on recently. To
remove any application from this list,
Select Remove from list from option.
General Information
![](/img.php?id=3073315&img=bg8.png)
8
Please read and understand the following safety guidelines before you use the phone. These guidelines provide details
to enable you to operate your phone safely and conform to any legal requirements regarding the use of cellular phones.
Do not to use the phone at a refueling point. Observe restrictions when using radio equipment at
fuel depots, chemical plants or where blasting operations are in progress.
Electrical interference may obstruct the use of your phone. Observe restrictions in hospitals and
near medical equipment.
Switch off your cellular phone when in an aircraft. Wireless phones can cause interference or danger
to an aircraft. In an aircraft, the phone can be used in flight mode.
Do not expose the battery to high temperatures (in excess of 55°C).
Adhere to road safety laws. Do not hold/use a phone while you are driving; find a safe place to stop
first. Use hands-free microphone while you are driving.
Avoid using the phone in close proximity to personal medical devices, such as pacemakers and
hearing aids.
Use only Sonim XP5 approved charging equipment to charge your phone and avoid damage to
your phone.
The symbol of the crossed-out wheeled bin indicates that this product, and any enhancements
marked with this symbol, cannot be disposed as unsorted waste but must be taken to separate
collection systems at their end-of-life.
Safety Guidelines
![](/img.php?id=3073315&img=bg9.png)
9
Ensure that only qualied persons install or repair your phone.
The Sonim XP5 is water-proof and can be submerged to 2 meters for 1 hour.
• The rubber cover of the charging connector and audio connector must be properly connected
to avoid deposits of water drops on these connectors when the phone is immersed in water.
• Water droplets may condense under the display cover if the phone is immersed in water with
signicant drop in temperature. This does not indicate water leakage. The droplets disappear
at room temperature.
The Sonim XP5 is dust-resistant, rugged and shock-resistant. However, it is not dust-proof or
unbreakable if subjected to overwhelming impact. For best results and long product life, one should
protect the Sonim XP5 from salt water, dust and strong impacts.
Safety Guidelines
![](/img.php?id=3073315&img=bga.png)
10
SAR Information
The Sonim XP5 has been certified in compliance with
the Government’s requirements for exposure to Radio
Waves.
When communicating over the wireless network, the
mobile phone emits via the radio frequency waves and
low levels of radio energy. The Specic Absorption Rate,
or SAR, is the amount of RF energy absorbed by the
body while using the phone and is expressed in watts/
kilogram (W/kg).
Governments around the world have adopted
comprehensive international safety guidelines, developed
by scientic organizations, for example, ICNIRP
(International Commission on Non-Ionizing Radiation
Protection) and IEEE (The Institute of Electrical and
Electronics Engineers Inc.). These guidelines establish
permitted levels of radio wave exposure for the general
population.
Tests for SAR are conducted using standardized methods
with the phone transmitting at its highest certied power
level in all used frequency bands.
SAR Data Information for residents in the United
States and Canada
The limit recommended by ICNIRP is 1.6 W/kg averaged
over one (1) gram of tissue.
The highest SAR value for the Sonim XP5700 phones
when tested by Sonim for use:
• By the ear is 1.32 W/1kg.
• Worn on the body is 1.06 W/1kg provided that the
phone is used with a non-metallic accessory with
the handset at least 1 cm from the body, or with the
original Sonim accessory intended for this phone
and worn on the body.
HAC Rating
The FCC has created a rating system for cellular phones
regarding their HAC-related performance. This rating
helps consumers with hearing disabilities to nd phones
that work well with their hearing aid devices. The HAC
rating and measurement procedure are described
in the American National Standards Institute (ANSI)
C63.19:2011.
ANSI C63.19 contains two rating standards: an “M” rating
from 1 to 4 for hearing aids operating in microphone
mode, and a “T” rating from 1 to 4 for hearing aids
operating in telecoil mode.
M-Rating stands for Microphone rating and indicates
the amount of reduction of RF interference between the
telephone and the hearing aid in acoustic coupling mode
(also called microphone mode).
Phones rated M3 or M4 meet FCC requirements and
generate less interference to hearing devices set in
microphone mode. T-Rating stands for Telecoil rating and
represents inductive coupling with hearing aids that are
operating in telecoil mode. A telecoil is a small piece of
tightly wrapped wire, built into some hearing aids. While
the microphone of a hearing aid picks up all sounds, the
telecoil only picks up an electromagnetic signal from the
telephone. Thus, users of telecoil-equipped hearing aids
are able to communicate over the telephone without the
amplication of unwanted background noise.
Phones rated T3 or T4 meet FCC requirements and
generate less interference to hearing devices set in
telecoil mode.
A combination of M-rating and T-rating denes the
nal HAC rating and is a deciding factor in selecting
Safety Guidelines
![](/img.php?id=3073315&img=bgb.png)
11
Safety Guidelines
cellular phones for people with hearing problems. A HAC
compliant phone could be rated:
• M3/T3
• M3/T4
• M4/T3
• M4/T4
These ratings assist hearing device users to nd
phones that are compatible with their hearing devices.
Ratings are shown on the phone’s box or label. The
ratings are not guaranteed for suitability. The results
vary depending on the individual’s hearing loss and the
immunity characteristics of the used hearing device, i.e.
its resistance to interference. The best way to evaluate
the suitability of the phone is to try it with the intended
hearing aid device.
Sonim XP5 has been tested for hearing aid device
compatibility and complies with the Federal
Communications Commission (FCC) requirements. Sonim
XP5 is rated M4/T4.
Avoid High Temperatures
Leaving the device in hot or cold places, such as in a
closed car in summer or winter conditions, reduces the
capacity and lifetime of the battery. For the best results,
try to keep the device between -20°C and +55°C (-4°F
and 131°F). A device with a hot or cold battery may
not work temporarily, even when the battery is fully
charged. Battery performance is particularly limited in
temperatures well below freezing.
Battery Disposal
Do not dispose of batteries in a re as they may explode.
Batteries may also explode if damaged. Dispose of
batteries according to local regulations and recycle when
possible. Do not dispose as household waste. Do not
dismantle, open or shred cells or batteries. In the event of
a battery leak, do not allow the liquid to come in contact
with the skin or eyes. In the event of leak or a hazard
seek medical help immediately.
Personal Medical Devices
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment. Please
avoid placing the mobile phone over the pacemaker, for
example in your breast pocket. When using the mobile
phone, place it at the ear opposite the pacemaker. If a
minimum distance of 15 cm (6 inches) is kept between
the mobile phone and the pacemaker, the risk of
interference is limited. If you suspect that interference
is taking place, immediately turn off your mobile phone.
Contact your cardiologist for more information. For
other medical devices, consult your physician and the
manufacturer of the device. Comply with instructions to
switch off the device or deactivate the RF transmitter
when required, especially when posted in hospitals
and airplanes. Equipment used in these places may
be sensitive to radio waves emitted from the device
and adversely affect their operation. Also, observe
restrictions at gas stations or other areas with ammable
atmospheres or when close to electro-explosive devices.
![](/img.php?id=3073315&img=bgc.png)
12
Safety Guidelines
Child Safety
Do not allow children to play with your mobile phone or
its accessories. Keep it out of their reach. They could
hurt themselves or others, or could accidentally damage
the mobile phone or accessories. Your mobile phone and
its accessories may contain small parts, which could be
detached and create a choking hazard.
Emergency Calls
Mobile phones operate using radio signals, which cannot
guarantee connection under all conditions. Therefore
you should never rely solely upon any mobile phone for
essential communications (e.g. medical emergencies).
Emergency calls may not be possible in all areas, on all
cellular networks, or when certain network services and/
or mobile phone features are in use. Check with your
local service provider.
![](/img.php?id=3073315&img=bgd.png)
13
Battery Usage Guidelines
Battery Usage
Sonim XP5 phone comes with a removable battery. For
any battery related queries contact Sonim customer
support.
Charging the Battery
We recommend that you charge your mobile phone for 4
hours before using for the rst time.
There is a risk of explosion while charging if the
battery has been replaced by an incorrect type.
1 Insert Charger
Insert the charger plug into a power outlet.
2 Connect to Phone
The charging port is located in the lower
side of the phone, below the back cover.
Insert the charger connector to the
charging port.
3 Charging Animation/Icon
If the battery is being charged when the
phone is switched off, a battery charging
animation with charged percentage is
displayed.
If the battery is being charged while the
phone is switched on, the battery charge
icon on the home screen shows animation
indicating that the battery is being
charged. After the phone is fully charged,
the battery full pop-up is displayed and
you can disconnect the charger from the
phone.
Verifying and Optimizing Battery Usage
You can check the battery usage status and also close
some applications to save battery power. In the menu
screen, select Settings ( ) > Battery ( ).
The current battery charge status (charging or not
charging) and the charge level details are displayed on
the top of the screen.
The discharge graph on the top of the screen shows the
battery level over time since you last charged the device,
and how long you have been running on battery power.
The list at the bottom of the screen shows the breakdown
of battery usage for individual apps and services. The
details screen for some apps includes buttons that allow
you to adjust settings affecting power usage, or stop the
app completely.
![](/img.php?id=3073315&img=bge.png)
14
Tips to Extend the Battery Life
Follow these tips to extend your phone’s battery life.
• If you are not using Wi-Fi, Bluetooth or GPS, use the
Settings to turn them off. The GPS setting is located
in Settings > Location.
• Set screen brightness to Low and set a shorter
Sleep timeout (15 seconds). The display settings are
located in Settings > Device > Display.
• If you are travelling and do not have access to
mobile or Wi-Fi network, switch to Airplane mode:
select Airplane Mode from Quick settings.
Battery Usage Guidelines
![](/img.php?id=3073315&img=bgf.png)
15
Getting Started
What Is In the Box?
The list of items in the Sonim XP5 phone box are:
• Sonim XP5 phone with removable battery
• Quick Start Guide
• USB Data Cable
• Wall Charger
Phone Specifications
Feature Description
Memory Total Memory: 4 GB
Total User Storage: 1.8 GB
Wireless Wi-Fi - 802.11 a/b/g/n/r/e with hotspot
function (Max. 5 connections)
Bluetooth 4 + LE
Connectivity Charger port name: 5 pins water-proof
magnetic USB 2.0
3.5 mm headphone jack
Battery 3180mAh (4 pins) embedded
Standby: up to 267 hours
Talk time: up to 19 hours
Music playback: up to 59 hours
Video playback: up to 8.5 hours
Web browsing: up to 7.5 hours
![](/img.php?id=3073315&img=bg10.png)
16
Sonim XP5 Phones
Your Sonim XP5
Loud speaker ON/OFF
Display screen
Torch
Charger/USB port
Microphone
Headset port
Receiver
PTT+ button
Options
Clear
Call/Accept
Volume Up button
Call End/Reject
Long press for Power ON/OFF
Menu
OK
Navigation keys
Press and hold to lock the keypad
Press and hold to access voicemail
Volume Down button
Back
Notication LED
Front speaker
Front speaker
Speaker LED
![](/img.php?id=3073315&img=bg11.png)
17
Your Sonim XP5
Switching On
Press and hold ON/OFF Red key for 2 seconds.
When the phone is switched on, it tries to register with
the network. After successful registration, the name of
the service provider is displayed.
Ensure that a valid SIM card is inserted in your
phone.
Setting Up Your Phone
For instructions on using your phone’s buttons, charger,
battery, and other hardware features, check the printed
Quick Start Guide provided along with your phone.
When you power ON the phone for the rst time, a
Welcome screen is displayed.
Managing Home Screen
After you complete the phone setup, the home screen
is displayed. The home screen is the beginning point to
access all the device’s features.
1. Notifications
2. Service indicator
and Signal
strength indicator
3. Battery charge
indicator
4. Home screen
The navigation keys are located below the display screen.
Key Description
Back - Opens the previous
screens in the working
sequence till the home screen
is displayed. Once the home
screen is displayed, it remains
there even when you press
the back key.
Menu - moves the current
working application to the
recent applications list/
background and displays
menu screen.
12
3
4
![](/img.php?id=3073315&img=bg12.png)
18
Your Sonim XP5
Key Description
Options - displays the
options for the currently active
screen.
Clear - Clears the entered
text and deletes the selected
le.
Torch - Enables the ashlight.
The Menu Option ( ) is always positioned in the
center of the favorites tray. Select it to view all the
applications.
The Notications on the top of the display screen
provides details about various notications such as
missed calls, new messages and missed alarms.
The System Icons on the right display the current device
status such as wireless and network connection strength,
battery level and time.
Notification Bar Icons
The icons displayed at the top of the screen provides
information about the status of the device. The details
such as battery charge status, and data service are
displayed when the phone is in standby mode. Other
indicators such as Bluetooth connectivity status, airplane
mode, alarm and call forward (only if Always forward
is enabled) and Wi-Fi connectivity are displayed, if the
feature is activated.
Icon Description
Notication icon
Battery level indicator
Battery charging in progress
No signal
Signal strength
No SIM card
Wi-Fi connected
Bluetooth activated
Call in progress
![](/img.php?id=3073315&img=bg13.png)
19
Your Sonim XP5
Icon Description
Missed call
New SMS or MMS
Alarm activated
Silent mode activated
Vibration mode activated
Airplane mode activated
Error/information notication - attention
required
Screenshot captured
Music is played
Device storage space is running out
Icon Description
PTT Available status icon
PTT Ofine status icon
PTT Do Not Disturb status icon
1X
Phone Operations Without SIM Card
You can perform the following operations without
inserting a SIM card in your phone.
• Make emergency calls.
• View and modify all settings except data usage and
mobile network related settings.
• Activate and share les through Bluetooth.
• Access the Internet using Wi-Fi connectivity.
• Access your phonebook, my les, multimedia les,
all tools and applications.
• View and modify your prole settings.
![](/img.php?id=3073315&img=bg14.png)
20
Your Sonim XP5
Setting Up and Using Lock Screen
You must lock your phone to protect it from unauthorized
access.
1. From Home screen, select Options key > System
settings or select Menu > Settings ( ).
2. Scroll down and select Security, located under
Personal settings.
3. Select Screen lock and select one of the following
options to congure phone:
• None
• Press and hold * key.
• PIN: When enabled, enter you own PIN value.
When the phone is locked, unlock it using the
PIN.
When the phone is locked, you can answer an
incoming call, without unlocking the phone.
Changing the Wallpaper
You can set an image or a photo stored in your phone as
your home screen wallpaper. To change the wallpaper,
select from one of the following Wallpaper collections.
1. From Home screen, select Options key >
Wallpaper. Select Choose wallpaper from the
popup.
• Wallpapers: includes images that are pre-
loaded with the phone.
• Gallery: includes photos and screenshots
taken using the phone’s camera.
Taking a Screenshot
You can take the screenshot of the current screen and it
is stored in your phone’s gallery. To take a screenshot:
1. Ensure that the image to be captured is displayed
on the current screen.
2. Press the Power and Volume down button
simultaneously. The screenshot is captured and
stored in the gallery. A screen Capture icon ( ) is
also displayed on the notication bar.
Text Entry Options
When you enter the text message, you can change the
text entry options by pressing the # key. The current text
entry options are displayed in the top bar.
The various text entry options are:
• abc: Enter all the text in lower case.
• Abc: Enter the rst letter of the sentence in upper
case.
• ABC: Enter all the text in upper case.
• 123: Enter the numbers.
• T9En: Enter the text based on the T9 dictionary.
Only the rst letter of the paragraph is in upper case
(capitalized).
• T9EN: Enter the text based on the T9 dictionary. All
the letters are in upper case (capitalized).
• T9en: Enter the text based on the T9 dictionary. All
the letters are in lower case.
![](/img.php?id=3073315&img=bg15.png)
21
Your Sonim XP5
To Enter a Word
1. Start by pressing the numeric keys from 2 through 9
only once for the required letter.
Ex 1: To enter the word Good, press 4-6-6-3. The
word displays on the screen as you type.
Ex 2: To enter the word Hello, press 4-3-5-5-6. The
word displays on the screen as you type.
2. If the word does not display correctly, press right
navigation key to scroll through alternative word
choices. Press either the center navigation key or 0
key to accept the word.
To Insert a Number:
1. Press the key labeled with the number you want and
use the navigation key to scroll to that number as
above.
2. To insert a symbol, press and hold the numeric key
1 and use the navigation key to scroll and select a
symbol.
The different methods to enter the text:
• T9EN: Enter the text based on the T9 dictionary. All
the letters is in upper case (capitalized).
• T9En: Enter the text based on the T9 dictionary.
Only the rst letter of the paragraph is in upper case
(capitalized).
• T9en: Enter the text based on the T9 dictionary. All
the letters are in lower case.
![](/img.php?id=3073315&img=bg16.png)
22
Keypad Functions
The following table displays the various keys and the corresponding functions they perform:
Keypad key Operations
CALL END/REJECT
ON/OFF
• Press to end a call.
• Press to wake up display.
• Press to reject an incoming call.
• Press and hold to power ON/OFF the device.
CALL/ACCEPT/SEND
• Press to answer an incoming call.
• After entering a phone number, press to make a call.
• Press while in Standby mode to access last received or dialed call list.
BACK
• Present above the Torch key. Press this key to go back to the previous screen.
• You can press till you reach the Home screen.
MENU
• Press to see the Main menu.
• Press and hold to see the recent applications.
CLEAR
• Press to clear the entered text.
• Press to delete a selected file.
TORCH
• Press and hold to ON/OFF the flashlight.
Your Sonim XP5
![](/img.php?id=3073315&img=bg17.png)
23
OPTION
• Press to see the list of operations that can be done on current application.
OK KEY (CENTER)
• Press to perform a specic operation on a selected application.
NAVIGATION KEYS
• Press to navigate in up, down, left and right directions.
ALPHA-NUMERIC KEYS • Press the required keys (0-9) to enter the desired phone number and press to
make a call.
• Enter text while in the text editor.
• Press and hold in standby mode to access your Voicemail.
• Press and hold to display ‘+’ used for dialing an international number, while in
standby mode.
• On editor screen, press 0 to get a blank space in T9 or normal mode.
• Press or press and hold to change the language, while entering the text.
• Press and hold to lock/unlock the keypad.
• While entering text, press to switch between various input modes.
• Press and hold to list various input modes while entering the text.
Your Sonim XP5
![](/img.php?id=3073315&img=bg18.png)
24
Time and Date Settings
You can set and display the date and time on the phone.
You can also select the display format.
1. From Home screen, select Menu > Settings ( ).
2. Scroll down and select Date & Time ( ), located
under System.
3. Select one of the following options to congure
phone:
• To synchronize the date and time with the
network provided time, enable Automatic date
and time.
• To synchronize the time zone with the network
provided time enable, Automatic time zone.
• To set the date manually, select Set date. Scroll
and select the date, month and year. Select
Done.
• To set the time manually, select Set time. Scroll
and select the hour and minute. Select Done.
• To set the time zone, select Select time zone.
Scroll and select your time zone.
• To set the clock to 24-hour format enable Use
24-hour format. By default, the phone is set to
12-hour format.
• To set your preferred date, select Choose
date format. The date formats supported
are Regional (the standard format supported
by that country or region, MM DD YYYY, DD
MM YYYY, YYYY MM DD with / as the date
separator).
Language and Input Settings
You can set the phone’s language to either US Spanish
or English.
1. From Home screen, select Menu > Settings ( ).
2. Scroll down and select Language & input ( ),
located under Personal settings.
3. Select English or Espanol as your preferred
language.
All the menu items, user feedback messages and text
entry language are displayed in the set language.
Personal Dictionary Settings
The default keypad input language is set to English (US)/
Spanish (US) - T9 format. This cannot be modied.
Speech Settings
• Select Text-to-speech output to access speech
rate.
• Select Speech rate to set the speech input
rate to a comfortable speed.
• Select Listen to an example to verify the set
speech rate.
• Select Default language status, to view the default
language for speech input.
Managing Phone Settings
![](/img.php?id=3073315&img=bg19.png)
25
Display Settings
1. From Home screen, select Menu > Settings ( ).
2. Scroll down and select Display, located under
Device settings.
3. Set one of the following options to congure your
phone’s display:
• Brightness level: Set the brightness of the
phone display. This also optimizes the battery
power consumed.
• Wallpaper: Set the wallpaper for your home
screen. You can select from one of the
following wallpaper collections:
• Gallery: includes photos and screenshots
taken using the phone’s camera.
• Wallpapers: includes images that are pre-
loaded with the phone.
• Sleep: Set the sleep time so that the screen
brightness is turned down after specied time
of phone inactivity. This setting also optimizes
the battery power.
• Font size: Set the font size of the text
displayed in the screen.
Power Saving Settings
Viewing Battery Life
To view the battery life when all the apps are running:
1. From Home screen, select Menu > Settings ( ).
2. Scroll down and select Battery, located under
Device settings.
The battery life and list of running applications is
displayed.
Force Stopping an Application
1. From Home screen, select Menu > Settings ( ).
2. Scroll down and select Apps, located under Device
settings.
3. Select the application to be force stopped.
4. Select Force stop to stop an application.
If you force stop an app, it may misbehave.
Connecting a PC Using USB Connection
You can connect your phone to a PC as a Media device
(MTP) using a USB cable. When the phone is connected
to the computer via a USB cable, the following two
options are displayed:
• Media device (MTP): Select this to use the phone
as Media device (MTP) to transfer data such as
music, pictures, and videos between your Sonim
phone and your computer.
• Camera (PTP): Select this to transfer photos and
les that do not support MTP. This transfer method
is commonly used for MAC.
Managing Phone Settings
![](/img.php?id=3073315&img=bg1a.png)
26
USB Tethering
To perform USB Tethering:
Select Settings > More > Tethering and Portable
Hotspot > Enable USB Tethering.
The user should activate mobile data or get connected to
Wi-Fi network.
When the phone is connected to the computer
via USB cable, you can select only to charge
the phone by pressing the Back button. You
need not select the Media device (MTP) or
Camera (PTP) option.
When the phone is connected to the computer
via USB cable in Media device (MTP) mode
phone memory is displayed in the computer.
Viewing Device Details
The device details such as system update status, model
number, Kernel and baseband versions can be viewed.
1. From Home screen, select Menu > Settings ( ).
2. Scroll down and select About Phone, located under
System settings.
Optimizing Memory Usage
You can optimize your phone’s memory by performing
the following tasks:
• Uninstall apps that are not required.
• Delete unwanted les that are downloaded or
created.
• Transfer les that would be required later to your
computer.
Managing Phone Settings
![](/img.php?id=3073315&img=bg1b.png)
27
Connecting to Wi-Fi Network
Wi-Fi is a wireless network technology that can provide
Internet access at distances up to 100 Feet, depending
on the Wi-Fi router and surroundings, when you connect
your mobile device to the wireless router.
You can access the Internet when you connect your XP5
to a Wi-Fi network. To connect your phone to a Wi-Fi
network.
1. From Home screen, select Menu > Settings ( ).
2. Set the Wi-Fi to ON position, located under Wi-Fi
settings.
3. Select Wi-Fi. A list of Wi-Fi routers present within
your phone’s accessible range are displayed.
4. Select your preferred network. Enter the WEP/
WPS/ WPA key (if it is a secured network) and select
Connect. To verify the password before connecting,
enable Show password.
It is always recommended to make your Wi-Fi
router secure and also to connect your phone
to a secure network.
Adding a New Network
To add a new Wi-Fi network
1. In Wi-Fi settings screen, select Options key > Add
network.
2. Enter the following details:
• Network SSID: The wireless network ID.
• Security: Set the security type to None, WEP,
WPA/WPA2 PSK, or 802.1x EAP.
3. Enable Advanced Settings to set the Proxy details
and IP settings.
Editing a Network
1. Press and hold your preferred network.
2. Select Modify Network. The network setting
details such as connection status, signal strength,
connection speed, security type, IP address and
password are displayed.
3. Select Save to save the settings or Cancel to exit to
the previous screen.
Forgetting a Network
1. Press and hold your preferred network.
2. Select Forget Network. The selected network is
removed from the list.
Enabling WPS For your Router
To setup a secure Wi-Fi network, press WPS Push
button in the Wi-Fi network Settings and press the
WPS button in your router, when prompted.
Connecting to Bluetooth Devices
Bluetooth is short-range wireless communication
technology used to communicate between the devices
over a distance of about 8 meters (26.25 ft).
You can perform the following tasks using Bluetooth
paired devices.
• Transfer media les and contacts between
connected mobile devices using Bluetooth.
• Access the Internet through a Bluetooth device that
is connected to a Wi-Fi router.
Managing Wireless and Network Settings
![](/img.php?id=3073315&img=bg1c.png)
28
• Use Bluetooth connected headphones for playing
media le.
Pairing a Bluetooth Device
To activate Bluetooth and pair your XP5 phone with other
Bluetooth devices:
1. From Home screen, select Menu > Settings ( ).
2. Enable Bluetooth located under Wireless &
Networks settings.
A list of accessible Bluetooth devices are
displayed.
Ensure that Bluetooth is activated on the other
device too.
3. Select your preferred device.
4. Conrm the pass key in the other device and select
Pair in your phone.
The device is displayed in the Paired device list.
Editing Bluetooth Device Settings
1. Press Center key on preferred paired Bluetooth
device.
2. Select Rename to rename the display name of the
device .
3. Select Forget to remove the device from your paired
list.
4. Enable Media Audio to connect the Bluetooth
device for listening to media les.
5. Enable Internet access to use the paired Bluetooth
device to access the Internet.
Optimizing Data Usage
Data usage refers to the amount of data utilized by your
phone during data transfers through the Internet. The
data usage charges are dependent of the wireless plan
provided by your service provider.
To monitor your data usage, adjust your data usage
settings.
1. From Home screen, select Menu > Settings ( ).
2. Enable Set Cellular data limit to preset your data
usage limit and to set an alert before reaching the
preset limit.
3. Press Center key on red bar to set the Data
usage limit. Mobile data access is disconnected
automatically as soon as you reach this limit. You
cannot access the Internet and related phone
features do not work. You receive a notication once
you reach the set data usage limit.
4. Press Center key on yellow bar to set data usage
warning so that you receive an alert before reaching
your set data usage limit.
Activating Airplane Mode
When your phone is set in airplane mode, network
connectivity or mobile data connectivity is disabled.
But you can access your camera, medial les and other
features that do not require mobile connectivity. To
activate airplane mode:
1. From Home screen, select Menu > Settings ( ).
2. Select More located under Wireless & Networks
settings.
3. Enable Airplane mode.
Managing Wireless and Network Settings
![](/img.php?id=3073315&img=bg1d.png)
29
Setting Up Tethering & Portable Hotspot
Using tethering and portable hotspot you can share your
device’s network connection with a computer or other
devices, via USB, Wi-Fi, or Bluetooth. To activate USB
Tethering:
1. From Home screen, select Menu > Settings ( ).
2. Select More located under Wireless & Networks
settings.
3. Select Tethering & Portable hotspot.
4. Enable USB tethering.
Setting Up Wi-Fi Hotspot
When you setup your phone as a Wi-Fi hotspot you can
connect other devices to this phone through Wi-Fi and
access the Internet.
1. From Home screen, select Menu > Settings ( ).
2. Select More located under Wireless & Networks
settings.
3. Select Portable Wi-Fi hotspot.
4. Select Set up Wi-Fi hotspot.
5. Enter Network SSID, Security details and
password and select Save.
Activating Wi-Fi Hotspot
1. From Home screen, select Menu > Settings ( ).
2. Select More located under Wireless & Networks
settings.
3. Select Tethering & Portable hotspot.
4. Enable Portable Wi-Fi hotspot.
Activating Bluetooth Tethering
When you activate Bluetooth tethering, you can share
your phone’s Internet connection with other Bluetooth
paired devices.
1. From Home screen, select Menu > Settings ( ).
2. Select More located under Wireless & Networks
settings.
3. Select Tethering & Portable hotspot.
4. Enable Bluetooth tethering.
Managing Mobile Network
You can view and modify your mobile service provider
settings. To view and modify your mobile network
settings:
1. From Home screen, select Menu > Settings ( ).
2. Select More located under Wireless & Networks
settings.
3. Select Mobile networks.
4. Enable Standard Data to access the Internet using
your mobile network.
5. Enable International Data to have network
connectivity when you are in a roaming network.
6. Select Access Point Names to view and edit the
network access points. Select New APN to add a
new access point.
You can activate emergency alerts to get emergency
and important broadcast messages from your service
Managing Wireless and Network Settings
![](/img.php?id=3073315&img=bg1e.png)
30
provider.
1. From Home screen, select Menu > Settings ( ).
2. Select More located under Wireless & Networks
settings.
3. Select Emergency alerts. Enable the emergency
alert message types such as extreme threats, severe
threats and amber alerts that you would wish to
receive.
4. Enable Turn on notication to receive notications
when alerts are sent to your phone.
5. Set the Alert reminder.
Managing Wireless and Network Settings
![](/img.php?id=3073315&img=bg1f.png)
31
Managing Security Settings
You can activate and protect your phone from
unauthorized access by conguring the security settings.
1. From Home screen, select Menu > Settings ( ).
2. Select Security located under Personal settings.
Enable and modify required security settings.
Locking Your Screen
1. Select Screen lock and select one of the following
options to congure phone:
• None
• Press and hold * key.
• PIN: When enabled, enter your own PIN value.
When the phone is locked, unlock it using the
PIN.
When the phone is locked, you can answer an incoming
call without unlocking the phone.
2. Enable Owner Info to display your specic owner
info in the lock screen. You can modify this detail
whenever required.
* Press End Call button to wake up the display.
Encrypting Phone Data
You can encrypt your phone settings, download
applications, contacts, messages data and media les.
1. From Home screen, select Menu > Settings ( ).
2. Select Security located under Personal settings.
3. Select Encrypt phone to encrypt your phone
data. This will require a numeric PIN or password
to decrypt the data whenever you power ON the
phone.
Encryption takes at least an hour depending on the
amount of data to be encrypted. Hence, ensure that your
phone is fully charged before you encrypt it.
If data encryption is interrupted, you might lose your
phone data.
Locking Your SIM Card
You can activate and set a SIM lock to lock your SIM,
whenever you power ON the phone.
1. Select Settings > Security > Setup SIM/RUIM
card lock.
2. Enable Lock SIM card.
To disable this option you must enter your SIM lock
PIN.
3. Select Change SIM PIN. Enter the old pin and
select OK.
4. Enter the new PIN and re-enter the same value
when asked. Select OK.
Managing Credential Certificates
You can view, install, verify and manage the certicates
installed in your phone.
• Select Trusted Credentials to view and verify the
system and user certicates.
• Select Install from Storage to view and install new
user certicates.
Managing Personal and System Settings
![](/img.php?id=3073315&img=bg20.png)
32
Location Access
You can enable and congure the Location settings.
1. From Home screen, select Menu > Settings ( ).
2. Select Location located under Personal settings.
Enable and modify required security settings.
3. Enable Location.
4. Set the Location mode to one of the following
options:
• High accuracy: uses AGPS, Wi-Fi, mobile
networks, and other sensors to get the highest-
accuracy location for your device. It uses
location services to help estimate your location
faster and more accurately.
• Battery saving: allows your device to estimate
your location using low battery-intensive
location sources, such as Wi-Fi and mobile
networks. It uses location services to help
estimate your location faster and more
accurately.
• Device only: allows your device to estimate
your location using GPS only. It uses the
satellite information to provide location
information. This mode may use more battery
power and take longer to determine your
location.
Backup and Restore Data
You can backup your phone data to memory card using
backup and restore application. If you need to replace
your device or erase its data, you can restore your data
from where it was previously backed up.
To backup your data,
1. From Home screen, select Menu key > Application
( ).
2. Select Backup & restore.
To prevent installation of application from unknown
sources, disable the option Unknown sources from
System Settings > Security.
Protecting Your Phone from Harmful Applications
Some applications can harm your device. It is
recommended to verify apps in order to help prevent
harmful software from being installed on your device.
Managing Phone Security Settings
![](/img.php?id=3073315&img=bg21.png)
33
Managing Contacts
You can use the phonebook to maintain phone numbers
of your contacts. This feature enables you to add, dial
phone numbers and send SMS and MMS messages.
To access the contacts:
From Home screen, select Contacts ( ). The contacts
saved in the phonebook are displayed.
Add a New Contact
• To add a new contact, select Menu > Contacts
> Options key > Add Contact. Enter the contact
details and press Options key > select Save to save
the contact.
• You can also enter a number using dialpad ( ) and
select Add to contacts ( ) to add a new contact.
Select Save to save the contact.
Viewing Contact Details
1. From Home screen, select Contacts ( ) .
2. Scroll to the required contact and select the contact
to view the contact details.
Sending a Message from Contacts
You can send SMS and MMS messages to contacts.
Sending SMS/MMS
1. From Home screen, select Contacts ( ) .
2. Scroll to the required contact and select and open
that contact.
3. Press Menu option and select Messages, opens a
Message window.
4. (Optional). Press Options key > select Attach ( ),
to attach a multimedia le.
5. Type the message and press Options key > select
Send.
If you attach a media le or a contact to your
SMS message it is converted to an MMS
message automatically.
Dialing a Number from Contacts
1. From Home screen, select Contacts ( ).
2. Scroll to the required contact and select the contact
to view the contact details.
3. Select the required phone number to dial the contact
or press OK key to dial the default number.
Editing the Contact Details
1. From Home screen, select Contacts ( ) .
2. Scroll to the required contact and select the contact
to view the contact details.
3. Press Options key > Edit.
4. Edit the required details and select Save.
Importing SIM Card Contacts to Phone
1. From Home screen, select Contacts ( ).
2. Select Options key > Import/export.
3. Select Manage SIM card contacts.
The list of contacts stored in your SIM card is
displayed.
![](/img.php?id=3073315&img=bg22.png)
34
Managing Contacts
4. Select the contact to be moved to the phone.
The contact is imported to the phone address
book.
Exporting Phone Contacts to SIM Card
1. From Home screen, select Contacts ( ).
2. Select Options key > Import/export.
3. Select Export to SIM card.
The contacts are exported to the SIM card.
Exporting Phone Contacts to Storage
1. From Home screen, select Contacts ( ).
2. Select Options key > Import/export.
3. Select Export to storage.
All the contacts are exported to your computer as a
.VCF le.
Sharing Contacts via MMS and Bluetooth
You can send contact information by MMS or Bluetooth.
1. From Home screen, select Contacts ( ).
2. Scroll to the required contact and select the contact.
3. Select one of the following options to share the
required contact:
• Messaging: Send the contact details as a
multimedia message to any mobile phone.
• Bluetooth: Send the contact details to a
Bluetooth device paired with your phone.
Select the Bluetooth device to share the
contact.
Managing Contact Settings
You can edit and modify ringtone and call receiving
settings for individual contacts.
1. From Home screen, select Contacts ( ).
2. Scroll to the required contact and select the contact
to view the contact details.
3. Select Options key and select one of the following:
• Set ringtone to set a specic ringtone for that
contact.
• Enable All calls to voicemail to forward all
incoming calls from that contact to your voice-
mail box.
Managing Phonebook Settings
You can set the sort list to view the contacts and also the
rst or last name of the contact to be displayed rst.
1. From Home screen, select Contacts ( ).
2. Select Options key > Settings. Set the following
options:
• Sort list by: Sort the contact names by rst
name or last name.
• View Contact names: Set the contact display
name to rst name or last name.
![](/img.php?id=3073315&img=bg23.png)
35
Managing Contacts
Searching Contacts
1. From Home screen, select Contacts ( ).
2. Select Options key > Search and enter the rst few
letters/numbers of the contact name/phone number
to be searched.
All the contacts containing the search text are
displayed.
Deleting a Contact
1. From Home screen, select Contacts ( ).
2. Scroll to the required contact and select the contact
to view the contact details.
3. Select Options key > Delete or press Clear ( )
key. The contact is deleted after the conrmation.
![](/img.php?id=3073315&img=bg24.png)
36
Managing Calls
Making a Call
1. From Home screen, select Menu > Phone ( ).
The phone screen with last dialed number, Favorites
& Frequently called list, Call history ( ) and dial
pad ( ) is displayed.
To dial a number use one of the following options:
• Call history: Select the call history icon ( ).
Select the contact/number and press the green
key to make a call.
• Frequently called contacts/numbers: Select
the specic contact/number from the frequently
called numbers to make a call.
Dialing a Number via Contact
1. From Home screen, select Menu > Contacts ( ).
2. Scroll to the contact and select the contact. The
contact details are displayed.
3. Select the required phone number to call the
contact.
Adding a Contact from Phone Screen
1. From Home screen, select Menu > Phone ( ).
2. Select the Call history icon ( ).
3. Scroll to the saved contact and press OK to open
the number you want to add.
4. Select Add to contacts ( ) and press OK.
5. Select Menu key.
6. Select Create New Contact.
7. Enter the contact details, press menu button and
select Save.
Viewing Call History
1. From Home screen, select Menu > Phone ( ) .
2. Select the Call history icon ( ) to view all recently
called, received, and missed calls.
Deleting Call History
1. From Home screen, select Menu > Phone ( ).
2. Select the Call history icon ( ).
3. Press the Options key.
4. Select Clear call log to delete the call history.
Managing Call Settings
You can change the incoming call ringtone, enable vibrate
when ringing and enable audible press tone.
To view and modify call settings,
1. From Home screen, select Menu > Phone ( ).
2. Press the Options key from dialpad screen.
3. Select Call settings.
Changing Ringtones and Master Volume
1. From Home screen, select Menu > Settings ( ).
2. Select Sound & notication located under Device
settings.
3. Select Volumes to set the master volume separately
for music, ringtones & notications, and alarms.
![](/img.php?id=3073315&img=bg25.png)
37
Managing Calls
You can also use the physical volume control on the
phone to raise or lower volume of whatever sound is
currently playing.
4. Select Phone ringtone.
5. Select the ringtone from the Phone ringtone list and
select Ok.
EPTT incoming calls, instant personal
alerts, missed call alerts, tones, vibration
and volumes will follow the user’s device
settings.
Editing Quick Responses
When you are not able to answer an incoming call, you
can send a quick response to the caller.
To view and edit quick responses, in the Call settings
screen, select Quick responses, select the specic
response message to edit. Edit the message and select
OK.
Activating Vibrate Mode
In the Call settings screen, enable Vibrate when ringing
to receive both ring and vibrate alerts for an incoming
call. To turn off the vibration mode, disable the Vibrate
when ringing option.
Setting TTY Mode
If you enable TTY mode, hearing-impaired individuals can
send and receive phone calls as text over the phone.
1. In the Call settings screen, select TTY mode to
view and modify TTY mode settings.
2. Set one of the following options:
• TTY Off: disables TTY mode.
• TTY Full: enables TTY mode for both incoming
and outgoing calls. Set this for both hearing
and voice assistance.
• TTY HCO: enables TTY mode only for incoming
calls. Set this for only hearing assistance.
• TTY VCO: enables TTY mode only for outgoing
calls. Set this for only voice assistance.
Internet Call Settings
You can make calls and receive calls over the Internet
when connected to a Wi-Fi network, rather than over your
mobile network.
To place a call over the Internet, your phone must be
congured to use an Internet calling account. After you
set up the account, placing an Internet call is not different
than placing any other call. However, you must be
connected to a Wi-Fi network. When you are making an
Internet call, the phone displays the Internet call near the
top of the screen.
SIP Accounts
Internet calling is based on the Session Initiation Protocol
(SIP) for voice calls on the Internet Protocol (IP) network.
To add a SIP account and congure your incoming and
outgoing preferences:
1. In the Call settings screen, select SIP Accounts.
2. Enable Receive incoming calls to answer incoming
Internet calls.
![](/img.php?id=3073315&img=bg26.png)
38
Managing Calls
This might reduce your phone’s battery life.
3. Select Add account to congure a new SIP
account.
4. Enter the following details and select Save:
• Username: Username to login to SIP account.
• Password: Password to login to SIP account.
• Server: SIP server details.
• Optional Settings: Select to view/modify or
hide optional details such as authentication
username, display name, outbound proxy
address, port number, transport type and Send
keep alive options.
![](/img.php?id=3073315&img=bg27.png)
39
SMS and MMS are convenient and inexpensive means
of communication. You can send a text message to
other people via SMS service. MMS allows you to send
messages by including multimedia content such as
pictures, audio les, video les, and so on.
You can use the messaging function on your phone to
send an SMS and MMS message to other mobile phones
or any other equipment that can receive SMS and MMS.
The MMS feature is available only if you
subscribe to it from your network operator.
To access a messages function, from Home screen,
select Menu > Messaging ( ).
Sending SMS/MMS Messages
1. To create a SMS message, from Home screen,
select Menu > Messaging ( ).
2. Select Options key > New message.
3. Enter the contact name or the phone number in the
To eld.
If you enter an alphabet, all the contact names
starting with that alphabet is displayed as a list.
Scroll down to select the contact.
4. Enter the message and select Options key > Send.
When you add a multimedia attachment, the
message is automatically converted to a multimedia
message. MMS charges are applied based on the
operator.
5. You can add any multimedia attachment up to
the size of <=1 MB. To add an attachment, select
Options key > Attach. Select the attachment type
from the options in the next step.
6. Browse My les or specic folder and select the
multimedia le to be attached.
Attachment
Type
Description
Pictures Attach a photo from the phone
memory or SD card.
Capture
Take a new photo using the
mobile camera and attach.
Videos Attach a video from the phone
memory or SD card.
Capture video Take a new video using the
mobile camera and attach.
Audio Attach an audio le from the
phone memory or SD card.
Record audio Record a new audio le using
the voice recorder and attach.
VCard Attach a contact.
VCalendar Attach a calendar event.
Slideshow Create new slideshow or edit the
existing slides and attach.
Managing Message Settings
You can customize the way you want to view and lter
the messages. You can also set the default messaging
application.
Sending Messages
![](/img.php?id=3073315&img=bg28.png)
40
To view and modify the message settings,
1. From Home screen, select Menu > Messaging
( ).
2. Select Options key > Settings.
3. View and edit the following settings:
Setting Description
STORAGE
Delete Old
messages
Deletes the old messages as
and when the limit is reached.
Text mesasge
limit
10000 messages per
conversation is the text message
limit.
Multimedia
message limit
1000 messages per
conversation is the multi
TEXT (SMS) MESSAGES
Delivery
reports
Request a delivery report for
each message you send.
Manage
messages
stored on
your SIM
Enable to view the messages
stored on the SIM card.
MULTIMEDIA (MMS)Messages
Delivery
reports
Request a delivery report for
each message you send.
Read Reports Request a read report for each
message you send.
Auto-retrieve Automatically retrieve the
messages.
Roaming
auto-retrieve
Automatically retrieve the
messages while roaming.
Creation
mode
Sets the MMS message creation
mode to one of the following:
• Restricted - the phone
will only create and send
messages with content
belonging to the Core MM
Content Domain.
• Warning - the phone
guides you to create and
submit only messages
with content belonging
to the Core MM Content
Domain. This guidance
is implemented through
warning dialog.
• Free - you can add any
content to the message.
NOTIFICATIONS
Notification Enable notication alert for
incoming messages.
Sound Enable a ring tone for incoming
messages.
Vibrate Enable vibrate alert for incoming
messages.
Pop-up Alert Enable to view received
message as a pop-up.
Managing Messages
![](/img.php?id=3073315&img=bg29.png)
41
Deleting Messages
To delete a single message thread:
1. From Home screen, select Messaging ( ).
2. Select Options key > Delete selected thread or
select a thread and press Clear key ( ).
3. The message thread will be deleted after
conrmation.
To delete the selected conversation:
1. From Home screen, select Messaging ( ) >
select a Message Thread > press OK.
2. Select a conversation > select Options key >
Delete or press Clear key ( ).
3. The message conversation will be deleted after
conrmation.
To delete all the message threads:
1. From Home screen, select Messaging ( ).
2. Select Options key > Select > Select Multiple
threads > Option key > Delete All threads. All the
message threads are deleted after conrmation.
Emergency Alerts
You receive active alerts and emergency alerts from the
service provider.
Managing Messages
![](/img.php?id=3073315&img=bg2a.png)
42
You can view and modify the language and dictionary
setting using the Phone Settings.
Enter and Edit Text
You can use the phone keypad to enter the text quickly
and easily. Type faster and more accurately on your
device with Keypad’s word recognition and next-word
predictions.
The key features are:
• Personalized suggestions, corrections, and
completions.
• Emoji entry point and layouts.
Phone Dictionaries
To manage phone dictionaries:
1. From Home screen, select Menu > Settings ( ).
2. Select Language & Input located under Personal
settings.
Personal Dictionary
You can add your own words to your personal dictionary
so that your device remembers them. To add a word or
phrase, including an optional shortcut:
1. Select Language & Input located under Personal
settings.
2. Select FlexT9 Text Input located under Keyboard &
input methods.
3. Select Personal dictionary > Options key > Add.
4. Add a required word and respective shortcut which
is optional.
Using the Phone Keypad
![](/img.php?id=3073315&img=bg2b.png)
43
Your Sonim phone comes with pre-loaded PTT+
application.
Select the PTT+ button on the side of the XP5 phone or
select the PTT+ icon on the panel of the Home screen.
Activating PTT+ Using Wi-Fi
1. A screen is displayed prompting to activate PTT+
service using Wi-Fi connection when cellular data
network is unavailable.
2. The screen prompts you to enter the activation
code provided by the corporate administrator in the
specied text box. Enter the activation code and
click OK to activate the PTT+ over Wi-Fi network.
From the handset’s Home screen, select the PTT+ icon
and launch the application. The following PTT+ menu
icons are displayed:
Home: Displays your PTT+
conversation history. You can
also change your presence
status here.
Installing and Accessing Enhanced Push-To-Talk Services
![](/img.php?id=3073315&img=bg2c.png)
44
Contacts: Displays your
contacts and allows you to
create/edit/delete a contact
or initiate a PTT+ call and
send an alert.
Groups: Displays your
groups and allows you to
create/edit/delete a group or
initiate a group call.
Favorites: Displays your
favorite contacts and groups.
You can easily start PTT+
calls to your favorites or send
an alert.
Installing and Accessing Enhanced Push-To-Talk Services
![](/img.php?id=3073315&img=bg2d.png)
45
The PTT+ contacts directory is different from the phone’s
native contacts directory. There are three ways to add
PTT+ contacts:
• Add from Native Phonebook: Select Native Phone
Book from + New Contact. It opens phone’s native
contact list, and the user can select the contact from
contact list and can modify the selected contact or
save the same contact as it is.
• Add by Manual Input: Select Manual Input from
+ New Contact. It opens a screen to add the
contacts. User can create contact manually by
typing phone number, name, set favorite and save.
• Contacts can be pushed to the phone by the
corporate administrator. The contacts pushed by the
corporate administrator (Corporate Contacts) cannot
be modied or deleted from the handset.
Adding Contacts from Native Phonebook
1. Go to Contacts and select + New Contact. The
following screen is displayed.
2. Select the Native Phonebook. The following screen
is displayed.
3. To modify the contact imported from the native
book manually, edit the contact’s name and phone
number, then select Save.
Installing and Accessing Enhanced Push-To-Talk Services
![](/img.php?id=3073315&img=bg2e.png)
46
4. If you want a contact to be added as a favorite, then
check Set as Favorite before pressing Save.
5. Once the contact is saved, it is added to the PTT+
contact list.
Adding Contacts by Manual Input
Use the numeric keyboard to input text and numbers,
special characters, such as *, # and space bar can only
be found by long pressing the numeric key 1. Pressing
any numeric key multiple times iterate through few
special characters.
1. Go to the contacts and select + New Contact.
2. Select Manual Input.
3. To enter a contact manually, type the contact’s name
and phone number, and then select Save.
Creating PTT+ Contacts
![](/img.php?id=3073315&img=bg2f.png)
47
4. If you want a contact to be added as a favorite, then
check Set as Favorite before pressing Save.
5. Once you save a contact’s information, it is added to
the PTT+ contact list successfully.
Creating PTT+ Contacts
![](/img.php?id=3073315&img=bg30.png)
48
Adding PTT+ Groups
Groups can be added by creating manually or can be
pushed to the phone by the corporate administrator. The
groups pushed by the corporate administrator (Corporate
groups) cannot be modied or deleted from the handset.
1. Go to the Groups screen and select + New Group
to add a new group.
2. The New Group Details screen is displayed.
Enter the group name, scroll down and press +Add
members. The Contact list is displayed. Select the
desired contacts as group members. Go back to the
New Group Details screen by using the Return key.
Press Save to add the group.
You can assign a group as a favorite by selecting
Set as favorite.
3. A new group is added successfully.
Deselecting the member(s) from a Group
screen, removes those member(s) from
the Group.
Making an PTT+ Call to an Individual
1. Go to the Contacts screen and select the contact
you desire to call.
A call to an individual can also be initiated from Call
option present after selecting the Options key on
the phone.
Creating PTT+ Contacts
![](/img.php?id=3073315&img=bg31.png)
49
2. Press the PTT+ button to initiate a call or go to the
Contacts screen and long press of OK key (Center
key) on the contact you desire to call. Choose Call
from the Options menu. The screen with Call Ready
status is displayed. Press and hold the PTT+ button
to start speaking after you hear the chirp.
3. When you nish speaking, release the PTT+ button.
4. When other party has taken the oor below UI is
displayed.
5. Select End Call option to end the call or press Red
key to end the call.
Creating New PTT+ Groups
![](/img.php?id=3073315&img=bg32.png)
50
Making an PTT+ Call to a Group
1. Go to the Groups screen and select the group you
desire to call. Press the PTT+ button to initiate a
group call or select a call option from Options Menu
to initiate a group call.
2. Select Options key to get the options. Select Call
from the Options.
3. Press and hold the PTT+ button. Start speaking
after you hear the chirp. All the available group
members receive the call.
4. When other party has taken the oor below UI is
displayed.
Creating New PTT+ Groups
![](/img.php?id=3073315&img=bg33.png)
51
5. Select End Call from Option menu to end the call or
press Red key to end the call.
Making PTT+ Calls to Individuals and Groups
![](/img.php?id=3073315&img=bg34.png)
52
Making a Quick Group Call
1. Go to the Contacts screen and mark the contacts
you would like to include in your quick group PTT+
call.
2. Press the PTT+ button or select Call from Options
Menu to initiate the call to the selected members.
3. Press and hold the PTT+ button to start speaking
after you hear the chirp.
4. Select End Call option to end the call or press Red
key to end the call.
Making PTT+ Calls to Individuals and Groups
![](/img.php?id=3073315&img=bg35.png)
53
Editing PTT+ Contact
1. Select a Contact from the list.
2. Select Options key or long press on the contact
and select Edit Contact.
3. Edit the contact name and favorite setting if required
and press Save.
The contact modications are updated.
Making PTT+ Calls to Individuals and Groups
![](/img.php?id=3073315&img=bg36.png)
54
Deleting PTT+ Contact
1. Select a Contact from the list.
2. Select Options key or long press on OK key (Center
key) on the contact and select Delete Contact.
3. A conrmation message is displayed. Select Yes to
delete the selected contact. The selected contact is
deleted from the contact list.
Making PTT+ Calls to Individuals and Groups
![](/img.php?id=3073315&img=bg37.png)
55
Editing PTT+ Group
1. Select a group from the list and select the Options
key.
2. Select Edit Group to edit the Group Name,
Favorite. The user can add members and remove
members.
The other ways to edit the group are:
• Long press of OK key (Center key) on the
Group and select Edit Group from the Options
menu.
• Select Edit Group from Options menu.
The selected group details are edited and modied
successfully.
Managing PTT+ Groups and Contacts
![](/img.php?id=3073315&img=bg38.png)
56
Deleting PTT+ Group
1. Press and hold OK key (Center key) on selected
group name which has to be deleted. Select
Options key to select Delete Group.
2. A conrmation message is displayed. Select Yes to
delete the group.
3. A pop-up message is displayed conrming that the
selected group is getting deleted.
4. The selected group is deleted and a message is
displayed Group successfully deleted.
Managing PTT+ Groups and Contacts
![](/img.php?id=3073315&img=bg39.png)
57
In all PTT tabs, CLR key present
in keypad can be used for deleting
Contacts, Groups, History, Favorites.
Adding a Favorite Contact
The user can add contacts as favorites. The favorite
contacts are listed under Favorites tab.
1. To set a Contact as Favorite: Go to Favorites
Contact tab and select + Add Contact. The contact
list is displayed. Select the desired contact/contacts.
2. The selected contacts gets added as a favorite and
is displayed under the favorites contact tab.
Managing PTT+ Groups and Contacts
![](/img.php?id=3073315&img=bg3a.png)
58
3. Selected contact is added to Favorite successfully.
Adding a Favorite Group
The user can add groups as favorites. The favorite groups
are listed under Favorites tab.
1. To set a group as favorite: Go to Favorites Groups
tab and select + Add Group. The group list is
displayed. Select the desired Group.
2. The selected groups gets added as a favorite and is
displayed under the favorite groups tab.
3. Selected group is added to Favorites successfully.
Managing PTT+ Groups and Contacts
![](/img.php?id=3073315&img=bg3b.png)
59
Sending Personal Alert
Select the desired contact from the contact list and select
Send Alert from the menu.
The personal alert can also be sent using the * or # keys:
1. On PTT+ Home screen, select Options key.
2. Select Settings > Actions > Congure Alert
Options to choose either * or # to send the personal
alerts.
The personal alert is sent to the selected contact
by pressing * or #.
Managing PTT+ Groups and Contacts
![](/img.php?id=3073315&img=bg3c.png)
60
PTT+ Presence Status Change
The PTT+ Presence can be set in two ways:
1. Select Options key > My Presence.
1.
p
2. My Presence status can be changed from Available
to Do Not Disturb and vice versa.
3. Select My Status from Conversation history screen.
• Available
• Do Not Disturb
Select one of the following options:
• Available: You are available to accept calls and can
send or receive alerts.
Managing PTT+ Presence
![](/img.php?id=3073315&img=bg3d.png)
61
• Do Not Disturb: You are not available to accept
calls, but alerts can be received.
Managing PTT+ Presence
![](/img.php?id=3073315&img=bg3e.png)
62
Receiving Personal Alert
When a personal alert is received, the user is notified with
the sender’s details such as Name, Date and Time.
Select the Call button or press PTT+ hard key to initiate
PTT+ call to the sender.
When the user is in Do Not Disturb mode, personal
alerts can still be received.
Missed call Alert
If an PTT+ call comes in while you are on a regular phone
call or on another PTT+ call, you will receive a Missed
call alert. You can press the PTT+ hard key to make a
call.
Managing Alerts
![](/img.php?id=3073315&img=bg3f.png)
63
To view the PTT+ call history screen, go to the PTT
Home screen and see a list of the most recent PTT+
calls. You can make a call to a contact and group from
the conversation history. Also send and receive alerts
from the conversation history.
1. Available Status:
When the PTT+ service is available, My Status is in
Available status and the icon is displayed green in
color.
2. Do Not Disturb Status:
When the PTT+ service is set to Do Not Disturb,
My Status is in Do Not Disturb status and the icon
is displayed red in color.
3. Ofine Status:
• When the PTT+ service in ofine status, the PTT+
ofine notication icon is displayed in the status bar.
Managing Alerts
![](/img.php?id=3073315&img=bg40.png)
64
• When there is a network error while connecting to
the PTT+ service and PTT+ is in ofine status, the
PTT+ icon is displayed ( ) on the notication bar.
PTT+ Presence Status Change
![](/img.php?id=3073315&img=bg41.png)
65
PTT+ Settings
You can customize the application through the Settings
tab. The following are the most commonly used settings
options.
1. Select Options key > Settings.
2. Alerts and Sounds: Notication alert tones can be
set to vibrate or audible tones.
To view the following options, select Options key >
Settings > ALERTS and SOUNDS.
• Use Bluetooth for PTT Calls: Using bluetooth
for PTT calls after pairing with bluetooth
devices.
• Vibrate Alert: Vibrate when new alert is
received.
• Audible Alert: Play a tone when new alert is
received.
• Alert Repeat: Choose how often you want alert
to repeat, like once, repeat and continuous.
• Alert Frequency: Choose frequency for alerts
like 5, 10, 15, and 20 Seconds.
• Vibrate Incoming call: Vibrate when an
incoming call is received.
• Receive call in Background: Enable/disable
receiving PTT call in background.
3. Notication Control: The notications can be
controlled.
To view the following options, go to Options key >
Settings > NOTIFICATION CONTROL.
PTT+ Presence Status Change
![](/img.php?id=3073315&img=bg42.png)
66
• Instant Personal Alert: Alert when Instant
personal Alert is received.
• Missed Call Alert: Alert for when a missed call
is received.
• Call Reconnect Tone: Determine whether the
handset plays the Call Reconnect Tone.
• Volume: To increase or decrease the volume
from level 0 to level 20.
PTT+ incoming calls, instant personal
alerts, missed call alerts, tones, vibration
and volumes will follow the user’s device
settings.
4. Information: The information such as Display name
and PTT+ Number are displayed.
To view the following options, select Options key >
Settings > INFORMATION.
• Contact Sorting: Set contact sorting to
alphabetical or by availability.
• Display Name: Your username is displayed.
• My PTT Number: It displays the activated
PTT+ number.
• Capacity: Shows available capacity to store
Contacts and Groups.
• About: Displays information about PTT+
application.
• Show Tutorial: Displays the tutorial that
explains the application basics.
5. Actions: The actions such as Congure Alert
Options, Show Tutorial, and Restore Default
Settings can be performed from the following
screen.
PTT+ Settings
![](/img.php?id=3073315&img=bg43.png)
67
PTT+ Settings
To view the following options, select Options key >
Settings > ACTIONS.
• Congure Alert Options: Use * or # key to
send personal alerts.
• Show Tutorial: User can view the tutorial of
PTT+ application.
• Restore Default Settings: Restore all
application settings to their default values.
• Logout: Logout from PTT+ application.
• Auto Start: Start the PTT+ application
automatically every time, when handset is
turned ON.
• Alert Tone: To set the Notication tones like
Alert1, Alert2, Alert3 & Alert4.
• Wi-Fi: Allow PTT+ to use Wi-Fi connection
when available.
• Hide Greyed Out menu Options: Hides greyed
out items in Menu option.
• Enable Extra Volume: Enables to set extra
volume to have a more loudness.
• One Touch PTT: Choose default screen
launcher.
• Set Speed Dial: Set the speed dial.
![](/img.php?id=3073315&img=bg44.png)
68
1. To logout of the PTT+ application, go to PTT+
setting and select Logout option.
2. Conrm the logout screen by selecting Yes on the
conrmation screen.
The PTT+ application is logged out and goes to the
Home screen.
Logout of PTT+ Service
![](/img.php?id=3073315&img=bg45.png)
69
Camera
The Sonim XP5 has a back camera with 5MP xed focus
for taking pictures. The pictures are saved in the Gallery
( ). You can access the Gallery from the Menu screen.
• Select Camera mode ( ), to set one of the
following modes:
• Normal - ( ): To shoot a picture in normal
mode, select OK button to capture the picture.
Use Left and Right navigation keys for Zoom in
and Zoom out.
• Video - ( ): Press OK key to Start/Stop
a video recording. You cannot pause the
recording in the middle.
• Select Options key to view or change camera
settings such as ash, white balance, and video
duration.
Calendar™
The Calendar helps you to set appointments, schedule
reminders and alerts and repeat them if required. You can
also view your saved tasks on a daily or weekly basis.
To access calendar:
1. Select Calendar icon ( ) on the Menu screen.
2. To change the calendar view, choose Month or
Agenda from Options menu.
3. Select Options key to view the list of the following
available options:
• Today: Access current date events.
• New event: New event can be added on
selecting this option.
• Search: You can search for a particular event.
• Settings: Displays the General settings of the
calendar.
From any of the calendar views,
• Read or edit event details: Select the event to view
the details.
• Manage events and calendar: Select icons across
the menu to search or create events, return to today,
or adjust settings.
Alarm
You can set an alarm for a particular time.
1. Select Clock icon ( ) located in Menu screen >
Tools ( ) .
2. Select Alarm activation icon ( ) on the top of the
screen.
• To set a recurring alarm, select Options key >
Edit > Repeat. Select the days for repeating
the alarm and select Done.
• Select any of the ringtone from the Alarm
sound present, and select OK.
3. Select Save from option to save the changes made.
Clock
You can view the time of major cities in different time
zones using this function. You also have the option to use
Daylight Saving Time (DST).
• The local time in the home city is displayed in the
upper half of the screen.
Installing and Using Applications
![](/img.php?id=3073315&img=bg46.png)
70
• Select World clock icon ( ) located on the top of
the screen. To view the list of cities and the current
time, select Options key > Cities.
The world cities are listed in alphabetical order.
Calculator
The default calculator in this phone is designed to
perform simple mathematical calculations. Press Options
to perform advanced calculations.
To access the calculator, select Tools ( ) > Calculator
( ) located in Menu screen.
• To enter the numbers, select the numeric keys.
• To use mathematical operators, select the respective
operation key on the keypad.
• Select = for the nal results.
Sound Recorder
You can record voice memos using the sound recorder.
To access the sound recorder, select Tools ( ) >
Sound recorder ( ) located in Menu screen.
• To record an audio le, select Record ( ).
• To stop the recording, select Stop ( ).
• To save the voice memo, select Options key >
Save.
• To exit without saving, select Options key >
Discard.
• To play the recorded le instantly select Play ( ).
Music Player
You can play music les and voice memos stored in your
phone using the music application.
To play music les, select Music ( ) located in Menu
screen > Music folder ( ).
• Select Playlists to access the default playlists in the
music folder.
• Select Recently Added playlist to view the music
les that are recently added to the music folder.
• Select My Recordings playlist to access all your
voice memo les.
• Select Artists to view the music les sorted based
on the artists.
• Select Albums to view the music les sorted based
on the albums.
• Select Songs to view the complete list of songs
stored in your phone.
• Select the required song/memo to play.
Installing and Using Applications
![](/img.php?id=3073315&img=bg47.png)
71
License
This wireless device, (the “Device”) contains software
owned by Sonim Technologies, Inc. (“Sonim”) and its
third party suppliers and licensors (collectively, the
“Software”). As user of this Device, Sonim grants you a
non-exclusive, non-transferable, non-assignable license
to use the software solely in conjunction with the Dev ice
on which it is i installed and/or delivered with. Nothing
herein shall be construed as a sale of the Software to a
user of this Device.
You shall not reproduce, modify, distribute, reverse
engineer, decompile, otherwise alter or use any other
means to discover the source code of the Software
or any component of the Software. For avoidance of
doubt, you are at all times entitled to transfer all rights
and obligations to the Software to a third party, solely
together with the Device with which you received the
Software, provided always that such third party agrees in
writing to be bound by these rules.
You are granted this license for a term of the useful life of
this Device. You can terminate this license by transferring
all your rights to the Device on which you have received
the Software to a third party in writing. If you fail to
comply with any of the terms and conditions set out in
this license, it will terminate with immediate effect or, if
you are a U.S. government entity, in accordance with
the Contract Disputes Act of 1978. Sonim and its third
party suppliers and licensors are the sole and exclusive
owner of and retain all rights title and interest in and to
the software. Sonim and, to the extent that the Software
contains material or code of a third party, such third
party, shall be entitled third party beneciaries of these
terms. The laws of the State of Delaware shall govern the
validity, construction and performance of this license,
unless you are a U.S. government entity, in which case
the laws of the United States shall govern.
Comprehensive 3-Year Warranty
• Sonim provides this Comprehensive 3-Year warranty
for your mobile phone (hereinafter referred to as
“Product”).
• To activate the 3-year comprehensive warranty,
register your phone within 30 days at www.
sonimtech.com/register or use the warranty
registration application.
• Should your Product need service, please contact
your local Sonim Customer Service Center. The
online support and country specic contact
information can be found at: www.sonimtech.com/
support or e-mail to: support@sonimtech.com.
Warranty Registration Application
• You can register your phone using the Warranty
Registration Application on your device.
• This application initiates automatically after rst boot
up and prompts to register the handset now or later.
• All the mandatory elds have to be lled, some elds
such as
IMEI and model number are auto populated.
• State and Zip code elds are same as Province and
Postal code.
• Once all the mandatory details are submitted, an
e-mail conrmation will be sent.
• If not registered, the application will remind the user
to register every two days. After ten reminders the
user has to register online.
End User License Agreement
![](/img.php?id=3073315&img=bg48.png)
72
Our Warranty
Subject to the conditions of this Comprehensive 3-Year
Warranty Sonim warrants this product to be free from
major defects in design, material and workmanship at
the time of its original purchase by a consumer, and for a
subsequent period of Three (3) years.
What We Will Do
If during the guarantee period, this product fails to
operate under normal use and service, due to defects
in design, material or workmanship, Sonim’s authorized
distributors or service partners, in the country/region
where you purchased the product, will repair or replace
at the sole discretion of Sonim, with the same or better
model in the same or better condition.
Sonim and its service partners reserve the right to charge
a handling fee if a returned product is found not to be
under warranty according to the conditions below.
Please note that some of your personal settings,
downloads or other information may be lost when your
Sonim Product is repaired or replaced. Sonim does not
take any responsibility for any lost information of any kind
and will not reimburse you for any such loss.
You should always make backup copies of all the
information stored on your Sonim Product such as
downloads, pictures, video’s, music, calendar and
contacts before handing in your Sonim Product for repair
or replacement.
You should always remove SIM cards and MicroSD
cards before handing in your Sonim Product for repair or
replacement. Depending on local law and legislations we
will, in order to protect your data and privacy, destroy any
received SIM cards and MicroSD cards.
Phone Care
Each Sonim Phone has a designated IP class for dust
and water protection, according to the IEC Ingress
Protection (IP) Standard 60529. This means that the
phone is dust protected and can be submerged into 6.5
feet/2 m deep water for up to 30 minutes. Immersion in
deeper water can damage it and must be avoided.
Sonim phones are built for heavy duty use. Its design
protects against disassembly or mechanical damage
when subjected to forces equal to free fall from the height
of 6.5 feet/2 meters. Subjecting the phone to stronger
impact and forces can damage it and must be avoided.
Conditions
1. The warranty is valid whether or not the product has
been registered.
2. The warranty is valid only if the original proof of
purchase issued to the original purchaser by an
authorized service provider, specifying the date
of purchase and serial number for this Product,
is presented with the Product to be repaired
or replaced. Sonim reserves the right to refuse
warranty service if the device is found to be out of
warranty under the conditions as set forth herein.
3. If Sonim repairs or replaces the Product, the
repaired or replaced Product shall be warranted
for the remaining time of the original warranty
period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement
may involve the use of functionally equivalent
reconditioned units. Replaced parts or components
will become the property of Sonim.
4. This warranty does not cover any failure of the
End User License Agreement
![](/img.php?id=3073315&img=bg49.png)
73
Product due to normal wear and tear, or due to
misuse or abuse, including but not limited to use
in other than the normal and customary manner, in
accordance with the Sonim device specications
and instructions for use and maintenance of
the Product. Nor does this warranty cover any
failure of the Product due to software or hardware
modication or adjustment, acts of God or damage
resulting from liquid interacting with the product
beyond what is described as acceptable in the
user guide for the product. A rechargeable battery
can be charged and discharged hundreds of times.
However, it will eventually wear out - this is not
a defect. When the talk-time or standby time is
noticeably shorter, it is time to replace your battery.
Sonim recommends that you use only batteries and
chargers approved by Sonim. Minor variations in
display brightness and color may occur between
phones. There may be tiny bright or dark dots on
the display. These are called defective pixels and
occur when individual dots have malfunctioned and
cannot be adjusted. Up to three defective pixels are
deemed acceptable.
5. This warranty does not cover Product failures
caused by installations, modications, or repair or
opening of the Product performed by any person
other than a Sonim-authorized person. Tampering
with any of the seals on the Product will void the
warranty.
6. The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Sonim-branded
original accessories intended for use with the
Product.
7. The 3-Year warranty does not cover 3rd party
accessories or any 3rd party software applications,
which are instead covered to the extent provided by
the original vendor guarantee for these products.
8. THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONIM OR ITS LICENSORS BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOST PROFITS
OR COMMERCIAL LOSS; TO THE FULL EXTENT
THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
Accessories
Sonim accessories are warranted as follows:
Sonim Branded
• All Sonim branded accessories, in-box as well as
optional, are warrantied for a period of one (1) year
under Sonim’s 1-Year limited warranty.
• For a detailed list of Sonim branded accessories,
please go to: www.sonimtech.com/accessories.
Battery
All device batteries both embedded and removable are
warrantied for a period of one (1) year under Sonim’s
1-Year limited warranty.
End User License Agreement
![](/img.php?id=3073315&img=bg4a.png)
74
1-Year limited warranty
Sonim provides a limited 1-Year warranty for this
accessory (hereinafter referred to as “Product”). Subject
to the conditions of this limited 1-Year Warranty Sonim
warrants this product to be free from major defects in
design, material and workmanship at the time of its
original purchase by a consumer, and for an original
purchase by a consumer, and for a subsequent period of
one (1) year.
Conditions:
1. This warranty does not cover any failure of the
Product due to normal wear and tear, or due to
misuse or abuse, including but not limited to use
in other than the normal and customary manner, in
accordance with the Sonim Product specifications
and instructions for use and maintenance of
the Product. Nor does this warranty cover any
failure of the Product due to software or hardware
modification or adjustment, acts of God or damage
resulting from liquid interacting with the Product
beyond what is described as acceptable in the user
guide for the Product.
2. This warranty does not cover Product failures
caused by installations, modifications, or repair or
opening of the Product performed by any person
other than a Sonim-authorized person. Tampering
with any of the seals on the Product will void the
warranty.
3. The warranty does not cover Product failures,
which have been caused by use of other peripheral
devices, which are not Sonim certified and intended
for use with the Product.
4. THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONIM OR ITS LICENSORS BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOST PROFITS
OR COMMERCIAL LOSS; TO THE FULL EXTENT
THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
End User License Agreement
![](/img.php?id=3073315&img=bg4b.png)
75
WARNING: Changes or modications made to
this equipment not expressly approved by Sonim
Technologies, Inc. for compliance could void the user’s
authority to operate the equipment.
FCC Statement
• This device complies with part 15 of the FCC rules
(FCC ID: WYPL23V013AA). Operation is subject to
the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference
received, including interference that may cause
undesired operation.
• This device has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC Caution
Any changes or modications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
The antenna(s) used for this transmitter must not be
co-located or operating in conjunction with any other
antenna or transmitter.
Federal Communication Commission Interference (FCC) Statement
![](/img.php?id=3073315&img=bg4c.png)
76
FOR PORTABLE DEVICE USAGE (<20cm from body/SAR)
Radiation Exposure Statement:
The product complies with the Canada portable RF
exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in
this manual. The further RF exposure reduction can be
achieved if the product can be kept as far as possible
from the user’s body or set the device to lower output
power if such function is available.
• The device for operation in the band 5150-5250
MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite
systems.
• High-power radars are allocated as primary users
(i.e. priority users) of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices. FOR
MOBILE DEVICE USAGE (>20cm/low power).
Federal Communication Commission Interference (FCC) Statement
![](/img.php?id=3073315&img=bg4d.png)
77
FOR PORTABLE DEVICE USAGE (<20cm from body/SAR needed)
Déclaration d’exposition aux radiations
Le produit est conforme aux limites d’exposition pour les
appareils portables RF pour les Etats-Unis et le Canada
établies pour un environnement non contrôlé.
Règlement IC
![](/img.php?id=3073315&img=bg4e.png)
78
A
Actions 70
Adding a contact from phone
screen 38
Add new contact 35
Alarm 72
Alerts and Sounds 68
All applications icon 18
B
Backup data 34
Battery
Charging indicator 13
Battery usage 13
Charging 13
Improving battery life 14
Optimize power 13
Broadcast messages 43
C
Calculator 73
Calendar 72
Call accept/Send key 16
Call monitoring 39
Call waiting 40
Camera 72
Changing wallpaper 20
Clock 72
Contacts
Add 35
Send message 35
D
Data backup and restore 34
Deleting a contact 37
Deleting call history 38
Deleting messages 43
Dialing a call 38
From People 38
Display settings
Wallpaper 20
E
Editing contact details 35
Events 72
Exporting contacts to computer
36
Exporting contacts to SIM card 36
F
Frequently called list 38
H
HAC rating 10
I
Importing contacts to phone 35
Information 69
Internet calls 40
K
Keypad
Accept/Send 22
Back 22
Function keys 47
Navigation keys 23
Keypad functions 25
L
Language settings 25
Personal dictionary 25
Speech 25
Spell checker 25
M
MMS 42
Sending MMS message 42
Music player 73
N
Notication bar icons 18
Notication control 68
P
Index
![](/img.php?id=3073315&img=bg4f.png)
79
People 35
Phone lock screen 20
Phone specications 15
Power optimization 13
Power saving settings 26
Viewing battery life 26
Q
Quick responses 39
R
Restore data 34
Ringtones 38
S
Safety guidelines for mobile usage
8
SAR information 10
Searching contacts/people 37
Security settings
Phone lock screen 20
Screen lock 20
Sending SMS 42
Sending SMS/MMS
From People 35
Setting up your phone 17
Sharing contact details 36
SIP accounts 40
SMS 42
SMS settings 42
Sound recorder 73
System icons 18
V
Vibrate mode 39
Viewing contact details 35
X
XP5 Phone 16
Index
