Suprema DSMOC Fingerprint Terminal D-STATION DSM-OC User Manual
Suprema Inc. Fingerprint Terminal D-STATION DSM-OC
Suprema >
User manual
![](/img.php?id=1316285&img=bg2.png)
2
ⒸCopyright 2010Suprema Inc.

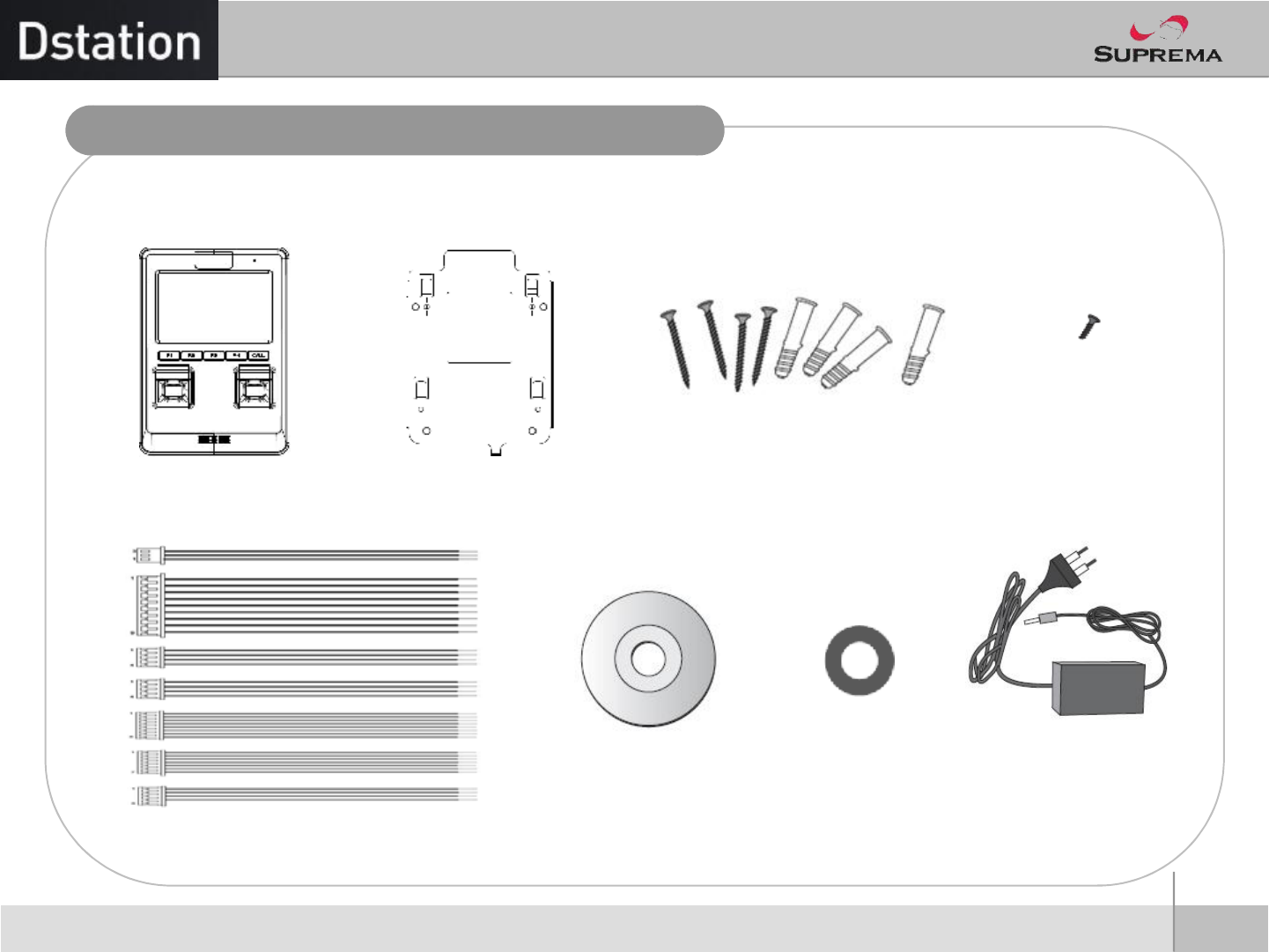

Product Contents
nBasic Contents
Product Contents
DStationTerminal Wall mounting metal bracket
Wallmounting
screwsand holders-4 ea
Screw for fixing main body
3P, 9P, 4P, 4P, 8P, 7P,5PCable –1EA
Software CD 12V DC Adaptor
Ferrite Core
![](/img.php?id=1316285&img=bg3.png)
3
ⒸCopyright 2010Suprema Inc.

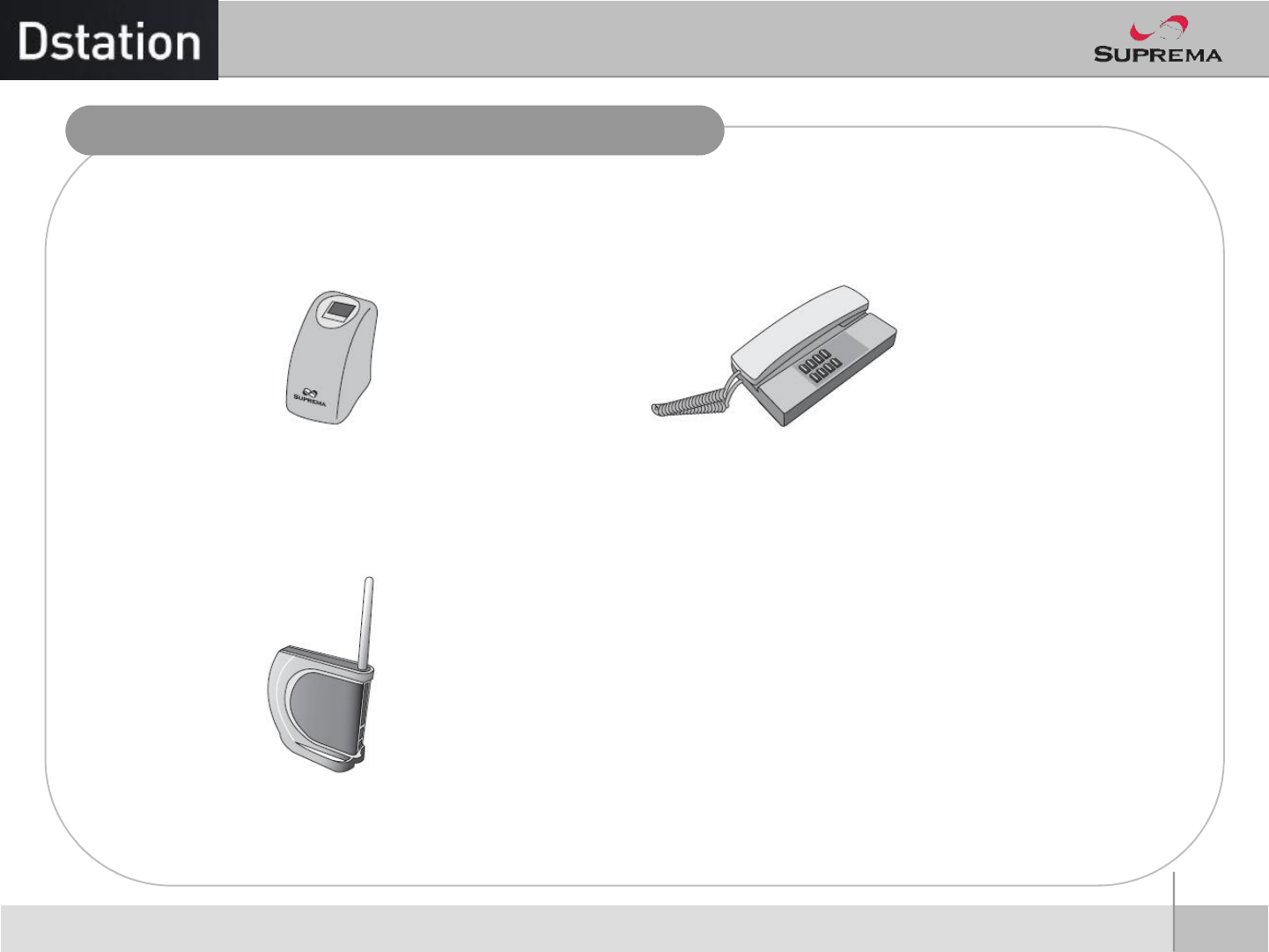

Product Contents
nOptional accessories
USB fingerprint scanner f
or enrollmenton PC
Interphone
Wireless LAN Access Point
![](/img.php?id=1316285&img=bg4.png)
4
ⒸCopyright 2010Suprema Inc.
Connectors for External Interfaces
nBottom
nRear
![](/img.php?id=1316285&img=bg5.png)
5
ⒸCopyright 2010Suprema Inc.

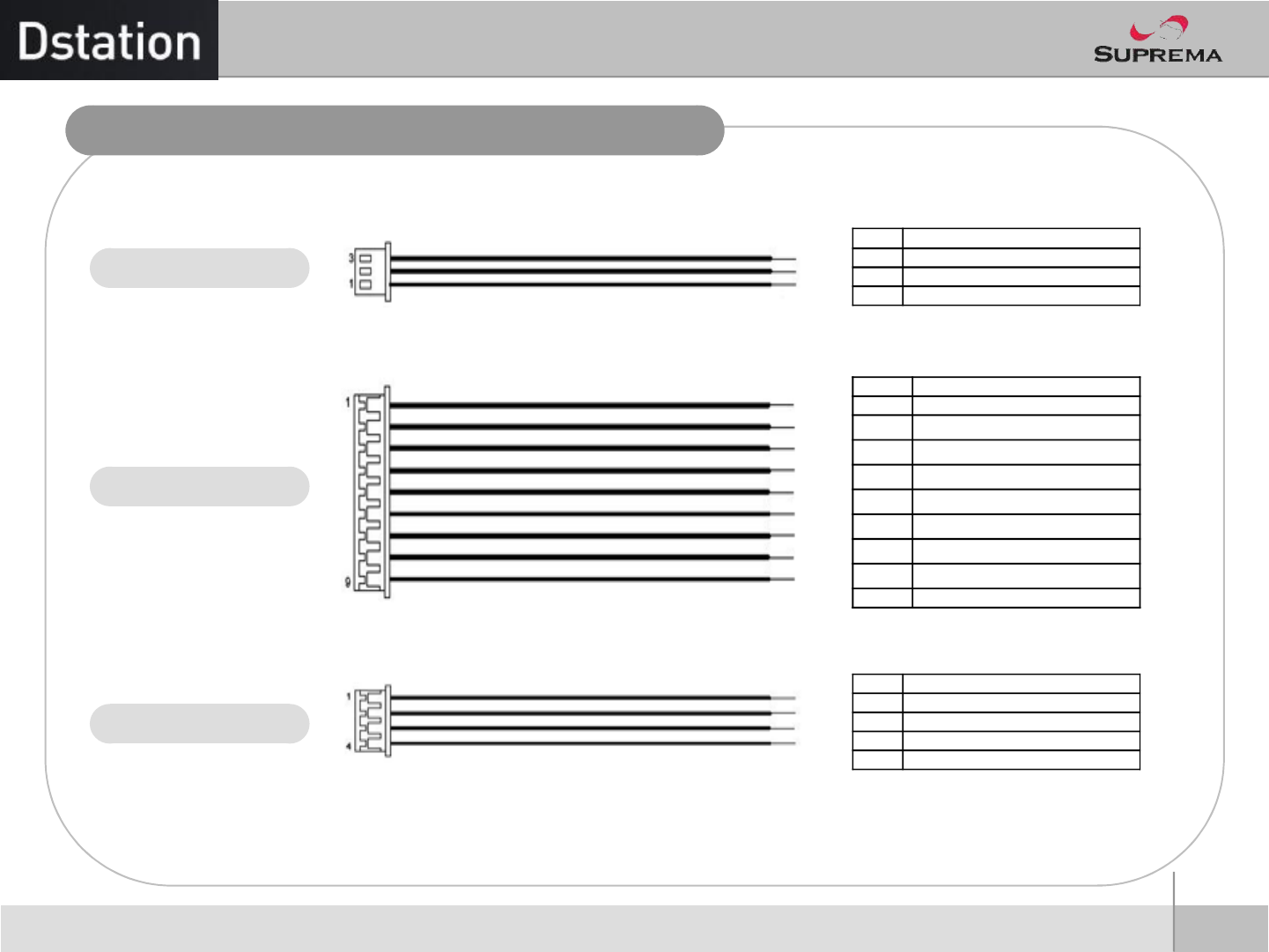

Cable and Connector Pinout
Relay
RS485
RS232
PIN PIN DESCRIPTION
1NORMAL OPEN
2 COMMON
3NORMAL CLOSE
PIN PIN DESCRIPTION
1TRX -
2TRX +
3GND
4 SHIELD GND
Before Start
PIN PIN DESCRIPTION
1RS232_DCD
2 RS232_RXD
3RS232_TXD
4RS232_DTR
5GND
6 RS232_DSR
7 DS232_RTS
8RS232_CTS
9RS232_RI
![](/img.php?id=1316285&img=bg6.png)
6
ⒸCopyright 2010Suprema Inc.

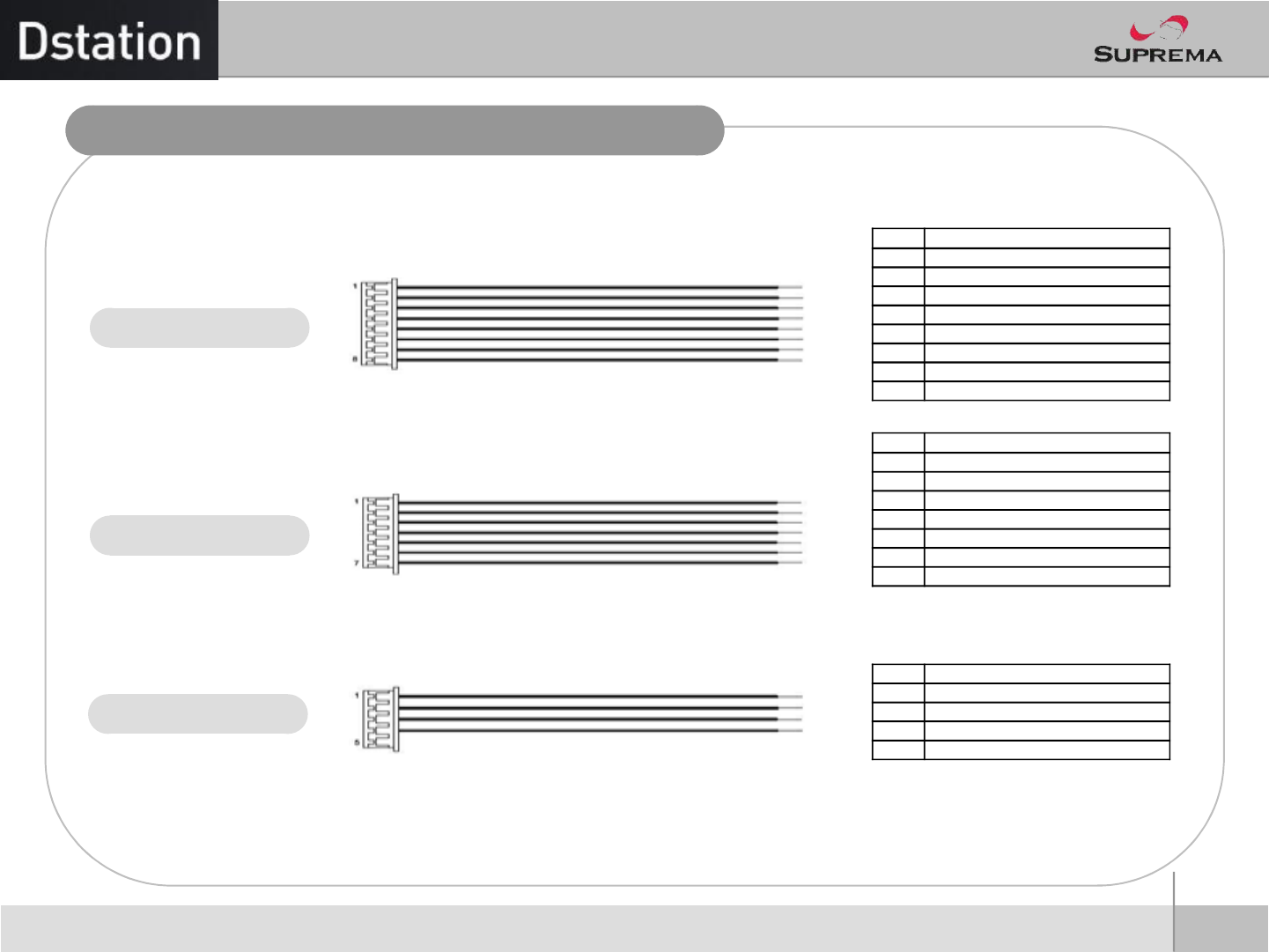

Cable and Connector Pinout
인터폰
Wiegand
Before Start
TTL In
PIN PIN DESCRIPTION
1WIEGAND_D0
2WIEGAND_D1
3GND
4 SHIELD GND
PIN PIN DESCRIPTION
1SWIN_IN0
2 SWIN_IN1
3GND
4 SHIELD_GND
5 SWIN_IN2
6 SWIN_IN3
7GND
8 SHIELD_GND
PIN PIN DESCRIPTION
1PHONE_VOICE
2GND
3 PHONE_VCC
4 PHONE_VIDEO
5 PHONE_OPEN
6GND
7 SHIELD_GND
![](/img.php?id=1316285&img=bg7.png)
7
ⒸCopyright 2010Suprema Inc.

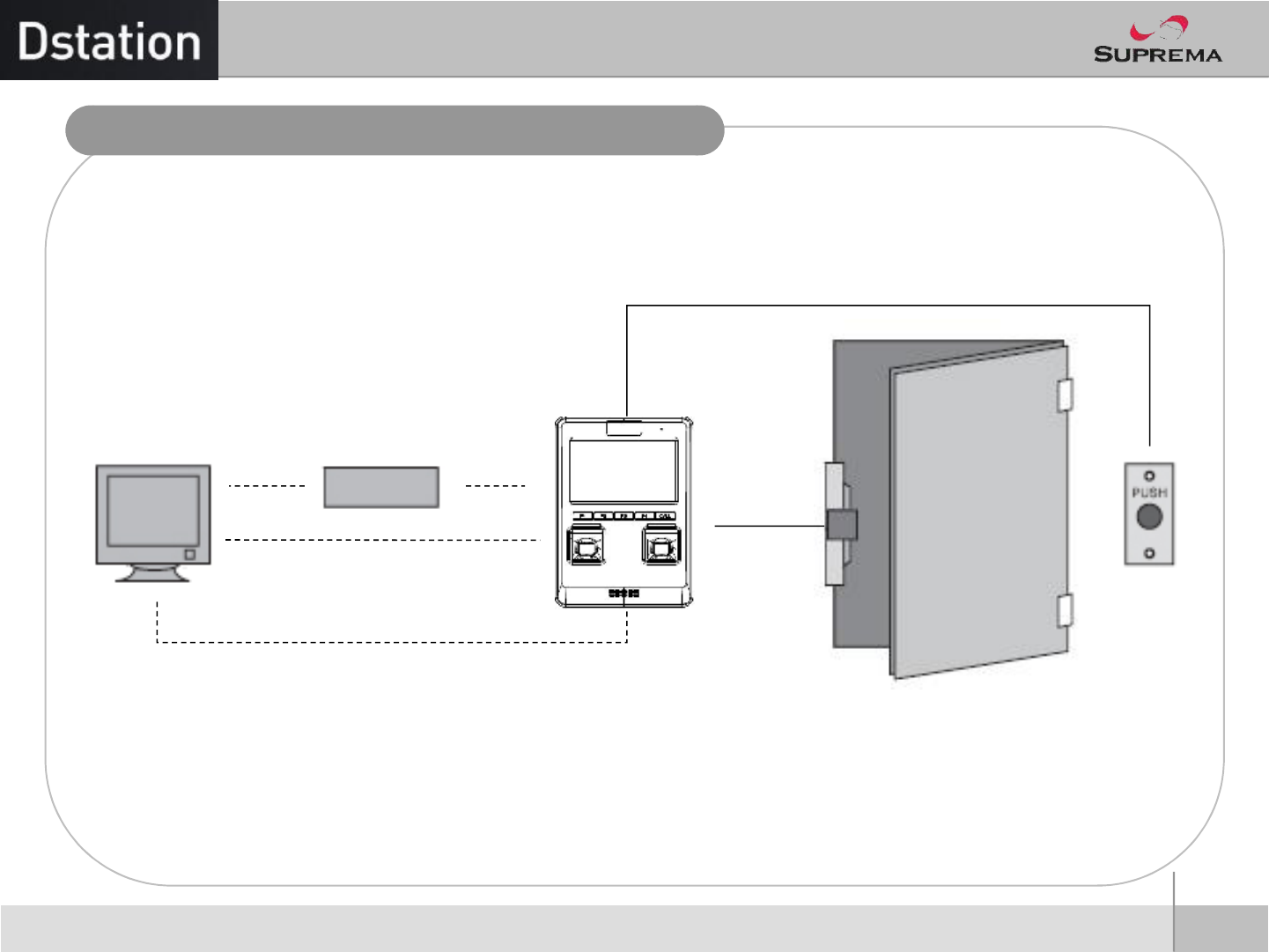

Installation Example
Exit Button
Door Lock
PC Network HUB
8P Cable
3P Cable
9P Cable
Ethernet
USBUSB
RS232
Firmware
Upgrade Only
![](/img.php?id=1316285&img=bg8.png)
8
ⒸCopyright 2010Suprema Inc.

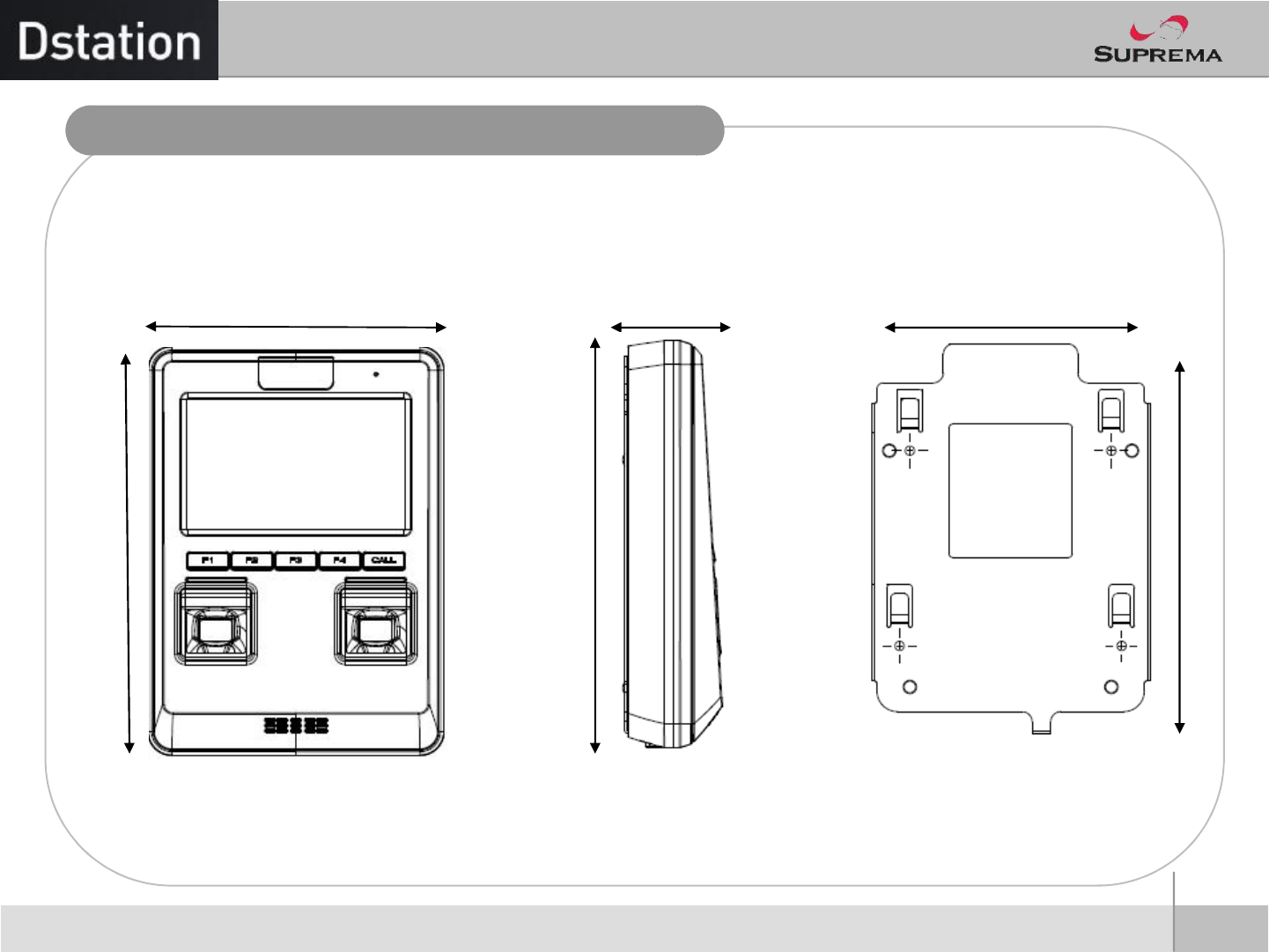

Product Dimension
브라켓
전면 측면
205
148
205
48 135
189
(unit : mm)
![](/img.php?id=1316285&img=bg9.png)
9
ⒸCopyright 2010Suprema Inc.

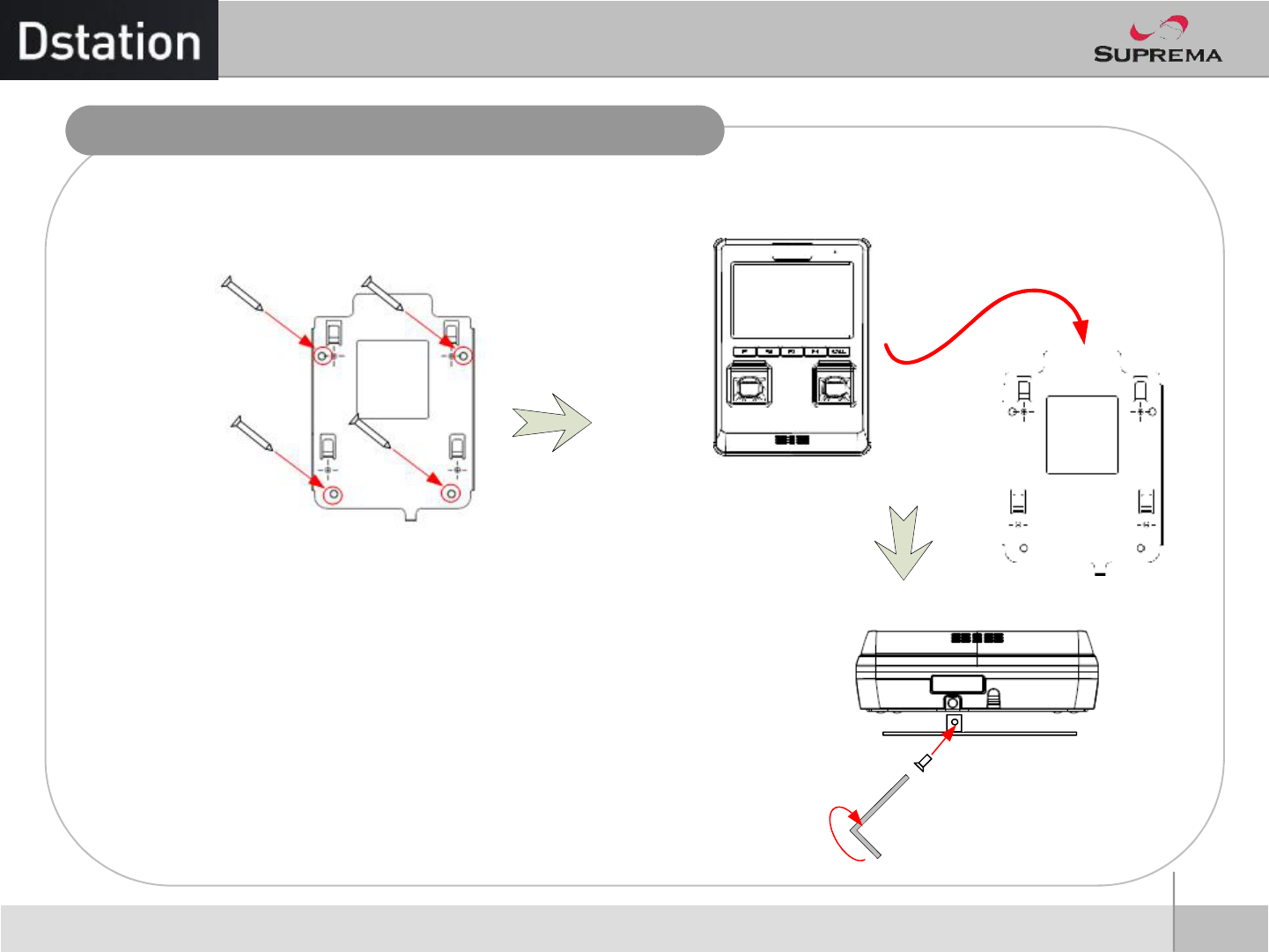

Installation of Wall-mount Bracket
nFix wall mount bracket on a wall using wall
mounting screws nHook DStationon the wall mount bracket.
nFix BioStationand wall mounting bracket using a
screw.
Wall Mounting
Screws
Screw
![](/img.php?id=1316285&img=bga.png)
10
ⒸCopyright 2010Suprema Inc.

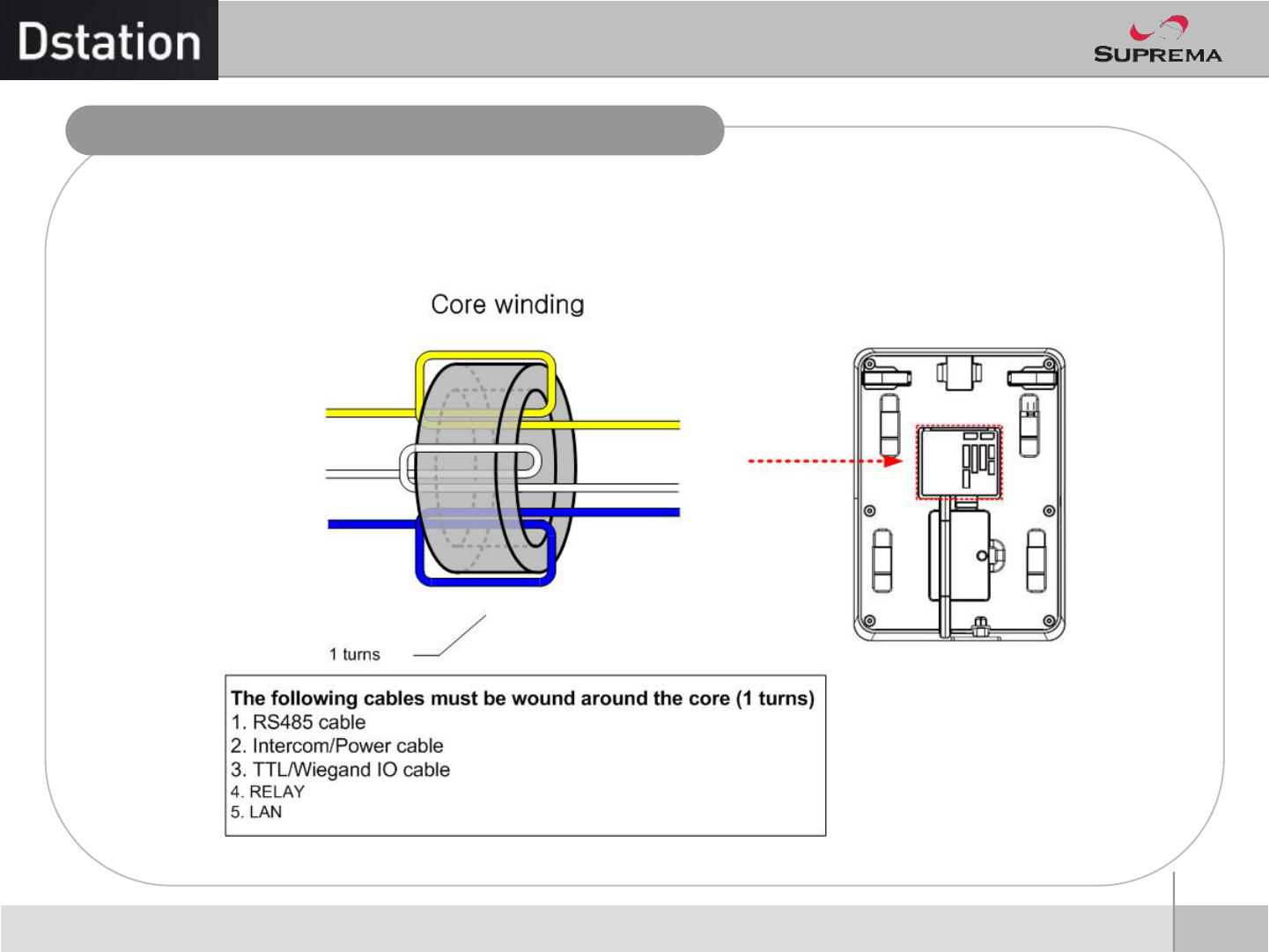

Ferrite Core Installation
nFerrite core
![](/img.php?id=1316285&img=bgb.png)
11
ⒸCopyright 2010Suprema Inc.

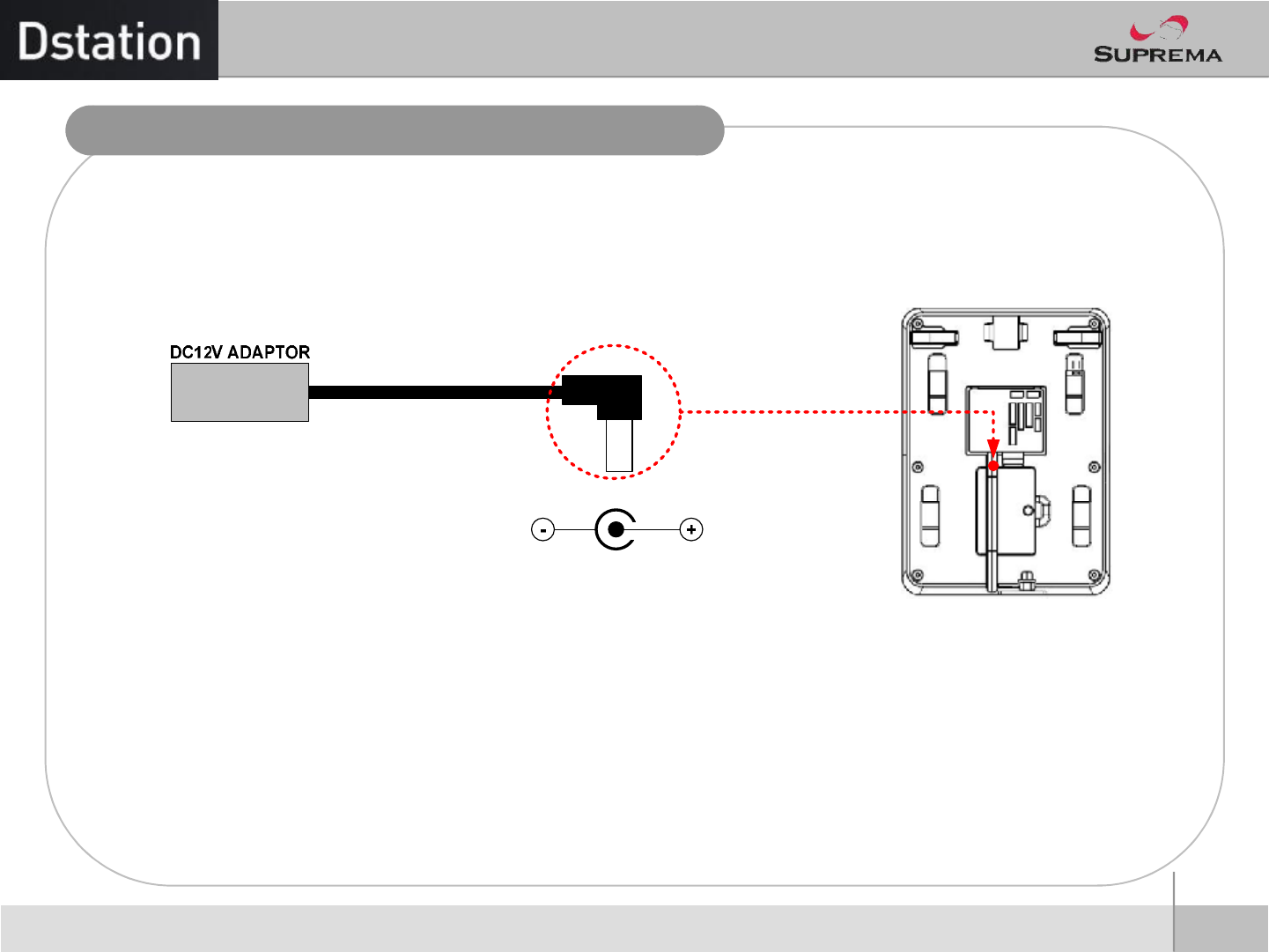

Power Connection
nPower connection
nRecommended
l12V ±10%, at least 1500mA for BioStation alone installation.
lComply with standard IEC/EN 60950-1
lTo share the power with other devices, use a power supply with higher current ratings.
![](/img.php?id=1316285&img=bgc.png)
12
ⒸCopyright 2010Suprema Inc.

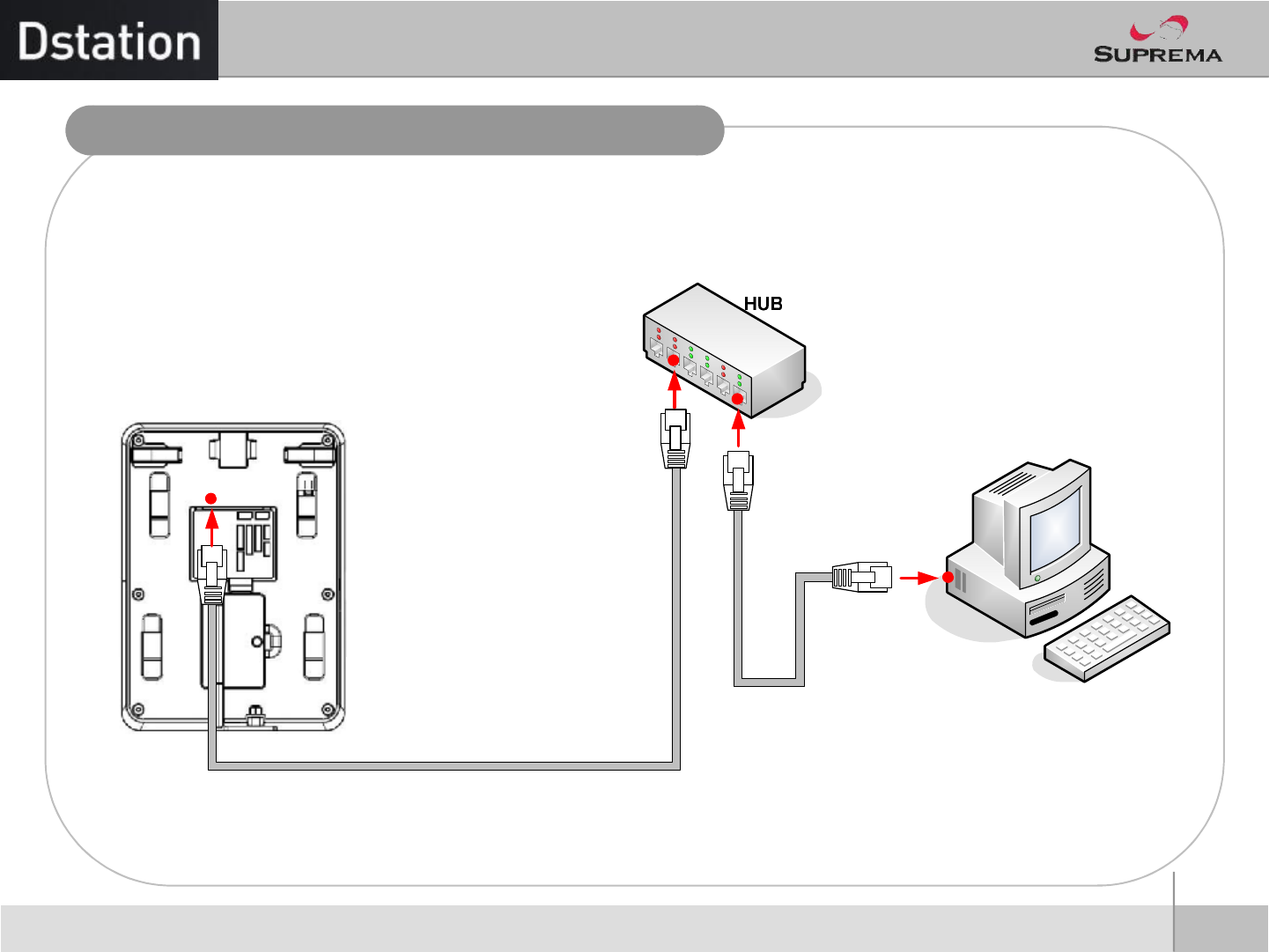

LAN Connection
![](/img.php?id=1316285&img=bgd.png)
13
ⒸCopyright 2010Suprema Inc.

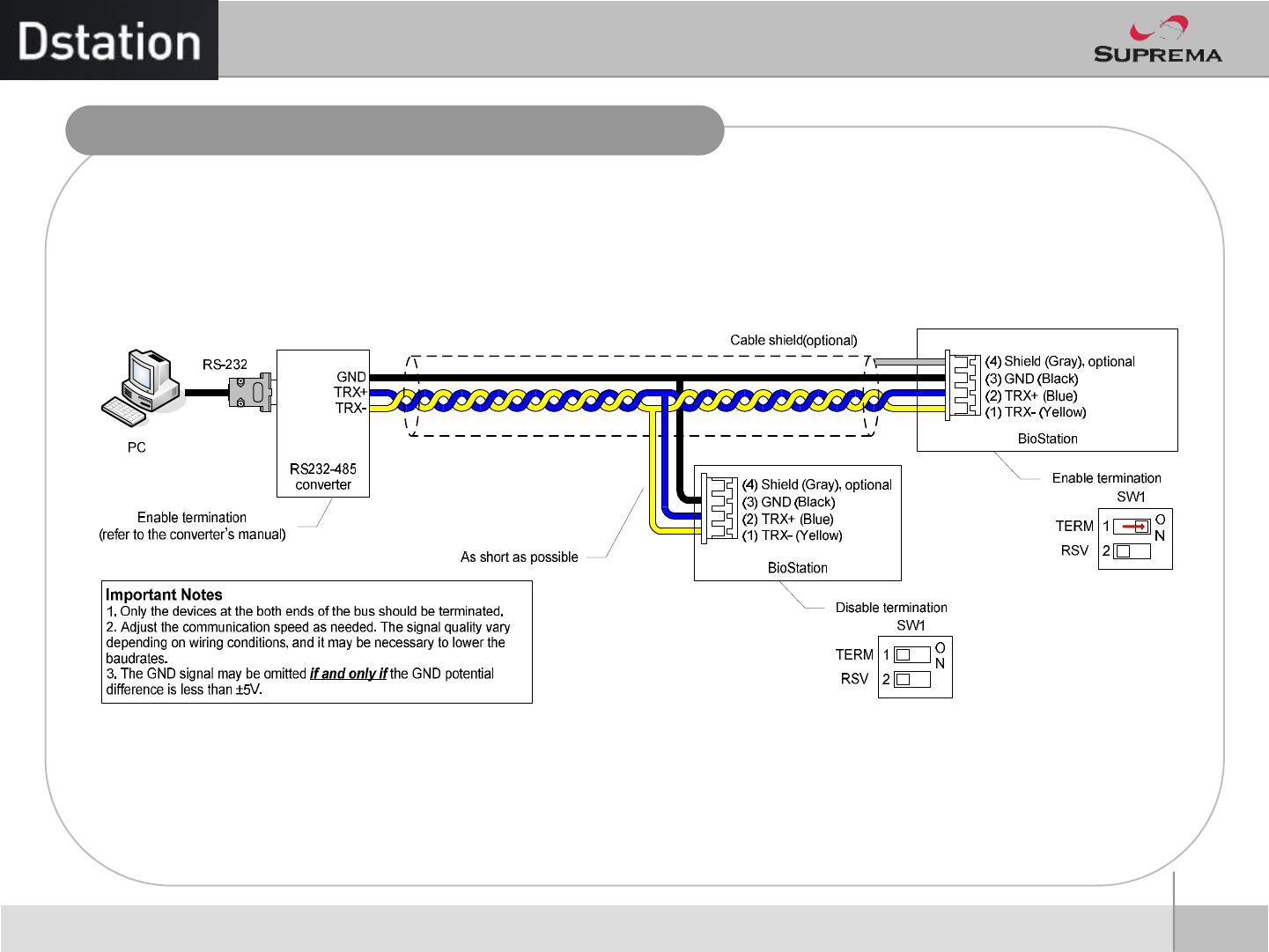

RS485 Network Connection
Before Start
![](/img.php?id=1316285&img=bge.png)
14
ⒸCopyright 2010Suprema Inc.
Intercom Connection
Before Start
![](/img.php?id=1316285&img=bgf.png)
15
ⒸCopyright 2010Suprema Inc.
Relay Connection –Fail Safe Lock
![](/img.php?id=1316285&img=bg10.png)
16
ⒸCopyright 2010Suprema Inc.

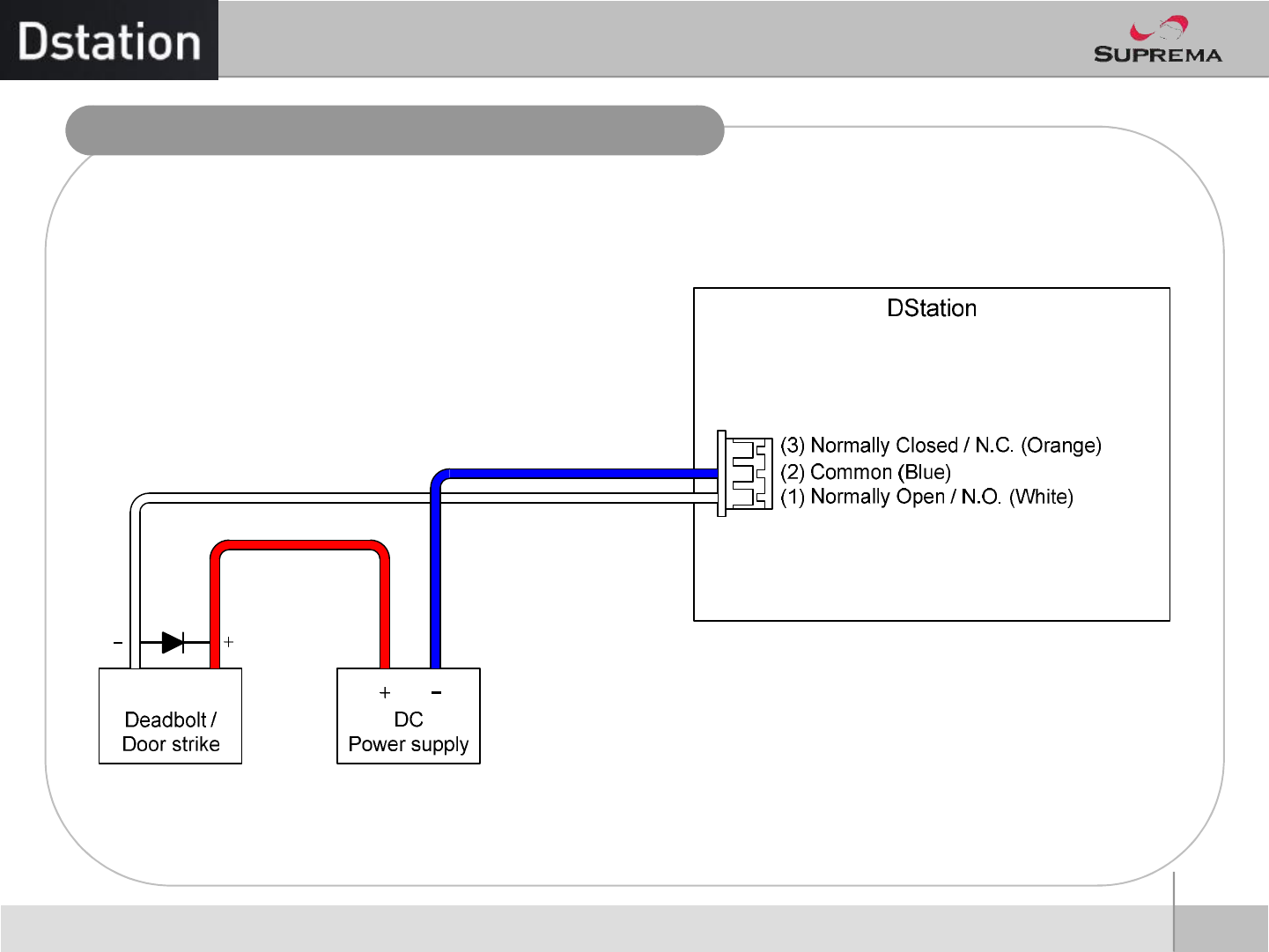

Relay Connection –Fail Secure Lock
![](/img.php?id=1316285&img=bg11.png)
17
ⒸCopyright 2010Suprema Inc.

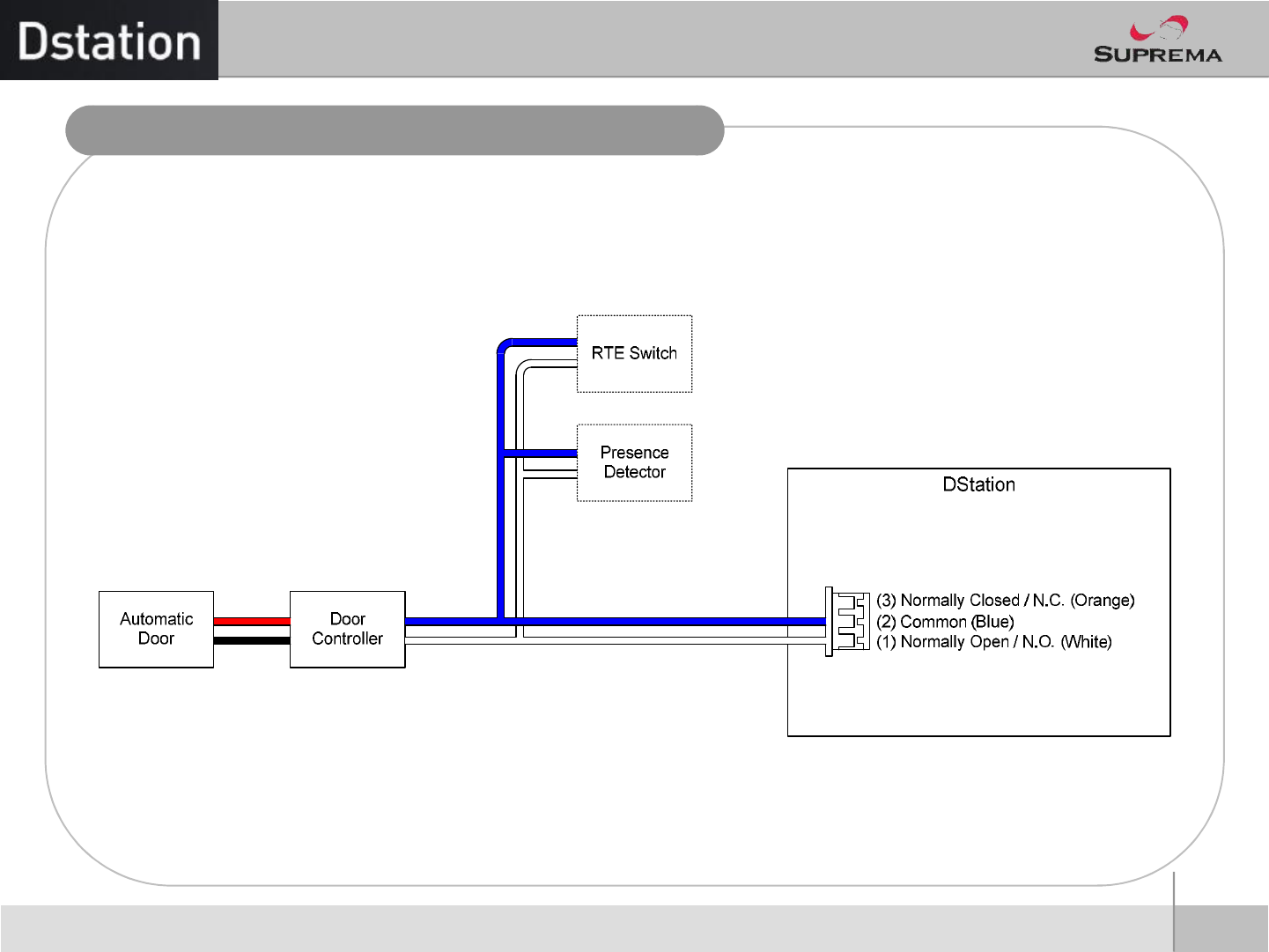

Relay Connection -Automatic Door
![](/img.php?id=1316285&img=bg12.png)
18
ⒸCopyright 2010Suprema Inc.

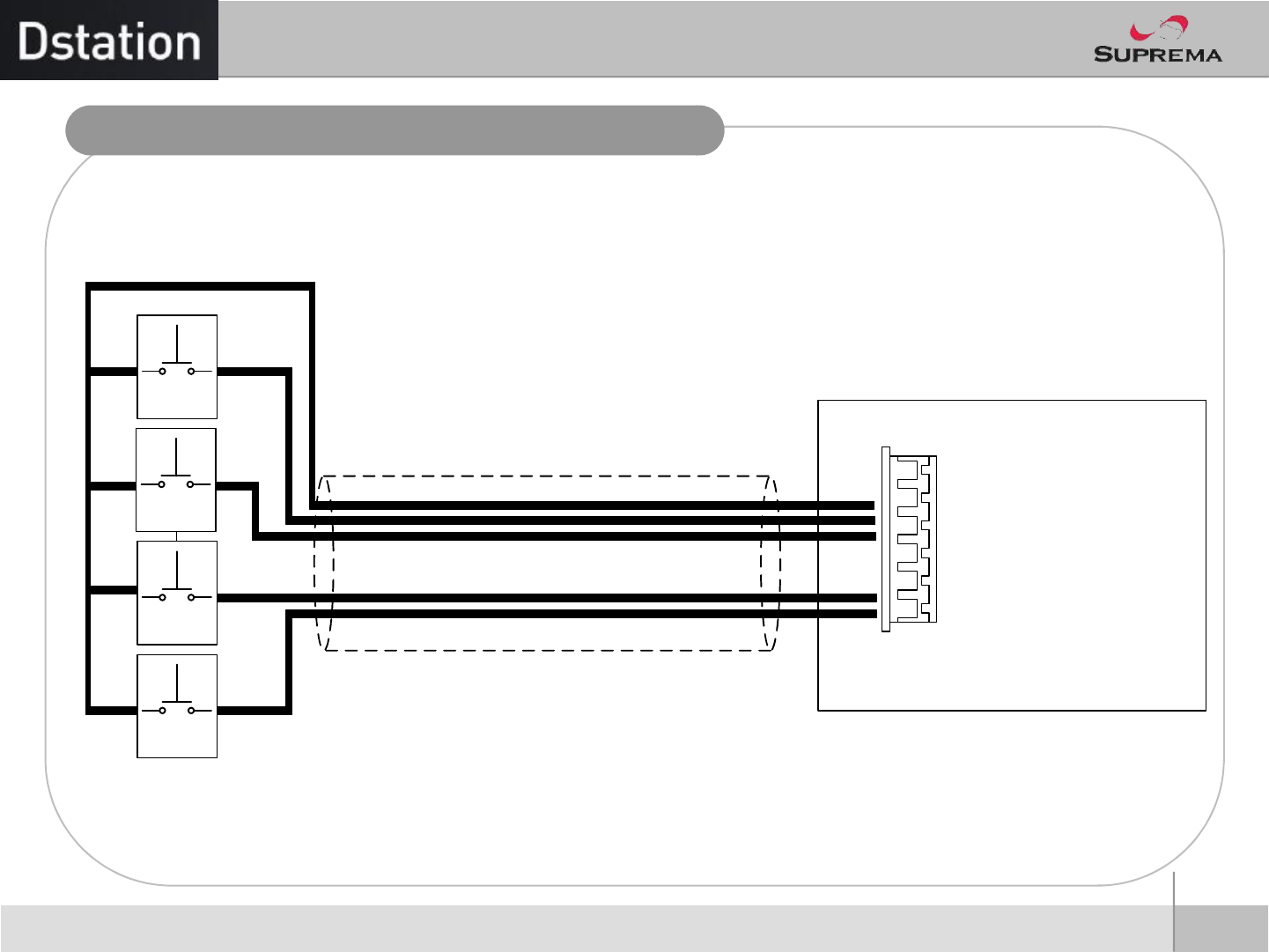

TTL Input Port Connection –RTE Switches
DStation
(1) TTL IN0
(2) TTL IN1
(5) TTL IN2
(6) TTL_IN3
Cable shield(optional)
(3) GND
(2) SHELD_GND
(7) GND
(8) SHELD_GND
Request
To Exit #1
Request
To Exit #1
Request
To Exit #1
Request
To Exit #1
![](/img.php?id=1316285&img=bg13.png)
19
ⒸCopyright 2010Suprema Inc.

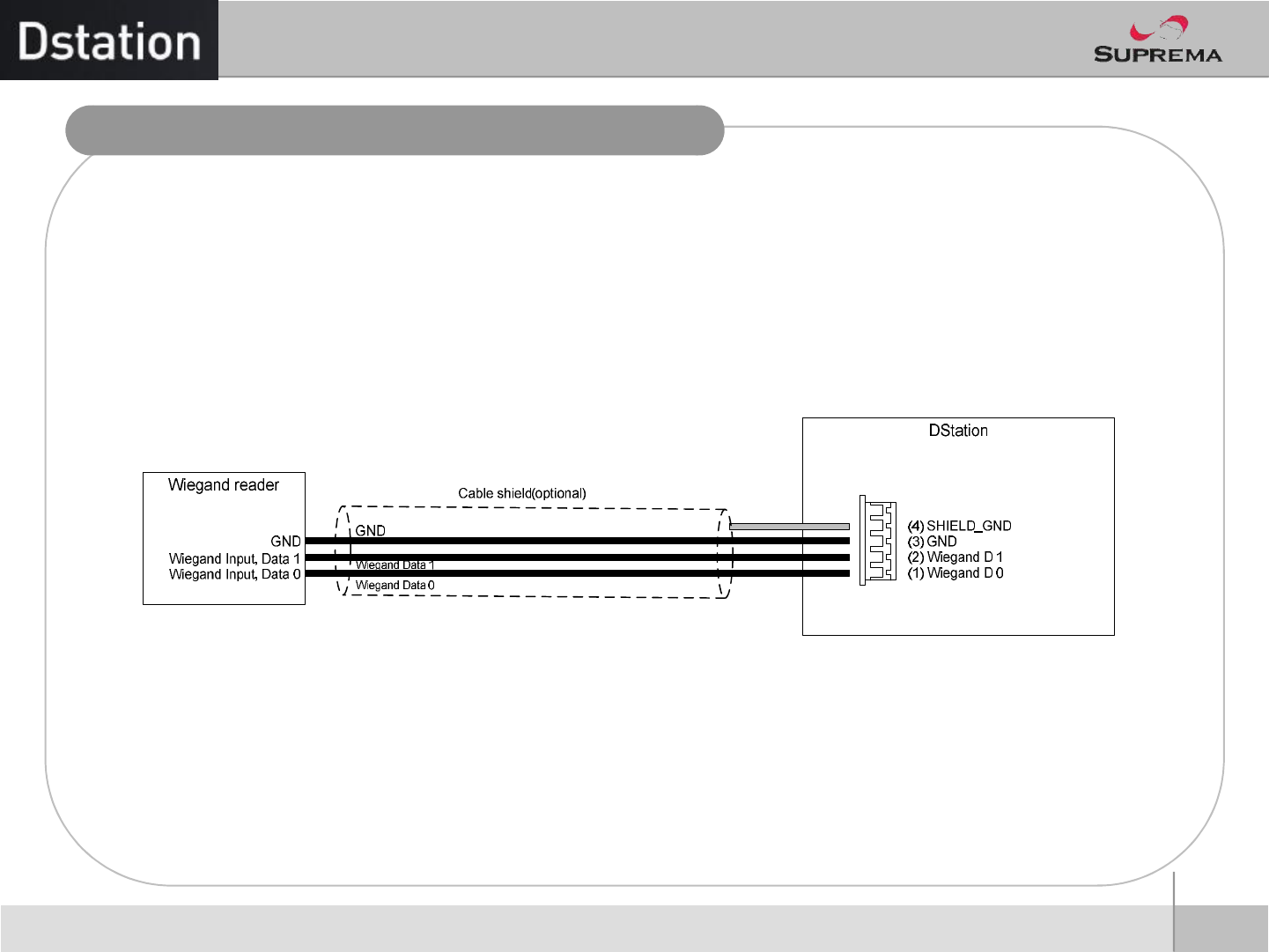

Wiegand Input Connection –External reader
![](/img.php?id=1316285&img=bg14.png)
20
ⒸCopyright 2010Suprema Inc.
System Specifications
n●CPU :Main B/D CPU -ARM11 667MHz (Samsung S3C6410-667) X 1ea
nSensor B/D CPU -DSP 400MHz (ADI BP531-400) X 2ea
nIO B/D CPU -ARM Corex-M3 36MHz (ST STM32F101 ) X1ea
n●Memory : Main B/D -Flash : Nand MLC 1GByte + Nor 1MByte, SDRAM(mDDR) : 256MByte
nSensor B/D -Flash : SPI 512Kbyte, SDRAM : 32MByte
nIO B/D -Flash : 32Kbyte, SRAM : 6KByte
n●DISPLAY : 5inch WVGA TFT LCD (800 X 480) X 1ea
n●LED : 3-Color LED X 2ea
n●INPUT : Touch Screen X 1ea + 5 Keypad (F1~F4, CALL)
n●CAMERA : 1.3M CMOS Camera X 1ea
n●I/O Port : Wiegand In/Out X 1ch
nVideo Phone I/F X 1ch
nSwitch Input X 4ch
nRS-485 X 2ch
nRS-232(Full Feature RS-232) X 1ch
nRelay(2A@30Vdc) X 2ch
nEthernet(10/100M) X 1ch
nMicro SD Card Slot X 1ch
nSAM Slot X 1ch
nUSB HOST(for USB Wireless LAN) X 2ch
nUSB HOST/Device Share(for USB Memory or PC Connection) X 1ch
n●Sound Out: System Sound용Speaker X 1ea + Video Phone Sound용Speaker X 1ea
n●Mic : Video Phone MIC X 1ea
n●RF CARD : Mifare/ISO14443 B-type
n●Fingerprint Sensor : OC-OC Sensor Model
n●Power Input : 12Vdc Adaptor or POE Input
n●Power Output : 12Vdc 100~200mA(T.B.D)
기타
![](/img.php?id=1316285&img=bg15.png)
21
ⒸCopyright 2010Suprema Inc.
FCC Rules
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.
Caution
Warning This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interface, and
(2) this device must accept any interface received, including interference that
may cause undesired operation.
Information to User This equipment has been tested and found to comply with the limit of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, user and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more the
following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help
![](/img.php?id=1316285&img=bg16.png)
22
ⒸCopyright 2010Suprema Inc.
Electrical Specification
Min. Typ. Max. Notes
Power
Voltage (V) 10.8 12 13.2
Current (mA) -500 800
TTL/Wiegand Input
VIH (V) 2 - -
VIL (V) - - 0.8
Pull-up resistance (Ω)-10k -
TTL/Wiegand Output
VOH (V) 4 - - @ IOH = -5mA
VOL (V) - - 1 @ IOL = 5mA
Output resistance (Ω)-100 -
Relay
Switching capacity (A) - - 1
0.3
30V DC
125V AC
Switching power
(resistive) - - 30W
37.5VA
DC
AC
Switching voltage (V) - - 110
125
DC
AC
![](/img.php?id=1316285&img=bg17.png)
Suprema Inc.
16F Parkview Office Tower, Jeongja-dong, Bundang-gu,
Seongnam, Gyeonggi, 463-863 Korea
E-mail : support@supremainc.com
Website : www.supremainc.com
Functions and specifications of the product are subject to changes without notice due to quality
enhancement or function update. For any inquiry on the product, please contact Suprema Inc.
