TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
1
Chapter 1 Introduction
Congratulations on your purchase of this outstanding 300Mbps AV500/AV200 WiFi Powerline Extender.
This device is not only a 500Mbps/200Mbps powerline Ethernet adapter which transforms your house’s
existing electrical wiring into a ubiquitous networking infrastructure, but also a 300Mbps Wi-Fi Access
Point which creates a wireless network allowing for greater range and mobility.
As a powerline Ethernet adapter, it uses the existing power lines installed in a home as a path to
transmit digital data, voice, audio and video between devices. Simply plug this 300Mbps AV500/AV200
WiFi Powerline Extender into an ordinary AC power outlet, and then your Cable/xDSL broadband
connection or existing Ethernet (LAN) network can be easily extended to any other electrical outlet in
any room of a house with the absence of cabling. With powerline data rates of 500Mbps/200Mbps, full
multimedia application can easily be supported throughout the whole house.
As a Wi-Fi Access Point, it can transmit wireless data at the rate of up to 300Mbps. With multiple
protection measures including SSID broadcast control, wireless LAN WEP encryption, and Wi-Fi
Protected Access (WPA2- PSK, WPA-PSK), the device delivers complete data privacy.
It supports an easy, Web-based management utility. Even though you may not be familiar with the
device, you can easily configure it with the help of this Guide. The adapter adds three new functions
which are found to be useful.
1. Connection with a new unassociated device via the Pair button.
2. Reset to default settings via the Reset button.
3. Wi-Fi Clone via Wi-Fi Clone button.
1.1 System Requirement
a) At least two power outlets (100-240V~, 50/60Hz) with standard home power wiring
b) A computer with the following:
¾ Operating System of Windows XP, Windows Vista or Windows 7
¾ Operating System with TCP/IP installed
¾ Pentium III compatible processor and above
¾ Ethernet LAN card installed with TCP/IP protocol
¾ 64 MB RAM or more
¾ 50 MB of free disk space (Minimum)
¾ CD-ROM Drive
1.2 Package Contents
The package contains the following items:
¾ One 300Mbps AV500/AV200 WiFi Powerline Extender
¾ One Ethernet Cable
¾ One Quick Installation Guide
¾ One Resource CD (including Management Utility and User Guide)
If any of the above items are damaged or missing, please contact your distributor immediately.
![](/img.php?id=2125266&img=bg9.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
2
1.3 Conventions
The extender, or TL-WPA4220/TL-WPA2220, or device mentioned in this User Guide stands for
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender without any explanations.
Parameters provided in the pictures are just references for setting up the product. They may differ from
the actual situation.
You can set the parameters according to your demand.
) Note:
This User Guide is shared by TL-WPA4220 and TL-WPA2220. Here in this Guide we use TL-WPA4220
for example.
The difference between them is:
¾ TL-WPA4220 300Mbps AV500 WiFi Powerline Extender with powerline data rate of up to
500Mbps;
¾ TL-WPA2220 300Mbps AV200 WiFi Powerline Extender with powerline data rate of up to
200Mbps.
![](/img.php?id=2125266&img=bga.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
3
Chapter 2 Hardware Connection
2.1 Before You Begin
Please read this User Guide carefully before installing and using the equipment. The operating distance
or range of your wireless connection varies significantly based on the physical placement of the
powerline extender. Factors that can weaken signals by getting in the way of your network’s radio waves
are metal appliances or obstructions, and walls. Typical ranges vary based on the types of materials and
background RF (radio frequency) noise in your home or office.
For best performance of your wireless network, you are suggested to place your powerline extender:
1). Near the center of the area in which your wireless stations will operate.
2). In an elevated location such as a high shelf.
3). Away from the potential sources of interference, such as PCs, microwaves, and cordless phones.
4). With the Antenna in the upright position.
5). Away from large metal surfaces.
Failure to follow these guidelines can result in significant performance degradation or inability to
wirelessly connect to the powerline extender.
) Note:
Take notes that this 300Mbps AV500/AV200 WiFi Powerline Extender works in pairs or with another
powerline adapter. You need to plug the powerline extender into a power outlet; you will also need
another powerline extender or powerline Ethernet adapter connected to your Cable/xDSL broadband
(Ethernet port) in order to extend your broadband connection or Internet surfing. With clean powerline,
the distance between two powerline Ethernet adapters can reach 300 meters, but the actual distance
may vary due to the environment.
Section below describes the 300Mbps AV500/AV200 WiFi Powerline Extender’s LED indicators,
physical interface and hardware connection mechanism.
![](/img.php?id=2125266&img=bgb.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
4

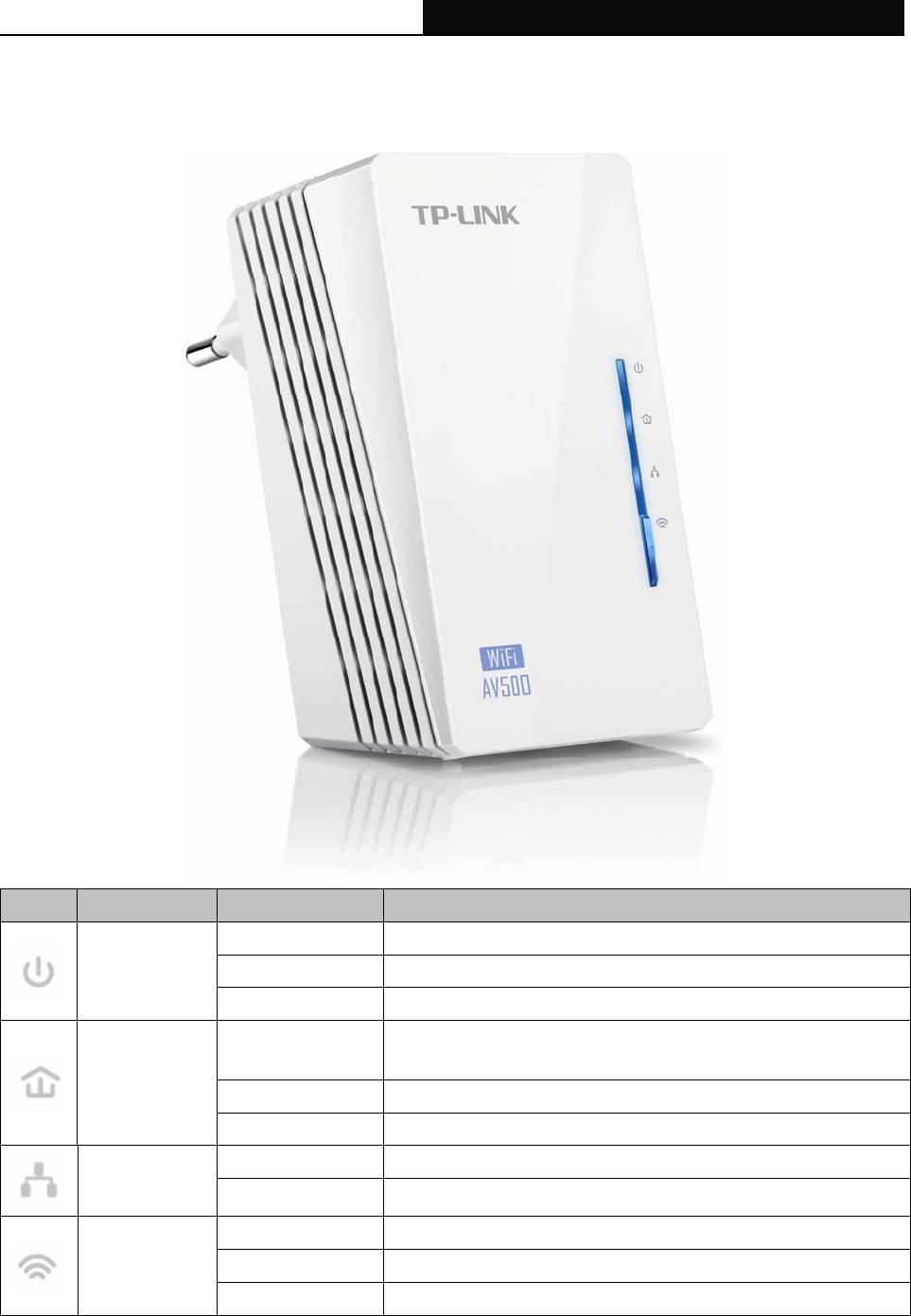

2.2 LED Indicator
The LED indicator displays information about the device’s status.
LEDs Name Status Indication
Solid The device is on.
Off The device is off.
Power LED
Blinking The device is in the pairing procedure.
Solid The device is connected to a powerline network, but there
is no data being transferred.
Off The device isn’t connected to any powerline network.
Powerline
LED
Blinking The device is transferring data.
Solid The Ethernet port is connected.
Ethernet LED Off The Ethernet port isn’t connected.
Off The wireless function has been disabled.
Blinking slowly The extender is cloning Wi-Fi settings from other device.
Wi-Fi/Wi-Fi
Clone LED
Blinking quickly The wireless function has been enabled.
![](/img.php?id=2125266&img=bgc.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
5

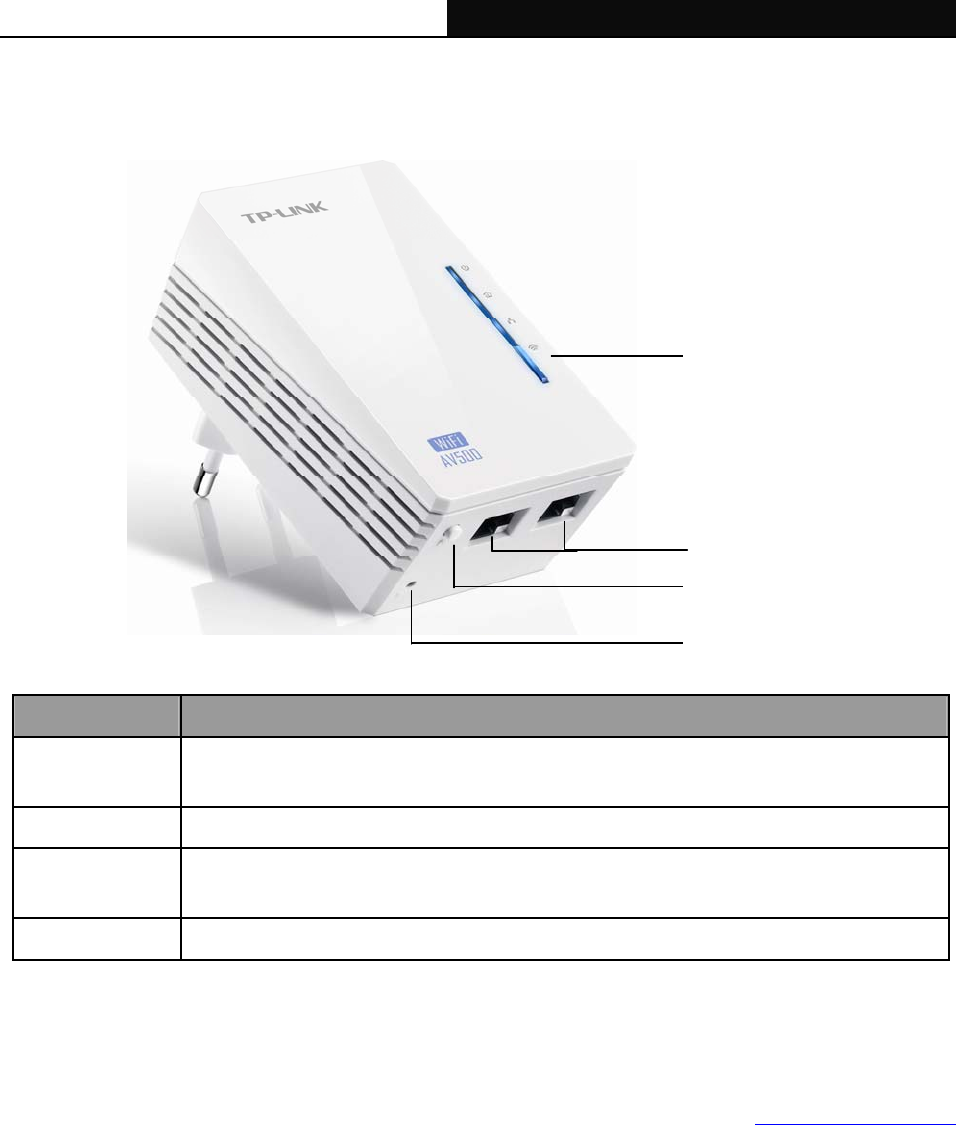

2.3 Physical Interface
There are four physical items on this device.
Item Description
Wi-Fi/Wi-Fi
Clone Button
Press the button for 2 seconds to start Wi-Fi Clone.
Press the button for 5 seconds to enable or disable the wireless function.
Ethernet Port Two 10/100Mbps Ethernet port connected to PC LAN card or broadband device.
Reset Button Press the button more than 5 seconds, the device will restore to its factory
defaults.
Pair Button Pair button is used to secure a powerline network.
) Note:
1. If you press the Pair button for more than 10 seconds, the extender will leave the network it is
associated with and its network name assumes a random value.
2. For detail information about the Reset button and Pair button, please refer to Chapter 5 Pair Button.
2.4 Hardware Connection
Please first make sure that your PC can successfully access the Internet via the router. Then connect
the powerline devices by following the instructions below.
Step 1: Connecting to the Internet
This section describes how to connect the powerline extender into your existing network. Follow the
procedures described below:
1. Connect one end of an Ethernet (RJ45) cable to the Ethernet port of the powerline extender or a
compatible powerline adapter like TL-PA4010.
Wi-Fi/Wi-Fi Clone Button
Ethernet Port
Pair Button
Reset Button
![](/img.php?id=2125266&img=bgd.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
6
2. Connect the other end of the Ethernet (RJ45) cable to an available Ethernet port of your wireless
router.
3. Plug the powerline extender or powerline adapter into a wall socket.
4. Check and confirm the LEDs status. (The Power LED and Ethernet LED on the powerline device
should be ON.)

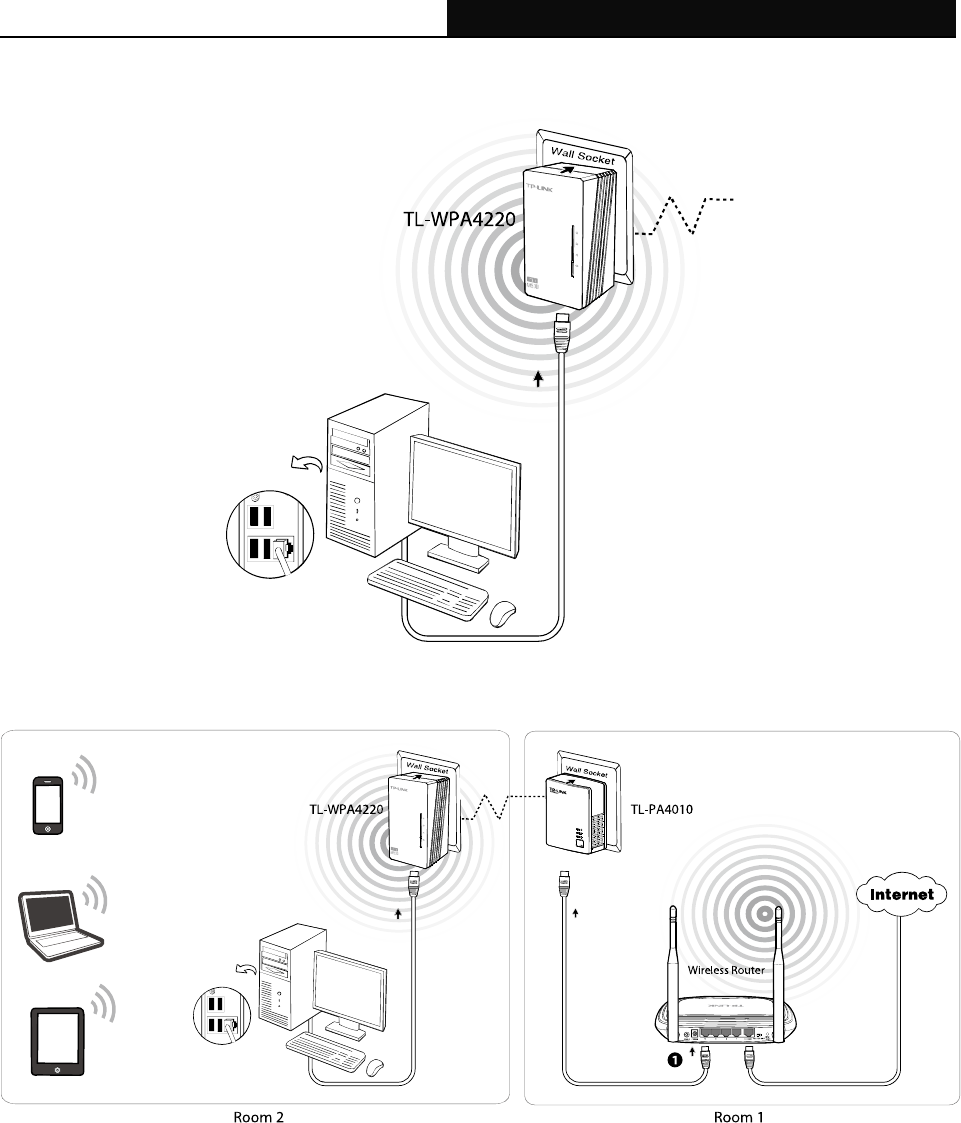

The hardware connection mechanism is shown below:
) Note:
Do not connect the powerline extender or powerline adapter to an extension lead, power strip, extension
cord, or surge protector, as these may degrade the network performance.
Step 2: Connecting the Computer
Following are the steps to properly connect the powerline extender to your computer:
1. Connect one end of the provided Ethernet (RJ45) cable to the powerline extender’s Ethernet port.
2. Connect the other end of the Ethernet (RJ45) cable to you computer’s LAN port.
3. Plug the powerline extender into a wall socket next to the computer.
4. Turn on your computer.
5. Check and confirm that the Power LED and Ethernet LED on the powerline extender are ON.
![](/img.php?id=2125266&img=bge.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
7
The hardware connection mechanism is shown below:
As soon as the powerline devices are connected following the steps above, a powerline network is
available.
![](/img.php?id=2125266&img=bgf.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
8
2.5 Wi-Fi Clone Button for Super Range Extension
Wi-Fi Clone button is used for copying the wireless settings (including SSID and wireless password)
from the front wireless router.
Wi-Fi Clone Steps:
Before taking the steps below, please make sure the current wireless password of the front router isn’t
the default value.

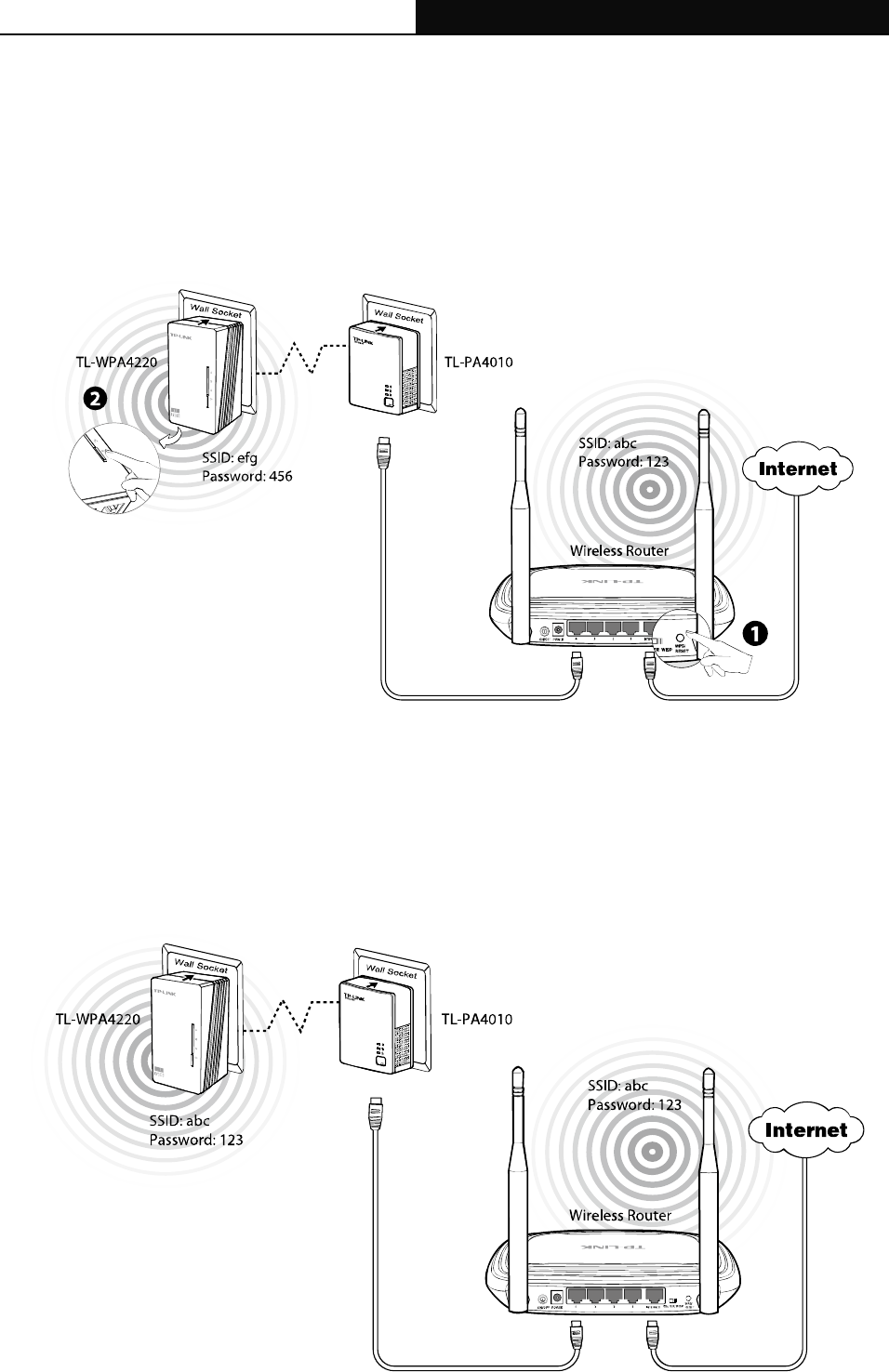

1. Press the WPS button on the router for 2 seconds. (Here we take TP-LINK router as an example.)
2. Press the Wi-Fi Clone button on the extender for 2 seconds. The extender will reboot later.
* It’s recommended that you plug the extender near the router to use Wi-Fi Clone button.
After Wi-Fi Clone:
A unified wireless network is established. The SSID and wireless password of the powerline extender
will be the same as the wireless router.
![](/img.php?id=2125266&img=bg11.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
10
Chapter 3 Configure the Device
This Chapter describes how to configure your Access Point via the web-based management page. The
300Mbps AV500/AV200 WiFi Powerline Extender is easy to configure and manage with the Web-based
(Internet Explorer, Netscape® Navigator, Firefox, Safari, Opera or Chrome) management page, which
can be launched on any windows, Macintosh or UNIX OS with a web browser.
3.1 Login
3.1.1 For Wired Connection
If your computer is connected to the extender via Ethernet cable, you can log in the extender by
following the steps below:

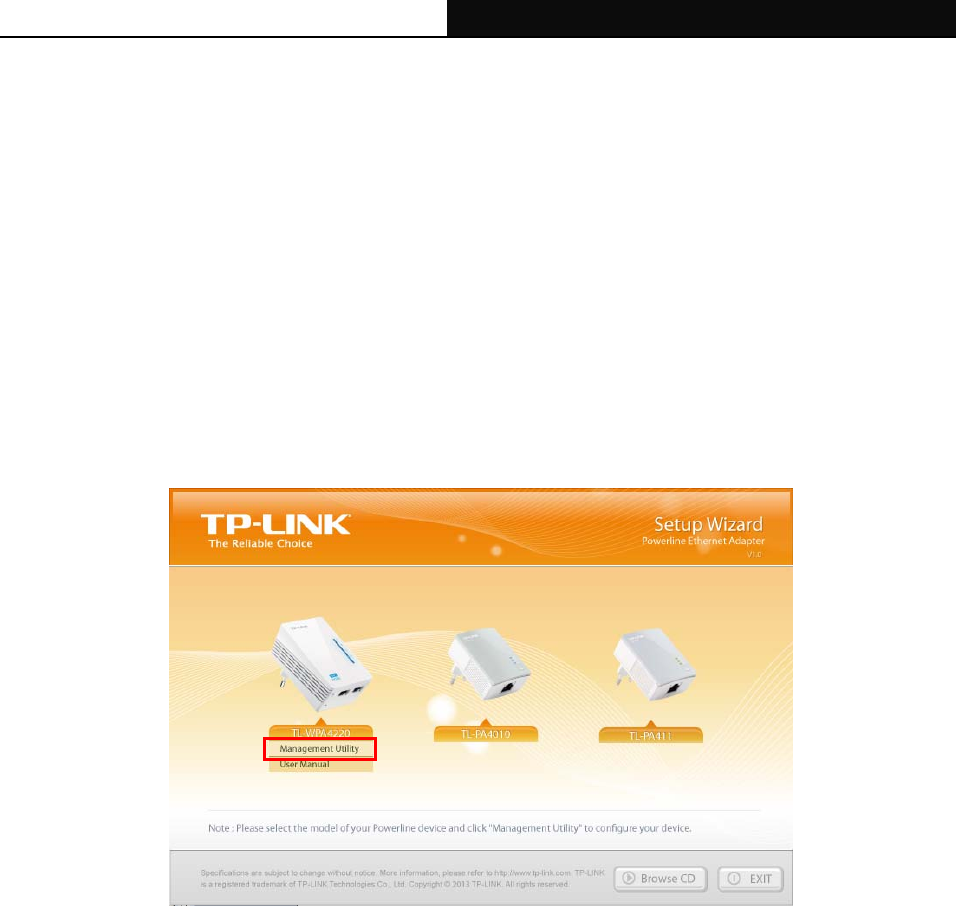

1. Insert the TP-LINK Resource CD into the CD-ROM drive. The following screen will appear. Select
model TL-WPA4220 and then choose Management Utility from the drop-down menu.
Figure 3-1 Setup Wizard
![](/img.php?id=2125266&img=bg12.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
11
2. Find the model to be configured and click Connect to log in the Web-based management utility.
Figure 3-2 Management Utility
) Note:
If another TL-WPA4220 is displayed on the screen above and you cannot decide which model is the
one you are configuring, please refer to the MAC address under MAC Address column. The device’s
MAC address can be found on the label at the bottom of the device.
3. Enter admin for the User name and Password (both in lower case letters) in the screen below. Then
click OK or press Enter.
Figure 3-3 Login Window
![](/img.php?id=2125266&img=bg13.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
12
) Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to
Tools >Internet Options>Connections>LAN Settings, in the screen that appears, cancel the
Using Proxy checkbox, and click OK to finish it.
3.1.2 For Wireless Connection
If your device is connected to the extender via wireless, you can log in the extender by following the
steps below:

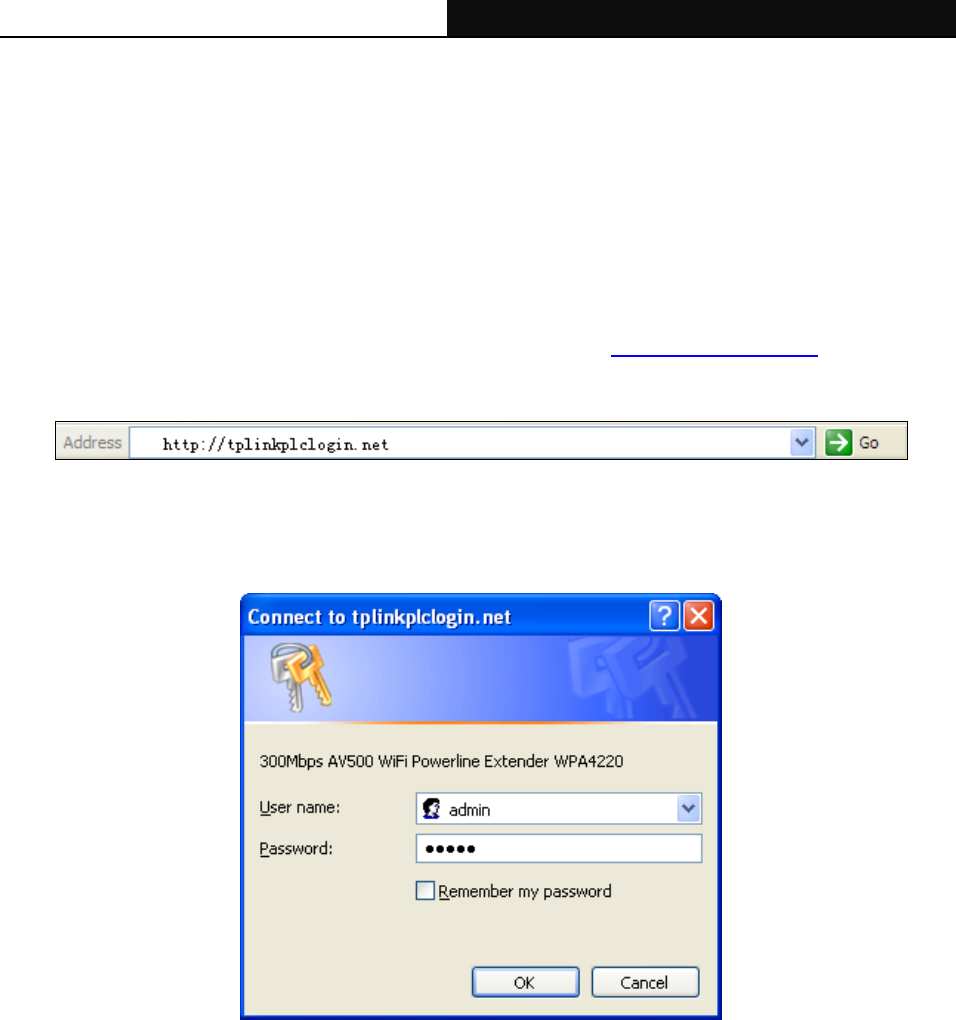

1. Launch a web-browser and type in the default domain name http://tplinkplclogin.net in the address
field.
Figure 3-4 Log in the Router
2. Enter admin for the User name and Password (both in lower case letters) in the screen below. Then
click OK or press Enter.
Figure 3-5 Login Windows
) Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to
Tools>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the
Using Proxy checkbox, and click OK to finish it.
After a successful login, you can configure and manage the device. There are six main menus on the
leftmost column of the Web-based management page: Status, Network, Wireless, Powerline and
System Tools. Submenus will be available after clicking one of the main menus. On the right of the
Web-based management page lays the detailed explanations and instructions for the corresponding
page.
![](/img.php?id=2125266&img=bg14.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
13
3.2 Status
The Status page displays the powerline extender’s current status and configuration. All information is
read-only.

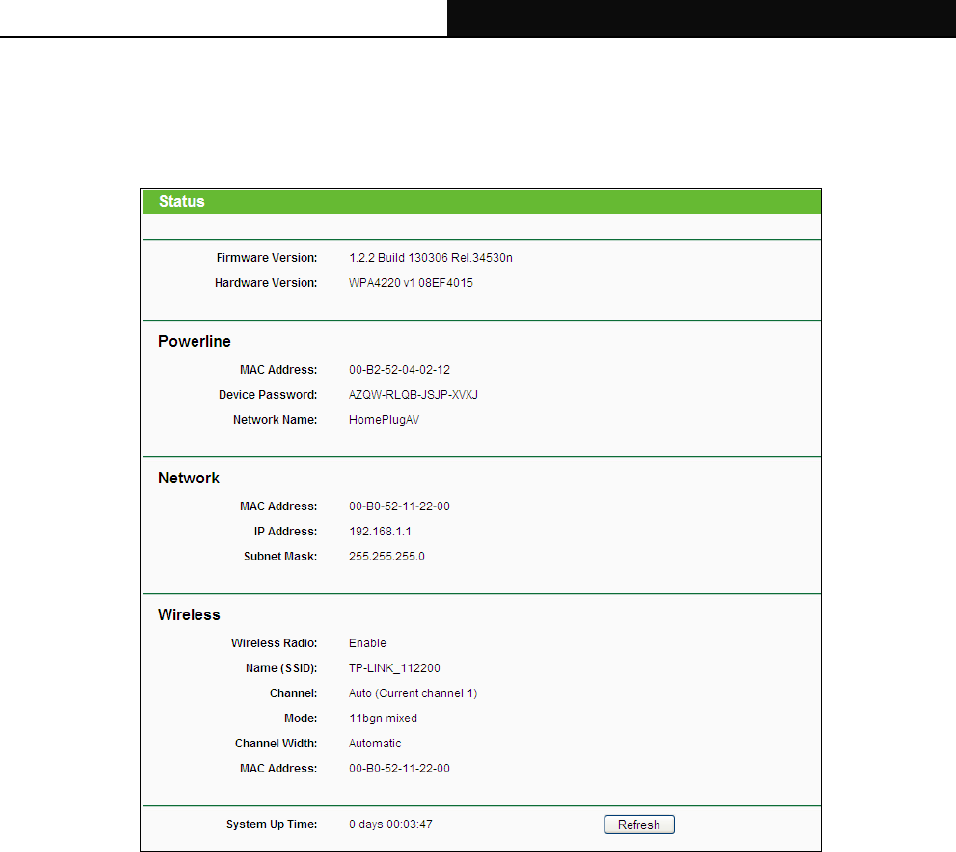

Figure 3-6 Status
¾ Firmware Version - This field displays the current firmware version of the powerline extender.
¾ Hardware Version - This field displays the current hardware version of the powerline extender.
¾ Powerline - This field displays the current settings or information for powerline, including the MAC
address, Device Password and Network Name which can be configured on the Powerline →
Network Settings page.
z MAC Address - The physical address of the powerline extender, as seen from powerline.
z Device Password - The security ID that restricts access to critical device functions.
z Network Name - The name that identifies a logical network.
¾ Network - The following parameters apply to the Ethernet port of the powerline extender. You can
configure them on the Network page.
z MAC Address - The physical address of the powerline extender's Ethernet port.
z IP Address - The IP address of the powerline extender.
z Subnet Mask - The subnet mask associated with IP address.
![](/img.php?id=2125266&img=bg15.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
14
¾ Wireless - This field displays the current settings or information for wireless. They can be
configured on the Wireless → Wireless Settings page.
z Wireless Radio - Indicates whether the wireless radio feature of the powerline extender is
enabled or disabled.
z Name (SSID) - The SSID of the powerline extender.
z Channel - The wireless channel in use.
z Mode - The current wireless mode the powerline extender works on.
z Channel Width - The bandwidth of the wireless channel.
z MAC Address - The physical address of the powerline extender, as seen from the WLAN.
¾ System Up Time - This filed displays the length of the time since the powerline extender was last
powered on or reset.
Click the Refresh button to get the latest status and settings of the powerline extender.
3.3 Network
You can configure the IP parameters of the powerline extender on this page.

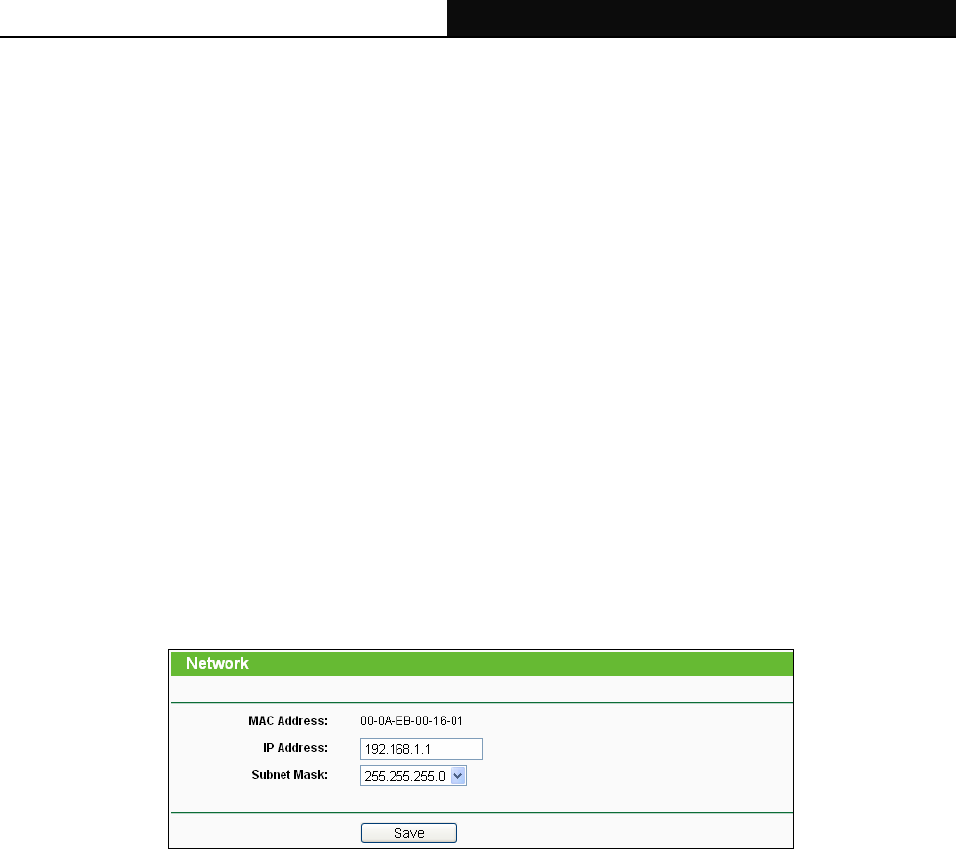

Figure 3-7 Network
¾ MAC Address - The physical address of the powerline extender's Ethernet port. The value can not
be changed.
¾ IP Address - Enter the IP address of the powerline extender in dotted-decimal notation (factory
default setting is 192.168.1.1).
¾ Subnet Mask - An address code that determines the size of the network. Usually it is
255.255.255.0.
Click the Save button to save your settings.
) Note:
1. If you change the IP address, you must use the new IP address to log in to the powerline extender.
2. If the IP address of the powerline extender conflicts with other device in the intranet, a temporary IP
address will be generated at random.
![](/img.php?id=2125266&img=bg16.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
15

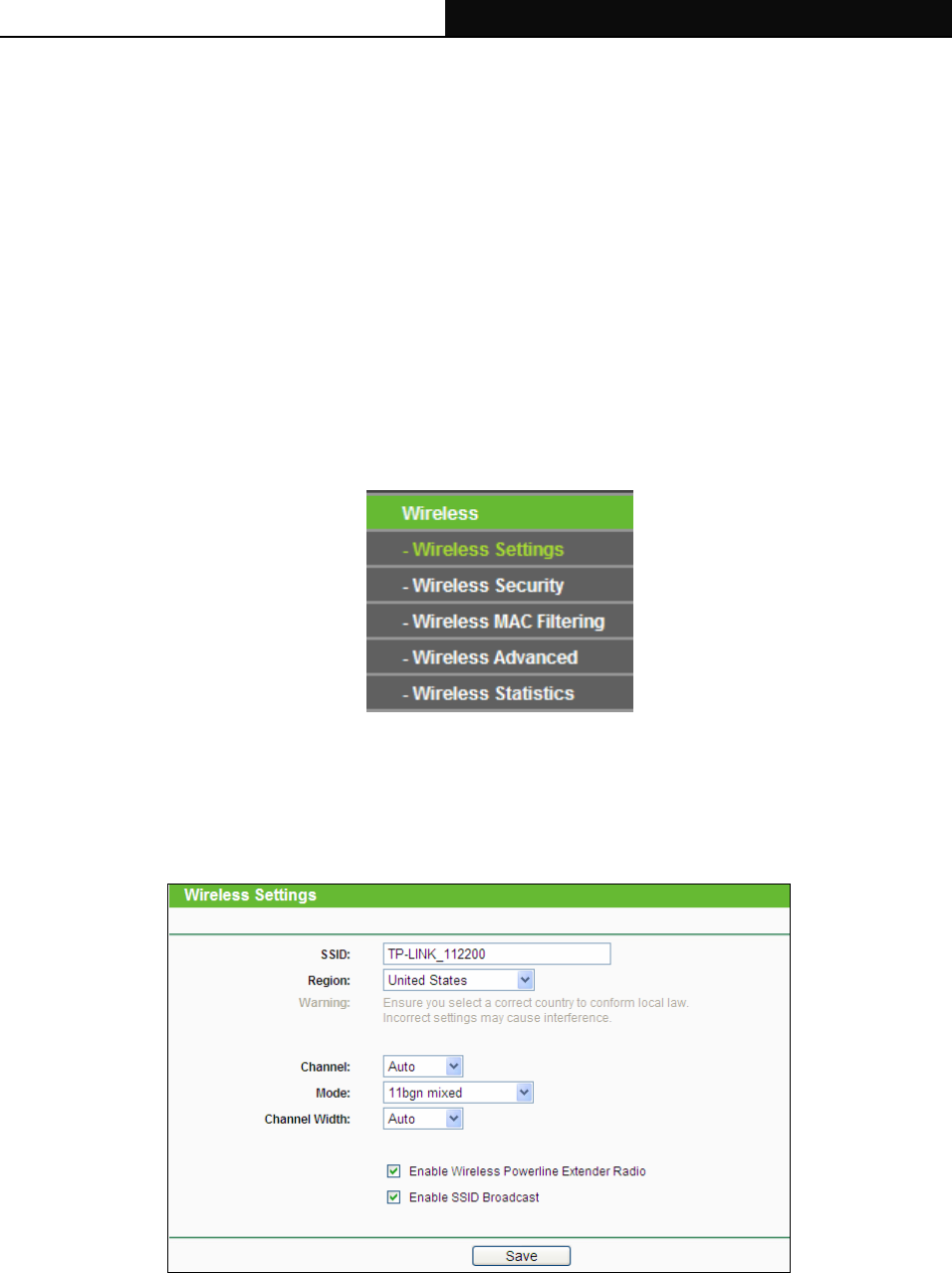

3.4 Wireless
The Wireless option, improving functionality and performance for wireless network, can help you make
the powerline extender an ideal solution for your wireless network. Here you can create a wireless local
area network just through a few settings. Wireless Settings is used for the configuration of some basic
parameters of the powerline extender. Wireless Security provides three different security types to secure
your data and thus providing greater security for your wireless network. MAC filtering allows you to
control the access of wireless stations to the powerline extender. Wireless Advanced allows you to
configure some advanced parameters for the powerline extender. Wireless statistics enables you to get
detailed information about the current connected wireless stations.
There are five submenus under the Wireless menu (shown in Figure 3-8): Wireless Settings, Wireless
Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them
and you will be able to configure the corresponding function. The detailed explanations for each
submenu are provided below.
Figure 3-8 Wireless menu
3.4.1 Wireless Settings
Selecting Wireless > Wireless Settings will enable you to configure the basic settings for your wireless
network on the screen below (Figure 3-9).
Figure 3-9 Wireless Settings
¾ SSID (Set Service Identifier) - Identifies your wireless network name. Enter a value of up to 32
characters. The same Name (SSID) must be assigned to all wireless devices in your network. The
default SSID is TP-LINK_XXXXXX (XXXXXX indicates the last six unique characters of each
device’s MAC address). This value is case-sensitive. For example, TEST is not the same as test.
![](/img.php?id=2125266&img=bg17.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
16
¾ Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the powerline extender can be used. It may be illegal to use the wireless
function of the powerline extender in a region other than one of those specified in this filed. If your
country or region is not listed, please contact your local government agency for assistance.
When you select your local region from the pull-down list, click the Save button, then the Note

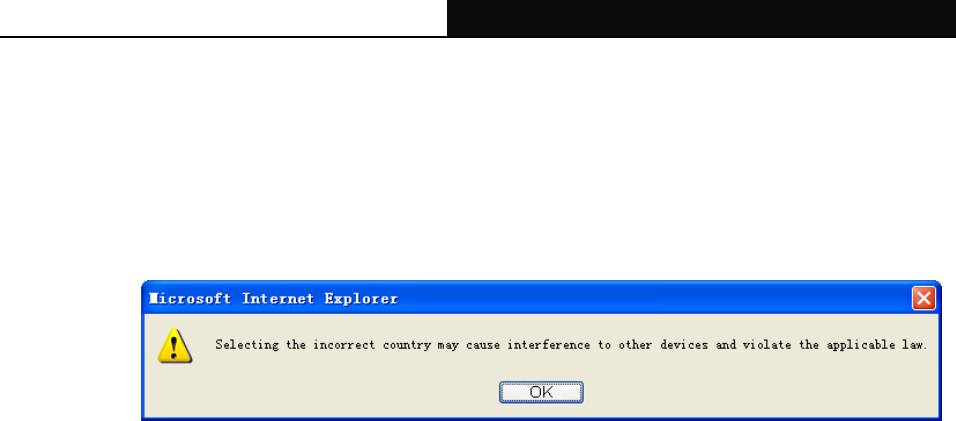

Dialog appears. Click OK.
Note Dialog
¾ Channel - This field determines which operating frequency will be used. It is not necessary to
change the wireless channel unless you notice interference problems with another nearby access
point. If you select Auto, then the powerline extender will choose the best channel automatically.
¾ Mode - Select the desired wireless mode. The options are:
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the device.
If all of the wireless devices connected with the powerline extender can connect in the same
transmission mode (e.g. 802.11b), you can choose the Only mode (e.g. 11b only). If you have
some devices that use different transmission modes, choose the appropriate Mixed mode.
¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default
value unless required.
¾ Enable Wireless Powerline Extender Radio - The wireless radio of the powerline extender can
be enabled or disabled to allow or deny wireless stations to access. If it is enabled, the wireless
stations will be able to access the powerline extender; otherwise, wireless stations will not be able
to access the powerline extender.
¾ Enable SSID Broadcast - Selecting this check box will allow the device to broadcast its name
(SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks
to associate with, they will detect the SSID broadcast by the device.
) Note:
To apply any settings you have altered on the page, please click the Save button, and then you will be
reminded to reboot the device.
![](/img.php?id=2125266&img=bg18.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
17
3.4.2 Wireless Security
Selecting Wireless > Wireless Security will enable you to configure wireless security for your wireless
network to protect your data from intruders. The powerline extender provides three security types: WEP,
WPA/WPA2 and WPA-PSK/WPA2-PSK. The default password can be found on the label at the bottom
of the device. Wireless security can be configured on the following screen shown as Figure 3-10.

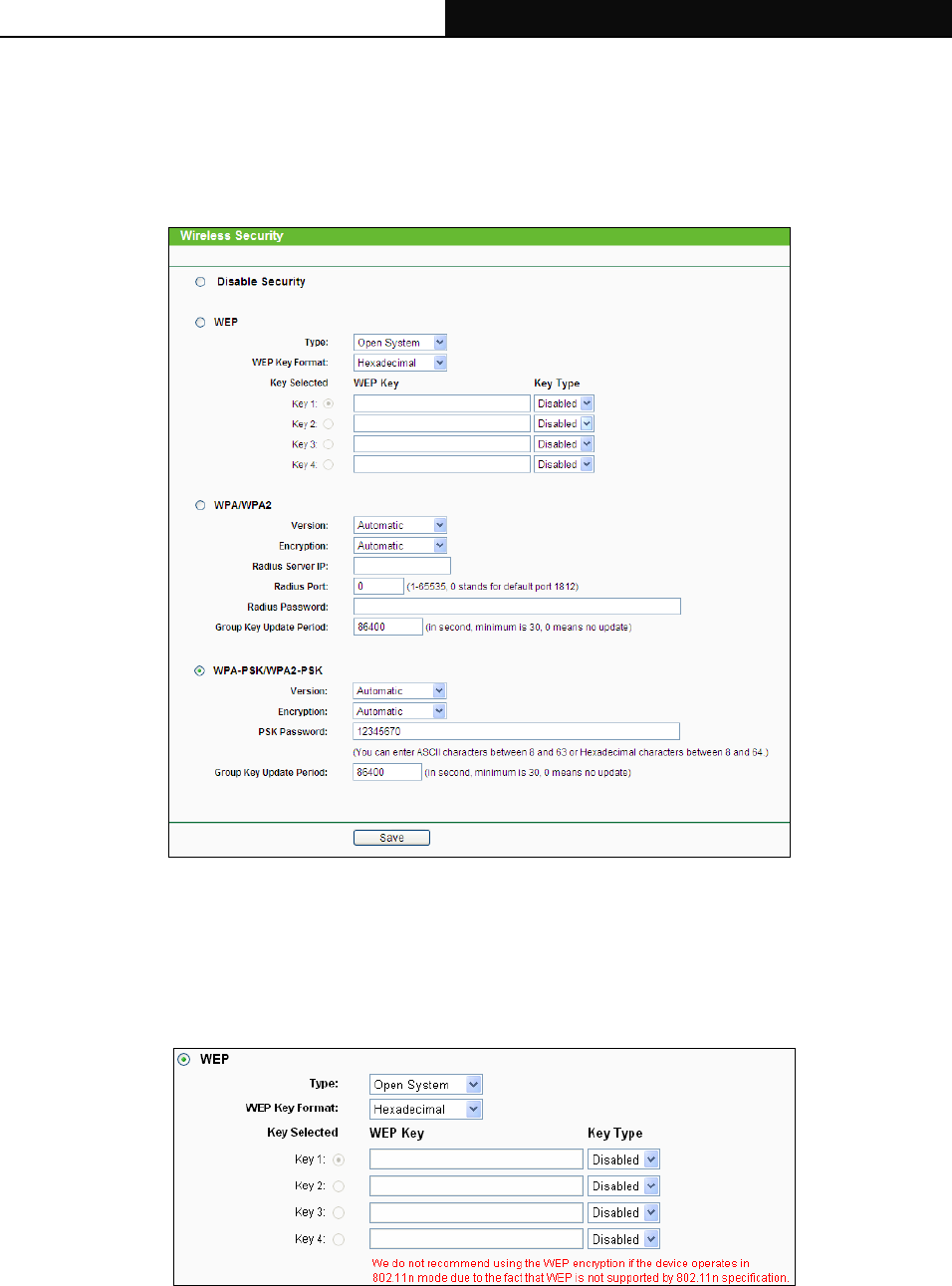

Figure 3-10 Wireless Security
¾ Disable Security - Check this radio button to disable wireless security. If disabled, the wireless
stations will be able to connect this device without encryption. It is strongly recommended that you
choose one of the security types to enable security.
¾ WEP - Select 802.11 WEP security.
Figure 3-11 WEP
• Type - You can select one of following types.
9 Automatic - Select Shared Key or Open System authentication type automatically based
on the wireless station's capability and request.
9 Shared Key - Select 802.11 Shared Key authentication type.
![](/img.php?id=2125266&img=bg19.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
18
9 Open System - Select 802.11 Open System authentication type.
• WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any
combination of keyboard characters in the specified length. Hexadecimal format stands for any
combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
• WEP Key - Select which of the four keys will be used and enter the matching WEP key
information for your network in the selected key radio button. These values must be identical on
all wireless stations in your network.
• Key Type - You can select the WEP key length (64-bit, or 128-bit) for encryption. "Disabled"
means this WEP key entry is invalid.
9 For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 5 ASCII characters.
9 For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not permitted) or 13 ASCII characters.
) Note:
If you do not set the key, the wireless security function is still disabled even if you have selected Shared
Key as Authentication Type.
¾ WPA/WPA2 - Select WPA/WPA2 based on Radius Server.

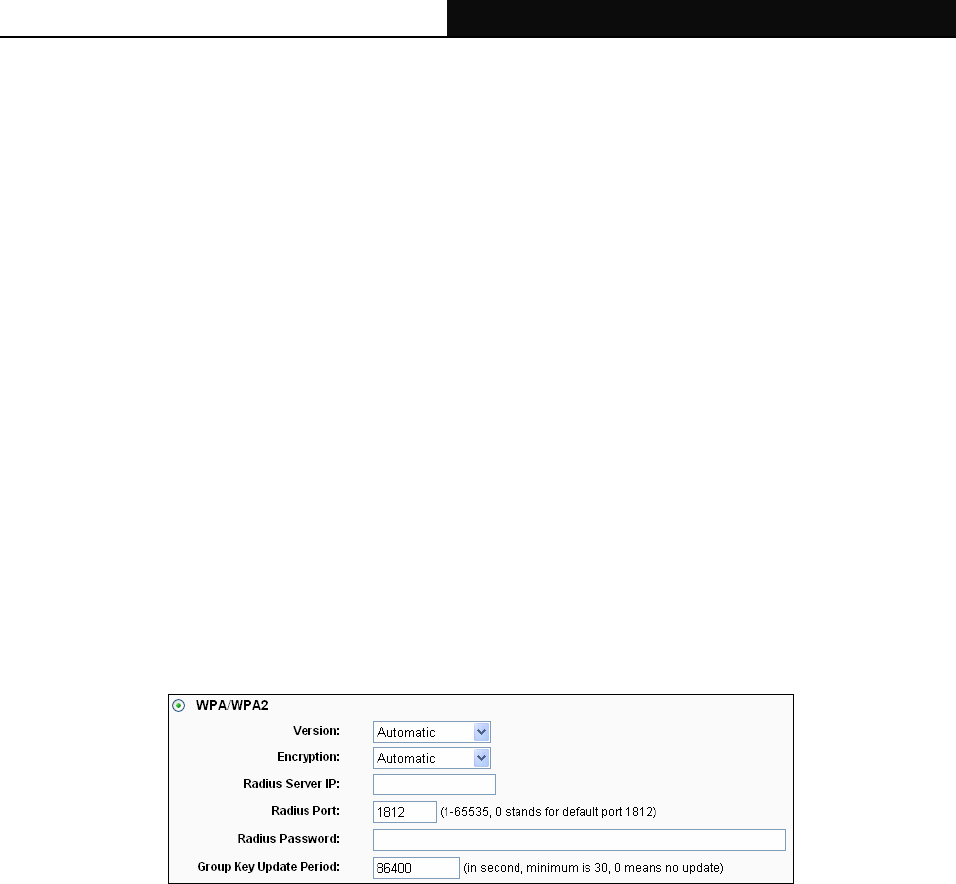

Figure 3-12 WPA/WPA2
• Version - You can select one of following versions.
9 Automatic - Select WPA or WPA2 automatically based on the wireless station's capability
and request.
9 WPA - Wi-Fi Protected Access.
9 WPA2 - WPA version 2.
• Encryption - You can select either Automatic, TKIP or AES.
• Radius Server IP - Enter the IP address of the Radius Server.
• Radius Port - Enter the port used by radius service.
• Radius Password - Enter the password for the Radius Server.
• Group Key Update Period - Specify the group key update interval in seconds. The value can
be either 0 or at least 30. Enter 0 to disable the update.
¾ WPA-PSK/ WPA2-PSK - Select WPA based on pre-shared key.
![](/img.php?id=2125266&img=bg1a.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
19

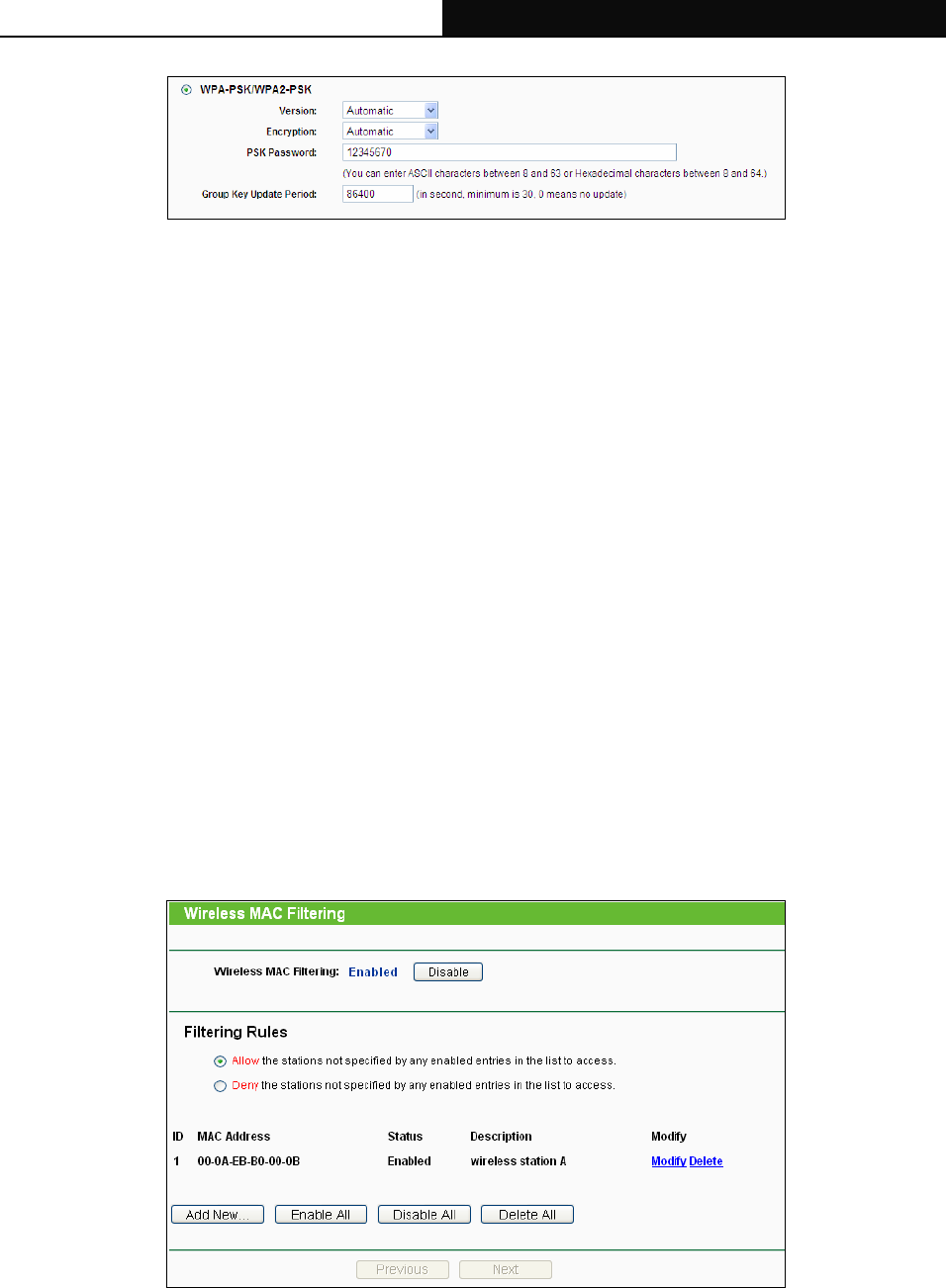

Figure 3-13 WPA-PSK/WPA2-PSK
• Version - You can select one of following versions.
9 Automatic - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's
capability and request.
9 WPA-PSK - Pre-shared key of WPA.
9 WPA2-PSK - Pre-shared key of WPA2.
• Encryption - When you select WPA-PSK or WPA2-PSK for Authentication Type, you can
select either Automatic, TKIP or AES as Encryption.
• PSK Passphrase - Enter a passphrase here.
• Group Key Update Period - Specify the group key update interval in seconds. The value can
be either 0 or at least 30. Enter 0 to disable the update.
Be sure to click the Save button to save your settings on this page.
) Note:
You will be reminded to reboot the device after clicking the Save button.
3.4.3 Wireless MAC Filtering
Selecting Wireless > Wireless MAC Filtering will allow you to set up some filtering rules to control
wireless stations accessing the device, which depends on the station’s MAC address on the following
screen as shown in Figure 3-14.
Figure 3-14 Wireless MAC Filtering
¾ Wireless MAC Filtering - Click the Enable button to enable the Wireless MAC Address Filtering.
The default setting is disabled.
To Add a Wireless MAC Address filtering entry, click the Add New… button. The “Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 3-15.
![](/img.php?id=2125266&img=bg1b.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
20

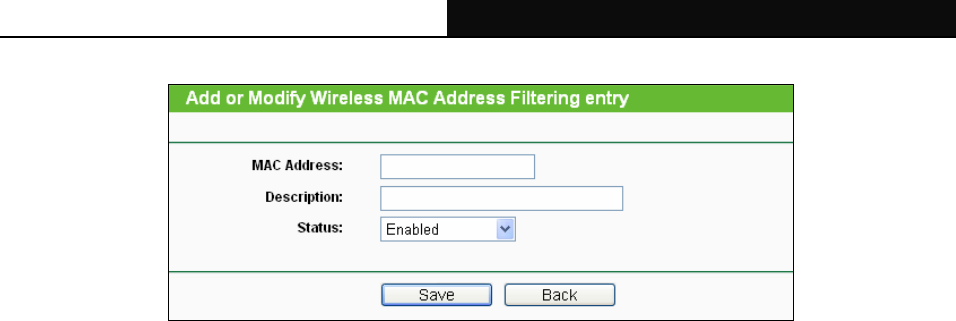

Figure 3-15 Add or Modify Wireless MAC Address Filtering entry
¾ MAC Address - Enter the wireless station's MAC address that you want to control.
¾ Description - Give a simple description of the wireless station.
¾ Status - Select a status for this entry, either Enabled or Disabled.
To set up an entry, follow these instructions:
First, you must decide whether the unspecified wireless stations can access the device or not. If you
desire that the unspecified wireless stations can access the device, please select the radio button Allow
the stations not specified by any enabled entries in the list to access, otherwise, select the radio
button Deny the stations not specified by any enabled entries in the list to access.
To add a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is
XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-B0-00-0B.
2. Enter a simple description of the wireless station in the Description field. For example: wireless
station A.
3. Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save this entry.
To add additional entries, repeat steps 1-4.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
Click the Next button to go to the next page and click the Previous button to return to the previous page.
![](/img.php?id=2125266&img=bg1c.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
21
For example: If you desire that the wireless station A with MAC address 00-0A-EB-00- 07-BE is able to
access the device, while all other wireless stations cannot access the device, you should configure the
Wireless MAC Address Filtering list by following these steps:
1. Click the Enable button to enable this function.
2. Select the radio button: Deny the stations not specified by any enabled entries in the list to
access for Filtering Rules.
3. Delete all or disable all entries if there are any entries already.
4. Click the Add New... button and enter the MAC address 00-0A-EB-00-07-BE in the MAC Address
field, enter Wireless Station A in the Description field and select Enabled in the Status pull-down
list. Click the Save button.

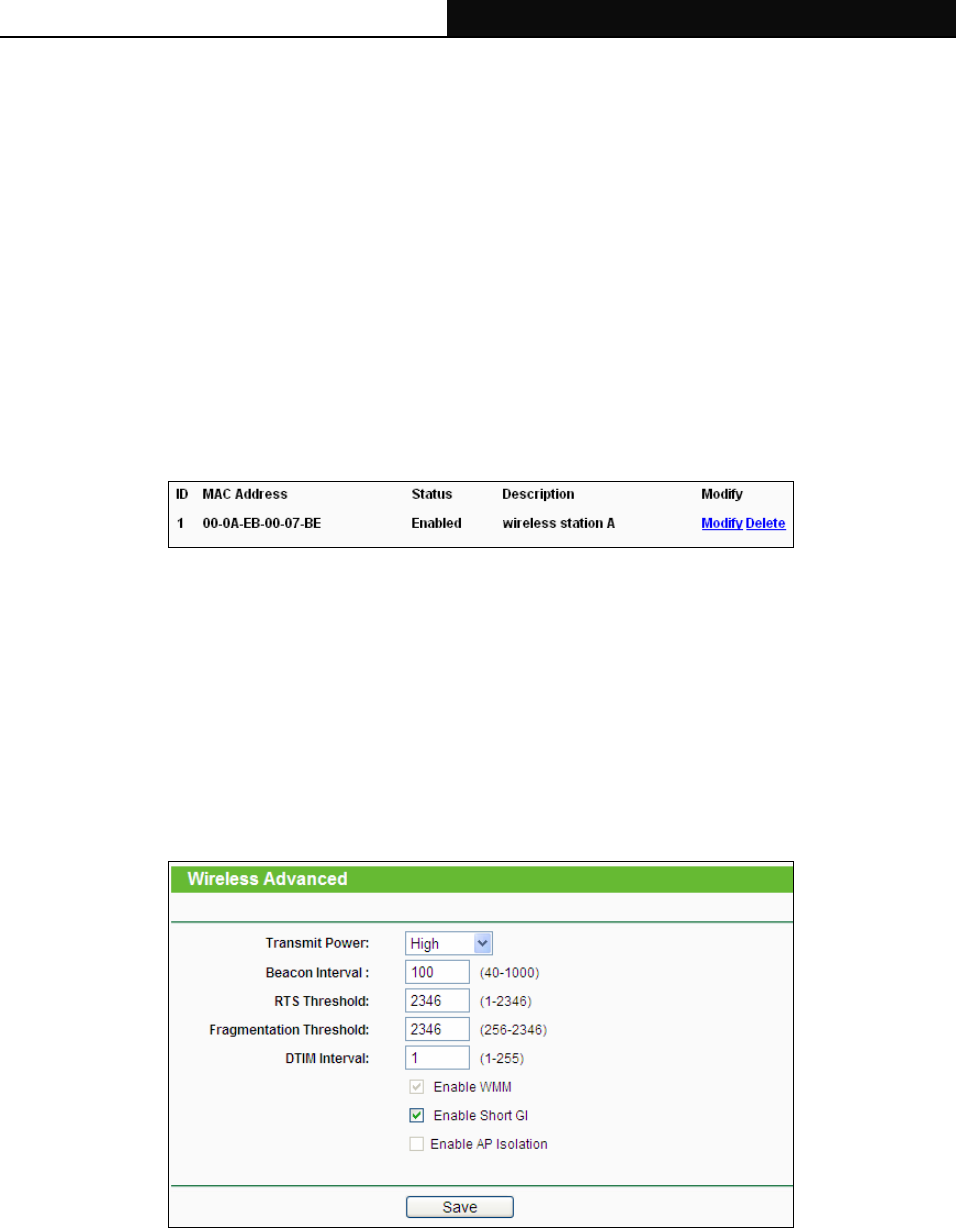

The filtering rules that configured should be similar to the following list:
) Note:
If you enable the function and select Deny the stations not specified by any enabled entries in the
list to access for Filtering Rules but there isn’t any enabled entry in the list, thus, no wireless stations
can access the device.
3.4.4 Wireless Advanced
Selecting Wireless > Wireless Advanced will allow you to do some advanced settings for the device in
the following screen shown in Figure 3-16. As the configuration for each operation mode is almost the
same, we take Access Point mode for example here.
Figure 3-16 Wireless Advanced
¾ Transmit Power - Specifies the transmit power of the device. You can select High, Middle or Low
based on your need. High is the default setting and is recommended.
¾ Beacon Interval - Specifies a value between 40-1000 milliseconds. The beacons are the packets
sent by the device to synchronize a wireless network. Beacon Interval value determines the time
interval of the beacons. The default value is 100.
![](/img.php?id=2125266&img=bg1d.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
22
¾ RTS Threshold - Specifies the RTS (Request to Send) Threshold. If the packet is larger than the
specified RTS Threshold size, the device will send RTS frames to a particular receiving station and
negotiate the sending of a data frame. The default value is 2346.
¾ Fragmentation Threshold - This value is the maximum size determining whether packets will be
fragmented. Setting the Fragmentation Threshold too low may result in poor network performance
since excessive packets. 2346 is the default setting and is recommended.
¾ DTIM Interval - Determines the interval of the Delivery Traffic Indication Message (DTIM). You can
specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the
DTIM Interval is the same as Beacon Interval.
¾ Enable WMM - WMM function can guarantee the packets with high- priority messages being
transmitted preferentially. It is strongly recommended that this function be enabled.
¾ Enable Short GI - This function is recommended for it will increase the data capacity by reducing
the guard interval time.
¾ Enable AP Isolation - Isolates all connected wireless stations so that wireless stations cannot
access each other through WLAN. This function will be disabled if WDS/Bridge is enabled.
) Note:
If you are not familiar with the setting items on this page, it's strongly recommended that you keep the
provided default values; otherwise, it may result in low wireless network performance.
3.4.5 Wireless Statistics
Selecting Wireless > Wireless Statistics will allow you to see the wireless transmission information in
the following screen shown in Figure 3-17. This page shows MAC Address, Current Status, Received
Packets and Sent Packets for each connected wireless station.

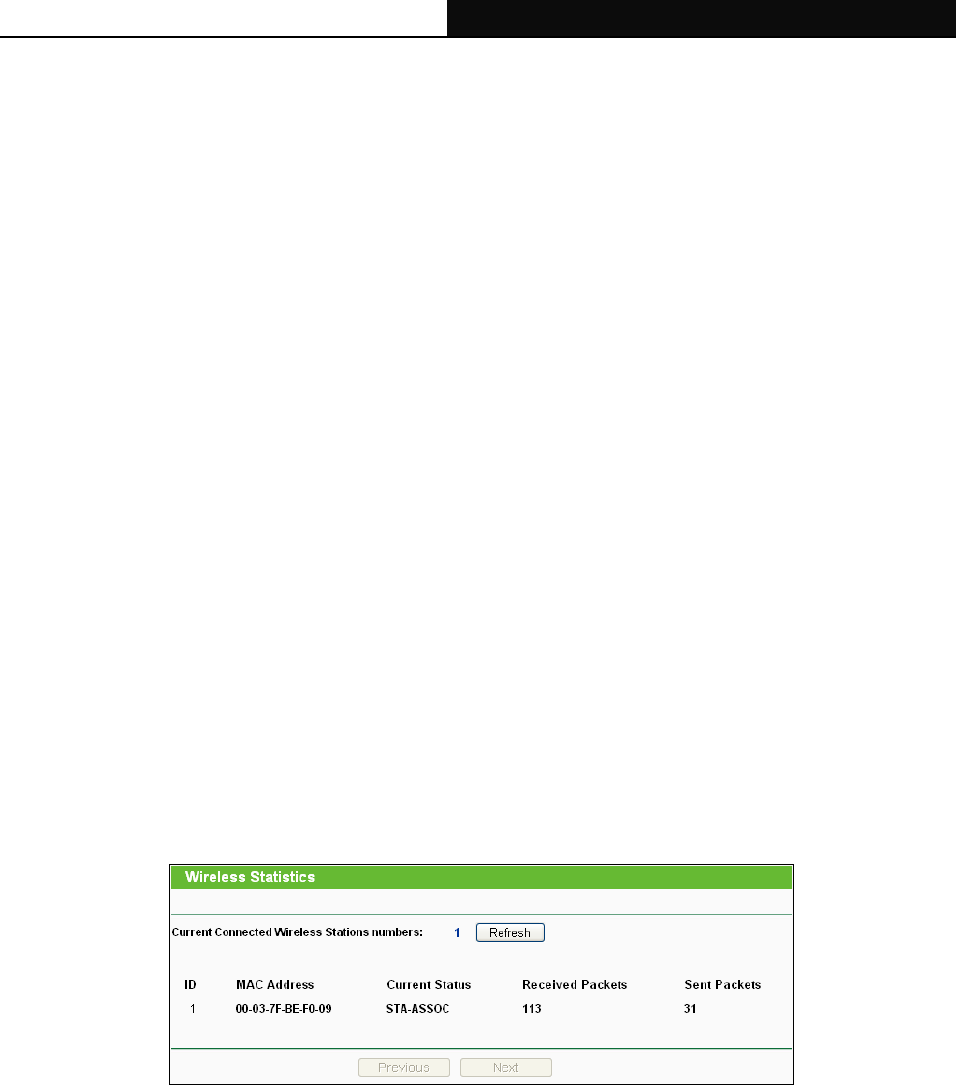

Figure 3-17 Statistics of the device attached wireless stations
¾ MAC Address - Shows the connected wireless station's MAC address.
¾ Current Status - The connected wireless station's running status, one of STA-AUTH / STA-ASSOC
/ STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN / Disconnected.
¾ Received Packets - Packets received by the station.
¾ Sent Packets - Packets sent by the station.
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to the
next page and click the Previous button to return to the previous page.
![](/img.php?id=2125266&img=bg1e.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
23
) Note:
This page will be refreshed automatically every 5 seconds.
3.5 Powerline
There are two submenus under the Powerline menu (shown in Figure 3-8): Network Settings and
Station Settings. Click any of them, and you will be able to configure the corresponding function. The
detailed explanations for each submenu are provided below.
Figure 3-18 Wireless menu
3.5.1 Network Settings
Selecting Powerline > Network Settings, and you can configure the network name of the powerline
extender or all the stations in current network on this page.
Figure 3-19 Network Settings
¾ MAC Address - The physical address of the powerline extender, as seen from the powerline. The
value can not be changed.
¾ Device Password - The password of the powerline extender. The value can not be changed.
¾ Network Name - Enter the network name (factory default - HomePlugAV).
Click the Default button to enter the default network name.
Click the Set Local button to set the powerline extender.
Click the Set All button to set all stations which entered the correct passwords in current network,
including the powerline extender.
) Note:
If you set all stations network name, the remote ones which power off or entered the wrong password
will not take effect.
3.5.2 Station Settings
The Station Settings page shows remote stations in current network and allows you to enter, modify or
delete the password and name for each station.
![](/img.php?id=2125266&img=bg1f.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
24

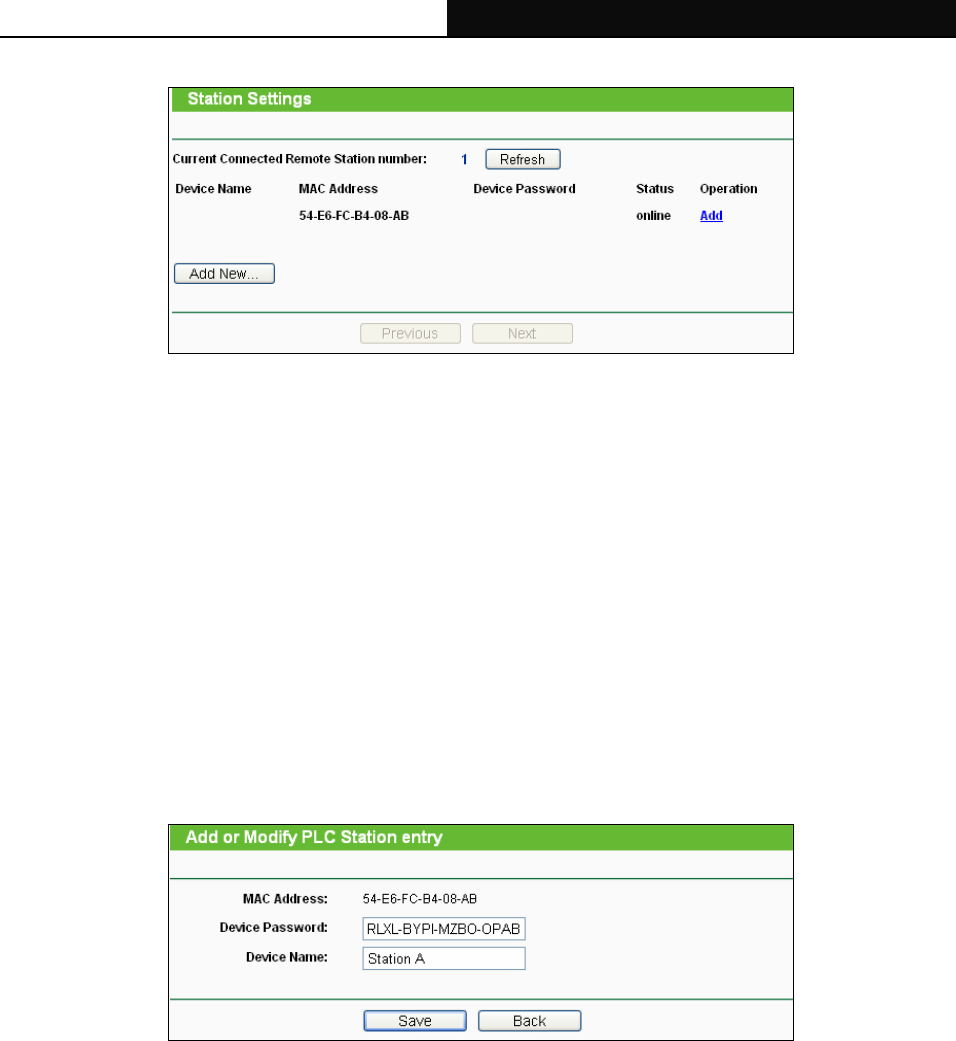

Figure 3-20 Station Settings
¾ MAC Address - The remote station's MAC address. The value can not be changed.
¾ Device Password - The security ID of remote station.
¾ Device Name - The name used for identifying a station.
To add or modify a station entry, click the Add or Modify button in operation column and following these
instructions:
1. Enter the station password in Device Password field. The format of the password is
XXXX-XXXX-XXXX-XXXX (X is any character). For example, RLXL-BYPI-MZBO-OPAB.
2. Enter a name you want to give the station in the Device Name field or leave it empty. For example,
Station A.
3. Click the Save button to save this entry.
Figure 3-21 Add or Modify PLC Station entry
To add or modify another entries, repeat steps 1~3.
Click the Delete button in the operation column to delete a station entry.
Click the Add New... button to add a station into current network. The steps are the same as adding a
station entry.
![](/img.php?id=2125266&img=bg20.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
25

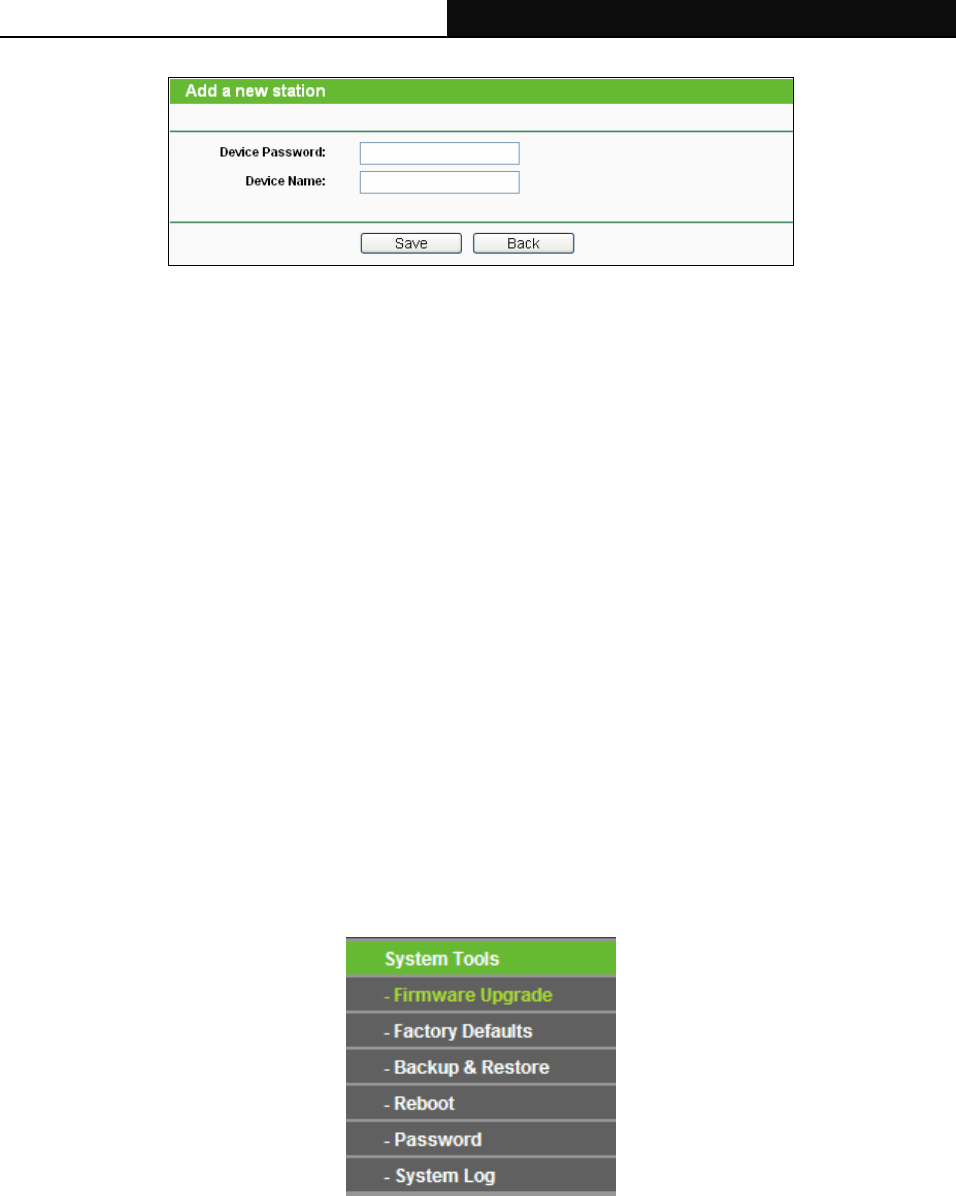

Figure 3-22 Add a new station
Click the Refresh button to update the current connected stations.
Click the Next button to go to the next page and click the Previous button to return to the previous
page.
) Note:
You can do Add or Modify operation only when the remote station is connected. If the remote station
which you entered the password is power off or leave the current network, you can only do Delete
operation.
3.6 System Tools
System Tools option helps you to optimize the configuration of your device. You can upgrade the
powerline extender to the latest version of firmware as well as backup or restore the device’s
configuration files. It’s suggested that you change the default password to a more secure one because it
controls access to the device’s web-based management page. Besides, you can find out what
happened to the system in System Log.
There are six submenus under the System Tools menu (shown as Figure 3-23): Firmware Upgrade,
Factory Defaults, Backup & Restore, Reboot, Password and System Log. Clicking any of them will
enable you to configure the corresponding function. The detailed explanations for each submenu are
provided below.
Figure 3-23 The System Tools menu
3.6.1 Firmware Upgrade
Selecting System Tools > Firmware Upgrade allows you to upgrade the latest version of firmware for
the device on the screen shown in Figure 3-24.
![](/img.php?id=2125266&img=bg21.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
26

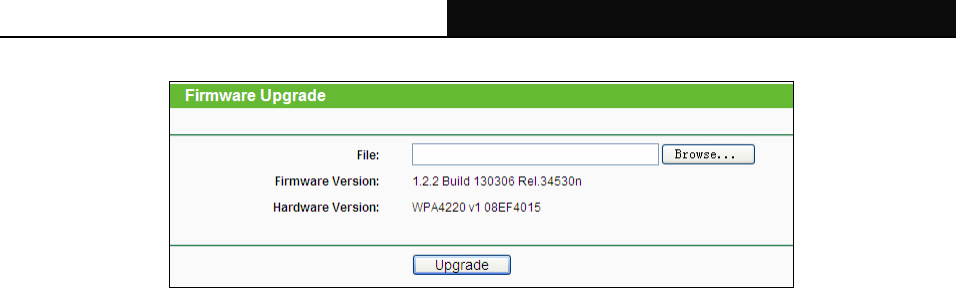

Figure 3-24 Firmware Upgrade
New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.
¾ Firmware Version - Here displays the current firmware version.
¾ Hardware Version - Here displays the current hardware version. The hardware version of the
upgrade file must accord with the current hardware version.
) Note:
1 There is no need to upgrade the firmware unless the new firmware has a new feature you want to
use. However, when experiencing problems caused by the device itself, you can try to upgrade the
firmware.
2 Before upgrading the device’s firmware, you should write down some of your customized settings to
avoid losing important configuration settings of device.
To upgrade the device's firmware, follow these instructions:
1. Download a more recent firmware upgrade file from the TP-LINK website (http://www.tp-link.com).
2. Enter the path name or click Browse… to select the downloaded file on the computer into the File
blank.
3. Click Upgrade.
4. The powerline extender will reboot while the upgrading has been finished.
) Note:
The firmware version must correspond to the hardware. The upgrade process takes a few moments and
the powerline extender restarts automatically when the upgrade is complete. It is important to keep
power applied until the system finishes upgrading and rebooting. Loss of power during the upgrade
could damage the powerline extender.
![](/img.php?id=2125266&img=bg22.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
27
3.6.2 Factory Defaults
Selecting System Tools > Factory Defaults allows you to restore the factory default settings for the
device on the screen shown in Figure 3-25.

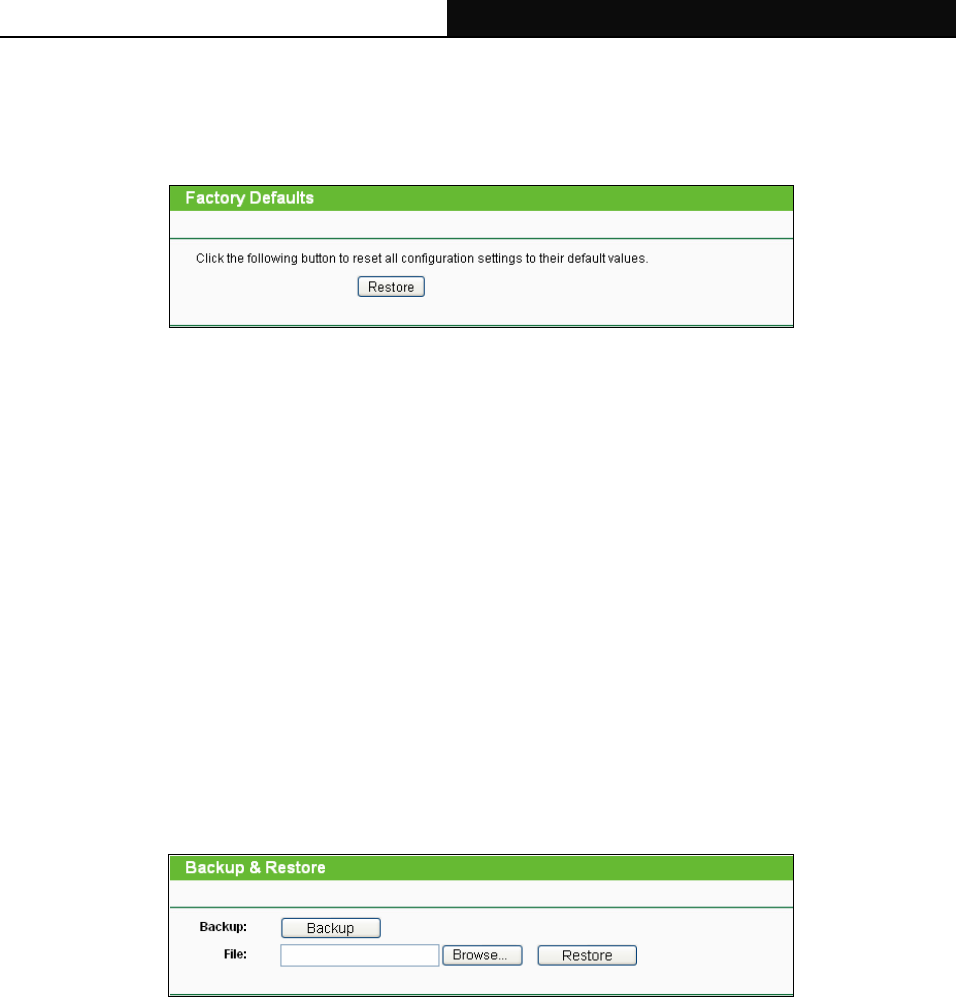

Figure 3-25 Restore Factory Defaults
Click Restore to reset all configuration settings to their default values.
• Default User Name: admin
• Default Password: admin
• Default IP Address: 192.168.1.1
• Default Subnet Mask: 255.255.255.0
) Note:
Any settings you have saved will be lost when the default settings are restored.
3.6.3 Backup & Restore
Selecting System Tools > Backup & Restore allows you to save all configuration settings to your local
computer as a file or restore the device's configuration on the screen shown in Figure 3-26.
Figure 3-26 Save or Restore the Configuration
Click Backup to save all configuration settings to your local computer as a file.
To restore the device's configuration, follow these instructions:
• Click Browse… to find the configuration file which you want to restore.
• Click Restore to update the configuration with the file whose path is the one you have input or
selected in the blank.
) Note:
1. The current configuration will be covered with the uploading configuration file.
2. Wrong process will lead the device unmanaged.
3. The restoring process lasts for about 20 seconds and restarts automatically. Do not power off the
device during the process to avoid any damage.
![](/img.php?id=2125266&img=bg23.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
28
3.6.4 Reboot
Selecting System Tools > Reboot allows you to reboot the device on the screen shown in Figure 3-27.

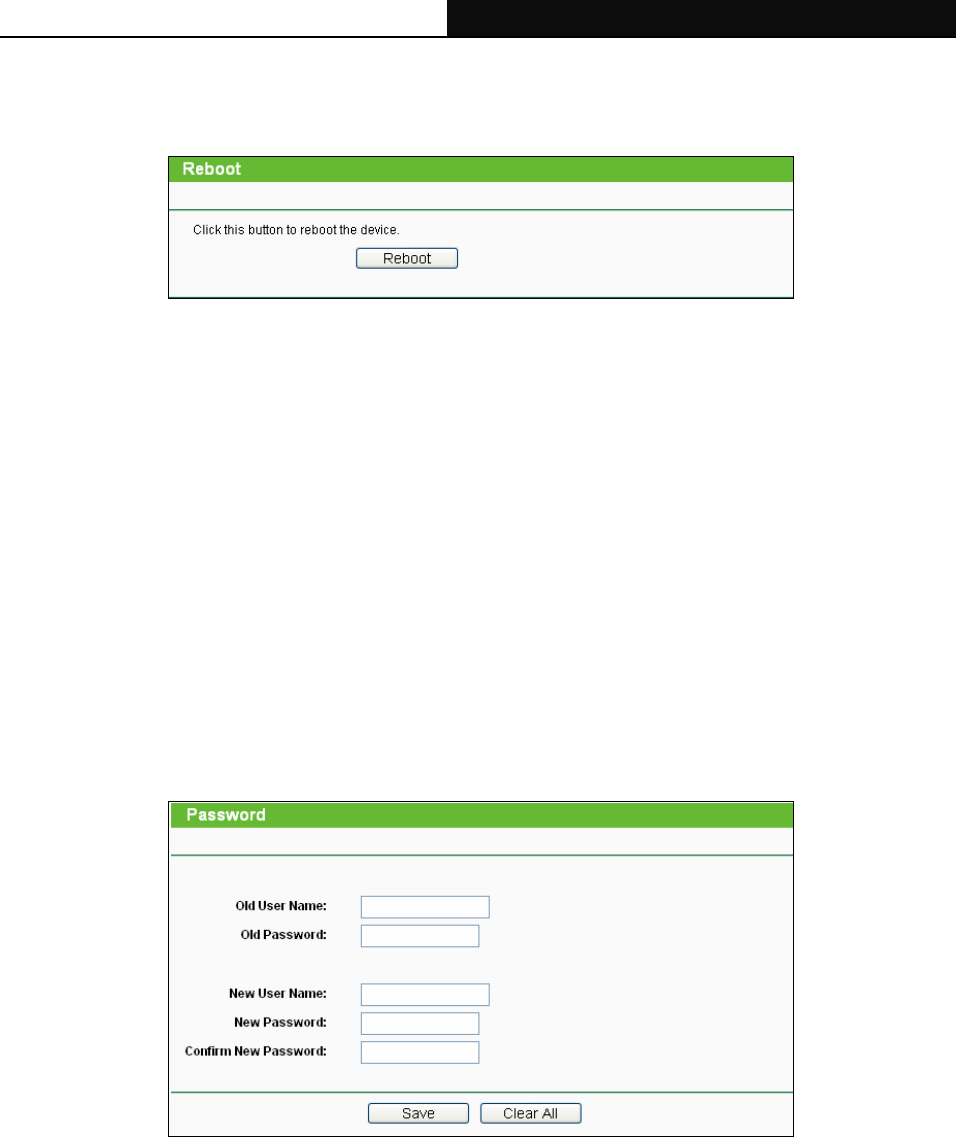

Figure 3-27 Reboot the device
Click the Reboot button to reboot the device.
Some settings of the device will take effect only after rebooting, which include:
• Change the powerline extender's IP Address (system will reboot automatically).
• Change the Wireless configurations.
• Upgrade the firmware of the powerline extender (system will reboot automatically).
• Restore the powerline extender's settings to the factory defaults (system will reboot
automatically).
• Update the configuration with the file (system will reboot automatically).
3.6.5 Password
Selecting System Tools > Password allows you to change the factory default user name and password
of the device on the screen shown in Figure 3-28.
Figure 3-28 Password
It is strongly recommended that you change the factory default user name and password of the device.
All users who try to access the device's web-based management page or Quick Setup will be prompted
for the device's user name and password.
) Note:
The new user name and password must not exceed 14 characters in length and must not include any
spaces. Enter the new Password again to confirm it.
Click Save when finished.
Click Clear All to clear all.
![](/img.php?id=2125266&img=bg24.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
29
3.6.6 System Log
Selecting System Tools > System Log allows you to query the Logs of the device on the screen shown
in Figure 3-29.

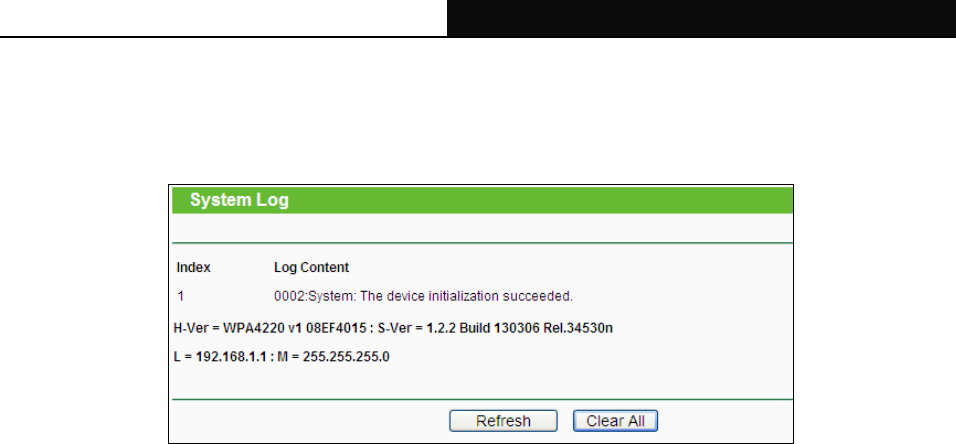

Figure 3-29 System Log
The device can keep logs of all traffic. You can query the logs to find what happened to the device.
Click the Refresh button to show the latest log list.
Click the Clear All button to clear all logs.
![](/img.php?id=2125266&img=bg25.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
30
Chapter 4 Connecting to Wireless Network
The default SSID is TP-LINK_××××××. (×××××× stand for the last six unique numbers of the WLAN
MAC which can be found on the label at the bottom of the device.) The default Wireless Password can
also be found on the label of the device.
If you have used the Wi-Fi Clone button to clone Wi-Fi settings from the front router, the SSID and
wireless password of the powerline extender will be the same as the wireless router.
If you have established a secure and separate wireless network from the wireless router, the SSID and
wireless password of the powerline extender will be what you have set.
4.1 In Windows 7
Windows 7 users may use the built-in wireless utility. Follow the steps below.
1. Click the icon at the bottom of your desktop, select the SSID of TL-WPA4220 and then click
Connect.

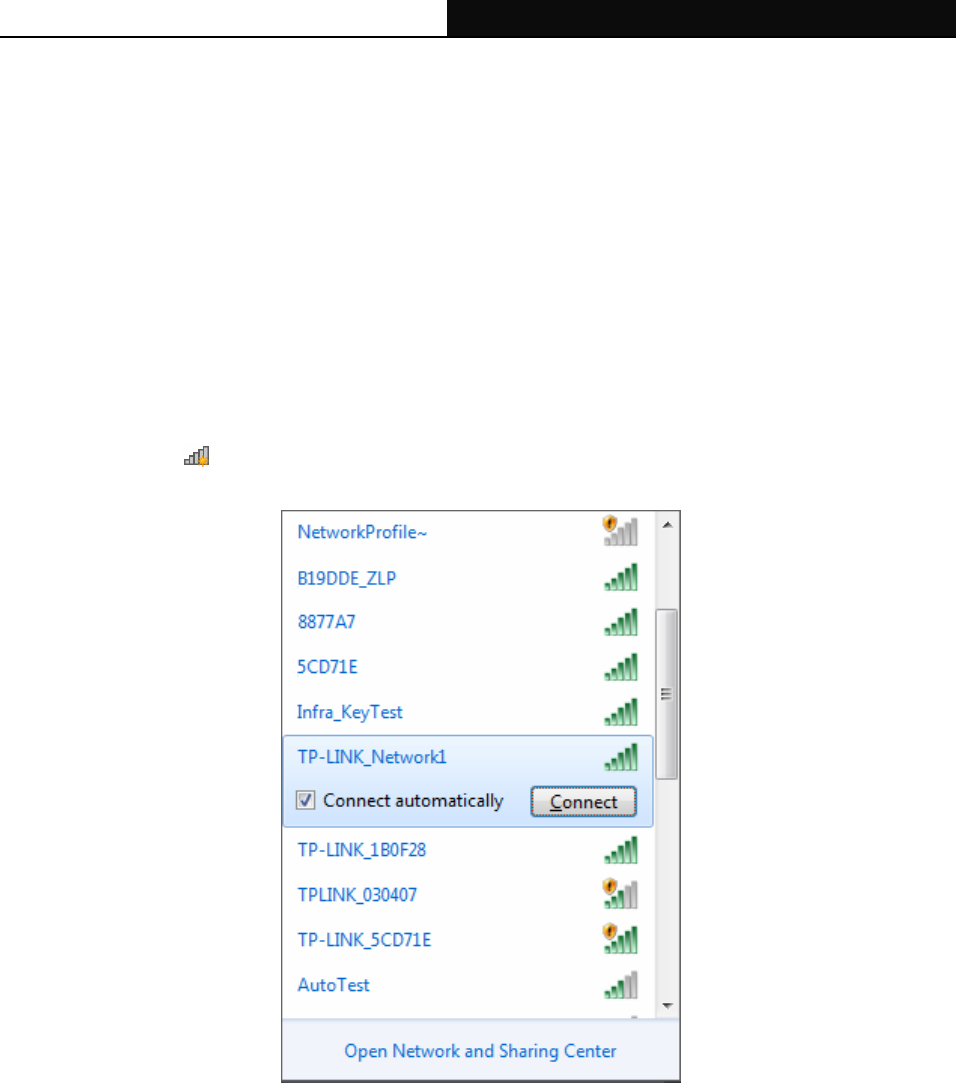

Figure 4-1
![](/img.php?id=2125266&img=bg26.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
31

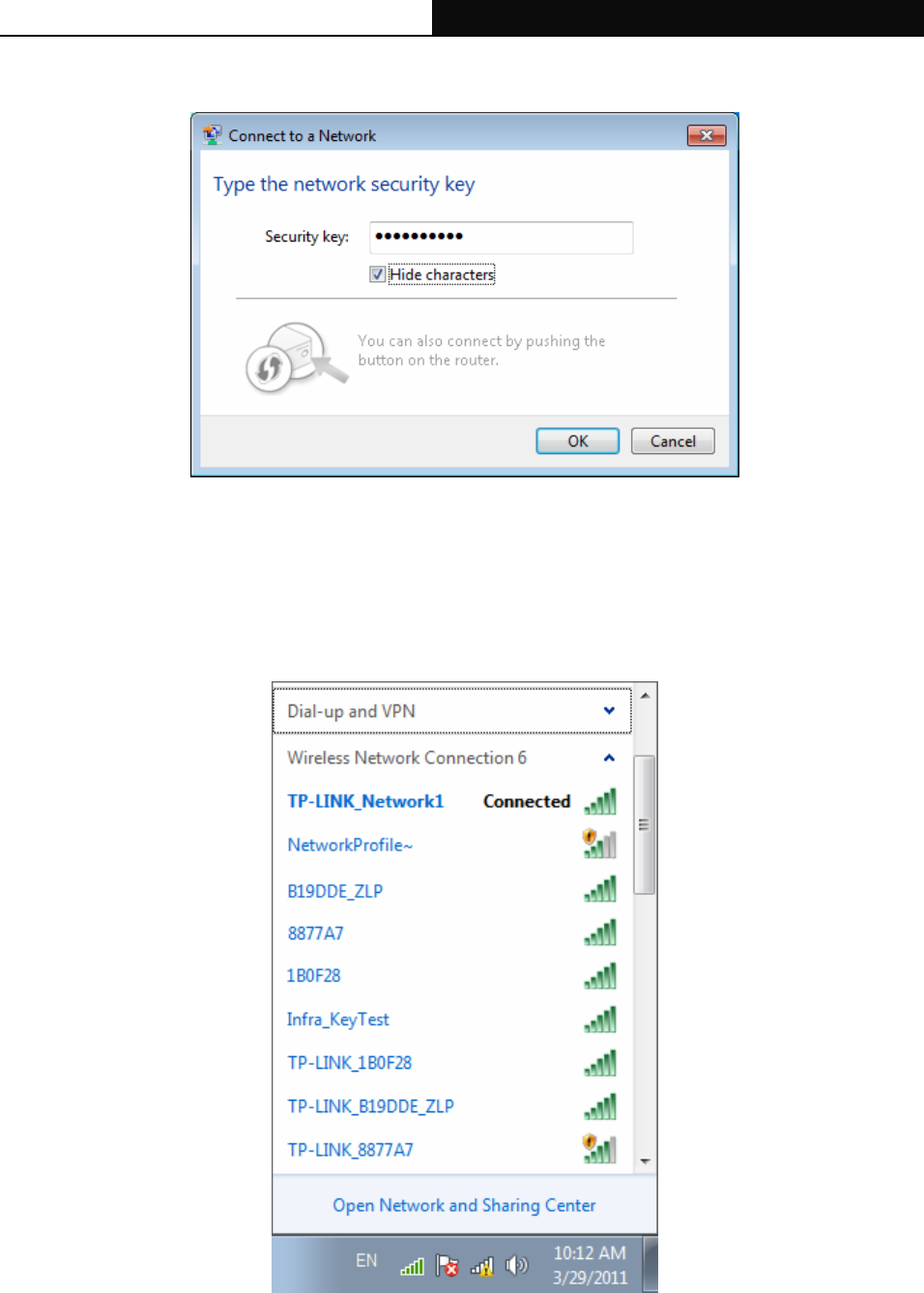

2. Input the network key and then click OK.
Figure 4-2
) Note:
If your network is an unsecured network, you will not be prompted to input the network key.
3. You have joined the home network and can surf the Internet now.
Figure 4-3
![](/img.php?id=2125266&img=bg27.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
32
4.2 In Windows Vista
Windows Vista users may use the built-in wireless utility. Follow the steps below.

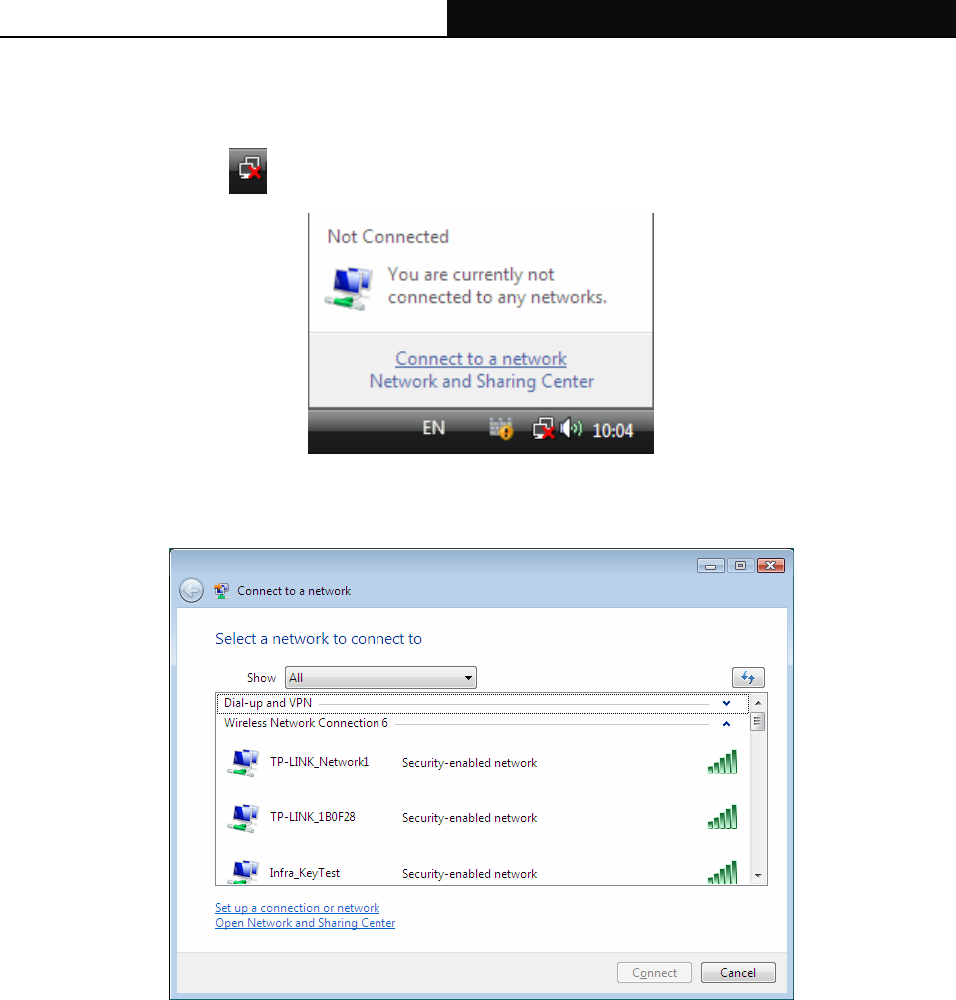

1. Right-click the icon at the bottom of your screen, then click Connect to a network.
Figure 4-4
2. Select the SSID of TL-WPA4220 and then click Connect.
Figure 4-5
![](/img.php?id=2125266&img=bg28.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
33

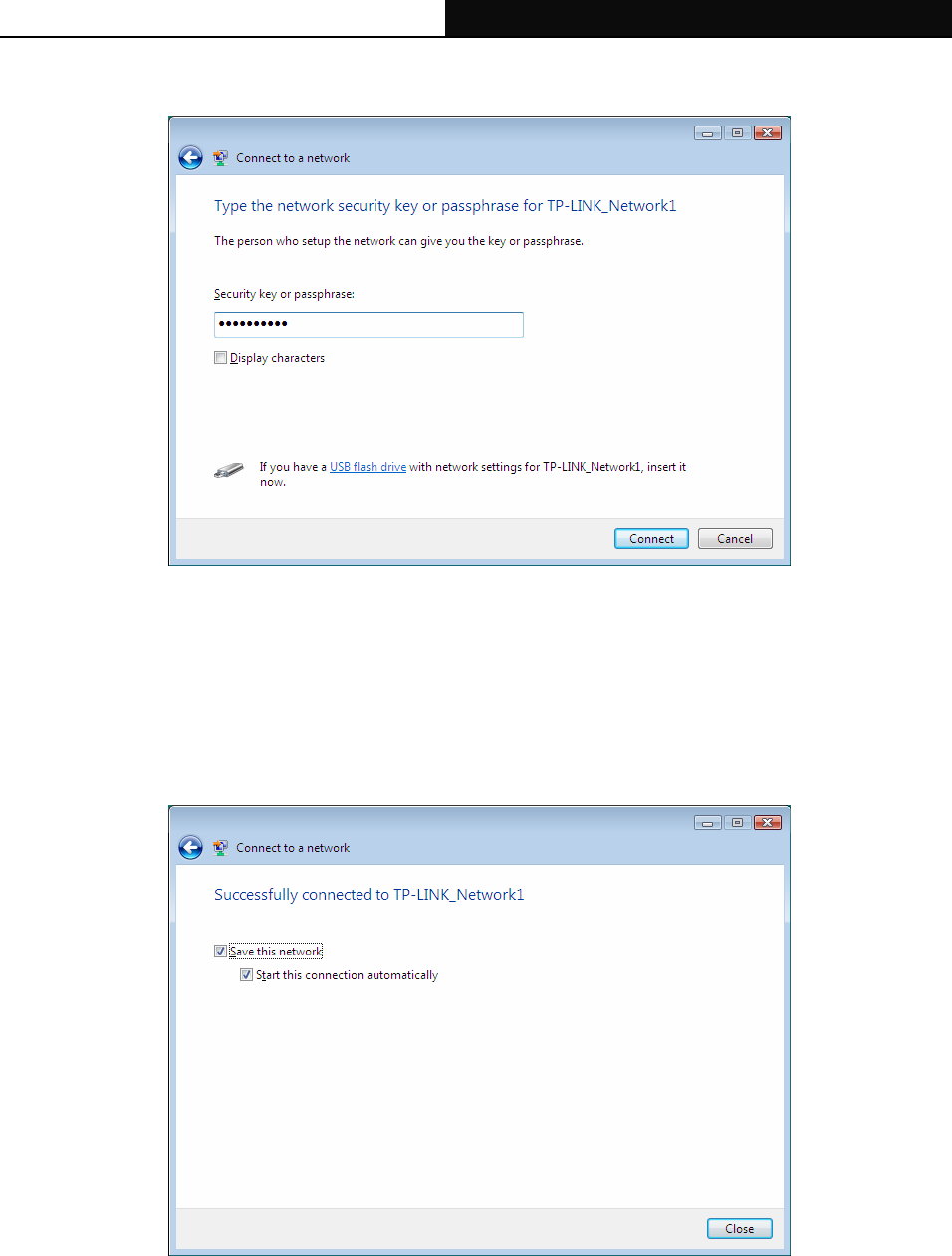

3. Input the network key and then click OK.
Figure 4-6
) Note:
If your network is an unsecured network, you will not be prompted to input the network key.
4. You have joined the home network and can surf the Internet now. Click Close to finish the
connection.
Figure 4-7
![](/img.php?id=2125266&img=bg29.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
34
4.3 In Windows XP
Windows XP users may use the built-in wireless utility. Follow the steps below.
1. Click the icon at the bottom of your desktop, select the SSID of TL-WPA4220 and then click
Connect.

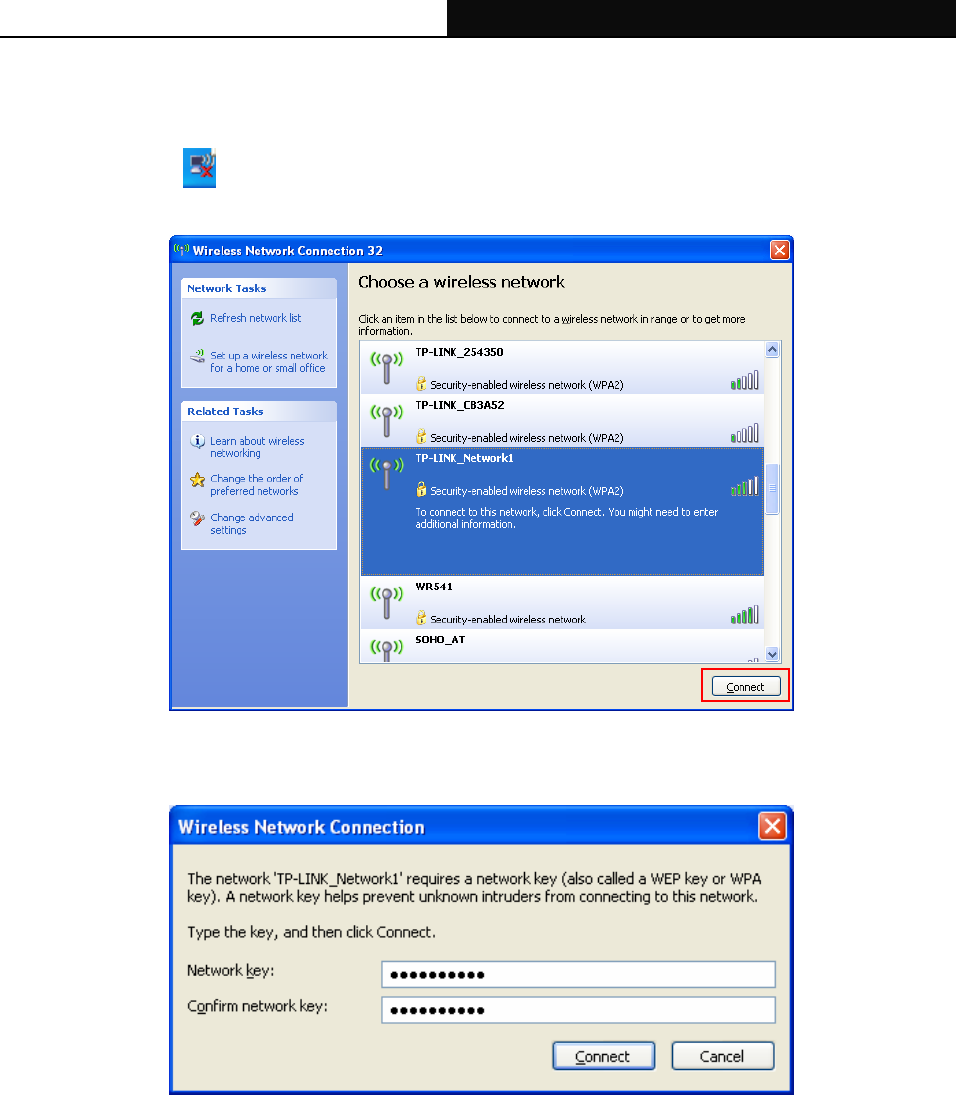

Figure 4-8
2. Input the network key and then click Connect.
Figure 4-9
) Note:
If your network is an unsecured network, you will not be prompted to input the network key.
4.4 In Windows 8

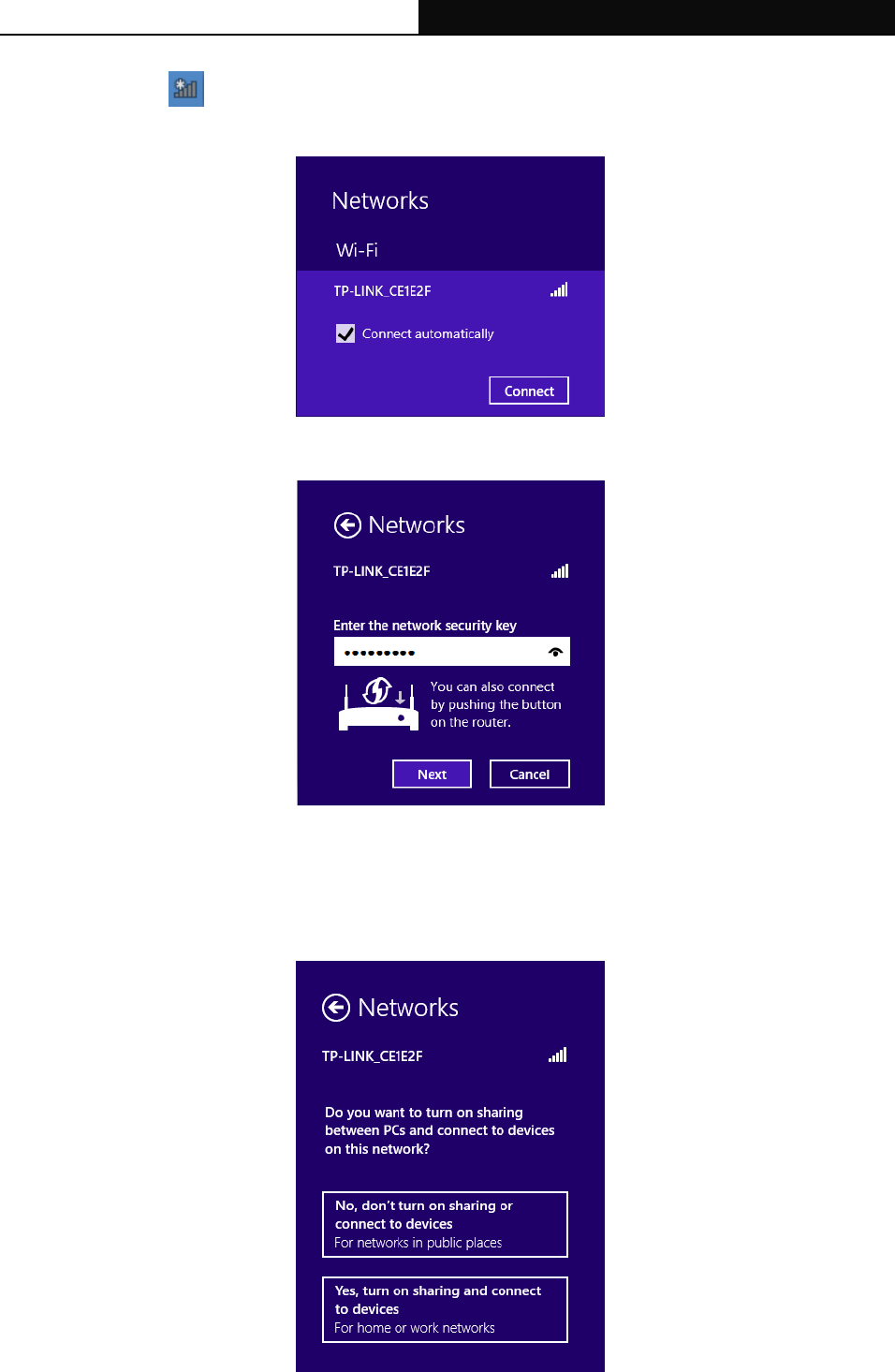

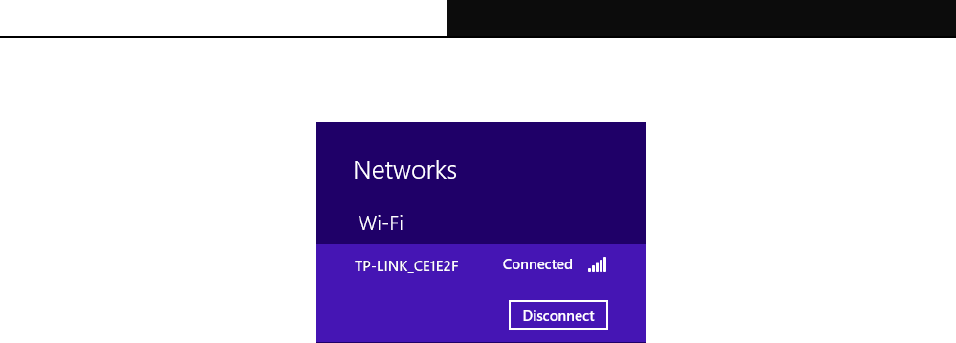

If you are using Windows 8, please follow the steps below to connect to the wireless network of the
powerline extender.
![](/img.php?id=2125266&img=bg2a.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
35
1. Click the icon at the bottom of your desktop, select the SSID of TL-WPA4220 and then click
Connect.
2. Input the network security key and then click Next.
) Note:
If your network is an unsecured network, you will not be prompted to input the network key.
3. Click to select whether to turn on sharing and connect to devices.
![](/img.php?id=2125266&img=bg2b.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
36
4. You have joined the home network and can surf the Internet now.
![](/img.php?id=2125266&img=bg2c.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
37
Chapter 5 Pair Button
5.1 Pair (Secure with 128 bits-AES)
The Homeplug AV standard uses 128-bit AES (Advanced Encryption Standard) to safely transmit data
between powerline dvices. For the powerline devices to communicate with each other, they all need to
use the same Network Membership Key (NMK). Otherwise, they cannot unscramble the encrypted data
sent in the powerline network.
The Pair button allows you to set up a secure powerline connection with other HomePlug AV compliant
powerline devices which also support the Pair feature. Here takes TP-LINK powerline devices for
example (TL-WPA4220 for device A, TL-PA4010 for device B and C).

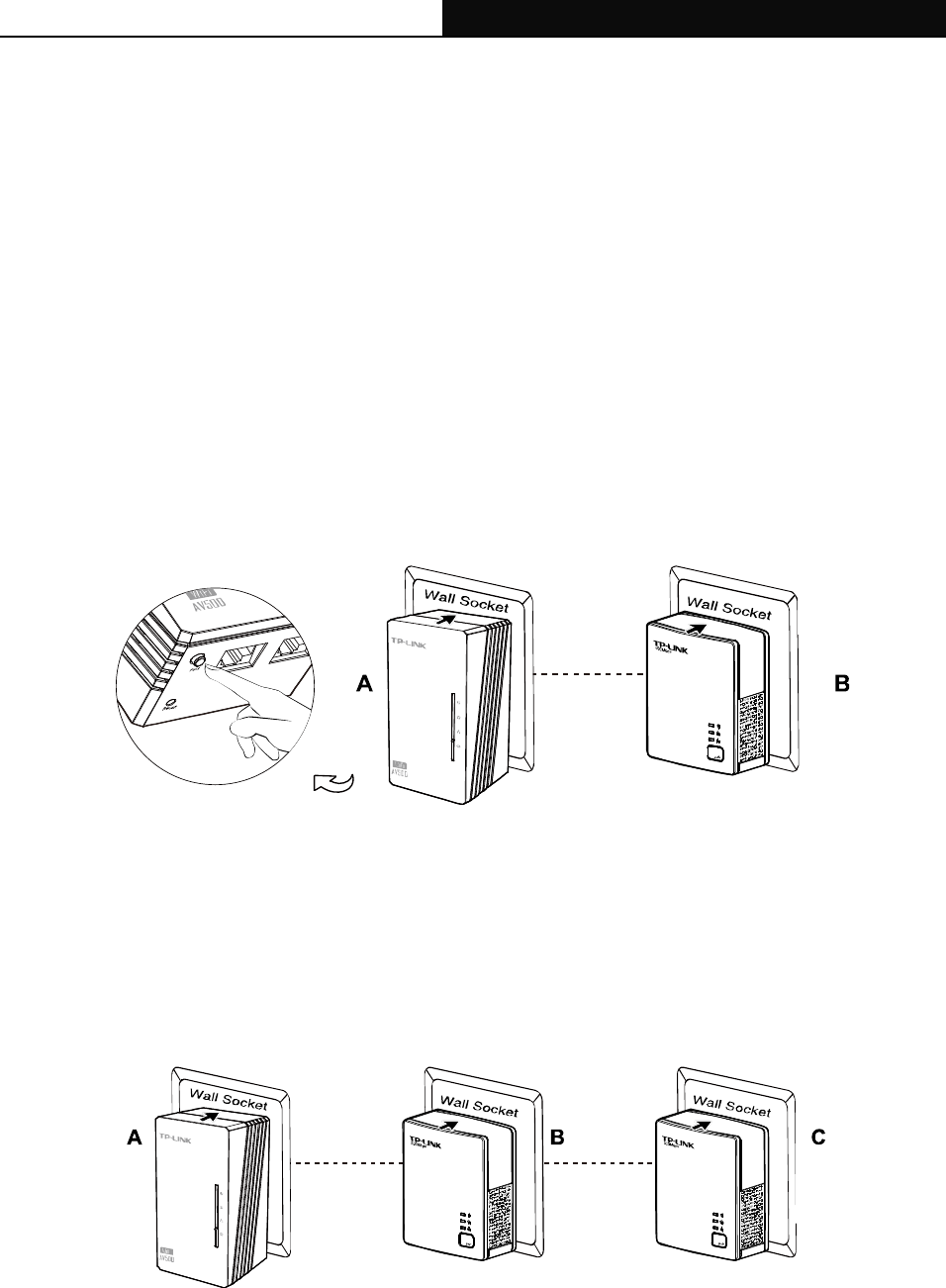

5.2 Setting Up a Powerline Network with the Pair Button
You can connect a number of devices on a powerline network, but you can use the Pair button on only
two devices at a time.
Create a Powerline network using the Pair button:
Step 1. Press and hold the Pair button of powerline device A TL-WPA4220 for one second, the Power
LED will start flashing.
Step 2. Within two minutes, press and hold the Pair button of powerline device B TL-PA4010 for one
second, the Power LED will start flashing.
Step 3. Wait for about 60 seconds while your powerline device A and B are connecting. The Power
LED on both devices will stop flashing and become solid light when the connection is made.
Join an existing Powerline network:
Powerline device A and B have formed a powerline network, and powerline device C wants to join this
network.
Step 1. Press and hold the Pair button on powerline device C TL-PA4010 for one second.
![](/img.php?id=2125266&img=bg2d.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
38
Step 2. Within two minutes, press and hold the Pair button on Powerline device A/B for one second.
Step 3. Wait for about 60 seconds while your powerline devices are connecting. The Power LED on
powerline device A/B and C will stop flashing and become solid light when the connection is
made.
) Note:
The sequence of Step 1 and Step 2 can be exchanged.
Leave an existing Powerline network:
As the figure above shows, powerline device A, B and C have formed a powerline network. The user
wants to remove one device (powerline adapter C) from this network.
Step 1. Press and hold the Pair button on powerline device C for at least 10 seconds. Powerline
device C will reset and restart.
Step 2. Wait for the reset to complete.
5.3 Reset
To reset the powerline device:
Press and hold the Reset button more than 5 seconds, and then release the button. You will see all
LEDs begin to flash. At this moment, the default settings have been restored.
Be careful, don’t power off when the device is in reset process.
![](/img.php?id=2125266&img=bg2e.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
39
Appendix A: Troubleshooting Guide
The Troubleshooting Guide provides answers to common problems regarding the powerline Ethernet
adapter.
1. The Power LED does not light up.
Ans. Check the following:
1) Make sure that the powerline extender is properly plugged into a power outlet.
2) Make sure the power outlet is active (working) by plugging another electric device into it.
3) Re-plug the powerline extender to the power outlet.
4) If the Power LED still fails to light up, contact your local dealer for technical support.
2. The Ethernet LED does not light up.
Ans. Check the following:
1) Make sure that the Ethernet cable (RJ45) is properly connected to the powerline extender’s
Ethernet port and the other end of the Ethernet cable (RJ45) is properly connected to the computer
LAN card or to your Cable/xDSL Ethernet port.
2) Make sure your computer LAN card is properly installed and configured.
3) Make sure your Cable/xDSL broadband access is working and configured correctly.
4) Contact your local dealer for technical support if the Ethernet LED still fails to light up after the
above procedures.
3. Powerline LED does not light up.
Ans. Check the following:
1) Double-click to enable the Management Utility and click the “Rescan” tab. The Management Utility
will automatically detect all other Powerline Extender on your powerline network.
2) Try to plug a powerline Ethernet adapter into a nearby power outlet and check whether the
Powerline LED lights up or not.
3) Make sure that the device is plugged into a wall socket instead of a power strip.
4) Follow the method in “5.2 Setting Up a Powerline Network with the Pair Button” to establish the
connection again.
5) Reset the device to its factory default values.
6) Contact your local dealer for technical support if the Powerline LED still fails to light up after the
above procedures.
![](/img.php?id=2125266&img=bg2f.png)
TL-WPA4220/TL-WPA2220 300Mbps AV500/AV200 WiFi Powerline Extender
40
Appendix B: Specifications
HARDWARE FEATURES
Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface 2*10/100Mbps Ethernet Port
Plug Type EU, UK
Button Pair, Wi-Fi/Wi-Fi Clone, Reset
LED Indicator PWR, PLC, ETH, WiFi/Wi-Fi Clone
Dimensions ( W x D x H ) 3.7 x 2.1 x 1.6 in. (94×54×40mm)
Power Consumption <6W
Data Rate
Powerline: 500Mbps for TL-WPA4220
200Mbps for TL-WPA2220
Wireless: 300Mbps
Range 300 Meters over electrical circuit
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption
Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification CE, FCC, RoHS
Package Contents
Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
