TP Link Technologies WA850REV2 300Mbps Universal Wi-Fi Range Extender User Manual
TP-Link Technologies Co., Ltd. 300Mbps Universal Wi-Fi Range Extender Users Manual
Users Manual
![](/img.php?id=2861569&img=bg1.png)
19100112
RE
1910011369
REV 2.1.0
Easy Wi-Fi Extension
Flexible Placement
300Mbps Universal Wi-Fi Range Extender
TL-WA850RE
![](/img.php?id=2861569&img=bg2.png)
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is
a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other
brands and product names are trademarks or registered trademarks of their
respective holders.
No part of the specifications may be reproduced in any form or by any
means or used to make any derivative such as translation, transformation,
or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
Copyright ©2015 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
![](/img.php?id=2861569&img=bg3.png)
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or tv interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This device and its antenna must not be co-
located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is
applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs.
Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes :
1) l'appareil nedoit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
CAN ICES-3 (B)/NMB-3(B)
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意!
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行;經發現
有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。前項合法通
信,指依電信規定作業之無線電信。低功率射頻電機需忍受合法通信或工業、
科學以及醫療用電波輻射性電機設備之干擾。
減少電磁波影響,請妥適使用。
安全諮詢及注意事項
● 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
● 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行
清潔。
![](/img.php?id=2861569&img=bg5.png)
● 注意防潮,請勿將水或其他液體潑灑到本產品上。
● 插槽與開口供通風使用,以確保本產品的操作可靠並防止過熱,請勿堵塞
或覆蓋開口。
● 請勿將本產品置放於靠近熱源的地方。除非有正常的通風,否則不可放在
密閉位置中。
● 請不要私自打開機殼,不要嘗試自行維修本產品,請由授權的專業人士進
行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на
відповідність вимогам нормативних документів та вимогам, що
передбачені чинними законодавчими актами України.
Safety Information
● When product has power button, the power button is one of the way to
shut off the product; when there is no power button, the only way to
completely shut off power is to disconnect the product or the power
adapter from the power source.
● Don’t disassemble the product, or make repairs yourself. You run the
risk of electric shock and voiding the limited warranty. If you need
service, please contact us.
● Avoid water and wet locations.
This product can be used in the following countries:
AT
BG
BY
CA
CZ
DE
DK
EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU
SE
SK
TR
UA
US
![](/img.php?id=2861569&img=bg6.png)
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 300Mbps Universal Wi-Fi Range Extender
Model No.: TL-WA850RE
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all
the technical regulations applicable to the product within the scope of
Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC,
Directives 1999/519/EC, Directives 2011/65/EU
The above product is in conformity with the following standards or other
normative documents
EN 300 328 V1.8.1
EN 301 893 V1.7.1
EN 301 489-1 V1.9.2:2011 & EN 301 489-17 V2.2.1:2012
EN 55022:2010+AC:2011
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2013
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EN 62311:2008
The product carries the CE Mark:
Person responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2015-07-17
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China
![](/img.php?id=2861569&img=bg7.png)
Introduction ........................................................................ 1
Product Overview ..................................................................... 1
What can your Extender do .................................................. 1
Support for the 802.11ac wireless technology ..................... 1
Main Features ....................................................................... 2
Appearance .............................................................................. 2
Connect the Extender to the Internet ................................. 4
Before You Begin ..................................................................... 4
Basic Requirements ................................................................. 5
Quick Setup .............................................................................. 5
Using WPS (Wi-Fi Protected Setup) .................................... 5
Using your Web Browser ...................................................... 7
View the Information of the Extender .............................. 11
View the Extender’s Current Status ....................................... 11
View the Information about the Host Network, the Extender and
the Clients .............................................................................. 12
Manage the Extended Network and Security Settings .... 13
Extend another Network ........................................................ 13
Extender Settings ................................................................... 15
Manage the Extender’s Wi-Fi Security Settings .................... 16
Change your Admin Account ............................................. 16
Control the Wireless Devices Access to the Extender ....... 16
Change the Extender’s IP Address ........................................ 19
DHCP Server .......................................................................... 19
Settings ............................................................................... 19
View the DHCP Client List .................................................. 20
More Functions ............................................................... 22
Entertainment Adapter ............................................................ 22
Manage the Extender ..................................................... 23
LED Control ............................................................................ 23
Firmware Upgrade .................................................................. 24
Backup & Restore ................................................................... 24
Factory Defaults ...................................................................... 25
System Log ............................................................................. 25
Reboot .................................................................................... 26
Logout ..................................................................................... 26
Appendix ......................................................................... 27
Factory Defaults ...................................................................... 27
Troubleshooting ...................................................................... 28
Specifications .......................................................................... 29
Glossary .................................................................................. 29
Contents
![](/img.php?id=2861569&img=bg8.png)
Introduction
This chapter covers the following topics:
Product Overview
Appearance
Product Overview
What can your Extender do
The TL-WA850RE 300Mbps Universal Wi-Fi Range Extender is dedicated to
Small Office/Home Office (SOHO) wireless network solutions. It will enlarge
your existing wireless network and mobility within your wireless network while
also allowing you to connect a wired device to a wireless environment.
Increased mobility and the absence of cabling will be beneficial for your network.
The extender provides two options to finish the quick setup.
Option One: an easy wireless connection to the host network (equipped with
WPS/QSS button) by Using WPS on the back panel.
Option Two: Using your Web Browser for installation and management.
Even though you may not be familiar with the extender, you can easily configure
it with the help of this guide. Before installing the extender, please look through
this guide to get the full information of the TL-WA850RE 300Mbps Universal Wi-
Fi Range Extender.
Support for the 802.11n wireless technology
With using IEEE 802.11n wireless technology, this device can transmit wireless
data at the rate of up to 300Mbps. With multiple protection measures, including
wireless LAN 64/128-bit WEP encryption, Wi-Fi protected Access (WPA2-PSK,
WPA-PSK), the TL-WA850RE 300Mbps Universal Wi-Fi Range Extender
delivers complete data privacy.
1
Introduction 1
![](/img.php?id=2861569&img=bg9.png)
Main Features
Make use of IEEE 802.11n wireless technology
Provides multiple encryption security Types including: 64/128-bit WEP and
WPA-PSK/WPA2-PSK
Supports Built-in DHCP server
Supports Firmware Upgrade
Supports Web-based Management

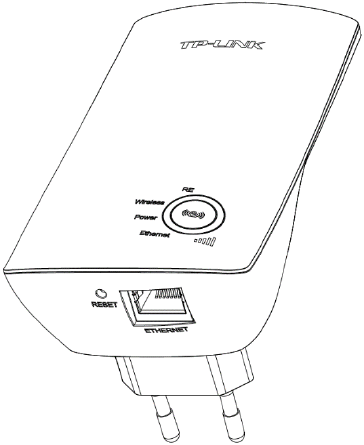

Appearance
Introduction 2
![](/img.php?id=2861569&img=bga.png)
LED Explanation
Name Status Indication
RE
On The extender is connected to the router.
Blinking
WPS connection is in process.
Off The extender is not connected to the router.
Wireless On The extender’s wireless function is on.
Off The extender’s wireless function is off.
Power On The extender is powered on.
Off The extender is powered off.
(Ethernet)
On The Ethernet port is connected.
Off The Ethernet port is not connected.
(Signal
Strength)
Indicates the Wi-
Fi connection between the extender and the
router. More lit LEDs indicate a better signal strength.
Button Explanation
(Range Extender/WPS) Button: If your Wireless router supports WPS
or QSS function, you can press the WPS or QSS button and then press the
RE button to establish a secure connection between the Wireless router and
the extender.
RESET: This button is used to restore the extender’s factory default settings.
There are two ways to reset the extender:
Option One: With the extender powered on, use a pin to press the RESET
button until all the LEDs turn on momentarily, then release the button and
wait the extender to reboot to its factory default settings.
Option Two: Restore the default settings from “System Tools > Backup
&Restore” of the extender's Web-based Management page.

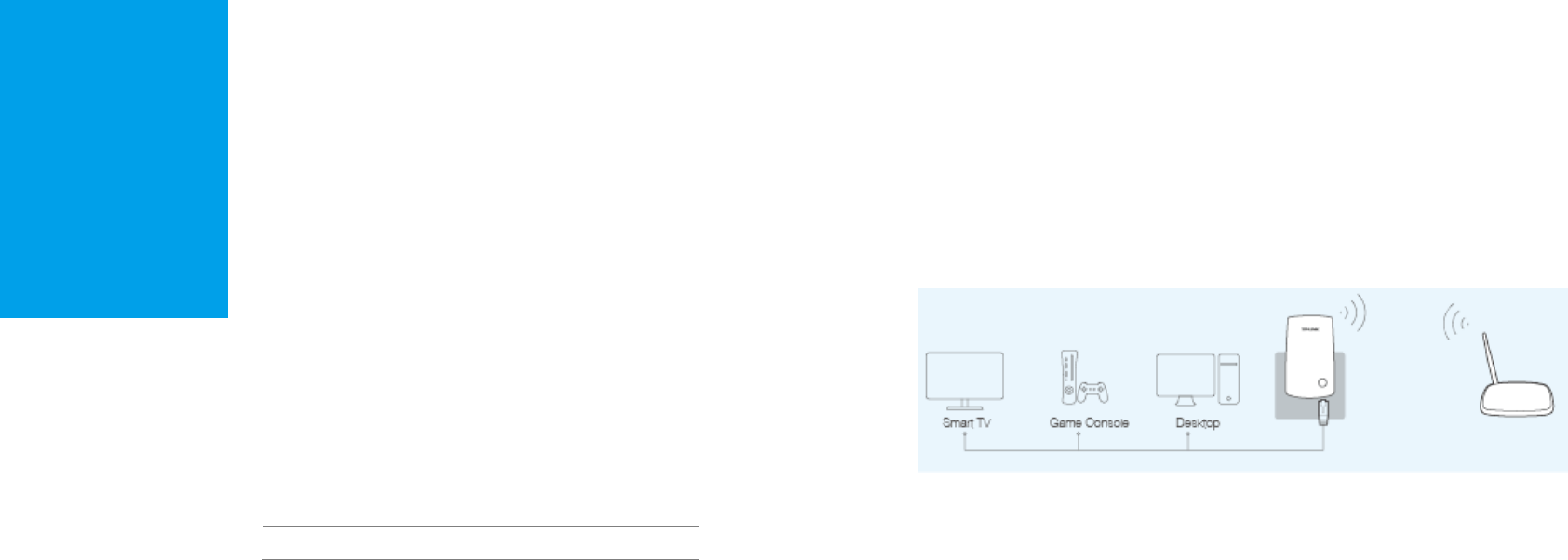

Ethernet Port: Five 10/100/1000Mbps RJ45 Ethernet ports used to add
wireless connectivity to an Ethernet-enabled device such as Internet TV,
DVR, Gaming console and so on. Please note that this port is not allowed to
be connected with router.
Connect the Extender to the Internet 3
![](/img.php?id=2861569&img=bgb.png)
Connect the Extender
to the Internet
This chapter covers the following topics:
Before You Begin
Basic Requirements
Quick Setup
Before You Begin
Please read this guide carefully before installing and using the device. The
operating distance range of your wireless connection can vary significantly
depending on the physical position of the wireless devices. Factors that can
weaken signals by getting in the way of your network’s radio waves are metal
appliances or obstructions, and walls. Typical ranges vary based on the types
of materials and background RF (radio frequency) noise in your home or office.
In order to optimize the performance of TL-WA850RE, please follow the
instructions below to achieve an ideal location (please make sure it is always
within the wireless coverage of the wireless router).
● Half-way Between - Generally, the ideal location for TL-WA850RE is half-
way between the Wireless router and Wireless Client. If the wireless
signal is not satisfactory, you may place TL-WA850RE somewhat nearer
to the Wireless router.
● No Obstacles and Spacious - Clear obstacles in the way between TL-
WA850RE and Wireless router. It’s better to locate it in a spacious place,
such as near the corridors.

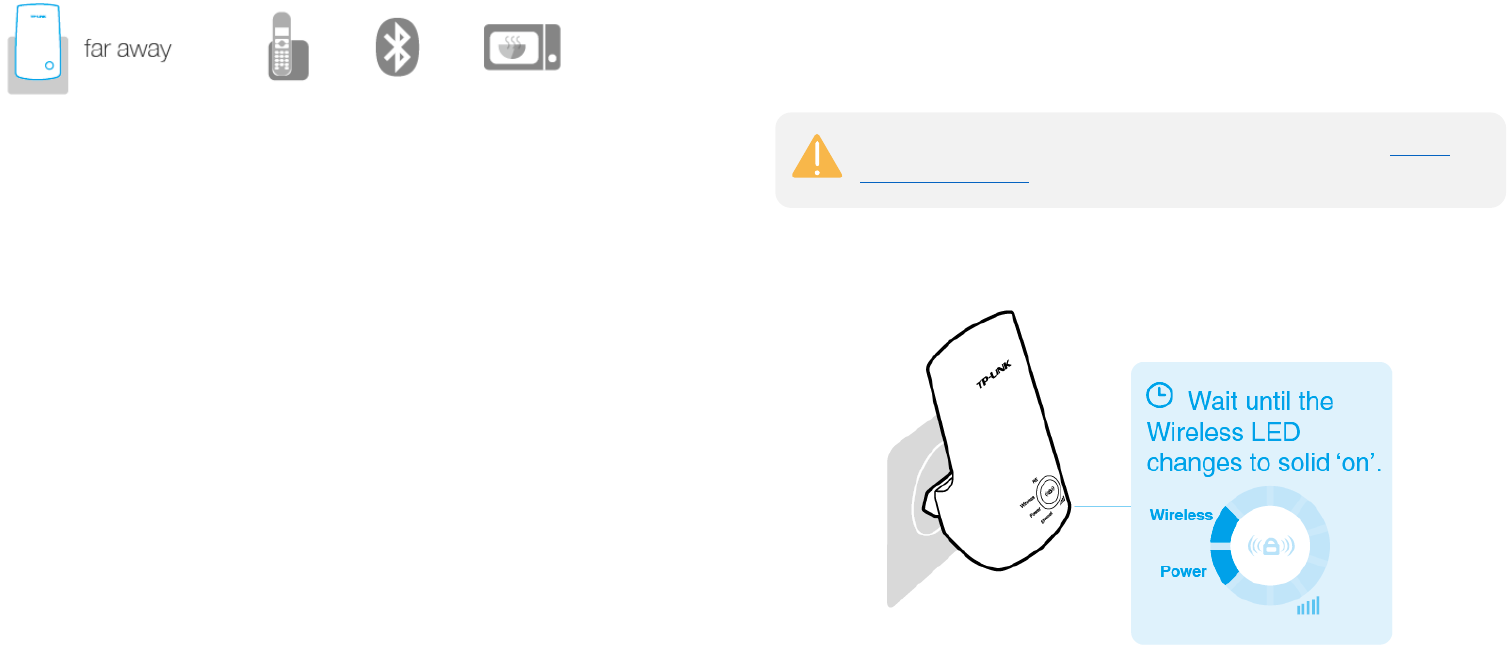

● No Interference - Choose a location away from Bluetooth devices and
other household electronics, such as cordless phone, microwave, and
baby monitor, etc., to minimize signal interference.
2
Connect the Extender to the Internet 4
![](/img.php?id=2861569&img=bgc.png)
Basic Requirements
Place your extender in a well-ventilated place far from direct sunlight,
any heater or heating vent.
Leave at least 2 inches (5cm) space around the device for heat
dissipation.
Turn off your extender and unplug the power adapter in a lighting storm
to avoid damage.
Use Web browser, such as Microsoft Internet Explorer 5.0 or above,
Netscape Navigator 6.0 or above.
Operating temperature of the extender should be 0℃~40℃ (32℉
~104℉).
Operating humidity of the extender should be 10%~90%RH (Non-
condensing).
Quick Setup
Using WPS (Wi-Fi Protected Setup)

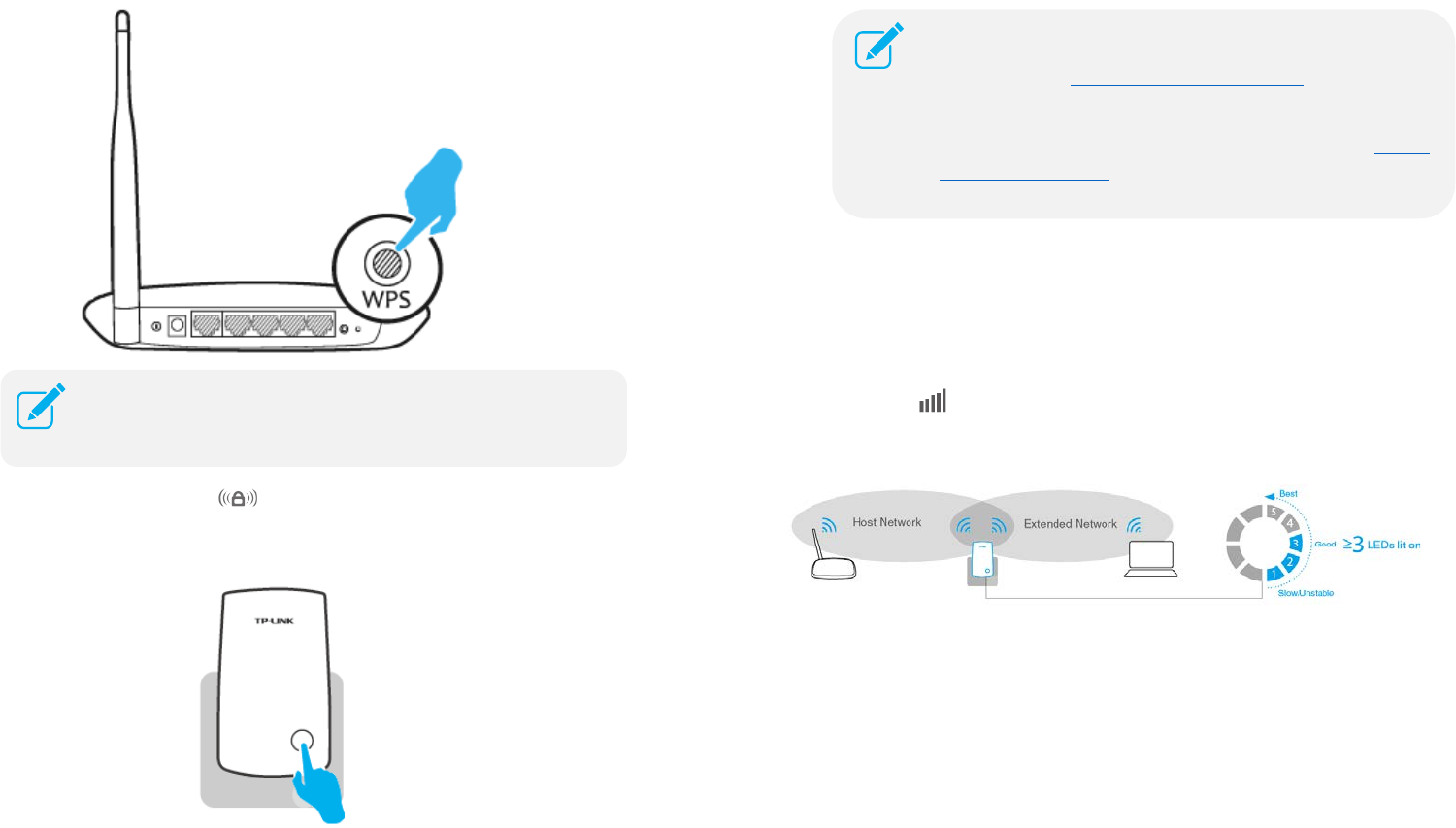

1 Power On
Plug in next to your router.
2 Connect
1) Press the WPS button on your router.
Your router should support WPS. Otherwise, please use Using
your web browser.
Connect the Extender to the Internet 5
![](/img.php?id=2861569&img=bgd.png)
2) Immediately press the RE button on your extender. The RE
LED should change from blinking to solid, showing that WPS
connection is successful.
3 Relocate
Plug the extender into an electrical outlet about halfway between your
router (Host Network) and the Wi-Fi dead zone.
Wait until the (Signal Strength) LEDs are lit. Make sure the extender
is in a location with 3 or more LEDs lit. If not, relocate the extender closer
to the router to achieve a good (or better) signal quality.
Enjoy!
The extender shares the same wireless network name (SSID) and wireless
password as your router.
For more information about using WPS on your router,
please refer to the router manufacturer's user guide.
If the RE LED does not change from flashing to solid,
please refer to Using your Web Browser.
Some ISP gateways disable the WPS function by
default, if the WPS method fails, please refer to Using
your Web Browser.
Connect the Extender to the Internet 6
![](/img.php?id=2861569&img=bge.png)
Using your Web Browser
1 Power On
Plug in next to your router.
2 Connect to the Extender
● Connecting via Ethernet Cable
1) Disable the Wi-Fi on your computer.
2) Connect the extender to your computer via an Ethernet cable.
● Connecting via Wireless
Disconnect the Ethernet (wired) connection to your computer. Click the
Wi-Fi icon on the taskbar and connect to the extender's network (e.g. TP-
LINK_Extender_XXXXXX).

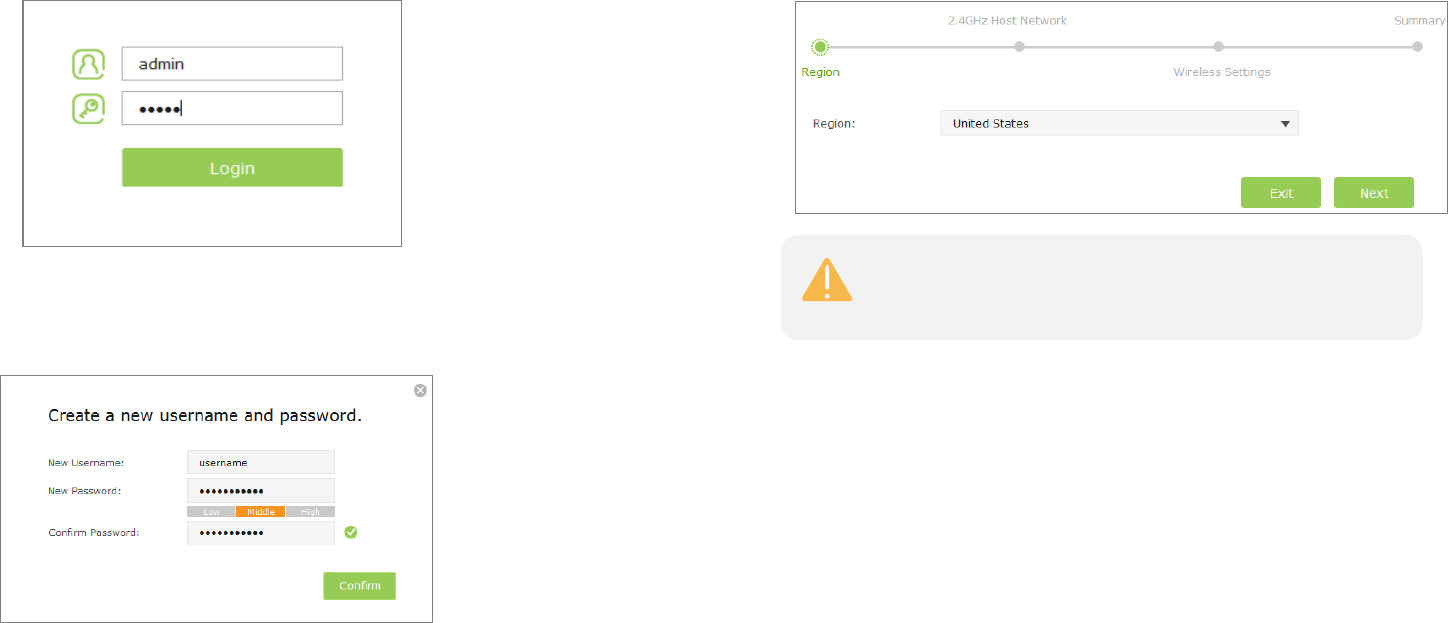

3 Login
Launch a web browser and type http://tplinkrepeater.net into the URL
field and use admin (all lowercase) for both Username and Password to log
in.
Connect the Extender to the Internet 7
![](/img.php?id=2861569&img=bgf.png)
4 Configure

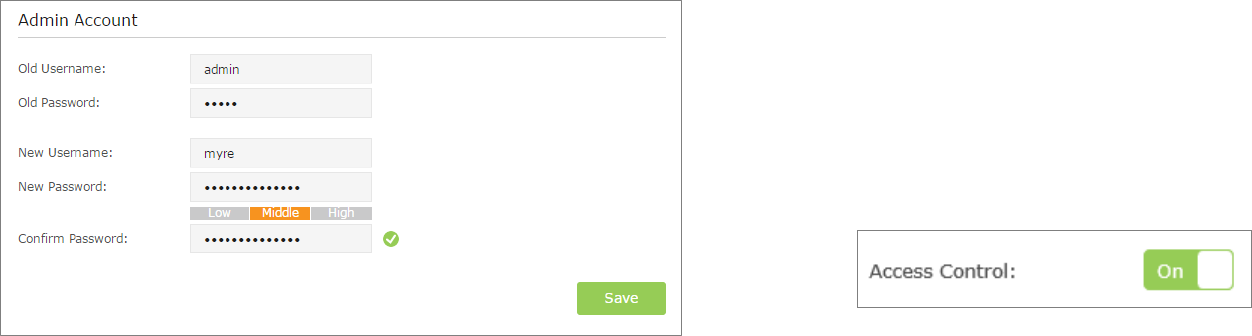

1) Create a new username and password to log in the web
management page, then click Confirm.
2) Select your region,then click Next.
Per FCC regulations, all Wi-Fi products marketed in the
U.S. are fixed to the U.S. region.
Connect the Extender to the Internet 8
![](/img.php?id=2861569&img=bg10.png)

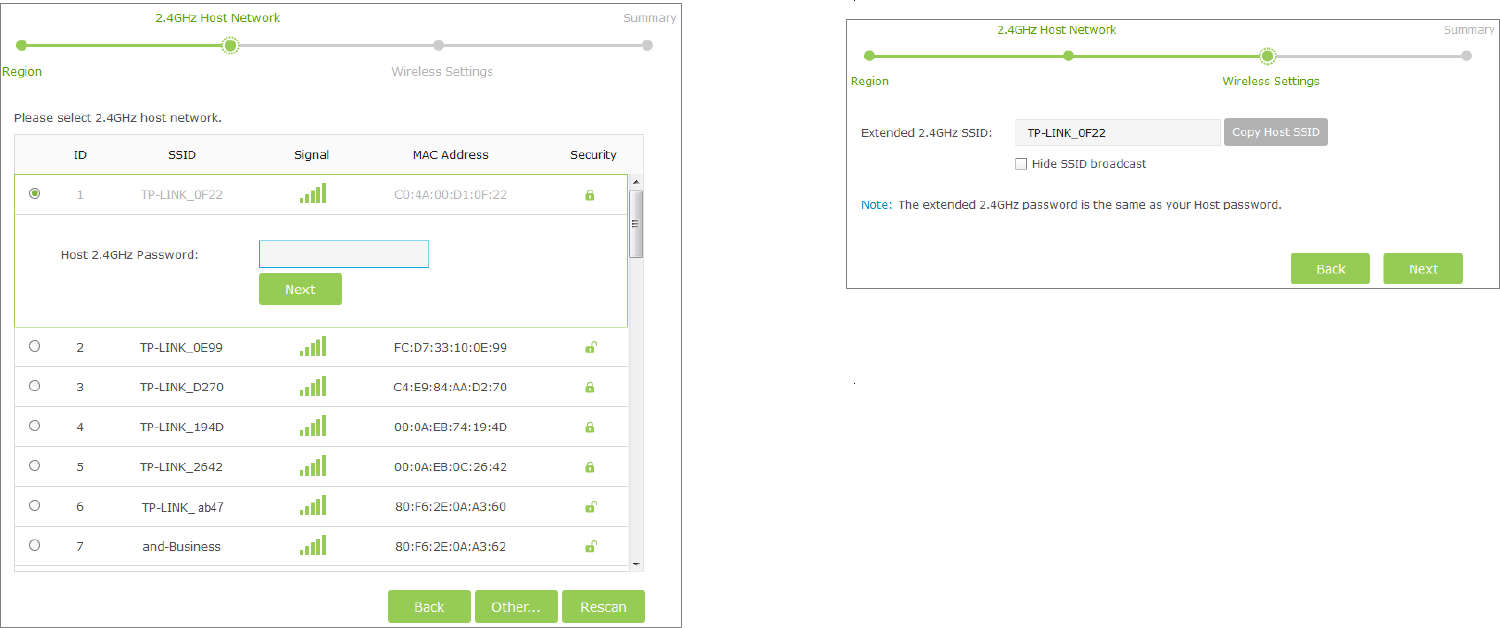

3) Select your router's 2.4GHz host network and enter the password,
then click Next.
4) Either keep the same SSID as your host network or create a new
name for the extended networks, then click Next.

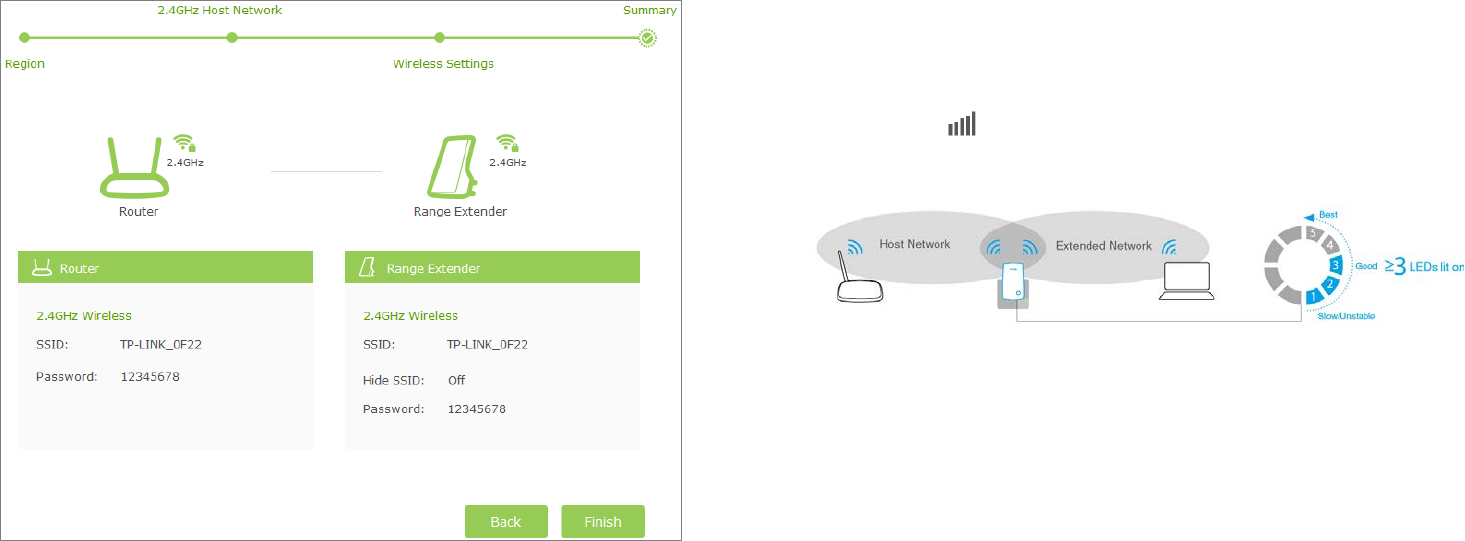

5) Verify your wireless settings and click Finish. The RE LED should
turn on and stay solid.
Connect the Extender to the Internet 9
![](/img.php?id=2861569&img=bg11.png)
5 Relocate
Plug the extender into an electrical outlet about halfway between your
router (Host Network) and the Wi-Fi dead zone.
Wait until the (Signal Strength) LEDs are lit. Make sure the extender
is in a location with 3 or more LEDs lit. If not, relocate the extender closer
to the router to achieve a good (or better) signal quality.
Enjoy!
The extended network shares the same Wi-Fi password as your host network,
but may have different wireless network name if you customize the name during
the configuration.
Connect the Extender to the Internet 10
![](/img.php?id=2861569&img=bg12.png)
View the Information of
the Extender
This chapter covers the following topics:
View the Extender’s Current Status
View the Information about the Host Network, the
Extender and the Clients
View the Extender’s Current
Status
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings > Status webpage.
2) You can view the network connection in the Status webpage.
● The normal status.
● The extender is failed to connect to the wireless network of your router.
● The extender is connected to the wireless network of your router, but no
transmitting data. Please check your host network.
● The extender is connected to the router unnormally. Maybe the gateway
is set incorrectly in the Static IP. You can select “Obtain an IP address
automatically” on the “LAN Settings” page.
3
View the Information of the Extender 11
![](/img.php?id=2861569&img=bg13.png)
● The extender is failed to connect to the NTP server, or obtain the DNS
server address. Please check your host network.

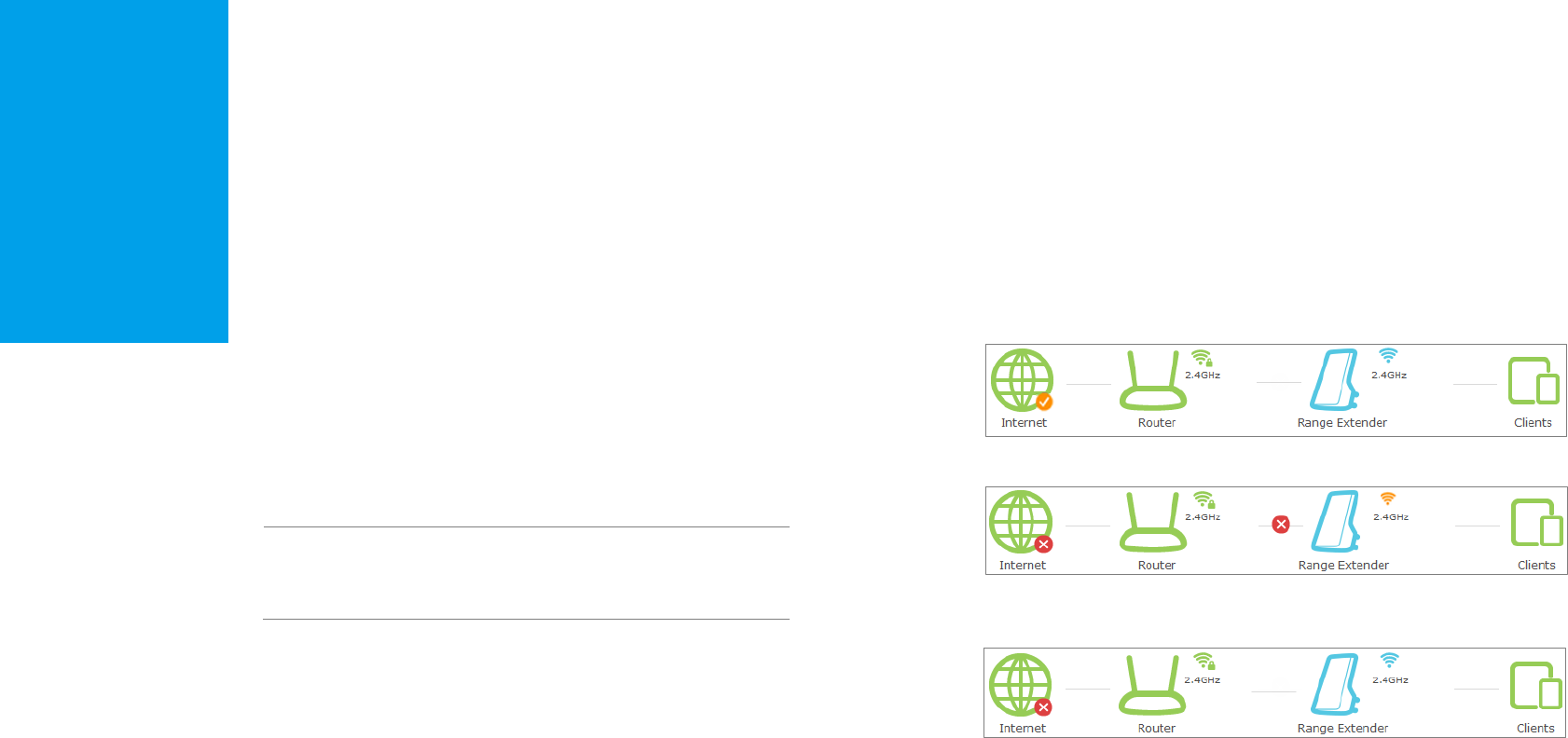

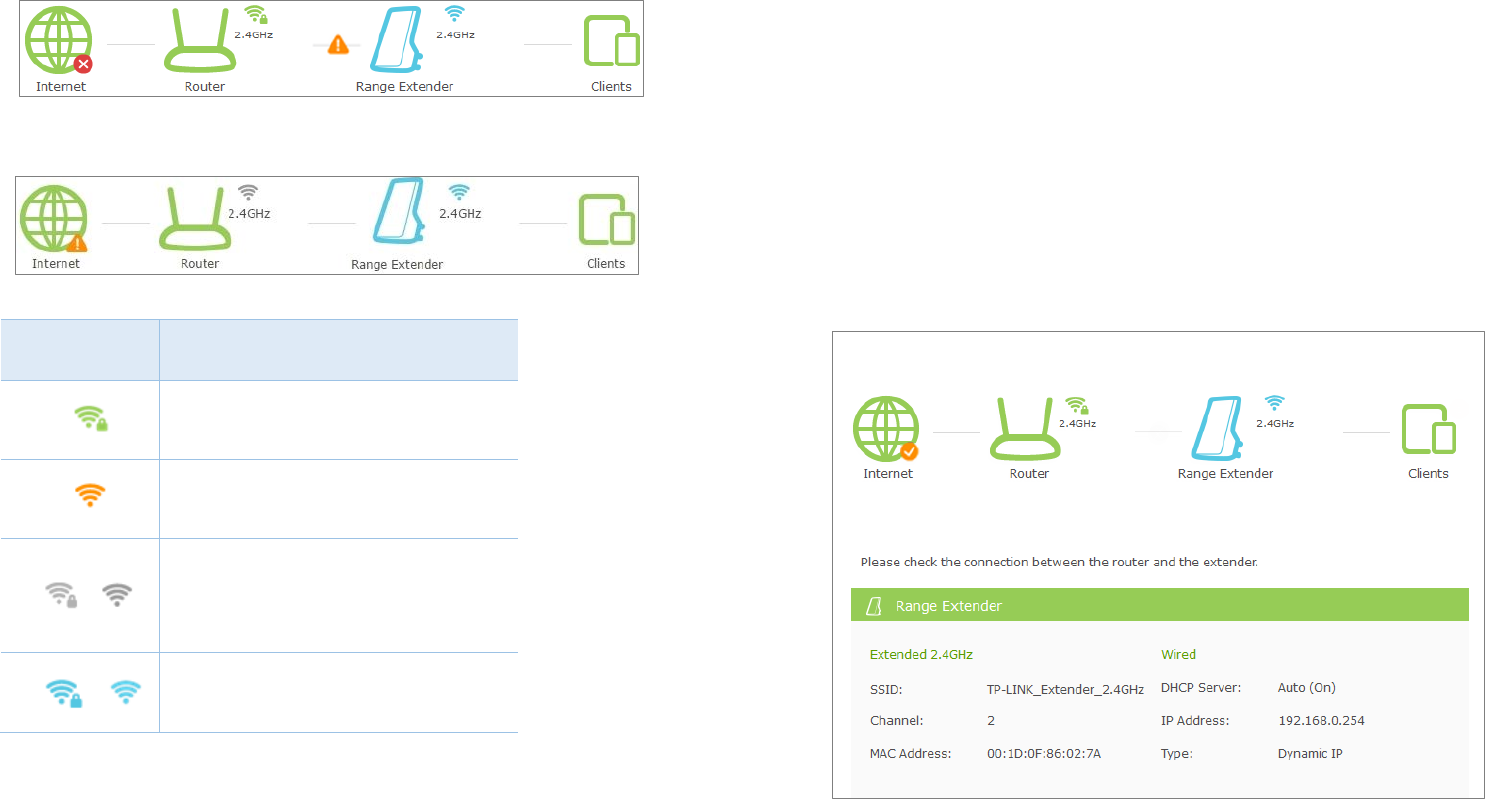

Instructions for the icons of 2.4GHz wireless status:
Name Instructions
The wireless is on and encrypted.
The wireless is on and unencrypted.
/
Router:T
he wireless is off, or the
connection is failed.
Extender:The wireless is off.
/ The icons are selected.
View the Information about the
Host Network, the Extender and
the Clients
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings > Status webpage.
2) Click the icons of your router, the extender and clients. The detailed
instructions for the corresponding icon are displayed below.
View the Information of the Extender 12
![](/img.php?id=2861569&img=bg14.png)
Manage the Extended
Network and Security
Settings
This chapter covers the following topics:
Extend another Network
Extender Settings
Manage the Extender’s Wi-Fi Security Settings
Change the Extender’s IP Address
DHCP Server
Extend another Network
If you want to extend another network, you can refer to the following steps to
finish it quickly.
1) Launch a web browser and type in http://tplinkrepeater.net,then go to
Settings->Wireless->Connect to Network webpage.

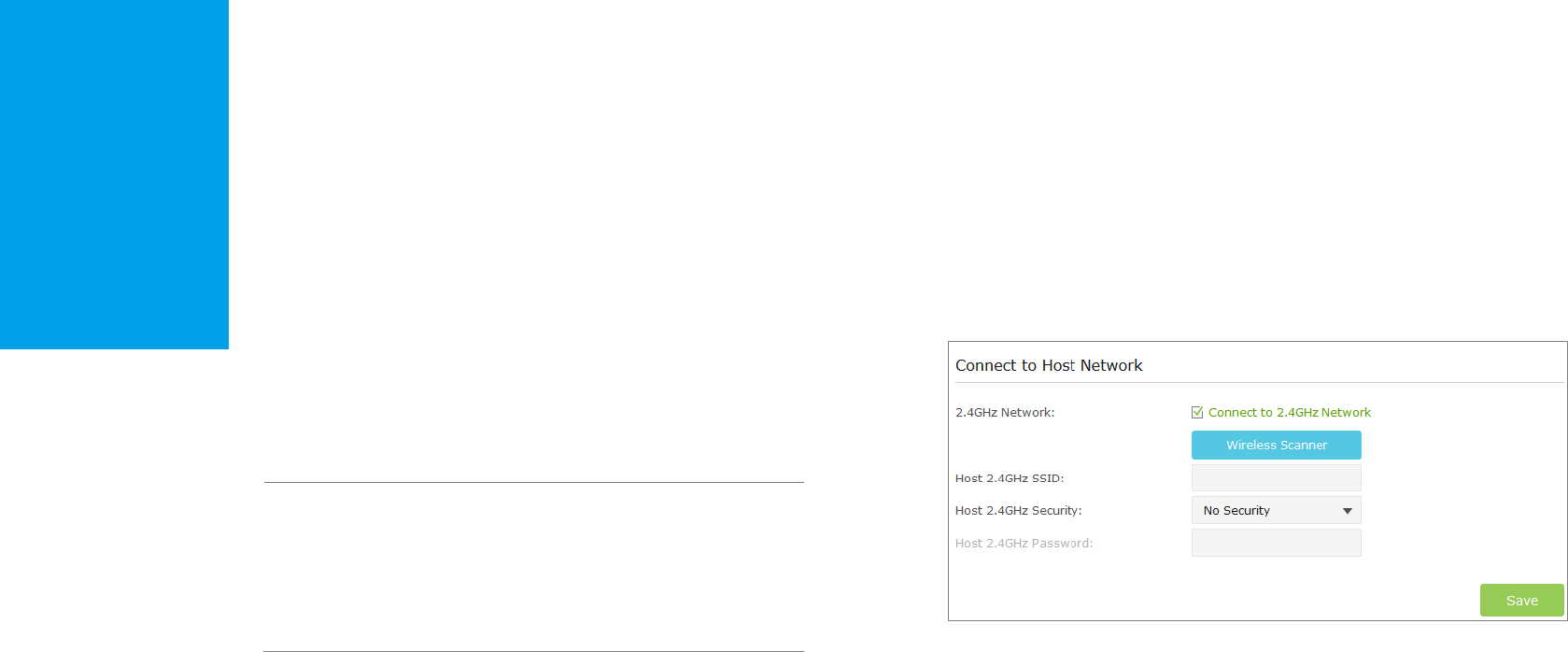

2) Enable Connect to 2.4GHz Network. Then click Wireless Scanner to
scan the network you want to extend.
4
Manage the Extended Network and Security Settings 13
![](/img.php?id=2861569&img=bg15.png)
3) Select the network you want to extend from the list.
4) Once a network is selected, the SSID and security settings of that network
will automatically fill in. If the host network is encrypted, enter the
password in the box of the host wireless security.
5) Click Save to save the settings.
6) Relocate.
Plug in the extender halfway between your wireless router (Host Network)
and the Wi-Fi dead zone.
Wait until the (Signal Strength) LEDs are lit. Make sure the extender
is in a location with 3 or more LEDs lit. If not, relocate it closer to the
router to achieve a good (or better) signal quality.
If the network you want to extend is on but not shown in
the list, please try by following the steps below.
Move the extender closer to your router. Then click
Refresh on the top-right corner of the list to scan the
network again.
You can also enter the information of the network
manually you want to extend on the Connect to
Network page. Then click Save to connect to the
host network.
When Host 2.4GHz Security is WEP, please select the
index same with the host network.
Manage the Extended Network and Security Settings 14
![](/img.php?id=2861569&img=bg16.png)
Enjoy!
The extender shares the same wireless network name (SSID) and wireless
password as your host network. If you want to change the wireless network
name (SSID), please refer to Extended Settings.
Extender Settings
On the Extended Network page, you can enable or disable the wireless network
of the extender, change and hide the wireless network name (SSID) of the
extender.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Extended Network webpage.
2) Configure the settings as shown in the figure below.
Extended 2.4GHz: Enable or disable the 2.4GHz wireless function of
the extender.
Extended 2.4GHz SSID: Either copy the host SSID or create a new
name using up to 32 characters. This field is case-sensitive.
Hide SSID broadcast: Select this checkbox if you want to hide the
extender’s SSID (of the 2.4GHz wireless network) from the Wi-Fi
network list. If you want to connect to the hiden SSID, please enter
the SSID and the password manaully.
3) Click Save to save the settings.
Manage the Extended Network and Security Settings 15
![](/img.php?id=2861569&img=bg17.png)
Manage the Extender’s Wi-Fi
Security Settings
Change your Admin Account
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->System Tools->Admin Account webpage.
2) Create a new username and password as shown in the figure below.
Old Username
:
Enter your current username.
Old Password: Enter your current password.
New Username: Enter your new username.
New Password: Enter your new password.
Confirm Password: Re-enter your new password.
3) Click Save to save the settings.
Control the Wireless Devices Access to the
Extender
The Access Control function controls the devices connected to the extender by
the wireless connection. For increased security, you can restrict access to the
Wi-Fi network of your extender to allow only specific Wi-Fi devices in the white
list. Devices that are in the black list cannot join the wireless network of the
extender.
Blacklist Mode
The devices in the Blacklist are not allowed to connect to the extender.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Access Control webpage.
2) Click the button to enable the Access Control function.

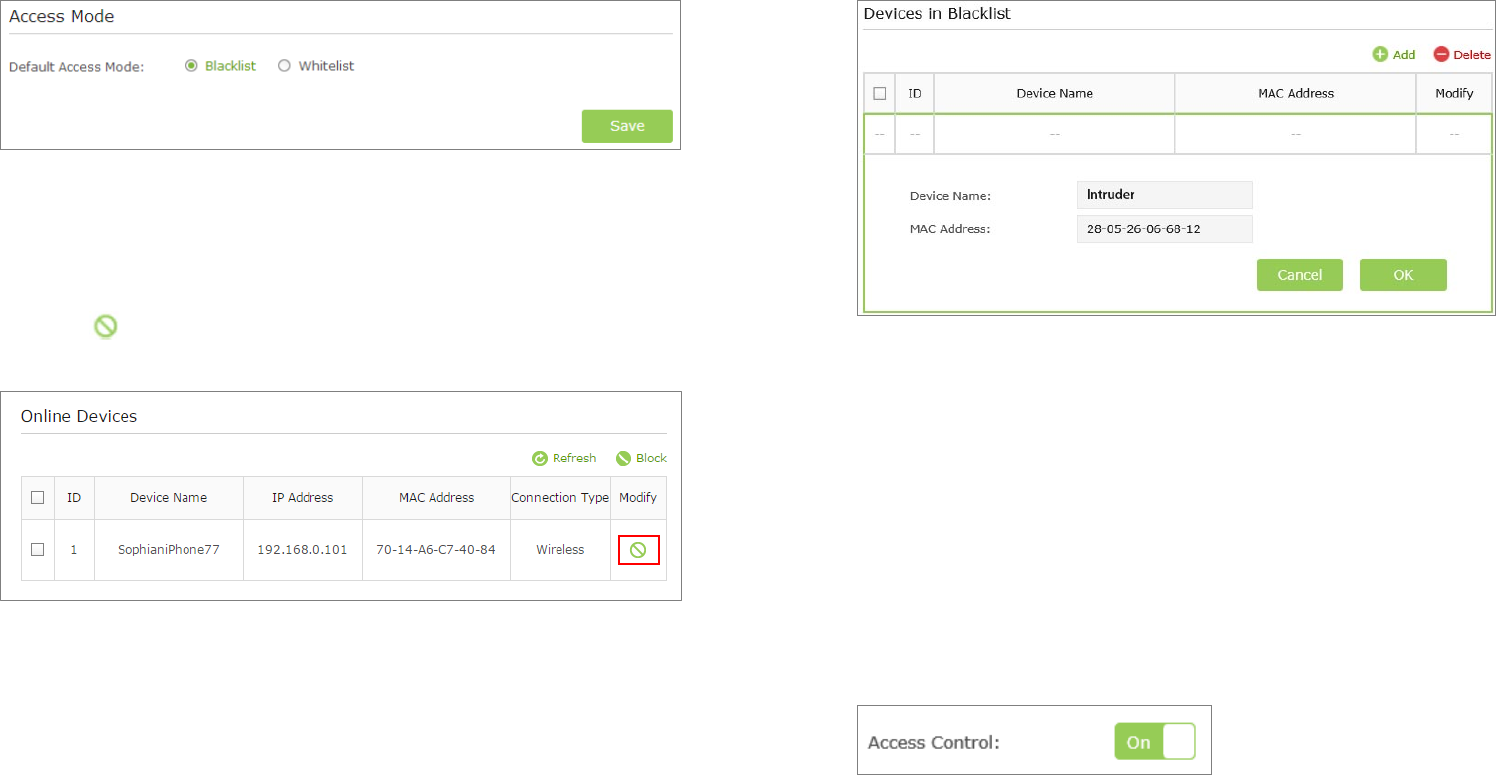

3) Select Blacklist as shown in the figure below, then click Save to save the
settings.
Manage the Extended Network and Security Settings 16
![](/img.php?id=2861569&img=bg18.png)
4) Add the device to the blacklist by following the ways.
● Add the Online Devices to the blacklist.
In the Online Devices list, you can view the information about the
devices connected to the extender. For one device, you can click the
icon to add the device to the blacklist. For several devices,
select them and click Block to add them at the same time.
● Add the device to the blacklist manually, if the device is not in the
Online Devices list.
Click Add. Then enter the device name and MAC address in the
figure below.
Device Name: Enter the device name.
MAC Address: Enter the MAC address of the host in XX-XX-XX-XX-
XX-XX format (e.g. 00-11-22-33-44-AA).
5) Click OK to save your settings.
Whitelist Mode
Only the devices in the Whitelist are allowed to connect to the extender.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Access Control webpage.
2) Click the button to enable the Access Control function.

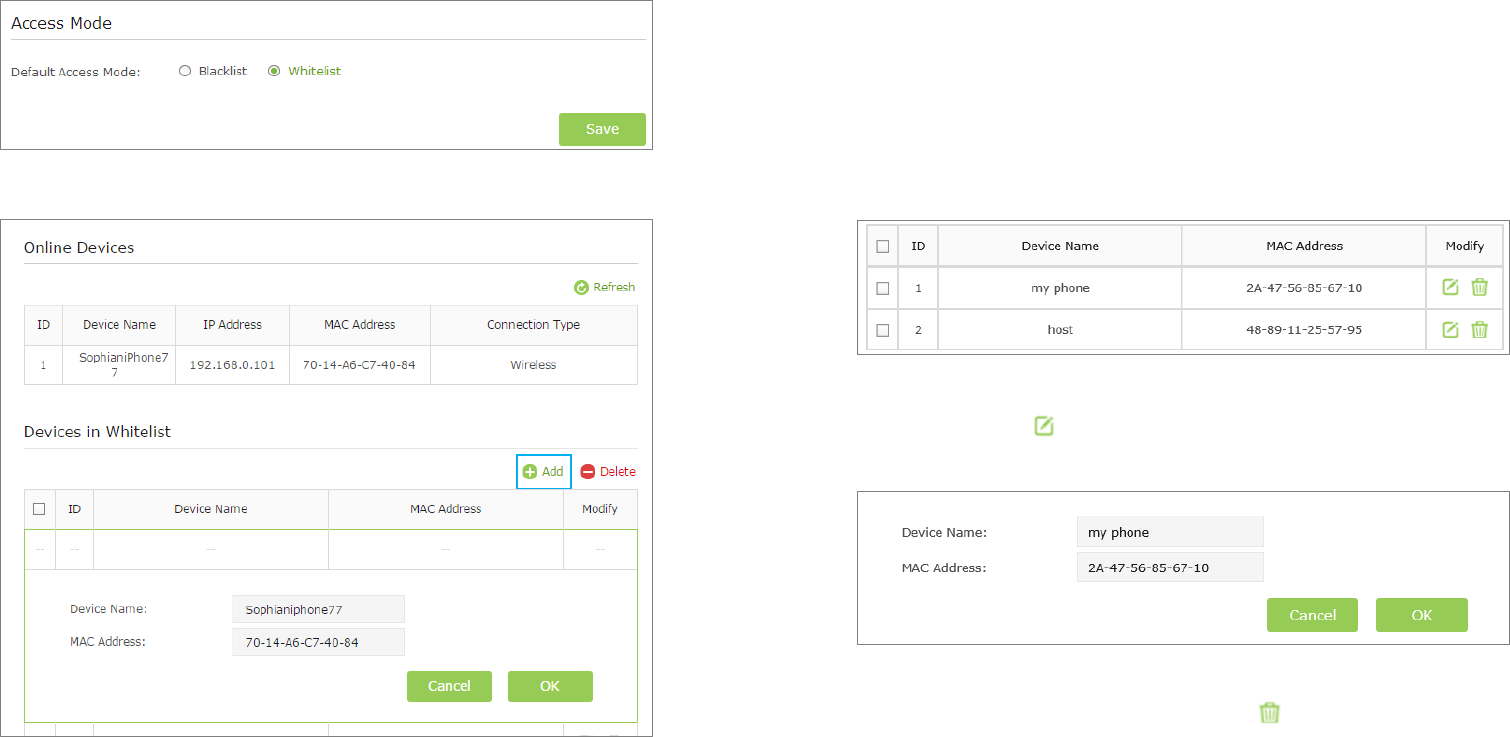

3) Select Whitelist as shown in the figure below, then click Save to save the
settings.
Manage the Extended Network and Security Settings 17
![](/img.php?id=2861569&img=bg19.png)
4) Click the Add button.
Device Name: Enter the device name.
MAC Address: Enter the MAC address of the host in XX-XX-XX-XX-
XX-XX format (e.g. 00-11-22-33-44-AA).
5) Click OK to save your settings.
Modify or Remove a Device in the Blacklist/Whitelist
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Access Control webpage.
2) You can modify or remove the devices in the Blacklist or Whitelist.
● Modify a Device in the Blacklist or Whitelist.
Click the icon , and then enter the device name and MAC
address. Click OK to save the setings.
● Remove a Device in the Blacklist or Whitelist.
For one device, you can click the icon to remove the device from
the list. For several devices, select them and click Delete to remove
them at the same time.
Manage the Extended Network and Security Settings 18
![](/img.php?id=2861569&img=bg1a.png)
Change the Extender’s IP
Address
By default, the extender is set to obtain an IP address automatically from the
front router. If you want to use a specific IP address appropriate to your network
demand, please refer to the steps below.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Network webpage.
2) Select Use the following IP address, then enter the IP address and
gateway manually.
IP Address: Enter the IP address in dotted-decimal notation
(192.168.0.254 by default).
Subnet: Enter the subnet mask in dotted-decimal notation that
determines the size of the network (255.255.255.0 by default).
Default Gateway: Enter the gateway that is in the same subnet as
the IP address in dotted-decimal notation. It is usually the LAN IP
address of your router.
3) Click the Save button to save the settings.
DHCP Server
DHCP stands for Dynamic Host Configuration Protocol. The DHCP Server will
automatically assign dynamic IP addresses to the devices on the network. This
protocol simplifies network management and allows new wireless devices to be
set to IP addresses automatically.
Settings
● Set the DHCP Server status to Auto (by default)
When the DHCP Server is Auto, the extender automatically detects to find
the devices enabling the DHCP Server. If the DHCP Server of the device
is enabled, the extender’s DHCP Server is disabled. Otherwises, the
extender’s DHCP Server is enabled. The default is Auto.
● Enable DHCP Server
We do NOT recommend you change the IP address unless you
are quite sure about the IP setting for special network
demand, random changes may lead to Internet disconnection.
To use the DHCP server function of the device, you should configure
all computers as "Obtain an IP Address automatically" mode.
Manage the Extended Network and Security Settings 19
![](/img.php?id=2861569&img=bg1b.png)
When the DHCP Server is On, please make sure that IP Address Pool,
Default Gateway for the DHCP server and LAN IP address are in the same
segmengt as the router. Otherwises, the extender cannot access the
Internet.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Network webpage.

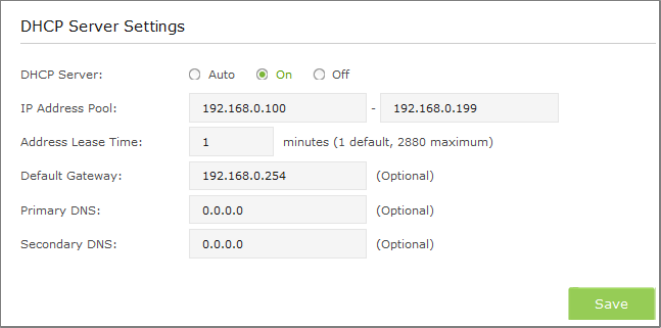

2) If the DHCP Server is On, please configure it as shown in the figure
bleow.
IP Address Pool
:
Enter a range of IP address that can be leased to
the clients. By default, the starting IP address is 192.168.0.100 and
the ending IP address is 192.168.0.199.
Address Lease Time
:
Enter the time duration that an IP address is
leased to the client, between 1 and 2880 minutes. The default is 1
minute.
Default Gateway (Optional): Enter the LAN IP address of your host
network.
Primary DNS (Optional): Enter the DNS IP address provided by
your ISP.
Secondary DNS (Optional): Enter the second DNS IP address
provided by your ISP.
3) Click Save to save your changes.
● Disable DHCP Server
If the DHCP server of the extender is Off, please make sure the DHCP
server of your router is on. Otherwise, you have to configure the IP
address for each client manually.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Network webpage.
2) Select Off, then click Save to save the settings.
View the DHCP Client List
The DHCP Client List displays the Client Name, MAC Address, Assigned IP
and Lease Time for each DHCP Client attached to the device.
1) Launch a web browser and type in http://tplinkrepeater.net, then log in
to Settings->Network webpage.
2) You can view the information of the DHCP clients connected to the
extender in the DHCP Client List.
Manage the Extended Network and Security Settings 20
![](/img.php?id=2861569&img=bg1c.png)
Client Name: The name of the DHCP client.
MAC Address: The MAC address of the DHCP client.
Assigned IP Address: The IP address that is allocated to the client
by the DHCP server.
Lease Time: The time duration that the IP address is leased to the
DHCP client.
Click Refresh to refresh the DHCP Client List.
Manage the Extended Network and Security Settings 21
![](/img.php?id=2861569&img=bg1d.png)
More Functions
This chapter covers the following topics:
Entertainment Adapter
Entertainment Adapter
The extender TL-WA850RE can be used as a wireless adapter to connect any
Ethernet-enabled device, such as a Blu-ray player, game console, DVR, or
smart TV, to your wireless network.
After the extender connected to the Internet, you can connect an Ethernet-
enabled device to the extender using an Ethernet cable.
5
More Functions 22
![](/img.php?id=2861569&img=bg1e.png)
Manage the Extender
This chapter covers the following topics:
LED Control
Firmware Upgrade
Backup & Restore
Factory Defaults
System Log
Reboot
Logout
LED Control
LED Control can turn off the LEDs at the specific time. The extender can still work
normally after the LEDs are off.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings-> System Tools -> Time Settings webpage. Select the Time
Zone of your location. Click Save to save your settings.

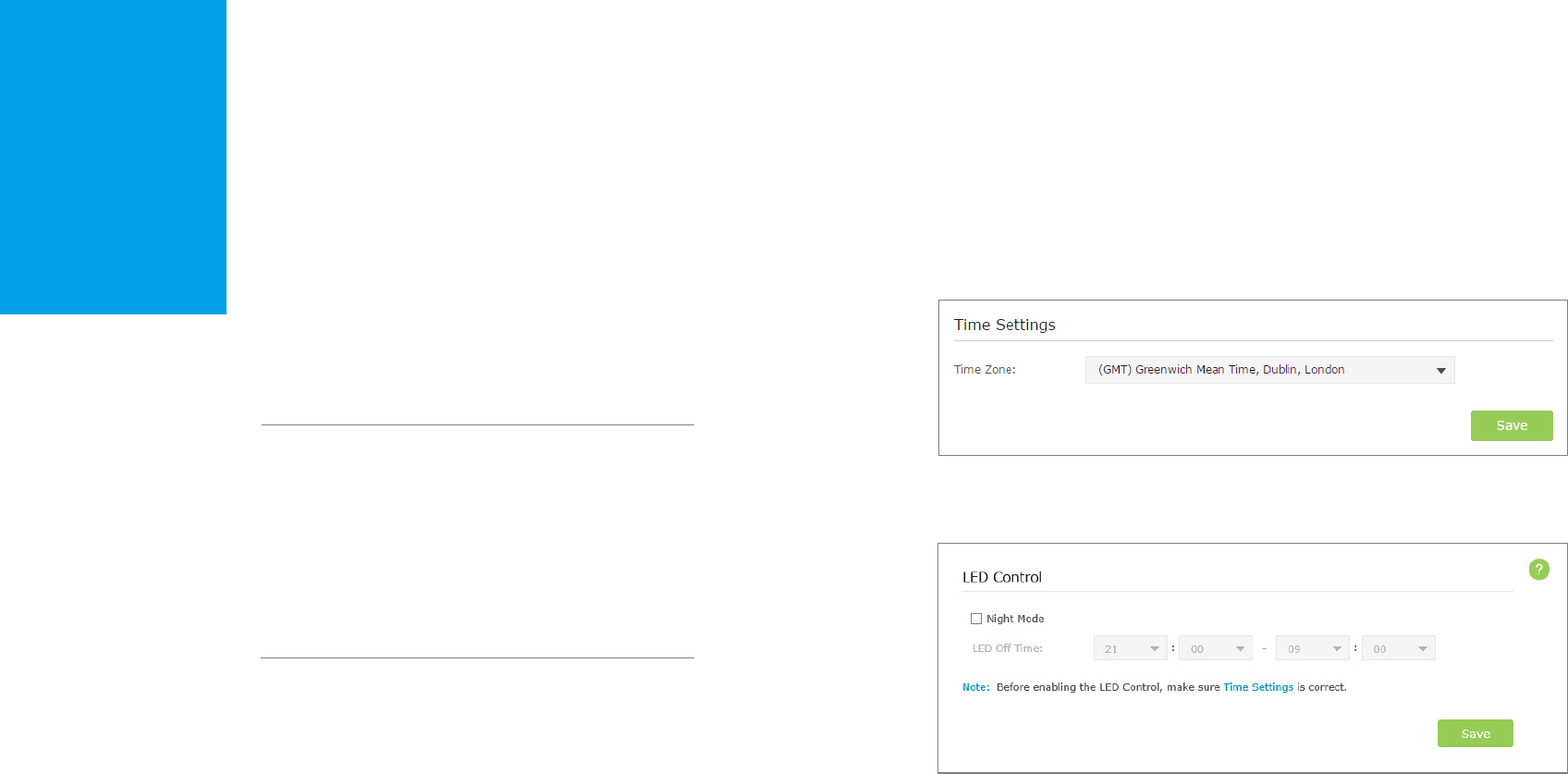

2) Go to Settings-> System Tools -> LED Control webpage, then set the
time to turn off the LEDs.
● Night Mode
:
If the Night Mode box is checked, all the LEDs are off in
the setting time.
6
Manage the Extender 23
![](/img.php?id=2861569&img=bg1f.png)
● LED Off Time: Set the time to turn off the LEDs.
Click Save to save your settings.
Firmware Upgrade
1) Launch a web browser and type in http://tplinkrepeater.net,then go to
Settings->System Tools->Firmware Upgrade webpage.
2) You can view the firmware version and the software version. Search the
latest firmware of your extender from the Support page at www.tp-
link.com. Then download the latest firmware upgrade file to your
computer.
3) Click Browse to locate and select the downloaded file.
4) Click Upgrade. The upgrade takes a few minutes to complete and the
extender will automatically reboot itself when finished.
Backup & Restore
It is highly recommended to backup your current configurations, in case a
recovery is needed to restore the system to a previous state or from the factory
defaults.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->System Tools->Backup & Restore webpage.
2) Backup and restore the configuration on the Backup & Restore page.
● Configuration Backup
Click Backup to save your current configurations as a config.bin file on
your computer. Make sure to save it in a safe location where you can
retrieve it when needed.
● Configuration Restore
Click Browse to locate and select your backup file. Click Restore and then
YES to restore the extender. The restore process may take a few minutes
to complete and the extender will automatically reboot itself when finished.
Please DO NOT power off the extender during the
upgrade process.
Please DO NOT power off the extender during the
backup process.
Manage the Extender 24
![](/img.php?id=2861569&img=bg20.png)
Factory Defaults
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->System Tools-> Backup & Restore webpage.
2) Click Factory Restore to reset your extender to its factory default settings
in the figure below.
System Log
1) Launch a web browser and type in http://tplinkrepeater.net,then go to
Settings->System Tools-> System Log webpage.
2) You can select the Log Type and Log Level in the Log Filter drop-down
list. Here you can quickly trace the logs which you want to view.
You can also click the following buttons to apply the settings.
Click Refresh to update the system log.
Please DO NOT power off the extender during the restore
process.
Factory Restore will erase all settings that you have configured
for the extender. To re-login to the extender's management
page, use the default admin for both username and password.
Manage the Extender 25
Click Delete All to permanently remove all logs.
Click Save Log to save the system log as a .txt file on your
computer.
Reboot
1) Launch a web browser and type in http://tplinkrepeater.net.
2) Click Reboot on the top right corner to reboot the extender.
Logout
1) Launch a web browser and type in http://tplinkrepeater.net.
2) Click Logout on the top right corner to log out the management webpage
safely.
Manage the Extender 26
![](/img.php?id=2861569&img=bg22.png)
Appendix Appendix Appendix
AppendixAppendix
This chapter covers the following topics:
Factory Defaults
Troubleshooting
Specifications
Glossary
Factory Defaults
Name Status
Common Default Settings
Username admin
Password admin
IP Address 192.168.0.254
Subnet Mask 255.255.255.0
Domain http://tplinkrepeater.net
Wireless
SSID TP-LINK_Extender_XXXXXX
Wireless Security Disabled
Access Control Disabled
7
Appendix 27
![](/img.php?id=2861569&img=bg23.png)
Troubleshooting
T1. How do I restore my extender’s configuration to its factory default settings?
There are two ways to reset the extender:
● Option One: With the extender powered on, use a pin to press and hold
the RESET button until all LEDs turn on momentarily, then release the
button.
● Option Two: Restore the default settings from “System Tools > Restore
& Backup” of the extender's Web-based Management page.
T2. What can I do if I forget my login password?
● Restore the extender’s configuration to its factory default settings. If you
don’t know how to do that, please refer to previous T1;
● Use the default username and password: admin, admin;
● Try to reconfigure your extender by following the instructions of this
guide.
T3. What can I do if I cannot access the web-based configuration page?
● Check to verify all the connections (either wireless or wired ones) are
proper. If yes, please proceed to the next step; otherwise, check the
connections again.
● Try to obtain an IP address and gateway; if succeed, open your web-
browser, enter the default domain http://tplinkrepeater.net in the address
field and get logged in. If you are unable to log in, please RESET the
device, and then use the default IP address to get into the web-based
configuration page, reconfigure the device.
● Feel free to contact our technical support, if the problem still persists.
T4. How can I know that my wireless signal has been repeated and boosted
by TL-WA850RE?
An easy way is to compare the signal strength of your target wireless
network (symbolized by its SSID), with TL-WA850RE in operation vs. out
of operation. Before comparison, you’d better make sure your computer
can obtain an IP address from your target wireless network and thus access
the Internet, either via TL-WA850RE or without.
T5. Will the extender work if I connect the ETHERNET port of it to the router
via Ethernet cable?
Sorry, it won’t work. The extender is designed to connect wirelessly to the
router, while the ETHERNET port is designed to connect with a wired
device, like Internet TV, Gaming console, DVR and so on.
T6. Why does the wireless transmission rate speed down, while the wireless
signal is stronger after repeated by TL-WA850RE?
In compliance with the wireless transmission protocol, all the extender
devices are set to work in half-duplex instead of full-duplex mode. In other
words, the extender has to process one-way communication between your
root Wireless router (or AP) and the terminal clients; so the transmission
time will be double-increased, while the speed will be decreased. TP-LINK
recommends that you connect to the extender when your home network
connection is poor, or when you want a larger wireless coverage to
eliminate “dead zones”.
Once the extender is reset, the current configuration settings
will be lost and you will need to reconfigure it.
Appendix 28
![](/img.php?id=2861569&img=bg24.png)
Specifications
General
Standards and
Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.11n, IEEE
802.11b, IEEE 802.11g, TCP/IP, DHCP
Safety & Emission
CE
Ports
One 10/100M Auto-Negotiation LAN RJ45 port
Wireless
Frequency
Band
2.4~2.4835GHz
Radio Data Rate
11n:up to 300Mbps
11g:54/48/36/24/18/12/9/6Mbps
11b:11/5.5/2/1Mbps
Security WEP, WPA-PSK, WPA2-PSK
Physical and Environment
Working Temperature 0℃~40℃ (32℉~104℉)
Working Humidity 10% ~ 90% RH, Non-condensing
Storage Temperature -40℃~70℃(-40℉~158℉)
Storage Humidity 5% ~ 95% RH, Non-condensing
Glossary
● 802.11b - The 802.11b standard specifies a wireless networking at 11
Mbps using direct-sequence spread-spectrum (DSSS) technology and
operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption
for security. 802.11b networks are also referred to as Wi-Fi networks.
● 802.11g - specification for wireless networking at 54 Mbps using direct-
sequence spread-spectrum (DSSS) technology, using OFDM modulation
and operating in the unlicensed radio spectrum at 2.4GHz, and backward
compatibility with IEEE 802.11b devices, and WEP encryption for security.
● 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO
(multiple-input multiple-output). MIMO uses multiple transmitter and
receiver antennas to allow for increased data throughput via spatial
multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced
Wireless Consortium (EWC) was formed to help accelerate the IEEE
802.11n development process and promote a technology specification for
interoperability of next-generation wireless local area networking (WLAN)
products.
● Range Extender - A wireless LAN transceiver or "base station" that can
connect a wired LAN to one or many wireless devices. Access points can
also bridge to each other.
● Domain Name System – An Internet Service that translates the names of
websites into IP addresses.
● Domain Name - A descriptive name for an address or group of addresses
on the Internet.
● ISP (Internet Service Provider) - A company that provides access to the
Internet.
● MTU (Maximum Transmission Unit) - The size in bytes of the largest
Appendix 29
packet that can be transmitted.
● SSID - A Service Set Identification is a thirty-two character (maximum)
alphanumeric key identifying a wireless local area network. For the wireless
devices in a network to communicate with each other, all devices must be
configured with the same SSID. This is typically the configuration
parameter for a wireless PC card. It corresponds to the ESSID in the
wireless Access Point and to the wireless network name.
● WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a
64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE
802.11 standard.
● Wi-Fi –A trademark of the Wi-Fi Alliance and the brand name for products
using the IEEE 802.11 family of standards.
● WLAN (Wireless Local Area Network) - A group of computers and
associated devices communicate with each other wirelessly, which network
serving users are limited in a local area.
● WPA (Wi-Fi Protected Access) - WPA is a security technology for wireless
networks that improves on the authentication and encryption features of
WEP (Wired Equivalent Privacy). In fact, WPA was developed by the
networking industry in response to the shortcomings of WEP. One of the
key technologies behind WPA is the Temporal Key Integrity Protocol (TKIP).
TKIP addresses the encryption weaknesses of WEP. Another key
component of WPA is built-in authentication that WEP does not offer. With
this feature, WPA provides roughly comparable security to VPN tunneling
with WEP, with the benefit of easier administration and use. This is similar
to 802.1x support and requires a RADIUS server in order to implement. The
Wi-Fi Alliance will call this, WPA-Enterprise. One variation of WPA is called
WPA Pre Shared Key or WPA-Personal for short - this provides an
authentication alternative to an expensive RADIUS server. WPA-Personal
is a simplified but still powerful form of WPA most suitable for home Wi-Fi
networking. To use WPA-Personal, a person sets a static key or
"passphrase" as with WEP. But, using TKIP, WPA-Personal automatically
changes the keys at a preset time interval, making it much more difficult for
hackers to find and exploit them. The Wi-Fi Alliance will call this, WPA-
Personal.
Appendix 30
