TRENDNET TEW733GR N300 Wireless Gigabit Router User Manual
TRENDNET, Inc. N300 Wireless Gigabit Router
TRENDNET >
User Manual
![](/img.php?id=1958317&img=bg1.png)
TRENDnetUser’sGuideCoverPage
TEW-733GR
User’s Guide
![](/img.php?id=1958317&img=bg2.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTableofContents
i
Contents
Product Overview .......................................................................... 3
Package Contents ............................................................................................. 3
Features ............................................................................................................. 3
Product Hardware Features ............................................................................... 4
Installation ..................................................................................... 5
Wireless Performance Considerations .............................................................. 5
Hardware Installation ......................................................................................... 6
Connect to an Existing Router ........................................................................... 6
Configuration ................................................................................. 7
Log in the Web-based Management ................................................................. 7
Main > Wizard .................................................................................................... 7
Welcome to the Setup Wizard ....................................................................... 7
Step 1: Check Internet Connection ................................................................ 8
Step 2: Configure Your Internet Connection ................................................. 8
Step 3: Confirm Wi-Fi Settings .................................................................... 10
Main > LAN ...................................................................................................... 11
Main > WAN ..................................................................................................... 13
Internet Connection Type – Static IP ........................................................... 14
Internet Connection Type – Dynamic IP (DHCP) ........................................ 15
Internet Connection Type – PPPoE (Username / Password) ..................... 15
Internet Connection Type – PPTP (Username / Password) ........................ 17
Internet Connection Type – L2TP (Username / Password)......................... 18
Internet Connection Type – DS-Lite ............................................................ 19
Main > Password ............................................................................................. 19
Main > Time ..................................................................................................... 20
Main > Dynamic DNS ...................................................................................... 21
Main > IPv6 ...................................................................................................... 22
IPv6 Connection Type – Auto Detection ...................................................... 23
IPv6 Connection Type – Static IPv6 ............................................................ 24
IPv6 Connection Type – Auto-configuration (SLAAC/DHCPv6) .................. 25
IPv6 Connection Type – PPPoE .................................................................. 26
IPv6 Connection Type – IPv6 in IPv4 Tunnel .............................................. 27
IPv6 Connection Type – 6to4 ....................................................................... 28
IPv6 Connection Type – 6rd ......................................................................... 29
IPv6 Connection Type – Link-local Only ...................................................... 30
Wireless > Basic ............................................................................................... 30
Wireless Security Mode – None ................................................................... 32
Wireless Security Mode – WEP ................................................................... 32
Wireless Security Mode – WPA-Personal .................................................... 33
Wireless Security Mode – WPA-Enterprise ................................................. 34
Wireless > Advanced ....................................................................................... 35
Wireless > Wi-Fi Protected Setup .................................................................... 35
Status > Device Information ............................................................................. 38
Status > Log ..................................................................................................... 39
Status > Statistic .............................................................................................. 40
Status > Active Sessions .................................................................................. 41
Status > Wireless ............................................................................................. 41
Status > IPv6 .................................................................................................... 42
Routing > Static ................................................................................................ 42
Routing > Routing Table .................................................................................. 43
Access > MAC Filters ....................................................................................... 43
Access > Protocol / IP Filter ............................................................................. 44
Access > Virtual Server .................................................................................... 45
Access > Firewall & DMZ ................................................................................. 46
Access > Port Forwarding ................................................................................ 47
Access > Application Rules .............................................................................. 48
![](/img.php?id=1958317&img=bg3.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTableofContents
ii
Access > Internet Bandwidth Control .............................................................. 49
Access > Guest Zone ...................................................................................... 50
Access > Advanced Network ........................................................................... 50
Access > Parental Control ............................................................................... 51
Tools > Restart ................................................................................................ 52
Tools > Firmware ............................................................................................. 52
Tools > Ping Test ............................................................................................. 53
Tools > Email Settings ..................................................................................... 53
Tools > Syslog ................................................................................................. 54
Tools > Schedules ........................................................................................... 55
Networking Basics ...................................................................... 55
Wireless Basics ........................................................................... 56
Wireless Security ........................................................................ 58
Frequently Asked Questions ...................................................... 58
Technical Specifications............................................................. 59
![](/img.php?id=1958317&img=bg4.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
3
ProductOverview
Package Contents
The package includes:
• TEW-733GR Wireless Router
• CD-ROM (Utility & User’s Guide)
• Multi-language Quick Installation Guide
• Network cable (1.5m / 5ft)
• Power adapter (12V DC, 1A)
Ifanypackagecontentsaremissingordamaged,pleasecontacttheretailstore,online
retailer,orreseller/distributorthattheitemwaspurchased.
Features
TRENDnet TEW-733GR Single Band Wireless Router produces the ultimate
wireless experience with gigabit wireless speed. It provides up to 300Mbps
wireless connection in 2.4GHz band and draft 802.11n wireless clients.
• 4 x 10/100/1000Mbps Auto-MDIX LAN ports
• 1 x 10/100/1000Mbps Internet Port
• 1 x Wi-Fi Protected Setup (WPS) button
• On / Off power switch
• Compliant with IEEE 802.11b/g
• Compliant with IEEE 802.11n 2.0
• Compliant with IEEE 802.3 and 802.3u
• Compatible with most popular cable / DSL Internet Service Providers
using Dynamic/Static IP, PPPoE, PPTP, L2TP and DS-Lite connection
• One touch wireless connection using the WPS button
• Easy setup via Web browser
• User-friendly Setup Wizard
![](/img.php?id=1958317&img=bg5.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
4
Product Hardware Features
Rear Panel View
• Reset Button Press and hold this button for 10 seconds to reset your
router to default settings.
• WPS Button – Push and hold this button for 5 seconds to activate WPS.
• LAN Ports – Connect Ethernet cables (also called network cables) from
your router LAN ports to your wired network devices.
• WAN Port – Connect an Ethernet cable from your router WAN port to
your modem.
• Power Port – Connect the included power adapter from your router
power port and to an available power outlet.
Note: Use only the adapter that came with the router.
• ON/OFF Button – Press the button to power on and off.
LAN Ports
Reset Button
WPS Button
WAN Port
Power Port
ON/OFF Button
![](/img.php?id=1958317&img=bg6.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
5

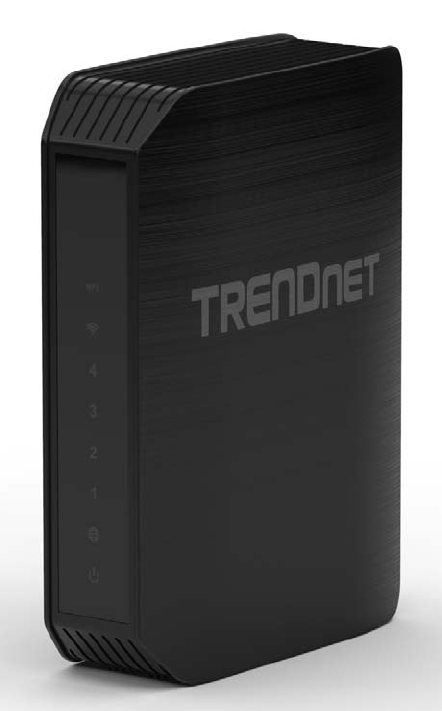

Front Panel View
• WPS LED – This indicator is turned on and blinks when WPS is
activated. The LED will turn off automatically once WPS is completed.
• Wireless LAN LED – This indicator lights on when the Router hosts the
wireless network.
• LAN LEDs – This indicator lights when there is a connection on the port.
• WAN LED – This indicator lights green when the WAN port is physically
connected to the modem Network port.
• Power LED - This indicator lights on when the router is powered on.
Installation
Placement of the router is very important. Do not place the router in an enclosed
area such as a closet, cabinet, or in the attic or garage.
Wireless Performance Considerations
The wireless router allows you to access your network using a wireless
connection from virtually anywhere within the operating range of your wireless
network. However, the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through, may limit the range. Typical
ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the router and other
network devices to a minimum - each wall or ceiling can reduce your
adapter’s range from 3-90 feet (1-30 meters.) Position your devices so
that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5
feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall
or ceiling (instead of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum
studs may have a negative effect on range. Try to position access points,
wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel,
metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick,
and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such
as ceiling fans, lights, and home security systems), your wireless
connection may degrade dramatically or drop completely. Make sure
WPS LED
Wireless LAN LED
WAN LED
Power LED
LAN LEDs
![](/img.php?id=1958317&img=bg7.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
6
your 2.4GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.
Hardware Installation
1. Turn off and unplug your cable or DSL broadband modem. This is
required.
2. Position your router close to your modem and a computer. Place the
router in an open area of your intended work area for better wireless
coverage.
3. Unplug the Ethernet cable from your modem (or existing router if
upgrading) that is connected to your computer. Plug it into the LAN port
labeled 1 on the back of your router. The router is now connected to your
computer.

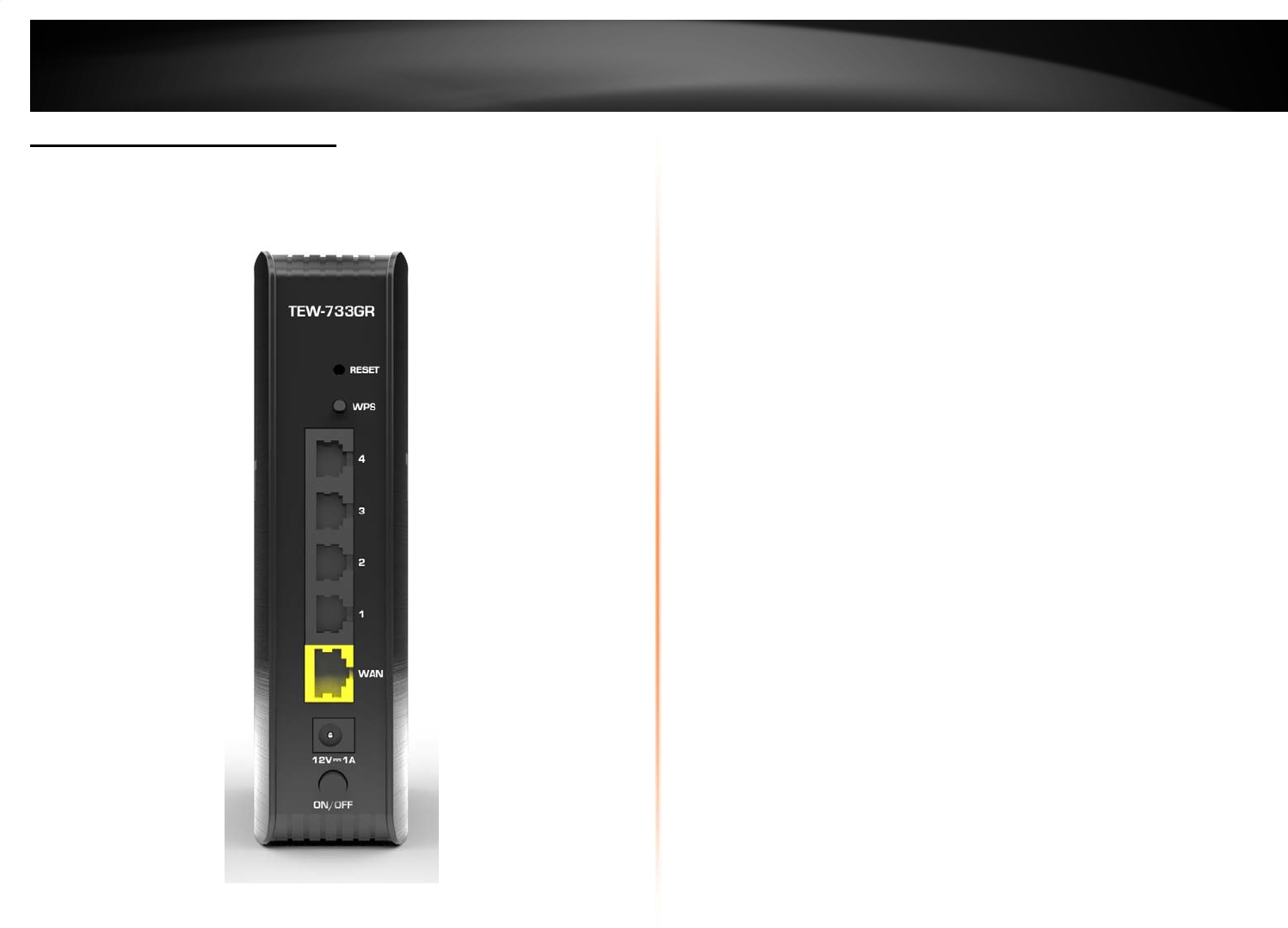

4. Plug one end of the included blue Ethernet cable that came with your
router into the yellow port labeled WAN on the back of the router. Plug
the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem
and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of
the router and then plug it into a power outlet or surge protector. Press
the power button and verify that the power LED is lit. Allow 1 minute for
the router to boot up.
7. If you are connecting to a Broadband service that uses a dynamic
connection (not PPPoE), you may be online already. Try opening a web
browser and enter a web site. If a solid light indicates connection on the
Internet port and the router can connect to the Internet. If the LED is
orange, the connection is good but the router cannot connect to the
Internet.
Connect to an Existing Router
Note: It is strongly recommended to replace your existing router with the
TEW-733GR instead of using both. If your modem is a combo router, you
may want to contact your ISP or manufacturer’s user guide to put the
router into Bridge mode, which will ‘turn off ’ the router (NAT ) functions.
If you are connecting the TEW-733GR router to an existing router to use as a
wireless access point and/or switch, you will have to do the following to the
TEW-733GR before connecting it to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network.
The LAN ports on the router cannot accept a DHCP address from your
other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the
router (LAN port) using an Ethernet cable. Make sure your IP address on
the computer is 192.168.10.xxx (where xxx is between 2 and 254).
Please see the Networking Basics section for more information. If you
need to change the settings, write down your existing settings before
making any changes. In most cases, your computer should be set to
receive an IP address automatically in which case you will not have to do
anything to your computer.
2. Open a web browser, enter http://192.168.10.1 and press <Enter>. When
the login window appears, set the user name to admin and type the
password (Web password) that can be found on the label at the bottom
of the Router. Click Login to continue.
3. Click Access > Advanced Network. Uncheck the Enable UPnP check
box. Click Save Settings to continue.
4. Click Main > LAN. Uncheck the Enable DHCP Server check box. Click
Save Settings to continue.
5. Under Router Settings, enter an available IP address and the subnet
mask of your network. Click Save Settings to save your settings. Use
this new IP address to access the configuration utility of the router in the
future. Close the browser and change your computer’s IP settings back
to the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your
computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and
connect it to your other router. Do not plug anything into the Internet
(WAN) port of the router.
8. You may now use the other 3 LAN ports to connect other Ethernet
devices and computers. To configure your wireless network, open a web
browser and enter the IP address you assigned to the router. Refer to
the Configuration and Wireless Security sections for more information on
setting up your wireless network.
![](/img.php?id=1958317&img=bg8.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
7
Configuration
Log in the Web-based Management

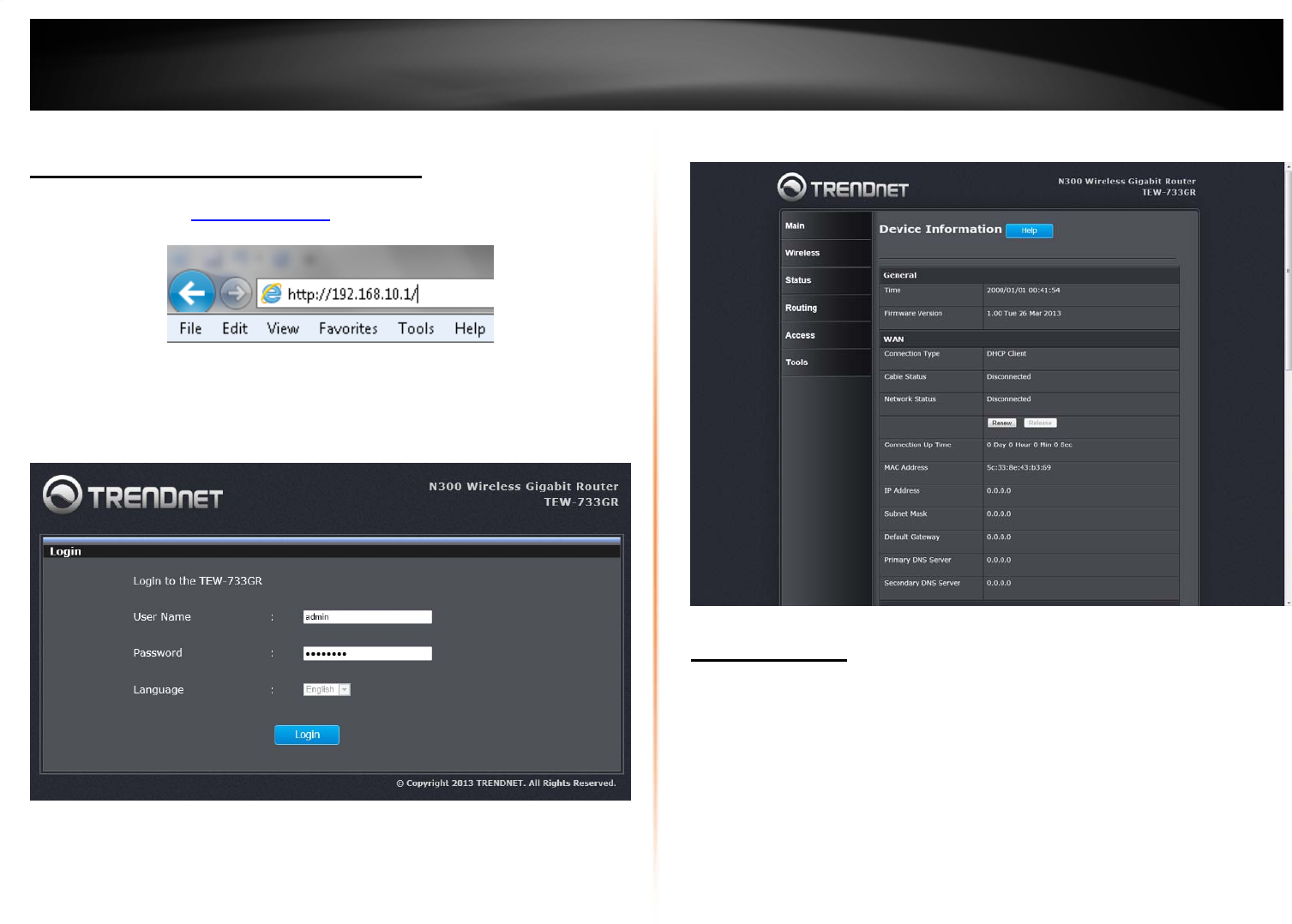

1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or
Opera) and go to http://192.168.10.1. Your router will prompt you for a user
name and password.
2. Enter the default user name and password and then click Login.
Default User Name: admin
Default Password: Check Web password on the label at the bottom of the
Router.
3. The main window appears. You can configure the router by using the Setup
Wizard or detail manual configuration.
Main > Wizard
When configuring the router for the first time, it is recommended to use the Setup
Wizard, and follow the instructions on the screen. This wizard is designed to
assist user with a quick and easy method to configure the Internet Connectivity of
this router.
Anytime during the wizard, the user can click the Cancel button to discard any
changes made and return to the main Internet page. Also, the user can click the
Prev button to return to the previous window for re-configuration.
Click Main > Wizard on the left side to access the Setup Wizard.

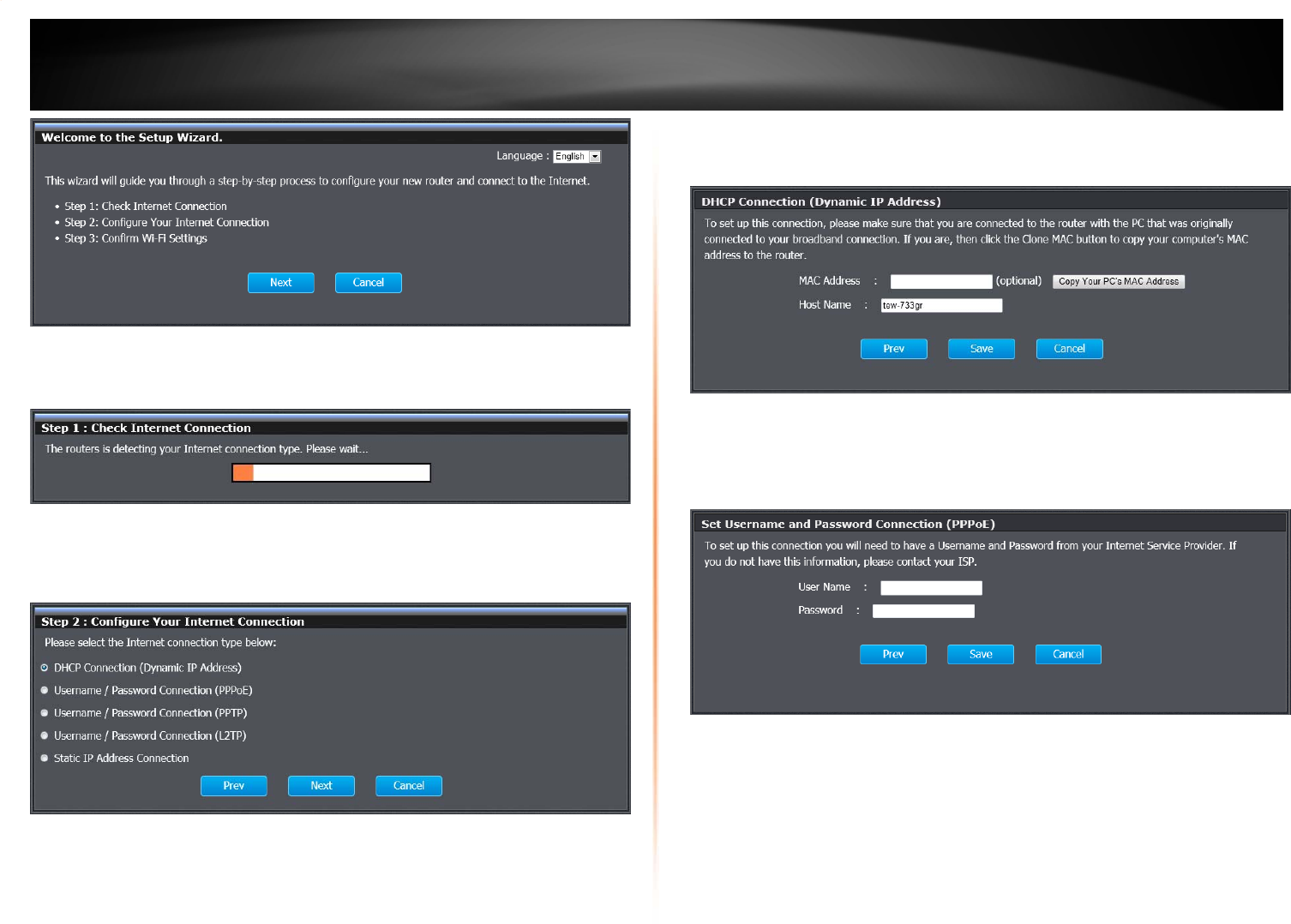

Welcome to the Setup Wizard
This is the welcome page of the Setup Wizard. Follow the instructions to setup
the router. Click Next to continue.
![](/img.php?id=1958317&img=bg9.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
8
Step 1: Check Internet Connection
The router is checking the available Internet connection type.
Step 2: Configure Your Internet Connection
Select one of the connection types for the router. Click the radio button and Next
to continue.
DHCP Connection
When selecting DHCP, this window appears for you to configure. Click Save to
implement the changes and continue.
PPPoE
When selecting PPPoE, this window appears for you to configure. Enter the
PPPoE user name and password provided by the ISP. Click Save to implement
the changes and continue.
![](/img.php?id=1958317&img=bga.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
9
PPTP
When selecting PPTP, this window appears for you to configure. Enter the PPTP
user name, password and other information provided by the ISP. Click Save to
implement the changes and continue.
L2TP
When selecting L2TP, this window appears for you to configure. Enter the L2TP
user name, password and other information provided by the ISP. Click Save to
implement the changes and continue.
![](/img.php?id=1958317&img=bgb.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
10

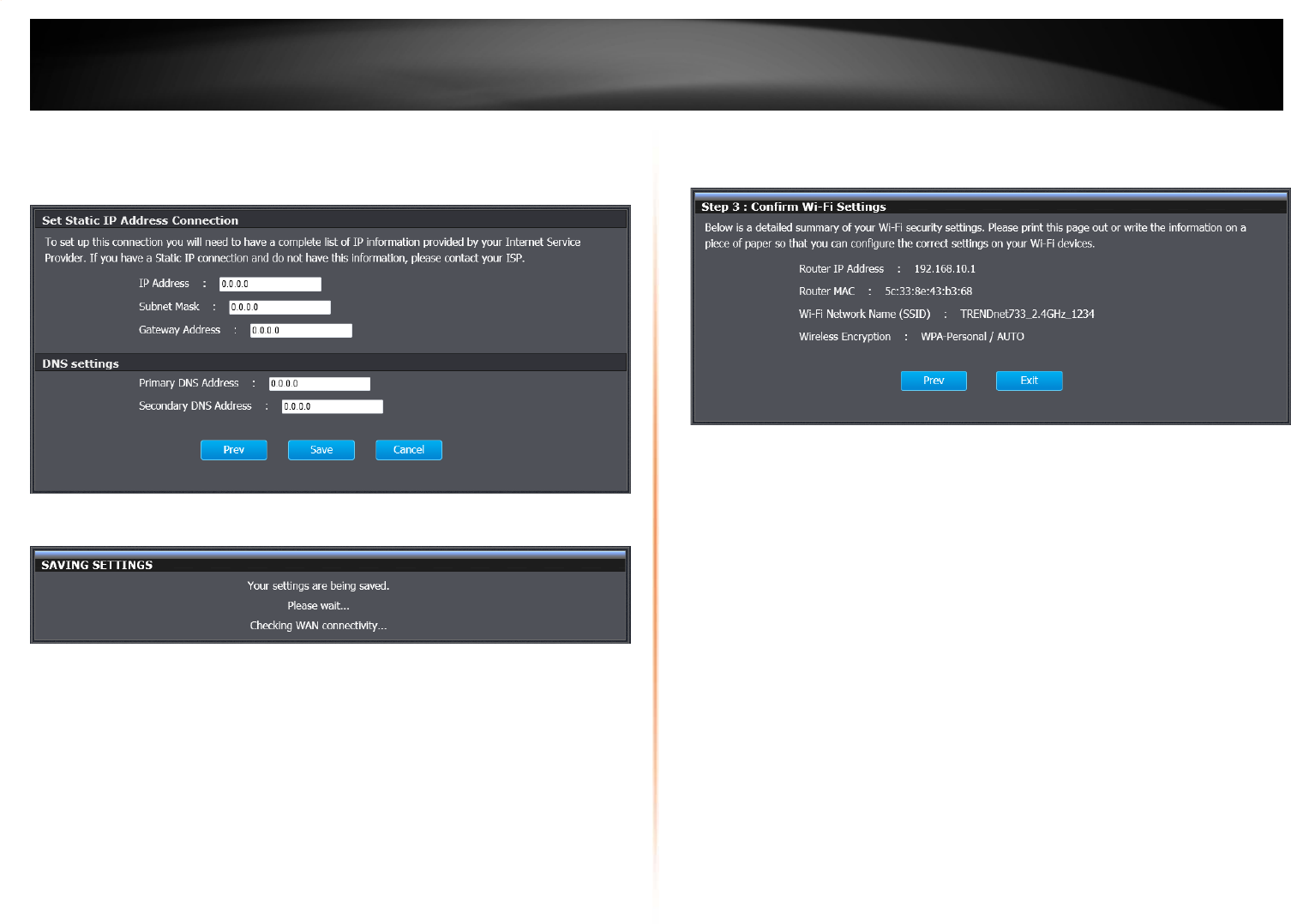

Static IP
When selecting Static IP, this window appears for you to configure. Enter the
static IP and DNS settings provided by the ISP. Click Save to implement the
changes and continue.
The router starts to check the WAN connection.
Step 3: Confirm Wi-Fi Settings
Once the router finds the correct WAN connection, the window appears providing
the information of wireless connection. Click Exit to finish the configuration.
![](/img.php?id=1958317&img=bgc.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
11
Main > LAN
This window allows you to configure the local network settings and DHCP
settings.
![](/img.php?id=1958317&img=bgd.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
12
Router Settings
Router IP Address: Enter the IP address of the router. The default IP address is
192.168.10.1. Once the IP address has been changed and saved, you will need
to enter the new IP address in the browser to get back to the web-based
management.
Default Subnet Mask: Enter the subnet mask. The default subnet mask is
255.255.255.0
Host Name: Enter a name for the router.
Local Domain Name: Enter the domain name. This is optional.
Enable DNS Relay: Uncheck the check box to transfer the DNS server
information from your ISP to your computer. If selected, your computer uses the
router for a DNS server.
DHCP Server Settings
Enable DHCP Server: Tick the check box to enable the DHCP server on the
router.
DHCP IP Address Range: Enter the starting and ending IP address for the
DHCP server’s IP assignment.
DHCP Lease Time: The length of time for the IP address lease. Enter the time in
minutes.
Always Broadcast: If all the computers on the LAN successfully obtain their IP
addresses from the router’s DHCP server as expected, this option can remain
disabled. However, if one of the computers on the LAN fails to obtain an IP
address from the router’s DHCP server, it may have an old DHCP client that
incorrectly turns off the broadcast flag of DHCP packets.
Enabling this option will cause the router to always broadcast its responses to all
clients, thereby working around the problem, at the cost of increased broadcast
traffic on the LAN.
Add DHCP Reservation
Enable: Tick the check box to enable the reservation.
Computer Name: Enter the computer name or select from the drop-down menu
and click <<.
IP Address: Enter the IP address you want to assign to the computer or device.
This IP Address must be within the DHCP IP Address Range.
MAC Address: Enter the MAC address of the computer or device.
Clone Your PC’s MAC Address: If you want to assign an IP address to the
computer you are currently on, click this button to populate the fields.
Click the Add / Update button to save the entry. Click the Clear button to delete
all the information in this section.
DHCP Reservation List
This section displays the reservation entries. The entries include host name, IP
address and MAC address. Tick the Enable check box of the corresponding
entry to enable the reservation. Click the button box of the corresponding
entry to modify the entry. Click the button of the corresponding entry to
remove the entry.
Number of Dynamic DHCP Clients
This section displays the available DHCP clients.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
![](/img.php?id=1958317&img=bge.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
13
Main > WAN
This window is used to configure the WAN settings manually. There are multiple
parameters that can be configured regarding the Internet connection.
Access Point Mode
In the Access Point Mode section, the user can enable the Access Point Mode.
This feature will change the functionality of this router completely. If this feature is
disabled, the router will function as a normal wireless router. However, after
enabling this feature all routing functionality of this device will be disabled and it
will only function as a wireless access point. Changing this device to act as a
wireless access point allows us to utilize this device to connect to another router
wirelessly. By doing so, we can utilize the IEEE 802.11n connection speed to its
optimum speed.
Enable Access Point Mode: Tick the check box to change the router to an
access point.
![](/img.php?id=1958317&img=bgf.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
14

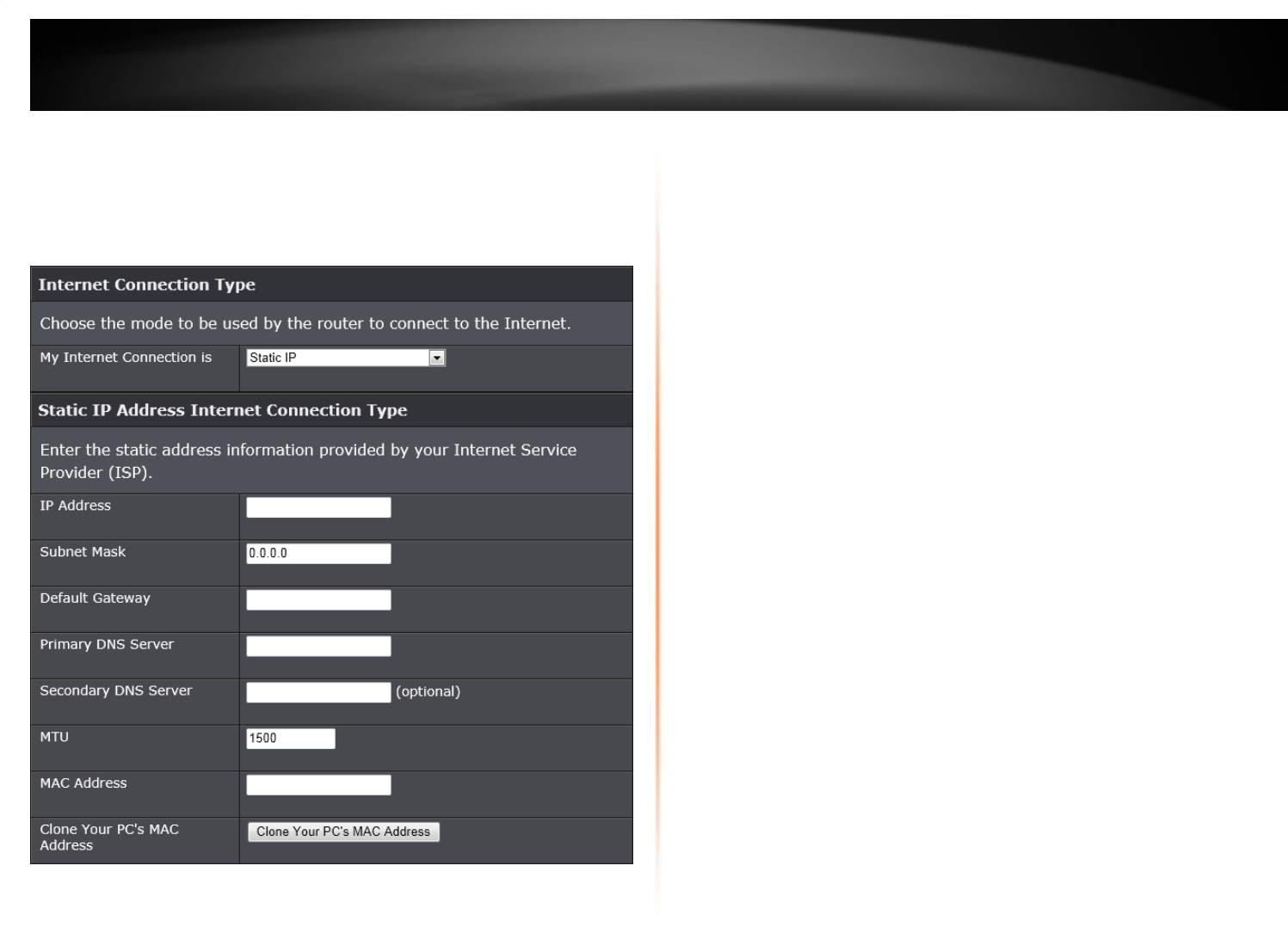

Internet Connection Type – Static IP
Select Static IP from My Internet Connection Is drop-down list if all the Internet
port’s IP information is provided to you by your ISP. You will need to enter in the
IP address, subnet mask, gateway address, and DNS address(es) provided to
you by your ISP. Each IP address entered in the fields must be in the appropriate
IP form, which are four octets separated by a dot (x.x.x.x). The Router will not
accept the IP address if it is not in this format.
IP Address: Enter the IP address assigned by your ISP.
Subnet Mask: Enter the Subnet Mask assigned by your ISP.
Default Gateway: Enter the Gateway assigned by your ISP.
Primary DNS Server: Enter the primary DNS server IP address that is supplied
by your ISP.
Secondary DNS Server: Enter the secondary DNS server IP address that is
supplied by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1500 is the default MTU.
MAC Address: The default MAC Address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP.
Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
![](/img.php?id=1958317&img=bg10.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
15

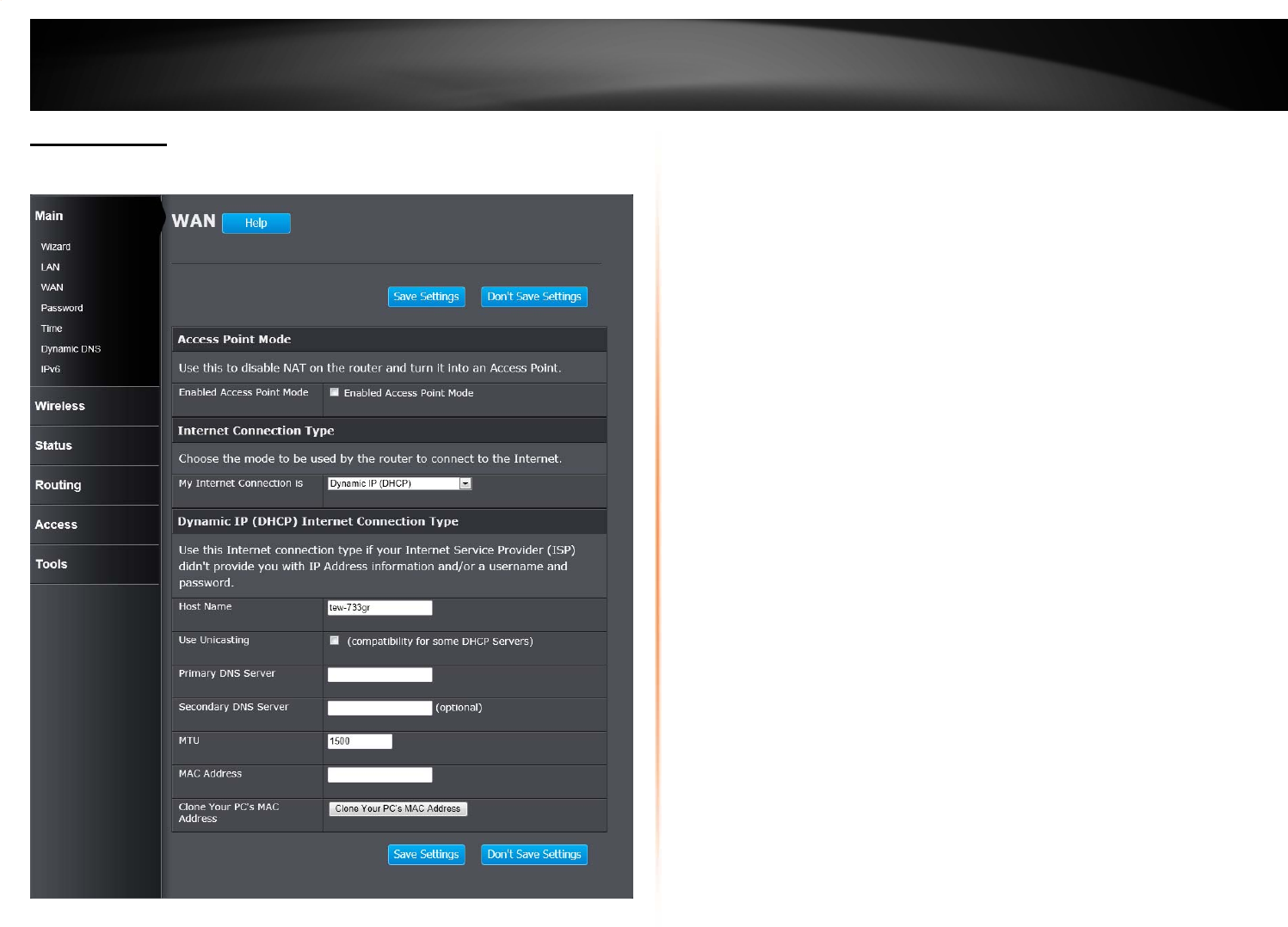

Internet Connection Type – Dynamic IP (DHCP)
The default WAN configuration for this router is Dynamic IP (DHCP). This option
allows the router to obtain an IP address automatically from the device that is
connected to the Internet port.
Host Name: The Host Name is optional but may be required by some ISPs.
Leave blank if you are not sure.
Use Unicasting: Tick this option if your ISP uses the unicast method to provide
IP addresses.
Primary DNS Server: Enter the primary DNS server IP address that is supplied
by your ISP.
Secondary DNS Server: Enter the secondary DNS server IP address that is
supplied by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1500 is the default MTU.
MAC Address: The default MAC Address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP.
Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
Internet Connection Type – PPPoE (Username / Password)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE
connection. Your ISP should provide you a username and password. This option
is typically used for DSL services. Make sure to remove your PPPoE software
from your computer. The software is no longer needed and will not work through
a router.
![](/img.php?id=1958317&img=bg11.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
16
Address Mode: Select whether this Internet connection requires the use of a
Dynamic IP or Static IP address. PPPoE usually requires a Dynamic IP
configuration.
IP Address: Enter the PPPoE IP address. This option is only available when
Static IP is selected.
Username: Enter the PPPoE account user name. This information is given by
the ISP.
Password: Enter the PPPoE account password. This information is given by the
ISP.
Verify Password: Re-enter the PPPoE account password.
Service Name: This optional field enables the user to enter a service name to
identify this Internet connection here.
Reconnect Mode: Click the radio buttons to specify the reconnect mode. The
user can specify a custom schedule or specify the On Demand, or Manual
option. To specify a custom schedule, use the drop-down menu to select one of
the schedules that has been defined in the Schedules page.
Maximum Idle Time: Enter a maximum idle time during which the Internet
connection is maintained during inactivity.
DNS Mode: When Receive DNS from ISP is selected, it allows the router to
obtain the DNS IP addresses from the ISP. When Enter DNS Manually is
selected, it allows the user to enter DNS IP address manually.
Primary DNS Server: Enter the primary DNS server IP address that is supplied
by your ISP. This field is only available when Enter DNS Manually is selected.
Secondary DNS Server: Enter the Secondary DNS IP address used here. This
field is normally optional. Only one DNS address is required for a functional
Internet connection, but using a second DNS address provides more stability.
This field is only available when Enter DNS Manually is selected.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1492 is the default MTU.
MAC Address: The default MAC Address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP.
Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
![](/img.php?id=1958317&img=bg12.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
17
Internet Connection Type – PPTP (Username / Password)
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP
connection. Your ISP should provide you a username and password. This option
is typically used for DSL services.
Address Mode: Select whether this Internet connection requires the use of a
Dynamic IP or Static IP address. PPTP usually requires a Dynamic IP
configuration.
PPTP IP Address: Enter the PPTP IP address. This option is only available
when Static IP is selected.
PPTP Subnet Mask: Enter the PPTP subnet mask.
PPTP Gateway IP Address: Enter the PPTP gateway IP address.
PPTP Server IP Address: Enter the PPTP server IP address. This is normally
the same as the PPTP gateway IP address.
Username: Enter the PPTP user name. This information is given by the ISP.
Password: Enter the PPTP password. This information is given by the ISP.
Verify Password: Re-enter the PPTP password.
Reconnect Mode: Click the radio buttons to specify the reconnect mode. The
user can specify a custom schedule or specify the On Demand, or Manual
option. To specify a custom schedule, use the drop-down menu to select one of
the schedules that has been defined in the Schedules page.
Maximum Idle Time: Enter a maximum idle time during which the Internet
connection is maintained during inactivity.
Primary DNS Server: Enter the primary DNS server IP address that is supplied
by your ISP.
Secondary DNS Server: Enter the Secondary DNS IP address used here. This
field is normally optional. Only one DNS address is required for a functional
Internet connection, but using a second DNS address provides more stability.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1492 is the default MTU.
MAC Address: The default MAC Address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP.
Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
![](/img.php?id=1958317&img=bg13.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
18
Internet Connection Type – L2TP (Username / Password)
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection.
Your ISP will provide you with a username and password. This option is typically
used for DSL services.
Address Mode: Select whether this Internet connection requires the use of a
Dynamic IP or Static IP address. L2TP usually requires a Dynamic IP
configuration.
L2TP IP Address: Enter the L2TP IP address. This option is only available when
Static IP is selected.
L2TP Subnet Mask: Enter the L2TP subnet mask.
L2TP Gateway IP Address: Enter the L2TP gateway IP address.
L2TP Server IP Address: Enter the L2TP server IP address. This is normally the
same as the L2TP gateway IP address.
Username: Enter the L2TP user name. This information is given by the ISP.
Password: Enter the L2TP password. This information is given by the ISP.
Verify Password: Re-enter the L2TP password.
Reconnect Mode: Click the radio buttons to specify the reconnect mode. The
user can specify a custom schedule or specify the On Demand, or Manual
option. To specify a custom schedule, use the drop-down menu to select one of
the schedules that has been defined in the Schedules page.
Maximum Idle Time: Enter a maximum idle time during which the Internet
connection is maintained during inactivity.
Primary DNS Server: Enter the primary DNS server IP address that is supplied
by your ISP.
Secondary DNS Server: Enter the Secondary DNS IP address used here. This
field is normally optional. Only one DNS address is required for a functional
Internet connection, but using a second DNS address provides more stability.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1492 is the default MTU.
MAC Address: The default MAC Address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP.
Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
![](/img.php?id=1958317&img=bg14.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
19

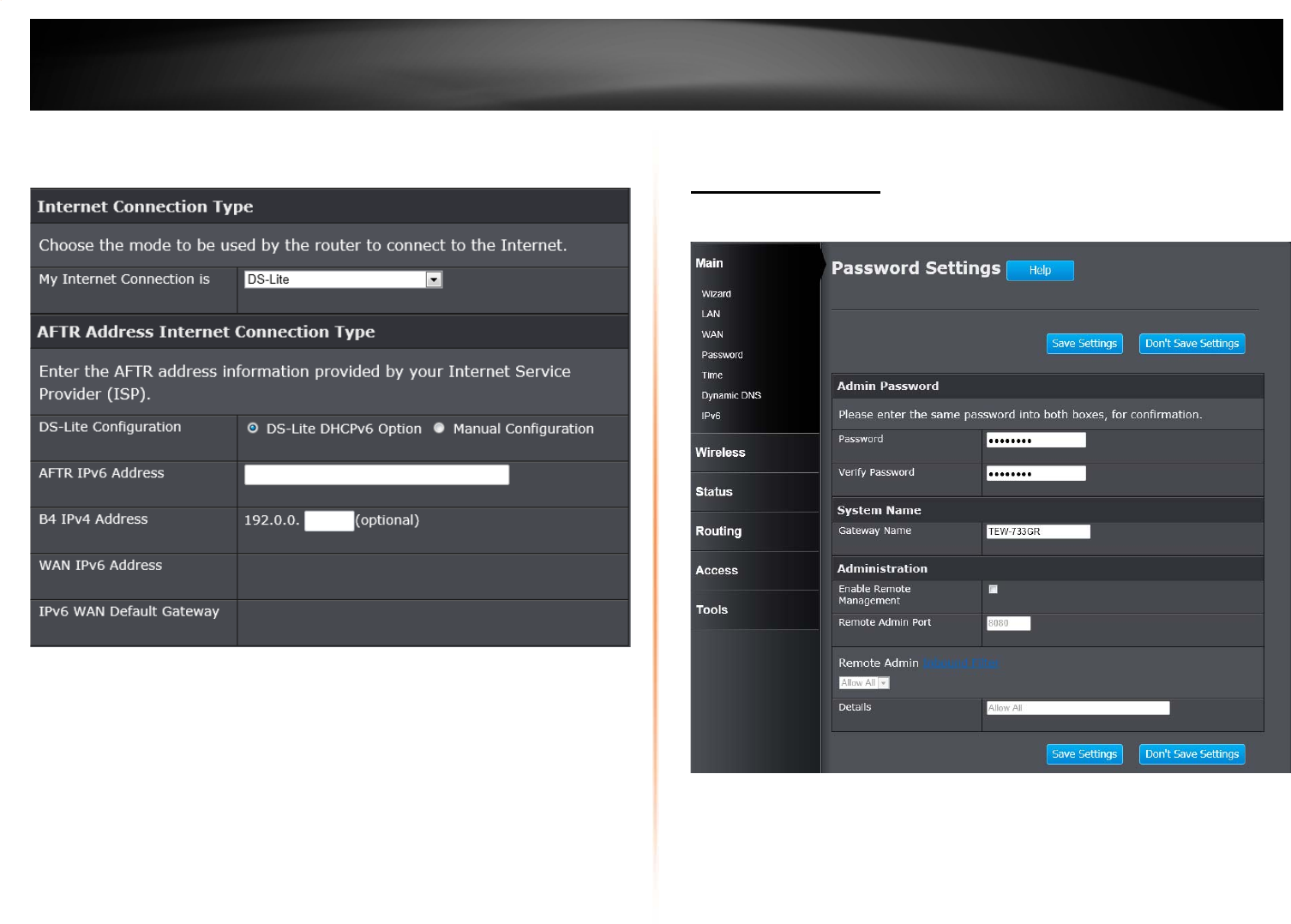

Internet Connection Type – DS-Lite
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following
parameters will be available for configuration.
DS-Lite Configuration: Click the DS-Lite DHCPv6 Option radio button to let the
router allocate the AFTR IPv6 address automatically. Click the Manual
Configuration radio button to enter the AFTR IPv6 address manually.
AFTR IPv6 Address: When Manual Configuration is selected in DS-Lite
Configuration, the user can enter the AFTR IPv6 address.
B4 IPv4 Address: Enter the B4 IPv4 address value.
WAN IPv6 Address: Once connected, the WAN IPv6 address will be displayed
here.
IPv6 WAN Default Gateway: Once connected, the IPv6 WAN Default Gateway
address will be displayed here.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Main > Password
This window allows you to change the Administrator password. You can also
enable Remote Management.
Admin Password
Password: Enter a password for the administrator login.
Verify Password: Re-type the administrator password.
System Name
Gateway Name: Enter a name for the router.
Administration
![](/img.php?id=1958317&img=bg15.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
20
Enable Remote Management: Remote management allows the router to be
configured from the Internet by a web browser. A username and password is still
required to access the Web Management interface.
Remote Admin Port: Enter the port number used to access the router. It is
required when entering the URL. Example: http://x.x.x.x:8080 whereas x.x.x.x is
the Internet IP address of the router and 8080 is the port used for the Web
Management interface.
Remote Admin Inbound Filter: Select the Remote Admin Inbound Filter rule
from the drop-down menu. Options available for selection are Allow All, and
Deny All. Alternatively, a custom inbound filter rule can be created and applied
to this parameter. Refer to Access > Protocol / IP Filters for more information
about creating custom inbound filter rules.
Details: This field displays the detail information of the selected inbound filter
rule.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Main > Time
This window allows you to configure, update, and maintain the correct time on
the internal system clock. You can set the time zone that you are in and set the
Time Server. Daylight saving can also be configured to automatically adjust the
time when needed.
Time and Date Configuration
Time: Displays the current date and time of the router
Time Zone: Select your time zone from the drop-down menu.
![](/img.php?id=1958317&img=bg16.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
21
Enable Daylight Saving: Tick the check box to enable the daylight saving when
your local time has daylight saving.
Daylight Saving Offset: Use the drop-down menu to select the daylight savings
offset from standard time.
Daylight Saving Dates: Use the drop-down menu to select the start and ed date
for daylight saving time.
Automatic Time and Date Configuration
Automatically synchronize with Internet time server: Tick the check box to
automatically synchronize the router’s time with a NTP server.
NTP Server Used: Enter the IP address of a NTP server that the router
synchronizes the time with.
Click the Update Now button to connect to the NTP server and synchronize the
time.
Set the Time and Date Manually
In this section, you can manually select the specific time for the router. Use the
drop-down menus of Year, Month, Day, Hour, Minute and Second to configure
the router’s time. You can also click the Synchronize with Your Computer’s
Time Settings button to have the router’s time the same as your local computer.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Main > Dynamic DNS
The Dynamic Domain Name Service (Dynamic DNS) feature allows you to host a
server (Web, FTP, Game Server, and so on) using a domain name that you have
purchased (www.whateveryournameis.com) with your dynamically assigned IP
address. Most broadband Internet Service Providers assign dynamic (changing)
IP addresses. Using a Dynamic DNS service provider, your friends can enter in
your domain name to connect to your server no matter what your IP address is.

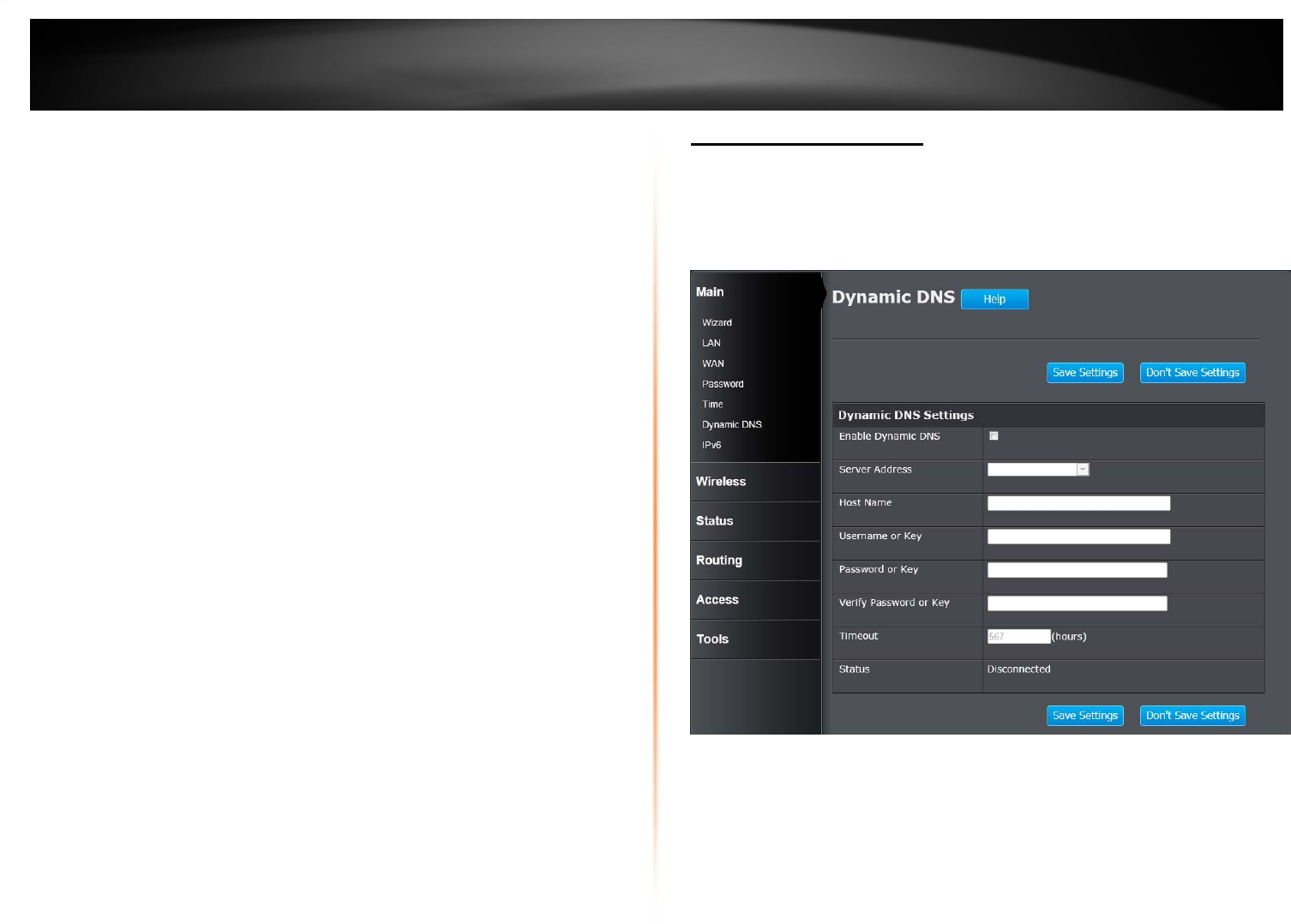

Enable Dynamic DNS: Tick the check box to enable the dynamic DNS. Dynamic
DNS is a method of keeping a domain name linked to a changing IP address.
Server Address: Click the drop-down menu to select the Dynamic DNS service
provider.
Host Name: Enter the host name that you registered with your Dynamic DNS
service provider.
Username or Key: Enter the user name or key for your Dynamic DNS account.
Password or Key: Enter the password or key for your Dynamic DNS account.
![](/img.php?id=1958317&img=bg17.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
22
Verify Password or Key: Re-type the password or key to confirm.
Timeout: Enter a timeout time in hours.
Status: Displays the current connection status.
Main > IPv6
This window allows you to configure the IPv6 connection. The available IPv6
connection are Auto Detection, Static IPv6, Auto-configuration (SLAAC/DHCPv6),
PPPoE, IPv6 in IPv4 Tunnel, 6to4, 6rd and Link-local Only.
![](/img.php?id=1958317&img=bg18.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
23
IPv6 Connection Type – Auto Detection
IPv6 DNS Settings
Obtain IPv6 DNS Servers automatically: Allows the router to automatically
obtain IPv6 DNS server IP addresses.
Use the following IPv6 DNS Servers: Manually enters the IPv6 DNS server IP
addresses.
Primary DNS Server: Enter the primary IPv6 DNS server address. This field is
only available when Use the following IPv6 DNS Servers is selected.
Secondary DNS Server: Enter the secondary IPv6 DNS server address. This
field is only available when Use the following IPv6 DNS Servers is selected.
LAN IPv6 Address Settings
Enable DHCP-PD: Tick the check box to enable the DHCP Prefix Delegation
feature.
LAN IPv6 Address: Enter the LAN IPv6 address.
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Address Auto-configuration Settings
Enable automatic IPv6 address assignment: Tick the check box to enable
automatic IPv6 address assignment.
Enable automatic DHCP-PD in LAN: Tick the check box to enable automatic
DHCP-PD in LAN.
Auto-configuration Type: The available IPv6 auto configuration types are
SLAAC+RDNSS, SLAAC+Stateless DHCP, and Stateful DHCPv6.
Router Advertisement Lifetime: Displays the router advertisement lifetime in
minutes. This field appears when SLAAC+RDNSS or SLAAC+Stateless DHCP
is selected.
IPv6 Address Range (Start): Enter the start IPv6 address in the range. This
field is only available when Stateful DHCPv6 is selected.
IPv6 Address Range (End): Enter the end IPv6 address in the range. This field
is only available when Stateful DHCPv6 is selected.
IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field
appears when Stateful DHCPv6 is selected.
![](/img.php?id=1958317&img=bg19.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
24
IPv6 Connection Type – Static IPv6
WAN IPv6 Address Settings
Use Link-local Address: Tick the check box to use the link-local address.
Deselect this to enter WAN IP information below in this section.
IPv6 Address: Enter the IPv6 address.
Subnet Prefix Length: Enter the subnet prefix length.
Default Gateway: Enter the default gateway IPv6 address.
Primary DNS Server: Enter the primary IPv6 DNS server address.
Secondary DNS Server: Enter the secondary IPv6 DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address: Enter the LAN IPv6 address.
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Address Auto-configuration Settings
Enable automatic IPv6 address assignment: Tick the check box to enable
automatic IPv6 address assignment.
Auto-configuration Type: The available IPv6 auto configuration types are
SLAAC+RDNSS, SLAAC+Stateless DHCP, and Stateful DHCPv6.
Router Advertisement Lifetime: Enter the router advertisement lifetime in
minutes. This field is only available when SLAAC+RDNSS or SLAAC+Stateless
DHCP is selected.
IPv6 Address Range (Start): Enter the start IPv6 address in the range. This
field is only available when Stateful DHCPv6 is selected.
IPv6 Address Range (End): Enter the end IPv6 address in the range. This field
is only available when Stateful DHCPv6 is selected.
IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field is
only available when Stateful DHCPv6 is selected.
![](/img.php?id=1958317&img=bg1a.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
25
IPv6 Connection Type – Auto-configuration (SLAAC/DHCPv6)
IPv6 DNS Settings
Obtain IPv6 DNS Servers automatically: Allows the router to automatically
obtain IPv6 DNS server IP addresses.
Use the following IPv6 DNS Servers: Manually enters the IPv6 DNS server IP
addresses.
Primary DNS Server: Enter the primary IPv6 DNS server address. This field is
only available when Use the following IPv6 DNS Servers is selected.
Secondary DNS Server: Enter the secondary IPv6 DNS server address. This
field is only available when Use the following IPv6 DNS Servers is selected.
LAN IPv6 Address Settings
Enable DHCP-PD: Tick the check box to enable the DHCP Prefix Delegation
feature.
LAN IPv6 Address: Enter the LAN IPv6 address.
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Address Auto-configuration Settings
Enable automatic IPv6 address assignment: Tick the check box to enable
automatic IPv6 address assignment.
Enable automatic DHCP-PD in LAN: Tick the check box to enable automatic
DHCP-PD in LAN.
Auto-configuration Type: The available IPv6 auto configuration types are
SLAAC+RDNSS, SLAAC+Stateless DHCP, and Stateful DHCPv6.
Router Advertisement Lifetime: Displays the router advertisement lifetime in
minutes. This field appears when SLAAC+RDNSS or SLAAC+Stateless DHCP
is selected.
IPv6 Address Range (Start): Enter the start IPv6 address in the range. This
field is only available when Stateful DHCPv6 is selected.
IPv6 Address Range (End): Enter the end IPv6 address in the range. This field
is only available when Stateful DHCPv6 is selected.
IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field
appears when Stateful DHCPv6 is selected.
![](/img.php?id=1958317&img=bg1b.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
26
IPv6 Connection Type – PPPoE
PPPOE Internet Connection Type
PPPoE Session: Select the PPPoE session. To share this connection with IPv4,
click the Share with IPv4 radio button. To create a new connection, click the
Create a new session radio button.
Address Mode: Select the PPPoE IP address is dynamic or static.
IP Address: Enter the static IPv6 address. This field is available when Static IP
is selected.
Username: Enter the IPv6 PPPOE username. This field is available when
Create a new session is selected.
Password: Enter the IPv6 PPPOE password. This field is available when Create
a new session is selected.
Verify Password: Re-type the IPv6 PPPOE password. This field is available
when Create a new session is selected.
Service Name: Enter the service name. This is optional. This field is available
when Create a new session is selected.
Reconnect Mode: Select the reconnect mode as Always on, or Manual.
MTU: Enter the Maximum Transmission Unit (MTU) value.
IPv6 DNS Settings
Obtain IPv6 DNS Servers automatically: Allows the router to automatically
obtain IPv6 DNS server IP addresses.
Use the following IPv6 DNS Servers: Manually enters the IPv6 DNS server IP
addresses.
Primary DNS Server: Enter the primary IPv6 DNS server address. This field is
only available when Use the following IPv6 DNS Servers is selected.
Secondary DNS Server: Enter the secondary IPv6 DNS server address. This
field is only available when Use the following IPv6 DNS Servers is selected.
LAN IPv6 Address Settings
Enable DHCP-PD: Tick the check box to enable the DHCP Prefix Delegation
feature.
LAN IPv6 Address: Enter the LAN IPv6 address.
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Address Auto-configuration Settings
Enable automatic IPv6 address assignment: Tick the check box to enable
automatic IPv6 address assignment.
Enable automatic DHCP-PD in LAN: Tick the check box to enable automatic
DHCP-PD in LAN.
![](/img.php?id=1958317&img=bg1c.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
27
Auto-configuration Type: The available IPv6 auto configuration types are
SLAAC+RDNSS, SLAAC+Stateless DHCP, and Stateful DHCPv6.
Router Advertisement Lifetime: Displays the router advertisement lifetime in
minutes. This field appears when SLAAC+RDNSS or SLAAC+Stateless DHCP
is selected.
IPv6 Address Range (Start): Enter the start IPv6 address in the range. This
field is only available when Stateful DHCPv6 is selected.
IPv6 Address Range (End): Enter the end IPv6 address in the range. This field
is only available when Stateful DHCPv6 is selected.
IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field
appears when Stateful DHCPv6 is selected.
IPv6 Connection Type – IPv6 in IPv4 Tunnel
IPv6 in IPv4 Tunnel Settings
![](/img.php?id=1958317&img=bg1d.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
28
Remote IPv4 Address: Enter the remote IPv4 address.
Remote IPv6 Address: Enter the remote IPv6 address.
Local IPv4 Address: Enter the local IPv4 address.
Local IPv6 Address: Enter the local IPv6 address.
Subnet Prefix Length: Enter the subnet prefix length value.
IPv6 DNS Settings
Obtain IPv6 DNS Servers automatically: Allows the router to automatically
obtain IPv6 DNS server IP addresses.
Use the following IPv6 DNS Servers: Manually enters the IPv6 DNS server IP
addresses.
Primary DNS Server: Enter the primary IPv6 DNS server address. This field is
only available when Use the following IPv6 DNS Servers is selected.
Secondary DNS Server: Enter the secondary IPv6 DNS server address. This
field is only available when Use the following IPv6 DNS Servers is selected.
LAN IPv6 Address Settings
Enable DHCP-PD: Tick the check box to enable the DHCP Prefix Delegation
feature.
LAN IPv6 Address: Enter the LAN IPv6 address.
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Address Auto-configuration Settings
Enable automatic IPv6 address assignment: Tick the check box to enable
automatic IPv6 address assignment.
Enable automatic DHCP-PD in LAN: Tick the check box to enable automatic
DHCP-PD in LAN.
Auto-configuration Type: The available IPv6 auto configuration types are
SLAAC+RDNSS, SLAAC+Stateless DHCP, and Stateful DHCPv6.
Router Advertisement Lifetime: Displays the router advertisement lifetime in
minutes. This field appears when SLAAC+RDNSS or SLAAC+Stateless DHCP
is selected.
IPv6 Address Range (Start): Enter the start IPv6 address in the range. This
field is only available when Stateful DHCPv6 is selected.
IPv6 Address Range (End): Enter the end IPv6 address in the range. This field
is only available when Stateful DHCPv6 is selected.
IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field
appears when Stateful DHCPv6 is selected.
IPv6 Connection Type – 6to4
![](/img.php?id=1958317&img=bg1e.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
29
WAN IPv6 Address Settings
6to4 Address: Displays the 6 to 4 IP address.
6to4 Relay: Enter the 6to4 relay address.
Primary DNS Server: Enter the primary IPv6 DNS server address.
Secondary DNS Server: Enter the secondary IPv6 DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address: Enter the LAN IPv6 address.
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Address Auto-configuration Settings
Enable automatic IPv6 address assignment: Tick the check box to enable
automatic IPv6 address assignment.
Auto-configuration Type: The available IPv6 auto configuration types are
SLAAC+RDNSS, SLAAC+Stateless DHCP, and Stateful DHCPv6.
Router Advertisement Lifetime: Displays the router advertisement lifetime in
minutes. This field appears when SLAAC+RDNSS or SLAAC+Stateless DHCP
is selected.
IPv6 Address Range (Start): Enter the start IPv6 address in the range. This
field is only available when Stateful DHCPv6 is selected.
IPv6 Address Range (End): Enter the end IPv6 address in the range. This field
is only available when Stateful DHCPv6 is selected.
IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field
appears when Stateful DHCPv6 is selected.

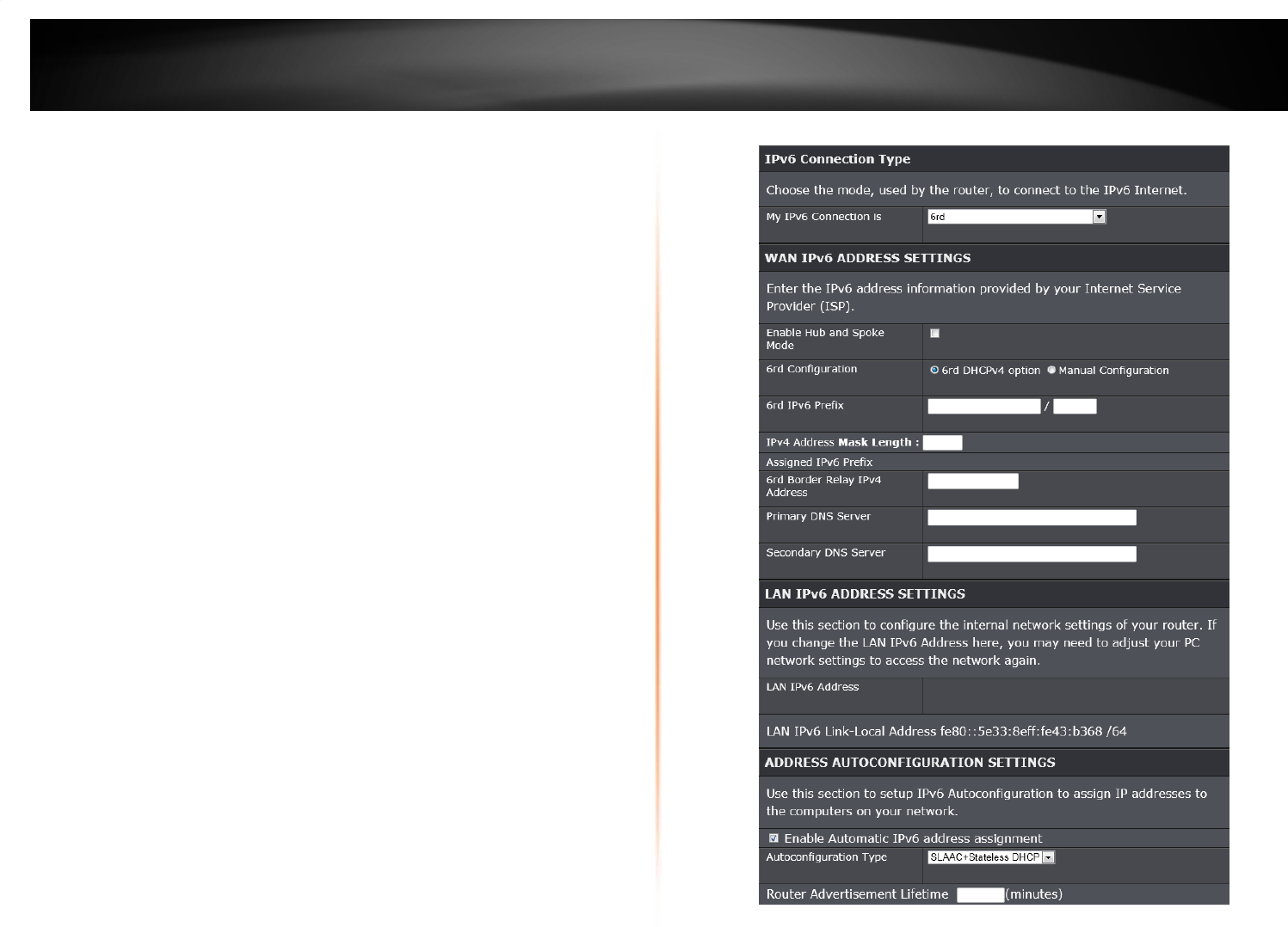

IPv6 Connection Type – 6rd
WAN IPv6 Address Settings
![](/img.php?id=1958317&img=bg1f.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
30
Enable Hub and Spoke Mode: Tick the check box to enable the hub and spoke
mode.
6rd Configuration: Select the 6rd configuration option. Options to choose from
are 6rd DHCPv4 option and Manual Configuration.
6rd IPv6 Prefix: Enter the 6rd IPv6 address and prefix value.
IPv4 Address Mask Length: Enter the IPv4 mask length.
Assigned IPv6 Prefix: Displays the IPv6 prefix.
6rd Border Relay IPv4 Address: Enter the 6rd border relay IPv4 address.
Primary DNS Server: Enter the primary IPv6 DNS server address.
Secondary DNS Server: Enter the secondary IPv6 DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address: This field displays the LAN IPv6 address.
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Address Auto-configuration Settings
Enable automatic IPv6 address assignment: Tick the check box to enable
automatic IPv6 address assignment.
Auto-configuration Type: The available IPv6 auto configuration types are
SLAAC+RDNSS, SLAAC+Stateless DHCP, and Stateful DHCPv6.
Router Advertisement Lifetime: Displays the router advertisement lifetime in
minutes. This field appears when SLAAC+RDNSS or SLAAC+Stateless DHCP
is selected.
IPv6 Address Range (Start): Enter the start IPv6 address in the range. This
field is only available when Stateful DHCPv6 is selected.
IPv6 Address Range (End): Enter the end IPv6 address in the range. This field
is only available when Stateful DHCPv6 is selected.
IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field
appears when Stateful DHCPv6 is selected.
IPv6 Connection Type – Link-local Only
LAN IPv6 Address Settings
LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local
address.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Wireless > Basic
This window allows you to set up wireless settings of the Router.
![](/img.php?id=1958317&img=bg20.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
31

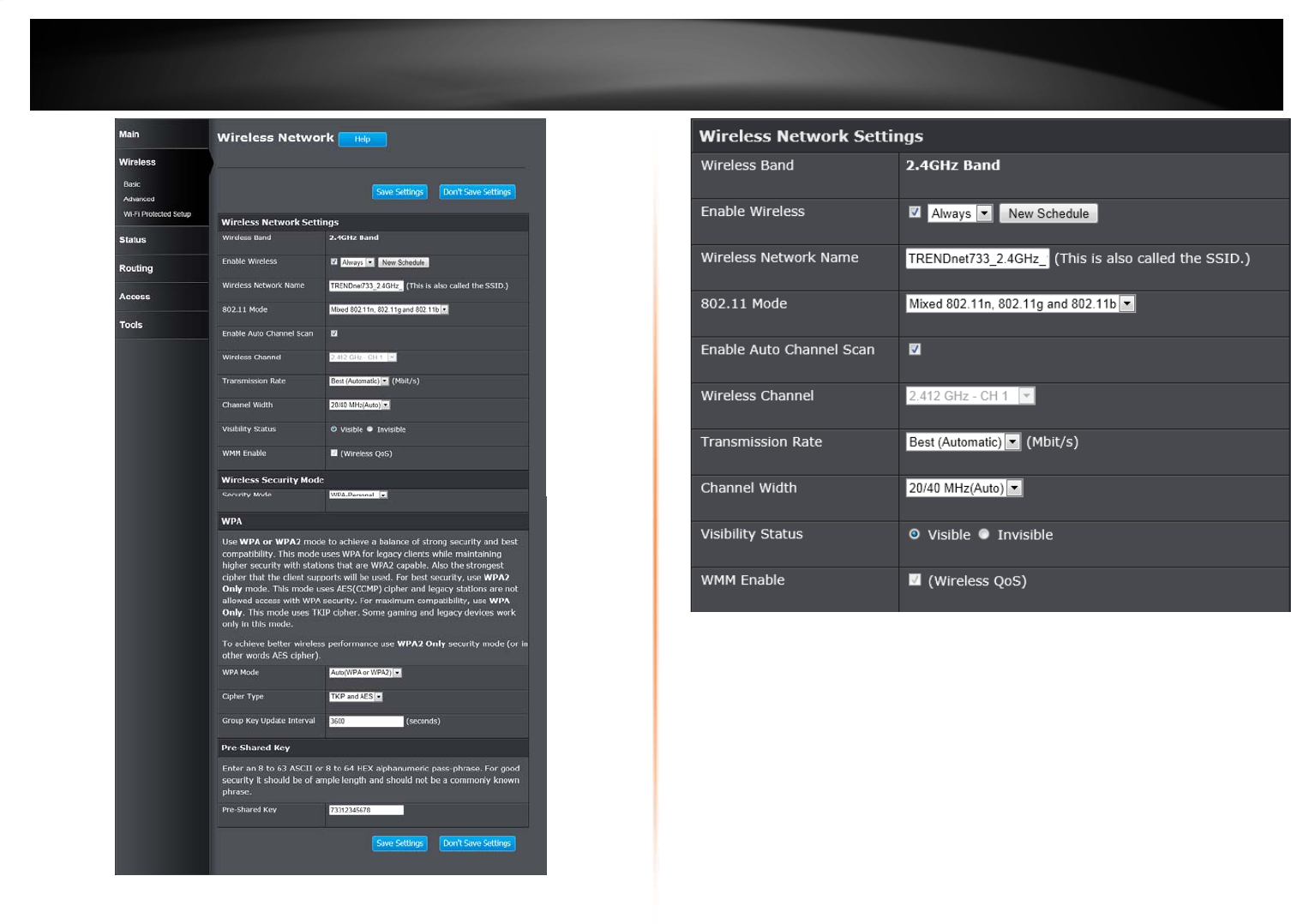

Wireless Network Settings
Wireless Band: This displays the wireless band that the Router is used.
Enable Wireless: Tick the check box to enable the wireless feature for the
2.4GHz band on this router. Use the drop-down menu to apply a time schedule to
this wireless network.
Wireless Network Name: Enter the wireless network name (SSID) (Wi-Fi
Name/SSID) that can be found on the label at the bottom of the Router. This
name will be available when wireless clients scan for available wireless networks.
However, when Visibility Status is set to Invisible, this name will not be visible
to wireless clients.
802.11 Mode: Select which 802.11 wireless modes to use from the drop-down
menu. Options to choose from are 802.11b only, 802.11g only, 802.11n only,
Mixed 802.11g and 802.11b, Mixed 802.11n and 802.11g, and Mixed 802.11n,
802.11g and 802.11b. If you are not sure, select Mixed 802.11n, 802.11g and
802.11b.
![](/img.php?id=1958317&img=bg21.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
32
Enable Auto Channel Scan: Tick the check box to allow the router to find and
use the wireless channel with the least interference in your environment.
Wireless Channel: Deselect Enable Auto Channel Scan to be able to
configure this. Use the drop-down menu to select a wireless channel.
Transmission Rate: Select the wireless transmission rate. It is advisable to keep
this option on Best (Automatic).
Channel Width: Select the wireless channel width used. Options to choose from
are 20MHz and 20/40MHz (Auto).
Visibility Status: Click Invisible to hide the Wireless SSID and Visible to reveal
it.
WMM Enable: WMM is QoS for your wireless network. This will improve the
quality of video and voice applications for your wireless clients.
Wireless Security Mode
This section allows you to select various wireless security modes. The
corresponding configuration will then appear at the bottom half of the window.
Available options are None, WEP, WPA-Personal and WPA-Enterprise.
Wireless Security Mode – None
By selecting this mode, there will be no wireless security applied to your wireless
network. This means that anyone with a wireless adapter can connect to your
network.
Wireless Security Mode – WEP
Wired Equivalent Privacy (WEP) is any entry level wireless security method that
we can use to prevent unauthorized wireless access to this router. WEP is not a
very secure option, but it is better than no wireless security.
WEP Key Length: Select the WEP Key Length value as 64 bit (10 hex digits)
or 128 bit (26 hex digits).
![](/img.php?id=1958317&img=bg22.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
33
Authentication: Select the WEP authentication option. Options to choose from
are Both and Shared Key.
WEP Key: Enter a wireless security key here. This key must be configured on all
the wireless clients for them to be able to connect to your wireless network.

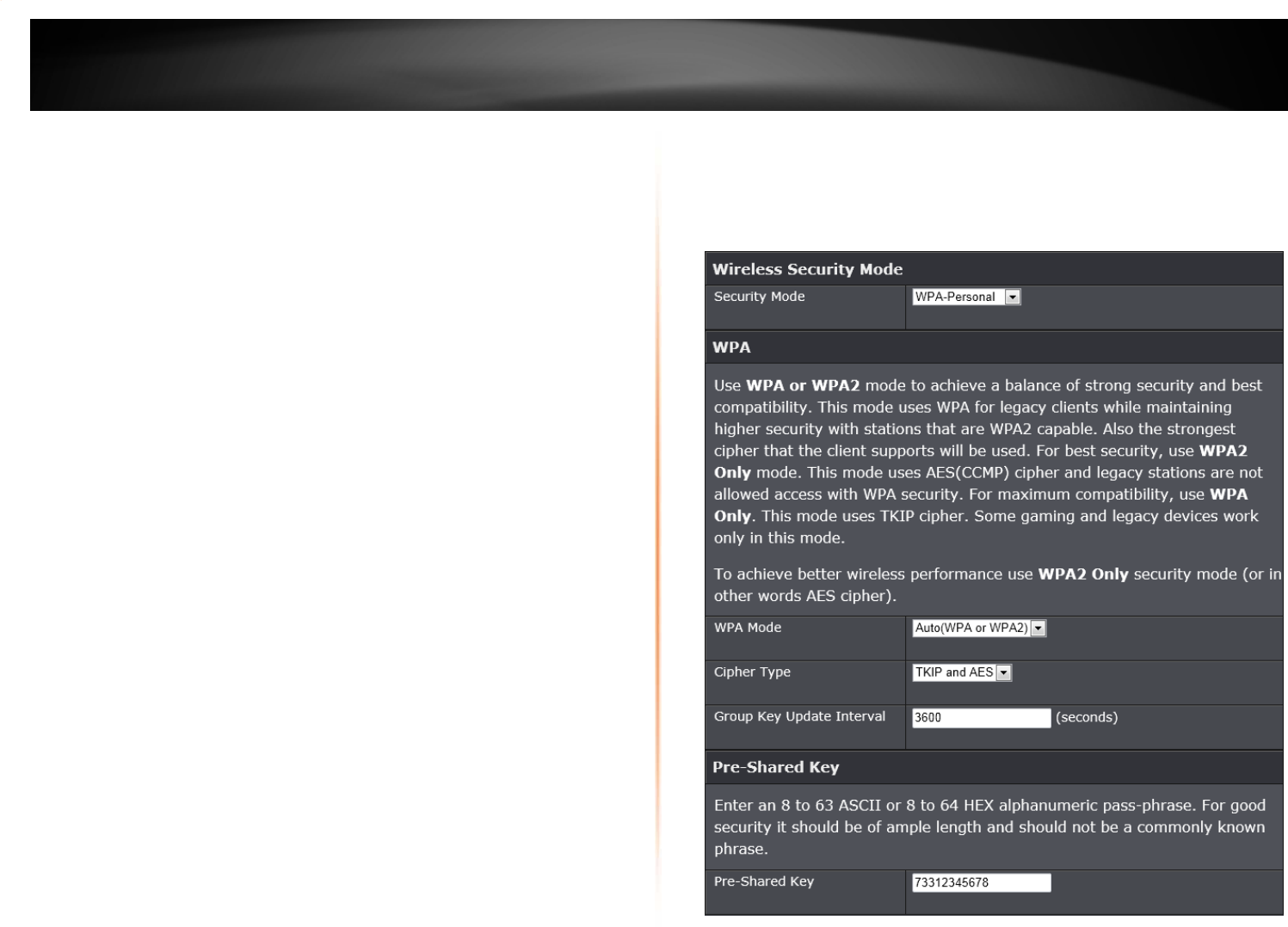

Wireless Security Mode – WPA-Personal
Wi-Fi Protected Access (WPA) is a more advanced wireless security method that
we can use to prevent unauthorized wireless access to this router. Wi-Fi
Protected Access (WPA2) is the most advanced wireless security method that
we can use to prevent unauthorized wireless access to this router.
WPA Personal does not require an authentication server.
![](/img.php?id=1958317&img=bg23.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
34
WPA Mode: Select which WPA mode to use. Options to choose from are Auto
(WPA or WPA2), WPA2 Only, and WPA Only.
Cipher Type: Select the wireless cipher type here. Options to choose from are
TKIP and AES, TKIP, and AES.
Group Key Update Interval: Enter the group key update interval time in
seconds.
Pre-shared Key
Pre-shared Key: Enter the WPA-Personal wireless Pre-Shared Key (Wi-Fi Key)
that can be found on the label at the bottom of the Router. This key must be
configured on all the wireless clients for them to be able to connect to your
wireless network.
Wireless Security Mode – WPA-Enterprise
Wi-Fi Protected Access (WPA) is a more advanced wireless security method that
we can use to prevent unauthorized wireless access to this router. Wi-Fi
Protected Access (WPA2) is the most advanced wireless security method that
we can use to prevent unauthorized wireless access to this router.
WPA-Enterprise requires the use of an external RADIUS server.
![](/img.php?id=1958317&img=bg24.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
35
WPA Mode: Select which WPA mode to use. Options to choose from are Auto
(WPA or WPA2), WPA2 Only, and WPA Only.
Cipher Type: Select the wireless cipher type here. Options to choose from are
TKIP and AES, TKIP, and AES.
Group Key Update Interval: Enter the group key update interval time in
seconds.
EAP (802.1x)
RADIUS Server IP Address: Enter the IP address of the external RADIUS
server.
RADIUS Server Port: Enter the external RADIUS server port number.
RADIUS Server Shared Secret: Enter the RADIUS server shared secret. This
key must be configured on all the wireless clients for them to be able to connect
to your wireless network.
Advance Setting: Click the Advanced >> button to configure settings for an
optional secondary RADIUS server.
Optional Backup RADIUS Server
Second RADIUS Server IP Address: Enter the IP address of the external
RADIUS server.
Second RADIUS Server Port: Enter the external RADIUS server port number.
Second RADIUS Server Shared Secret: Enter the RADIUS server shared
secret. This key must be configured on all the wireless clients for them to be able
to connect to your wireless network.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Wireless > Advanced
This window is used to configure more advanced wireless settings on the Router.
Wireless Band: Displays the wireless band that can be configured.
Transmit Power: Select the wireless transmit power for the 2.4GHz band.
Options to choose from are 100%, 50%, 25% and 12.5%.
Beacon Period: Enter the duration between beacon packets in milliseconds.
Preamble Type: Click to select Short Preamble or Long Preamble.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Wireless > Wi-Fi Protected Setup
This window is used to configure the Wi-Fi Protected Setup (WPS) settings on
the Router.
![](/img.php?id=1958317&img=bg25.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
36
Wi-Fi Protected Setup
Enable: Tick the check box to enable the Wi-Fi Protected Setup (WPS) feature.
Wi-Fi Protected Setup: Displays the status of the WPS feature.
Lock WPS-PIN Setup: Tick the check box to lock the WPS-PIN setup.
PIN Settings
PIN: Displays the WPS PIN.
Reset PIN to Default/Generate New PIN: Click the Reset PIN to Default button
to to clear the PIN number used. Click the Generate New PIN button to generate
a new WPS PIN.
Add Wireless Station
Connect your Wireless Device: Click the Connect button to initiate the Wi-Fi
Protected Setup (WPS) setup wizard.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
When clicking the Connect button in the Add Wireless Station section, the
following window appears.
Step 1: Select Configuration Method for your Wireless Network
Auto: Select this option to automatically allow the router and the wireless client
to connect to each other by means of WPS.
![](/img.php?id=1958317&img=bg26.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
37
Manual: Select this option to display the configured wireless settings. This
information can then be configured of the wireless clients manually to initiate a
wireless connection.
Click the Next button to continue to the next step.
Click the Cancel button to discard the changes made and return to the main
menu.
Step 2: Connect your Wireless Device
After selecting the Auto radio button in Step 1, the window will be available.
PIN: Select this option to use the Personal Identification Number (PIN) method
to connect the two devices. Enter the PIN number here. Enter the same
PIN number at the wireless client software.
PBC: Select this option to use the Push Button Configuration (PBC) method to
connect the two devices.
Click the Connect button to initiate the WPS connection.
Click the Prev button to return to the previous step.
Click the Cancel button to discard the changes made and return to the main
menu.
Select the PIN radio button, enter the PIN the PIN field, and click the Connect
button in Step 2, the following window will be available. The router will allow 120
seconds for the WPS connection to initiate.
Select the PBC radio button, and click the Connect button in Step 2, the
following window will be available. Press the WPS button on the wireless client to
initiate the connection within 120 seconds.
After successfully connecting the Router and the wireless client, by means of
WPS, the following window will be available.
Click the Cancel button to finish the setup and return to the main menu.
![](/img.php?id=1958317&img=bg27.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
38
Click the Wireless Status button to view information about wireless clients
connected to the router.
After selecting the Manual radio button in Step 1, the window will be available.
This information can then be configured of the wireless clients manually to initiate
a wireless connection.
Click the Prev button to return to the previous step.
Click the Cancel button to finish the setup and return to the main menu.
Click the Wireless Status button to view information about wireless clients
connected to the router.
After clicking the Wireless Status button, the following window appears.
Status > Device Information
This window displays the detail information about the Router. You can view
General, WAN, LAN, Wireless LAN, LAN Computers and IGMP Multicast
Memberships information.
![](/img.php?id=1958317&img=bg28.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
39
Status > Log
This window allows you to view and configure the system log settings for this
router.
Save Log File
You can initiate the saving of the log file to the management computer. Click the
Save button to download the log file to the management computer.
Log Type & Level
This section allows you to configure the log type and level.
Log Type: Select the log type to displayed. Available options are System,
Firewall & Security, and Router Status.
Log Level: Select the log level to be displayed Available options are Critical,
Warning, and Information.
Log Files
The system log is displayed in the section.
Click the First Page button to view the first page.
Click the Last Page button to view the last page.
Click the Previous button to view the previous page.
Click the Next button to view the next page.
Click the Clear button to the log.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
![](/img.php?id=1958317&img=bg29.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
40
Status > Statistic
This window displays the LAN, WAN and Wireless interface statistics for the
Router.
Click the Refresh Statistics button to refresh the information on this page.
Click the Reset Statistics button to clear the information on the page.
![](/img.php?id=1958317&img=bg2a.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
41
Status > Active Sessions
This window displays the active session information.
Click the Refresh button to refresh the information on this page.
Status > Wireless
This window displays a list of wireless clients connected to the Router.
![](/img.php?id=1958317&img=bg2b.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
42

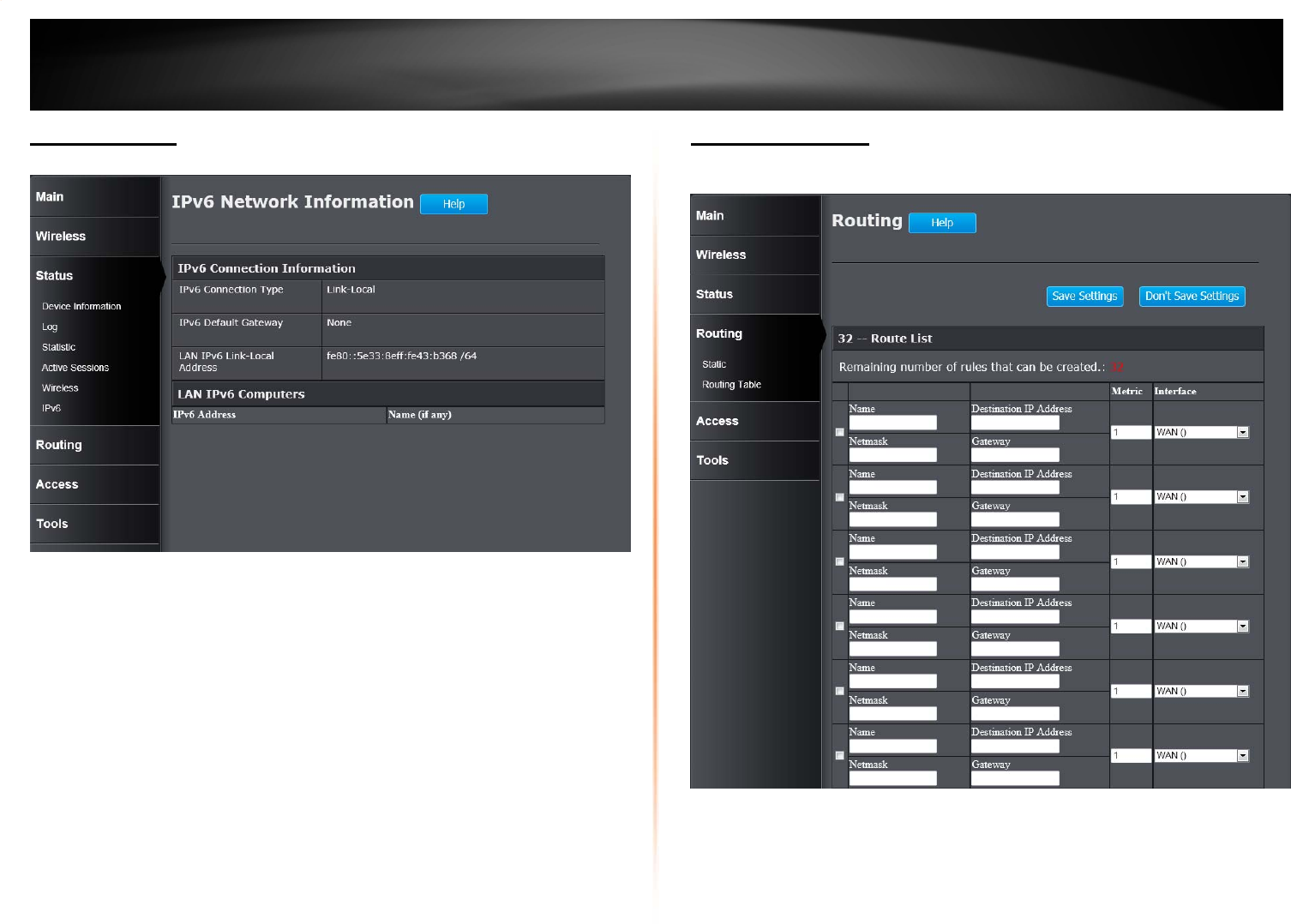

Status > IPv6
This window displays the detail IPv6 network information.
Routing > Static
This window allows you to configure IPv4 routing rules used by the Router. The
routing rules can be set up to 32 entries.
Checkbox: Tick the check box of each entry to enable the selected route.
Name: Enter the name of the route.
Netmask: Enter the Netmask address of the route.
Destination IP: Enter the destination IP address of the route.
Gateway: Enter the gateway IP address of the route.
![](/img.php?id=1958317&img=bg2c.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
43
Metric: Enter the metric value for the route.
Interface: Select the Interface that will use this route.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Routing > Routing Table
This window displays a list of active IPv4 routing sessions on the Router.
Access > MAC Filters
This window allows you to configure the MAC address filter. The rules can be set
up to 24 entries.
Configure MAC Filtering below: Select the MAC filtering method. Select Turn
MAC Filtering OFF to disable this feature. Select Turn MAC Filtering ON and
ALLOW computers listed to access the network to enable this feature and
only allow the computers, by MAC address, to access the network. Select Turn
MAC Filtering ON and DENY computers listed to access the network to
![](/img.php?id=1958317&img=bg2d.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
44
enable this feature and only deny the computers, by MAC address, access to the
network.
Checkbox: Tick the check box of each entry to enable the selected rule.
MAC Address: Enter the MAC address to be filtered.
DHCP Client List: Select the DHCP client from the drop-down menu to be
filtered.
Schedule: Select the time schedule for the rule. Click the New Schedule button
to create time schedules.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.

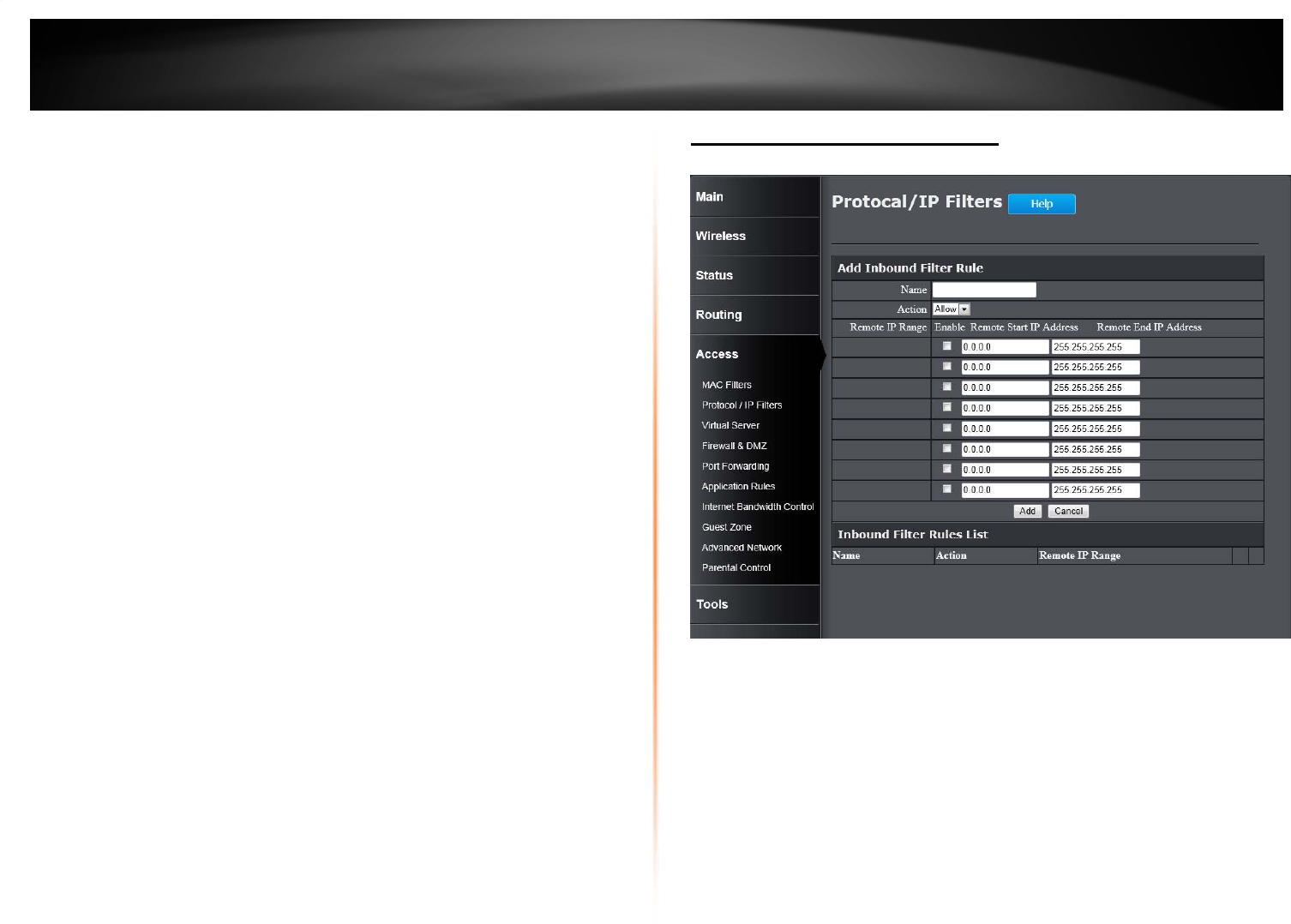

Access > Protocol / IP Filter
This window is used to configure the IP filter rules used by the Router.
Add Inbound Filter Rule
Name: Enter the name of the inbound filter rule.
Action: Select to Allow or Deny this rule.
Enable: Tick the check box of the corresponding entry to enable the rule.
Remote Start IP Address: Enter the starting remote IP address.
Remote End IP Address: Enter the ending remote IP address.
Click the Add button to add or modify the rule.
Click the Cancel button to discard the changes made.
Inbound Filter Rules List
This section displays a list of configured inbound filter rules.
![](/img.php?id=1958317&img=bg2e.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
45
Click the button box of the corresponding entry to modify the entry. Click the
button of the corresponding entry to remove the entry.

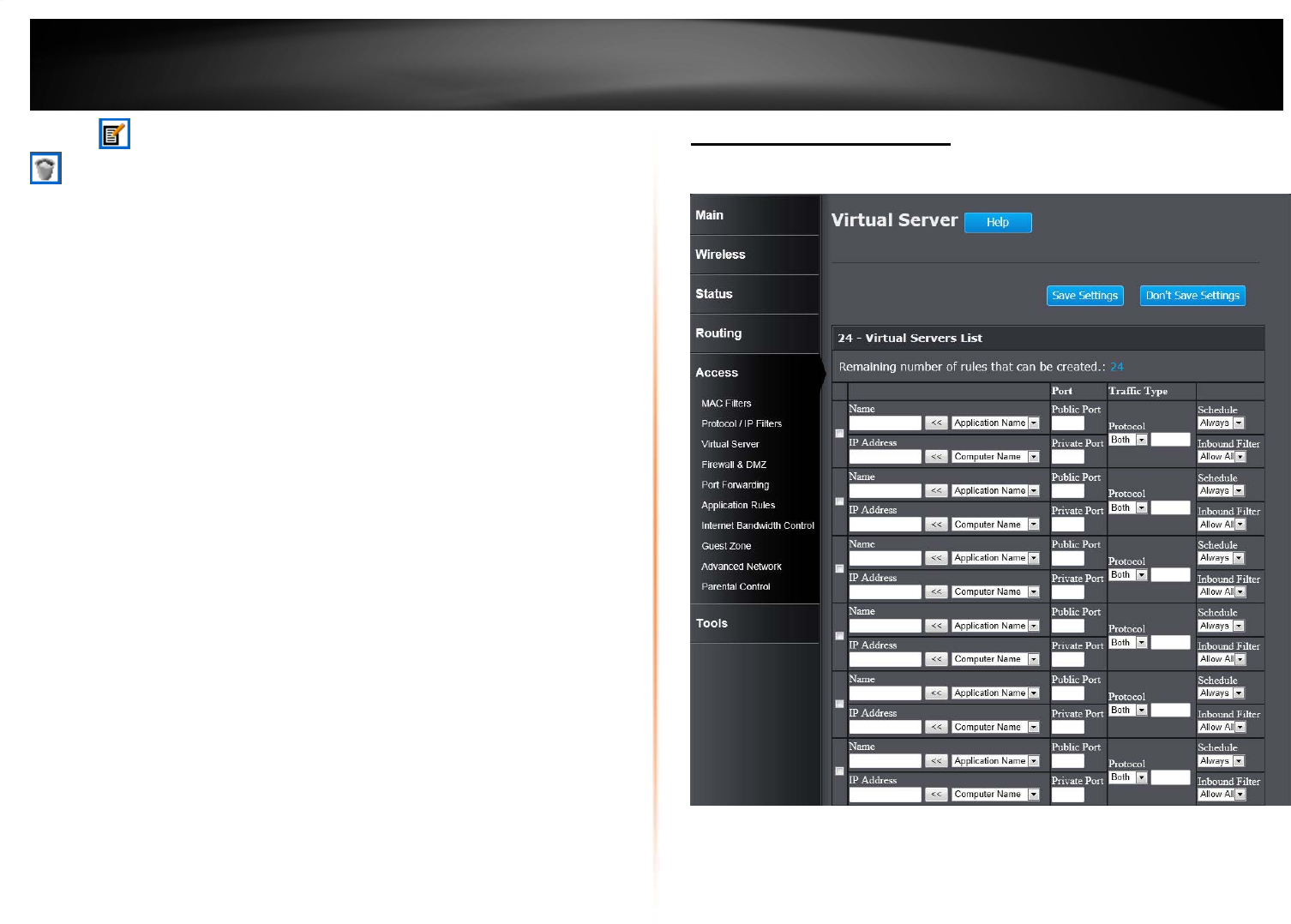

Access > Virtual Server
This window allows you to configure the virtual server settings. The rules can be
set up to 24 entries.
Checkbox: Tick the check box of each entry to enable the selected rule.
Name: Enter or select the application name for the rule.
IP Address: Enter or select the IP address or computer name for the rule.
Public Port: Enter the public port number.
Private Port: Enter the private port number.
![](/img.php?id=1958317&img=bg2f.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
46
Protocol: Select the protocol type. Options to choose from are TCP, UDP, Both,
and Other.
Schedule: Select the time schedule option.
Inbound Filter: Select the inbound filter option. Options to choose from are
Allow All and Deny All.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.

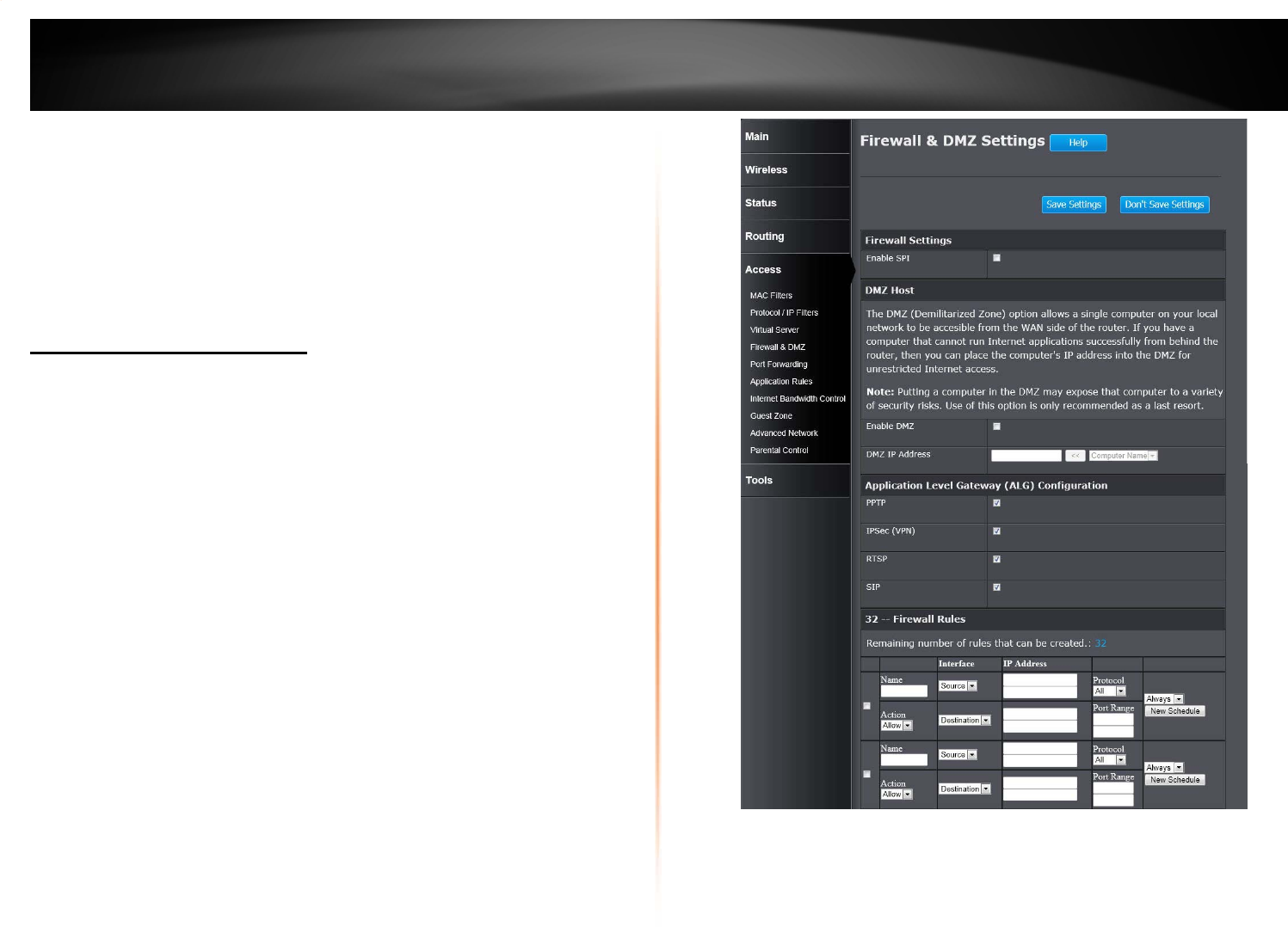

Access > Firewall & DMZ
A firewall protects your network from the outside world. The Router offers a
firewall type functionality. The SPI feature helps prevent cyber-attacks.
Sometimes you may want a computer exposed to the outside world for certain
types of applications. If you choose to expose a computer, you can enable
Demilitarized Zone (DMZ). This option will expose the chosen computer
completely to the outside world.
Firewall Settings
Enable SPI: Tick the check box to enable the Stateful Packet Inspection (SPI)
feature. SPI, also known as dynamic packet filtering, helps to prevent cyber-
attacks. It validates that the traffic passing through the session conforms to the
protocol.
![](/img.php?id=1958317&img=bg30.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
47
DMZ Host
Enable DMZ: Tick the check box to enable the Demilitarized Zone (DMZ) feature.
DMZ IP Address: Enter or select the local DMZ IP address.
Application Level Gateway (ALG) Configuration
PPTP: Tick the check box to allow PPTP traffic. This feature allows multiple
machines on the LAN to connect to their corporate network using the PPTP
protocol.
IPSec (VPN): Tick the check box to allow IPSec (VPN) traffic. This feature allows
multiple VPN clients to connect to their corporate network using IPSec. Some
VPN clients support traversal of IPSec through NAT. This ALG may interfere with
the operation of such VPN clients. If you are having trouble connecting with your
corporate network, try turning this ALG off. Please check with the system
administrator of your corporate network whether your VPN client supports NAT
traversal.
RTSP: Tick the check box to allow RSTP traffic. This feature allows an
application that uses Real Time Streaming Protocol to receive streaming media
from the Internet. QuickTime and Real Player are some of the common
applications using this protocol.
SIP: Tick the check box to allow SIP traffic. This feature allows devices and
applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP
applications and devices have the ability to discover NAT devices and work
around them. This ALG may interfere with the operation of such devices. If you
are having trouble making VoIP calls, try turning this ALG off.
Firewall Rules
Checkbox: Tick the check box of each entry to enable the selected rule.
Name: Enter the name of the firewall rule.
Action: Select to Allow or Deny this rule.
Interface: Select the Source and Destination interface.
IP Address: Enter the source and destination IP address ranges that will be
used in this rule.
Protocol: Select the protocol type. Options to choose from are TCP, UDP, and
ICMP.
Port Range: Enter a range of ports that will be used in this rule.
Schedule: Select the time schedule for the rule. Click the New Schedule button
to create time schedules.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Access > Port Forwarding
This window is used to configure the port forwarding settings of the Router.
Checkbox: Tick the check box of each entry to enable the selected rule.
Name: Enter or select the application name for the rule.
IP Address: Enter or select the IP address or computer name for the rule.
Public Port: Enter the range of public port numbers used in this rule.
Private Port: Enter the range of private port numbers used in this rule.
![](/img.php?id=1958317&img=bg31.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
48
Traffic Type: Select the traffic type. Options to choose from are All, TCP, and
UDP.
Schedule: Select the time schedule option.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.

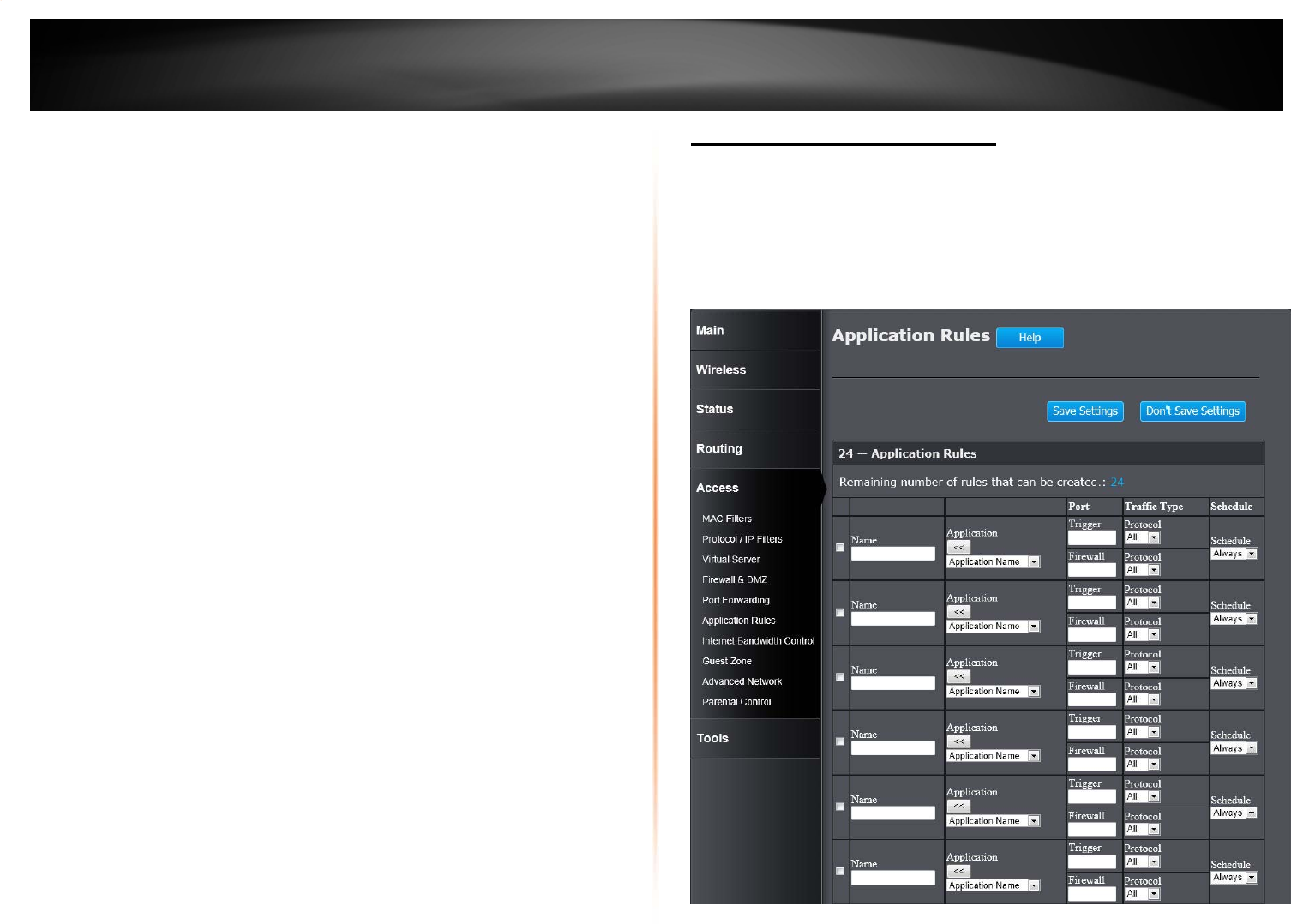

Access > Application Rules
Some applications require multiple connections, such as Internet gaming, video
conferencing, Internet telephony and others. These applications have difficulties
working through NAT (Network Address Translation). Special Applications makes
some of these applications work with the Router. If you need to run applications
that require multiple connections, specify the port normally associated with an
application in the Trigger field, select the protocol type as TCP or UDP, then
enter the firewall (public) ports associated with the trigger port to open them for
inbound traffic.
Checkbox: Tick the check box of each entry to enable the selected rule.
![](/img.php?id=1958317&img=bg32.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
49
Name: Enter or select the application name for the rule.
Trigger: This is the port used to trigger the application. It can be either a single
port or a range of ports.
Firewall: This is the port number on the Internet side that will be used to access
the application. You may define a single port or a range of ports. You can use a
comma to add multiple ports or port ranges.
Traffic Type: Select the traffic type. Options to choose from are All, TCP, and
UDP.
Schedule: Select the time schedule option.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Access > Internet Bandwidth Control
This window is used to configure the Internet bandwidth control used by the
Router.
Enable Internet Bandwidth Control: Tick the check box to enable the Internet
bandwidth control.
Uplink Speed: Enter the uplink speed value or select a predefined uplink speed
option from the drop-down menu.
Download Speed: Enter the download speed value or select a predefined
download speed option from the drop-down menu.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
![](/img.php?id=1958317&img=bg33.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
50
Access > Guest Zone
This window allows you to create temporary zones that can be used by guests to
access the Internet. The guest zone will be separated from your main wireless
network.
Wireless Band: Displays the wireless band.
Enable Guest Zone: Tick the check box to enable the Guest Zone feature, and
use the drop-down menu to select the time schedule or click the New Schedule
button to create time schedules.
Wireless Network Name: Enter a wireless network name (SSID) that is different
from your main wireless network.
Enable Routing Between Zones: Check to allow network connectivity between
the different zones created.
Security Mode: Select the type of security or encryption you would like to enable
for the guest zone. Refer to Wireless > Basic > Wireless Security Mode for
configuring the wireless security mode.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Access > Advanced Network
This window is used to configure more advanced network settings on the Router.
UPnP
Enable UPnP: Tick the check box to enable the UPnP feature.
WAN Ping
Enable WAN Ping Response: Tick the check box to enable the ping feature to
get a response from the WAN port.
IPv4 Multicast Streams
![](/img.php?id=1958317&img=bg34.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
51
Enable IPv4 Multicast Streams: Tick the check box to enable the IPv4 multicast
streams feature. This feature will allow multicast traffic to pass through the router
from the Internet (IPv4).
Wireless Enhanced Mode: Tick the check box to enable wireless enhanced
mode.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.

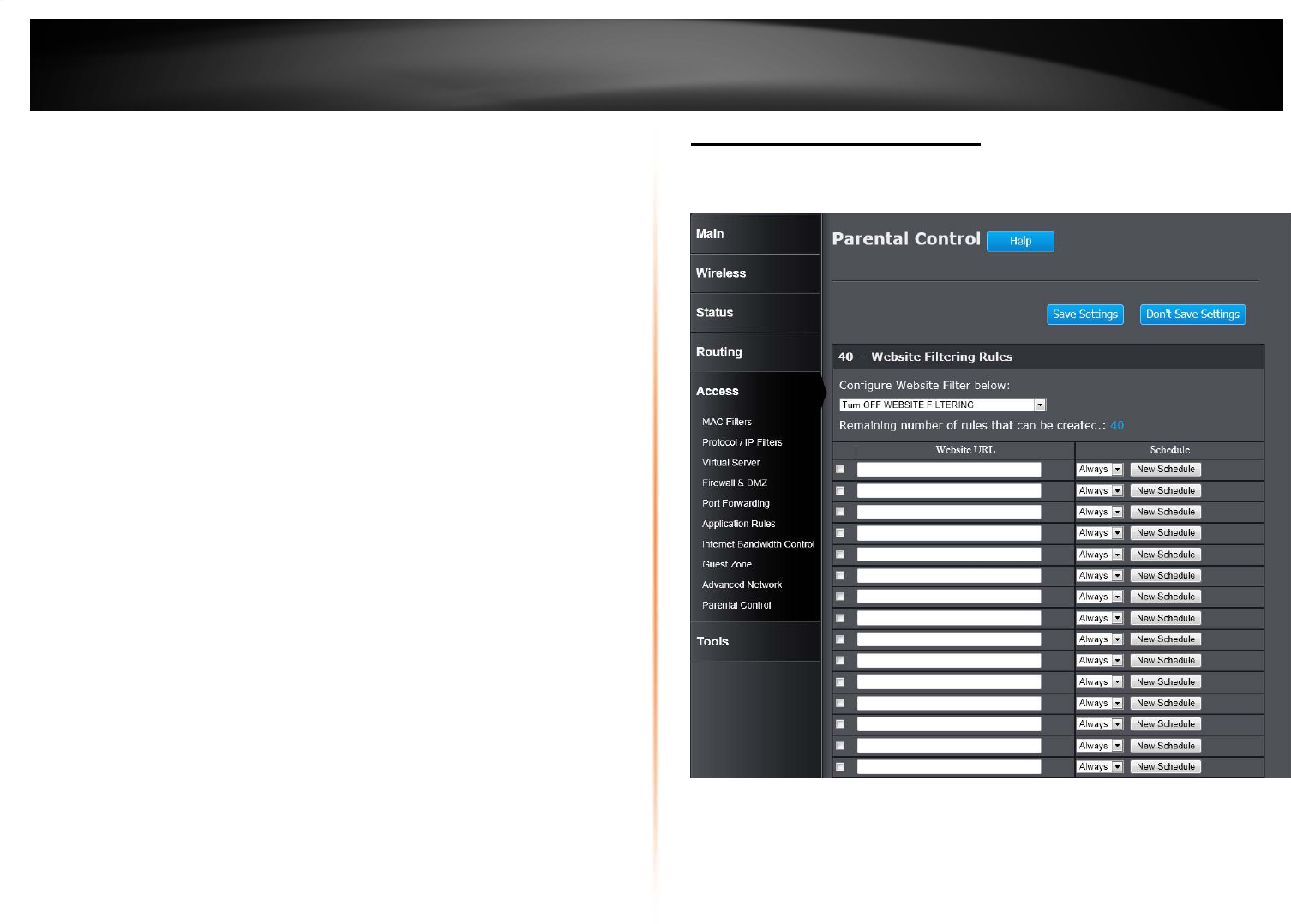

Access > Parental Control
Parental control is a free security option that provides Anti-Phishing to protect
your Internet connection from fraud and navigation improvements such as auto-
correction of common URL types.
Configure Website Filter Below: Turn off website filtering
Configure Website Filtering below: Select the website filtering method. Select
Turn OFF WEBSITEFILTERING to disable this feature. Select ALLOW
computers access to ONLY these sites to enable this feature and only allow
the computers to access the specified URL. Select DENY computers access to
ONLY these sites to enable this feature and only deny the computers to access
to the specified URL.
![](/img.php?id=1958317&img=bg35.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
52
Checkbox: Tick the check box of each entry to enable the selected rule.
Website URL: Enter the website URL.
Schedule: Select the time schedule for the rule. Click the New Schedule button
to create time schedules.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Tools > Restart
This window is used to save and restore the configuration, and restart the Router.
Save Settings to Local Hard Drive: Click the Save Configuration button to
download the Router’s settings to the management computers.
Load Settings From Local Hard Drive: Click the Browse button to navigate to
the saved configuration file on the management computer and click the Restore
button to restore the Router’s configuration to the settings configured on the
configuration file.
Restore To Factory Default Settings: Click the Restore Factory Defaults
button to remove all the settings configured on this router and return the settings
to the factory defaults.
Reboot The Device: Click the Reboot the Device button to reboot the router. All
unsaved configurations will be discarded.
Tools > Firmware
This window is used to display the current firmware information and initiate a
firmware upgrade for the Router.
Upload: Click the Browse button to navigate to the new firmware file located on
the management computers, and click the Upload button to initiate the firmware
upgrade procedure. The firmware upgrades sometimes will reset the
configuration to the factory defaults. Make sure to save the current configuration
to the management computer, before performing firmware upgrade.
![](/img.php?id=1958317&img=bg36.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
53

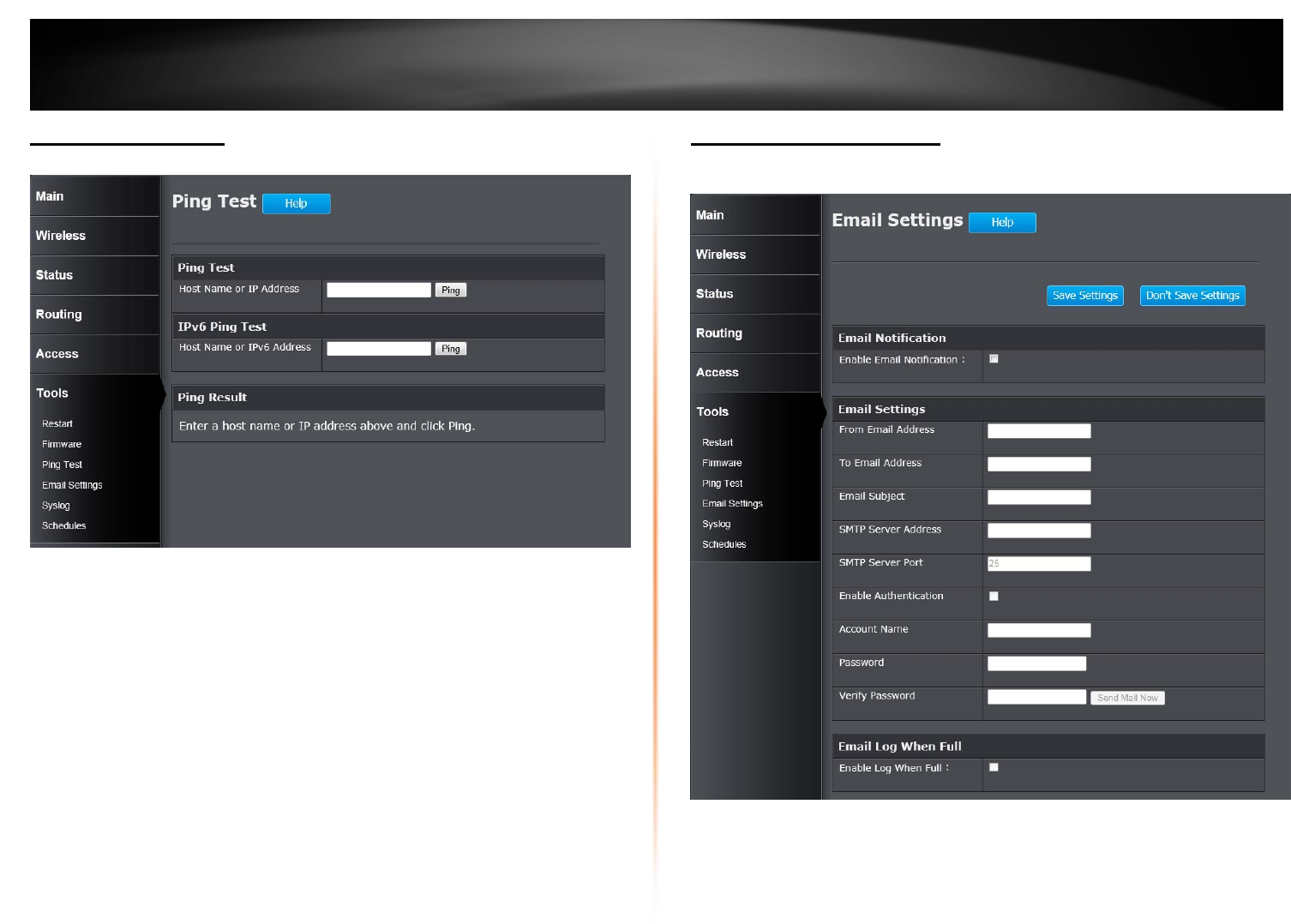

Tools > Ping Test
This window is used to initiate a ping test to IPv4 and IPv6 address.
Ping Test
Host Name or IP Address: Enter the IPv4 address or host name of the target in
the text box and click the Ping button to initiate the Ping test.
IPv6 Ping Test
Host Name or IPv6 Address: Enter the IPv6 address or host name of the target
in the text box and click the Ping button to initiate the Ping test.
Ping Result
The ping result will display in this section.
Tools > Email Settings
This window allows you to configure the e-mail settings for the Router to send the
notification to the e-mail account.
Email Notification
Enable Email Notification: Tick the check box to enable the email notification
feature.
Email Settings
From Email Address: Enter the sender’s email address.
![](/img.php?id=1958317&img=bg37.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
54
To Email Address: Enter the recipient’s email address.
Email Subject: Enter the email’s subject information.
SMTP Server Address: Enter the SMTP server’s IP address.
SMTP Server Port: Enter the SMTP server’s port number.
Enable Authentication: Tick the check box to enable SMTP authentication.
Account Name: Enter the email account username.
Password: Enter the email account password.
Verify Password: Re-type the email account password.
Email Log when Full
Enable Log When Full: Tick the check box to send out an email when the log
space is close to depletion.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
Tools > Syslog
The Router keeps a running log of events and activities occurring on the Router.
You may send these logs to a SysLog server on your network.
Enable Logging to SysLog Server: Tick the box to send the router logs to a
SysLog Server.
Syslog Server IP Address: Enter the IP address of the Syslog server.
![](/img.php?id=1958317&img=bg38.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
55

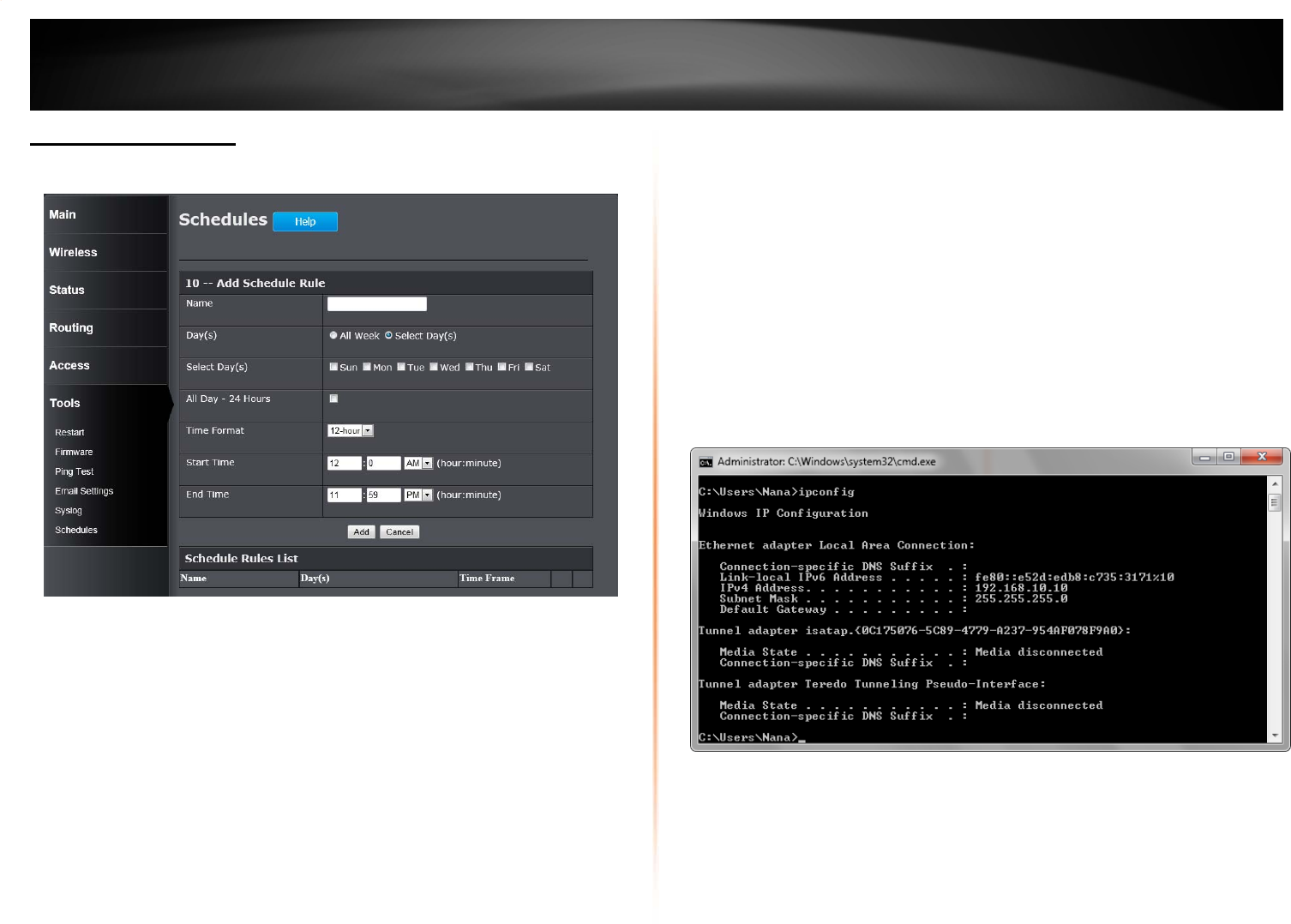

Tools > Schedules
This window is used to configure the time and date schedules. The configured
schedule can be applied to various functions.
Name: Enter the name for the time and date schedule.
Days(s): Click the All Week radio button to use all the weekdays for this
schedule. Click the Select Day(s) radio button to use only the selected days in
the week.
Select Day(s): When the Select Day(s) radio button is selected, tick the check
box to select which day of the week to be used.
All Day – 24 hrs: Tick the check box to use all the hours in a day.
Time Format: Select the time format. Options to choose from are 12-hour and
24-hour.
Start Time: Enter the starting time of a day.
End Time: Enter the ending time of a day.
Click the Add button to add this schedule into the schedule rules list.
Click the Cancel button to discard the changes made.
NetworkingBasics
After you installed your new network or wireless adapter, by default, the TCP/IP
settings should be set to obtain an IP address automatically from a DHCP server.
By default the DHCP server option on your router is enabled.
To verify your IP address, please follow the steps below:
• Click the Windows Start button and open the Run application.
• In the Open check box, type cmd and click OK.
• At the command prompt, type in the command ipconfig and press Enter.
This will display the IP address, Subnet Mask, and the Default Gateway
of your adapter. If the address is 0.0.0.0, it means that your network
adapter did not receive an IP address from the DHCP server. Check your
adapter installation, security settings, and the settings on your router.
Some firewall software programs may block a DHCP request on newly
installed adapters.
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a
static IP address, please follow the steps below:
![](/img.php?id=1958317&img=bg39.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
56
• Click the Windows Start button and navigate to the Control Panel >
Network and Sharing Center and click the Change Adapter Settings
option on the left panel.
• Right-click the Local Area Connection, which represents your network
adapter, and select Properties.

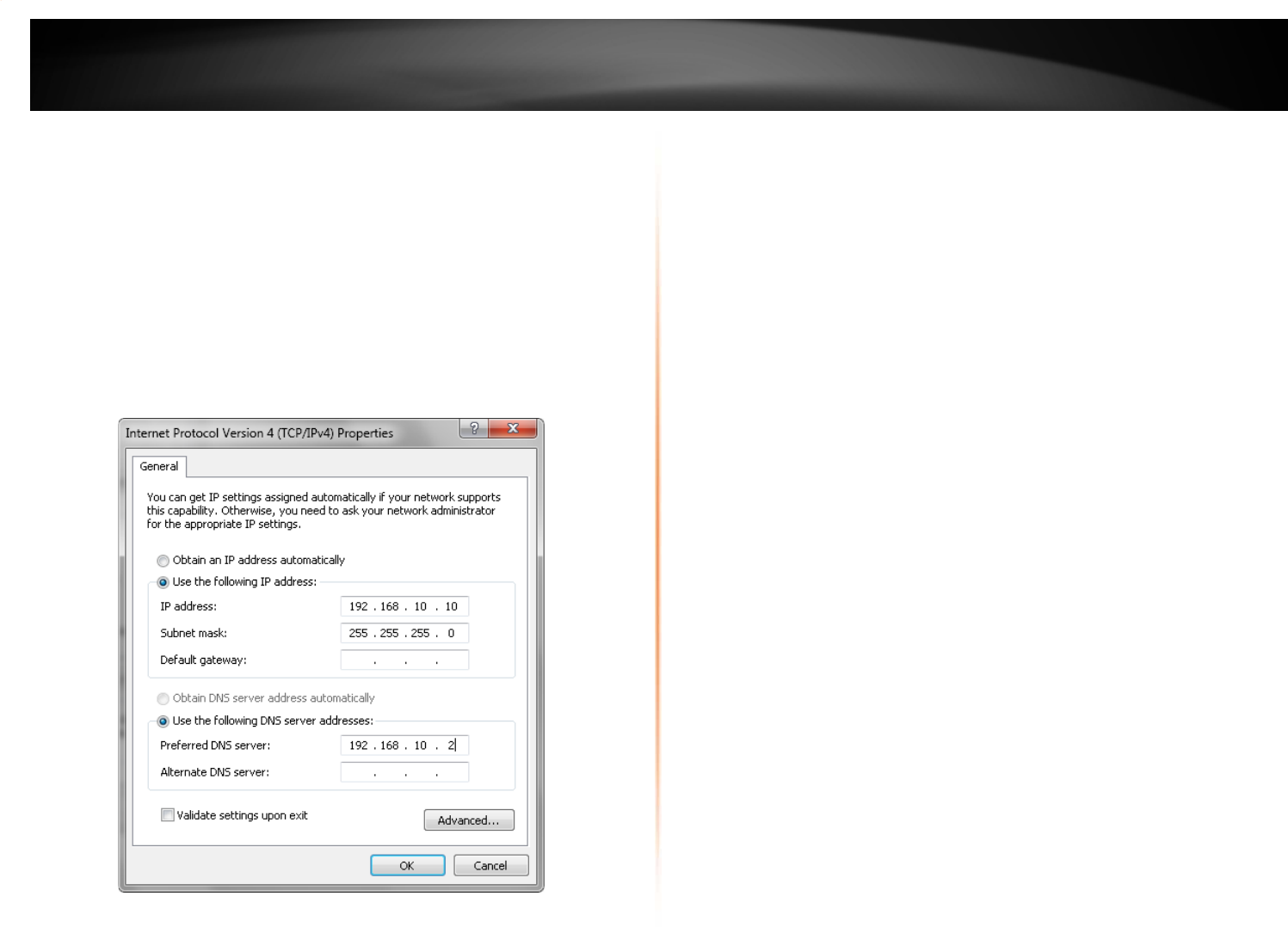

• Select the Internet Protocol Version 4 (TCP/IPv4) option and click the
Properties button.
• Select Use the following IP address and enter an IP address that is on
the same subnet as your router. For example: If your router is running on
the IP address of 192.168.10.1, use any IP address from 192.168.10.2 to
192.168.10.254. Use the Subnet Mask of 255.255.255.0. Set Default
Gateway the same as the LAN IP address of your router. Set Preferred
DNS server IP address the same as the LAN IP address of your router.
The Secondary DNS is not needed at this stage.
• Click the OK button twice to return to the Network Connections window.
WirelessBasics
Wireless products are based on industry standards to provide easy-to-use and
compatible high-speed wireless connectivity within your home, business or public
access wireless networks. Strictly adhering to the IEEE standard, the wireless
family of products will allow you to securely access the data you want, when and
where you want it. You will be able to enjoy the freedom that wireless networking
delivers.
A wireless local area network (WLAN) is a cellular computer network that
transmits and receives data with radio signals instead of wires. Wireless LANs
are used increasingly in both home and office environments, and public areas
such as airports, coffee shops and universities. Innovative ways to utilize WLAN
technology are helping people to work and communicate more efficiently.
Increased mobility and the absence of cabling and other fixed infrastructure have
proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network.
Wireless adapter cards used on laptop and desktop systems support the same
protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to
link to a conventional Ethernet LAN in order to use servers, printers or an Internet
connection supplied through the wired LAN. A Wireless Router is a device used
to provide this link.
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the
network without using wires. Wi-Fi uses radio frequency to connect wirelessly, so
you have the freedom to connect computers anywhere in your home or office
network.
How does Wireless work?
Wireless works similar to how cordless phone work, through radio signals to
transmit data from one point A to point B. But wireless technology has restrictions
as to how you can access the network. You must be within the wireless network
range area to be able to connect your computer. There are two different types of
wireless networks Wireless Local Area Network (WLAN), and Wireless Personal
Area Network (WPAN).
![](/img.php?id=1958317&img=bg3a.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
57
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects
computers to the network. The access point has a small antenna attached to it,
which allows it to transmit data back and forth over radio signals. With an indoor
access point as seen in the picture, the signal can travel up to 300 feet. With an
outdoor access point the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, college and high school campuses,
airports, golf courses, and many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth
devices in WPAN operate in a range up to 30 feet away. Compared to WLAN the
speed and wireless operation range are both less than WLAN, but in return it
doesn’t use nearly as much power which makes it ideal for personal devices,
such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology has become so popular in recent years that almost
everyone is using it, whether it’s for home, office, business, we have a wireless
solution for it.
Home
• Gives everyone at home broadband access.
• Surf the web, check email, instant message, etc…
• Gets rid of the cables around the house.
• Simple and easy to use.
Small Office and Home Office
• Stay on top of everything at home as you would at office.
• Remotely access your office network from home.
• Share Internet connection and printer with multiple computers.
• No need to dedicate office space.
Where is wireless used?
Wireless technology is expanding everywhere not just at home or office. People
like the freedom of mobility and it’s becoming so popular that more and more
public facilities now provide wireless access to attract people. The wireless
connection in public places is usually called “hotspots”.
Using a Wireless Cardbus Adapter with your laptop, you can access the hotspot
to connect to Internet from remote locations like: Airports, Hotels, Coffee Shops,
Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the first time it
could be quite a task not knowing where to start. That’s why we’ve put together a
few setup steps and tips to help you through the process of setting up a wireless
network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your
network for the best performance. Try to place the router/access point as high as
possible in the room, so the signal gets dispersed throughout your home. If you
have a two-story home, you may need a repeater to boost the signal to extend
the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and
televisions as far away as possible from the router/access point. This would
significantly reduce any interference that the appliances might cause since they
operate on same frequency.
Security
Don’t let your next-door neighbors or intruders connect to your wireless network.
Secure your wireless network by turning on the WPA or WEP security feature on
the router. Refer to product manual for detail information on how to set it up.
Wireless Modes
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or
wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer
communication, using wireless network adapters on each computer,
such as two or more wireless network Cardbus adapters.
![](/img.php?id=1958317&img=bg3b.png)
©Copyright2013TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
58
An Infrastructure network contains an Access Point or wireless router. All the
wireless devices, or clients, will connect to the wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless Cardbus
adapters. All the adapters must be in Ad-Hoc mode to communicate.
WirelessSecurity
This section will show you the different levels of security you can use to protect
your data from intruders. The router offers wireless security options like
WPA/WPA2 PSK/EAP.
What is WPA?
WPA (Wi-Fi Protected Access) is a Wi-Fi standard that was designed to improve
the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol
(TKIP). TKIP scrambles the keys using a hashing algorithm and, by
adding an integrity-checking feature, ensures that the keys haven’t been
tampered with. WPA2 is based on 802.11i and uses Advanced
Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the
extensible authentication protocol (EAP). WEP regulates access to a
wireless network based on a computer’s hardware-specific MAC address,
which is relatively simple to be sniffed out and stolen. EAP is built on a
more secure public-key encryption system to ensure that only authorized
network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless
connection. The key is an alpha-numeric password between 8 and 63 characters
long. The password can include symbols (!?*&_) and spaces. This key must be
the exact same key entered on your wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible
Authentication Protocol (EAP). EAP is built on a more secure public key
encryption system to ensure that only authorized network users can access the
network.
FrequentlyAskedQuestions
What can I do if my Router is not working correctly?
There are a few quick steps you can take to try and resolve any issues:
• Check that all the cables are firmly connected at both ends.
• Check that all the corresponding LED indicators are on, especially the
Power, WAN, and LAN LED indicators.
• Ensure that the settings on the WAN Service page in the Web User
Interface are the same as the settings that have been provided to you by
your ISP.
Why can’t I get an Internet connection?
For ADSL ISP users, please contact your ISP to make sure the service has been
enabled/connected by your ISP and that your ISP username and password are
correct.
What can I do if I forgot my web UI login password?
If you forgot your password, you must reset your router. Unfortunately this
process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit.
With the router powered on, use a paperclip to hold the button down for 10-15
seconds. Release the button and the router will go through its reboot process.
Wait about 30 seconds to access the router. The default IP address is
192.168.10.1. When logging in, the username is “admin” and the password (Web
password) can be found on the label at the bottom of the Router.
![](/img.php?id=1958317&img=bg3c.png)
©Copyright2012TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
59
TechnicalSpecifications
Hardware Specifications
• LAN Interface: Four 10/100/1000Mbps LAN ports
• WAN Interface: One 10/100/1000Mbps WAN port
• WPS button
• Reset button
• Power button
• Wireless Interface (2.4Ghz): IEEE 802.11b/g/n
Operating Voltage
• Input: 100~240V (±10%), 50~60Hz
• Output: DC12V, 1A
• Power Consumption: 10.1 Watt
Temperature
• Operating: 0oC~40oC (32oF~104oF)
• Non-Operating: -20oC~70oC (-4oF~149oF)
Humidity
• Operating: 10%~95% non-condensing
• Non-Operating: 5%~95% non-condensing
Wireless Frequency Range
• IEEE 802.11b: 2400 MHz~2483.5 MHz
• IEEE 802.11g: 2400 MHz~2483.5 MHz
• IEEE 802.11n: 2400 MHz~2483.5 MHz
Wireless Bandwidth Rate
• IEEE 802.11b: 11, 5.5, 2, and 1 Mbps
• IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
• IEEE 802.11n: 6.5 to 300 Mbps
Wireless Channel Numbers
• IEEE 802.11b: Channels 1~11 (USA), 1~13 (Europe)
• IEEE 802.11g: Channels 1~11 (USA), 1~13 (Europe), 1~14 (Japan)
• IEEE 802.11n: Channels 1~11 (USA), 1~13 (Europe), 1~14 (Japan)
Antenna Type
• Internal Antenna
• Peak Gain: 2.4GHz 1.5dBi
Wireless Security
• WEP (64/128bit)
• WPA/WPA2-Personal
• WPA/WPA2-Enterprise
![](/img.php?id=1958317&img=bg3d.png)
©Copyright2012TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
60
• WPS (PIN & PBC)
• 802.1X
Wireless Modulation
• IEEE 802.11b: DQPSK, DBPSK, and CCK
• IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM, and OFDM
• IEEE 802.11n: BPSK, QPSK, 16QAM, 64QAM, and OFDM
Safety and Emission
• EMI: FCC Class B, CE Class B
• Safety: UL, TUV
Dimensions & Weight
• 120 x 164 x 45 mm
• 286 grams
![](/img.php?id=1958317&img=bg3e.png)
©Copyright2012TRENDnet.AllRightsReserved.
TRENDnetUser’sGuideTEW‐733GR
61
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
