TRENDNET, Inc. AC600 High Gain Dual Band Wireless USB Adapter
TRENDNET >
User Manual
![](/img.php?id=2281639&img=bg1.png)
TRENDnet User’s Guide Cover Page
![](/img.php?id=2281639&img=bg2.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide Table of Contents
i
Contents
Product Overview ........................................................................... 1
Package Contents .......................................................................................................... 1
Features ......................................................................................................................... 1
Product Hardware Features........................................................................................... 2
System Requirements .................................................................................................... 2
Application Diagram ...................................................................................................... 2
Installing your Wireless Adapter ...................................................... 3
Windows® OS Installation .............................................................................................. 3
MAC® OS Installation ..................................................................................................... 6
Using the Wireless Utility .............................................................. 10
Windows® OS............................................................................................................... 10
Wireless Utility Overview ........................................................................................ 11
Connect to your wireless network .......................................................................... 14
Connect to your wireless network using WPS......................................................... 15
Create or modify wireless network profiles ............................................................ 18
MAC® OS ...................................................................................................................... 20
Wireless Utility Overview ........................................................................................ 21
Connect to your wireless network .......................................................................... 27
Connect to your wireless network using WPS......................................................... 28
Create or modify wireless network profiles ............................................................ 31
Technical Specifications................................................................. 33
Troubleshooting ............................................................................ 34
Appendix ...................................................................................... 35
![](/img.php?id=2281639&img=bg3.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
1

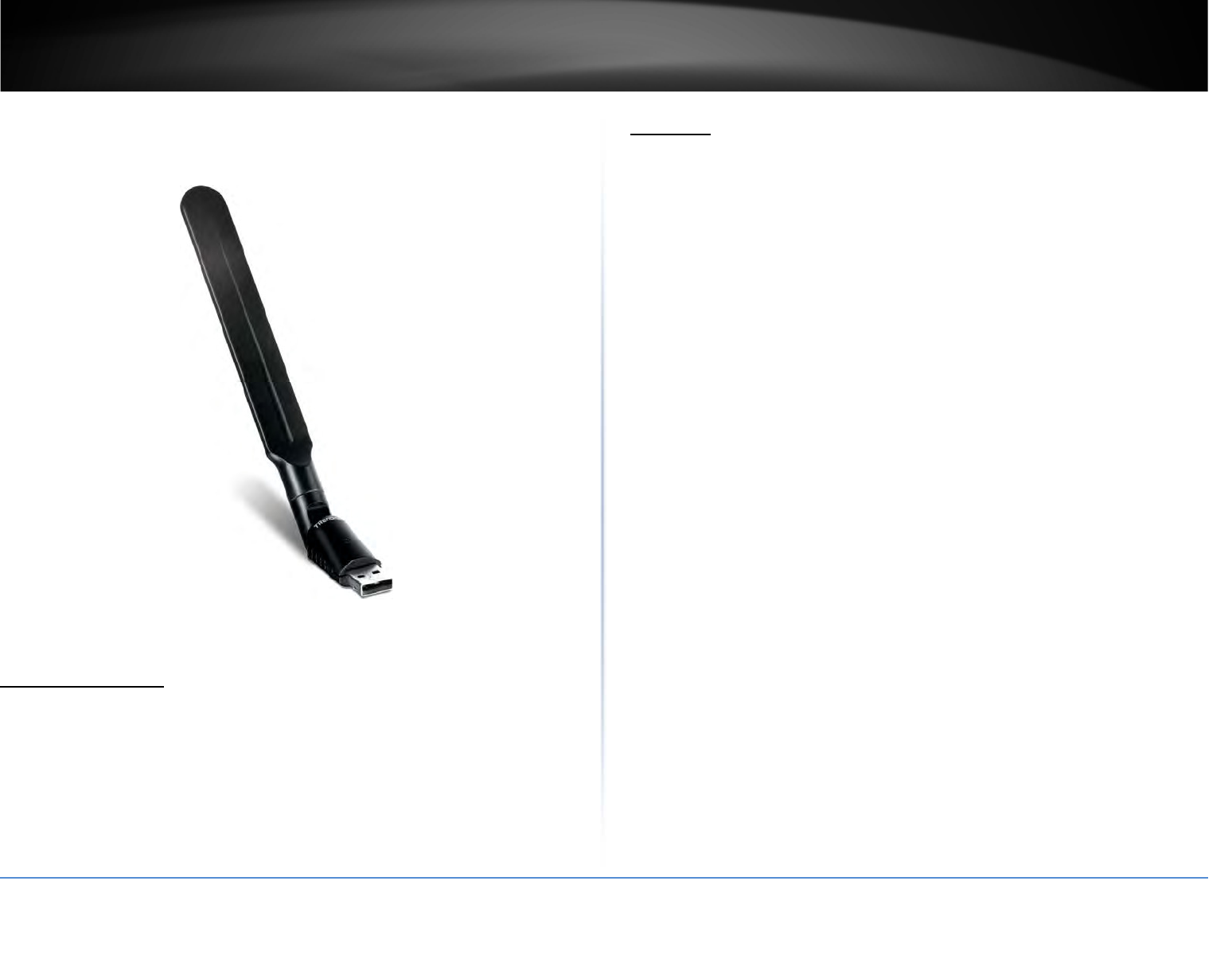

Product Overview
TEW-806UBH
Package Contents
In addition to your wireless adapter, the package includes:
• CD-ROM (Utility & Drivers)
• Multi-Language Quick Installation Guide
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.
Features
TRENDnet's AC600 High Gain Dual Band Wireless USB Adapter, model TEW-806UBH,
connects a Windows® or Mac® computer to a revolutionary Wireless AC network.
Connect to a Wireless AC network at 433 Mbps or to a Wireless N network at up to 150
Mbps. This adapter features an adjustable high gain antenna which significantly
increases wireless coverage.
Ease of Use
Easy Setup
Get up and running in minutes with the intuitive guided setup
Operating Systems
Compatible with Windows® and Mac® operating systems
One Touch Connection
Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button
Performance
High Gain Antenna
An adjustable high gain antenna significantly increases wireless coverage
Next Generation Wireless AC
802.11ac provides uninterrupted HD video streaming in a busy connected home
Dual Band
High speed 433 Mbps Wireless AC + 150 Mbps Wireless N bands
Encrypted Wireless
Supports the latest encryptions standards (up to WPA2)
Backward Compatible
Compatible with legacy wireless devices
*For maximum performance connect to an 802.11ac wireless router or access point
**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical
specifications. Actual data throughput and coverage will vary depending on
interference, network traffic, building materials and other conditions.
![](/img.php?id=2281639&img=bg4.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
2

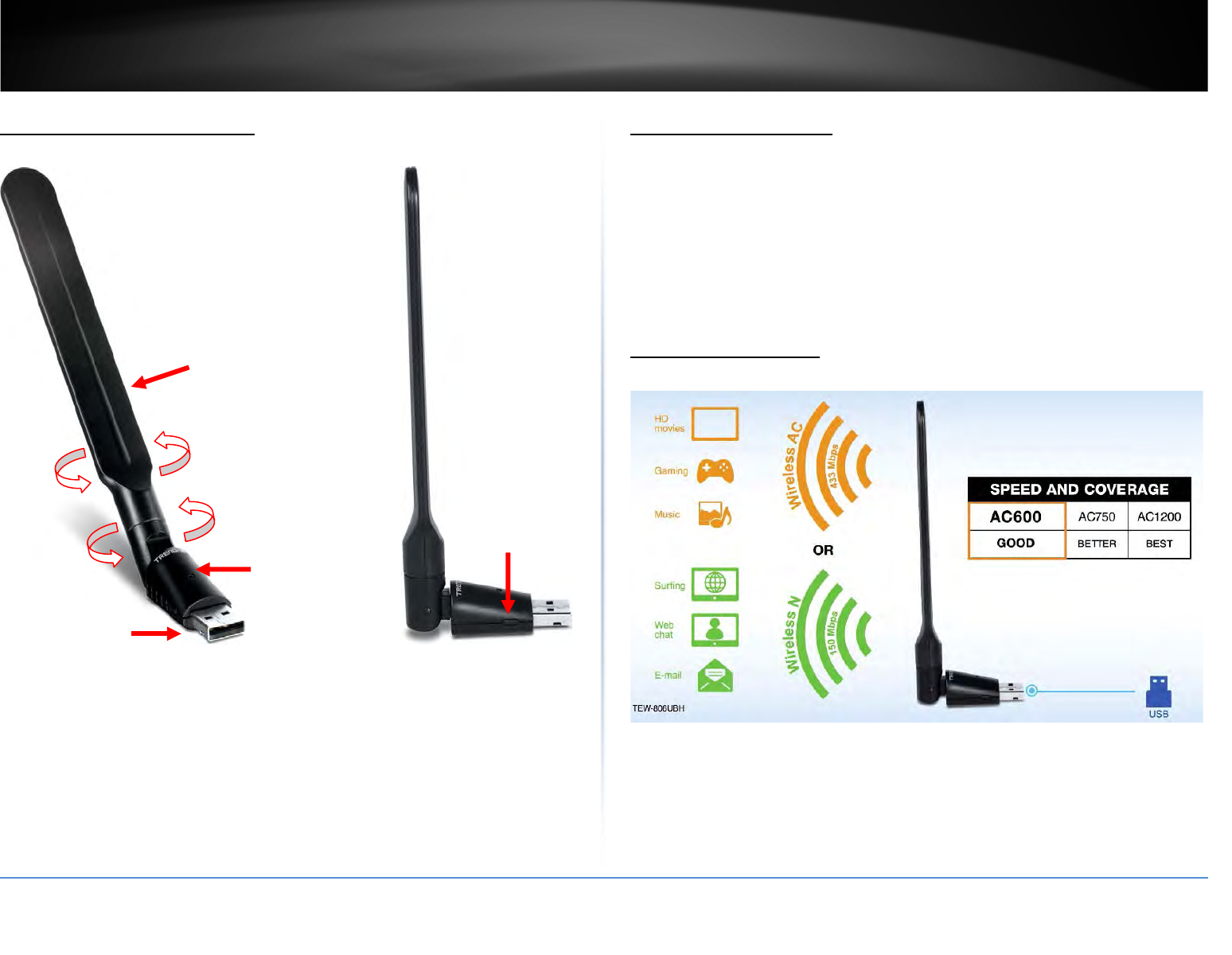

Product Hardware Features
• USB Connector – The USB 2.0 Type A connector connects your adapter to one of
the available USB 2.0 Type A ports on your computer.
• WPS (Wi-Fi Protected Setup) Button / Activity LED Indicator – Push and hold the
WPS button for 3 seconds to activate WPS. The LED will blink rapidly to indicate
WPS has been activated. The LED will blink every 5 sec. when disconnected. When
connected, the LED will blink rapidly during wireless data transmission.
• High Gain Antenna – The high gain antenna can be rotated 180° at the base, 90° at
the antenna, and 90° antenna tilt in order to optimize performance and
connectivity.
System Requirements
• Windows® 8.1 (32/64), 8 (32/64), 7 (32/64), Vista (32-bit), or XP (32/64)
• Mac OS® 10.6 - 10.9
• Available USB 2.0/3.0 Type A port on your computer.
Note: Connecting the wireless adapter USB 1.1 Type A port will limit the speed
capabilities of the wireless adapter. Please ensure to connect the adapter to at
least USB 2.0 Type A port.
• CD-ROM Drive (Utility and Driver Installation with included CD)
Application Diagram
The AC600 High Gain Dual Wireless USB Adapter can provide wireless AC or wireless N
connectivity through the use of an available USB 2.0/3.0 port on your computer to a
wireless AC/N network (router/access point). The adjustable high gain antenna can
allow for wireless connectivity at longer distances.
WPS Button
Activity LED
Indicator
USB 2.0
Connector
Adjustable High
Gain Antenna
![](/img.php?id=2281639&img=bg5.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
3
Installing your Wireless Adapter
This section describes how to install the software driver and utility for the wireless
adapter.
Windows® OS Installation

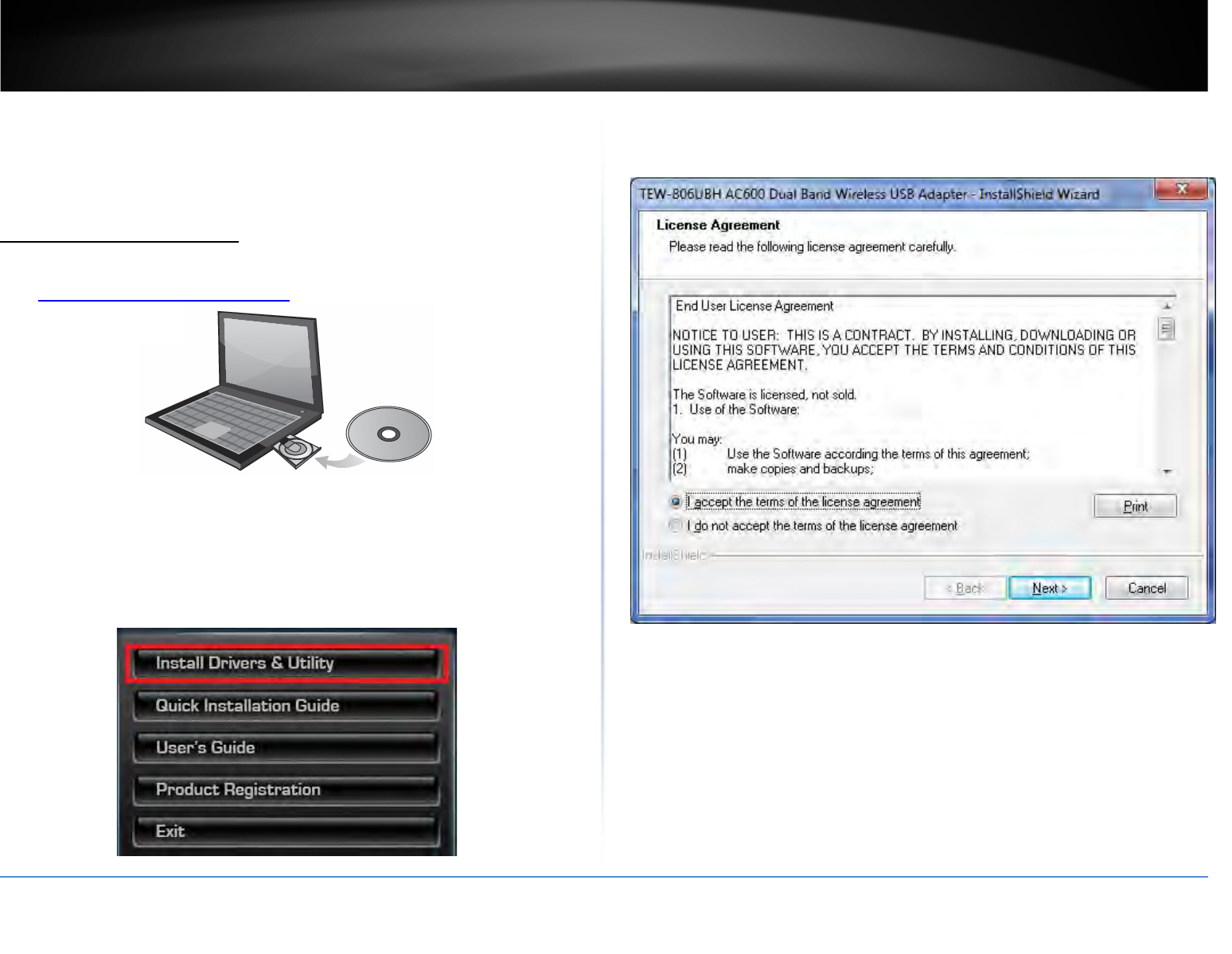

1. Insert the included CD-ROM into your computer’s CD-ROM drive.
Note: If you do not have the included CD-ROM, you can download the utility and drivers
from http://www.trendnet.com/downloads/.
2. At the CD Autorun Prompt window, click Run Autorun.exe.
Note: If the Autorun prompt does not appear automatically, open the CD contents and
double-click Autorun.exe.
3. At the CD-ROM main menu, click Install Drivers & Utility.
4. You will be prompted to accept the end user license agreement. Select I accept the
terms of the license agreement and click Next.
![](/img.php?id=2281639&img=bg6.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
4

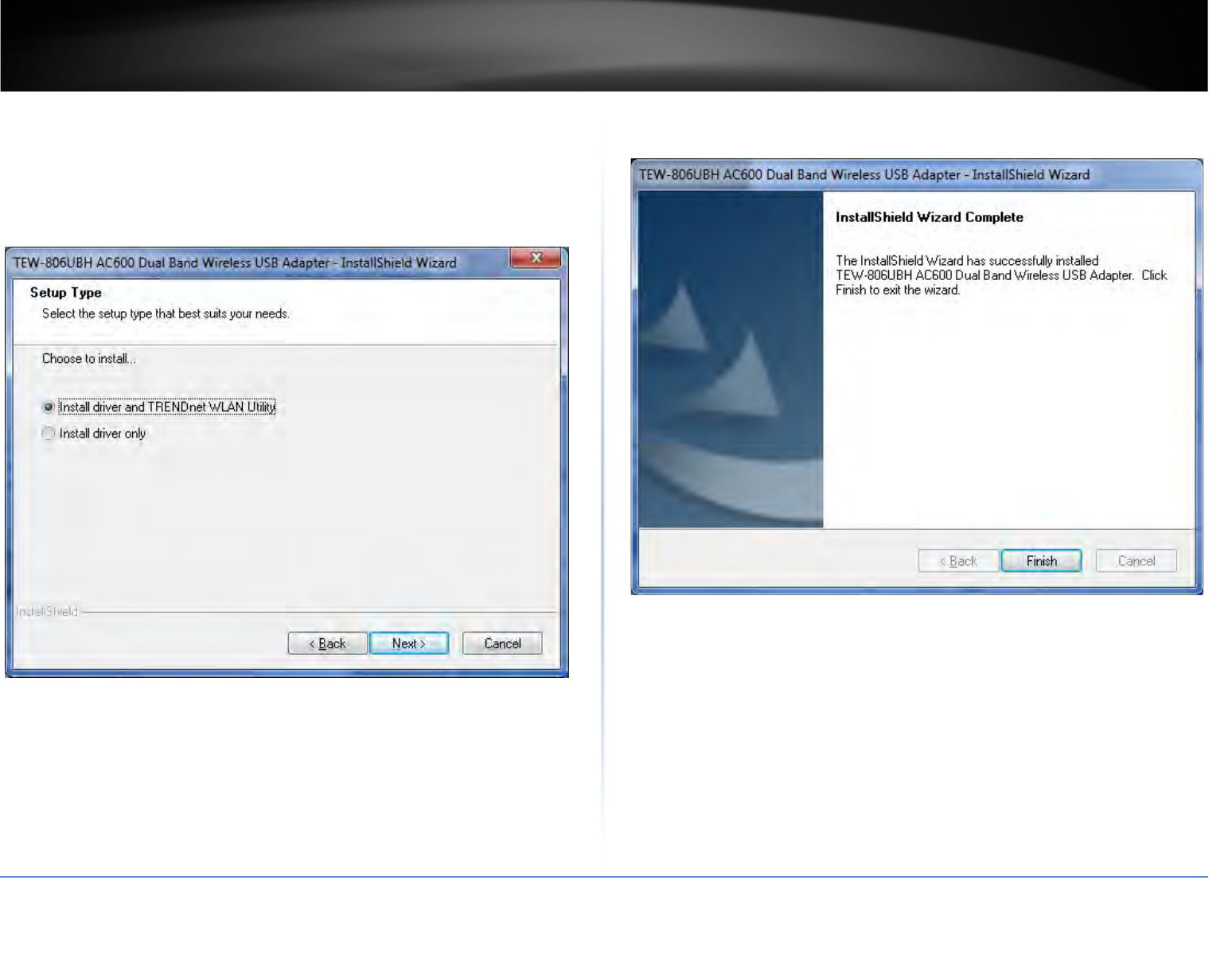

5. Select your preferred installation option and click Next.
• Driver and TRENDnet WLAN Utility (Recommended) – Installs both the driver
and TRENDnet software utility to manage your wireless connections.
• Driver Only (Use the built-in Windows Utility) – Installs the driver only and use
the built-in Windows wireless utility to manage your wireless connections.
6. Wait for the utility and drivers installation to complete. This may take a few minutes.
Note: If you do not receive a security prompt, continue to the next step. If prompted,
click Install this driver software anyway.
7. After the process is completed, click Finish.
![](/img.php?id=2281639&img=bg7.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
5

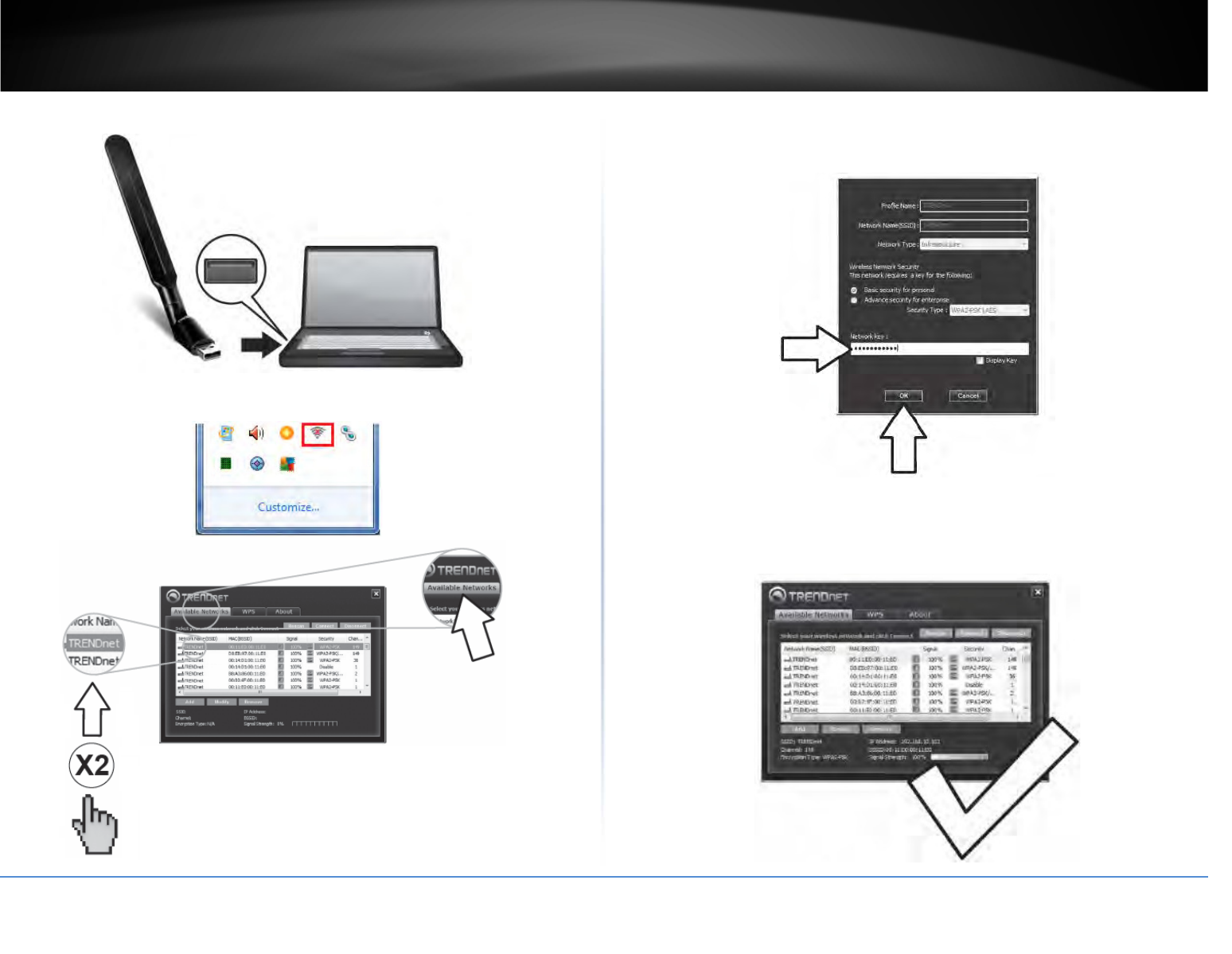

8. Plug in the wireless USB adapter into an available USB 2.0/3.0 port on your computer.
9. After the driver is successfully installed, double-click the icon in the system tray and
click the Site Survey tab scan for available wireless networks.
10. If your wireless network requires a Wi-Fi security key, you will be prompted to enter
it. Enter the Wi-Fi security key required to connect to your wireless network and click
OK. Note: If your wireless network does not require a security key, skip to the next step.
11. Check the status information at the bottom of the utility to verify that you were
successfully connected to your wireless network.
Note: If no status information appears, please verify that your security key is correct.
![](/img.php?id=2281639&img=bg8.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
6

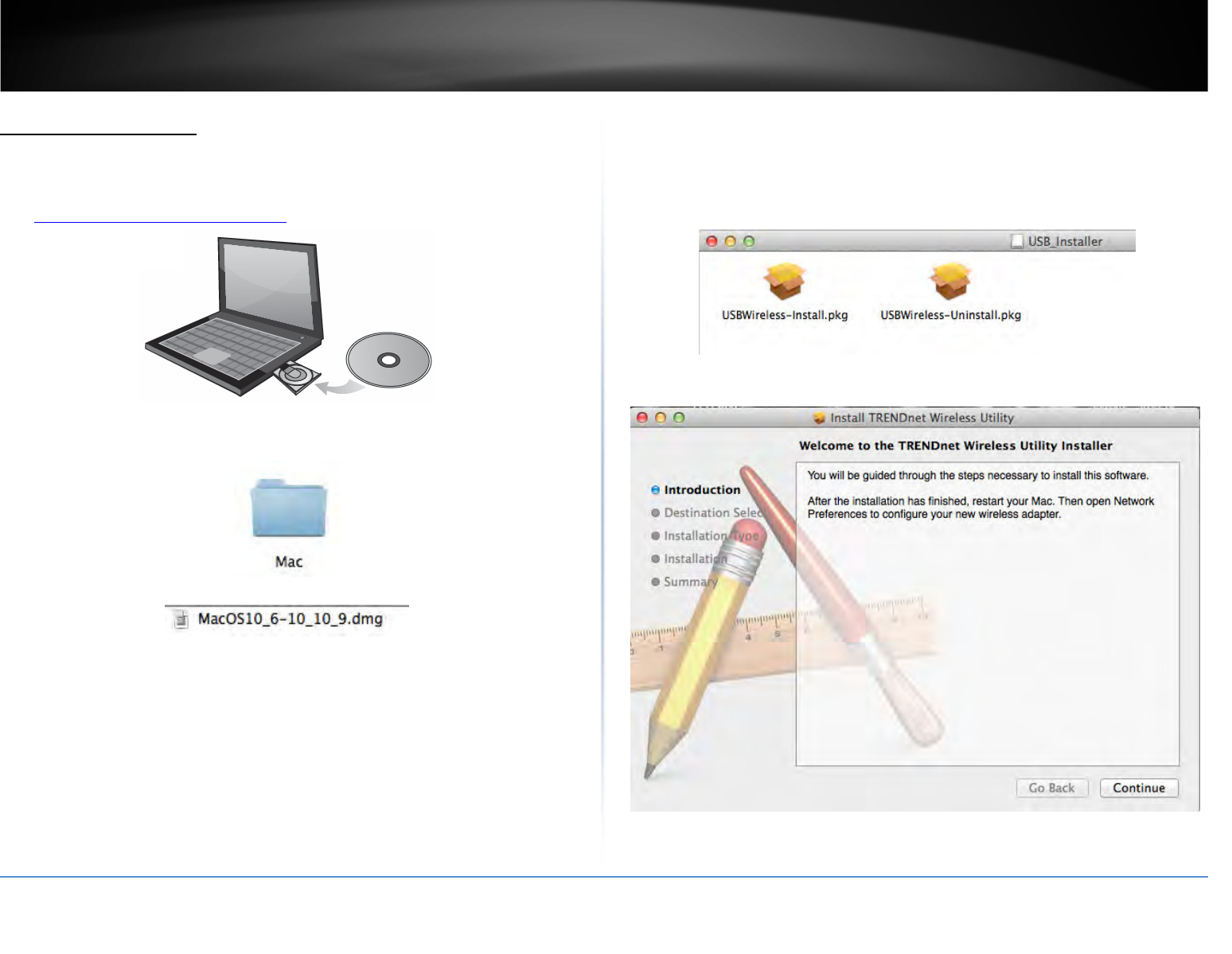

MAC® OS Installation
1. Insert the included CD-ROM into your computer’s CD-ROM drive.
Note: If you do not have the included CD-ROM, you can download the utility and drivers
from http://www.trendnet.com/downloads/.
2. Open the folder named “Mac” on the included Utility and Driver CD ROM.
3. Double-click the .dmg file.
4. Double-click on the USBWireless-Install.pkg file.
Note: If you decide to uninstall the utility and drivers later, use the USBWireless-Uninstall
file.
5. At the introduction window, click Continue.
![](/img.php?id=2281639&img=bg9.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
7

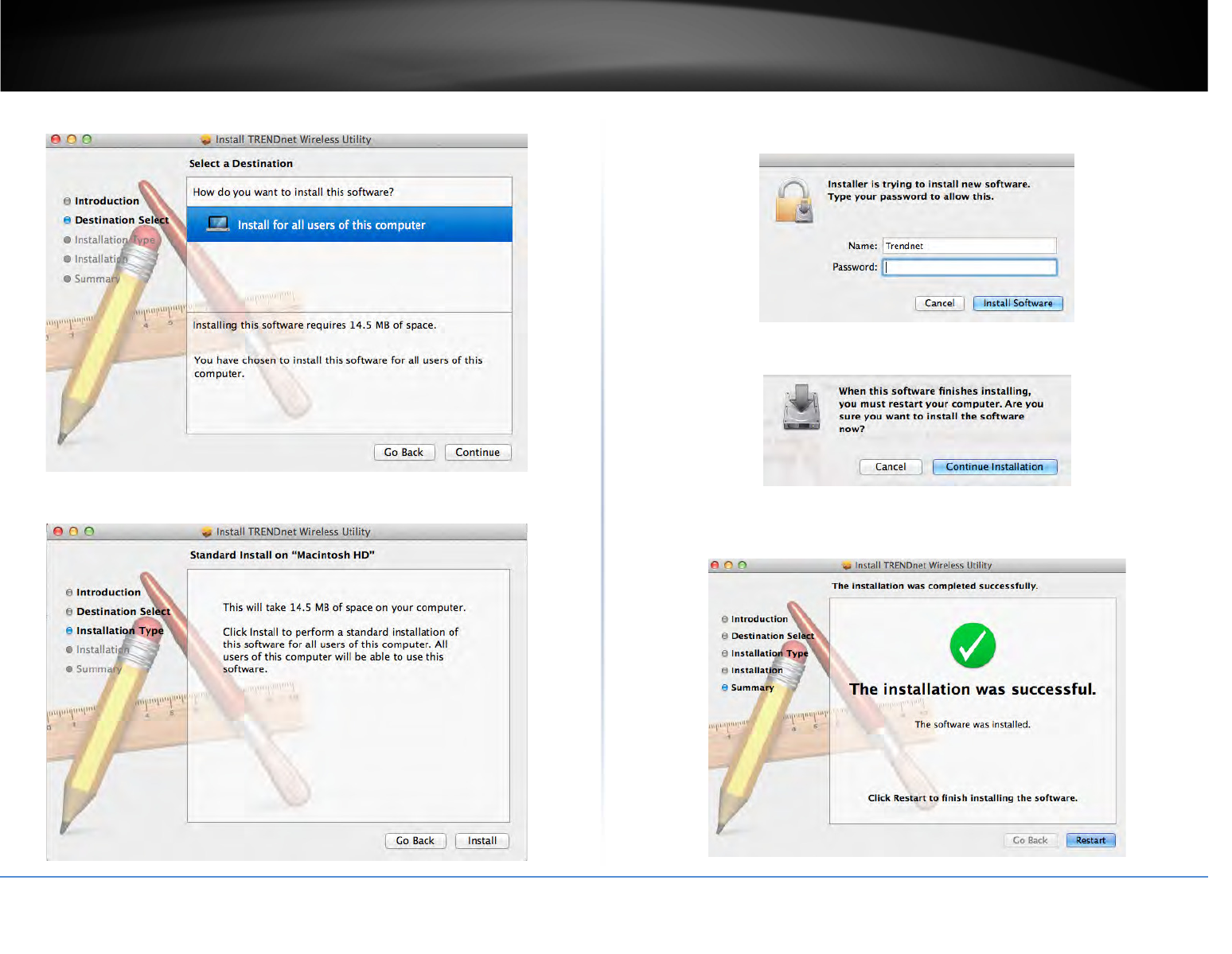

6. At the Destination Select window, click Continue.
7. At the Installation Type window, click Install.
8. When prompted, enter your Name and Password to authorize the installation and
click Install Software.
9. When prompted, click Continue Installation.
10. Wait for the installation to complete. Click Restart to restart your computer and
complete the installation.
![](/img.php?id=2281639&img=bga.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
8

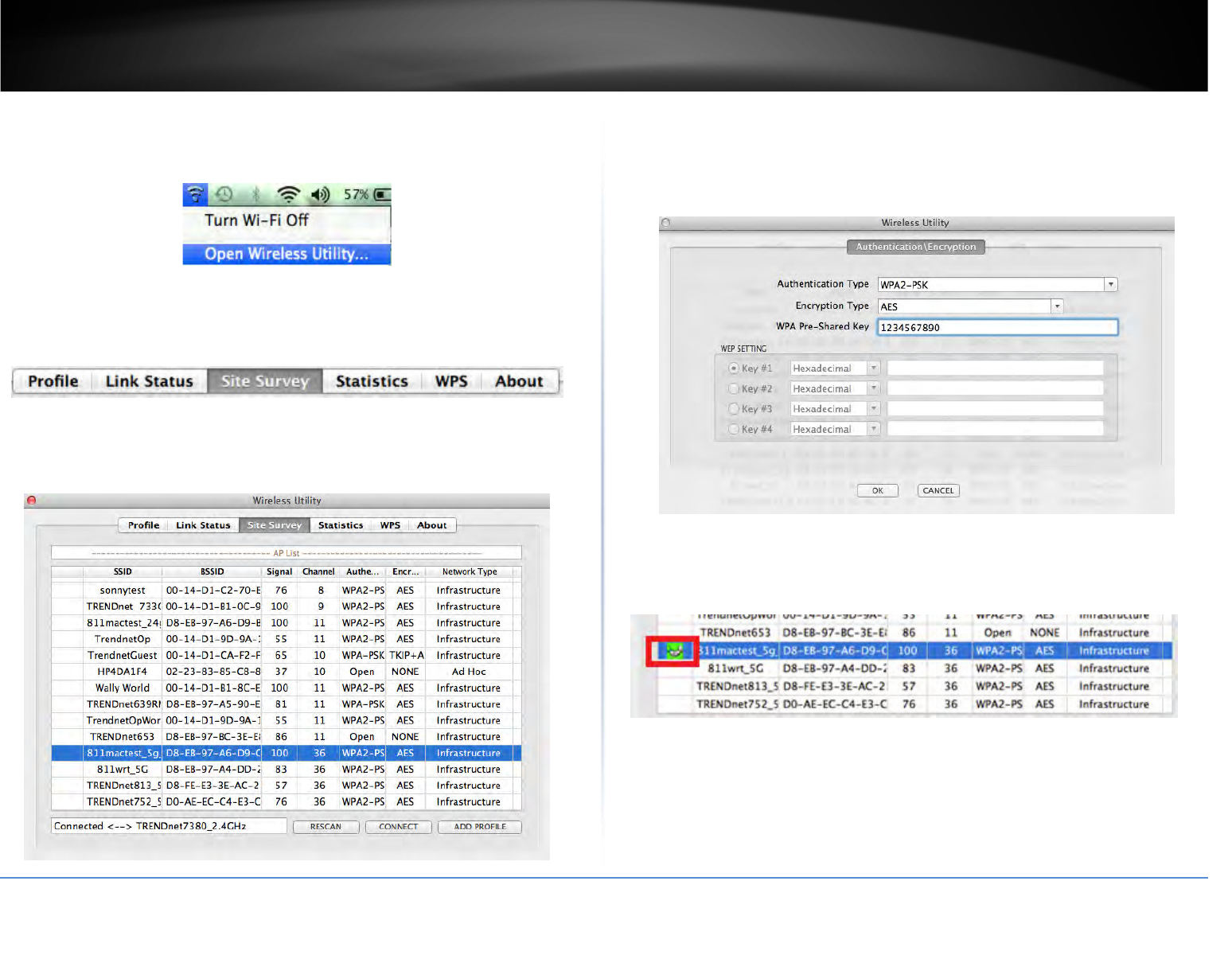

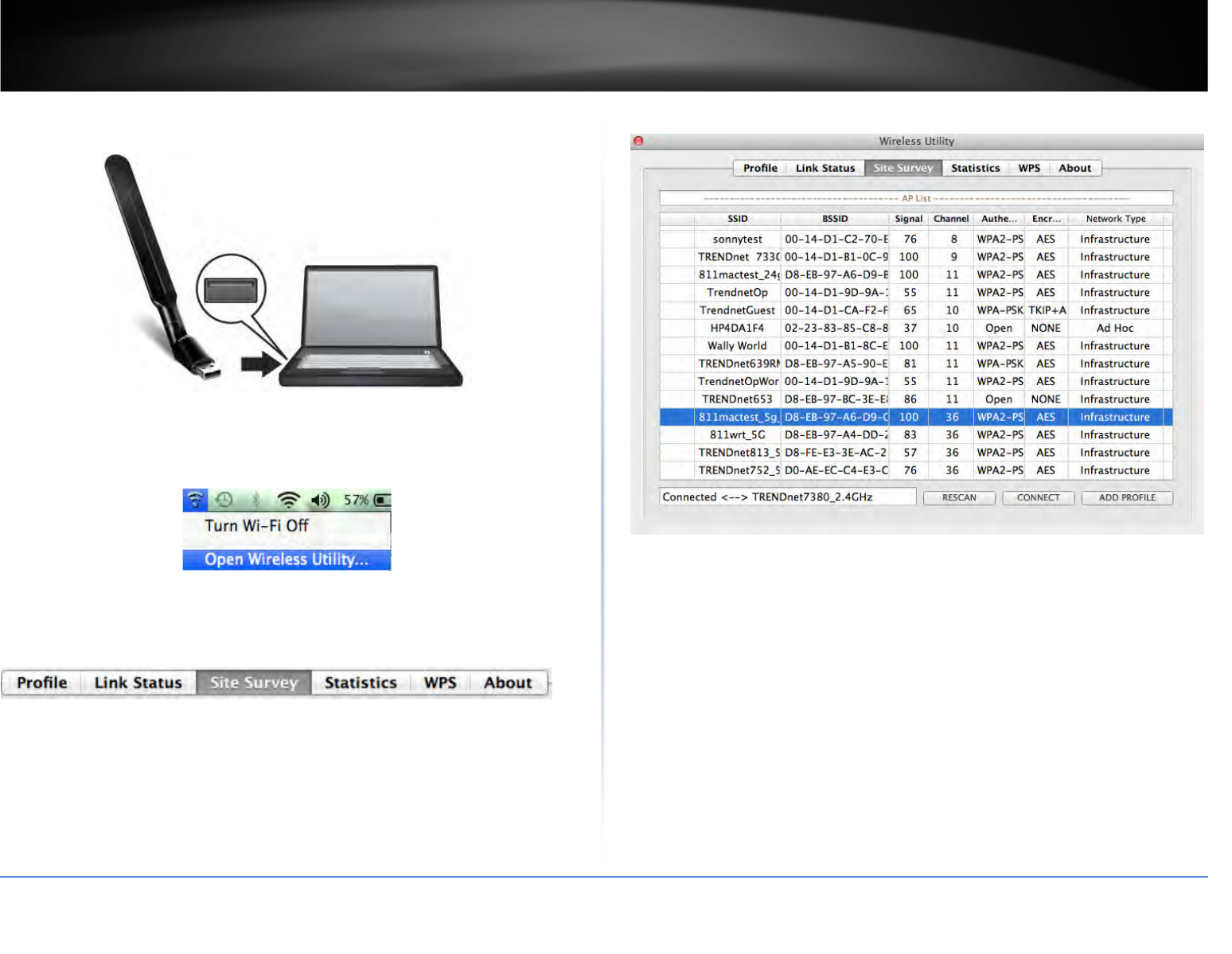

11. After your computer restarts, log into your computer and plug in the wireless USB
adapter into an available USB 2.0/3.0 port on your computer.
12. After the driver is successfully installed, an icon will appear in the top menu bar.
Click on the icon in the top menu bar and click Open Wireless Utility.
13. The wireless utility will appear. Click on the Site Survey button to search for
available wireless networks.
14. Double-click the wireless network you would like to connect.
![](/img.php?id=2281639&img=bgb.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
9
15. If your wireless network requires a Wi-Fi security key, you will be prompted to enter
it. Enter the Wi-Fi security key required to connect to your wireless network and click
OK. Note: If your wireless network does not required a security key, skip to the next step.
16. If connection was successful, you will see a green handshake icon next to the
wireless network in the list.
Note: If no status information appears, please verify that your security key is correct.
![](/img.php?id=2281639&img=bgc.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
10
Using the Wireless Utility
Windows® OS

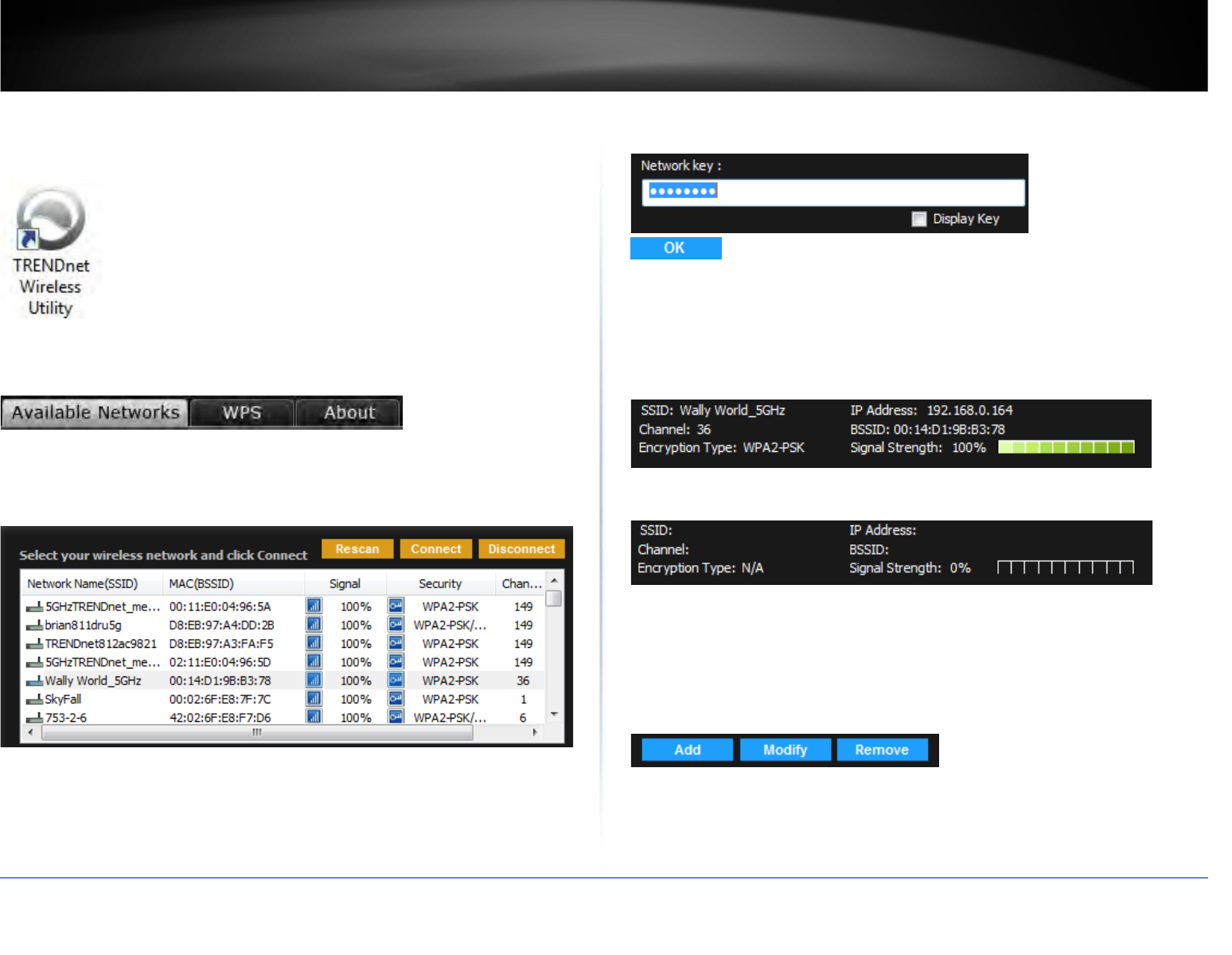

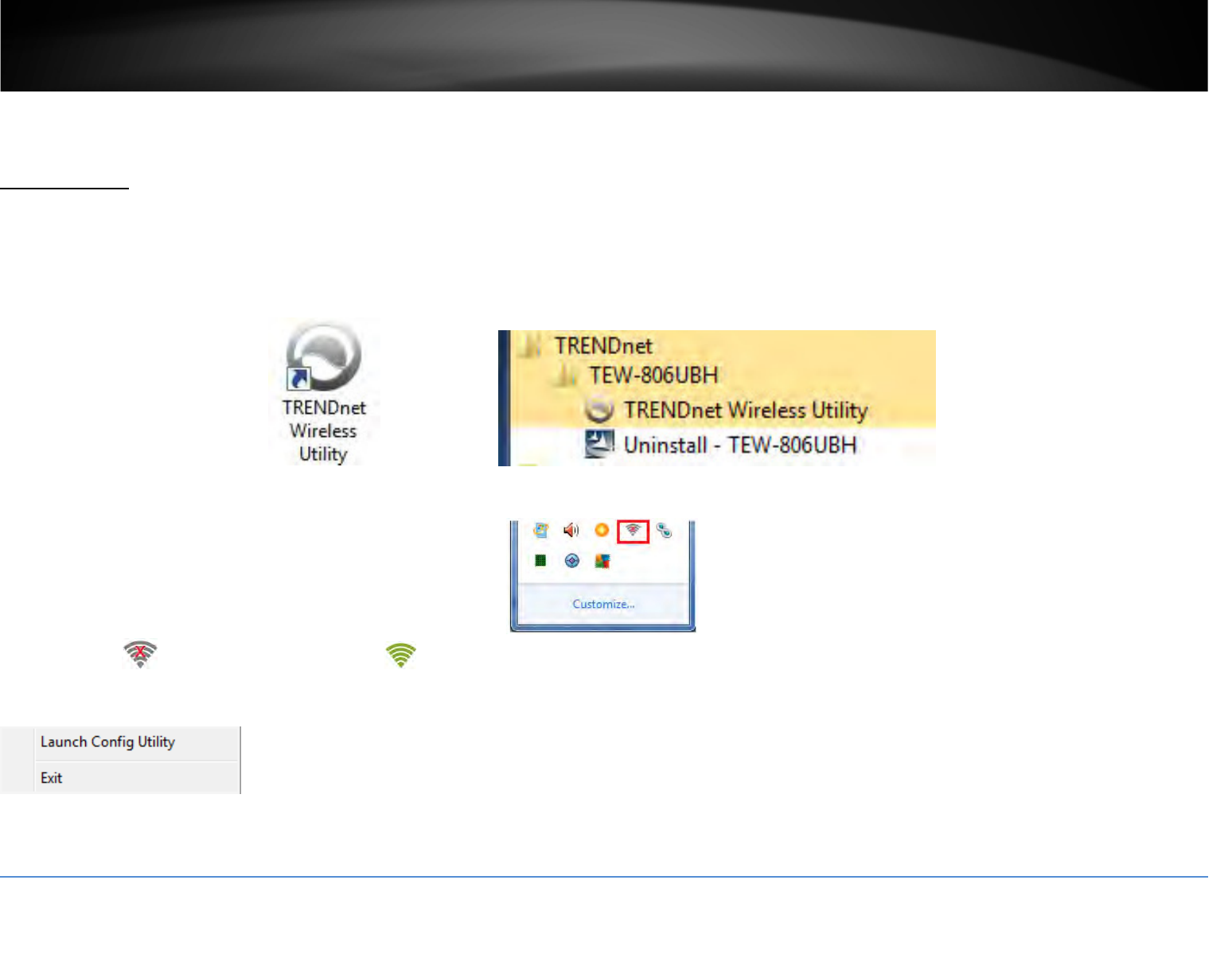

Upon completing the software installation, a desktop shortcut is automatically created.
After installation, the wireless software utility will start and open up automatically. If the utility does not start and open up automatically, double-click the desktop icon to start the utility.
You can also start the wireless utility from the Start Menu folder.
Note: If you decide to uninstall the utility and drivers later on, click on the Uninstall item under the Start Menu.
Desktop Icon Start Menu
When the utility is started, you will the following icon in your system tray in the bottom right corner of the screen.
Wireless Adapter is Disconnected Wireless Adapter is Connected. When connected, icon displays green bars according to signal strength.
You can right-click the system tray icon for additional options.
• Launch Config Utility – This option opens up the wireless utility.
• Exit – This option will close the utility and terminate the application. The application will no longer be running and accessible from your system tray. You will have to restart the
application manually by double-clicking the Desktop icon.
![](/img.php?id=2281639&img=bgd.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
11

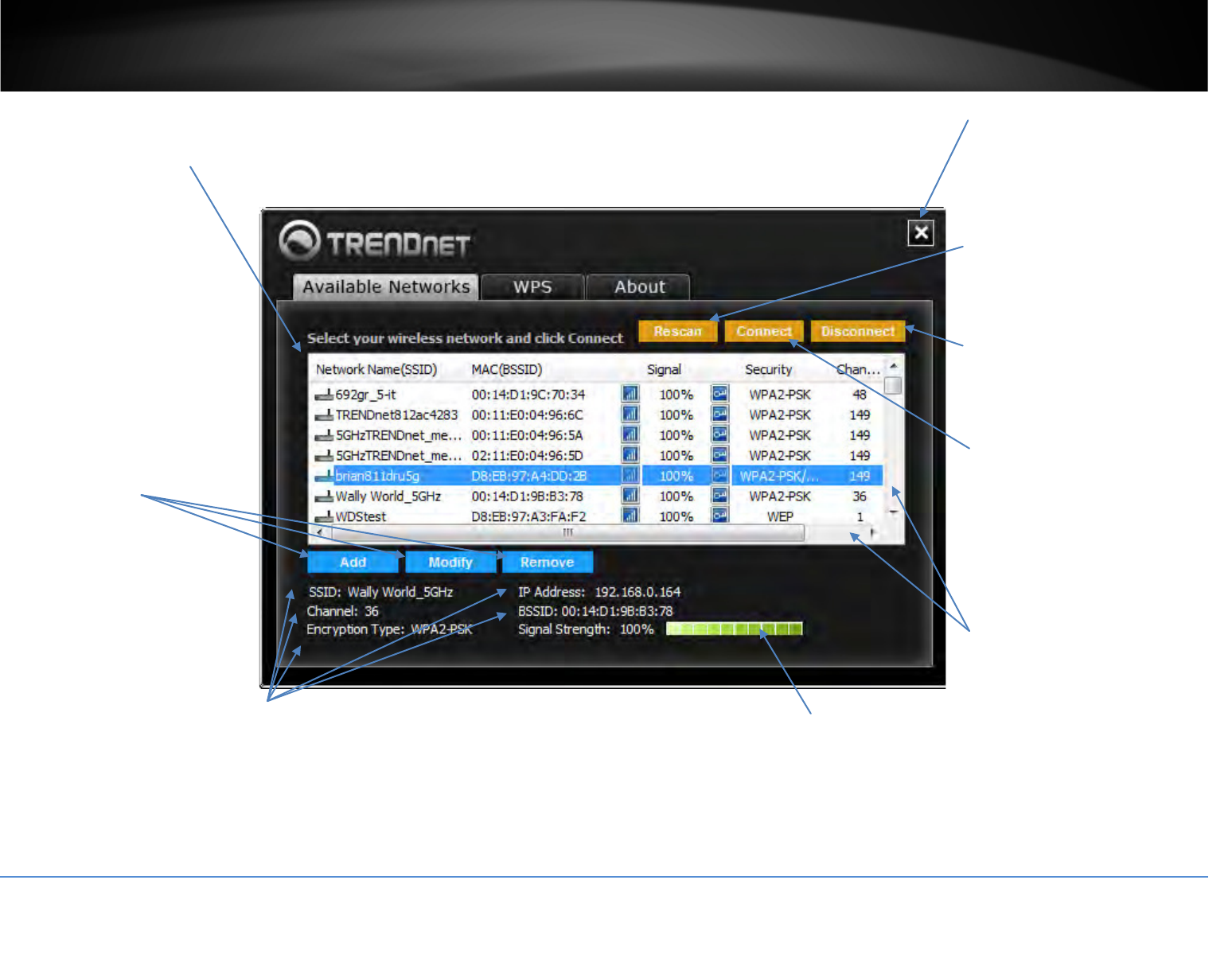

Wireless Utility Overview
Available Networks Window
This window allows you to discover and connect to available wireless networks.
Rescan
If you do not find your wireless
network in the available networks
list, click Rescan to scan for
available wireless networks.
Connect
After selecting the wireless network
in the available networks list, you
can click Connect to connect to the
network or simply double-click the
network in the list. If the wireless
network has security enabled, you
may be prompted to enter a
network key.
Close
To close the utility, click Close. This
does not terminate the wireless
utility application and can still be
accessed through the system tray,
desktop icon, or start menu.
Available Networks List
This window displays a list of the
available wireless networks found
by your wireless adapter. In
addition to displaying the wireless
network name (SSID, the list will
display additional information about
the network such as MAC address
(BSSID), signal strength percentage,
security type, and channel
Note: Since this adapter has dual-
band capability, available wireless
network found on both the 2.4GHz
band and 5GHz band will be
displayed in the list.
SSID, Channel, IP Address, Encryption Type, BSSID, Signal Strength
This will display the wireless network name (SSID), channel, and
security/encryption type, MAC address (BSSID), and Signal Strength of
the wireless network you are currently connected. This will also display
the IP address obtained from the wireless network your are currently
connected.
Add, Modify, Remove
These controls allow you to
manage your wireless profiles. The
utility uses the built-in operating
system wireless profile manager for
your wireless profiles.
Add – Click Add to manually add a
new wireless network profile.
Modify – Select a network in the
list to modify, and click Modify. The
network should already be in your
network profile list in order to
modify.
Remove – Select a network in the
list to remove from the profiles list.
The network should already be in
your profile list in order to remove.
Signal Strength/Link Quality
The bars provide a graphical
representation of the general signal
strength and link connectivity to the
wireless network you are currently
connected.
Vertical/Horizontal Scroll
You can click the arrows or click and
drag the slider, to display more
available networks or information.
Disconnect
Select the wireless network to
disconnect from, and click
Disconnect. This does not delete the
wireless profile from Windows®.
![](/img.php?id=2281639&img=bge.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
12

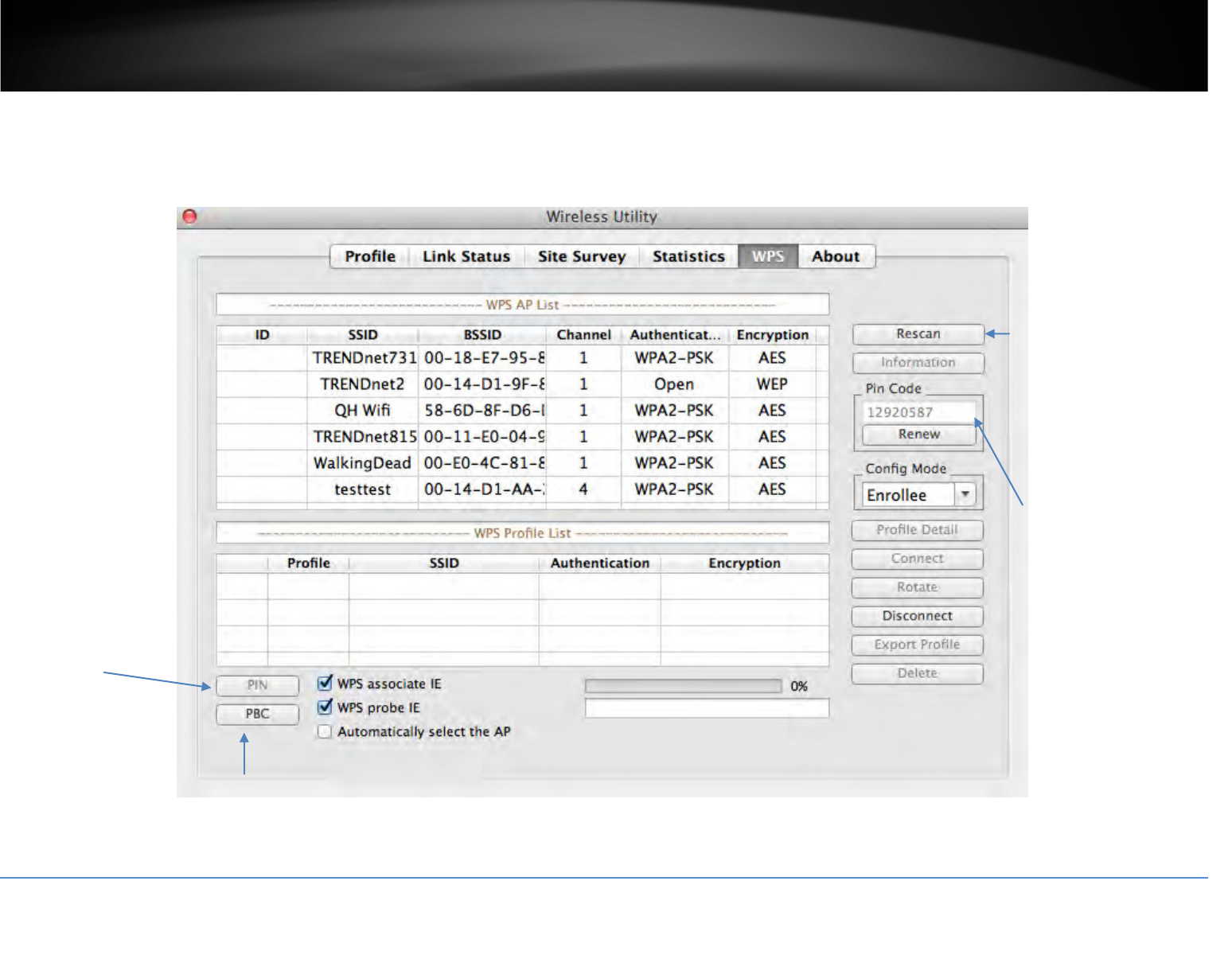

Wireless Utility Overview

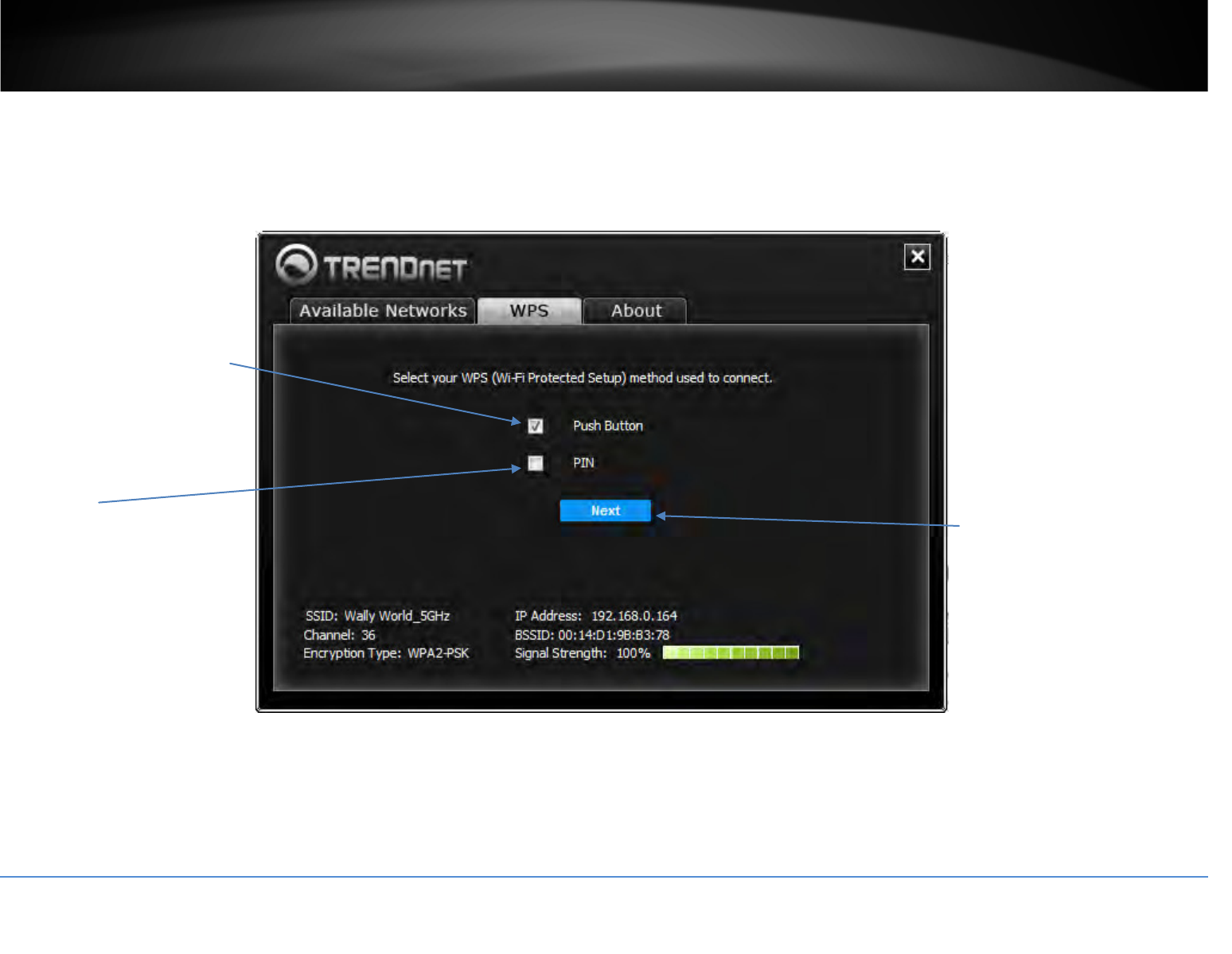

WPS (Wi-Fi Protected Setup) Window
This window allows you to establish wireless connectivity using WPS to WPS supported device such as a wireless router/access point.
For information on how to connect using WPS, please refer to the section “Connect to your wireless network using WPS” on page 12.
WPS Push Button Method (Default)
Allows you to establish wireless
connectivity to a WPS supported device
such as a wireless router/access point
using the WPS Push Button method.
WPS PIN Method
Allows you to establish wireless
connectivity to a WPS supported device
such as a wireless router/access point
using the WPS PIN method.
Next
After selecting the WPS method to
use, click Next to continue to
remaining steps of the WPS
connection process.
![](/img.php?id=2281639&img=bgf.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
13
Wireless Utility Overview

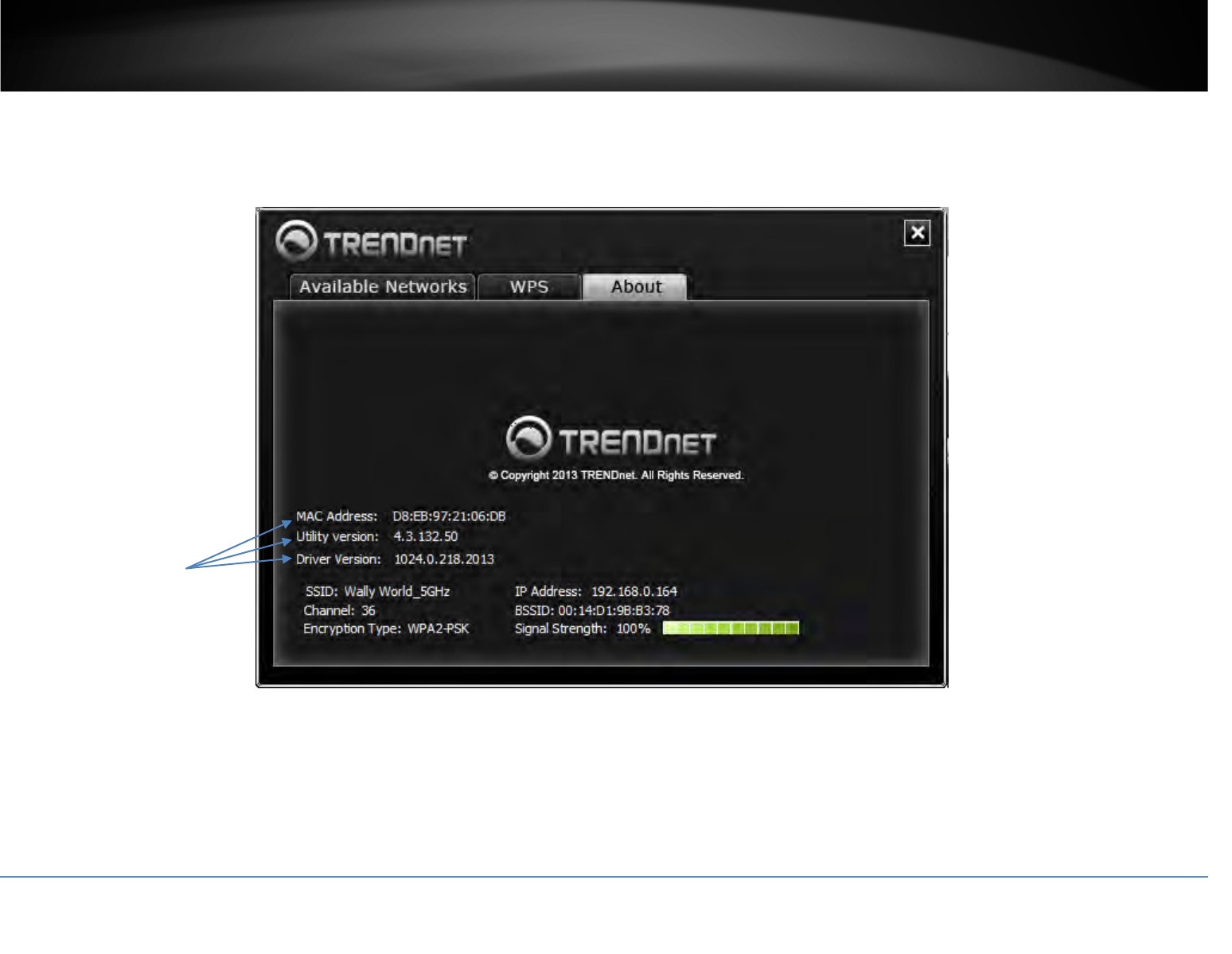

About Window
This window displays the wireless adapter MAC address, driver, and utility version reference information.
MAC Address, Utility & Driver Version
Displays the wireless adapter MAC
address, utility, and driver version
reference information.
![](/img.php?id=2281639&img=bg10.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
14
Connect to your wireless network
1. Open up the wireless utility.
2. Click on the Available Networks tab.
3. In the list, double click on your wireless network or select your wireless network and
click the Connect button.
4. If your network has security enabled, you will be prompted to enter the Network Key
and the encryption type will be detected automatically. Enter the Network Key and click
OK.
Note: After entering the network key, you can click Display Key to show the characters
you typed in for the network key to verify it is correct.
5. The wireless network information will appear at the bottom of the utility of the
wireless network you are connected and the Signal Strength/Link Quality bars will turn
green to indicate a successful connection.
Connection Successful
Connection Unsuccessful
Note: If there is no information displayed and the bars do not turn green, you were not
connected to the wireless network successfully. Please select your network in the list
again, and click Modify and re-enter your Wi-Fi/Network Security Key to verify if your
key may have been entered incorrectly, then click OK. If you are still experiencing issues
connecting to your wireless network, you may need to verify the security settings of your
wireless network to make sure they correct key is entered.
![](/img.php?id=2281639&img=bg11.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
15
Connect to your wireless network using WPS
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your
wireless network. If your wireless router/access point supports WPS, you can use this
feature to easily connect wireless devices to your network.
Note: You can typically find out if you if your wireless router/access point supports WPS
just by looking at the physical device. There should be a WPS push button located on the
exterior casing of the device, if not, your device may not support WPS or you may need
to reference your device documentation as to how WPS can be initiated on the deivce. If
your device does not have an identifiable WPS push button on the exterior location, we
would recommend using the standard connection method on the previous page.
There are two methods the WPS feature can easily connect your wireless devices to
your network.
• Push Button Configuration (PBC) method (Recommended)
• PIN (Personal Identification Number) Method

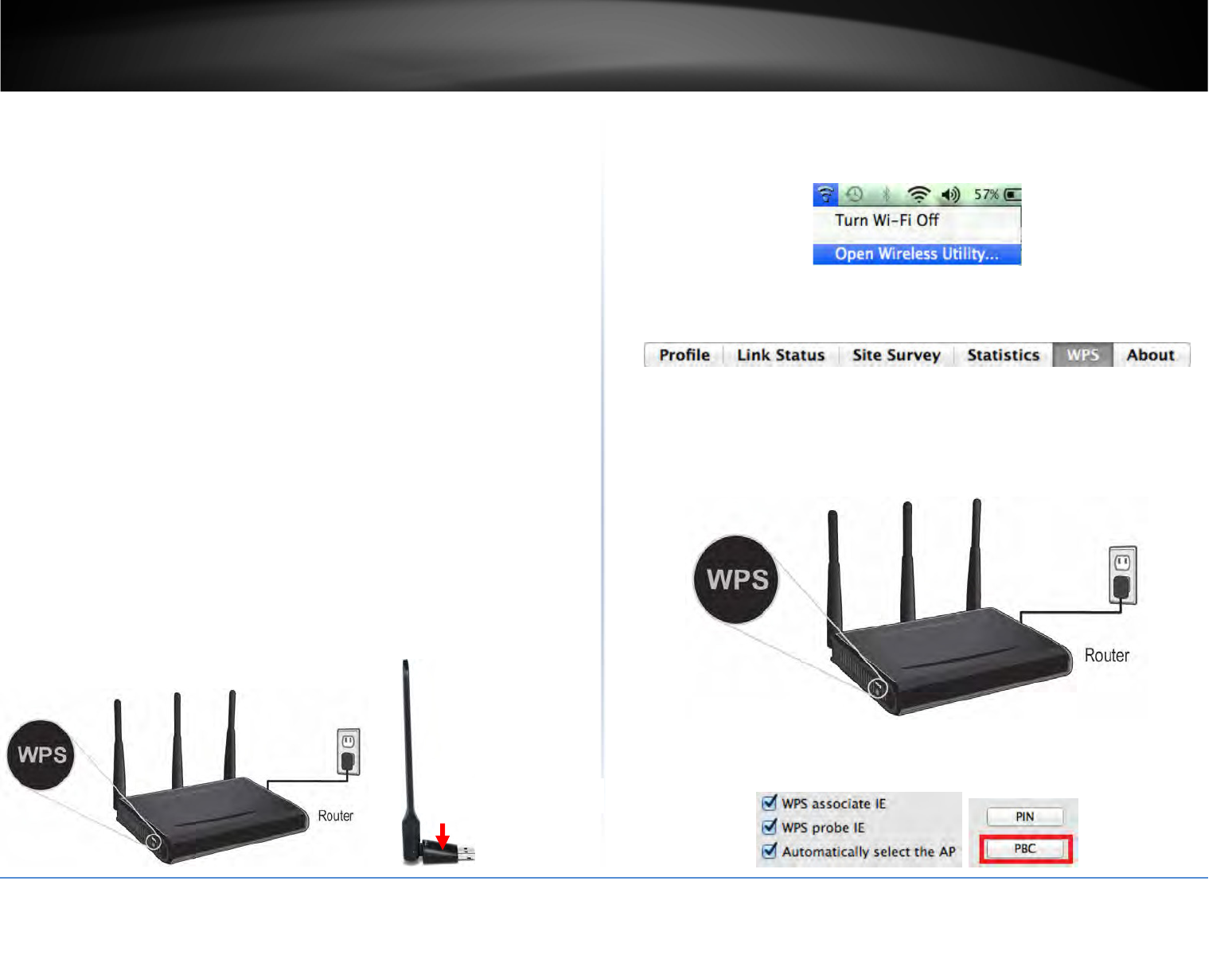

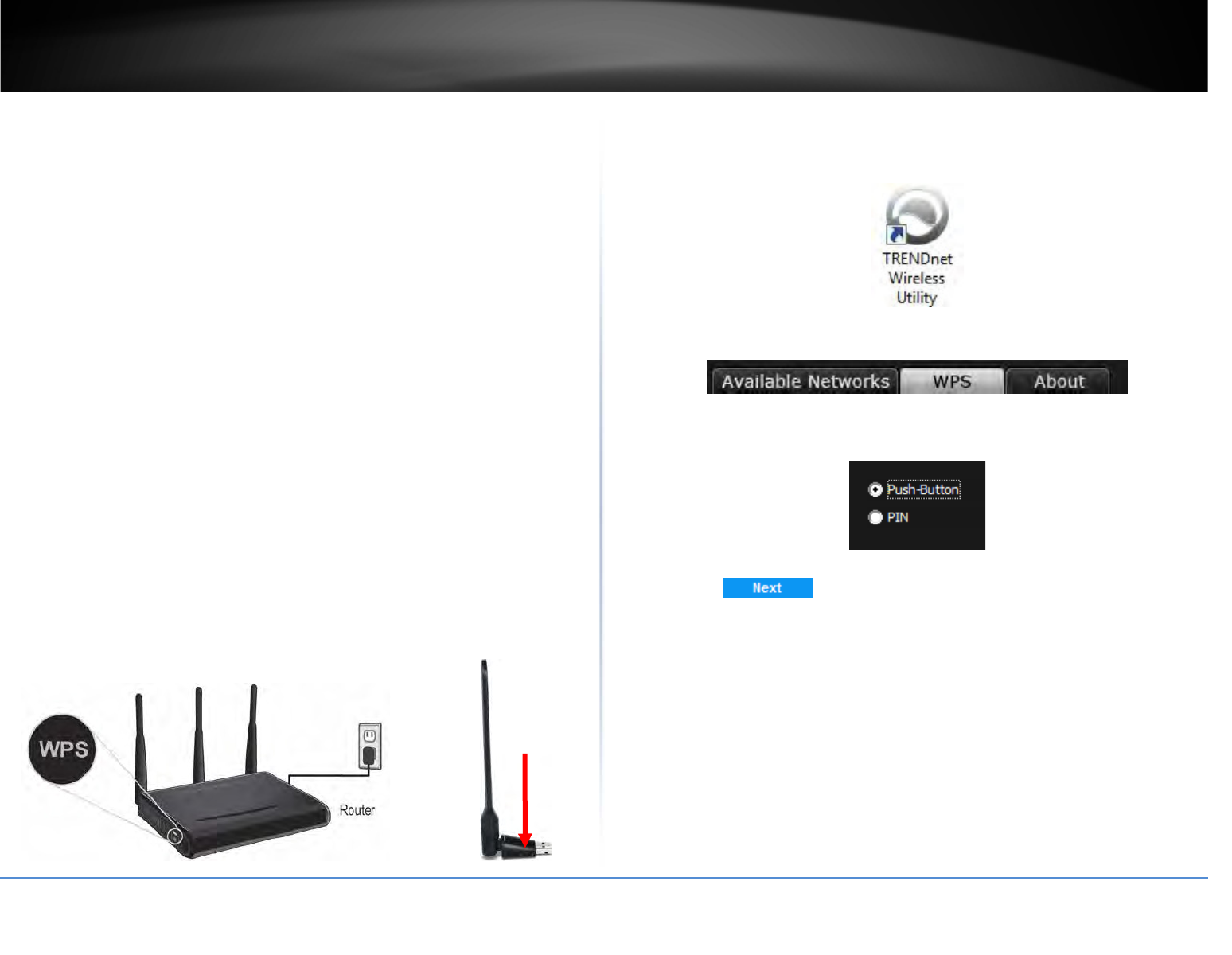

Hardware Push Button (PBC) Method
On your wireless router/access point, push the WPS button. Then push and hold the
WPS button on the wireless for 3 seconds and release.
Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet
routers/access points, the WPS hardware push button hold time is 3 seconds. If you are
using another brand device, you may need to refer to your device documentation for
WPS operation.
Virtual Push Button (PBC) Method
1. Open up the wireless utility.
2. Click on the WPS tab.
3. In the WPS window, the Push Button Configuration (PBC) option will be selected by
default. If not, check the Push Button option.
4. Click Next.
WPS
Button
(3 seconds)
![](/img.php?id=2281639&img=bg12.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
16

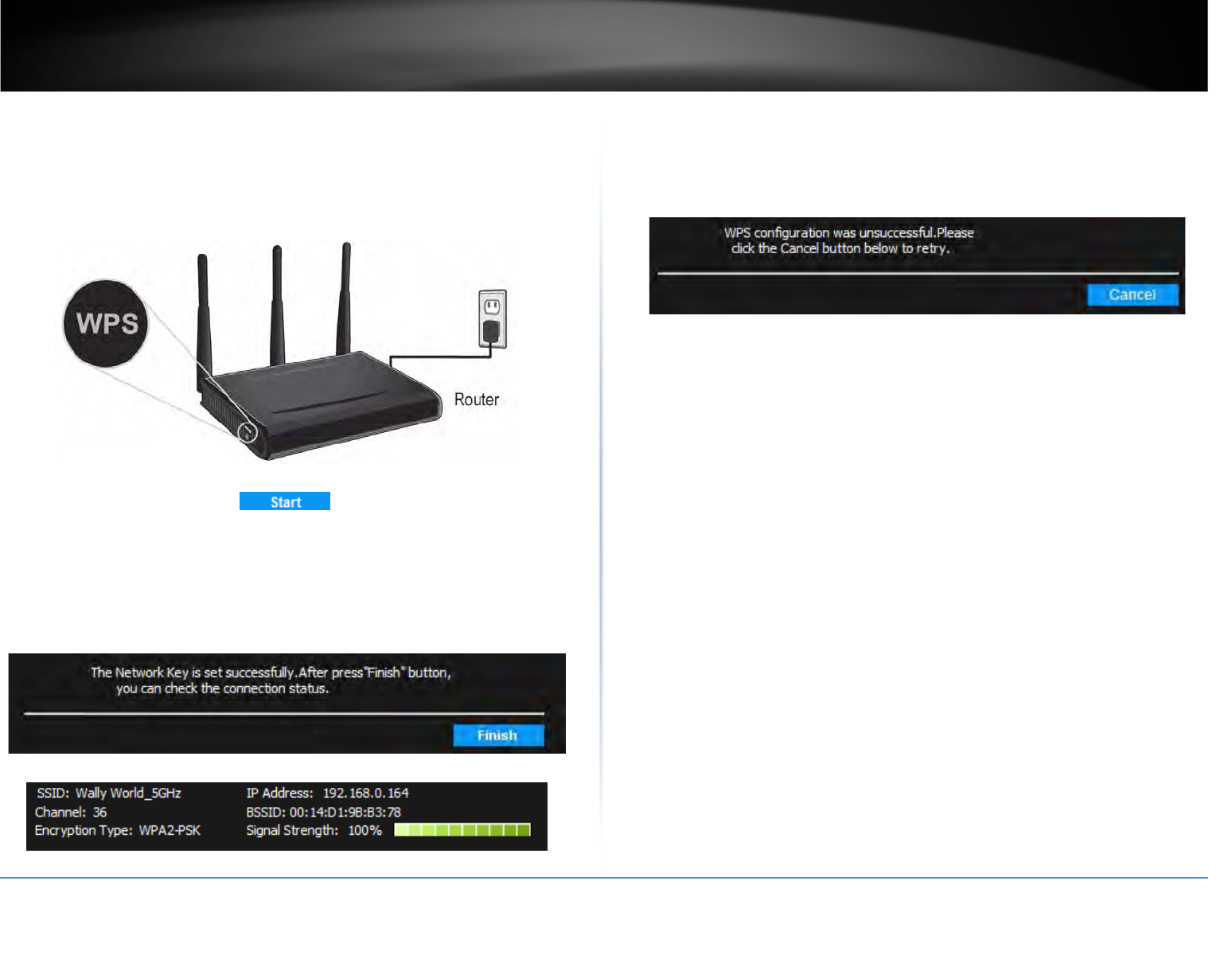

5. On your wireless router/access point, push the WPS button.
Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet
routers/access points, the WPS hardware push button hold time is 3 seconds. If you are
using another brand device, you may need to refer to your device documentation for
WPS operation.
6. On the wireless utility, click Start.
7. Messages will appear utility indicating that the WPS process has been activated and
the status. Wait for the process to complete.
8. If successful, you will see the following message at the top and the connection
information at the bottom of the utility will appear. Click Finish.
Note: If the WPS process fails, you will see the message below and connection
information at the bottom of the utility will not be displayed. You may need to click
Cancel and attempt the WPS process again. You may need to refer to your wireless
router/access point documentation regarding the operation of WPS.
![](/img.php?id=2281639&img=bg13.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
17

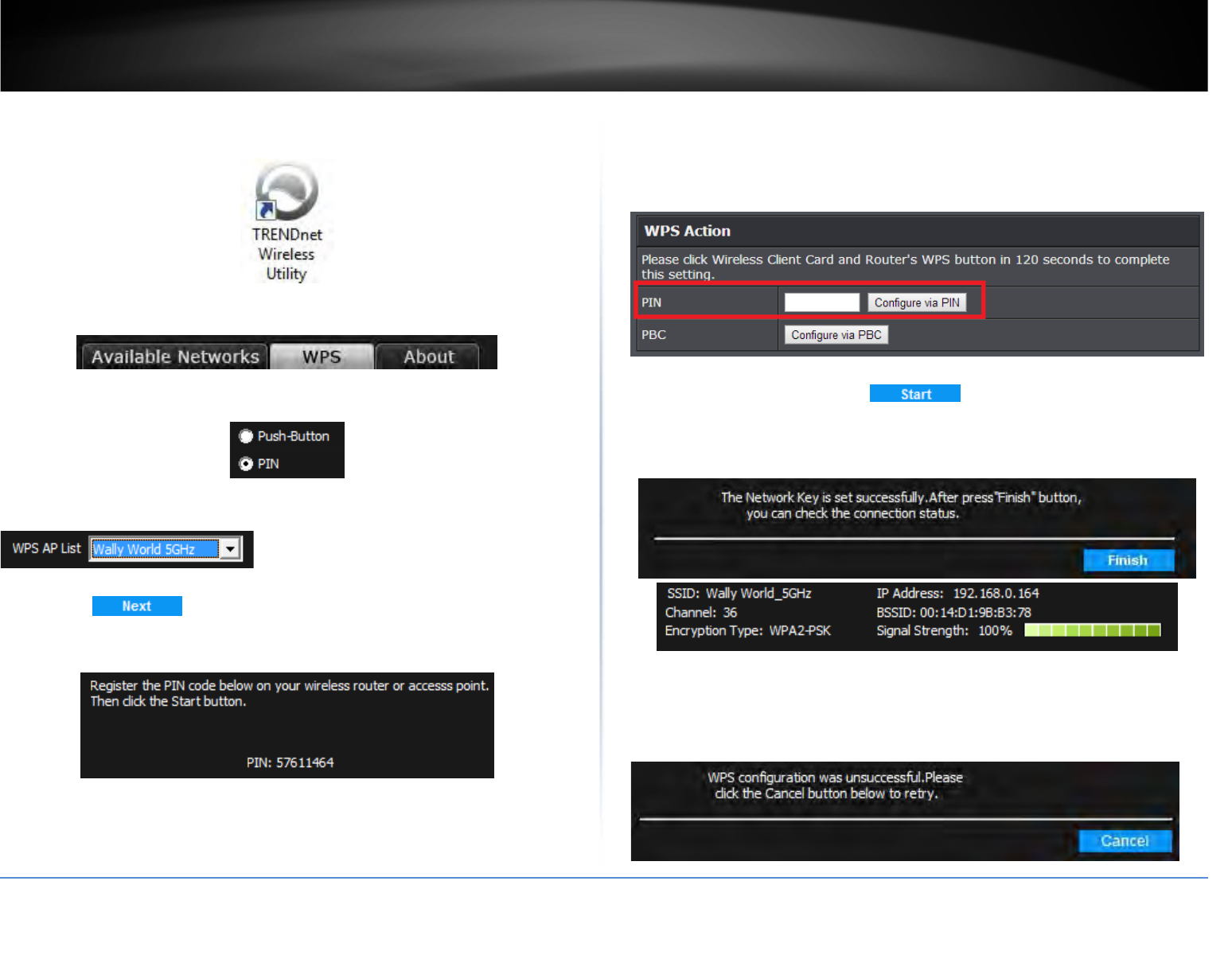

PIN (Personal Identification Number) Method
1. Open up the wireless utility.
2. Click on the WPS tab.
3. Check the PIN Code option.
4. Click the WPS AP List drop-down list and select your wireless network.
5. Click Next.
6. The client PIN Code will be generated automatically.
7. On your wireless router/access point, enter the client PIN Code into your wireless
router/access point configuration page and start the WPS process.
Note: You will need to access the device configuration page (typically through a web
browser) to access the WPS section to enter the client PIN code and use the WPS PIN
method. You may need to refer to your device documentation on how to access your
device’s configuration page and locate the WPS section. The example below (from our
TRENDnet TEW-810DR router) shows where the WPS client PIN information is entered.
8. On the wireless utility, click Start.
9. If successful, you will see the following message at the top and the connection
information at the bottom of the utility will appear.
Note: If the WPS process fails, you will see the message below and connection
information at the bottom of the utility will not be displayed. You may need to click Back
and attempt the WPS process again. You may need to refer to your wireless
router/access point documentation regarding the operation of WPS.
![](/img.php?id=2281639&img=bg14.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
18

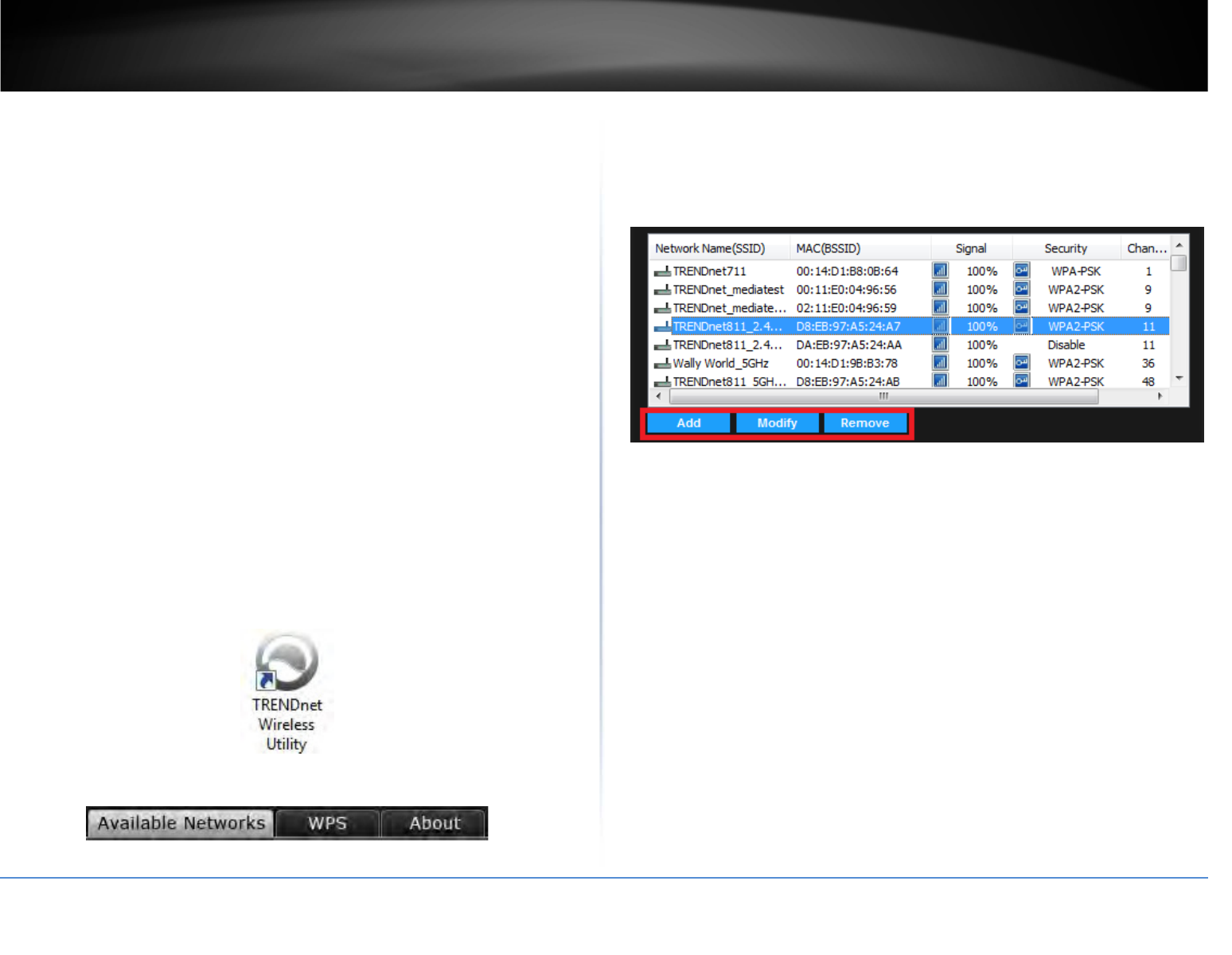

Create or modify wireless network profiles
Wireless network profiles are profiles that define the parameters of an existing network
such as the wireless network name (SSID) and security settings in order to allow for
easier management especially if you connect to multiple wireless networks. When you
connect to a wireless network using the Available Networks window, a profile for that
network is automatically saved to your profile list so that the next time you are in range
of that network, your computer will automatically connect to that predefined wireless
network without having to manually scan and reconnect to the network.
Note: The wireless utility uses built-in Windows® profile management for wireless
networks.
When a parameter (wireless network name or security key) changes in a wireless
network that you had connected to before and saved to the profile list, you may need to
modify the profile of that network and change to the correct parameters in order to
reconnect.
If you are connecting to a wireless network where the wireless network name (SSID) is
not discoverable for security purposes, you may need to manually add a new profile to
the list for this network in order to connect.
Please note that these parameters are set based on the configuration parameters
required by the wireless router/access point.
For additional information on security parameters, you can refer to the Appendix.
1. Open up the wireless utility.
2. Click on the Available Networks tab.
3. Review the options.
When connecting to a wireless network, it is automatically saved to your Windows®
profile list.
• Add – Allows you to manually add a wireless network profile (ex. If the
wireless network is set to hide it’s wireless network name (SSID)). This will add
the profile to Windows® profile list.
• Modify – Allows you to modify an existing wireless network profile in the
Windows® profile list. Select the wireless network to modify in the Available
Networks list, and click this option to modify it. You will only be able to modify
the settings of a wireless network that had been saved in the Windows® profile
list.
• Remove – Allows you to remove an existing wireless network profile in the
Windows® profile list. Select the wireless network to remove in the Available
Networks list, and click this option to remove it. You will only be able to remove
a profile that had been saved in the Windows® profile list.
![](/img.php?id=2281639&img=bg15.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
19

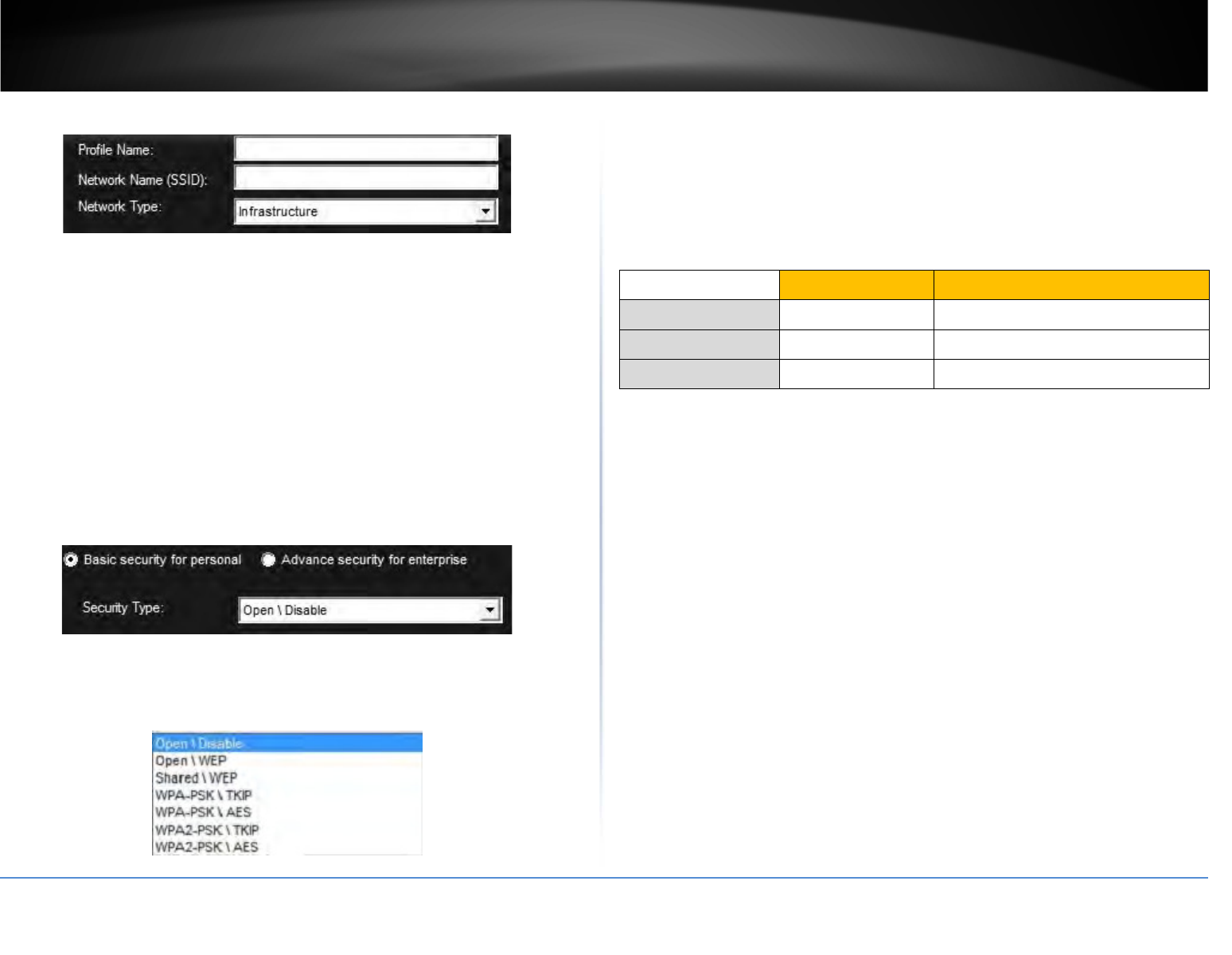

Enter or modify the parameters for the wireless network profile.
• Profile Name – Enter a name you easily identify in your profile list, for example
“Home” or “Office”. Please note that this is not the same as your wireless
network name and does not need to be the same as your wireless network
name.
• Network Name (SSID) – Enter the wireless network name of the network you
are connecting.
• Network Type – The most typical configuration type is Infrastructure which is
used when connecting to a wireless router/access point. Ad-Hoc is only used
when establishing a wireless one-to-one only connection with another wireless
device or computer operating in ad-hoc mode.
There are 2 security categories to choose.
Basic security for personal – Includes the most common security options under the
Security Type drop-down menu.
• Open \ Disable – Wireless network has no security configured. No key is
required.
• Open or Shared \ WEP – Enter the WEP key for your wireless network. Wireless
network has WEP security enabled, open or shared. Please note that the Key
Index 1-4 must also match the same index configured on the wireless
router/access point.

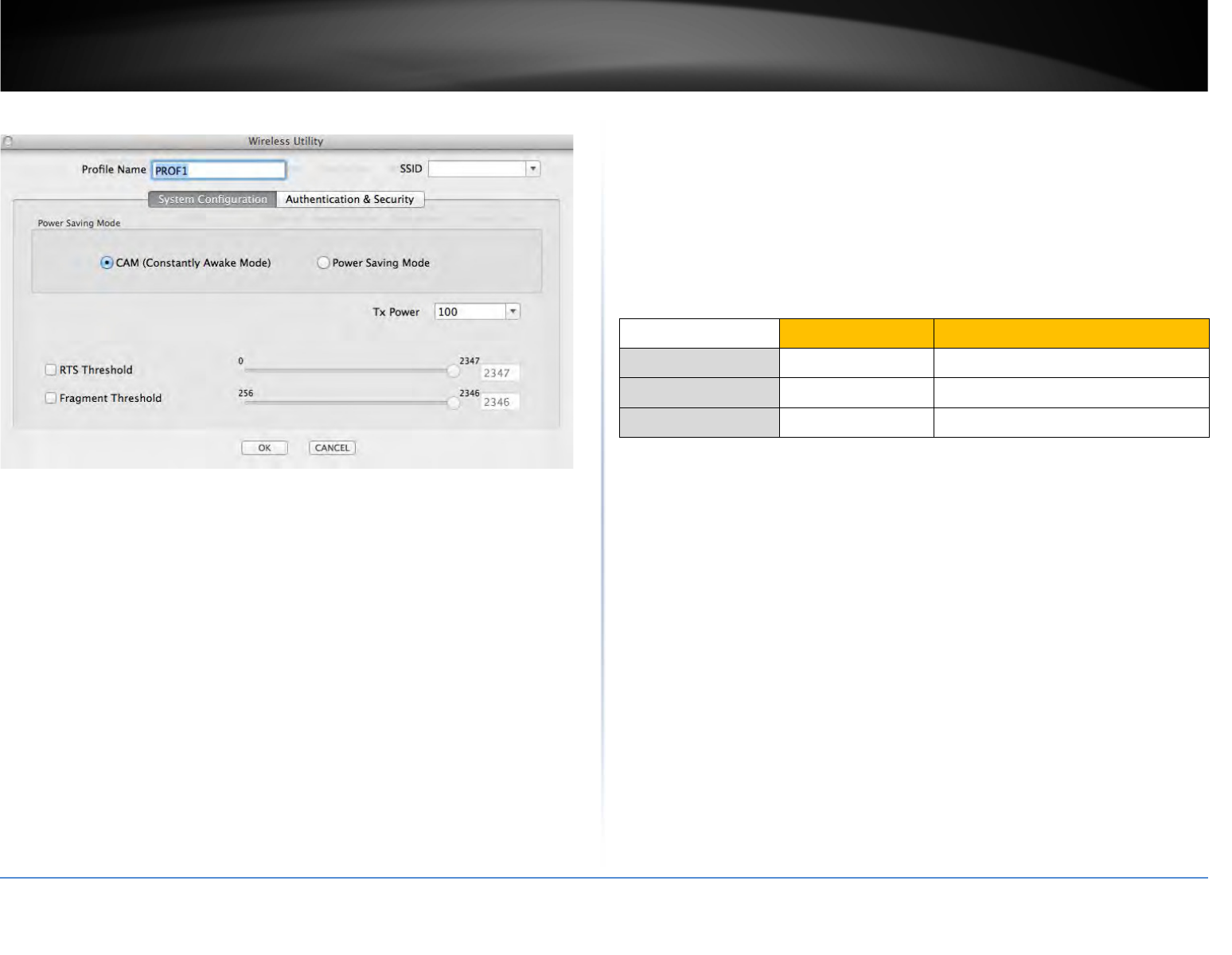

WEP Key Format
• WPA-PSK \ TKIP or AES – Wireless network has WPA-PSK security enabled,
TKIP or AES.
Note: 8-63 alphanumeric characters (a,b,C,?,*, /,1,2, etc.)
• WPA2-PSK \ TKIP or AES – Wireless network has WPA2-PSK security enabled.
TKIP or AES.
Note: 8-63 alphanumeric characters (a,b,C,?,*, /,1,2, etc.)
Advance security for enterprise – Includes all security options including advanced
options under the Security Type drop-down that require additional authentication
parameters to connect to the wireless network typically used offices and businesses that
require a higher level of security.
Additional security options:
• WPA EAP-TLS or WPA2 EAP-TLS \ TKIP or AES – Wireless network has WPA-
EAP security enabled, TKIP or AES. Select the EAP (Extensible Authentication
Protocol) Type.
o Select a Certificate – EAP-TLS requires additional certificate to be
installed on computer for authentication purposes. Click the drop-
down and select the certificate type used to authenticate and required
by the authentication (RADIUS) server.
WEP Key Format HEX ASCII
Character set 0-9 & A-F, a-f only Alphanumeric (a,b,C,?,*, /,1,2, etc.)
64-bit key length 10 characters 5 characters
128-bit key length 26 characters 13 characters
![](/img.php?id=2281639&img=bg16.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
20
MAC® OS
Upon completing the software installation and restarting your computer, a shortcut is automatically created in the dock.
After plugging in the wireless adapter into an available USB 2.0/3.0 port, You will need to click the top menu bar icon and click Open Wireless Utility. You can also

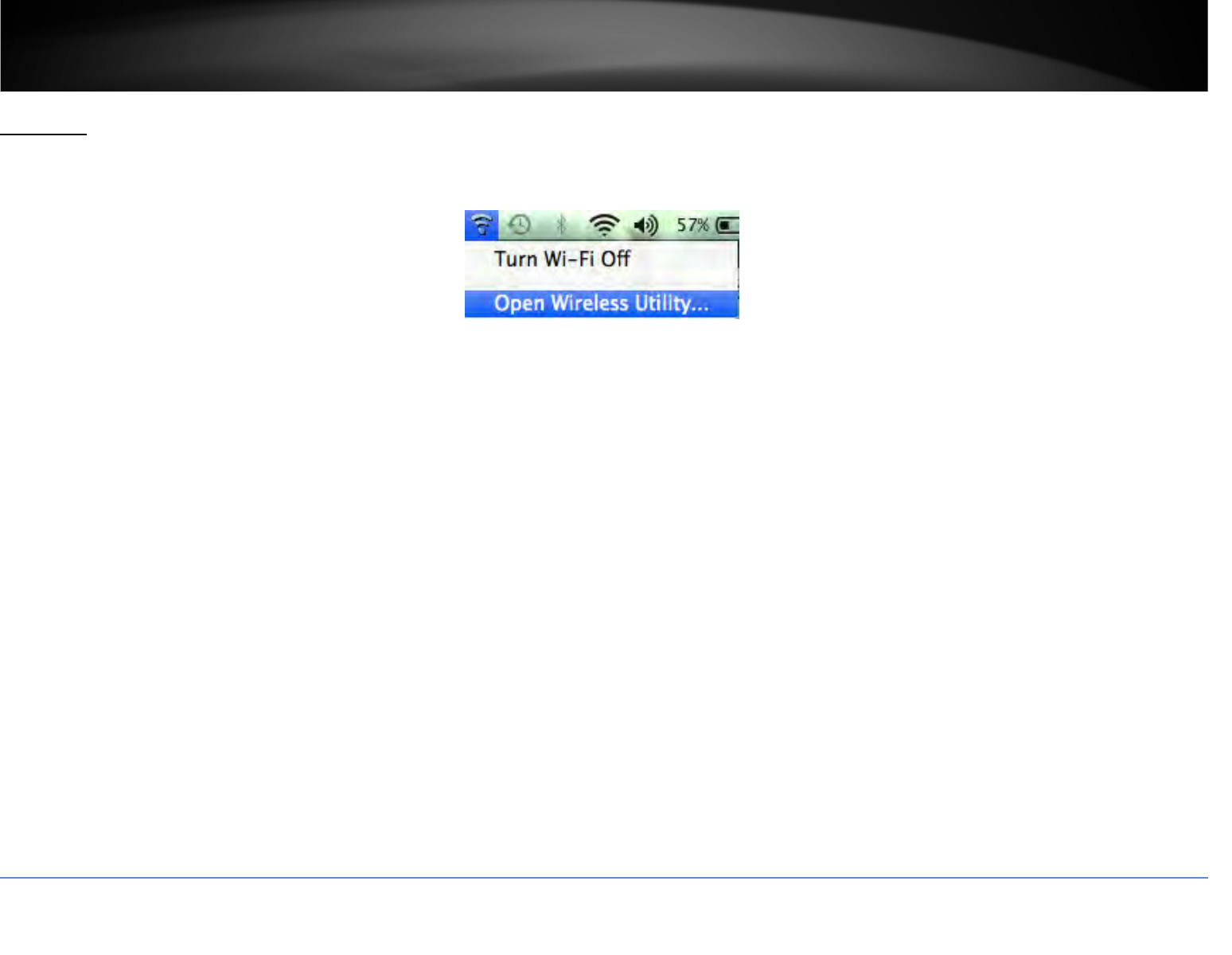

Top Menu Bar Icon
In the top menu bar icon, you can choose to turn off the wireless adapter or open the wireless utility.
If the menu bar icon did not appear, you can start the utility Finder > Applications > TRENDnet Wireless Utility and click on Wireless Utility.
![](/img.php?id=2281639&img=bg17.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
21

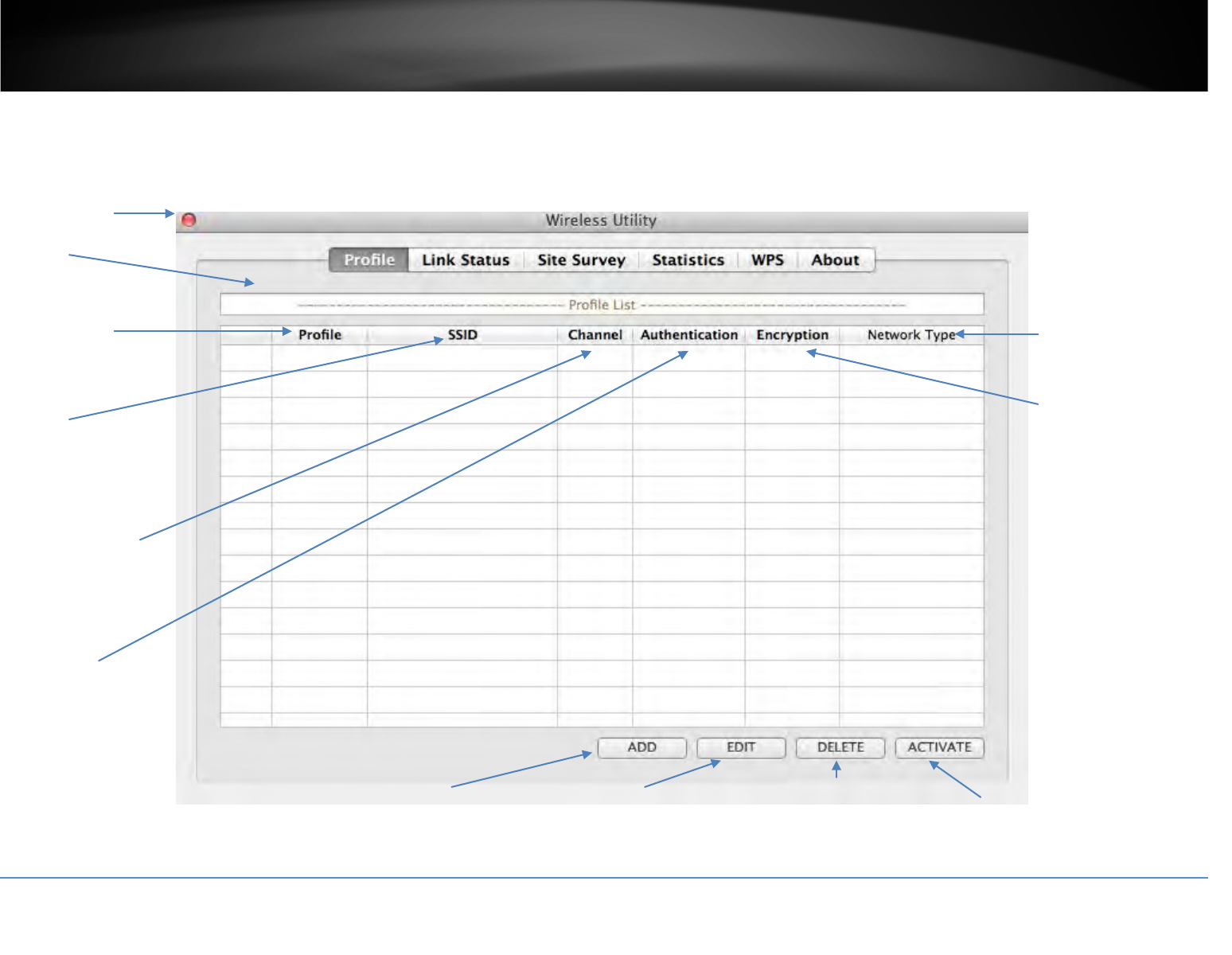

Wireless Utility Overview
Profile Window
This window displays current or previously save wireless network profile info. to prevent you from having
to re-enter the wireless network information in order to reconnect.
Close
To close the utility, click Close. This
does not terminate the wireless
utility application.
Default
Column indicates which
network is set to the default.
Profile Name
Column displays the
profile name for
identification.
SSID
Column displays the SSID or
Wireless Network Name of
assigned in the profile.
Add
Allows you to manually add
or create a new wireless
network profile.
Edit
Allows you to edit an
existing wireless network
profile in the list.
Activate
When selecting an existing
wireless network profile in the
list, clicking this will allow to
manually choose which profile
to use to connect.
Network Type
Column displays the
wireless network type
(Infrastructure or Ad-Hoc)
Delete
Allows you to remove or
delete an existing wireless
network profile in the list.
Channel
Column displays the
channel of the wireless
network assigned to the
profile.
Authentication
Column displays the
authentication type
assigned to the profile.
Encryption
Column displays the
encryption type assigned
to the profile.
![](/img.php?id=2281639&img=bg18.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
22
Wireless Utility Overview

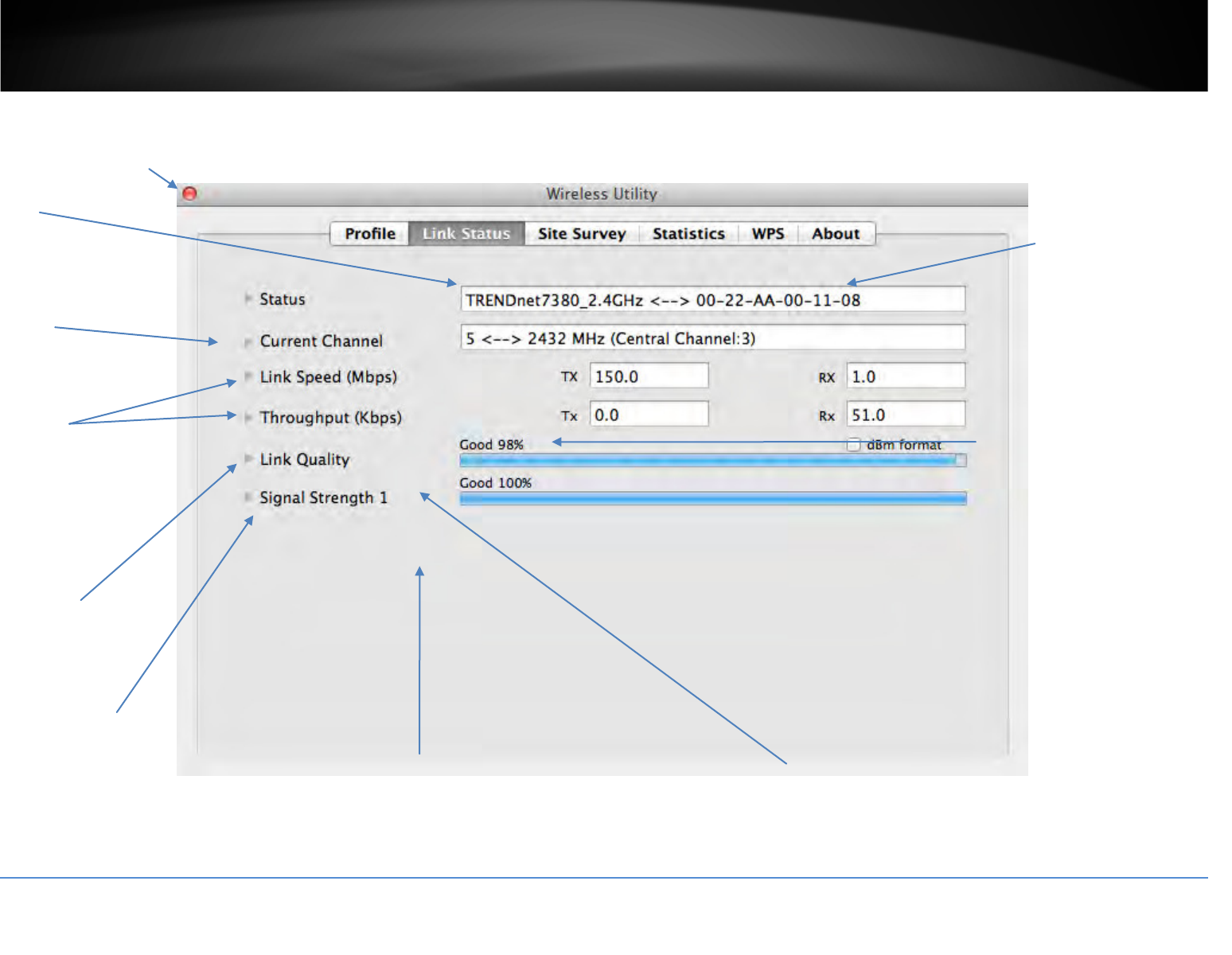

Link Status Window
This window will display the adapter connection or link status information.
Close
To close the utility, click Close. This
does not terminate the wireless
utility application.
Signal Strength
The bar provides a graphical
representation of the general
signal strength and link
connectivity to the wireless
network you are currently
connected.
BSSID
Displays the MAC address
of the wireless network
SSID
Displays the SSID or
wireless network name
your adapter is currently
connected
Link Speed/ Throughput
Displays the estimated
connection speed established
to the wireless network
currently connected.
Throughput displays the
estimated data rate.
Channel
Displays the operating channel
of the wireless network you are
currently connected.
Network Type
Displays the network type
(Infrastructure or Ad-Hoc) of
the network you are currently
connected.
Turn Radio OFF
Disables the wireless adapter
from functioning or enables
wireless adapter
functionality.
Link Quality
Displays the link quality of
the current connection.
![](/img.php?id=2281639&img=bg19.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
23
Wireless Utility Overview

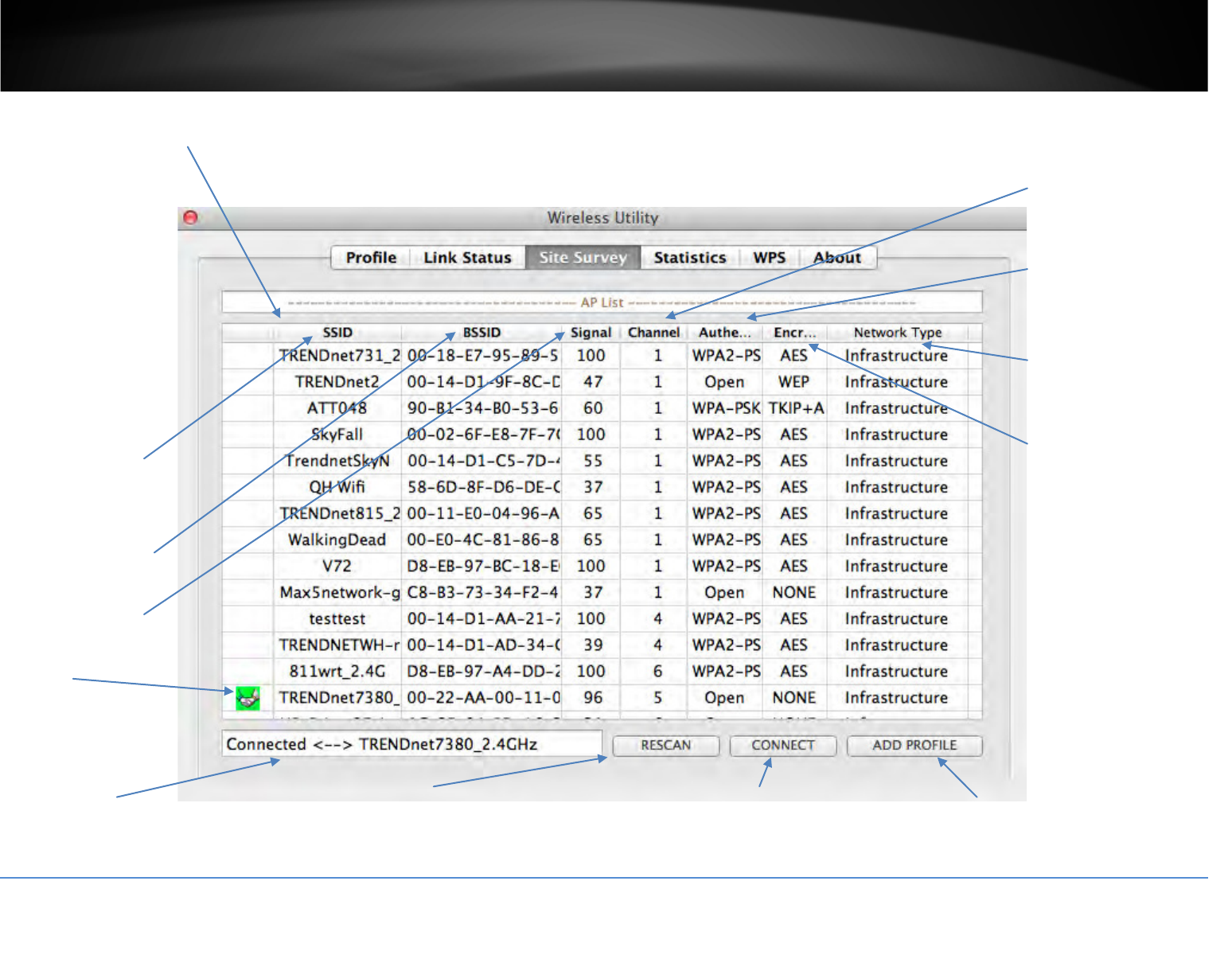

Site Survey Window
This window allows you to discover and connect to available wireless networks.
Rescan
If you do not find your wireless network in
the available networks list, click this
option to rescan for available wireless
networks.
Site Survey List
This window displays a list of the
available wireless networks found
by your wireless adapter. In
addition to displaying the wireless
network name (SSID, the list will
display additional information about
the network such as channel,
network type, encryptioin/security
type, and MAC address (BSSID)
Note: Since this adapter has dual-
band capability, available wireless
network found on both the 2.4GHz
band and 5GHz band will be
displayed in the list.
SSID
Displays the SSID or Wireless
Network Name of the
wireless network.
BSSID
Displays the MAC address of
the wireless network
Signal
Displays the signal strength
of the wireless network
Associated
Displays which wireless
network the wireless
adapter is current
connected.
Displays the wireless
network you are currently
connected.
Add Profile – Select your wireless
network and click this option to add the
selected network to a saved wireless
network profile. (Profiles window)
Channel
Displays the operating
channel of the wireless
network.
Authentication
Displays the wireless
authentication type of the
wireless network
Network Type
D
isplays the wireless network
type (Infrastructure or Ad-
Hoc)
Encryption
Displays the wireless
encryption type of the
wireless network
Connect
Click this option to connect to the selected wireless
network in the list. You can also double-click the
wireless network in the list. This option does not
automatically save the wireless network to a profile.
![](/img.php?id=2281639&img=bg1a.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
24
Wireless Utility Overview
Statistics Window
This window allows you to view transmit and receive statistic information of wireless networks you are connect.
.
Reset Counters
Resets all statistics counters to 0.
![](/img.php?id=2281639&img=bg1b.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
25
Wireless Utility Overview
WPS (Wi-Fi Protected Setup) Window
This window allows you to establish wireless connectivity using WPS to WPS supported device such as a wireless router/access point.
For information on how to connect using WPS, please refer to the section “Connect to your wireless network using WPS” on page 12.
WPS Push Button Method
Allows you to establish wireless
connectivity to a WPS supported device
such as a wireless router/access point using
the WPS Push Button method.
WPS PIN Method
Allows you to establish
wireless connectivity to a
WPS supported device such
as a wireless router/access
point using the WPS PIN
method.
Rescan
Allows you to scan and select
which wireless network to
attempt to establish wireless
connectivity using WPS. This is
an option step and not required.
PIN
The randomly generated
WPS client PIN to enter in
the wireless router or
access point used to
establish wireless
connectivity using the WPS
PIN method. You can click
Renew to generate a new
client PIN number.
![](/img.php?id=2281639&img=bg1c.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
26
Wireless Utility Overview
Information Window
This window displays the wireless adapter driver and utility version reference information.
Utility & Driver Version
Displays the wireless adapter MAC
address, utility, and driver version
reference information.
MAC Address
Displays the MAC address of
Your wireless adapter.
![](/img.php?id=2281639&img=bg1d.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
27
Connect to your wireless network

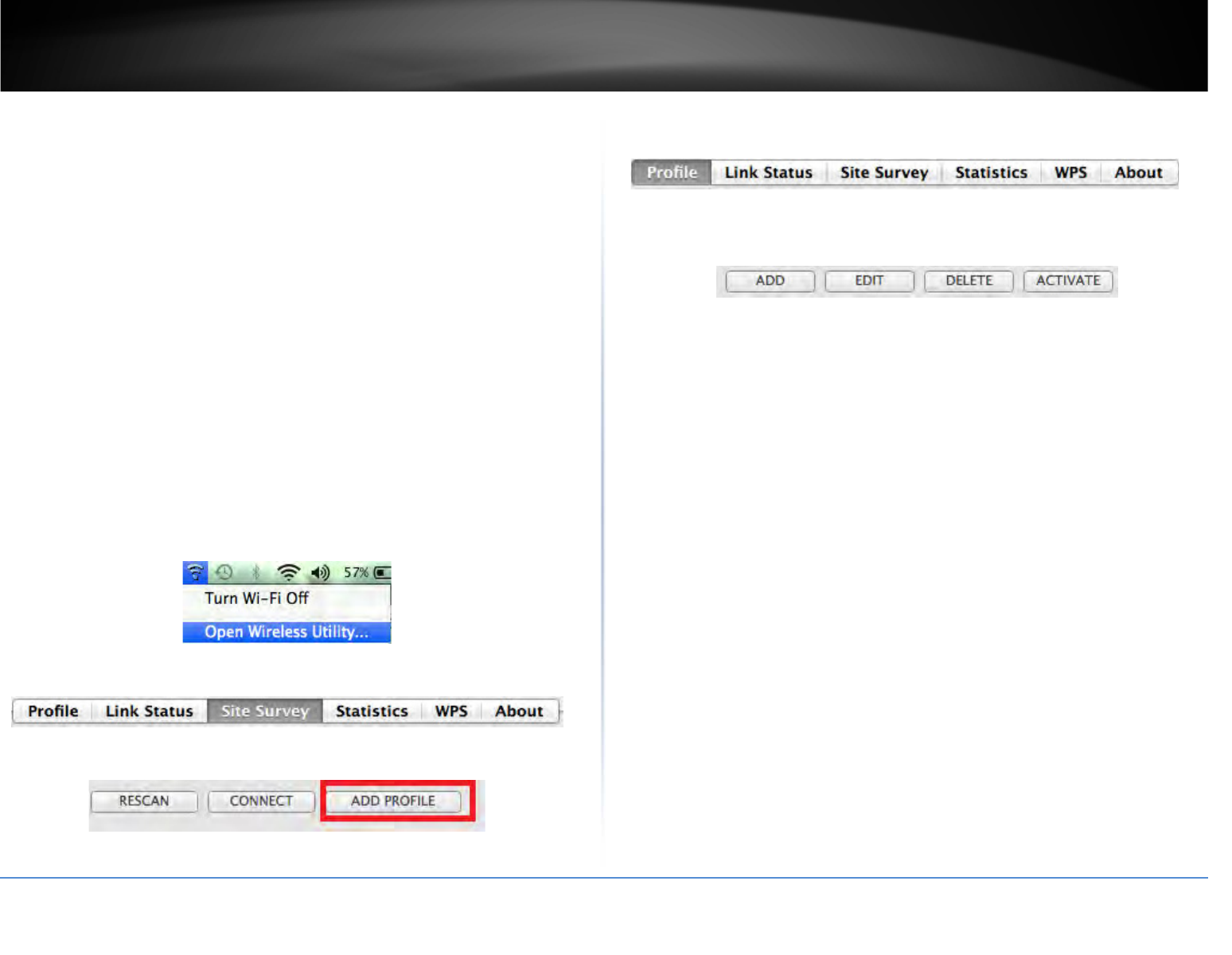

1. Open up the wireless utility from the top menu bar.
2. Click on the Site Survey tab.
3. In the list, double click on your wireless network or select your wireless network and
click the Connect button.
4. If your network has security enabled, you will be prompted to enter the Network key
and the encryption type will be detected automatically. Enter the Network key, enter
the key again under Confirm network key and click OK.
Note: After entering the network key, you can click Display Key to show the characters
you typed in for the network key to verify it is correct.
5. An icon will appear next to the wireless network indicating a successful connection.
Connection Successful
Note: If the green handshake icon does not appear next to the wireless network, you
were not connected to the wireless network successfully. Please double click your
network in the list again, and re-enter your Wi-Fi/Network Security Key to verify if your
key may have been entered incorrectly, then click OK. If you are still experiencing issues
connecting to your wireless network, you may need to verify the security settings of your
wireless network to make sure they correct key is entered.
![](/img.php?id=2281639&img=bg1e.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
28
Connect to your wireless network using WPS
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your
wireless network. If your wireless router/access point supports WPS, you can use this
feature to easily connect wireless devices to your network.
Note: You can typically find out if you if your wireless router/access point supports WPS
just by looking at the physical device. There should be a WPS push button located on the
exterior casing of the device, if not, your device may not support WPS or you may need
to reference your device documentation as to how WPS can be initiated on the device. If
your device does not have an identifiable WPS push button on the exterior location, we
would recommend using the standard connection method on the previous page.
There are two methods the WPS feature can easily connect your wireless devices to
your network.
• Push Button Configuration (PBC) method (Recommended)
• PIN (Personal Identification Number) Method
Hardware Push Button (PBC) Method
On your wireless router/access point, push the WPS button. Then push and hold the
WPS button on the wireless for 3 seconds and release.
Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet
routers/access points, the WPS hardware push button hold time is 3 seconds. If you are
using another brand device, you may need to refer to your device documentation for
WPS operation.
Virtual Push Button (PBC) Method
1. Open up the wireless utility from the top menu bar.
2. Click on the WPS tab.
3. On your wireless router/access point, push the WPS button.
Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet
routers/access points, the WPS hardware push button hold time is 3 seconds. If you are
using another brand device, you may need to refer to your device documentation for
WPS operation.
4. In the WPS window on the wireless utility, make sure WPS associate IE, WPS probe
IE, and Automatically select the AP options are check. Then click PBC.
WPS Button (3 seconds)
![](/img.php?id=2281639&img=bg1f.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
29
5. Messages will appear utility indicating that the WPS process has been activated and
the status. Wait for the process to complete.
Note: If needed, you can click Cancel to cancel the WPS process.

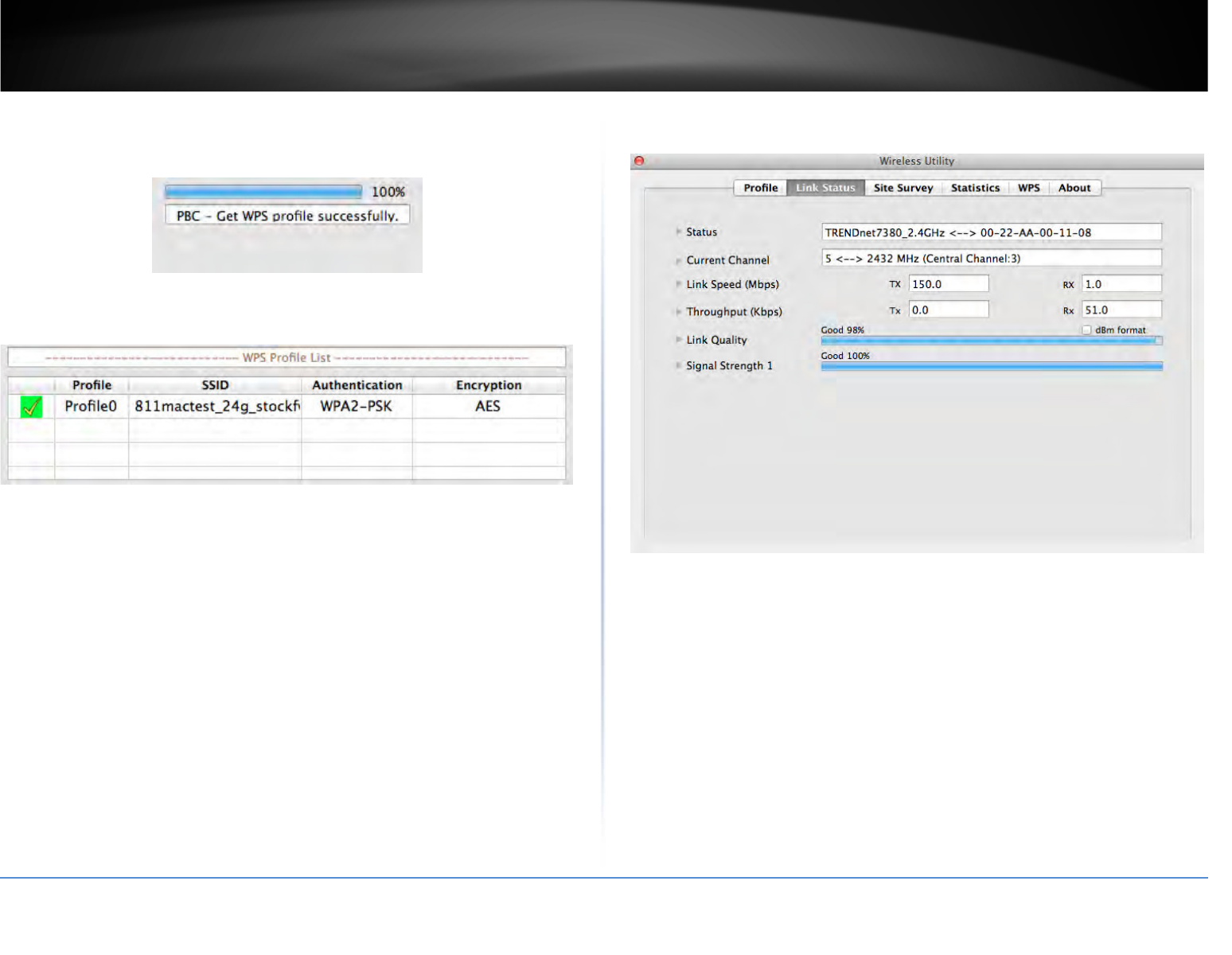

6. If successful, a success message will be displayed and the wireless network will
appear in your WPS profile list.
Note: You can check the Link Status window to check the connection status and
information about the wireless network you are connected.
![](/img.php?id=2281639&img=bg20.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
30
PIN (Personal Identification Number) Method
1. Open up the wireless utility from the top menu bar.
2. Click on the WPS tab.
3. The client PIN Code will be generated automatically.
Note: You can click renew to generate a new client pin number.
4. On your wireless router/access point, enter the client PIN Code into your wireless
router/access point configuration page and start the WPS process.
Note: You will need to access the device configuration page (typically through a web
browser) to access the WPS section to enter the client PIN code and use the WPS PIN
method. You may need to refer to your device documentation on how to access your
device’s configuration page and locate the WPS section. The example below (from our
TRENDnet TEW-811DRU router) shows where the WPS client PIN information is entered.
5. In the WPS window on the wireless utility, click PIN.
6. Messages will appear utility indicating that the WPS process has been activated and
the status. Wait for the process to complete.
Note: If needed, you can click Cancel to cancel the WPS process.
7. If successful, a success message will be displayed and the wireless network will
appear in your WPS profile list.
Note: You can check the Link Status window to check the connection status and
information about the wireless network you are connected.
![](/img.php?id=2281639&img=bg21.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
31
Create or modify wireless network profiles
Wireless network profiles are profiles that define the parameters of an existing network
such as the wireless network name (SSID) and security settings in order to allow for
easier management especially if you connect to multiple wireless networks. When you
connect to a wireless network using the Available Networks window, a profile for that
network is automatically saved to your profile list so that the next time you are in range
of that network, your computer will automatically connect to that predefined wireless
network without having to manually scan and reconnect to the network.
When a parameter (wireless network name or security key) changes in a wireless
network that you had connected to before and saved to the profile list, you may need to
modify the profile of that network and change to the correct parameters in order to
reconnect.
If you are connecting to a wireless network where the wireless network name (SSID) is
not discoverable for security purposes, you may need to manually add a new profile to
the list for this network in order to connect.
Please note that these parameters are set based on the configuration parameters
required by the wireless router/access point.
For additional information on security parameters, you can refer to the Appendix.
1. Open up the wireless utility from the top menu bar.
2. Click on the Site Survey tab.
3. You can select a network from the list and click Add Profile to add it to the profile list.
To manage wireless network profiles, click on Profiles tab.
Review the options.
• Add – Allows you to manually add a wireless network profile to the profile list.
(ex. If the wireless network is set to hide it’s wireless network name (SSID)).
• Edit – Allows you to modify an existing wireless network profile in the profile
list. Select the profile to modify in the list and click this option to modify it.
• Delete – Allows you to remove an existing wireless network profile in the
profile list. Select the profile to remove in the list and click this option to
remove it.
• Activate – Allows to connect to the specific wireless network profile selected.
Select the profile to connect to, and click the option connect to the wireless
network specified in the profile.
![](/img.php?id=2281639&img=bg22.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
32
Enter or modify the parameters for the wireless network profile.
• Profile Name – Enter a name you easily identify in your profile list, for example
“Home” or “Office”. Please note that this is not the same as your wireless
network name and does not need to be the same as your wireless network
name.
• SSID – Enter the wireless network name of the network you are connecting or
click the drop-down menu to select an SSID from the scanned list.
Note: The most typical configuration type is Infrastructure which is used when
connecting to a wireless router/access point. Ad-Hoc is only used when
establishing a wireless one-to-one only connection with another wireless
device or computer operating in ad-hoc mode.
• Channel – Allows you to select the specific operating wireless channel used.
Wireless Network Security Properties
Note: You can refer to the Appendix for details on choosing the wireless security type.
• Open \ Disable – Wireless network has no security configured. No key is
required.
• Open or Shared \ WEP – Enter the WEP key for your wireless network. Wireless
network has WEP security enabled, open or shared. Please note that the Key
Index 1-4 must also match the same index configured on the wireless
router/access point.
WEP Key Format
• WPA-PSK \ TKIP or AES – Wireless network has WPA-PSK security enabled,
TKIP or AES.
Note: 8-63 alphanumeric characters (a,b,C,?,*, /,1,2, etc.)
• WPA2-PSK \ TKIP or AES – Wireless network has WPA2-PSK security enabled.
TKIP or AES.
Note: 8-63 alphanumeric characters (a,b,C,?,*, /,1,2, etc.)
Advance security for enterprise – Includes all security options including advanced
options under the Security Type drop-down that require additional authentication
parameters to connect to the wireless network typically used offices and businesses that
require a higher level of security.
Additional security options:
• WEP 802.1x – Requires additional certificate installed for authentication.
• WPA-EAP or WPA2-EAP \ TKIP or AES – Wireless network has WPA-EAP
security enabled, TKIP or AES. Select the EAP (Extensible Authentication
Protocol) Type.
o EAP-TLS – Requires additional certificate to be installed on computer
for authentication purpose
WEP Key Format HEX ASCII
Character set 0-9 & A-F, a-f only Alphanumeric (a,b,C,?,*, /,1,2, etc.)
64-bit key length 10 characters 5 characters
128-bit key length 26 characters 13 characters
![](/img.php?id=2281639&img=bg23.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
33
Technical Specifications
Standards
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (up to 150 Mbps)
• IEEE 802.11ac (draft 2.0, up to 433 Mbps)
Hardware Interface
• USB 2.0
• WPS Button
• LED indicator
• Adjustable antenna
Security
• Wireless encryption up to WPA2
Compatibility
• Windows® 8.1, 8, 7, Vista, XP
• Mac OS® 10.6 - 10.9
Special Features
• High gain 5 dBi antenna for long distance networking (5 GHz band)
• Adjustable antenna
• High-speed 802.11ac connectivity
Power
• Consumption: Max. 300 mA
Operating Temperature
• 0 - 40 °C (32 – 104 °F)
Operating Humidity
• Max. 90% non-condensing
Certifications
• CE
• FCC
Dimensions
• 188 x 17 x 18 mm (7.4 x 0.7 x 0.7 in.)
Weight
• 17 g (0.6 oz.)
Warranty:
• 3 year limited
Package Contents
• TEW-806UBH
• Multi-Language Quick Installation Guide
• CD-ROM (Utility & Drivers)
*For maximum performance connect to an 802.11ac wireless router or access point
**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical
specifications. Actual data throughput and coverage will vary depending on
interference, network traffic, building materials and other conditions.
![](/img.php?id=2281639&img=bg24.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
34
Troubleshooting
Q: I inserted the Utility & Driver CD-ROM into my computer's CD-ROM Drive and the
installation menu does not appear automatically. What should I do?
Answer:
1. For Windows 8/7, if the installation menu does not appear automatically, click on
the Windows Icon on the bottom left hand corner of the screen,, click the “Search
programs and files” box, and type D:\Autorun.exe, where “D” in
“D:\Autorun.exe” is the letter assigned to your CD-ROM Drive, and then press the
ENTER key on your keyboard
2. For Windows Vista, if the installation menu does not appear automatically, click
Start, click the Start Search box, and type D:\Autorun.exe where "D" in
"D:\autorun.exe" is the letter assigned to your CD-ROM Drive, and then press the
ENTER key on your keyboard.
3. For Windows 2000/XP, if the installation menu does not appear automatically,
click Start, click Run, and type
D:\Autorun where "D" in "D:\Autorun.exe" is the letter assigned to your CD-ROM
Drive, and then press the ENTER key on your keyboard.
Q: I completed all the steps in the quick installation guide, but my Wireless USB
Adapter is not connecting to my access point. What should I do?
Answer:
1. Verify that the SSID (Network Name) matches your wireless router or access
point's SSID
2. Please check with your network administrator for security key in order to access a
secured wireless access point or router. Please refer to the User's Guide for more
information regarding wireless network security.
3. Check your TCP/IP properties to ensure that Obtain an IP address automatically is
selected.
4. Double-click the Wireless Configuration Utility icon, click Available Networks and
then click Refresh to check and see if there are any available wireless networks
listed.
Q: Windows is unable to recognize my hardware. What should I do?
Answer:
1. Make sure your computer meets the minimum requirements as specified in
Section 1 of this quick installation guide.
2. You must complete the installation of the Wireless Configuration Utility (as
described in Section 2) before connecting the Wireless USB Adapter to your
computer.
3. Connect the Wireless USB Adapter to a different USB port on your computer.
Q: I cannot open the Wireless Configuration Utility. What should I do?
Answer:
Access your device manager to make sure the adapter is installed properly.
1. To access the device manager on Windows 8/7, click on the Windows icon on the
bottom left-hand corner, click Computer, click System Properties and then click
Device Manager.
2. To access the device manager on Windows Vista, right-click Computer, click
Properties and then click Device Manager.
3. To access the device manager on Windows XP, right-click My Computer, click
Properties, click the Hardware tab, and then click Device Manager.
If you see a networking device with a yellow question mark or exclamation point:
1. Uninstall the device from device manager
2. Remove the adapter from the computer
3. Click the Windows / Start icon, click All Programs, click TRENDnet Wireless and
then click Uninstall.
![](/img.php?id=2281639&img=bg25.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
35
Appendix
How to choose the type of security for your wireless network
Setting up wireless security is very important. Leaving your wireless network open and
unsecure could expose your entire network and personal files to outsiders. TRENDnet
recommends reading through this entire section and setting up wireless security on your
new router.
There are a few different wireless security types supported in wireless networking each
having its own characteristics which may be more suitable for your wireless network
taking into consideration compatibility, performance, as well as the security strength
along with using older wireless networking hardware (also called legacy hardware).
It is strongly recommended to enable wireless security to prevent unwanted users from
accessing your network and network resources (personal documents, media, etc.).
In general, it is recommended that you choose the security type with the highest
strength and performance supported by the wireless computers and devices in your
network. Please review the security types to determine which one you should use for
your network.
Wireless Encryption Types
• WEP: Legacy encryption method supported by older 802.11a/b/g hardware.
This is the oldest and least secure type of wireless encryption. It is generally not
recommended to use this encryption standard, however if you have old 802.11
b, 802.11g or 802.11a wireless adapters or computers with old embedded
wireless cards(wireless clients), you may have to set your router to WEP to
allow the old adapters to connect to the router. Note: This encryption standard
will limit connection speeds to 54Mbps.
• WPA: This encryption is significantly more robust than the WEP technology.
Much of the older 802.11a or 802.11g hardware has been upgraded (with
firmware/driver upgrades) to support this encryption standard. Total wireless
speeds under this encryption type however are limited to 54Mbps.
• WPA-Auto: This setting provides the router with the ability to detect wireless
devices using either WPA or WPA2 encryption. Your wireless network will
automatically change the encryption setting based on the first wireless device
connected. For example, if the first wireless client that connects to your
wireless network uses WPA encryption your wireless network will use WPA
encryption. Only when all wireless clients disconnect to the network and a
wireless client with WPA2 encryption connects your wireless network will then
change to WPA2 encryption. NOTE: WPA2 encryption supports 802.11n speeds
and WPA encryption will limit your connection speeds to 54Mbps
• WPA2: This is the most secure wireless encryption available today, similar to
WPA encryption but more robust. This encryption standard also supports the
highest connection speeds. TRENDnet recommends setting your router to this
encryption standard. If you find that one of your wireless network devices does
not support WPA2 encryption, then set your router to either WPA or WPA-Auto
encryption.
Note: Check the specifications of your wireless network adapters and wireless appliances
to verify the highest level of encryption supported.
![](/img.php?id=2281639&img=bg26.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
36
Below is brief comparison chart of the wireless security types and the recommended
configuration depending on which type you choose for your wireless network.
Security Standard
WEP
WPA
WPA2
Compatible
Wireless
Standards
IEEE 802.11a/b/g
(802.11n devices
will operate at
802.11g to
connect using this
standard)
IEEE 802.11a/b/g
(802.11n/ac
devices will
operate at 802.11g
to connect using
this standard)
IEEE 802.11a/b/g/n/ac
Highest
Performance
Under This
Setting
Up to 54Mbps
Up to 54Mbps
Up to 433Mbps 11ac**
Up to 150Mbps 11n*
Encryption
Strength
Low
Medium
High
Additional
Options
Open System or
Shared Key,
HEX or ASCII,
Different key sizes
TKIP or AES,
Preshared Key or
RADIUS
TKIP or AES,
Preshared Key or
RADIUS
Recommended
Configuration
Open System
ASCII
13 characters
TKIP
Preshared Key
8-63 characters
AES
Preshared Key
8-63 characters
*Dependent on the maximum 802.11n data rate supported by the device (150Mbps)
**Dependent on the maximum 802.11ac data rate supported by the device (433Mbps)
How to find your IP address?
Note: Please note that although the following procedures provided to follow for your
operating system on configuring your network settings can be used as general
guidelines, however, it is strongly recommended that you consult your computer or
operating system manufacturer directly for assistance on the proper procedure for
configuring network settings.
Command Prompt Method
Windows 2000/XP/Vista/7/8
1. On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run
dialog box.
2. In the dialog box, type cmd to bring up the command prompt.
3. In the command prompt, type ipconfig /all to display your IP address settings.
Note: If you are experiencing difficulties, please contact your computer or operating
system manufacturer for assistance.
How to configure your network settings to obtain an IP address automatically or use
DHCP?
Note: Please note that although the following procedures provided to follow for your
operating system on configuring your network settings can be used as general
guidelines, however, it is strongly recommended that you consult your computer or
operating system manufacturer directly for assistance on the proper procedure for
configuring network settings.
Windows 8/7
a. Go into the Control Panel, click Network and Sharing Center.
b. Click Change Adapter Settings, right-click the Local Area Connection icon.
c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).
d. Then click Obtain an IP address automatically and click OK.
Windows Vista
a. Go into the Control Panel, click Network and Internet.
b. Click Manage Network Connections, right-click the Local Area Connection
icon and click Properties.
c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.
![](/img.php?id=2281639&img=bg27.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
37
d. Then click Obtain an IP address automatically and click OK.
Windows XP/2000
a. Go into the Control Panel, double-click the Network Connections icon
b. Right-click the Local Area Connection icon and the click Properties.
c. Click Internet Protocol (TCP/IP) and click Properties.
d. Then click Obtain an IP address automatically and click OK.
MAC OS 10.4/10.5/10.6
a. From the Apple, drop-down list, select System Preferences.
b. Click the Network icon.
c. From the Location drop-down list, select Automatic.
d. Select and view your Ethernet connection.
In MAC OS 10.4, from the Show drop-down list, select Built-in
Ethernet and select the TCP/IP tab.
In MAC OS 10.5/10.6, in the left column, select Ethernet.
e. Configure TCP/IP to use DHCP.
In MAC 10.4, from the Configure IPv4, drop-down list, select Using
DHCP and click the Apply Now button.
In MAC 10.5, from the Configure drop-down list, select Using DHCP
and click the Apply button.
In MAC 10.6, from the Configure drop-down list, select Using DHCP
and click the Apply button.
f. Restart your computer.
Note: If you are experiencing difficulties, please contact your computer or operating
system manufacturer for assistance.
How to connect to a wireless network using the built-in Windows utility?
Note: Please note that although the following procedures provided to follow for your
operating system on configuring your network settings can be used as general
guidelines, however, it is strongly recommended that you consult your computer or
operating system manufacturer directly for assistance on the proper procedure for
connecting to a wireless network using the built-in utility.
Windows 8/7
1. Open Connect to a Network by clicking the network icon ( or ) in the notification
area.
2. In the list of available wireless networks, click the wireless network you would like to
connect to, then click Connect.
4. You may be prompted to enter a security key in order to connect to the network.
5. Enter in the security key corresponding to the wireless network, and click OK.
Windows Vista
1. Open Connect to a Network by clicking the Start Button. and then click Connect
To.
2. In the Show list, click Wireless.
3. In the list of available wireless networks, click the wireless network you would like to
connect to, then click Connect.
4. You may be prompted to enter a security key in order to connect to the network.
5. Enter in the security key corresponding to the wireless network, and click OK.
Windows XP
1. Right-click the network icon in the notification area, then click View Available
Wireless Networks.
2. In Connect to a Network, under Available Networks, click the wireless network you
would like to connect to.
3. You may be prompted to enter a security key in order to connect to the network.
4. Enter in the security key corresponding to the wireless network, and click Connect.
![](/img.php?id=2281639&img=bg28.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
38
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in
indoor environment only.
IMPORTANT NOTE:
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in
ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement
methods and procedures specified in OET Bulletin 65 Supplement C. This equipment
should be installed and operated with minimum distance 0.5 cm between the radiator &
your body.
RoHS
This product is RoHS compliant.
Europe – EU Declaration of Conformity
This product is herewith confirmed to comply with the Directive of 1999/5/EC and
2006/95/EC.
EN60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011
Safety of Information Technology Equipment
EN 300 328 V1.7.1 (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band
and using wide band modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.9.2 (2011-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements
EN 301 489-17 V2.2.1 (2012-09)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance
RLAN equipment
EN 55022: 2010/AC: 2011 Class B
EN 55024: 2010
EN 301 893 : V1.7.1 (2012-06)
EN 62311 : 2008
EN 62209-2: 2010
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in
all EU member states and EFTA countries, except in France and Italy where restrictive
use applies. In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up outdoor
radio links and/or for supplying public access to telecommunications and/or network
services. This device may not be used for setting up outdoor radio links in France and in
some areas the RF output power may be limited to 10 mW EIRP in the frequency range
of 2454 – 2483.5 MHz. For detailed information the end-user should contact the
national spectrum authority in France.
![](/img.php?id=2281639&img=bg29.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TEW-806UBH
39
Česky [Czech] TRENDnet tímto prohlašuje, že tento TEW-806UBH je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice
1999/5/ES a 2006/95/ES.
Dansk [Danish] Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-
804UB overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF og 2006/95/EF.
Deutsch
[German]
Hiermit erklärt TRENDnet, dass sich das Gerät TEW-806UBH in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG und
2006/95/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab TRENDnet seadme TEW-806UBH vastavust
direktiivi 1999/5/EÜ ja 2006/95/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, TRENDnet, declares that this TEW-806UBH is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC and 2006/95/EC.
Español
[Spanish]
Por medio de la presente TRENDnet declara que el TEW-806UBH
cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE, y
2006/95/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑTRENDnet ΔΗΛΩΝΕΙ ΟΤΙTEW-
806UBHΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ, 2006/95/ΕΚ
και.
Français
[French]
Par la présente TRENDnet déclare que l'appareil TEW-806UBH est
conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE, 2006/95/CE et.
Italiano[Italian] Con la presente TRENDnet dichiara che questo TEW-806UBH è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE e 2006/95/CE.
Latviski [Latvian] AršoTRENDnetdeklarē, ka TEW-806UBH atbilstDirektīvas 1999/5/EK,
un 2006/95/EK būtiskajāmprasībām un citiemar to
saistītajiemnoteikumiem.
Lietuvių
[Lithuanian]
Šiuo TRENDnet deklaruoja, kad šis TEW-806UBH atitinka esminius
reikalavimus ir kitas 1999/5/EB ir 2006/95/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart TRENDnet dat het toestel TEW-806UBH in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG, en 2006/95/EG.
Malti [Maltese] Hawnhekk, TRENDnet, jiddikjara li dan TEW-806UBH jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm
fid-Dirrettiva 1999/5/KE u 2006/95/KE.
Magyar
[Hungarian]
Alulírott, TRENDnet nyilatkozom, hogy a TEW-806UBHmegfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EK irányelv, a
2006/95/EK irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym TRENDnet oświadcza, że TEW-806UBH jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/WE i 2006/95/WE.
Português
[Portuguese]
TRENDnet declara que este TEW-806UBH está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE e
2006/95/CE.
Slovensko
[Slovenian]
TRENDnet izjavlja, da je ta TEW-806UBH v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES in
2006/95/ES.
Slovensky
[Slovak]
TRENDnettýmtovyhlasuje, že TEW-806UBHspĺňazákladnépožiadavky
a všetkypríslušnéustanoveniaSmernice 1999/5/ES a 2006/95/ES.
Suomi [Finnish] TRENDnet vakuuttaa täten että TEW-806UBH tyyppinen laite on
direktiivin 1999/5/EY ja 2006/95/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar TRENDnet att denna TEW-806UBH står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG och
2006/95/EG.
![](/img.php?id=2281639&img=bg2a.png)
© Copyright 2014 TRENDnet. All Rights Reserved.
40
TRENDnet User’s Guide Limited Warranty
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
TEW-806UBH – 3 Years Warranty
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.
If a product does not operate as warranted during the applicable warranty period,
TRENDnet shall reserve the right, at its expense, to repair or replace the defective
product or part and deliver an equivalent product or part to the customer. The
repair/replacement unit’s warranty continues from the original date of purchase. All
products that are replaced become the property of TRENDnet. Replacement products
may be new or reconditioned. TRENDnet does not issue refunds or credit. Please
contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product by any unauthorized service center. This warranty is voided if (i) the
product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the applicable
warranty period and providing a copy of the dated proof of the purchase. Upon proper
submission of required documentation a Return Material Authorization (RMA) number
will be issued. An RMA number is required in order to initiate warranty service support
for all TRENDnet products. Products that are sent to TRENDnet for RMA service must
have the RMA number marked on the outside of return packages and sent to TRENDnet
prepaid, insured and packaged appropriately for safe shipment. Customers shipping
from outside of the USA and Canada are responsible for return shipping fees. Customers
shipping from outside of the USA are responsible for custom charges, including but not
limited to, duty, tax, and other fees.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S
OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR
IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE
OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST
OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,
IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR
MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY
OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY
FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL
OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Some TRENDnet products include software code written by third party developers.
These codes are subject to the GNU General Public License ("GPL") or GNU Lesser
General Public License ("LGPL").
Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section
and look for the desired TRENDnet product to access to the GPL Code or LGPL Code.
These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of
the developers. TRENDnet does not provide technical support for these codes. Please go
to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for
specific terms of each license.
PWP05202009v2 2013/9/3
![](/img.php?id=2281639&img=bg2b.png)
