TTE Technology L42FHDE30 LCD TV User Manual L42FHDE30
TTE Technology, Inc. LCD TV L42FHDE30
L42FHDE30-User Manual
![](/img.php?id=1729354&img=bg1.png)
User’s Guide
For use with models: L42FHDE30
LCD TV
Need Assistance?
Please visit our website at www.tclusa.com
or call 1-877-300-8837.
![](/img.php?id=1729354&img=bg2.png)
1
This symbol indicates that this product contains mercury. Special disposal of this product for environmental
reasons may be required under the laws applicable to your jurisdiction. For disposal or recycling information,
please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
Refer to the identication/rating label located on the back panel of your product for its proper operating voltage.
FCC regulations state that unauthorized changes or modications to this equipment may void the user’s authority to
operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code
(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,
species that the cable ground should be connected to the grounding system of the building as close to the point of
cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface. Don’t place the TV on soft
carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced
lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top
and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally
tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the
Important Safety Instructions on the next page.
The Power button (followed by the power symbol) on this TV and your remote control puts the TV into a very
low-power standby mode but will not completely turn the power off. In order to completely shut the power off, you will
need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable. Therefore, you should ensure that the TV is installed in a manner
that allows you to disconnect the power cord when desired.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No. ______________________ Serial No._____________________________________
Purchase Date __________________ Dealer/Address/Phone___________________________
WARNING The batteries shall not be exposed to excessive heat such as sunshine, re or the like.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important
instructions accompanying the product.
This symbol indicates that this product incorporates
double insulation between hazardous main voltage
and user accessible parts. When servicing, use only
identical replacement parts.
WARNING
To reduce the risk of re or electric shock, do not
expose this product to rain or moisture. This product
should not be exposed to dripping or splashing. No
objects lled with liquids, such as vases, should be
placed on the component.
The TV is unstable if it is not properly attached to
the base or mounted to the wall. Please follow the
base or wall mounting instructions provided in the
User’s Guide to ensure your safety.
WARNING
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
Product Registration
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be
necessary. Registration is not required for warranty coverage.
Important Information
![](/img.php?id=1729354&img=bg3.png)
2
ANTENNA LEAD IN WIRE
GROUND CLAMP
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PARTH)
ELECTRIC SERVICE
EQUIPMENT
ANTENNA DISCHARGE
UNIT(NEC SECTION 810-20)
Important Safety Instructions
1. Read and follow all instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
6. Do not negate the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug
does not t your outlet, consult an electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plugs, receptacles, and the
point where it exits from the component.
8. Do not use this component near water.
9. Only use the attachments/accessories specied by the manufacturer.
10. Clean only with dry cloth.
11. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with
the component. When the TV is placed on a cart, use caution when moving the cart to avoid injury
from tip-over.
12. Warning: To avoid any injury caused by lean of the product, please always ensure the whole
product was place within the table surface in horizontal.
13. Unplug this component during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Service is required when the component is
damaged in any way, such as power supply cord or plug damage, liquid spilled on or objects falling
onto the component, rain or moisture exposure, abnormal operation, or if the component has been
dropped.
15. If an outside antenna or cable system is connected to the product, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges and built-up
static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984 (Section
54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size
of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See following example:
![](/img.php?id=1729354&img=bg4.png)
3
Table of Contents
Important Information ................................ 1
Important Safety Instructions ..................... 2
Chapter 1 - Connections and Setup
Before Initial Setup .....................................4
Check Supplied Parts ............................... 4
Attaching Your TV to the Table Stand ............5
Mounting Your TV to the Wall .................... 5
Buttons on TV
............................................. 6
Explanation of Jacks on TV
......................... 6

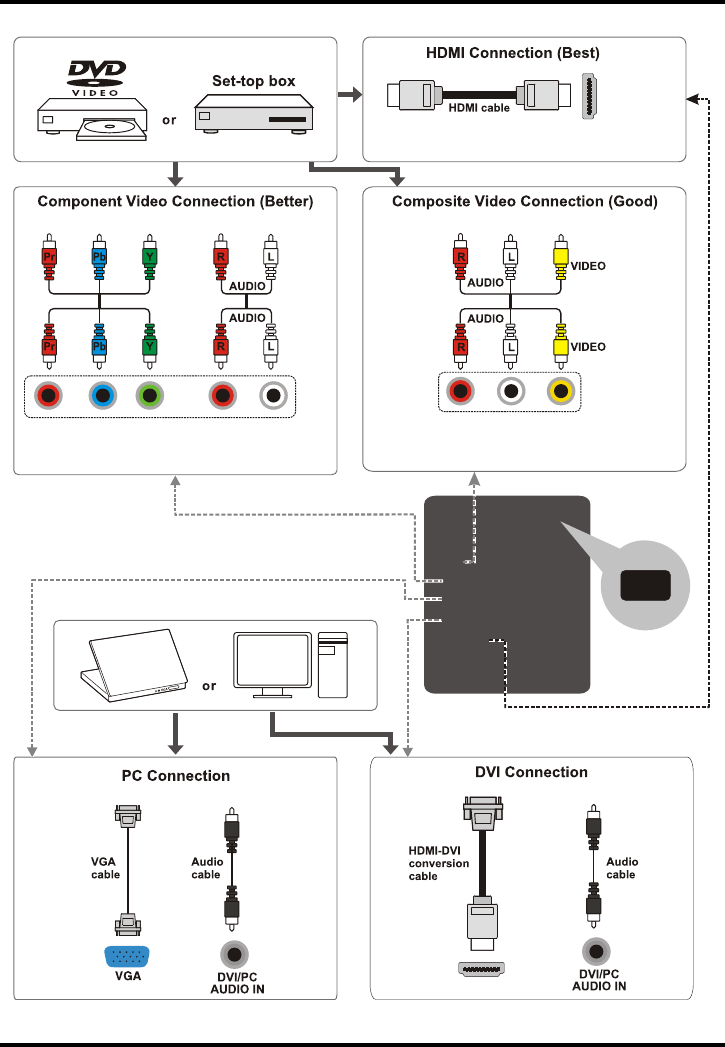

Choose Your Connections ......................... 7

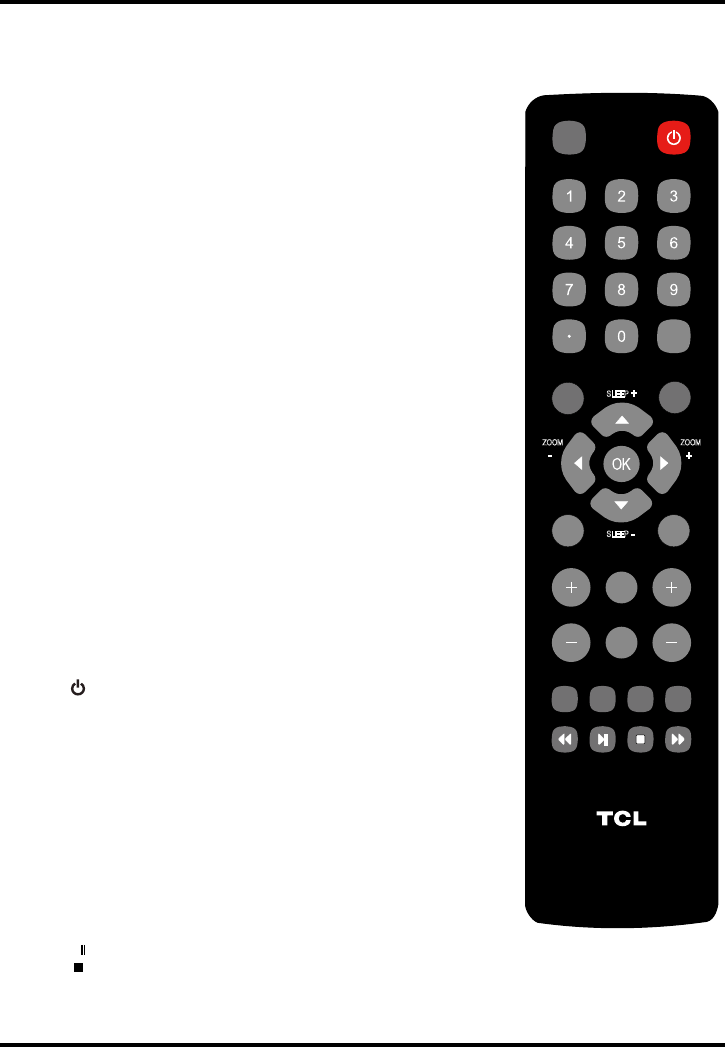

Remote Control Functions ......................... 9

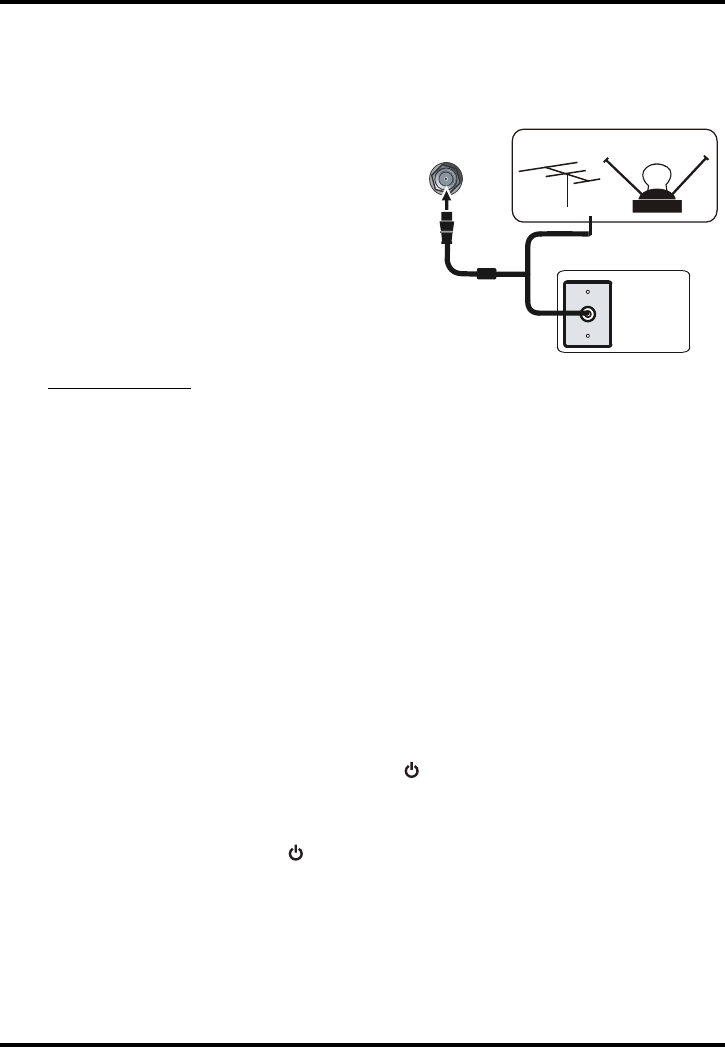

Obtain the Signal ..................................... 10
Switching On ........................................... 10
Switching Off ........................................... 10
Initial Set-up..............................................11
Chapter 2 - Menu Operation
Menu Display ........................................... 12
Using Menu System ................................ 13
Picture Menu ........................................... 13
Picture Preset ................................................13
Brightness ......................................................13
Contrast .........................................................13
Sharpness .....................................................13
Expert Settings ..............................................13
Advanced Settings .........................................13
PC Settings ....................................................13
Reset Picture Settings ....................................13
Sound Menu ............................................ 13
Equalizer ........................................................13
Balance ..........................................................14
Surround ........................................................14
Speaker .........................................................14
SPDIF Type ...................................................14
Auto Volume Control ......................................14
Analog TV Sound ...........................................14
Default Audio Language .................................14
Current Audio Language ................................14
Setup Menu..............................................14
Signal Type ....................................................14
Channel Scan ................................................14
Channel Skip .................................................14
Channel Edit ..................................................15
Input Skip .......................................................15
Input Labels ...................................................15
Closed Caption ..............................................15
Time Setup .....................................................16
System Information ........................................16
Reset All .........................................................16
Parental Control Menu .............................16
Change V-Chip Password .............................16
Channel Block ...............................................16
Button Block ..................................................17
V-Chip ............................................................17
Input Block .....................................................18
Language Menu .......................................18
USB Menu ...............................................18
Chapter 3 - Other Information
Frequently Asked Questions (FAQs) ........19
Troubleshooting .......................................20
Care and Cleaning ...................................22
Television Specications ..........................22
Limited Warranty ......................................23
![](/img.php?id=1729354&img=bg5.png)
4
Chapter 1 Connections and Setup
Before Initial Setup
Protect Against Power Surges
• Connect all components before you plug any power cords into the wall outlet or power strip.
• NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety
Instructions.
Safety Information
• Protect components from overheating.
• Don’t block ventilation holes on any of the components. Arrange the components so that air can
circulate freely.
• Don’t stack components.
• If you place the component in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplier, place it on the top shelf so the heated air from it won’t
harm other components.
Avoid Audio Interference
• Position cables properly; insert each cable rmly into the designated jack.
• If you place components above the TV, route all cables down one side of the back of the TV instead
of straight down the middle.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables.
• Keep twin lead cables away from audio/video cables.
Avoid Direct Light
Don’t place the TV where sunlight or room lighting is directed toward the screen. Use soft or indirect
lighting.
Check Supplied Parts
Check that the following parts were packed with your product.
• 1 Remote Control and 2 AAA Batteries
• User’s Guide
• Quick Start Guide
• Parts for Table Stand
Replacing your remote
If you need to replace your remote, visit www.tclusa.com. A shipping and handling fee, and the appropriate sales tax, will be charged
upon ordering. Have your Visa or MasterCard ready.
Graphics contained within this publication are presentation only.
![](/img.php?id=1729354&img=bg6.png)
5
Connections and Setup

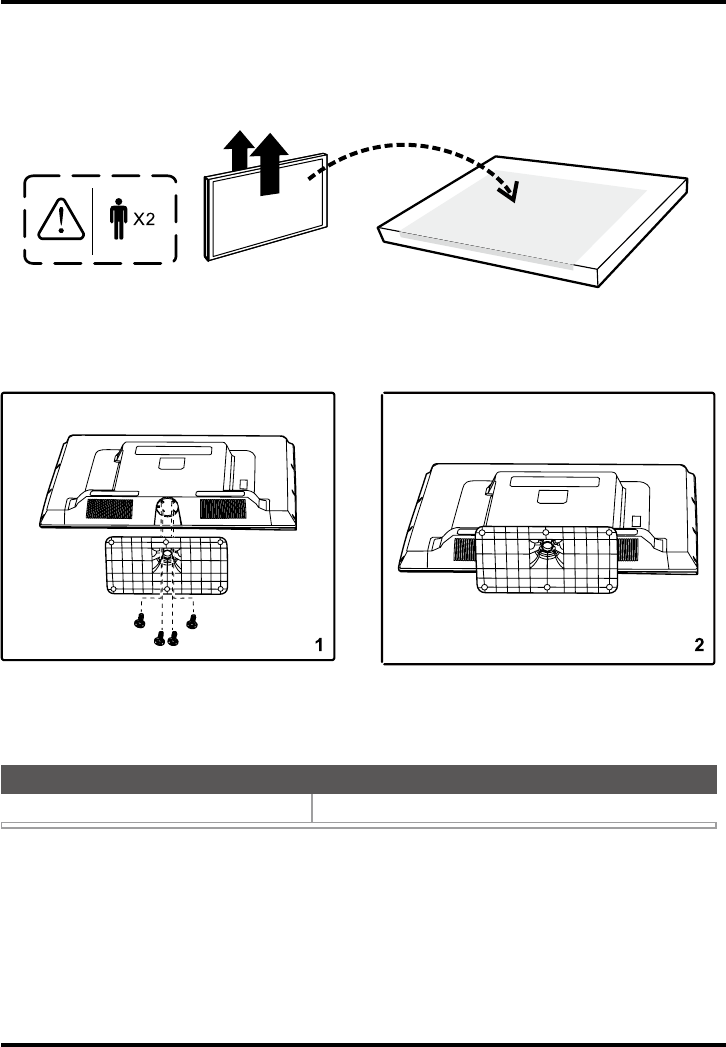

Attaching Your TV to the Table Stand
Your TV comes without the table stand attached so that you can choose to mount your TV either to its table
stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t attach the table
stand. Follow the Mounting Your TV to the Wall instructions.
First, remove the TV bag and place it on a large, at surface such as a table or countertop. Remove the TV
from the carton and place it face down on the TV bag. Be sure that the TV is face down to avoid scratching
the screen.
Then follow the steps below:
Mounting Your TV to the Wall
The VESA number is the horizontal and vertical measurement of the mounting holes. For example,
200x200 refers to the fact that the mounting measurements are 200mm horizontally and 200mm vertically.
Notes: Follow the directions included with the wall mount to mount the TV to the wall.
Caution: Your wall mount must be able to bear a minimum of ve times the TV’s net weight to avoid causing damage.
To mount your TV to the wall, purchase a VESA wall mount.
Models of 39” or larger size Purchase a VESA 200 x 200, M6 screw
If you are mounting your TV to the wall, don’t attach the table stand.
![](/img.php?id=1729354&img=bg7.png)
6
Connections and Setup
Buttons on TV
If you cannot locate your remote, you can use the TV panel buttons on
your TV to operate many TV features.
CH+/- Selects channels stored in the channel list or acts as the up/
down arrow (▲/▼) through the menu items.
VOL+/- Increases/decreases the volume or acts as the right/left
arrow (◄/►) through the menu items.
VOL+ also acts as the OK button when in the menu system.
MENU Brings up the TV’s main menu.
INPUT Selects the signal source.
(POWER button) Turns the TV on or to standby mode.

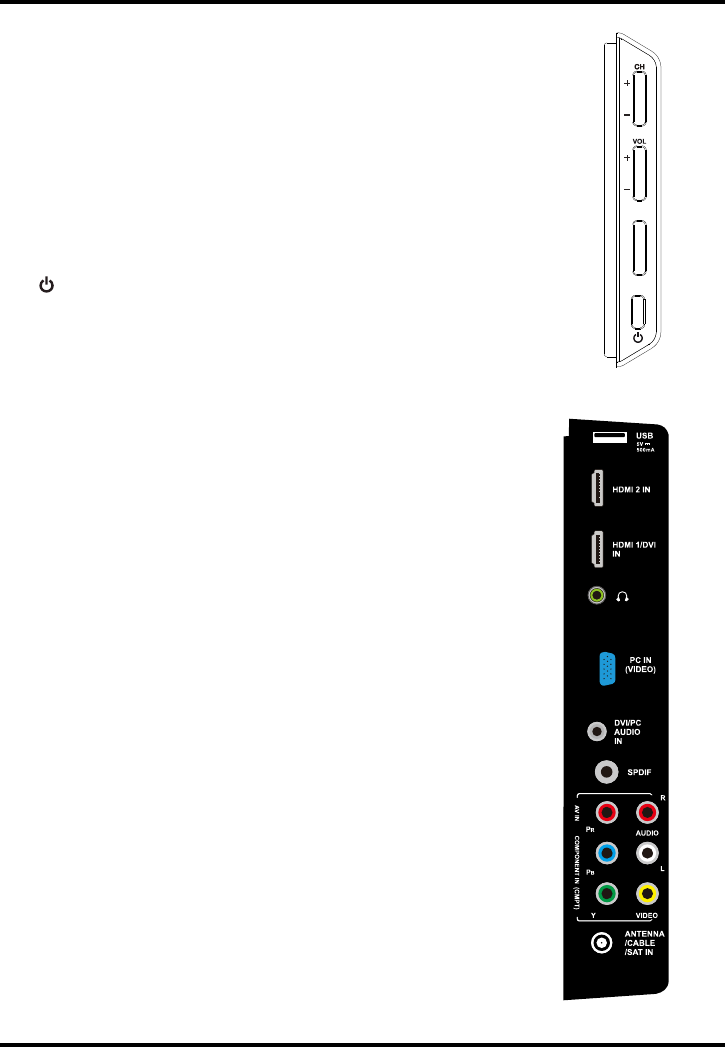

Explanation of Jacks on TV
This section describes the jacks on the side/back panel of your TV. There
are several ways to connect components.
COMPONENT IN (CMPT) Lets you connect a component that has
component video jacks, such as a DVD player or set-top box.
( Green jack
for Y, Blue jack for Pb and Red jack for Pr )
• Y Pb Pr (Component Video) Provides good picture quality because the
video is separated into three signals. Use three video-grade or
component video cables for the connection.
• L/R AUDIO Provides left and right audio connection when using the
CMPT VIDEO input.
Red and white jacks for R AUDIO and L AUDIO
connection. (
For mono audio sources, be sure to use the L AUDIO
input.
) (Note: AUDIO/VIDEO IN and COMPONENT IN share the same L/R
AUDIO input jacks.)
AUDIO/VIDEO IN (AV)
Lets you connect a component that has composite
video jacks, such as a VCR, DVD player or set-top box.
Yellow jack for
VIDEO connection, red and white jacks for R AUDIO and L AUDIO connection. (
For mono audio sources, be sure to use the L AUDIO INPUT.
)
DVI/PC AUDIO IN (used for DVI/PC only) Provides audio connection when
using HDMI/DVI INPUT 1 jack for DVI or when using PC VIDEO IN.
Note: If using a DVI component, remember to connect the audio cable
because the DVI cable carries only the picture signal, not the sound.
VGA (PC VIDEO IN) Connect your computer or other component with a
VGA output to this jack using a 15-pin,D-sub cable.
SPDIF OUT - DIGITAL AUDIO OUT (coaxial) Use a digital coaxial cable to
connect your TV to a compatible audio receiver.
ANT/CABLE/SAT IN Lets you connect a coaxial cable to receive the signal
from your antenna, cable, or cable box, or satellite receiver.
MENU
INPUT
MENU
INPUT
![](/img.php?id=1729354&img=bg8.png)
7
Connections and Setup
USB Allows you to connect a compatible mass storage device.
HDMI 1 /DVI IN (High-Denition Multimedia Interface/Digital Visual Interface) Provides an uncompressed
digital connection that carries both video and audio data by way of an integrated mini-plug cable. Since HDMI
technology is based on Digital Visual Interface (DVI), the jack on the back of your TV is also compatible with
DVI components.
HDMI 2 IN Lets you connect a component, such as a digital cable box, with an HDMI output for the best
picture quality.
(HEADPHONE) Allow you to connect headphones to listen to the sound coming from the TV.
Choose Your Connections
There are several ways to connect components, such as DVD players and set-top boxes, to your TV.
Note: No cables are supplied with this unit. Please purchase the necessary cables. A high-speed HDMI cable
is recommended for better compatibility.
Antenna/Cable 480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)
Composite Video 480i
Component Video 480i, 480p, 720p/60Hz, 1080i/60Hz
HDMI 480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz
PC VGA SVGA XGA
Input Signal Compatability
![](/img.php?id=1729354&img=bg9.png)
8
Connections and Setup
Input
TV
AV
CMPT
PC
HDMI 1
HDMI 2
USB
No label
No label
No label
No label
No label
No label
Same connection to HDMI 1 IN.
HDMI 2 IN
AUDIO/VIDEO IN (AV)
COMPONENT IN (CMPT)
HDMI /DVI IN1
INPUT
PC VIDEO IN
![](/img.php?id=1729354&img=bga.png)
9
Connections and Setup
VOLCH
RC3000N02
INPUT
GUIDE
MENU
CLEAR
GO BACK
INFO
MUTE
FAV
MEDIA
MTS
TV
PIC
ZOOM
SLEEP
SLEEP
+
+
ZOOM
-
-
Remote Control Functions
INPUT Opens the
Input list; then press INPUT repeatedly to
select the video input, or press
▲/▼ to highlight an
options, and press OK to select the desired option.
0-9 (Alphanumeric buttons) Enters a channel number, then
press OK (or let the entry timeout).
•(dot) To enter a digital channel with a sub-channel,
enter the main channel; then, press the dot (•), the sub-
channel, and then the OK button.
MENU Brings up the main menu or press to return to the
previous menu.
▲/▼◄/► (arrows) Highlights different items in the TV menu and
adjusts the menu controls.
Note: In USB mode, the up or down arrow (
▲/▼)
can
also be used for rotating a photo when the photo is being
diaplayed.
ZOOM+/- (◄/►) Selects the desired screen format.
SLEEP+/- (▲/▼) Sets the TV to turn off after a given amount of
time.
PIC Selects picture mode.
INFO If no menus are currently active, press INFO to display
the Channel information.
VOL+/- Increases or decreases the TV volume.
MUTE Turns the volume on and off.
FAV Press the FAV button to browse the channels in your
favorite list. Use ▲/▼ to highlight options, then press
OK to select.
MEDIA Goes to the USB menu.
(POWER button) Turns the TV on or standby.
GUIDE Toggles the Electronic Programme Guide between on
and off. Only available for digital channels.
CLEAR Removes any menu or display from the screen and
return to normal viewing.
OK Displays Channel List menu. When the TV is in the
menu system, press to conrm your selection.
GO BACK Returns you to the previously viewed channel.
CH+/- Selects channels and external input mode.
TV Press to access to the TV mode.
MTS Press to select your desired sound mode.
◄◄ / ►► / ►
/
These buttons can be used for playing music and
photos in the USB menu.
![](/img.php?id=1729354&img=bgb.png)
10
ANT/CABLE
/SAT IN
Outdoor or indoor Antenna
Cable Box,
( Wall Outlet)
RF Coaxial
Wire
(75 ohm)
Or
Or
Connections and Setup
Obtain the Signal
The rst step in connecting your TV is obtaining the signal. The back panel of your TV allows you to receive
analog and/or digital channels by using the ANT/CABLE/SAT IN.
Connect the outside aerial or cable network to the
ANT/CABLE/SAT IN on the back of the TV set to
receive off-air channels or cable channnels.
• If you have a set-top box, you may need to call your
cable company or satellite service provider. They may
recommend special cables to allow you to view digital
channels.
• The aerial socket (75 OHM - VHF / UHF / cable) can be
used for connecting an external aerial or other equipment
tted with a modulator (video recorder, satellite receiver, etc.).
We recommend that you do not connect other equipment
(video recorder, satellite receiver, etc.) to your TV set to
begin with, so as not to complicate the set-up procedure
with the additional steps involved. Connect them when
you have nished setting up the channels.
• Visit www.antennaweb.org for help in deciding what type of antenna to use in order to receive the local
digital channels available to you. Enter your location, and the program will list local analog and digital
stations available using your antenna.
Switching On
Follow the instructions on this page on how to switch on your TV set and use the remote control before going
on to following pages describing how to use the channel scan procedure.
1. Insert two AAA batteries in the remote control.
Precautions on using batteries:
- Only use the battery types specied.
- Make sure you use the correct polarity.
- Do not mix new and used batteries.
- Do not use rechargeable batteries.
- Do not expose batteries to excessive heat such as sunshine, re or the like, throw them in a re, recharge
them or try to open them, as this could cause them to leak or explode.
- Remove the batteries from the remote control if you are not using it for a long period of time.
2. Connect the power cable to a mains socket. (If the power cable is not connected to the television, please
rst connect the power cable to the television.) Your TV set should only be connected to an AC supply.
It must not be connected to a DC supply. If the plug is detached from the cable, do not, under any
circumstances, connect it to a mains socket, as there is a risk of electric shock.
3. When powered on, if the TV set is in standby mode, press on the remote control or on the TV set to turn
on the TV.
Switching Off
To put the TV set into standby mode, press on the remote control or on the TV, the TV set remains
powered up, but with low energy consumption.
To switch off the TV set, unplug the mains socket from the mains outlet.
![](/img.php?id=1729354&img=bgc.png)
11
Connections and Setup
Initial Setup
Initial setup involves selecting all the settings required to be
able to search for and store all the channels you can receive.
Make sure that the television is switched on and follow all the
steps in turn specied hereafter.
The rst time you switch the set on, the Initial Setup Wizard
opens, which guides you through the initial setup
process.
1. The rst step of the setup requires you to select your
preferred language for the menu system. Press ▲/▼ to
select your language, then press OK/► to enter the next
screen.
2. A menu screen asks you to set the TV Location.
• Choosing “Home” for the TV Location assigns the optimal
picture settings for most home environments.
• Choosing “Retail”, which is not Energy Star compliant,
sets the unit up with predened settings for retail displays.
In this setting, the power consumption may exceed the
requirements of the Energy Star® qualication.
Use ▲/▼ to select the desired location setting (Home/
Retail); then press OK/► to continue to the next screen.
Note: if you select
Retail
, a screen menu will display to ask
you go back to the previous menu to select Home again, or
you can conrm to proceed to the next screen.
3. Use ▲/▼ to select the current local time zone. Press OK/►
to continue to the next screen.
4. On the Tuner screen, select either Antenna or Cable/Sat.
Press OK/► to continue to the next screen.
Note: If you are using a satellite or cable set-top box,
you do
not have to complete the Channel Scan.
5. The Channel Scan screen is now displayed. The default
choice is to scan. Press OK/► to begin the channel scan for
available channels to be stored in the TV’s memory.
Note: If you do not want to scan for channels at this time,
you can select Skip Scan or press OK/► to stop the
scanning process, and perform the channel scan later in the
Setup menu.
6. The screen will change to show the progress of the
process.
7. When the scanning is nished, the unit has completed the
Initial Setup.
8. Press CLEAR to exit the Wizard and begin watching TV.
Initial Setup
Please select your language:
Language
NextSelect
OK
Español
Français
English
Initial Setup TV Location
TV Location
Retail
Home
Back NextSelect
OK
This mode is Energy Star compliant.
Initial Setup Time Zone
Please select your time zone:
Alaska
Pacific
Hawaii
Mountain
Central
Eastern
Atlantic
Newfoundland
EASTERN
Back NextSelect Exit
CLEAR
OK
Initial Setup Tuner
Please select your tuner mode:
Cable/Sat
Antenna
Back NextSelect Exit
CLEAR
OK
Initial Setup Channel Scan
First, please connect Cable/Sat or
Antenna. Start Channel Scan
now?
If you skip this step, the
Channel Scan could be performed
in Setup menu later.
Skip Scan
Scan
0%
Back NextSelect Exit
CLEAR
OK
![](/img.php?id=1729354&img=bgd.png)
12
Chapter 2
Menu Operation
Menu Display
Following are just the illustration of the menu display.
Sound
Setup
Parental Control
Language
Sound
Equalizer
Balance
Surround
Analog TV Sound
USB
Exit
0
On
Stereo
Speaker On
SPDIF Type Dolby Digital
Auto Volume Control Off
Back
MENU Enter Select Exit
CLEAR
OK
Language
Setup
Parental Control
Language
Sound
English On
USB
Exit
Español
Desactivado
Français
Désactivé
Back
MENU Adjust Select Exit
CLEAR
Closed Caption
Setup
Parental Control
Language
Sound
CC Setting
Analog CC Type
USB
Exit
On Always
Digital CC Type
Digital CC Preset
Digital CC Style
Off
On
Back
MENU Adjust Select Exit
CLEAR
Time Setup
Setup
Parental Control
Language
Sound
Time Zone
Time
USB
Exit
Off
Sleep Timer
Back
MENU Enter Select Exit
CLEAR
OK
Setup
Parental Control
Language
Sound
USB
Exit
Picture Preset
Brightness
Natural
Advanced Settings
50
Sharpness 5
Contrast 75
Reset Picture Settings
Expert Settings
Back
MENU Adjust Select Exit
CLEAR
Parental Control
Channel Block
Button Block
Setup
Parental Control
Language
Sound
USB
Exit
V-Chip
Input Block
Change Password
Off
Back
MENU Enter Select Exit
CLEAR
OK
Reset All
V-Chip
Rating Enable
US V-Chip
Setup
Parental Control
Language
Sound
USB
Exit
Canada V-Chip
Unrated/Exempt Ratings
On
Reset Downloadable Data
View
Back
MENU AdjustSelect
Open V-Chip
Figure 1
Figure 3
Figure 5
Figure 7
Figure 2
Figure 4
Figure 6
Figure 8
Setup
Setup
Parental Control
Language
Sound
Signal Type
Channel Scan
USB
Exit
Antenna
Channel Skip
Channel Edit
Input Skip
Input Labels
Closed Caption
Time Setup
System Information
Back
MENU Adjust Select Exit
CLEAR
Reset All
![](/img.php?id=1729354&img=bge.png)
13
Menu Operation
Using Menu System
This section explores the menus of your TV. Each
menu is outlined and detailed to help you get the
most from your TV. To access the menu system:
1. Press MENU to display the main menu.
2. Press ▲/▼ to highlight an option, then press
OK/► to open the corresponding submenu.
3. In submenus, use ▲/▼ to select your desired
item, then use ◄/► to set functions or change
values, or use OK/► to open the corresponding
submenu.
4. Press OK to conrm your selections.
5. Press MENU to return to the previous menu or
press CLEAR to close the menu.
Picture Menu
The menus for adjusting the picture are used to
obtain the best picture settings according to your
preference, the type of program you are watching
and the ambient lighting.
To access the Picture Menu, press the MENU
button on the remote to open the Main menu.
Press▲/▼ to select Picture, then press OK/►to
display options.(Refer to Figure 1.)
Note: some options may be not available for certain
signal sources.
Picture Preset: displays a list that lets you select
one of the preset picture settings: Natural, Sports,
Personal or ECO, Vibrant, Cinematic. Choose the
setting that is best for your viewing environment.
Note: ECO is the default setting, if you select some
other options, the power consumption may change.
Brightness: adjusts the brightness of the picture.
Contrast: adjusts the difference between the light
and dark areas of the picture.
Sharpness: adjusts the crispness of the edges in
the picture.
Expert Settings
Backlight: adjusts the backlight level. the menu
line is grayed out by default. Only when “Dynamic
Backlight” and “Light Sensor” are both set to
“Off”, the menu line can be adjustable.
Color: adjusts the richness of the color.
Tint: this option adjusts the balance between the
red and green levels.
Color Temperature: adjusts the color temperature
from cool to warm.
Note: Color and Tint are not available in PC
mode.
Advanced Settings
Light Sensor: when activated, this feature
monitors the ambient light conditions in the room
and adjusts the TV’s backlight for optimum
viewing. It also serves as an energy-saving
feature by lowering the backlight power level when
appropriate (typically in darker conditions).
Dynamic Backlight: this option automatically
adjusts the brightness of the backlight according
to the content of the incoming signal. Dynamic
Backlight optimizes the picture quality and
decreases power consumption.
Note: when Light Sensor or Dynamic Backlight
is set to Off, the power consumption may exceed
the requirements of the Energy Star® qualication.
Noise Reduction: This setting reduces picture
“static” or any type of interference. This feature is
especially useful for providing a clearer picture in
weak analog signal conditions. Choose between
these options:
Low for a softer, smoother picture that retains
picture sharpness and detail.
Middle for a slightly softer picture than the Low
setting.
High for an even softer, smoother picture than
the other settings (the picture detail is somewhat
decreased).
SABC (Scene Adaptive Brightness Control):
Option: On/Off. If set to On mode, distribution of
brightness every scene is picked out automatically,
TV always adjusts appropriate brightness by full
automation.
PC Settings: this option allows you to adjust the PC
settings when in PC mode.
Reset Picture Settings: this function allows you to
reset all the picture settings to the factory default
settings.
Sound Menu
The Sound Menu lets you adjust audio output. To
access the Sound Menu, press MENU on the
remote, and then use ▲/▼ to highlight Sound from
the Main Menu. Press OK/► to select. The following
options will be displayed: (Refer to Figure 2.)
Equalizer: the ve-band equalizer allows you to
adjust the audio frequency settings. You can select
one of the ve preset options or create a custom
preset.
Equalizer: allows you to choose a specic
sound
preset:
Standard, Music, Voice, Movie, and
Personal.
![](/img.php?id=1729354&img=bgf.png)
14
Menu Operation
Frequency Range: displays the different graphic
equalizer names set for each sound preset option.
Choose a band and make adjustments. When
making adjustments, the Equalizer option
automatically changes to Personal. Press ◄/►
to select the desired frequency (100Hz, 300Hz,
1KHz, 3KHz, 10KHz) you wish to adjust. Use
▲/▼ to adjust the level. When you have nished
adjusting the levels, press MENU to exit.
Balance: adjust the amount of audio sent to the left
and right speakers.
Surround: option On/Off. When turned on, this
option enables a mode which simulates a surround
sound effect.
Speaker: option On/Off. When you select the Off
option, the sound speaker on the TV will be turned
off.
SPDIF Type: this option controls the type of audio
stream sent to the Digital Audio Output jack.
Available options are Dolby Digital, PCM, or Off.
Auto Volume Control: option On/Off. This option
reduces the annoying blasts in volume that often
occur during commercial breaks, and also amplies
softer sounds in program material, eliminating the
need for constant volume adjustment.
Analog TV Sound: this option controls the manner
in which the sound comes through your speakers.
Options available vary according to the input
selected.
Note: The Analog TV Sound option is only available
for analog channels.
Mono (available for regular TV viewing only):
this option plays the sound in mono only. Use
this setting when receiving broadcasts with weak
stereo signals.
Stereo : this option splits the incoming stereo
audio signal into left and right channels. Most TV
programs and recorded materials have stereo
audio. The word “Stereo” appears in the Channel
Banner when you tune to a program that is
broadcast in stereo.
Second Audio Program (SAP): this option plays
the program’s audio in a second language, if
available. The letters “SAP” appear in the Channel
anner when you tune to a program that is broadcast
with SAP information. SAP audio is broadcast in
mono only. SAP is also used to broadcast a
program’s audio with descriptions of the video for
the visually impaired.
Default Audio Language: choose the language you
prefer for dialog on digital channels. If the preferred
language is not broadcasted with the program,
then the TV plays the default audio for the program
(usually English in the US). There are 3 available
default languages (English, French, Spanish).
Note: The Default Audio Language option is only
available for digital channels.
Current Audio Language: press ◄/► to choose
from the list of languages available for the program
you’re watching. The language chosen becomes
your preferred language for all digital channels until
you turn the TV off. If the language chosen is not
being broadcasted with a program, the TV plays the
default language for the program (usually English in
the US).
Note: The Current Audio Language option is only
available for digital channels.
Setup Menu
The Setup Menu allows you to congure the TV
with your preferences. Press MENU on the remote
to open the Main Menu. Press ▲/▼ to select Setup;
then press OK/► to display the following options:
(Refer to Figure 3.)
Signal Type: choose the type of signal (Cable/Sat
or Antenna) you have connected to the ANT/
CABLE/SAT IN.
Channel Scan
When you perform a Channel Scan, your TV
searches for channels with signals and stores the
channel information in the Channel List. Then, as
you watch TV and press CH+ or CH-, your TV goes
to the next or previous channel in the Channel List
and skips the channels that do not have signals.
If the TV signal source changes – for example, if you
change from an outdoor antenna to cable TV – you
will need to rescan for channels.
To automatically scan for channels:
1. After choosing a signal type, press ▲/▼ to
highlight Channel Scan.
2. Press OK/► to start the scan. You can see the
search progress and how many channels are
found in the on-screen menu. (Note: If you wish
to stop the search, press the CLEAR button.)
3. After the scan is complete, press the MENU
button to return to the previous menu, or press the
CLEAR button to close the menu.
Channel Skip
You can hide channels in the Channel List. Then,
when you press the CH+ or CH- button, the TV will
skip the hidden channels. You can still tune to these
![](/img.php?id=1729354&img=bg10.png)
15
Menu Operation
hidden channels by pressing the number of the
channel on the numeric keypad.
To hide specic channels:
1. Select Setup > Channel Skip, press OK/► to
open the Channel Skip screen.
2. Press ▲/▼ to highlight the channel you wish to
skip; then press OK to check the highlighted
channel. You can add the channel back into the
Channel List by highlighting it and un-checking it.
3. Repeat the process to hide additional channels.
4. Press MENU to return to the previous menu, or
press CLEAR to close the menu.
Channel Edit
The Channel Edit function allows you to add or
change a channel label, only for analog channels.
You cannot change the name on digital channels.
To edit an analog channel name:
1. Select Setup > Channel Edit, press OK/► to
open to enter the next screen.
2. Press ▲/▼ to highlight the channel you wish to
label or edit.
3. Press OK to enter the Channel Edit screen.
4. The Channel Name will be highlighted, press OK
to start editting.
5. Use ◄/► to select the input eld, then use ▲/▼
to enter the name for the channel.
6. Press OK to conrm and save the new label.
7. Press MENU to return to the previous menu, or
press CLEAR to close the menu.
Input Skip
You can hide video inputs in the Channel List. This
option allows you to remove the inputs from the
Channel List so you do not encounter them when
channeling up or down. Once you have hidden
inputs, the TV will skip these inputs when you press
the CH+ or CH- button.
To hide video inputs:
1. Select Setup > Input Skip, press OK/► to
display the Input Skip screen.
2. Press ▲/▼ to highlight the video input you want
to hide.
3. Press OK to check the highlighted input. You can
add an input by highlighting it and un-checking it.
4. Repeat the process to hide additional video
inputs.
5. Press MENU to return to the previous menu, or
press CLEAR to close the menu.
Input Labels
You can add a label to a video input source to make
it easier to identify.
1. Select Setup > Input Labels, press OK/► to
display the Input Labels screen.
2. Press ▲/▼ to highlight the input source you wish
to label.
3. Press ◄/► to select the label for this source.
4. Press MENU to return to the previous menu, or
press CLEAR to close the menu.
Closed Caption
Many programs are encoded with closed captioning
information, which allows you to display the audio
portion of a program as text on the TV screen.
Note: Closed caption settings are not available
for HDMI, CMPT or PC inputs. These settings
must be set in the connected component’s menu.
Closed captioning is not available on all channels
at all times. Only specic programs are encoded
with closed captioning information. When a digital
program is closed captioned, CC is displayed in the
channel banner.
The Closed Caption options are: (Refer to Figure 4.)
CC Setting: this option allows you to choose the
way closed captioning information appears on the
screen.
Off- No captioning information displayed.
On Always- Chooses this option if you want
captioning information to be shown whenever
available.
On When Mute- This option allows the
closed captioning to display (when available)
whenever the TV’s sound is muted. The
captioning information is not displayed when the
sound is not muted.
Analog CC Type : this option lets you select
the captioning mode used for displaying caption
information, when available. If you are unsure of the
differences among the modes, you may prefer to
leave the closed captioned mode set to CC1, which
displays complete text of the program in the primary
language in your area.
Digital CC Type: if available, this allows you to
select a closed caption service mode (1-6) for digital
channels.
Digital CC Preset: if available, this allows you to
select between Off and On options. On mode allows
you to set the options below.
Digital CC Style: this option lets you customize the
following display options, if available:
Caption Style - Select either As Broadcaster or
Custom options. If you choose Custom options,
the setting changes according to the options you
choose.
Digital CC Size - Set the size of the digital closed
caption text.
![](/img.php?id=1729354&img=bg11.png)
16
Menu Operation
Digital CC Font - Select a character design for
the digital closed caption text. A font is a complete
assortment of letters, numbers, punctuation
marks, etc. in a given design. You can choose
from a variety of fonts.
Digital CC Background Color - lets you set the
color of the area behind the digital closed caption
text.
Digital CC Background Opacity - Set the
appearance of the area behind the digital closed
caption text.
Digital CC Color - Sets the color of the digital
closed caption text.
Digital CC Opacity - Sets the appearance of the
digital closed caption text.
Time Setup
Time Zone
You can set the correct Time Zone for your area.
To choose a time zone:
1. Select Setup > Time Setup > Time Zone, (Refer
to Figure 5.) press OK/► to proceed to the next
screen.
2. Press ◄/► to select the time zone for your area.
3. Press MENU button to return to the previous
menu, or press CLEAR to close the menu.
Time
To set the time:
1. Select Setup > Time Setup > Time, press OK/►
to proceed to the next screen.
2. Options on this screen include:
Auto Synchronization - Press ◄/► to choose
On to acquire the time automatically from digital
channels.
Daylight Saving - Select Auto to set the daylight
saving time for your area automatically.
Date - When Date is highlighted, use ◄/► to set
the date, press OK to conrm. (Note: using the
same way to set the time below)
Time - Lets you set the time manually.
Power On Timer - Select Once/Daily/Off.
Power On Time - Allows you to set the time you
want the TV to turn itself on.
Power Off Timer - Select Select Once/Daily/Off.
Power Off Time - Allows you to set the time you
want the TV to turn itself off.
Sleep Timer: Press ◄/► to set the TV to turn off
after a given amount of time.
System Information
This option allows you to see the system information
including Panel ID, SW Version, Service Model No..
Reset All
This option resets all settings (except parental
control settings) to the factory defaults. When you
select this option, a conrmation box opens
1. Press ◄/► to select OK or Cancel.
2. Press OK to conrm.
Parental Control Menu
The choices in the US V-Chip and Canada V-Chip
menus involve software inside your TV, referred to
as V-Chip, which allows you to block TV programs
and movies. TV programs can be blocked by age-
based ratings, such as TV-MA . If available, TV
programs can also be blocked by content, such as
adult language (L) . Movies can only be blocked
by age-based ratings. Once you block programs,
you can unblock them by entering a password. By
default, the software inside your TV is turned off or
unlocked.
V-Chip reads the program’s age-based rating (TV-
MA, TV-14, etc.) and content themes (Violence
(V), Adult Language (L), etc.). If you have blocked
the rating and/or content themes that the program
contains, you receive a message that the channel
is currently blocked. Change the channel or to
enter your password and temporarily deactivate the
parental controls.
Broadcasters are not required to provide content
themes, so programs received with no content
themes are blocked only if you block their age-
based rating. You can also block programs that have
been given an Exempt rating, and programs that are
considered unrated.
Change V-Chip Password
The rst time you enter the Parental Control menu, you
must set a password in order to adjust other parental
control settings. To enter a V-Chip Password, follow
these steps:
1. Selelct Parental Control >
Change
Password,
(Refer to Figure 6.) press OK/► to enter the
Change
Password screen.
2. Use the number buttons to enter the four-digit
number for your password.
3. Re-enter the same code to conrm the password.
Note: The password must be entered before
the TV will continue with Parental settings next
time. The super password is 2458, If you forget
your password, enter it to override any existing
password.
Channel Block
To block a specic channel, follow these steps:
![](/img.php?id=1729354&img=bg12.png)
17
Menu Operation
1. Select Parental Control > Channel Block, press
OK/► to enter the next screen with channnel list
on.
2. Press ▲/▼ to select the channel you wish to
block.
3. Press OK to place a checkmark in the box to
block that channel. When you tune to that
channel, you will need to enter a password to
view the channel programming.
Button Block
This option allows you to block (disable) or unblock
(enable) the TV panel buttons. The remote control
still tunes to any channel. If you are using this to
keep children from changing channels, be sure to
remove access to any remote that is capable of
operating the TV while you have the TV panel button
blocked. To block the TV panel buttons, select
Parental Control > Button Block, and press ◄/►
to choose the On option. To enable these buttons
again, return to this menu and choose the Off
option.
V-Chip
Press OK/► to display its submenus: (Refer to
Figure 7.)
V-Chip Rating Enable
Select Parental Control > V-Chip > Rating Enable,
then press ◄/► to turn this option on or off.
You must remember to set Rating Enable to On
mode to have the following V-Chip rating limits to
take effect.
US V-Chip TV Ratings
You can automatically block all program ratings
above a specied age-based rating level.
1. Select Parental Control > V-Chip > US V-Chip
> US TV Ratings, press OK/► to enter the US
TV Ratings screen.
In the US TV Ratings panel you can customize
the program blocking of the following TV ratings:
TV–Y All children
TV–Y7 Children 7 years and older
TV–G General audience
TV–PG Parental guidance suggested
TV–14 Parents strongly cautioned
TV–MA Mature audience only
You can also customize the TV ratings for the
following content:
A Sexual dialog
D Sexual explicit dialog
L Adult language
S Sexual situations
V Violence
FV Fantasy violence
2. Press ▲/▼/◄/► to navigate through the TV
rating options. Press OK to block (locked) or allow
(unlocked).
US V-Chip Movie Ratings
You can automatically block all program ratings
above a specied age-based rating level.
1. Select Parental Control > V-Chip > US V-Chip >
US Movie Ratings, press OK/► to enter the US
Movie Ratings screen.
In the US Movie Ratings panel you can customize
the program blocking of the following Movie
ratings:
G General audience
PG Parental guidance suggested
PG-13 Unsuitable for children under 13
R Restricted, under 17 requires companying
parent or adult guardian
NC-17 No one under 17 admitted
X Mature audience only
Canada English or French V-Chip Ratings
If you receive Canadian programs, you can block
Canadian English and French V-Chip by ratings only.
When you block a particular rating, you automatically
block the higher-rated programs as well. To block
Canadian English and French program ratings,
follow these steps:
1. Select Parental Control > V-Chip > Canada
V-Chip, press OK/► to enter the next screen.
2. Press ▲/▼ to select Canadian English Ratings
or Canadian French Ratings. Press OK/► to
proceed.
Canadian Enlish Ratings:
C Children
C8+ Children 8 and older
G General audience
PG Parental guidance
14+ Viewer 14 and over
18+ Adult
Canadian French Ratings:
G General audience
8 ans+ Viewer 8 and older
13 ans+ Viewer 13 and older
16 ans+ Viewer 16 and older
18 ans+ Adult
3. Press ▲/▼ to select the desired rating. Press
OK to toggle between View and Block.
Open V-Chip: Allows you to select the downloadable
rating level. In the event that a new rating system is
provided by the broadcaster, the new rating options
would appear within this menu.
Blocking Unrated/Exempt Programs
The Unrated/Exempt Ratings option lets you decide
![](/img.php?id=1729354&img=bg13.png)
18
Menu Operation
if programs that the V-Chip recognizes as unrated
or exempt can be viewed. Unrated TV programs
may include news, sports, political, religious, local
and weather programs, emergency bulletins, public
announcements, and programs without ratings. The
Exempt option applies to both US and Canadian
unrated programs and Canadian programs rated E.
1. Select Parental Control > V-Chip > UnRated/
Exempt Ratings.
2. Press ◄/► to toggle between View and Block.
View All unrated programs are available.
Block All unrated programs are not available.
Reset Downloadable Data
1. Select Parental Control > V-Chip > Reset
Downloadable Data, press OK/► to reset the
downloadable V-Chip data.
2. A conrmation box opens. Press ◄/► to select.
3. Press OK to reset the downloadable rating data, if
present.
Input Block
1. Select Parental Control > Input Block, press
OK/► to display the Input source list screen.
2. Press ▲/▼ to place a checkmark in the box to
block the input. When you tune to that input, you
will need to enter a password to view the channel.
3. Press OK to conrm your selection. A locked/
unlocked icon appears next to the selected input.
Language Menu
To select the preferred language for all menus, follow
the steps below. You can choose between English,
Espanol, or Francais.
1. Select Language, press
OK/►
to display the
Language Screen.
(Refer to Figure 8.)
2. Press
▲/▼
to select the preferred language for the
menu.
3. Press
◄/►
to select On or Off.
4. Press the MENU or CLEAR button to exit the menu.
USB Menu
You can connect a device with USB to your TV or
use a USB ash drive,
only suppport FAT format and
unpartitioned USB device
. This connection allows
you to insert a USB ash drive directly or connect a
compatible mass storage device with USB, such as
a digital camera, a multi-format card reader, or an
MP3 player. If you have a USB drive, plug it into the
drive directly. If you have a device with a USB port,
connect one end of the USB cable to the USB port
and the other end to the USB jack on the side of the
TV.
The USB feature on your TV allows you to play audio
les (format supported: MP3) or display pictures (format
supported: JPEG). To utilize this feature, follow these
steps:
1. Press MENU on the remote control (the Main Menu
appears).
2. Use
▲/▼
to select USB.
3. Press
OK/►
to proceed to the USB Screen.
Or, you can press the MEDIA button on the remote
control to display the USB screen directly; you can
also press the INPUT button to display the input list
and select USB.
(Note: if no USB device is inserted, “No Media”
displays on the screen, only suppport FAT format
and unpartitioned USB device)
Media Brower:
select
Media Brower, press OK
to enter, then
press
▲/▼
to select a le or le
folder, press OK and use the following menus:
Open -
Select to display the folder/le list in the
USB device.
Thumbnail -
Select to
display the thumbnail of
the folders/les, only available for photo folders/
les.
Slideshow -
Select to to start photo slideshow.
The menu line is grayed-out if there is no photo le
in the root of the current USB device.
Play Music -
Select to playback the music. The
menu line is grayed-out if there is no music le in
the root of the current U disk.
Return -
Select to return to the previous menu.
Media Settings:
select
Media Settings, press
OK to enter, then
use the following menus:
Photo Settings -
Select to display Photo
Settings submenu.
Slideshow Interval
-
Select the Slideshow
Interval: 5 Seconds, 10 Seconds, 20
Seconds
.
Slideshow Effect -
Select the Slideshow
Effect.
Slideshow Repeat
-
Select the options: Off/On.
Thumbnail Size-
Select to
display the
thumbnail size: 5X3 and 3X2.
Music Settings:
select to display Music Settings
submenu.
Music Play Mode
-
Select the options: Once,
Play All, Random.
Music Play
Repeat -
Select the options: Off/On.
Music Auto Play
-
Select the options: Off/On.
4.
Press MENU to go back to the previous menu, or press
CLEAR to exit.
![](/img.php?id=1729354&img=bg14.png)
19
Chapter 3 Other Information
Frequently Asked Questions (FAQs)
What’s the quickest way to view High Denition (HD) video?
Connect an off-air antenna to the ANT/CABLE/SAT IN to view free local digital channels. You may need to
purchase an antenna.
Visit www.antennaweb.org for assistance in deciding what type of antenna to use to receive the local digital
channels available to you. By entering your location, this mapping program tells you which local analog and
digital stations are available using a certain antenna.
Are there other ways to view High Denition (HD) video?
Besides using an off-air antenna as mentioned above, you can also use a set-top box to receive
digital video. Contact your cable company or satellite provider to purchase digital programming
and have them connect the box to ensure you are viewing channels the best way.
How do I tell an analog channel from a digital channel?
Press the INFO button to display the Channel Banner. Look at the bottom right corner of the screen. The dot (•)
is displayed for a digital channel. If there is no dot, it is an analog channel.
Why are there bars on my screen and can I get rid of them?
Most digital video is sent in a 16/9 format which lls your screen, but is sometimes sent in 4/3 which does not
ll your screen. It depends on how the station or device connected to your TV is formatting the video. If there
are bars on the screen, press the ZOOM -/+ button to try a different format that may eliminate the bars. Some
bars can’t be removed because of the way the format is sent by the broadcaster. The format changes as you
press the ZOOM -/+ button and the format type is displayed at the bottom of the screen.
Why does channel search nd a lot of channels, but when I try to tune to them, there’s nothing
there?
Some channels enabled by the cable company don’t carry programming, such as video ondemand. When
channels are unavailable, your TV screen is blank or appears like snow. You probably want to remove these
channels from your Channel List. Remove these in the Channel Skip Menu.
Why does the rst channel search take a long time?
If you have both analog and digital channels, the TV is looking for all available channels in the Channel List. If
you do have digital channels, the TV is also searching for scrambled channels, non-scrambled channels, and
each sub-channel of that digital channel.
![](/img.php?id=1729354&img=bg15.png)
20
Other Information
Troubleshooting
Most problems you encounter with your TV can be corrected by consulting the following troubleshooting list.
TV Problems
The TV won’t turn on.
• Make sure the TV is plugged in.
• Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in another device.
• The TV panel controls may be locked (disabled). Use the remote control to unlock the TV panel controls.
• Select the Button Block feature on the Parental Control menu and press OK to uncheck the box.
There is no picture and no sound but the TV is on.
• You may be tuned to an input with no component connected to it. If you’re trying to view a connected
component, press INPUT until the picture from that component appears.
• The Signal Type option may be set incorrectly.
• The channel may be blank. Try changing channels.
• If you’re watching your VCR and it’s connected with coaxial cable to the ANT/CABLE/SAT IN jack, tune
the TV to channel 3 or 4 (whichever channel is selected on the 3/4 switch on the back of your VCR). Also
make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR).
The sound is ne, but the picture is poor quality.
• If you’re getting a black and white picture from a component you’ve connected to your TV, you might have
your video cables connected to the wrong jacks. A yellow video cable connects to the yellow VIDEO
INPUT jack on the side or back of your TV; three video cables or bundled component video cables (red,
blue, and green) connect to the corresponding COMPONENT INPUT jacks on the back of your TV.
• Check the antenna connections. Make sure all of the cables are rmly connected to the jacks.
There is no sound, but the picture is ne.
• The sound might be muted. Try pressing the volume up button to restore sound.
• If using DVI or Y, PB, PR, remember to also connect the device’s left and right audio output jacks to the
TV’s L and R AUDIO INPUT jacks.
• The sound settings may not be set correctly.
• If your audio source has only one jack or is a (mono) audio source, make sure you have plugged the
connection into the L AUDIO INPUT jack on the TV.
The screen is blank.
• Check your connections. If you used yellow, red, and white cables to connect, make sure they’re
connected to the red, white, and yellow AUDIO/VIDEO INPUT jacks on the side or back of the TV.
• If you’re trying to watch something that’s playing on a component connected to the TV (like a DVD), press
INPUT until you get to the correct video input channel.
• Make sure the component connected to the TV is turned on.
• Try another channel.
The buttons on the TV panel don’t work.
• The TV panel controls may be locked (disabled). Use the remote control to unlock the TV panel controls
by selecting the Button Block feature in the Parental Control Menu and press ◄/► to uncheck the box.
• Unplug the TV for 10 minutes and then plug it back in. Turn the TV on and try again.
The TV turns off unexpectedly.
• The electronic protection circuit may have been activated because of a power surge. Wait 30 seconds,
and then turn the TV on again. If this happens frequently, the voltage in your house may be abnormally
high or low.
• Unplug. Wait 10 minutes. Plug in again.
![](/img.php?id=1729354&img=bg16.png)
21
Other Information
You can’t select a certain channel.
• The channel may be blocked or not approved in the Parental Control Menu.
• If using a VCR, check to make sure the TV/VCR button on the VCR is in the correct mode (press the TV/
VCR button on your VCR).
• Press the TV button and then try to change channels.
The stereo reception is noisy.
• It may be a weak station. Use the Sound Menu and Analog TV Sound to choose mono.
A black box appears on the screen.
• Closed captioning might be on. Check Closed Caption in the Setup menu.
You are having problems with the HDMI Connection.
• Make sure the HDMI or DVI component is turned on and the cables are rmly connected. If problems still
occur, turn off your component and reconnect it. Reset the power by unplugging the power cord and
plugging it back in.
• If you are tuned to the HDMI 1, or other HDMI INPUT and you’re receiving Unusable Signal message
screen, press the INFO button on the remote. If Acquiring Channel appears in the Channel Banner, the
HDMI or DVI device isn’t responding. Contact the manufacturer of the HDMI or DVI device for further
assistance.
• If you tune to the HDMI 1, or other HDMI INPUT and you see snow, the video goes in and out, or the
video takes a long time to appear, your HDMI or DVI component is having trouble sending video
information to the TV. Reconnect your device. Reset the power by unplugging the power cord and plugging
it back in. If problems persist, try connecting the Y Pb Pr jacks if they are available or contact the
manufacturer of the HDMI or DVI component for further assistance.
• If you have black bars on each side of your picture, the component you connected might have a switch or
a menu option allowing you to change the picture quality output that will x this. Choose either 720p or 1080i.
The remote control doesn’t work.
• Something might be between the remote and the remote light sensor on the front of the TV. Make sure
there is a clear path.
• The remote may not be aimed directly at the TV.
• The batteries in the remote may be weak, dead, or installed incorrectly. Put new batteries in the remote.
The Universal Remote control doesn’t work.
This TV utilizes new remote control signals and may not be compatible with your existing universal remote (e.g.
satellite box remotes, cable box remotes, and generic universal remotes, etc.). Over time, newer universal
remotes will become available that should pick up the new TV codes.
You are experiencing problems with V-Chip/Parental Controls.
If the rating limits don’t work, you must lock the settings. Go to the Main Menu (press MENU on your remote),
select Parental Control > V-Chip > Rating Enable, Rating Enable is highlighted. Press ◄/► to select On to
have the rating limits take effect.
What else can I do?
If you’ve been through the Troubleshooting section and nothing has xed your problem, try rebooting your
TV. Note that after a reboot, you may need to run your TV through the setup process again. To do a reboot,
unplug the power cord from the wall outlet or power strip. Keep your TV unplugged for about 5 minutes. Then
plug in the TV and turn it on. See if the problem is xed. If the problem remains, then please visit www.tclusa.
com for updated FAQs or contact TCL Customer Support at the support number provided in your Warranty
under “How To Get Service.”
![](/img.php?id=1729354&img=bg17.png)
22
Other Information
Care and Cleaning
Caution: Turn OFF your TV before cleaning.
You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots
in the cabinet to help assure adequate ventilation.
IMPORTANT: Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder.
These types of cleaners will damage the TV. The TV’s screen may be cleaned with a soft, lint-free cloth as
well. Take care not to scratch or mar the screen. If necessary, you may use a cloth dampened with warm
water. While cleaning, do not spray liquid directly on the screen, or allow liquid to run down the screen and
inside the TV. Also, never place drinks or vases with water on top of the TV. This could increase the risk of
re, shock hazard or damage to the TV.
Television Specications
Broadcasting system US System NTSC-M
ATSC standard (8VSB), QAM
Receiving Channels VHF2-13
UHF14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Tuner type Frequency synthesized
Screen refresh rate 60Hz
23
TTE Technology, Inc. (“TTE”) Limited Warranty
All LCD/LED Models
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THIS WARRANTY
DOES NOT COVER, AND AS DESCRIBED BELOW TTE EXPRESSLY DISCLAIMS, ALL
ACTUAL AND IMPLIED WARRANTIES WITH RESPECT TO ANY PRODUCT USED FOR
INSTITUTIONAL OR OTHER COMMERCIAL PURPOSES (INCLUDING BUT NOT
LIMITED TO RENTAL PURPOSES).
What your warranty covers: Defects in materials or workmanship to the original owner of this
TCL product when purchased from an Authorized Dealer of TCL brand products and packaged with
this warranty statement.
New LCD/LED Televisions
For how long after your purchase:
• Two (2) years from date of purchase for parts.
• Two (2) years from date of purchase for labor.
What we will do:
• At TTE’s discretion, pay an Authorized TCL Service Center for both labor charges and parts to
repair your television, or replace your television with a new or refurbished/remanufactured
unit. See “How to get service”.
How to get service:
• Call 1-877-300-8837. Please have your unit’s date of purchase, place of purchase and model/
serial number ready. The model/serial number information can be found on the back of your unit.
• A representative will troubleshoot your problem over the phone. If it is determined that your unit
requires service, the service location will be at the sole discretion of TTE based upon the TTE
Limited Warranty statement.
• At the sole discretion of TTE, television screen sizes 32” and smaller will either be repaired at an
Authorized TCL Service Center or directly exchanged for a new or refurbished/remanufactured
unit. At the sole discretion of TTE, television screen sizes 33” through 55” will either be repaired
at an Authorized TCL Service Center or repaired in-home.
If repaired at an Authorized TCL Service Center, TTE is not responsible for transportation costs
to the Authorized TCL Service Center. However, TTE will pay for return shipping. TTE will
provide instructions for packaging and shipping the unit. Proof of purchase in the form of a bill of
sale or receipted invoice from an Authorized Dealer which is evidence that the product is within
the warranty period must be presented to obtain warranty service.
What your warranty does not cover:
• Customer instruction. (Your Owner’s Manual describes how to install, adjust, and operate your
unit. Any additional information should be obtained from your Authorized Dealer.)
• Installation and related adjustments.
• Damage resulting from non-approved installation methods.
• Signal reception problems not caused by your unit.
• Damage from misuse or neglect.
• Batteries.
• A television that has been modied or incorporated into other products or is used for institutional
or other commercial purposes (including but not limited to rental purposes).
• A unit purchased or serviced outside the USA.
• A unit sold as is or with all faults
• Acts of nature, such as but not limited to lightning damage.
• Special, incidental or consequential damages.
24
Product Registration:
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be
necessary. Registration is not required for warranty coverage.
Limitation of Warranty:
• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS
PRODUCT. NO VERBAL OR WRITTEN INFORMATION GIVEN BY TTE TECHNOLOGY,
INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY
INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. TTE TECHNOLOGY, INC. SHALL NOT BE LIABLE FOR
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED
WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF CALIFORNIA.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS
LIMITED TO THE APPLICABLE WARRANTY AND WARRANTY PERIOD SET FORTH ABOVE.
How State Law relates to this warranty:
• Some states do not allow the exclusion nor limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above limitations or exclusions may
not apply to you.
• This warranty gives you specic legal rights, and you also may have other rights that vary from state
to state.
If you purchased your unit outside the United States or seek warranty coverage outside the
United States: This warranty does not apply. Contact your dealer for warranty information.
Service calls which do not involve defective materials or workmanship are not covered by this
warranty. Costs of such service calls are the sole responsibility of the purchaser.
![](/img.php?id=1729354&img=bg1a.png)
TTE Technology, Inc.
TCL and associated marks are trademarks of TCL S.A.used under license
to TTE Corporation.
Part No.: 72-E30C8L-XNA1A
ENERGY STAR is a set of power-saving guidelines issued by the U.S. Environmental Protection
Agency (EPA).
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S.
Department of Energy helping us all save money and protect the environment through energy efcient
products and practices.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are registered trademarks of Dolby Laboratories.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Please do not send any products to the California address listed in this manual or on the carton. This will only add
delays in service for your product.
This product incorporates HDMI technology.
HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
