SoundStation ® Wireless Microphone Quick Start Guide
SoundStation®
Wireless Microphone Quick Start Guide
Parts List
The Polycom SoundStation Wireless
Microphones connect to your SoundStation
VTX 1000 or SoundStation IP 6000 ,
allowing you to wirelessly reinforce the
audio pick-up range during conference
calls.
The following items are included
in your SoundStation Wireless
Microphone package. If you are
missing any items, contact your
SoundStation Wireless Microphone
reseller.

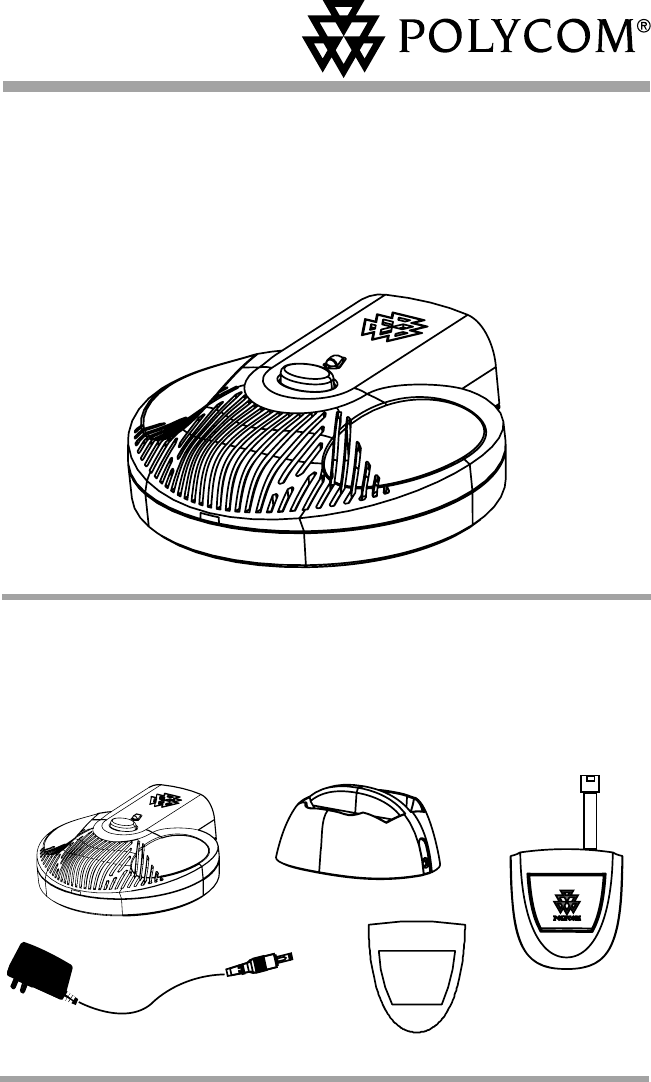

Wireless Microphone
Power Adapter
Charging Cradle
Wireless Receiver
Cohesive Tape
(Not shown: Country-Specifi c Power Cable)
For use with SoundStation® VTX 1000 or SoundStation® IP 6000
![](/img.php?id=980076&img=bg2.png)
SoundStation ® Wireless Microphone Quick Start Guide
Features
Mute / Unmute LED
Mute / Pair key Power on/off switch
Battery door
Pair / Power LED Recess for Charging PIN
Connecting the Receiver to the Conferencing Phone

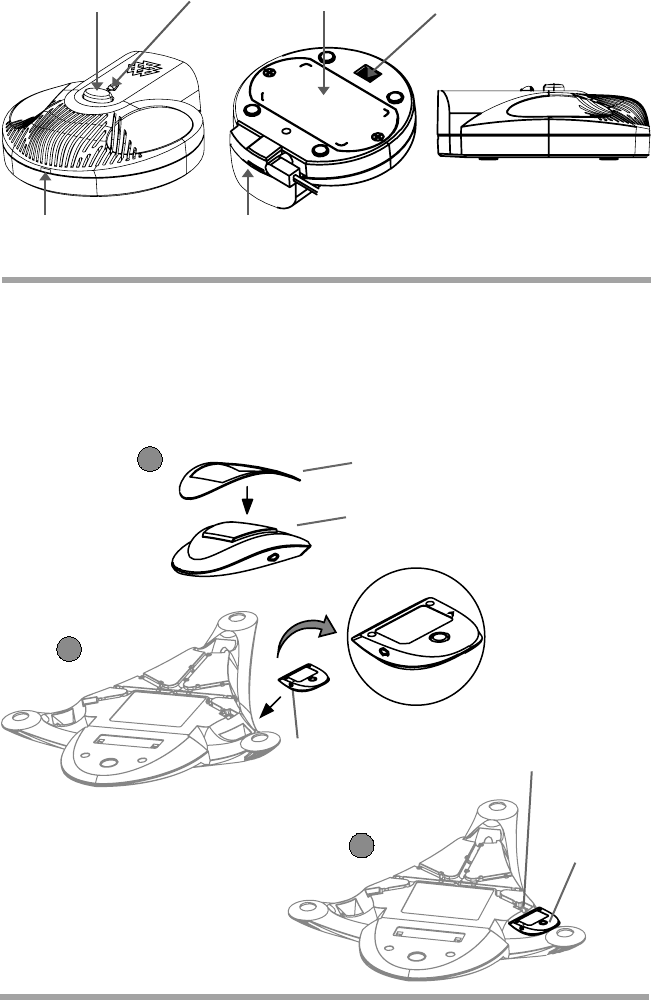

To connect the receiver, plug the RJ9 cable (attached to the receiver) into the microphone
port on your SoundStation console. Your SoundStation will detect the receiver and
confi gure it for use automatically.
2
1
3
Cohesive Tape
Cable link to external
microphone port
Pair Key
Receiver
Status LED
Wireless Receiver
arrows should be
pointing to the
outside rim of the
phone console that is
opposite to the dial pad
![](/img.php?id=980076&img=bg3.png)
SoundStation ® Wireless Microphone Quick Start Guide
Charging the Wireless Microphone
To charge the batteries in the microphones:
1. Place the wireless microphone onto the charging pins in one of the Charging Cradle
microphone slots. Make sure the Charging Cradle is plugged into an electrical outlet.
While using the charging cradle, the Pair / Power LED on the wireless microphone
appears red. Once charging completes, the Pair / Power LED turns to green.
Note:Polycom recommends that wireless microphones be fully charged
(LED turns from red to green) before you use them the fi rst time.
Startup
To turn on the wireless microphone (once
it is fully charged), press and hold Mute
key for at least fi ve seconds until the
Microphone Pair / Power LED fl ashes
green. The Microphone Pair / Power LED
and the Receiver Status LED will appear
solid green when the microphone is turned
on and there is a radio link between the
receiver and the microphone. If the Pair
/ Power LED appears fl ashing green, the
microphone and the receiver may not be
paired or there may be other issues.
For the enjoyment of best voice
quality, the optimum distance for the
wireless microphones with respect
to the conference phone is highly
suggested to be within 32 feet (10
meters) range.
Documentation and support are
available at www.polycom.com/
support/voice/ .

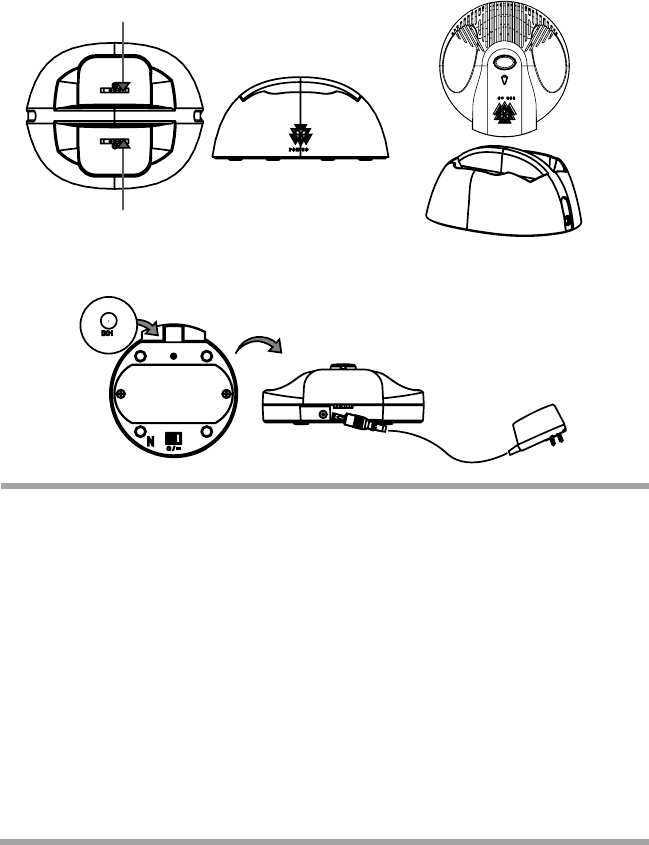

Charging pin
Charging pin
2. Plug the power adapter onto the wireless microphone.
