W-3400 User Mamual
W-3400 Wireless USB phone
User Manual
![](/img.php?id=720959&img=bg2.png)
W-3400 User Mamual
1 20 July 2006 V1.0
Contents
1. Product Instroduction …………………………………...……………………………… 2
1.1 Features …………………………………………………………………………….……. 2
1.2 Packing Contents ……………………………………………………………………..…. 2
1.3 System Requirements……………..…….…………………………………………………2
1.4 Hardware and Button Introduction ……...………………………………………….….. 3
1.5 LCD Destription……………………………………………………………………………..4
1.6 USB Dongle LED status …………………………………………………………….…… 5
2. Installation …………………………………………………….…………………….…….. 5
2.1 Installing Skype Software ………………………………….…………………………… 5
2.2 Installing the API Software ………………………………….………………………….. 5
2.3 Installing the USB Dongle…………..……………………….………………………….. 7
2.4 Check Audio and Sound Device …………………………….……………………...… 8
3. Establishing the connection…….……………………………………………………………. 9
3.1 The link status on the host computer…………………………………………………….9
3.2 Power on the wireless phone handset………………….………………………………. 9
3.3 Standby mode…………………..…………………………………………………………. 9
3.4 Note on wireless link…….….………………….…………………………………………. 9
4. Function Instruction ………………………………………………...…………………... 10
4.1 Base Operator and Option ……………………………..……..….………………..…… 10
4.2 Calling a Skype User ………………………………………….….………………..……10
4.3 Calling a Phone Number ( Skype Out ) ………………………….…………..……….10
4.4 Answer a Call ……………………………………………………….……………..…….11
4.5 Adjust Volume ………………………………………………………….…………….….. 11
4.6 Assign Speed-Dial …………………………………………………….……….………... 11
5. Skywin API Program Instruction …….……………….….………………………… 12
5.1 About …………………………………..……………...……..…………………………… 12
5.2 Exit ……………….………………………………………….……………………………. 12
5.3 Select Language……………………………………….……………………………. 12
6. Other Internet Messenger Software Setting ………………….……….…………. 12
6.1 MSM Messenger ……………………………………………………………………...… 12
6.2 Yahoo Messenger …………………………………………………………………......... 12
7. FAQ ………………………………………………………………………………………..… 13
8. Specification ………………………………….……………………………………...….... 14
![](/img.php?id=720959&img=bg3.png)
W-3400 User Mamual
2
1. Product Introduction
W-3400 is a fashion design wireless USB phone which utilizing RF 2.4GHz radio
frequency with graphic LCD. W-3400 Phone designed for Skype software allows you to
freely roam around when making Skype calls over the Internet. The design of W -3400 is
focus on the friendly function for user. User can control the Skype software via the
keypad of the phone. The keypad operates the dialing function, selecting the phone list,
and adjusting the ring tone and so on. In addition, the all new echo-eliminating
technology will improve the voice quality of W-3400. Therefore, W-3400 is a high
technology wireless USB phone with easy to use function. Moreover, W-3400 wireless
phone is paired with one transceiver dongle. Just plug the dongle to computer, install the
software and it’s ready to use.
1.1 Features
l LCD display caller ID contact lists and calling lists and multiple language
l Supports USB 1.1/compatible with USB 2.0 or higher specification
l Using Adaptive frequency hopping (AFH) solution to mitigate radio interference in
2.4GHz frequency band
l Built in hot key functions to operate Skype software as easy as dialing a normal
telephone
l Skype hot keys: Up , Down , 0 ~ 9 , * , # , Dial , Hang Up , Hold/Info. , Tab
l Echo-eliminating for better sound quality
l Buzzer function for incoming call alerts
l Fashion look and human design
l 5 types of hold music and 10 types of ringers
l Using Nokia compatible ( 6100) Li. battery
l Rechargeable via USB
1.2 Packing Contents
l W-3400 Wireless USB phone x 1
l Installation CD x 1 ( API Software and user manual )
l USB charge cable x 1
l USB Dongle x1
l Quick Installation Guide x1
1.3 System Requirements
PC running Window 2000 SP4 or Microsoft Windo
w XP SP2 or over and
Direct X 9.0C or over
![](/img.php?id=720959&img=bg4.png)
W-3400 User Mamual
3

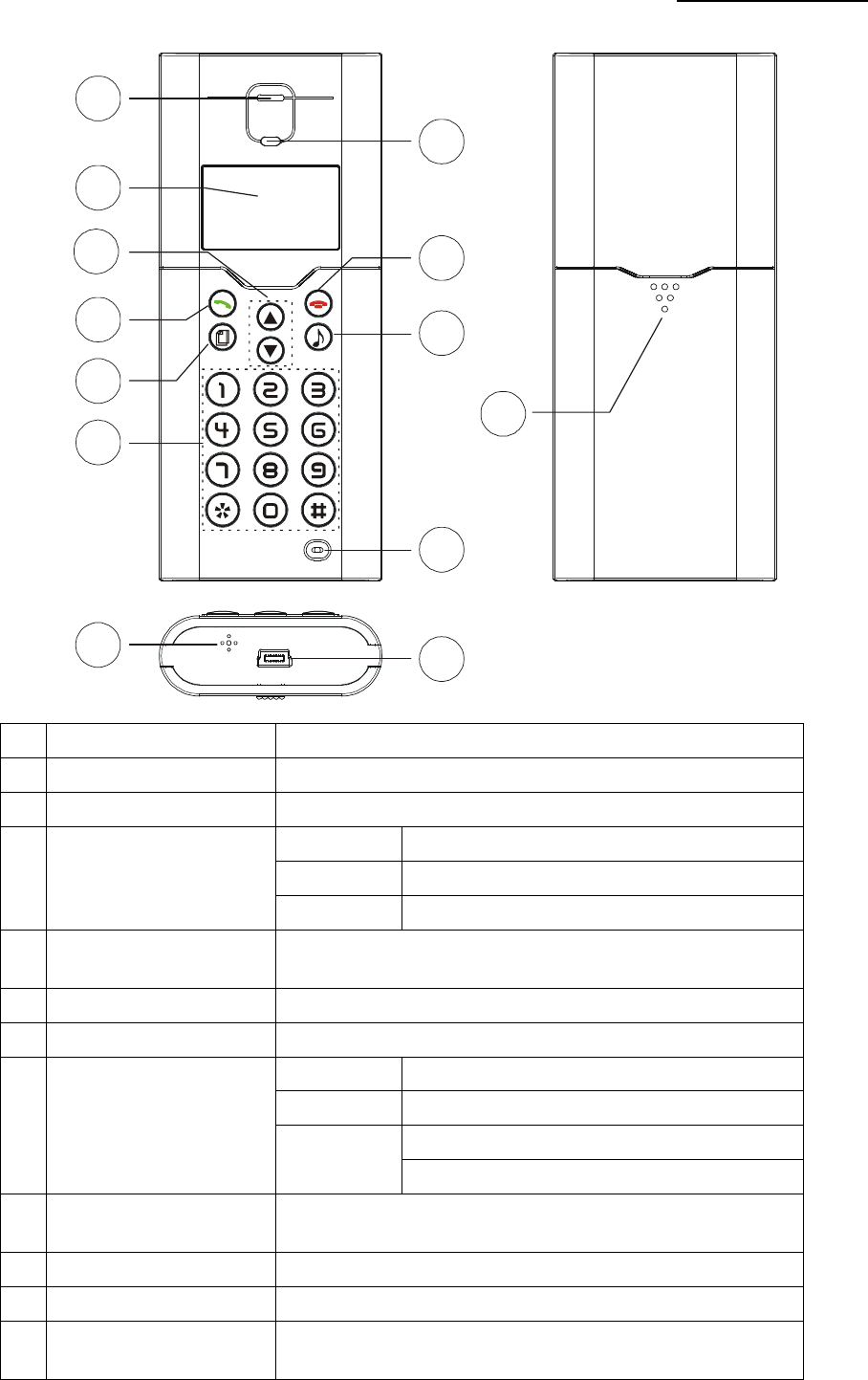

1.4 Hardware and Button Introduction
1
2
3
4
5
6
10
9
8
7
11
12
13
1
Speaker Speaker
2
Graphic LCD Screen
Display information of Skype
3
Up Down Button Select list of contact list, missed call list, called list
Off-hook Make or answer a call
Enter Sub-menu entering
4
Dial
Confirm For option setting
5
Skype on/table
Opens the Skype window and switches between
tables and long press to close Skype window.
6
Number Button Skype out dialer button
7
LED Ringing LED
On-hook Hang-up a call
Cancel Escape sub-menu
Press & hold to delete all dialed numbers
8
Hang up
Clear Press to delete one dialed number
9
Hold/Info Skype call on hold or mute key and display contact
information key
10
Microphone Microphone
11
Buzzer Incoming call ringer
12
Mini USB slot Plug USB cable and connect to PC USB port (For the
battery charged).
![](/img.php?id=720959&img=bg5.png)
W-3400 User Mamual
4

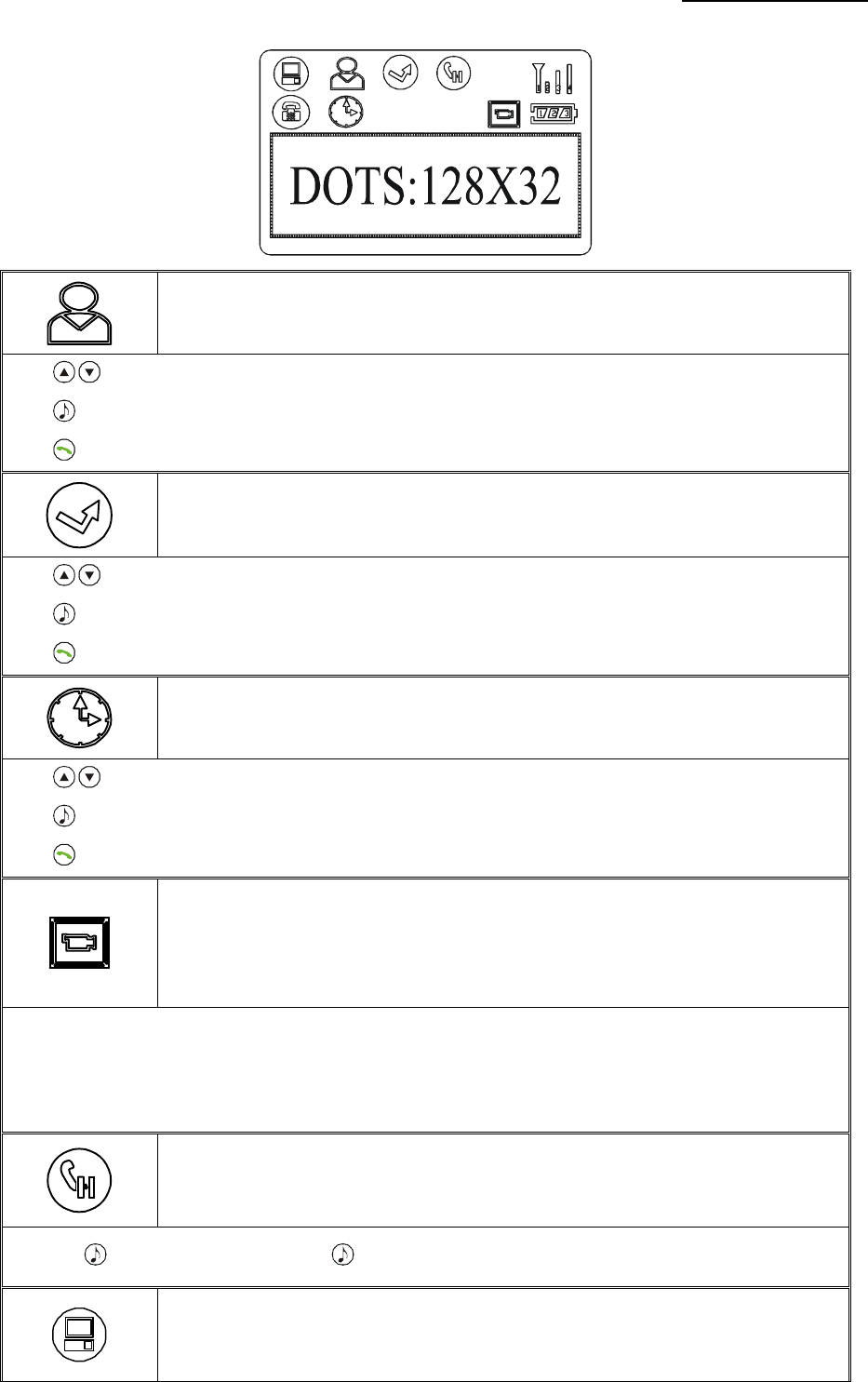

1.5 LCD Description
Show Contact List User Name / Alias Name / Time / Day
* key to select last / next user.
* key to see this user’s Mobile / Home / Office number.
* key to make a phone call.
Show Missed Call List User Name / Alias Name.
* key to select last / next user.
* Key to see this user’s mobile / home / office number.
* key to make a phone call.
Show Call List User Name / Alias Name.
* key to select next / last user.
* key to see this user’s mobile / home / office number.
* key to make a phone call.
Option menu
* VOL SET à 8 level(0~7)
* HOLD SET à 5 melodies + Mute
* RING SET à 10 melodies + PC ring tone
* KEYTONE à Key Tone On / Off
Hold
* Click to hold the call,then click to talk.
Skywin availability
![](/img.php?id=720959&img=bg6.png)
W-3400 User Mamual
5

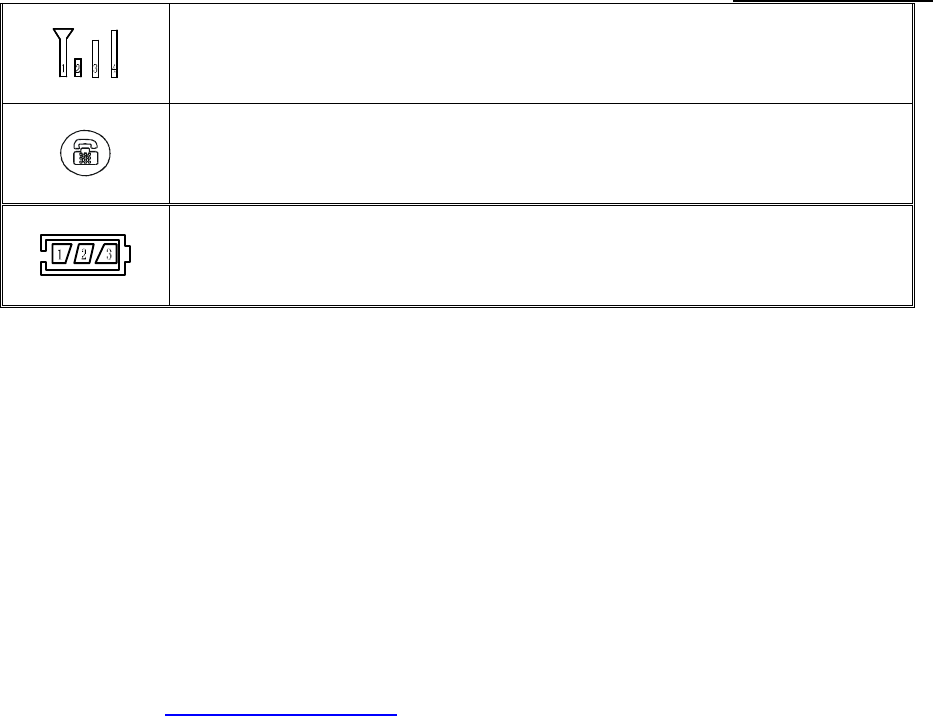

RF signal availability
Always link
Battery level
1.6 USB Dongle LED Status
The USB Dongle’s LED light when plug to a power on computer
The LED will blink every three seconds in standby mode or RF link disconnected.
The LED will solidly light when RF link
2 Installation
2.1 Installing Skype Software
If Skype is not yet installed on your computer, please download the latest version of the
software from http://www.skype.com .
Double-click the installation file you’ve downloaded and then follow the on-screen
prompts to complete the installation.
If you have any installation problem about Skype, please refer to Q&A on Skype
Website.
2.2 Installing the API Software
1. Install the Utility CD into your computer’s CD-ROM
![](/img.php?id=720959&img=bg7.png)
W-3400 User Mamual
6

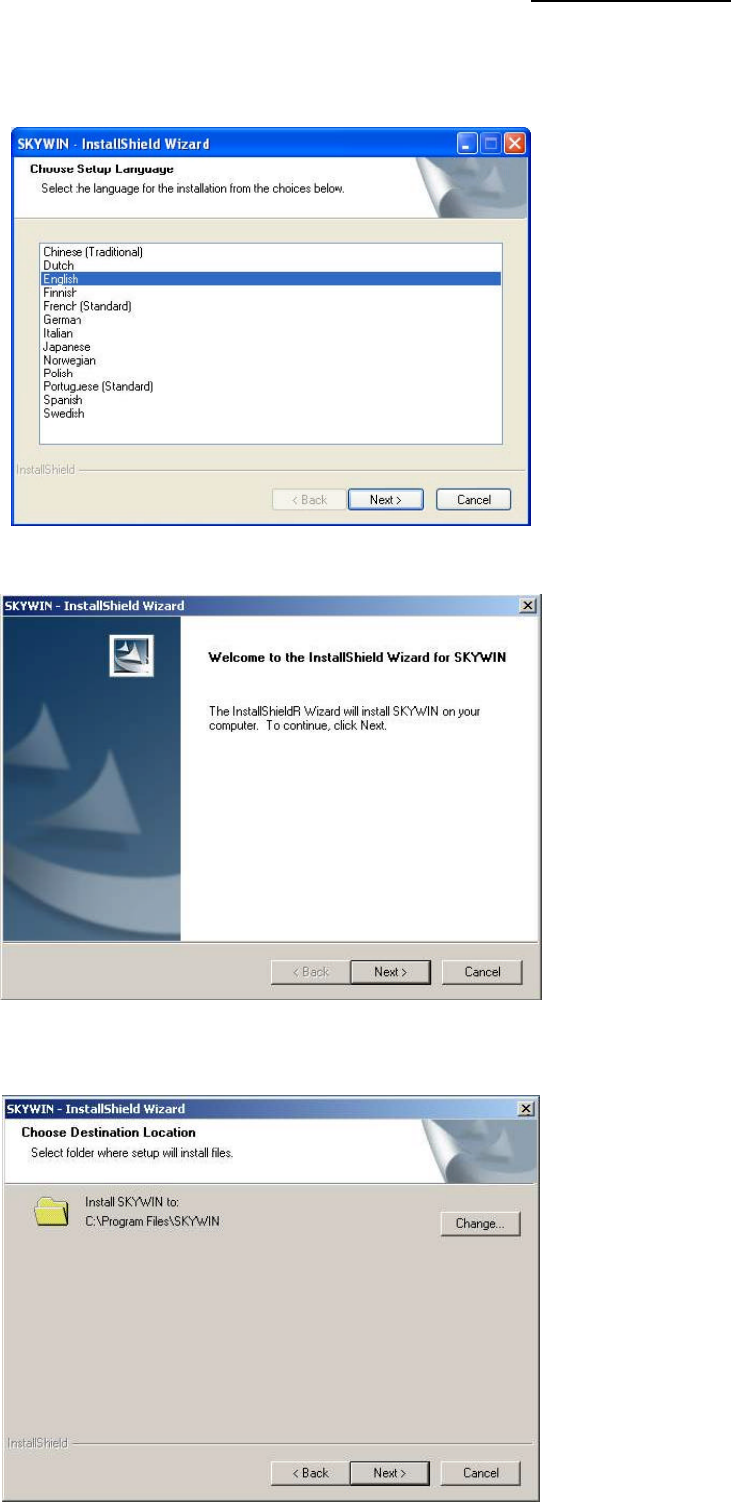

2. Click on INSTALL USB PHONE DRIVE to start the installation.
3. Choose to install languages, please click “Next”.
4. Ready to install SkyWin, please click “Next”.
5. Click Next to install or click Change to change destination folder first.
![](/img.php?id=720959&img=bg8.png)
W-3400 User Mamual
7

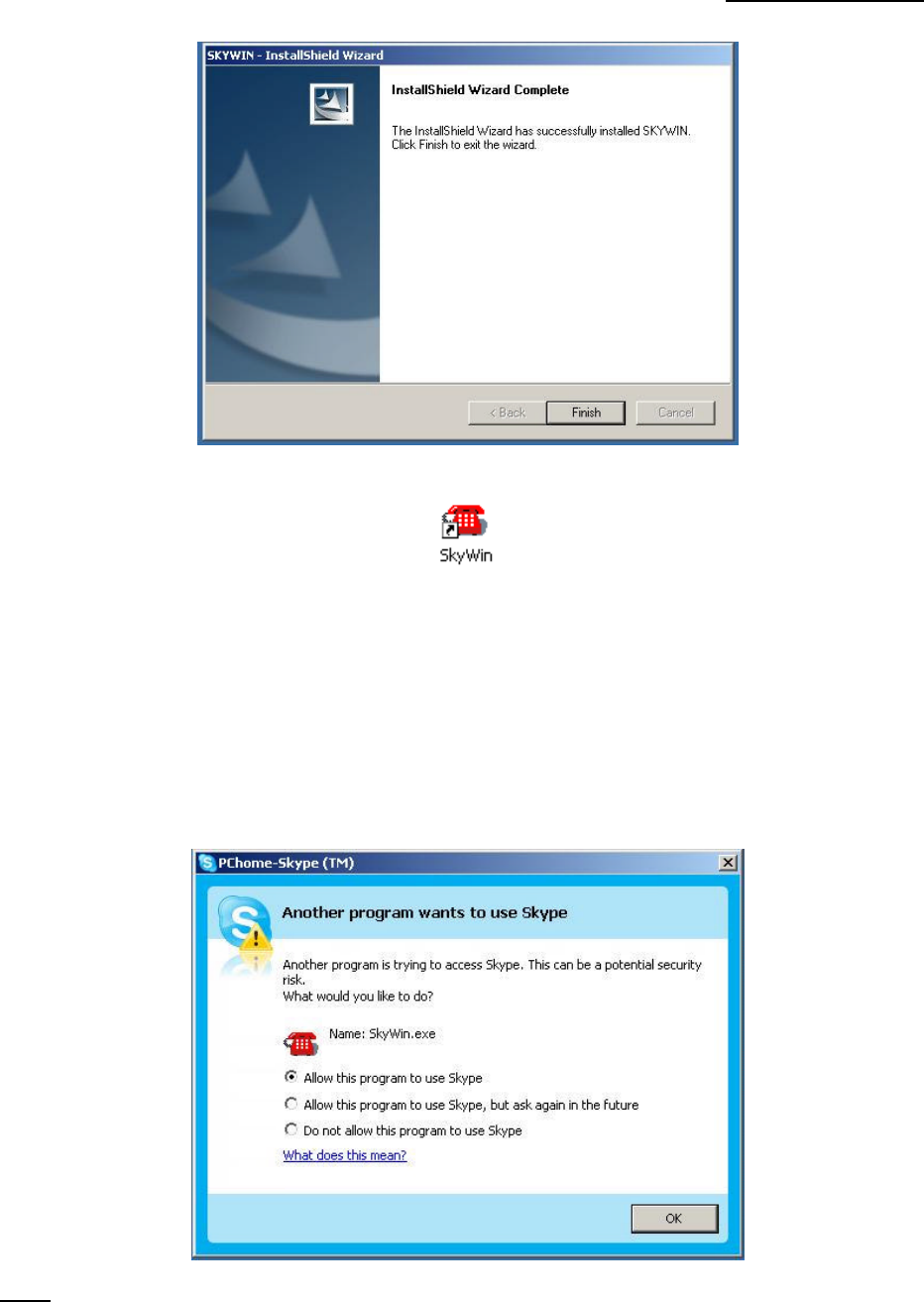

6. Click Finish button to complete installation.
7. Click SkyWin icon on the desktop to start the program.
2.3 Installation the USB Dongle
Please plug W -3400 USB dongle to the computer’s USB port.
Your computer will automatically install Windows built-in driver. When the screen
appears “Another program wants to use Skype”. Select “Allow this program to use
Skype” and click OK button.
Note:
If you accidentally select the “Do not allow this program to use Skype” option ,
open Skype window and take these steps: Click Tools à Options à Privacy à
Manage other programs’ access to Skype, Select “SKYWIN.EXE” and click
“Change”, then re-select a proper option to let the provided program access Skype.
![](/img.php?id=720959&img=bg9.png)
W-3400 User Mamual
8

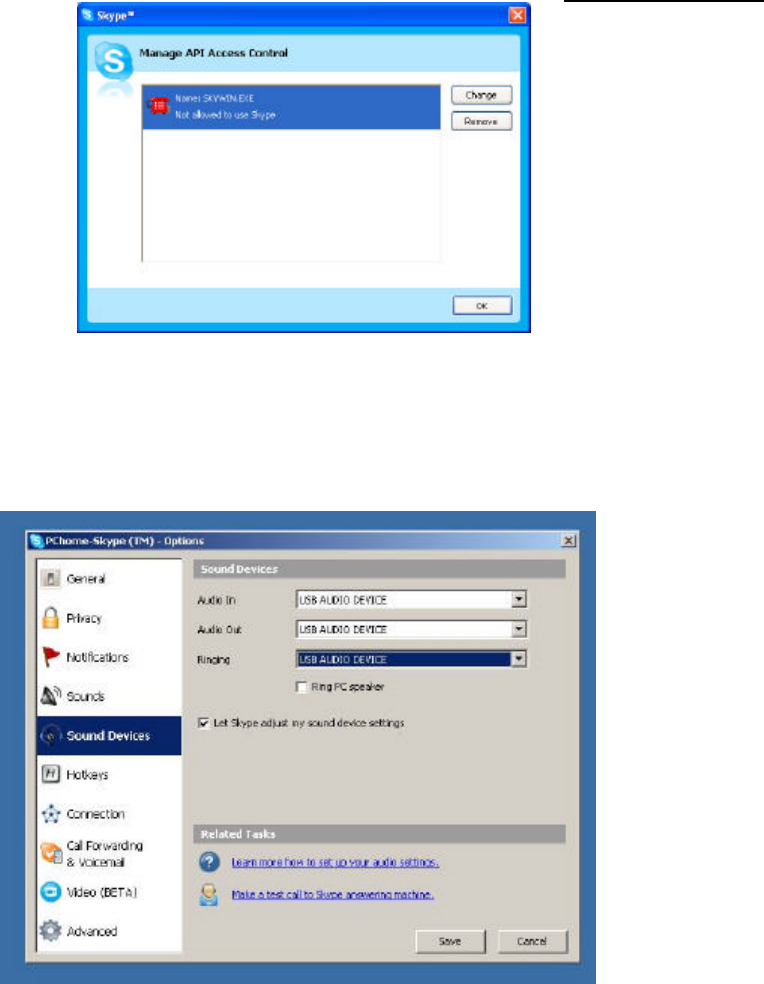

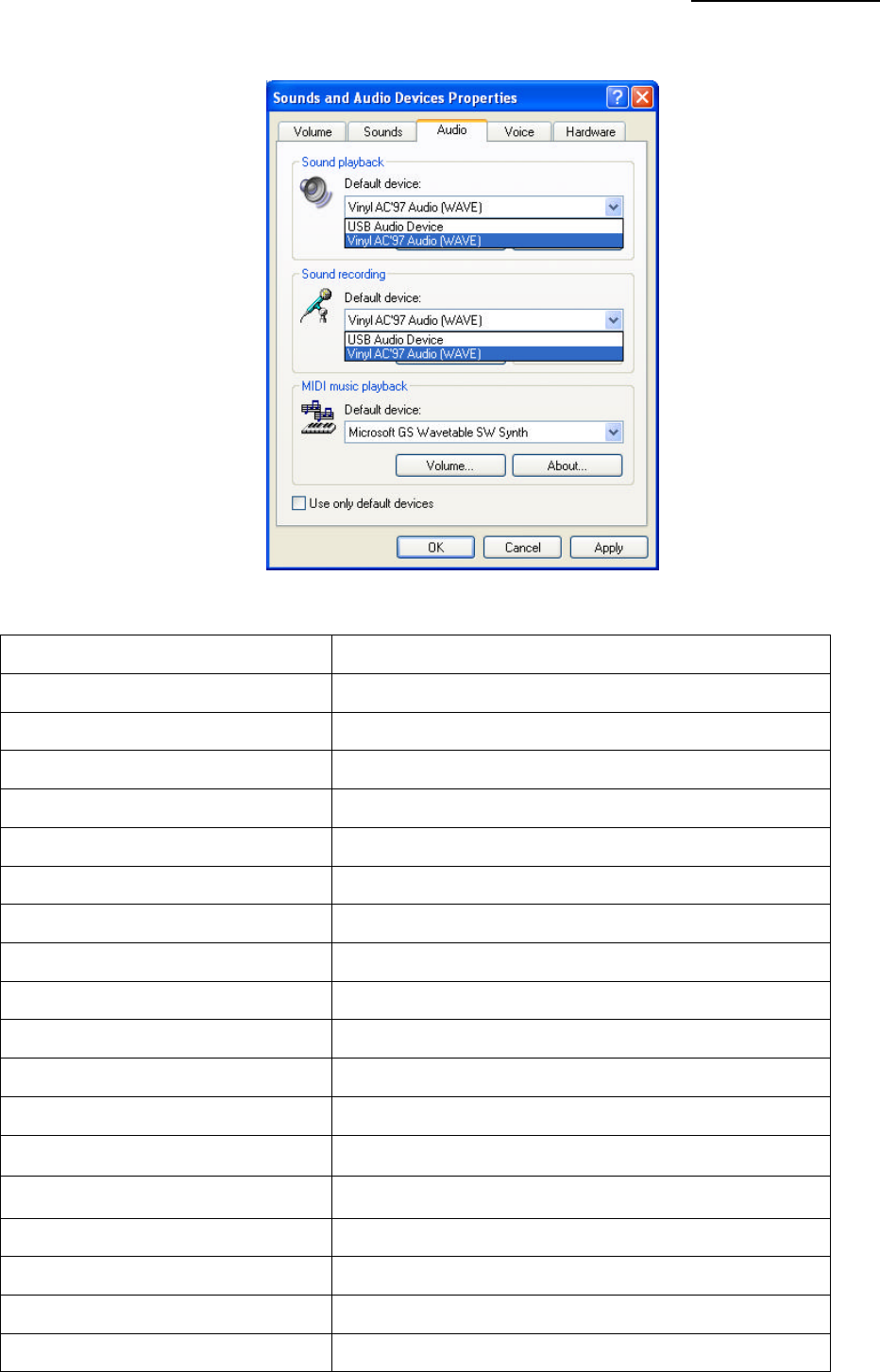

2.4 Check Audio and Sound Device
Open Skype window, click ToolsàOptionsàSound Devices. In the items “Audio
In” and “Audio Out”, please select to USB AUDIO DEVICE, then click Save.
3. Establishing the Connection
Before you start to use the phone, you should first establish the link between the
wireless phone and the dongle.

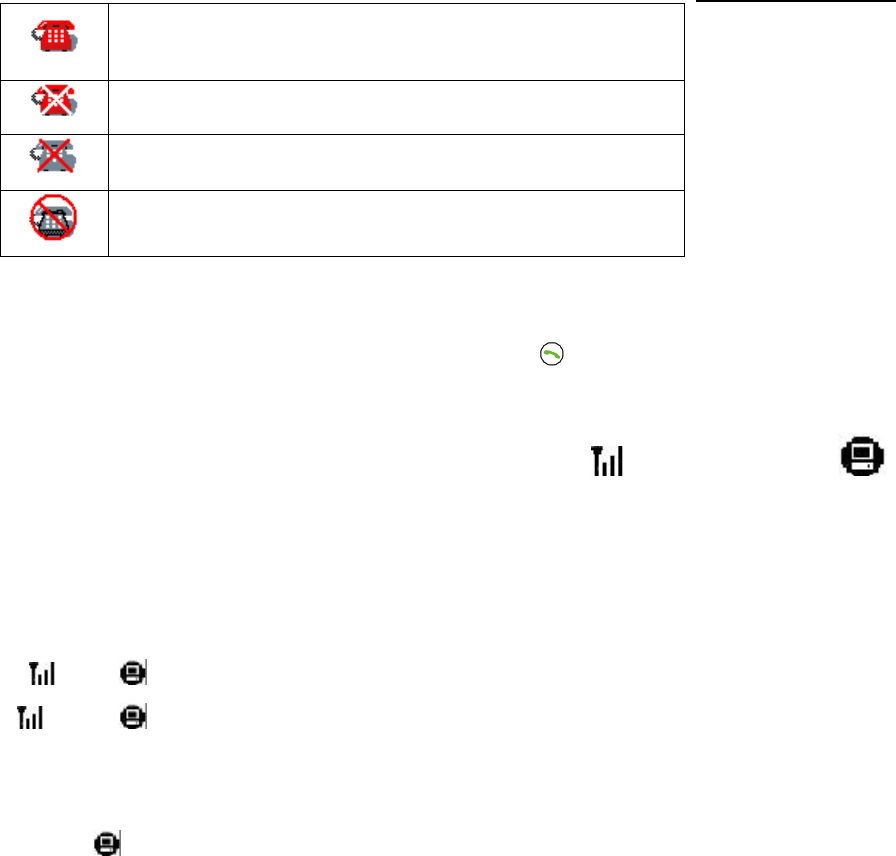

3.1 The link status on the host computer
When you finish installing the Skywin API software, the telephone will show in
the system tray. The icon display different status as follows.
![](/img.php?id=720959&img=bga.png)
W-3400 User Mamual
9
The USB dongle is plugged .The Skywin working and
Skype On-line
Can’t Find USB dongle have plugged
Can’t Find Skype
Skype Isn’t installed
3.2 Power on the wireless phone handset
To power on the wireless phone, long press the Dial( ) key until the main screen
appears on the display.
When starting up your wireless phone, the signal indicator and PC indicator
should be displayed on the wireless phone’s LCD. Your Skype name and the time of the
computer plugged with the dongle should also be displayed.
3.3 Standby mode
The and indicators disappeared?
The and indicators will disappear in standby mode. If not operated for 20
seconds, the wireless phone automatically enters standby mode and the RF iink is
temporarily disconnected.
Note: If the always indicators when hang up , the phone is always link function .
If you do not need to listen the PC sound .It is importance that you disable the always
link function to save the battery power.
3.4 Note on wireless link
Your wireless phone and dongle are packaged as an exclusive pair. They share a
unique ID to communicate only to each other.
Currently up to 7 pairs of wireless phone and dongle can co-exist within one radio range.
The maximum outdoor wireless range is about 30 meters while indoor range is about
15 meters in an open-air environment. If you cannot make the link, move the wireless
phone closer to the dongle
4 Function Instruction
4.1 Base Operator and Option
![](/img.php?id=720959&img=bgb.png)
W-3400 User Mamual
10
In the initial mode, Press Dial( ) for entering the skype table mode, Hang up( )
for quit.
Press select Skype table, Press Dial( ) to enter the table, Hang up( )
for quit.
CONTACT Contact list.
MISSLIST Missed calls.
CALLLIST Calls list.
SPK. VOL SET 0~7 8 level volume adjustment.
HOLD MUTE Mute
HOLD SET HOLD 01~05 5 hold melodies.
RING 01~10 10 types of ringers
RING SET RING PC Remain PC default.
TONE OFF Turn off key tone.
KEY TONE TONE ON Turn on key tone.
Ring tone VOL set
0~5 6 ring tones melodies.
Always off Automatic off when hang up
OPTION
Always link Always on PC audio to handset when
hang up
4.2 Calling a Skype User
Press Skype hot key to select contact, miss list, call list of Skype table.
You may press key to scroll the list. Then press Dial( )to dial for target user
via Skype.
If you want to cancel the dialing, you may press Hang up( ).
4.3 Calling a Phone Number ( SkypeOut )
Before starting to use this function, please make sure you have paid for the service.
Further information about Skype Out, Please go to web http://www.skype.com .
Dial the phone number by pressing the USB phone keypads.
Press the Dial( ) to call the number.
The dial number must add “00”+ “country code” + “area code” + “number”.
Example: Call to Taiwan, ( 2 –area code),Taipei( 886-country code ), telephone no. is
87654321, Press 00 886 2 87654321 then press Dial( ).
Skype over 2.5 version can only add “0” + area code + number in same country.
Press 0 2 b7654321 then press Dial( )in Taiwan .
![](/img.php?id=720959&img=bgc.png)
W-3400 User Mamual
11
4.4 Answer a Call
When the USB phone is ringing on an incoming call, Press Dial( ) to answer the
call.
4.5 Adjust Volume
On-line
Use UP Down button to control the volume while calling to other user.
Off-line
Click Dial( )àOptionàVol Set to adjust the volume.

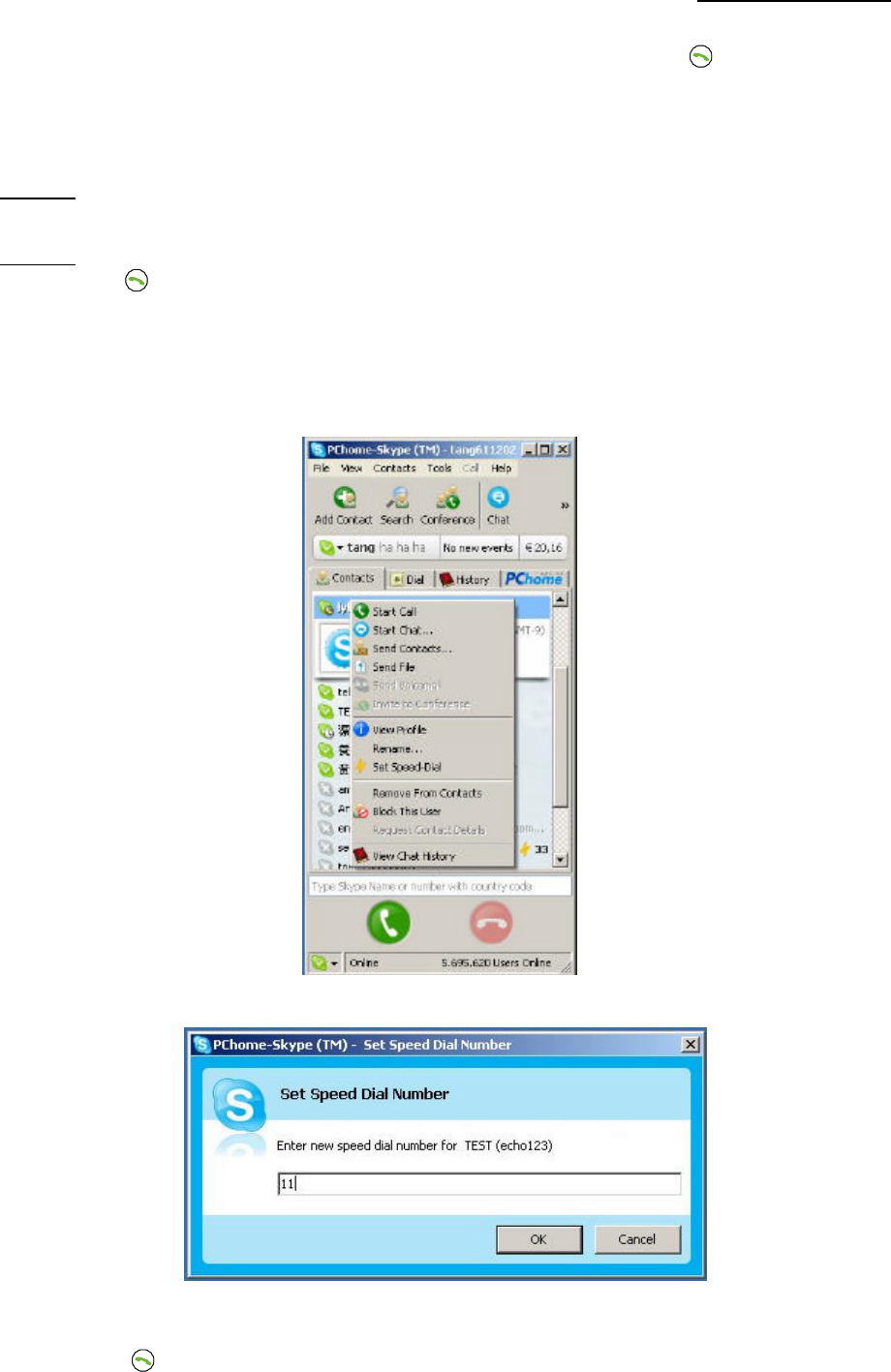

4.6 Assign Speed-Dial
Open Skype window, right-click the user name on the contact list and select Assign
Speed-Dial.
Set speed dial number, example “11” and press OK.
Press number “11” on W-3400, this number will be shown on the LCD screen, then
press Dial( ) on W -3400 to call out.
![](/img.php?id=720959&img=bgd.png)
W-3400 User Mamual
12

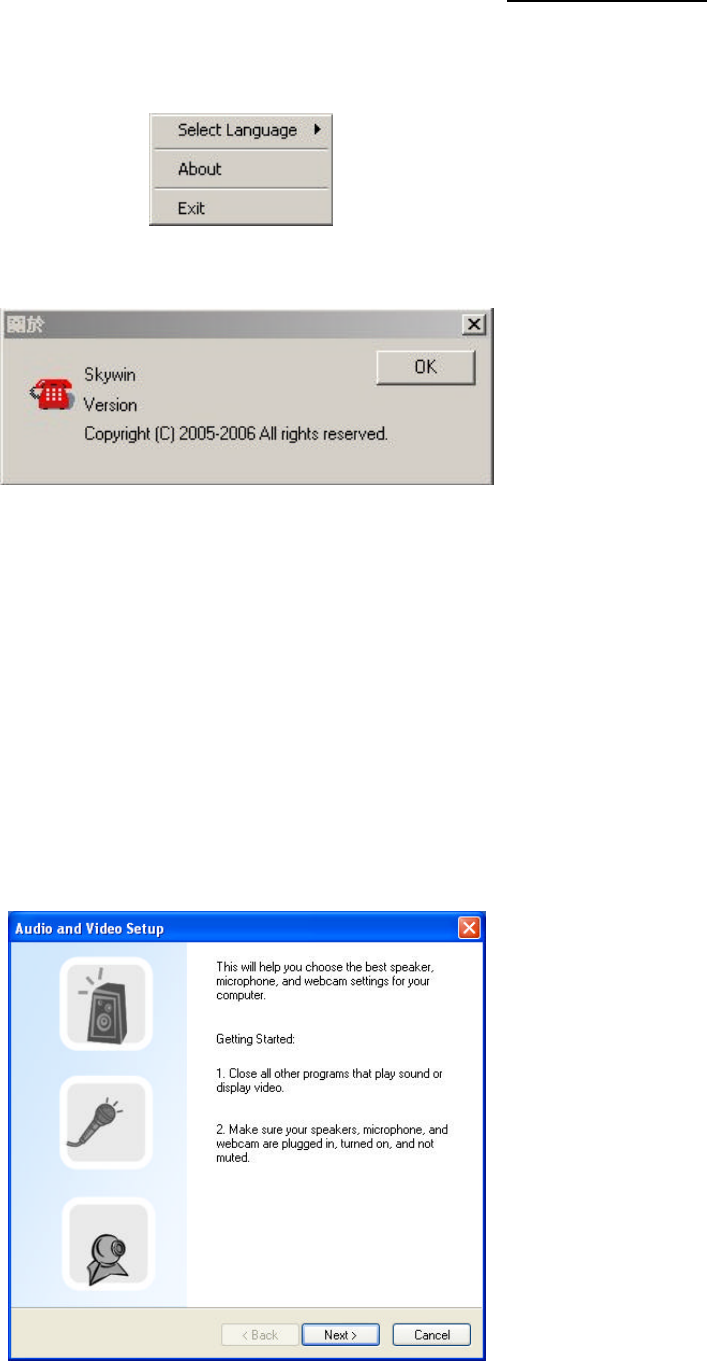

5 Skywin API Program Instruction
Right-click the W -3400 icon in the system tray, there are three items on the list.
5.1 About
The window shows the information of USB Phone API.
5.2 Exit
To quit the API program.
5.3 Select language
To select different language
6 Other Instant Messenger Software Setting
6.1 MSN Messenger
Open MSM Messenger window, Click ToolsàAudio and Video Setup… . Follow the
installation wizard, select to USB AUDIO DEVICE as audio device and test.
6.2 Yahoo Messenger
Open Yahoo Messenger, Click ActionsàCall Setup… . Follow the installation wizard,
select to USB AUDIO DEVICE as audio device and test.
![](/img.php?id=720959&img=bge.png)
W-3400 User Mamual
13
After the configuration: Use the instant messenger to initiate the audio conversion on
your computer side.
Press the Dial( ) key and start your conversation via the wireless phone. When the
conversation ends up, press the Hang up( ) key. to save the battery power
7 FAQ
Q1. The phone doesn’t work at all
A1. Make sure the battery is not running off and phone have charger.
Make sure the dongle, SkyWin and Skype communicate well.
Power Off the phone and re-power on the phone.
Q2 The phone LCD keeps showing “Linking “
A2. Move your wireless phone closer to the dongle to see if the problem is solved
Check the dongle has properly plugged
Q3. I have got noise on my phone call
Q3. Move your wireless phone closer to the dongle to see if the problem is solved
Check the battery power.
Q4. Why cannot my contact’s name correctly displayed? (The languages have support
of the phone)
Q4. Make sure the language is correctly displayed in Skype, If not, you need to install
related language on your system.
Q5. While using messenger software or Skype, the voice is played from the PC sound
card instead from the USB phone.
A5. Make sure your software is configured to USB phone as audio device. Refer 4.5
Adjust Volume and 2.4 Check Audio and Sound Device.
In MSN Messenger please refer 6.1 MSN Messenger setting.
In Skype please refer 2.23 Install the API Software.
Q6. When using the USB phone, the talker cannot hear my voice.
A6. Check if your USB phone is set to mute.
Q7. There is no voice comes out when play music?
A7. Please execute the Control PanelàSound and Audio Devices, set the default
![](/img.php?id=720959&img=bgf.png)
W-3400 User Mamual
14
device of Sound playback and Sound Recording to PC’s sound card, it shown as
below:
8 Specification
Support OS Windows 2000 SP4 / XP SP2 or over
RF Operation frequence 2.4GHZ Radio Frequency Technology
RF Operating range Max. indoor 15 meters outdoor 30 msters
RF Operating Channels 79 channels
Dongle Interface USB 1.1 ( A type )
Audio Frequence 100 Hz to 8KHz
Signal / Noise Distortion 85 dB
Battery capacity 600 MAH Li battery
Battery life Standby 50 hours , continuous use 5 hours
Battery charger DC 5 V , USB power , USB mini B type connector
Dongle Power Requirement DC 5V
Dongle Current Consumption 90mA
Dongle Power Consumption 0.45 Watt
Operate Temperature 0℃ to 40℃
Storage Temperature -10℃ to 60℃
Operate Humidity < 90%
Storage Humidity < 95%
Dimension 120mm(H) x 50mm(W) x 18mm(D)
Weight 83.5g ( Main unit without cable )
![](/img.php?id=720959&img=bg10.png)
W-3400 User Mamual
15
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the installation. , May cause harmful interference to radio
communication. However, there is no guarantee that interference
Will not occur in a particular installation. if this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
-Consult the dealer or an experienced radio / TV technician for help
FCC RF radiation exposure statement:
1.•this transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter .
2.•this equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment . this device was tested for typical lap held operations with the
device contacted directly to the human body to the back side of the notebook computer . to
maintain compliance with fcc rf exposure compliance requirements. Avoid direct contact to
the transmitting antenna during transmitting.
