Trimble 66420 PDA User Manual Juno Series Handhelds User Guide

Trimble Navigation Ltd PDA Juno Series Handhelds User Guide

Contents

User Manual

USER GUIDE
Juno series
Juno SB handheld
Juno SC handheld
Juno SD handheld
Version 1.00
Revision C
May 2010
USER GUIDE
Juno™ series
Juno SB handheld
Juno SC handheld
Juno SD handheld
4 Juno Series User Guide
Trimble Navigation Limited
10355 Westmoor Drive
Suite #100
Westminster, CO 80021
USA
www.trimble.com
Legal Notices
Copyright and Trademarks
© 2008-2010, Trimble Navigation Limited. All rights reserved.
Trimble, the Globe & Triangle logo, and GPS Pathfinder are trademarks
of Trimble Navigation Limited, registered in the United States and in
other countries. EVEREST, GeoBeacon, GeoXH, GeoXM, GeoXT, GPS
Analyst, GPScorrect, H-Star, Juno, TerraSync, TrimPix,BOE VRS
are trademarks of Trimble Navigation Limited.
Microsoft, ActiveSync, Excel, Outlook, PowerPoint, Windows, Windows
Live, Windows Media, Windows Mobile, Windows Vista, and the
Windows Start logo are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
The Bluetooth word mark and logos are owned by the Bluetooth SIG,
Inc. and any use of such marks by Trimble Navigation Limited is under
license.
All other trademarks are the property of their respective owners.
Release Notice
This is the May 2010 release (Revision C) of the Juno Series User Guide.
The Juno SB and Juno SC handheld’s operating system is based on the
Microsoft Windows Mobile version 6.1 Classic operating system
(5.2.20269). The Juno SD handheld’s operating system is based on
Microsoft Windows version 6.1 Professional operating system
(5.2.20269).
Limited Warranty Terms and Conditions
Product Limited Warranty
Subject to the terms and conditions set forth herein, Trimble Navigation
Limited (“Trimble”) warrants that for a period of (1) year from date of
purchase this Trimble product (the “Product”) will substantially
conform to Trimble's publicly available specifications for the Product
and that the hardware and any storage media components of the
Product will be substantially free from defects in materials and
workmanship.
Product Software
Product software, whether built into hardware circuitry as firmware,
provided as a standalone computer software product, embedded in flash
memory, or stored on magnetic or other media, is licensed solely for use
with or as an integral part of the Product and is not sold. The terms of
the end user license agreement, as included below, govern the use of the
Product Software, including any differing limited warranty terms,
exclusions and limitations, which shall control over the terms and
conditions set forth in the limited Product warranty.
Warranty Remedies
If the Trimble Product fails during the warranty period for reasons
covered by this limited warranty and you notify Trimble of such failure
during the warranty period, Trimble will repair OR replace the
nonconforming Product with new, equivalent to new, or reconditioned
parts or Product, OR refund the Product purchase price paid by you, at
Trimble’s option, upon your return of the Product in accordance with
Trimble's product return procedures then in effect.
How to Obtain Warranty Service
To obtain warranty service for the Product, please contact your Trimble
dealer. Alternatively, you may contact Trimble to request warranty
service at +1-408-481-6940 (24 hours a day) or email your request to
trimble_support@trimble.com. Please be prepared to provide:
your name, address, and telephone numbers;
proof of purchase;
a copy of this Trimble warranty
a description of the nonconforming Product including the model
number; and
an explanation of the problem.
The customer service representative may need additional information
from you depending on the nature of the problem.
Warranty Exclusions and Disclaimer
This Product limited warranty shall only apply in the event and to the
extent that (i) the Product is properly and correctly installed, configured,
interfaced, maintained, stored, and operated in accordance with
Trimble's applicable operator's manual and specifications, and; (ii) the
Product is not modified or misused. This Product limited warranty shall
not apply to, and Trimble shall not be responsible for, defects or
performance problems resulting from (i) the combination or utilization
of the Product with hardware or software products, information, data,
systems, interfaces, or devices not made, supplied, or specified by
Trimble; (ii) the operation of the Product under any specification other
than, or in addition to, Trimble's standard specifications for its products;
(iii) the unauthorized installation, modification, or use of the Product;
(iv) damage caused by: accident, lightning or other electrical discharge,
fresh or salt water immersion or spray (outside of Product
specifications); or exposure to environmental conditions for which the
Product is not intended; (v) normal wear and tear on consumable parts
(e.g., batteries); or (vi) cosmetic damage. Trimble does not warrant or
guarantee the results obtained through the use of the Product or
Software, or that software components will operate error free.
NOTICE REGARDING PRODUCTS EQUIPPED WITH TECHNOLOGY
CAPABLE OF TRACKING SATELLITE SIGNALS FROM SATELLITE BASED
AUGMENTATION SYSTEMS (SBAS) (WAAS/EGNOS, AND MSAS),
OMNISTAR, GPS, MODERNIZED GPS OR GLONASS SATELLITES, OR
FROM IALA BEACON SOURCES:TRIMBLE IS NOT RESPONSIBLE FOR
THE OPERATION OR FAILURE OF OPERATION OF ANY SATELLITE
BASED POSITIONING SYSTEM OR THE AVAILABILITY OF ANY
SATELLITE BASED POSITIONING SIGNALS.
THE FOREGOING LIMITED WARRANTY TERMS STATE TRIMBLES ENTIRE
LIABILITY, AND YOUR EXCLUSIVE REMEDIES, RELATING TO THE TRIMBLE
PRODUCT. EXCEPT AS OTHERWISE EXPRESSLY PROVIDED HEREIN, THE
PRODUCT, AND ACCOMPANYING DOCUMENTATION AND MATERIALS
ARE PROVIDEDAS-ISAND WITHOUT EXPRESS OR IMPLIED WARRANTY
OF ANY KIND, BY EITHER TRIMBLE OR ANYONE WHO HAS BEEN
INVOLVED IN ITS CREATION, PRODUCTION, INSTALLATION, OR
DISTRIBUTION, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, TITLE, AND NONINFRINGEMENT. THE STATED EXPRESS
WARRANTIES ARE IN LIEU OF ALL OBLIGATIONS OR LIABILITIES ON THE
PART OF TRIMBLE ARISING OUT OF, OR IN CONNECTION WITH, ANY
PRODUCT. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON DURATION OR THE EXCLUSION OF AN IMPLIED
WARRANTY, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
Limitation of Liability
TRIMBLE'S ENTIRE LIABILITY UNDER ANY PROVISION HEREIN SHALL BE
LIMITED TO THE AMOUNT PAID BY YOU FOR THE PRODUCT. TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT
SHALL TRIMBLE OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGE WHATSOEVER
UNDER ANY CIRCUMSTANCE OR LEGAL THEORY RELATING IN ANYWAY
TO THE PRODUCTS, SOFTWARE AND ACCOMPANYING DOCUMENTATION
AND MATERIALS, (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF DATA, OR
ANY OTHER PECUNIARY LOSS), REGARDLESS OF WHETHER TRIMBLE HAS
BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH LOSS AND REGARDLESS
OF THE COURSE OF DEALING WHICH DEVELOPS OR HAS DEVELOPED
BETWEEN YOU AND TRIMBLE. BECAUSE SOME STATES AND
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE
LIMITATION MAY NOT APPLY TO YOU.
PLEASE NOTE: THE ABOVE TRIMBLE LIMITED WARRANTY PROVISIONS
WILL NOT APPLY TO PRODUCTS PURCHASED IN THOSE
JURISDICTIONS (E.G., MEMBER STATES OF THE EUROPEAN ECONOMIC
AREA) IN WHICH PRODUCT WARRANTIES ARE THE RESPONSIBILITY
OF THE LOCAL DEALER FROM WHOM THE PRODUCTS ARE ACQUIRED.
IN SUCH A CASE, PLEASE CONTACT YOUR TRIMBLE DEALER FOR
APPLICABLE WARRANTY INFORMATION.
Official Language
THE OFFICIAL LANGUAGE OF THESE TERMS AND CONDITIONS IS
ENGLISH. IN THE EVENT OF A CONFLICT BETWEEN ENGLISH AND OTHER
LANGUAGE VERSIONS, THE ENGLISH LANGUAGE SHALL CONTROL.
End User License Agreement for Product Software
IMPORTANT, READ CAREFULLY. THIS END USER LICENSE
AGREEMENT (“EULA”) IS A LEGAL AGREEMENT BETWEEN YOU
AND Trimble Navigation Limited (“Trimble”) and applies to the
computer software provided with the Trimble product purchased by you
(whether built into hardware circuitry as firmware, embedded in flash
memory or a PCMCIA card, or stored on magnetic or other media), or
provided as a stand-alone computer software product, and includes any
accompanying written materials such as a user's guide or product
manual, as well as any "online" or electronic documentation ("Software"
or “Product Software”). This EULA will also apply to any Software error
corrections, updates and upgrades subsequently furnished by Trimble,
unless such are accompanied by different license terms and conditions,
which will govern their use. You have acquired a Trimble Product
("Device") that includes Software, some of which was licensed by
Trimble from Microsoft Corporation or its affiliates (collectively
"Microsoft"). The Software licensed from Microsoft, as well as associated
updates, supplements, internet-based services and support services,
media, printed materials, and "online" or electronic documentation
("Microsoft Software"), are protected under this EULA. The Software is
Juno Series User Guide 5
also protected by copyright laws and international copyright treaties, as
well as other intellectual property laws and treaties. The Software is
licensed, not sold.
BY USING THE SOFTWARE, INCLUDING USE ON THIS DEVICE, YOU
ACCEPT THESE TERMS. IF YOU DO NOT ACCEPT THEM, DO NOT
USE THE DEVICE OR SOFTWARE. INSTEAD CONTACT TRIMBLE FOR
A REFUND OR CREDIT. As described below, using some features also
operates as your consent to the transmission of certain standard
computer information for Internet-based services.
WARNING : If the Software contains voice operated technologies, then
operating this Software requires user attention. Diverting attention away
from the road while driving can possibly cause an accident or other
serious consequence. Even occasional, short diversions of attention can
be dangerous if your attention is diverted away from your driving task at
a critical time. Trimble and Microsoft make no representations,
warranties or other determinations that ANY use of this Software is
legal, safe, or in any manner recommended or intended while driving or
otherwise operating a motor vehicle.
This EULA does not grant you any rights with respect to the
Windows Mobile Device Center, Microsoft ActiveSync or Microsoft
Outlook 2007 Trial which are subject to the licenses accompanying
those items.
1 SOFTWARE PRODUCT LICENSE
1.1 License Grant. Subject to the terms and conditions of this EULA,
Trimble grants you a non-exclusive right to use one copy of the Software
in a machine-readable form only as installed on the Device. Such use is
limited to use with the Device for which it was intended, as set forth in
the product documentation. The Device Software is licensed with the
Device as a single integrated product. The Device Software installed in
read only memory (“ROM”) of the Device may only be used as part of the
Device into which it was embedded. You may use the installation
Software from a computer solely to download the Software to one
Device. In no event shall the installation Software be used to download
the Software onto more than one Device. A license for the Software may
not be shared or used concurrently on different computers or Devices.
1.2 Scope of License. This EULA only gives you some rights to use the
Software. Trimble and Microsoft reserve all other rights. Unless
applicable law gives you more rights despite this limitation, you may use
the Software only as expressly permitted in this EULA. In doing so, you
must comply with any technical limitations in the Software that allow
you to use it only in certain ways. Except as expressly provided in this
EULA, rights to access the Software on this Device do not give you any
right to implement Microsoft patents or other Microsoft intellectual
property in software or devices that access this device. You may use
remote access technologies in the software such as Remote Desktop
Mobile to access the Software remotely from a computer or server. You
are responsible for obtaining any licenses required for use of the
protocols to access other software.
1.3 Proof of License. If you acquired the Software on the Device, or on a
disc or other media, a genuine Certificate of Authenticity label with a
genuine copy of the Software identifies licensed software. To be valid,
this label must be affixed to the Device, or included on or in the software
packaging. If you receive the label separately, it is not valid. You should
keep the label on the device or packaging to prove that you are licensed
to use the Software. To identify genuine Microsoft Software, see
http://www.howtotell.com.

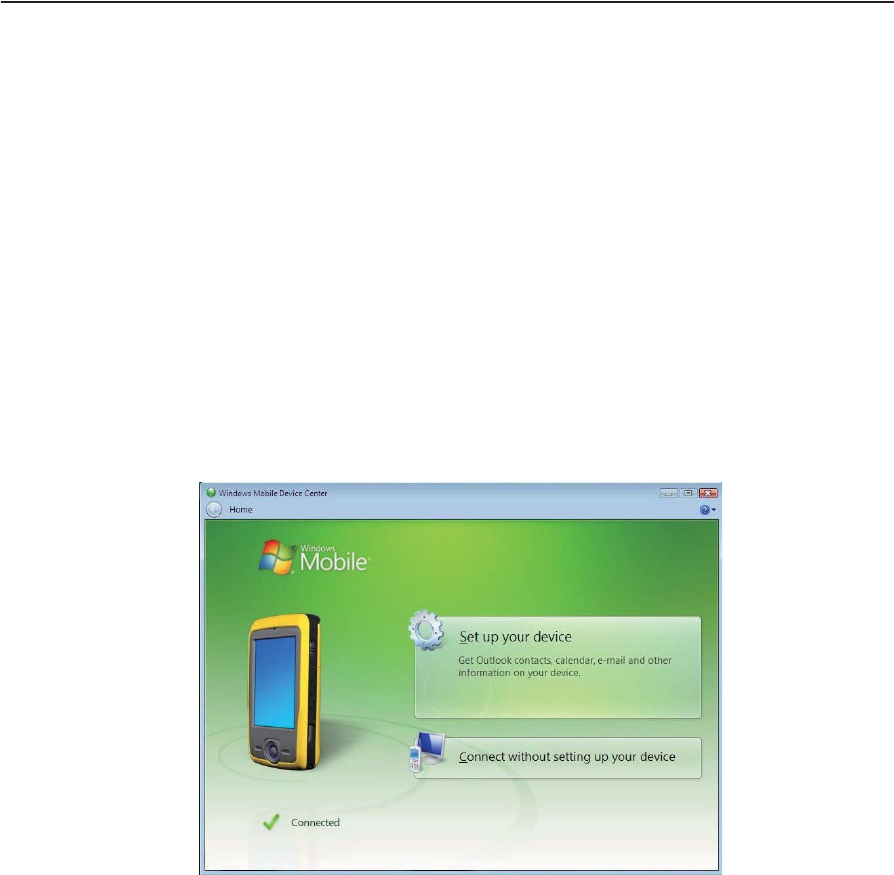

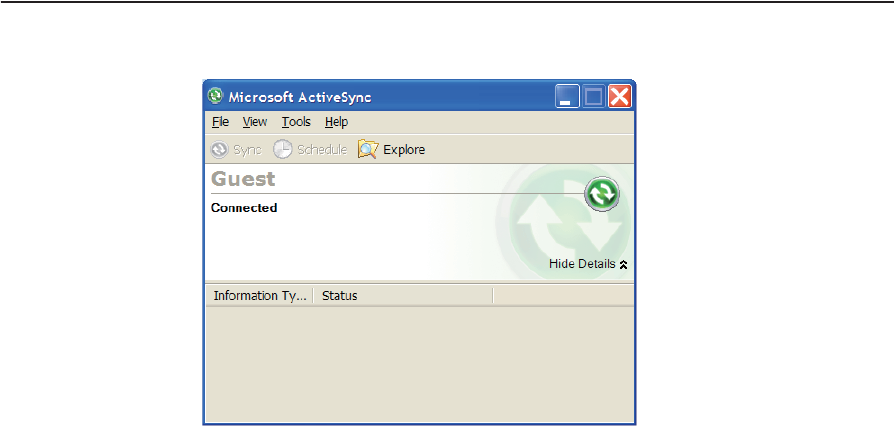

1.4 Connectivity Software. Your Device package may include Windows
Mobile Device Center or Microsoft ActiveSync technology. If it is
included, then you may install and use it in accordance with the license
terms that are provided with it. If no license terms are provided, then
you may install and use only one (1) copy of the Software on a single
computer.
1.5 Digital Certificates. The Software uses digital certificates in X.509
format. These digital certificates are used for authentication.

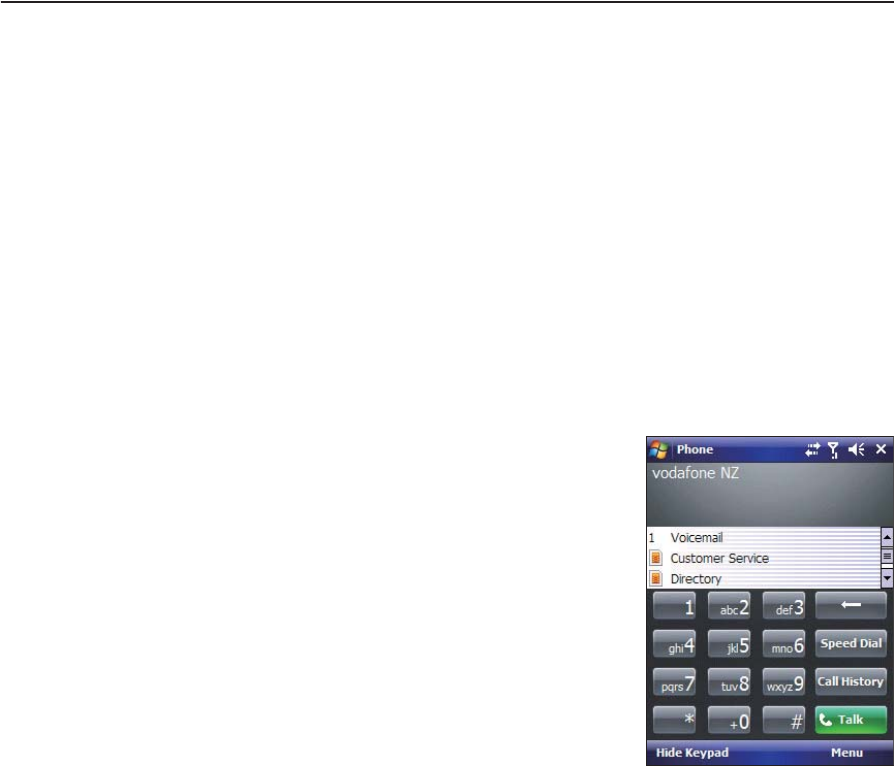

1.6 Phone Functionality. If the Device Software includes phone
functionality, all or certain portions of the Device Software may be
inoperable if you do not have and maintain a service account with a
wireless telecommunication carrier (“Mobile Operator”), or if the Mobile
Operator’s network is not operating or configured to operate with the
Device.
1.7 Upgrade Software. In the event that any upgrades to the Software,
including Microsoft Software, are provided under this EULA, then the
following shall apply: you may follow the applicable instructions
accompanying this Software and install one (1) copy of the Software on
one (1) Device presently containing a licensed copy of a predecessor
version of the Software (unless this EULA indicates that this Software
copy has been licensed for installation on multiple Devices). NO
REPRESENTATION OR WARRANTY IS MADE BY TRIMBLE OR
MICROSOFT WITH RESPECT TO THE COMPATIBILITY OF THIS
SOFTWARE WITH ANY DEVICE OR ANY OTHER EXISTING
SOFTWARE OR DATA OF ANY KIND CONTAINED ON SUCH DEVICES,
AND NEITHER TRIMBLE OR MICROSOFT SHALL BE RESPONSIBLE
IN ANY REGARD WITH RESPECT TO ANY LOSS, CORRUPTION,
MODIFICATION OR INACCESSIBILITY OF ANY DATA,
APPLICATIONS OR OTHER SOFTWARE RESULTING FROM THE
INSTALLATION OF THE SOFTWARE ON ANY DEVICE.
1.8 Internet-Based Services Components. Microsoft provides Internet-
based services with the software. Microsoft may change or cancel them
at any time. The Microsoft Software features described below connect to
Microsoft or service provider computer systems over the Internet. In
some cases, you will not receive a separate notice when they connect.
You may switch off some of these features or not use them. For more
information about these features, visit
http://go.microsoft.com/fwlink/?LinkId=81931. By using these
features, you consent to the transmission of this information.
Microsoft does not use the information to identify or contact you. You
may not use these services in any way that could harm them or impair
anyone elses use of them. You may not use the services to try to gain
unauthorized access to any service, data, account or network by any
means.
1.9 Device Information. The following features use Internet protocols,
which send to the appropriate systems device information, such as your
Internet protocol address, the type of operating system, browser and
name and version of the Software you are using, and the language code
of the Device where you installed the Software. Microsoft uses this
information to make the Internet-based services available to you. a)
Update Features: Windows Mobile Update feature provides you the
ability to obtain and install Software updates on your Device if updates
are available. You may choose not to use this feature. Trimble and/or
your Mobile Operator may not support this feature or an update for your
device. b) Security Updates/Digital Rights Management. Content
owners use Windows Media digital rights management technology
(WMDRM) to protect their intellectual property, including copyrights.
This software and third party software use WMDRM to play and copy
WMDRM-protected content. If the software fails to protect the content,
content owners may ask Microsoft to revoke the software's ability to use
WMDRM to play or copy protected content. Revocation does not affect
other content. When you download licenses for protected content, you
agree that Microsoft may include a revocation list with the licenses.
Content owners may require you to upgrade WMDRM to access their
content. Microsoft software that includes WMDRM will ask for your
consent prior to the upgrade. If you decline an upgrade, you will not be
able to access content that requires the upgrade.
1.10 Additional Software/Services. The Device Software may permit
Trimble, Microsoft, their affiliates and/or their designated agent to
provide or make available to you Software updates, supplements, add-on
components, or Internet-based services components of the Software
after the date you obtain your initial copy of the Software
(“Supplemental Components”).
1.10.1 If Trimble provides or makes available to you Supplemental
Components and no other end user license agreement terms are
provided along with the Supplemental Components, then the terms
of this EULA shall apply.
1.10.2 If Microsoft, its affiliates and/or its designated agent makes
available Supplemental Components, and no other end user license
agreement terms are provided, then the terms of this EULA shall
apply, except that the Microsoft entity or affiliate entity providing
the Supplemental Component(s) shall be the licensor of the
Supplemental Component(s).
1.10.3 Trimble, Microsoft and each of their affiliates and/or their
designated agents reserve the right to discontinue any Internet-
based services provided to you or made available to you through
the use of the Device Software.
1.11 Links to Third Party Sites. If the Software provides links to third
party websites, those links are provided to you only as a convenience,
and the inclusion of any link does not imply an endorsement of the third
party website by Microsoft or Trimble.
1.12 Other Rights and Limitations. (1) The Software contains valuable
trade secrets proprietary to Trimble and its suppliers. To the extent
permitted by relevant law, you shall not, nor allow any third party to
copy, decompile, disassemble or otherwise reverse engineer the
Software, or attempt to do so, provided, however, that to the extent any
applicable mandatory laws (such as, for example, national laws
implementing EC Directive 91/250 on the Legal Protection of Computer
Programs) give you the right to perform any of the aforementioned
activities without Trimble's consent in order to gain certain information
about the Software for purposes specified in the respective statutes (i.e.,
interoperability), you hereby agree that, before exercising any such
rights, you shall first request such information from Trimble in writing
detailing the purpose for which you need the information. Only if and
after Trimble, at its sole discretion, partly or completely denies your
request, may you exercise such statutory rights. (2) This Software is
licensed as a single product. You may not separate its component parts
for use on more than one computer nor make more copies of the
software than specified in this EULA. (3) You may not rent, lease, or lend
the Software. (4) No service bureau work, multiple-user license or time-
sharing arrangement is permitted. For purposes of this EULA “service
6 Juno Series User Guide
bureau work” shall be deemed to include, without limitation, use of the
Software to process or to generate output data for the benefit of, or for
purposes of rendering services to any third party over the Internet or
other communications network. (5) You may make one backup copy of
the Software. You may use it only to reinstall the Software on the Device.
(6) You may transfer the Software only with the Device, the Certificate of
Authenticity label, and these license terms directly to a third party.
Before the transfer, that party must agree that these license terms apply
to the transfer and use of the Software. You may not retain any copies of
the Software including the backup copy. (7) The Software is subject to
United States export laws and regulations. You must comply with all
domestic and international export laws and regulations that apply to the
Software. These laws include restrictions on destinations, end users, and
end use. For additional information see
http://www.microsoft.com/exporting. (8) Without prejudice as to any
other rights, Trimble may terminate this EULA without notice if you fail
to comply with the terms and conditions of this EULA. In such event,
you must destroy all copies of the Software and all of its component
parts. (9) If the Microsoft Software includes speech recognition
component(s), you should understand that speech recognition is an
inherently statistical process and that recognition errors are inherent in
the process. Neither Trimble, Microsoft, nor any of their suppliers shall
be liable for any damages arising out of errors in the speech recognition
process. (10) You may not publish the Software for others to copy. (11)
You may not use the Software for commercial software hosting services.
1.13 Notice Regarding the MPEG-4 Visual Standard. The Software may
include MPEG-4 visual decoding technology. This technology is a format
for data compression of video information. MPEG LA, L.L.C. requires
this notice: USE OF THIS PRODUCT IN ANY MANNER THAT
COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,
EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR
INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT
CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A
BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (B)
OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG
LA, L.L.C. If you have questions about the MPEG-4 visual standard,
please contact MPEG LA, L.L.C., 250 Steele Street, Suite 300, Denver, CO
80206; www.mpegla.com.
1.14 If the Device Software is provided by Trimble separate from the
Device on media such as a ROM chip, CD ROM disk(s) or via web
download or other means, and is labeled “For Upgrade Purposes Only”
you may install one (1) copy of such Device Software onto the Device as
a replacement copy for the existing Device Software and use it
accordance with this EULA, including any additional end user license
agreement terms accompanying the upgrade Device Software.
1.15 If any software component(s) is provided by Trimble separate from
the Device on CD ROM disc(s) or via web download or other means, and
labeled “For Upgrade Purposes Only, you may (i) install and use one (1)
copy of such component(s) on the computer(s) you use to exchange data
with the Device as a replacement copy for the existing Companion CD
component(s).
1.16 Copyright. All title and copyrights in and to the Software (including
but not limited to any images, photographs, animations, video, audio,
music, text and “applets,” incorporated into the Software), the
accompanying printed materials, and any copies of the Software are
owned by Trimble, or Microsoft (including Microsoft Corporation), and
their respective suppliers. You may not copy the printed materials
accompanying the Software. All title and intellectual property rights in
and to the content which may be accessed through use of the Software is
the property of the respective content owner and may be protected by
applicable copyright or other intellectual property laws and treaties.
This EULA grants you no rights to use such content. You shall not
remove, cover or alter any of Trimble’s patent, copyright or trademark
notices placed upon, embedded in or displayed by the Software or on its
packaging and related materials. All rights not specifically granted in
this EULA are reserved by Trimble, Microsoft, and their respective
suppliers.
1.17 U.S. Government Restricted Rights. The Software is provided with
“RESTRICTED RIGHTS”. Use, duplication, or disclosure by the United
States Government is subject to restrictions as set forth in this EULA,
and as provided in DFARS 227.7202-1(a) and 227.7202-3(a) (1995),
DFARS 252.227-7013(c)(1)(ii) (OCT 1988), FAR 12.212(a) (1995), FAR
52.227-19, or FAR 52.227-14(ALT III), as applicable.
1.18 Microsoft has contractually obligated Trimble to include the
following terms in this EULA:
Product Support. The Product support for the Software is not
provided by Microsoft or its affiliates or subsidiaries. For product
support, please refer to the Trimble support number provided in the
documentation for the Device.
Not fault tolerant. The Software is not fault tolerant. Trimble
installed the Software on the Device and is responsible for how it
operates on the Device.
Restricted user. The Microsoft Software was designed for systems
that do not require fail-safe performance. You may not use the
Microsoft Software in any device or system in which a malfunction
of the Microsoft Software would result in foreseeable risk of injury
or death to any person. This includes operation of nuclear facilities,
aircraft navigation or communication systems and air traffic
control.
No warranties for the software. Microsoft gives no express
warranties, guarantees or conditions regarding the Microsoft
Software. Any warranties you receive regarding the Device or the
Software do not originate from, and are not binding on, Microsoft or
its affiliates. When allowed by your local laws, Trimble and
Microsoft exclude implied warranties of merchantability, fitness for
a particular purpose and non-infringement.
LIABILITY LIMITATIONS. You can recover from Microsoft and its
affiliates only direct damages up to fifty U.S. Dollars (U.S. $50.00), or
equivalent in local currency. You cannot recover any other damages,
including consequential, lost profits, special, indirect or incidental
damages. This limitation applies to:
Anything related to the Software, services, content
(including code) on third party internet sites, or third party
programs, and
claims for breach of contract, breach of warranty, guarantee
or condition, strict liability, negligence, or other tort to the
extent permitted by applicable law.
It also applies even if Microsoft should have been aware of the
possibility of the damages. The above limitation may not apply to
you because your country may not allow the exclusion or limitation
of incidental, consequential or other damages.
2 LIMITED WARRANTY FOR TRIMBLE PRODUCT SOFTWARE.
2.1 Limited Warranty. Trimble warrants that the Software, exclusive of
the Microsoft Software, will perform substantially in accordance with
the accompanying written materials for a period of twelve (12) months
from the date of purchase. This limited warranty gives you specific legal
rights; you may have others, which vary from state/jurisdiction to
state/jurisdiction. The above limited warranty does not apply to Fixes,
Minor Updates, or Major Upgrades of the Software after expiration of the
twelve (12) month limited warranty period, all of which are provided “AS
IS” and without warranty unless otherwise specified in writing by
Trimble. Because the Software is inherently complex and may not be
completely free of nonconformities, defects or errors, you are advised to
verify your work. Trimble does not warrant that the Software will
operate error free or uninterrupted, will meet your needs or
expectations, or that all nonconformities can or will be corrected.
2.2 Software Fixes. During the limited warranty period described in
section 2.1 above, you will be entitled to receive such Fixes to the
Product Software that Trimble releases and makes commercially
available and for which it does not charge separately, subject to the
procedures for delivery to purchasers of Trimble products generally. If
you have purchased the Product from an authorized Trimble dealer
rather than from Trimble directly, Trimble may, at its option, forward the
software Fix to the Trimble dealer for final distribution to you. Minor
Updates, Major Upgrades, new products, or substantially new software
releases, as identified by Trimble, are expressly excluded from this
update process and limited warranty. Receipt of Software Fixes or other
enhancements shall not serve to extend the limited warranty period.
For purposes of this warranty the following definitions shall apply: (1)
"Fix(es)" means an error correction or other update created to fix a
previous software version that does not substantially conform to its
Trimble specifications; (2) "Minor Update" occurs when enhancements
are made to current features in a software program; and (3) "Major
Upgrade" occurs when significant new features are added to software, or
when a new product containing new features replaces the further
development of a current product line. Trimble reserves the right to
determine, in its sole discretion, what constitutes a Fix, Minor Update,
or Major Upgrade.
2.3 Customer Remedies. Trimbles and its suppliers’ entire liability, and
your sole remedy, with respect to the Software shall be either, at
Trimble’s option, (a) repair or replacement of the Software, or (b) return
of the license fee paid for any Software that does not meet Trimbles
limited warranty. This limited warranty is void if failure of the Software
has resulted from (1) accident, misuse, abuse, or misapplication; (2)
alteration or modification of the Software without Trimbles
authorization; (3) interaction with software or hardware not supplied or
supported by Trimble; (4) your improper, inadequate or unauthorized
installation, maintenance or storage; or (5) if you violate the terms of
this EULA. Any replacement Software will be warranted for the
remainder of the original warranty period or thirty (30) days, whichever
is longer.
2.4 NO OTHER WARRANTIES. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, TRIMBLE AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, TERMS AND CONDITIONS,
EITHER EXPRESS OR IMPLIED, BY STATUTE, COMMON LAW OR
Juno Series User Guide 7
OTHERWISE, INCLUDING BUT NOT LIMITED TO, IMPLIED
WARRANTIES, TERMS AND CONDITIONS OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND
NONINFRINGEMENT WITH REGARD TO THE SOFTWARE, ITS
SATISFACTORY QUALITY AND THE PROVISION OF OR FAILURE TO
PROVIDE SUPPORT SERVICES. TO THE EXTENT ALLOWED BY
APPLICABLE LAW, IMPLIED WARRANTIES, TERMS AND
CONDITIONS ON THE SOFTWARE ARE LIMITED TO NINETY (90)
DAYS. Y0U MAY HAVE OTHER LEGAL RIGHTS WHICH VARY FROM
STATE/JURISDICTION TO STATE/JURISDICTION.
NO WARRANTIES FOR THE MICROSOFT SOFTWARE. THE
MICROSOFT SOFTWARE is provided “AS IS” and with all faults, AND
TRIMBLE PROVIDES NO WARRANTY WITH RESPECT THERETO.
THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE,
ACCURACY AND EFFORT (INCLUDING LACK OF NEGLIGENCE) FOR
THE MICROSOFT SOFTWARE IS WITH YOU. ALSO, THERE IS NO
WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF
THE MICROSOFT SOFTWARE OR AGAINST INFRINGEMENT.
2.5 PLEASE NOTE: THE FOREGOING TRIMBLE LIMITED WARRANTY
PROVISIONS MAY NOT APPLY TO SOFTWARE PRODUCT LICENSES
PURCHASED IN THOSE JURISDICTIONS (SUCH AS COUNTRIES OF THE
EUROPEAN UNION) IN WHICH PRODUCT WARRANTIES ARE OBTAINED
FROM THE LOCAL DISTRIBUTOR. IN SUCH CASES, PLEASE CONTACT
YOUR TRIMBLE DEALER FOR APPLICABLE WARRANTY INFORMATION.
3 TRIMBLE LIMITATION OF LIABILITY.
3.1 LIMITATION OF LIABILITY. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL TRIMBLE
OR ITS SUPPLIERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, CONSEQUENTIAL OR PUNITIVE DAMAGES HOWEVER
CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF
THE USE OR INABILITY TO USE THE SOFTWARE, OR THE
PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, EVEN
IF TRIMBLE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES AND NOTWITHSTANDING ANY FAILURE OF ESSENTIAL
PURPOSE OF ANY EXCLUSIVE REMEDY PROVIDED IN THIS EULA.
IN NO EVENT SHALL THE TOTAL CUMULATIVE LIABILITY OF
TRIMBLE AND ITS SUPPLIERS IN CONNECTION WITH THIS EULA
OR THE SOFTWARE, WHETHER BASED ON CONTRACT, WARRANTY,
TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR
OTHERWISE, EXCEED THE ACTUAL AMOUNT PAID TO TRIMBLE
FOR THE SOFTWARE LICENSE GIVING RISE TO THE CLAIM.
BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.
4 GENERAL.
4.1 This EULA shall be governed by the laws of the State of California
and applicable United States Federal law without reference to “conflict of
laws” principles or provisions. The United Nations Convention on
Contracts for the International Sale of Goods will not apply to this
EULA. Jurisdiction and venue of any dispute or court action arising from
or related to this EULA or the Software shall lie exclusively in or be
transferred to the courts the County of Santa Clara, California, and/or
the United States District Court for the Northern District of California.
You hereby consent and agree not to contest, such jurisdiction, venue
and governing law.
4.2 Section 4.1 notwithstanding, if you acquired this product in Canada,
this EULA is governed by the laws of the Province of Ontario, Canada. In
such case each of the parties to this EULA irrevocably attorns to the
jurisdiction of the courts of the Province of Ontario and further agrees to
commence any litigation that may arise under this EULA in the courts
located in the Judicial District of York, Province of Ontario. If you
acquired this product in the European Union, this EULA is governed by
the laws of The Netherlands, excluding its rules governing conflicts of
laws and excluding the United Nations Convention on the International
Sale of Goods. In such case each of the parties to this EULA irrevocably
attorns to the jurisdiction of the courts of The Netherlands and further
agrees to commence any litigation that may arise under this EULA in the
courts of The Hague, The Netherlands.
4.3 Trimble reserves all rights not expressly granted by this EULA.
4.4 Official Language. The official language of this EULA and of any
documents relating thereto is English. For purposes of interpretation, or
in the event of a conflict between English and versions of this EULA or
related documents in any other language, the English language version
shall be controlling.
Registration
To receive information regarding updates and new products, please
contact your local dealer or visit the Trimble website at
www.trimble.com/register. Upon registration you may select the
newsletter, upgrade, or new product information you desire.
Notices
Class B statement- Notice to users This equipment has been tested and
found to comply with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference
that may cause undesired operation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions may
cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes and modifications not expressly approved by the manufacturer
or registrant of this equipment can void your authority to operate this
equipment under Federal Communications Commission rules.
The radio devices used by this equipment are classified under 47 CFR
§15.247 as spread spectrum transmitter equipment. In accordance with
OET Bulletin 65 supplement C Edition 1-01, the device operates at low
power levels where there is a high likelihood of compliance with the RF
exposure standards, is categorically excluded from routine
environmental evaluation as set forth in CFR 47 section 2.1093. The
radiated output power of this equipment produces a calculated SAR that
is significantly below the FCC radio frequency exposure limits.
Equipment that is additionally fitted with a wireless cellular modem is
certified to satisfy US requirements as stipulated in 47 CFR Parts 22 and
24.
The external antenna connector provided in this device is for GPS
antennas only.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the radio interference
regulations of the Canadian Department of Communications.
Cet appareil numérique de la classe B est conforme à la norme NNB-003
du Canada.
Le présent appareil numérique n'émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de Classe B
prescrites dans le règlement sur le brouillage radioélectrique édicté par
le Ministère des Communications du Canada.

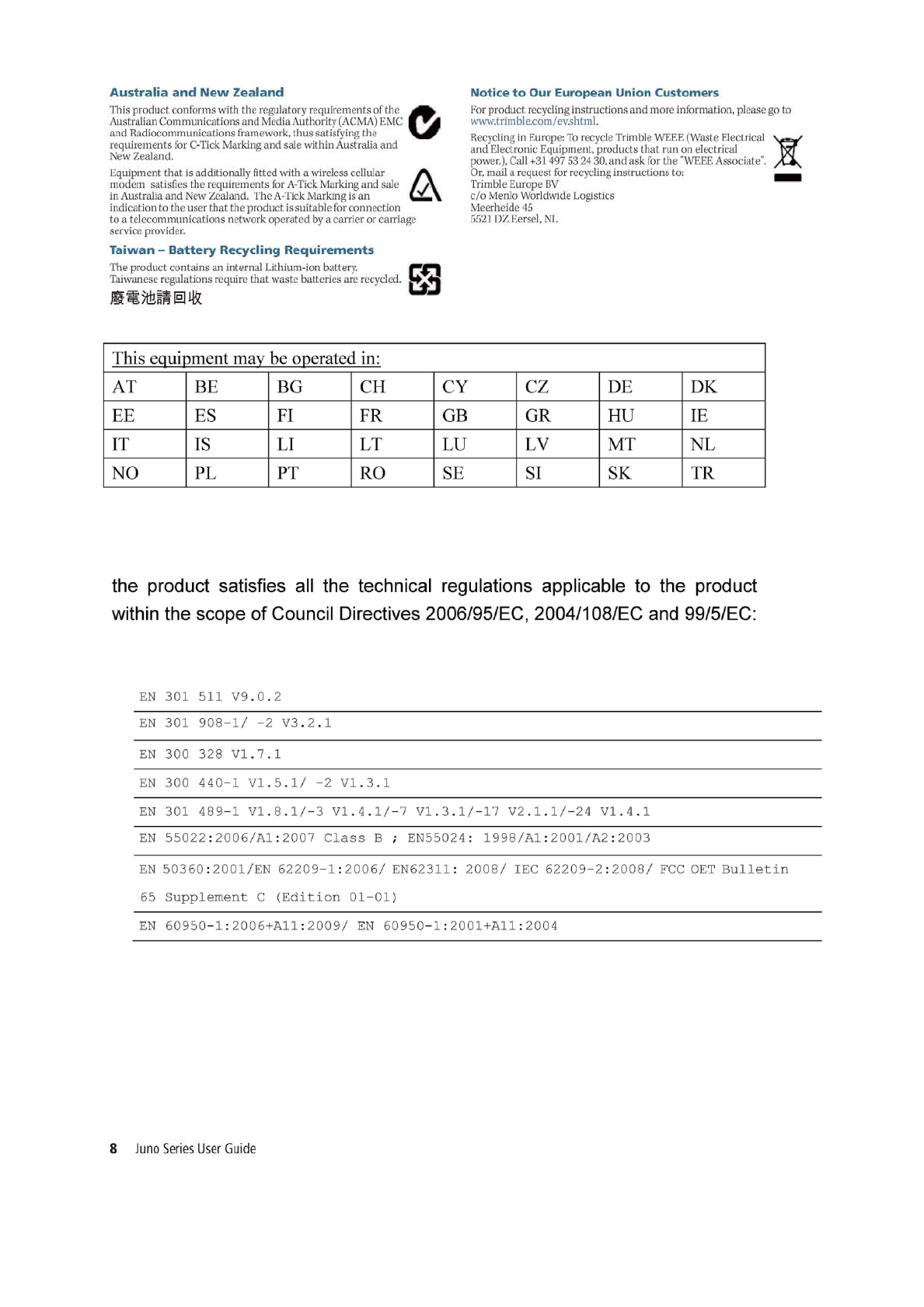

Europe
This product has been tested and found
to comply with all requirements for CE
Marking and sale within the European
Economic Area (EEA). It is classified and
marked as being Class 2 Radio Equipment under 2000/299/EC, as
Bluetooth and wireless LAN approvals are country specific. Please
consult your local distributor for more information.
The Juno series has Bluetooth and wireless LAN approval in most EU
countries, and the Juno SC and Juno SD are also compliant with GSM
and UMTS conformity assessment requirements specified by the
European Council Directive, Radio and Telecommunication Terminal
Equipment 1999/5/EC. These requirements provide reasonable
protection against harmful interference when the equipment is operated
appropriately in a residential or commercial environment.
Juno Series User Guide 9
Safety Information
Radio use
The Junoseries handhelds contain a Bluetooth® radio and a wireless LAN radio.
Depending on your version of Juno handheld, it may also contain a cellular modem. In
some situations, you may be required to turn off the radios. For example, aviation
authority regulations restrict the use of radios on board aircraft.
To prevent the handheld from emitting radio signals, do one of the following:
To turn off the handheld, press and hold the Power button for five seconds.

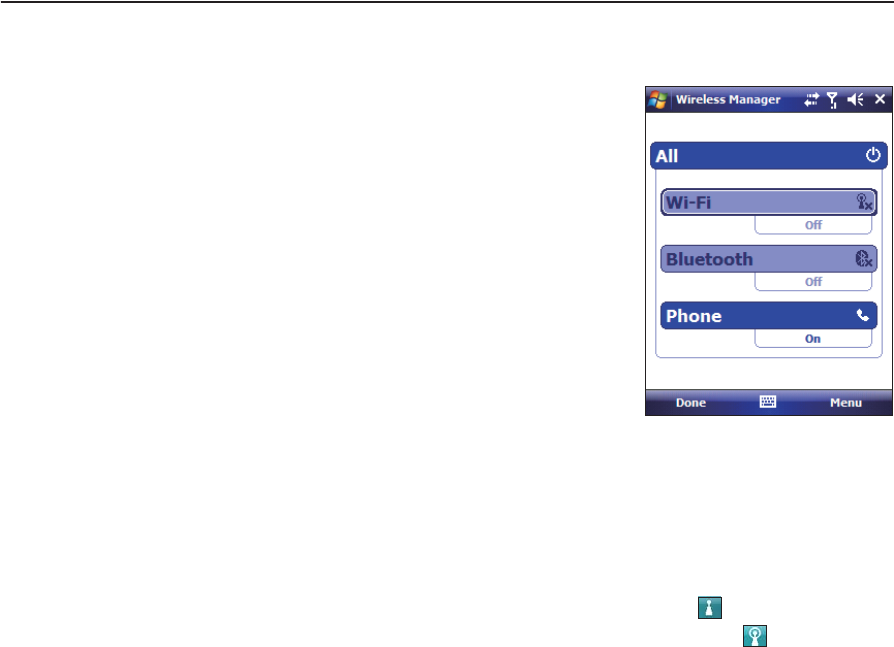

To turn off the Bluetooth and wireless LAN radios only:
a. Tap the Wireless Connectivity icon ( or ) in the title bar of the Today
screen and then tap Wireless Manager.
b. Tap All to turn off both radios. The status fields below the Wi-Fi and
Bluetooth buttons change to Off.
Note – On the Juno SD handheld, you can also turn off the cellular modem in the Wireless
Manager.
To turn off the cellular modem, do one of the following depending on the model
of the Juno series handheld:
On the Juno SC handheld, tap the Modem Status indicator in the title bar of
the Today screen and then tap Modem Power Off.
On the Juno SD handheld, tap the Wireless Connectivity icon ( or ) or
the modem status icon in the title bar of the Today screen, tap Wireless
Manager, and then tap Phone. The status field below the Phone button
changes to Off.
Exposure to radio frequency radiation from Bluetooth and WLAN
transmitters
This device is approved as a portable device with respect to Radio Frequency (RF)
exposure compliance. The radiated output power of the internal wireless radio
transmitters is less than 100 milliWatt, which results in exposure levels far below the
FCC radio frequency exposure limits, even when operated in close proximity to the
body. The internal wireless radios operate within guidelines found in international
radio frequency safety standards and recommendations, which reflect the consensus
of the international scientific community. Trimble therefore believes the internal
wireless radios are safe for use by users. The level of electromagnetic energy emitted is
hundreds of times lower than the electromagnetic energy emitted by wireless devices
Safety Information
10 Juno Series User Guide
such as mobile phones. However, the use of wireless radios may be restricted in some
situations or environments, such as on aircraft. If you are unsure of restrictions, you are
encouraged to ask for authorization before turning on the wireless radios.
Exposure to radio frequency radiation from Cellular wireless
transmitters
Juno SC handheld and Juno SD handheld equipment uses cellular wireless radios that
have been designed and manufactured to meet safety requirements for limiting
exposure to radio waves. When used in accordance with the instructions set forth in
this manual, the equipment has been independently verified to not exceed the
emission limits for safe exposure to radio frequency (RF) energy as specified by the
Federal Communications Commission of the U.S. Government in 47 CFR §2.1093.
These limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards that were
developed by independent scientific organization through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
The exposure standard for all wireless devices employs a unit of measurement known
as the Specific Absorption Rate, or SAR; the SAR limit set by the FCC1 is 1.6W/kg.
Tests for SAR on the Juno SC and Juno SD handhelds have been undertaken using the
standard operating positions adopted by the FCC that test the device for SAR while it
is transmitting at the highest certified power level in all tested frequency bands.
The FCC has granted an Equipment Authorization for this device on the basis that all
reported SAR levels have been evaluated to be compliant with the FCC RF exposure
guidelines.
SAR information on this device is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:
JUP66400-83.
For documentation relating to the SAR values of the Juno SC and Juno SD handhelds,
go to the Trimble Support website at www.trimble.com/support.shtml, then click Juno
SC or Juno SD, and then click Compliance Information.
AC adaptor safety
To charge the handheld’s battery, use the international adaptor kit provided with the
Juno series handheld (see Powering the handheld, page 28).
1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety .




Juno Series User Guide 11
Safety Information
C
WARNING – To use AC adaptors safely:
– Use only the AC adaptor intended for the Juno series handheld. Using any other
AC adaptor can damage the handheld and may void your warranty. Do not use the
AC adaptor with any other product.
– Make certain that the input voltage on the adaptor matches the voltage and frequency
in your location.
– Make certain that the adaptor has prongs compatible with your outlets.
– Do not use the AC adaptor in wet outdoor areas; it is designed for indoor use only.
– Unplug the AC adaptor from power when not in use.
– Do not short the output connector.
– Be aware that there are no user-serviceable parts in this product.
– If the AC adaptor becomes damaged, replace it with a new Trimble AC adaptor.
Battery safety
The rechargeable Lithium-ion battery is supplied partially charged. Charge the battery
completely before using it for the first time (see Powering the handheld, page 28). If the
battery has been stored for longer than six months, charge it before use
C
WARNING – Do not damage the rechargeable Lithium-ion battery. A damaged battery
can cause an explosion or fire, and can result in personal injury and/or property damage.
To prevent injury or damage:
– Do not use or charge the battery if it appears to be damaged. Signs of damage include,
but are not limited to, discoloration, warping, and leaking battery fluid.
– Do not store or leave your device near a heat source such as near a fireplace or other
heat-generating appliance, or otherwise expose it to temperatures in excess of 70 °C
(158 °F) such as on a vehicle dashboard. When heated to excessive temperatures, battery
cells could explode or vent, posing a risk of fire.
– Do not immerse the battery in water.
– Do not use or store the battery inside a vehicle during hot weather.
– Do not drop or puncture the battery.
– Do not open the battery or short-circuit its contacts.
C
WARNING – Avoid contact with the rechargeable Lithium-ion battery if it appears to be
leaking. Battery fluid is corrosive, and contact with it can result in personal injury and/or
property damage.
To prevent injury or damage:
– If the battery leaks, avoid contact with the battery fluid.
– If battery fluid gets into your eyes, immediately rinse your eyes with clean water and
seek medical attention. Do not rub your eyes!
– If battery fluid gets onto your skin or clothing, immediately use clean water to wash off
the battery fluid.
C
WARNING – Charge and use the rechargeable Lithium-ion battery only in strict
accordance with the instructions. Charging or using the battery in unauthorized
equipment can cause an explosion or fire, and can result in personal injury and/or
equipment damage.
To prevent injury or damage:
– Do not charge or use the battery if it appears to be damaged or leaking.
– Charge the Lithium-ion battery only in a Trimble product that is specified to charge it.
Be sure to follow all instructions that are provided with the battery charger.
– Discontinue charging a battery that gives off extreme heat or a burning odor.
Safety Information
12 Juno Series User Guide
– Use the battery only in Trimble equipment that is specified to use it.
Use the battery only for its intended use and according to the instructions in the product
documentation.
Note – Many administrations have regulations relating to the recycling or safe disposal of
batteries. Please consult http://www.trimble.com/about_ev.shtml for more information.
Memory card use
The Juno series handheld provides a memory card slot, providing an alternative
storage location to the storage memory in the handheld.
C
WARNING – Static electricity can harm electronic components inside your handheld. To
prevent static damage:
– Discharge static electricity from your body before you touch any of the electronic
components inside your device, such as a memory module. You can do so by touching an
unpainted metal surface.
C
WARNING – The presence of any dust or moisture in the memory card slot may adversely
affect the device and void your Trimble warranty. To prevent dust or moisture entering
the memory card slot:
– Make certain that the memory card slot door is attached correctly when you are using
the handheld outdoors.
– When inserting or removing a memory card, place the handheld on a dust-free indoor
surface.
,&5DGLDWLRQ([SRVXUH6WDWHPHQW



Juno Series User Guide 13
Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Radio use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exposure to radio frequency radiation from Bluetooth and WLAN transmitters . . . . . . . . . . 9
Exposure to radio frequency radiation from Cellular wireless transmitters. . . . . . . . . . . . . 10
AC adaptor safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Battery safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Memory card use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
About the Juno series handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Supported GPS field software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

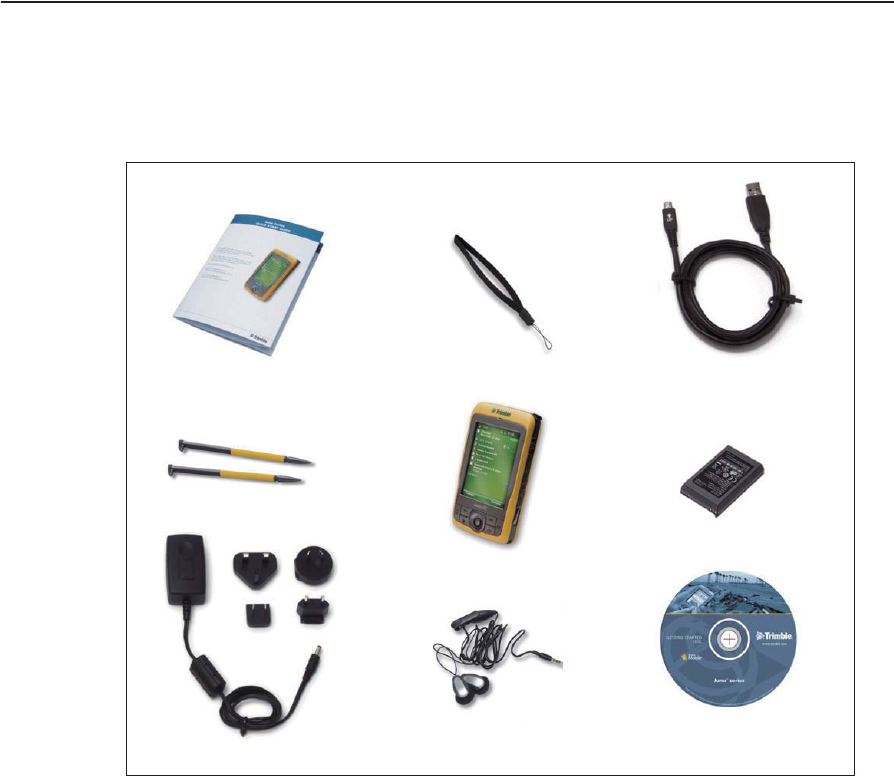

Whats in the box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Use and care of the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Technical assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Additional help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Windows error reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Your comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2 Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

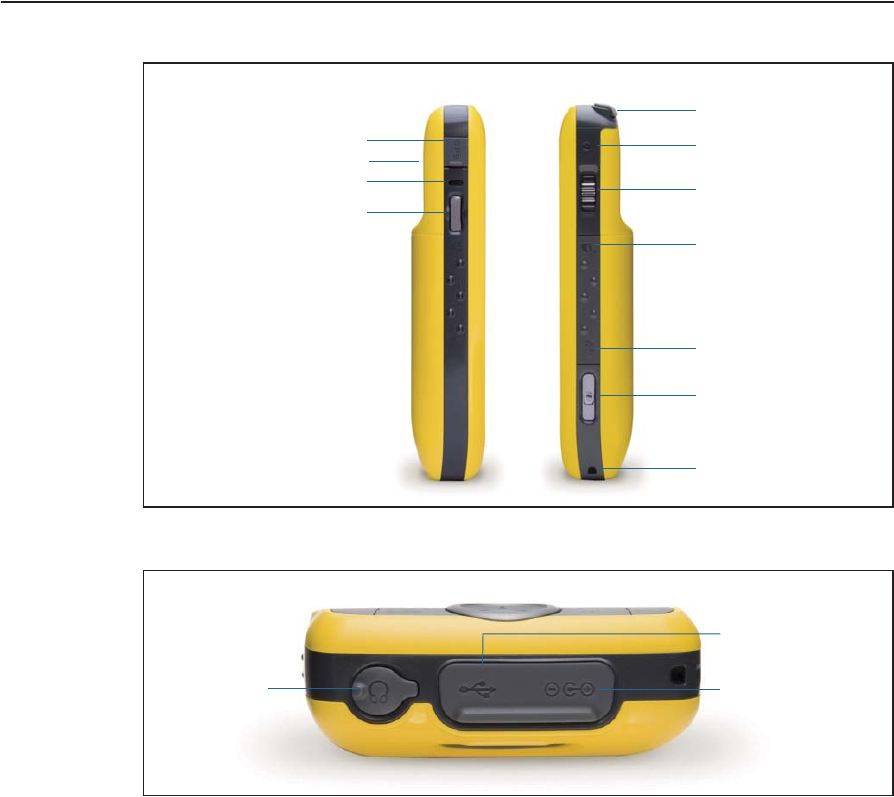

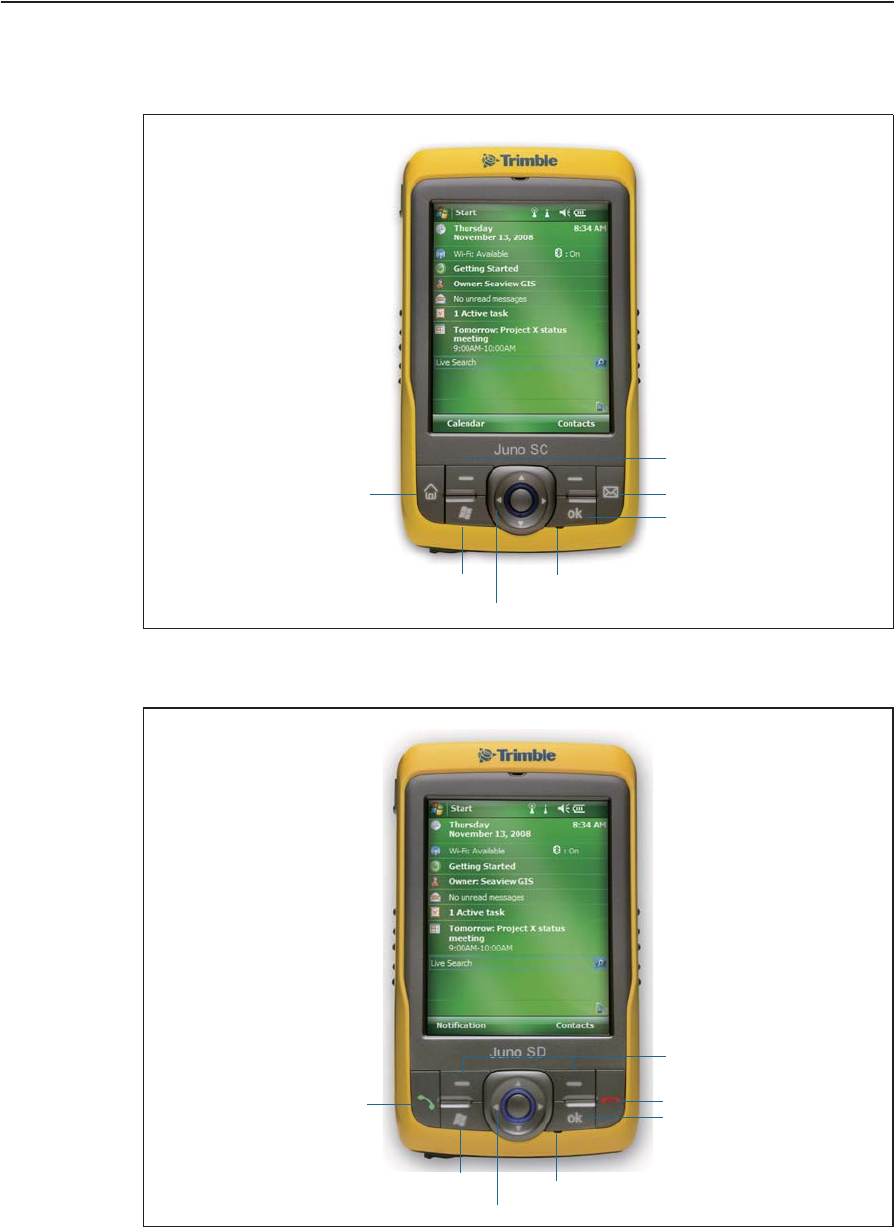

Parts of the Juno series handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Keypad buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Powering the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
AC adaptor safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Battery safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Inserting the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Charging the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Checking the level of battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Conserving power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Turning on and turning off the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Suspend mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Resetting the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Performing a soft reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Performing a hard reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Resetting to factory default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Storing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Memory cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Installing and removing the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Contents
14 Juno Series User Guide
3 Using the Windows Mobile Operating System . . . . . . . . . . . . . . . . 39
Parts of the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Accessing help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Battery level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Speaker status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Network indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Modem status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Pre-installed programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using the stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Entering information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Making a recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Personalizing the handheld. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Today . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Device lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Sounds and notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Synchronizing email messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Connecting directly to an email server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Voice calls (Juno SD handheld only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

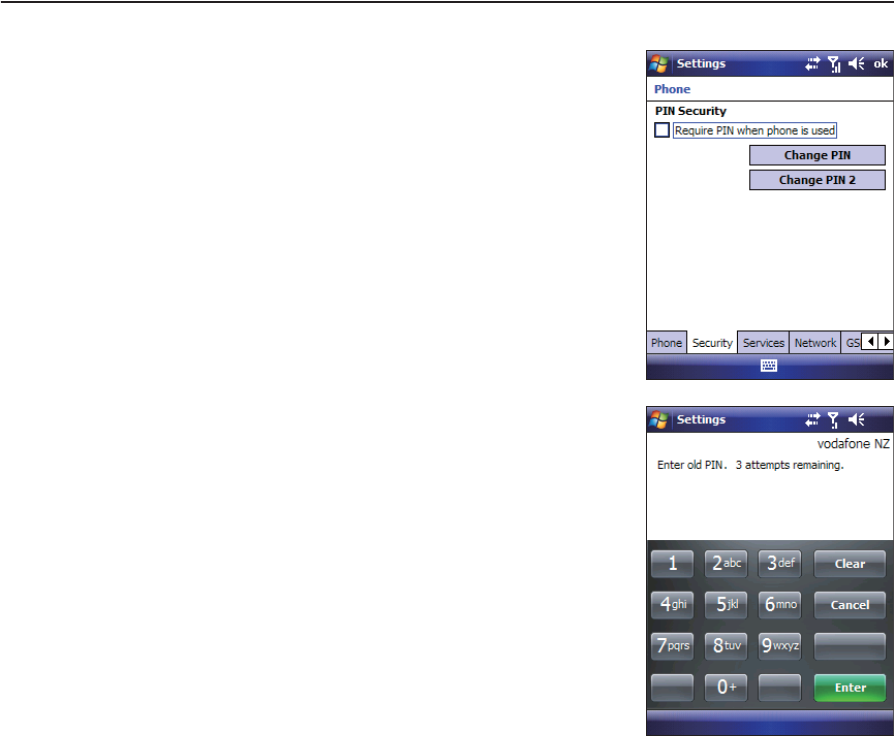

Phone settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

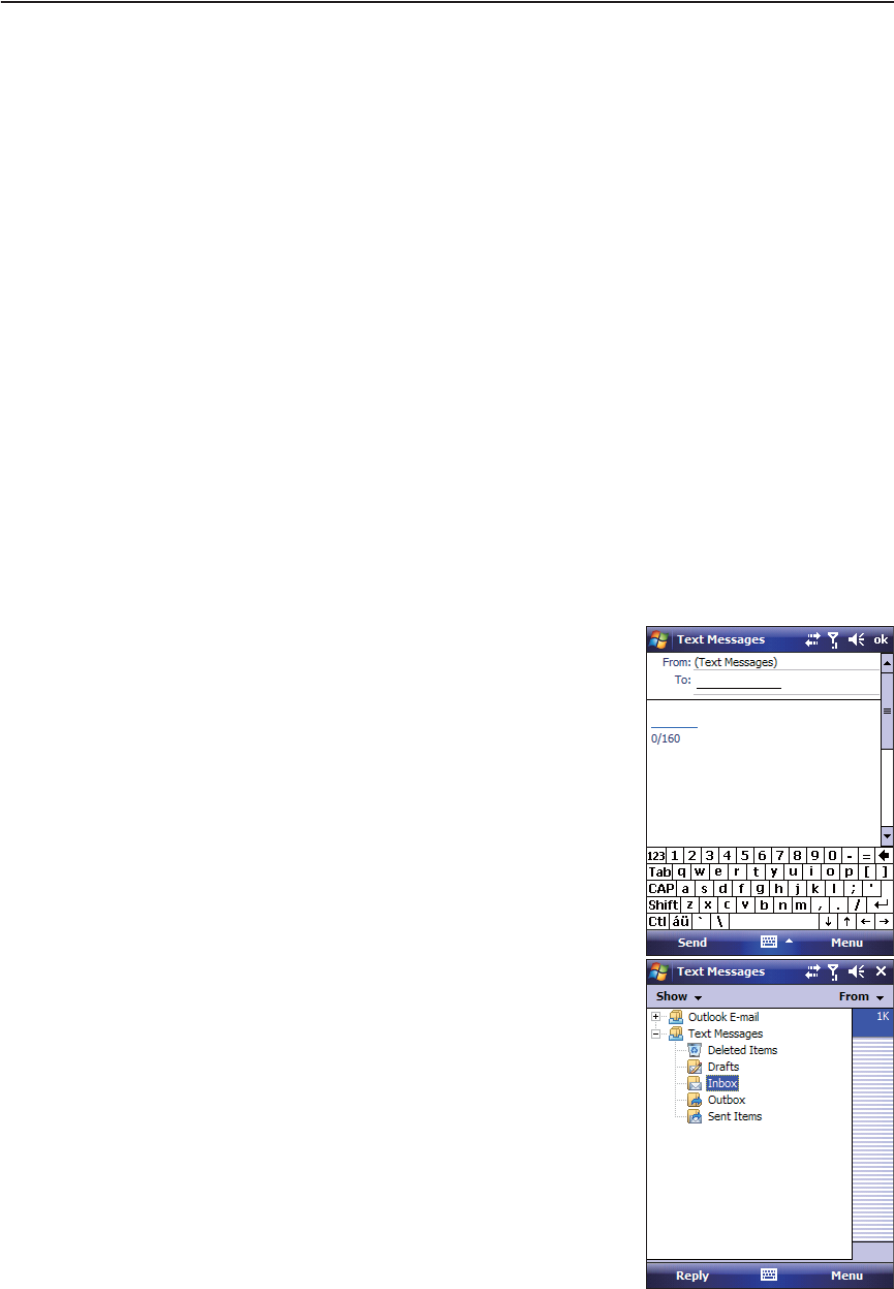

Text messaging (Juno SD handheld only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
4 Connecting to an Office Computer. . . . . . . . . . . . . . . . . . . . . . . 57
Connection management software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Installing the Windows Mobile Device Center . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Installing ActiveSync technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

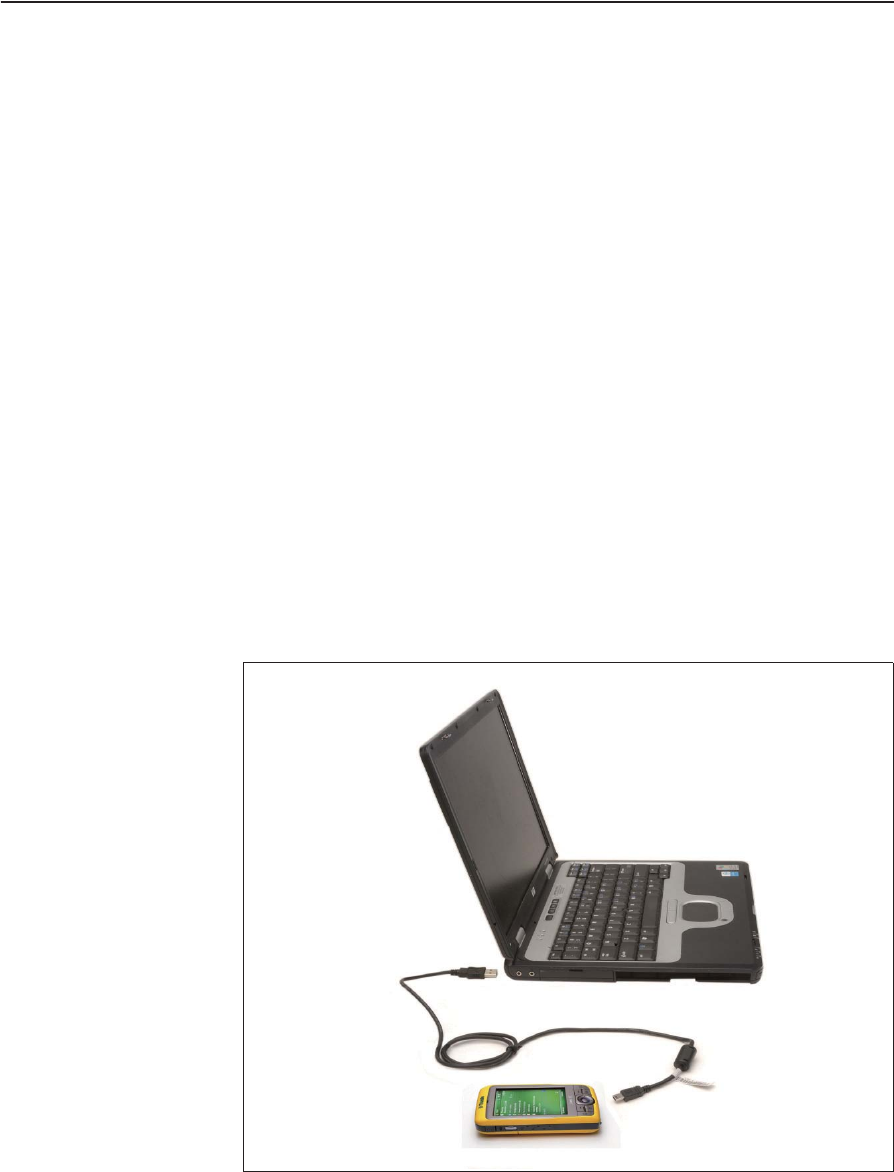

Connecting the handheld to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Managing the connection using the Windows Mobile Device Center . . . . . . . . . . . . . . . . 60
Managing the connection using ActiveSync technology. . . . . . . . . . . . . . . . . . . . . . . . . 61
Installing software onto the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5 Using the GPS Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Supported GPS field software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

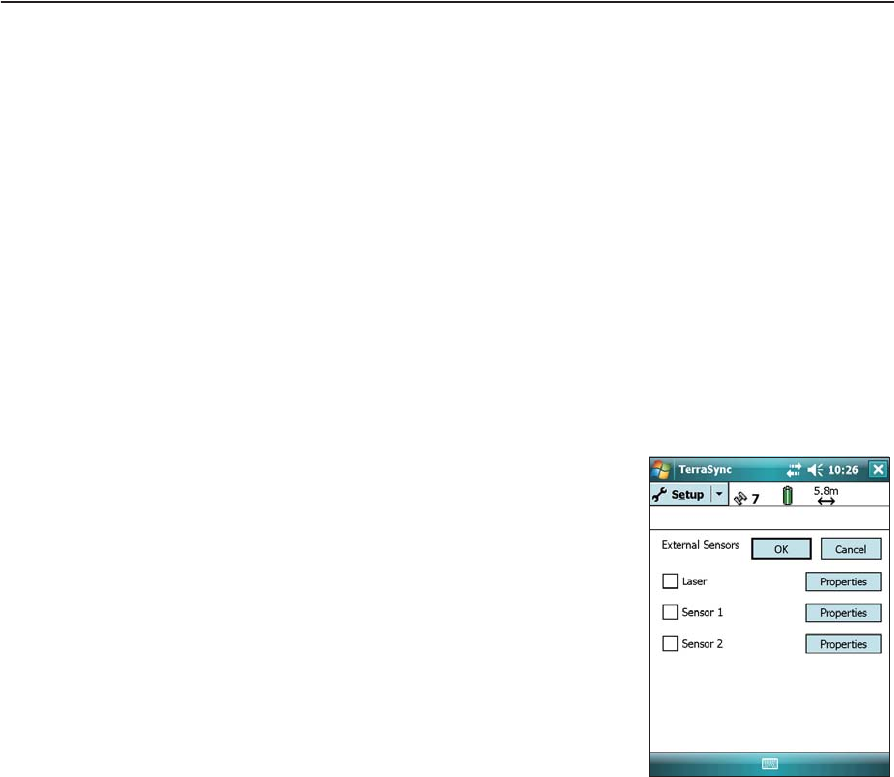

TerraSync software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
ESRI ArcPad software and the Trimble GPScorrect extension. . . . . . . . . . . . . . . . . 66
GPS Controller software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Other GPS field applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Configuring the GPS field software to connect to the receiver . . . . . . . . . . . . . . . . . . . . . 67
Connecting to the COM port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Juno Series User Guide 15
Contents
Using the GPS field software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Starting the GPS field software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Viewing available GPS satellites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Resetting the GPS receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Ensuring the accuracy of your GPS data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Using accuracy-based logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Connecting to a real-time differential correction source . . . . . . . . . . . . . . . . . . . . 70
Planning a data collection session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Differential GPS explained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Real-time DGPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Postprocessed DGPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Postprocessed real-time DGPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Outputting NMEA data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

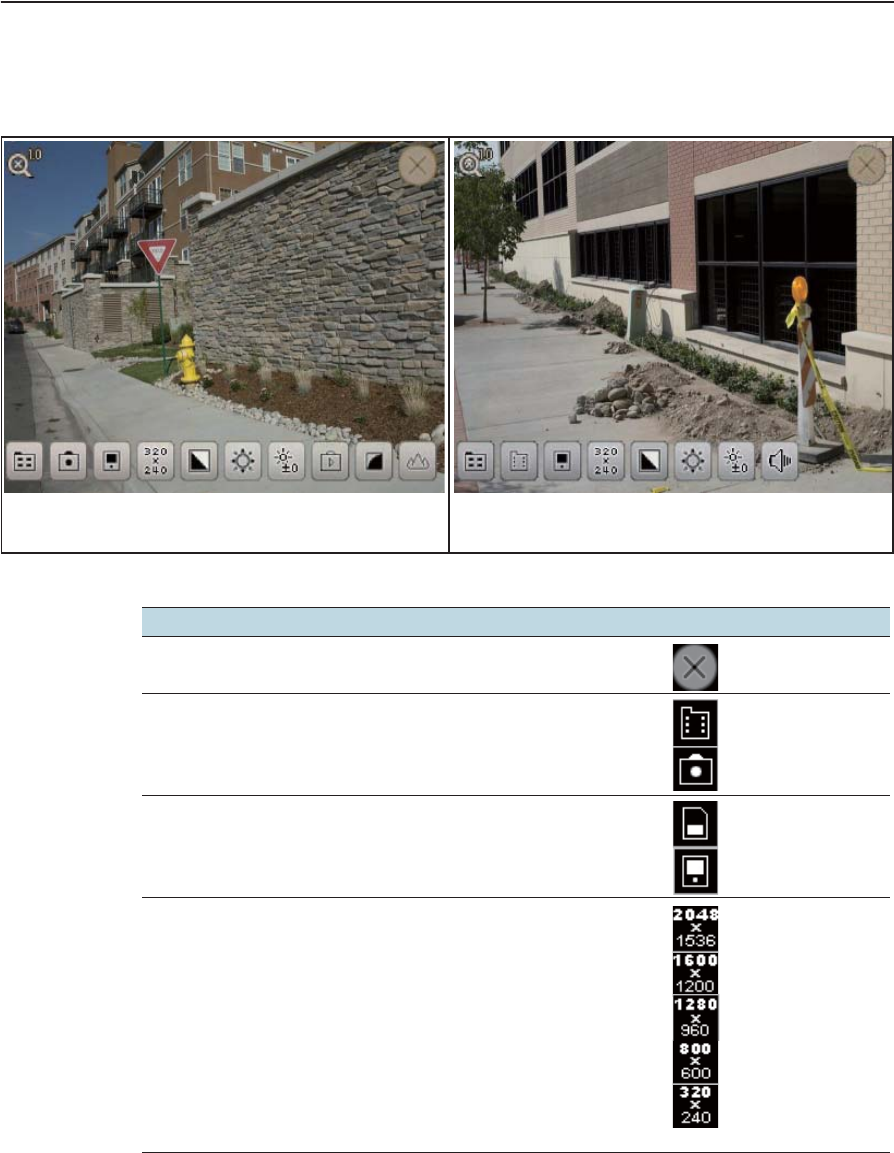

6 Using the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Parts of the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Starting the camera application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Camera settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Using the Zoom function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Managing images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
7 Getting Connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
General wireless connection information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Turning on and turning off the integrated radios . . . . . . . . . . . . . . . . . . . . . . . . . 82
Options for connecting wirelessly to other devices and networks . . . . . . . . . . . . . . . . . . 88
Connecting to a wireless LAN access point . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Connecting to a cellular network from the modem . . . . . . . . . . . . . . . . . . . . . . . 90
Connecting to a Bluetooth-enabled device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Connecting to a Bluetooth-enabled phone for Internet access . . . . . . . . . . . . . . 95
Connecting to a Bluetooth-enabled serial device . . . . . . . . . . . . . . . . . . . . . . . . . 99
Connecting to an office computer to use ActiveSync technology . . . . . . . . . . . . . .101

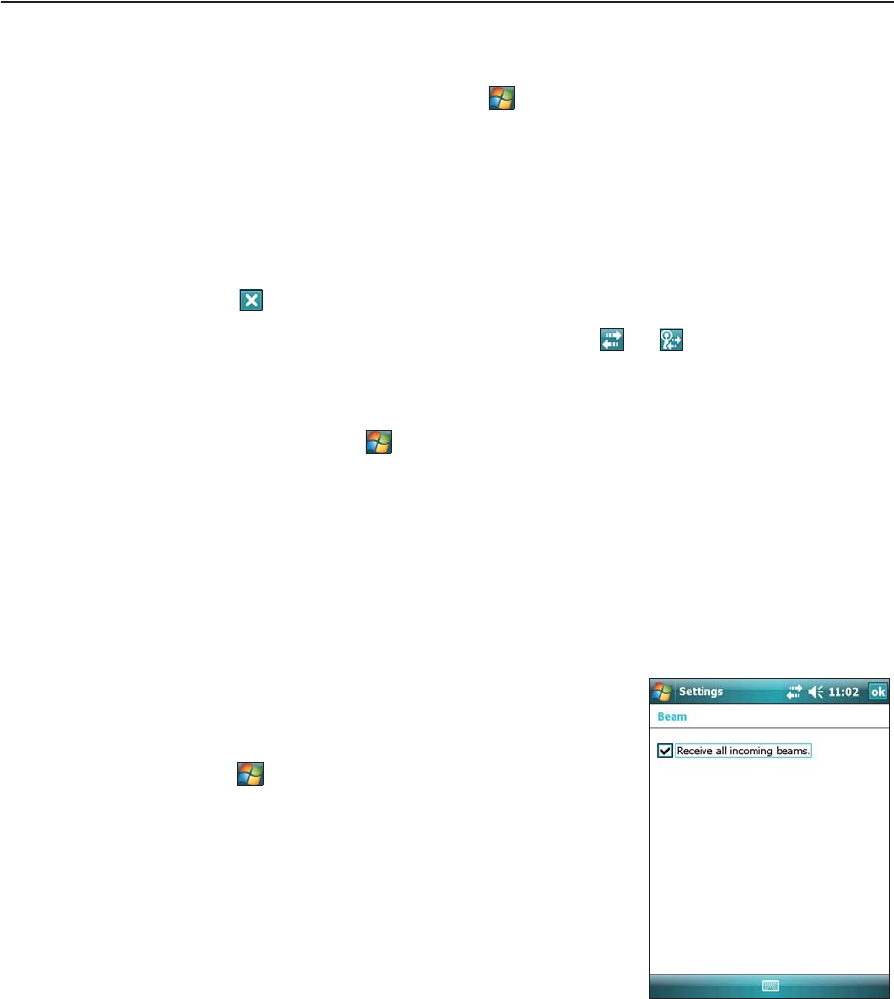

Beaming files to or from another device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Accessing a corporate network through your Internet connection. . . . . . . . . . . . . .104
Bluetooth wireless connections explained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Connecting to a Bluetooth device as a client . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Providing Bluetooth services as a host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Power issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Backlight issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Touch screen issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Keypad issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Memory card issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Phone issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Connection issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Contents
16 Juno Series User Guide
ActiveSync technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Windows Mobile Device Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Network connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Bluetooth wireless technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Wireless LAN connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
GPS receiver issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Real-time DGPS issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
CHAPTER
1
Juno Series User Guide 17
Introduction 1
In this chapter:
QAbout the Juno series handheld
QWhat’s in the box?
QAccessories
QUse and care of the handheld
QTechnical assistance
QYour comments
The Juno Series User Guide describes how to set
up and use the Juno series handheld. The
information in this guide supplements the
information in the Juno Series Quick Start Guide,
which you received with the handheld.
This guide describes how to:
use the Windows Mobile® version 6.1
operating system.
use the cellular modem in the Juno SD
handheld for voice calls and text
messaging.
use the handheld’s integrated GPS receiver.

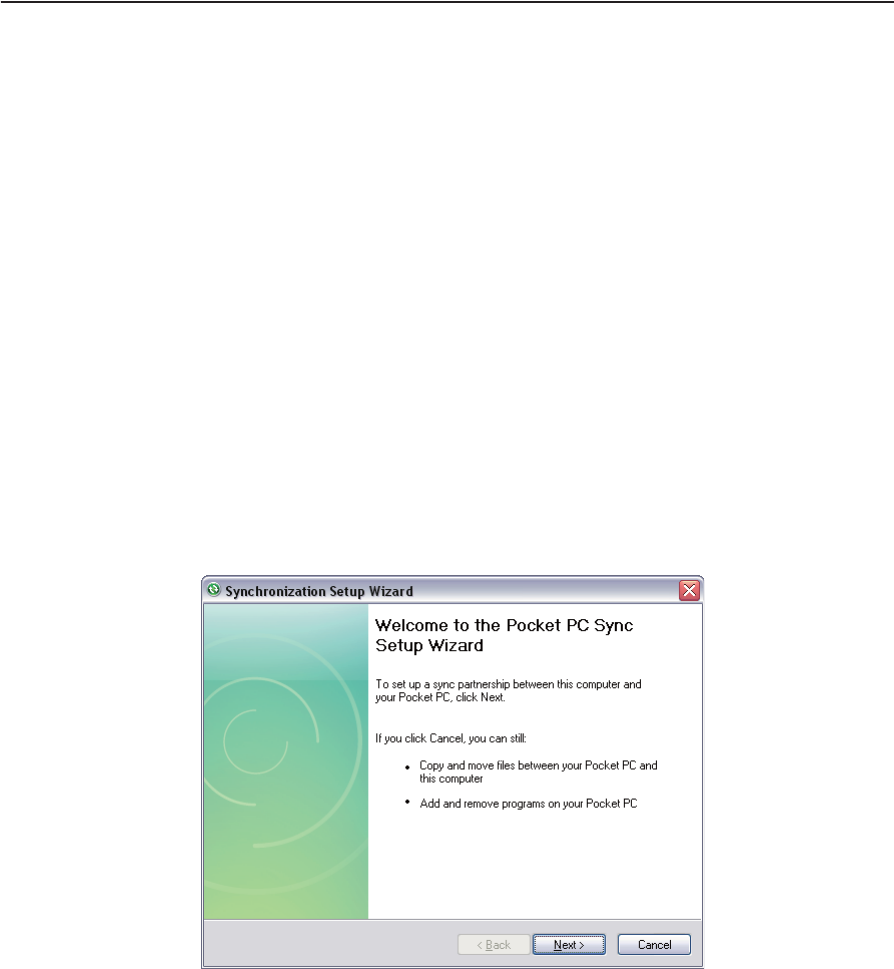

synchronize information between a
computer and the handheld.

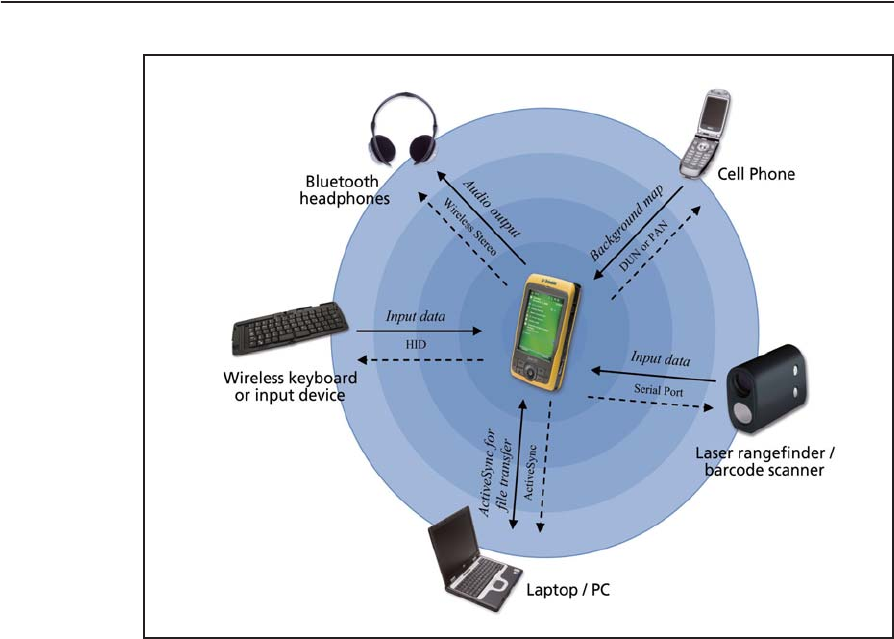

exchange information between the
handheld and other devices.

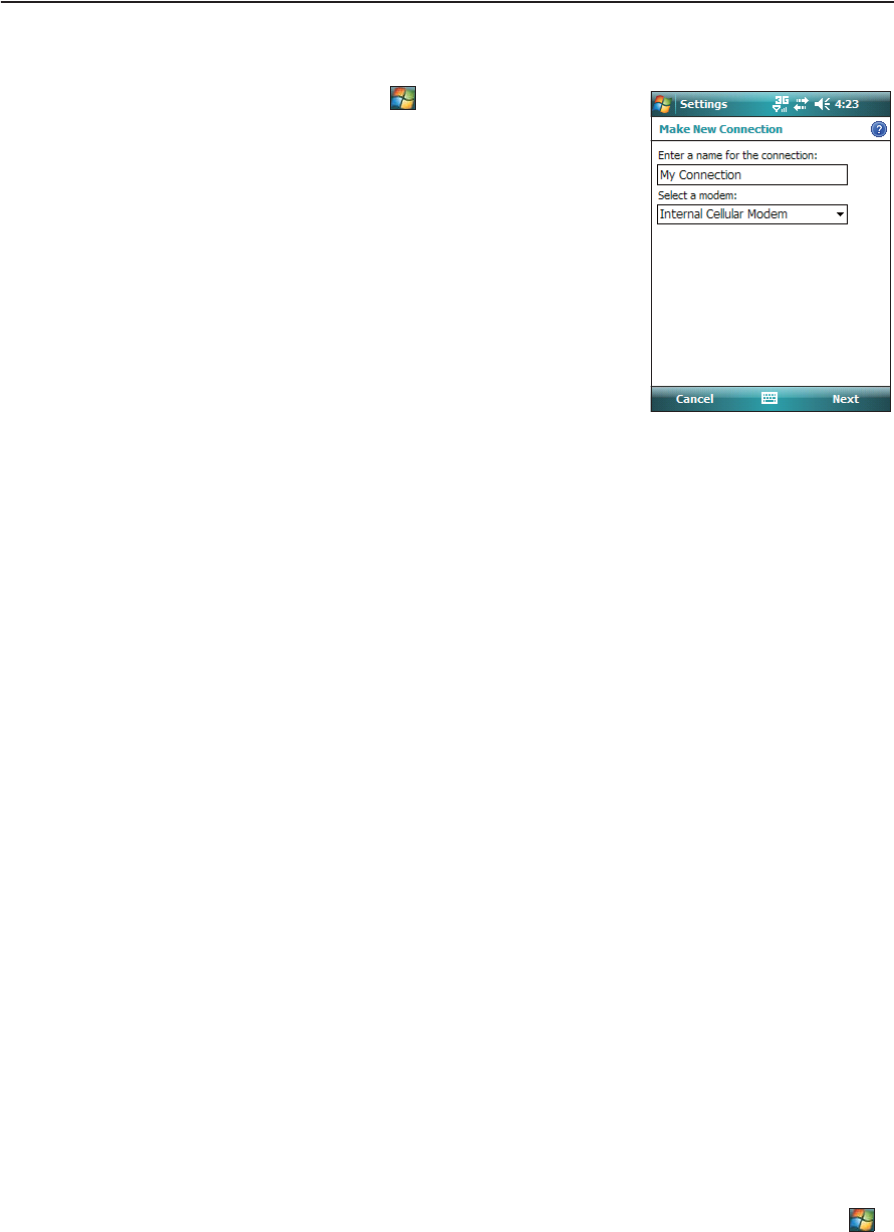

connect to the Internet or to a computer
network.

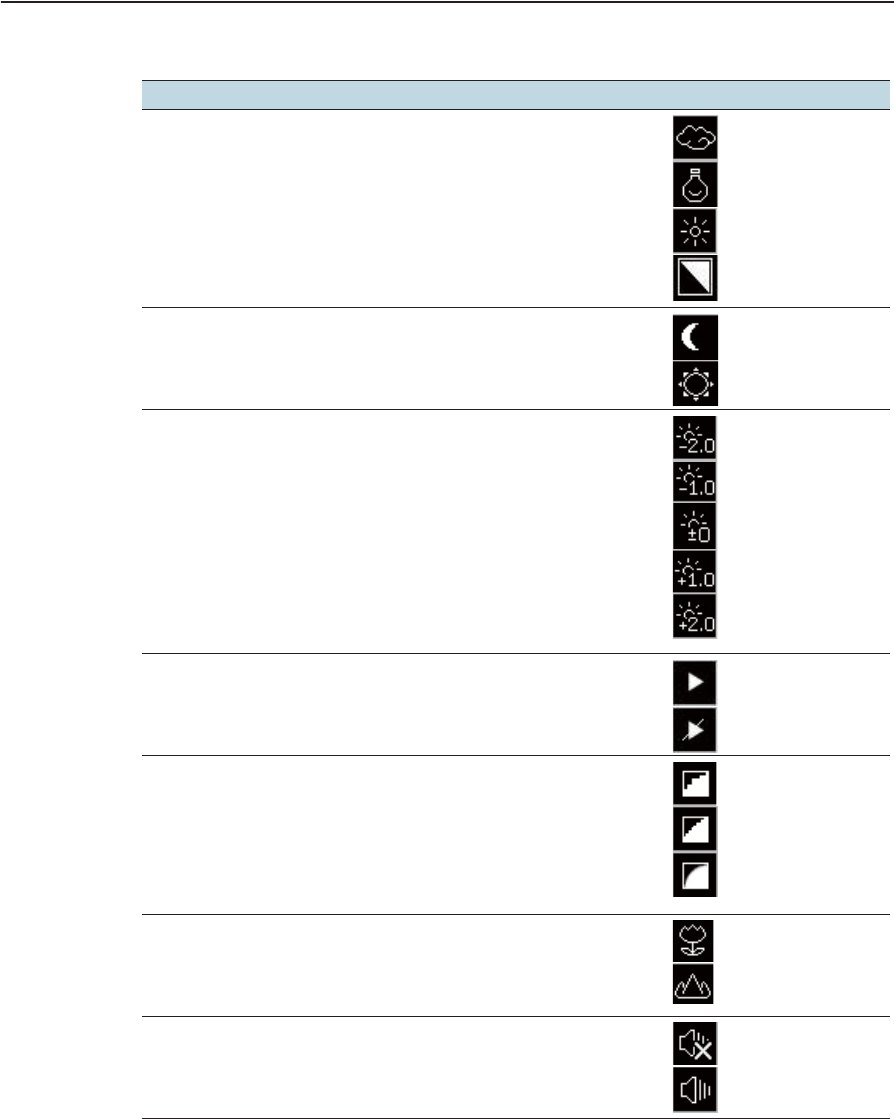

use the handheld’s integrated camera.
Even if you have used other Global Positioning
System (GPS) products before, Trimble
recommends that you spend some time reading
this guide to learn about the special features of
the product. If you are not familiar with GPS, go
to the Trimble website (www.trimble.com) for an
interactive look at Trimble and GPS.
1 Introduction
18 Juno Series User Guide

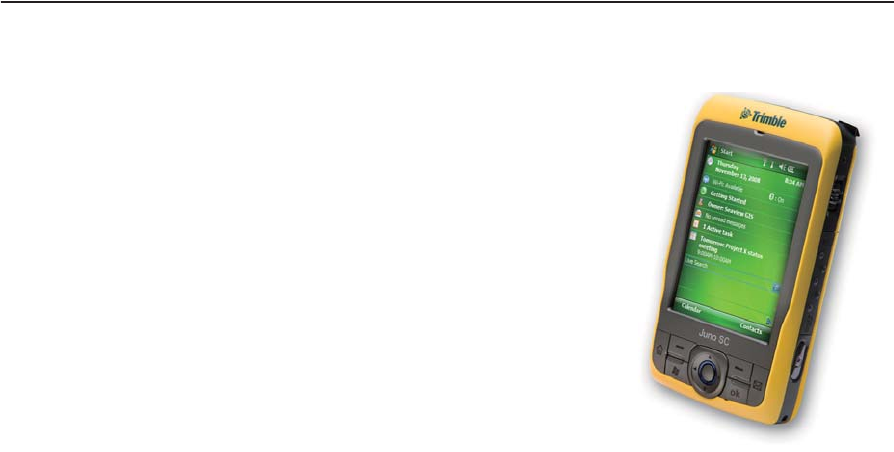

About the Juno series handheld
The Juno series includes the Juno SB, Juno SC, and
Juno SD handhelds. These handhelds combine a high
sensitivity GPS receiver with a field computer
powered by the Windows Mobile version 6.1
operating system.
The Juno series handheld has built-in Bluetooth®
wireless technology for cable-free connection to
other devices, and wireless LAN (Local Area
Network) connectivity for connections to networks.
In addition, the Juno SC and Juno SD handhelds
contain a cellular modem for downloading and
transmitting data, and the Juno SD also supports
voice calls and text messaging.
The integrated GPS receiver provides accurate positioning information within 3
meters when using real-time or postprocessed differential correction. For more
information, see Chapter 5, Using the GPS Receiver.
Supported GPS field software
To collect GPS data with the Juno series handheld, you must install GPS field software
onto the handheld. You can use the Juno series handheld with the following GPS field
software:
Trimble TerraSync software, for configuring real-time differential correction
options and for productive GIS data collection and maintenance.
The Trimble GPScorrect extension for ESRI ArcPad software, for configuring
real-time differential correction options and for productive GIS data collection
and maintenance.
The Trimble GPS Pathfinder® Tools Software Development Kit (SDK), for
integrating GPS data and adding value to an existing mapping and GIS field
software application.

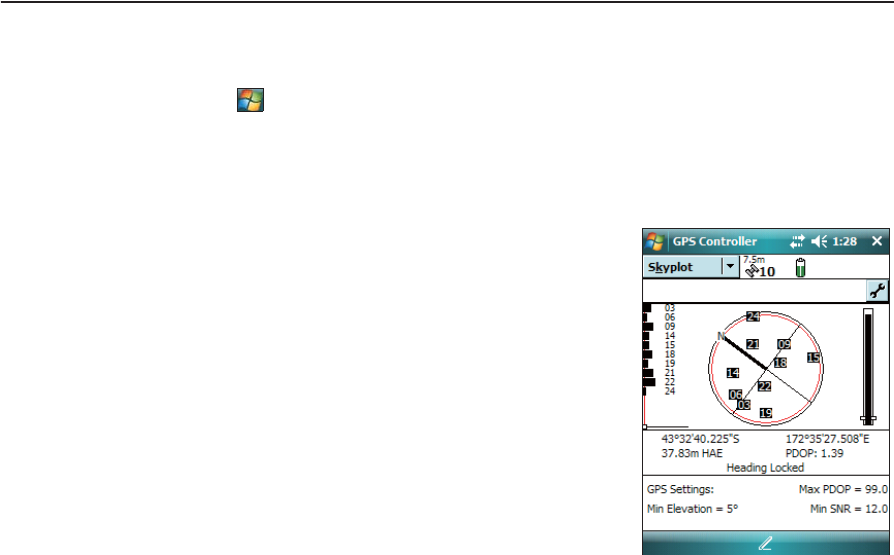

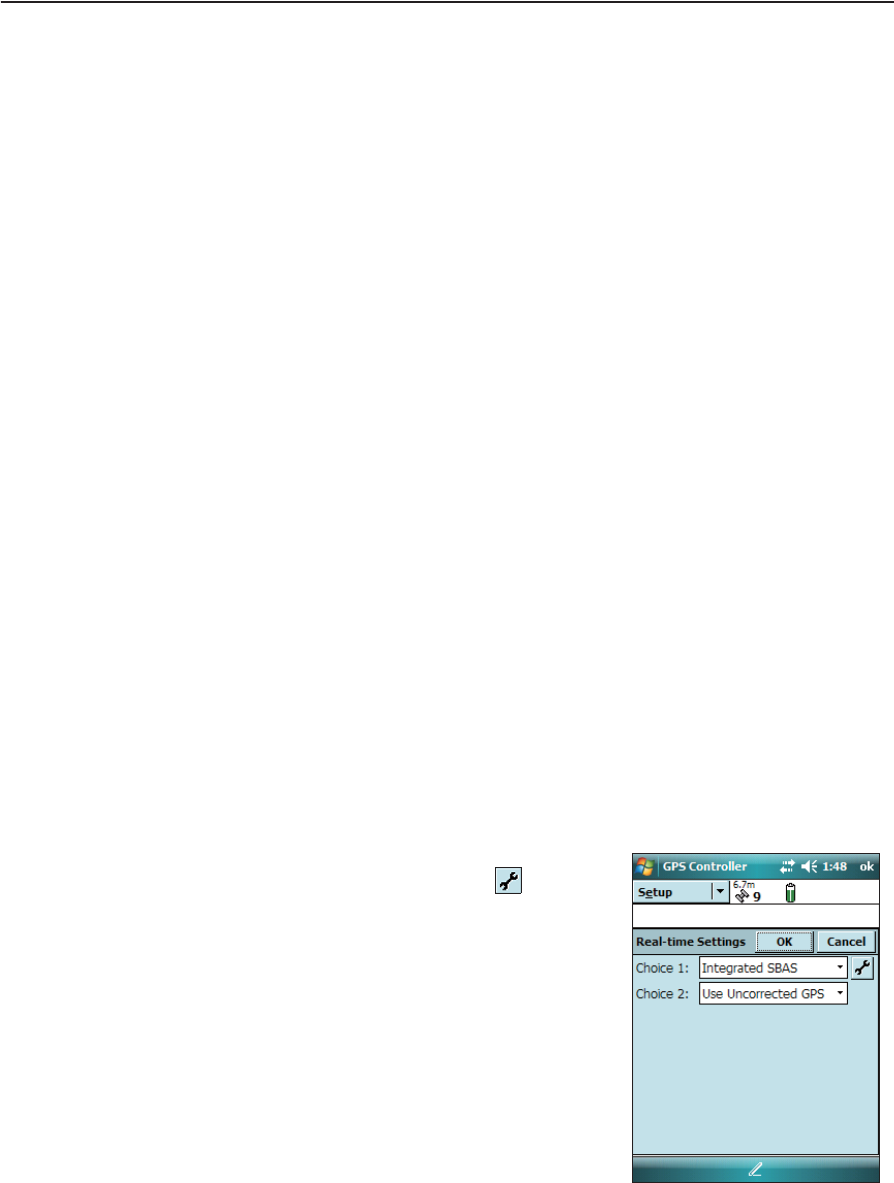

Trimble GPS Controller software, for configuring real-time differential
correction options and NMEA output settings.
Other GPS field software that accepts NMEA messages.
For more information, see Chapter 5, Using the GPS Receiver.
Juno Series User Guide 19
Introduction 1
What’s in the box?
When you unpack the Juno series handheld, check that you have received all the
components, as shown below.
Figure 1.1 Items included with the Juno series handheld
Inspect all contents for visible damage (scratches, dents) and if any components
appear damaged, notify the shipping carrier. Keep the shipping and packaging material
for the carrier’s inspection
Quick Start Guide Lanyard USB Data Cable
2 x Stylus
Battery
Juno handheld
Headset Getting Started Disc
AC power adaptor and
international adaptor kit
(Juno SD handheld only)
1 Introduction
20 Juno Series User Guide
Accessories
The following optional accessories are available:
For more information, go to www.trimble.com/junosb.shtml,
www.trimble.com/junosc.shtml, or www.trimble.com/junosd.shtml.
Use and care of the handheld
When using the handheld:
Protect the touch screen by using the stylus provided, and avoid using excessive
pressure and sharp or abrasive objects. To protect the touch screen from
pressure and abrasive objects, Trimble recommends that you apply a screen
protector.
Keep the outer surface free of dirt and dust.
Ensure that protective covers and doors are appropriately fitted to the external
antenna port, headset jack, USB and power connectors, SIM and memory card
areas, so that they are kept free from dirt, dust, fluid ingress, and electrostatic
discharge (see Memory cards, page 35).
Protect the handheld from extreme temperatures. For example, do not leave the
handheld on the dashboard of a vehicle.
The handheld is not waterproof. Do not expose the handheld to rain or
moisture.
Be careful not to drop the handheld or subject it to any strong impact.
To clean the handheld, wipe it with a clean dry cloth. Do not immerse the handheld in
water.
Storage
If you are not going to use the handheld for three months or more, Trimble
recommends that you do not leave the handheld in Suspend mode (see page 32).
Instead, partially charge the battery and then turn off the handheld.
To prepare the Juno series handheld for storage:
1. Transfer any data that you need to an office computer.
2. Charge the battery to approximately 30%.
Vehicle power adaptor
Carry case
External patch antennas
Screen protectors (2 pack)
Vehicle mount
Replacement stylus (2 pack)
Replacement International AC adaptor
Replacement battery
Replacement headset (Juno SD
handheld only)
Juno Series User Guide 21
Introduction 1
3. Press and hold the Power key for five seconds to turn off the handheld.
4. Store the handheld at room temperature.
To use the Juno series handheld after storage:
1. Press the Power key to turn on the handheld.
2. Recharge the battery (see Charging the battery, page 30).
Technical assistance
Technical support
Go to the Juno series handheld technical support page
(www.trimble.com/junosd_ts.asp or www.trimble.com/junosc_ts.asp or
www.trimble.com/junosb_ts.asp) on the Trimble website for the latest support
information about the software, including:
FAQs
support notes detailing support issues
documentation
the latest files available for download
Additional help
If you still cannot find the information that you need, contact your Trimble reseller.
Windows error reporting
If for any reason a Microsoft Windows Error Reporting dialog appears, indicating that
the handheld or Trimble GPS field software has encountered a problem and needs to
close, you are prompted to send an error report to Microsoft.
Trimble recommends that you click Send and then click any subsequent links that are
used to obtain additional information.
Trimble can access the report that is sent to Microsoft and use it to improve the Juno
series handheld.
Your comments
Your feedback about the supporting documentation helps us to improve it with each
revision. Email your comments to ReaderFeedback@trimble.com.
1 Introduction
22 Juno Series User Guide
CHAPTER
2
Juno Series User Guide 23
Getting Started 2
In this chapter:
QParts of the Juno series handheld
QKeypad buttons
QPowering the handheld
QTurning on and turning off the
handheld
QResetting the handheld
QStoring data

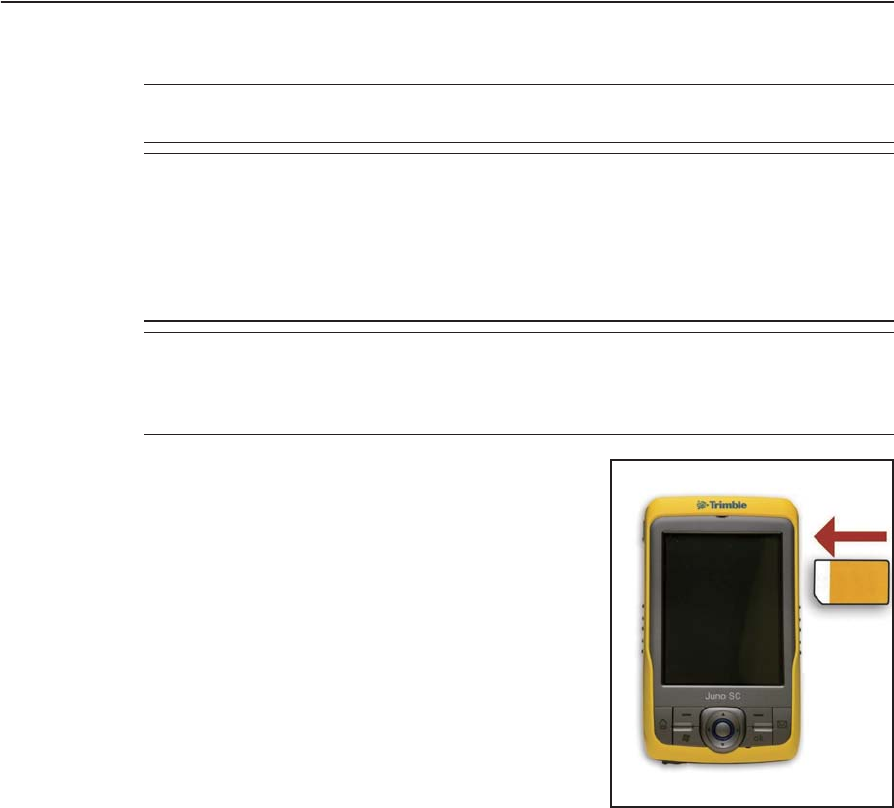

QInstalling and removing the SIM
card
This chapter describes the main features of the
Juno series handheld, and provides the
information you need to get up and running with
the handheld.
2 Getting Started
24 Juno Series User Guide
Parts of the Juno series handheld
The following pages show the main parts of the handheld.
Figure 2.1 Juno series handheld – Juno SB and Juno SC - front view
Figure 2.2 Juno series handheld – Juno SD - front view
Soft keys
Inbox
OK
Microphone
Navigation and Enter keys
Start
Today
Soft keys
End call
OK
Microphone
Navigation and Enter keys
Start
Start call
Juno Series User Guide 25
Getting Started 2

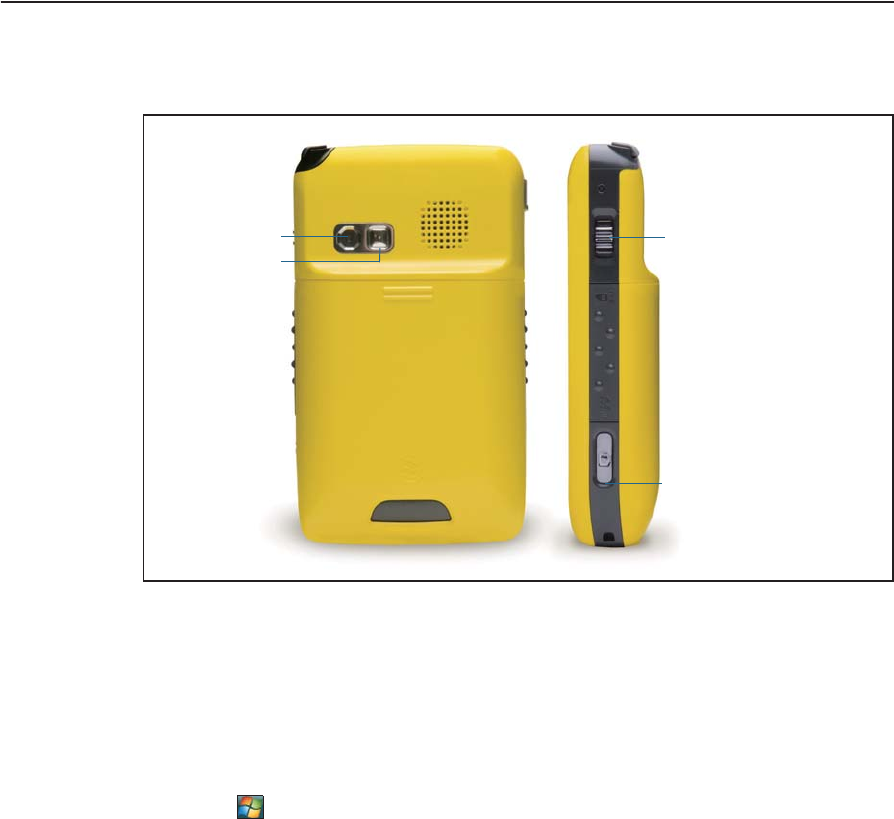

Figure 2.3 Juno series handheld – left and right views
Figure 2.4 Juno series handheld – bottom view
External GPS
antenna connector
Power button
Stylus holder
Reset button
Zoom
SIM card slot
(SC and SD versions)
MicroSD
card slot
Camera button
Lanyard tether point
Power LED
Camera lens
Power
Mini USB socket
Headset
connector Connector
2 Getting Started
26 Juno Series User Guide
Keypad buttons
The Juno series handheld keypad provides fast, easy access to common actions.

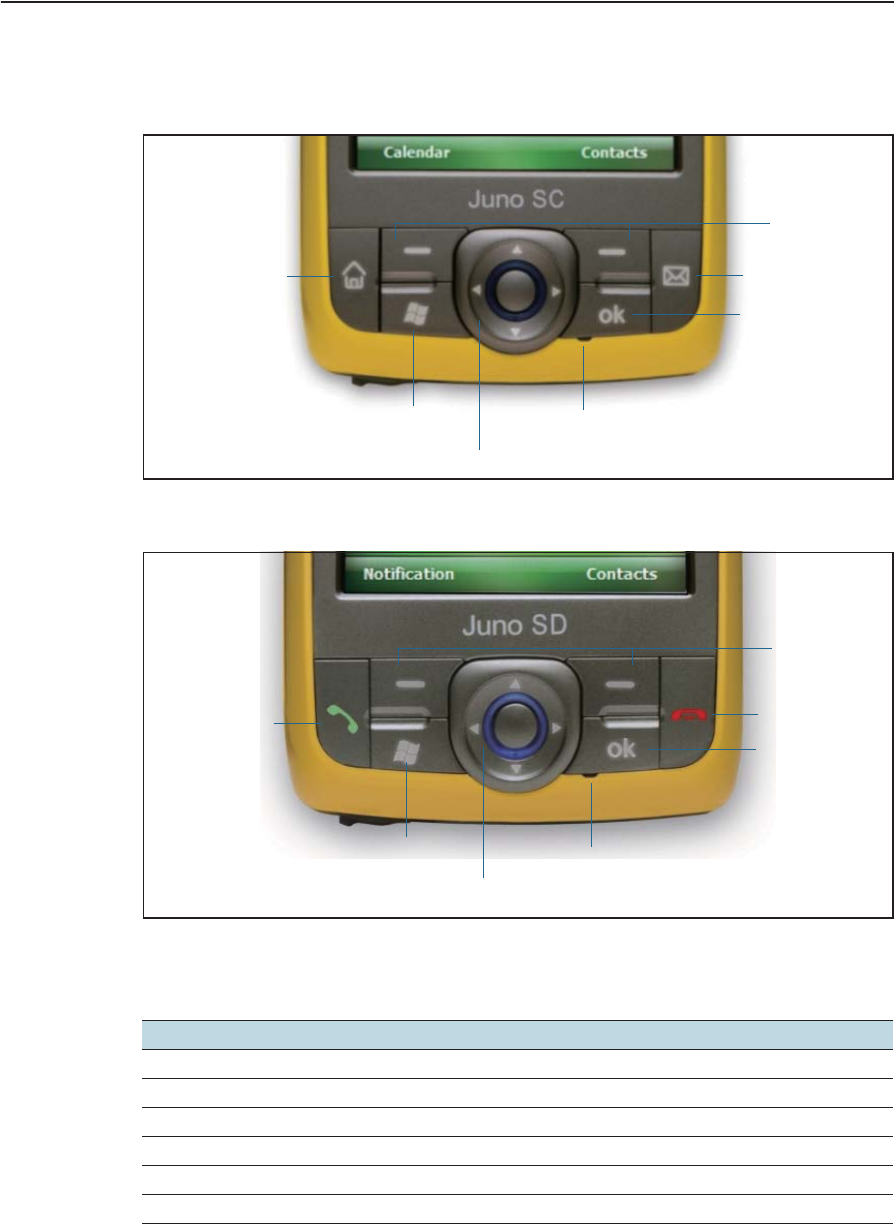

Figure 2.5 Juno series handheld keypad buttons - Juno SB and Juno SC
Figure 2.6 Juno series handheld keypad buttons - Juno SD
The function of each key is described below:
Key Description
Start Press to display the Windows Mobile Start menu.
OK Press to select OK or to close an application.
Today (Juno SB and Juno SC) Press to display the Today screen.
Start call (Juno SD only) Press to access the phone functionality and make a phone call.
Inbox (Juno SB and Juno SC) Press to access the email Inbox.
End call (Juno SD only) Press to end a phone call.
Soft keys
Inbox
OK
Microphone
Navigation and Enter keys
Start
Today
Soft keys
End call
OK
Microphone
Navigation and Enter keys
Start
Start call
Juno Series User Guide 27
Getting Started 2
B
Tip – To lock the screen and handheld keys without turning off the handheld, use the
device lock option (see Device lock, page 48).
Navigation keys Use these keys to navigate around the screen, scroll through
menus, or to tab through options on windows and forms. Use
the:
arrow keys to move up, down, left, and right.
action key (the center key) to perform an application-
specific action, which is usually Enter.
Soft keys By default these keys perform the same action as the left and
right softkeys in the menu bar.
Alternatively, program these keys to perform a selected
action. To program the keys, use the Buttons control (see
Buttons, page 46).
Key Description
2 Getting Started
28 Juno Series User Guide
Powering the handheld

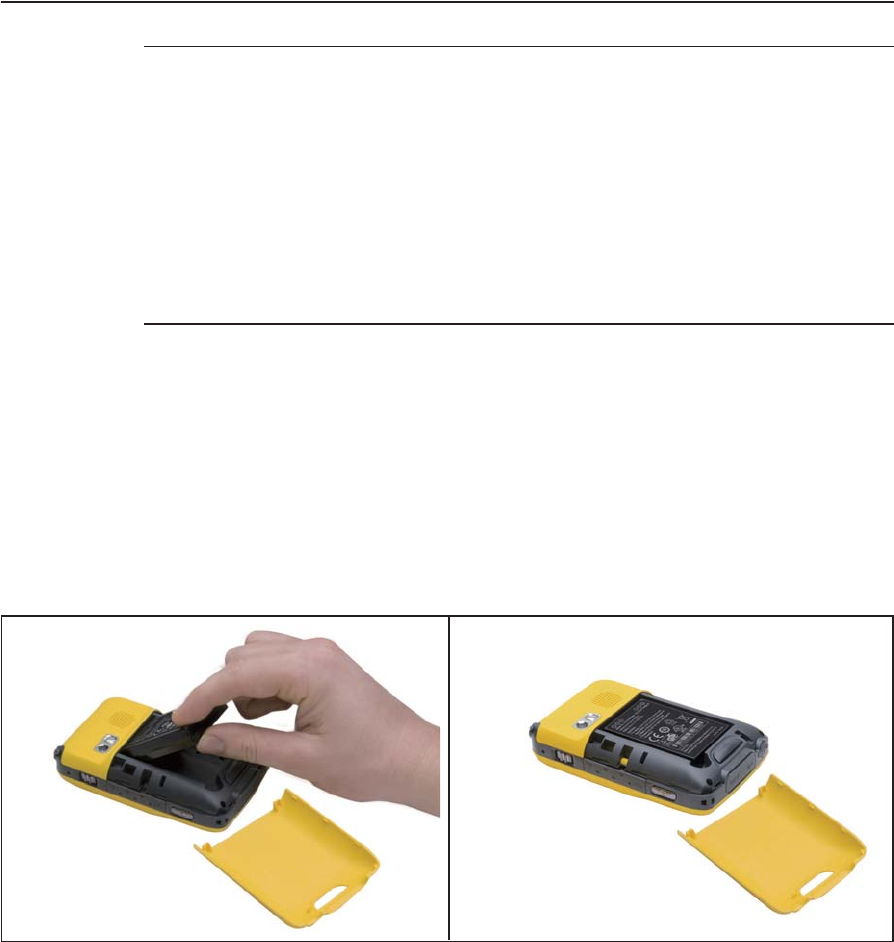

The Juno series handheld contains a rechargeable Lithium-ion battery.
Note – Charge the battery completely before using the handheld for the first time. If the
battery has been stored for longer than six months, charge it before use. Trimble
recommends charging the battery for four hours to recharge it fully.
Note – Cold temperatures, or using Bluetooth wireless technology or wireless LAN
connectivity, or using the cellular modem consumes additional battery power and so
shortens battery life between charges.
AC adaptor safety
C
WARNING – To use AC adaptors safely:
– Use only the AC adaptor intended for the Juno series handheld. Using any
other AC adaptor can damage the handheld and may void your warranty. Do not use
the AC adaptor with any other product.
– Make certain that the input voltage on the adaptor matches the voltage and frequency
in your location.
– Make certain that the adaptor has prongs compatible with your outlets.
– Do not use the AC adaptor in wet outdoor areas; it is designed for indoor use only.
– Unplug the AC adaptor from power when not in use.
– Do not short the output connector.
– Be aware that there are no user-serviceable parts in this product.
– If the AC adaptor becomes damaged, replace it with a new Trimble AC adaptor.
Battery safety
C
WARNING – Do not damage the rechargeable Lithium-ion battery. A damaged battery
can cause an explosion or fire, and can result in personal injury and/or property damage.
To prevent injury or damage:
– Do not use or charge the battery if it appears to be damaged. Signs of damage include,
but are not limited to, discoloration, warping, and leaking battery fluid.
– Do not store or leave your device near a heat source such as near a fireplace or other
heat-generating appliance, or otherwise expose it to temperatures in excess of 70 °C
(158 °F) such as on a vehicle dashboard. When heated to excessive temperatures, battery
cells could explode or vent, posing a risk of fire.
– Do not immerse the battery in water.
– Do not use or store the battery inside a vehicle during hot weather.
– Do not drop or puncture the battery.
– Do not open the battery or short-circuit its contacts.
C
WARNING – Avoid contact with the rechargeable Lithium-ion battery if it appears to be
leaking. Battery fluid is corrosive, and contact with it can result in personal injury and/or
property damage.
To prevent injury or damage:
– If the battery leaks, avoid contact with the battery fluid.
– If battery fluid gets into your eyes, immediately rinse your eyes with clean water and
seek medical attention. Do not rub your eyes!
– If battery fluid gets onto your skin or clothing, immediately use clean water to wash off
the battery fluid.
Juno Series User Guide 29
Getting Started 2
C
WARNING – Charge and use the rechargeable Lithium-ion battery only in strict
accordance with the instructions. Charging or using the battery in unauthorized
equipment can cause an explosion or fire, and can result in personal injury and/or
equipment damage.
To prevent injury or damage:
– Do not charge or use the battery if it appears to be damaged or leaking.
– Charge the Lithium-ion battery only in a Trimble product that is specified to charge it.
Be sure to follow all instructions that are provided with the battery charger.
– Discontinue charging a battery that gives off extreme heat or a burning odor.
– Use the battery only in Trimble equipment that is specified to use it.
Use the battery only for its intended use and according to the instructions in the product
documentation.
Inserting the battery
To insert the battery into the handheld:
1. On the back of the handheld, use your thumb to press the gray button below the
Windows logo and then slide the back cover down to remove it.
2. To insert the battery, angle the top of the battery into the handheld, with the
label facing upwards (as shown in Figure 2.7). Press the battery flat until it clicks
into place.
Figure 2.7 Inserting the battery
3. To replace the back cover, slide it upwards until it snaps closed.
B
Tip – To remove the battery, remove the back cover of the handheld and then insert your
finger or the stylus in the notch below the bottom left of the battery. Then pull the
bottom of the battery towards you.
2 Getting Started
30 Juno Series User Guide
Charging the battery
Charge the battery in the handheld (see page 29). To charge the battery, do one of the
following:
Connect the AC power adaptor to the Power socket on the handheld and then
connect the adaptor to mains power. An international adaptor kit is provided
with the handheld.
Connect the optional vehicle power adaptor to the Power socket on the
handheld and then connect the adaptor to the vehicle power source.
When the handheld is connected to a power source, the battery icon in the Today
screen changes to . Fully charging the battery from empty takes approximately four
hours. You can use the handheld while it is charging.
Note – You can only use the USB cable (connected to a computer) to provide a minimal
charge to the battery; the battery must have enough power to turn on the Juno series
handheld and form an active connection to the computer. To fully charge the battery, use
the AC or vehicle power adaptor.
The Power LED beside the Power key on the handheld indicates the battery power or
charging status, as shown below:
Avoid keeping the battery at full charge at high temperatures. For more information,
see Storage, page 20.
Note – The life of the battery can be significantly shortened if power is constantly supplied
to the handheld. To avoid this issue, connect the handheld to an external power source
only when the battery requries charging. Once fully charged, disconnect the external power
source and allow the battery to discharge through normal use.
Power source LED state Handheld/battery state
Battery power Off Off (in Suspend mode or turned off).
Off On and battery level is good.
Flashing red On and battery is low (less than 5%).
External power Flashing green Charging.
Solid green Charging is complete.
Juno Series User Guide 31
Getting Started 2

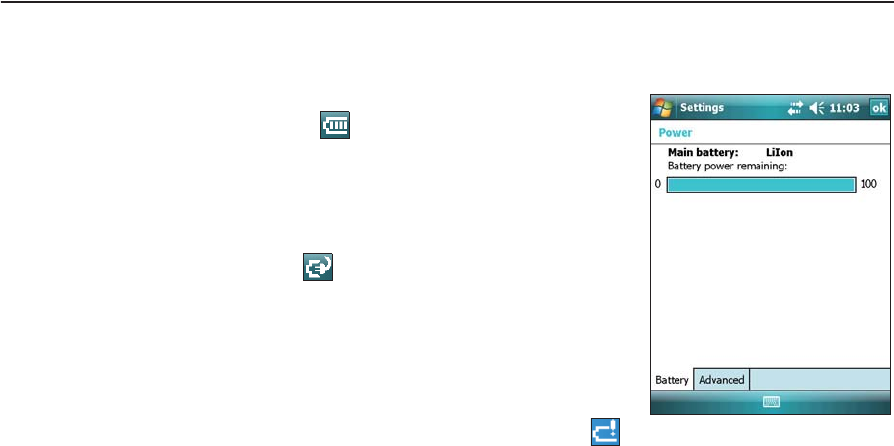

Checking the level of battery power
To check the level of battery power remaining at any time,
tap the battery icon in the title bar of the Today
screen. The Power control appears, displaying the Battery
tab.
When the handheld battery is recharging from an
external power source, the battery icon in the Today
screen changes to . You can still tap the icon to view
the level of battery power.
Low battery indicators
If the battery level becomes low during normal use of the
handheld, the LED indicator flashes red and the battery
icon in the title bar of the Today screen changes to .
Back up your data and then recharge the battery.
Conserving power
Although the handheld battery can operate for a full day without recharging, Trimble
recommends that you do the following to reduce power consumption:
Set the handheld to automatically turn off when idle. For more information, see
Suspend mode, page 32.
Set the backlight to automatically turn off when the handheld is idle for a
specified time. For more information, see Backlight, page 51.
Reduce the brightness setting for the backlight. For more information, see
Backlight, page 51.
Turn off the integrated Bluetooth or wireless LAN radios or cellular modem
whenever you are not using them. For more information, see Turning on and
turning off the integrated radios, page 82.
Disconnect from the integrated GPS receiver when GPS data is not required,
using the applications Disconnect or Deactivate GPS command. When you
disconnect from GPS, the integrated GPS receiver switches off and stops
drawing power.
Note – Do not disconnect from GPS if you will be reconnecting within about five minutes. A
GPS application can take up to 30 seconds to reactivate the integrated GPS receiver, so
disconnecting to save power can cost time.
2 Getting Started
32 Juno Series User Guide
Turning on and turning off the handheld
If the screen on the handheld is blank, the handheld is in Suspend mode (see page 32)
or has been shut down. To turn on the handheld from Suspend mode, press the Power
key briefly (less than two seconds). To turn on the handheld from Shutdown, press and
hold the Power key for five seconds.
To turn off the handheld and put the handheld into Suspend mode, press the Power
key briefly (less than one second).
To completely shut down the handheld, press and hold the Power key for five seconds.
All running applications are shut down, and the handheld is completely turned off.
Suspend mode
When you press the Power key to turn off the handheld, the handheld goes into
Suspend mode. This is a low-power mode that maintains the main memory contents,
stops applications running, and does not allow you to operate any of the handheld’s
functions. The handheld appears to be turned off. The integrated GPS receiver is
turned off and any application using GPS is disconnected.
To turn on the handheld when it is in Suspend mode, press the Power key. The
handheld is immediately ready for operation. There may be a delay of up to 30 seconds
while the integrated GPS receiver automatically reactivates.
You can configure the handheld to automatically enter Suspend mode when it has
been idle for a specified time. By default, the handheld is set to enter Suspend mode if
it is not used for two minutes.

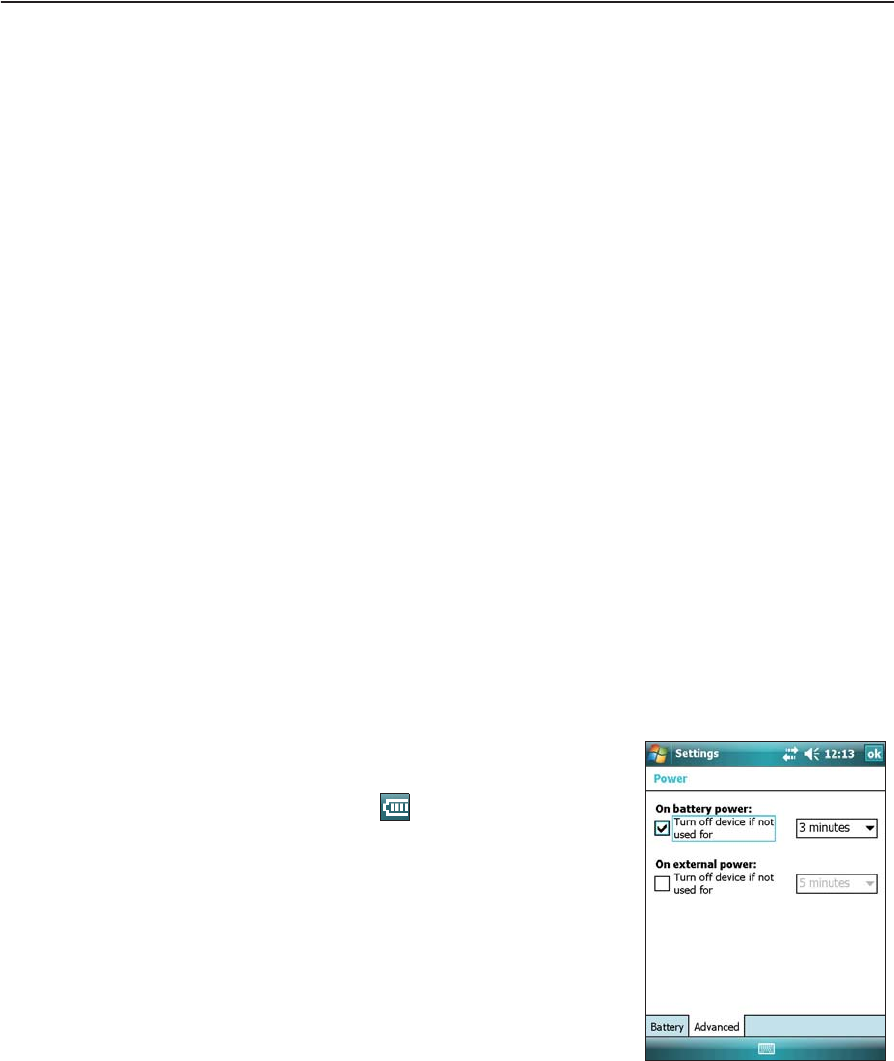

To change the time before the handheld enters Suspend
mode:
1. Tap the battery icon in the title bar of the
Today screen. The Power control appears.
2. Tap the Advanced tab.
3. From the On battery power option, select the Turn
off device if not used for check box and then select
the idle time from the drop-down list.
4. Tap OK.
Juno Series User Guide 33
Getting Started 2
Resetting the handheld
If the screen on the handheld is blank, the handheld has turned off. Press the Power
button to turn on the handheld.
If the handheld stops responding to the stylus, or if it does not respond when you press
any of the keypad buttons, you may need to reset it. First, try a soft reset. If the
handheld does not respond, perform a hard reset.
You can also reset the handheld to its factory default settings.

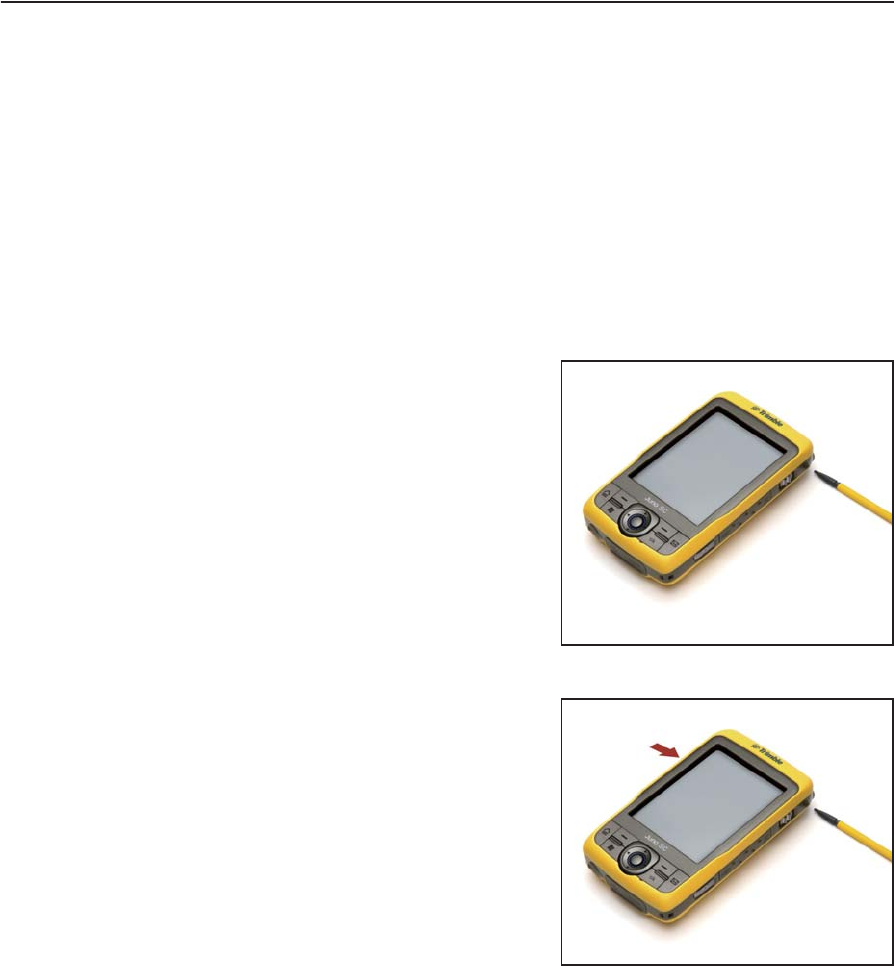

Performing a soft reset
A soft reset is similar to restarting a computer.
A soft reset saves data and closes all open
applications and then restarts the handheld.
All data and settings are retained after a soft
reset.
To perform a soft reset, use the tip of the stylus
to lightly press the Reset button.
Performing a hard reset
A hard reset retains settings and data that you
have previously saved on the handheld.
However, any unsaved data may be lost.
Note – Perform a hard reset only if a soft reset
does not resolve the problem.
To perform a hard reset, press and hold the
Power button as you use the tip of the stylus to
lightly press the Reset button.
2 Getting Started
34 Juno Series User Guide
Resetting to factory default settings
Reset the handheld to factory default settings to restore the handheld to its original
state, or only if a soft reset and then a hard reset does not resolve the problem.
C
CAUTION – Resetting the handheld to factory default settings erases all data, installed
applications, and settings stored in the handheld, except for any data or applications that
were pre-installed on the handheld or are stored on a memory card. It does not change
the language of the operating system used on the handheld.
C
CAUTION – If you have encrypted files on a memory card and you reset the handheld to
factory default settings, the encryption key on the handheld is deleted. This means that
any files you have encrypted on a memory card are permanently locked and unreadable
by any device. For more information, see Encrypting files on memory cards, page 36.
B
Tip – To quickly and easily restore data deleted by performing a factory reset, synchronize
the handheld with a computer before you reset the handheld to the factory default
settings. Once the handheld is reset, resynchronize the handheld with the computer.

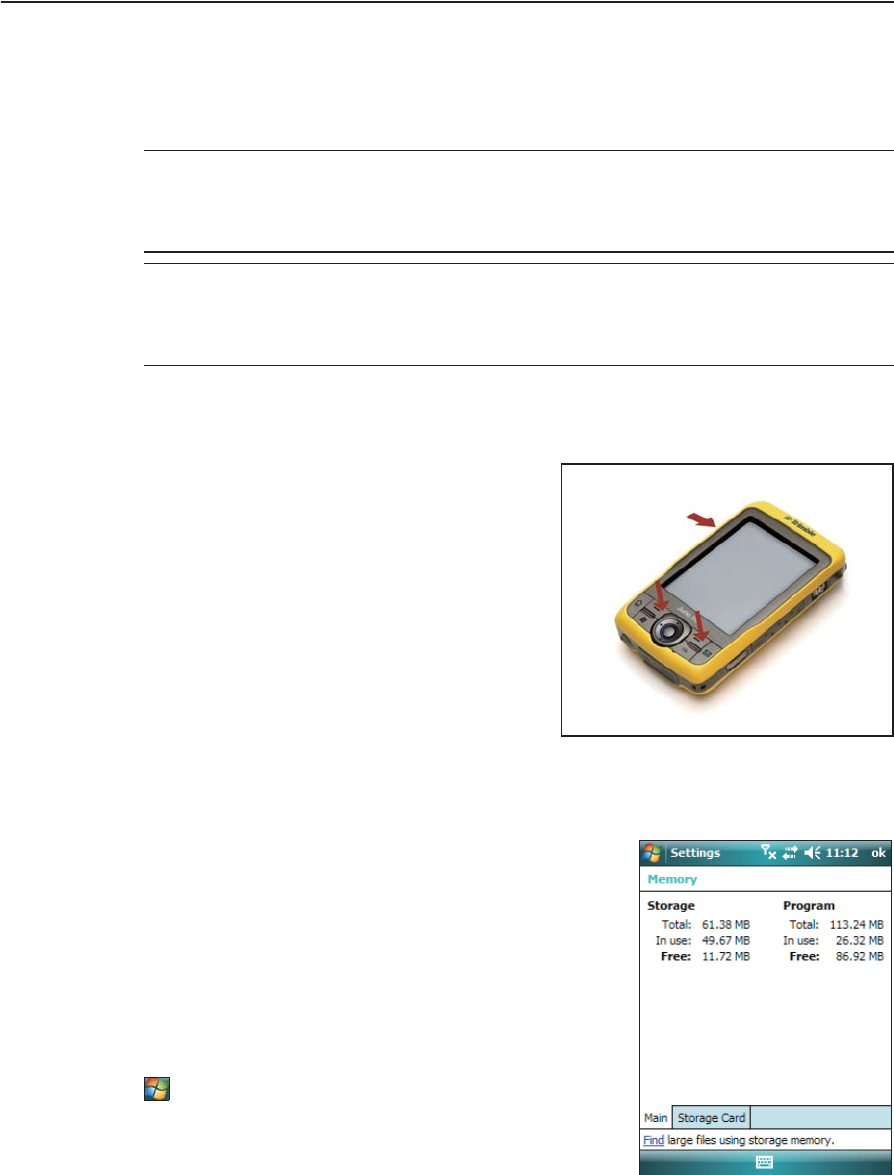

To reset the handheld to the factory default
settings:
1. Power off the device completely by
pressing and holding the Power button
for 5 seconds.
2. Press and hold the two soft key buttons
on the handheld.
3. While holding the buttons, press the
Power button.
Storing data
The handheld has two types of memory:
Storage memory is similar to the hard disk in a
computer, and is used for storing programs and
data.
Program memory is similar to the RAM in a
computer, and is used for running programs.
You cannot use it to save data.
To check the memory capacity on the handheld, tap
/Settings / System /Memory. The Storage and
Program columns show the current memory
available, and the memory that is already in use.
Pre-installed documents and program files are not
affected by power loss or resetting. However, you can still lose data if you accidentally
delete or overwrite it.
Juno Series User Guide 35
Getting Started 2
C
CAUTION – The Windows Mobile 6.1 operating system does not include a Recycle Bin.
When you delete files from the handheld, they are deleted permanently.
Trimble recommends that you regularly copy important data to an office computer.
For more information, see Connecting to an Office Computer, page 57.
Memory cards
As an alternative to storage memory, you can save data to a memory card. Use either a
microSD or microSDHC (high capacity) memory card to securely transfer data to and
from another device that supports microSD or microSDHC memory cards.
Note – The Juno series handheld does not support SDIO (SD input/output) cards.
C
CAUTION – The presence of any dust or moisture in the memory card slot may adversely
affect the device and void your Trimble warranty. To prevent dust or moisture entering
the memory card slot:
– Make certain that the memory card slot door is attached correctly when you are using
the handheld outdoors.
– When inserting or removing a memory card, place the handheld on a dust-free indoor
surface.
C
CAUTION – Static electricity can harm electronic components inside the handheld. To
prevent static damage, discharge static electricity from your body before you touch any of
the electronic components inside your device, such as a memory module. You can do so by
touching an unpainted metal surface.
To insert a microSD or microSDHC memory card:
1. Remove the battery cover door
2. Place the handheld face up on a dust-free indoor surface.
3. Remove the memory card slot door.
4. Insert the memory card into the memory card slot with the swipes facing down.
Gently press the card until you hear a click and the card is locked into place.
5. Reattach the memory card slot door to the handheld.
6. Replace the battery cover door.
When you select the Save As option in an application, the memory card appears
in the list of available storage locations.
Note – Do not store required data or applications to a memory card if the card will be
removed. Data saved to a memory card is available only when the card is inserted in the
handheld.
To remove the memory card from the memory card slot, gently press the card in and
then let go. The card pops out.
2 Getting Started
36 Juno Series User Guide
Encrypting files on memory cards
To prevent sensitive data on a memory card from being used if the card is lost or
stolen, files can be encrypted as they are placed on the card.
When encryption is enabled, an encryption key is stored on the handheld. Files are
encrypted as they are copied or written to the memory card. Files already saved on
memory cards before enabling encryption are not automatically encrypted.
Note – Because the encryption key is stored on the handheld, encrypted files are only
readable on the handheld on which they are initially encrypted. It is not possible to read
encrypted files on the storage card with any other device, including another Juno series
handheld or an office computer.
C
CAUTION – If you reset the handheld to the factory default settings, the encryption key is
deleted and the handheld is no longer able to read any encrypted files on a memory card.
This means that any files you have encrypted are permanently locked and unreadable by
any device. To avoid being unable to read previously encrypted files, Trimble recommends
that you use another device, such as an office computer, as the primary location for
storing important data and to control the encryption of important files.
To enable encryption of files as they are written to a memory card:
1. Tap / Settings / System /Encryption.
2. Select the Encrypt files placed on storage cards check box.
Note – Encrypted files appear as ordinary files on the handheld they were encrypted on. If
the memory card is inserted in another device, the files appear with a .menc file extension
and cannot be opened.
To disable encryption, clear the Encrypt files placed on storage cards check box.
Note – Disabling encryption does not remove encryption from any existing files on the
memory card, but ensures that new files placed onto the memory card are not encrypted.
To encrypt files that are already stored on a memory card:
1. Copy the files to the handheld’s internal memory or to an office computer.
2. Ensure encryption is enabled on the handheld.
3. Copy the files back to the memory card. The files are encrypted as they are
written to the memory card.
To remove encryption from files so they can be read by other devices:
1. Insert the memory card in the handheld and then connect the handheld to an

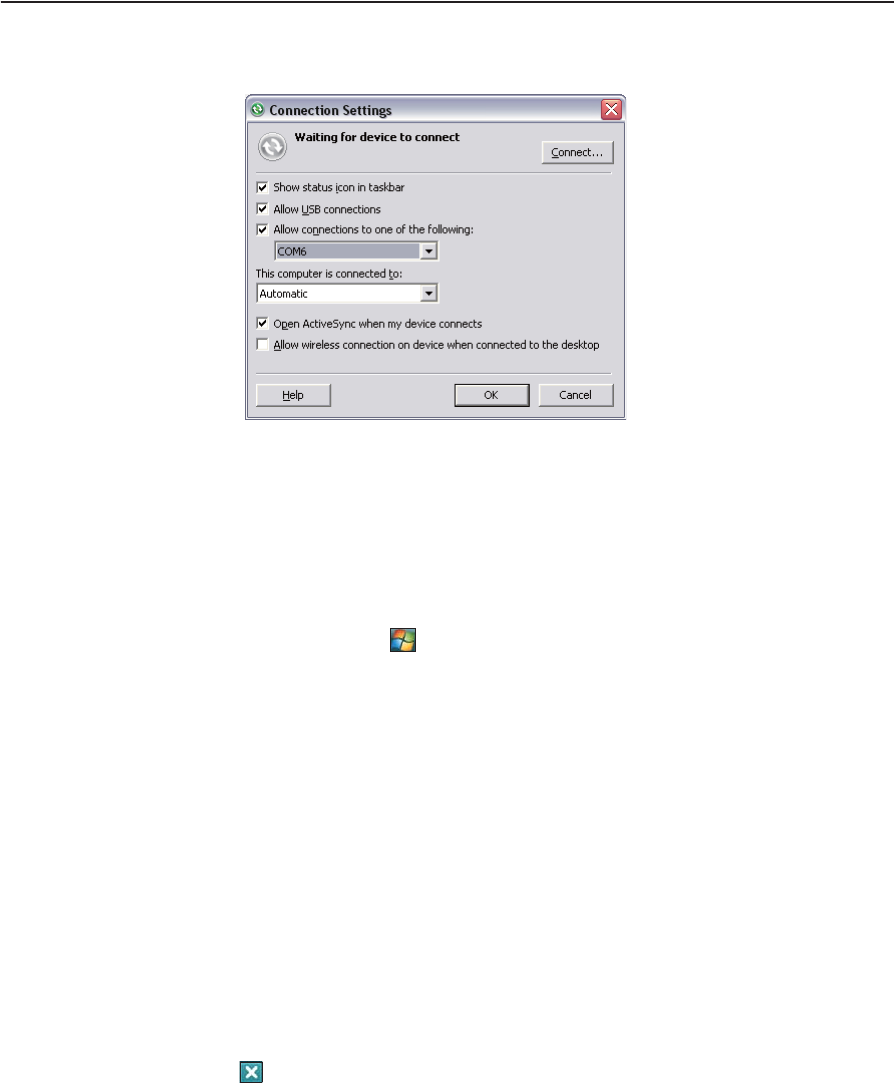

office computer using ActiveSync technology.
2. Copy the encrypted files from the memory card to the office computer.
3. To use the decrypted files on the handheld, copy the files from the office
computer to the handheld’s main memory.
4. To store the decrypted files on a memory card, ensure that encryption is not
enabled on the handheld and then copy the decrypted files from the office
computer to the memory card.
Juno Series User Guide 37
Getting Started 2
Installing and removing the SIM card
C
CAUTION – The SIM card and its contents can be easily damaged by scratches or bending.
Use caution when inserting or removing the card.
C
CAUTION – The presence of any dust or moisture in the SIM card slot may adversely affect
the device and void your Trimble warranty. To prevent dust or moisture entering the SIM
card slot:
– Make certain that the SIM card slot door is attached correctly when you are using the
handheld outdoors.
– When inserting or removing a SIM card, place the handheld on a dust-free indoor
surface.
C
CAUTION – Static electricity can harm electronic components inside the handheld. To
prevent static damage, discharge static electricity from your body before you touch any of
the electronic components inside your device, such as a memory module. You can do so by
touching an unpainted metal surface.
To insert a SIM card:
1. Turn off the handheld.
2. Remove the battery cover door.
3. Place the handheld face up on a dust-free
indoor surface.
4. Remove the SIM card slot door.
5. Insert the SIM card as shown, with the gold
contacts face down.
6. Reattach the SIM card slot door and replace
the battery door cover.
To remove the SIM card from the SIM card slot, gently press the card in and then let go.
The card pops out.
2 Getting Started
38 Juno Series User Guide
CHAPTER
3
Juno Series User Guide 39
Using the Windows Mobile Operating
System 3
In this chapter:
QParts of the screen
QUsing the stylus
QStatus indicators
QPre-installed programs
QAccessing help

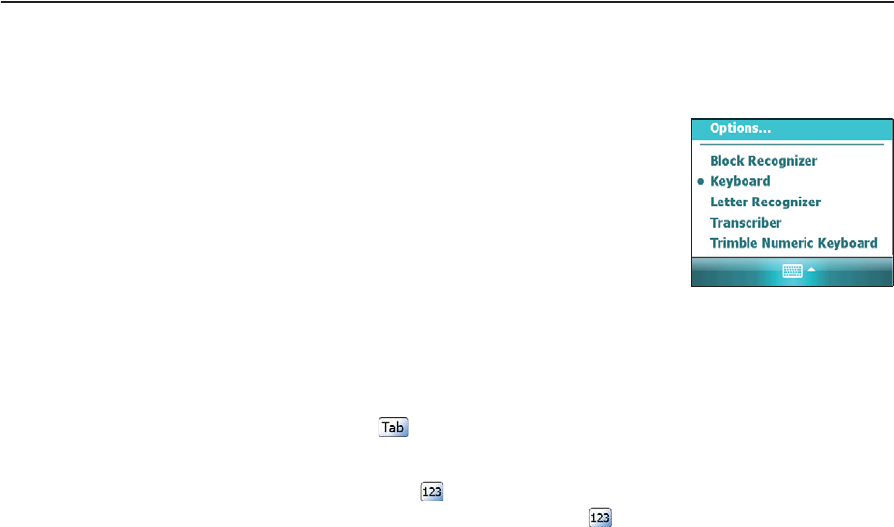

QEntering information
QPersonalizing the handheld
QMessaging
QVoice calls (Juno SD handheld
only)
QText messaging (Juno SD
handheld only)
The Juno SB and Juno SC handhelds are powered
by the Windows Mobile 6.1 Classic operating
system. The Juno SD handheld is powered by the
Windows Mobile 6.1 Professional operating
system.
This chapter describes the main features of the
Windows Mobile operating system.
3 Using the Windows Mobile Operating System
40 Juno Series User Guide

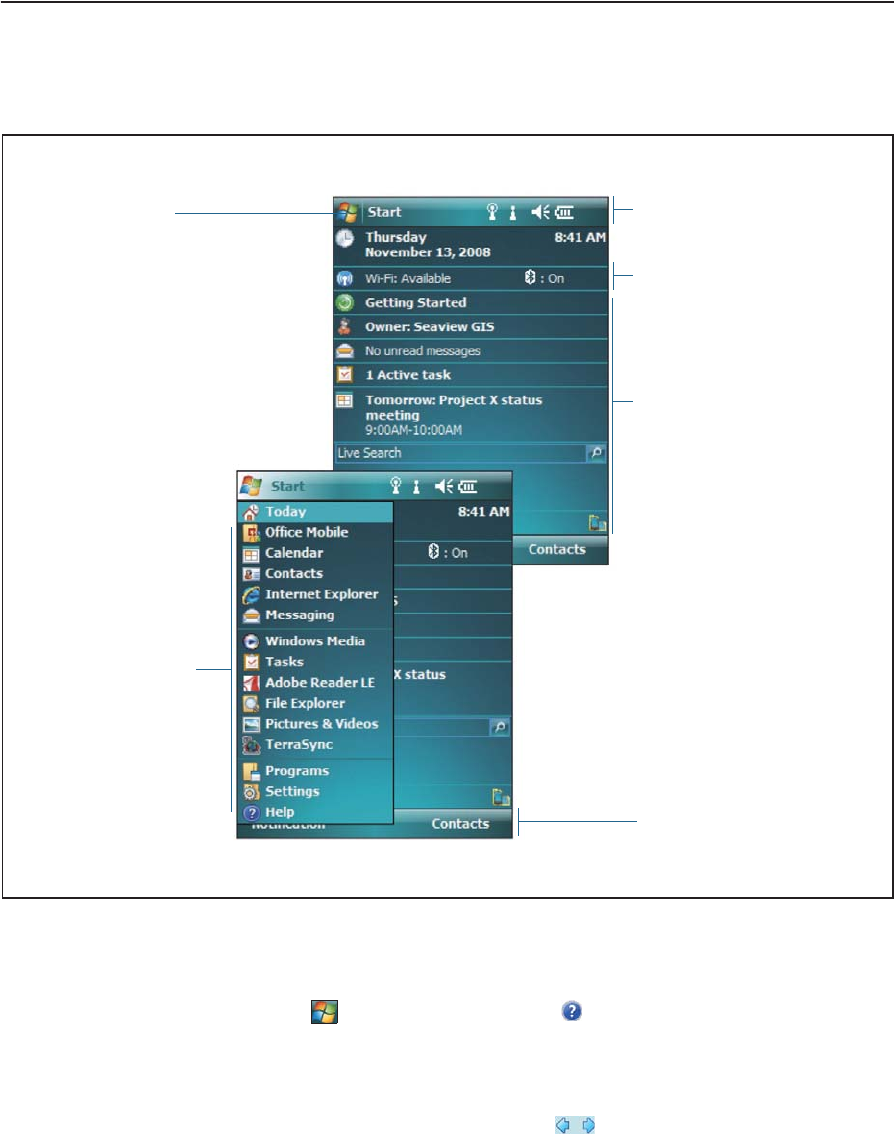

Parts of the screen
The main parts of the screen are shown below.
Accessing help
To access help, tap / Help or, if available, tap in the application window. If there
is an application running, context-sensitive help for the current screen appears. To
view the main Help Contents page, tap the Contents softkey in the menu bar.
Help files installed on the handheld work in the same way as a Web page. Tap
hyperlinks to navigate around the help and use to retrace your steps. Tap View /
Contents to return to the Contents page for the application, and tap View / All Installed
Help to return to the main Contents page.
Start menu
Tap any item on
the menu to
open it.
Start button
Tap to open the Start menu,
where you can access
programs and system
controls.
Title bar
Contains status icons for
important system functions.
Menu bar
Contains softkeys
providing access to
applications, menus,
and notifications.
Today screen
Summarizes your
appointments, tasks,
notes, and emails for the
day. Tap any item to open
it.
Wireless LAN, Bluetooth,
and cellular modem icons
Show status of integrated
radios. Tap an icon to access
the Wireless Manager.
Juno Series User Guide 41
Using the Windows Mobile Operating System 3

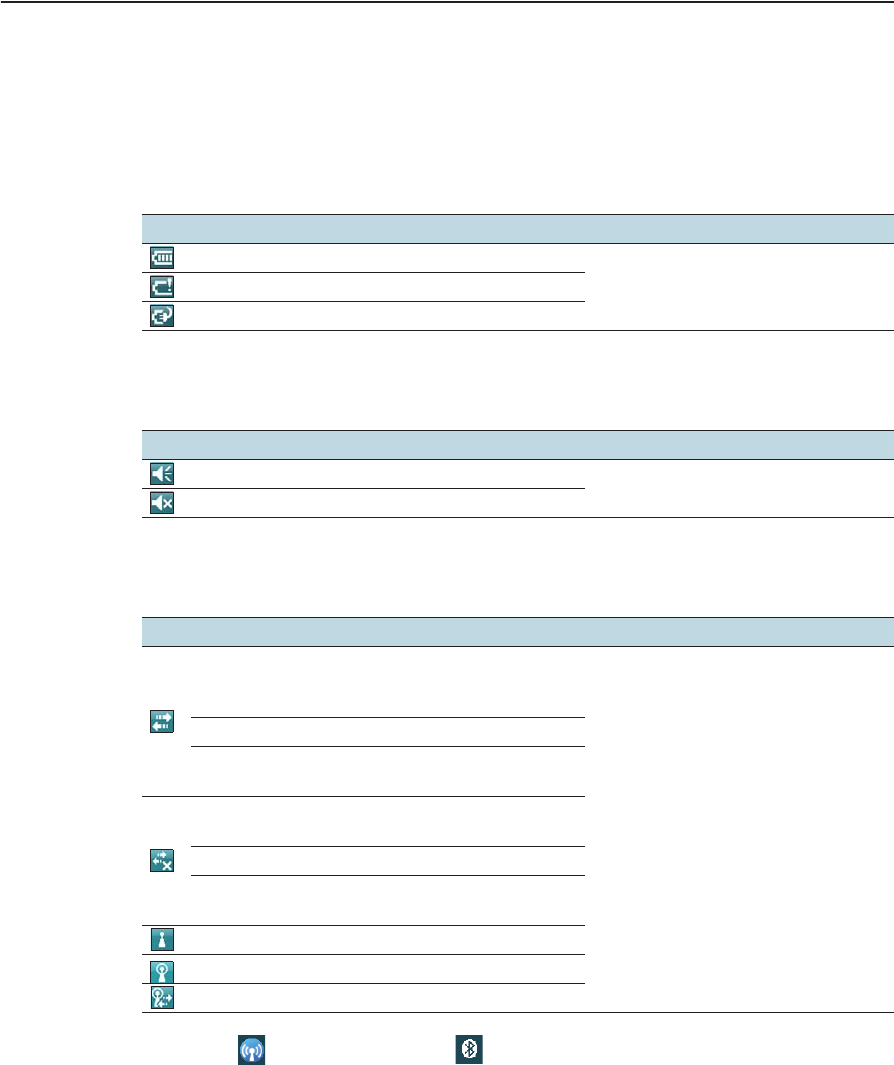

Status indicators
The following status indicators appear in the title bar at the top of the screen.
Battery level indicators
Speaker status indicators
Network indicators
The Wi-Fi and Bluetooth icons on the Today screen show the status of each
radio. Tap the icon to access the Wireless Manager and turn on or turn off the radios.
Modem status indicators
The modem status indicators which appear on the title bar at the top of the screen
vary depending on the model of Juno series handheld.
Icon Tap icon to...
Battery level
check battery levelLow battery (10% or less remaining)
Battery charging/using external power
Icon Tap icon to...
Speaker is on change volume
Speaker is off
Icon Tap icon to...
Connected to ActiveSync technology or the
Windows Mobile Device Center (WMDC) on a
computer
configure the connection or access
the Wireless Manager
Connected to a Bluetooth-enabled phone
Connected to a cellular network (Juno SC
handheld only)
Disconnected from ActiveSync technology or
WMDC
Disconnected from a Bluetooth-enabled phone
Disconnected from a cellular network (Juno SC
handheld only)
Wireless LAN radio is on
A wireless LAN is detected
Sending or receiving wireless signals
3 Using the Windows Mobile Operating System
42 Juno Series User Guide

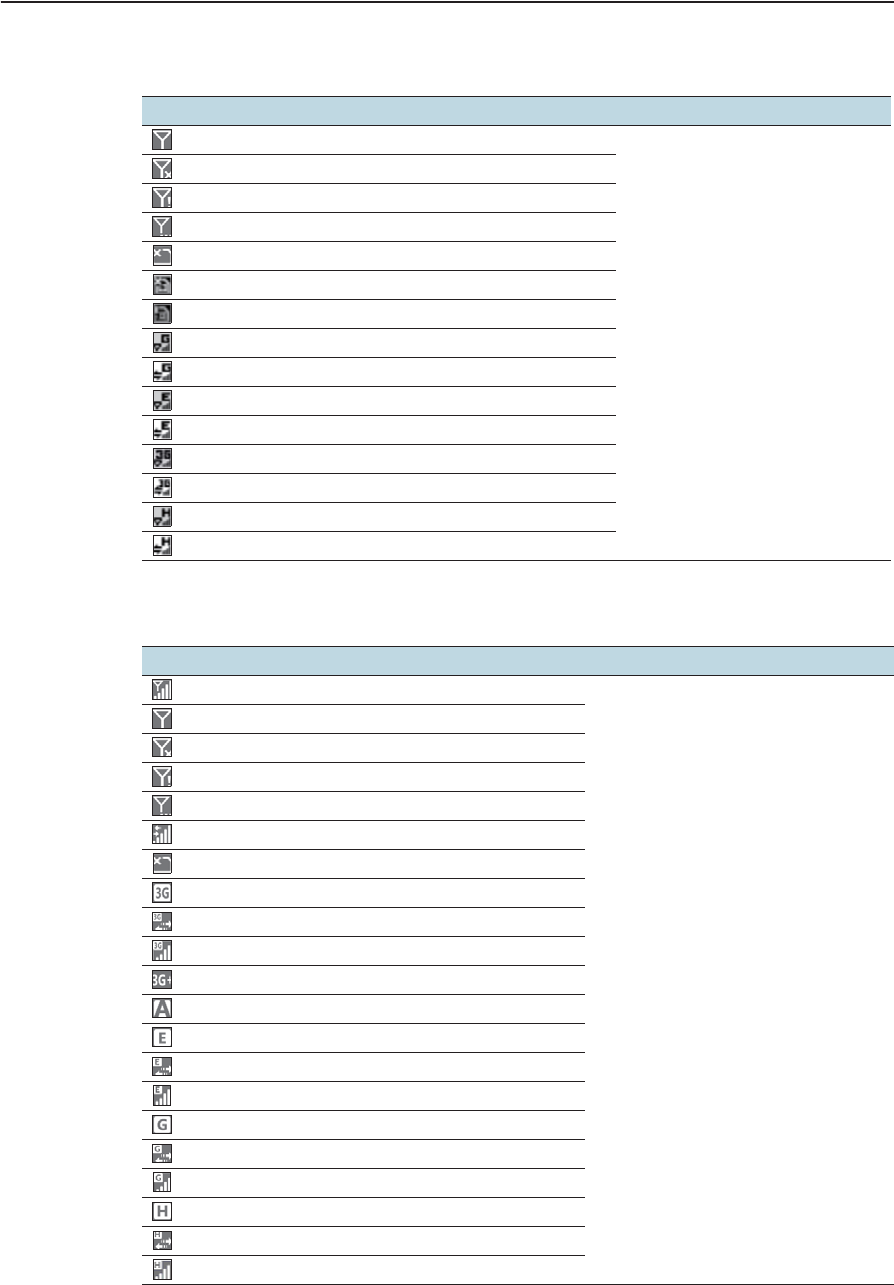

Modem status indicators on the Juno SC handheld
Modem status indicators on the Juno SD handheld
Icon Tap icon to...
No cellular modem signal
access the Modem Control
application.
Cellular modem is turned off
No cellular service
Searching for cellular modem service
No SIM card
Cellular modem is turned on but no SIM card
Cellular modem is turned on but SIM card has failed
GPRS network is available
GPSR connection is active
EDGE network is available
EDGE connection is active
W-CDMA network is available
W-CDMA network is active
HSDPA network is available
HSDPA connection is active
Icon Tap icon to...
Maximum cellular modem signal strength
configure the Phone settings or
access the Wireless Manager
No cellular modem signal
Cellular modem is turned off
No cellular service
Searching for cellular modem service
Data is transferring using the cellular modem
No SIM card
UMTS network is available
UMTS network is connecting
UMTS connection is active
3G+ network is available
Analog network is available
EDGE network is available
EDGE network is connecting
EDGE connection is active
GPRS network is available
GPRS network is connecting
GPSR connection is active
HSDPA network is available
HSDPA network is connecting
HSDPA connection is active
Juno Series User Guide 43
Using the Windows Mobile Operating System 3
Pre-installed programs
Programs that are pre-installed on the Juno series handheld are as follows:
For more information about using any of this software, refer to the Help for the
software. See Accessing help, page 40.
Program Function
ActiveSync Synchronize information between the handheld and a computer.
Adobe Reader LE View PDF files.
Calculator Perform basic arithmetic functions.
Calendar Keep track of appointments and arrange meetings.
Contacts Keep track of your friends and colleagues.
Excel Mobile From the Start menu, tap Office Mobile and then tap Excel Mobile.
Use Excel® Mobile to create and edit Excel spreadsheets.
File Explorer View and manage files.
Help View help. If there is an application running, context-sensitive
help for the current screen appears. To view the main Help
Contents page, tap the Contents softkey in the menu bar
Internet Explorer Browse the World Wide Web.
Messaging Write, send, and receive email messages.
Messenger Send instant messages using Windows Live Messenger.
Notes Create handwritten, typed, or recorded notes.
Office Mobile Provides access to these Office Mobile applications: Excel Mobile,
PowerPoint® Mobile, and Word Mobile.
Pictures and Videos Take, view, and edit pictures.
PowerPoint Mobile From the Start menu, tap Office Mobile and then tap PowerPoint
Mobile. Use PowerPoint Mobile to view slide show presentations.
Search Search for a file or item stored on the handheld.
Tasks Keep track of your tasks.
Windows Live Access Windows Live services, including email, instant messenger
and Internet search.
Windows Media Play Windows Media® or MP3 audio and video files.
Word Mobile From the Start menu, tap Office Mobile and then tap Word
Mobile. Use Word Mobile to create and edit Word documents.
3 Using the Windows Mobile Operating System
44 Juno Series User Guide

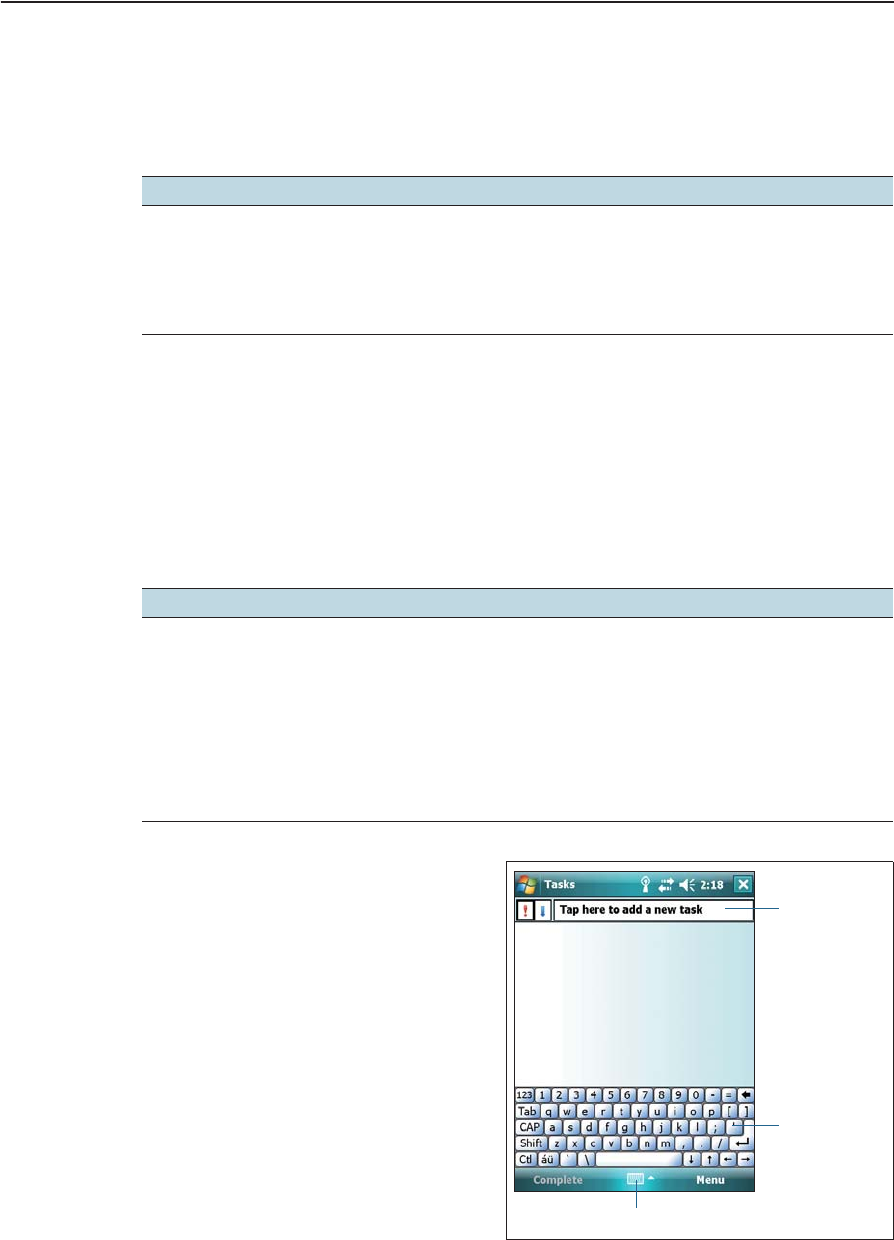

Using the stylus
To interact with the handheld, use the stylus to tap on the touch screen.
You can perform the following actions with the stylus:
If at any time the touch screen does not respond correctly to stylus taps, realign it. For
more information, see Screen, page 50.
Entering information
Depending on the program you are using, you can enter information in several ways, as
described below:
Selecting an input panel
Use an input panel to type or to write on
the screen.
The Input Panel button automatically
appears in the menu bar of any
application.
To display the currently selected input
panel, tap a text box in the application,
or tap the Input Panel button.
Action Definition
Tap Touch the screen once with the stylus to open items and select options.
Tap and hold Tap and hold the stylus on an item to see a list of actions available for that
item. On the pop-up menu that appears, tap the action you want to perform.
Drag Hold the stylus on the screen and drag across the screen to select text and
images. Drag in a list to select multiple items.
Input method Description
Synchronizing Use Microsoft connection management software to exchange
information between the handheld and an office computer.
For more information, see Chapter 4, Connecting to an Office
Computer.
Typing Use the keyboard input panel to enter typed text by tapping keys on
the on-screen keyboard.
Writing Use the stylus like a pen to write directly on the screen.
Recording Create a stand-alone recording or embed a recording into a note.
Textbox
Input Panel button
Keyboard
input panel
Juno Series User Guide 45
Using the Windows Mobile Operating System 3
To select an input panel, tap the Input Selector arrow next to the Input Panel button
and then tap the input panel you want to use:
To use the on-screen keyboard, tap Keyboard.
To write directly onto the screen and have the
handwritten words and symbols converted into typed
characters, tap Letter Recognizer or another input
panel that supports writing on the screen.
To configure options for the selected input panel, tap
Options.
Using the on-screen keyboard
To enter characters, use the stylus to tap the keys on the keyboard. When you finish
entering text in a field, tap to accept the text you have entered and then move to
the next field.
To enter special characters, tap to display keyboards containing numbers and
symbols. To switch back to the main keyboard, tap again.
To hide the keyboard, tap the keyboard icon again.
B
Tip – To make the keys larger, tap the Input Selector arrow and then tap Options. In the
Input method list, select Keyboard and then tap Large Keys.
Writing directly on screen
When you select Letter Recognizer, you can write individual letters, numbers, and
punctuation in the Letter Recognizer input panel and have them converted into typed
text.
B
Tip – For help with writing characters with Letter Recognizer, tap the question mark near
the writing area.
When you select Transcriber, you can write anywhere on the screen using the stylus.
The Microsoft Transcriber software converts your handwriting to text. You can use it
to enter notes in a text editor such as Notes.
Transcriber has a number of tools and modes that allow you to customize how it
works. These tools and modes are controlled from the Transcriber keyboard.
For more information, refer to the Transcriber Help.
3 Using the Windows Mobile Operating System
46 Juno Series User Guide
Making a recording
You can create a stand-alone voice note or you can add a recording to a note. Then you
can work with voice notes in the same way that you work with notes.
To make a recording:
1. Tap / Programs / Notes.
2. Do one of the following:
To create a stand-alone recording, tap the
Record button in the screen displaying
the list of notes to begin recording.
To add a recording to a note, create or open
a note and then tap the Record button
to begin recording.
B
Tip – If you do not see the Recording toolbar, tap Menu /
View Recording Toolbar.
Note – The Juno series handheld’s microphone is on the front of the handheld, in the
keypad area. The microphone will capture voice notes when you are holding the handheld
in front of you. In noisy environments, you may need to move the handheld closer to you or
to the source of the sounds you want to record.
3. When you finish recording, tap the Stop button
.
If you are creating a stand-alone recording, an
icon appears in the note list.
If you are recording in an open note, an icon
appears in the note. Tap OK to return to the note
list.
To play a recording, tap the recording in the note list or
open the note and then tap the icon in the note.
Personalizing the handheld
Use the controls in the Settings area to customize the handheld. The following
examples describe the available controls.
Buttons
Use the Buttons control to assign the action you want to be performed when you press
the left or right application key.
By default, these keys perform the same action as the left and right softkeys in the
menu bar. Alternatively, program these keys to perform a selected action.
Juno Series User Guide 47
Using the Windows Mobile Operating System 3
Application buttons can be programmed to perform one of the following types of
actions:
Run a selected application, for example Messaging or Calendar.
Act as a software button, for example an OK/Close button or a scroll button.
View a selected screen, or part of a screen, for example return to the Today
screen or launch the Context menu or Input panel.
To open the Buttons control:
Tap / Settings /Personal / Buttons.
To specify an action for the button:
1. Tap the Program Buttons tab.
2. Tap a button in the list to select it.
3. From the Assign a program drop-down list, select
the action you want to occur when you press the
button or tap the softkey.
4. Tap OK.
Today
Use the Today control to change the display theme that controls the appearance of the
Today screen, and to customize which items appear on the Today screen.
Appearance
You can use a theme to customize the background picture on the Today screen, the
color of the title and menu bars, menus, and messages.
To change the display theme:
1. Tap / Settings /Personal / Today.
2. Tap the Appearance tab.
3. Do one of the following:
To use a predefined theme, select it from the
list.
To select the picture that you want to display
in the Today screen background, select the
Use this picture as the background check box.
Then tap Browse to search for a file on the
handheld.
4. Tap OK.
3 Using the Windows Mobile Operating System
48 Juno Series User Guide
Items
You can choose the items that appear on the Today screen, and the order that they
appear in.
To change the items that appear on the Today screen:
1. Tap / Settings /Personal / Today.
2. Tap the Items tab.
3. Select or clear the check boxes to show or hide the
Today screen items.
4. Use the Move Up and Move Down buttons to
change where the selected item appears on the
Today screen.
5. Tap OK.
Set the time zone
In the Today screen, tap the clock icon . The Clock
Settings screen appears. Tap the Time tab, select the Home
option and then select the correct time zone.
Device lock
Use the Device Lock option on the Today screen to lock the screen and keypad while
the handheld remains turned on.
To lock the device, tap Device unlocked in the Today screen. The Today screen shows
Device locked, and Unlock appears in the left corner of the menu bar.
Once the handheld is locked, the screen and most of the keys do not respond until the
handheld is unlocked. The exceptions are the Power key and the Reset button, which
always respond when pressed.
Communication with external devices such as a GPS receiver, or external sensors used
by GPS field software, is not interrupted by locking the handheld. This means that you
can keep using the GPS field software when the handheld is locked. For example, you
could lock the device so that you can safely transport it between features, while
keeping the software connected to the GPS receiver so that you can continue recording
GPS positions.
To unlock the device, tap the Unlock notification in the left corner of the Today screen
menu bar and then tap Unlock.
You can help to keep your data secure by requiring a password each time the handheld
is turned on. Tap / Settings /Personal / Lock to set a password or to change
password settings.
Juno Series User Guide 49
Using the Windows Mobile Operating System 3
Power
To open the Power control, do one of the following:
Tap the battery icon in the title bar of the Today screen.
Tap / Settings /System / Power.
Tap the Battery tab to check the battery level (see Checking the level of battery power,
page 31).
Tap the Advanced tab to set the time before the handheld turns off when idle (see
Suspend mode, page 32).

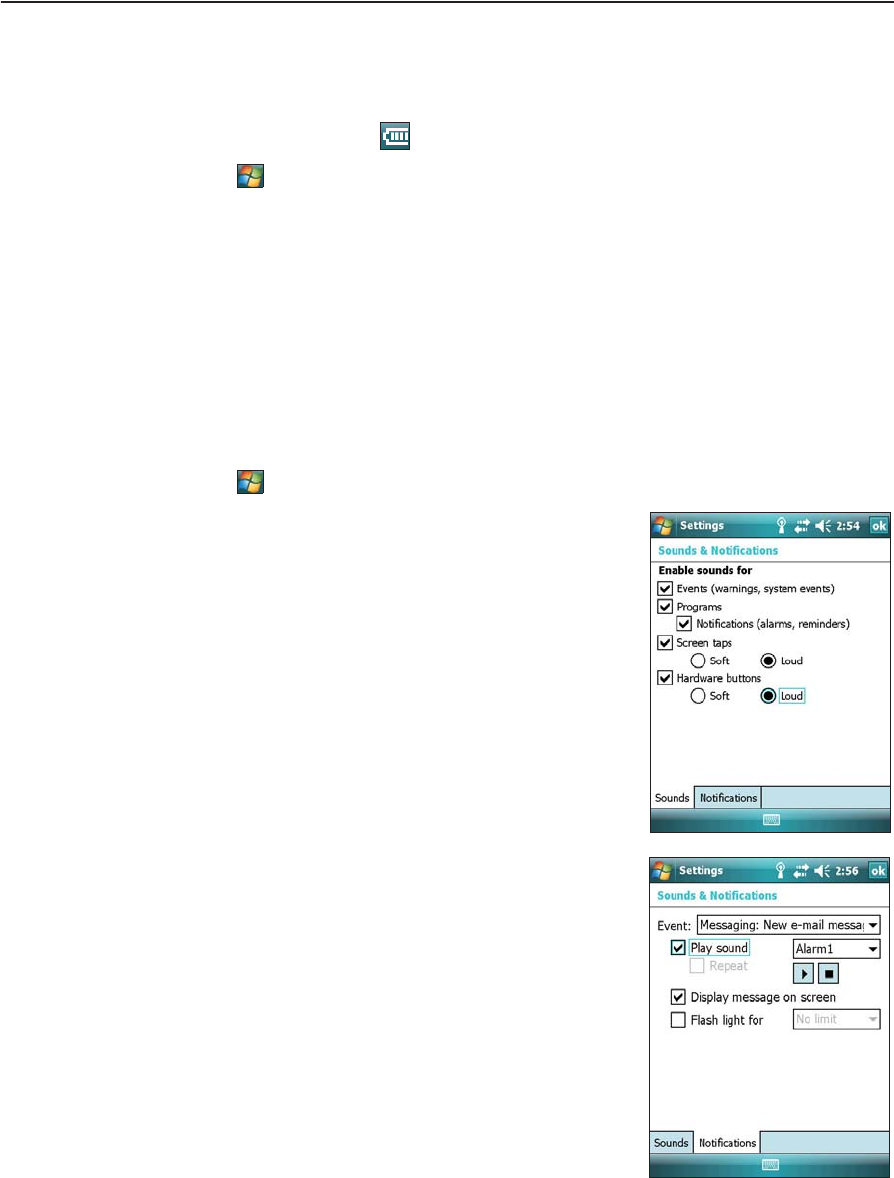

Sounds and notifications
Use the Sounds & Notifications control to set preferences for the speaker volume and
system sounds. To open the Sounds & Notifications control:
Tap / Settings /Personal /Sounds & Notifications.
To turn on or turn off sounds:
1. Tap the Sounds tab.
2. Select or clear the check boxes to enable or disable
categories of sounds.
3. If you select the Screen taps or Hardware buttons
check boxes, select the Soft or Loud option to
control the volume of the sounds.
4. Tap OK.
You can use predefined schemes to customize sounds, or
you can create your own sound schemes.
To specify a sound scheme:
1. Tap the Notifications tab.
2. From the Event drop-down list, select an event.
3. Select the type of notification you want to receive
for that event.
4. Tap OK.
3 Using the Windows Mobile Operating System
50 Juno Series User Guide

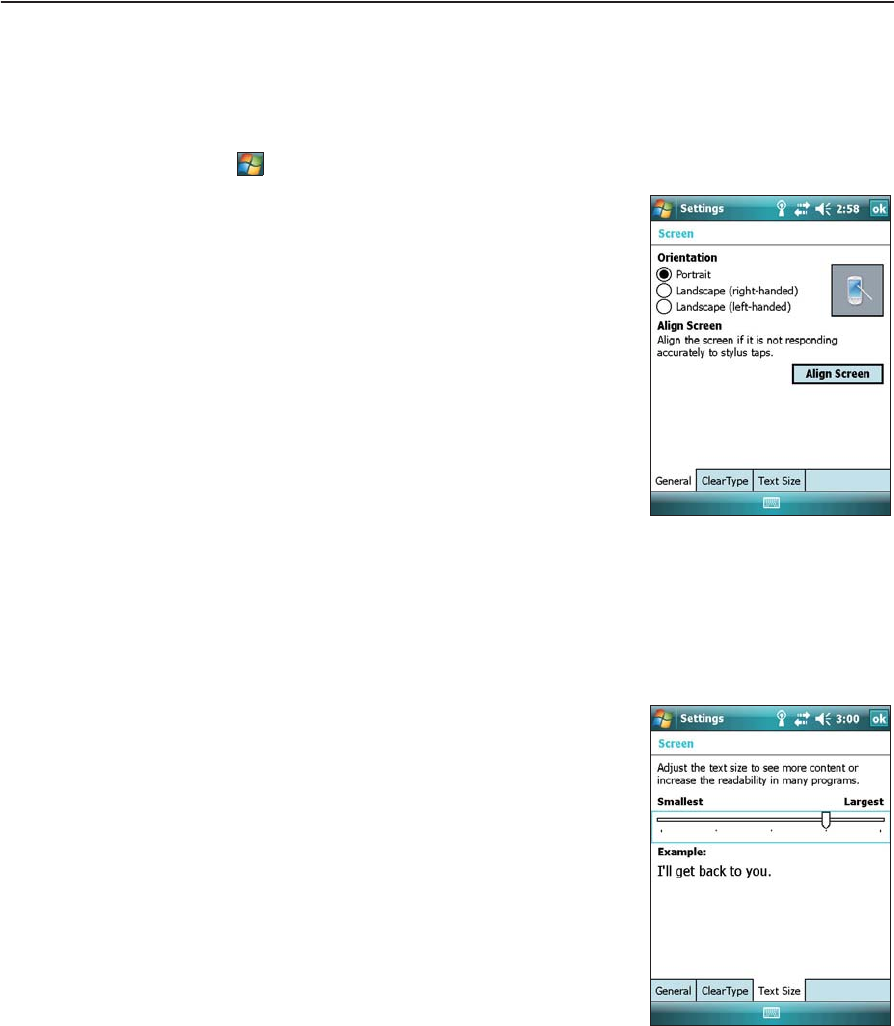

Screen
Use the Screen control to align the touch screen or to change the appearance of text on
the screen. To open the Screen control:
Tap / Settings /System / Screen.
To change the screen settings:
1. Tap the General tab.
2. To change the orientation of the screen, select an
option in the Orientation group.
3. To start the alignment sequence for the touch
screen, tap Align Screen.
4. Tap OK.
Using ClearType font smoothing can make text easier to read on the screen.
To enable ClearType:
1. Tap the ClearType tab and then select the Enable ClearType check box.
2. Tap OK.
To change the size of text on screen:
1. Tap the Text Size tab.
2. Tap and drag the slider control to the left to make
text smaller, or to the right to make text larger.
The example text below the slider shows how the
text will appear on screen.
3. Tap OK.
Juno Series User Guide 51
Using the Windows Mobile Operating System 3

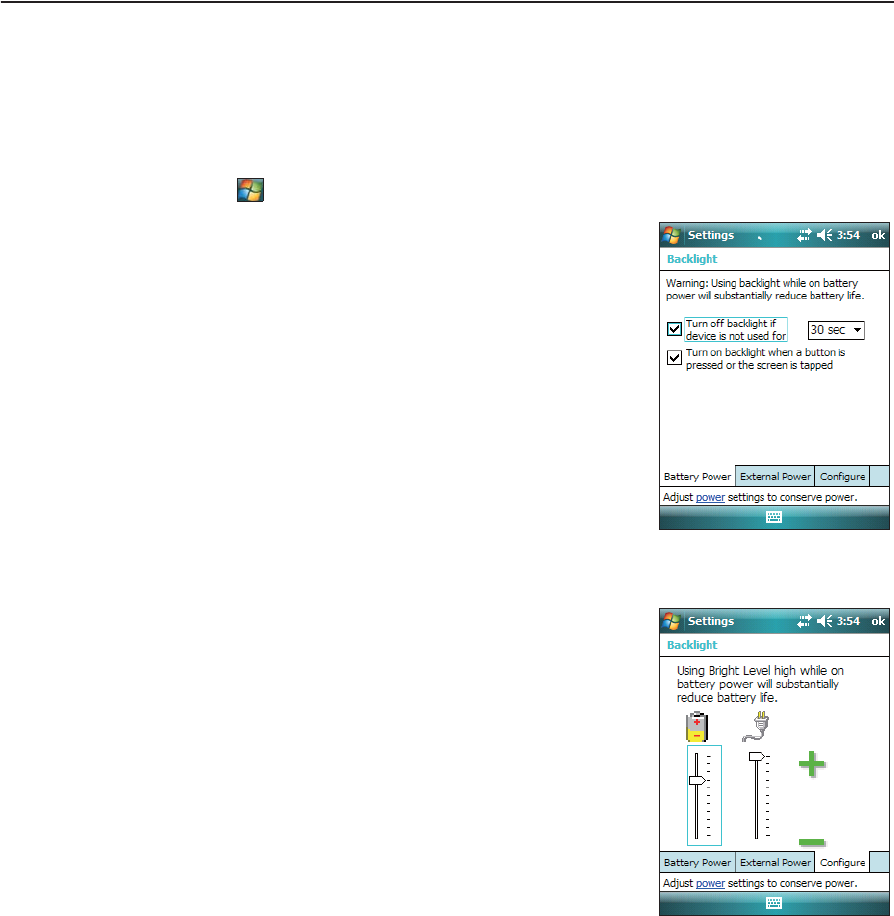

Backlight
The backlight makes the screen easier to read in low light, but uses extra power. Use
the Backlight control to configure power-saving settings for the backlight. To open the
Backlight control:
Tap / Settings /System / Backlight.
1. To set the backlight to automatically turn off, do
one of the following:
To automatically turn off the backlight when
the handheld is idle and is using battery
power, tap the Battery Power tab. Select the
Turn off backlight check box and then select a
time from the drop-down list.
To automatically turn off the backlight when
the handheld is idle and is using external
power, tap the External Power tab. Select the
Turn off backlight check box and then select a
time from the drop-down list.
2. Tap OK.
To change the brightness:
1. Tap the Configure tab.
The brightness of the backlight can be configured
independently for when the handheld is using
battery or external power. Use the slider on the left
for battery power, and the slider on the right for
external power.
2. Tap and drag the slider control downwards to make
the backlight darker, or upwards to make the
backlight brighter.
3. Tap OK.
3 Using the Windows Mobile Operating System
52 Juno Series User Guide
Messaging
Use Messaging to send and receive receive email messages using the Juno series
handheld. Messaging is the equivalent of your email Inbox.
To use email, you can do one of the following:
Synchronize email messages with Microsoft Exchange or Microsoft Outlook® on
an office computer.
Send and receive email messages by connecting directly to an email server
through an ISP or a network.
Synchronizing email messages
You can synchronize email messages on the handheld and the computer.
C
CAUTION – When you delete a message on the handheld, it is deleted from the office
computer the next time you synchronize the devices.
To synchronize email, you must enable Inbox synchronization in ActiveSync
technology. For more information, refer to the ActiveSync Help on the office computer.
During synchronization:
Messages are copied from the mail folders of Exchange or Outlook on the office
computer to the Messaging folder on the handheld. By default, you will receive
messages from the past 3 days only, the first 100 lines of each message, and file
attachments of less than 100 KB in size.
Email messages in the Outbox folder on the handheld are transferred to
Exchange or Outlook, and then sent from those programs.
Email messages in subfolders in other email folders in Outlook are synchronized
only if they were selected for synchronization in ActiveSync technology.
To send and receive email for a synchronized Exchange or Outlook account, connect
the handheld to the office computer. Synchronization automatically begins, and the
handheld sends and receives email.
Connecting directly to an email server
In addition to synchronizing email messages with an office computer, you can send
and receive email messages by connecting to an email server.
Before you can send and receive email, you must create an email account in the
Messaging software.
Note – You must set up an Internet connection on the handheld before you can set up and
use your email account. For more information, see Connecting to a wireless LAN access
point, page 89, Connecting to a cellular network from the modem, page 90, or Connecting
to a Bluetooth-enabled phone for Internet access, page 95.
Juno Series User Guide 53
Using the Windows Mobile Operating System 3
If you need to connect to different mailboxes, set up and name a different service for
each connection.
Note – The Messaging software supports only the POP3 and IMAP4 protocols for incoming
mail, and SMTP for outgoing mail.

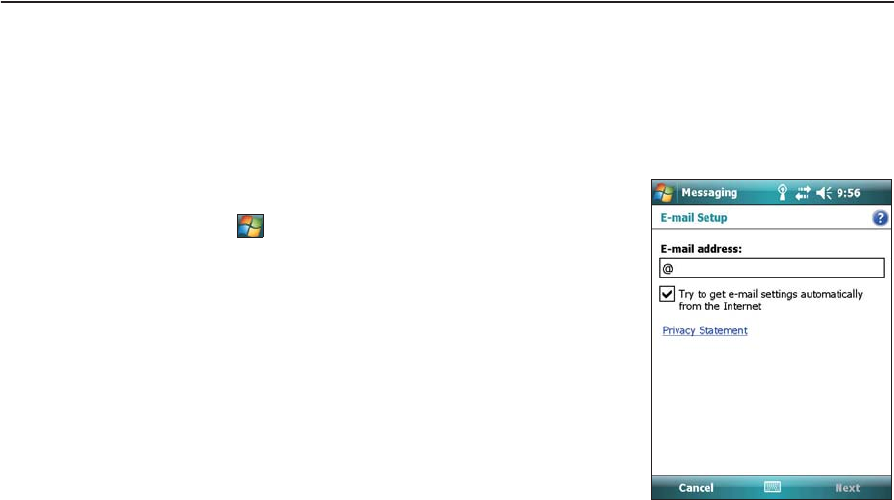

To set up a mail service:
1. Tap / Messaging.
2. Tap New Email Account.
3. Enter the email address for your account.
4. To automatically get connection settings for your
email account from the Internet, select the check
box.
5. Tap Next.
6. Follow the steps in the Setup wizard. If the
connection settings are not automatically
downloaded from the Internet, you must enter
them using the connection details supplied by your ISP or network
administrator.
Note – You cannot change the account name later.
7. Tap Finish.
8. Tap OK to download mail immediately.
B
Tip – To receive TerraSync data files by email, edit the settings for the email account you
have set up. To do this, tap Menu and then select Options. In the Accounts tab, tap the
e-mail account you want to use to receive TerraSync files. The Email Setup wizard appears.
Tap Next until you reach the last page of the wizard. From the Message download limit
drop-down list, select Entire message.
When you connect the handheld to the email server, new messages are downloaded to
the Messaging folder, messages in the Outbox folder are sent, and messages that have
been deleted on the email server are removed from the Messaging folder.
Messages received directly from an email server are linked to the email server rather
than an office computer. When you delete a message on the handheld, it is also deleted
from the email server the next time you connect the handheld to the email server.
You can work online or offline:
When working online, you read and respond to messages while connected to
the email server. Messages are sent as soon as you tap Send, which saves space
on the handheld.
When working offline, you can disconnect from the email server after you
download new message headers or partial messages and then decide which
messages to download completely. The next time you connect, Messaging
downloads the complete messages you have marked for retrieval and sends any
messages that you have written.
3 Using the Windows Mobile Operating System
54 Juno Series User Guide
Voice calls (Juno SD handheld only)
Use the Juno SD handheld to make and receive phone calls. You can enter a number to
dial using the keypad, or select a number from your Contacts list.
To make a phone call:
1. Make sure that a SIM card is installed. See Installing and removing the SIM card,
page 37
2. Make sure that the phone is turned on. See Turning on and turning off the
integrated radios, page 82
3. Do one of the following:
Press the Start call button.
Tap the Phone softkey.
4. On the Phone screen which appears, do one of
the following::
Use the keypad to dial a phone number and
then tap Talk.
Tap Hide Keypad to select an option from
the list of previously dialled numbers.
Alternatively, tap the Contacts softkey, tap the required
contact and then tap Call.
Note – When you make a voice call, the screen is blank.
To answer a phone call, press the Start call button or the Answer softkey.
Note – When you answer a voice call, the screen is blank.
To end a phone call, press the End call button.
Phone settings
You can change the ring type, ring tone, and keypad sound. If required, you can also set
a PIN for the SIM card.
1. To access Phone Settings, do one of the following:
Press the Start call button or the Phone softkey and then select Menu /
Options...
Tap the modem status icon on the title bar of the Today screen and then
tap Settings.
2. Select the Phone tab to set the required ring type, ring tone, and keypad sound.
Juno Series User Guide 55
Using the Windows Mobile Operating System 3

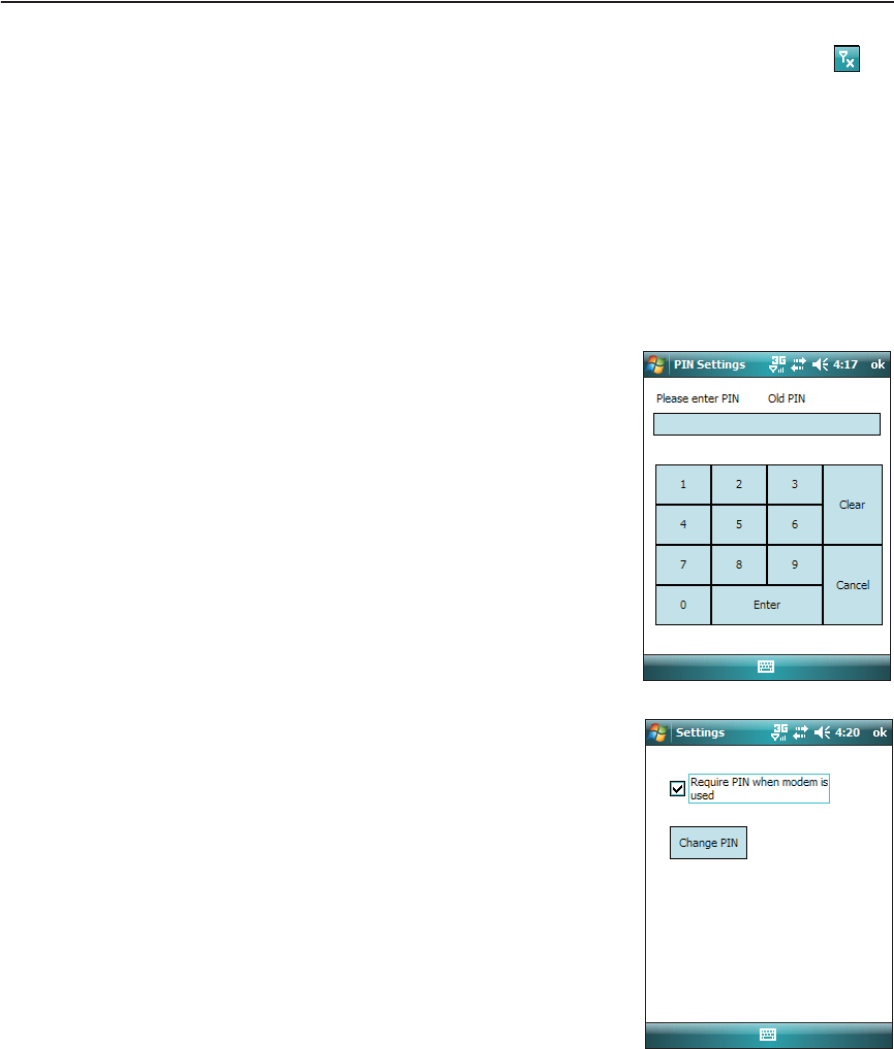

3. Select the Security tab to set a PIN, change the PIN, or set the handheld to
require a PIN to be entered every time the phone is used. For more information
on setting a PIN, see Setting a PIN on the Juno SD handheld, page 83.
Text messaging (Juno SD handheld only)
Use the phone functionality on the Juno SD handheld to send and receive text
messages.
Make sure that a SIM card is installed. See Installing and removing the SIM card,
page 37
Make sure that the phone is turned on. See Turning on and turning off the integrated
radios, page 82.
To send a text message:
1. On the Today screen, select the Text Messages option (this shows Text Messages:
x unread, or No unread messages) and then tap Text Messages.
2. Select Menu / New.
3. To enter a contact number, make sure that the cursor is flashing in the To field
and then do one of the following:
Use the keyboard to enter a phone number .
Select Menu / Add Recipient to select a
number from your Contacts.
4. Tap in the message area (the cursor will flash) and
then enter the text using the keyboard.
5. Tap Send.
To access your text message folders.
1. On the Today screen, select the Text Messages
option (this may show Text Messages: x unread, or
No unread messages) and then tap Text Messages.
2. Click the Inbox drop-down arrow.
3 Using the Windows Mobile Operating System
56 Juno Series User Guide
CHAPTER
4
Juno Series User Guide 57
Connecting to an Office Computer 4
In this chapter:
QConnection management
software
QConnecting the handheld to a
computer
QManaging the connection using
the Windows Mobile Device
Center
QManaging the connection using
ActiveSync technology
QInstalling software onto the
handheld
Connect the Juno series handheld to an office
computer to transfer information, settings, and
files from one device to the other, or to install
software onto the handheld.
You can connect the handheld to a computer
using the USB cable or a Bluetooth wireless link.
To protect your data, Trimble recommends that
you regularly copy important data to an office
computer.
4 Connecting to an Office Computer
58 Juno Series User Guide
Connection management software
To install software onto a device powered by a Windows Mobile operating system, or to
copy files between the handheld and a computer, you must connect the device to an
office computer. If the computer is running:
the Windows 7 or Windows Vista® operating system, use the Windows Mobile
Device Center to manage the connection.
the Windows® XP or 2000 operating system, use ActiveSync technology to
manage the connection.
Note – You must install the Windows Mobile Device Center or ActiveSync technology onto
the computer before you connect the handheld.
This connection management software also enables you to synchronize office
applications on an office computer with the handheld.
C
CAUTION – The available space on the handheld is small compared to an office computer.
To avoid accidentally synchronizing the handheld with a large amount of data on the
office computer, Trimble recommends that you either connect to the handheld without
forming a partnership, or that you limit the information types and amount of data that
is synchronized.
C
CAUTION – Synchronizing data is designed to keep the same data on both the office
computer and the handheld. Exercise care when resynchronizing applications after
deleting data from one computer, as resynchronizing will delete the same information
from the other computer.
For more information see one of the following:
Managing the connection using the Windows Mobile Device Center, page 60
Managing the connection using ActiveSync technology, page 61.
Installing the Windows Mobile Device Center
The Windows 7 and Windows Vista operating systems include a basic connectivity
driver for devices powered by a Windows Mobile operating system. This driver allows
you to transfer files from the handheld to an office computer.
To install software onto a device powered by a Windows Mobile operating system, you
must install Windows Mobile Device Center 6 onto an office computer.
A copy of the Windows Mobile Device Center is provided on the Juno Series Getting
Started Disc. Alternatively, go to
www.microsoft.com/windowsmobile/devicecenter.mspx to download the latest
version from the Microsoft website.
Juno Series User Guide 59
Connecting to an Office Computer 4
Installing ActiveSync technology
A copy of ActiveSync technology is provided on the Juno Series Getting Started Disc.
Alternatively, go to www.microsoft.com/windowsmobile/activesync/default.mspx to
download the latest version from the Microsoft website.
Connecting the handheld to a computer
To connect the Juno series handheld to a computer:
1. Make sure that the handheld and the computer are switched on.
2. Make sure you have installed the appropriate connection management software
onto the computer (see Connection management software, page 58).
3. To form a connection, do one of the following:
Use the handheld's integrated Bluetooth radio to establish a wireless serial
link to a Bluetooth-enabled computer. For more information, see
Connecting to an office computer to use ActiveSync technology, page 101.
Use a USB connection:
a. Connect the USB data cable to the USB port on the handheld.
b. Connect the other end of the USB data cable to a USB port on the
computer.
4 Connecting to an Office Computer
60 Juno Series User Guide
When the handheld and the computer are connected, you can manage the
connection through a window that appears on the office computer. See one of
the following:
Managing the connection using the Windows Mobile Device Center,
page 60
Managing the connection using ActiveSync technology, page 61
Managing the connection using the Windows Mobile Device
Center
1. Connect the handheld to the computer (see page 59).
2. If the Autoplay window appears, close the window.
3. The Windows Mobile Device Center window displays the message Connected:
Note – If the connection is not made automatically, check that the connection is enabled in
the Windows Mobile Device Center software and on the handheld. For more information,
see Troubleshooting, page 109.
4. Do one of the following:
To synchronize files and data between the handheld and a computer, click
Set up your device and then follow the instructions on screen.
To transfer data between the handheld and the computer without
synchronizing the devices, click Connect without setting up your device.
5. To transfer files between the computer and the handheld, click File
Management. A Windows Explorer-type window appears, displaying files stored
on the handheld. Copy and paste files to other locations on the computer, or
from the computer to the handheld.
Juno Series User Guide 61
Connecting to an Office Computer 4
6. To install software onto the handheld, see Installing software onto the handheld,
page 63.
7. To uninstall software from the handheld, click Programs and Services and then
click Add/Remove Programs.
B
Tip – If the Add/Remove Programs option does not appear below Programs and Services,
click More. The Add/Remove Programs option appears.
For more information, refer to the Windows Mobile Device Center Help.
B
Tip – If the GPS Pathfinder Office software is installed on the office computer, you can
configure the Connection Manager utility in the GPS Pathfinder Office software to
automatically detect when you connect a Juno series handheld to the computer. This
enables you to automatically transfer data from the TerraSync software, differentially
correct the data, and then export it to a GIS. For more information, refer to the GPS
Pathfinder Office Software Help.
Managing the connection using ActiveSync technology
1. Connect the handheld to the computer (see page 59). The Synchronization Setup
Wizard appears:
Note – If the connection is not made automatically, check that the connection is enabled in
the ActiveSync technology and on the handheld. For more information, see
Troubleshooting, page 109.
2. Do one of the following:
To synchronize files and data between the handheld and a computer, click
Next and then follow the instructions in the Synchronization Setup Wizard.
To transfer data between the handheld and the computer without
synchronizing the devices, click Cancel to close the wizard.
4 Connecting to an Office Computer
62 Juno Series User Guide
3. The Microsoft ActiveSync window displays the message Connected:
4. To transfer files between the computer and the handheld, click Explore. A
Windows Explorer-type window appears, displaying files stored on the
handheld. Copy and paste files to other locations on the computer, or from the
computer to the handheld.
5. To install software onto the handheld, see Installing software onto the handheld,
page 63.
6. To uninstall software from the handheld, select Add/Remove Programs from the
Tools menu. Clear the check box beside the program you want to remove and
then click OK.
For more information, refer to the ActiveSync Help.
B
Tip – If the GPS Pathfinder Office software is installed on the office computer, you can
configure the Connection Manager utility in the GPS Pathfinder Office software to
automatically detect when you connect a Juno series handheld to the computer. This
enables you to automatically transfer data from the TerraSync software, differentially
correct the data, and then export it to a GIS. For more information, refer to the GPS
Pathfinder Office Software Help.
Juno Series User Guide 63
Connecting to an Office Computer 4
Installing software onto the handheld
Before you begin, refer to the installation instructions provided with the software.
Some software installations are specifically designed to run on a Windows Mobile
powered device. To install software that has a Windows Mobile installation setup:
1. Connect the handheld to a computer (see page 59).
2. Copy the installation files to a folder on the handheld.
3. Browse to the folder on the handheld. Tap and hold the installation setup file
and then select Run.
4. If prompted after installation, perform a soft reset of the handheld (see page 33).
To install software that is provided on a CD, or as an installation setup that runs on an
office computer:
1. Connect the handheld to a computer (see page 59).
2. If the software is provided on a CD, insert the software CD into the office
computer.
3. Run the installation setup.
4. If prompted, select the install option for a Windows Mobile powered device.
Once the software is installed on the computer, it is automatically transferred to
the handheld.
Note – If a memory card is inserted in the handheld, the card appears as an installation
location option. Trimble recommends that you install software to the handheld’s storage
memory, not to a memory card. If you install software to a card and then remove the card
from the handheld, the software will not be available for use.
5. If prompted after installation, perform a soft reset of the handheld (see page 33).
4 Connecting to an Office Computer
64 Juno Series User Guide
CHAPTER
5
Juno Series User Guide 65
Using the GPS Receiver 5
In this chapter:
QSupported GPS field software
QConfiguring the GPS field
software to connect to the
receiver
QUsing the GPS field software
QEnsuring the accuracy of your GPS
data
QDifferential GPS explained
QOutputting NMEA data
The Juno series handheld includes an integrated
GPS receiver that enables you to collect GPS data
for incorporating into a GIS or for managing
assets.
The Global Positioning System (GPS) is a
satellite-based positioning system consisting of a
constellation of operational NAVSTAR satellites
that orbit the earth every 12 hours. This system
provides worldwide, all-weather, 24-hour time
and position information.
Note – To receive signals from GPS satellites, the
handheld must have a clear view of the sky. GPS
positions may not always be available, particularly
in or near buildings, in vehicles, or under tree
canopy.
5 Using the GPS Receiver
66 Juno Series User Guide
Supported GPS field software
You can use the Juno series handheld with any of the software products described
below.
TerraSync software
You can install version 3.30 or later of the TerraSync software on a Juno series
handheld. Use the software to collect and maintain GIS and GPS data.
To install the TerraSync software, either insert the TerraSync Software CD in the
CD-ROM drive of a computer and use the menus provided, or run the downloaded
setup file. To obtain an installation code for installation, you must register your copy of
the software online. Detailed installation instructions are provided in the TerraSync
Software Getting Started Guide.
ESRI ArcPad software and the Trimble GPScorrect extension
You can install version 7.1.0 or later of the ESRI ArcPad software on a Juno series
handheld. Use the software to collect and maintain GIS and GPS data. Detailed
installation instructions for ESRI ArcPad software are provided in the ArcPad
documentation.
To be able to differentially correct ArcPad GPS data, install version 2.42 or later of the
Trimble GPScorrect extension for ESRI ArcPad software on a Juno series handheld.
You must install the ArcPad software before you install the GPScorrect extension.
Note – Make sure your version of the GPScorrect extension is compatible with the version
of ArcPad software you are using. For more information, go to
www.trimble.com/gpscorrect_ts.asp, click Support Notes and then search for the Mapping
and GIS Product Compatibility List Support Note.
To install the GPScorrect extension, either insert the Trimble GPScorrect Extension for
ESRI ArcPad Software CD in the CD-ROM drive of a computer and use the menus
provided, or run the downloaded setup file. Detailed installation instructions are
provided in the Trimble GPScorrect Extension Getting Started Guide.
GPS Controller software
You can install version 2.21 or later of the GPS Controller software on a Juno series
handheld. Use the software to configure and monitor the status of the internal GPS
receiver.
To install the GPS Controller software, go to www.trimble.com/support.shtml. Click
GPS Controller and then click Downloads. Click the link for the version you want to
install and then follow the instructions in the Installation wizard.
Juno Series User Guide 67
Using the GPS Receiver 5
Other GPS field applications
You can use the Juno series handheld with a custom application developed using
version 2.32 or later of the Trimble GPS Pathfinder Tools Software Development Kit
(SDK).
You can also use the Juno series handheld with any GPS field software that accepts
NMEA messages.
Configuring the GPS field software to connect to the receiver
The first time you use GPS field software on the handheld, you may need to configure
the software to connect to COM4, which is the GPS port on the handheld.
Connecting to the COM port
Details of how to configure different types of GPS field software to connect to the GPS
COM port are as follows:
Using the GPS field software
Depending on the GPS field software you have installed, you can use the software to
view satellite reception, configure logging settings, and collect features. For more
information, refer to the rest of this chapter and the documentation for the GPS field
software.
GPS field software Configuration details
GPS Controller Run GPS Controller. The software automatically activates the
integrated GPS receiver on COM4.
TerraSync Run Terrasync. The software automatically activates the integrated
GPS receiver on COM4.
ArcPad with the
GPScorrect extension
When the Trimble GPScorrect extension is installed, the extension
automatically configures the ArcPad software to use the integrated
GPS receiver on COM4 using the Trimble GPScorrect protocol.
To connect to GPS, tap the GPS button and then tap Yes.
To configure a real-time DGPS source, or to view status
information, run the GPScorrect extension. To do this, tap the
GPScorrect button in the Trimble toolbar.
ArcPad without the
GPScorrect extension
1. In ArcPad, tap the GPS drop-down menu and then select
GPS Preferences from the drop-down menu. Tap the GPS tab.
2. In the Protocol field, select NMEA 0183.
3. In the Port field, select COM4.
4. Tap OK.
5. Tap the GPS button and then tap Yes.
NMEA application Configure the software to connect to GPS on COM4 and then use the
Connect or Activate GPS command.
5 Using the GPS Receiver
68 Juno Series User Guide
Starting the GPS field software
Tap / Programs and then select the GPS field software, for example GPS
Controller.
When you first open any Trimble GPS field software, the Skyplot section is displayed.

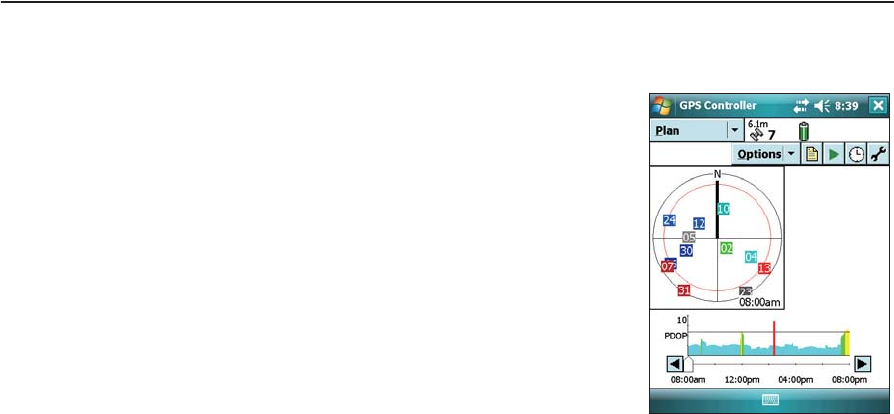

Viewing available GPS satellites
Use the graphical Skyplot section or the Satellite Info
section in the Trimble GPS field software to view
detailed GPS information.
Note – To receive signals from GPS satellites, the
handheld must have a clear view of the sky. GPS positions
may not always be available, particularly in or near
buildings, in vehicles, or under tree canopy.
Resetting the GPS receiver
Trimble GPS field applications all have options to reset
the receiver to:
delete the almanac
delete information stored on the last known position
restart the receiver
reset the GPS receiver to factory default settings
Performing a reset to factory defaults or a hard reset on the Juno series handheld will
also reset the GPS receiver to factory default settings.
Ensuring the accuracy of your GPS data
The Juno series handheld has an integrated GPS receiver that provides accurate
positioning with real-time or postprocessed differential correction of between one and
three meters.
The accuracy that you obtain from your Juno series handheld is affected by a number
of factors, including whether the data is differentially corrected in real-time or after
data collection, and the availability of GPS satellites in the sky when you collect the
data.
The list below identifies the most important settings and techniques that you can use
in the field to improve the accuracy of your data:
1. If you are using TerraSync software to collect data, use accuracy-based logging.
For more information, see page 69.
2. Use real-time differential SBAS corrections. For more information, see page 70.
Juno Series User Guide 69
Using the GPS Receiver 5
3. Plan GPS data collection around the times of the day when satellite geometry is
best. For more information, see page 71.
Using accuracy-based logging
If you are using the TerraSync software, use accuracy-based logging to ensure that only
GPS positions that meet the specified estimated accuracy are logged. GPS positions
that do not meet your accuracy requirements are not logged.
Note – Accuracy estimates for streaming (dynamic) GPS positions may not be as good as
those for static GPS positions.

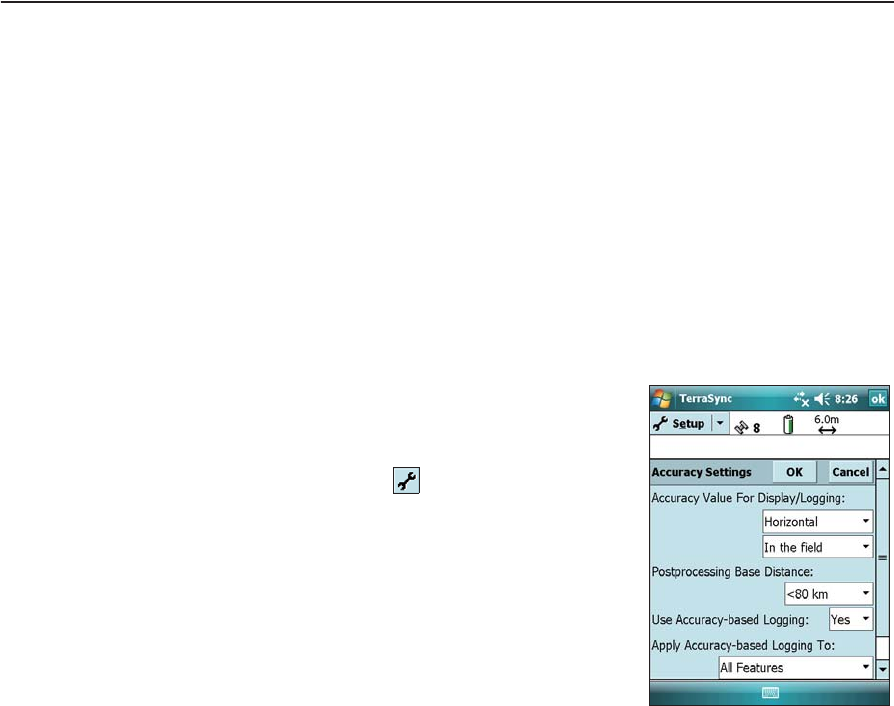

To configure accuracy-based logging in the TerraSync software:
1. In the Setup section of the TerraSync software, tap
Logging Settings. The Logging Settings form
appears.
2. Tap the Setup button below the Accuracy
Settings field. The Accuracy Settings form appears.
3. In the Accuracy Value For Display/Logging fields,
select the parameters that will be used to
determine the estimated accuracy:
Select whether to use the horizontal or
vertical accuracy of the current GPS position.
Select In the field to use the current
estimated accuracy (recommended if you are
using a real-time correction source), or select Postprocessed to use the
predicted estimated accuracy that will be achieved after the field data has
been postprocessed.
4. If you selected Postprocessed, select the estimated distance to the base station
that will be used for postprocessing from the Postprocessing Base Distance field.
Set the Use Accuracy-based Logging field to Yes. The settings fields for
accuracy-based logging appear.
5. In the Apply Accuracy-based Logging To field, select the feature types that you
want to log only if the GPS positions meet your required accuracy.
6. In the Required Accuracy field, select the estimated accuracy that is required
before GPS positions are logged.
7. Tap OK.
Note – Accuracy settings do not affect GPS positions that are used for navigation. GPS
positions are still calculated by the GPS receiver and are available for navigation.
5 Using the GPS Receiver
70 Juno Series User Guide
Connecting to a real-time differential correction source
Use a real-time differential GPS (DGPS) source to give you better accuracy as you
collect data. For more information about how real-time differential GPS works, see
Differential GPS explained, page 71.
Using SBAS corrections
The Juno series handheld has an integrated GPS receiver that uses Satellite Based
Augmentation Systems (SBAS) correction messages to improve the accuracy and
integrity of GPS data.
The SBAS tracking mode is Auto. In Auto mode, the receiver tracks or locks onto the
most powerful satellite signal. The GPS receiver can track two SBAS satellites at the
same time in Auto mode. It uses corrections from only one SBAS satellite at a time, but
tracking two satellites can improve the availability of SBAS real-time corrections. For
example, if you are working in environments where obstacles may block the direct line
of sight to the SBAS satellite, there is less chance of signal loss if you are tracking more
than one SBAS satellite.The receiver tracks SBAS satellites according to your
geographical location:
Wide Area Augmentation System (WAAS) satellites are tracked in the
Continental United States including Alaska, and parts of Canada and Mexico.
European Geostationary Navigation Overlay Service (EGNOS) satellites are
tracked in Europe.
MTSAT Satellite-based Augmentation System (MSAS) satellites are tracked in
Japan.
Note – If you have other Trimble GPS field software installed, configure real-time
correction settings in that application instead of the GPS Controller software.
To use SBAS corrections:
1. In the GPS field software, open the Real-time
section and tap the Setup button .
2. In the Choice 1 field, select Integrated SBAS.
3. In the Choice 2 field, specify whether to use
uncorrected positions, or to stop using GPS
positions, if corrections are not available.
4. Tap OK.
Juno Series User Guide 71
Using the GPS Receiver 5
Planning a data collection session
To maximize productivity, plan GPS data collection
around the times of the day when satellite geometry is
best. The GPS Controller software includes a Plan
section with an animated skyplot and DOP (satellite
geometry) graph for your position for the next 12 hours.
In the Plan section, you can check the planning skyplot
as you play a session, then use the timeline to zoom in
on times when geometry is poor.
Note – If you have other Trimble GPS field software
installed, use the planning feature in that application
instead of the GPS Controller software.
Differential GPS explained
Use differential GPS to correct errors in your collected data. Differential GPS (DGPS)
requires one or more additional receivers, called base stations or reference stations,
which are located at known points. Data collected at the base stations is used to
determine GPS measurement errors and compute corrections to these errors. An
unlimited number of mobile GPS receivers, called rovers, collect GPS data at unknown
locations within the vicinity of the base station. Errors common at both the base
station and the rover receiver are corrected with DGPS either in real time or during
postprocessing.
Real-time DGPS
In real-time DGPS, the base station calculates and broadcasts the error for each
satellite as each measurement is received, enabling you to apply corrections while in
the field and collect accurate GPS data. DGPS corrections are available from a variety
of public and commercial sources. They can be generated and broadcast in real-time
by privately or self-owned GPS base stations, or by a wide range of government
agencies.
Real-time DGPS corrections can be used on the Juno Series handheld from Satellite
Based Augmentation Systems (SBAS) such as WAAS in the US and EGNOS in Europe.
SBAS uses multiple base stations to calculate the DGPS corrections that are then
delivered to the user from a Geostationary satellite.
Factors that affect real-time DGPS accuracy include how often the corrections are
updated, how far you are from the base station, and whether the coordinate system
used by the correction source matches the coordinate system used by the GPS receiver.
5 Using the GPS Receiver
72 Juno Series User Guide
Postprocessed DGPS
In postprocessed DGPS, the collected GPS data is transferred to an office computer,
and measurements from the base station are downloaded. You can postprocess GPS
data collected with Trimble GPS field software using:
the GPS Pathfinder Office software version 4.10 (with the latest updates) or
later.
the Trimble GPS Analyst extension for ESRI ArcGIS software version 2.10 (with
the latest updates) or later.
Factors that affect the accuracy of postprocessed DGPS include the type of receiver
and antenna used at the base station, the distance between the base station and the
location where the rover data was collected, the accuracy of the base station position,
and the logging interval at the base station.
For more information, refer to the documentation provided with the postprocessing
software.
Postprocessed real-time DGPS
The accuracy of positions using the Juno series handheld is within one to three meters,
whether it is corrected in real-time or postprocessed. The accuracy cannot be
improved beyond this by postprocessing real-time SBAS corrected positions.
However, if your data files contain autonomous (uncorrected) positions as well as
real-time corrected positions, Trimble recommends that you postprocess the data.
During postprocessing, you can choose whether to correct only autonomous positions,
or all positions.
For more information about GPS and DGPS, go to www.trimble.com/gps and review
the All About GPS tutorial.
Outputting NMEA data
You can use the Juno series handheld’s integrated GPS receiver with any GPS field
software that accepts NMEA messages.
If you connect to the GPS receiver using Trimble GPS field software, by default the
NMEA output is switched off.
Note – You can only configure NMEA data output using the GPS Controller software. The
software is provided free from the Trimble website. For more information, see GPS
Controller software, page 66.
Juno Series User Guide 73
Using the GPS Receiver 5

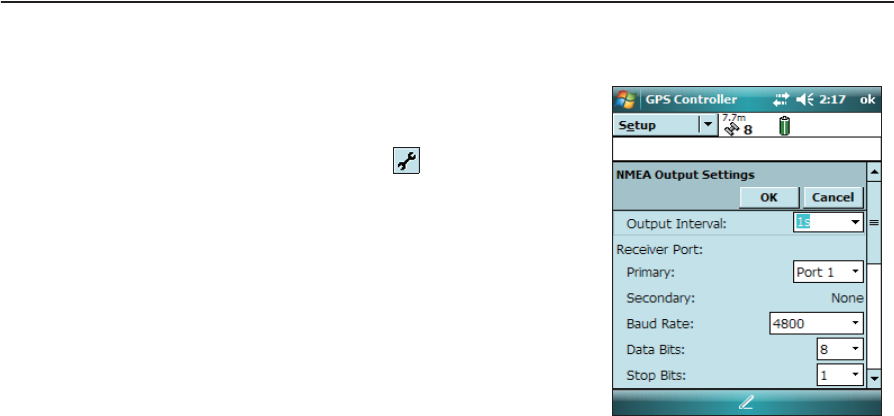

To enable NMEA data to be output:
1. In the GPS Settings form, set the NMEA
Output field to On.
2. Tap the Setup button that appears next
to the NMEA Output field. The NMEA Output
Settings appears.
3. Configure the NMEA message output
settings.
4. Tap OK.
For more information, refer to the GPS Controller
Help.
Note – NMEA data can only be used by applications installed on the handheld. There is
no method to output NMEA data to an external device.
5 Using the GPS Receiver
74 Juno Series User Guide
CHAPTER
6
Juno Series User Guide 75
Using the Camera 6
In this chapter:
QParts of the camera
QStarting the camera application
QCamera settings
QUsing the Zoom function
QManaging images
The Juno series handheld contains an integrated
digital camera, which can be used to capture
pictures or video.
6 Using the Camera
76 Juno Series User Guide
Parts of the camera
Figure 6.1 Juno series handheld – camera controls
Starting the camera application
To start the camera, do one of the following:
1. Press the Camera button on the right side of the device.
2. Tap / Programs / Pictures & Videos /Camera.
When the camera application is started, it is by default in Image Capture mode.
3. To capture a video or an image, press the Camera button.
Note – As the camera has autofocus, there will be a slight delay between pressing the
camera button and the photo being taken. Continue to hold the camera still until you hear
the 'click'.
4. To stop recording of a video, press the Camera button again.
Camera settings
To access the camera settings, tap the screen while in the camera application.
The cameras current settings are displayed as icons on the screen. Tap the required
icon to change its setting.
The settings that are available will vary depending on whether you are in Image mode
or Video mode.
Lens
Preview mirror
Zoom
Camera button. Press to:
- start camera application
- take photo/record video
Juno Series User Guide 77
Using the Camera 6
To exit the camera settings and record an image or video tap the screen or press the
Camera button.
Table 6.1 Camera settings
Camera mode Setting Icon
Image and video Exit Camera application
Image and Video Operating mode
Image and Video File storage location
Image and Video
*Video only allows
320×240 to be
selected
Resolution
Note – The larger the resolution, the
larger the file size. Taking a picture with a
larger resolution may take longer to
capture; continue to hold the camera
button until you hear the ‘click’.
Image settings Video settings
Video capture
Image capture
Device memory
MicroSD card
6 Using the Camera
78 Juno Series User Guide
Image and Video White balance. Set according to user
environment to ensure accurate image
color.
Image and Video Exposure
Image and Video Brightness adjustment. Select plus
numbers to lighten the image; select
minus numbers to darken the image.
Image Image review
Image Quality adjustment
Image Focus
Video Mute
Table 6.1 Camera settings (continued)
Camera mode Setting Icon
Cloudy
Indoor
Outdoor
Auto
Night
Day
On
Off
Low
Medium
High
Macro
Normal
On
Off
Juno Series User Guide 79
Using the Camera 6
Using the Zoom function
The Zoom button can be used in both the Image and Video capture modes, as outlined
in the table below. The current zoom level is indicated in the top left corner of the
screen.
Managing images
To view and manage images, click on the Album icon to access Pictures & Videos.
To return to using the camera from Pictures &Videos, tap Camera.
Resolution 1.0 1.2 1.4 1.6
Image 320×240 9999
800×600 9999
1280×960 9998
1600×1200 998 8
2048×1536 8888
Video 320×240 9999
6 Using the Camera
80 Juno Series User Guide
CHAPTER
7
Juno Series User Guide 81
Getting Connected 7
In this chapter:
QGeneral wireless connection
information
QOptions for connecting wirelessly
to other devices and networks
QBluetooth wireless connections
explained
The Juno series handheld includes an integrated
wireless LAN radio and an integrated Bluetooth
radio, and provides a number of options for
connecting to networks and other devices. In
addition, the Juno SC and SD handhelds include
an integrated cellular modem for sending and
receiving data, and the Juno SD also supports
voice calls and text messaging.
This chapter describes how to enable the radios,
and the main connectivity options available.
Use the table on page 88 to identify the wireless
connection type you want to make and then
follow the steps provided to connect to that
device.
You can use the handheld’s integrated wireless
LAN radio to connect to the Internet or a
corporate network using a wireless LAN (Local
Area Network) connection.
Alternatively, you can use Bluetooth wireless
technology to connect to the Internet using a
cellular phone, or to other Bluetooth-enabled
devices such as a laser rangefinder, or a barcode
scanner.
The cellular modem in the Juno SC and Juno SD
handhelds can be used to communicate between
field and office and send email messages using a
data connection from your local cellular provider.
7 Getting Connected
82 Juno Series User Guide
General wireless connection information
The Juno series handheld has an integrated wireless LAN radio compliant with IEEE
802.11 b/g and an integrated Bluetooth radio. The Juno SC and Juno SD handhelds also
contain an integrated cellular modem.
To use the wireless LAN, Bluetooth radio, or cellular modem, you need to turn them on
(see Turning on and turning off the integrated radios below).
Turning on and turning off the integrated radios
You can use the Wireless Manager application to turn on and turn off the Juno series
handheld’s wireless LAN radio and/or Bluetooth radio (see page 82), and the Juno SD
handhelds phone functionality.
You can use the Modem Control application to turn on and turn off the Juno SC
handheld’s cellular modem (see page 84).
You can also turn on or turn off the Bluetooth radio from within the Bluetooth
application (see Turning on and turning off the Bluetooth radio from within the
Bluetooth application, page 86).
To make the Juno series handheld visible to other Bluetooth-enabled devices and
enable them to connect, see page 87.
Using the Wireless Manager
You can use the Wireless Manager application to turn on and turn off the Juno series
handhelds wireless LAN radio and/or Bluetooth radio, and the Juno SD handhelds
phone functionality. You can turn on and turn off any of the radios at the same time, or
control each individually.
To open the Wireless Manager, do one of the following:
Tap the Wi-Fi icon or the Bluetooth icon on the Today screen.
Tap the Connectivity icon in the title bar and then tap Wireless Manager.
Note – the connectivity icon varies depending on the Juno series handheld model (Juno SC
or Juno SD) and the type of connection. See Status indicators, page 41.
Tap / Settings /Connections /Wireless Manager.
Turn on the wireless LAN radio and/or Bluetooth radio to be able to connect to other
devices or networks.
Turn on the Juno SD handheld’s phone functionality to be able to send and receive text
messages, and make and receive voice calls.
Turn off the wireless LAN radio, Bluetooth radio, and/or phone (Juno SD handheld
only) to prevent the handheld from sending or receiving wireless signals.
B
Tip – To conserve power, turn off the wireless LAN radio and/or the Bluetooth radio when
not in use.
Juno Series User Guide 83
Getting Connected 7
To turn on or turn off the radios using the Wireless Manager
1. Open the Wireless Manager (see above).
2. Do one of the following:
Note – The Phone option applies only to the Juno SD
handheld.
Tap All at the top of the screen to turn on the
radios, or to turn off all the radios if they are
already on.
Tap Wi-Fi, Bluetooth, or Phone to turn on
the radio that you want to use, or to turn off
the radio if it is already on.
The status fields below the Wi-Fi button, the Bluetooth button, and the Phone
button change from Off when the radios are turned on and show the current
state of the radio. The Wi-Fi status field shows Connecting or Available, and the
Bluetooth status and Phone status fields show On or Visible.
3. Tap Done to exit the Wireless Manager.
After you turn on the wireless LAN radio, the wireless LAN icon appears in the title
bar to indicate that the wireless LAN radio is enabled. A second icon appears if a
wireless LAN network is detected, and a Notification for the detected network may
appear in the left softkey.
Configuring phone settings (Juno SD handheld only)
You can help to keep data secure by configuring your SIM card with a PIN (personal
identification number). You will need to enter the PIN each time you want to use the
phone.
Most SIM cards are preset with a PIN that is assigned by your wireless service provider.
You will need to enter this PIN first.
Setting a PIN on the Juno SD handheld
To set a PIN, the phone must already be turned on.
1. Open the Wireless Manager (see above).
2. Tap Menu / Phone Settings / Security.
7 Getting Connected
84 Juno Series User Guide
3. To configure the phone to always require a PIN,
select Require PIN when phone is used.
4. Enter the preset PIN assigned by your wireless
service provider.
5. Tap OK.
To change a PIN:
1. Tap Change PIN.
2. Enter the current PIN and then tap Enter.
3. Enter a new PIN and then tap Enter.
Using the Modem Control (Juno SC handheld only)
You can use the Modem Control application to turn on and turn off the Juno SC
handheld’s cellular modem, enter a PIN for the SIM card, or change the dial string to
connect with the cellular network.
To open the Modem Control:
Tap the Modem Status indicator on the title bar .
Turn on the cellular modem to be able to connect to a cellular network.
Turn off the cellular modem to prevent the handheld from sending or receiving
wireless signals.
B
Tip – To conserve power, turn off the cellular modem when not in use.
To turn on or turn off the modem using the Modem Control
1. Open the Modem Control (see above)
2. To change the status from On to Off, tap Modem Power Off.
Juno Series User Guide 85
Getting Connected 7
After you turn on the cellular modem, the Modem Status icon will change from to
indicate the type of network coverage. For more information, see Modem status
indicators on the Juno SC handheld, page 42.
Setting a PIN on the Juno SC handheld
You can help to keep data secure by configuring your SIM card with a PIN (personal
identification number). You will need to enter the PIN each time the modem is turned
on.
Most SIM cards are preset with a PIN that is assigned by your wireless service provider.
You will need to enter this PIN first.
To set a PIN, the modem must already be turned on.
1. Open the Modem Control (see above).
2. Tap PIN Settings.
3. Enter the preset PIN assigned by your wireless
service provider.
4. Tap OK.
To configure the modem to always require a PIN:
Select the Require PIN when modem is used check
box.
To change a PIN:
1. Tap Change PIN.
2. Enter the current PIN before entering the new PIN.
7 Getting Connected
86 Juno Series User Guide
Dial string editor
Some carriers do not require a custom dial string to
establish an Internet connection. Your service provider
can provide you with specific connection details, which
may include:
A username and password.
The carrier’s access point name (APN).
The “phone number” required to establish a
connection.
Any additional required dial string.
To configure the dial string settings:
1. Enter the custom dial string in the format
AT+cgdcont=1,"IP","APN"<CR> where APN is the
access point name of your carrier.
2. Tap Apply to save your changes.
3. Tap OK to close the Dial String Editor.
When you set up a new Internet connection, the custom
dial string that you have just saved is sent to the modem
when you attempt to connect to the Internet.
Turning on and turning off the Bluetooth radio from within the Bluetooth
application
1. Tap / Settings / Connections /Bluetooth.
2. Tap the Mode tab.
3. Select the Turn on Bluetooth check box to turn on
the radio, or clear this check box to turn off the
radio.
4. Tap OK.
Juno Series User Guide 87
Getting Connected 7
Making the handheld visible (discoverable) to other Bluetooth devices
To allow other Bluetooth-enabled devices to connect to the Juno series handheld, or if
the handheld will not connect to or pair with another device you are attempting to
connect to, you must make the handheld visible (this is sometimes referred to as
discoverable”).
To make the handheld visible to other devices:
1. Tap / Settings / Connections /Bluetooth.
2. Tap the Mode tab.
3. Select the Turn on Bluetooth check box, if it is not already selected. This enables
the integrated Bluetooth radio.
4. Select the Make this device visible to other devices check box.
5. Tap OK.
7 Getting Connected
88 Juno Series User Guide
Options for connecting wirelessly to other devices and
networks
The Juno series handheld has an integrated wireless LAN radio and an integrated
Bluetooth radio that you can use to connect to other devices and networks. In
addition, the Juno SC and Juno SD handhelds include an integrated cellular modem for
data connections, and the Juno SD also supports voice calls and text messaging.
A wireless LAN access point or the Juno SC or Juno SD handheld’s integrated cellular
modem can be used to connect to the Internet (at broadband speeds) or a corporate
network to:
browse the Internet or an Intranet
send and receive email and instant messages
access files on the network
Wireless LAN Access points are also known as “hotspots. Wireless LAN is often
referred to as Wi-Fi.
You can use Bluetooth wireless technology to connect to other Bluetooth-enabled
devices that are within range (typically within 5 m to 10 m of the handheld). You can
connect to:
Bluetooth-enabled devices such as cellular phones to access the Internet and
receive data
computers and other handheld devices to exchange files
other devices such as a GeoBeacon receiver, laser rangefinder or barcode
scanner
The following table lists devices you can connect to using the handheld, and where to
find detailed information on how to achieve these connections.
Connection method To ... See...
Wireless LAN Connect to a wireless LAN access point page 89
Juno SC / Juno SD
cellular modem
Connect to a cellular network page 90
Bluetooth wireless
technology
Connect to another Bluetooth-enabled device (paired and non-paired
connections)
page 92
Connect to a Bluetooth-enabled phone for Internet access page 95
Connect to a Bluetooth-enabled serial device page 99
Connect to an office computer to use ActiveSync technology page 101
Beam files to or from another device page 103
Wireless LAN or
Bluetooth wireless
technology or Juno SC /
Juno SD cellular modem
Access a corporate network through your Internet connection page 104
Juno Series User Guide 89
Getting Connected 7
Connecting to a wireless LAN access point
To connect to a wireless LAN access point, you must:
1. Set up the wireless LAN connection
2. Connect to the wireless LAN network or access point.
Note – If you have installed a personal certificate on the handheld, you do not need to set
up the wireless connection manually as described in Step 1. To connect to the network or
access point go to Step 2: Connecting to the network or access point.
Step 1: Setting up the wireless LAN connection
1. Make sure that the Juno series handheld’s wireless LAN radio is enabled (see
page 82).
2. Tap / Settings /Connections /Network Cards.
3. Select the Wireless tab.
Any networks that you have already configured
are displayed in the list of preferred networks.
4. To add a new network, tap Add New. To change
the settings for an existing network, tap the
network.
5. Enter the name of the network and other
connection details and then tap Next.
6. Do one of the following:
To use authentication, select the
authentication method from the
Authentication list.
To use data encryption, select an encryption method from the Data
encryption list.
To automatically use a network key, select the check box for The key is
automatically provided. Otherwise, enter the network key.
7. Tap Next.
8. For increased security, select the Use IEEE 802.1x network access control check
box and then configure additional authentication information.
9. Tap Finish.
Step 2: Connecting to the network or access point
1. Disconnect the USB data cable as the handheld prioritizes a USB connection
over a wireless LAN connection.
2. Bring the handheld within range of the network or access point.
7 Getting Connected
90 Juno Series User Guide
When a wireless LAN is detected, the access point icon on the title bar is
animated, and a notification message appears on the left softkey.
If the access point icon or the notification does not appear, use the Wireless
Manager to turn off and then turn back on the wireless LAN radio. When the
wireless LAN radio is turned on, any networks or access points within range are
detected and the icon and notification appear.
3. Tap the access point icon on the title bar or tap Notification on the left softkey.
A popup message shows the available networks.
4. Select the network you want to connect to and then tap OK on the left softkey.
5. Select The Internet (or work via a VPN) or Work and then tap Connect on the left
softkey.
6. If a Network Log On screen appears, enter your user name, password, and
domain information and then tap OK on the left softkey.
When the handheld is connected to the network or access point, the wireless
LAN connected icon appears in the title bar.
7. Start using the program you want to use, for example Windows Explorer Mobile
or Internet Explorer.
Note – To disconnect from the network or an access point at any time, turn off the
handheld’s wireless radio. To do this, tap the wireless LAN connected icon in the title
bar, select Wireless Manager and then tap the Wi-Fi button.
B
Tip – To delete a wireless LAN connection, tap and hold the connection in the
Wireless tab of the Network Cards screen and then select Delete.
Connecting to a cellular network from the modem
Use the Juno SC or Juno SD handheld’s cellular modem to connect to a cellular network
and access the Internet or a company network. Use this type of connection to access a
background map server, or for Internet and email access.
Note – The Juno SC handheld’s cellular modem can only be used to transmit data, and
does not have voice functionality or the ability to send SMS, MMS, or text messages
(Multimedia Messaging Service). It is recommended to request the data-only plan from
your service provider and have a “voice restriction placed on your line. The Juno SD
handheld’s cellular modem does have voice functionality and the ability to send text
messages.
To connect to a cellular network, you must:
1. Configure the connection to the network.
2. Connect to the cellular network.
Note – Before you begin the steps below, Trimble recommends that you confirm that the
modem can access the Internet directly. If necessary, contact your service provider and
confirm whether you must enter a user name, password, and domain details when
connecting.
Juno Series User Guide 91
Getting Connected 7
Step 1: Configuring the connection to the network
1. On the handheld, tap / Settings /
Connections /Connections.
2. Below My ISP, tap Add a new modem connection.
3. Enter the name for the connection.
4. Do one of the following:
For the Juno SC handheld:
from the Select a Modem dropdown list,
select Internal Cellular Modem and then tap
Next on the right softkey.
Enter the GPRS access number for the
Internet.
Two of the common GPRS access numbers for GSM networks are *99***1#
and *99#. If these access numbers do not work, contact the cellular service
provider to obtain the appropriate number to use.
For the Juno SD handheld:
from the Select a Modem dropdown list, select Cellular Line (GPRS) and
then tap Next on the right softkey.
Enter the required Access point name (APN). A common APN used by a
number of carriers is "internet". If this APN does not work then contact the
cellular service provider to obtain the appropriate APN to use.
5. Tap Next on the right softkey.
6. Unless the phone provider confirmed that you must enter the user name,
password, and domain settings to access the Internet, tap Finish on the right
softkey without entering any information on this screen.
Otherwise:
a. Enter the required information.
b. If the service provider has told you that you need to change the baud rate
or other settings for the connection, tap Advanced, configure these
settings and then tap OK in the top right corner of the screen.
c. Tap Finish on the right softkey.
You are returned to the Connections screen.
You have now configured the connection.
Step 2: Connecting to the Internet using the cellular network
1. On the handheld, go to the Connections screen, if it is not already open (tap /
Settings / Connections /Connections).
2. Below My ISP, tap Manage existing connections.
7 Getting Connected
92 Juno Series User Guide
3. Tap and hold the connection you want to use and then select Connect.
4. Unless the service provider already confirmed that you must enter the user
name, password, and domain settings, to access the Internet, tap OK on the left
softkey without entering any information on this screen. Otherwise, enter the
required information and then tap OK on the left softkey.
5. The Connectivity icon (typically on the Juno SC handheld, or , , or
on the Juno SD handheld ) in the title bar appears as the connection is being
made. Tap OK in the top right corner of the screen to close the My ISP screen.
6. Tap OK in the top right corner to close the Connections screen.
7. Tap in the top right corner to close the Settings screen.
To check the connection status at any time, tap the Connectivity icon in the title bar.
To end the connection at any time, tap the Connectivity icon in the title bar and then
tap Disconnect.
The Modem Status Indicator in the title bar of the Today screen indicates the signal
strength and connectivity status within the cellular network. For more information, see
page 42.
To connect to a corporate network or Intranet, see page 105.
To send and receive email messages, see Messaging, page 52.
To configure the GPS field software to use data received from an Internet source, see
page 98.
Connecting to a Bluetooth-enabled device
To use another Bluetooth-enabled device with the Juno series handheld, you must
form a Bluetooth connection between the two devices, during which you select the
type of service to use for the connection. This defines how the devices will
communicate with each other.
After forming the Bluetooth connection between the devices you may need to
configure settings for the connection such as the COM port for the field software to
use, or the number for the phone to dial. You must then connect to the other device
using the appropriate software application.
To connect the Juno series handheld to another Bluetooth-enabled device, you can use
either a paired connection or a non-paired connection.
Note – If you are connecting to a phone, skip this section and go to Connecting to a
Bluetooth-enabled phone for Internet access on page 95, where the pairing step is
described as part of the procedure for connecting to a phone.
Trimble recommends using a paired connection, if pairing is supported by the other
device, as a paired connection creates a more secure connection and makes
reconnecting to the device easier. For more information, see Pairing with a Bluetooth-
enabled device below.
Juno Series User Guide 93
Getting Connected 7
Some devices do not support paired connections. Use a non-paired connection if the
device does not have a keyboard, and if you know that the device does not
automatically exchange a pre-programmed passkey during pairing. For more
information, see Setting up a connection to a non-paired device, page 94.
To connect the Juno series handheld to the other device, do one of the following:
Pair with a Bluetooth-enabled device (see below)
Set up a connection to a non-paired device (see page 94)
Pairing with a Bluetooth-enabled device
Pairing the handheld with another Bluetooth-enabled device creates a permanent
security bond between the devices, which helps to exchange information securely
between the devices. The paired relationship is established when two devices create
and exchange a link key. Once the relationship is established, the handheld and the
other Bluetooth device only need to have their Bluetooth radios turned on to exchange
information; they do not need to be visible to other devices.
To pair with a Bluetooth device:
1. Make sure that the handheld and the Bluetooth device you want to pair with are
within five meters of each other, and that the Bluetooth radio in each device is
turned on.
2. On the Juno series handheld, tap / Settings / Connections / Bluetooth.

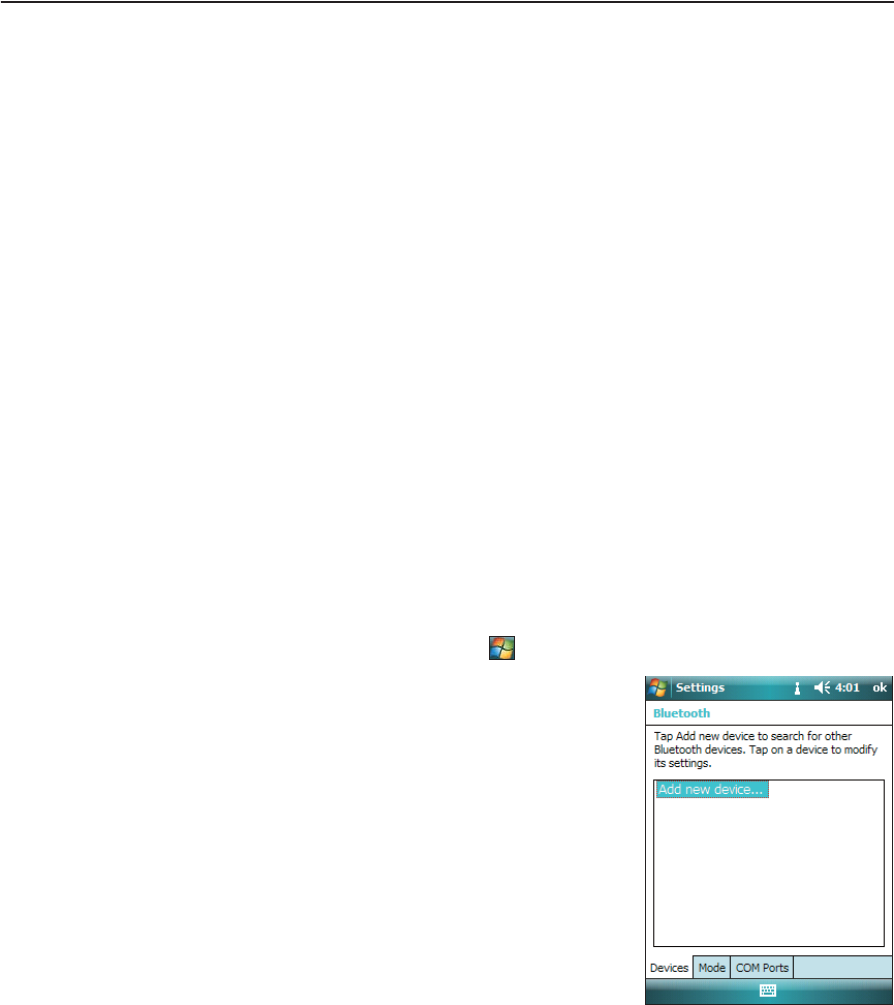

3. In the Devices tab, tap Add new device. The
handheld searches for other Bluetooth devices
and displays them in the list.
If the device you are trying to connect is not
displayed in the list, ensure that the device is on
and within range and then tap Refresh to search
for devices again.
4. Tap the name of the device you want to pair with
and then tap Next on the right softkey.
5. In the Passcode field, enter a passcode of between
1 and 16 characters. If you are connecting to:
a device with a keypad, enter a passcode of
your choice.
a device without a keypad, but you know that the device has a
pre-programmed passcode that will be exchanged, enter that passcode on
the Juno series handheld.
Note – Trimble recommends that you enter only numbers, as some devices do not support
passcodes that include letters.
6. Tap Next on the right softkey.
7. When prompted, enter the same passcode on the other device.
7 Getting Connected
94 Juno Series User Guide
Note – For more information on the types of devices that the Juno series handheld can
connect to, and the supported Bluetooth services, see Connecting to a Bluetooth device as a
client, page 106.
8. Tap OK in the top right corner of the screen to close the Bluetooth application.
9. Tap in the top right corner to close the Settings screen.
You have now created a partnership between the Juno series handheld and the other
Bluetooth-enabled device so that they can communicate. To start using the
connection, you must complete the configuration steps for that type of connection and
then connect to the device. For more information, see:
Connecting to a Bluetooth-enabled phone for Internet access, page 95
Connecting to a Bluetooth-enabled serial device, page 99
Connecting to an office computer to use ActiveSync technology, page 101
B
Tip – You only need to pair the handheld with a device before you connect to the device
for the first time.
Setting up a connection to a non-paired device
Setting up a connection to a non-paired device enables you to connect to a device that
does not allow you to enter a passcode on the device, or that does not automatically
exchange a pre-programmed passkey during pairing.
To set up a non-paired connection to a Bluetooth-enabled device:
1. Make sure that the handheld and the Bluetooth device you want to connect to
are within five meters of each other, and that the Bluetooth radio in each device
is turned on.
2. Tap / Settings / Connections /Bluetooth.

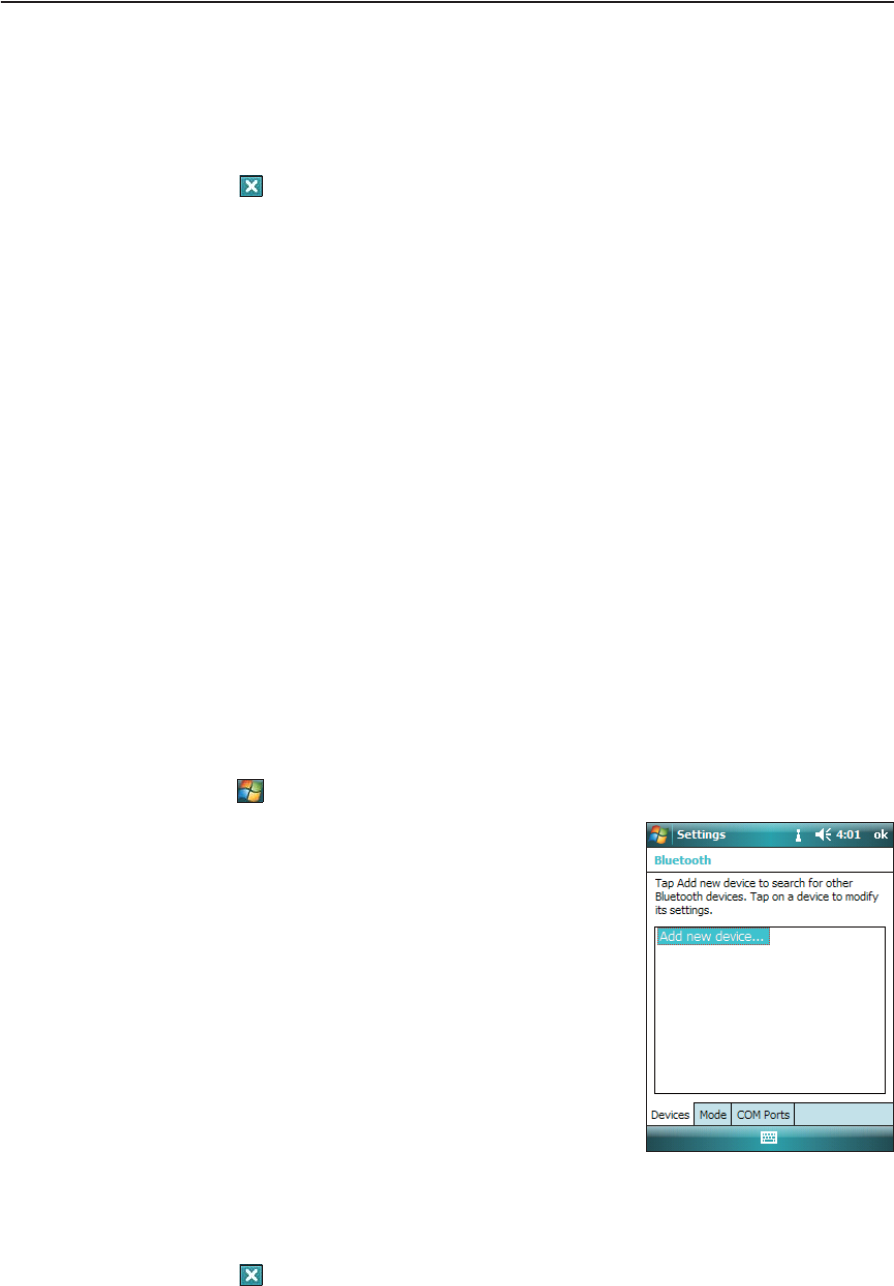

3. In the Devices tab, tap Add new device. The
handheld searches for other Bluetooth devices
and displays them in the list.
4. Tap the name of the device you want to connect
to and then tap Next on the right softkey.
The Enter Passcode screen appears.
5. Tap Next without entering a passcode.
6. If prompted to add the device to your device list,
tap No.
Note – For more information on the types of devices that
the Juno series handheld can connect to, and the
supported Bluetooth services, see Connecting to a
Bluetooth device as a client, page 106.
7. Tap OK in the top right corner of the screen to close the Bluetooth application.
8. Tap in the top right corner to close the Settings screen.
Juno Series User Guide 95
Getting Connected 7
You have now created a partnership between the Juno series handheld and the other
Bluetooth-enabled device so that they can communicate. To start using the
connection, you must complete the configuration steps for that type of connection and
then connect to the device. For more information, see:
Connecting to a Bluetooth-enabled phone for Internet access, page 95
Connecting to a Bluetooth-enabled serial device, page 99
Connecting to an office computer to use ActiveSync technology, page 101
Connecting to a Bluetooth-enabled phone for Internet access
If your model of Juno series handheld does not contain an integrated cellular modem,
you can use the handheld’s Bluetooth radio to connect to a Bluetooth-enabled cellular
phone and then connect to the Internet. Use this type of connection to access a
background map server, or for Internet and email access.
Note – Some cellular phones support the Bluetooth PAN (Personal Area Networking)
service as well as the Bluetooth DUN (Dialup Networking) service. Because DUN
connections are more common, this section assumes you are making a dialup network
connection with the Bluetooth-enabled phone.
To connect to a Bluetooth-enabled phone using a Bluetooth DUN (Dialup Networking)
connection, you must:
1. Connect the Juno series handheld to a Bluetooth-enabled phone and then
configure the connection to the dialup network.
2. Connect to the Internet using the dialup network.
3. Configure the software to use the connection. For example, you must configure
the GPS field software to use map data received from the Internet source, or you
must set up the Messaging application to send and receive email using the
connection.
Note – Before you begin the steps below, Trimble recommends that you confirm that the
phone can access the Internet directly. If necessary, contact the cellular phone provider
and confirm whether you must enter a user name, password, and domain details when
connecting an external device to the phone using Bluetooth dialup networking.
Step 1: Connecting the handheld to the phone and configuring the
connection to the dialup network
1. Make sure that the handheld and the Bluetooth device you want to connect to
are within five meters of each other, and that the Bluetooth radio in each device
is turned on. For more information, see Turning on and turning off the
integrated radios, page 82.
2. On the handheld, tap / Settings / Connections /Connections.
3. Below My ISP, tap Add a new modem connection.
7 Getting Connected
96 Juno Series User Guide

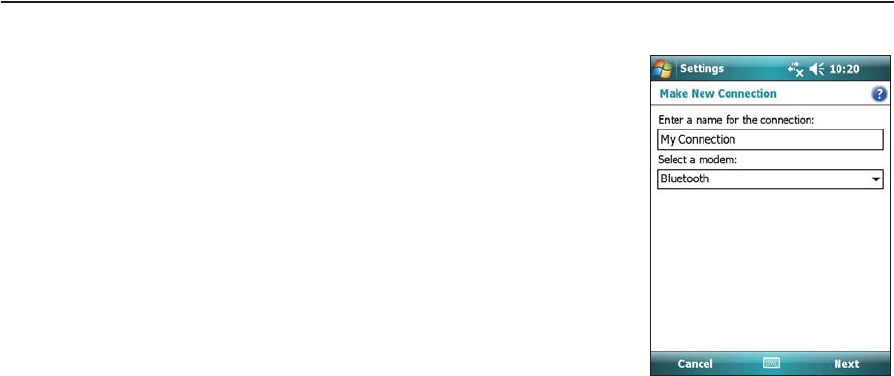

4. Enter the name for the connection.
5. From the Select a Modem dropdown list, select
Bluetooth and then tap Next on the right softkey.
6. If the phone you want to connect to is:
listed, go to Step 7 below.
not listed:
a. Tap Add new device. The handheld
searches for other Bluetooth devices and
displays them in the list.
If the handheld’s integrated Bluetooth
radio is turned off, it is now automatically
turned on.
b. From the list of available devices, select the device you want to connect
to and then tap Next on the right softkey.
c. To pair with the phone, enter a passcode of your choice that you will
easily remember onto the handheld and then tap Next on the right
softkey.
d. When prompted by the phone, enter the same password and then
accept the connection.
You have now created a partnership between the Juno series handheld and
the phone so that they can communicate.
7. From the My Connections list, select the phone that you want to configure the
connection to.
8. Enter the GPRS access number for the Internet.
Two of the common GPRS access numbers for cellular phones on GSM
networks are *99***1# and *99#. If these access numbers do not work, contact
the cellular phone provider to obtain the appropriate number to use.
Note – You do not need to set up dialling rules or change the Internet connection settings
on the phone. The connection settings you enter on the handheld are passed to the phone
to use for this connection.
9. Tap Next on the right softkey.
10. Unless the phone provider confirmed that you must enter user name, password,
and domain settings to access the Internet, tap Finish on the right softkey
without entering any information in this screen.
Otherwise:
a. Enter the required information.
b. If the phone provider has told you that you need to change the baud rate or
other settings for the connection, tap Advanced, configure these settings
and then tap OK in the top right corner of the screen.
Juno Series User Guide 97
Getting Connected 7
c. Tap Finish on the right softkey.
You are returned to the Connections screen.
You have now configured the dialup networking connection.
Step 2: Connecting to the Internet using the dialup network
1. On the handheld, go to the Connections screen, if it is not already open (tap /
Settings / Connections /Connections).
2. Below My ISP, tap Manage existing connections.
3. Tap and hold the connection you want to use and then select Connect.
4. Unless the phone provider confirmed that you must enter user name, password,
and domain settings to access the Internet, tap OK on the left softkey without
entering any information in this screen. Otherwise, enter the required
information and then tap OK on the left softkey.
5. If the phone prompts for confirmation to connect to the Internet, accept the
connection.
The phone dials the configured GPRS access number and then connects to the
Internet.
A Connectivity notification appears on the handheld as the connection is being
made.
After the connection is made you are returned to the My ISP screen.
To confirm that the Juno series handheld is connected to the phone, or to check
the status of the connection at any time, tap the Connectivity icon in the
title bar. The notification shows the name of the current connection, and the
time elapsed since the connection was made. To hide the notification, tap Hide.
Note – If you have an active wireless LAN connection, the connectivity icon appears as
instead.
6. Tap OK in the top right corner of the screen to close the My ISP screen.
7. Tap OK in the top right corner to close the Connections screen.
8. Tap in the top right corner to close the Settings screen.
To check the connection status at any time, tap the or icon in the title bar.
To end the connection at any time, tap the or icon in the title bar and then tap
Disconnect.
To connect to a corporate network or Intranet, see page 104.
To send and receive email messages, see Messaging, page 52.
7 Getting Connected
98 Juno Series User Guide
Step 3: Configuring the GPS field software to use data received from the
Internet source
Now that you have connected the Juno series handheld to the Internet, you must
configure the software to use the connection to receive data.
Downloading background map files from an Internet map server
1. Make sure that the coordinate system selected in the TerraSync software
matches the coordinate system of the map server.
2. In the Map section of the TerraSync software, pan or zoom to make sure that the
area for which you want a background image is displayed on the map.
If the map server covers the area you are in, it will provide a background image
that matches the current map extents.

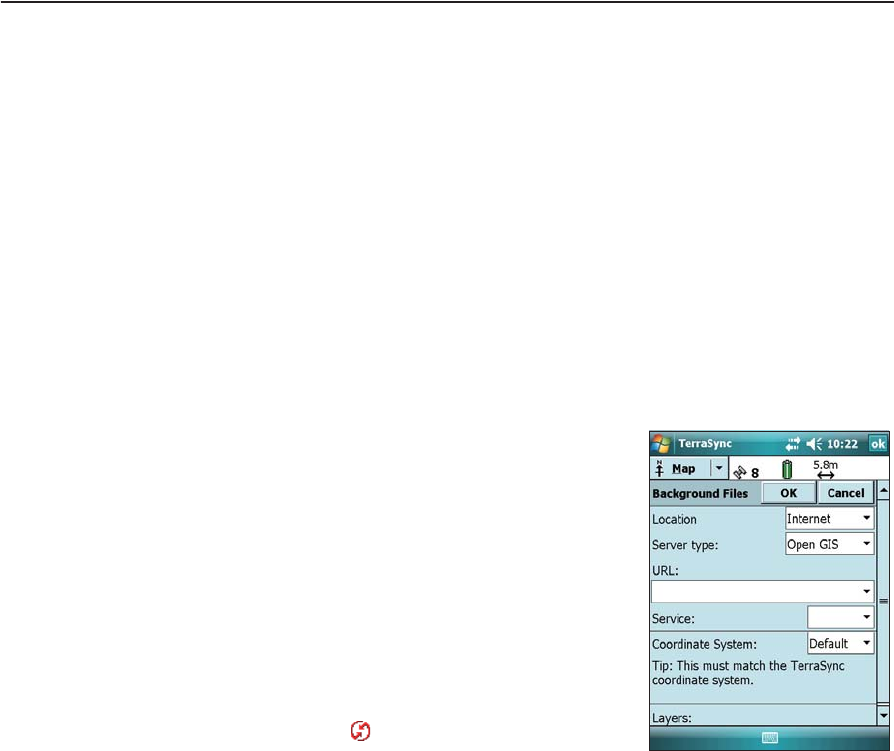

3. Tap Layers and then select Background files. The
Background Files form appears.
4. In the Location field select Internet and then use
the fields that appear to specify the Map Server
type, the URL of the server, the service, and the
layers from that service that you want to
download.
5. Tap OK to close the Background File form and
download the selected background map.
This may take some time. When a download is in
progress, an icon appears in the top left corner
of the map. Once the background file is
downloaded, the hourglass icon appears until the
downloaded image is rendered and becomes visible.
If you pan or zoom beyond the extents of the downloaded image, new images are
downloaded automatically and displayed in the background of the map.
To stop automatic downloading of background files, either clear the address of the
map server from the URL field, or set the Location field to Default and then clear the
check box next to any files.
Reconnecting to the Internet
To reconnect to the Internet at any time after setting up the connection, repeat the
steps listed under Step 2: Connecting to the Internet using the dialup network on
page 97.
Juno Series User Guide 99
Getting Connected 7
Connecting to a Bluetooth-enabled serial device
Use Bluetooth wireless technology to receive data from a Bluetooth-enabled serial
device, such as a laser rangefinder.
To connect to a Bluetooth-enabled serial device, you must:
1. Connect to the Bluetooth-enabled serial device.
2. Configure the COM port on the handheld to use for the connection.
3. If necessary, configure the GPS field software to use data received from the serial
device.
Step 1: Connecting to the Bluetooth-enabled serial device
Connect the handheld to the Bluetooth-enabled device, selecting the Serial Port
service if it is not already selected (see Connecting to a Bluetooth-enabled device,
page 92).
Step 2: Configuring the COM port to use on the handheld
1. On the Juno series handheld, tap / Settings / Connections /Bluetooth.

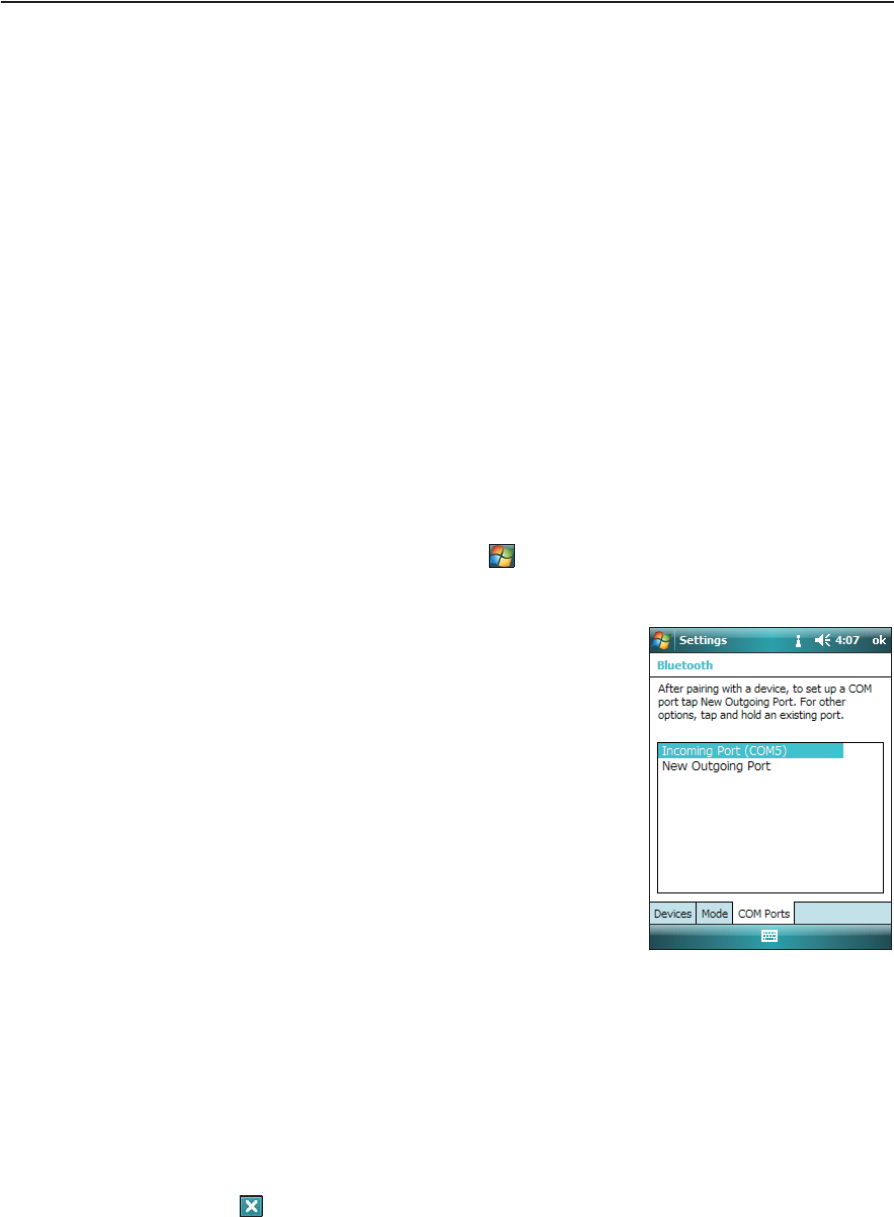

2. Tap the COM Ports tab.
3. Tap New Outgoing Port.
4. Select the device you want to set up the
connection to and then tap Next on the right
softkey.
5. Select the COM port on the Juno series handheld
to use for the connection.
The Juno series handheld has four COM ports
(COM6, COM7, COM8 and COM9) available for
connections out to Bluetooth-enabled serial
devices.
6. Do one of the following:
To communicate with any device, for example if you have formed this
connection without pairing to a device, clear the Secure Connection check
box.
To communicate only with devices with which the handheld has a
Bluetooth partnership, select the Secure Connection check box.
7. Tap Finish on the right softkey.
8. Tap OK in the top right corner to close the Bluetooth application.
9. Tap in the top right corner to close the Settings screen.
7 Getting Connected
100 Juno Series User Guide
Step 3: Configuring the GPS field software to use data from the serial
device
Once you configure the connection between the Juno series handheld and the
Bluetooth-enabled serial device, you must configure the software to use the
connection to receive data.
To use a Bluetooth-enabled external sensor such as a laser rangefinder or a barcode
scanner in TerraSync software, see Using data from an external source in the TerraSync
software, page 100.
Using data from an external source in the TerraSync software
To configure the TerraSync software to use data from an external source, for example, a
laser rangefinder or barcode scanner:
1. Start the TerraSync software and then open a data file.
2. In the Setup section, tap External Sensors. The
External Sensors form appears.
3. If you are connecting to:
a laser rangefinder, select the Laser check
box and then tap the Properties button
beside the Laser check box. The Laser
Properties form appears.
a barcode scanner or other external sensor,
select the Sensor 1 or Sensor 2 check box and
then tap the Properties button beside the
appropriate check box. The Sensor Properties
form appears.
4. If you are connecting to a barcode scanner or other external sensor, enter a
name for the connection in the Name field.
5. From the Port drop-down list, select the name of the COM port that you selected
in the Bluetooth application when you set up the connection to the device.
6. Tap OK to confirm the sensor settings and return to the External Sensors form.
7. Tap OK to confirm the settings and return to the main screen of the Setup
section.
8. The external sensor is now setup for use and can be used to add data as
attributes into an open file in TerraSync. The device is automatically connected
and disconnected when data files in TerraSync are opened and closed.
To check the status of the connection, select the Comms subsection in the
Status section of the GPS field software.
Juno Series User Guide 101
Getting Connected 7
Connecting to an office computer to use ActiveSync technology
Instead of using a USB or serial cable to physically connect to an office computer, you
can use Bluetooth wireless technology to connect to ActiveSync technology or the
Windows Mobile Device Center on a Bluetooth-enabled office computer.
Note – Not all Bluetooth devices and Bluetooth management software support ActiveSync
connections. Check with the manufacturer of the office computer for compatibility.
Note – The exact steps required may vary depending on the office computer.
To connect to a office computer to use ActiveSync with a Bluetooth connection, you
must:
1. Set up the connection to the computer.
2. Connect to ActiveSync using Bluetooth wireless technology.
Step 1: Setting up the connection to the computer
1. From the Bluetooth user interface on the office computer, make sure that the
computer allows itself to be discovered by other Bluetooth devices.
2. Configure the ActiveSync technology on the office computer to connect to the
correct Bluetooth port. The steps required depend on the operating system
installed on the office computer. If the office computer is using:
the Windows 7 or Windows Vista operating system:
a. From the Start menu on the office computer, select Control Panel /
Hardware and Sound / Windows Mobile Device Center.
The Connection Settings dialog appears:
b. Select the Allow connections to one of the following check box.
c. From the list, select Bluetooth and then click OK.
the Windows XP or 2000 operating system:
a. From the Bluetooth user interface on the office computer, identify the
virtual COM port of the host Bluetooth Serial Port or Local Service and
ensure that this is enabled. In this example, the virtual COM port is COM5.
b. Start the ActiveSync technology on the office computer.
c. Select File / Connection Settings.
7 Getting Connected
102 Juno Series User Guide
The Connection Settings dialog appears:
d. Select the Allow connections to one of the following check box.
e. From the list, select the COM port that you selected in Step a and then click
OK.
Note – Before you try to form a Bluetooth connection from the Juno series handheld to the
office computer, you must correctly configure the Bluetooth host serial port and ActiveSync
technology on the office computer.
3. On the handheld, tap / Settings / Connections /Bluetooth.
4. In the Devices tab, tap Add new device. The handheld searches for other
Bluetooth devices and displays them in the list.
5. Tap the name of the computer you want to connect to and then tap Next on the
right softkey.
6. When prompted, enter a passcode of your choice that you will easily remember
on the handheld.
7. Enter the same passcode on the office computer.
8. On the handheld, select the ActiveSync check box in the list of services provided
by the computer and then tap Finish on the right softkey.
You have now created a partnership between the Juno series handheld and the
office computer so that they can communicate.
9. Tap OK in the top right corner to close the Bluetooth application.
10. Tap in the top right corner to close the Settings screen.
To connect to ActiveSync, see Step 2 on the following page.
Juno Series User Guide 103
Getting Connected 7
Step 2: Connecting to ActiveSync using Bluetooth wireless technology
1. On the Juno series handheld, tap / Programs / ActiveSync.
2. Tap Menu and then select Connect via Bluetooth.
On the Juno series handheld, a message box shows the status of the connection
as it is made.
3. When the connection to the office computer is successful, you are returned to
the ActiveSync application on the handheld.
4. Tap to close.
The connectivity icon in the status bar shows , or if WLAN is connected.
To check the status of the ActiveSync connection, tap the connectivity icon in
the title bar.
To disconnect, tap / Programs / ActiveSync on the handheld and then select
Menu / Disconnect.
Beaming files to or from another device
You can beam files, contacts, tasks, and appointments between the handheld and
another device.
To receive beamed files from another device:
1. Make sure that the Juno series handheld’s
integrated Bluetooth radio is turned on (see
page 86).
2. Tap / Settings / Connections/ Beam.
3. Select the Receive all incoming beams check box
and then tap OK.
4. When another device attempts to beam a file,
you are prompted to accept the file. To receive
the file, tap Ye s.
Note – All incoming files are automatically saved in the
My Documents folder on the handheld.
7 Getting Connected
104 Juno Series User Guide
To send beamed files to another device:
1. Make sure that the Juno series handheld’s
integrated Bluetooth radio is turned on
(see page 86).
2. On the Juno series handheld, open File Explorer
and go to the file you want to send.

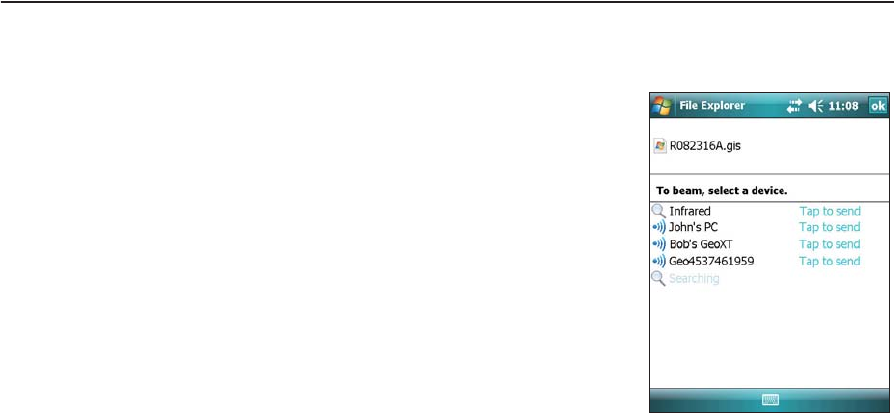

3. Tap and hold the file and then select Beam File.
The handheld scans for nearby devices.
4. Tap the device you want to send the file to. The
file is sent to the device.
A message reports Done or Failed, depending on
the outcome of the file transfer.
Accessing a corporate network through your Internet connection
Use a Virtual Private Network (VPN) connection to access a corporate network or
Intranet.
Before you begin, obtain the following information from your network administrator:
user name and password
domain name
host name or IP address of the VPN server
To access a corporate network through your Internet connection, you must:
1. Set up an Internet connection on the handheld.
2. Set up a VPN connection.
3. Connect to the corporate network or Intranet.
Step 1: Setting up an Internet connection on the handheld
Do one of the following:
Set up a wireless LAN connection to an access point. For more information, see
page 89.
Connect to the Internet using the internal cellular modem (Juno SC or Juno SD
versions only). For more information, see page 90.
Connect to the Internet using a Bluetooth-enabled phone. For more
information, see page 95.
Juno Series User Guide 105
Getting Connected 7
Step 2: Setting up a VPN connection
1. On the Juno series handheld, tap / Settings /
Connections / Connections.
2. From the My Work Network list, tap Add a new VPN
server connection.
3. Follow the instructions in the Make New
Connection wizard.
To view additional information for any screen in
the wizard, tap .
4. Tap Finish.
Step 3: Connecting to the corporate network or Intranet
To connect to the corporate network or Intranet, simply start using Internet Explorer.
The Windows Mobile operating system automatically controls whether the VPN
connection is used, depending on whether the URL contains a period. For example, the
URL www.trimble.com contains periods, and so the connection to this web site is
made without using the VPN connection. However, an address to a network computer
or file server that does not contain periods automatically starts the VPN connection.
If you need to use the VPN connection to access URL addresses that contain periods,
specify exceptions for the addresses that are within the corporate network. To do this:
1. Tap / Settings / Connections / Connections.
2. Tap the Advanced tab.
3. Tap Exceptions. The Work URL Exceptions screen
appears.
4. Tap Add new URL.
5. Enter the URL and then tap OK in the top right
corner of the screen.
6. Repeat Step 4 and Step 5 as required.
7. Tap OK in the top right corner of the screen to
return to the Advanced tab of the Connections
screen.
8. Tap OK in the top right corner of the screen to
close the Connections screen.
9. Tap to close the Settings screen.
7 Getting Connected
106 Juno Series User Guide
Bluetooth wireless connections explained
The Juno series handheld has an integrated Bluetooth radio that you can use to
establish a wireless connection to other Bluetooth devices that are within range.
Using a Bluetooth connection, you can communicate with devices such as cellular
phones, office computers, other handhelds, and Bluetooth-enabled laser rangefinders
and barcode scanners. You can also communicate with peripheral devices that use
Bluetooth adaptors instead of serial or USB connections.
The Juno series handheld can act as a Bluetooth client device or a Bluetooth host
device, and can act as both at the same time. The concepts of client and host devices
are explained in detail below.
Connecting to a Bluetooth device as a client
You can use the Juno series handheld as a client device, which uses services offered by
Bluetooth host devices that are within range. In general the host device provides
information to the client device, but in some cases the client initiates the connection
and also provides information to the host device.
The services used by a Juno series handheld when connecting as a Bluetooth client are:
A client can connect to a number of different services provided by different hosts. The
number of active connections at any one time affects the speed of the connections.
Figure 7.1 shows the handheld connected to different types of host devices using
Bluetooth wireless technology.
Service Description
Dialup Networking
(DUN)
Connects the handheld to a cellular phone or modem for dial-up
network or Internet access.
Personal Area
Networking (PAN)
Connects to Bluetooth network access points or phones that support the
Personal Area Network/Network Access (PAN) profile.
Serial Port Emulates an RS-232 serial (COM) port on the handheld.
ActiveSync Enables an ActiveSync connection to a computer.
Input Device (HID) Connects the handheld to a physical input device, such as a keyboard.
Wireless Stereo Connects to Bluetooth A2DP (Advanced Audio Distribution Profile)
headphones.
Juno Series User Guide 107
Getting Connected 7
Figure 7.1 Juno series handheld Bluetooth client connections
In Figure 6.1, the dashed arrows indicate the client device—that is, the Juno series
handheld—connecting to host devices. The Bluetooth profile (or service) used for the
connection is shown between the arrows, for example, the DUN service is used for a
connection to a cell phone, and the Serial Port service is used for a serial connection
to a barcode scanner or laser rangefinder.
The solid arrows indicate the flow of information between devices. For example, when
the Juno series handheld connects as a client to:
a cellphone, the handheld uses the DUN or PAN host service provided by the
phone to access the Internet and background map data.
a laptop computer or office computer, the devices use the ActiveSync service to
exchange information to and from either device.
Bluetooth headphones, the handheld uses the Wireless Stereo host service
provided by the headphones to play audio files and system sounds.
7 Getting Connected
108 Juno Series User Guide
Providing Bluetooth services as a host
You can use the Juno series handheld as a Bluetooth host device, which provides
services to Bluetooth client devices that are within range.
Host services provided by the Juno series handheld are:
To provide a host service, you must turn on the Bluetooth radio and make both devices
visible to other devices (see page 82 and page 87).
When a client device connects to the Serial Port service provided by the Juno series
handheld, applications on the handheld can use the pre-defined host serial port on
COM5 to provide host services to the client device.
Service Description
Serial Port Emulates an RS-232 serial (COM) port on the handheld.
CHAPTER
8
Juno Series User Guide 109
Troubleshooting 8
In this chapter:
QPower issues
QBacklight issues
QTouch screen issues
QKeypad issues
QMemory card issues
QPhone issues
QConnection issues
QGPS receiver issues
QReal-time DGPS issues
Use this section to identify and solve common
problems that may occur when using the Juno
series handheld. Please read this section before
you contact technical support.
8 Troubleshooting
110 Juno Series User Guide
Power issues
Backlight issues
Problem Cause Solution
The handheld does not
turn on.
The battery is flat. Recharge the battery (see page 28).
The screen is blank. The handheld is turned
off.
Press the Power button to turn on the handheld.
The handheld has locked
up.
Reset the handheld (see Resetting the handheld,
page 33).
The handheld is not
charging.
The internal temperature
has risen above the
allowed maximum for
charging the battery.
Do one or all of the following:
Turn off the integrated radios before charging the
handheld.
Suspend the handheld before charging.
Remove the handheld from any external heat
sources (for example, sunlight). The handheld will
automatically start charging again when the
internal temperature has dropped below the range
for charging the battery.
The USB cable provides
only a minimal charge
when an active
connection to the
computer is formed.
Recharge the battery using the AC adaptor or the
vehicle adaptor.
The battery power
percentage bar does not
appear in the Power
control.
The battery has 0%
power.
Recharge the battery (see page 28). Once the battery
level is above 0%, the battery power percentage bar
reappears. Tap / Settings / System / Power / Battery
to view the level of power remaining in the battery.
The charge level of the
battery drops when the
handheld is turned off.
The handheld was left in
Suspend mode or was left
fully charged for a long
duration.
Before storing the handheld, completely shut down the
handheld (see Turning on and turning off the
handheld, page 32). Then store the handheld as
recommended (see Storage, page 20).
Problem Cause Solution
The backlight does not
come on when you tap
the screen or press a
button.
The backlight is not set to
turn on in the Backlight
control.
Tap / Settings / System / Backlight to view the
Backlight control, and make sure that:
•the Turn on backlight when a button is pressed or
the screen is tapped check box is selected.
the brightness is not set to Dark in the Configure
tab.
The screen is blank or
hard to see.
The backlight is off. Tap the screen or press a button.
The backlight level needs
to be adjusted.
Tap / Settings / System / Backlight to view the
Backlight control and then adjust the slider in the
Configure tab.
Juno Series User Guide 111
Troubleshooting 8
Touch screen issues
Keypad issues
Problem Cause Solution
The touch screen
does not respond to
stylus taps.
The touch screen is
incorrectly aligned.
Realign the screen (see page 50).
The touch screen is locked. To unlock the touch screen, tap Unlock in the menu bar of
the Today screen.
The handheld has locked
up.
Reset the handheld (see Resetting the handheld, page 33).
The screen is blank. The handheld is turned
off.
Press the Power button to turn on the handheld.
The battery is flat. Recharge the battery (see page 29).
The handheld has locked
up.
Reset the handheld (see Resetting the handheld, page 33).
A voice call is active. The screen will become active and visible again when the
call is ended. See Voice calls (Juno SD handheld only),
page 54.
The screen is hard to
see.
The backlight level needs
to be adjusted.
Open the Backlight control and then adjust the backlight
level (see Backlight, page 51).
The backlight is off. Tap the screen to turn on the backlight.
You are unable to see parts
of an application windows
when the screen is in
landscape orientation.
Some applications are designed for portrait orientation
only. To view the entire application window, change the
screen display to portrait.
The selected display theme
does not have enough
contrast.
Select the High-Contrast display theme. Tap / Settings /
Personal / Today, select the High-Contrast theme and then
tap OK.
Problem Cause Solution
Pressing the
application key does
not activate the
function shown on
the softkey above it.
The hardware application
key has been programmed
to run another program or
to perform another action.
Do one of the following:
Tap the touchscreen softkey to activate the function
shown on the softkey.
Re-program the application key to perform the same
action as the touchscreen softkey. To do this, tap /
Settings / Personal / Buttons, select the button to
reprogram and then select <Left Softkey> or <Right
Softkey>.
8 Troubleshooting
112 Juno Series User Guide
Memory card issues
Phone issues
Problem Cause Solution
The handheld does not
recognize a memory card.
The handheld does not
support SDIO (SD
input/output) cards.
Use a microSD or microSDHC memory card.
Files on the memory card
are not visible or are not
able to be opened.
Files have been encrypted
on another device and have
a .menc file extension.
Remove encryption from the files (see Encrypting files
on memory cards, page 36).
Problem Cause Solution
The screen is blank. A voice call is active. The screen will become active and visible again when
the call is ended. See Voice calls (Juno SD handheld
only), page 54.
Juno Series User Guide 113
Troubleshooting 8
Connection issues
ActiveSync technology
Problem Cause Solution
ActiveSync
technology will not
connect to the
handheld.
The connection is not
initiated automatically.
Disconnect the USB cable from the computer and then
reconnect the handheld to the computer. Alternatively, in the
ActiveSync technology on the office computer, select
File /Connection Settings and then tap Connect.
ActiveSync does not
recognize the Juno
series handheld.
Restart the office computer.Disconnect the USB cable from the
handheld, reset it (see Resetting the handheld, page 33) and
then reconnect the handheld to the computer.
An incompatible version
of ActiveSync
technology is installed.
ActiveSync version 4.5 and later is compatible with the Juno
series handheld. If version 4.5 or later of the ActiveSync
technology is not installed on the office computer, you can
install it from the Juno Series Getting Started Disc.You can also
download the latest version from the Microsoft website at
www.microsoft.com/windowsmobile/activesync/default.mspx.
The connection is not
enabled in ActiveSync
on the computer.
In the ActiveSync technology on the office computer, click
File /Connection Settings. If you are using:
the support module, make sure that the Allow USB
connections check box is selected from the drop-down list.
a Bluetooth connection, make sure that the correct port for
Bluetooth is selected. Then open the Bluetooth control on
the handheld. In the Devices tab, tap the partnership and
in the services list make sure that the ActiveSync check box
is selected.
The connection is not
enabled in ActiveSync
on the handheld.
On the handheld, tap / Programs / ActiveSync / Menu /
Connections. Make sure that the Synchronize all PCs using this
connection check box is selected, and that the correct option is
selected.
The handheld
connection settings
conflict with network
settings or VPN client
software.
If you are using the USB data cable, use the USB to PC utility to
change the connection method the handheld uses to connect
to ActiveSync on the computer. Tap / Settings /
Connections / USB to PC Utility. Clear the Enable advanced
network functionality check box.
The handheld stops using the default RNDIS method to
connect to the ActiveSync technology.
8 Troubleshooting
114 Juno Series User Guide
Windows Mobile Device Center
Network connections
Problem Cause Solution
Windows Mobile Device
Center will not connect
to the handheld.
The connection is not
initiated automatically.
Disconnect the USB cable from the computer and then
reconnect the handheld to the computer.. Alternatively, in
the Windows Mobile Device Center software on the office
computer, select Mobile Device Settings /Connection
Settings.
The Windows Mobile
Device Center software
does not recognize the
Juno series handheld.
Restart the office computer. Disconnect the USB cable from
the handheld, reset it (see Resetting the handheld,
page 33) and then reconnect the cable to the handheld.
The connection is not
enabled in Windows
Mobile Device Center
on the computer.
In the Windows Mobile Device Center software on the
office computer, click Mobile Device Settings / Connection
Settings. If you are using:
the USB data cable, make sure that the Allow USB
connection check box is selected from the drop-down
list.
a Bluetooth connection, make sure that the correct
port for Bluetooth is selected. Then open the Bluetooth
control on the handheld. In the Devices tab, tap the
partnership and in the services list make sure that the
ActiveSync check box is selected.
The connection is not
enabled on the
handheld.
On the handheld, tap / Programs / ActiveSync / Menu /
Connections. Make sure that the Synchronize all PCs using
this connection check box is selected, and that the correct
option is selected.
The handheld
connection settings
conflict with network
settings or VPN client
software.
If you are using the USB data cable, use the USB to PC
utility to change the connection method the handheld uses
to connect to the Windows Mobile Device Center on the
computer. Tap / Settings / Connections / USB to PC
Utility. Clear the Enable advanced network functionality
check box.
The handheld stops using the default RNDIS method to
connect to the Windows Mobile Device Center.
Problem Cause Solution
The Bluetooth
connection with the
cellular phone suddenly
ends.
If you change the proxy
settings of the
handheld while
connected to a cellular
phone, the cellular
phone ends the
connection.
Make any changes to proxy settings before connecting to a
mobile device.
Unable to connect to
another Juno series
handheld.
Data encryption settings
are set incorrectly.
When setting up a peer-to-peer ad-hoc network with a
WEP encryption, set a Network Key, rather than leaving the
key blank to be provided automatically.
Juno Series User Guide 115
Troubleshooting 8
Bluetooth wireless technology
Problem Cause Solution
The handheld cannot
discover a nearby
Bluetooth device.
The device is out of
range.
Move the devices closer to each other and then scan
again.
Bluetooth wireless
technology is not
enabled on one or both
devices.
Make sure that the Bluetooth radio is turned on, on both
the handheld (see page 86) and the other Bluetooth
device.
The device has not been
made Discoverable.
Make sure that the Bluetooth device has been made
Discoverable.
The COM port that you
assigned to a serial port
service is not available in
your application.
The application cannot
recognize ports if they
are added after the
application opens.
Exit from the application, add the port and then run the
application again.
The Bluetooth
connection fails while in
use.
The Bluetooth device has
moved out of range.
Move the devices closer to each other. The devices should
reconnect automatically. If they do not, select the
Bluetooth device in the Devices tab. Tap and hold the
device name and then select Delete. Tap New to discover
the device again.
The Bluetooth radio has
lost the connection.
Turn off the Bluetooth radio on the handheld and then
turn on the Bluetooth radio (see page 86).
Bluetooth file transfer
interrupts the
connection.
When you transfer large image or data files, other
Bluetooth connections may stop responding. To avoid
problems, close other Bluetooth connections before
transferring large files.
8 Troubleshooting
116 Juno Series User Guide
Wireless LAN connections
Problem Cause Solution
The “New Network
Detected” notification
does not appear
automatically.
The wireless LAN radio is
off.
Tap the wireless icon in the Today screen or go to the
Wireless Manager and make sure wireless LAN is on.
The handheld is out of
range of the network.
Move to within range of the network, then tap /
Settings /Connections /Network Cards and then setup the
connection.
The handheld cannot
connect to a secure site.
The date on the
handheld is incorrect.
Check that the handheld has the date set correctly on the
Today screen. If the date is incorrect, tap the clock icon on
the Today screen and then adjust the date and time.
You cannot configure an
Internet connection.
Within range of more
than one network, you
are not connecting to
the network you would
prefer to use.
The radio is connecting
to the first network
signal it has received.
Tap / Settings /Connections /Network Cards. Tap and
hold the network you would prefer to use and then select
Connect.
The “New Network
Detected” notification
appears but the menu
bar and soft key options
are not displayed.
Some applications are
not fully compatible
with all features of the
Windows Mobile 6
operating system.
Use the application buttons on the keypad, as they map to
the soft keys in the menu bar:
To dismiss the notification, press the right application
button on the keypad.
To connect to the network, press the left application
button.
Alternatively, select a Windows Mobile application from
the Start menu, such as the Today screen or File Explorer,
and the menu bar and soft keys will be displayed correctly.
Juno Series User Guide 117
Troubleshooting 8
GPS receiver issues
Problem Cause Solution
The handheld is not
receiving GPS positions.
The integrated GPS
receiver is not activated.
Use the Connect or Activate GPS command in the GPS
field software to open the GPS COM port and activate
the integrated GPS receiver. For more information, see
Using the GPS Receiver, page 65.
The GPS COM port is
already in use. Only one
application at a time can
have the port open.
Do the following:
Exit the software that is using the GPS COM port
and then retry in your application.
Check that a GPS application is not running in the
background. Tap / Settings / Memory, select
Running Programs, and then select and close any
GPS applications you are not using.
The GPS field software is
using the wrong GPS COM
port.
Connect to COM4.
Not enough satellites are
visible.
Move to a location where the receiver has a clear view
of the sky and ensure the antenna is not obstructed.
Wait for real-time is
selected in the GPS field
software and the
integrated receiver is
waiting to receive
real-time corrections.
If you are collecting data for postprocessing, clear the
wait for real-time selection.
Check that the real-time correction source is setup
correctly (see Connecting to a real-time differential
correction source, page 70).
Handheld is lying on a
metal surface.
The design and location of the GPS antenna have been
maximized for GPS reception in a typical user
environment. Locating the handheld on a metal surface
without being in contact with the user may cause a
decrease or loss of satellite reception.
Hold the handheld for optimum reception.
NMEA data includes
autonomous positions.
The integrated GPS
receiver outputs
autonomous positions
when real-time
corrections are
unavailable.
Configure the NMEA application to filter out non-DGPS
positions.
8 Troubleshooting
118 Juno Series User Guide
Real-time DGPS issues
Problem Cause Solution
The handheld is not
receiving SBAS
real-time corrections
The SBAS satellite is
obstructed from view.
Check the location of the SBAS satellite in the Skyplot section
of the GPS field software, and if possible move to a different
location.
You are outside the
WAAS, EGNOS, or MSAS
coverage area.
Wide Area Augmentation System (WAAS) satellites are
tracked in the Continental United States including Alaska,
and in southern parts of Canada.
European Geostationary Navigation Overlay Service (EGNOS)
satellites are tracked in Europe.
MTSAT Satellite-based Augmentation System (MSAS)
satellites are tracked in Japan.
Juno Series User Guide 119
Symbols
.menc files 36
A
AC power adaptor
connecting 30
included component 19
safety 10
access point 88
accessing DGPS corrections from the Internet 90, 95
accessing online help 40
accessories 20
accuracy
improving 68–71, 71–72
of Juno series handhelds 68
Accuracy Settings form 69
accuracy-based logging 69
ActiveSync
connecting to the handheld 61
installing onto a computer 59
pre-installed software 43
synchronizing 61
troubleshooting 113, 114
USB connection 59
ActiveSync service 101–103, 106
adjusting screen display 44
Adobe Reader software 43
alarms 48
Album view 79
animated skyplot 71
antenna, external 20
appointments 43
ArcPad software
connecting to GPS 67
installing 66
supported versions 66
Australia, notices to users 8
B
backing up data 57
backlight
reducing brightness to save power 31
settings 51
troubleshooting 110
turning off to save power 51
barcode scanner 100, 107
base stations 71
battery 20
charging 28, 30
conserving 31
included component 19
inserting 29
low battery indicators 31
power level 31
recycling 8
removing 29
safety 11
troubleshooting 117, 118
beaming files 103
Bluetooth client services 106
Bluetooth radio
conserving power 31
safety 9
Bluetooth wireless technology
ActiveSync service 101–103, 106
cellular phone connection 95
client device 106
client services 106
computer connection 101–103
connecting without pairing 94–95
Dialup Networking (DUN) service 90, 95, 106,
107
host device 106, 108
host services on the handheld 108
Input Device (HID) service 106
Internet connection 95–98
pairing with a device 93–94
Personal Area Networking (PAN) service 90, 95,
106, 107
Serial Port service 99, 106, 107, 108
troubleshooting 115
Wireless Stereo service 106, 107
bonding with a device See pairing with a device
browsing the Internet 43
buttons, customizing 47
C
Calculator software 43
Index
Index
120 Juno Series User Guide
Calendar software 43
camera 75
parts 76
settings 76
starting the camera 76
carry case 20
cautions
accidentally synchronizing data 58
deleting files from the flash disk 35
memory card slot 35
resetting to factory default settings 34
SIM card 37
static electricity 35
characters, entering special 45
checking battery power level 31
cleaning the handheld 20
ClearType font smoothing 50
client device 106
client services 106
clock icon 48
comments 21
communicating with a desktop computer 57
computer, connecting to
Bluetooth wireless connection 59, 101
using USB connection 59
configuring
GPS field software 67
mail service 53
NMEA data output 72
connecting to
barcode scanner 100
Bluetooth network access points 106
Bluetooth-enabled cellular phone 95
Bluetooth-enabled device 92–95
Bluetooth-enabled headphones 106
computer 59–62, 101–103
corporate network 104
email server 52
GPS receiver 67
Internet server 95–??
Intranet 104
laser rangefinder 100, 107
Connection Manager Utility 61, 62
connectors, external GPS antenna 20
conserving power 31
Contacts software 43
context-sensitive help 40
corporate network, connecting to 104
customizing
application keys 46
notifications 49
softkeys 46
sounds 49
Today screen 47
D
data collection, planning 69, 71
data logging, accuracy-based 69
decrypting files 36
deleting
almanac 68
email messages 52, 53
files 35
wireless LAN connection 90
desktop computer, connecting to 60, 61
device lock 27
DGPS corrections, receiving from an SBAS 70
Dialup Networking service 106
disabling encryption 36
displaying the input panel 44
documentation feedback 21
DOP graph 71
DUN service 106, 107
E
EGNOS satellites 70, 118
electrostatic discharge 12, 20
email See Messaging
enabling encryption 36
encrypted files 36
entering
information onto the handheld 44
special characters 45
text 44
Europe, notices to users 7
Excel Mobile software 43
external antenna 20
external antenna port 20
F
factory default settings, resetting to 34
feedback 21
File Explorer software 43
file viewers 43
flashing LED
green 30
red 30
Juno Series User Guide 121
Index
G
GeoBeacon receiver 107
getting help 40
GPS
about 65
field software 66, 67
satellite signals 65, 68
troubleshooting 117
GPS Controller software
connecting to GPS 67
mission planning 71
GPS field software
configuring 67
supported 18, 66
GPS Pathfinder Office software 61, 62
GPS Pathfinder Tools SDK 18, 67
GPS receiver, resetting 68
green LED 30
H
handwriting recognition 45
hard reset 33
headset 19, 20
Help 40, 43
HID service 106
hiding the keyboard 45
host device 108
host services 108
hotspot See access point
I
idle time 32
images, managing images 79
IMAP4 mail service 52
Inbox
text messaging 55
Inbox See Messaging 52
Input Device service 106
input panels 44
installing
ActiveSync 59
GPS field software 66
software 61, 62, 63
Windows Mobile Device Center 58
integrated GPS receiver 65
international adaptor kit 19
Internet Explorer software 43
Intranet, connecting to 104
J
Juno SB See Juno series handheld
Juno SC See Juno series handheld
Juno SD See Juno series handheld
Juno series handheld
accuracy 68
automatic power off 32
caring for 20
companion disc 19
copying files to 58
included components 19
integrated SBAS receiver 70
Juno SB 18
Juno SC 18
Juno SD 18
locking and unlocking 48
microphone 46
parts 24
resetting 33
storing 20
stylus 44
turning on and turning off 32
K
keyboard (on-screen) 45
keypad 26
keys, larger on the screen 45
L
laser rangefinder 100, 107
LED indicator 30
Letter Recognizer 45
lock the screen 27
locking the handheld 48
low battery indicators 31
M
mail service, setting up 52
maintenance 20
Make New Connection wizard 105
managing files 43
meetings, arranging 43
memory
backing up data 35, 57
program memory 34
storage memory 34
Index
122 Juno Series User Guide
memory card
electrostatic discharge 12
encrypted files 36
inserting 35
installing software to 63
removing 35
troubleshooting 111, 112
warnings 12, 35
menu bar 40
Messaging software 43, 52
Messenger software 43
microphone 46
microSD memory card 35
microSDHC memory card 35
Microsoft Exchange software 52
Microsoft Outlook software 52
Microsoft Transcriber software 45
mission planning 71
mode
Flight 9
Suspend 20
Modem, status indicators 42
MP3 files 43
MSAS satellites 70, 118
N
navigation using GPS data 69
network, connecting to a 104
New Zealand, notices to users 8
NMEA
compatible GPS field software 67
connecting applications to GPS 67
NMEA messages 73
Notes software 43
notices to users
Australia and New Zealand 8
Europe 7
notifications, customizing 49
null modem cable 20
O
Office Mobile software 43
online help, accessing 40
optional accessories 20
orientation of screen 50
outputting NMEA data 72
P
pairing with a device 93–94
PAN service 106, 107
password settings 48
PC, connecting to 57
Personal Area Networking service 106
Phone
settings 54
phone 9
make a call 54
text messaging 55
troubleshooting 112
Pictures and Videos software 43
planning GPS data collection 69, 71
playing a recording 46
POP3 mail service 52
postprocessing 69, 72
power
automatic power off 32
charging battery 28, 30
conserving 51
troubleshooting 117, 118
PowerPoint Mobile software 43
preferences 39
pre-installed software 43
Program 34
programs, pre-installed 43
Q
Quick Start Disc 19
R
radio use, safety 9
real-time
differential correction 70, 71
external correction source 99
SBAS corrections 70
troubleshooting 117
receiving
beamed files 103
email messages 43, 52
recording notes 46
recycle bin 35
red LED 30
removing encryption from files 36
required accuracy 69
resetting
GPS receiver 68
Juno Series User Guide 123
Index
the handheld 33
restoring lost data 34
S
safety
AC power adaptor 10
battery 11
memory card use 12
radio use 9
satellite geometry 71
SBAS satellites
troubleshooting 118
using 70
screen protectors 20
SD memory cards 35
SDHC memory cards 35
SDIO memory cards 35
Search software 43
searching
for files on the handheld 43
the Internet 43
sending
beamed files 104
email messages 43, 52
error report 21
instant messages 43
text message 55
serial clip 20
Serial Port
service 106
Serial Port service 99, 107, 108
setting a password 48
setting the time 48
setting up
VPN connection 104
SIM card 37
cautions 37
inserting 37
removing 37
Skyplot 68
skyplot 71
SMTP mail service 52
soft reset 33
software
ActiveSync 43
Adobe Reader 43
Calculator 43
Calendar 43
Contacts 43
Excel Mobile 43
File Explorer 43
Help 43
installing 63
Internet Explorer 43
Messaging 43
Messenger 43
Notes 43
Office Mobile 43
Pictures and Videos 43
PowerPoint Mobile 43
pre-installed 43
Search 43
Tasks 43
uninstalling 61, 62
Windows Live 43
Windows Media 43
Word Mobile 43
sounds, customizing 49
special characters, entering 45
spreadsheets, working with 43
Start button 40
Start menu 40
status indicators 41
Storage 34
storage space 34
storing the handheld 20
streaming GPS positions 69
stylus 44
stylus kit 20
support 21
supported GPS field software 66
Suspend mode 20
switching keyboards 45
synchronizing
email messages 52
information 60, 61
T
Tasks software 43
technical support 21
TerraSync data files, receiving by email 53
TerraSync software
automatically transferring data 61, 62
connecting to GPS 67
installing 66
supported versions 66
text editor 43
text entry 44
text messaging 55
text size on screen 50
Index
124 Juno Series User Guide
time zone, setting 48
title bar 40
Today screen 40
touch screen
aligning 50
care of 20
orientation 50
text size 50
troubleshooting 111
tracking
appointments 43
contacts 43
tasks 43
Transcriber software 45
transferring files to a computer 60, 62
Trimble GPScorrect extension
connecting to GPS receiver 67
installing 66
supported versions 66
troubleshooting
ActiveSync 113, 114
backlight 110
battery 117, 118
Bluetooth wireless technology 115
GPS 117
memory card 111, 112
phone 112
power 117, 118
real-time 117
touch screen 111
wireless LAN 114, 116
Turn off device if not used for checkbox 32
turning on and off
handheld 20
turning on and off, handheld 32
U
unlocking the handheld 48
USB connection to a computer 59, 113, 114
V
vehicle mount 20
vehicle power adaptor, connector 30
vehicle, power adaptor 20
viewing files 43
Virtual Private Network (VPN) 105
voice calls 54
W
WAAS satellites 70, 118
warnings
AC adaptor 11, 28
battery 11, 28
memory card slot 12, 37
static electricity 12, 37
wi-fi See wireless LAN
Windows Error Reporting 21
Windows Live Messenger 43
Windows Live software 43
Windows Media software 43
Windows Mobile
help 40
parts of the screen 40
themes 47
Windows Mobile Device Center
connecting to the handheld 60
installing 58
synchronizing 60
wireless 31
wireless LAN radio
conserving power 31
safety 9
wireless LAN, troubleshooting 114, 116
Wireless Manager 83
Wireless Stereo service 106, 107
Word Mobile software 43
World Wide Web 43
write messages 43
