Twinhead T7Q Tablet PC User Manual T7Q UM ID2 20120529 Rex
Twinhead International Corporation Tablet PC T7Q UM ID2 20120529 Rex
Twinhead >
(T7Q) UserMan_20120619
![](/img.php?id=1732072&img=bg1.png)
![](/img.php?id=1732072&img=bg2.png)
2
Table of Contents
COPYRIGHT ................................................................................................ 4
REGULATORY STATEMENT................................................................................. 4
Federal Communications Commission Statement ..........................................................................................................4
Declaration of Conformity ............................................................................................................................................... 4
RF exposure warning........................................................................................................................................................5
Canada, Industry Canada (IC) Notices........................................................................................................................... 5
Battery Disposal................................................................................................................................................................ 6
CLASS 1 LASER PRODUCT...........................................................................................................................................6
SAFETY INSTRUCTIONS .................................................................................... 7
BEFORE YOU START....................................................................9
PACKAGE CONTENTS ...................................................................................... 9
FEATURES ................................................................................................ 10
COMPONENTS............................................................................................ 11

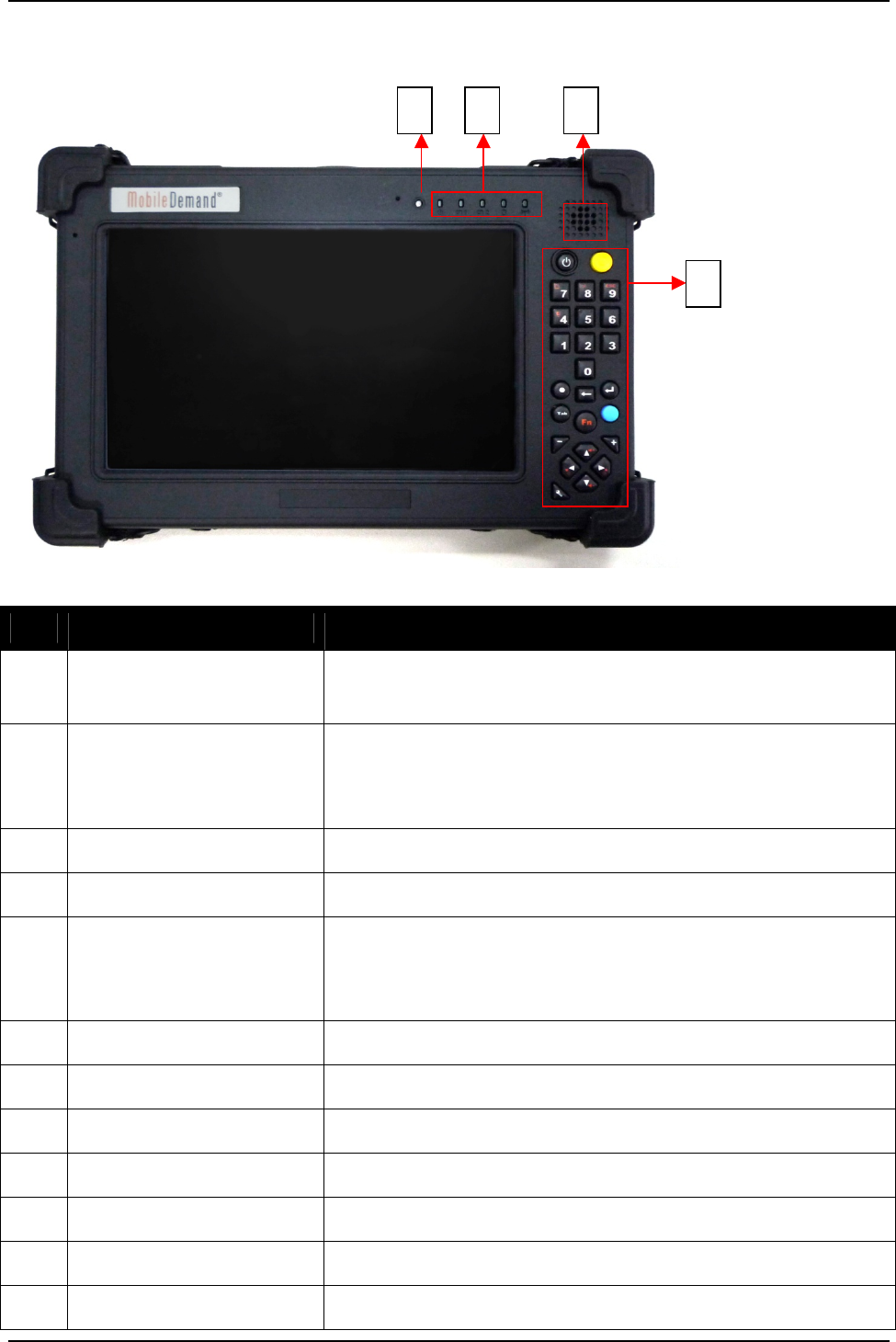

Front View ....................................................................................................................................................................... 11

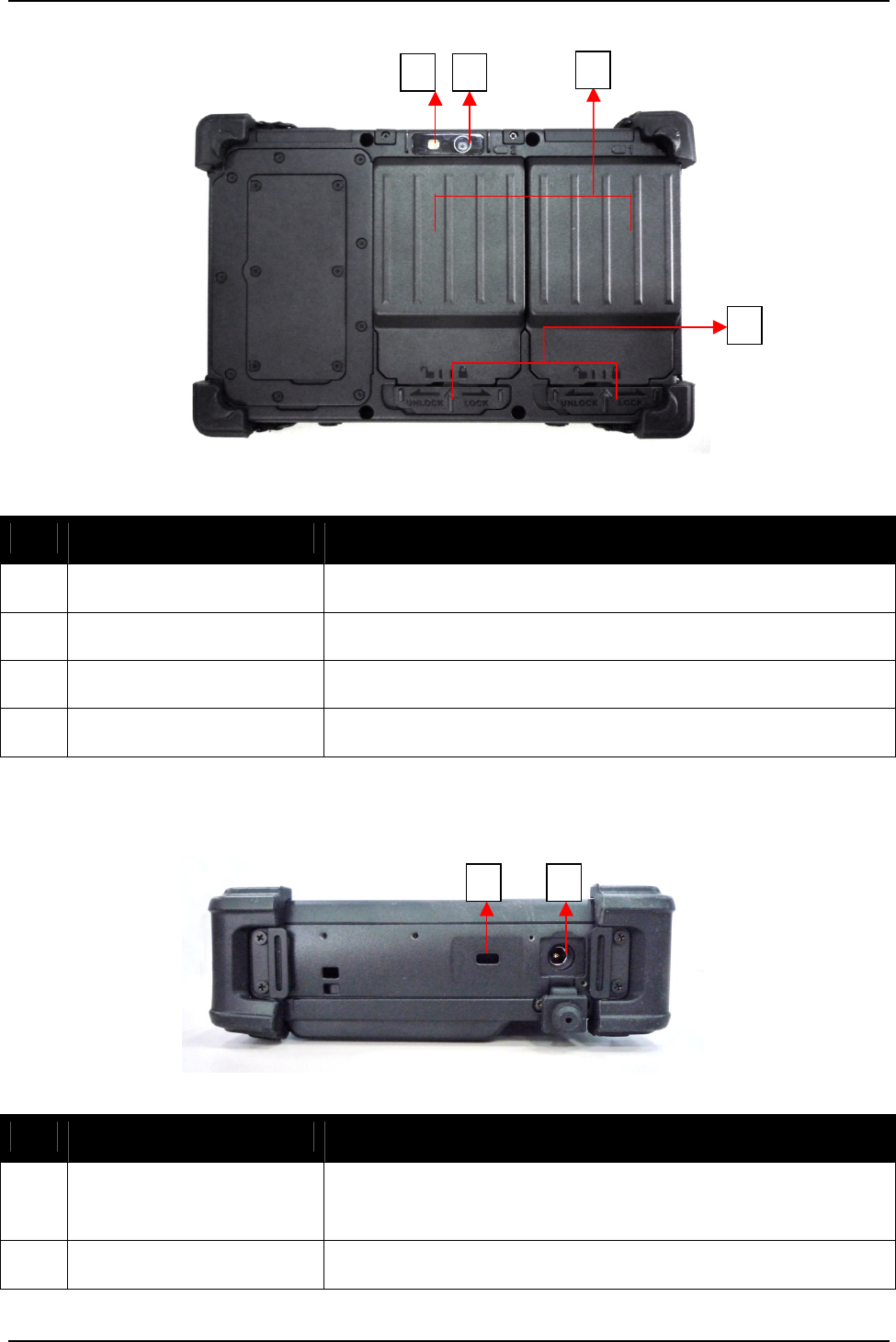

Back View........................................................................................................................................................................13
Left View..........................................................................................................................................................................13
Right View........................................................................................................................................................................14
Top View...........................................................................................................................................................................14
Bottom View.....................................................................................................................................................................15
Status Indicators..............................................................................................................................................................15
GETTING STARTED ...................................................................16
POWERING UP YOUR TABLET PC ....................................................................... 16
Connecting the AC Adapter............................................................................................................................................16
Using Battery Power.......................................................................................................................................................16

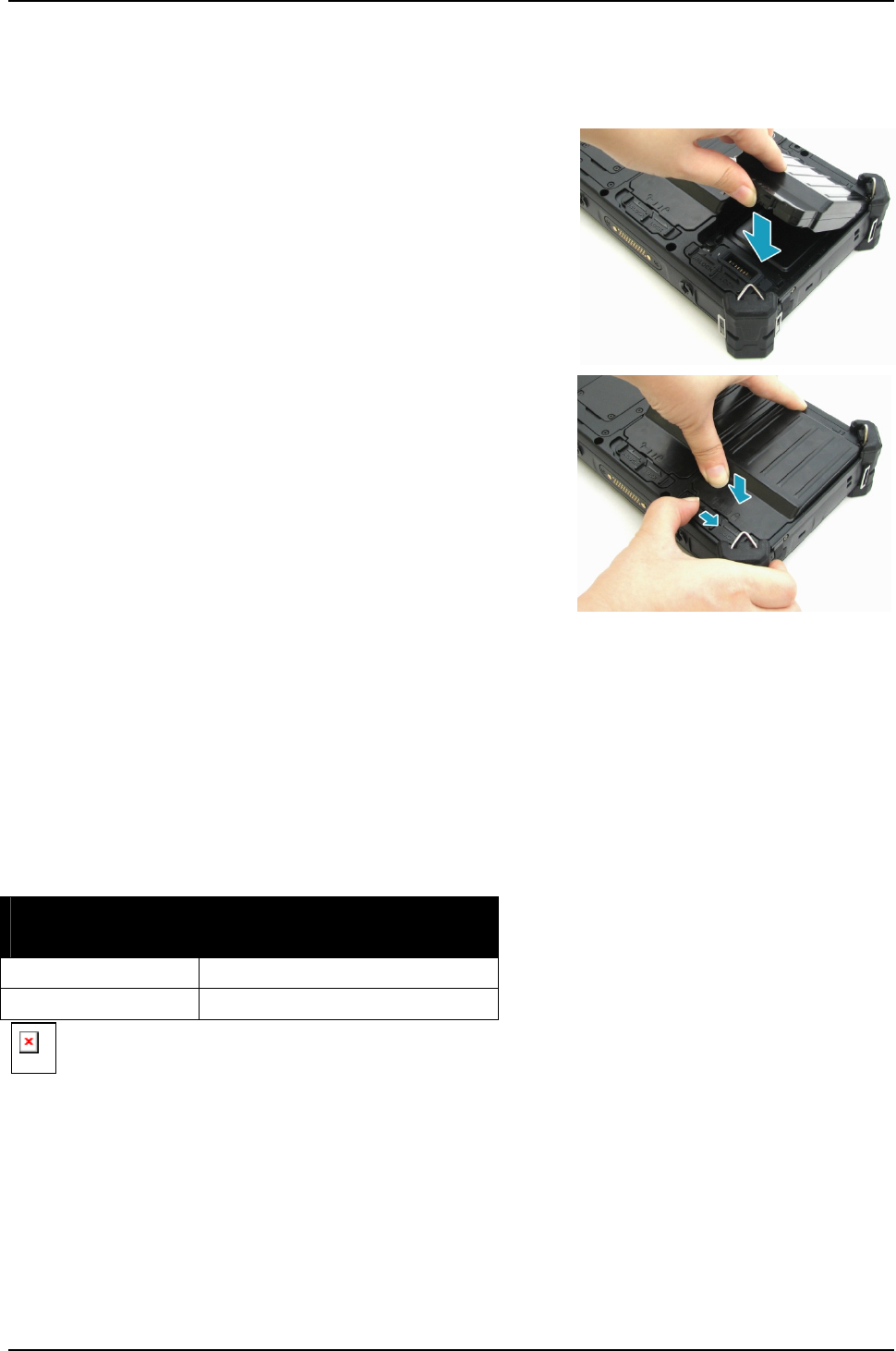

INSTALLING THE BATTERY............................................................................... 17
Charging the Battery ......................................................................................................................................................17
Charging Time................................................................................................................................................................17

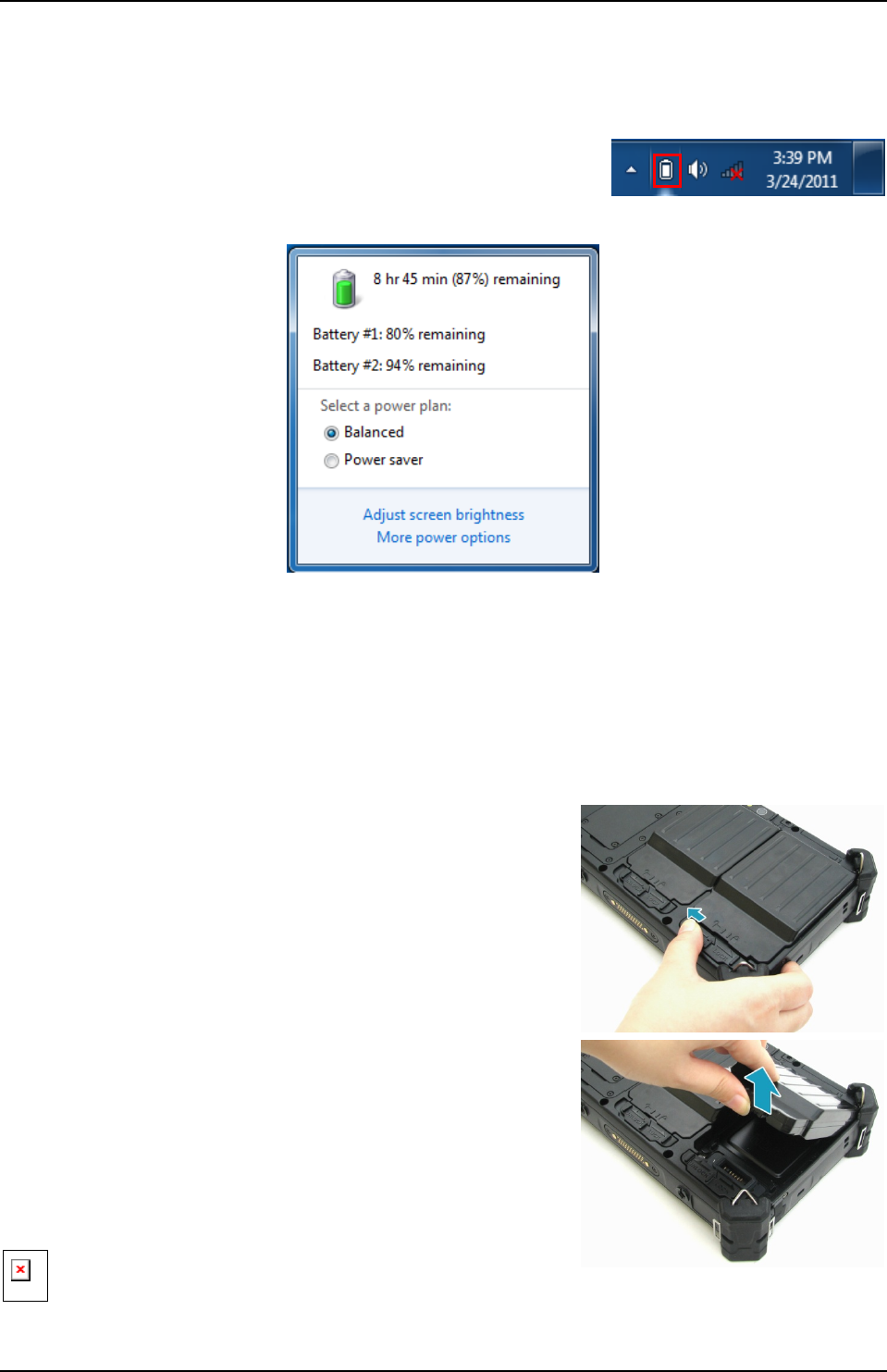

Checking the Battery Level.............................................................................................................................................18
When to replace the Battery Pack..................................................................................................................................18
Removing the Battery......................................................................................................................................................18
STARTING YOUR TABLET PC ............................................................................ 19
Turning On Your Tablet PC...........................................................................................................................................19

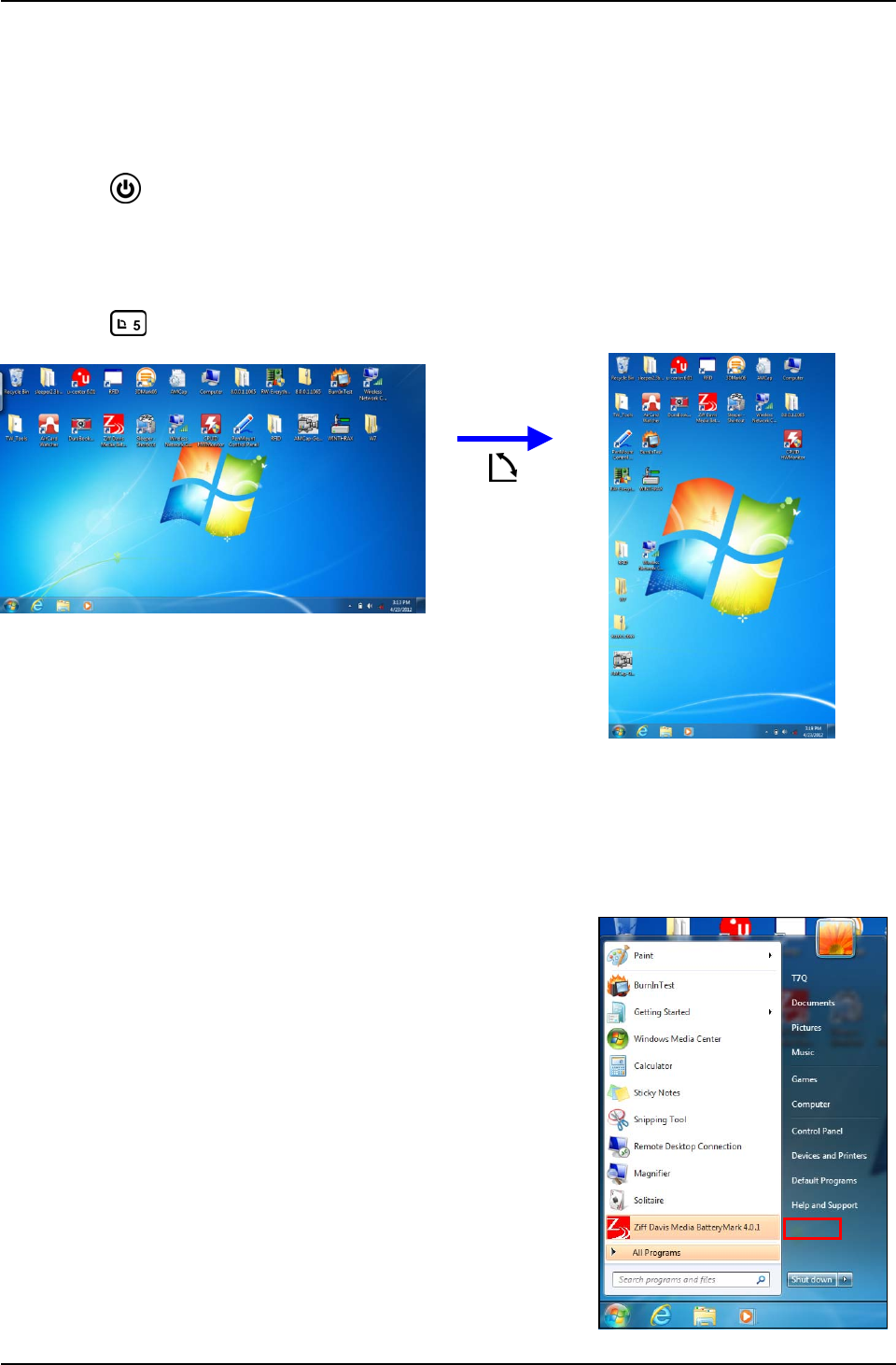

Changing the Display Orientation.................................................................................................................................19
Shutting Down Your Tablet PC......................................................................................................................................19
USING THE STYLUS ...................................................................................... 20

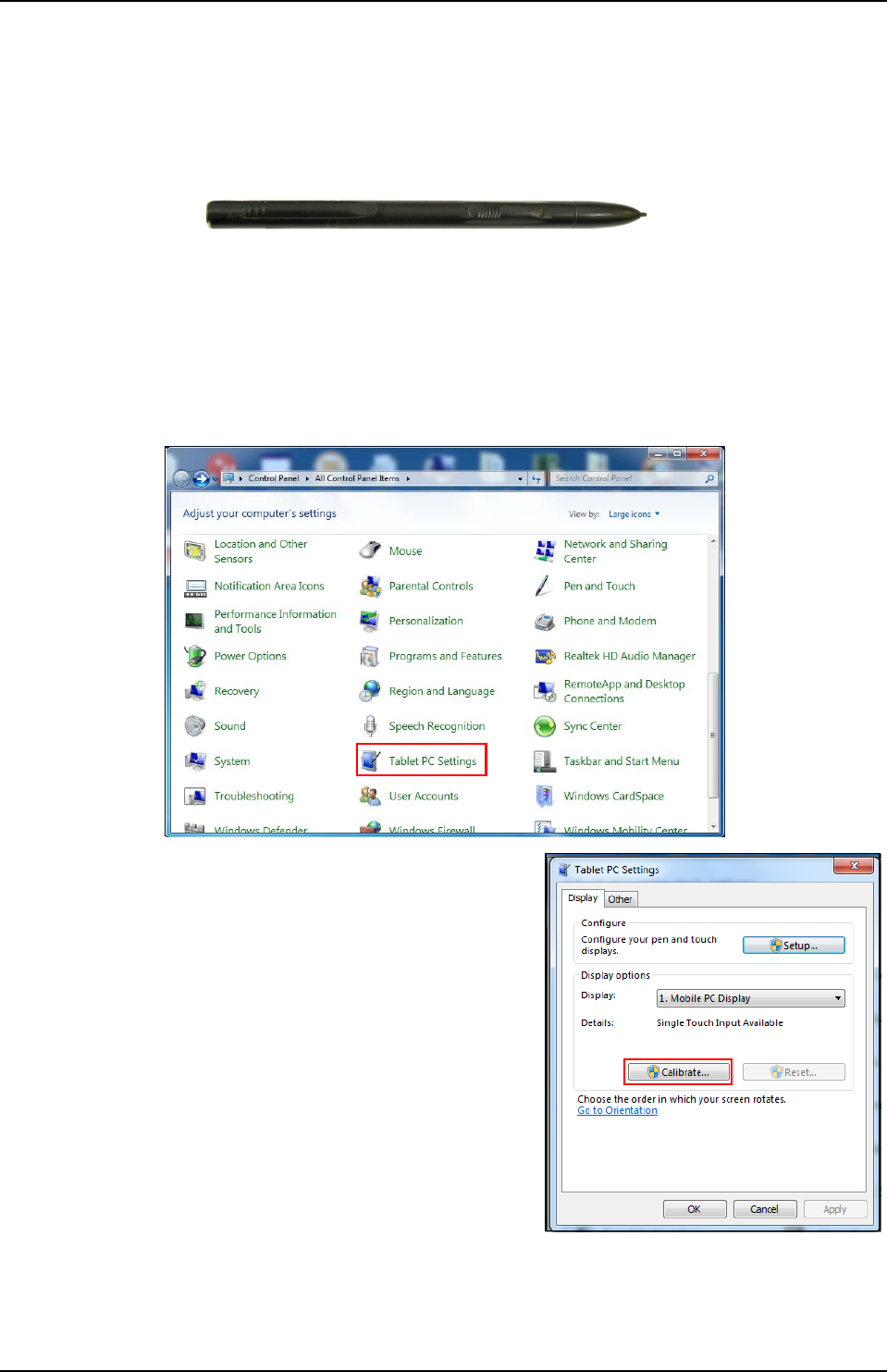

Calibrate the Screen .......................................................................................................................................................20

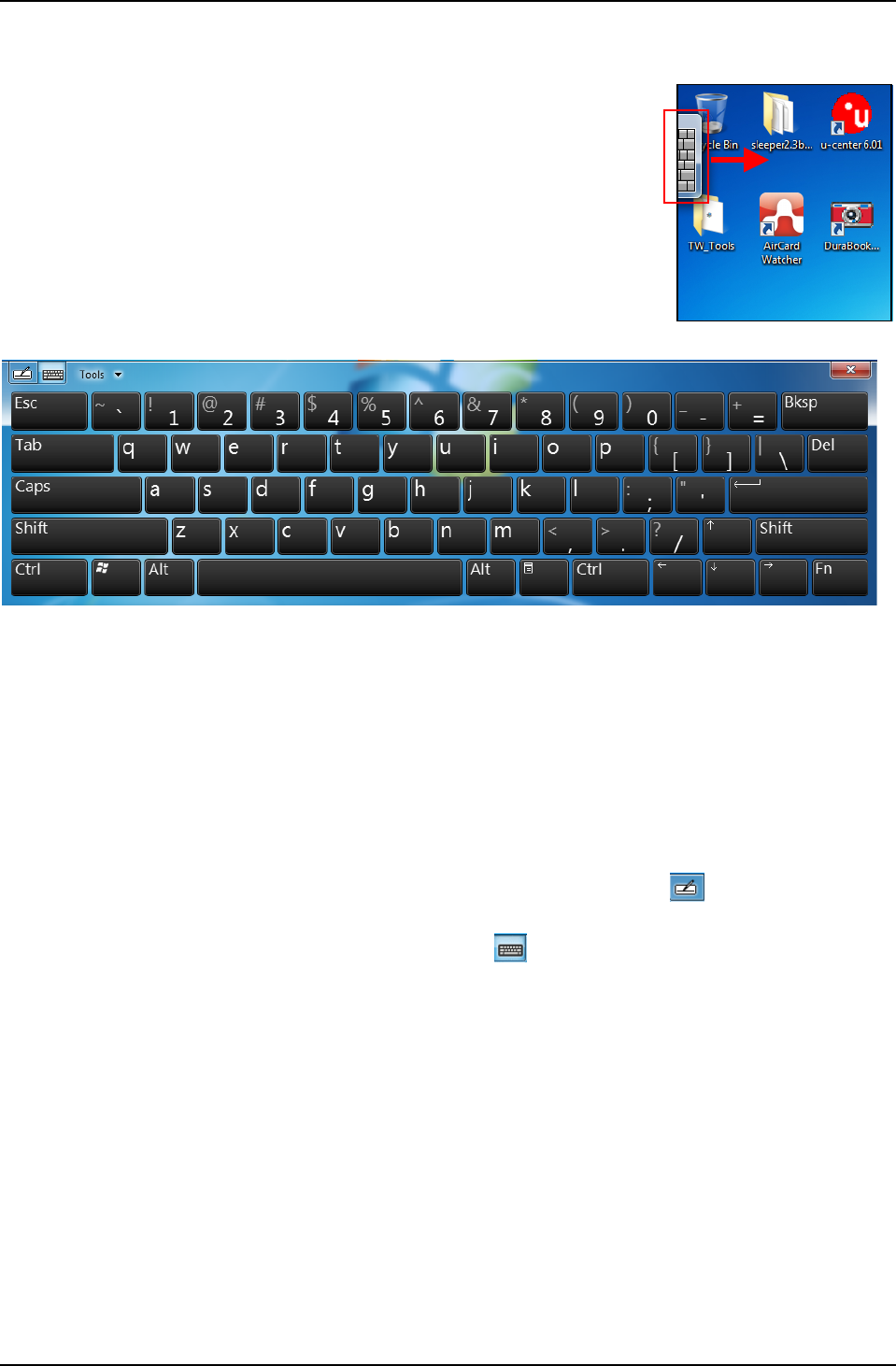

USING THE ON-SCREEN KEYBOARD .................................................................... 21

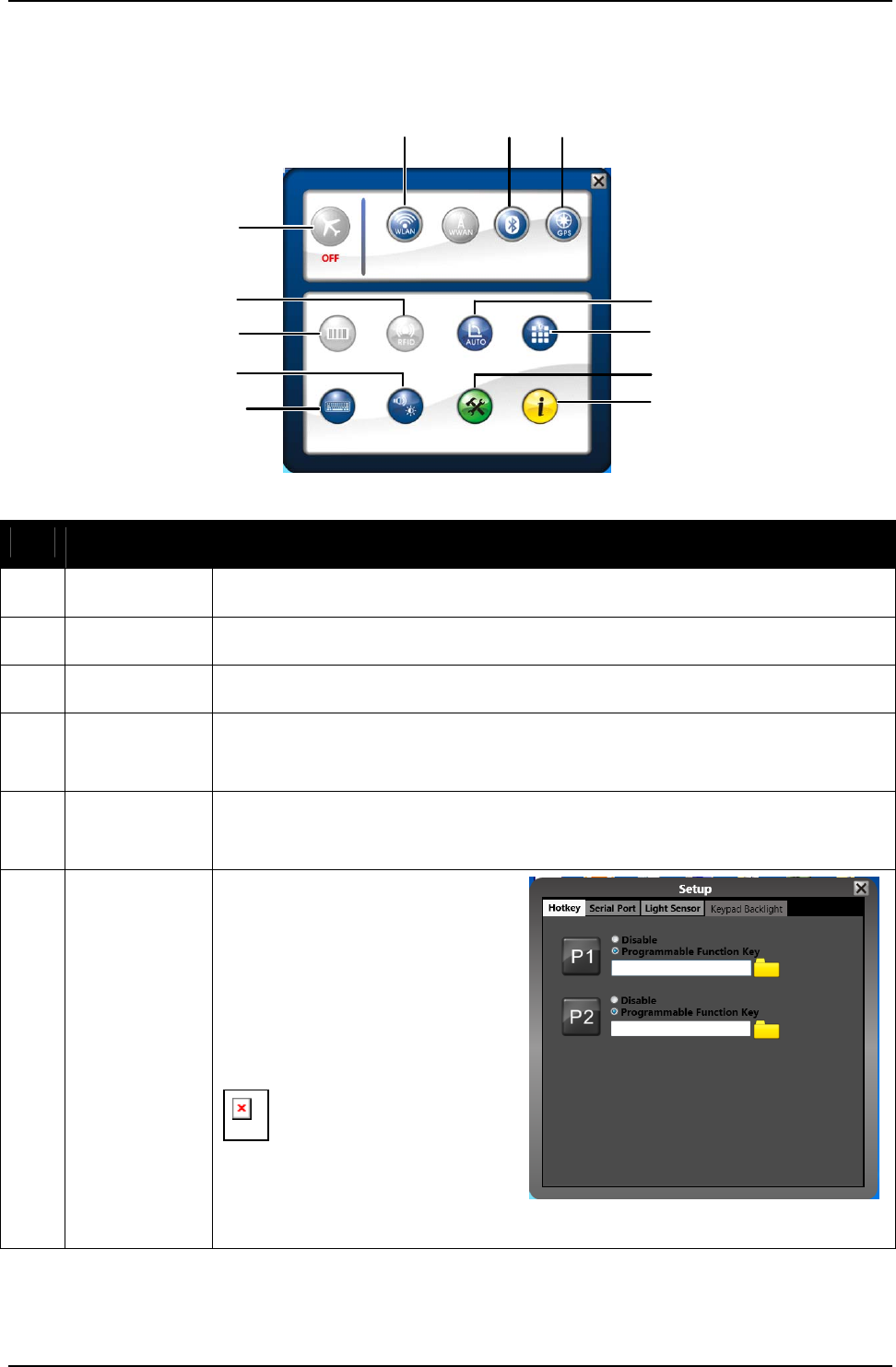

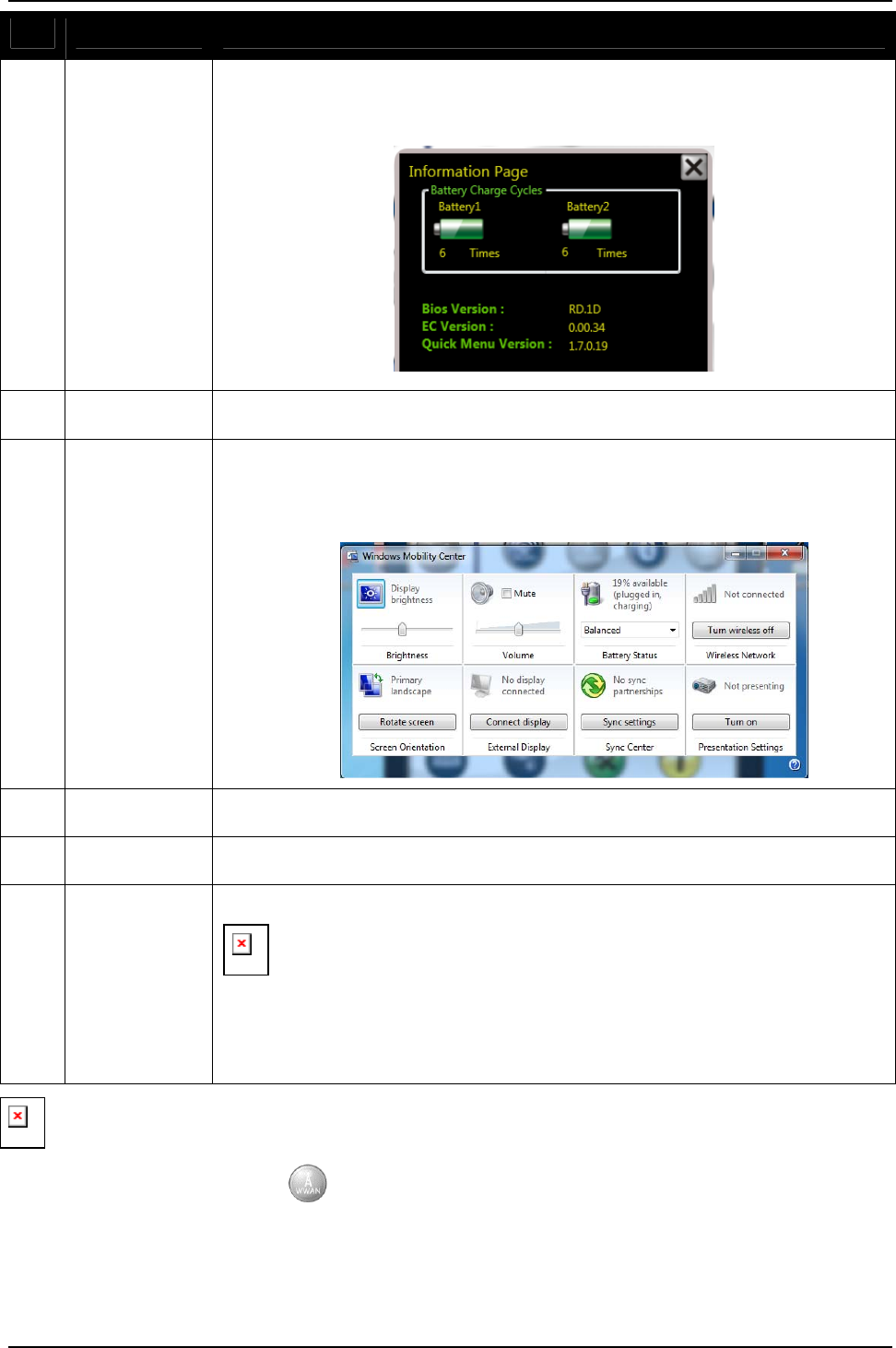

USING THE QUICK MENU................................................................................ 22

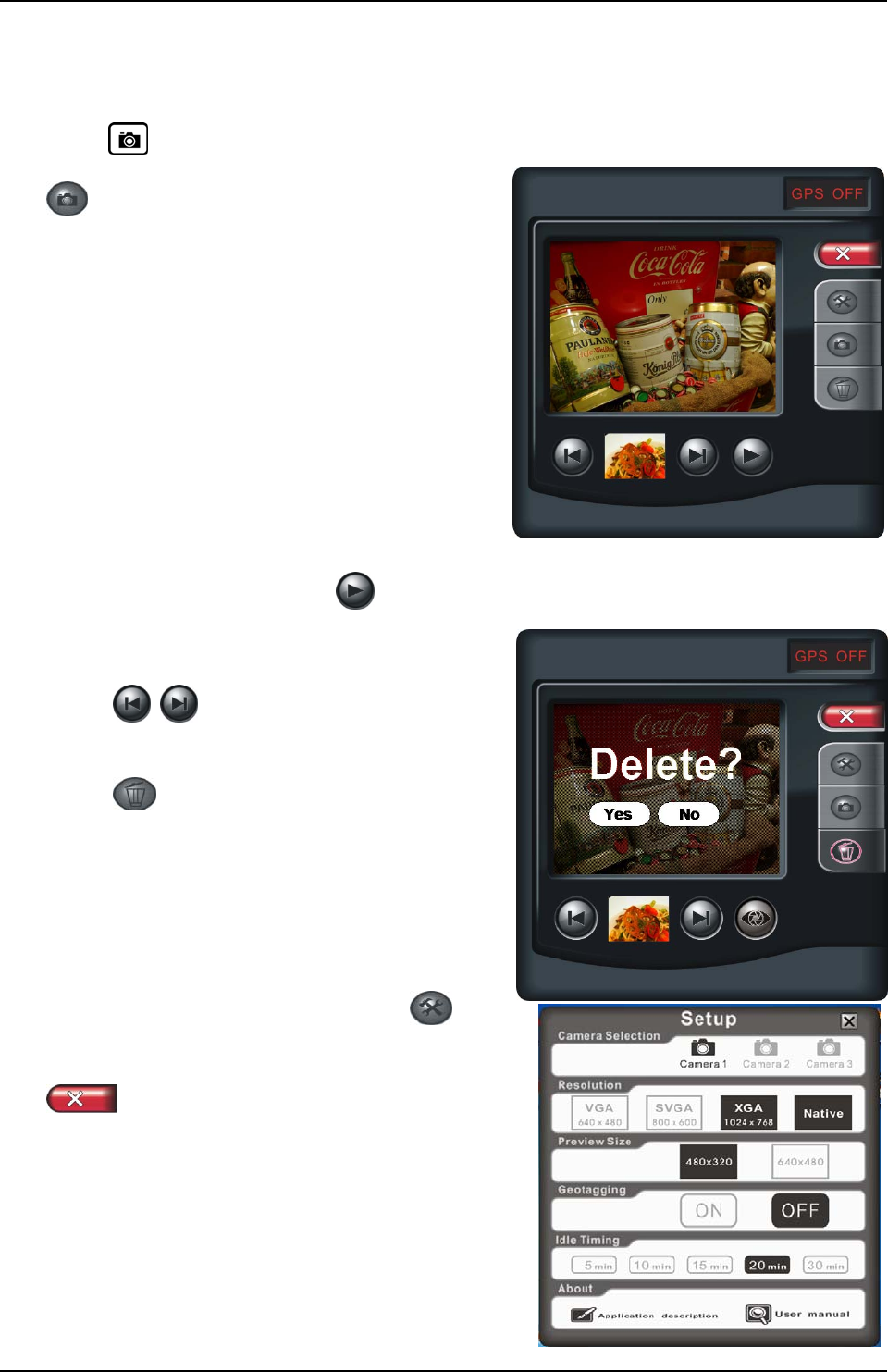

USING THE CAMERA..................................................................................... 24
USING THE MEMORY CARDS ............................................................................ 25

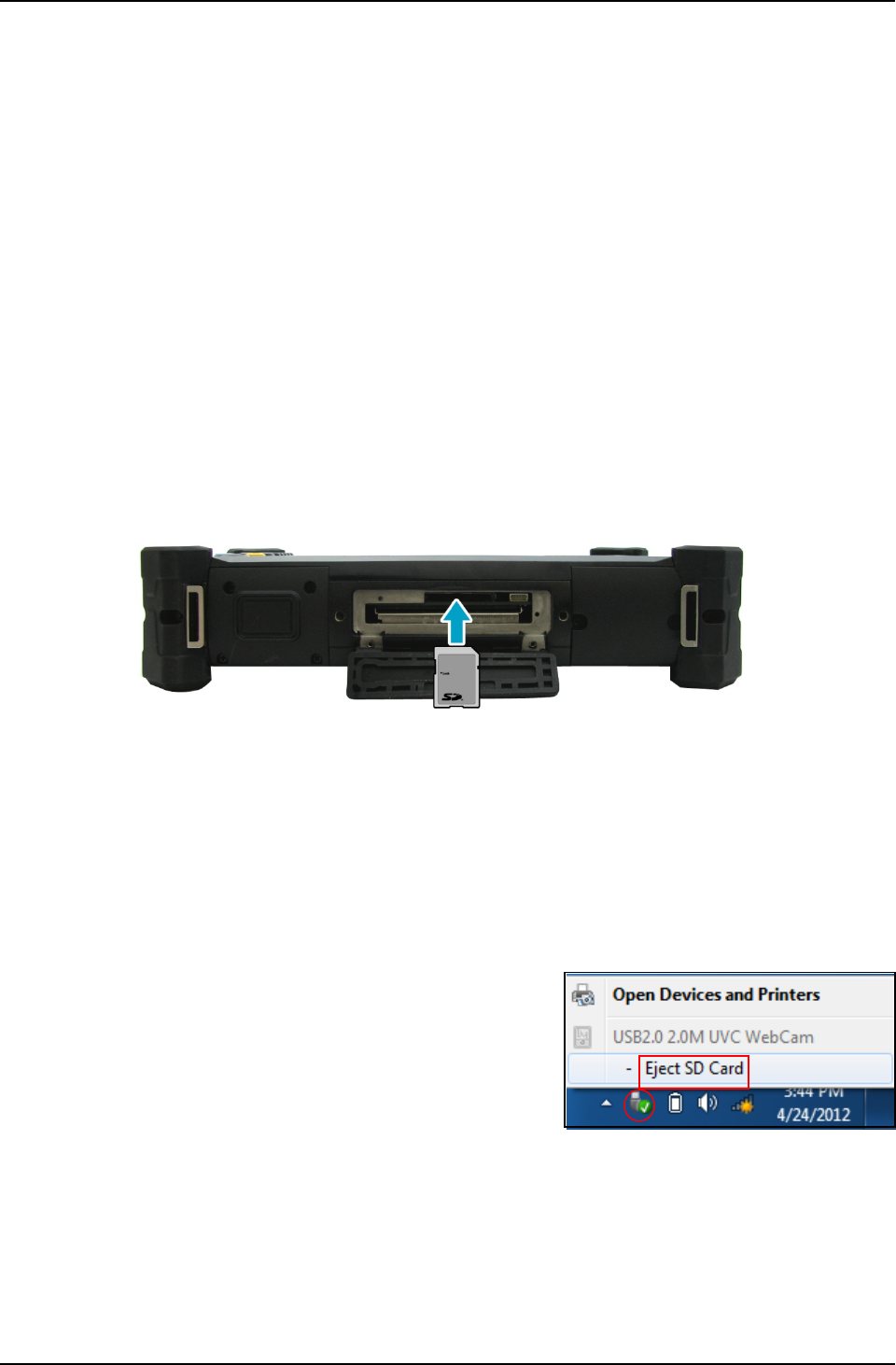

Inserting a Memory Card...............................................................................................................................................25
Removing a Memory Card.............................................................................................................................................25
MAKING CONNECTIONS ............................................................26

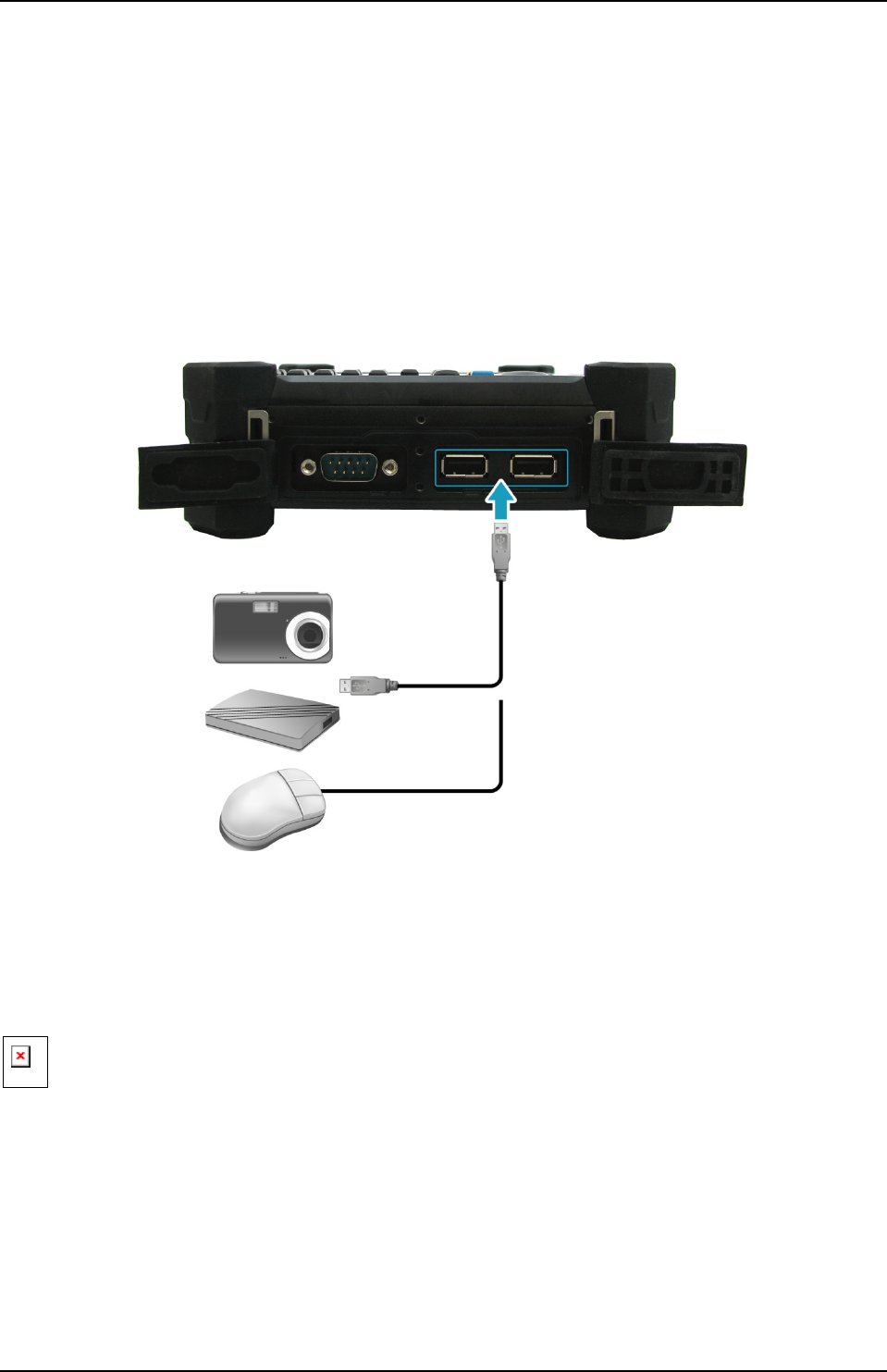

CONNECTING USB DEVICES ............................................................................ 26
CONNECTING PERIPHERAL DEVICES .................................................................... 27
CONNECTING TO WIRELESS CONNECTIONS............................................................. 28

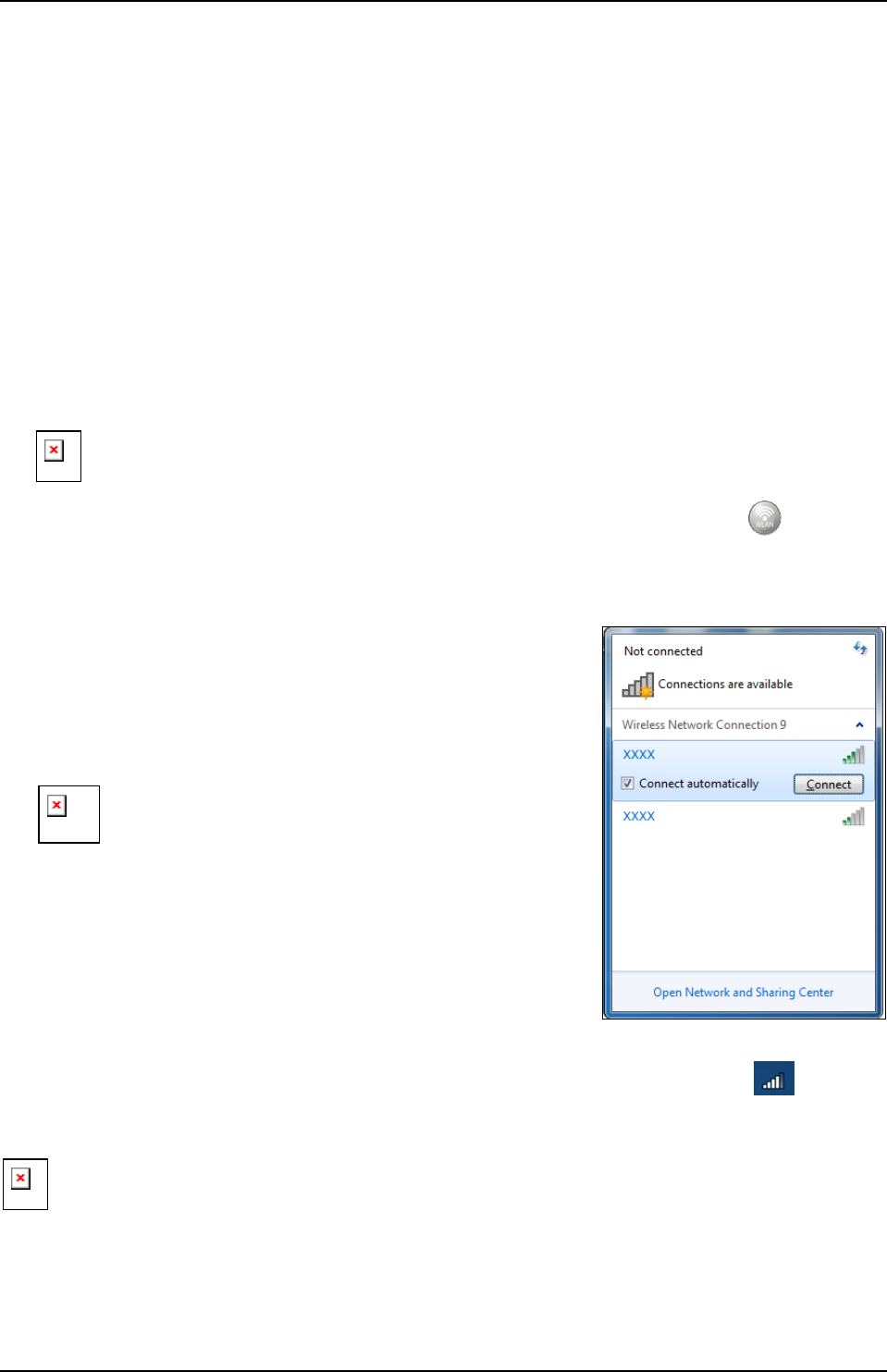

Connecting to a Wireless Local Area Network..............................................................................................................28
Connecting to a Bluetooth Device .................................................................................................................................29
POWER MANAGEMENT .............................................................30
USING THE POWER PLAN ................................................................................ 30
USING THE POWER SAVING MODE ...................................................................... 31

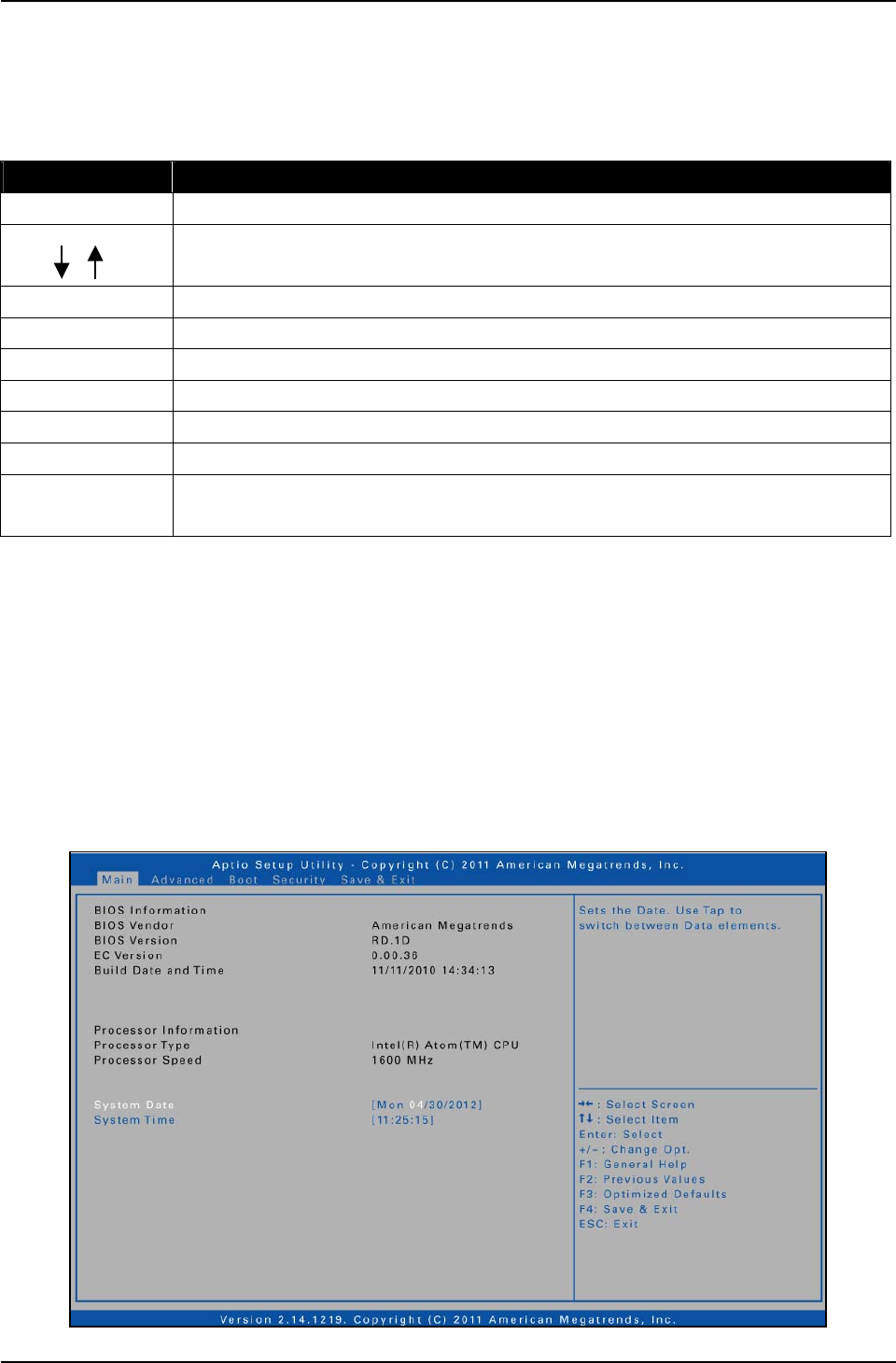

USING THE BIOS SETUP UTILITY.................................................32
BIOS SETUP MENU...................................................................................... 32
STARTING THE BIOS SETUP UTILITY ................................................................... 32
NAVIGATING AND ENTERING INFORMATION IN BIOS................................................... 33
MAIN MENU ............................................................................................. 33
ADVANCED MENU ....................................................................................... 34
BOOT MENU ............................................................................................. 34
SECURITY MENU......................................................................................... 35
SAVE & EXIT MENU ..................................................................................... 35
TROUBLESHOOTING.................................................................36
SPECIFICATIONS ......................................................................37
![](/img.php?id=1732072&img=bg4.png)
Preface
4
Copyright
Copyright© 2012. All rights reserved.
No part of this user manual may be transmitted, stored in a retrieval system, or
translated into any language or computer language, in any form or by any
means, without the prior written permission of the manufacturer. Information is
subject to change without prior notice.
Regulatory Statement
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed
with this equipment to insure compliance with the pertinent RF emission limits
governing this device. Changes or modifications not expressly approved by the
system's manufacturer could void the user's authority to operate the equipment.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
This device may not cause harmful interference
This device must accept any interference received, including interference
that may cause undesired operation.
![](/img.php?id=1732072&img=bg5.png)
Preface
5
RF exposure warning
This equipment must be installed and operated in accordance with provided
instructions and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
SAR Value: 1.53 W/kg
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in
indoor use only, Outdoor operations in the 5150~5250MHz is prohibit.
This device is slave equipment, the device is not radar detection and not ad-hoc
operation in the DFS band.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada
(IC) radio frequency exposure limits. The Wireless Device should be used in such
a manner such that the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with the IC Specific
Absorption Rate (“SAR”) limits when installed in specific host products operated
in portable exposure conditions.
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-
003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil
ne doit pas causer d'interférence et (2) cet appareil doit accepter toute
interférence, notamment les interférences qui peuvent affecter son
fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de
sans fil de façon à minimiser les contacts humains lors du fonctionnement normal.
![](/img.php?id=1732072&img=bg6.png)
Preface
6
CepériphériqueaétéévaluéetdémontréconformeauxlimitesSAR(SpecificAbsorptionRate–Taux
d'absorptionspécifique)d'IClorsqu'ilestinstallédansdesproduitshôtesparticuliersquifonctionnent
dansdesconditionsd'expositionàdesappareilsportables.
Battery Disposal
THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL HYDRIDE
BATTERY. IT MUST BE DISPOSED OF PROPERLY. CONTACT LOCAL
ENVIRONMENTAL AGENCIES FOR INFORMATION ON RECYCLING AND
DISPOSAL PLANS IN YOUR AREA.
CLASS 1 LASER PRODUCT
LASERSCHUTZKLASSE 1 PRODUKT TO EN60825
CAUTION: THIS APPLIANCE CONTAINS A LASER SYSTEM AND IS
CLASSIFIED AS A "CLASS 1 LASER PRODUCT.” TO USE THIS
MODEL PROPERLY, READ THE INSTRUCTION MANUAL
CAREFULLY AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
IN CASE OF ANY TROUBLE WITH THIS MODEL, PLEASE CONTACT
YOUR NEAREST "AUTHORIZED SERVICE STATION.” TO PREVENT
DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY TO OPEN
THIS ENCLOSURE.

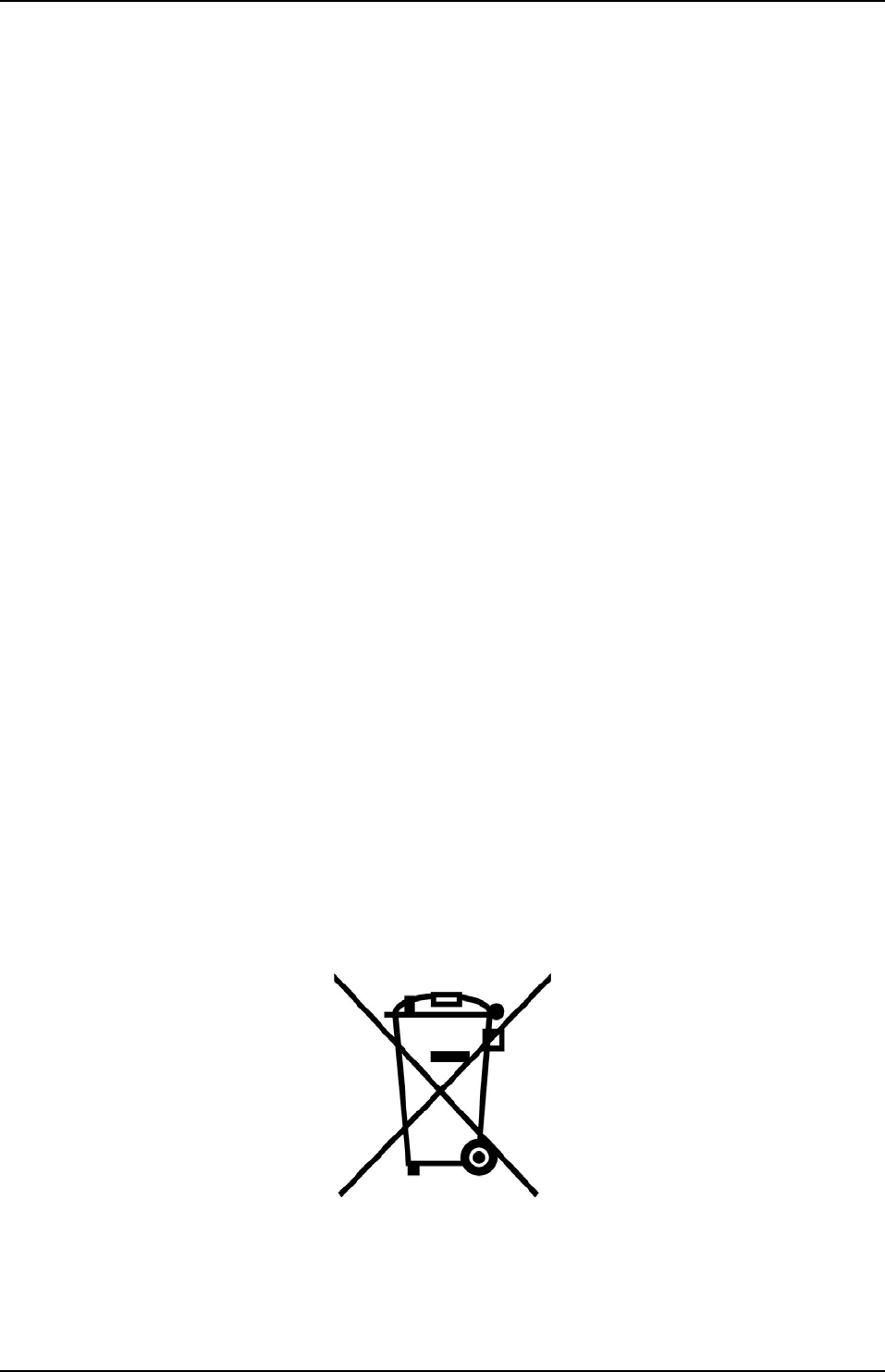

ANNEX IV
Symbol for the marking of electrical and electronic equipment
The symbol indicating separate collection for electrical and electronic equipment
consists of the crossed-out wheeled bin, as shown below. The symbol must be
printed visibly, legibly and indelibly.
![](/img.php?id=1732072&img=bg7.png)
Preface
7

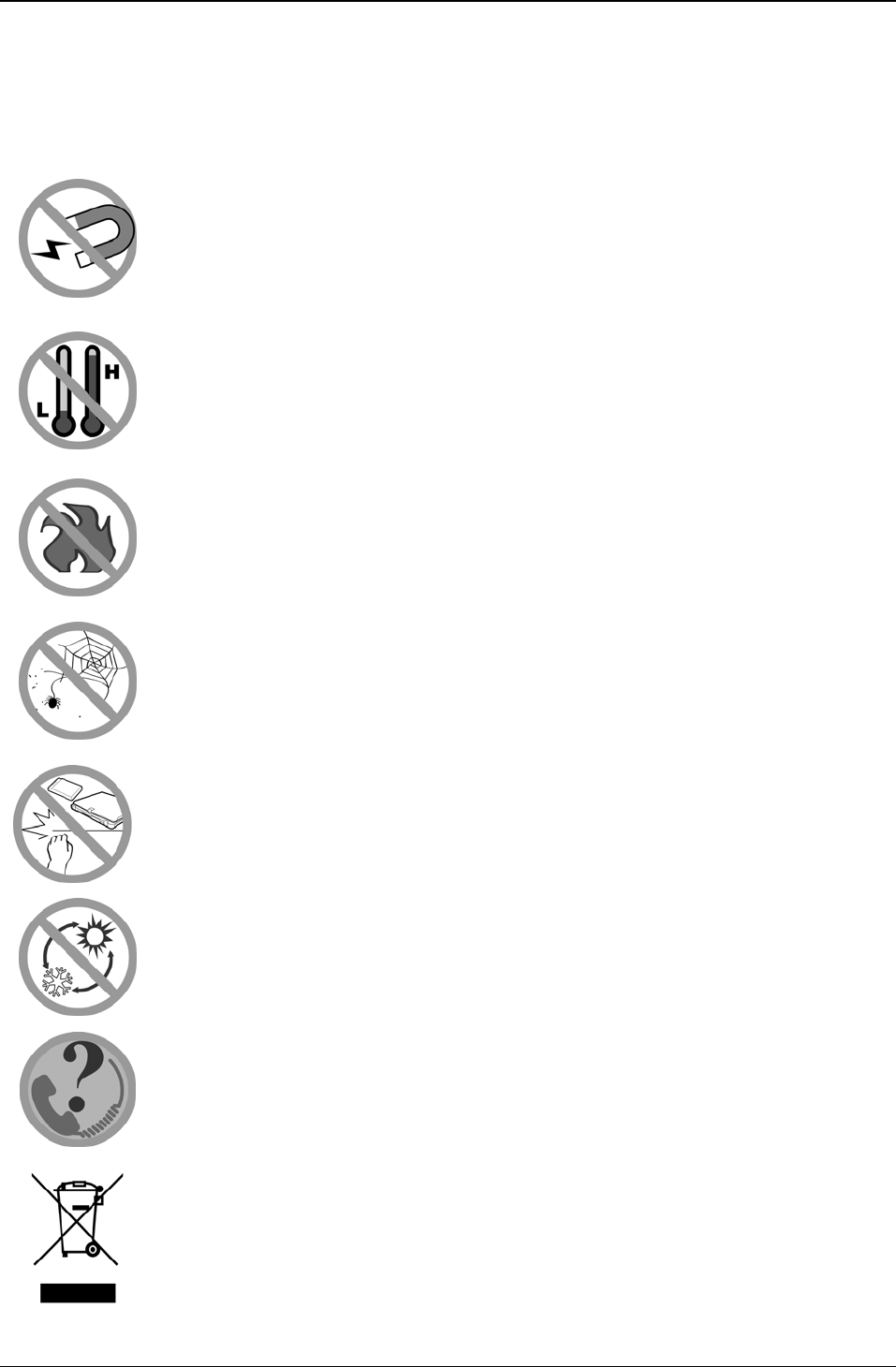

Safety Instructions
Always keep strong magnetic or electrical objects away from your
tablet PC.
DO NOT use or store your tablet PC in extreme temperatures.
DO NOT place your tablet PC near fire or other sources of heat.
DO NOT expose to dust or corrosive materials.
DO NOT tamper the battery. Keep it away from children.
DO NOT expose your tablet PC to sudden changes in temperature
or humidity. Keep your tablet away from air conditioners or
heating vents.
DO NOT attempt to service your tablet PC yourself. Any attempt
to do so will make the warranty invalid.
When servicing, refer to qualified service personnel.
For better environmental protection, waste batteries should be
collected separately for recycling or special disposal.
![](/img.php?id=1732072&img=bg8.png)
Preface
8
CAUTION FOR ADAPTER
THIS TABLET PC IS FOR USE WITH DEDICATED AC ADAPTER.
BATTERY SAFETY
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE
MANUFACTURER'S INSTRUCTIONS.
![](/img.php?id=1732072&img=bg9.png)
Before You Start
9
Before You Start
Congratulations on your purchase of this tablet PC.
This rugged tablet PC is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you
begin using your tablet PC, read this chapter to familiarize yourself with the main
components installed in the system.

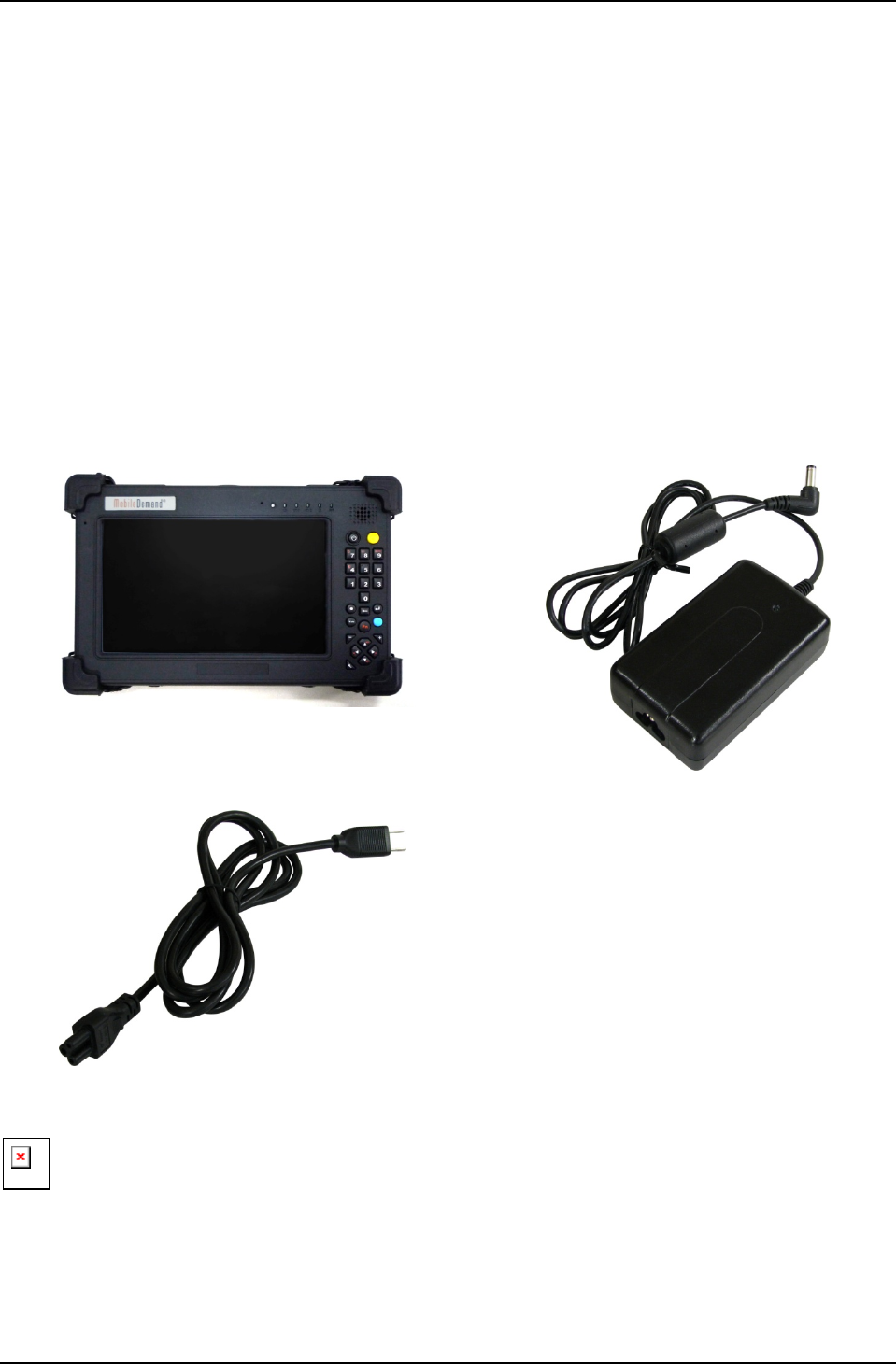

Package Contents
The following items come with your package. If any of them is damaged or
missing, please contact your retailer.
Tablet PC Power adapter
Power cord
n
NOTE
The pictures are for reference only, actual items may slightly differ.
![](/img.php?id=1732072&img=bga.png)
Before You Start
10
Features
Intel Cedar Trail-M platform
Operating system supports Microsoft® Windows 7
7” WSVGA TFT Touch LCD display
Small size and light weight
Spill and Dust Proof
Rugged design, up to military standard (MIL-STD 810G)
Built-in 5MP camera
Support G-sensor for LCD auto-rotation
Intel WLAN capability
Bluetooth connectivity
Optional integrated barcode scanner (support 1D/2D barcode reading)
Optional RFID reader (support ISO 15693, 14443A/B stand)
![](/img.php?id=1732072&img=bgb.png)
Before You Start
11
Components
Front View
No. Item Description
1 Light sensor Use to detect the current level of visible light in the
surrounding environment.
2 Status Indicators
(Power, Battery,
HDD, Wireless)
Indicate the corresponding function status.
See “Status Indicators”
3 Speaker Emit sound.
4 Power Press to power on and off the tablet PC.
Yellow Key Press to trigger the Barcode scan function, or it can
be customized for launching specific Win-base program
assigned in Quick Menu.
Blue Key Press to activate the Camera function.
Backspace Key Go back to the previous context
Numeric Key Including 0~9
Enter Press to emulate the Enter key.
Tab Press to emulate the Tab key.
Arrow (up) Press to emulate the Up key.
Arrow (down) Press to emulate the Down key.
1
2
3
4
![](/img.php?id=1732072&img=bgc.png)
Before You Start
12
No. Item Description
Arrow (left) Press to emulate the Left key.
Arrow (right) Press to emulate the Right key.
Fn+Arrow (up) Press to emulate the volume up
Fn+Arrow (down) Press to emulate the volume down
Fn+Arrow (left) Press to emulate the brightness up
Fn+Arrow (right) Press to emulate the brightness down
Fn +4 Key Pad backlight on / off switcher
Fn + 7 Press to rotate the display
Fn + 8 Press to activate wireless LAN or Bluetooth
communication
Fn + 9 Esc Key
Fn+0 (Stealth mode) Press to disable all emitting lights and sound.
Security Press to exit Windows and enter SAS (Secure
Attention Sequence) mode.
Fn (Function) Press to emulate NumLock key.
n
NOTE
When the numerical mode is activated, the keypad
backlight lights on. If the keypad is left idle for 60
seconds, the backlight will automatically turn off.
![](/img.php?id=1732072&img=bgd.png)
Before You Start
13
Back View
No. Item Description
1 Flash Light Use to camera flash light
2 Camera Use to take pictures.
3 Battery compartment Contain the battery.
4 Battery latch Lock the battery in place.
Left View
No. Item Description
1 Kensington lock slot Connect to a Kensington-compatible tablet PC
security lock.
2 DC-in jack Connect the power adapter.
1
2
3
4
1
2
![](/img.php?id=1732072&img=bge.png)
Before You Start
14
Right View
No. Item Description
1 Serial port (RS-232) Connect a peripheral device, such as a printer or
other device with serial port.
2 RJ-45 Connect LAN.
3 USB port Connect USB peripheral devices.
Top View
No. Item Description
1 ExpressCard slot and
PC Card slot
Use to insert one 34/54 ExpressCard or Type II PC
Card.
2 Card reader Use to insert memory cards to transfer pictures,
music, and data between your tablet PC and flash
compatible devices. The card reader supports SD
(Secure Digital), SDHC, Mini-SD (with adapter),
MMC (Multi-media card), MMC+, Mini-MMC (with
adapter) cards.
1
2
3
1
2
![](/img.php?id=1732072&img=bgf.png)
Before You Start
15

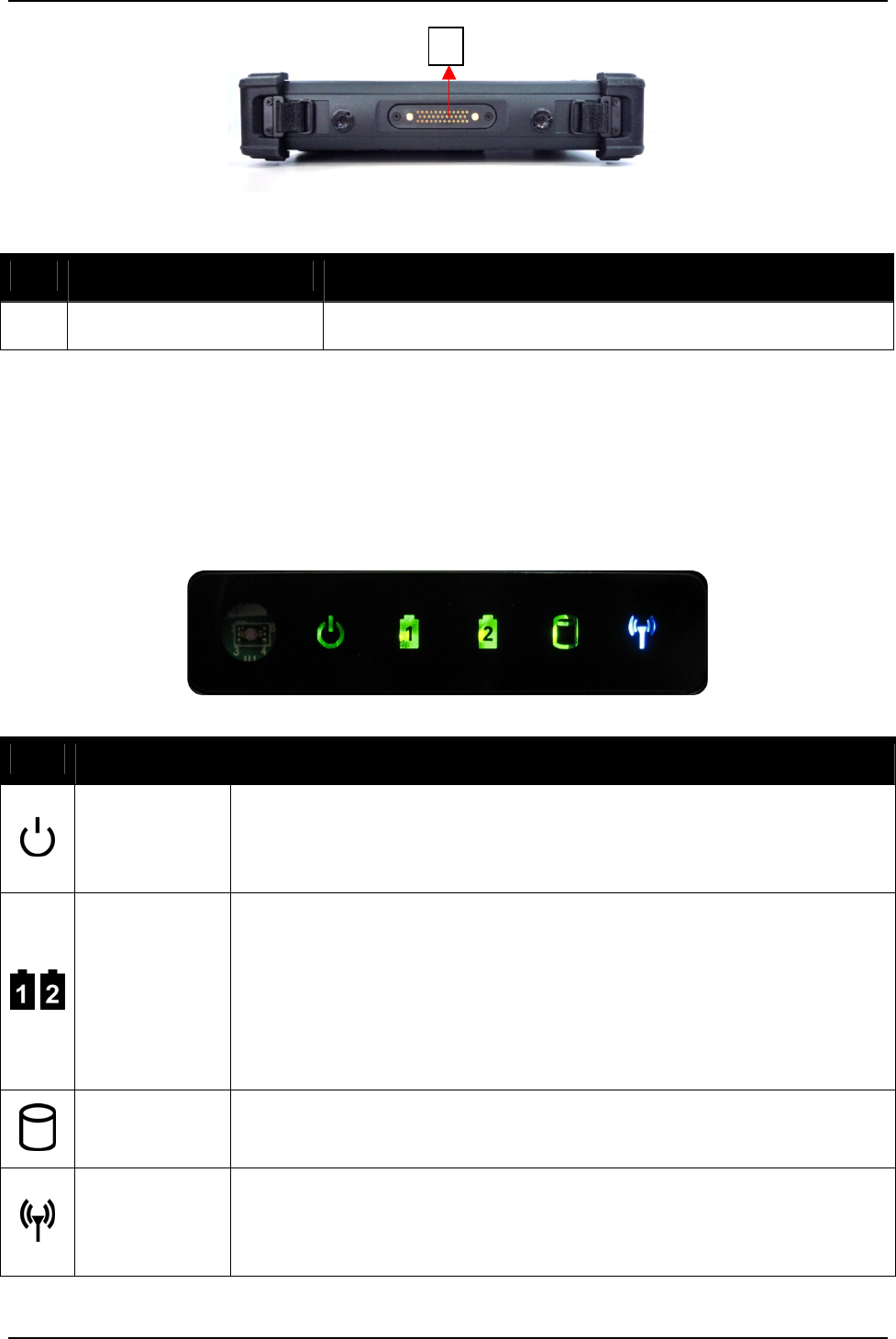

Bottom View
No. Item Description
1 Docking station port Connect the tablet PC to a docking station.
Status Indicators
The status indicators in the upper left corner of the keyboard light up when a
particular function of the tablet PC is active. Each indicator is marked with a
symbol.
Icon Item Description
Power The LED always lights on (green) when the system is
running. When the system is in sleep mode, the LED
blinks.
Battery
Indicate the battery status:
Green light means the battery is fully charged.
Orange light means the battery is being charged.
Blinking orange light means the OTP of the battery pack
is activated.
Red light means the battery power is low.
HDD A blinking green LED indicates HDD activity (data is being
read or written).
WLAN Indicate the status of wireless LAN or Bluetooth
communication. The LED always lights on (blue) when the
function is enabled.
1
![](/img.php?id=1732072&img=bg10.png)
Getting Started
16
Getting Started
This chapter will guide you on how to use your tablet PC.
Powering Up Your Tablet PC
Your tablet PC can be powered up using the AC adapter or the Lithium-ion
battery.
Connecting the AC Adapter
The AC adapter powers up your tablet PC and charges the battery.
1. Connect the AC adapter to the DC-in jack of your tablet PC.
2. Connect the AC adapter to the power cord.
3. Plug the power cord to an electrical outlet.
Using Battery Power
1. Install a charged battery in the battery compartment.
2. Remove the AC adapter (if plugged). Your tablet PC will automatically use
the battery power.
n
NOTE
If your tablet PC is connected to an electrical outlet and the battery is
installed, your tablet PC uses power from the electrical outlet.
![](/img.php?id=1732072&img=bg11.png)
Getting Started
17
Installing the Battery
To install the battery, follow the steps below:
1. Align and insert the battery to the battery
compartment.
2. Push completely until the battery locks into
place.
3. Slide the battery latch to the lock position to
secure the battery.
Charging the Battery
The Lithium-ion battery is not fully-charged upon purchase.
To charge the battery, follow the steps below:
1. Install the battery to your tablet PC. See procedures above.
2. Connect the AC adapter to the DC-in jack of your tablet PC.
3. Connect the AC adapter to the power cord.
4. Plug the power cord to an electrical outlet.
Charging Time
Number of
battery pack Charging duration
(at 25ºC)
1 3.5 hours
2 6.5 hours
n
NOTE
The charging time may be longer if you are using your tablet PC while
charging the battery.
CAUTION
DO NOT charge the battery if the temperature is below 0ºC or higher than
50ºC.
Use only the supplied AC adapter. Using other AC adapters may damage the
battery or your tablet PC.
![](/img.php?id=1732072&img=bg12.png)
Getting Started
18
Checking the Battery Level
It is important that you monitor the battery status regularly to ensure you do not
run out of power at a critical moment.
To check the remaining battery power, double tap the battery icon in the system
tray.
The battery screen appears:
When to replace the Battery Pack
The battery performance gradually decreases over time and usage. We
recommend you to replace your battery pack after 18 to 24 months of usage.
Removing the Battery
To remove the battery, follow the steps below:
1. Slide the battery latch to the unlock position.
2. Remove the battery out of the battery
compartment.
n
NOTE
Make sure the system has shut down before you change the battery.
![](/img.php?id=1732072&img=bg13.png)
Getting Started
19
Starting Your Tablet PC
Turning On Your Tablet PC
Press the button until the Power LED lights up.
Changing the Display Orientation
You can rotate the display orientation to suit your preference.
Press the button to rotate the display 90° clockwise.
Shutting Down Your Tablet PC
It is important to properly shut down your tablet PC to avoid the loss of unsaved
data. To shut down your tablet PC, do the following:
Tap Start > Shut down.
Wait for your tablet PC to turn off power completely
before removing the power source (if necessary).
![](/img.php?id=1732072&img=bg14.png)
Getting Started
20
Using the Stylus
This tablet PC comes with an integrated stylus for accurate control input to the
LCD touch panel and digitizer. You can use the stylus to point, select, or drag
items or objects on the screen.
Calibrate the Screen
To ensure touch accuracy, calibrate the screen.
1. Tap Start > Control Panel.
2. Select Tablet PC Settings.
3. Tap Calibrate.
4. Follow the on-screen instructions to
complete screen calibration.
![](/img.php?id=1732072&img=bg15.png)
Getting Started
21
Using the On-Screen Keyboard
Tap the screen to activate the on-screen keyboard and
drag it out to the center of the screen to bring up the
on-screen keyboard.
Standard Keyboard
Tap the keys on the keyboard just as you would on a hardware keyboard.
To toggle between standard and expanded keyboard, tap Tools > Show
expanded keyboard.
When keys are pressed, the on-screen keyboard predicts the word as you
type.
Word suggestions appear on top of the keyboard. Tap a word to select it.
To enter text by handwriting, tap the Handwriting icon ( ). To go back to
keyboard mode, tap the Keyboard icon ( ).
![](/img.php?id=1732072&img=bg16.png)
Getting Started
22
Using the Quick Menu
Press the QuickMenu button to enter the Quick menu.
8
12
10
4
5
123
7
6
9
11
No. Item Description
1 WLAN Tap the icon to enable/disable the Wi-Fi (WLAN) function.
2 Bluetooth Tap the icon to enable/disable the Bluetooth function.
3 GPS Tap the icon to enable/disable the GPS function.
4 Auto-rotate Tap the icon to enable/disable the Auto-Rotate screen
function.
5 Keypad
Backlight Tap the icon to turn the keypad backlight on/off.
6 Setup Tap the icon to set hotkey,
serial port, light sensor,
and keypad backlight
settings.
n
NOTE
The Keypad Backlight
option is only available
when the keypad backlight is enabled.
![](/img.php?id=1732072&img=bg17.png)
Getting Started
23
No. Item Description
7 Information Tap the icon to view the battery charge cycle, Bios version,
EC version, and Quick Menu version.
8 Keyboard Tap the icon to display/hide the on-screen keyboard.
9 Mobility
center
Tap the icon to adjust brightness, screen orientation, volume,
external display, battery status, sync, wireless network, and
presentation settings.
10 Barcode Tap the icon to trigger the Barcode Scanner function.
11 RFID Tap the icon to trigger the RFID function.
12 Airplane
mode
Tap the icon to enable/disable airplane mode.
n
NOTE
When the Airplane mode is enabled, the wireless
network WLAN, Bluetooth, and GPS will be automatically
disabled.
n
NOTE
If the icon is gray (i.e. ), this indicates the current function is disabled.
![](/img.php?id=1732072&img=bg18.png)
Getting Started
24
Using the Camera
This tablet PC is equipped with a rear camera to take photos.
Press the button to activate the Camera mode.
Tap to take a photo.
To view the recorded shot, tap to switch to Playback mode.
In Playback mode, you may:
Tap / to view the previous/next
photo.
Tap to delete the current photo.
Tap Yes to delete the current photo.
To configure the camera settings, tap
and then change the necessary settings.
Tap to exit the Camera mode.
![](/img.php?id=1732072&img=bg19.png)
Getting Started
25
Using the Memory Cards
Your tablet PC supports different types of memory cards to provide faster data
transfer. Supported types are as follows:
SD card
SDHC card
Mini-SD card (with adapter)
MS card (Memory Stick/PRO)
MMC card
Mini-MMC card (with adapter)
Inserting a Memory Card
With the label side up, push the memory card into the memory card slot until it
clicks into place.
Removing a Memory Card
It is important to remove the memory card properly. Improper removal may
cause the data in the memory card to be corrupted and your tablet PC to
malfunction.
To properly remove the memory card, follow the steps below:
1. Tap the removable disk icon on the system
tray.
2. Tap Eject SD Card.
The system confirms that the device can be
safely removed.
3. Push the memory card to eject it.
4. Pull the card out from the slot.
![](/img.php?id=1732072&img=bg1a.png)
Making Connections
26
Making Connections
This chapter will guide you on installing peripheral devices to maximize the use
of your tablet PC.
Connecting USB Devices
You can connect your tablet PC to other USB devices, such as a mouse,
keyboard, digital camera, printer, or an external hard disk drive.
1. Connect one end of a USB cable to the USB port of your tablet PC.
2. Connect the other end to the USB device (if necessary).
n
NOTE
The USB cable is not included in the package. It is sold separately or it may
come with your USB device.
![](/img.php?id=1732072&img=bg1b.png)
Making Connections
27
Connecting Peripheral Devices
You can connect your tablet PC to other peripheral devices, such as a printer or
other device with serial port.
1. Connect one end of an RS-232 cable to the RS-232 port of your tablet PC.
2. Tighten the two screws on the side of the cable plug with your fingers.
3. Connect the other end to the RS-232 port of a printer or other peripheral
device.
n
NOTE
The RS-232 cable is not included in the package. It is sold separately.
![](/img.php?id=1732072&img=bg1c.png)
Making Connections
28
Connecting to Wireless Connections
You can connect your tablet PC to a wireless local area network, Bluetooth, or
GPS.
Before using a wireless built-in device, you need to turn the respective built-in
wireless functions on.
Connecting to a Wireless Local Area Network
Your tablet PC comes with a WLAN module. A wireless network can be added
either when the network is detected or by manually entering the settings
information.
To connect, follow the steps below:
2. Press the RF button to turn on the wireless network function.
n
NOTE
You can also activate the wireless network function by tapping icon in
the Quick menu.
3. Tap the wireless network icon on the system tray.
4. Available wireless network connections are
displayed. Tap the desired wireless network.
5. Tap Connect.
Some networks require a network security key or
a password.
t..
.
TIP
Check Connect automatically box to
automatically connect to this network when it
is available.
6. Enter the network security key.
7. Tap OK.
8. After the connection is established, you can see the wireless icon ( ) in the
Notification area.
n
NOTE
Wi-Fi access requires service from a wireless service provider. Contact your
service provider for more information.
Actual wireless connectivity will depend on system configuration. Please
contact your dealer for more information.
![](/img.php?id=1732072&img=bg1d.png)
Making Connections
29

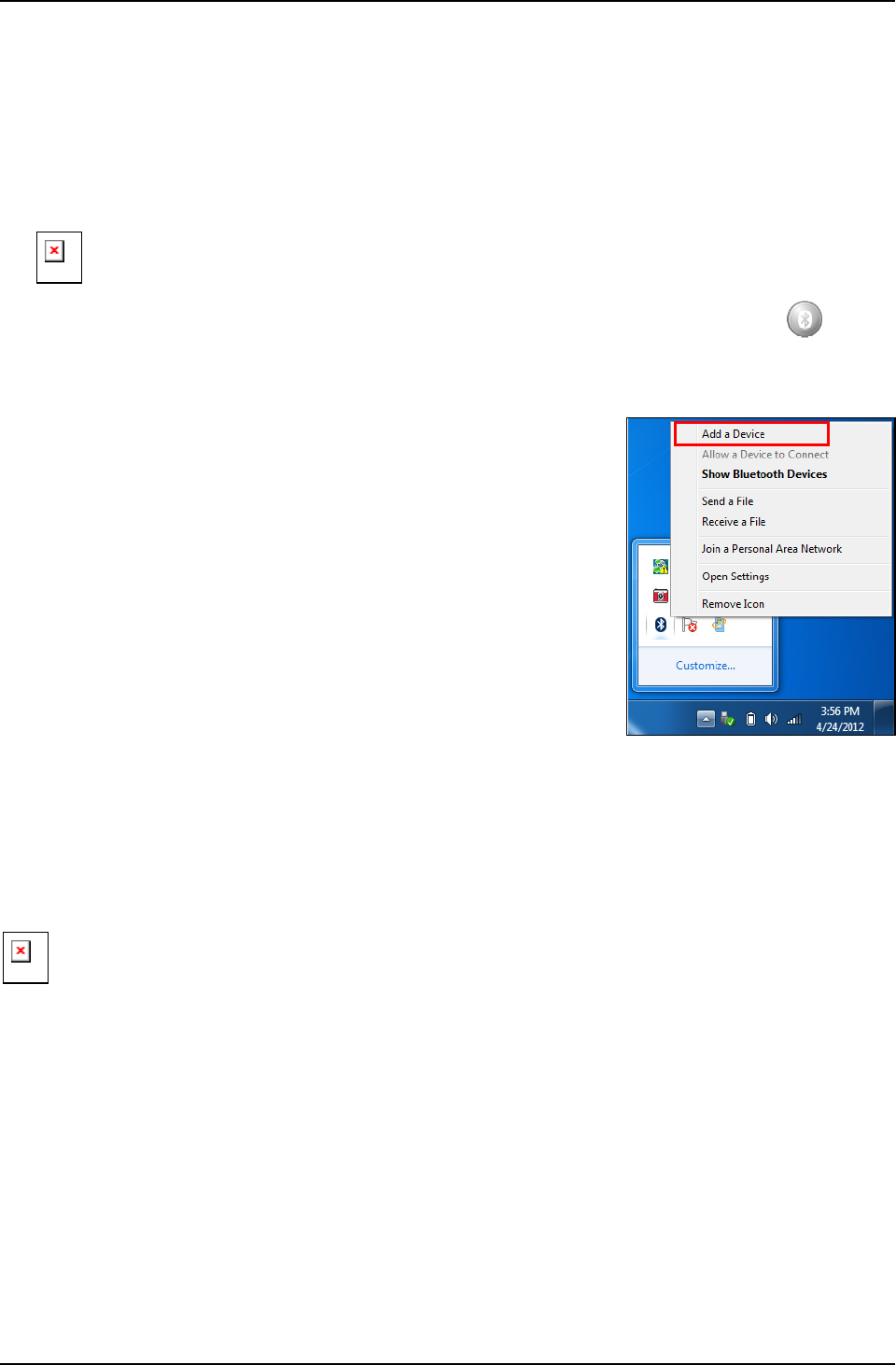

Connecting to a Bluetooth Device
Your tablet PC can connect and communicate with other Bluetooth-enabled
devices.
To add a device, follow the steps below:
1. Press the RF button to turn on the wireless network function.
n
NOTE
You can also activate the wireless network function by tapping icon
in the Quick menu.
2. Tap the arrow on the system tray to display hidden
icons.
3. Tap the Bluetooth icon.
4. Tap Add a Device. The system starts scanning for
Bluetooth devices and displays the available devices.
5. Tap on a device, then tap Next.
6. Enter the passkey (PIN) to start pairing, and tap Next.
7. After the pairing process is complete, tap Close.
n
NOTE
The PIN you enter on the tablet PC must be the same PIN to be entered on
the other Bluetooth device.
Once a partnership has been created, connecting to that device again will no
longer require entering the PIN.
![](/img.php?id=1732072&img=bg1e.png)
Power Management
30
Power Management
This chapter will guide you on how to manage the system power.

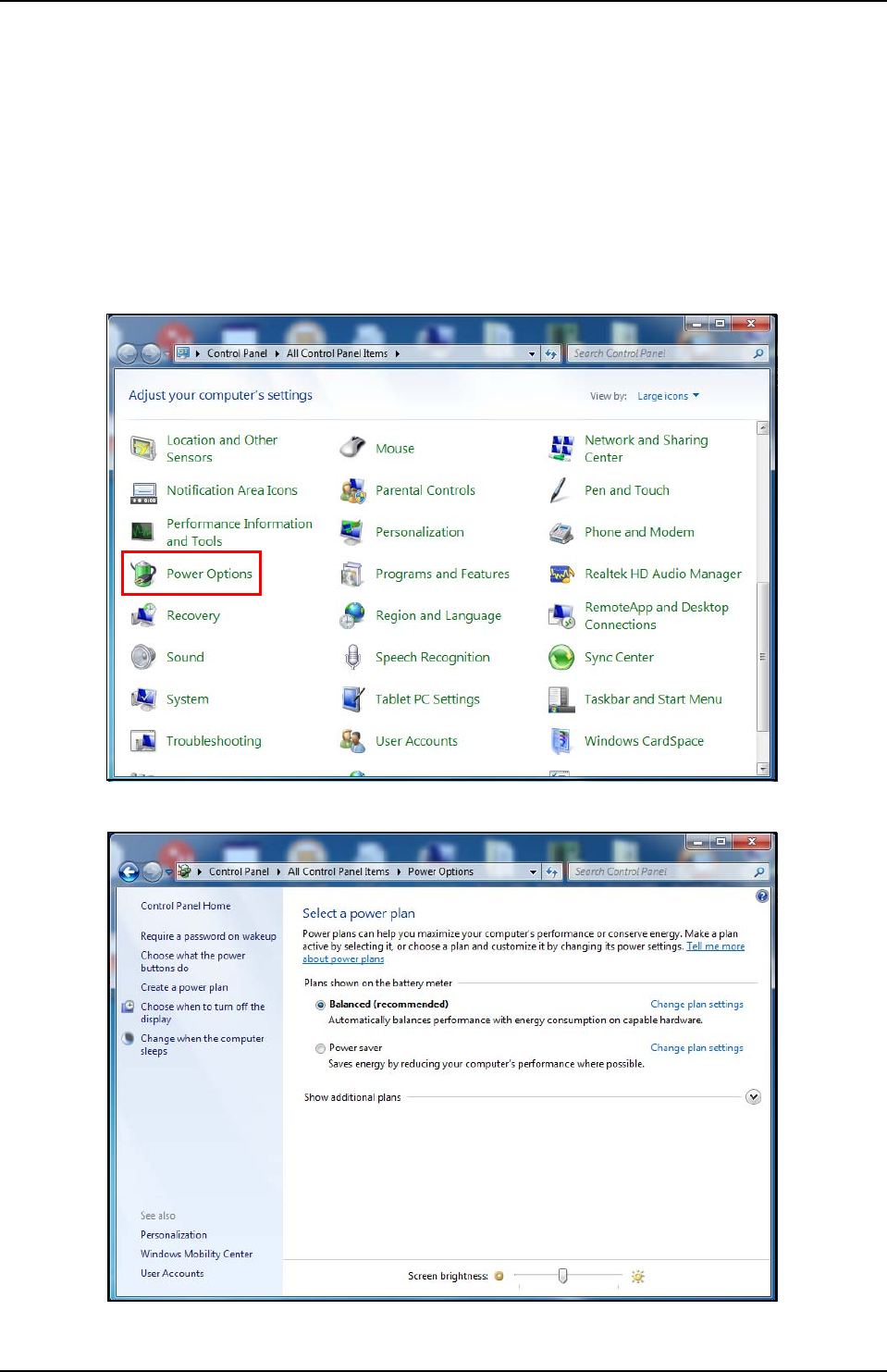

Using the Power Plan
To improve energy efficiency, you can use the power plan to reduce the amount
of power your tablet PC uses, maximize the performance, or balance the two.
1. Tap Start > Control Panel.
2. Select Power Options.
3. Select a power plan.
4. To adjust the selected power plan settings, tap Change plan settings.
![](/img.php?id=1732072&img=bg1f.png)
Power Management
31
Using the Power Saving Mode
When you are not using the tablet PC, turn off the tablet PC or set the tablet PC
to enter sleep mode.
To set the tablet PC to enter sleep mode, follow the steps below:
1. Tap Start.
2. Select Shut down > Sleep.
To wake up the tablet PC from sleep mode, do one of the following:
Press the button.
Press any key on the external keyboard.
![](/img.php?id=1732072&img=bg20.png)
Using the BIOS Setup Utility
32
Using the BIOS Setup
Utility
Your tablet PC has a BIOS setup utility which allows you to configure important
system settings, including settings for various optional functions of the tablet PC.
This chapter explains how to use the BIOS setup utility.
BIOS Setup Menu
The BIOS Setup Utility allows you to configure your tablet PC basic settings.
When you turn your tablet PC on, the system reads this information to initialize
the hardware so that it can operate correctly. Use the BIOS setup utility to
change your tablet PC start-up configuration. For example, you can change the
security and power management routines of your system.
Starting the BIOS Setup Utility
You can only enter the BIOS setup utility as the tablet PC is booting, that is
between the time you turn on the tablet PC and before the Windows interface
appears.
If your tablet PC is already on, shut down your tablet PC completely (power off)
and restart it and then press the Delete key to enter the setup utility.
n
NOTE
You have to connect your tablet PC with an external keyboard first before
starting the BIOS Setup Utility.
![](/img.php?id=1732072&img=bg21.png)
Using the BIOS Setup Utility
33
Navigating and Entering
Information in BIOS
Use the following keys to move between fields and to enter information:
Function Key Description
Selects screen.
Moves up/down to select items.
Enter Confirms the selection and enters the selected menu screen.
+ / - Changes an option for the selected items.
F1 Displays the Help screen.
F2 Invokes the previous values.
F3 Loads optimized default values.
F4 Saves the changes and exits Setup.
Esc Press Esc to exit any section. If you wish to exit the BIOS utility
without saving changes, go to the main menu, then press Esc.
Users are allowed to enter new values to replace the default settings in certain
fields, and the rest of the fields are specified by system default parameters and
cannot be modified by users. Reverse the attribute of the main options and
press Enter to enter into the submenu. Press Esc to return to the previous
configuration page.
Main Menu
The Main menu displays the system overview information about BIOS version,
CPU features, and total memory size. You can also set the system date and time.
![](/img.php?id=1732072&img=bg22.png)
Using the BIOS Setup Utility
34

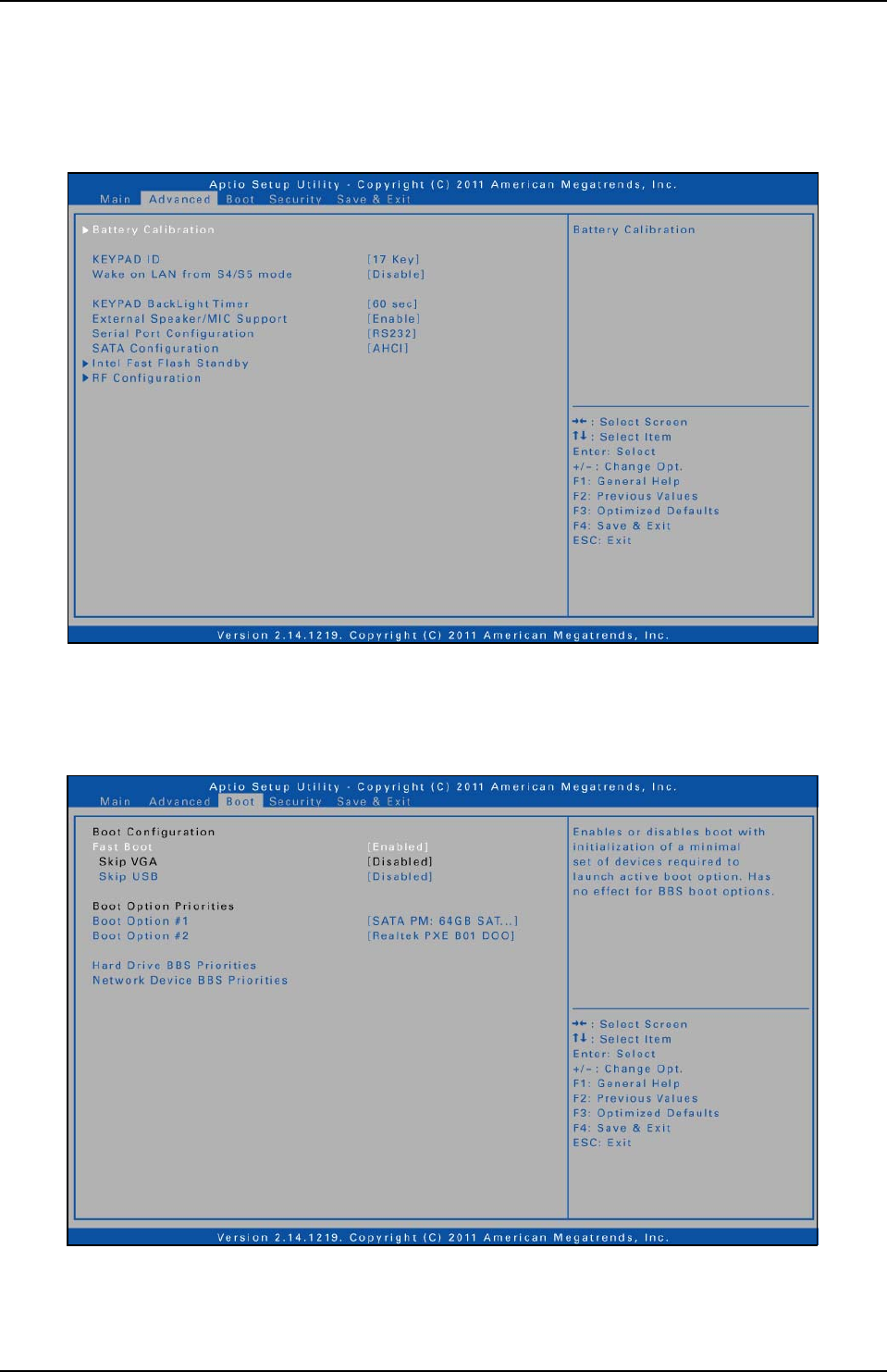

Advanced Menu
The Advanced menu allows you to calibrate the battery and configure wake up
event, external speaker/microphone, keypad backlight timer, serial port, SATA
mode, fast flash standby, and RF device control settings.
Boot Menu
The Boot menu allows you to configure the boot type and boot sequence.
![](/img.php?id=1732072&img=bg23.png)
Using the BIOS Setup Utility
35

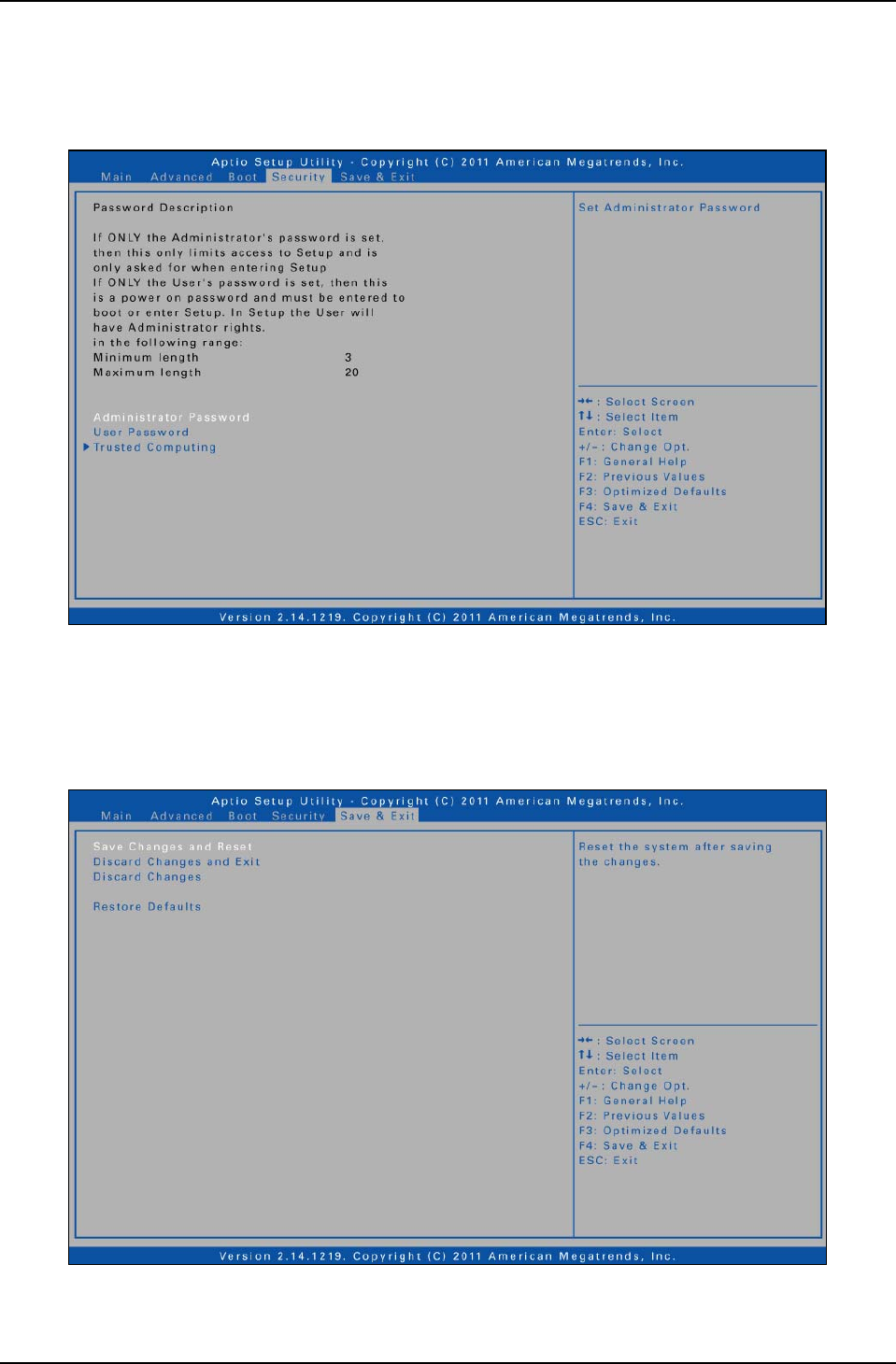

Security Menu
The Security menu allows you to set or change the Administrator and User
passwords, and configure TPM settings.
Save & Exit Menu
The Save & Exit menu allows you to save or discard the changes, or restore the
default values for all setup options before leaving the BIOS Setup Menu.
![](/img.php?id=1732072&img=bg24.png)
Troubleshooting
36
Troubleshooting
This chapter contains a list of common problems that you might experience
when using your tablet PC, and techniques to try and overcome the problem. If
you need additional help, contact your retailer.
Problems Solutions
The battery isn’t charging.
• Check if the power adapter is properly
connected.
• Make sure that the battery is within the
recommended charging temperature of
-20°C to 50°C.
The brightness control is not properly set.
Adjust the LCD screen brightness.
Your tablet PC might be in standby or
hibernate mode. Press the Power button to
wake the system.
The screen suddenly turns
blank. If using the battery, the battery may be
depleted. Replace with a fully charged battery
or connect the power adapter to an electrical
outlet.
If using wireless, check if your location is out
of range of the network. Move your tablet PC
closer to the access point.
If the network you are connecting to requires
a security password, make sure you enter the
correct password.
The tablet PC cannot connect to
Internet.
Check to make sure the settings
configurations are correct.
Check if the power adapter is connected to an
electrical outlet. Nothing happens when I press
the Power button. If using a battery pack, make sure it has
enough power. Otherwise, replace the battery.
The tablet PC cannot resume
from hibernate or standard
mode.
The battery power level might be too low.
Connect the power adapter to an electrical
outlet or replace the battery.
The tablet PC does not produce
any sound.
Audio has been muted. Tap on the Speaker
icon on the right of your Windows taskbar.
When the volume control box appears, drag
the bar to adjust the volume.
![](/img.php?id=1732072&img=bg25.png)
Specifications
37
Specifications
Features Specifications
Type & Speed
Intel Atom Processor N2600 (1.6GHz)
(Cedarview-M)
Intel Atom Processor N2800 (1.86GHz)
(Cedarview-M)
Install
Mechanism
BGA
Core Logic Intel NM10
Processor
Level 2 Cache
512KBx2
Type DDRIII 800
Capacity One 204-pin DDRIII SODIMM socket for 2GB
System Memory
Maximum
Memory
2GB
LCD Display
& Touch
Panel
Standard:
7” WSVGA (1024x 600 resolution) TFT
LCD with resistive touch screen panel,
LED backlighting, brightness: Typical
265nits
Sunlight Readable:
7” WSVGA (1024x 600 resolution) TFT
LCD with Sunlight readable function,
resistive touch panel with circular
polarizer, brightness: Typical 441nits
All the glasses of touch panel are
tempered glass
Light Sensor Built-in ambient light sensor to adjust LCD
brightness
Display
G-Sensor Support G-Sensor for LCD auto-rotation
Storage SSD m-SATA SSD 32G/40G/64G/80G/128G
m-SATA SSD is a CTO option
![](/img.php?id=1732072&img=bg26.png)
Specifications
38
Features Specifications
Camera
Integrated 5.0 Mega Pixel camera at the
back of the unit
With LED support light with 1500mcd,
viewing angle 120º
LED support light can be triggered when
taking a photo by specific application
software
Stable image: -15 ~ 40℃
Support GeoTagging in the EXIF of JPEG
file
Barcode
scanner
Optional integrated bar code scanner
support 1D/2D bar code reading
Angle: 38.9° (Horizontal), 25.4°(Vertical)
Range: 3.4-83cm
Print contrast: Min. 25%
Ambient light condition: 0~ 100,000 Lux
Need beep sound in reading
RFID
Optional RFID reader support ISO 15693,
14443A/B stand
(Support N2600 CPU only)(work within 2cm)
I/O Devices
Digitizer
Optional digitizer and active stylus pen
System support auto-switch pointing
device between resistive touch panel and
digitizer if available
Network/
Wireless
Integrated 10/100/1000 Ethernet
network (RJ45)
Intel Centrino Wireless N6235 ( WLAN
2x2 a/b/g/n), (Bluetooth 4.0-BLE mode)
GPS Global positioning system (GPS) receiver
(CTO option)
Communications
Bluetooth Support BT 2.1 EDR (optional)
I/O Ports Standard
One RS-232/RS-485 connector
One USB ports
One RJ-45
One docking connector
One DC-in Jack
One SD card slot
Audio
High Definition Audio
Stereo, supports two 1.5W speakers
Analog Microphone
![](/img.php?id=1732072&img=bg27.png)
Specifications
39
Features Specifications
AC Adapter
Output: 19V, 3.42A; 65W
Input: 100V-240V, 50Hz-60Hz,
Plug type: L shape
Plug length and diameters: 12mm,
5.5mm
Power
Battery Pack Lithium Ion battery pack (7.4V, 5200mAh,
38.48W)
Environment Temperature
/ Humidity
MIL-STD-810G, Method 501.5, Procedure
II (Operating)
Operating Temperature: -20°C ~ 60°C.
Boot-up with AC adapter, when operating
temperature is under 0°C.
MIL-STD-810G, Method 501.5, Procedure
I (Non-Operating)
Storage Temperature: -55°C ~ 75°C
(with Li-Ion battery).
Operating Humidity: 5% ~ 95% (based
on QRS test condition)
m-SATA SSD heater option for the
booting under 0℃.
Dimensions 225 x 145 x 39.8 mm (excluding
bumpers)
230 x 150 x 44.8 mm (including
bumpers)
Weight 1.3kg (with standard Battery)
Specifications are subject to change without prior notice.
