U MEDIA Communications BRC220 Bidirectional Remote Control User Manual Keys Definition
U-MEDIA Communications, Inc. Bidirectional Remote Control Keys Definition
Users Manual
![](/img.php?id=739456&img=bg1.png)
U-MEDIA Communications, Inc.
AudioMate
Wireless Digital Media System
HCR-102: Wireless Audio Receiver
&
BRC-220: Bidirectional Remote Control
VERSION 0.1
WAP-5000 DO NOT COPY 13-1
![](/img.php?id=739456&img=bg2.png)
U-MEDIA Communications, Inc.
1. INTRODUCTION........................................................................................................................ 3
2. GETTING TO KNOW THE MEDIA SYSTEM ............................................................................ 3
2.1. CHECKING PACKAGE CONTENT................................................................................................. 3
2.2. GETTING STARTED.................................................................................................................... 4
2.3. IDENTIFYING COMPONENTS....................................................................................................... 5
2.3.1. LCD SCREEN LAYOUT ........................................................................................................... 7
2.3.2. STATUS ICON INDICATION:...................................................................................................... 7
2.3.3. MENU INDICATION:................................................................................................................. 8
2.3.4. SOFT KEYS INDICATION:......................................................................................................... 9
2.3.5. MENU TREE OF LCD DISPLAY................................................................................................. 9
APPENDIX...................................................................................................................................... 10
WAP-5000 DO NOT COPY 13-2
![](/img.php?id=739456&img=bg3.png)
U-MEDIA Communications, Inc.
1. Introduction

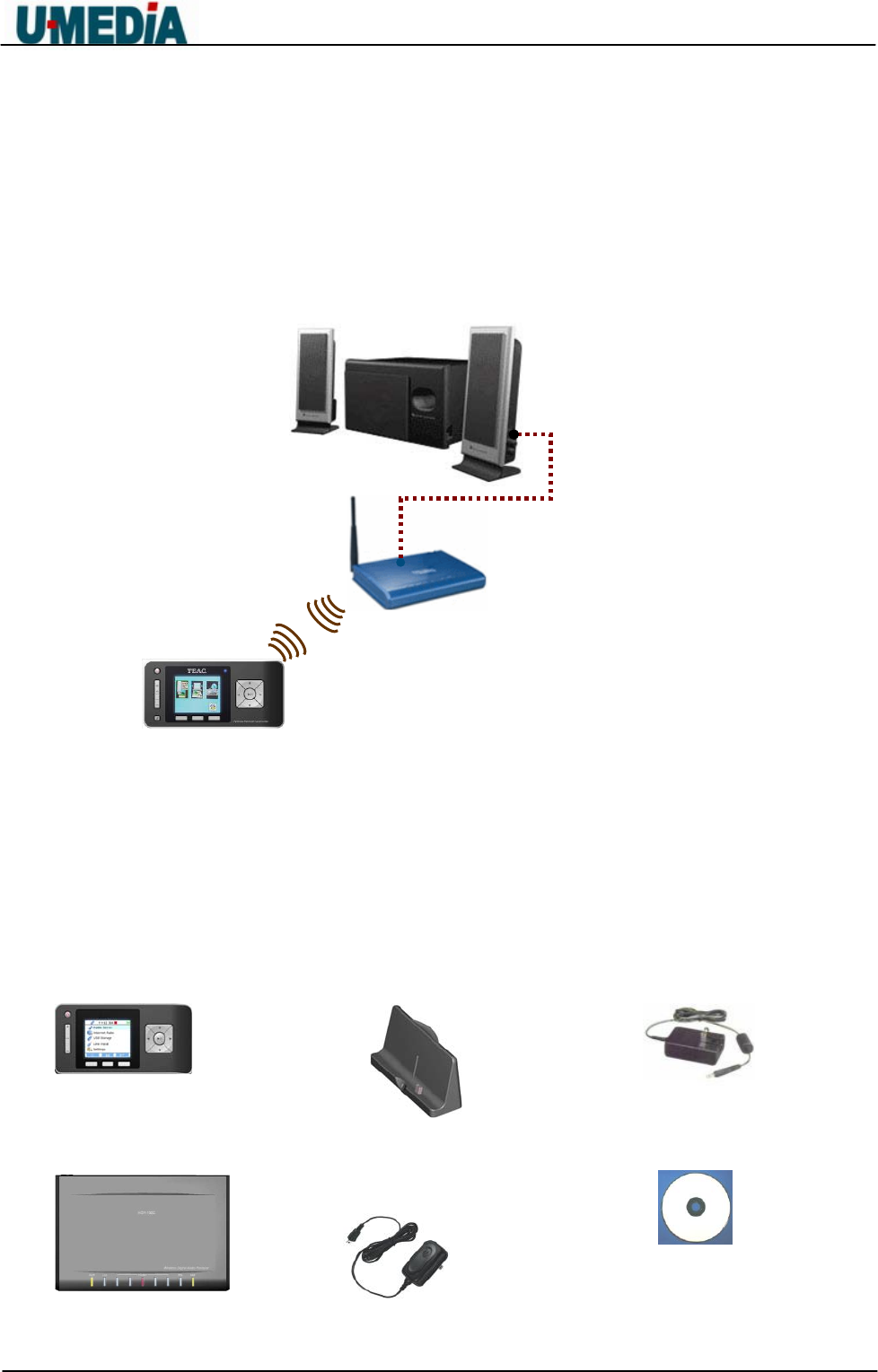

BRC-220, a Bidirectional Remote Control is designed to work with HCR-102 audio receiver to
provide long range interactive remote control function. In cooperating with standard based
Bluetooth class 1 technology, BRC-220 can support more than 100M operating distance at clean
open area (depending on environment configuration). The BRC-220 uses SPP profile to
communicate with HCR-102 over Bluetooth.
HiFi or Home Theater System
BRC-220 Bidirectional Remote Control
HCR-102 Wireless Audio Receiver
RCA Composite or SPDIF Interfaces
2. Getting to Know the Media System
2.1. Checking Package Content
1. BRC-220 3. BRC Charging Stand 5. 5V/2A HCR Power Adapter
6. CD
2. HCR-102 4. 5V/1A BRC Power Adapter (mini
USB connector)
7. QIG
WAP-5000 DO NOT COPY 13-3
![](/img.php?id=739456&img=bg4.png)
U-MEDIA Communications, Inc.

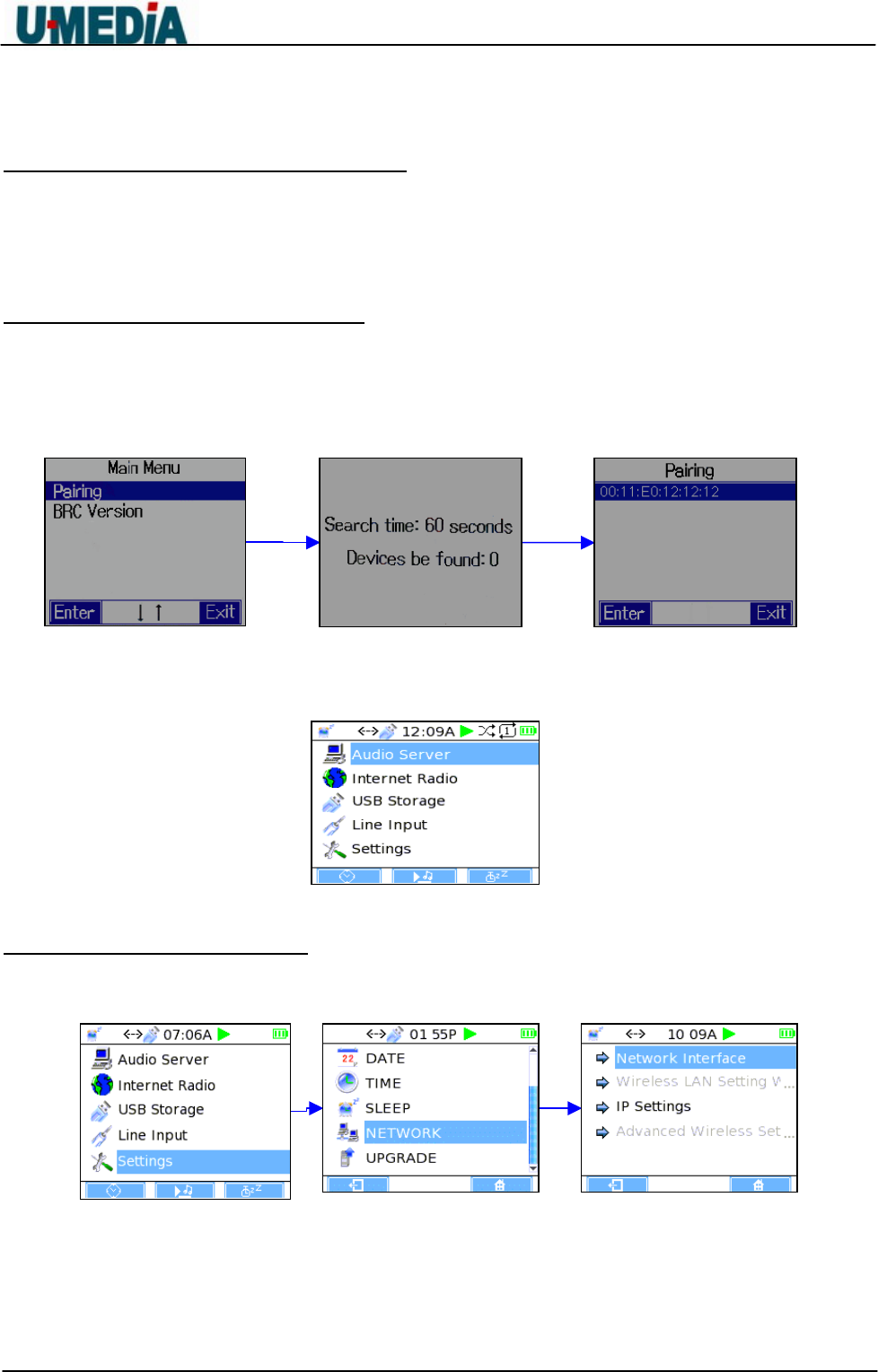

2.2. Getting Started
Connecting the BRC and HCR for First Use
1 Connect the power adapter to HCR and power on HCR
2 Connect the power adapter (with miniUSB connector) to charge BRC and power on BRC. (You should
charge your new BRC when you remove it from the package)
Pairing the BRC and HCR for First Use
3 Pairing Main Menu will pop up on the screen after you turn on BRC. Select Pairing and press Enter,
BRC will spend 60 seconds to search HCR nearby and list MAC addresses found. Select the MAC
en will show up.
Address you want to pair with and Press Enter.
4 After Pairing process finish successfully, Main Scre
Configuring Internet Connection
5 Go to SettingsNETWORK, choose the Network Interface you want to enable
5.1 Network Interface: LAN or WLAN. (If you choose LAN, 5.2 & 5.4 will be grey out)
5sers to complete
wireless settings
5.3 IP Settings: choose Auto / DHCP or Manual / Static IP
.2 Wireless LAN Setting Wizard: Scan surrounding access points and guide u
WAP-5000 DO NOT COPY 13-4
![](/img.php?id=739456&img=bg5.png)
U-MEDIA Communications, Inc.
5.4 Advanced Wireless Settings
Date / Time Settings
6 G e
6.1 NTP: Network time synchronization and time zone selection.
6 urrent date setting when NTP is off
6.3 TIME: Current time setting when NTP is off

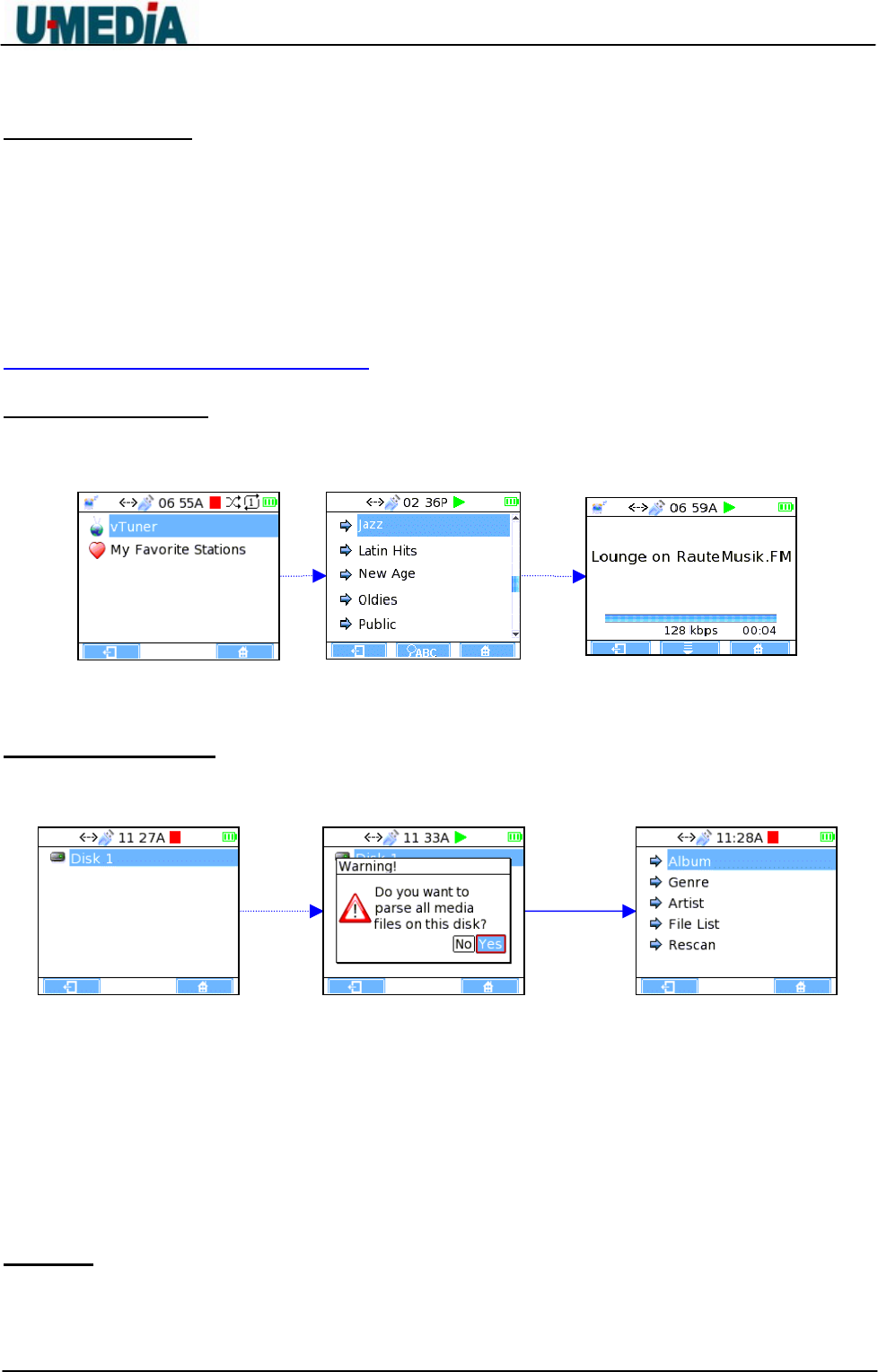

LISTENING TO INTERNET RADIO STATION / MUSIC
o to SettingsNTP / DATE / TIME to adjust date and tim
.2 DATE: C
Internet Radio Station
Go to Internet RadiovTuner and select stations you want to play. Click Central Key to start / stop play.
Music on USB Storage
Go to USB StorageDisk and select tracks playback. Click Central Key to start / pause / stop play.
The ing message will show up to ask you to parse all media
files. If you choose Yes, System will start ScanningParsingCategorizing for all Media files on the USB
Disk based on Album, Genre and Artist Category.
2.3. Identifying Components

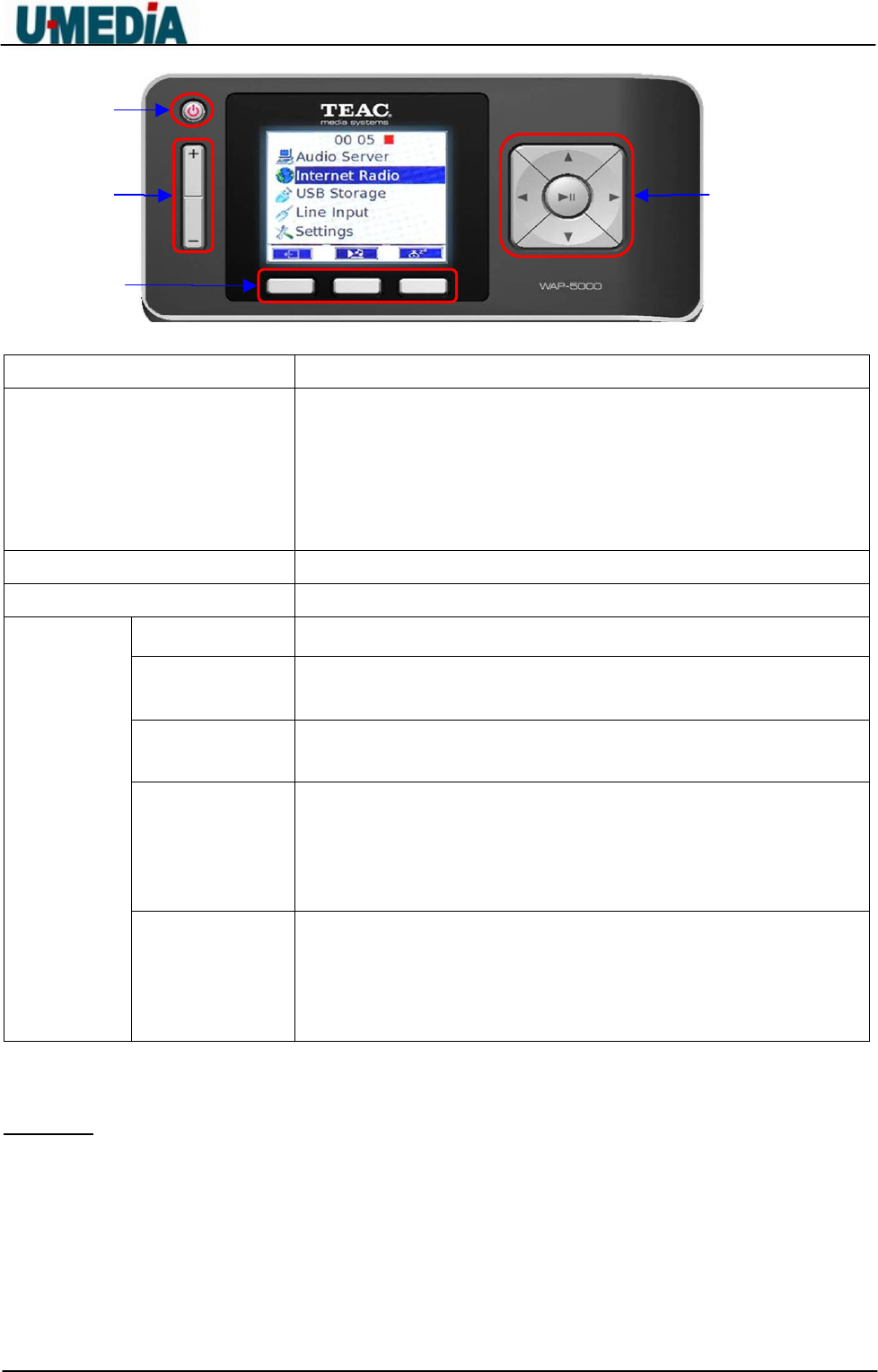

BRC-220
first time when you try to play USB Music, a warn
Yes
WAP-5000 DO NOT COPY 13-5
![](/img.php?id=739456&img=bg6.png)
U-MEDIA Communications, Inc.
WAP-5000 DO NOT COPY 13-6
Power
Volume
Soft Keys
Navigators
s Description Key
Power
1. short pressing (1s): resume BRC if BRC is under standby
mode
2. short pressing (1s): toggle mute state if BRC is powered on
3. Long pressing (3s): turn off BRC, SMR will go into stand-by
mode
Volume + / - Volume up / down (allow repeat key)
So yft Ke s Defined by each screen.
UP Arrow Key Scrolling up (allow repeat key)
DOWN Arrow Scrolling down (allow repeat key)
Key
LEFT Arrow 1. Go to last page
2. Rewind (USB disk) (allow repeat key)
Key
RIGHT Arrow 2. Forward (USB disk) (allo
1. Go to next page
w repeat key)
Key 3. OK/Accept/Enter
4. Play
Navigators
1. Play
Central Key 2. Pause/Resume (short push: 1sec)
3. top (long push 2 sec)
4. OK/Accept/Enter
S
HCR-102
![](/img.php?id=739456&img=bg7.png)
U-MEDIA Communications, Inc.
WAP-5000 DO NOT COPY 13-7

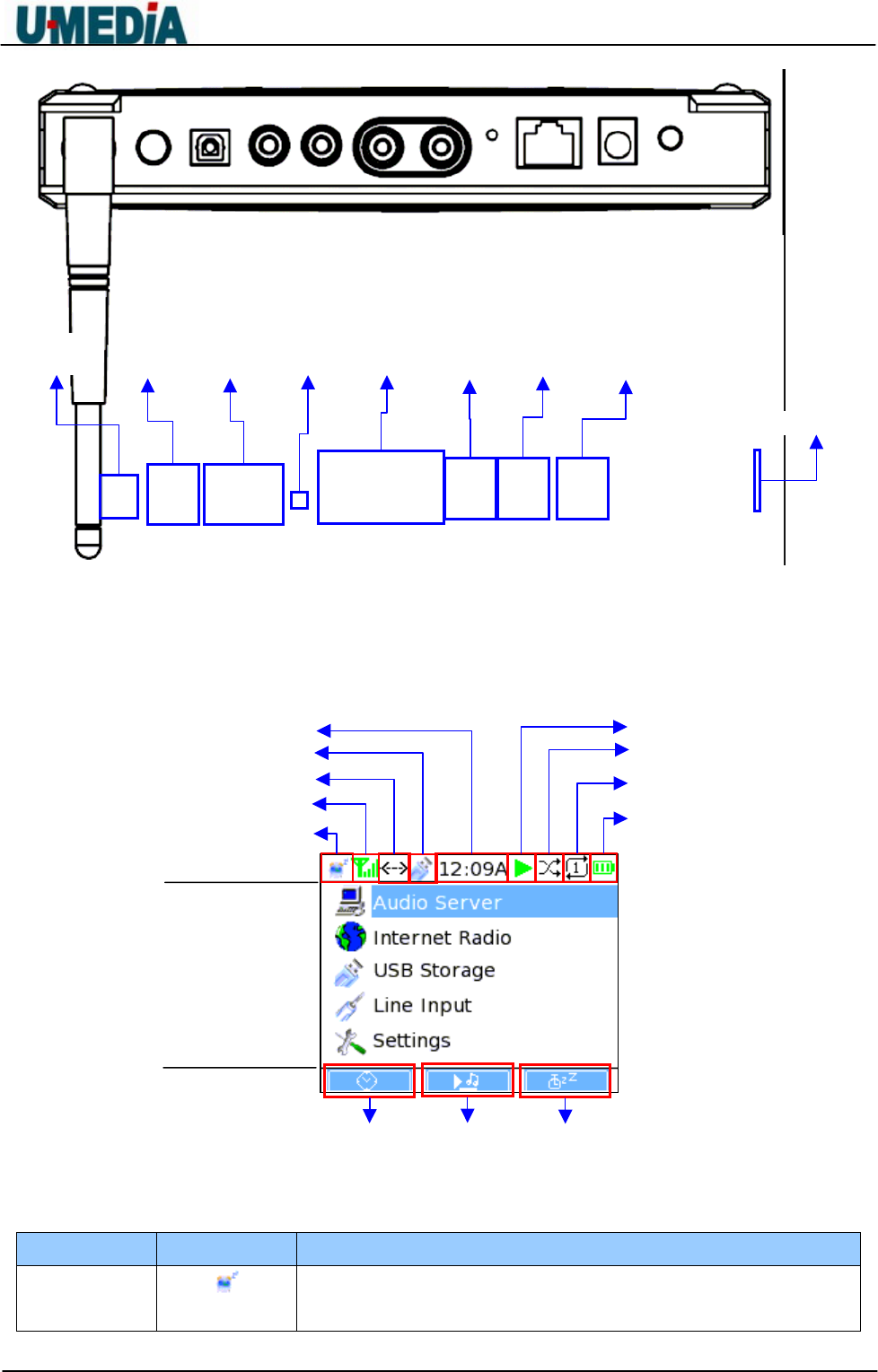

2.3.1. LCD Screen Layout
2.3.2.
Status Icon Indication:
Icon (20x20) Description
Sleep Status Indicate Sleep Function is activated. When only 10 seconds
left before system go to sleep, this icon will change to a count
Power
Switch S/PDIF
optical out
Phone
Jack
Audio
Ethernet
Power Line in
RCA out
USB disk
Reset
US
B Di
s
k
WLAN Signal Strength
Internet Status
Date / Time Play status
Shuffle
Repeat current track
/
Re
p
eat all tracks
Battery status
Sleep Mode
Left
Middle
Right
Soft keys
Status Icons
Menu Area
![](/img.php?id=739456&img=bg8.png)
U-MEDIA Communications, Inc.

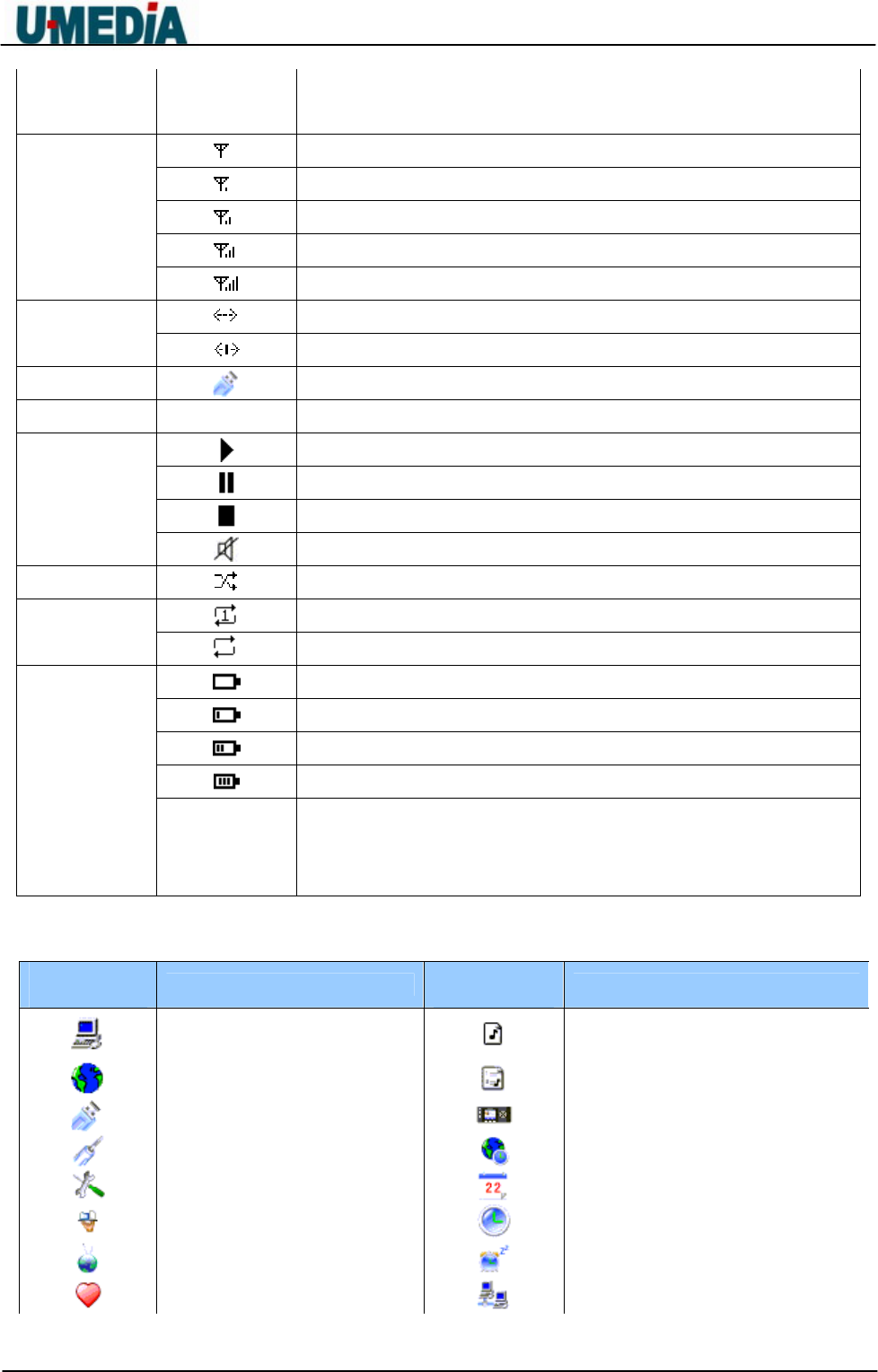

down clock to tell user after 10 seconds some action will
happen
Indicate WLAN signal strength is “Poor”, RED color
Indicate WLAN signal strength is “Low”, RED color
Indicate WLAN signal strength is “Fair”, ORANGE color
Indicate WLAN signal strength is “Good”, GREEN color
WLAN Signa
Strength
l
Indicate WLAN signal strength is “Excellent”, GREEN color
Indicate Internet connection is established
Internet
status on fail, RED color Indicate Internet connecti
Indicate USB disk is plug in
USB disk
Date Time Time hh:mm tt (12 format), / HH:mm (24 format)
Play, GREEN color
Pause, ORANGE color
Stop, RED color
Play Status /
Mute
Indicate SMR is set to Mute.
Shuffle Shuffle
Repeat single (current) track
Repeat Repeat all tracks
Indicate the battery is “Empty”, RED color flashing
Indicate the battery is “Low”, RED color
Indicate the battery is “Medium”, ORANGE color
Indicate the battery is “Full”, GREEN color
Battery
Status Flashing Indicate the battery is “Charging” (flashing)
Flash in RED (low), ORANGE (medium) and GREEN (high)
until flashing stops when it is fully charged
2.3.3. Menu Indication:
Icon
(24x24pixel) Menu Items Icon
(24x24pixel) Menu Items
Audio Server Songs
Internet Radio
Playlist
USB Storage Screen
Line-In NTP
Settings DATE
Media Server TIME
vTuner SLEEP
My Favoritae Stations NETWORK
WAP-5000 DO NOT COPY 13-8
![](/img.php?id=739456&img=bg9.png)
U-MEDIA Communications, Inc.
Upgrade
Disk
Folder
2.3.4. Soft keys Indication:
Icon Name Description
Back Back to previous layer of the current screen located
Mode More menu
Main Go to “Main Menu” screen
Search Search
Playing Go to “Now Playing” screen
Clock Clock
Sleep Set Sleep Interval
Note: button will only appear when this function is available.
ay

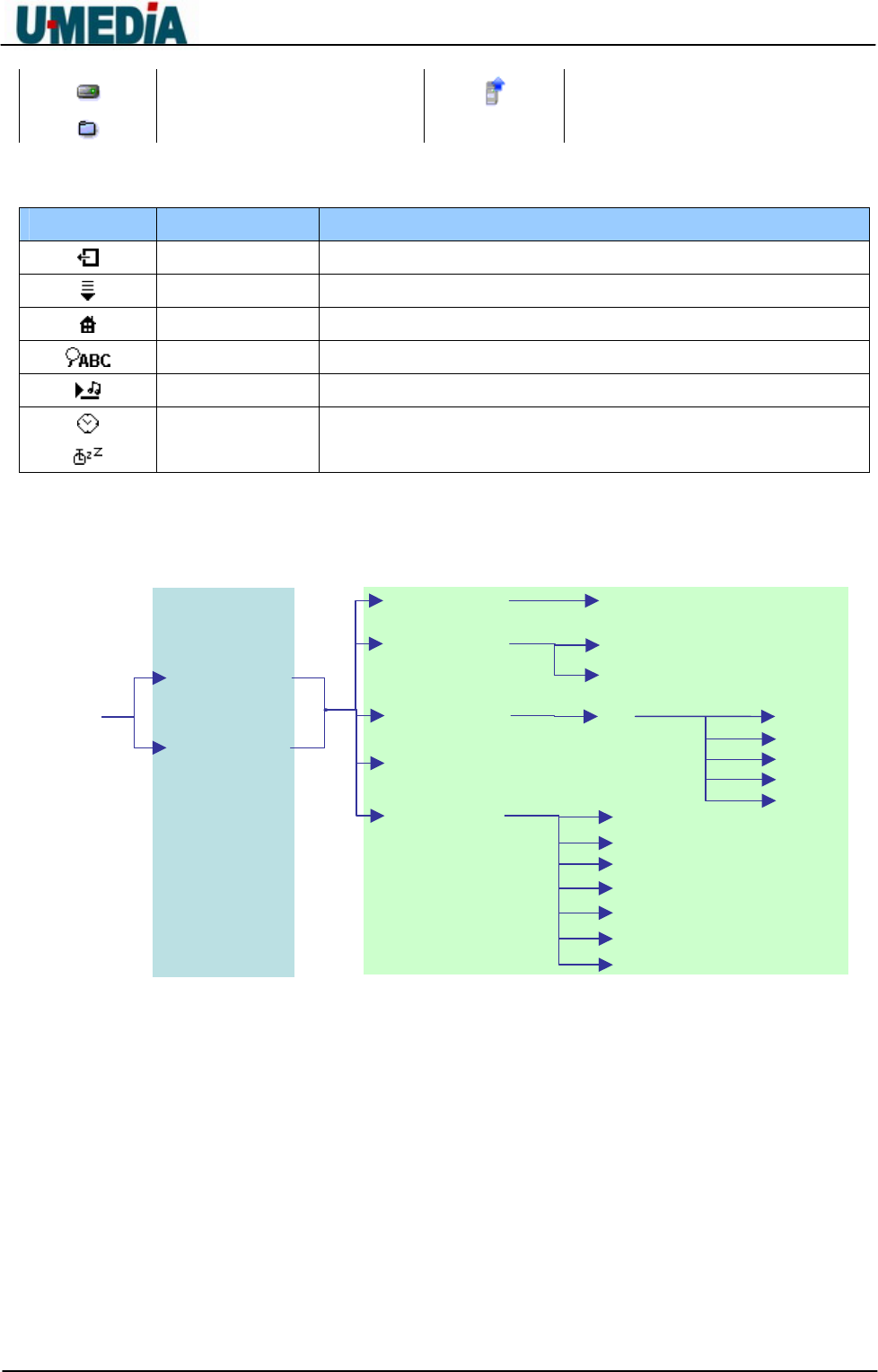

2.3.5. Menu Tree of LCD displ
Power on
BRC
Audio Sever Media Server list
Internet Radio
USB Storage
vTuner
My Favorite Stations
Disk
Line Input
Settings SCREEN
NTP
DATE
TIME
SLEEP
Start Screen
Pairing Screen
Album
Genre
Artist
File List
Rescan
NETWORK
E
UPGRAD
Controlled by SMR
Controlled by RC B
WAP-5000 DO NOT COPY 13-9
![](/img.php?id=739456&img=bga.png)
U-MEDIA Communications, Inc.
Appendix
Product Spec
HCR-102
Audio Output / Input
TBC
Analog RCA outputs
H put (mini phone, 3.5mm)
Volume contro
Green
l is provided
eadphone out
Digital S/P IF ou
Digital Optical Output,
Optical connector: (TBC)
Sample rates: (TBC)
Volume control is provided
tput
D
Line-in co necti Blue connector for exte al au rce, such as CD player
ons rn dio sou
n
Audio Format
Audio Formats
- Uncompressed format (WAV) (TBC, depends on customers)
- Compressed formats (MP3, A +, WMA) (TBC,
nds on customers)
s
AC, AAC
depe
Internet Radio - Internet Radio favorites can be saved in a playlist for easy
access.
- Quick selection from ndred et Radio streams
offered by vTuner
- Displays song title information during playback
- S treams
hu s of Intern
upport for MP3, and WMA formatted Internet Radio s
Bluetooth Radio Specifications
RF Standard Cl
Backward compatible with Bluetooth v1.1 & v1.2
ass 1 Bluetooth v2.0
RF Frequency 2.4~2.4835 GHz, ISM band
RF Output Power(Peak
Power)
WLAN:11b: 20.60 dBm ; 11g: 21.23 dBm
bluetooth: 14.16 dBm
WLAN Radio Specifications
WLAN Standard IEEE 802.11b/g standard
Security Supports both WPA Personal, WPA2-AES and 64/128-bit WEP
encryption
Antenna 3.985dBi external fix dipole antenna x 1
Physical Specifications
WAP-5000 DO NOT COPY 13-10
![](/img.php?id=739456&img=bgb.png)
U-MEDIA Communications, Inc.
WLAN
WLAN link and activity
if there is connection, full light wlan led. If there is wlan traffic,
li
g
ht wlan led but with
q
uick flashin
g
for traffic indication.
LAN LAN link and activity
if there is connection, full light wlan led. If there is wlan traffic,
Power1,2 4,5 BLUE when on, off when standby
Power3 BLUE when on, RED when standby
USB Disk RED when BRC is connected, Off when BRC is not connected,
LED
Indicator
BRC RED when USB disk is attached, off if not attached
Power switch Turn on /off SMR
Power Jack For Power adapter
LAN For Ethernet connector
Reset button Rest to factory default
Line-out (L) Analog Audio out – Left
Line-out (R) Analog Audio out – Right
Line-in Audio Input from other sources
Phone Jack Headphone output
S/PDIF output Digital Optical Output
External
Port
Interface
USB port USB disk
Power Supply Switch AC/DC Power Adapter. Input: 100-240VAC/60Hz,
Output: 5V/2.5A.
Dimension 121.98mm(W) x 29.4mm (H)x 180.00mm(L) (TBD)
Weight TBD
ENVIRONMENTAL SPECIFICATIONS
Operating 0ºC to 40ºC (32ºF to 104ºF)
Temperature Storage -20ºC to 60ºC (-4ºF to 140ºF)
Operating 10% to 85% Non-Condensing
Humidity Storage 5% to 90% Non-Condensing
BRC-220
Bluetooth Radio Specifications
RF Standard Class 1 Bluetooth v2.0
Backward compatible with Bluetooth v1.1 & v1.2
RF Frequency 2.4~2.4835 GHz, ISM band
RF Output Power(Peak
Power)
13.31dBm (TBD)
Physical Specifications
Display Type TFT LCD with 26K colors
WAP-5000 DO NOT COPY 13-11
![](/img.php?id=739456&img=bgc.png)
U-MEDIA Communications, Inc.
Size 2.0 inches
Resolution 176 (H)x 220(W) pixel
31.68 x 39.6 mm
Active Area
0.18 x 0.18 mm
Pixel Pitch
LED OFF – when
andby mode
BRC-220 is powered OFF
en BRC-220 enters st
Blinking wh
MiniUSB
External Port Interface
Dimension 125 (L)x60(W)x16(H) mm
125g (TBC after drop test)
Weight
Power Supply
Charge via mini USB port
Battery 3.7V 850 mAh Lithium rechargeable battery pack (built-in)
ENVI TIONS RONMENTAL SPECIFICA
Operating 0ºC to 40ºC (32ºF to 104ºF)
Temperature Storage -20ºC to 60ºC (-4ºF to 140ºF)
10% to 85% Non-Condensing
Operating
Humidity torage 5% to 90% Non-Condensing
S
WAP-5000 DO NOT COPY 13-12
![](/img.php?id=739456&img=bgd.png)
U-MEDIA Communications, Inc.
WAP-5000 DO NOT COPY 13-13
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment HCR102 wireless audio receiver should be installed and operated
with minimum distance 20cm between the radiator & your body.
