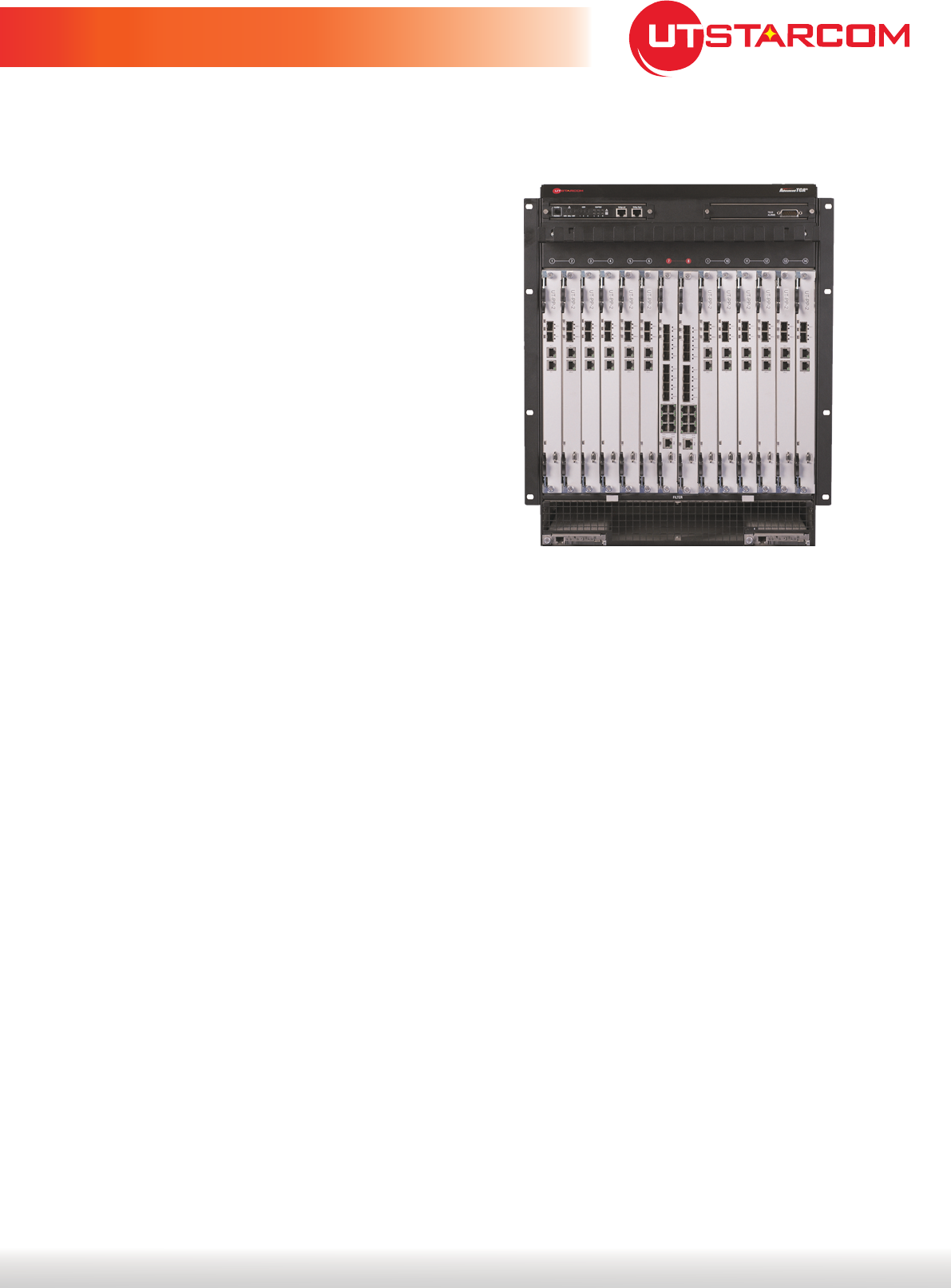

MSG10K Plus Multi-Service Gateway
Product Advantages
High Performance
·Support up to 120,000 access points
·Support up to 1,320,000 users
·Support up to 1,536,000MAC addresses
·Support up to 4096VLAN per line card
·throughputSupport up to 240Gbps
TM
Large Capacity
MSG10K Plus is independent of access restrictions
which can be deployed transparently in a variety of
mobile networks such as 3G, 4G and Wi-Fi.
A wide range of Network Flexibility
MSG10K Plus provides very-high performance, thanks
to the Dual CPU structure (8 cores and 32 threads per CPU)
and Distributed Software Architecture. Supporting up to
700 users per second for DHCP and Authentication.
Supporting up to 120,000 APs and 1,320,000 clients per
device, the MSG10K Plus easily serves carrier-grade
deployments.
MSG10K Plus seamlessly integrated with current
fundamental mobile network technologies such as WLAN
Gateway, BNG, Access Controller, etc. MSG10K Plus
realizes data, VoIP and multimedia services with excellent
service flexibility
Multi-Service Integration
Powerfully WLAN Gateway Functions
The MSG10K Plus integrates WLAN Gateway Functions,
such as High performance DHCP server, DHCP relay,
Broadcast Suppression, Lawful Interception, Various tunnels
to carry the 3rd party APs, whitch include standard CAPWAP,
EtherIP/GRE tunnels.
Excellent BNG ability
MSG10K Plus also can be deployed as a BNG/BRAS.
Additional to the basic BRAS function, MSG provides some
advanced features for transport network, better QoS architecture
and safer authentication server protection, such as 802.1Q,
,OSPF, VRRP, HQoS, Web Authentication and EAP-SIM, etc.
Advanced wireless networking features include Centralized AP
Management, Intelligent RF Management, Rogue/ Interference
AP Detection, Loading Balance, Seamless L2/L3 Roaming, User
based Rate-limiting, Hotspot 2.0 and Network Monitoring, etc.
High Availability
MSG10K Plus supports 1+1 real-time backup functionality. All
services will be automatically switched to the backup devices
seamlessly as soon as the device fails.
Supported Capacity
MSG10K Plus is the world’s first carrier-grade
Multi-Service Gateway that combines routing,
switching, WLAN gateway and access controller
functionality into a unified multi-core system, and
is designed to meet multiple services requirements
with robust bandwidth for the next generation mobile
networks. Unlike other wireless LAN systems, the
MSG10K Plus supports layer2 and layer3 functions,
and is ideal for the large-scale carrier-grade networks,
to meet high performance and a high availability
wireless LAN requirements that can be deployed in
the core network to achieve robust AP centralized
management and configuration.
Advanced Access Controller Features
![](/img.php?id=2453046&img=bg2.png)
TM
Line card slot
RTM card slot
Switch card
Shelf manager card
12
12
2
2
Interface
Line card
RTM card
Switch card
2 x10GE
10 x 1GE
2 x 10GE
8 x10GE
4 x 10/100/1000BASE-T
MSG10000 Plus Specification
多媒体和QoS
HQoS (Base on VLAN, Port)
Layer-2 and Layer-3 802.11e
Direct power supply
Input voltage:100VAC-250VAC
Input current:12.5A
Alternate power supply
(optional)
Physical Characteristics
Dimension(W*D*H)mm
Weight(kg)
Maximum power consumption
Environment
483x 507 x 572
75.5 Kg(full load)
3400W(full load)
Temperature
- Working temperature:5°C~40°C
- Storage temperature:-40°C~+85°C
Humidity
- Working humidity:5%~80%
- Storage humidity:5%~95%
Input voltage:-40.5 VDC~ -72 VDC
Input current:25A
安全
Authentication types:
Authentication client:
Encryption:
Support Web p
Support WISPr authentication
Support MAC address authentication
Support RFC 3579 RADIUS authentication
Support RFC 3576 RADIUS authentication
Support RFC 3580 IEEE 802.1X RADIUS
Support a variety of EAP authentication:
EAP-TLS, EAP-FAST, EAP-SIM/AKA
ortal authentication
Support RADIUS Client/Proxy
Support LDAP/ SSL Secure LDAP
Support TACACS+
Support WEP: 64 and 128bit
Support TKIP
Support CCMP/AES
Support SSL,TLS: RC4 128-bit,
RSA1024 and 2048bit
Role-based user policy
网络管理
Configuration based on CLI
Syslog system monitor
SNMP v1, v2c, v3
Support Console,SSH,Telnet
高可用性
High Redundancy 1+1 redundancy
Active-active/active-standby
Software Features
VLAN, Super VLAN,
Link Aggreation
Broadcast Suppression
Support DHCP server,DHCP relay
Support VRRP protocol
Support static routing protocol
Support OSPF protocol
Hotspot 2.0
AP management and control
Rogue AP detection
Interference detection
RF management
Load balancing
Support EtherIP (RFC3378), GRE,
CAPWAP
Performance monitoring and statistics
Seamless roaming
Layer-2 function
WLAN function
Multimedia &QoS
Layer-3 function
Security
Network Management
Hardware Features
User Base Policy
United States
UTStarcom, Inc.
Tel: +1510 996 7681
Fax: +1510 996 7273
http://www.utstar.com
http://www.utstar.co.jp
Japan
UTStarcom Japan K.K.
Tel: +81-3-6430-8600
Fax: +81-3-6430-8599
Zip code:105-0011
Building3#, No.1576 Chunbo Road,
Letel High-Tech Park, Binjiang
District, Hangzhou 310052 PRC
Tel:
Fax: 010-85201122
Post code: 310052
TM
0571-81928888
UTStarcom R&D Center.
The Front Tower Shiba koen 2-6-3,
Shiba-koen, Minato-ku,
Tokyo, Japan
48249 Lakeview Blvd, Suite A
Fremont, CA., 94538 USA
China
