M2G
OEM Users Guide

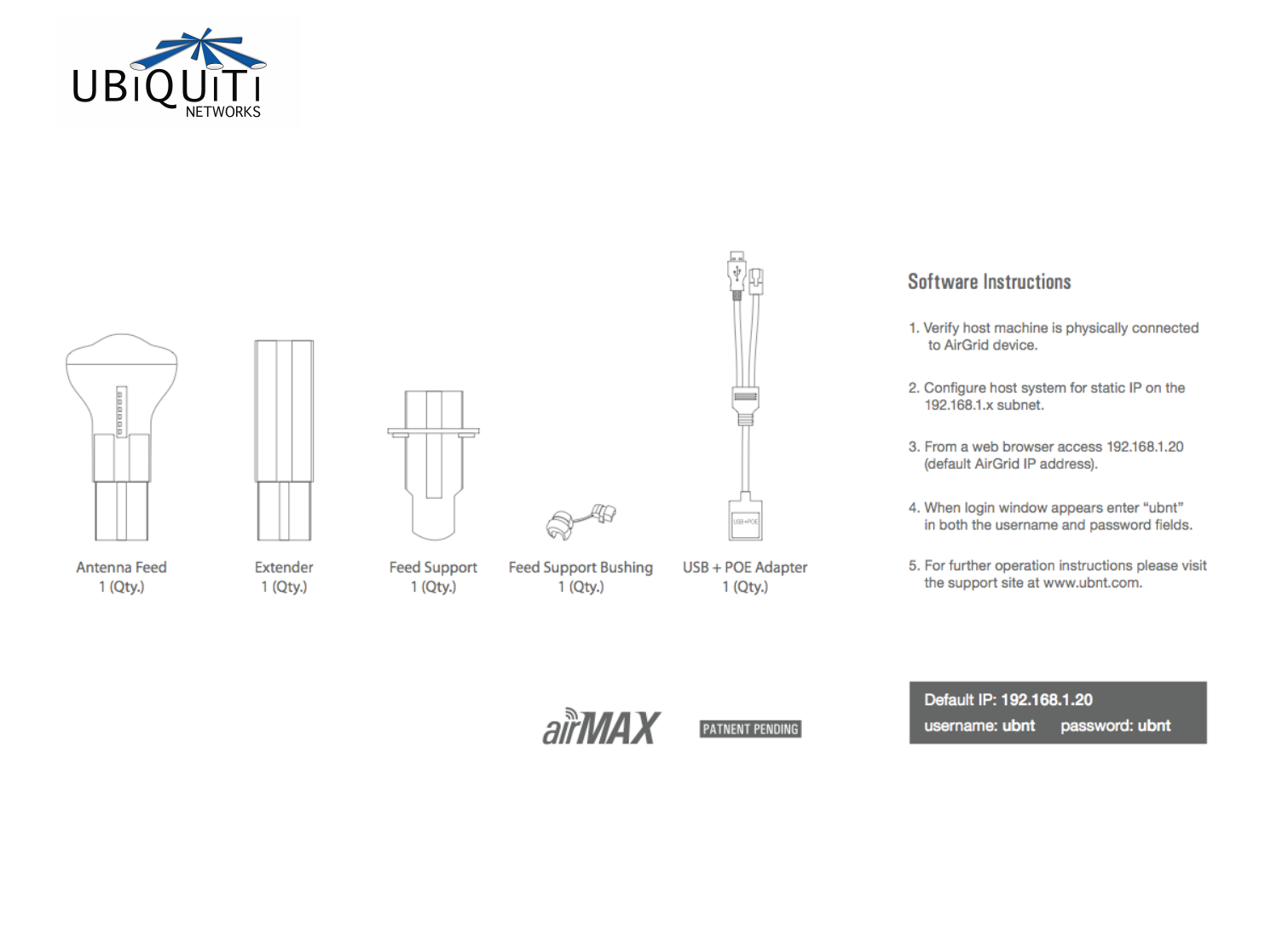

![](/img.php?id=1225999&img=bg2.png)
TECH SPECS
DataRate Avg. TX Tolerance DataRate Sensitivity Tolerance
MCS0 20 dBm +/-2dB MCS0 -96 dBm +/-2dB
MCS1 20 dBm +/-2dB MCS1 -95 dBm +/-2dB
MCS2 20 dBm +/-2dB MCS2 -92 dBm +/-2dB
MCS3 20 dBm +/-2dB MCS3 -90 dBm +/-2dB
MCS4 19 dBm +/-2dB MCS4 -86 dBm +/-2dB
MCS5 17 dBm +/-2dB MCS5 -83 dBm +/-2dB
MCS6 16 dBm +/-2dB MCS6 -77 dBm +/-2dB
MCS7 15 dBm +/-2dB MCS7 -74 dBm +/-2dB
Shock and Vibration
ETSI300-019-1.4
Power Method
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature
-30C to 75C
Operating Humidity
5 to 95% Condensing
Mounting Kit
Pole Mounting Kit included
Max Power Consumption
3.5 Watts
Power Supply
5V USB+POE Adapter Included
Enclosure Size
16cm length x 8cm width x 3cm height
Weight
0.5 kg
Enclosure Characteristics
Outdoor UV Stabalized Plastic
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Airmax 11n
Airmax11n
OPERATING FREQUENCY 2412MHz-2462MHz
TX POWER SPECIFICATIONS
RX SPECIFICATIONS
REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals
FCC Part 15.247, IC RS210, CE
RoHS Compliance
YES
SYSTEM INFORMATION
Processor Specs
Atheros MIPS 24KC, 400MHz
Memory Information
32MB SDRAM, 8MB Flash
Networking Interface
1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
![](/img.php?id=1225999&img=bg3.png)
COMPLIANCE INFORMATION
FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
!
The antennas used for this transmitter must be installed to provide a separation
distance of at least following from all users:
24cm distance for the Dish Antenna
41.16cm distance for the Grid Antenna
!
INDUSTRY CANADA
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à! la norme NMB-003 du
Canada.
!
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
!!
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that permitted for successful communication.!
The device has been designed to operate with the antennas listed below and having a
maximum gain of 25dBi. Antennas not included in this list or having a gain greater than
20dBi are strictly prohibited for use with this device. The required antenna impedance is
50 ohms.
This device must be professionally installed and is designed strictly for for outdoor point-
to-point wireless links.
