NanoBridge
![](/img.php?id=1445771&img=bg3.png)
1
Package Contents
Package Contents
U
B
I
Q
U
I
T
I
N
N
E
T
W
O
R
K
S
U
B
I
Q
U
I
T
I
N
E
T
U
B
I
Q
U
I
T
I
N
N
E
T
W
O
R
K
S
U
B
I
Q
U
I
T
I
N
E
T
NanoStation 24v PoE
Adapter
Power Cord Mounting Ties
* Products may be different from pictures and are subject to change without notice.
Installation Requirements
• 10 mm wrench
• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through
the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks

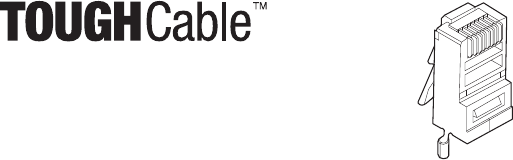

with industrial‑grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable
Hardware Overview
Secondary Main
Reset
Secondary
Ethernet Port Main
Ethernet Port
Note: Secondary Ethernet Port is capable of 24V Power over
Ethernet output which can provide power to a secondary
device. It can be enabled using the AirOS interface.
![](/img.php?id=1445771&img=bg4.png)
2
Quick Reference Guide

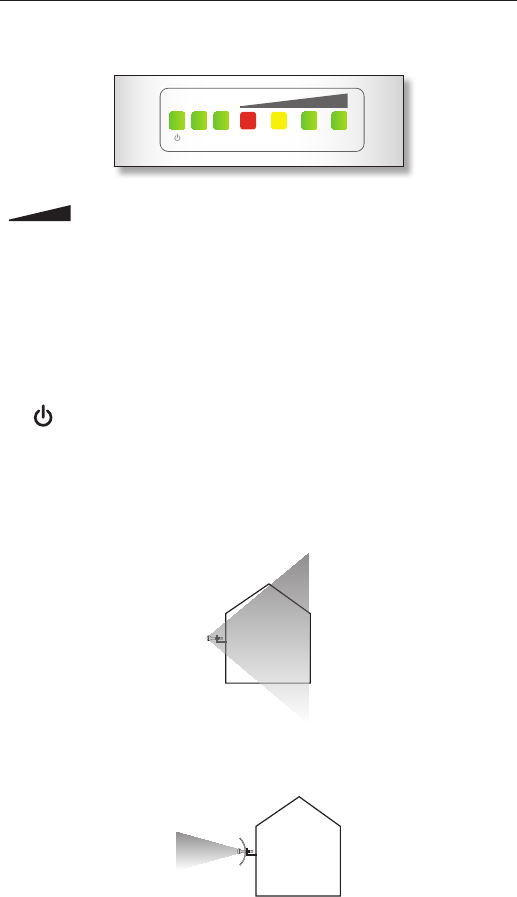

LEDs
LAN1 LAN2
Signal These LEDs display the signal strength.
LAN2 LAN/Secondary Ethernet The LAN2 Ethernet LED
will light steady green when an active Ethernet
connection is made to the Secondary Ethernet Port.
LAN1 WAN/Main Ethernet The LAN1 Ethernet LED
will light steady green when an active Ethernet
connection is made to the Primary Ethernet Port and
flash when there is activity.
Power The Power LED will light steady green when
the NanoStation is connected to a power source.
Application Examples
NanoStation mounted outdoors without the dish installed
provides outdoor to indoor coverage using the antenna only.
NanoBridge mounted outdoors with the dish refelector installed
provides directional outdoor coverage (gain reflector dependent)
![](/img.php?id=1445771&img=bg5.png)
3

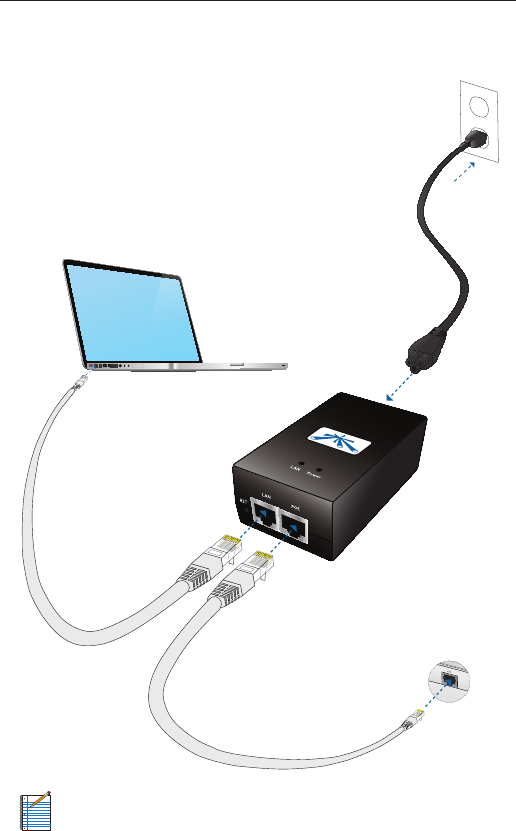

Typical Deployment
Typical Deployment
LAN or Computer to
Ethernet Port labeled
LAN on PoE Adapter
Ethernet Port on Ubiquiti
Device to Ethernet Port labeled
POE on PoE Adapter
Connect the Power Cord to the
PoE Adapter and a power outlet
Note: Shielded Category 5 (or above) cabling should be
used for all wired Ethernet connections and should be
grounded through the AC ground of the PoE.
![](/img.php?id=1445771&img=bg6.png)
4
Quick Reference Guide
Accessing AirOS
1. Make sure that your host machine is connected via Ethernet to
the Ubiquiti Networks device (as shown on previous page).
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet (e.g. 192.168.1.100).
3. Launch your Web browser and type http://192.168.1.20 in the
address field and press enter (PC) or return (Mac).
4. Enter ubnt in the Username and Password fields. Select your
country from the Select Your Country drop‑down. To use the
product you must agree to the terms of use. To do so, click
I agree to these terms of use. Click Login.
5. The AirOS Interface will appear allowing you to customize your
settings as needed.
![](/img.php?id=1445771&img=bg7.png)
5
Ubiquiti Networks Wiki and Forum
Ubiquiti Networks Wiki and Forum
Ubiquiti Networks has an online Wiki with Manuals, Guides, and
Information. It is located at www.ubnt.com/wiki.
Another great resource is the Ubiquiti Networks Forum. You can
post and view comments, questions, and answers with other
forum members and Ubiquiti staff at www.ubnt.com/forum.
![](/img.php?id=1445771&img=bg8.png)
6
Quick Reference Guide
Installer Compliance Responsibility
Devices must be professionally installed and it is the professional
installer's responsibility to make sure the device is operated within
local country regulatory requirements.
Country Code
Obey Regulatory Rules Checkbox
Since Ubiquiti Networks equipment can be paired with a variety
of antennas and cables, the Antenna Gain, Cable Loss, and Output
Power fields are provided to the professional installer to assist in
meeting regulatory requirements.
The country that the product is being used in should be selected
from the Country Codes drop‑down and the Obey Regulatory Rules
checkbox should be selected.
![](/img.php?id=1445771&img=bg9.png)
7
Specifications
Specifications
Enclosure Size 29.4 x 8 x 3 cm
Weight 0.5 kg
Max Power Consumption 8 Watts
Power Supply 24V, 1A PoE Supply Included
Power Method Passive PoE (Pairs 4, 5+; 7,8 return)
Operating Temperature ‑30° to 75° C
Operating Frequency 3650 MHz ‑ 3675 MHz
Networking Interface 2 10/100BASE‑TX Ethernet Ports
![](/img.php?id=1445771&img=bga.png)
8
Quick Reference Guide
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the
manufacturer.
WARNING: Do not use this product in location that can be
submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and
current requirements indicated on the manufacturer’s label.
Connection to a different power source than those specified
may result in improper operation, damage to the equipment or
pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment.
Service should be provided only by a qualified service
technician.
3. This equipment is provided with a detachable power cord
which has an integral safety ground wire intended for
connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the
provided approved type. Never use an adapter plug to
connect to a 2‑wire outlet as this will defeat the continuity
of the grounding wire.
b. The equipment requires the use of the ground wire as a
part of the safety certification, modification or misuse can
provide a shock hazard that can result in serious injury or
death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
![](/img.php?id=1445771&img=bgb.png)
9
General Warranty
General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and warrants that the
Products furnished hereunder shall be free from defects in material and workmanship
for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS
under normal use and operation. UBIQUITI NETWORKS sole and exclusive obligation
under the foregoing warranty shall be to repair or replace, at its option, any
defective Product that fails during the warranty period. The expense of removal and
reinstallation of any item is not included in this warranty.
The foregoing warranty is exclusive and in lieu of all other warranties, express
or implied, including the implied warranties of merchantability and fitness for a
particular purpose and any warranties arising from a course of dealing, usage or trade
practice with respect to the products. Repair or replacement in the manner provided
herein shall be the sole and exclusive remedy of Buyer for breach of warranty and
shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to
the quality and performance of the Products. UBIQUITI NETWORKS reserves the
right to inspect all defective Products (which must be returned by Buyer to UBIQUITI
NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining a Return
Materials Authorization (RMA) number from UBIQUITI NETWORKS. Products returned
without an RMA number will not be processed and will be returned to Buyer freight
collect. UBIQUITI NETWORKS shall have no obligation to make repairs or replacement
necessitated by catastrophe, fault, negligence, misuse, abuse, or accident by Buyer,
Buyer’s customers or any other parties. The warranty period of any repaired or
replaced. Product shall not extend beyond its original term.
Warranty Conditions
The foregoing warranty shall apply only if:
(I) The Product has not been subjected to misuse, neglect or unusual physical,
electrical or electromagnetic stress, or some other type of accident.
(II) No modification, alteration or addition has been made to the Product by
persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S authorized
representatives or otherwise approved by UBIQUITI NETWORKS.
(III) The Product has been properly installed and used at all times in accordance,
and in all material respects, with the applicable Product documentation.
(IV) All Ethernet cabling runs use CAT5 (or above) shielded cabling.
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of the products
is error‑free or that operation will be uninterrupted. In no event shall UBIQUITI
NETWORKS be responsible for damages or claims of any nature or description
relating to system performance, including coverage, buyer’s selection of products
for buyer’s application and/or failure of products to meet government or regulatory
requirements.
Returns
In the unlikely event a defect occurs, please work through the dealer or distributor
from which this product was purchased.
![](/img.php?id=1445771&img=bgc.png)
10
Compliance
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provice reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
For MPE and antenna usage details, please visit our website at
www.ubnt.com/compliance
RF Exposure Warning
The transceiver described here emits radio frequency energy.
Although the power level is low, the concentrated energy from
a directional antenna may pose a health hazard. Do not allow
people to come closer than 37.2cm to the antenna when the
transmitter is operating.
Additional information on RF exposure is available on the Internet
at www.fcc.gov/oet/info/documents/bulletins
L'émetteur‑récepteur décrit ici émet de l'énergie de fréquence
radio. Bien que le niveau de puissance est faible, l'énergie
concentrée à partir d'une antenne directionnelle peut présenter
un danger pour la santé. Ne pas permettre aux gens de se
rapprocher de 37.2cm à l'antenne lorsque l'émetteur est en
marche.
Des renseignements supplémentaires sur l'exposition aux RF est
disponible sur Internet à www.fcc.gov/oet/info/documents/
bulletins
![](/img.php?id=1445771&img=bgd.png)
11
Compliance
CE Marking
CE marking on this product represents the product is in
compliance with all directives that are applicable to it.
Alert sign! Follows CE marking
Alert sign must be indicated if a restriction on use applied to the
product and it must follow the CE marking.
NB‑Identification number (if there is any)
Notified body number is indicated if it is involved in the
conformity assessment procedure.
Please check the CE mark on the product label to find out which
notified body was involved during assessment.
![](/img.php?id=1445771&img=bge.png)
12
Compliance
RoHS/WEEE Compliance Statement
English
European Directive 2002/96/EC requires that the equipment bearing this symbol on
the product and/or its packaging must not be disposed of with unsorted municipal
waste. The symbol indicates that this product should be disposed of separately from
regular household waste streams. It is your responsibility to dispose of this and other
electric and electronic equipment via designated collection facilities appointed by
the government or local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and human health. For more
detailed information about the disposal of your old equipment, please contact
your local authorities, waste disposal service, or the shop where you purchased the
product.
Deutsch
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die
direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist
, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das
Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt
entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere
elektrische und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle negative
Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere
Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die
örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei
dem Sie das Produkt erworben haben.
Español
La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos
urbanos no seleccionados. El símbolo indica que el producto en cuestión debe
separarse de los residuos domésticos convencionales con vistas a su eliminación.
Es responsabilidad suya desechar este y cualesquiera otros aparatos eléctricos
y electrónicos a través de los puntos de recogida que ponen a su disposición el
gobierno y las autoridades locales. Al desechar y reciclar correctamente estos
aparatos estará contribuyendo a evitar posibles consecuencias negativas para
el medio ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las autoridades
locales, al servicio de recogida y eliminación de residuos de su zona o pregunte en la
tienda donde adquirió el producto.
![](/img.php?id=1445771&img=bgf.png)
13
Compliance
Français
La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé
ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures
ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit
distinct de celui pour les déchets des ménages. Il est de votre responsabilité de jeter
ce matériel ainsi que tout autre matériel électrique ou électronique par les moyens
de collecte indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour but de
lutter contre l’impact néfaste potentiel de ce type de produits sur l’environnement et
la santé publique. Pour plus d’informations sur le mode d’élimination de votre ancien
équipement, veuillez prendre contact avec les pouvoirs publics locaux, le service de
traitement des déchets, ou l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2002/96/EC richiede che le apparecchiature contrassegnate
con questo simbolo sul prodotto e/o sull’imballaggio non siano smaltite insieme
ai rifiuti urbani non differenziati. Il simbolo indica che questo prodotto non deve
essere smaltito insieme ai normali rifiuti domestici. È responsabilità del proprietario
smaltire sia questi prodotti sia le altre apparecchiature elettriche ed elettroniche
mediante le specifiche strutture di raccolta indicate dal governo o dagli enti
pubblici locali. Il corretto smaltimento ed il riciclaggio aiuteranno a prevenire
conseguenze potenzialmente negative per l’ambiente e per la salute dell’essere
umano. Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di
competenza, il servizio di smaltimento rifiuti o il negozio nel quale avete acquistato il
prodotto.
![](/img.php?id=1445771&img=bg10.png)
14
Compliance
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI
NETWORKS device, je ve shod se základními po adavky a dal ími p
íslu n mi ustanoveními sm rnice 1999/5/ES.
Dansk
[Danish]
Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende
udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI
NETWORKS device, in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI
NETWORKS device, voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI
NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Suomi
[Finnish]
UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS
device, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Par la présente, UBIQUITI NETWORKS déclare que ce UBIQUITI
NETWORKS device, est conforme aux exigences essentielles et
aux autres dispositions de la directive 1999/5/CE qui lui sont
applicables.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich diese UBIQUITI
NETWORKS device, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet”. (BMWi)
Hiermit erklärt UBIQUITI NETWORKS die Übereinstimmung des
Gerätes UBIQUITI NETWORKS device, mit den grundlegenden
Anforderungen und den anderen relevanten Festlegungen der
Richtlinie 1999/5/EG. (Wien)
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ UBIQUITI
NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1995/5/ΕΚ.
![](/img.php?id=1445771&img=bg11.png)
15
Declaration of Conformity
Magyar
[Hungarian]
Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska
[Icelandic]
Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS
device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í
tilskipun 1999/5/EC.
Italiano
[Italian]
Con la presente UBIQUITI NETWORKS dichiara che questo
UBIQUITI NETWORKS device, è conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device,
atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist
tajiem noteikumiem.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI
NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma
provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk
[Norwegian]
UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI
NETWORKS device, er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Slovensky
[Slovak]
UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS
device, sp a základné po iadavky a v etky príslu né ustanovenia
Smernice 1999/5/ES.
Svenska
[Swedish]
Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI
NETWORKS device, står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår
av direktiv 1999/5/EG.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que el
UBIQUITI NETWORKS device, cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Polski
[Polish]
Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii
UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne
istotne postanowienia Dyrektywy 1999/5/EC.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS
device, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
![](/img.php?id=1445771&img=bg12.png)
RR040711
English
We recommend that you protect your networks
from the most brutal environments and
devastating ESD attacks with industrial‑grade
shielded Ethernet cable from Ubiquiti Networks.
For more details, visit www.ubnt.com/toughcable
Deutsch
Schützen Sie Ihre Netzwerke vor extremen Umwelteinflüssen
und verheerender elektrostatischer Entladung (ESD), indem
Sie abgeschirmte Ethernetkabel in Unternehmensqualität von
Ubiquiti Networks verwenden. Weitere Informationen erhalten Sie
unter www.ubnt.com/toughcable
Español
Le recomendamos que proteja sus redes de los entornos más
hostiles y los devastadores efectos de las descargas electrostáticas
utilizando cable Ethernet blindado con calidad‑industrial de
Ubiquiti Networks. Para obtener más información, visite
www.ubnt.com/toughcable
Français
Nous vous recommandons de protéger vos réseaux contre les
environnements les plus brutaux et les décharges électrostatiques
les plus dévastatrices avec un câble Ethernet Ubiquiti Networks
avec blindage renforcé. Pour en savoir plus, rendez‑vous sur
www.ubnt.com/toughcable
Italiano
Si consiglia di proteggere le reti dagli ambienti e dagli attacchi
ESD più invasivi con il cavo Ethernet schermato‑di tipo industriale
di Ubiquiti Networks. Per ulteriori informazioni, visitare il sito Web
www.ubnt.com/toughcable
![](/img.php?id=1445771&img=bg14.png)
Ubiquiti Networks Support
Email: support@ubnt.com
Phone (9 a.m. ‑ 5 p.m. PST): 408-942-1153
Online Resources
Wiki Page: www.ubnt.com/wiki
Support Forum: www.ubnt.com/forum
Knowledge Base: www.ubnt.com/kb
Downloads: www.ubnt.com/support/downloads
www.ubnt.com
© 2011 Ubiquiti Networks, Inc. All rights reserved.
