Networked Serial
Interface
Model: mPort-S
![](/img.php?id=1941322&img=bg3.png)
1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks mFi™
mPort™ Serial. The mPort Serial includes the mFi Controller
software that allows you to control your machines using
your web browser.
Package Contents
mPort Serial Wall-Mount
Bracket
PoE Adapter and
Power Cord
Antenna
mPort Serial
Model: mPort-S
Terminal Block Screws
(Qty. 4)
Anchors
(Qty. 4)
Quick Start Guide
System Requirements
• Microsoft Windows XP, Windows Vista, Windows 7,
Windows 8, or Mac OS X
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Google Chrome, or
Microsoft Internet Explorer 8 (or above)
![](/img.php?id=1941322&img=bg4.png)
2
mFi™ mPort™ Serial
Hardware Overview
Front View
Antenna Connector
Power LED
Ethernet LED
Status LED
Power The Power LED will light steady green when
the mPort Serial is properly connected to a power
source.
Ethernet The Ethernet LED will light steady green
when an active Ethernet connection is made and
flash when there is activity.
Status The Status LED will light yellow when the
mPort Serial is first powered on in factory default
mode out of the box. The Status LED will light steady
green when the mPort Serial has been successfully
integrated into a network and is working properly.
The Status LED will flash when the Locate button is
used in the mFi Controller software.
Antenna Connector Connects to the included
Antenna.
![](/img.php?id=1941322&img=bg5.png)
3

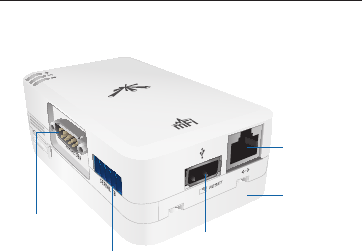

Hardware Overview
Side View
Serial DB9
Port
Serial TB Port
USB
Port
Ethernet
Port
Wall-Mount
Bracket
Serial DB9 Port Connects to a switch, router, or other
device for remote access.
Serial TB (Terminal Block) Port Connects to an industrial
networking device for automation, such as script execution
from the mFi Controller software.
USB Port Reserved for future use.
Ethernet Port Connects to the POE port of the PoE
Adapter.
Wall-Mount Bracket Wall-mounting is optional.
![](/img.php?id=1941322&img=bg6.png)
4
mFi™ mPort™ Serial
Hardware Installation

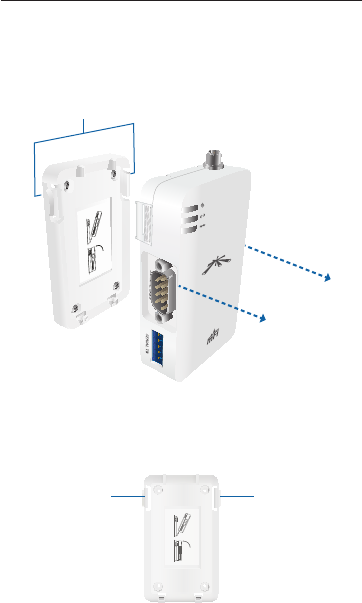

Remove the Wall-Mount Bracket from the mPort Serial by
pressing the Release Tabs.
Release Tabs
Wall-Mount (Optional)
1. Position the Wall-Mount Bracket with the Release Tabs
on top.
Release Tab Release Tab
![](/img.php?id=1941322&img=bg7.png)
5

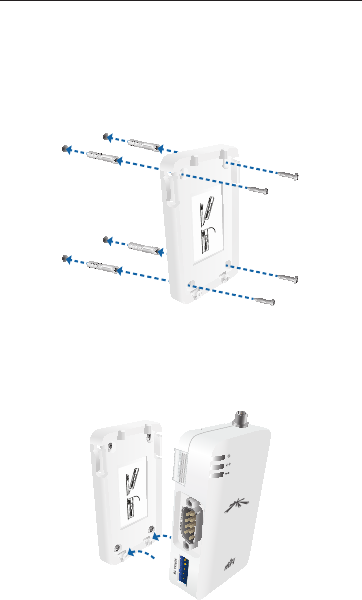

Hardware Installation
2. To secure the Wall-Mount Bracket to the wall:
a. Use a pencil to mark the holes on the wall.
b. Use a 6 mm drill bit to drill the holes in the wall.
c. Insert the four Anchors into the wall.
d. Insert the Screws into the anchors.
3. Angle the mPort Serial so that the notches on the
bottom of the Wall-Mount Bracket are inserted into
the mPort Serial. Then press the mPort Serial into the
Release Tabs and snap it into place.
![](/img.php?id=1941322&img=bg8.png)
6
mFi™ mPort™ Serial

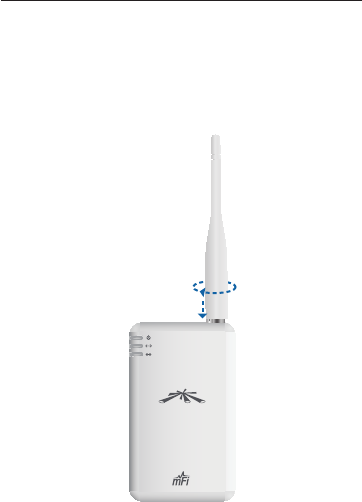

Antenna Installation (Optional)
The mPort Serial uses the internal antenna by default.
If you want to use an external antenna, then attach
the included Antenna and configure its use in the mFi
Controller software.
![](/img.php?id=1941322&img=bg9.png)
7
Connecting a Serial Device
Connecting a Serial Device
Each serial port supports RS232, RS422, and RS485. Use the
appropriate serial port for your serial cable (not included).
Note: Only one serial port can be used at a time.

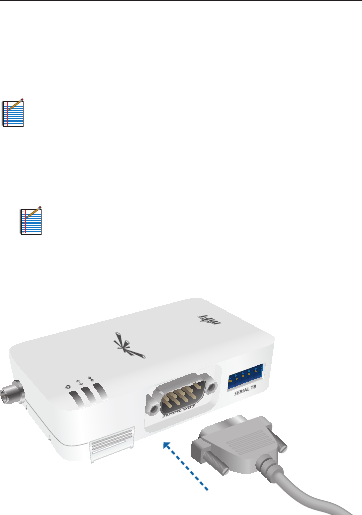

Serial DB9
1. Connect one end of the serial cable to the console port
of the switch, router, or other device.
Note: A null modem may be needed; refer to the
User Guide on the CD-ROM for more information.
2. Connect the DB9 end of the serial cable to the Serial
DB9 port of the mPort Serial.
![](/img.php?id=1941322&img=bga.png)
8
mFi™ mPort™ Serial

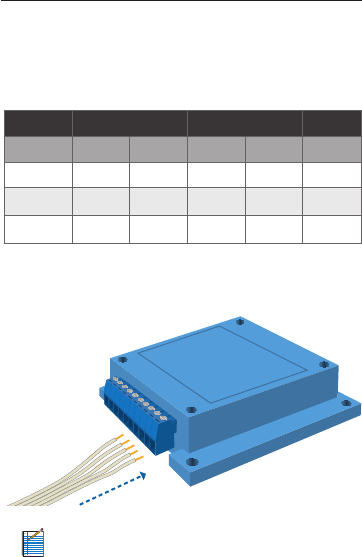

Serial TB
The Serial TB port is labeled for RS485 pinout. The table
lists the pinouts for RS232, RS422, and RS485. For more
information, refer to the User Guide on the CD-ROM.
Function RX TX Ground
Pinout R- R+ T- T+ G
RS232 ✓ ✓ ✓
RS422 ✓✓✓✓ *
RS485 ✓✓✓✓ *
* Technically not needed.
1. Wire one end of the serial cable to an industrial
networking device.
Note: Wiring will vary depending on your device.
![](/img.php?id=1941322&img=bgb.png)
9
Connecting a Serial Device

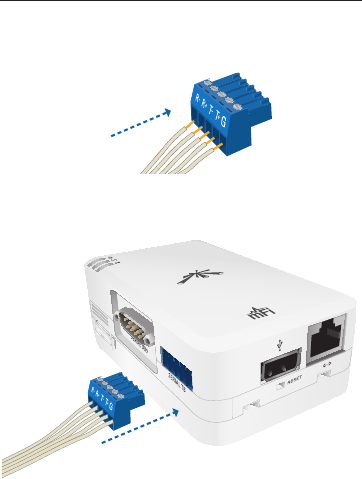

2. Wire the other end of the serial cable to the Terminal
Block included with the mPort Serial.
3. Insert the Terminal Block into the Serial TB port of the
mPort Serial.
![](/img.php?id=1941322&img=bgc.png)
10
mFi™ mPort™ Serial
Connecting Ethernet and Power

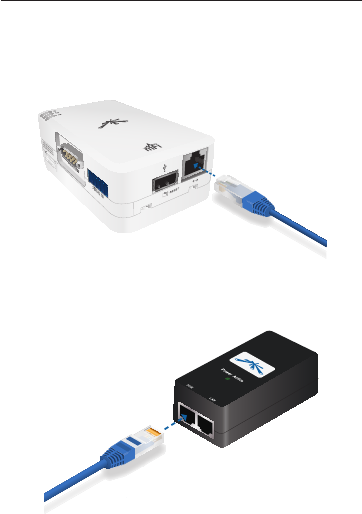

1. Connect an Ethernet cable to the Ethernet port on the
mPort Serial.
2. Connect the other end of the Ethernet cable to the
Ethernet port labeled POE on the PoE Adapter.
![](/img.php?id=1941322&img=bgd.png)
11

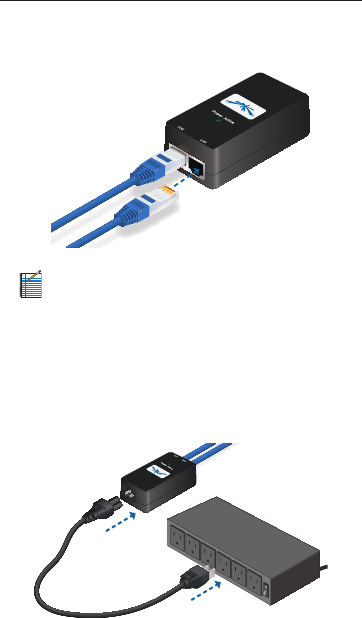

Connecting Ethernet and Power
3. Connect an Ethernet cable from your LAN to the
Ethernet port labeled LAN on the PoE Adapter.
Note: Wi-Fi settings for the mPort Serial can be
configured via LAN or by connecting an Ethernet
cable directly from your computer to the LAN port
on the PoE Adapter. For details, refer to Accessing
the mPort Configuration Portal on page 19.
4. Connect the power cord to the power port on the PoE
Adapter. Connect the other end of the power cord to
a power outlet. The Power LED should light up on the
mPort Serial.
![](/img.php?id=1941322&img=bge.png)
12
mFi™ mPort™ Serial
Software Download and Installation
For local mFi Controller installations, the mFi Controller
software is installed just once when you initially create a
mFi network. It is not necessary to go through the software
installation process every time you add another mFi device.
Note: If you are using the cloud, there is no need to
install the mFi Controller software locally. Skip to
Accessing the mPort Configuration Portal on page 19.
The mFi Controller software can be downloaded from the
Ubiquiti Networks website.
1. Go to downloads.ubnt.com/mfi
2. Mac users should download mFi.dmg and Windows
users should download mFi-installer.exe.
3. Follow the instructions for your computer type.

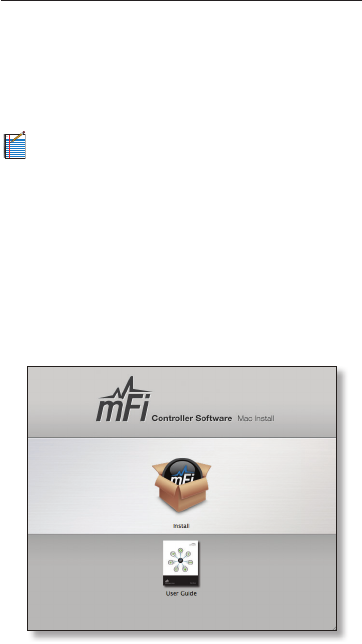

Mac Users
1. Click the Install icon.
![](/img.php?id=1941322&img=bgf.png)
13
Software Download and Installation

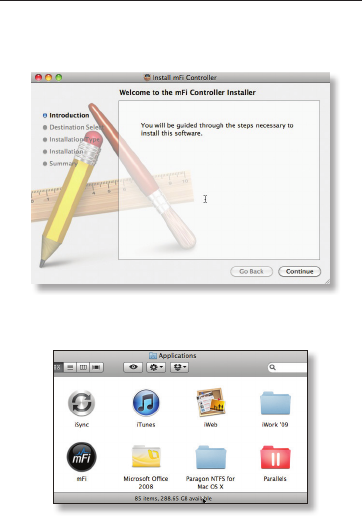

2. Click Continue and follow the on-screen instructions
to install the software.
3. Go to Go > Applications and double-click the
mFiicon.
Proceed to Configuring the mFi Controller Software on
page16.
![](/img.php?id=1941322&img=bg10.png)
14
mFi™ mPort™ Serial
PC Users

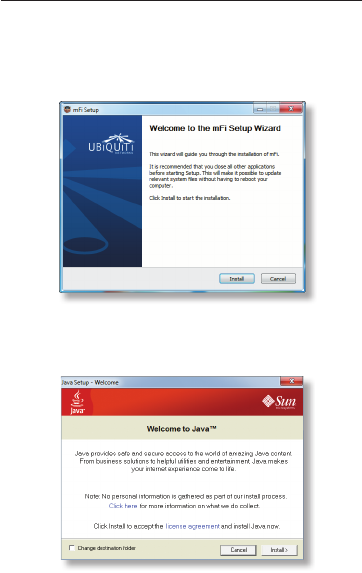

1. Launch mFi-installer.exe.
2. Click Install.
3. If your computer doesn’t have Java 1.6 or above
installed, you will be prompted to install it. Click Install
to continue.
![](/img.php?id=1941322&img=bg11.png)
15

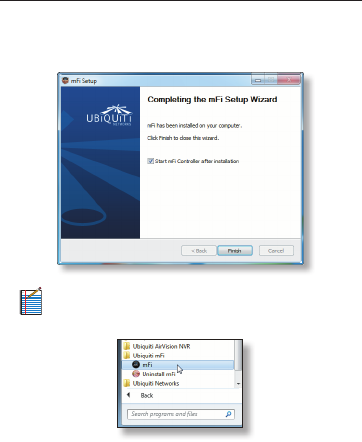

Software Download and Installation
4. Ensure that the Start mFi Controller after installation
option is checked and click Finish.
Note: The mFi Controller software can also be
launched from Start > All Programs.
![](/img.php?id=1941322&img=bg12.png)
16
mFi™ mPort™ Serial

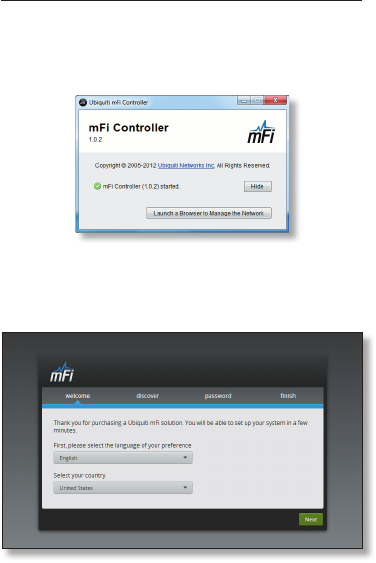

Configuring the mFi Controller Software
1. The mFi Controller software startup will begin. Click
Launch a Browser to Manage the Network.
2. The mFi Configuration Wizard will appear the first
time you launch the mFi Controller software. On the
Welcome screen, select your language and country.
Click Next.
![](/img.php?id=1941322&img=bg13.png)
17
Software Download and Installation

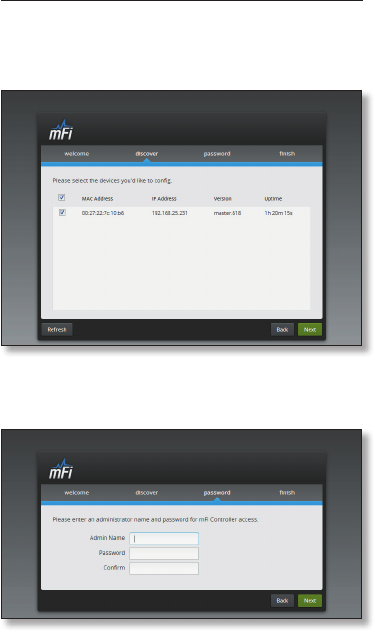

3. Select the device(s) that you want to configure. The
Refresh button can be used to refresh the list of
devices. Click Next to continue.
4. Enter an administrator name in the Admin Name field.
Enter a password in the Password and Confirm fields.
Click Next.
![](/img.php?id=1941322&img=bg14.png)
18
mFi™ mPort™ Serial
5. Click Finish to confirm your settings.
6. A login screen will appear for the mFi Controller
management interface. Enter the Admin Name and
Password that you created and click Login.
![](/img.php?id=1941322&img=bg15.png)
19
Accessing the mPort Configuration Portal
Accessing the mPort Configuration Portal
You need to connect to the mPort Configuration Portal to
configure any of the following:
• Cloud access
• Access to local mFi Controller on a different IP network
• Wireless network access (Wi-Fi settings)
Note: If you are not using these configurations, you
do not need to access the Configuration Portal.
The mPort Configuration Portal can be accessed in two ways:
• Connect an Ethernet cable from your computer to
the LAN port on the PoE Adapter and configure your
computer with a static IP address.
• Connect an Ethernet cable from your DHCP-enabled LAN
to the LAN port on the PoE Adapter.
Configuration Portal via Ethernet to Computer
1. Make sure that your computer is connected via
Ethernet to the LAN port on the PoE Adapter.
WARNING: Do not connect the computer to the
port labeled POE on the PoE Adapter.
2. Configure the Ethernet adapter on your computer with
a static IP address on the 192.168.1.x subnet.

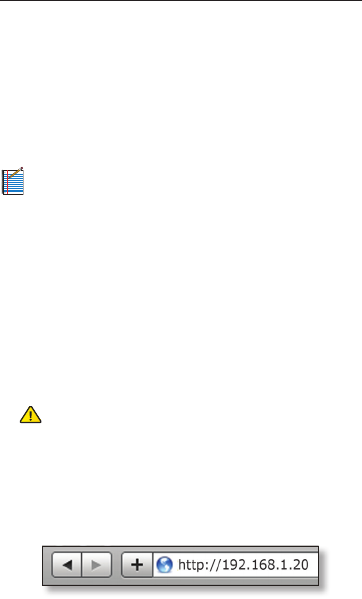

3. Launch your web browser and type
http://192.168.1.20 in the address field. Press enter
(PC) or return (Mac).
4. Go to Configuration Portal Interface Settings on page 21.
![](/img.php?id=1941322&img=bg16.png)
20
mFi™ mPort™ Serial
Configuration Portal via LAN with DHCP

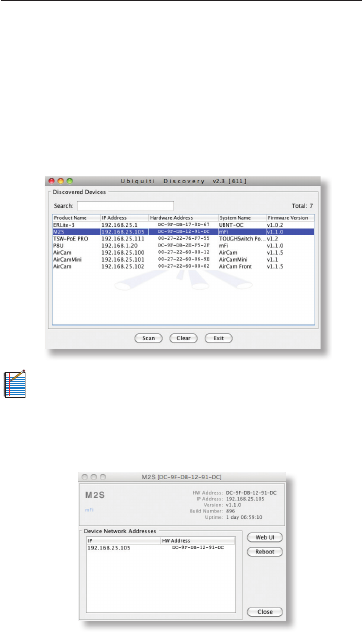

If it is not already installed, download the Ubiquiti Device
Discovery Tool (v2.3) at www.ubnt.com/download#app
1. Launch the Ubiquiti Device Discovery Tool.
2. A list of Ubiquiti devices on the network will appear.
Locate the appropriate device (named M2S) under
Product Name and double-click it.
Note: If you have more than one of the same device
model, you can determine which one you are
selecting by checking the Hardware (MAC) Address
on the device label.
3. Click WEB UI on the right.
![](/img.php?id=1941322&img=bg17.png)
21
Accessing the mPort Configuration Portal
Configuration Portal Interface Settings

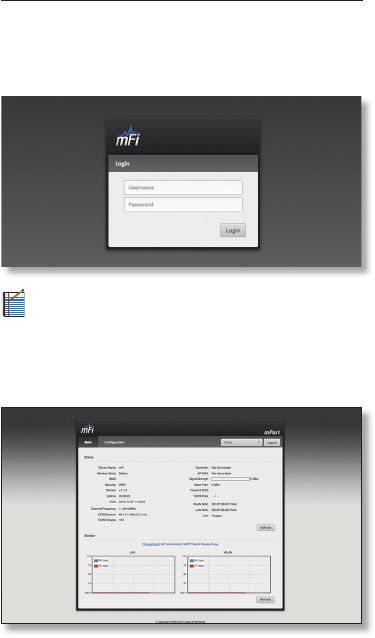

1. The login screen will appear. Enter ubnt in the
Username and Password fields.
Note: Once a device has been connected to the
cloud, the Configuration Portal login information
changes. The new username/password combination
can be found on the Info tab in the cloud UI.
2. The Main tab of the Configuration Portal will appear.
Click the Configuration tab.
![](/img.php?id=1941322&img=bg18.png)
22
mFi™ mPort™ Serial

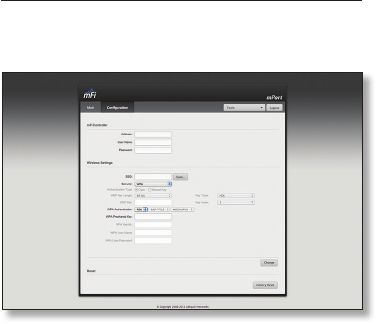

3. Enter your configuration information on the
Configuration tab:
mFi Controller Enter the mFi Controller settings:
a. Enter the mFi Controller address.
• For local mFi Controller installations, this is the
IP address and http port used by the Controller.
(The port is usually 6080, for example:
192.168.25.161:6080 or mfi.acme.com:6080)
• For cloud users, this is mfi.ubnt.com
b. Enter the User Name and Password.
• For local mFi Controller installations, this is the
admin name and password defined during the
mFi Configuration Wizard.
• For cloud users, this is the username and
password that you registered at mfi.ubnt.com
![](/img.php?id=1941322&img=bg19.png)
23
Accessing the mPort Configuration Portal
Wireless Settings To use the mPort Serial on a Wi-Fi
network, configure the Wireless Settings:
a. Click Scan for a list of available SSIDs. Select the
appropriate SSID or type in the name manually in
the SSID field.
b. Select the appropriate Security and Authentication
settings for your network.
c. Enter your network key.
After you’ve entered the necessary settings, click Change.
You will be asked to apply the changes; click Apply.
4. Log in to the mFi Controller.

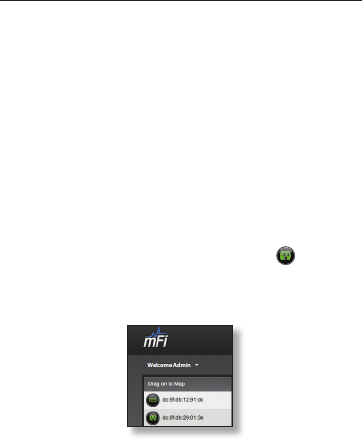

5. The mPort Serial appears with the mPort icon in
the left panel under the Drag on to Map heading. Once
you’ve customized your map, you can position the
mPort Serial in the appropriate location.
For additional details on the mFi Controller software, refer
to the User Guide on our website at www.ubnt.com/mfi
![](/img.php?id=1941322&img=bg1a.png)
24
mFi™ mPort™ Serial
Specifications
mPort Serial
Dimensions 100 x 60 x 27.5 mm (H x W x D)
100 x 60 x 36.5 mm (with Bracket)
Weight 119 g (with Bracket)
Power Supply 24V, 0.5A Surge Protection
Integrated PoE Adapter (Included)
Max. Power
Consumption
3 W
Networking Interface (1) 10/100 Ethernet Port
Ports (1) DB9 Serial Port
(1) Terminal Block Serial Port
WiFi Standards 802.11b/g/n
Serial Protocols RS232, RS422, RS485
Memory 16 MB RAM, 8 MB Flash
LEDs 3 LEDs (Power, Ethernet, Status)
Mounting Wall-Mount Bracket (Included)
Operating Temperature -10 to 70° C
Operating Humidity 5 to 80% Condensing
![](/img.php?id=1941322&img=bg1b.png)
25
General Warranty
General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and
warrants that the Products furnished hereunder shall be free from
defects in material and workmanship for a period of one (1) year
from the date of shipment by UBIQUITI NETWORKS under normal use
and operation. UBIQUITI NETWORKS sole and exclusive obligation
under the foregoing warranty shall be to repair or replace, at its
option, any defective Product that fails during the warranty period.
The expense of removal and reinstallation of any item is not included
in this warranty.
The foregoing warranty is exclusive and in lieu of all other
warranties, express or implied, including the implied warranties
of merchantability and fitness for a particular purpose and any
warranties arising from a course of dealing, usage or trade practice
with respect to the products. Repair or replacement in the manner
provided herein shall be the sole and exclusive remedy of Buyer for
breach of warranty and shall constitute fulfillment of all liabilities of
UBIQUITI NETWORKS with respect to the quality and performance
of the Products. UBIQUITI NETWORKS reserves the right to inspect
all defective Products (which must be returned by Buyer to UBIQUITI
NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without
obtaining a Return Materials Authorization (RMA) number from
UBIQUITI NETWORKS. Products returned without an RMA number
will not be processed and will be returned to Buyer freight collect.
UBIQUITI NETWORKS shall have no obligation to make repairs or
replacement necessitated by catastrophe, fault, negligence, misuse,
abuse, or accident by Buyer, Buyer’s customers or any other parties.
The warranty period of any repaired or replaced. Product shall not
extend beyond its original term.
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN,
UBIQUITI NETWORKS’ PRODUCTS AND SERVICES ARE PROVIDED
“AS IS”, WITHOUT WARRANTY OR CONDITION OF ANY KIND, EITHER
EXPRESS OR IMPLIED. UBIQUITI NETWORKS, ITS AFFILIATES, AND
ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND
HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER
REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED
OR STATUTORY, INCLUDING BUT NOT LIMITED TO REPRESENTATIONS,
GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY,
QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY
QUALITY, LACK OF VIRUSES, TITLE, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. BUYER
ACKNOWLEDGE THAT NEITHER UBIQUITI NETWORKS NOR ITS
THIRD PARTY PROVIDERS CONTROLS BUYER’S EQUIPMENT OR
![](/img.php?id=1941322&img=bg1c.png)
26
mFi™ mPort™ Serial
THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES,
INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES
MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS,
CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE
OF THE COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS
AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT
RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS,
DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET
LOSS, OR OTHER DAMAGE RESULTING FROM THESE PROBLEMS.
Warranty Conditions
The foregoing warranty shall apply only if:
(I) The Product has not been subjected to misuse, neglect or
unusual physical, electrical or electromagnetic stress, or some
other type of accident.
(II) No modification, alteration or addition has been made to
the Product by persons other than UBIQUITI NETWORKS or
UBIQUITI NETWORK’S authorized representatives or otherwise
approved by UBIQUITI NETWORKS.
(III) The Product has been properly installed and used at all times
in accordance, and in all material respects, with the applicable
Product documentation.
(IV) All Ethernet cabling runs use CAT5 (or above) shielded cabling.
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation
of the products is error-free or that operation will be uninterrupted.
In no event shall UBIQUITI NETWORKS be responsible for damages or
claims of any nature or description relating to system performance,
including coverage, buyer’s selection of products for buyer’s
application and/or failure of products to meet government or
regulatory requirements.
Returns
In the unlikely event a defect occurs, please work through the dealer
or distributor from which this product was purchased.
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
![](/img.php?id=1941322&img=bg1d.png)
27
Safety Notices
WARNING: Do not use this product in location that can be
submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and
current requirements indicated on the manufacturer’s label.
Connection to a different power source than those specified may
result in improper operation, damage to the equipment or pose a
fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment.
Service should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which
has an integral safety ground wire intended for connection to a
grounded safety outlet.
a. Do not substitute the power cord with one that is not the
provided approved type. Never use an adapter plug to
connect to a 2-wire outlet as this will defeat the continuity
of the grounding wire.
b. The equipment requires the use of the ground wire as a
part of the safety certification, modification or misuse can
provide a shock hazard that can result in serious injury or
death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter.
Building installation shall provide appropriate short-circuit
backup protection.
e. Protective bonding must be installed in accordance with
local national wiring rules and regulations.
![](/img.php?id=1941322&img=bg1e.png)
28
mFi™ mPort™ Serial
Compliance
FCC
Changes or modifications not expressly approved by Ubiquiti
Networks, Inc. could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
NOTE: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful
interference to radio communications. Operations of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
The professional installer is responsible for ensuring that the system
is used exclusively for fixed, point-to-point operations.
RF Exposure Warning
The transceiver described here emits radio frequency energy.
Although the power level is low, the concentrated energy from a
directional antenna may pose a health hazard. Do not allow people
to come closer than 20 cm to the antenna when the transmitter is
operating.
Additional information on RF exposure is available on the Internet at
www.fcc.gov/oet/info/documents/bulletins
L’émetteur-récepteur décrit ici émet de l’énergie de fréquence radio.
Bien que le niveau de puissance est faible, l’énergie concentrée à
partir d’une antenne directionnelle peut présenter un danger pour
la santé. Ne pas permettre aux gens de se rapprocher de 20 cm à
l’antenne lorsque l’émetteur est en marche.
Des renseignements supplémentaires sur l’exposition aux RF est
disponible sur Internet à www.fcc.gov/oet/info/documents/
bulletins
![](/img.php?id=1941322&img=bg1f.png)
29
Compliance
Industry Canada
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et
d’un gain maximal (ou inférieur) approuvé pour l’émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l’intention des autres utilisateurs, il faut choisir
le type d’antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à
l’établissement d’une communication satisfaisante.
This radio transmitter (FCC ID: SWX-VPS, IC: 6545A-VPS) has been
approved by Industry Canada to operate with the antenna types
listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this
device.
Le présent émetteur radio (FCC ID: SWX-VPS, IC: 6545A-VPS) a été
approuvé par Industrie Canada pour fonctionner avec les types
d’antenne énumérés ci-dessous et ayant un gain admissible maximal
et l’impédance requise pour chaque type d’antenne. Les types
d’antenne non inclus dans cette liste, ou dont le gain est supérieur au
gain maximal indiqué, sont strictement interdits pour l’exploitation
de l’émetteur.
Antenna Type
Omni with a gain of 4 dBi maximum
Type d’antenne
Omni avec un gain de 4 dBi maximale
CE Marking
CE marking on this product represents the product is in compliance
with all directives that are applicable to it.
![](/img.php?id=1941322&img=bg20.png)
30
mFi™ mPort™ Serial
Declaration of Conformity
Česky [Czech] UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI
NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n
mi ustanoveními sm rnice 1999/5/ES.
Dansk [Danish] Undertegnede UBIQUITI NETWORKS erklærer
herved, at følgende udstyr UBIQUITI NETWORKS device, overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands [Dutch] Hierbij verklaart UBIQUITI NETWORKS dat het
toestel UBIQUITI NETWORKS device, in overeenstemming is met
de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
English Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Eesti [Estonian] Käesolevaga kinnitab UBIQUITI NETWORKS
seadme UBIQUITI NETWORKS device, vastavust direktiivi 1999/5/
EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
Suomi [Finnish] UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI
NETWORKS device, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Français [French] Par la présente UBIQUITI NETWORKS déclare que
l’appareil UBIQUITI NETWORKS, device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass
sich diese UBIQUITI NETWORKS device, in Übereinstimmung mit
den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet”. (BMWi)
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ
ΟΤΙ UBIQUITI NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ
ΟΔΗΓΙΑΣ 1995/5/ΕΚ.
Magyar [Hungarian] Alulírott, UBIQUITI NETWORKS nyilatkozom,
hogy a UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska [Icelandic] Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI
NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger
ar eru í tilskipun 1999/5/EC.
![](/img.php?id=1941322&img=bg21.png)
31
Declaration of Conformity
Italiano [Italian] Con la presente UBIQUITI NETWORKS dichiara che
questo UBIQUITI NETWORKS device, è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI
NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un
citiem ar to saist tajiem noteikumiem.
Lietuviškai [Lithuanian] UBIQUITI NETWORKS deklaruoja, kad šis
UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Malti [Maltese] Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan
UBIQUITI NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma
provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk [Norwegian] UBIQUITI NETWORKS erklærer herved at utstyret
UBIQUITI NETWORKS device, er i samsvar med de grunnleggende krav
og øvrige relevante krav i direktiv 1999/5/EF.
Slovensky [Slovak] UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI
NETWORKS device, sp a základné po iadavky a v etky príslu né
ustanovenia Smernice 1999/5/ES.
Svenska [Swedish] Härmed intygar UBIQUITI NETWORKS att
denna UBIQUITI NETWORKS device, står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
Español [Spanish] Por medio de la presente UBIQUITI NETWORKS
declara que el UBIQUITI NETWORKS device, cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.
Polski [Polish] Niniejszym, firma UBIQUITI NETWORKS o wiadcza,
e produkt serii UBIQUITI NETWORKS device, spełnia zasadnicze
wymagania i inne istotne postanowienia Dyrektywy 1999/5/EC.
Português [Portuguese] UBIQUITI NETWORKS declara que este
UBIQUITI NETWORKS device, está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Română [Romanian] Prin prezenta, UBIQUITI NETWORKS declară că
acest dispozitiv UBIQUITINETWORKS este în conformitate cu cerințele
esențiale și alte prevederirelevanteale Directivei 1999/5/CE.
![](/img.php?id=1941322&img=bg22.png)
32
mFi™ mPort™ Serial

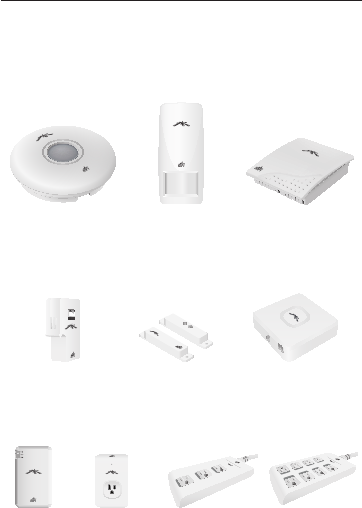

mFi Products
Ubiquiti Networks offers a variety of products for the mFi
platform. For additional details, visit www.ubnt.com/mfi
Ceiling Mount
Motion Sensor
mFI-MSC
Wall Mount
Motion Sensor
mFi-MSW
Temperature
Sensor
mFi-THS
Current Sensor
mFi-CS
Door Sensor
mFi-DS
Thermostat
Coming Soon!
1
2
3
1
2
3
4
5
6
7
8
mPort
mPort
Power Adapter
mPower Mini
Power Strip
mPower
Power Strip
mPower Pro
RRJL010813
