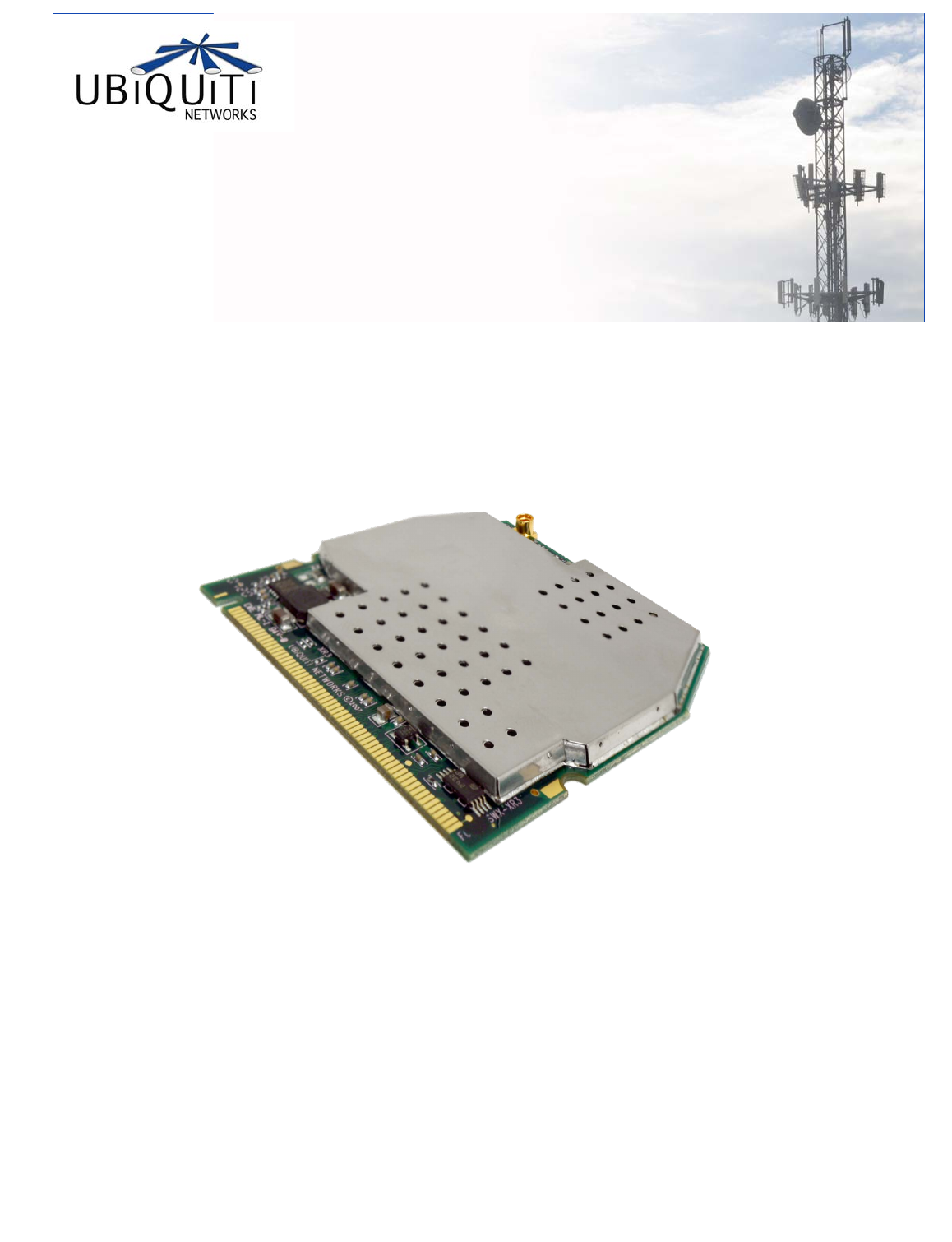

XTREMERange9
OEM INTEGRATION GUIDE
Carrier-Class 900MHz Radio Module
![](/img.php?id=842658&img=bg2.png)
TECHNICAL SPECIFICATIONS
XTREMERange9
DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 27 dBm +/-1.5dB 1Mbps -93 dBm +/-2dB
2Mbps 27 dBm +/-1.5dB 2Mbps -92 dBm +/-2dB
5.5Mbps 27 dBm +/-1.5dB 5.5Mbps -91 dBm +/-2dB
11Mbps 27 dBm +/-1.5dB 11Mbps -88 dBm +/-2dB
6Mbps 27 dBm +/-1.5dB 6Mbps -91 dBm +/-2dB
9Mbps 27 dBm +/-1.5dB 9Mbps -90 dBm +/-2dB
12Mbps 27 dBm +/-1.5dB 12Mbps -88 dBm +/-2dB
18Mbps 27 dBm +/-1.5dB 18Mbps -87 dBm +/-2dB
24Mbps 27 dBm +/-1.5dB 24Mbps -83 dBm +/-2dB
36Mbps 25 dBm +/-1.5dB 36Mbps -83 dBm +/-2dB
48Mbps 23 dBm +/-1.5dB 48Mbps -74 dBm +/-2dB
54Mbps 21 dBm +/-1.5dB 54Mbps -71 dBm +/-2dB
DataRate Current Tolerance DataRate Current Tolerance
1Mbps 1.2 A +/-100 mA 1Mbps 500mA +/-100 mA
2Mbps 1.2 A +/-100 mA 2Mbps 500mA +/-100 mA
5.5Mbps 1.2 A +/-100 mA 5.5Mbps 500mA +/-100 mA
11Mbps 1.2 A +/-100 mA 11Mbps 500mA +/-100 mA
6Mbps 1.2 A +/-100 mA 6Mbps 500mA +/-100 mA
9Mbps 1.2 A +/-100 mA 9Mbps 500mA +/-100 mA
12Mbps 1.2 A +/-100 mA 12Mbps 500mA +/-100 mA
18Mbps 1.2 A +/-100 mA 18Mbps 500mA +/-100 mA
24Mbps 1.2 A +/-100 mA 24Mbps 500mA +/-100 mA
36Mbps 1.1 A +/-100 mA 36Mbps 500mA +/-100 mA
48Mbps 1.0 A +/-100 mA 48Mbps 500mA +/-100 mA
54Mbps 0.85 A +/-100 mA 54Mbps 500mA +/-100 mA
Frequency 5MHz 10MHz 20MHz Frequency 5MHz 10MHz 20MHz
907 MHz 917 MHz
912 MHz 922 MHz
802.11g OFDM
802.11g OFDM
900MHz TX SPECIFICATIONS
900MHz RX SPECIFICATIONS
802.11b
802.11b
802.11g OFDM
802.11g OFDM
CURRENT CONSUMPTION INFORMATION
RANGE PERFORMANCE
Up to 100meters
Indoor (Antenna Dependent):
Over 1km
Outdoor (Antenna Dependent):
OPERATING FREQUENCY 907-922MHz
900MHz TX SPECIFICATIONS
900MHz RX SPECIFICATIONS
802.11b
802.11b
900MHz FREQUENCY CHANNEL SUPPORT
Antenna Ports
Dual u.fl (Primary only required; secondary optional for diversity)
Temperature Range
-45C to +90C
Security
WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates
1Mbps-11Mbps (802.11b), 6-54Mbps (802.11g)
RoHS Compliance
YES
DRIVER INFORMATION
REGULATORY INFORMATION
Wireless Modular Approvals
FCC and Industry Canada
Cisco Support
CCX 4.0 Supported Driver/Utility also available from Ubiquiti
For help with MADWIFI or other Special Driver Support, Please e-mail support@ubnt.com
Operating System Support
Linux MADWIFI, WindowsXP, Windows2000
Advanced Mobility / QuickHandoff
WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti
Operation Voltage
3.3VDC
CARD INFORMATION
Radio Operation
Proprietary 900MHz based on 802.11b/g CCK/OFDM
Interface
32-bit mini-PCI Type IIIA
![](/img.php?id=842658&img=bg3.png)

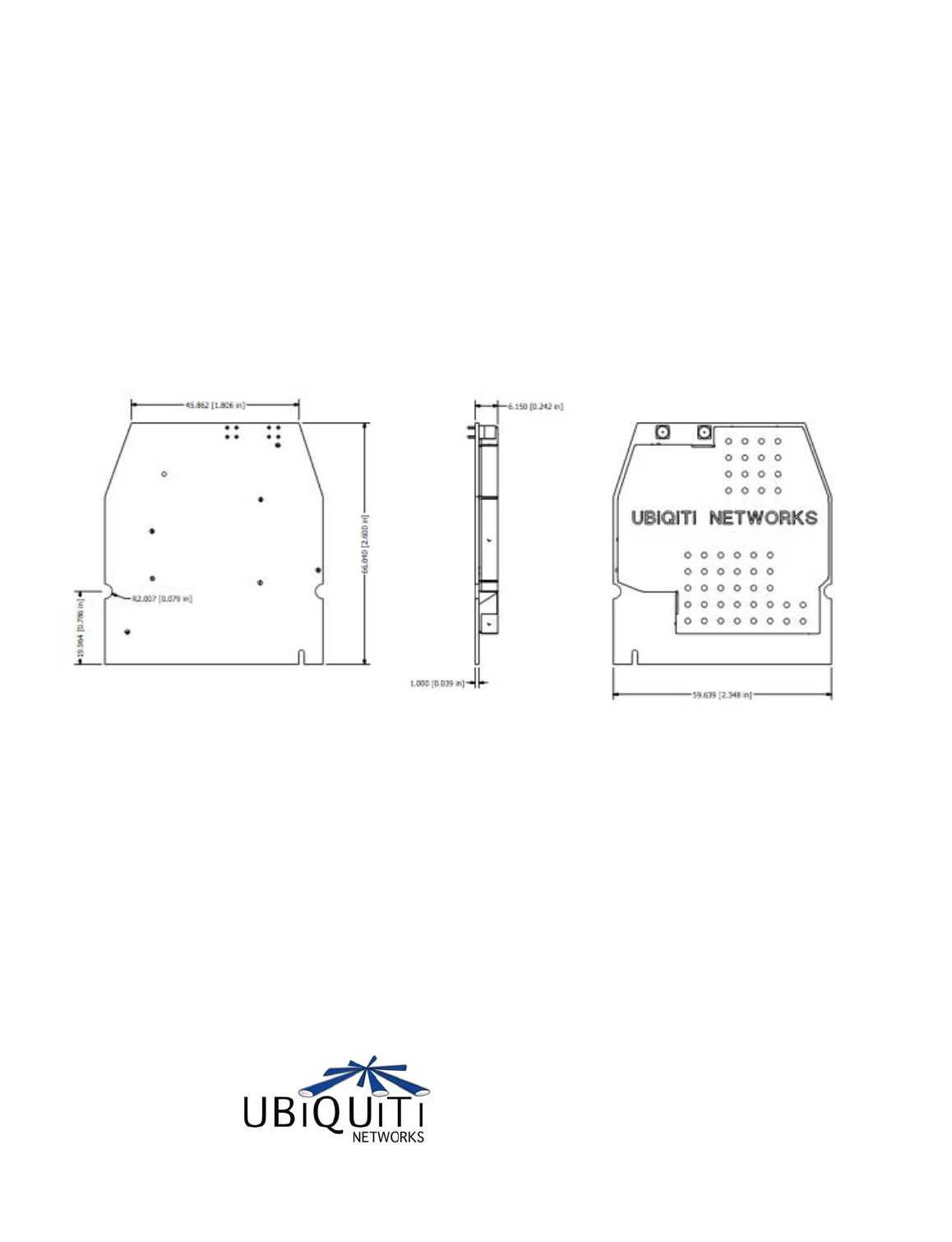

MECHANICAL DIMENSIONS
