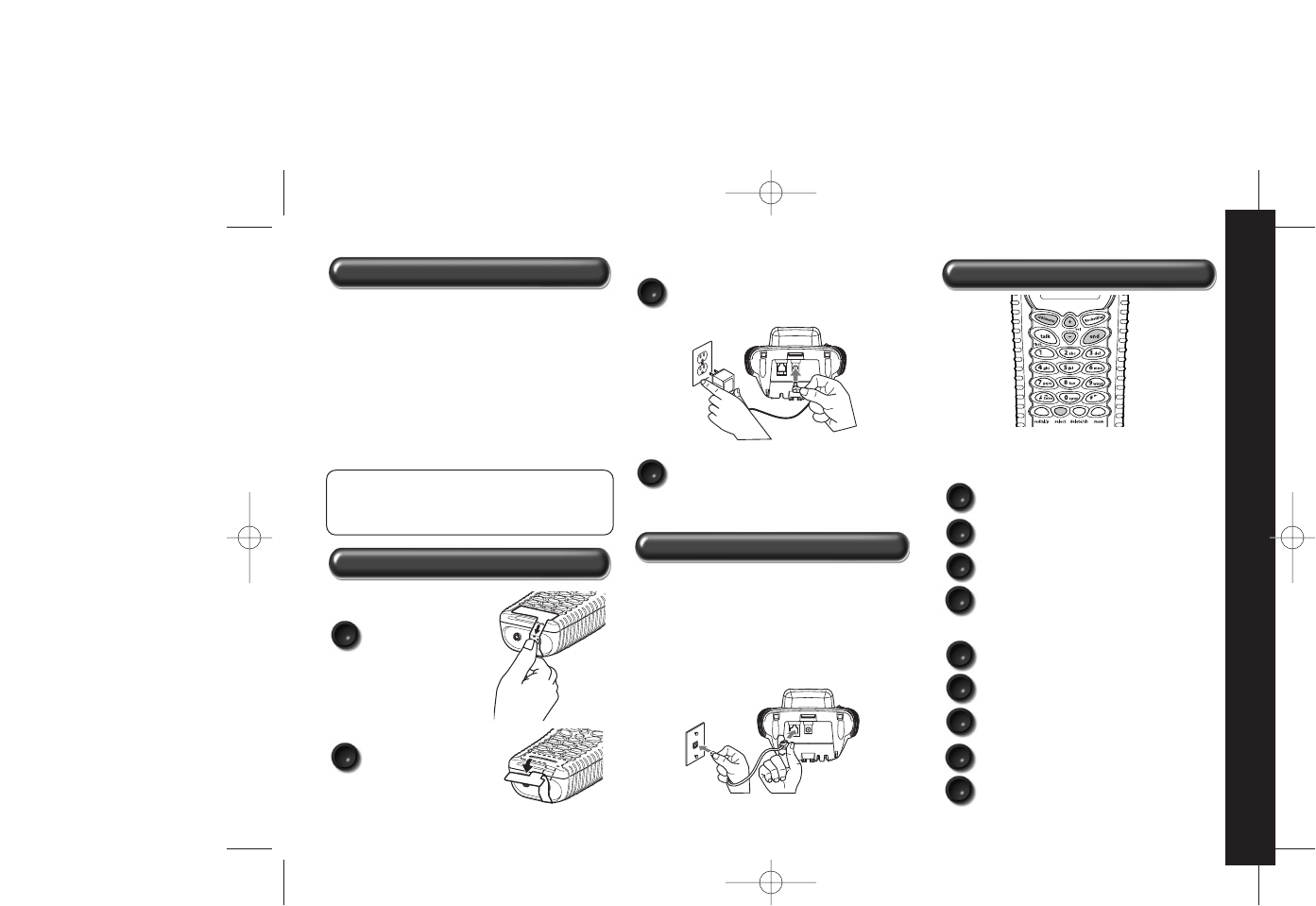

Step 2 Activate the Handset Before Charging the Battery
When the handset battery pack is fully
charged, after 15-20 hours of charging, plug
the telephone cord into the base unit and
then into a telephone wall jack.
Your phone is set for tone dialing. If your
local network requires pulse dialing, please
see “Choosing the dialing mode” on page 17.
A
Before charging the
battery, push the
pin located on the
bottom of the
handset to activate
(see label with
instructions).

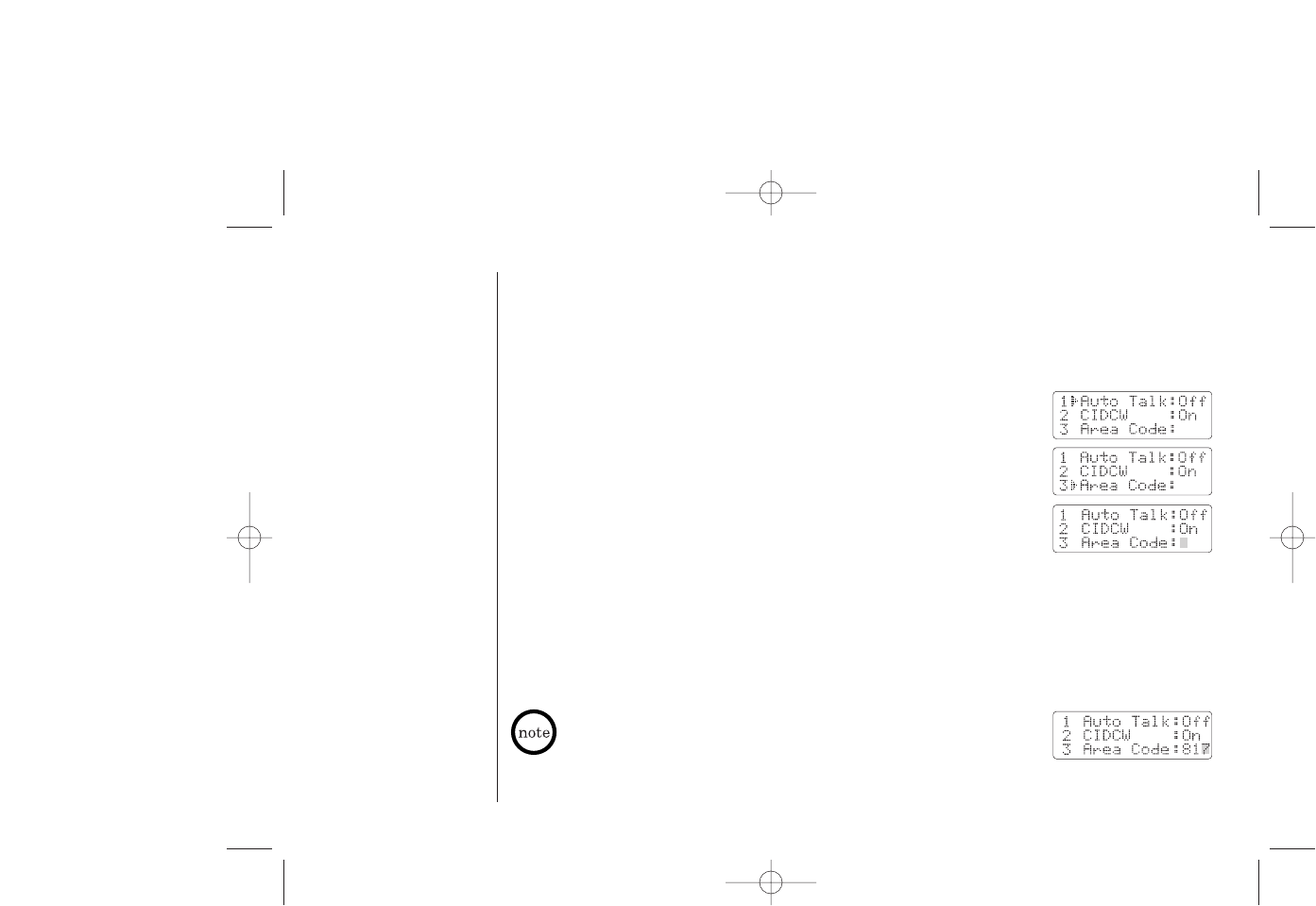

TO SET CALLER ID, LANGUAGE AND DIALING OPTIONS
APress and hold the cid/menu key.
BPress the vol/+ or vol/- key to move
the pointer to an option.
CPress select to change the
option setting.
DPress end to exit, and return the
handset to the base.

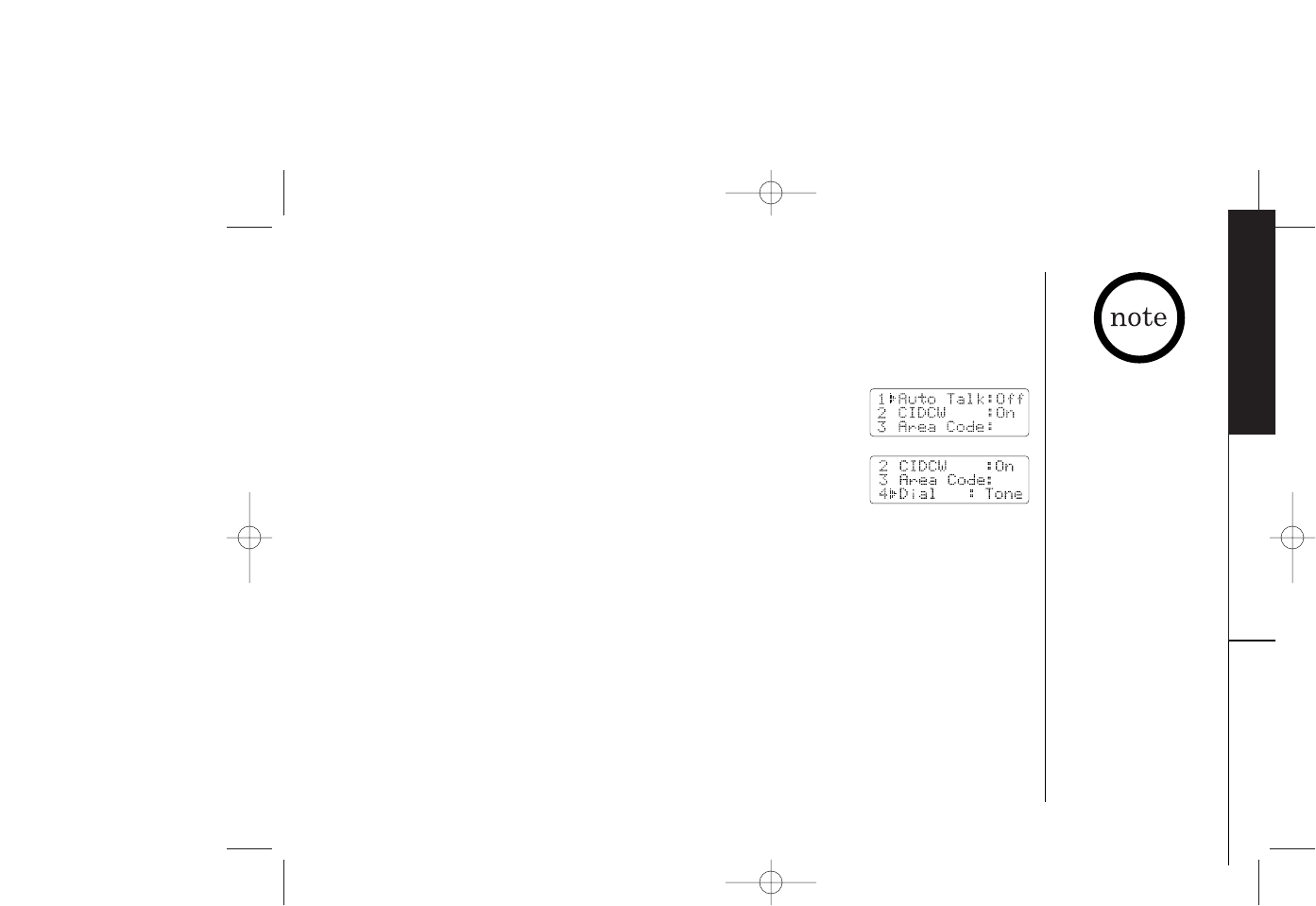

OPTIONS INCLUDE
AAuto Talk On/Off
BCIDCW On/Off
(Caller id/call waiting)
CArea Code Enter/Remove
DDial Pulse/Tone
DPlace the handset in the base and
charge continuously for 15 - 20 hours
before using the phone.
BPeel off the label.
CPlug the AC adapter cord into the
base unit and then into a 120V
AC outlet.
Note:
Three Caller ID options are available: AutoTalk,
Caller ID on Call Waiting (CIDCW), and Area Code.
Note: Your handset comes with the battery
already connected. You must activate the
handset. Please see the instructions below.
QUICK REFERENCE GUIDE
Step 3 Connect to Phone Line
Step 4
Setting Display Options
Uniden Parts Department at (800) 554-3988
Hours: M-F 8:00 a.m. to 5:00 p.m. CST.
We can also be reached on the web at
www.uniden.com
Make sure you have received the following
items in the package. If any of these items
are missing or damaged, contact the Uniden
Parts Department.
• Base unit • Beltclip
• Handset • This Owner’s Manual
• AC adapter
• Other Printed Material
• Telephone cord
QUICK REFERENCE GUIDE [ 3 ]www.uniden.com
Step 1 Checking the Package Contents

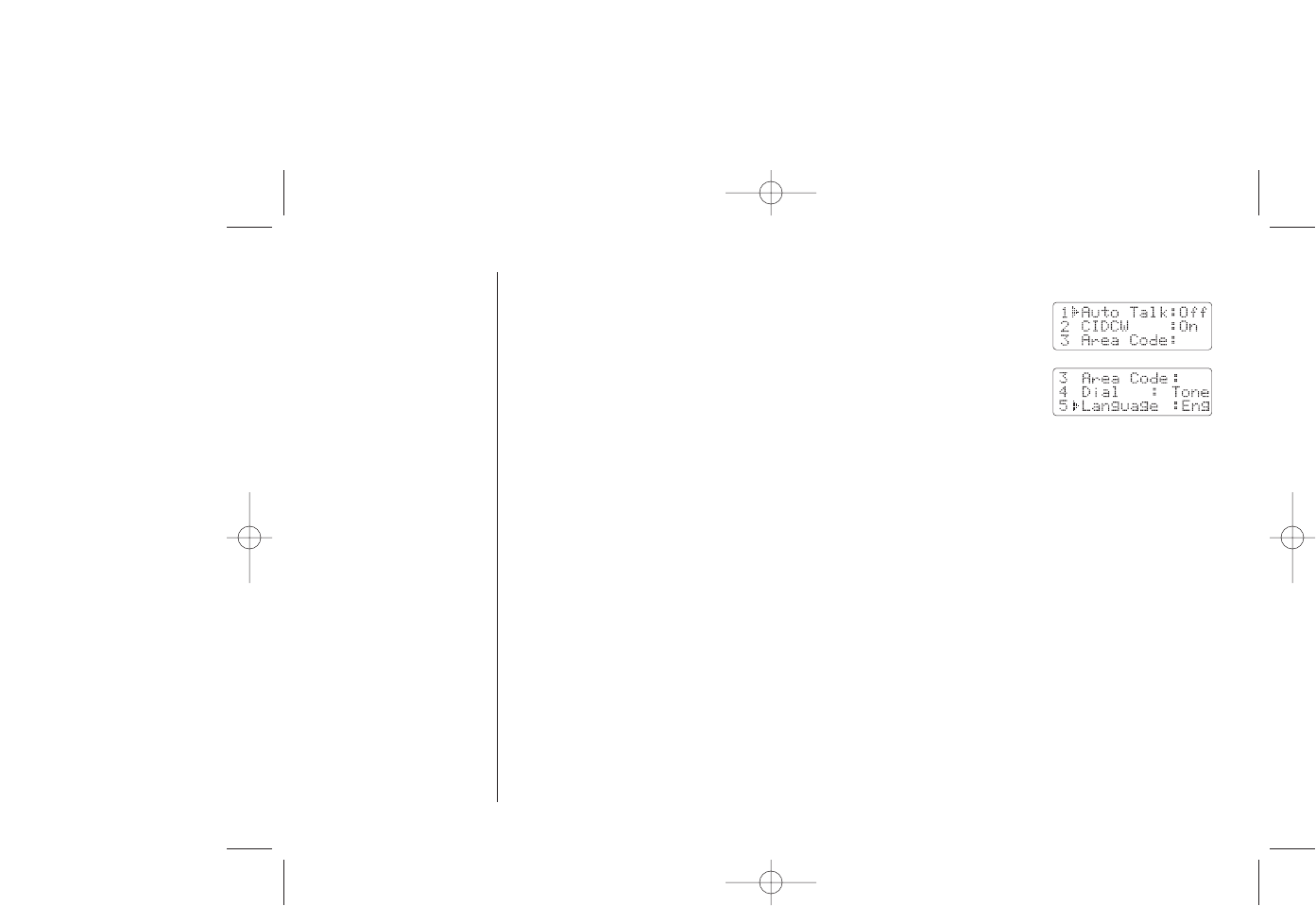

ELanguage Eng (English)/Fr. (French)
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 3
![](/img.php?id=325968&img=bg4.png)
[ 4 ] www.uniden.com
Contents
Quick Reference Guide 3
Welcome/Features 5
Controls and Functions 6
Getting Started
Setting up the Phone 8
Mounting the Base Unit on a Wall 13
Setting Menu Options 15
Basics
Making and Receiving Calls 19
Adjusting the Handset Ringer and
Earpiece Volume 20
Redial 20
Tone Dialing Switch-over 21
Traveling Out-of-Range 21
Selecting a Different Channel 22
Page 22
Flash and Call Waiting 22
Memory Dialing
Storing Phone Numbers and Names 23
Steps for Entering Names and Special Characters 25
Making Calls with Memory Dialing 26
Chain Dialing 27
Editing a Stored Name and/or Phone Number 27
Erasing a Stored Name and Phone Number 29
RocketDial
RocketDial 30
Storing and Editing the RocketDial 30
Making Calls with the RocketDial 30
Deleting the RocketDial 31
Caller ID Features
Caller ID 32
When the Telephone Rings 32
Viewing the Caller ID Message List 33
Deleting Information from the Caller ID List 34
Using the Caller ID List 35
Additional Information
Changing the Digital Security Code 37
Installing the Beltclip 37
Note on Power Sources 38
Maintenance 38
Troubleshooting 39
General Information 42
Precautions & Warranty 43
I.C. Notice 45
Index 46
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 4
![](/img.php?id=325968&img=bg5.png)
WELCOME/FEATURES [ 5 ]www.uniden.com
Welcome Congratulations on your purchase of the Uniden WXI377. This cordless phone is designed
and engineered to exacting standards for reliability, long life, and outstanding
performance.
Note: •Some illustrations in this manual may differ from the actual unit for
explanation purposes. The color of your cordless telephone may vary.
•JIS7 Specs is a water submersion standard. The cordless handset was
designed to be submerged in water to a depth of 3 feet and for
up to 30 minutes.
Be sure to visit our web site: www.uniden.com
Uniden®is a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code, and AutoSecure, and RocketDial are trademarks of
Uniden America Corporation.
Features •Water Resistant/JIS7 Specs
Compliant (handset)
•900MHz Extended Range Technology
•3 Line Backlit Display
•Caller ID and Call Waiting Caller ID Capability
•RocketDial
•10 Number Memory Dialing
•32 Digit Redial
•Flash and Pause
•English or French Display Option
•Tone/Pulse Dialing
•Page/Find handset
•Up to 7 Hour Talk Time/
Up to 14 Day Standby Time
•Handset Earpiece and
Ringer Volume Control
•Hearing Aid Compatible
•20 Channel Autoscan
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 5
![](/img.php?id=325968&img=bg6.png)
CONTROLS AND FUNCTIONS[ 6 ] www.uniden.com
3
2
1
4
5
6
8
7
9
10
11
12
19
13
14
15
16
17
18
1. Handset antenna
2. Ringer speaker
3. Beltclip hole
4. Handset battery compartment
5. Handset earpiece
6. LCD display
7. Vol (volume)/+ (up) key
8. Cid (caller ID)/menu key
9. Talk/flash key
10. */tone/t(left cursor) key
11. Redial/P (pause) key
12. Select key
13. RocketDial key
14. End key
15. Vol (volume)/- (down) key
16. #/s (right cursor) key
17. Mem (memory) key
18. Delete/Ch (channel) key
19. Handset microphone
Controls and Functions
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 6
![](/img.php?id=325968&img=bg7.png)
CONTROLS AND FUNCTIONS [ 7 ]www.uniden.com
23 24
21
20
22

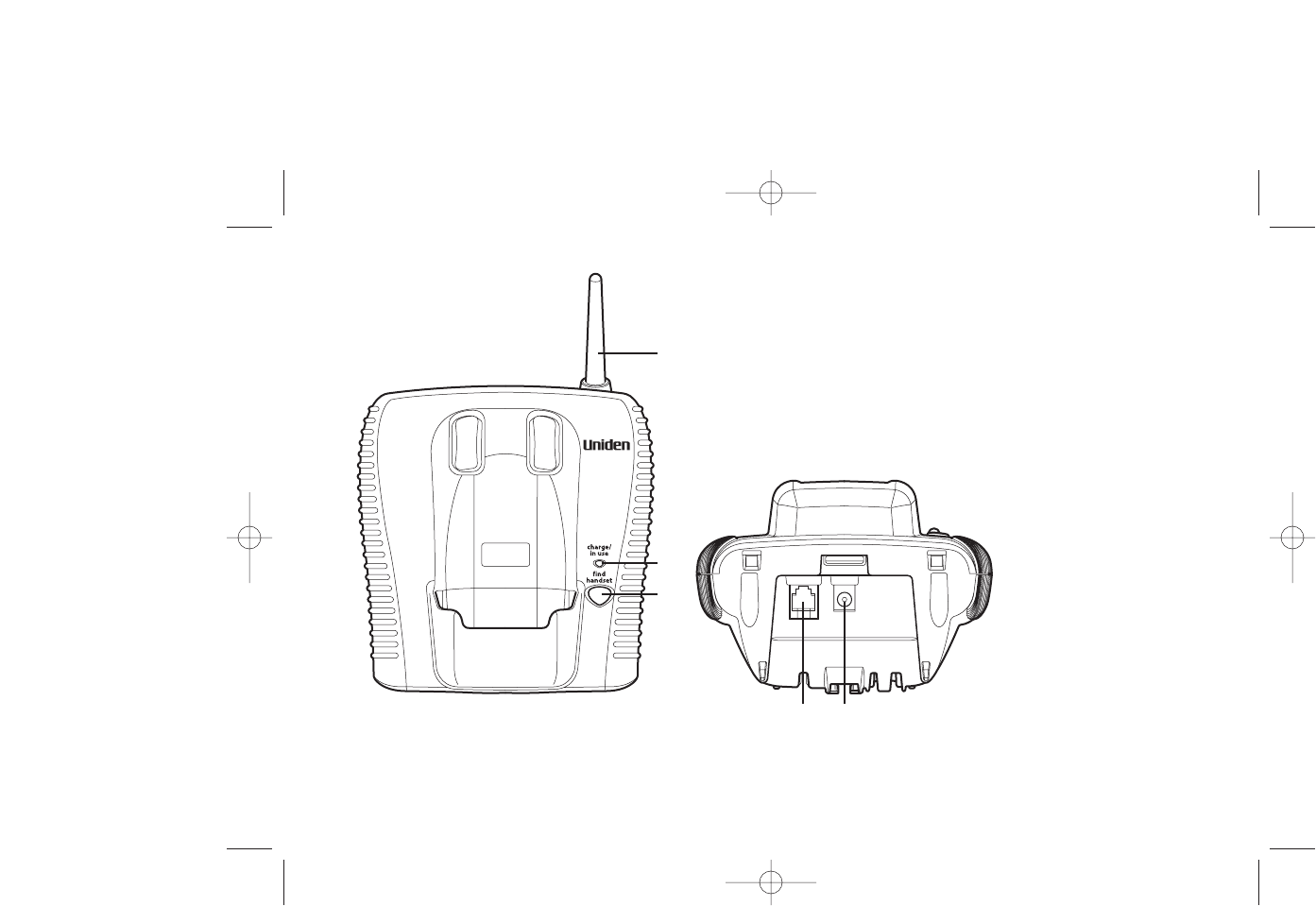

20. Base antenna
21. Charge/in use LED
22. Find handset key
23. Telephone line jack
24. DC IN 9V jack
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 7
![](/img.php?id=325968&img=bg8.png)
GETTING STARTED[ 8 ] www.uniden.com
Setting up the Phone
Do the following steps:
A. Choose the best location C. Connect the base unit
B. Activate the handset before charging the battery

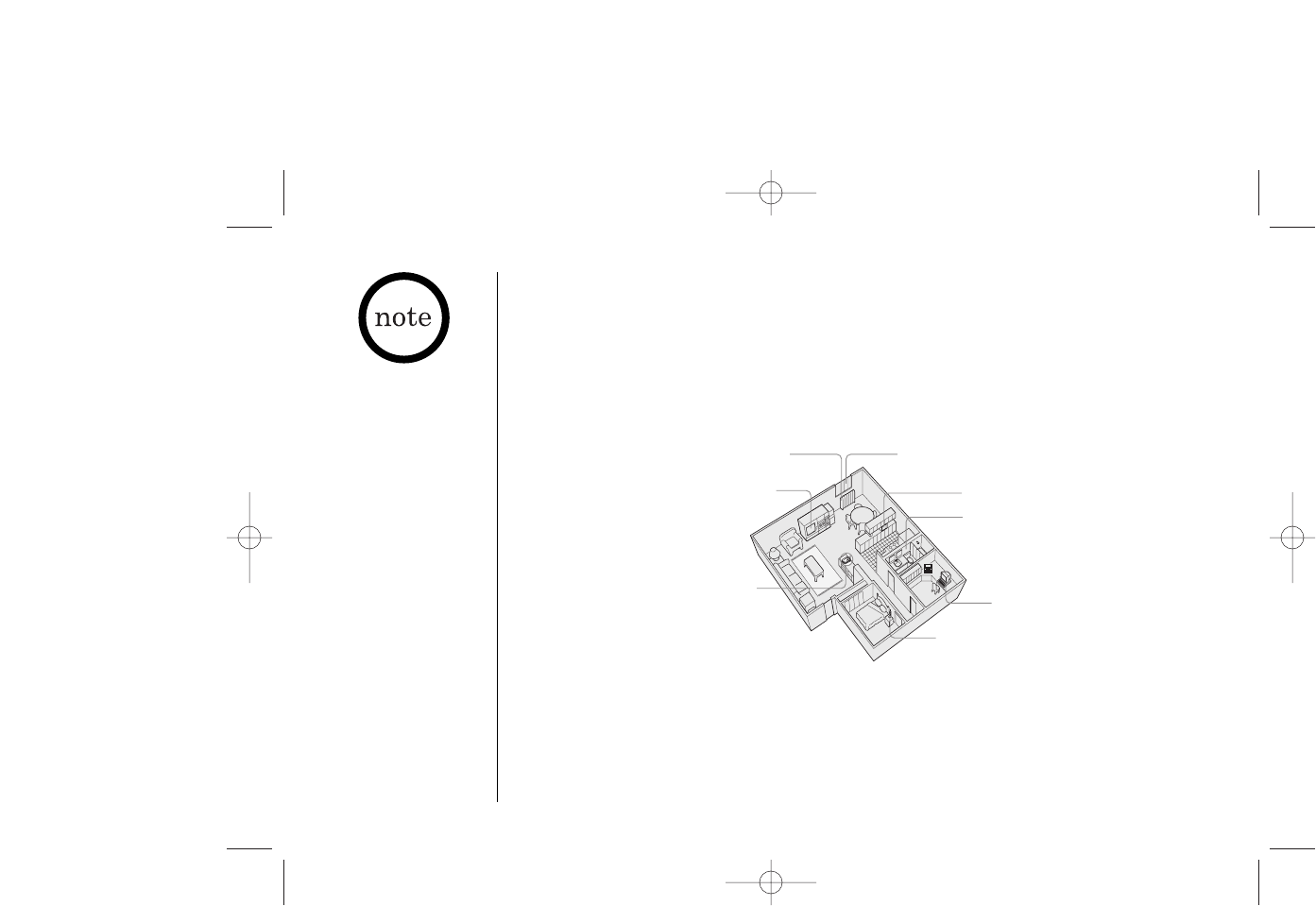

A. Choose the best location
Before choosing a location for your new phone, read “Installation Considerations” on
page 44. Here are some important guidelines you should consider:
•The location should be close to both a phone jack and a continuous power outlet
which is not switchable.
•Keep the base and handset away from sources of electrical noise such as motors,
microwave ovens, and fluorescent lighting.

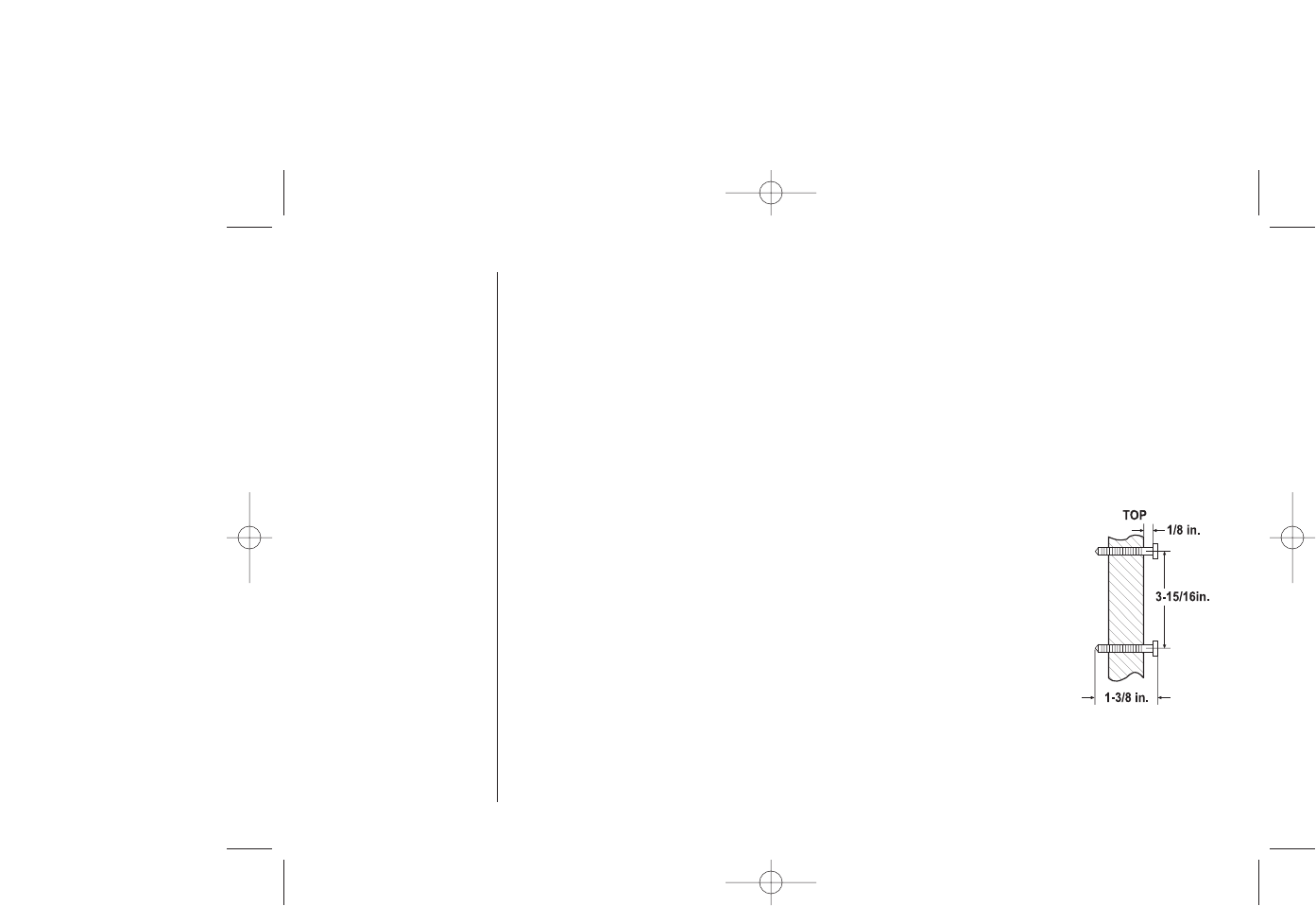

•The base can be placed on a desk, tabletop, or mounted on a standard wall plate.
Avoid excessive moisture,
extremely low temperatures,
dust, mechanical vibration,
or shock
Avoid heat sources, such as radiators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Avoid noise sources such as a window
by a street with heavy traffic
Avoid microwave ovens
Avoid personal computers
Avoid other cordless telephones
Choose a central location
If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
about what will disable
your alarm equipment,
contact your telephone
company or a
qualified installer.
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 8
![](/img.php?id=325968&img=bg9.png)
GETTING STARTED
GETTING STARTED [ 9 ]www.uniden.com
•Use only the Uniden
(BT-909) rechargeable
battery pack
supplied with your
cordless telephone.
•Replacement batteries
and/or rubber seals
are also available
through the Uniden
Parts Department at
(800) 554-3988,
Monday thru Friday
from 8:00 a.m. to
5:00 p.m. or online
at www.uniden.com

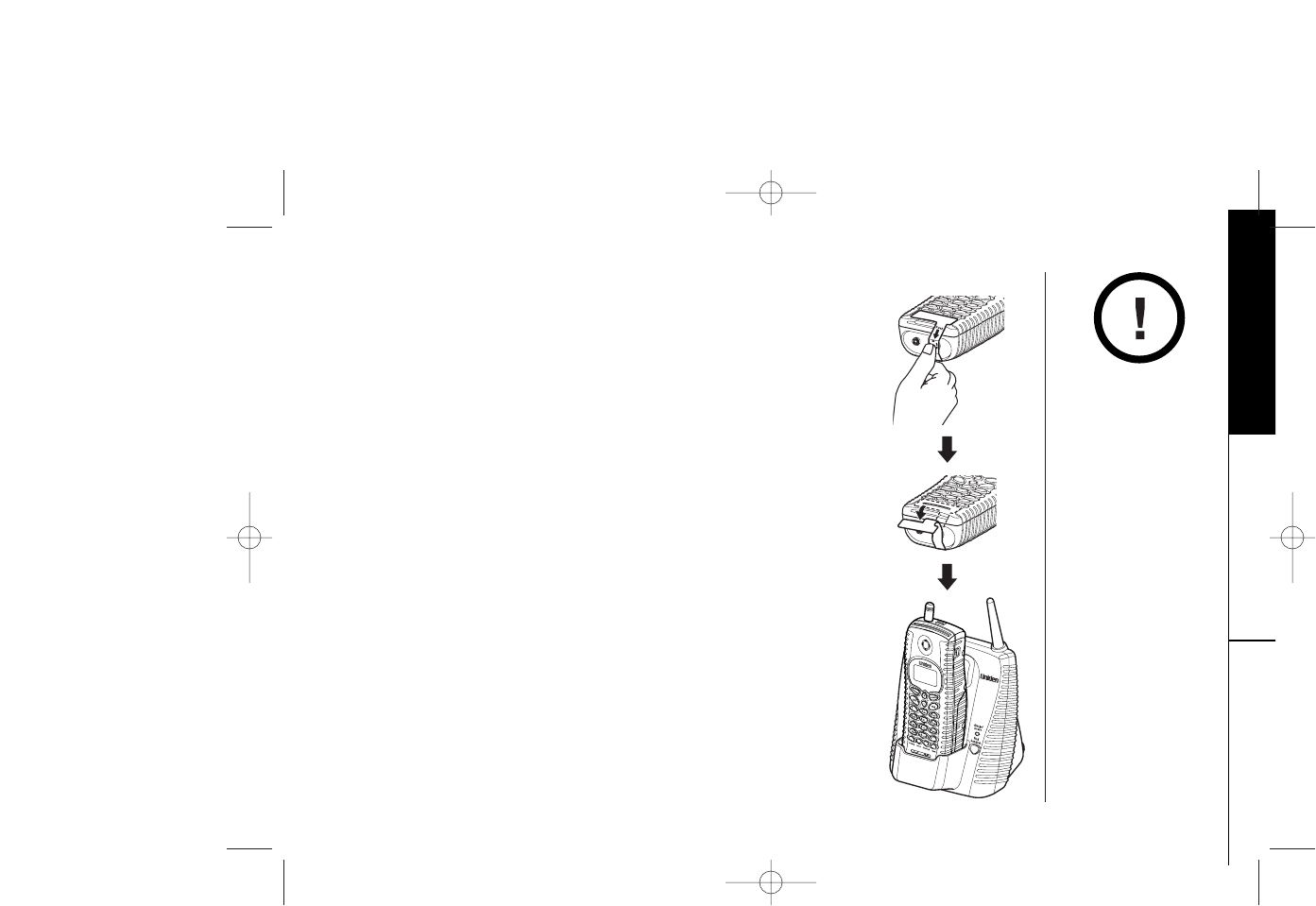

B. Activate the handset before charging the battery
The handset is powered by a rechargeable battery pack already
installed in the handset’s battery compartment. Before
charging the battery for the fist time, push the pin for
activation, located on the bottom of the handset (see label
with instructions). Once activated, remove the label and then
place the handset in the base unit to charge.
Make sure to charge for 15-20 hours without interruption (do
not plug the telephone cord into the unit and wall jack during
charge time). The base unit’s LED light labeled (charge/in
use) illuminates once the handset is placed in the base. The
LED light will illuminate regardless if the battery pack is
connected or not.
If the base charge/in use LED light does not illuminate:
•Check to see if the AC adapter is plugged into the base unit
and the electrical wall outlet properly. (Use only the
supplied AC adapter. Do not use any other AC adapter.)
•Check to see if the handset is sitting correctly in the base.
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 9
![](/img.php?id=325968&img=bga.png)
GETTING STARTED[ 10 ] www.uniden.com

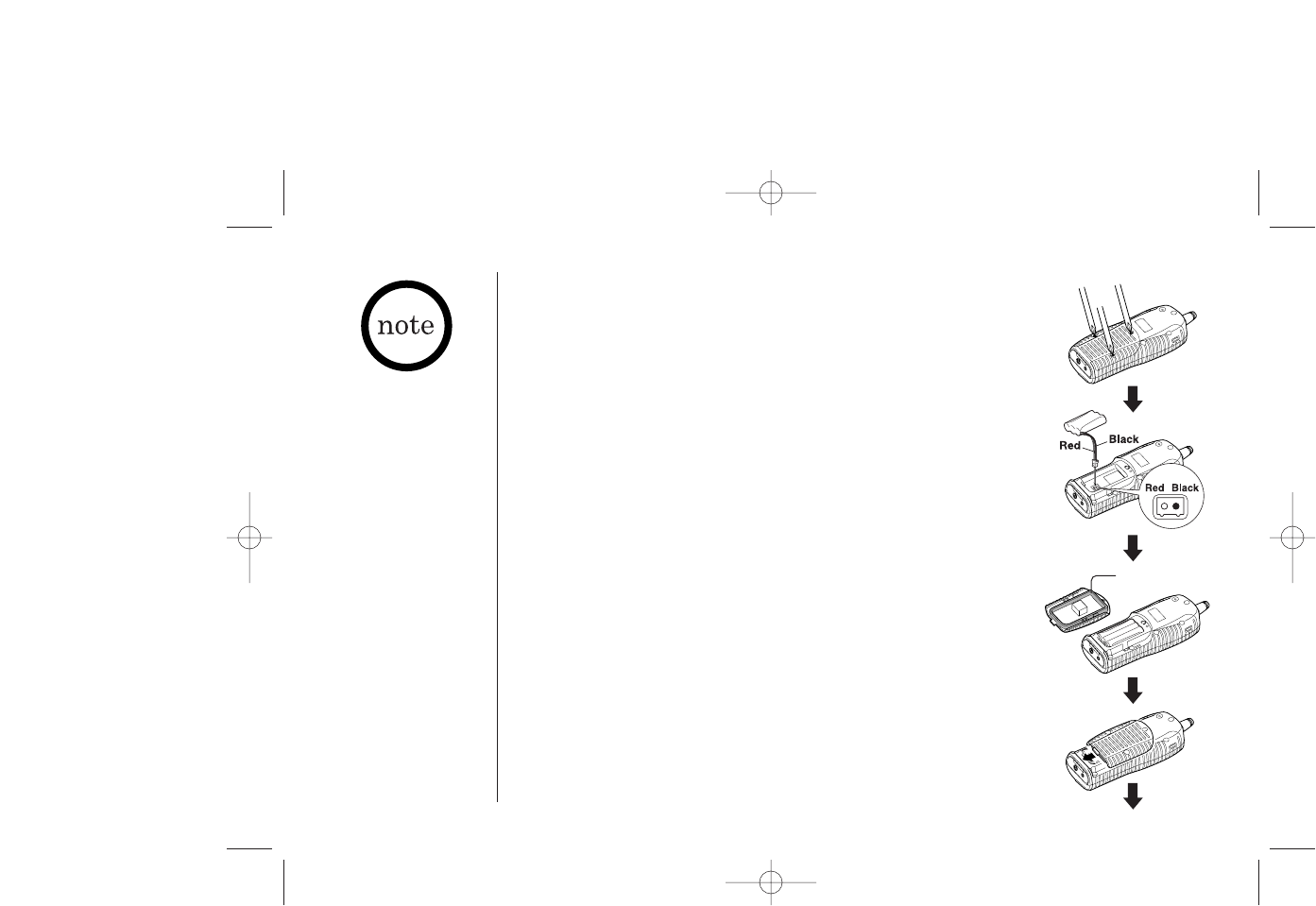

Replace the rechargeable handset battery pack
1) Remove the 3 screws holding the battery compartment with a
screwdriver and take off the battery cover. Remove the old
battery pack in the battery compartment.
2) Plug the replacement battery connector (red & black wires)
into the small, black jack inside the battery compartment.
(The connector notches fit into the grooves of the jack only
one-way.) Match the wire colors to the polarity label in the
battery compartment, connect the battery and listen for a
click to insure connection.
3) Make certain you have made a good connection by slightly
pulling on the battery wires. If the battery connector is not
securely connected, the handset will not charge properly.
4) Before placing the battery cover back on the handset, make
sure there is no foreign matter under the rubber seal located
on the under side. By inserting bottom first, place the
battery cover back on the handset and tighten the 3 screws.
•If there is any foreign
matter on the rubber
seal located on the
under side of the
battery cover, the
handset may not be
water resistant.
•The rubber seal should
be kept clean and
replaced every 2 years
to ensure the handset
is water resistant even
if the seal does not
look worn.
Do not place a wet or
dirty handset in
the base.
Rubber Seal
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 10
![](/img.php?id=325968&img=bgb.png)
GETTING STARTED [ 11 ]www.uniden.com
GETTING STARTED
•Even when the
battery pack is not
being used, it will
gradually discharge
over a long period
of time. For optimum
performance, be sure
to return the handset
to the base unit after
a telephone call.
•Talk Mode -
The handset is off the
base and talk/flash
has been pressed
enabling a dial tone.
•Standby Mode -
The handset is not in
use, off the base and
talk/flash has not
been pressed. A dial
tone is not present.
The last number dialed in the redial memory, as well as, the names and the numbers
stored in the memory locations are retained for up to 30 minutes while you replace the
battery pack.

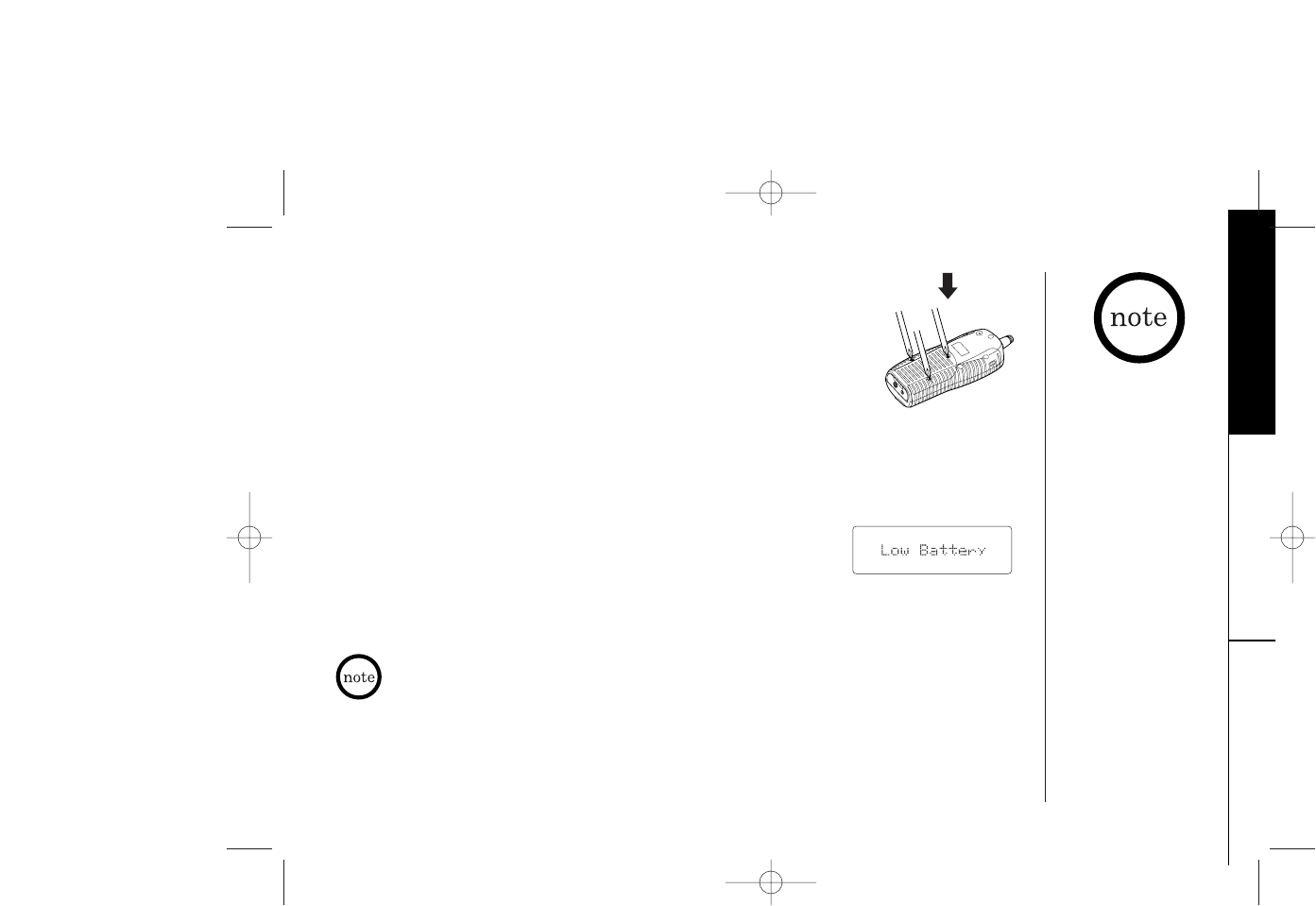

Low battery alert
When the battery pack is very low and needs to be charged,
the phone is programmed to eliminate functions in order
to save power. If the phone is not in use, “Low Battery”
appears on the LCD and none of the keys will operate.
If the phone is in use, “Low Battery” flashes and the
handset beeps. Complete your conversation as quickly as
possible and return the handset to the base unit for charging.
Battery use time (per charge)
From fully charged (15-20 hours charge time)
•Up to seven hours continuous use during talk mode
•Up to fourteen days when the handset is in the standby mode
If the rubber seal appears warn, nicked, or dried out,
replacement seals are available through the Uniden Parts
Department. If you have questions regarding installation of
battery pack and/or rubber seal, please call our Customer
Hotline at 1-800-297-1023.
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 11
![](/img.php?id=325968&img=bgc.png)
GETTING STARTED[ 12 ] www.uniden.com
•Place the power cord
so that it does not
create a trip hazard or
where it could
become chafed and
create a fire or
electrical hazard.
•The base is not
water resistant. Also
wipe off a dirty or
wet handset before
placing in the base.
•Use only the
supplied AD-0002
AC adapter. Do not
use any other
AC adapter. •Connect the AC adapter to a continuous power supply.
•Place the base unit close to the AC outlet so that you can unplug the AC adapter easily.

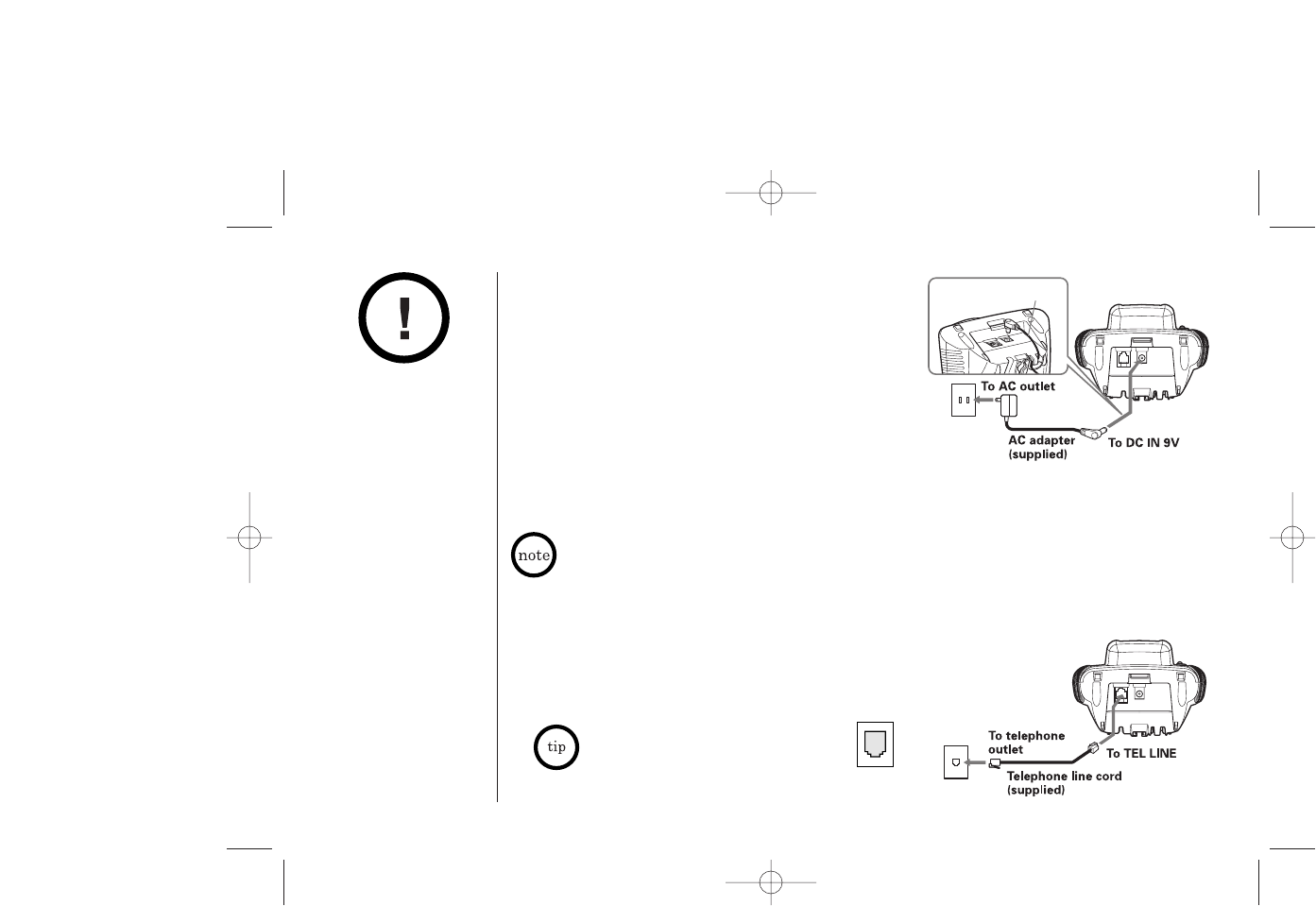

C. Connect the base unit
1) Connect the AC adapter to the DC IN 9V jack
and to a standard 120V AC wall outlet.
2) Set the base on a desk or tabletop, and
place the handset in the base unit.
3) Make sure that the charge/in use LED illuminates.
If the LED does not illuminate, check to see that the AC adapter is plugged
in and that the handset makes good contact with the base charging contacts.
Route the cord.
•After activating the handset, charge your handset at least 15-20 hours before
plugging into the phone line.
4) Once the handset battery pack is fully charged,
connect the telephone line cord to the TEL LINE jack and
to a telephone outlet.
Modular
If your telephone outlet isn't modular,
contact your telephone company
for assistance.
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 12
![](/img.php?id=325968&img=bgd.png)
GETTING STARTED
GETTING STARTED [ 13 ]www.uniden.com
DO NOT use an AC
outlet controlled
by a wall switch.
Mounting the Base Unit on a Wall
Standard wall plate mounting

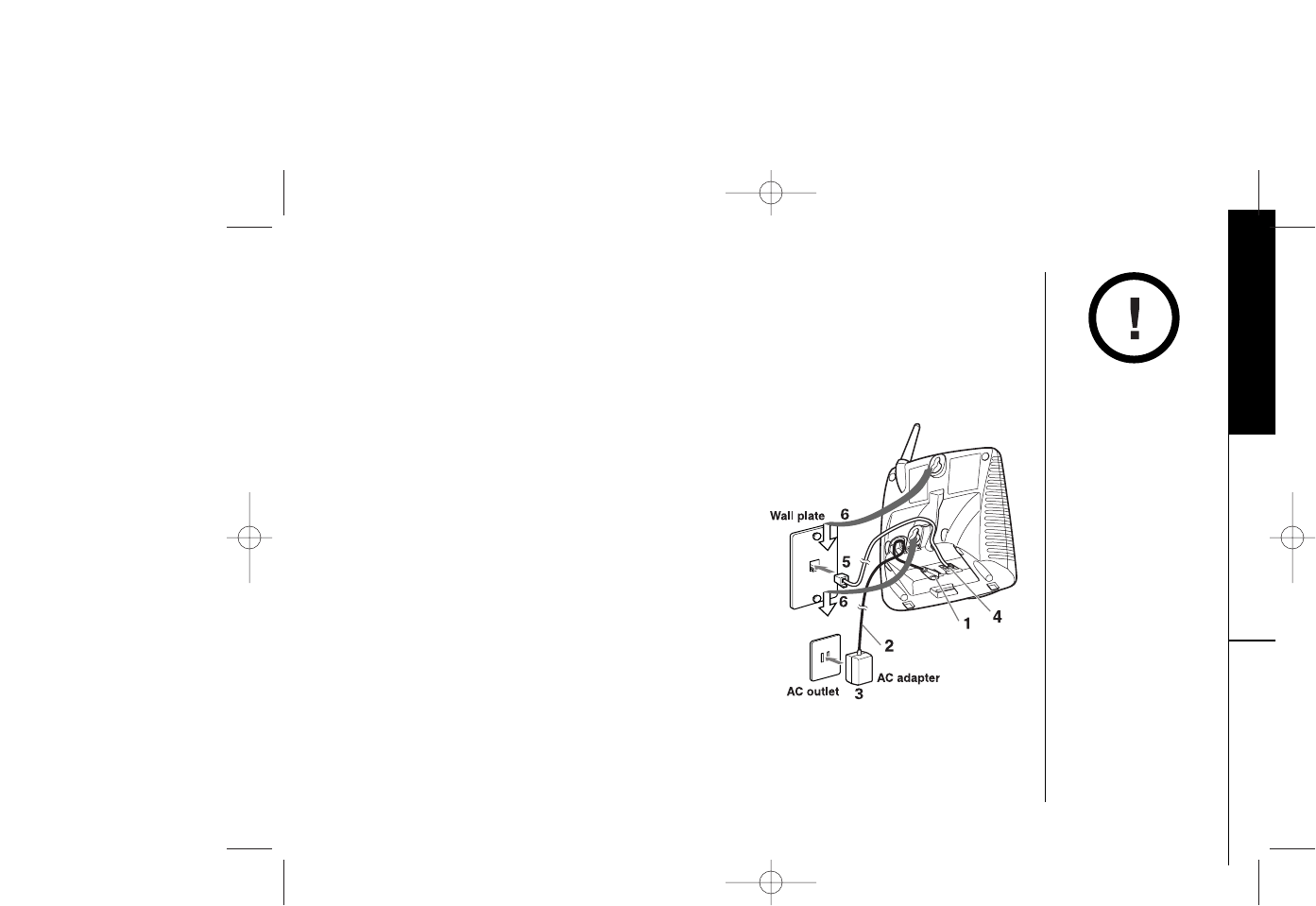

This phone can be mounted on any standard wall plate.
1) Plug the AC adapter into the DC IN 9V jack.
2) Wrap the AC adapter cord inside the molded
wiring channel as shown.
3) Plug the AC adapter into a standard 120V AC
wall outlet.
4) Plug the telephone line cord into the TEL LINE
jack. Wrap the cord inside the molded wiring
channel as shown.
5) Plug the telephone line cord into the
telephone outlet.
6) Align the mounting slots on the base with the
mounting posts on the wall. Then push in and
down until the phone is firmly seated.
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 13
![](/img.php?id=325968&img=bge.png)
GETTING STARTED[ 14 ] www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone directly to the
wall. Before doing this, consider the following:
•Avoid electrical cables, pipes, or other items behind the mounting location that
could cause a hazard when inserting screws into the wall.
•Try to mount your phone within 5 feet of a working phone jack to avoid
excessive lengths.
•Make sure the wall material is capable of supporting the weight of the base
and handset.
•Use #10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable
for the wall material where the base unit will be placed.
1) Insert two mounting screws into the wall, (with their
appropriate anchoring device), 3-15/16 inches apart.
Allow about 1/8 of an inch between the wall and screw
heads for mounting the phone.
2) Refer to steps 1 through 6 on page 13 to mount the telephone.
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 14
![](/img.php?id=325968&img=bgf.png)
GETTING STARTED
GETTING STARTED [ 15 ]www.uniden.com
The cordless phone
features include
AutoTalkTM and
AutoStandbyTM.
AutoStandby allows you
to hang up by simply
returning the handset
to the base.
Setting Menu Options
There are five setup options available. They are Caller ID options [AutoTalk, CIDCW
(Caller ID on Call Waiting), Area Code], Dial Mode and Language.
You must subscribe to Caller ID/Call Waiting services through your telephone company.
AutoTalk allows you to answer the phone without pressing talk/flash.
If the phone rings when AutoTalk is On, simply remove the handset from the base
and the phone automatically answers the call. If the phone rings when AutoTalk
is Off, you must press talk/flash to answer the call.
Caller ID options
To change your AutoTalk and CIDCW:

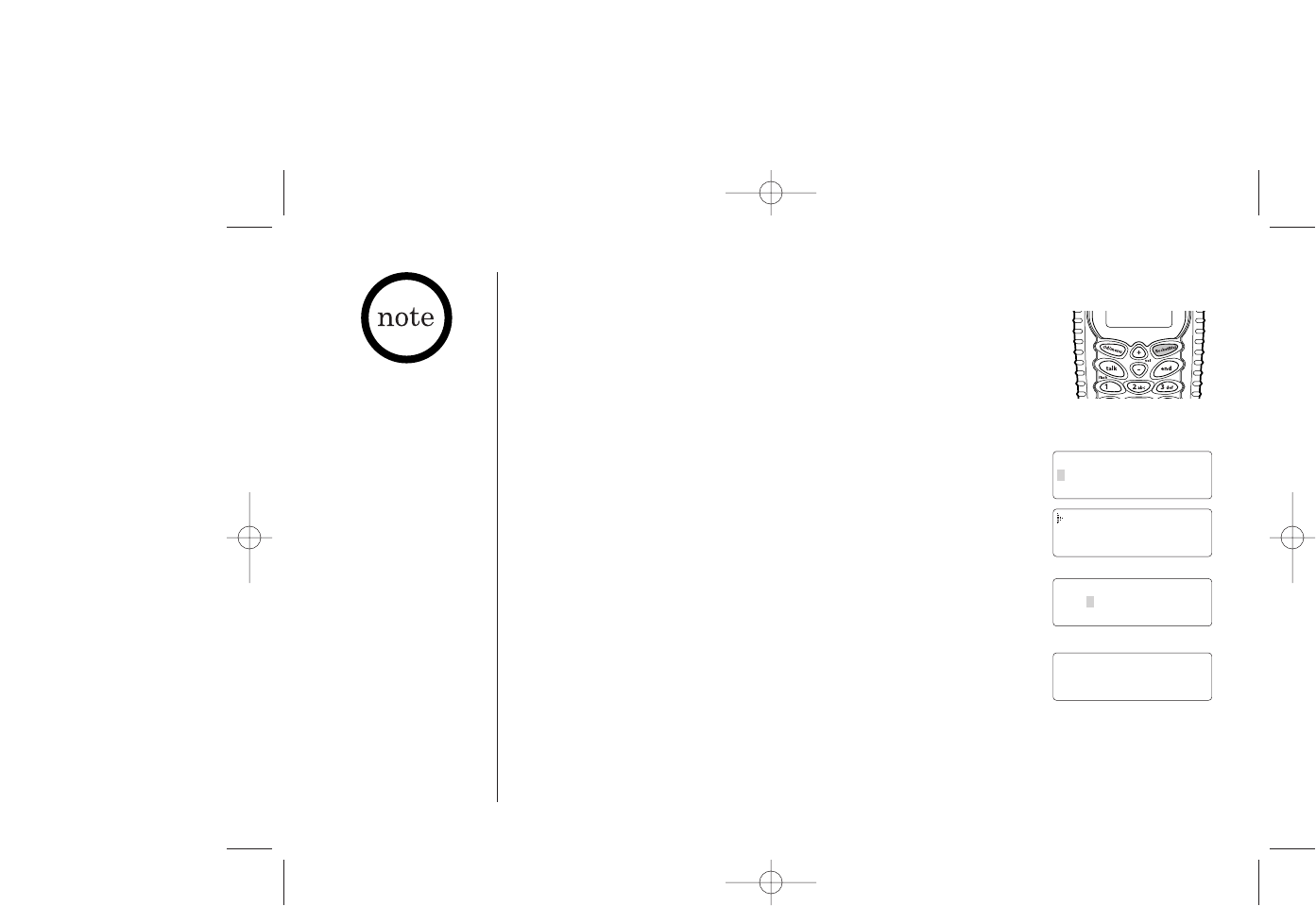

1) Press and hold cid/menu. The following screen appears.
2) Use the vol/+ or vol/- key or a number key (1or 2) to move
the pointer to the selection that you would like to change.
Press select to toggle between “On” and “Off” for AutoTalk and CIDCW.
3) Press end and return the handset to the base unit to complete the setting.
The handset returns to the standby mode.
UC393BH (WXI377) OM 4/30/03 11:38 AM Page 15
![](/img.php?id=325968&img=bg10.png)
GETTING STARTED[ 16 ] www.uniden.com
Entering Your Area Code
If you enter a 3-digit area code number in the Area Code option, your local area
code does not appear in Caller ID messages. Do not program this option if your
calling area requires 10-digit dialing. When reviewing Caller ID messages, you will
see only the local seven digit number. For calls received from outside your local area
code, you will see a full 10-digit number.
1) When the phone is in the standby mode, press and hold
cid/menu. The Caller ID setting screen appears.
2) Press 3or the vol/- key twice to select “Area Code”.
3) Press select.
4) Use the number keys (0 - 9), #/
ss
, */tone/
tt
or delete/ch
to enter the 3-digit area code.
5) Press select. A confirmation tone sounds and the displayed area code is entered.
6) Press end or return the handset to the base unit to complete the setting.
The handset returns to the standby mode.
When the area code has already been stored in memory, the stored
area code will be displayed. To change it, use the delete/ch and
number keys to enter the new area code. Then press select.
A confirmation tone sounds. To complete the setting, press end or
return the handset to the base unit.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 16
![](/img.php?id=325968&img=bg11.png)
GETTING STARTED
GETTING STARTED [ 17 ]www.uniden.com
Make sure your battery
pack is fully charged
before choosing the
dialing mode.
Choosing the dialing mode
Most phone systems use tone dialing which sends DTMF tones through the phone
lines. However some phone systems such as in rural areas still use pulse dialing.
The default setting is tone dialing. Depending on your dialing system, set the mode
as follows:
1) When the phone is in the standby mode, press and hold
cid/menu. The following screen appears.
2) Press 4or the vol/- key three times to select “Dial”.
3) Press select to toggle between “Tone” and “Pulse” for
each setting.
4) Press end or return the handset to the base unit to complete the setting.
The handset returns to the standby mode.
•If you are not sure of your dialing system, set for tone dialing. Make a trial call.
If the call connects, leave the setting as is, otherwise set for pulse dialing.
•If your phone system requires pulse dialing and you need to send the DTMF tones for
certain situations during a call, you may “switch-over”to tone dialing. (Refer to
“Tone Dialing Switch-over”on page 21.)
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 17
![](/img.php?id=325968&img=bg12.png)
GETTING STARTED[ 18 ]
Setting the language
1) When the phone is in the standby mode, press and hold
cid/menu. The following screen appears.
2) Press 5or the vol/- key four times to select “Language”.
3) Press select to toggle between “Eng” (English) and “Fr.”
(French) for each setting.
4) Press end or return the handset to the base unit to complete the setting.
The handset returns to the standby mode.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 18
![](/img.php?id=325968&img=bg13.png)
BASICS
BASICS [ 19 ]www.uniden.com
Making and Receiving Calls
Pick up the handset (AutoTalk)
or pick up the handset and press
talk/flash.
1) Pick up the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Dial the number.
OR
1) Pick up the handset.
2)
Dial the number, then press
talk/flash
.
1) Pick up the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Press redial/p.
OR
1) Pick up the handset.
2) Press redial/p, then press
talk/flash.
Handset On Base Handset Off Base
To answer
a call
To make
a call
To hang up
To redial
Press talk/flash, any number,
*/tone/tor #/s(AutoTalk).
1) Press talk/flash.
2) Listen for the dial tone.
3) Dial the number.
OR
Dial the number, then press
talk/flash.
1) Press talk/flash.
2) Listen for the dial tone.
3) Press redial/p.
OR
Press redial/p, then press
talk/flash.
Press end or return the handset to the base (AutoStandby).
Refer to page 15
“Setting Menu Options”
to turn On the AutoTalk
feature if desired.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 19
![](/img.php?id=325968&img=bg14.png)
BASICS[ 20 ] www.uniden.com
Redial
The redial/p key redials the last number dialed. The redialed number can be up to
32 digits long.

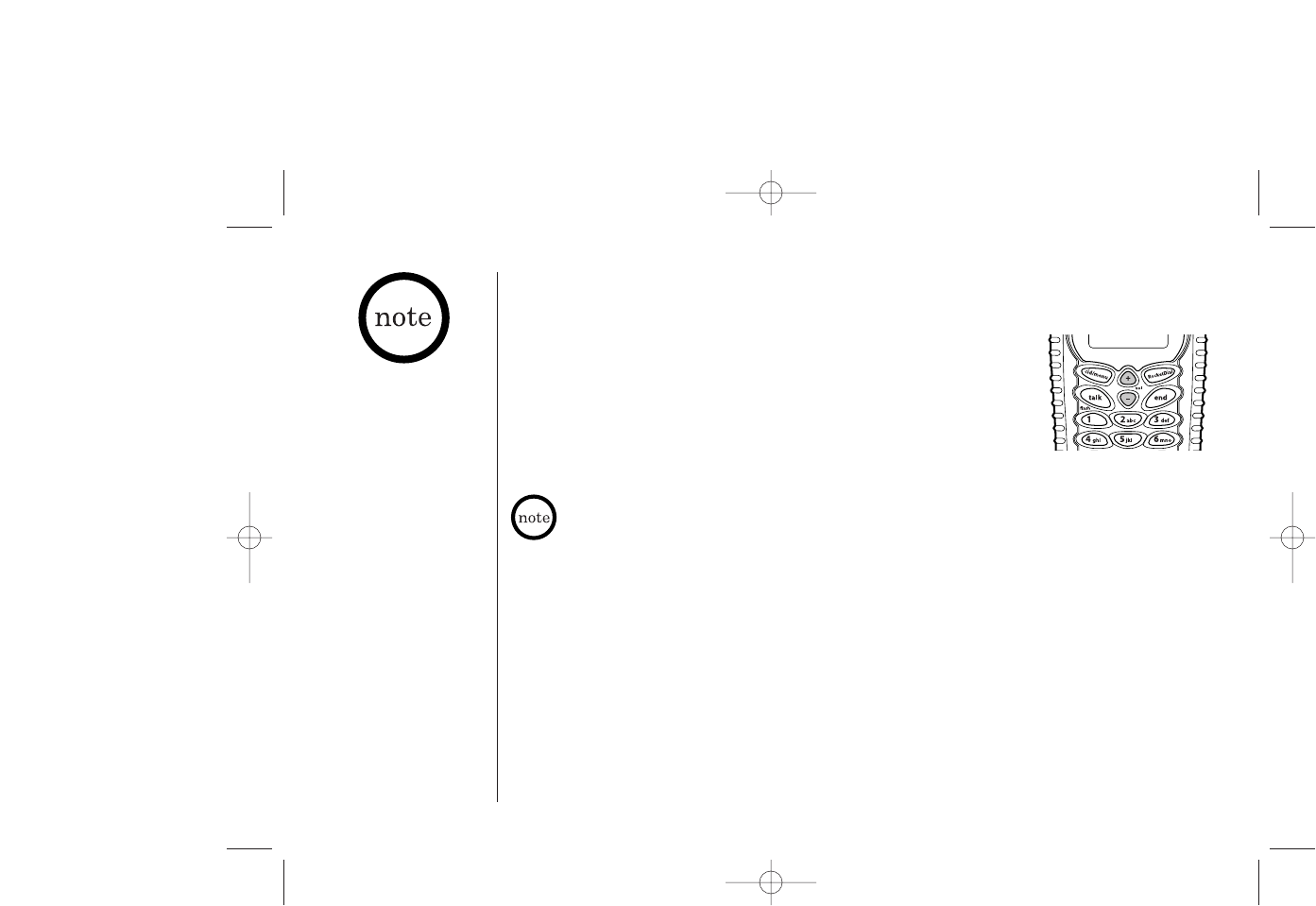

Adjusting the Handset Ringer and Earpiece Volume
Handset ringer tone and volume
Press vol/+ or vol/- in standby mode to select one of five
ringer tones and volume combinations.
Earpiece volume
Pressing vol/+ or vol/- during a call will change the earpiece
volume of the handset. This setting will remain in effect after
the telephone call has ended.
Temporarily Mute Ringer
If the handset is off the base, simply press end to temporarily mute the incoming
ring. The ringer will sound with the next incoming call.
When you press vol/+ in Maximum mode or vol/- in Low mode, an error tone sounds.
If you select “Ringer
Off”, “<Ringer Off>”
appears on the display
when you make or
receive calls, or when
charging the handset.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 20
![](/img.php?id=325968&img=bg15.png)
BASICS
BASICS [ 21 ]www.uniden.com

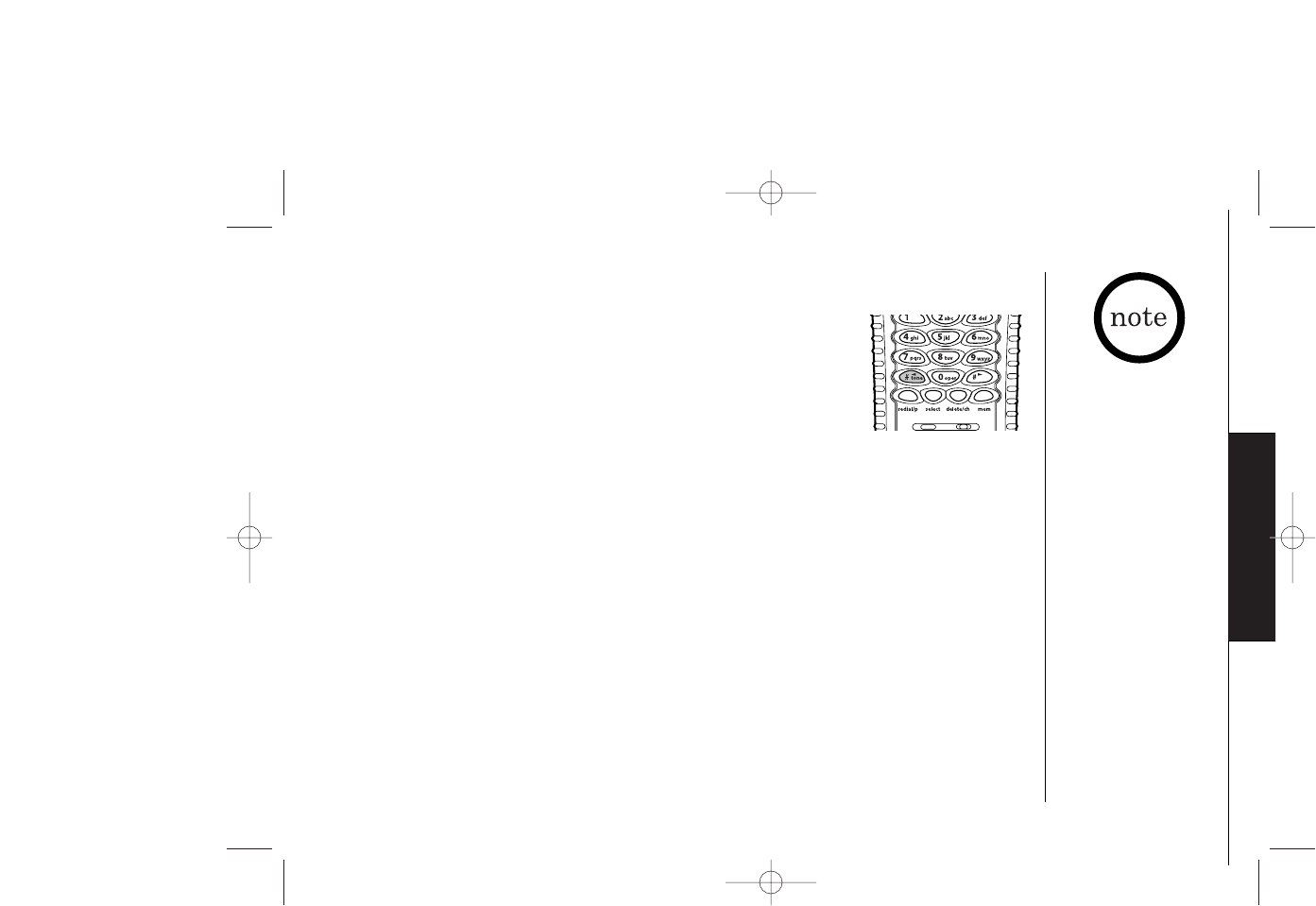

Tone Dialing Switch-over
Some telephone companies use equipment that requires pulse
dialing (sometimes referred to as rotary dialing).
If you need to enter tone dialing digits, you can switch-over to
tone dialing during the call. For example, entering your bank
account number after you have called
your bank.
Initially make your call with the pulse dialing mode. Once your call connects,
press the */tone/ttkey. Enter the desired number. These digits will be sent as
tone dialing. Once the call ends, the tone mode is canceled and pulse dialing
mode resumes.
Traveling Out-of-Range
During a call, as you begin to move your handset too far from your base unit, noise
increases. If you pass the range limits of the base unit, your call will terminate
within 5 minutes.
•The tone feature only
applies when the dial
mode is set to pulse.
•This special number
can be stored in a
memory location.
This is referred to
as Chain Dialing
(see page 27.)
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 21
![](/img.php?id=325968&img=bg16.png)
BASICS[ 22 ] www.uniden.com
Flash and Call Waiting
If you have “Call Waiting” service and a call waiting tone
sounds while you are on a call, press talk/flash to accept the
waiting call. There is a short pause, then you will hear the new
caller. To return to the original caller, press talk/flash again.
Page
To locate the handset (while it's off the base), press find
handset on the base. The handset beeps for 60 seconds.
Paging is canceled when pressing any handset key, find
handset on the base or the handset is returned to the base.
Selecting a Different Channel
If you encounter interference while using your phone, you can manually change the
phone´s channel for clear operation. This function works only when the phone is
in use. Press delete/ch. “Scanning” appears on the display, indicating the phone
is changing to another channel. For more information on interference, refer to
page 44.
You must subscribe through your local telephone company to
receive Call Waiting Service.
•The UltraClear PlusTM
true compander
circuitry virtually
eliminates background
noise. This innovative
technology, together
with 20 different
channels, provides you
with the best possible
reception during all
your conversations.
•Paging is also canceled
when the phone
receives an
incoming call.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 22
![](/img.php?id=325968&img=bg17.png)
MEMORY DIALING
MEMORY DIALING [ 23 ]www.uniden.com
Storing Phone Numbers and Names
Memory Dialing allows you to dial a number using just a few key presses.
Your cordless telephone stores up to 10 names/numbers in the handset.
1) Press and hold mem, “Memory Store” is displayed.
2) Press the vol/+ or vol/- key, or enter a number (0- 9) to
select the memory location where you would like to store
the number.
3) Press select. The following screen appears and a cursor
flashes indicating that the display is ready for the name to
be entered.
If this screen appears, the selected memory location is
already stored. Then you must either edit the entry in
this location, delete the entry in this location, or select
“Go Back” to choose another location.
4) To enter a name (up to 14 characters), use the number keys.
• See the “Steps for Entering Names and Special Characters”. (See page 25.)
• Use the #/sor */tone/tkey to move the cursor to the desired location.
• Use delete/ch to delete characters as needed.
• Press and hold delete/ch to delete all the characters.
• If a name is not required, go to step 5.
Memory Store
1
2
Edit Memory 1
Delete Memory 1
Go Back
Store Name
•In memory dialing
operation, you must
press a key within 30
seconds or the phone
will return to the
standby mode. If you
return the handset to
the base, the phone
will return to the
standby mode also.
•You have 30 seconds
after pressing mem
to enter the number
you wish to store.
Otherwise, an error
tone will sound.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 23
![](/img.php?id=325968&img=bg18.png)
MEMORY DIALING[ 24 ] www.uniden.com
5) Press select. “Store Number” is displayed.
The cursor flashes indicating that the display is ready for the
number to be entered.
6) Use the number keys, */tone/t, or #/s to enter the
phone number.
The phone number cannot exceed 20 digits.
Use redial/p to enter a pause in the dialing sequence.
The display shows a “P”. Each pause counts as one digit and
represents a two second delay of time between the digits.
Use delete/ch to delete digits as needed.
7) Press select. You will hear a confirmation tone, and the
following screen appears. Memory storage is complete.
For example, if you store a name and number into memory
location number 1, the display shows “Memory 1 Stored”.
After about 2 seconds, the display returns to the select
memory screen. Repeat steps 2 - 7 to store more numbers.
8) Press end to return to the standby mode.
Store Number
8007303456
Memory 1 Stored
Memory Store
1 Movies
2 JOHN DOE
Store Number
The pause feature is
useful for long distance
calling, credit card
dialing, or sequences
that require a pause
between digits.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 24
![](/img.php?id=325968&img=bg19.png)
MEMORY DIALING
MEMORY DIALING [ 25 ]www.uniden.com
Steps for Entering Names and Special Characters
Refer to the letters on the number keys to select the desired characters.
With each press of a numeric key, the displayed character appears in the following
order: Upper case letters first, lower case letters next and finally the number
corresponding to the key.
If you make a mistake while entering a name
Use the */tone/tor #/skey to move the cursor to the incorrect character.
Press delete/ch to erase the wrong character, then enter the correct character.
To delete all characters, press and hold delete/ch.
For example, to enter Movies.
1) Pick up the handset. Press and hold mem.
2) Enter a number or press the vol/+ or vol/- key to select a memory location.
3) Press select. (When there is information already stored in the selected memory
location, “Edit Memory X” is displayed. See page 27 for information on
“Editing a Stored Name and/or Phone Number”.)
4) Press 6then press #/sto move the cursor to the right.
5) Press 6six times.
6) Press 8six times.
7) Press 4six times.
8) Press 3five times.
9) Press 7eight times.
10) When finished, press select.
To continue to store the telephone number,
proceed to step 6 on page 24.
Number of times key is pressed
keys 1 2 3 4 5 6 7 8 9
1
ABCabc2
DEFdef3
GHIghi4
JKLjkl5
MNOmno6
PQRSpqrs7
TUVtuv8
WXYZwxyz9
*#-&()
(blank) 0
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
0
1
If the next character
uses the same number
key, you must press
#/sto move the
cursor over. Otherwise
the next time you press
the number key, it
changes the character
that was previously set.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 25
![](/img.php?id=325968&img=bg1a.png)
MEMORY DIALING[ 26 ] www.uniden.com
Making Calls with Memory Dialing
Memory dialing from Standby Mode
1) Press mem. The handset displays your programmed memory
locations.
2) Press the vol/+ or vol/- key, or enter the number (0- 9) to select the memory
location you would like to dial.
3) Press talk/flash. “Talk” and the volume setting appear
on the display. Then the displayed number is dialed.
To exit the memory function without dialing, press end.
The handset returns to the standby mode.
1 Movies
2 JOHN DOE
3 MOM AND DAD
Talk
8007303456
Memory dialing from Talk Mode
1) Press talk/flash. “Talk” and the
volume setting appears.
2) Press mem.
3) Enter a number (0- 9) to select the memory location of the
desired phone number. Then the number is dialed.
4) To hang up, press end.
Talk Talk
Volume High
Talk 0:35
8007303456
•If you press select
before talk/flash, you
can confirm the name
and the number stored
in the selected
memory location.
•Whenever you are
using a memory menu
screen, you must press
a key within
30 seconds.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 26
![](/img.php?id=325968&img=bg1b.png)
MEMORY DIALING
MEMORY DIALING [ 27 ]www.uniden.com
Chain Dialing
The memory locations on the handset are not limited to phone numbers. You can
also store a group of numbers (up to 20 digits) that you need to enter once your
call connects. This is referred to as Chain Dialing.
An example of this is a bank account number. Once you have called your bank,
and are prompted to enter the account number, simply press mem and the location
number where the special number has been stored.
Store your special number with an identifying name. (Refer to “Storing Phone
Numbers and Names” on page 23.)
Editing a Stored Name and/or Phone Number
1) Press and hold mem until “Memory Store” is displayed.
2) Press vol/+ or vol/-, or enter a number (0- 9) to select the
memory location you would like to edit.
3) Press select.
The following screen appears with the memory location
number that you have selected in the display.
4) Press vol/+ or vol/- to select “Edit Memory X”, then
press select. The following screen appears. The cursor
flashes indicating that the display is ready for the name to
be edited. When a name has not been stored, the cursor
appears at the beginning of the second line.
Memory Store
1 Movies
2 JOHN DOE
Edit Memory 2
Delete Memory 2
Go Back
Store Name
Movies
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 27
![](/img.php?id=325968&img=bg1c.png)
MEMORY DIALING[ 28 ] www.uniden.com
5) Use the number keys, */tone/t, #/s, or delete/ch to edit the name.
(See page 23.)
To edit only the phone number, skip this step.
6) Press select. The following screen appears.
The cursor flashes indicating that the display is ready for the
number to be edited.
7) Use the number key, redial/p,*/tone/t, #/s, or delete/ch to
edit the phone number. The phone number cannot exceed 20 digits.
(See page 24.)
If you don´t want to change the phone number, skip this step.
8) Press select. You hear a confirmation tone, and the
following screen appears. The memory storage is complete.
For example, if you store a name and number into memory
location number 1, the display shows “Memory 1 Stored”.
After about 2 seconds, the display returns to the select
memory screen.
9) Press end to return to the standby mode.
Store Number
8002971023
Memory 1 Stored
Memory Store
1 Movies
2 JOHN DOE
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 28
![](/img.php?id=325968&img=bg1d.png)
MEMORY DIALING
MEMORY DIALING [ 29 ]www.uniden.com
Erasing a Stored Name and Phone Number
1) Press and hold mem until “Memory Store” is displayed.
2) Press vol/+ or vol/-, or enter a number (0- 9) to select the
memory location you would like to erase.
3) Press select.
The following screen appears with the memory location
number that you have selected in the display.
4) Press vol/- to move the pointer down to “Delete Memory X”.
5) Press select. The following confirmation screen appears.
6) Press vol/+ to move the pointer to “Yes”.
7) Press select or delete/ch.
You hear a confirmation tone, and the following screen
appears.
8) After about 2 seconds, the display returns to the “Memory
Store” screen.
You may delete the information in another memory location
(return to step 2) or press end to return to standby mode.
Memory Store
1 Movies
2 JOHN DOE
Edit Memory 2
Delete Memory 2
Go Back
Edit Memory 2
Delete Memory 2
Go Back
Delete Memory 2?
Yes
No
Memory 2 Deleted
Memory Store
1 Movies
2
Memory Store
1 Movies
2 JOHN DOE
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 29
![](/img.php?id=325968&img=bg1e.png)
ROCKETDIAL[ 30 ] www.uniden.com
•RocketDialTM is a one
touch speed dial key
that automatically dials
your most important or
frequently called
number. The number
dialed, is a preset
number stored by
the user.
•Number stored in
RocketDial is
independent from
the numbers stored
in Memory Dial.
•If the RocketDial does
not have a stored
number, the handset
will beep rapidly and
the phone will not dial.
Edit Number
Delete Number
Go Back
Store Number
Number Stored
RocketDial
You can store your most frequently dialed number in the
RocketDial location. The RocketDial allows you to dial a number
with one key press. (There is no need to press talk/flash.
The phone will automatically dial the number stored.)
Storing and Editing the RocketDial
1) When the phone is in the standby mode, press and hold
RocketDial. Following display appears.
If this screen appears, there is a number already stored.
Press vol/+ or vol/- to select “Edit Number”, then
press select.
2) Store the number by following step 6 under “Storing
Phone Numbers and Names” on page 24.
3) Press select.
You hear a confirmation tone, and the following screen
appears. Memory storage is complete.
Making Calls with the RocketDial
When the phone is in the standby mode, simply press RocketDial. The number stored
in the RocketDial memory location is instantly dialed.
Store Number
Store Number Store Number
800
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 30
![](/img.php?id=325968&img=bg1f.png)
ROCKETDIAL
ROCKETDIAL [ 31 ]www.uniden.com
Deleting the RocketDial
1) When the phone is in the standby mode, press and hold
RocketDial. Following display appears.
2) Press vol/- to move the pointer down to “Delete Number”.
3) Press select. Following display appears.
4) Press vol/+ to move the pointer to “Yes”.
5) Press select or delete/ch.
You hear a confirmation tone, and the following display
appears. After about 2 seconds, the handset returns to
standby mode.
Edit Number
Delete Number
Go Back
Delete Number?
Yes
No
Number Deleted
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 31
![](/img.php?id=325968&img=bg20.png)
CALLER ID FEATURES[ 32 ] www.uniden.com
Caller ID
You must subscribe to Caller ID service to use this feature.
When the telephone rings, the Caller ID feature allows you to view the caller´s name
and phone number on the display before you answer the phone. The handset displays
the phone number of the incoming call, the name, and time. Additionally, you can
dial the displayed number and store the information for memory dialing. Make sure
you have turned on the Caller ID/Call Waiting feature. (See page 15.)
When the Telephone Rings
1) When the Caller ID message is received, the display shows the caller´s phone
number along with the date and time. The incoming call information is stored
in the Caller ID record. If the Caller ID service includes the caller´s name, the
caller´s name appears on the display (up to 15 letters).
You may receive any one of the following messages:
When invalid data is received “Incomplete Data”
When a private name is received “Private Name”
When a private number is received “Private Number”
When a unknown name is received “Unknown Name”
When a unknown number is received “Unknown Number”
5/11 12:30PM
Jane Smith
214-555-1234
The date and
time received
Caller's name
Caller's phone number
•If you answer a call
before the Caller ID
message is received
(Example: before the
second ring), the
Caller ID message
will not appear.
•When the call is
received via a
telephone company
that does not offer
Caller ID service, the
caller´s phone
number and name
do not appear.
(This includes
international calls.)
•When the call is via
a private branch
exchange (PBX),
the caller´s phone
number and name
may not appear.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 32
![](/img.php?id=325968&img=bg21.png)
CALLER ID FEATURES
CALLER ID FEATURES [ 33 ]www.uniden.com
Viewing the Caller ID Message List
The Caller ID list stores up to 30 messages (Caller ID names/numbers) - even
unanswered calls.
1) Press cid/menu.
The summary screen appears. The screen shows the number
of new messages and total messages.
2) Press the vol/+ or vol/- key to display the latest or oldest
Caller ID message.
3) Press the vol/- key to see the next message.
Or press the vol/+ key to see the previous message.
4) Press end to return to the standby mode.
Data errors appear as “”.
New :01
Total:02
5/17 12:30PM 03
Jane Smith
214-555-1234
2) When you pick up the phone, the display changes to “Talk”. (AutoTalk feature
is set to On.)
•In Caller ID operation,
if no key is pressed for
more than 30 seconds,
an error tone sounds
and the telephone
returns to the
standby mode.
•If a call comes in via a
telephone system that
does not offer Caller ID
service, no information
is stored.
•Each message can be
up to 15 characters for
the phone number and
the name.
•The number of calls
from the same Caller
ID appears next to the
received time. Once
you view the new
message, the number
will disappear.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 33
![](/img.php?id=325968&img=bg22.png)
CALLER ID FEATURES[ 34 ] www.uniden.com
Deleting Information from the Caller ID List
The cordless phone stores up to 30 messages (Caller ID names/numbers). If the
phone receives the 31st message, the oldest one in the list is automatically deleted.
Caller ID data can also be deleted manually.
Deleting a Caller ID message
1) Press cid/menu. Display the message to be deleted from
the Caller ID list by pressing the vol/+ or vol/- key.
2) Press delete/ch.
3) Press the vol/+ or vol/- key to select “Yes” or “No”.
4) Press select or delete/ch.
When the pointer is at “Yes”:
A tone sounds and the Caller ID message is deleted. The next Caller ID message
is then displayed.
When the pointer is at “No”:
The display returns to the Caller ID message.
Deleting all Caller ID names/numbers
1) Press cid/menu.
2) Press delete/ch.
5/17 12:30PM 03
Jane Smith
214-555-1234
Delete Message?
Yes
No
New :01
Total:02
•While using the
“Delete All?” or
“Delete Message?”
screen if no key is
pressed for more than
30 seconds, an error
tone sounds and the
telephone returns
to the standby mode.
•If you get an
incoming call or page,
the deleting operation
is canceled and you
can answer the call
or page.
UC393BH (WXI377) OM 4/30/03 11:39 AM Page 34
![](/img.php?id=325968&img=bg23.png)
CALLER ID FEATURES
CALLER ID FEATURES [ 35 ]www.uniden.com
3) Press the vol/+ or vol/- key to select “Yes” or “No”.
4) Press select or delete/ch.
When the pointer is at “Yes”:
A tone sounds and all stored Caller ID messages
are deleted.
When the pointer is at “No”:
The display returns to the summary screen.
Total:00
New :01
Total:02
Delete All?
Yes
No
Using the Caller ID List
Calling a party from the Caller ID list
You can place a call from the Caller ID list. The cordless phone stores
up to 30 messages (Caller ID names/numbers).
1) Press cid/menu. Select the phone number that you want to
dial by pressing the vol/+ or vol/- key.
2) Press talk/flash.
The displayed phone number dials automatically.
Long Distance calls and Area Code Setting/Cancellation
Pressing 1while the incoming Caller ID information is displayed (in step 1) will
place the prefix “1” in the display to set up for a long distance call. Pressing 3will
set or cancel an area code setting.
5/17 12:30PM 03
Jane Smith
214-555-1234
Talk
2145551234
•You cannot make a call
from the Caller ID list
if your cordless
telephone is connected
to a private branch
exchange (PBX).
•When a long distance
call has been set, “1”
appears in the display.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 35
![](/img.php?id=325968&img=bg24.png)
CALLER ID FEATURES[ 36 ] www.uniden.com
Storing Caller ID messages in Memory dialing
Messages (Caller ID names/numbers) shown in the Caller ID list can be stored in
memory dialing. Using the incoming call information (i.e., Caller ID list), the phone
number of the party on the Caller ID list can be stored in memory.
1) Press cid/menu.
Select the phone number to be stored from the Caller ID list
by pressing the vol/+ or vol/- key.
2) Press mem.
3) Press the vol/+ or vol/- key or enter a number (0- 9) to
select the memory location to be stored.
4) Press select.
You hear a confirmation tone, and the number is stored
in memory. The display returns to the Caller ID list.
5/17 12:30PM 03
Jane Smith
214-555-1234
Select Location
1
2 JOHN DOE
5/17 12:30PM 03
Jane Smith
214-555-1234
Replace Memory?
Yes
No
If a message has already been stored in the selected memory
number location, a confirmation screen is displayed.
Press the vol/+ key to select “Yes”. Press select to overwrite.
The display returns to the Caller ID list.
You cannot store a
Caller ID message if no
phone number appears
in the message.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 36
![](/img.php?id=325968&img=bg25.png)
ADDITIONAL INFORMATION [ 37 ]www.uniden.com
ADDITIONAL
INFORMATION
•To protect you against
misbilled calls which
might result from your
phone being activated
by other equipment,
the cordless phone has
AutoSecureTM feature
electronically locks
your phone when the
handset is in the base.
Also, the Random
CodeTM digital security
which automatically
selects one of over
262,000 digital
security codes for
the handset and base.
•If the handset battery
pack is completely
discharged or the
battery pack is
removed, the digital
security code will be
lost. If this happens,
a new security code is
set automatically the
next time the battery
pack is charged.
Changing the Digital Security Code
The digital security code is an identification code used to connect the handset and
the base unit. Normally, setting the code is not necessary. The first time you charge
your handset, the security code is automatically set.
In the rare situation that you suspect another cordless telephone is using the same
security code, you can change the code.
1) Remove the handset from the base unit. Press and hold find handset on the base.
2) While holding find handset, place the handset in the base unit, and leave the
handset in the base for more than 3 seconds. A new random security code is set.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 37
![](/img.php?id=325968&img=bg26.png)
ADDITIONAL INFORMATION[ 38 ] www.uniden.com
Note on Power Sources
Battery replacement and handling
When the operating time becomes short, even after a battery is recharged, please replace the battery.
With normal usage, your battery should last about one year. Please contact your place of purchase
or the Uniden Parts Department for a replacement battery.
Warning: To avoid the risk of personal injury or property damage from fire or electrical shock, only use the
Uniden battery model and Uniden adapter model specifically designated for this product.
Power Failure
During the period that the power is off, you will not be able
to make or receive calls with the telephone.
Caution
• Use only the specified Uniden battery pack (BT-909).
• Do not remove the battery from the handset to charge it.
• Never throw the battery into a fire, disassemble it, or heat it.
• Do not remove or damage the battery casing.
Caution
Do not use paint thinner,
benzene, alcohol, or other
chemical products.
Doing so may discolor the
surface of the telephone
and damage the finish.
Maintenance
When the handset or base unit becomes slightly dirty
Wipe with a soft, dry cloth.
When the handset or base unit becomes very dirty
Wipe with a soft cloth that has been dampened with diluted,
neutral detergent. Dry with a dry cloth.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 38
![](/img.php?id=325968&img=bg27.png)
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 39 ]www.uniden.com
Troubleshooting
If your phone is not performing to your expectations, please try these simple steps first.
Symptom
The charge/in use LED won't
illuminate when the handset
is placed in the base.
The audio sounds weak
and/or scratchy.
Can't make or receive calls.
Suggestion
•Make sure the AC adapter is plugged into the base and wall outlet.
•Make sure the handset is properly seated in the base.
•Make sure that the handset and base are clean.
•If your handset was submerged in water, water remaining in and
around the speaker and microphone may distort sound. Shake any
water off of the handset, then wipe the handset dry.
•Move the handset and/or base to a different location away from metal
objects or appliances and try again.
•Press delete/ch to help eliminate background noise.
•Make sure that you are not too far from the base.
•Check both ends of the base telephone line cord.
•Make sure the AC adapter is plugged into the base and wall outlet.
•Disconnect the AC adapter for a few minutes, then reconnect it.
•Change the digital security code (see page 37).
•Make sure that you are not too far from the base.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 39
![](/img.php?id=325968&img=bg28.png)
ADDITIONAL INFORMATION[ 40 ] www.uniden.com
Symptom
The handset doesn't ring
or receive a page.
Severe noise interference.
The Caller ID does
not display.
If you still have a problem.
Suggestion
•The battery pack may be weak. Charge the battery for 15-20 hours.
•The handset may be too far away from the base unit.
•Place the base unit away from appliances or metal objects.
•Change the digital security code (see page 37).
•If the handset is under water, the ringer will not be heard. The phone
can still recieve calls.
•Keep the handset away from microwave ovens, computers, remote control
toys, wireless microphones, alarm systems, intercoms, room monitors,
fluorescent lights, and electrical appliances.
•Move to another location or turn off the source of interference.
•The handset was picked up before the second ring.
•The call was placed through a switchboard.
•Call your local telephone company to verify your Caller ID service
is current.
•Charge the handset.
•Call our customer hotline at 1-800-297-1023.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 40
![](/img.php?id=325968&img=bg29.png)
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 41 ]www.uniden.com
Case
If the base is exposed to moisture
or liquid, but only affects the exterior
plastic housing.
If moisture or liquid has entered the
plastic-housing (i.e. liquid can be
heard in the phone or liquid has
entered the handset battery
compartment or vent openings
on the base).
Action
Wipe off the liquid and use as normal.
Handset:
1. Remove the battery cover and leave it off for ventilation.
2. Remove the battery pack by disconnecting.
3. Leave the battery cover off and the battery pack disconnected for at least 3 days.
4. Once completely dry, reconnect the battery pack and the battery cover.
5. Recharge the handset’s battery pack for 20 hours in the base unit before using the phone.
Base:
1. Disconnect the AC adapter from the base unit, cutting off electrical power.
2. Disconnect the telephone cord from the base unit.
3. Let dry for at least 3 days.
IMPORTANT: You must unplug the telephone line while recharging the battery pack
to avoid charge interruption.
CAUTION:
DO NOT use a microwave oven to speed up the drying process. This will cause permanent
damage to the handset, base and the microwave oven.
After following these steps, if your cordless telephone does not work, please send to:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd.
Ft. Worth, TX 76155
1-800-554-3988. Monday through Friday
8 a.m. to 5 p.m. CST
Liquid Damage
Moisture and liquid can damage your cordless phone. In case of accidental submersion, please read
the following steps.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 41
![](/img.php?id=325968&img=bg2a.png)
ADDITIONAL INFORMATION[ 42 ] www.uniden.com
General Information
The phone complies with FCC Parts 15 and 68.
Operating temperature: -10°to 50°C (+14°F to +122°F)
AC Adapter Information
AC Adapter part number: AD-0002
Input Voltage: 120V AC 60Hz
Output Voltage: 9V DC 350 mA
Battery Information
Battery part number: BT-909
Capacity: 600 mAH, 3.6V
Battery use time (per charge)
From fully charged
Talk mode duration: Up to 7 hours
Standby mode duration: Up to 14 days
Recharge your phone on a regular basis by returning the handset to the base after each phone call.
When the operating time becomes short, even after the battery is recharged, please replace the battery.
With normal usage, the battery should last about one year.
A replacement Uniden adapter and battery may be purchased at your local Uniden dealer or by contacting
the Uniden Parts Department (800) 554-3988. Hours are from 8:00 a.m. to 5:00 p.m. Central Time, Monday
through Friday. We can also be reached on the web at www.uniden.com.
Specifications, features, and availability of optional accessories are all subject to change without
prior notice.
•To avoid damage to the phone use only Uniden AD-0002 and BT-909 with your phone.
•If the handset is left off of the base, the actual Talk mode duration will be reduced respective to the amount of time the handset
is off the base.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 42
![](/img.php?id=325968&img=bg2b.png)
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 43 ]www.uniden.com
Precautions!
Before you read anything else, please observe the following:
Warning!
Uniden America Corporation represents this handset to be water
submersible to JIS7 Specs. The product may be submerged in 3 feet of
water for up to 30 minutes.
Rechargeable Nickel-Metal-Hydride Battery Warning
•This equipment contains a rechargeable Nickel-Metal-Hydride battery.
•Nickel is a chemical known to state of California to cause cancer.
•The rechargeable Nickel-Metal-Hydride battery contained in this
equipment may explode if disposed of in a fire.
•Do not short-circuit the battery.
•Do not charge the rechargeable Nickel-Metal-Hydride battery used in
this equipment in any charger other than the one designed to charge
this battery as specified in the owner’s manual. Using another charger
may damage the battery or cause the battery to explode.
Rechargeable Nickel-Metal-Hydride Batteries
Must Be Recycled or Disposed of Properly
Uniden works to reduce lead content in our PVC coated cords in our
product and accessories.
WARNING: The cords on this products and/or
accessories contain lead, a chemical known to the
State of California to cause birth defects or other
reproductive harm. Wash hands after handling.
Important Safety Instructions
When using your telephone equipment, these basic safety precautions
should always be followed to reduce the risk of fire, electrical shock,
and injury to persons:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Use a dry
cloth for cleaning without liquid or aerosol cleaners.
4. Do not place this product on an unstable cart, stand, or table.
The telephone may fall, causing serious damage to the unit.
5. This product should never be placed near or over a radiator or heat
register. This product should not be placed in a built-in installation
unless proper ventilation is provided.
6.
This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
7. Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be damaged by persons walking on it.
8. Do not overload wall outlets and extension cords, as this can result
in the risk of fire or electrical shock.
9. Never push objects of any kind into this product through cabinet
slots, as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electric shock. Never spill liquid
of any kind on the base unit.
10.
To reduce the risk of electric shock, do not disassemble this product. Take it to
qualified service personnel when service or repair work is required. Opening or
removing covers may expose you to dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.
11.Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power supply cord is damaged or frayed.
B. If liquid has been spilled into the base unit.
C. If the base unit has been exposed to rain or water.
D. If the product does not operate normally when following the
operating instructions. (Adjust only those controls that are
covered by the operating instructions. Improper adjustment of
other controls may result in damage and will often require
extensive repair work by a qualified technician.)
E.
If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
12.Do not use the telephone to report a gas leak in the vicinity
of the leak.
13.
While the handset is submersible to JIS7 Specs to reduce the risk of fire,
electrical shock or damage to the unit, do not expose the interior of the
phone to moisture. Also, the rubber seal between the plastic housing is
subject to wear and aging. The product seal should be kept clean and
replaced every 2 years, depending on the exposure to harsh environments.
Contact Uniden Parts & Repair at 1-800-554-3988 or send your product
to Uniden Parts & Repair, 4700 Amon Carter Blvd., Ft. Worth, TX 76155.
Additional Battery Safety Precautions
Caution! To reduce the risk of fire or injury to persons by the
battery, read and follow these instructions:
1. Use only the Uniden battery pack specified in the owner’s manual.
2. Do not dispose of the battery pack in a fire. The cell may explode.
Check the Nickel-Metal-Hydride battery disposal package insert for
disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be toxic
if swallowed.
4. Exercise care in handling the battery in order not to short the
battery with conducting materials such as rings, bracelets, and keys.
The battery or conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this
product only in accordance with the instructions and limitations
specified in the owner’s manual provided for this product.
6. Observe proper polarity orientation between the battery pack and
battery charger.
SAVE THESE INSTRUCTIONS!
Important Electrical Considerations
Unplug all electrical appliances when you know an electrical storm is
approaching. Lightning can pass through your household wiring and
damage any device connected to it. This phone is no exception.
The FCC Wants You To Know
Changes or modifications to this product not expressly approved by
Uniden, or operation of this product in any way other than as detailed
by the owner’s manual, could void your authority to operate this
product. Your telephone compiles with Part 68 of FCC Rules. You must,
upon request, provide the FCC registration number and the REN to your
telephone company. Both numbers are on the base unit.
NOTE: You must not connect your phone to:
• coin-operated systems
• most electronic key telephone systems
Range
Your new phone is designed to achieve the maximum possible range by
transmitting and receiving according to the highest specifications set
forth by the FCC. We have rated this phone to operate at a maximum
distance with the qualification that the range depends upon the
environment in which the telephone is used. Many factors limit range,
and it would be impossible to include all the variables in our rating.
The Maximum Range rating of this phone is meant to be used as a
means of comparison against other range claims.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 43
![](/img.php?id=325968&img=bg2c.png)
ADDITIONAL INFORMATION[ 44 ] www.uniden.com
Telephone Line Problems
The FCC has granted the telephone company the right to disconnect
service in the event that your phone causes problems on the telephone
line. Also, the telephone company may make changes in facilities and
services which may affect the operation of your unit. However, your
telephone company must give adequate notice in writing prior to such
actions to allow you time for making necessary arrangements to
continue uninterrupted service.
If you are having trouble with your telephone service, you must first
disconnect your phone to determine if it is the cause of your problem.
If you determine that it is the cause, you must leave it disconnected
until the trouble has been corrected.
Radio Interference
Radio interference may occasionally cause buzzing and humming in your
cordless handset, or clicking noises in the base. This interference is
caused by external sources such as TV, refrigerator, vacuum cleaner,
fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE.
If these noises continue and are too distracting, please check around
your home to see what appliances may be causing the problem.
In addition, we recommend that the base not be plugged into a circuit
that also powers a major appliance because of the potential for
interference. In the unlikely event that you consistently hear other
voices or distracting transmissions on your phone, you may be receiving
radio signals from another cordless telephone or other source of
interference. If you cannot eliminate this type of interference, you need
to change to a different channel.
Finally, it should be noted that some cordless telephones operate at
frequencies that may cause interference to nearby TVs and VCRs.
To minimize or prevent such interference, the base of the cordless
telephone should not be placed near or on top of a TV or VCR.
If interference is experienced, moving the cordless telephone farther
away from the TV or VCR will often reduce or eliminate the interference.
More Than One Cordless Telephone
If you want to use more than one cordless telephone in your home,
they must operate on different channels. Press the channel key to select
a channel that provides the clearest communication.
Cordless Telephone Privacy
Cordless telephones are radio devices. Communications between the
handset and base of your cordless telephone are accomplished by means
of radio waves which are broadcast over the open airways. Because of
the inherent physical properties of radio waves, your communications
can be received by radio receiving devices other than your own cordless
telephone unit. Consequently, any communications using your cordless
telephone may not be private.
Installation Considerations
Selecting a Location
Before choosing a location for your new phone, there are some
important guidelines you should consider:
•The location should be close to both a phone jack and continuous
power outlet. (A continuous power outlet is an AC outlet which does
not have a switch to interrupt its power.)
•Keep the base and handset away from sources of electrical noise
such as motors or fluorescent lighting.
•The base can be placed on a desk or tabletop or mounted on a
standard telephone wall plate.
•You should charge your new phone for 15-20 hours before
completing the installation or using the handset.
Telephone Line Outlets
There are two types of phone outlets:
Modular Jack
Most phone equipment available now uses modular jacks. Phone cords
are fitted with a molded plastic connector which plugs into this type
of jack. If you do not have modular phone jacks, contact your local
telephone company for information about their installation.
Hardwired Jack
Some equipment is wired directly to a phone jack, and these types of
installations require a modular jack converter. This type of installation
is not difficult; however, you should contact your Uniden telephone
dealer or a telephone supply store for advice about the proper adapter
or converter for your particular situation.
Connecting the Telephone Cords
Consider these safety guidelines before connecting the telephone cords:
Caution!
• Never install telephone wiring during a lightning storm.
• Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected.
• Use caution when installing or modifying telephone lines.
Applying Power to the Base
This phone requires an AC outlet, without a switch to interrupt power,
and the included AC adapter. To relieve strain on the DC plug when the
phone is placed on a desk or table, wrap the power cord around the
strain relief notch on the back of the base.
NOTE: Place the power cord so that it does not create a trip
hazard, or where it could become chafed and create a
fire or other electrical hazards.
One Year Limited Warranty
Important:Evidence of original purchase is required for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original
retail owner, this Uniden Product to be free from defects in materials
and craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate
and be of no further effect 12 months after the date of original retail
sale. The warranty is invalid if the Product is (A) damaged or not
maintained as reasonable or necessary, (B) modified, altered, or used as
part of any conversion kits, subassemblies, or any configurations not
sold by Uniden, (C) improperly installed, (D) serviced or repaired by
someone other than an authorized Uniden service center for a defect or
malfunction covered by this warranty, (E) used in any conjunction with
equipment or parts or as part of any system not manufactured by
Uniden, or (F) installed or programmed by anyone other than as
detailed by the owner’s manual for this product.
STATEMENT OF REMEDY: In the event that the product does not conform
to this warranty at any time while this warranty is in effect, warrantor
will either, at its option, repair or replace the defective unit and return
it to you without charge for parts, service, or any other cost (except
shipping and handling) incurred by warrantor or its representatives in
connection with the performance of this warranty. Warrantor, at its
option, may replace the unit with a new or refurbished unit. THE
LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE
WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER,
WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS
WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR
PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do
not allow this exclusion or limitation of incidental or consequential
damages so the above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state. This warranty
is void outside the United States of America and Canada.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after
following the instructions in the owner’s manual you are certain that
the Product is defective, pack the Product carefully (preferably in its
original packaging). The Product should include all parts and accessories
originally packaged with the Product. Include evidence of original
purchase and a note describing the defect that has caused you to return
it. The Product should be shipped freight prepaid, by traceable means,
to warrantor at: Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd. Fort Worth, TX 76155
(800) 297-1023, 8 a.m. to 5 p.m. Central, Monday through Friday
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 44
![](/img.php?id=325968&img=bg2d.png)
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 45 ]www.uniden.com
I.C. Notice
TERMINAL EQUIPMENT
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications.
This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies
that registration was performed based on a Declaration of Conformity indicating that Industry Canada
technical specifications were met. It does not imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment
itself. The REN assigned to each terminal equipment provides an indication of the maximum number of
terminals allowed to be connected to a telephone interface. The termination on an interface may consist
of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed five.
RADIO EQUIPMENT
The term “IC:” before the radio certification number only signifies that Industry Canada technical
specifications were met.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device. “Privacy of communications may not be ensured when using this telephone”.
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 45
![](/img.php?id=325968&img=bg2e.png)
ADDITIONAL INFORMATION[ 46 ] www.uniden.com
A
AC adapter information ...................................... 42
Adjusting ringer and earpiece volume.................... 20
B
Battery pack
Activate..........................................................9
Information .................................................. 42
Maintenance.................................................. 38
Preparing and charging .................................. 12
Replacement and handling .............................. 38
Beltclip installation .......................................... 37
C
Caller ID
Caller ID service .............................................. 32
Call Waiting.................................................. 22
Deleting ...................................................... 34
Setting Caller ID options ................................ 15
Using .......................................................... 35
Viewing........................................................ 33
Channel .......................................................... 22
Connection ...................................................... 12
D
Dial mode........................................................ 17
Digital security code ........................................ 37
E, F, G, H
Earpiece volume................................................ 20
General information .......................................... 42
I, J, K, L
I.C. Notice ...................................................... 45
Interference .................................................... 44
Language ........................................................ 18
M, N, O
Maintenance .................................................... 38
Making a call .................................................. 19
Memory dialing
Editing a stored name
and/or phone number .................................... 27
Erasing a stored name
and phone number.......................................... 29
Making calls with memory dialing...................... 26
Storing phone
numbers and names........................................ 23
Mounting on a wall .......................................... 13
P, Q
Package contents................................................ 3
Paging............................................................ 22
Precautions...................................................... 43
Quick reference guide.......................................... 3
R
Receiving a call................................................ 19
Redialing a call .......................................... 19, 20
Ringer tone and volume .................................... 20
RocketDial ...................................................... 30
S
Setting menu options ........................................ 15
Setting up the handset........................................ 9
Setting up the phone .......................................... 8
T, U, V, W, X, Y, Z
Technical information ........................................ 42
Troubleshooting................................................ 39
Warranty ........................................................ 44
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 46
![](/img.php?id=325968&img=bg2f.png)
At Uniden, we´ll take care of you!
If you need any assistance with this product, please call our Customer Hotline at
1-800-297-1023
PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
Our Uniden representatives will be happy to help you with any matters regarding
the operation of this unit, available accessories, or any other related matters.
Thank you for purchasing a Uniden product.
Hours: M-F 8:00 AM to 5:00 PM CST.
For information on the accessibility features of this product, please call
1-800-874-9314 (V/TTY)
?
Accessibility
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 47
![](/img.php?id=325968&img=bg30.png)
Back cover
UC393BH (WXI377) OM 4/30/03 11:40 AM Page 48
