Owner’s Manual
Printed in Vietnam
U01UT407ZZZ(0)
®
PC78LTD
![](/img.php?id=2729649&img=bg2.png)
CUSTOMER CARE
At Uniden®, we care about you!
If you need assistance, please do NOT return this product to your place of
purchase. Our customer care specialists are available to serve you.
Quickly find answers to your questions by:
1. Reading your owner’s manual.
2. Visiting our customer support website at www.uniden.com.
3. Calling our customer care specialists at 1-800-658-8068.
Images in this manual may dier slightly from your actual product.
Save your receipt/proof of purchase for warranty.
© 2015. All rights allowed by law are hereby reserved.
Uniden is a registered trademark of Uniden America Corporation.
Bearcat is a registered trademark of Uniden America Corporation.
Features, specifications, and availability of optional accessories are all subject to change without notice.
CONTENTS
DESCRIPTION .............................................................................. 5
EMERGENCY OPERATIONS .......................................................................... 5
WHAT’S IN THE BOX ...................................................................................... 5
FRONT VIEW .................................................................................................. 6
REAR VIEW ..................................................................................................... 7
INSTALLATION ............................................................................ 7
MOBILE INSTALLATION ................................................................................ 7
Mobile Antenna ........................................................................................... 8
Connecting the Power Cords....................................................................... 8
Ground Information .................................................................................... 9
USING YOUR PC78LTD ............................................................. 10
TURN PC78LTD ON/OFF ............................................................................. 10
CB MODE ...................................................................................................... 10
PA MODE ...................................................................................................... 10
HI CUT/OFF .................................................................................................. 11
TO TRANSMIT/RECEIVE .............................................................................. 11
MULTI-FUNCTION METER .......................................................................... 11
PREVENTIVE MAINTENANCE .................................................. 12
MAINTENANCE ......................................................................... 12
TROUBLESHOOTING ................................................................ 13
SPECIFICATIONS ....................................................................... 13
RADIO CODE DEFINITIONS ..................................................... 15
10-CODES ..................................................................................................... 15
SAFETY NOTICE ........................................................................ 16
ONE-YEAR EXTENDED WARRANTY ........................................ 17
![](/img.php?id=2729649&img=bg3.png)
CONTENTS
DESCRIPTION .............................................................................. 5
EMERGENCY OPERATIONS .......................................................................... 5
WHAT’S IN THE BOX ...................................................................................... 5
FRONT VIEW .................................................................................................. 6
REAR VIEW ..................................................................................................... 7
INSTALLATION ............................................................................ 7
MOBILE INSTALLATION ................................................................................ 7
Mobile Antenna ........................................................................................... 8
Connecting the Power Cords....................................................................... 8
Ground Information .................................................................................... 9
USING YOUR PC78LTD ............................................................. 10
TURN PC78LTD ON/OFF ............................................................................. 10
CB MODE ...................................................................................................... 10
PA MODE ...................................................................................................... 10
HI CUT/OFF .................................................................................................. 11
TO TRANSMIT/RECEIVE .............................................................................. 11
MULTI-FUNCTION METER .......................................................................... 11
PREVENTIVE MAINTENANCE .................................................. 12
MAINTENANCE ......................................................................... 12
TROUBLESHOOTING ................................................................ 13
SPECIFICATIONS ....................................................................... 13
RADIO CODE DEFINITIONS ..................................................... 15
10-CODES ..................................................................................................... 15
SAFETY NOTICE ........................................................................ 16
ONE-YEAR EXTENDED WARRANTY ........................................ 17
4
![](/img.php?id=2729649&img=bg5.png)
5
DESCRIPTION
Your Uniden PC78LTD is a high-quality communications device designed
for use in the Citizens Band Radio Service. It will operate on any of the 40
AM frequencies authorized by the Federal Communications Commission
(FCC).
The Citizens Band Radio Service is under the jurisdiction of the Federal
Communications Commission (FCC). Any adjustments or alterations
which would alter the performance of the transceiver’s original FCC type
acceptance, or which would change the frequency determining method,
are strictly prohibited. Replacement or substitution of crystal, transistors,
ICs, regulator diodes, or any other part of a unique nature, with parts
other than those recommend by Uniden, may cause violations of the
technical regulations in Part 95 of the FCC Rules or in violation of type
acceptance requirements in Part 2 of the rules.
EMERGENCY OPERATIONS
1. Set the switch to CH9 or turn Channel Selector knob to Channel 9.
2. Press the microphone PTT switch and speak clearly.
3. If there is no response, select an active channel and ask that party
to relay your emergency broadcast on Channel 9.
All channels except Channel 9 may be used for normal communication.
Channel 9 is reserved by the FCC for emergency communication
involving the immediate safety of individuals or protection of property.
Channel 9 may also be used to render assistance to others.
This is an FCC rule and applies to all operators of CB radios.
WHAT’S IN THE BOX
Carefully unpack your PC78LTD and check the contents against this list:
PC78LTD
CB 2-way mobile radio
Microphone
Mounting Bracket Kit
DC Power Cord
Owner’s Manual
Part 95 Subpart D (FCC Rules)
![](/img.php?id=2729649&img=bg6.png)
6
If any items are missing or damaged, contact our Customer Care Line
immediately at 1-800-658-8068.
Never use damaged products!

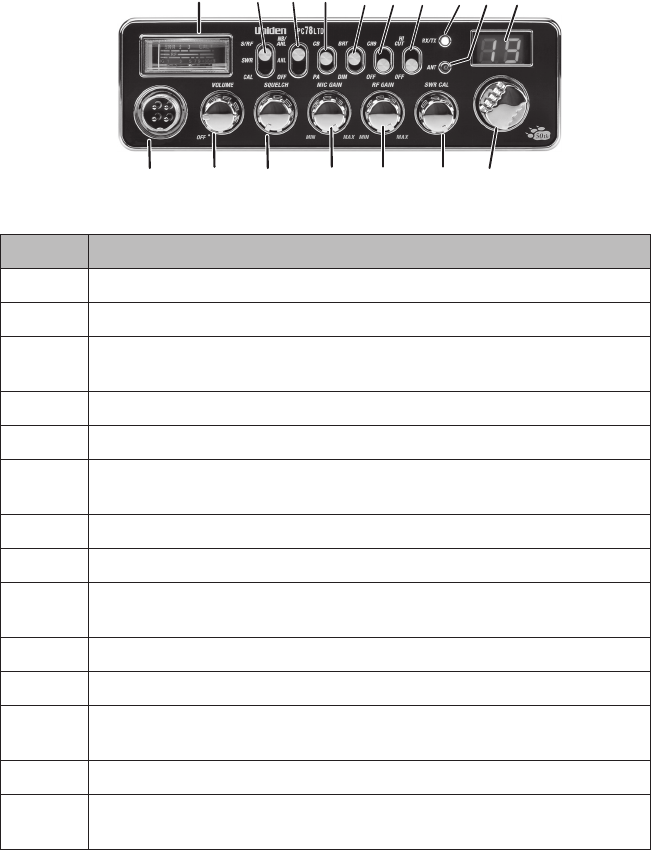

FRONT VIEW
Item Denition
1Microphone jack
2ON OFF - VOLUME: Turns radio on or o; adjusts speaker volume.
3SQUELCH: Reduces background noise when there is no incoming
signal.
4MIC GAIN knob: Adjusts microphone sensitivity
5RF GAIN knob: Improves reception in strong signal areas.
6SWR CAL: Calibrates the meter for Standing Wave Ratio (SWR)
measurements. (See page 11.)
7Channel knob: Selects channel.
8Channel Display: Displays current channel selection
9ANT LED: Indicates a high SWR condition in antenna system.
Check antenna, cable, and connections.
10 RX/TX LED: Red-transmitting; green-receiving.
11 HI CUT/OFF switch: When turned on, cuts high audio frequencies.
12 CH9/OFF switch: Instantly tunes to emergency CB Channel 9. Turn
o to resume normal channel operations.
13 BRT/DIM switch: Adjusts the LED brightness
14 CB/PA: Selects CB (Citizen’s Band) or PA (Public Address).
Do not use PA function unless an external speaker is connected.
621 5 7
16 91112131415
17 810
43
![](/img.php?id=2729649&img=bg7.png)
7
Item Denition
15 NB/ANL/ANL/OFF switch: Reduces external noise and interfer-
ence from vehicle ignition systems.
16 S/RF/SWR/ CAL switch: Selects meter function. S/RF- normal;
SWR and CAL are for SWR measurements only. See page 11 for
calibration procedures.
17 Multi-function meter: Measures SWR, RF and S signal strength.

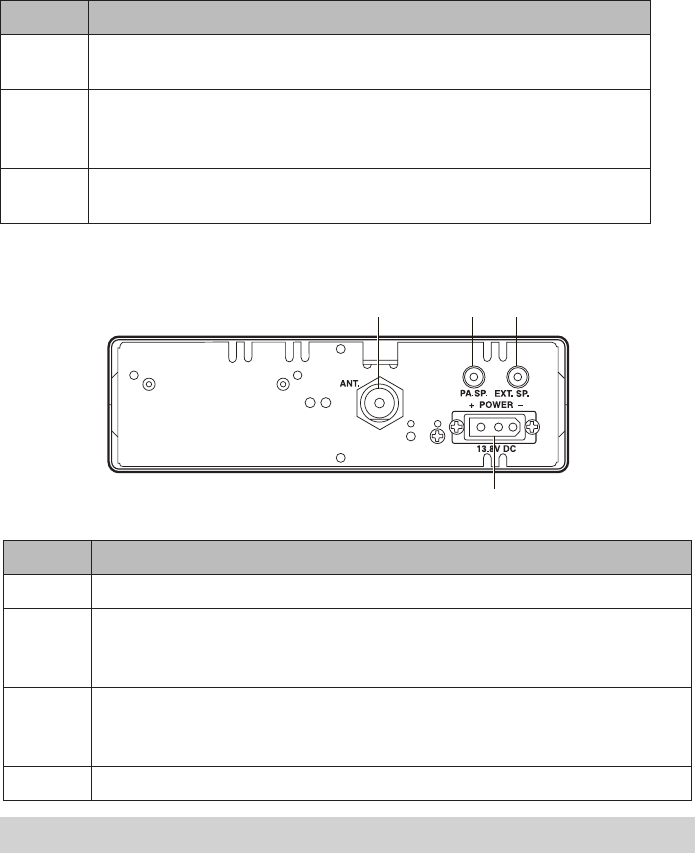

REAR VIEW
18
21
2019
Item Denition
18 Antenna socket: Connects antenna cable to transceiver.
19 PA SP. jack: Connects external 8-ohm, 4-watt speaker.
To prevent acoustic feedback, separate the microphone from the
speaker when operating the PA at high output levels.
20 EXT. SP. jack: Connects optional 8-ohm 4-watt speaker to remotely
monitor the receiver.
When the external speaker is plugged in, the internal speaker is o.
21 POWER connector: Connects DC power to transceiver
INSTALLATION
MOBILE INSTALLATION
Plan the location of the transceiver and microphone bracket before
beginning installation.
1. Select a location that is convenient for operating the radio, but
does not interfere with the driver or passenger.
8
2. Install bracket with self-tapping screws provided.
3. Connect power cords (see page 8).
4. Attach the microphone bracket to the side of the radio.
5. Attach radio to bracket.
Mobile Antenna
WARNING! The antenna used for this radio must be installed at least 17.4
inches (44 cm) away from all persons. The antenna must not be collocated
or used with any other antenna or transmitter.
CAUTION: Never operate your radio with no antenna or with a damaged
antenna cable. This can damage the radio.
You must purchase an antenna to operate this radio. Because the
maximum power output of the transmitter is limited by the FCC, the
quality of your antenna is very important. To achieve the maximum
transmission distance, Uniden strongly recommends that you install only
a high quality antenna. You have just purchased a superior transceiver -
don’t diminish its performance by installing an inferior antenna.
Only a properly matched antenna system will allow maximum power
transfer from the 50 ohm transmission line to the radiating element.
Your Uniden dealer is qualified to help you select the proper antenna for
your requirements. A whip style antenna may be used for automobile
installation.
A short ‘loaded’ whip antenna is easier to install on an automobile, but its
efficiency is less than that of a full quarter-wave whip antenna.
Connecting the Power Cords
Uniden recommends connecting the power lead to the Ignition Switch
Accessory Terminal. This way, the transceiver is automatically turned off
when the ignition switch is turned off.
As an alternative, the power cord may be connected to an available
terminal on the fuse block or to a point in the wiring harness. However,
take care to prevent a short circuit. If in doubt, contact your vehicle
dealer for information.
![](/img.php?id=2729649&img=bg9.png)
9
This transceiver may be installed and used in any 12-volt DC negative
ground system vehicle.
Ground Information
Most newer U.S. and foreign made cars and small trucks use a negative
ground system. Some older cars, and some new large trucks, use a
positive ground system.
With a negative ground system, the negative (-) battery terminal is
usually connected to the vehicle motor block. If you cannot determine
the polarity system of your vehicle, contact your vehicle dealer for
information.
Negative Ground System
For negative ground systems, connect the red DC power cord from the
transceiver to the positive (+) battery
terminal or other convenient point.
Then connect the black power cord
to the vehicle chassis or negative (-)
battery terminal.
![](/img.php?id=2729649&img=bga.png)
10
USING YOUR PC78LTD
TURN PC78LTD ON/OFF
Turn the VOLUME knob clockwise until the unit turns on and the display
backlight turns on.
Turn the VOLUME knob counter-clockwise to turn the unit off.
CB MODE
Be sure that the power source, antenna, and microphone are properly
connected before proceeding.
1. Turn the unit on. Set the volume to a comfortable level.
2. Set switch to CB.
3. Turn the CH knob to select a CB channel.
4. Set noise limitations switch to NB/ANL.
5. Adjust squelch.
• Adjust SQUELCH knob fully clockwise so only strong signals
can get through.
• Adjust SQUELCH knob fully counter-clockwise until you hear
a hiss. Everything gets through - noise, weak signals, and
strong signals.
• Slowly adjust SQUELCH knob back clockwise until the hiss
stops. Only clearer signals get through.
Set SQUELCH only when the radio is not receiving a strong signal.
6. Press and hold PTT and check the multifunction meter. It will
show the RF output power.
7. Adjust RF GAIN knob set RF Gain sensitivity. Normally, the knob is
turned clockwise to maximum.
8. Set the brightness (BRT or DIM).
9. Set meter switch to S/RF.
PA MODE
Using the PA mode requires an optional speaker.
1. Switch to PA.
2. Press and hold PTT to speak.
11
3. Release when nished.
To prevent acoustic feedback, separate the microphone from the speaker
when operating the PA at high output levels.
If you are in PA mode but not pressing PTT, the radio receives CB
transmissions and transmits them through the PA speaker. You cannot
respond to the transmission.
HI CUT/OFF
The Hi Cut function reduces high frequencies. Switch to HI CUT to turn
off higher frequencies.
TO TRANSMIT/RECEIVE
Perform a voltage Standing Wave Ratio (SWR) measurement prior to using
the transmitter. An SWR ratio in excess of 2:1 may damage the transmitter.
Be sure to read and understand Part 95, FCC Rules and Regulations before
operating your transmitter.
1. Select a channel.
2. Adjust MIC GAIN.
3. When the channel is clear, press the microphone PTT and speak.
4. Release PTT when you are nished speaking to listen for the
response.
MULTI-FUNCTION METER
SWR Meter: Measures the standing wave ratio (SWR) of the antenna. Use
this meter to check the antenna system or to adjust your antenna to the
proper length.
To Measure SWR:
1. Set the meter switch to CAL.
2. Press and hold microphone PTT switch (Transmit).
3. Calibrate meter with SWR CAL knob by adjusting the needle to
the ▼ mark.
4. Move the meter switch to the SWR position while pressing the
microphone PTT switch.
5. Release the PTT switch.
![](/img.php?id=2729649&img=bgc.png)
12
A reading less than two is acceptable. Higher readings indicate a problem
in the antenna system. Problems may be caused by humidity, vibration,
a mistuned antenna, or corrosion. Check both ends of the coaxial cable
connector. Also check for damage to the cable or antenna. Tune the
antenna according to the instructions that came with the antenna.
RF Meter: Measures RF Output Power for transmitter. To use,
set the
meter switch at S/RF. Press microphone PTT switch to read transmitting
power.
S-Meter: Measures incoming signal strength. To use,
set the
meter switch
at S/RF. The meter swings to indicate signal strength.
i.e. S 3, S 5, S 7 . . .
PREVENTIVE MAINTENANCE
Every six months:
1. Check the Standing Wave Ratio (SWR). See page 11.
2. Be sure all electrical connections are tight.
3. Inspect antenna coaxial cable for wear or breaks in shielding.
4. Be sure all screws and mounting hardware are tight.
MAINTENANCE
The PC78LTD is designed to give you years of trouble-free service. There
are no user-serviceable parts inside. Except for the fuse in the DC power
cord, no maintenance is required.
To replace a blown fuse:
1. Press ends of the fuse holder together. Twist to open.
2. Carefully separate the two pieces.
3. Remove the fuse and inspect. If blown, replace with the same
type fuse. Use only the fuse specied for your
PC78LTD
. Failure to
do so may void your warranty.
![](/img.php?id=2729649&img=bgd.png)
13
TROUBLESHOOTING
In the event of system malfunction, perform the following procedures:
Problem Suggestion
Unit does not power up Check the ignition key position.
Check power cord connections.
Check fuse.
Check vehicle electrical system.
No reception Check microphone connection.
Set CB/PA to CB.
Check VOLUME and SQUELCH.
Check antenna.
Check antenna connection.
Adjust RF Gain.
Poor Reception Check VOL and SQ.
Be sure antenna SWR is normal.
Adjust RF Gain.
No Transmission Set CB/PA switch to CB.
Check microphone connection.
Adjust MIC Gain.
Low Transmission Be sure antenna SWR is normal.
Adjust MIC Gain.
Calibration does not move the
meter needle to the left side
Adjust the antenna length.
Check all antenna connections.
If you do not get satisfactory results after performing these checks, call
the Uniden Customer Service Center at 1-800-297-1023, 8:00 a.m. to 4:30
p.m. CST, Monday through Friday.
SPECIFICATIONS
GENERAL
Channel: 40
CB Frequency Range: 26.965 - 27.405 MHz
Frequency Control: PLL synthesizer
Antenna Impedance 50 ohms
Frequency Tolerance: ±0.002%
Operating Temperature: CB: -22°F to 140°F (-30°C to 60°C)
Microphone: Plug-in type; 600 ohms dynamic
Power Input : 13.8VDC
14
Current Drain: TX: AM Full Modulation: 2.2A (max)
RX: Squelched, 0.4 A; with maximum audio
output, 1.2A (nominal)
Size (W x D x H): 7-9/32 in. x 7-51/64 in. x 2-13/64 in.
(without knobs and jacks)
Weight: 3 lb with microphone
Antenna Connector: UHF, SO-239
TRANSMITTER
Power Output: 4 watts
Modulation: High- and Low-Level, Class B amplitude
modulation
Frequency Tolerance ± 0.002%
Frequency Response: 300 - 3000 Hz
Spurious Rejection -70dB
Output Impedance: 50 ohm, unbalanced
RECEIVER
Sensitivity at 10 dB (S+N)/N: <1 µV for 10 dB, (S+N)/N
Selectivity: 6 dB @ 7 kHz; 60 dB @ 10 kHz
Image Rejection: 80 dB typical
Adjacent-CH Rejection: 60 dB typical
IF Frequencies: Double Conversion: 1st: 10,695 MHz
2nd: 455 kHz
Automatic Gain Control: Less than 10 dB change in audio output for
inputs from 10 to 50,000 µV.
RF Gain Control: Adjustable for optimum signal reception
Noise Blanker: RF type
Squelch: Adjustable; threshold <1 µV
Audio Output Power: 4 Watts
Frequency Response: 300 to 3000 Hz
Distortion: Less than 7% at 3 Watts, 1000 Hz
Internal Speaker: 16 oms, round
External Speaker (not supplied): 8 ohms; disables internal speaker when
connected
Antenna Impedence 50 ohms
Squelch Tight 1000 µV
Signal Meter S-9: 100 µV
![](/img.php?id=2729649&img=bgf.png)
15
PA SYSTEM
Power Output: 4 Watts into external speaker
External Speaker for PA Speaker (not
supplied):
8 ohms when CB/PA switch in in PA. The PA
also monitors the receiver; separate jack
provided.
Specications shown are typical and subject to change without notice.
RADIO CODE DEFINITIONS
10-CODES
The following list contains common “10-Codes” used by CB radio
operators for faster communication and better understanding.
Code Meaning Code Meaning
10-1 Received poorly 10-34 Trouble at this station
10-2 Receiving well 10-35 Condential information
10-3 Stop transmitting 10-36 Correct time is
10-4 OK, message received 10-37 Wrecker needed at
10-5 Relay message 10-38 Ambulance needed at
10-6 Busy, stand by 10-39 Your message is delivered
10-7 Out of service, leaving air 10-41 Please turn to channel
10-8 In service, subject to call 10-42 Trac accident at
10-9 Repeat message 10-43 Trac tie up at
10-10 Transmission completed,
standing by
10-44 I have a message for you
10-11 Talking too rapidly 10-45 All units within range please
report
10-12 Visitors present 10-50 Break channel
10-13 Advise Weather/ Road
conditions
10-60 What is next message number
10-16 Make pickup at 10-62 Unable to copy, use phone
10-17 Urgent business 10-63 Net directed to
10-18 Anything for us? 10-64 Net clear
![](/img.php?id=2729649&img=bg10.png)
16
Code Meaning Code Meaning
10-19 Nothing for you, return to
base
10-65 Awaiting your next message/as-
signment
10-20 My location is 10-67 All units comply
10-21 Call by telephone 10-70 Fire at
10-22 Report in person to 10-71 Proceed with transmission in
sequence
10-23 Stand by 10-77 Negative contact
10-24 Completed last assignment 10-81 Reserve hotel room for
10-25 Can you contact 10-82 Reserve room for
10-26 Disregard last information 10-84 My telephone number is
10-27 I am moving to channel 10-85 My address is
10-28 Identify your station 10-91 Talk closer to microphone
10-29 Time is up for contact 10-93 Check my frequency on this
channel
10-30 Does not conform to FCC
rules
10-94 Please give me a long count
10-32 I will give you a radio check 10-99 Mission completed, all units
secure
10-33 EMERGENCY TRAFFIC 10-200 Police needed at
If you do not get satisfactory results after performing the above checks,
call the Uniden Customer Service Center at 1-800-297-1023, 8:00 a.m. to
4:30 p.m. CST, Monday through Friday.
SAFETY NOTICE
The antenna used for this radio must be properly installed and
maintained and must provide a separation distance of at least 44 cm
(17.4 inches) from all persons and must not be collocated or operated in
conjunction with any other antenna or transmitter. Never transmit if any
person is closer than the specified distance to the antenna.
Note that Uniden does not specify or supply any antenna with this
transceiver. While a 0 dBi gain antenna is normal for a typical installation,
the above limit applies to any antenna with up to 3 dBi gain.
![](/img.php?id=2729649&img=bg11.png)
17
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
Cet appareil est conforme la norme d’Industrie Canada exempt de licence
RSS (s). Son fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne peut pas provoquer d’interférences, et (2) cet appareil
doit accepter toute interférence, y compris les interférences qui peuvent
causer un mauvais fonctionnement de l’appareil.
Tous les changements apportés à cet appareil, s’ils ne sont pas
expressément approuvés par Uniden ou toute utilisation de celui-ci
d’une autre manière que celle décrite dans ce guide peut annuler votre
autorisation de le faire fonctionner.
Un guide d’utilisation en français peut être téléchargé à l’adresse
suivante :
http://www.uniden.com/.
ONE-YEAR EXTENDED WARRANTY
Important: Evidence of original purchase is required for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original
retail owner, this Uniden Product to be free from defects in materials and
craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate
and be of no further effect one year after the date of original retail sale.
The warranty is invalid if the Product is (A) damaged or not maintained
as reasonable or necessary, (B) modified, altered, or used as part of any
conversion kits, subassemblies, or any configurations not sold by Uniden,
(C) improperly installed, D) serviced or repaired by someone other than
an authorized Uniden service center for a defect or malfunction covered
by this warranty, (E) used in any conjunction with equipment or parts
18
or as part of any system not manufactured by Uniden, or (F) installed or
programmed by anyone other than as detailed by the owner’s manual for
this product.
STATEMENT OF REMEDY: In the event that the product does not conform
to this warranty at any time while this warranty is in effect, warrantor
will either, at its option, repair or replace the defective unit and return
it to you without charge for parts, service, or any other cost (except
shipping and handling) incurred by warrantor or its representatives
in connection with the performance of this warranty. Warrantor, at its
option, may replace the unit with a new or refurbished unit. THE LIMITED
WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY
PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES
ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER
EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING,
BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT
COVER OR PROVIDE FOR THE REIMBURSEMENT OR
PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states
do not allow this exclusion or limitation of incidental or consequential
damages so the above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state. This warranty is
void outside the United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after
following the instructions in the owner’s manual you are certain that
the Product is defective, pack the Product carefully (preferably in its
original packaging). The Product should include all parts and accessories
originally packaged with the Product. Include evidence of original
purchase and a note describing the defect that has caused you to return
it. The Product should be shipped freight prepaid, by traceable means, to
warrantor at:
Uniden America Corporation
C/O Saddle Creek
19
743 Henrietta Creek Road, Suite 100
Roanoke, TX 76262
(800) 297-1023, 8 a.m. to 5 p.m., Central, Monday through Friday
20
