VALEO Telematik und Akustik 2609-037-00X CAN controlled GSM phone / HA88 User Manual IM v10
Peiker acustic GmbH & Co. KG CAN controlled GSM phone / HA88 IM v10
Manual
![](/img.php?id=506114&img=bg1.png)
DOCUMENT NAME ISSUE DATE PAGE
IM-TPU/HA88 1.0 2004-11-01 1
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written IM 1
authorisation it shall not be copied or otherwise reproduced by a third party and shall not be disclosed to
competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
Installation Manual
TPU_WISMOQ24X6A-10C / HA88
CAN Controlled GSM Telephone Unit with handset HA88
MODIFICATION NATURE OF ALTERATION DATE SIGNATURE
Released Specification 2004-11-01 RI
![](/img.php?id=506114&img=bg2.png)
DOCUMENT NAME ISSUE DATE PAGE
IM-TPU/HA88 1.0 2004-11-01 2
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written IM 2
authorisation it shall not be copied or otherwise reproduced by a third party and shall not be disclosed to
competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
Notice:
This TPU (telephone unit) device contains 900/1800 MHz GSM (Q2406 version) or
850/1900MHz PCS (Q2426 version) functions, the Q2406 version is not
operational in U.S. Territories. This filing is only applicable for 850/1900 MHz PCS
operations.
The TPU generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
To ensure that the TPU complies with current FCC regulations and safety
requirements limiting both maximum RF output power and human exposure to
radio frequency radiation, use an antenna with a maximum gain of 2dBi and a
separation distance of at least 20 cm must be maintained between the unit's
antenna and the body of the user and any nearby persons at all times and in all
applications and uses.
Caution: (pertaining to FCC part 15.21)
Modifications not expressly approved by this company could void the user's
authority to operate the equipment
![](/img.php?id=506114&img=bg3.png)
DOCUMENT NAME ISSUE DATE PAGE
IM-TPU/HA88 1.0 2004-11-01 3
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written IM 3
authorisation it shall not be copied or otherwise reproduced by a third party and shall not be disclosed to
competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.

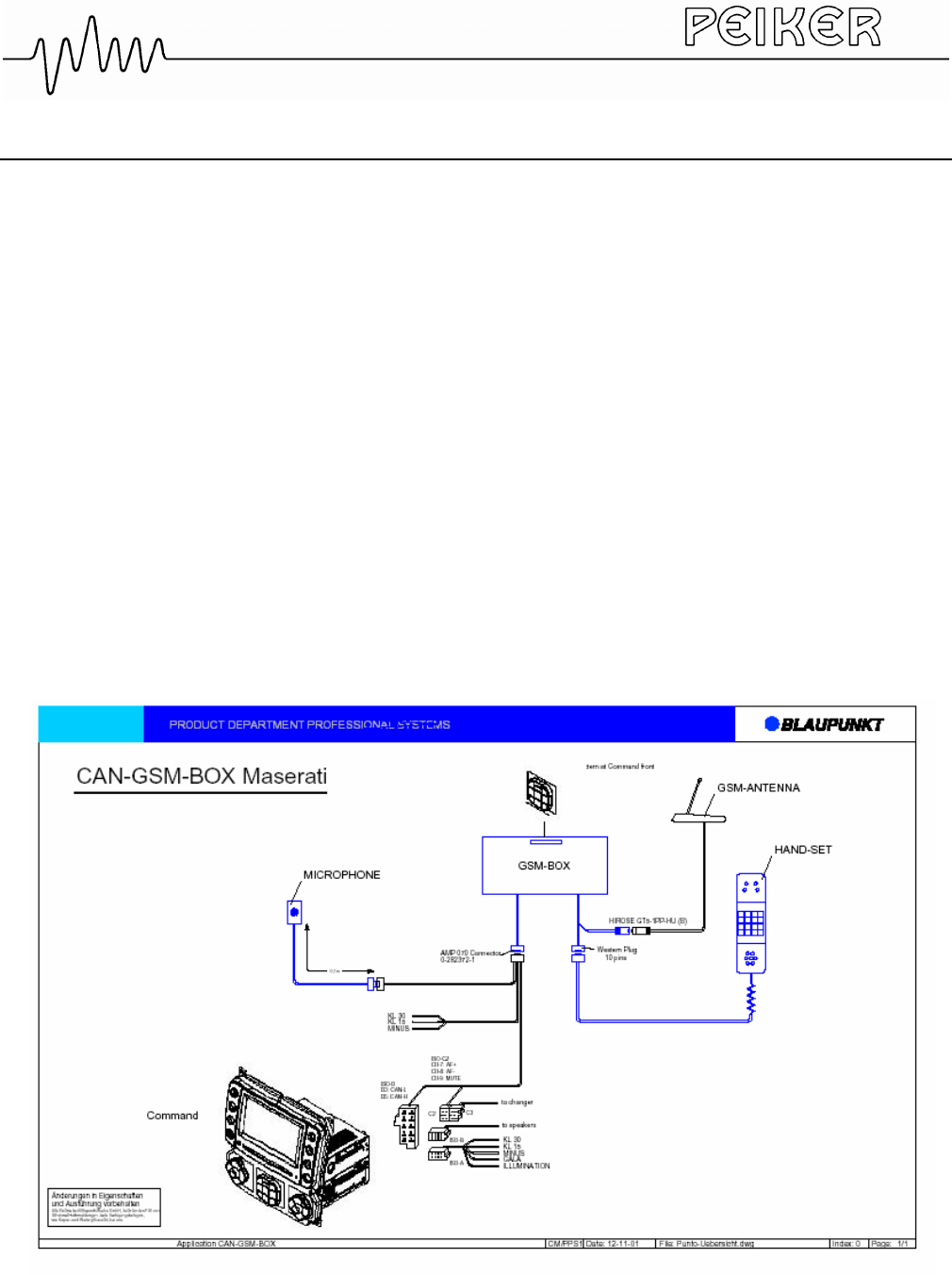

The GSM-box (TPU-WismoQ24X6A) is connected:
- directly to the GSM antenna via a HIROSE connector, the length of the coax
cable is 3m
- directly to the handset HA88 via western plug (the TPU supplies the
Handset)
- the SIM card reader is placed in the command unit
- the TPU will be supplied via an AMP connector, this connector interfaces also
the CAN bus system and to a microphone ( via connector 11)
- the loudspeakers are connected to a sound module and interfaces to the
TPU via the command unit.
![](/img.php?id=506114&img=bg4.png)
DOCUMENT NAME ISSUE DATE PAGE
IM-TPU/HA88 1.0 2004-11-01 4
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written IM 4
authorisation it shall not be copied or otherwise reproduced by a third party and shall not be disclosed to
competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
Antenna Specification
Connector: HIROSE
Coax Cable: 3m
ELECTRICAL CHARACTERISTICS
Frequency AMPS: 824 - 894
ETACS-GSM: 870 - 960 MHz
DCS: 1710 - 1880 MHz
PCS: 1850 – 1990 MHz
Nominal Impedance 50 Ω
VSWR AMPS (824 - 894 MHz) < 2
VSWR GSM (880 - 915 MHz) < 1,6
VSWR GSM (930 - 960 MHz) < 2
VSWR DCS (1710 - 1880 MHz) < 2
VSWR PCS (1850 - 1990 MHz) < 2
Power Handling 10 W
Peak Gain (in relation to λ/4) 0 ± 2 dB
![](/img.php?id=506114&img=bg5.png)
DOCUMENT NAME ISSUE DATE PAGE
IM-TPU/HA88 1.0 2004-11-01 5
The copyright protection of this original document remains with Peiker acustic GmbH & Co. KG. Without prior written IM 5
authorisation it shall not be copied or otherwise reproduced by a third party and shall not be disclosed to
competitors. The infringement shall be strictly enforced by applicable civil and criminal legal proceedings.
RADIATION PATTERN:
AMPS and GSM Frequencies
DCS and PCS frequencies
Polarization:
Vertical
Test Department
antenna:
RTZ
location:
Roof-Center
model:
Alfa 164
date:
(*)
The "0 dBi" level is the level received by the reference antenna (lambda/4)
placed on the roof in the same position of tyhe AUT
Avg:
dBi
(*)
dB Average Gain
-0,30
14/01/02
-20,00
-15,00
-10,00
-5,00
0,00
5,00
824 844 864 884 904 924 944 MHz
-40
-30
-20
-10
0
10 0
180
Polarization:
Vertical
Test Department
antenna:
RTZ
location:
Roof-center
model:
Alfa 164
date:
(*)
The "0 dBi" level is the level received by the reference antenna (lambda/4)
placed on the roof in the same position of tyhe AUT
Avg:
dBi
(*)
dB Average Gain
14/01/02
-1,49
-20,00
-15,00
-10,00
-5,00
0,00
5,00
1710 1760 1810 1860 1910 1960 MHz
-40
-30
-20
-10
0
10 0
180
