VeriFone Part Number DOC087-013-EN-A, Revision A.5
VERIFONE
CONFIDENTIAL
REVISION A.5
VX 600 for the iPhone 3G/3Gs
Installation Guide
![](/img.php?id=1405993&img=bg2.png)
All rights reserved. No part of the contents of this document may be reproduced or transmitted in any form without the written
permission of VeriFone, Inc.
The information contained in this document is subject to change without notice. Although VeriFone has attempted to ensure the
accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are
for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample program
before placing the software into productive use. This document, including without limitation the examples and software programs, is
supplied “As-Is.”
VeriFone, Inc.
2099 Gateway Place, Suite 600
San Jose, CA, 95110 USA
1-800-VERIFONE
www.verifone.com
VeriFone Part Number DOC087-013-EN-A, Revision A.5
VX 600 for the iPhone 3G/3Gs Installation Guide
© 2010 VeriFone, Inc.
VERIFONE
CONFIDENTIAL
REVISION A.5
VeriFone, the VeriFone logo, Omni, VeriCentre, and Verix are registered trademarks of VeriFone. Other brand names or trademarks
associated with VeriFone’s products and services are trademarks of VeriFone, Inc.
Apple, the Apple logo, and iPhone are registered trademarks of Apple Inc.
All other brand names and trademarks appearing in this manual are the property of their respective holders.
Comments? Please e-mail all comments on this document to your local VeriFone Support Team.
WARNING The VX 600 uses an internal lithium-ion polymer battery. Do not dispose the VX 600 in a fire.
lithium-ion polymer batteries must be recycled or disposed of properly. Do not dispose of
lithium-ion polymer batteries in municipal waste sites.
![](/img.php?id=1405993&img=bg3.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 3
VERIFONE
CONFIDENTIAL
REVISION A.5
CONTENTS
PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Conventions and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CHAPTER 1
Device Overview Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exceptional Ease of Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Performance and Durability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Contactless Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Communication Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CHAPTER 2
Device Setup Selecting a Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Personal Security Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Unpacking the Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Examining Device Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Micro-USB Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing/Removing an iPhone into the VX 600 . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing/Replacing MSAM Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Manual Startup and Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting the VX 600 to a
Power Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting the iPhone to a Host Computer via Micro-USB. . . . . . . . . . . . . . . . 18
Battery Behavior (No Power Cable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Conducting Wireless Transactions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using a Smart Card to Conduct Transactions (Optional) . . . . . . . . . . . . . . . . . . 20
Using the Magnetic Stripe Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the CTLS Reader (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using the Barcode Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
CHAPTER 3
Specifications Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
External Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CHAPTER 4
Maintenance Cleaning the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Device Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
![](/img.php?id=1405993&img=bg4.png)
CONTENTS
4VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
CHAPTER 5
VeriFone Service
and Support Returning a Device for Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessories and Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
CHAPTER 6
Troubleshooting
Guidelines Device Does Not Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Device Display Does not Show Correct/Readable Info . . . . . . . . . . . . . . . . . . . 29
Blank Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Keypad Does Not Respond . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Transactions Fail To Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
![](/img.php?id=1405993&img=bg5.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 5
VERIFONE
CONFIDENTIAL
REVISION A.5
PREFACE
This guide is your primary source of information for setting up the VX 600.
Audience
This guide is useful for anyone installing a VX 600 device. Basic descriptions of
the device features are also provided.
Organization
This guide is organized as follows:
Chapter 1, Device Overview. Provides an overview of the VX 600.
Chapter 2, Device Setup. Explains how to set up and install an iPhoneinto the VX
600. It tells you how to select a location, establish power connection, and install
SIM and MSAM cards.
Chapter 3, Specifications. Discusses power requirements and dimensions of the
VX 600.
Chapter 4, Maintenance. Explains how to maintain your VX 600.
Chapter 5, VeriFone Service and Support. Provides information on how to contact
your local VeriFone representative or service provider, and information on how to
order accessories or documentation from VeriFone.
Chapter 6, Troubleshooting Guidelines. Provides troubleshooting guidelines,
should you encounter a problem in device installation.
Related
Documentation
To learn more about the VX 600, refer to the following set of documents:
VX 600 Certifications and Regulations Sheet VPN DOC087-011-EN-A
VX 600 Quick Installation Guide VPN DOC087-012-EN-A
VX 600 Reference Manual VPN DOC087-014-EN-A
VX 600 Web site www.paywaremobile.com
![](/img.php?id=1405993&img=bg6.png)
PREFACE
Conventions and Acronyms
6VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Conventions and
Acronyms
This section describes the conventions and acronyms used in this guide.
Various conventions are used to help you quickly identify special formatting. Table
1 describes these conventions and provides examples of their use.
Various acronyms are used in place of the full definition. Table 2 presents
acronyms and their definitions.
Table 1 Document Conventions
Convention Meaning Example
Blue Text in blue indicates terms that
are cross referenced.
See Conventions and Acronyms.
Italics Italic typeface indicates book
titles or emphasis.
You must install a roll of thermal-
sensitive paper in the printer.
Courier The courier type face is used
while specifying onscreen text,
such as text that you would
enter at a command prompt, or
to provide an URL.
http://www.verifone.com
The pencil icon is used to
highlight important information.
RS-232-type devices do not work
with the PINpad port.
The caution symbol indicates
possible hardware or software
failure, or loss of data.
The device is not waterproof or
dustproof, and is intended for
indoor use only.
The lightning symbol is used as
a warning when bodily injury
might occur.
Due to risk of shock do not use the
device near water.
Table 2 Acronym Definitions
Acronym Definitions
AC Alternating Current
EMV Europay MasterCard and VISA
LCD Liquid Crystal Display
LED Light Emitting Diode
MRA Merchandise Return Authorization
MSAM Micromodule-Size Security Access Module
PED PIN Entry Device
PIN Personal Identification Number
SD Secure Digital
SIM Subscriber Identity Module
USB Universal Serial Bus
VPN VeriFone Part Number
Wi-Fi Wireless Fidelity
NOTE
CAUTION
WARNING
![](/img.php?id=1405993&img=bg7.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 7
VERIFONE
CONFIDENTIAL
REVISION A.5
CHAPTER 1
Device Overview
This chapter provides a brief description of the VX 600, the smallest
micro-merchant and convenience retailing mobile payment solution in the
industry. This payment solution seamlessly blends the industry standard, secure
Vx operating system and Trident hardware architecture with the Apple OS
allowing for an endless variety of vertical applications and secure payment
combinations to suit today’s dynamic and innovative retailing needs. This solution
packs a wallop: familiar color/touch display interface via an iPhone, blazing fast
processor, abundant memory, the latest PCI 2.0 security, integrated 2D barcode
scanner, capacitive touch encrypted PINpad, integrated contactless and NFC
ready, all in the smallest most versatile form factor available.
The VX 600 is a portable, battery-powered device designed to fit your hands
comfortably and is ideal for consumer-facing and merchant facing retail integrated
applications. It features a crisp 128 x 32 display and a spill-resistant capacitive
keypad. It supports a variety of communications technologies via the host iPhone
including: 802.11g Wi-FI with WPA2 security support, GPRS, Bluetooth® wireless
technology, and CDMA.

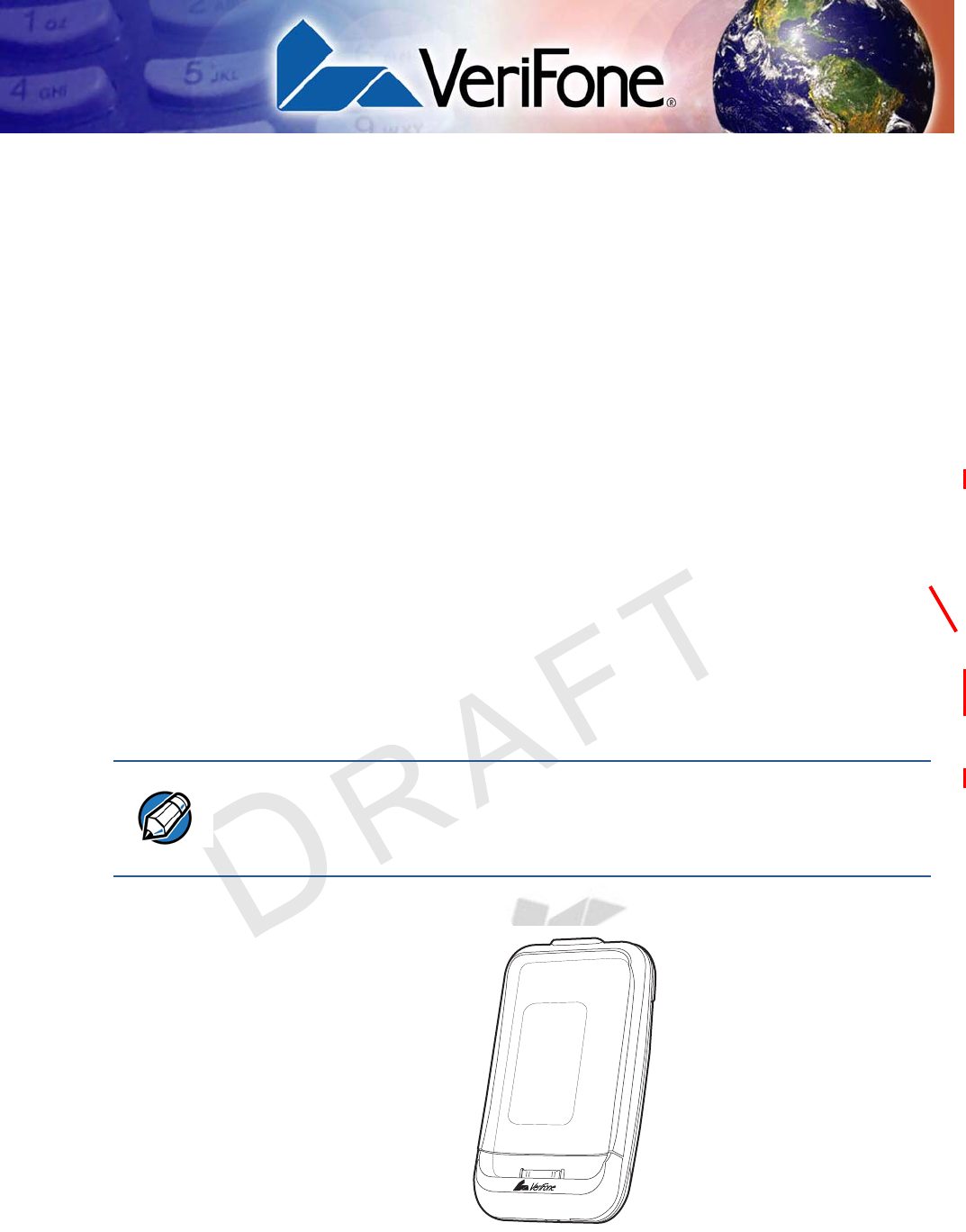

Figure 1 The VX 600 Device
NOTE VeriFone ships variants of the VX 600 for different markets. Your device may
have a different configuration supporting a different Apple device. The following
devices may or may not be present: a smart card reader, contactless, barcode
scanner.
![](/img.php?id=1405993&img=bg8.png)
DEVICE OVERVIEW
Features and Benefits
8VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Features at a glance
Features and
Benefits
VX 600 devices provide the right combination of features and functions including a
triple-track magnetic-stripe card reader, smart card reader, integrated PIN pad,
color/touch display, optional 2D barcode reader, and optional contactless/NFC
support.
Exceptional Ease of
Use
•The lightweight (less than 1 pound), compact, stylish and ergonomic balance
allows convenient device hand-off to the consumer for PIN entry or other
input.
•Integration with the Apple OS enables rapid backend development and
complex system integration in a short period of time.
•Large, well-placed, capacitive keys provide a continuity of user experience
between the VX 600 and iPhone.
•Horizontal magnetic stripe card reader with an enlarged card entrance delivers
optimal card swiping and reading without the need to visually guide the card.
•iPhone touchscreen allows for icon-based applications or electronic signature
capture support
•The VX 600 size is easily able to be dropped in any pocket, or an optional
hands-free holster is available that fits the server’s or clerk’s belt so that the
POS device can be quickly removed and easily handed to the customer
•400 mHz ARM11 RISC processor
delivers power and usability in a
convenient “hand-over” design
•Securely supports and runs payment
and value-added applications
•Multi-application operating
environment
•Offers unsurpassed performance on
EMV smart card transactions
•Advanced memory architecture to
meet tomorrow’s needs with support
for 160 MB standard
•Backward compatibility with VeriFone
VX solutions and the flexible Apple OS
helps reduce development cost and
time to market
•Touchscreen capabilities to the
smallest purpose-built wireless
payment device
•Multiple connectivity and
contactless options
•32-bit processing and multi-tasking
capabilities
•Spill-resistant design prevents liquid
from entering the solution by forcing it
down and off the front of the device
•Security architecture exceeds
specifications for PCI-PED and
sophisticated file authentication
•Dock mechanism firmly secures the
iPhone with the VX 600 and quickly
disengages for easy iPhone removal
![](/img.php?id=1405993&img=bg9.png)
DEVICE OVERVIEW
Features and Benefits
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 9
VERIFONE
CONFIDENTIAL
REVISION A.5
Performance and
Durability
•Powerful 400-mHz ARM11 processing completes transactions in seconds
•High-capacity lithium-ion polymer battery can rapidly charge and offer 10+
hours of PIN pad and host device power.
•Standard Micro-USB port allows for convenient product charging, or optional
full-featured Gang Charging base allows for multiple units to charge at once.
•Rounded corners and drop resistant to 3 feet on concrete floor to minimize
breakage
•160 MB of memory standard
Security
•PCI PED 2.0 approved for debit and other PIN-based transactions
•EMV Level 1 and 2 Type Approval
•Tamper-resistant construction, SSL protocols, and VeriShield file
authentication
•Supports VeriShield Protect encryption implementations
Contactless
Capability
•Advanced contactless architecture that future-proofs investment with a single
contactless interface (SingleCl), SoftSAMs, and side-by-side application
architecture
•Large tap zone (CTLS logo) that encompasses the PINpad optimizes user
experience
•Contactless version accepts EMV in addition to magnetic stripe contactless
payments as well as PIN-based transactions
Communication
Technology
•VX 600 works seamlessly with the attached iPhone to provide a variety of
communications including:
•GPRS, 3G: Long-range wireless payment for retailers that have no
physical location limitations.
•Wi-Fi: Ideal for retailers that need multiple wireless devices and
traditionally have an existing IP infrastructure.
•Bluetooth® : Simple, plug-and-play installation for locations that need
short-range wireless capability.
![](/img.php?id=1405993&img=bga.png)
DEVICE OVERVIEW
Features and Benefits
10 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
![](/img.php?id=1405993&img=bgb.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 11
VERIFONE
CONFIDENTIAL
REVISION A.5
CHAPTER 2
Device Setup
This chapter describes the device setup procedure. You will learn about:
•Selecting a Location
•Unpacking the Shipping Carton
•Examining Device Features
•Installing/Removing an iPhone into the VX 600
•Installing/Replacing MSAM Cards
•Manual Startup and Shutdown
•Connecting the VX 600 to a Power Source

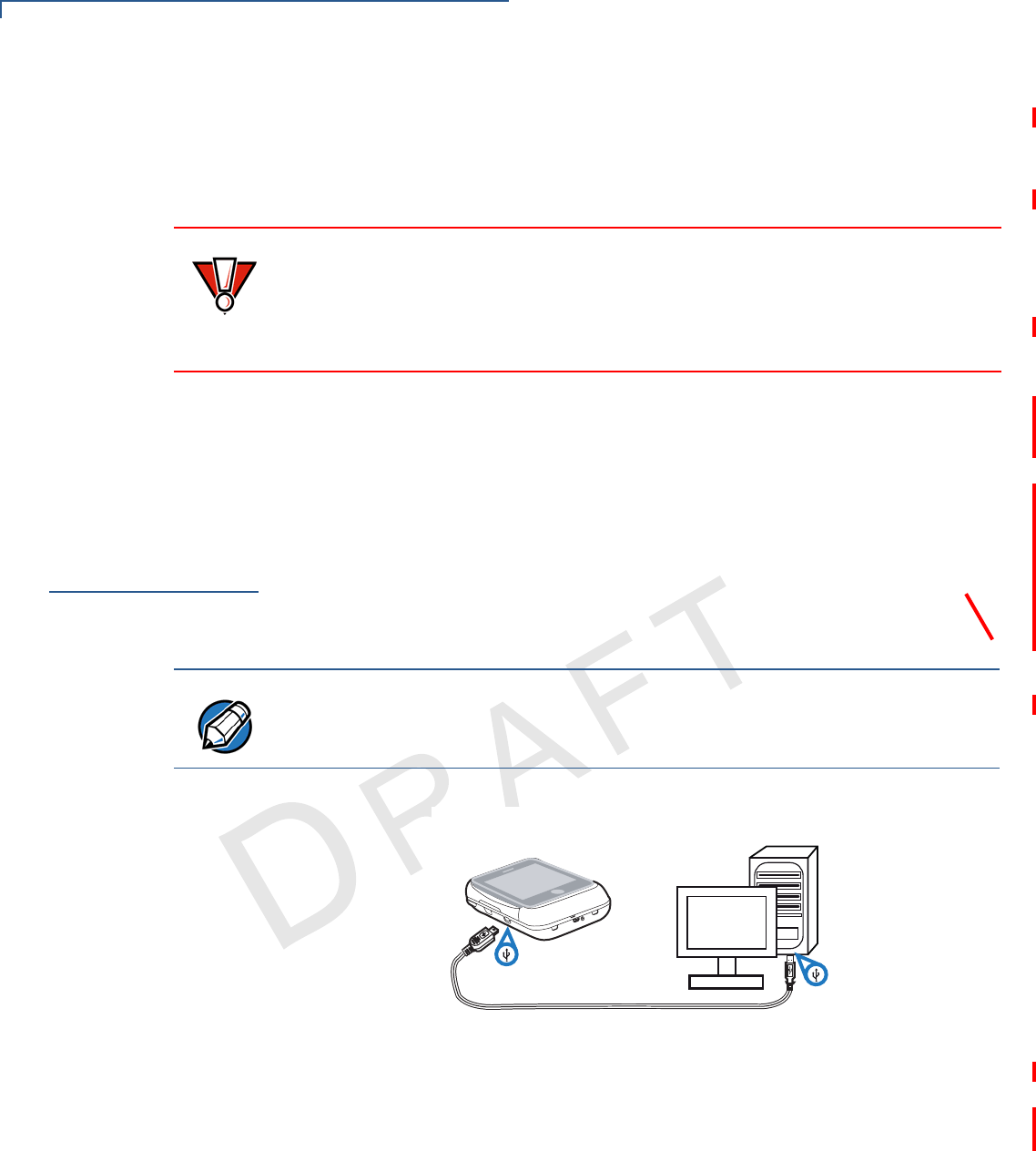

•Connecting the iPhone to a Host Computer via Micro-USB
•Battery Behavior (No Power Cable)
•Conducting Wireless Transactions
•Using a Smart Card to Conduct Transactions (Optional)
•Using the Magnetic Stripe Reader
•Using the CTLS Reader (Optional)
•Using the Barcode Reader
![](/img.php?id=1405993&img=bgc.png)
DEVICE SETUP
Selecting a Location
12 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Selecting a
Location
Use the following guidelines when selecting a location for your VX 600.
To select a location
•Select a location convenient for both merchant and cardholder.
•Select a location that is far from heavy metal objects.
•Select a location near a power outlet.
Environmental
Factors
•Select a flat support surface, such as a countertop or table, to keep the device
safe in between uses.
•Do not use the device where there is high heat, dust, humidity, moisture, or
caustic chemicals or oils.
•Keep the device away from direct sunlight and anything that radiates heat,
such as a stove or motor.
•Do not use the device outdoors.
Personal Security
Considerations
The VX 600 is a handover device and personal security is significantly impacted
by the carholder entering the PIN.
•Hand the VX 600 directly to the cardholder for them to enter their PIN.
•Encourage the cardholder to hold the VX 600 close to avoid allowing others to
see the information entered.
Electrical
Considerations
•Avoid using this product during electrical storms.
•Avoid locations near electrical appliances or other devices that cause
excessive voltage fluctuations or emit electrical noise (for example, air
conditioners, electric motors, neon signs, high-frequency or magnetic security
devices, or computer equipment).
•Do not use the device near water or in moist conditions.
WARNING
For safety, do not string cables or cords across a walkway.
CAUTION The device is not waterproof or dustproof, and is intended for indoor use only.
Any damage to the unit from exposure to rain or dust may void any warranty.
![](/img.php?id=1405993&img=bgd.png)
DEVICE SETUP
Unpacking the Shipping Carton
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 13
VERIFONE
CONFIDENTIAL
REVISION A.5
Unpacking the
Shipping Carton
Open the shipping carton and carefully inspect its contents for possible tampering
or shipping damage. The VX 600 is a secure product and any tampering may
cause the device to cease to function properly.
To unpack the
Shipping Carton 1Remove and inspect the following items:
•VX 600 unit
•USB to Micro-USB cord
2Remove all plastic wrapping from the unit and other components.
3Remove the clear protective film from the unit.
4Save the shipping carton and packing material for future repacking or moving
the device.
Examining
Device Features
Before you continue the installation process, notice the features of the VX 600
(see Figure 2 and Figure 3).
CAUTION Do not use a unit that has been damaged or tampered with. The VX 600 comes
equipped with tamper-evident labels. If a label or component appears damaged
or if the device appears to have been opened, please notify the shipping
company and your VeriFone representative or service provider immediately.
NOTE You will need to have an iPhone installed to proceed. For more information, see
Installing/Removing an iPhone into the VX 600.
![](/img.php?id=1405993&img=bge.png)
DEVICE SETUP
Examining Device Features
14 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Front View
•The front panel includes the following features:
Figure 2 VX 600 Device Features
•An MSAM (Micromodule-Size Security Access Module) compartment, is
located on the left side of the device. The VX 600 contains an MSAM
cardholder to support stored-value card programs or other merchant card
requirements.
•A power button to switch on/off the device.
•A Micro-USB port is located on the bottom left side for data connection,
handset synchronization and power charging.
•A magnetic stripe reader, is built into the right side of the device. Swipe the
card using the proper direction, with the magnetic stripe down and facing
inward, toward the device.
*ACTION BUTTONS
MAGNETIC STRIPE
READER
*ACTION BUTTONS
*MSAM SLOT
POWER
BUTTON
MICRO-USB PORT
*OPTIONAL
NOTE VeriFone ships variants of the VX 600 for different markets. Your device may have
a different configuration. The following devices may or may not be present: a
CTLS reader, smart card reader, or a barcode scanner. However, the basic
processes described in this guide remain the same, regardless of device
configuration.
![](/img.php?id=1405993&img=bgf.png)
DEVICE SETUP
Examining Device Features
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 15
VERIFONE
CONFIDENTIAL
REVISION A.5
Back View
The back panel includes the following features:

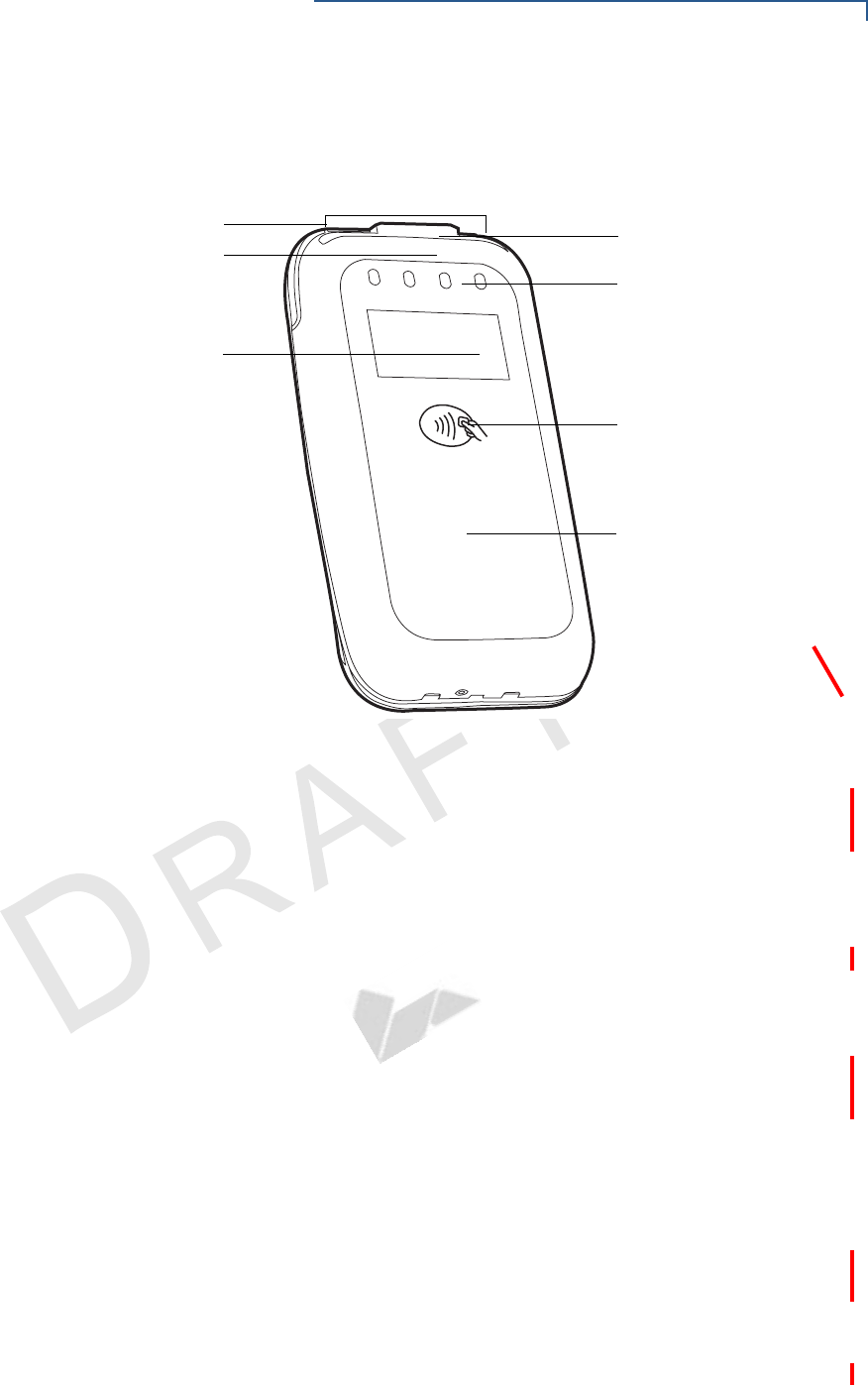

Figure 3 VX 600 Device Features (Back View)
•A 128 x 32 pixel LCD display
•Two types of keys on the capacitive touch keypad:
aA 12-key keypad
bThree color-coded function keys below the keypad
•An optional 2D imager located on top of the device for scanning barcodes; an
audible “beep” indicates a successful scan
•Action buttons located on both sides to turn on the optional barcode reader
•A CTLS LED that acts as CTLS signal
•An optional smart card reader on top of the LED meter (See Using a Smart
Card to Conduct Transactions (Optional))
•An optional CTLS/NFC antenna below the LED meter for contactless
payments
Power Port
The VX 600 provides a power port to connect to an external power source. The
device uses the same power adapter as the iPhone.
Micro-USB Port
The VX 600 also provides a micro-USB port to connect to a host computer
through a standard USB to Micro-USB cable (VPN CBL000-021-01-A).
;,2
*2D IMAGER
CTLS LED
*CTLS/NFC
ANTENNA
CAPACITIVE
*ACTION BUTTONS
*SMART CARD
LCD DISPLAY
READER
*OPTIONAL
TOUCH
KEYPAD
(BARCODE SCANNER)
![](/img.php?id=1405993&img=bg10.png)
DEVICE SETUP
Installing/Removing an iPhone into the VX 600
16 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Installing/
Removing an
iPhone into the
VX 600
You need to install an iPhone into the VX 600 to perform any transaction. You can
also install an iPhone into the VX 600 to synchronize data and download
applications.
To install an iPhone
into the VX 600 1Hold and secure the VX 600 with the PIN pad facing down.
2Expand the lower portion of the device.
3Firmly grasp the iPhone and position it on top of the VX 600.
4Slide the iPhone downward to align the pins with the connector on the VX 600
then, gently but firmly push the expanded section upward until it locks in place.

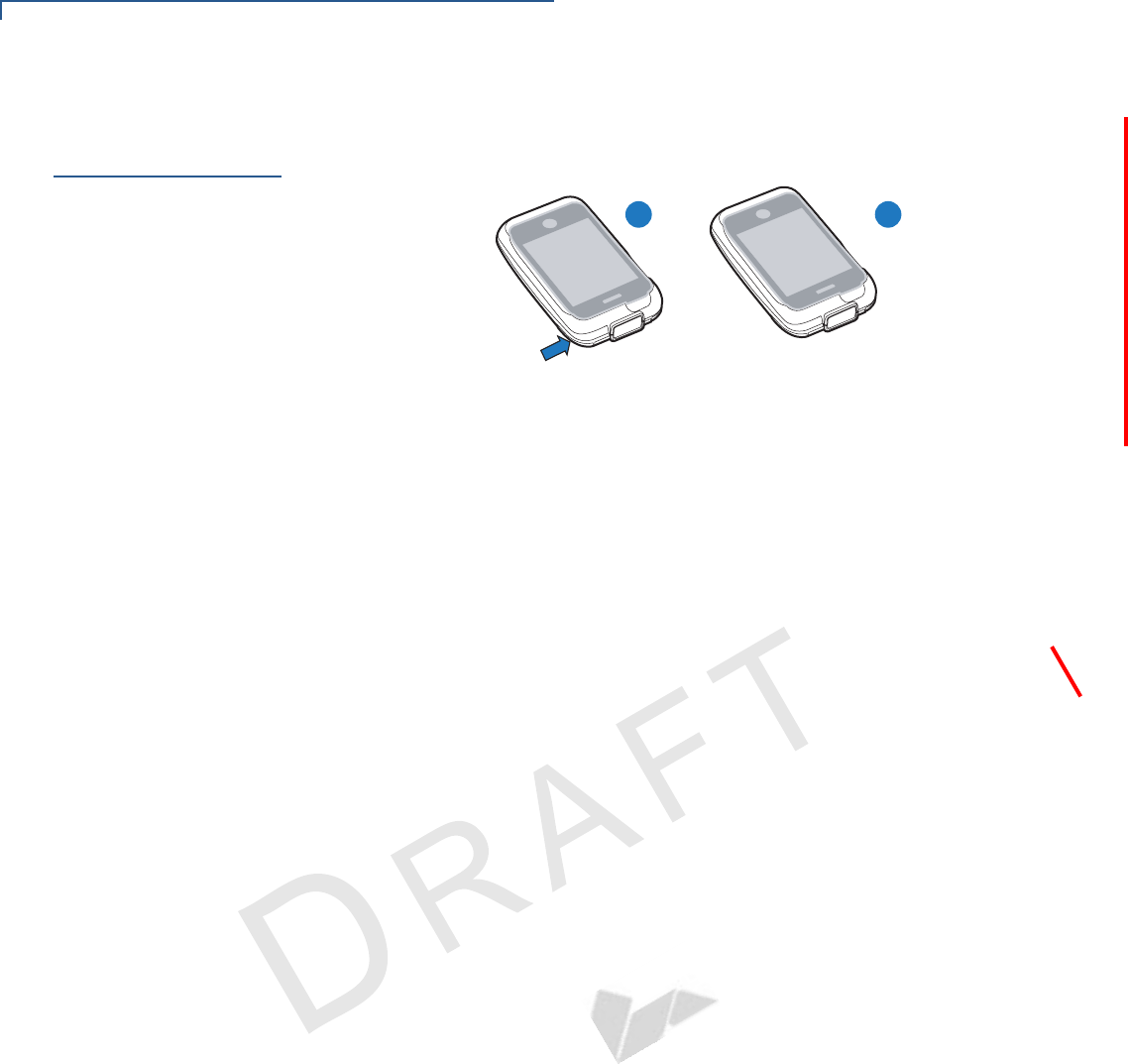

Figure 4 Installing an iPhone into the VX 600
To remove an iPhone
from the VX 600 1Hold and secure the VX 600 with the PINpad facing down.
2Expand the lower portion of the device. The iPhone will automatically
disengage from VX 600 dock.
3Carefully remove the iPhone from the device and then slide the expanded
lower section upward until it locks in place.
Figure 5 Removing an iPhone from the VX 600
$ % & '
$%&
![](/img.php?id=1405993&img=bg11.png)
DEVICE SETUP
Installing/Replacing MSAM Cards
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 17
VERIFONE
CONFIDENTIAL
REVISION A.5
Installing/
Replacing MSAM
Cards

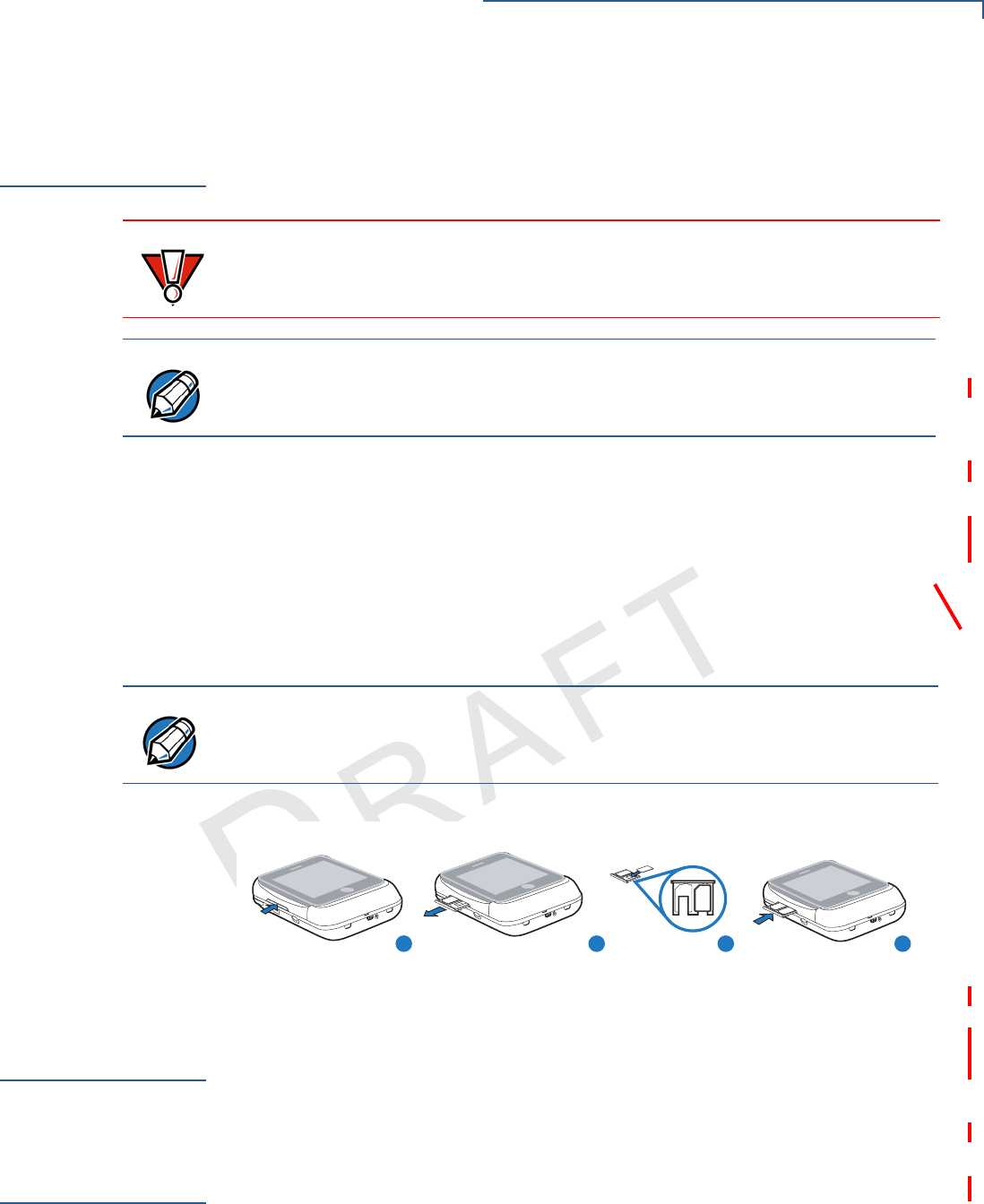

When you first receive your VX 600, you may need to install an MSAM card or you
may need to replace old cards.
To Install/Replace
MSAM 1Unplug any cables or chargers from the VX 600. Using your finger, push the
MSAM compartment door, located on the left side of the front panel, to eject
the MSAM tray. A small hole can be found under the center of the MSAM door.
If needed, use a paper clip to pull the door out.
2Place the MSAM card on top of the tray with the gold contacts facing down.
3Align the MSAM tray properly into the compartment and gently push the tray
until it locks in place.
Figure 6 Inserting an MSAM Card
Manual Startup
and Shutdown
To manually startup and shutdown the VX 600, hold down on the power button,
depicted in Figure 2.
Connecting the
VX 600 to a
Power Source
Plug the wall-mount charger to an external power source and connect it to the VX
600 to charge the device.
CAUTION Observe standard precautions when handling electrostatically sensitive devices.
Electrostatic discharges can damage this equipment. VeriFone recommends
using a grounded anti-static wrist strap.
NOTE
Not all applications require the use of an MSAM card.
NOTE Make sure that the MSAM card sits firmly on the tray. The MSAM compartment will
not close properly if the MSAM card is installed incorrectly.
-3!-
#!2$
$ % & '
![](/img.php?id=1405993&img=bg12.png)
DEVICE SETUP
Connecting the iPhone to a Host Computer via Micro-USB
18 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
The VX 600 has three power states. The device operates in Run Mode during
startup or when in use. The device enters Hibernation Mode when it has been idle
for more than 60 seconds. After more than 30 seconds in Hibernation Mode, the
device then enters Sleep Mode.
To connect to a wall-
mount charger 1Insert the power plug into the port located on the side of the VX 600.
2Plug wall-mount charger into a wall outlet or powered surge protector.
Connecting the
iPhone to a Host
Computer via
Micro-USB
Connect the iPhone to a host computer to synchronize handset data and charge
the VX 600.
USB bus power is used to charge both iPhone and the VX 600. When the Micro-
USB cable is plugged into the device, it charges the VX 600 to at least 90%
capacity before charging full charging the iPhone. When the iPhone is fully
charged, the VX 600 continues to charge.
Figure 7 Connecting an iPhone to a Host Computer
To connect to a host
computer 1Disconnect power from the host computer.
2Connect the Micro-USB plug into the Micro-USB port located on the left side of
the VX 600.
3Connect the other end of the Micro-USB cable into the host computer’s USB
port.
4Reconnect power to the host computer.
CAUTION Using an incorrectly rated power supply may damage the device or cause it not to
work as specified. Before troubleshooting, ensure that the power supply being
used to power the device matches the requirements specified on the bottom of
the device. (See Specifications for detailed power supply specifications.) Obtain
the appropriately rated power supply before continuing with troubleshooting.
NOTE When the VX 600 is in Hibernation Mode or whenever the iPhone enters
Hibernation Mode, pass-through charging is turned off.
![](/img.php?id=1405993&img=bg13.png)
DEVICE SETUP
Battery Behavior (No Power Cable)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 19
VERIFONE
CONFIDENTIAL
REVISION A.5
Battery Behavior
(No Power
Cable)
When provided with external power, the VX 600 device charges its internal battery
to 90%. No transactions are allowed while the VX 600 charges its battery, but the
iPhone can be operated on its own battery power. When the VX 600 battery
reaches 90% charge, the VX 600 provides pass-through power to the installed
iPhone, and transactions can be executed using the iPhone and VX 600. At any
time, you can override these defaults and enable pass-through power to the
iPhone by pressing the Enter+3 key combination, but this causes the VX 600 to
enter Sleep Mode.
When operating on battery alone, the VX 600 device cable allows for pass-
through power to the iPhone as long as the VX 600 battery exceeds 80% charge.
NOTE •The VX 600 device operates on battery power or AC power. The battery
charger in the device is active whenever the power pack is connected. Both
the batteries in the device as well as in the iPhone are charged by PC power
or the external power pack.
•Lithium-ion polymer batteries are not affected by shallow charging. When the
device has no external power source or smart battery, the coin cell battery
procides power to the security circuit.
•When the VX 600 device is in Hibernation Mode or whenever the iPhone
enters its own Hibernation Mode, all pass-through power is disabled.
![](/img.php?id=1405993&img=bg14.png)
DEVICE SETUP
Conducting Wireless Transactions
20 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Conducting
Wireless
Transactions
To conduct a wireless transaction:
•Ensure the device is in an optimal position for transmitting.
•Follow the on-screen instructions provided with your application.
Using a Smart
Card to Conduct
Transactions
(Optional)
The smart card transaction procedure may vary from one application to another.
Verify the procedure with your application provider before performing a smart card
transaction.

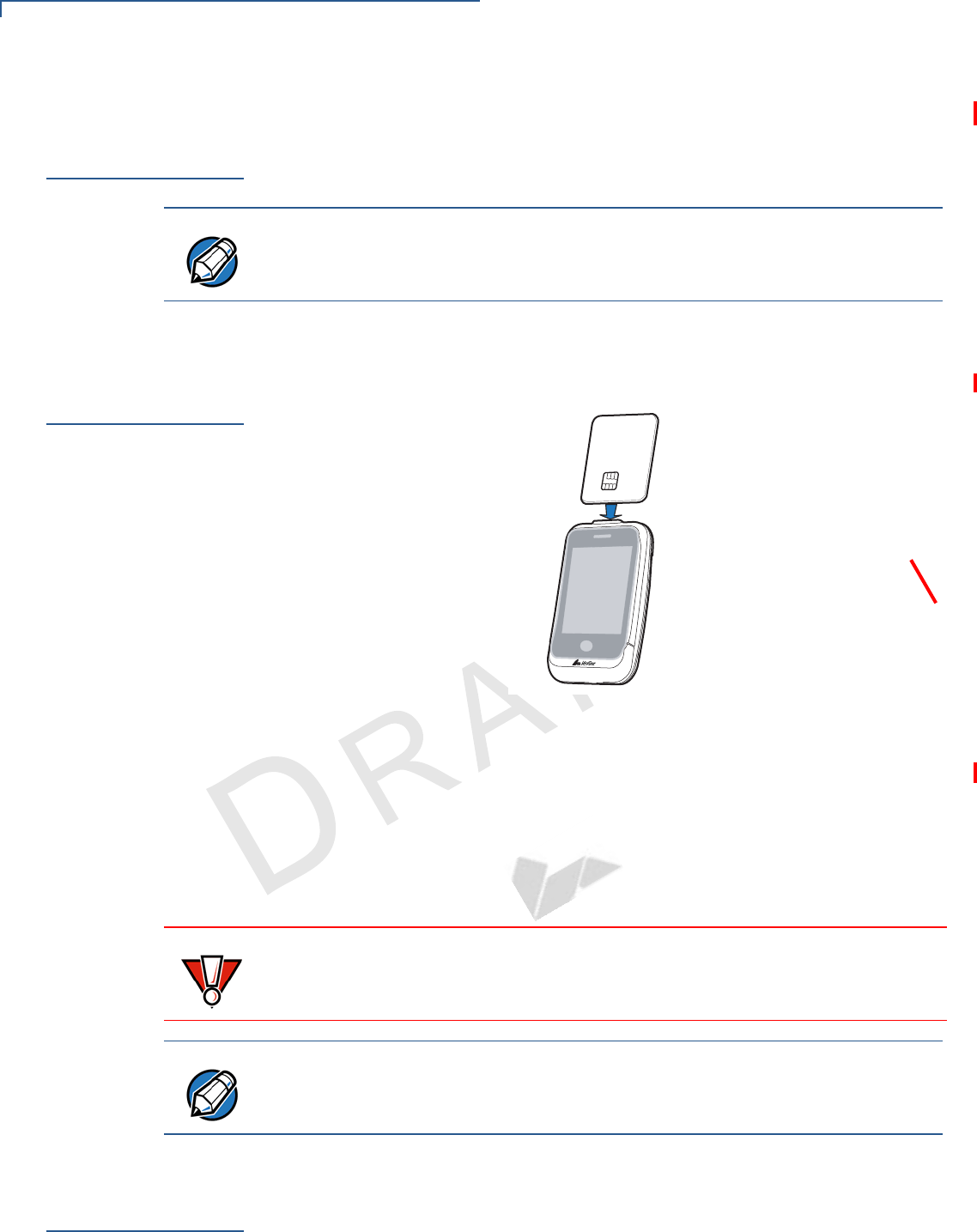

Figure 8 Inserting a Smart Card
To Conduct a Smart
Card Transaction 1Position the smart card with the contacts facing the iPhone.
2Insert the smart card into the smart card reader slot in a smooth, continuous
motion until it seats firmly.
3Remove the card only when the application indicates the transaction is
complete.
Using the
Magnetic Stripe
Reader
The VX 600 supports credit and debit card transactions. The magnetic stripe
reader is located on the right side of the VX 600.
NOTE When using an iPhone, a valid SIM card is needed to conduct transactions. For
more information on installing/replacing a SIM card, refer to the appropriate
Apple documentation or visit the Apple Web site.
CAUTION Leave the smart card in the card reader until the transaction is complete.
Premature card removal will invalidate the transaction.
NOTE When using an iPhone, a valid SIM card is needed to conduct transactions. For
more information on installing/replacing a SIM card, refer to the appropriate
Apple documentation or visit the Apple Web site.
![](/img.php?id=1405993&img=bg15.png)
DEVICE SETUP
Using the CTLS Reader (Optional)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 21
VERIFONE
CONFIDENTIAL
REVISION A.5
Figure 9 Using Magnetic Stripe Card
To Conduct a Credit/
Debit Card
Transaction
1Position the magnetic card with the stripe in the card reader and facing inward,
toward the keypad.
2To ensure a proper read of the magnetic swipe card, the user should insert the
magnetic card from the top of the unit, as shown in Figure 9.
3Swipe the card through the magnetic card reader.
Using the CTLS
Reader
(Optional)
The VX 600 supports contactless credit/debit card transactions. To perform a
contactless transaction, gently tap the card or hold the card against the surface of
the contactless antenna, which is marked by the CTLS symbol.
Figure 10 Using the CTLS Reader
88888888888888
NOTE When using an iPhone, a valid SIM card is needed to conduct transactions. For
more information on installing/replacing a SIM card, refer to the appropriate
Apple documentation or visit the Apple Web site.
;,2
![](/img.php?id=1405993&img=bg17.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 23
VERIFONE
CONFIDENTIAL
REVISION A.5
CHAPTER 3
Specifications
This chapter discusses power requirements, dimensions, and other specifications
of the VX 600 device.
Power
Charging via USB to computer system or power adapter:
5V DC 0.5 A or 5V DC 1.0 A
Temperature
•Operating temperature: 0° to 40°C (32° to 104°F)
•Relative humidity: 5% to 90%; non-condensing
External
Dimensions
•Length: 139.2 mm (5.5 in)
•Width: 74.9 mm (2.9 in)
•Depth: 31.0 mm (1.2 in)
![](/img.php?id=1405993&img=bg18.png)
SPECIFICATIONS
External Dimensions
24 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
![](/img.php?id=1405993&img=bg19.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 25
VERIFONE
CONFIDENTIAL
REVISION A.5
CHAPTER 4
Maintenance
The VX 600 device has no user-maintainable parts.
Cleaning the
Device
To clean the device, use a clean cloth slightly dampened with water and a drop or
two of mild soap. For stubborn stains, use alcohol or an alcohol-based cleaner.
Device Contacts
Gently swab the contacts with alcohol or contact cleaner to remove the dirt. It is
important that the exposed contacts of the VX 600 battery stay clean and unbent.
Smart Card
Reader
Do not attempt to clean the smart card reader. Doing so may void any warranty.
For smart card reader service, contact your VeriFone distributor or service
provider.
CAUTION Never use thinner, trichloroethylene, or ketone-based solvents – they may cause
deterioration of plastic or rubber parts.
Do not spray cleaners or other solutions directly onto the keypad or device
display.
CAUTION Avoid touching the recessed area on the device. Finger oils tarnish contacts,
causing bad connections. When operating on battery power and experiencing a
high occurrence of bad or incomplete data transfers, clean the contacts.
![](/img.php?id=1405993&img=bg1a.png)
MAINTENANCE
Smart Card Reader
26 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
![](/img.php?id=1405993&img=bg1b.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 27
VERIFONE
CONFIDENTIAL
REVISION A.5
CHAPTER 5
VeriFone Service and Support
For VX 600 problems, contact your local VeriFone representative or service
provider.
For VX 600 product service and repair information:
•USA – VeriFone Service and Support Group, 1-800-VeriFone (837-4366),
Monday - Friday, 8 A.M. - 8 P.M., Eastern time
•International – Contact your VeriFone representative
Returning a
Device for
Service
Before returning a VX 600, you must obtain an MRA number. The following
procedure describes how to return one or more devices for repair or replacement
(U.S. customers only).
To Return a Device
for Service 1Get the following information from the printed labels on the bottom of each VX
600 to be returned:
•Product ID, including the model and part number. For example, “VX 600”
and “M087-XXX-XXX-xxx.”
•Serial number (S/N nnn-nnn-nnn)
2Obtain the MRA number(s) by completing one of the following:
aCall VeriFone toll-free within the United States at 1-800-VeriFone and
follow the automated menu options.
•Select the MRA option from the automated message. The MRA
department is open Monday to Friday, 8 A.M.–8 P.M., Eastern Time.
•Give the MRA representative the information you gathered in Step 1.
If the list of serial numbers is long, you can fax the list, along with the
information gathered in Step 1, to the MRA department at 727-953-
4172 (U.S.).
bAddress a fax to “VeriFone MRA Dept.” with the model and part number(s)
•Include a telephone number where you can be reached and your fax
number.
NOTE Customers outside the United States are advised to contact their local VeriFone
representative for assistance regarding service, return, or replacement of devices
and accessories.
![](/img.php?id=1405993&img=bg1c.png)
VERIFONE SERVICE AND SUPPORT
Accessories and Documentation
28 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
cComplete the Inquiry Contact Form at http://www.verifone.com/
aboutus/contact/contact_form.cfm.
•Address the Subject box with to “VeriFone MRA Dept.”
•Reference the model and part number in the Note box.
3Describe the problem(s).
4Provide the shipping address where the repaired or replacement unit must be
returned.
5Keep a record of the following items:
•Assigned MRA number(s).
•VeriFone serial number assigned to the VX 600 you are returning for
service or repair (device serial numbers are located on the bottom of the
unit.
•Shipping documentation, such as air bill numbers used to trace the
shipment.
•Model(s) returned (model numbers are located on the VeriFone label on
the bottom of the VX 600).
Accessories and
Documentation
VeriFone produces the following accessories and documentation for the
VX 600. When ordering, please refer to the part number in the left column.
•VeriFone online store at www.store.verifone.com
•USA – VeriFone Customer Development Center, 800-VeriFone (837-4366),
Monday - Friday, 7 A.M. - 8 P.M., Eastern time
•International – Contact your VeriFone representative
Accessories
02746-01 VeriFone Cleaning Kit
CBL000-021-01-A USB to Micro-USB Cable, 1 meter
Documentation
NOTE One MRA number must be issued for each VX 600 you return to VeriFone, even if
you are returning several of the same model.
VX 600 Certifications and Regulations Sheet VPN DOC087-011-EN-A
VX 600 Quick Installation Guide VPN DOC087-012-EN-A
VX 600 Reference Manual VPN DOC087-014-EN-A
VX 600 Web site www.paywaremobile.com
![](/img.php?id=1405993&img=bg1d.png)
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 29
VERIFONE
CONFIDENTIAL
REVISION A.5
CHAPTER 6
Troubleshooting
Guidelines
The troubleshooting guidelines provided in the following section are included to
help you install and configure your VX 600 successfully. Typical examples of
malfunction you may encounter while operating your VX 600 and steps you can
take to resolve them are listed in this chapter.
If the problem persists even after performing the outlined guidelines or if the
problem is not described below, contact your local VeriFone representative for
assistance.
Device Does Not
Start
•Ensure that the battery charge state is not below the critically low level.
•Recharge the battery.
Device Display
Does not Show
Correct/
Readable Info
•Recharge the battery.
•Connect the VX 600 into a known-good power supply (if available) to see if
this clears the problem.
•If the problem persists, contact your local VeriFone representative for
assistance.
NOTE The VX 600 comes equipped with tamper-evident labels. The VX 600 unit
contains no user serviceable parts. Do not, under any circumstance, attempt to
disassemble the device. Perform only those adjustments or repairs specified in
this guide. For all other services, contact your local VeriFone service provider.
Service conducted by parties other than authorized VeriFone representatives may
void any warranty.
CAUTION Use only a VeriFone-supplied power pack. Using an incorrectly rated power
supply may damage the device or cause it not to work as specified. Before
troubleshooting, ensure that the power supply being used to power the device
matches the requirements specified on the bottom of the device. (See
Specifications, for detailed power supply specifications.) Obtain the appropriately
rated power supply before continuing with troubleshooting.
![](/img.php?id=1405993&img=bg1e.png)
TROUBLESHOOTING GUIDELINES
Blank Display
30 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
Blank Display
When the VX 600 display screen does not show correct or clearly readable
information:
•Check device power connection.
•Remove and reapply power to the device.
•Check if the iPhone is properly installed.
•If the problem persists, contact your local VeriFone service provider.
Keypad Does
Not Respond
If the keypad does not respond properly:
•Check the device display. If it displays the wrong character or nothing at all
when you press a key, follow the steps outlined in Transactions Fail To
Process.
•Check if the iPhone is properly installed.
•If the problem persists, contact your local VeriFone representative.
Transactions
Fail To Process
There are several reasons why the device may not be processing transactions.
Use the following steps to troubleshoot failures.
Check the Magnetic Card Reader
•Perform a test transaction using one or more different magnetic stripe cards to
ensure the problem is not a defective card.
•Ensure that you are swiping cards properly. With the VX 600 card reader, the
black magnetic stripe on the card should face down and inward, toward the
iPhone and must be inserted from the top of the device (see Figure 9).
•If the manual transaction does not work, proceed to Ensure that the radio has
been activated by your service provider..
Check the Smart Card Reader
•Perform a test transaction using several different smart cards to ensure the
problem is not a defective card.
•Ensure that the card is inserted correctly and that the card is not removed
prematurely.
•Ensure the MSAM cards are properly inserted (see Installing/Replacing
MSAM Cards).
•Contact your VeriFone distributor or service provider.
Check the Signal Strength On-screen (SoftPay)
•Signal-strength indicator displays at least one bar to indicate connectivity to
radio network.
•Ensure that the radio has been activated by your service provider.
![](/img.php?id=1405993&img=bg1f.png)
TROUBLESHOOTING GUIDELINES
Transactions Fail To Process
VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE 31
VERIFONE
CONFIDENTIAL
REVISION A.5
![](/img.php?id=1405993&img=bg20.png)
TROUBLESHOOTING GUIDELINES
Transactions Fail To Process
32 VX 600 FOR THE IPHONE 3G/3GS INSTALLATION GUIDE
VERIFONE
CONFIDENTIAL
REVISION A.5
