Manual
![](/img.php?id=1657417&img=bg1.png)
There are two options to power your wireless speaker: using the included AC power adapter or
using 6 AA batteries (not included).
AC Power Adapters
1. Insert the small, round plug from the speaker AC
power adapter into the DC IN jack on the bottom
of the speaker.
2. Plug the other end of the speaker AC power
adapter into any standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter rated 9V DC 1200 mA.
Warning: This product is water-resistant, not waterproof. Avoid prolonged exposure to wet
environments, such as rain, mist, dew, etc. In other words, you can take it out, just don’t leave it
out. To avoid electrical shock, use this product with caution near water sources if powered with
the AC adapter. Never submerge in water.
AA Batteries
1. Remove the battery compartment cover on the bottom of the speaker.
2. Insert six (6) AA batteries (not included) into the speaker following the polarity (”+” and “-”)
as diagrammed inside the battery compartment.
3. Replace the battery compartment cover on the bottom of the speaker.
Note: Place the rubber cap in the speaker power input jack when using batteries.
DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline
battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product
when not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle
or dispose of them in accordance with local and national regulations.
Introduction
The AWS5B3 portable wireless speaker is the ultimate in portable sound that goes wherever
you go. Bluetooth wireless lets you stream and control your music from any Bluetooth-enabled
wireless product, great for anywhere you are. The 900MHz wireless transmitter gives you
150ft of room to roam from your audio source, great for outdoor entertaining at home. And
the speaker’s 3.5mm jack offers a convenient direct connection option to use everywhere in
between—just connect your MP3 player and enjoy.
This manual shows you how to set up all three connection options: Bluetooth wireless,
900MHz wireless, and the direct connect jack, beginning with a tour of the speaker and
included accessories. If, after having reviewed the instructions, you have any questions, please
call toll-free 1-800-732-6866 or visit www.acoustic-research.com.
Important Information
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualifi ed service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These num bers are located on the product.
Model No.: _____________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: __________________________________________________________________________________
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that
produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs, con ve nience re cep ta cles, and the point where
they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been dam aged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
ap pa ra tus has been exposed to rain or moisture, does not op er ate normally, or has been dropped.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents
as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to
prevent possible damage.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
LMR
DC
IN

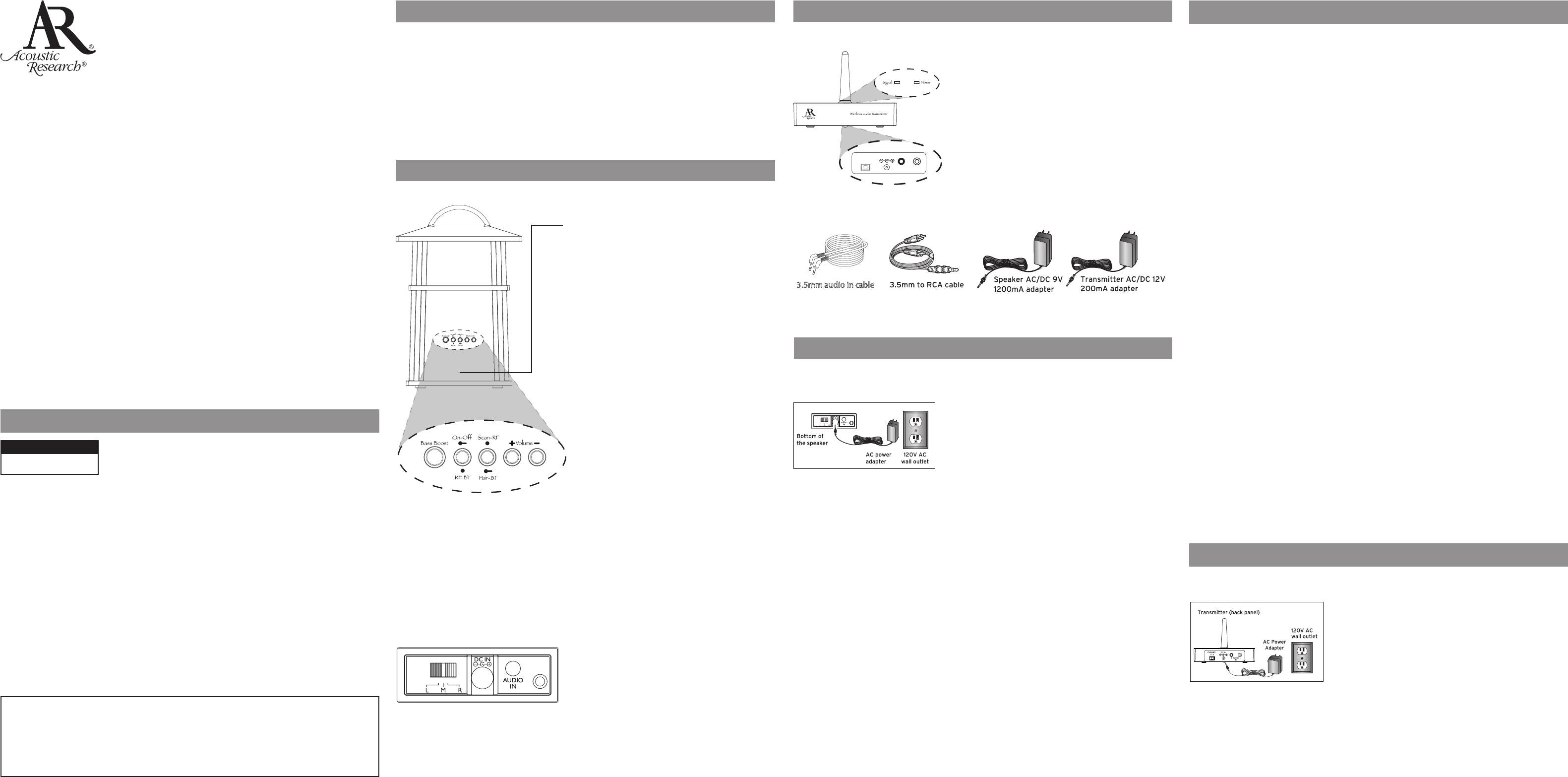

Tour of the Speaker
Tour of the Speaker
Speaker
Included Accessories
900MHz Wireless Transmitter
Front panel
Power and Pairing indicator shows the status
of the speaker.
Blue, slow blinking: The speaker is on but not
paired or connected (like when you turn the
speaker on for the first time).
Blue, fast blinking: The speaker is in Bluetooth
pairing mode. See the Using Bluetooth Wireless
section for more information.
Solid blue: The speaker is paired with a
Bluetooth-enabled device and ready to play
audio.
Green, slow blinking: The speaker is on and in
900MHz mode, but not linked with the wireless
transmitter.
Solid green: The speaker is linked with the
900MHz wireless transmitter and ready to play
audio.
Rear panel
Bass Boost button turns the speaker’s bass
enhancement on and off.
On-Off / RF-BT turns the speaker on and off
(press and hold for four seconds). It also toggles
between Bluetooth wireless and 900MHz wireless
reception (press).
Scan-RF / Pair-BT scans for the 900MHz
transmitter’s signal in 900MHz mode (press).
In Bluetooth wireless mode, press and hold this
button for four seconds to begin pairing with your
device.
Volume +/– buttons adjust the speaker’s volume
level
SIGNAL indicator lights green when the audio is
present and the transmitter is broadcasting
POWER indicator lights when the transmitter is on
CHANNEL 1 2 3 lets you fi nd the best transmission
frequency for your environment
DC IN jack receives the small round end of the
included 12V 200mA AC power adapter
AUDIO IN (R / L) connects to your sound source
using one of the connection options shown here
Powering the Speaker
3.5mm audio in cable
Model AWS5B3
Installation and Operation Manual
Portable
Wireless
Speaker
Bottom Panel
L/M/R switch determines if the speaker plays
sound in mono as a stand-alone speaker, or plays
the left or right track in a stereo pair with an
additional AWS5B3 when streaming audio with
the 900MHz wireless transmitter
DC IN receives the small round end of the
included 9V 1200mA AC power adapter; remove
the protective cover to insert the adapter
AUDIO IN connects directly to your MP3 player,
smartphone, or other portable audio device, using
the 3.5mm audio in cable provided
Battery Compartment Cover (not shown)
remove to install 6 AA batteries
using Bluetooth Wireless
Using 900MHz Wireless
Pairing
Any Bluetooth-enabled device that you wish to stream audio to your speaker system must fi rst
be paired to the speaker. The process is simple, and in most cases the pairing process needs to
be done only once.
To pair your Bluetooth-enabled device with the speaker:
1. Make sure your device’s Bluetooth is turned on. See the wireless and/or network settings
menu on your device to check.
2. If the speaker isn’t already on, press and hold the On-Off / RF-BT button for four seconds to
turn it on. You will hear a beep and the indicator light on the front of the speaker will start
fl ashing blue.
3. Press and hold the Scan-RF / Pair-BT button for four seconds to enter pairing mode. You will
hear a beep and the indicator on the front of the speaker will start blinking faster.
4. Open the Bluetooth settings menu on your device. Select “AWS5B3” from the list of devices
available (you might have to scan for devices). If your device asks for a password, enter
“0000”.
5. A confi rmation screen will appear on your device once the speaker and the device are
successfully paired. The blue indicator turns solid blue to indicate successful connection. The
speaker is now ready for you to stream audio from your device.
6. Start playing something on the device. You can control the speaker volume on the speaker
itself, using the Vol +/– buttons in front of the speaker, or on your device, using its volume
controls.
Note: If you notice the sound from the speaker is distorted, turn down your device’s volume.
Note: These power units should be plugged in so
that they stay vertical or lie fl at.
Back panel
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Top panel
Streaming Audio With Bluetooth
Once you’ve paired and connected your device with the speaker, you can control music playback
from the palm of your hand. Select your music, stop it, change songs and playlists, all right from
your device’s screen.
To adjust volume: Press the Vol +/– buttons in front of the speaker.
To disconnect from the speaker: Either turn Bluetooth off on your device or choose
“Disconnect” from the list of options in your device’s Bluetooth settings.
To reconnect with the speaker: Just turn the speaker on and wait a few seconds for the
speaker to fi nd and connect to your device. If the speaker still hasn’t found your device (which
may happen if, for instance, another device has been connected after yours) make sure the
speaker isn’t connected to another device currently. Then select the AWS5B3 from the list of
Bluetooth connections available in your device’s Bluetooth menu to connect to it.
Powering the Transmitter
Connect the small, round plug from the transmitter AC
power adapter to the transmitter’s DC IN jack. Plug the
other end of the transmitter AC power adapter into any
standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter
rated 12V DC 200 mA.
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged in
and powered at all times. If you will not be using the AWS5B3 for an extended period of time,
unplug the transmitter AC power adapter.
![](/img.php?id=1657417&img=bg2.png)
Troubleshooting
Troubleshooting
The following troubleshooting guide takes you through some of the more common problems
associated with the installation and/or operation of a wireless system. If the problem persists,
please call toll-free at 1-800-732-6866 or visit www.acoustic-research.com.
Issue: Cause and solution:
No 900MHz
wireless sound
• Check that the transmitter AC power adapter is fully inserted into the wall outlet and
the power cord from the AC adapter is fi rmly connected to the transmitter power
input jack.
• If you’re using the speaker power adapter, confi rm that it’s fully inserted into a wall
outlet and the adapter power cord is fi rmly connected to the power input jack on the
speaker.
• If you’re using batteries for the speaker, check that they are fresh and inserted with
correct polarity (+, –).
• Confi rm that the speaker is in 900MHz wireless mode—the indicator light on the
front of the speaker should be either fl ashing or solid green. If the indicator light
is blue, press the ON-OFF / RF-BT button on the back of the speaker to switch to
900MHz mode.
• Confi rm that the speaker is turned on and tuned to the transmitter—the indicator
light on the front of the speaker should be solid green (not blinking).
• Check that the audio source component (stereo, MP3 player, etc.) is turned on and
transmitting sound as it normally should.
• Make sure the volume on your audio source is turned up.
• Check that the speaker volume is turned up.
• Make sure you have disconnected the 3.5 mm audio in cable from the AUDIO IN jack.
Trademark(s) ® Registered www.Acoustic-Research.com MADE IN CHINA AWS5B3 US IB 00
12 Month Limited Warranty
Specifi cations
Transmitter
• Omni-directional 900MHz broadcast
• Effective transmitting range: up to 150 ft.
(45m)*
• Phase-locked loop circuitry (PLL)
• Automatic level control (ALC)
• 3 selectable broadcast frequencies
• Stereo audio input
*Maximum range; results may vary according to
environment.
Speaker
• Bluetooth® wireless technology: Bluetooth v2.1 +
A2DP profi le
• Push-button, auto-lock tuning
• 2-way acoustic design: 2” tweeter, 3.5” woofer
• 5 Watt RMS internal amplifi er
• Frequency response: 40Hz - 15kHz
• Left/Mono/Right switch
• Operates using supplied AC adapter or six (6) AA
batteries (not included)
Audiovox Accessories Corporation (the “Company”) warrants to the original retail purchaser of this product
that should this product or any part thereof, under normal use and conditions, be proven defective in material
or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced
(at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within
the terms of this Warranty, the product along with any accessories included in the original packaging is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specifi cation of defect(s), transportation
prepaid, to the Company at the address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside the United
States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to
costs incurred for the installation, removal or reinstallation of the product.
The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered or
been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure to
moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product, or by
leaving non-rechargeable batteries in the product while plugged into an AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER,
INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE DATE
OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized to assume for the Company
any liability other than expressed herein in connection with the sale of this product.
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you.
This Warranty gives you specifi c legal rights and you may also have other rights which vary from state/province
to state/province.
U.S.A.:Audiovox Return Center, 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16, Mississauga Ontario L5T
3A5
Turning the Speaker Off
1. Press and hold the On-Off / RF-BT button on the back of the speaker to turn the speaker off.
2. Confi rm that the speaker is off by verifying that the indicator light on the speaker’s front
panel is no longer illuminated.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and 2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the
FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the radio or television off and on, the user
is encouraged to try to correct interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on another circuit.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
Industry Canada Regulatory Information
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this
device may not cause interference and 2) this device must accept any interference, including interference that may cause
undesired operation of the device.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment.
Avis d’Industrie Canada
Cet appareil est conforme à la norme CNR-210 des règlements d’Industrie Canada. Son fonctionnement est sujet aux
deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d’interférences et 2) Cet appareil doit accepter toutes les
interférences, y compris celles pouvant entraîner son dysfonctionnement.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
Avis d’Industrie Canada sur l’exposition aux Rayonnements: Cet appareil est conforme aux limites d’exposition aux
rayonnements d’Industrie Canada pour un environnement non contrôlé.
RF Exposure Warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with
antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Audiovox Accessories Corporation is under license. Other trademarks and trade names are those of their respective
owners.
Making a Direct Connection
1. Connect one end of the provided 3.5mm audio in
cable to the AUDIO IN jack on the bottom of the
speaker.
2. Connect the other end of the cable to the
headphone output on your MP3 player or other
portable audio device.
3. If the speaker isn’t already on, press and hold the
On-Off / RF-BT button to turn it on.
Note: The indicator light on the front of the
speaker does not change to show that you’re
using the direct connect audio input. It stays
the color of the wireless mode it’s in (Bluetooth
or 900MHz) even while you use the direct
connection.
4. To switch back to the speaker’s wireless
connection, disconnect the 3.5mm cable from the
AUDIO IN jack on the bottom of the speaker.
Warning: This product is designed to work with
line level outputs or headphone outputs only. DO
NOT connect it directly to speaker outputs as it will
permanently damage the speaker.
Note: The 3.5mm audio direct connection suspends any Bluetooth or 900MHz wireless
streaming audio you’re listening to. The speaker plays only the direct connect audio when you
have something connected to the AUDIO IN jack on the speaker.
Using the Auxiliary Audio Input
LMR
DC
IN

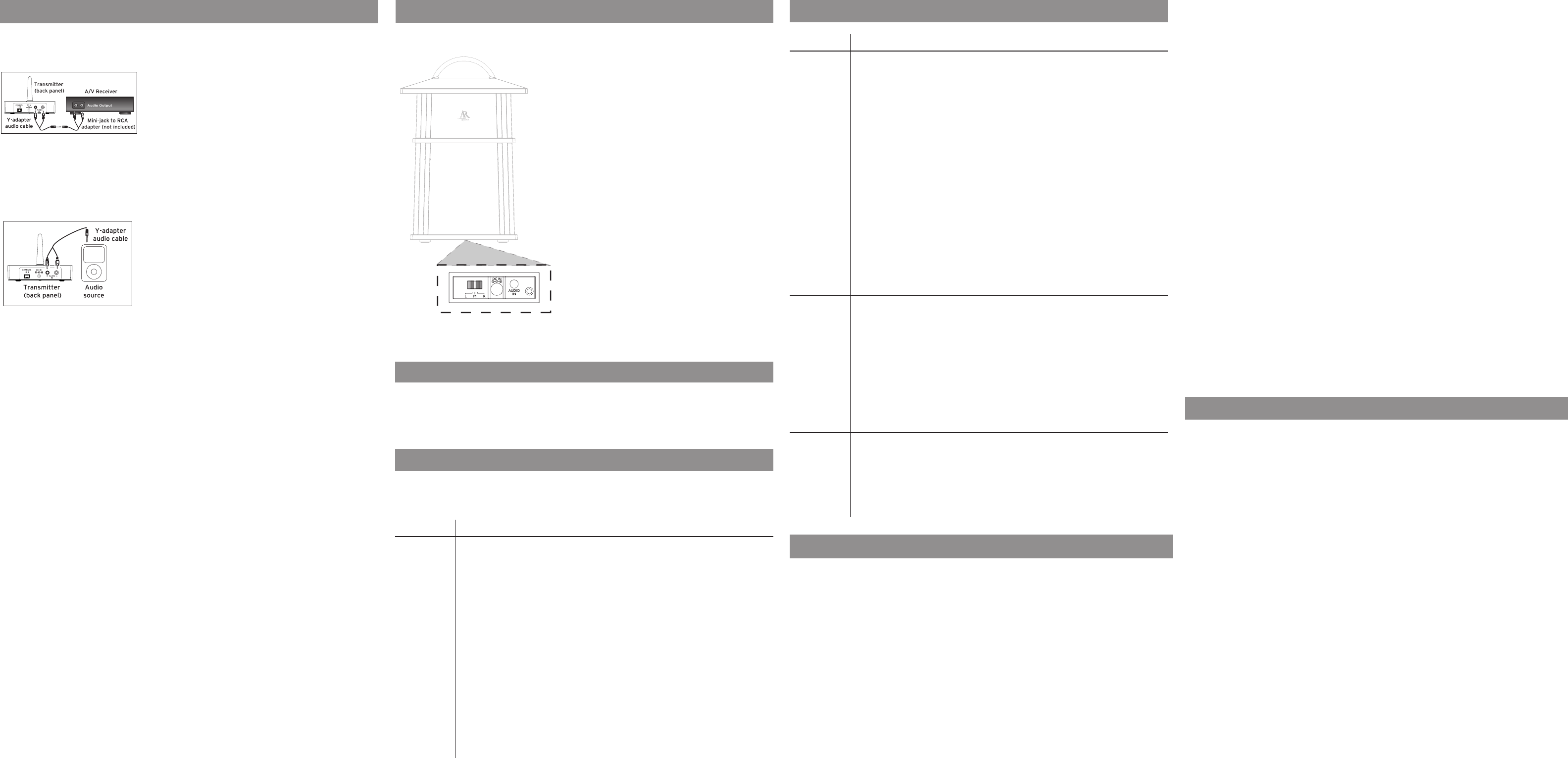

Connecting to an Audio Source
Connecting to an A/V Receiver
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter (make sure to match the colors on the plugs
and jacks).
2. Plug the mini-plug end of the provided Y-adapter into a
mini-jack to RCA adapter (not included).
3. Connect the stereo plugs on the mini-jack to RCA
adapter to the corresponding left and right audio
outputs of your A/V receiver, amp, or other audio
source.
Connecting to a Portable Audio Device
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter.
2. Plug the mini-plug end of the provided Y-adapter into the
headphone output of your MP3 player or other portable
audio device.
Streaming Audio with 900MHz Wireless Transmitter
1. Make sure the 900MHz transmitter is on and that there’s something playing on your audio
source. Turn your audio source up to at least 3/4 full volume.
2. If the speaker isn’t already on, press and hold the On-Off / RF-BT button for four seconds to
turn it on.
3. If the indicator light on the front of the speaker is blue (fl ashing or solid), press the On-Off
/ RF-BT button once to switch to 900MHz wireless mode. The indicator light starts fl ashing
green, which means the speaker is trying to link with the 900MHz wireless transmitter.
The indicator light turns solid green when the speaker is tuned to the 900MHz wireless
transmitter—you should hear sound coming from the speaker now.
Note: If the speaker is not linked to the 900MHz transmitter, or if the transmitter isn’t
connected properly, the indicator light will continue to blink. If this occurs, please see the
Troubleshooting section of this manual.
4. Adjust the volume on the speaker as desired. To switch back to Bluetooth wireless mode,
press the On-Off / RF-BT button. The speaker’s indicator light turns blue.
Notes: If you’re using a single speaker with this transmitter, keep the L/M/R switch on the
bottom of the speaker in the “M” position (for mono). If you’re using more than one speaker
with this transmitter, set the speakers to the “L” (left) or “R” (right) positions according to their
orientation to the listener.
The speaker automatically retunes if it loses the transmitter’s signal. You can also press the
Scan-RF / Pair-BT button on the back of the speaker to retune the speaker at any time.
The transmitter turns off automatically if there is no audio signal present for a prolonged period.
Interference in the form of static and/or distortion can sometimes be heard. If this occurs,
confi rm the transmitter/speaker adjustments and indicators. If the problem persists, refer to the
Troubleshooting section of this manual.
Issue: Cause and solution:
No Bluetooth
wireless sound
• If you’re using the speaker power adapter, confi rm that it’s fully inserted into a wall
outlet and the adapter power cord is fi rmly connected to the power input jack on the
speaker.
• If you’re using batteries for the speaker, check that they are fresh and inserted with
correct polarity (+, –).
• Confi rm that the speaker is in Bluetooth wireless mode—the indicator light on the
front of the speaker should be either fl ashing or solid blue. If the indicator light
is blue, press the ON-OFF / RF-BT button on the back of the speaker to switch to
Bluetooth mode.
• Check that the audio source component (stereo, MP3 player, etc.) is turned on and
transmitting sound as it normally should.
• Make sure the volume on your audio source is turned up.
• Check that the speaker volume is turned up.
• Move the Bluetooth device and the speaker closer together. The Bluetooth wireless
technology generally can operate within a range of 35 feet. However results may
vary based on other factors such as room layout, wall material, weather conditions,
etc.
• Make sure you have switched to the speaker’s Bluetooth connection when streaming
audio with Bluetooth.
• Make sure you entered the correct passkey when pairing your device.
• Make sure you have disconnected the 3.5 mm audio in cable from the AUDIO IN jack.
Sound is
distorted or
has static
• When using battery power, make sure the batteries are fresh and replace if
necessary.
• Check that the speaker’s indicator light is solid green (not blinking) when an audio
source is connected to the transmitter
• Change the position of the channel select switch (1, 2 or 3) to change the operating
frequency. Then press the AutoScan button on the speaker’s back panel to make the
speaker retune.
• Change the location of the transmitter. Place it as high and away from obstructions
as possible. Avoid placing the transmitter directly of or behind a TV.
• Move the transmitter and speaker closer together. Sending the signal through
certain materials, such as glass, tile, and metal, can decrease the effective
transmitting distance of the system.
Cannot pair
the speaker
with your
Bluetooth
device
• Make sure the Bluetooth capability of your device is turned on and discoverable.
• Move the Bluetooth device and the speaker closer together. The Bluetooth wireless
technology generally can operate within a range of 35 feet. However results may
vary based on other factors such as room layout, wall material, weather conditions,
etc.
• Make sure your device supports audio transfer.
• Turn off all other nearby Bluetooth devices or disbale their Bluetooth functionality.
Using 900MHz Wireless
