Powering the Speaker
There are two options to power your wireless speaker: using the included AC power adapter
or using 6 AA batteries (not included).
AC Power Adapters
1. Insert the small, round plug from the speaker AC
power adapter into the DC IN jack on the bottom
of the speaker.
2. Plug the other end of the speaker AC power
adapter into any standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter rated 9V DC 1500 mA.
Warning: This product is water-resistant, not waterproof. Avoid prolonged exposure to wet
environments, such as rain, mist, dew, etc. In other words, you can take it out, just don’t leave
it out. If you plan to use the speaker in a humid or wet environment, we recommend powering
it with batteries instead of with the power adapter.
Introduction
Important Information
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No
user serviceable parts inside. Refer servicing to qualifi ed service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These num bers are located on the product.
Model No.: _____________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: __________________________________________________________________________________
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifi ers) that produce heat.
8. Protect the power cord from being walked on or pinched
particularly at plugs, con ve nience re cep ta cles, and the
point where they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when
unused for long periods of time.
10. Refer all servicing to qualifi ed service personnel.
Servicing is required when the apparatus has been
dam aged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the ap pa ra tus has been exposed to
rain or moisture, does not op er ate normally, or has been
dropped.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other
solvents as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to
prevent possible damage.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
Tour of the Speaker
Tour of the Speaker
Speaker Included Accessories
900MHz Wireless Transmitter
Back panel
Power indicator blinks when the speaker is
fi rst powered on; it turns solid blue when the
speaker is tuned to the transmitter.
On-Off button turns the speaker on and off.
Auto Scan button rescans for the transmitter’s
signal.
Volume +/– buttons adjust the speaker’s
volume level.
Audio Input connects directly to your MP3
player, smartphone, or other portable audio
device, using the 3.5mm audio in cable provided.
SIGNAL indicator lights green when the audio is
present and the transmitter is broadcasting.
POWER indicator lights when the transmitter is
on.
CHANNEL 1 2 3 lets you fi nd the best
transmission frequency for your environment.
DC IN jack receives the small round end of the
included 12V 200mA AC power adapter.
AUDIO IN (R / L) connects to your sound source
using one of the connection options shown here.
Powering the Speaker System
3.5mm audio in cable
Model AWS73
Installation and Operation Manual
Portable
Wireless
Speaker
with 3.5mm jack
Bottom Panel
L/M/R switch determines if the speaker plays
sound in mono as a stand-alone speaker, or plays
the left or right track in a stereo pair with an
additional AWS73.
DC IN receives the small round end of the
included 9V 1500mA AC power adapter; remove
the protective cover to insert the adapter.
Battery Compartment Cover (not shown)
remove to install 6 AA batteries.
Powering the Speaker System
Note: These power units should be plugged in so
that they stay vertical or lie fl at.
Back panel
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Top panel
Powering the Transmitter
Connect the small, round plug from the transmitter AC
power adapter to the transmitter’s DC IN jack. Plug the
other end of the transmitter AC power adapter into any
standard 120V AC wall outlet.
Note: Be sure to use the speaker AC power adapter
rated 12V DC 200 mA (it has the smaller diameter plug).
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged
in and powered at all times. If you will not be using the AWS73 for an extended period of time,
unplug the transmitter AC power adapter.
The Acoustic Research Portable Wireless Speaker with 3.5mm jack lets you enjoy your music
anywhere, at home or on the go, with two ways to connect to your music. The 900MHz
wireless transmitter gives you 150ft* of room to roam from your audio source, great for
outdoor entertaining at home, with crystal-clear wireless audio. The speaker’s 3.5mm jack
offers a convenient connection option to use anywhere you go—just connect your MP3 player
or smartphone to the speaker, and enjoy!
This manual covers various connection options and detailed operating instructions for making
the AR Wireless Speaker System a valued part of your lifestyle. If, after having reviewed the
instructions, you have any questions, please call toll-free 1-800-732-6866 or visit
www.acoustic-research.com.
*Range may vary according to environment.
AA Batteries
1. Remove the battery compartment cover on the bottom of the speaker.
2. Insert six (6) AA batteries (not included) into the speaker following the polarity
(”+” and “-”) as diagrammed inside the battery compartment.
3. Replace the battery compartment cover on the bottom of the speaker.
Note: Place the rubber cap in the speaker power input jack when using batteries.
DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline
battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product
when not in use for long periods. Always remove old, weak or worn-out batteries promptly and
recycle or dispose of them in accordance with local and national regulations.
Connecting to an Audio Source
Connecting to an A/V Receiver
1. Plug the stereo plugs on the provided Y-adapter
audio cable into the AUDIO IN jacks on the back of
the transmitter (make sure to match the colors on the
plugs and jacks).
2. Plug the mini-plug end of the provided Y-adapter into
a mini-jack to RCA adapter (not included).
3. Connect the stereo plugs on the mini-jack to RCA
adapter to the corresponding left and right audio
outputs of your A/V receiver, amp, or other audio
source.
Connecting to a Portable Audio Device
1. Plug the stereo plugs on the provided Y-adapter audio
cable into the AUDIO IN jacks on the back of the
transmitter.
2. Plug the mini-plug end of the provided Y-adapter into
the headphone output of your MP3 player or other
portable audio device.
Adjusting the Transmitter
1. Turn on your audio source (for example, A/V receiver, MP3 player, stereo, etc.) and play
music at a normal listening volume.
2. Set the channel select switch on the back of the transmitter to
one of the transmitter’s three broadcast frequencies: 1, 2 or 3.
If you experience poor reception or interference, try choosing
a different frequency by moving the channel select switch to
another position.
When the transmitter is receiving an audio signal and is ready,
the SIGNAL indicator turns solid green.
Note
If the SIGNAL indicator on the transmitter does not turn on, please check the following:
- Confi rm the transmitter AC power adapter is securely connected.
- Confi rm the cable from the transmitter is securely connected to the audio source
output (MP3 player, A/V receiver, etc.).
- Confi rm the audio source is playing audio and is turned up.
Setting Up For Wireless Audio
DC IN
CHANNEL
1 2 3
R AUDIO L
IN
Channel
select
switch
For PLUGGABLE EQUIPMENT, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
The apparatus shall not be exposed to dripping or
splashing or placed near objects fi lled with liquids.
![](/img.php?id=1874813&img=bg2.png)
Making a Direct Connection
1. Connect one end of the provided 3.5mm audio in cable
to the AUDIO IN jack on the back of the speaker.
2. Connect the other end of the cable to the headphone
output on your MP3 player or other portable audio
device.
3. If the speaker isn’t already on, press the On-Off button to
turn it on.
Warning: This product is designed to work with line level
outputs or headphone outputs only. DO NOT connect it
directly to speaker outputs as it will permanently damage
the speaker.
Troubleshooting
The following troubleshooting guide takes you through some of the more common problems
associated with the installation and/or operation of a wireless system. If the problem persists,
please call toll-free at 1-800-732-6866 or visit www.acoustic-research.com.
Issue: Cause and solution:
No sound • Check that the transmitter AC power adapter is fully inserted into the wall outlet
and the power cord from the AC adapter is fi rmly connected to the transmitter
power input jack.
• Confi rm that the speaker is turned on and tuned to the transmitter—the indicator
light on the back of the speaker should be solid blue (not blinking).
• If you’re using the power adapters, confi rm that both (for the speaker and for the
transmitter) are fully inserted into their wall outlets and the adapter power cords
are fi rmly connected to the power input jacks on the transmitter or speaker.
or
• If you’re using batteries for the speaker, check that they are fresh and inserted
with correct polarity (+, –).
• Check that the audio source component (stereo, MP3 player, etc.) is turned on and
transmitting sound as it normally should.
• Make sure the volume on your audio source is turned up.
• Check that the speaker volume is turned up.
• If you are using a Tape 2 Monitor output from your receiver/amp as the audio
output, check that you have pressed the Tape Monitor/Tape 2 button on the front
of the receiver. This will turn on the Tape 2 outputs, which may not have been
active.
Issue: Cause and solution:
Sound is
distorted or
has static
• When using battery power, make sure the batteries are fresh and replace if
necessary.
• Check that the speaker’s indicator light is solid blue (not blinking) when an audio
source is connected to the transmitter
• Change the position of the channel select switch (1, 2 or 3) to change the
operating frequency. Then press the AutoScan button on the speaker’s back panel
to make the speaker retune.
• Change the location of the transmitter. Place it as high and away from
obstructions as possible. Avoid placing the transmitter directly on top of or behind
a TV.
• Move the transmitter and speaker closer together. Sending the signal through
certain materials, such as glass, tile, and metal, can decrease the effective
transmitting distance of the system.
Trademark(s) ® Registered www.Acoustic-Research.com MADE IN CHINA AWS73 US IB 02
12 Month Limited WarrantySpecifi cations
Transmitter
• Omni-directional 900MHz broadcast
• Effective transmitting range: up to 150 ft. (45m)*
• Phase-locked loop circuitry (PLL)
• 3 selectable broadcast frequencies
• Stereo audio input
*Maximum range; results may vary according to
environment.
Speaker
• Push-button, auto-lock tuning
• 2-way acoustic design:
• 2” tweeter, 3” woofer
• 10 Watt rated internal amplifi er
• Omni-directional receiver
• Frequency response: 40Hz - 15kHz
• Left/Mono/Right switch
• Operates using supplied AC adapter or six (6)
AA batteries (not included)
VOXX Accessories Corporation (the “Company”) warrants to the original retail purchaser of this product that
should this product or any part thereof, under normal use and conditions, be proven defective in material or
workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced
(at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within
the terms of this Warranty, the product along with any accessories included in the original packaging is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specifi cation of defect(s), transportation
prepaid, to the Company at the address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside the United
States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to
costs incurred for the installation, removal or reinstallation of the product.
The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered
or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure
to moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product,
or by leaving non-rechargeable batteries in the product while plugged into an AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER,
INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE
DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized to assume for the
Company any liability other than expressed herein in connection with the sale of this product.
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to
you. This Warranty gives you specifi c legal rights and you may also have other rights which vary from state/
province to state/province.
U.S.A.:Audiovox Return Center, 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16, Mississauga Ontario
L5T 3A5

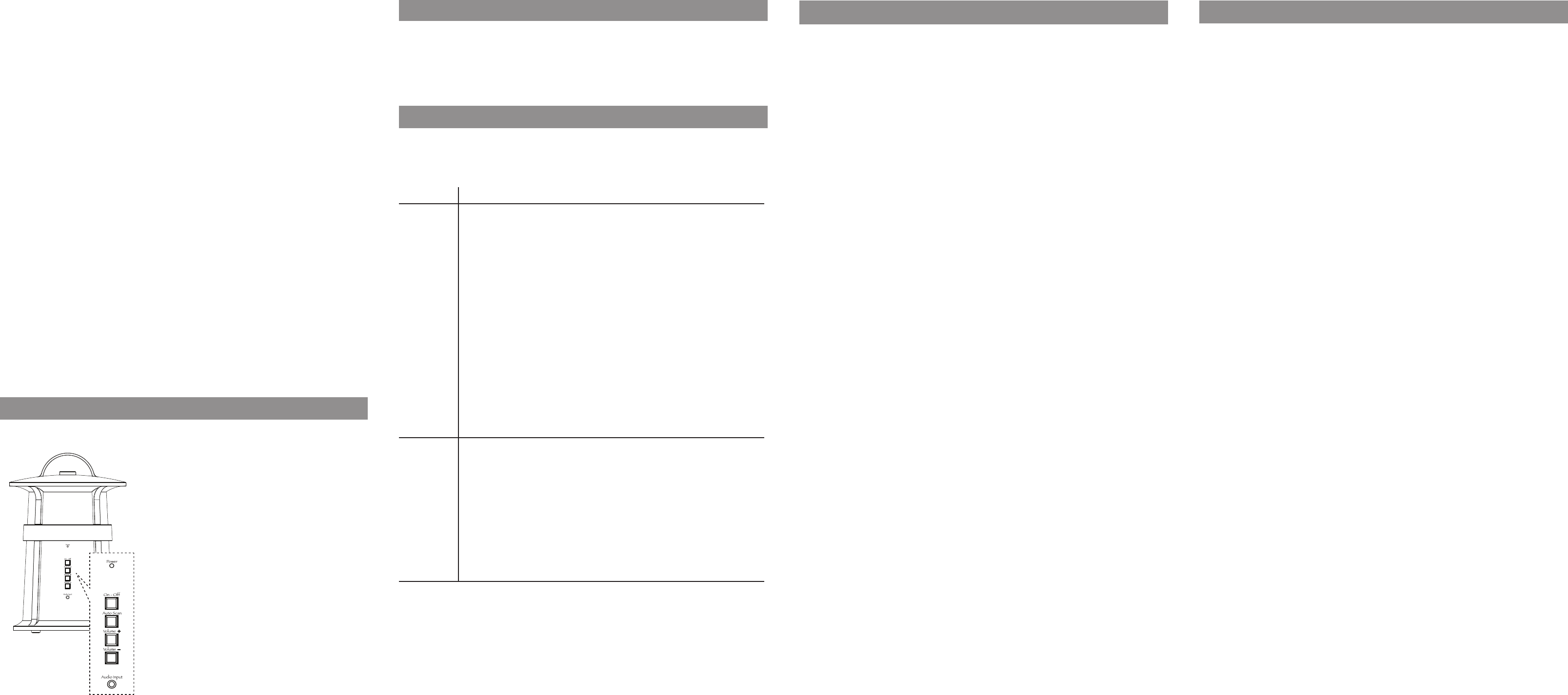

Turning the Speaker Off
1. Press the On-Off button on the back of the speaker to turn the speaker off.
2. Confi rm that the speaker is off by verifying that the indicator light on the speaker’s back
panel is no longer illuminated.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and 2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of
the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the radio or television off and
on, the user is encouraged to try to correct interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on another circuit.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
Industry Canada Regulatory Information
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1)
this device may not cause interference and 2) this device must accept any interference, including interference that may
cause undesired operation of the device.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment.
Avis d’Industrie Canada
Cet appareil est conforme à la norme CNR-210 des règlements d’Industrie Canada. Son fonctionnement est sujet aux
deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d’interférences et 2) Cet appareil doit accepter toutes
les interférences, y compris celles pouvant entraîner son dysfonctionnement.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
Avis d’Industrie Canada sur l’exposition aux Rayonnements: Cet appareil est conforme aux limites d’exposition aux
rayonnements d’Industrie Canada pour un environnement non contrôlé.
RF Exposure Warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with
antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
Using the Auxiliary Audio Input
Streaming Audio with the 900MHz Wireless Transmitter
1. Make sure the 900MHz transmitter is on and that there’s something playing on your audio
source. Turn your audio source up to at least 3/4 full volume.
2. If the speaker isn’t already on, press the On-Off button to turn it on.
3. The indicator light starts fl ashing, which means the speaker is trying to link with the
900MHz wireless transmitter. The indicator light turns solid blue when the speaker is tuned
to the 900MHz wireless transmitter—you should hear sound coming from the speaker now.
Note: If the speaker is not linked to the 900MHz transmitter, or if the transmitter isn’t
connected properly, the indicator light will continue to blink. If this occurs, please see the
Troubleshooting section of this manual.
IMPORTANT: The indicator light on the back of the speaker indicates the status of the
wireless connection only. If you’re not using the transmitter (or if you’re out of range of the
transmitter) it will keep blinking until it fi nds the transmitter. This is normal.
4. Adjust the volume on the speaker as desired.
Notes: If you’re using a single speaker with this transmitter, keep the L/M/R switch on the
bottom of the speaker in the “M” position (for mono). If you’re using more than one speaker
with this transmitter, set the speakers to the “L” (left) or “R” (right) positions according to
their orientation to the listener.
The speaker automatically retunes if it loses the transmitter’s signal. You can also press the
AutoScan button on the back of the speaker to retune the speaker at any time.
The transmitter turns off automatically if there is no audio signal present for a prolonged
period.
Interference in the form of static and/or distortion can sometimes be heard. If this occurs,
confi rm the transmitter/speaker adjustments and indicators. If the problem persists, refer to
the Troubleshooting section of this manual.
