T W O - W A Y F M L E D A U T O M A T I C / M A N U A L
T R A N S M I S S I O N R E M O T E S T A R T E R
AS-3372TW-FM
User Guide
WARNING
It is the responsibility of the vehicle operator to ensure their vehicle
is parked in a safe and responsible manner.
1. a) Manual transmission: When leaving the vehicle, it is the user’s
responsibility to ensure that the gearshift lever is in the NEUTRAL
position and the parking brake is engaged in order to avoid accidents
upon remote starting.
b) Automatic transmission: When leaving the vehicle, it is the user’s
responsibility to ensure that the gearshift lever is in “Park” in order to
avoid accidents upon remote starting.
(Note: Make sure that the automatic vehicle cannot start in "Drive".)
2. It is the user's responsibility to ensure that the remote starter is disabled
or put into valet mode before servicing.
FCC USER NOTICE (U.S.A.):
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's authority to operate the equipment.
![](/img.php?id=994773&img=bg2.png)
P. 2 User Guide
Table of Contents
Introduction ............................................................ 2
Using the Remote Control..................................... 3
Vehicle Presets....................................................... 3
Heater & Heated Seat ....................................... 3
Windshield Wipers, Radio & Headlights ........... 3
Arming the Starter Kill........................................... 3
Remote-Starting Your Vehicle.............................. 4
Setting Your Vehicle into Ready Mode ............. 4
Remote-starting................................................. 4
Driving Off.......................................................... 4
Remote Starter Features ....................................... 4
Idle Mode........................................................... 4
Valet Mode ........................................................ 6
Panic Mode........................................................ 7
Quick Lockout
TM
................................................ 7
Cold Weather Mode .......................................... 7
The Starter Kill and the Anti-grind Feature ....... 8
Extended Run Time........................................... 8
Advanced Features: Installation-
programmable Options ......................................... 8
Passive or Active Arming of the Starter Kill ...... 9
OEM-Style Alarm............................................... 9
Remote Door Locks........................................... 9
Priority Door Access.......................................... 9
Ignition-controlled Door Locks........................... 9
Ignition Relock................................................... 9
Secure Lock....................................................... 9
Remote Trunk Release ..................................... 9
Safe Start......................................................... 10
Installer-Programmable Valet Mode................ 10
“Home Valet™” Mode............................... 10
Turbo Mode ..................................................... 10
Engine Run Time............................................. 11
Constant While Pressed:................................. 11
Horn Chirp Timing ........................................... 11
Multi-car Operation.......................................... 11
Multi-Level Features (default state) ................... 12
Vehicle Status Request ....................................... 13
Status Request When the Engine IS NOT
Running ........................................................... 13
Ready Mode Status Request .......................... 13
Status Request When the Engine is Running. 14
Troubleshooting Poor Transmitting Range ...... 14
LIMITED LIFETIME WARRANTY......................... 15
Introduction
This is a state-of-the-art remote car starter system. The system is packed with advanced features
such as priority access to the driver’s door (commodity features) and the Safe Start children safety
feature.
With many advanced functions, this product will satisfy any one your expectations from high-end
commodity and security systems, without neglecting any standard feature commonly offered by
entry-level starters.
![](/img.php?id=994773&img=bg3.png)
User Guide
P. 3
Using the Remote Control
Your remote starter is equipped with a 5-button multi-channel remote control. It can operate two
independent vehicles equipped with a remote starter (see Multi-Car Operation section, later in this
Guide, for second-car transmitter functions).

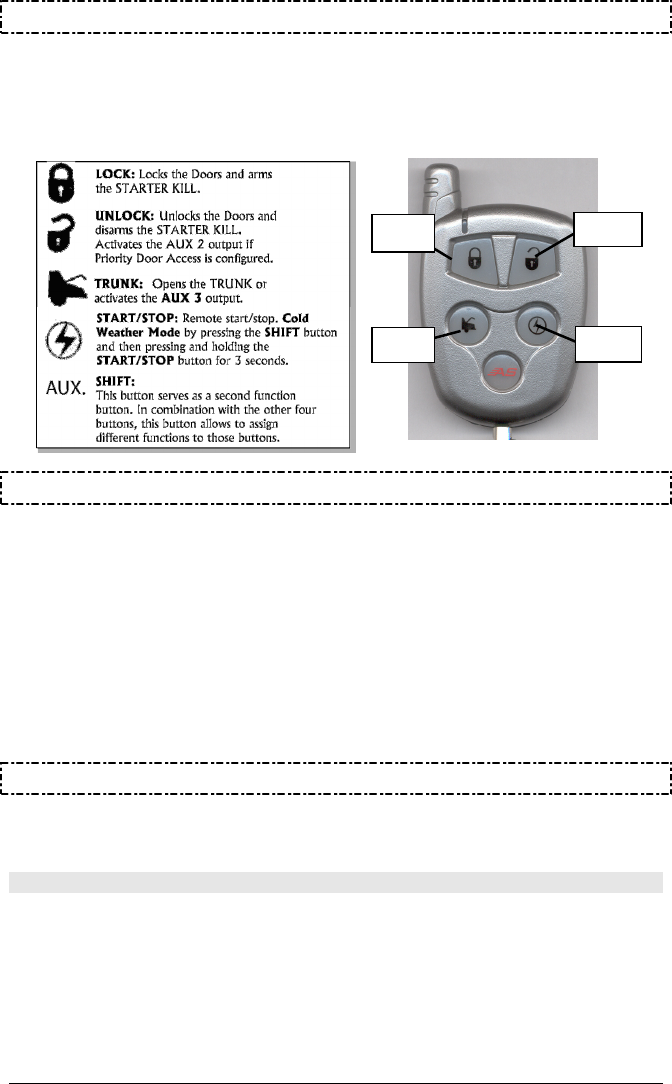

The functions of the transmitter are as follows:
Vehicle Presets
Heater & Heated Seat
When leaving the vehicle it is recommended to preset the accessory controls in preparation for the
next remote start. Settings for the blower motor (fan), front and rear, as well as heated seats (if
equipped) should not be left on
HIGH
. It is recommended to leave the settings on
LOW
or
MEDIUM
instead.
Windshield Wipers, Radio & Headlights
Certain vehicles require the radio and / or windshield wipers and / or headlights circuits to become
energized while running under remote start. When leaving the vehicle you must ensure that the
windshield wipers and headlights switches are
OFF
. Leaving the headlights switch
ON
on certain
types of vehicles could cause them to remain
ON
even after remote starter shutdown, resulting in a
dead battery.
Arming the Starter Kill
The Starter Kill (if installed) can be configured by the installer either to Passive Mode (so as to arm
automatically) or Active Mode (so as to require the user’s intervention for arming). By default, the
Remote Car Starter is configured to Passive Mode.
Passive mode:
• To arm the Starter Kill, press the
LOCK
button on the transmitter, OR
• In Passive Mode, the Starter Kill will also automatically arm 1 minute (by default) or 3 minutes
(if configured this way) after the ignition is turned
OFF
or once the last door is closed (if the
doors are monitored).
- The LED on the antenna will flash quickly during the countdown preceding the
activation of the Starter Kill.
- Once the activation countdown expires, the LED will send a series of quick double
flashes to indicate that the Starter Kill is now armed.
LED #2
LED #4
LED #3
LED #1
![](/img.php?id=994773&img=bg4.png)
P. 4 User Guide
• To disarm the Starter Kill, press the
UNLOCK
button on the transmitter.
- The Starter Kill will automatically rearm itself after 1 minute (by default) or 3 minutes
(if configured this way) if no door is left opened (if the doors are monitored) and the
ignition is not turned
ON
.
Active Mode:
• To arm the Starter Kill, press the
LOCK
button on the transmitter.
- The parking lights will flash once.
- The LED on the antenna will flash slowly.
- If remote door locks are installed, this will also lock the doors and arm the OEM-style
alarm.
• To disarm the Starter Kill, press the
UNLOCK
button on the transmitter.
- The parking lights will flash twice.
- The LED on the antenna will remain
OUT
.
- If remote door locks are installed, this will also unlock the doors.
Remote-Starting Your Vehicle
If your vehicle has an automatic transmission, simply press the
START/STOP
button to remote start
or stop your vehicle. Skip the next steps on to “Remote-starting”.
Setting Your Vehicle into Ready Mode
If your vehicle has a manual transmission you must read the following indications. In order to
start the vehicle by remote, the unit must first be set to Ready Mode. If the unit is not set to Ready
Mode, it cannot remote start the vehicle.
Please note that Ready Mode can be enabled by the remote or the handbrake, depending on
the option that was selected by your installer. Therefore, you must follow the appropriate
procedure between the two described below in order to set your vehicle into Ready Mode.
Once the system is set to Ready Mode, the vehicle can be remote started and stopped at any time.
The system will exit Ready Mode if a door, the hood or the trunk is opened, if the brake pedal is
pressed, if the parking brake is disengaged or if the ignition key is turned to the
IGNITION ON (RUN)
position.
To set the system to Ready Mode:
If Ready Mode is enabled by remote If Ready Mode is enabled by handbrake
1. Ensure that all the doors, hood and trunk are closed. Make sure that the gear selector is in the
neutral position.
2. With the engine already running, apply the
parking brake once and release the brake
pedal.
Make sure to release the brake pedal.
2. With the engine already running, apply the
parking brake twice and release the brake
pedal.
Make sure to release the brake pedal.
The parking lights will flash 3 times
quickly and remain lit.
Skip to step 4.
3. Within 20 sec. of engaging the parking
brake, press and hold LOCK, UNLOCK or
START/STOP on the transmitter.
The parking lights will flash 3 times
quickly and remain lit.
-
4. Remove the key: the engine will continue running.
5. Exit the vehicle and close all doors, hood and trunk.
6. Press for approx. 1 second either:
![](/img.php?id=994773&img=bg5.png)
User Guide
P. 5
a. LOCK to lock the doors and shut down the engine;
b. UNLOCK to unlock the doors and shut down the engine;
c. START/STOP to shut down the engine without affecting the doors.
Note: The vehicle will also enter Ready Mode once the engine run time expires.
Remote-starting
Press the
START/STOP
button for approximately 1 second. The parking lights will come
ON
to inform
you that the Remote Car Starter has received your signal. Approximately 5 seconds later, the
engine will start. The parking lights will remain
ON
during the pre-programmed run time of the
engine.
If the vehicle does not start at the first attempt, the system will shut down, wait a few seconds and
try to start the engine again. If your vehicle is equipped with an automatic transmission, there will
be 3 start attempts before the system gives up.
Driving Off
With the vehicle running under remote control, press the
UNLOCK
button to disarm the Starter Kill
and/or the OEM-style alarm (if installed) and unlock the doors. Enter the vehicle and do the
following:
1. Turn the ignition key to the
IGNITION ON (RUN)
position. (Do not turn the key to the
CRANK
position while the engine is running. This would cause the starter motor to re-engage.)
2. Press the brake pedal to disengage the remote starter unit.
You are now ready to drive off.
Remote Starter Features
Idle Mode
Convenience feature: Idle Mode allows the user to keep the engine running and the doors
locked while they stop, for example, at a convenience store or for a short delivery.
This feature allows the user to let the remote starter take over control of the vehicle (i.e. no Key in
the Ignition Switch) while the engine is running.
If the vehicle has an automatic transmission, proceed as follows to set the system to Idle
Mode:
1. With the engine running, make sure to release the brake pedal and press the
LOCK, UNLOCK
or
START/STOP
button on the transmitter until the parking lights come
ON
.
2. Remove the ignition key from the ignition switch.
The engine will continue running.
3. Exit the vehicle and close all doors, hood and trunk.
4. Press the
LOCK
button to leave the doors locked.
This will also arm the OEM-style alarm and starter kill (if configured).
5. Press the
UNLOCK
button to leave the doors unlocked.
1.
Note: The engine will continue running until the user re-enters the vehicle or until the expiration of
the engine run time.
If the vehicle has a manual transmission, Idle Mode can be activated through the same routine
as that used for Ready Mode (see “Ready Mode Option” in this Guide); at the last step, the
TRUNK
button is pressed instead of the other buttons.
Please note that the horn will honk once and that the OEM-style alarm will be armed if the
Idle Mode option is enabled.
Note: If the pre-programmed run-time expires or if the user shuts down the engine by remote
control, the vehicle will enter Ready Mode.
![](/img.php?id=994773&img=bg6.png)
P. 6 User Guide
Caution!!! Do not leave children or pets unattended in a vehicle standing in Idle Mode.
Valet Mode
When your vehicle is in Valet Mode, the remote starter and alarm (if configured) functionalities are
disabled. If the vehicle needs to be serviced, or if you park it indoors, the Valet Mode will prevent
the engine from being remote-started accidentally.
Any of the following features will put your remote car starter into Valet Mode:
• Ignition Valet: This feature allows you to put your system into Valet Mode by
using the ignition key.
• Remote valet: This feature allows you to put your system into Valet Mode by
using the transmitter.
• Valet switch: This feature allows you to put your system into Valet Mode by using a
push button switch (optional).
To put the system i n t o Valet Mode
• To put the system i n t o Valet mode using the KEY (Ignition Valet Mode):
a. Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times
successively into the
IGNITION/RUN
and
OFF
positions.
The parking lights will flash three times.
b. Turn the ignition
OFF.
The LED on the antenna will come
ON
solid to indicate that the vehicle has
successfully entered Valet mode.
• To put the system i n t o Valet mode using the TRANSMITTER (Remote Valet Mode):
a. Press the
UNLOCK
and
START/STOP
buttons simultaneously.
The remote will beep once.
b. Keep pressing the
UNLOCK
and
START/STOP
buttons simultaneously until the remote beeps
once more.
c. Release the
UNLOCK
and
START/STOP
buttons.
Both
UNLOCK
and
START/STOP
buttons will flash 3 times.
The parking lights will flash 3 times quickly and the LED on the antenna will come
ON
solid to indicate that the vehicle has successfully entered Valet mode.
• To put the system i n t o Valet mode using the PUSH BUTTON SWITCH (Valet Switch
Mode):
a. Insert the ignition key into the ignition switch.
b. Turn the key into the
ON
position.
c. Within 5 seconds, press the push button switch until the parking lights flash 3 times.
d. Release the push button and turn the ignition to the
OFF
position.
The LED on the antenna will come
ON
solid to indicate that the vehicle has
successfully entered Valet mode.
To put the system o u t o f Valet Mode
• To put the system o u t o f Valet mode using the KEY (Ignition Valet Mode):
a. Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times
successively into the
IGNITION/RUN
and
OFF
positions.
The parking lights will flash twice.
b. Turn the ignition
OFF.
The LED on the antenna will flash quickly to indicate that the vehicle is now out of
Valet mode.
• To put the system o u t o f Valet mode using the TRANSMITTER (Remote Valet Mode):
a. Press the
UNLOCK
and
START/STOP
buttons simultaneously.
The remote will beep once.
![](/img.php?id=994773&img=bg7.png)
User Guide
P. 7
b. Keep pressing the
UNLOCK
and
START/STOP
buttons simultaneously until the remote beeps
once more.
c. Release the
UNLOCK
and
START/STOP
buttons.
Both
UNLOCK
and
START/STOP
buttons will flash 3 times.
The parking lights will flash twice and the LED on the antenna will flash quickly to
indicate that the vehicle is now out of Valet mode.
• To put the system o u t o f Valet mode using the PUSH BUTTON SWITCH (Valet Switch
Mode):
a. Insert the ignition key into the ignition switch.
b. Turn the key into the
ON
position
c. Within 5 seconds, press the push button switch until the Parking lights flash twice.
d. Release the push button and turn the ignition to the
OFF
position.
The LED on the antenna will flash quickly to indicate that the vehicle is now out of
Valet mode.
Panic Mode
Note: Panic mode can only be activated if the horn has been adequately configured by your
installer.
In an emergency situation, you can activate panic mode by pressing and holding the
START/STOP
button for more than 3 seconds, until the horn starts honking. If the vehicle is under a remote start,
the engine will shutdown automatically before setting off the horn. You can stop the horn by
pressing:
(this will lock your doors and deactivate panic mode), or
(this will unlock your doors and deactivate panic mode).
Furthermore, the panic mode can be stopped by activating one of the following three (3) features:
a) Remote valet (pressing
UNLOCK
and
START/STOP
for at least 3 seconds)
b) Ignition valet (turning the key inside the ignition switch from
OFF
to
ON
6 times in a row)
c) By turning the key to the
ON
position and pressing the valet switch (if included) until the
parking lights flash 5 times.
Panic Mode will automatically shut down after 30 sec.
Quick LockoutTM
(Also called Secure Panic.) For fast protection in emergency situations, the system will
LOCK
all
doors when you press the brake pedal while you hear the sound signal. (Quick Lockout is
only available when Panic Mode has been set off.)
Cold Weather Mode
If the vehicle has a manual transmission, Ready mode should be set before entering Cold
Weather mode. When Cold Weather Mode is active, the engine starts every 2 hours and runs for 3
minutes (or for 8 or 20 minutes with diesel engines). Cold Weather Mode automatically ends after
24 hours (or 12 starts).
To enter Cold Weather Mode:
• Press and release the
AUX
button.
The
LOCK
button on the transmitter will light up.
• While the
LOCK
button is still lit up, press the
START/STOP
button.
The transmitter will beep once.
• Keep pressing the
START/STOP
button until the transmitter beeps twice.
• Release the
START/STOP
button.
Its LED will flash quickly.
The parking lights will flash 3 times.
![](/img.php?id=994773&img=bg8.png)
P. 8 User Guide
To exit Cold Weather Mode, do any one of the following actions:
• Open the hood.
• Start the engine by remote.
• Turn the ignition key to the
IGNITION ON (RUN)
position.
• Press and release the
AUX
button.
The
LOCK
button on the transmitter will light up.
While the
LOCK
button is still lit up, press the
START/STOP
button.
The transmitter will beep once.
Keep pressing the
START/STOP
button until the transmitter beeps once
Release the
START/STOP
button.
Its LED will flash quickly.
The parking lights will flash once.
To verify whether the system is in Cold Weather Mode (automatic transmissions only):
• Press the brake pedal:
• If the vehicle is in cold weather mode, the parking lights will stay on while the
pedal is pressed.
The Starter Kill and the Anti-grind Feature
With this added security feature, the system will prevent your vehicle from starting with the ignition
key when the Starter Kill is armed. If your Remote Car Starter was installed with the Starter Kill
option, one will not be able to start your vehicle with the key unless the system has been unlocked
and disarmed first, or put into Valet Mode.
Note: If the Starter Kill is installed, your vehicle will benefit from a protection against starter
motor damage that could occur after remote-starting the engine should the user, by force of
habit, turn the ignition key to the
CRANK
position.
Extended Run Time
With the vehicle running under a remote start, pressing and holding the
START/STOP
button for more
than 3 seconds will reset the run time counter to zero and restart the run time cycle from the
beginning:
• Press and hold the
START/STOP
button for more than 3 seconds.
The transmitter will beep once.
• Keep pressing on the
START/STOP
button until the transmitter beeps 3 times.
• Release the
START/STOP
button.
The
START/STOP
button will flash 3 times.
The parking lights will also flash 3 times slowly to confirm the extended run time
(the horn will also honk once if the horn option is configured).
To stop the vehicle, at any moment, simply press the
START/STOP
button. This procedure can only
be carried out once per remote start.
Example: If your Module is programmed for a run time of 3 minutes and your vehicle has been
running for 2 minutes already, pressing the
START/STOP
button will reset the counter to zero and the
Engine will run for another cycle (in this case, 3 minutes).
Advanced Features: Installation-programmable Options
The remote car starter was designed with flexibility and OEM integration in mind. With its program-
mable options, this unit can single-handedly control nearly any electrical system in your vehicle.
Caution
: The programming of your system should be left to a professional. Changing any
one of the settings may affect the operation of your Remote Car Starter. Please note that the
following programmable options may require additional parts and labor.
![](/img.php?id=994773&img=bg9.png)
User Guide
P. 9
Passive or Active Arming of the Starter Kill
See section “Arming the Starting Kill” earlier in this guide.
OEM-Style Alarm
The OEM-style alarm (if configured by your installer) monitors the doors, hood and ignition switch
of your vehicle. It will sound the horn if a door or the hood is opened, or if the key is turned in the
ignition.
• To arm the OEM-style alarm, press the
LOCK
button on the transmitter.
- The OEM-style alarm will ONLY arm if the
LOCK
button on the transmitter is pressed.
- The LED on the antenna will flash slowly to indicate that the OEM-style alarm is now
armed.
• To disarm the OEM-style alarm, press the
UNLOCK
button on the transmitter.
- To stop the horn from sounding if the OEM-style alarm is triggered, press the
LOCK
or
UNLOCK
button, or put the system in and out of Valet Mode (ignition valet, remote valet or
using the valet switch – for more information, see the “Valet Mode” section earlier in
this Guide).
Remote Door Locks
If your Remote Car Starter was installed with the Remote Door Locks option, you will have the
convenience of remote keyless entry. See section “Arming the Starter Kill”, earlier in this Guide,
for further instructions on remote door locking and unlocking.
Priority Door Access
If the Remote Door Locks option is installed on your vehicle, this safety feature allows you unlock
solely the driver’s door with a single press of the
UNLOCK
button on the transmitter; upon a second
press of the
UNLOCK
button within 6 seconds, all the other doors will unlock.
Ignition-controlled Door Locks
This is an added security feature. If your Remote Car Starter was installed with the Ignition-
Controlled Door Locks option, the doors will automatically be locked as soon as the ignition key is
turned to the
IGNITION ON (RUN)
position while the brakes are pressed. The remote car starter will
also lock any door that was unlocked and opened (then closed) the next time the break pedal is
pressed. When the key is turned to the
OFF
position, the doors will automatically be unlocked.
Ignition Relock
On Remote Car Starters of this series, when Ignition-controlled Door Locks are enabled and the
ignition key is in the
IGNITION ON (RUN)
position, should any door be unlocked and opened, all doors
will be relocked the next time the brake pedal is pressed.
Secure Lock
(Disabled by default.) Before your vehicle can be remote-started, the factory security system must
first be disarmed. The Secure Lock feature may be required on certain vehicle models with factory
security systems that automatically unlock the doors when the security system is disarmed.
To keep your vehicle protected when the factory security system is disarmed for a remote start,
Secure Lock will relock your doors as soon as the vehicle is started. Once the engine is shut down
by remote or after its runtime has expired, Secure Lock will also rearm your factory security system
and relock the doors.
Remote Trunk Release
If your system was installed with the Remote Trunk Release option, you can open your trunk by
pressing the
TRUNK
button for 3 seconds. The OEM alarm will be disarmed until the
LOCK
button is
pressed.
![](/img.php?id=994773&img=bga.png)
P. 10 User Guide
Safe Start
If this feature is enabled, the user must press the
START/STOP
button twice within 3 seconds to
remote-start the vehicle. This will eliminate accidental remote starts, e.g. when children are playing
with the transmitter.
• To remote-start your vehicle if Swap Start Mode is selected, press
AUX
and then
LOCK
.
• The
AUX 2
output can be activated by pressing the
START/STOP
button.
Installer-Programmable Valet Mode
“Home Valet™” Mode
If configured at installation, this feature will set the vehicle to a no-remote-start mode: if the vehicle
is parked indoors, there is no danger of it starting accidentally by remote control.
Note: Once the Home Valet Mode is activated, the vehicle will not start by remote but the
OEM alarm functions will still be enabled.
To take the system i n t o Home Valet Mode:
• Press the
LOCK
or
UNLOCK
button.
• Within 3 seconds, press the
START/STOP
and
LOCK
buttons simultaneously.
The transmitter will beep twice.
• Release the
START/STOP
and
LOCK
buttons.
The
START/STOP
and
LOCK
buttons will flash twice and the parking lights will come
ON
for 2
seconds.
To take the system o u t o f Home Valet Mode:
• Turn the ignition key to the
IGNITION ON (RUN)
position.
The system will warn you if someone attempts to start your vehicle while it stands in Home Valet
Mode:
• The transmitter will beep twice.
• The
START/STOP
and
LOCK
buttons will flash twice.
• The parking lights will:
Turn
ON
then
OFF
; then
Flash twice, pause; then
Flash twice again.
Turbo Mode
If Turbo Mode is configured at installation, it will allow a turbocharger to idle down after the user
leaves the vehicle: the unit will take over the vehicle and keep it running for 60 seconds (or until it
is shut down by remote control), then shut down the engine.
If the vehicle has an automatic transmission, proceed as follows to set the system to Turbo
Mode:
1) With the engine running, make sure to release the brake pedal and press the
LOCK, UNLOCK
or
START/STOP
button on the transmitter until the parking lights come
ON
.
2) Remove the ignition key from the ignition switch.
The engine will continue running.
3) Exit the vehicle and close all doors, hood and trunk.
4) Press the
TRUNK
button; this will lock the doors, arm the OEM-style alarm (if
configured|) and confirm that the vehicle is in Turbo Mode.
5) The engine will shut down after 60 seconds.
If the vehicle has a manual transmission, follow all steps of the Ready Mode routine (see
“Ready Mode Option” in this Guide) to activate Turbo Mode. At the last step, press either:
1)
LOCK
to lock the doors and have the engine shut down after 60 seconds;
The parking lights will flash 3 times and remain lit.
The OEM-style alarm and starter kill (if configured) will be armed.
![](/img.php?id=994773&img=bgb.png)
User Guide
P. 11
2)
UNLOCK
to unlock the doors and have the engine shut down after 60 seconds;
The parking lights will flash 3 times and remain lit.
3)
START/STOP
to shut down the engine without affecting the doors.
Note: The vehicle will enter Ready Mode once the engine run time expires.
Engine Run Time
If you have a gas engine, your Remote Car Starter can be programmed to run the engine for 3, 15,
or 25 minutes (15 minutes by default). If you have a diesel engine, the Remote Car Starter can be
programmed to run the engine for 8, 20, or 30 minutes (20 minutes default).
Constant While Pressed:
If enabled by your installer, this option allows you to open or close your windows at a distance or to
open or close the sunroof.
• Pressing and holding the
LOCK
button for more than 3 seconds will lock all doors and will send a
constant pulse as long as the
LOCK
button is held down (maximum of 15 seconds). This
constant pulse can be configured to activate certain functionalities such as rolling up the
windows – Please refer to your installer to see if your vehicle is compatible with this
option.
• Pressing and holding the
UNLOCK
button for more than 3 seconds will unlock all doors and will
send a constant pulse as long as the
UNLOCK
button is held down (maximum of 15 seconds).
This constant pulse can be configured to activate certain functionalities such as rolling down the
windows – Please refer to your installer to see if your vehicle is compatible with this
option.
Horn Chirp Timing
The pulse duration can be configured by your installer (from 5 ms to 200 ms).
Multi-car Operation
This option allows the owner of two vehicles, both equipped with the same Remote Car Starter
model, to control both systems with a single remote control. To control the second vehicle,
simultaneously press the
TRUNK
button and the button of the function you wish to use.
Note: The remote control must be configured for second car operation by the installer.
To control the second vehicle:
•
Press
TRUNK + LOCK
buttons simultaneously: ......................................
LOCK
•
Press
TRUNK + UNLOCK
simultaneously: ...............................................
UNLOCK
•
Press
TRUNK + START/STOP
simultaneously
:....................................................... START
•
Press
TRUNK + START/STOP
simultaneously
:
..........................................
STOP
or
•
Press
AUX
AUX
LOCK
:....................................................................
LOCK
• Press
AUX
AUX
UNLOCK
:................................................................
UNLOCK
• Press
AUX
AUX
START/STOP:............................................................................. START
• Press
AUX
AUX
START/STOP:
..........................................................
STOP
• Press
AUX
AUX
TRUNK:
..................................................................
TRUNK
Note: If the multi-level features have been modified from their default state by your installer,
the
AUX
button may have to be pressed once, twice or three times, according to the option
you chose.
![](/img.php?id=994773&img=bgc.png)
P. 12 User Guide
Multi-Level Features (
default state)
The multi-level features allow you to access different features of your vehicle or of a second car by
pressing the
AUX
button once, twice or three times. By default, the multi-level features are
programmed as follows:
Basic features (press the
AUX
button 1X)
AUX LOCK:.................................................................aux 2
AUX TRUNK:..............................................................status request
AUX START/STOP ......................................................cold weather
Multi-car operation (press the
AUX
button 2X)
AUX AUX LOCK:.............................2
nd
car lock
AUX AUX UNLOCK:.........................2
nd
car unlock
AUX AUX START/STOP:..................2
nd
car start/stop
AUX AUX TRUNK:...........................2
nd
car trunk
Customized features (press the
AUX
button 3X)
(May not be applicable for certain vehicles)
You can add customized features such as turning on the radio, opening sliding doors, etc.
Please note that the MCX-100 channel expander is required in order to add customized features. The Option
1 or 3 in Mode 3, Function 4 must also be selected.
AUX AUX AUX .............................. LOCK: customized feature 1
AUX AUX AUX .............................. UNLOCK: customized feature 2
AUX AUX AUX .............................. TRUNK: customized feature 3
AUX AUX AUX .............................. START/STOP: customized feature 4
You can customize the system as to personalize these multi-level features in an order that best
suits the user. Your options are:
Option 1:
Level 1
(requires pressing the AUX button 1X)
Multi car operation
Level 2
(requires pressing the AUX button 2X)
Basic features
Level 3
(requires pressing the AUX button 3X)
Customized features
Option 2:
Level 1
(requires pressing the AUX button 1X)
Basic features
Level 2
(requires pressing the AUX button 2X)
Multi car operation
Level 3
(requires pressing the AUX button 3X)
Customized features
Option 3:
Level 1
(requires pressing the AUX button 1X)
Customized features
Level 2
(requires pressing the AUX button 2X)
Multi car operation
Level 3
(requires pressing the AUX button 3X)
Basic features
Option 4:
Level 1
(requires pressing the AUX button 1X)
Basic features
Level 2
(requires pressing the AUX button 2X)
Customized features
Level 3 (
requires pressing the AUX button 3X)
Multi car operation
Example: If the multi-level features have been modified from their default state to option 3, the
setup would be as follows:
For “Basic features”:
To access the
AUX 2
feature, the user needs to press on the
AUX
button three (3) times followed
by the
LOCK
button.
To access the status request feature, the user needs to press on the
AUX
button three (3) times
followed by the
TRUNK
button.
To access cold weather mode, the user needs to press on the
AUX
button three (3) times
followed by the
START/STOP
button.
![](/img.php?id=994773&img=bgd.png)
User Guide
P. 13
Vehicle Status Request
The status request feature allows the user to see the status of the vehicle i.e.: if the doors are
locked or unlocked or if the vehicle is in cold weather mode, home valet mode, in valet mode or
how much time is left in the run time cycle. The following charts (Tables 1, 2 and 3) indicate the
confirmation sequences.
To retrieve the vehicle status:
Press and release the
AUX
button then press and release the
TRUNK
button (there will be a beep).
The transmitter will then flash the corresponding sequence of LEDs, depending on the vehicle’s
status.
If the engine is NOT running, refer to Table 1.
If the vehicle is in or out of ready mode, refer to Table 2.
If the engine IS running under a remote start, refer to Table 3.
The status request feature is a two-step procedure:
• The first sequence of flashes denotes if the vehicle’s doors are locked or unlocked.
• The second sequence of flashes (if applicable) denotes if the vehicle is in Cold weather mode,
Home valet mode, or Valet mode.
• If there is no second-sequence transmission, then the vehicle is in none of the three (3)
mentioned features (Cold weather mode, Home valet mode or Valet mode).
Status Request When the Engine IS NOT Running
STATUS SEQUENCE LED #1 LED #2 LED #3 LED #4 Beep(s)
Lock 3 flashes X X X 1
Unlock X 3 flashes X X 2
1
st
sequence if
locked 3 flashes X X X 2
1
st
sequence if
unlocked X 3 flashes X X 2
Cold
Weather
2
nd
sequence X X X 1 second X
1
st
sequence if
locked 3 flashes X X X 2
1
st
sequence if
unlocked X 3 flashes X X 2
Home
Valet
2
nd
sequence 1 second X X 1 second X
1
st
sequence if
locked 3 flashes X X X 1
1
st
sequence if
unlocked X 3 flashes X X 1
Valet
Mode
2
nd
sequence 1 second X X 1 second X
Table 1
Ready Mode Status Request
STATUS SEQUENCE LED #1 LED #2 LED #3 LED #4 Beep(s)
if locked 3 flashes X X X 1
In Ready
Mode
if unlocked X 3 flashes X X 2
Out of Ready
Mode
1
st
sequence
if locked 3 flashes X X X 1
![](/img.php?id=994773&img=bge.png)
P. 14 User Guide
STATUS SEQUENCE LED #1 LED #2 LED #3 LED #4 Beep(s)
1
st
sequence
if unlocked X 3 flashes X X 2
2
nd
sequence X X X 4 4
Table 2
Status Request When the Engine is Running
When the vehicle doors are locked:
The LED # 1 will flash 3 times to denote that the vehicle’s doors are locked.
When the vehicle doors are unlocked:
The LED # 2 will flash 3 times to denote that the vehicle’s doors are unlocked.
RUN TIME Beep(s) LED #1 LED #2 LED #3 LED #4
If there is more than 3/4 of run
time cycle 3 ON for 1-sec
ON for 1-sec
ON for 1-sec
ON for 1-sec
If there is more than half of
run time cycle 3 ON for 1-sec
ON for 1-sec
ON for 1-sec
X
If there is more than 1/4 of run
time cycle 3 ON for 1-sec
ON for 1-sec
X X
If there is less than 1/4 of run
time cycle 3 ON for 1-sec
X X X
Table 3
Troubleshooting Poor Transmitting Range
Many factors may affect the operating range of the transmitter. Some of these are:
• The condition of the battery in the transmitter.
• The operating environment (for example: downtown radio-frequency noise, airports, cellular
phone towers…).
• Metal: any type of metal will affect operating range. This includes the vehicle itself.
• The shape of the vehicle can affect range as well (vans in general have less range).
• The shape of the roof and A-pillars brings about considerable radio-frequency deflection (in
this case, the signal from the remote control). As a result, the direction in which the vehicle is
facing in relation to the remote control can affect the range. Straight on (standing in front of
the vehicle) generally gives you the greatest range; the second best performance is from the
back. Using the remote control from either side of the vehicle will usually give the lowest
range.
• The range will be significantly lower in a crowded parking lot than in open space.
• Always hold the transmitter high, approximately at shoulder height.
• The operating range will be somewhat lower on vehicles equipped with an aftermarket or
factory alarm.
![](/img.php?id=994773&img=bgf.png)
User Guide
P. 15
LIMITED LIFETIME WARRANTY
REMOTE STARTERS AND ALARM SYSTEMS:
As the manufacturer, 4366859 Canada Inc. (“Autostart”) warrants to the original consumer purchaser only
(nontransferable) that the remote starter module (control box) shall be free from defects in materials and
workmanship for as long as the original consumer purchaser continuously owns the vehicle in which the
remote starter was originally installed, as specified below:
1) For the first two years after the date of manufacture, as specified by the serial number on the module,
Autostart will replace the remote starter module free of charge with a new remote starter module.
2) For the third year and any consecutive year after the date of manufacture, as specified by the serial
number on the module, Autostart will provide to the original consumer purchaser a new remote starter
module, for a repair charge of $25.00 USD.
In all cases, the consumer must return the remote starter module to the point of purchase, and must provide a copy
of the proof of purchase to said retailer. A remote starter module will be returned to the retailer for the consumer to
claim within a 4 (four)-week period. For case (2), a certified check or money order in the amount of $25.00 USD
must accompany the remote starter module, or the retailer may refuse the return.
ACCESSORIES:
Autostart warrants to the original consumer purchaser only (nontransferable) that it will replace any Autostart
accessory part for a one-year period from date of purchase. Accessories will only be replaced if proven defective in
material or workmanship, and if, when the accessory is returned to the point of purchase, the retailer is provided
with a copy of the proof of purchase. The accessory will be sent to the retailer for the consumer to claim within a 4
(four)-week period.
THE WARRANTY IS VOID IF:
1) The product has been damaged, altered in any way or tampered with, without the explicit written
consent of an Autostart technician. For remote starter modules, this includes the opening or
removal of the plastic covering of the module, or the removal or alteration of the barcode label on
the plastic covering of the module.
2) The product is damaged due to accident, fire, flood, shipping and handling, misuse, neglect, or
3) The product has been installed or repaired by anyone other than a certified technician.
4) The product has been improperly installed or used.
THE WARRANTY DOES NOT COVER:
1) Batteries.
2) Scratched or worn transmitter cases.
3) Installation and/or removal charges for all remote starter modules and accessories.
4) Shipping and handling charges incurred for product exchange or replacement.
5) Any material damages other than to the product itself.
6) Harnessing, L.E.D. lights, switches, inverters, relays, etc.
THIS LIMITED LIFETIME WARRANTY SHALL CONSTITUTE THE SOLE LIABILITY OF AUTOSTART
FOR OUR PRODUCTS, AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED.
THERE ARE NO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. NO PERSON, FIRM OR CORPORATION IS AUTHORIZED TO ASSUME FOR AUTOSTART
ANY OTHER LIABILITY WITH RESPECT TO THE SALE OR USE OF OUR PRODUCTS. AUTOSTART’S
LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR ANY
OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT FOR
DAMAGE IS THE BASIS OF THE CLAIM. UNDER NO CIRCUMSTANCE WILL AUTOSTART, ITS
DISTRIBUTORS OR THEIR AGENTS BEAR ANY LIABILITY WHATSOEVER FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
The parties hereto elect that any dispute regarding the present document be submitted to the appropriate
Court located in the Province of Quebec, District of Montreal. The parties hereto agree that this document is
governed by and interpreted in accordance with the law of Quebec. If the purchaser is located in a province
of Canada other than Quebec, all matters dealing with the warranty of quality will be governed by and
interpreted in accordance with the law of Ontario. If the purchaser is located outside Canada, all matters
dealing with the warranty of quality will be governed by and interpreted in accordance with the United
Nations Convention on Contracts for the International Sale of Goods (the “Vienna Convention”).
