Voyetra Turtle Beach TB2260 Ear Force XP300 RX User Manual XP300 User Guide US 12 28 11
Voyetra Turtle Beach, Inc. Ear Force XP300 RX XP300 User Guide US 12 28 11
Users Manual
![](/img.php?id=1652814&img=bg1.png)
What’s in the Box
product support and warranty information:
www.TurtleBeach.com/support
XP300 Headset
Turtle Beach Sticker
T
U
R
T
L
E
B
E
A
C
H
.
C
O
M
watch XP300 training videos at:
www.youtube.com/TurtleBeachVideos
RCA Splitter Cable
XBA
Bluetooth Adapter Headset Charging Cable
X32 Wireless Digital
RF Transmitter
![](/img.php?id=1652814&img=bg2.png)
About the XP300 pg 1
XP300 Headset pg 3
XP300 Transmitter
Overview pg 5
Using the Transmitter pg 6
Pairing the Headset and Transmitter pg 6
Xbox 360® Setup pg 7
PS3™ Setup pg 12
Connecting a Digital Music Player pg 15
Connecting a DSS or DSS2 Surround Sound Processor pg 16
Bluetooth®pg 17
Recharging the Headset pg 19
Equalizer and Sound Field Expander Presets pg 20
Chat Boost™pg 21
Mic Monitor pg 21
Technical Specifications pg 22
Troubleshooting pg 23
Important Safety Information pg 24
Table of Contents
![](/img.php?id=1652814&img=bg3.png)
1
The Ear Force™
XP300 is a premium, high-performance headset designed for Xbox 360® and PS3™
gaming. To get the most from your
XP300, please take a few minutes to review this introduction.
Dual-Band Wi-Fi
The Ear Force XP300 headset provides wireless CD-quality game sound via dual-band digital RF (radio frequency) that communicates
with the XP300 transmitter. This advanced dual-band Wi-Fi technology uses either 5GHz or 2.4GHz signals to transmit high fidelity
digital audio and finds the optimum frequency to help eliminate interference with other wireless devices and Wi-Fi networks. Unlike
the RF technology used in most other wireless headsets, the dual-band Wi-Fi technology found in the XP300 coexists with wireless
networks for optimum performance.
Dual Pairing Bluetooth ®
The XP300 incorporates Bluetooth technology which is used for communicating wirelessly on Xbox LIVE® with the included XBA Chat
Adapter and on PlayStation® Network (PSN™
). The Bluetooth can also be paired to your mobile phone so you can use your XP300 to
accept phone calls – all while totally immersed in the action of the game.*
Rechargeable Battery
The XP300 also features a rechargeable lithium polymer battery that provides up to 15 hours of continuous game play on a single
charge. The battery can also be recharged while gaming with the included charging cable so you’ll never miss out on the action.
Engineered for High-Quality Sound
The XP300 headset is engineered to deliver high-quality audio that makes it ideal for gaming, movies and digital music playback.
The high-fidelity, 50mm speakers are encased in acoustically-tuned ear cups with soft fabric cushions and deliver extended bass
with extraordinary dynamic range for optimum audio performance.
About the XP300
dual band wireless
WiFi
5GHz
![](/img.php?id=1652814&img=bg4.png)
2
*Only 2 Bluetooth devices total can be connected to the headset at a time. In addition, only one Bluetooth device can be active on the
headset at a time. For example, if you are making a call with the headset while on Xbox LIVE chat, the chat will be deactivated until
the call is over.
PS3
PSN Chat via Bluetooth RF*
Game sound via
RCA cable
TRANSMITTER
Mobile Phone
via Bluetooth*
XBOX 360
Game sound via
RCA cable
TRANSMITTER
Game sound in
Digital RF
Mobile Phone
via Bluetooth*
wired
wireless
Xbox LIVE chat via
XBA Bluetooth adapter*
wired
wireless
Game sound in
Digital RF
![](/img.php?id=1652814&img=bg5.png)
3
XP300 Headset - Left View
Power Button: Turn on the headset by pressing the
power button for a couple of seconds, then release.
You will hear 2 beeps and the power LED should start
flashing. Turn off the headset by pressing the button
until the LED stays on and you hear 2 beeps, then
release. To enter Pairing Mode, press and hold the
power button for about 6 seconds until you hear 2 fast
beeps and the LED begins to flash rapidly (see pg 6).
The headset will turn off after several minutes if there’s
no audio detected or if the transmitter is turned off.
Tone Button: Press this button to activate the different
EQ presets. A beep will indicate which preset is
selected. (see pg. 20)
Sound Field Button: Press this button to activate the
different Sound Field presets. A beep will indicate which
preset is selected. (see pg. 20)
Variable Mic Monitor: adjusts the level of your voice
heard in the headset. (see pg. 21)
NOTE: Turning up the mic monitor may cause the mic to pick
up room sounds which will make the silence detector not
automatically shut off the headset when it’s not being used. If
the power is not automatically shutting down, turn down this
mic monitor control.
Xbox 360 Controller Jack: used for optional wired chat
setup (see pg. 11)
Game Volume: Turn to adjust the game sound level.
Removable Microphone with Adjustable Boom:
The microphone can be removed from the headset
when chat is not required by detaching it from the boom.
To properly position the mic: Remove the foam cover, insert the
boom into the socket so the holes on the mic casing are facing
your mouth. Then replace the foam cover. The boom jack also
has a marker to indicate the proper mic position.
1
2
3
4
5
6
7
1
23
4
5
6
7
![](/img.php?id=1652814&img=bg6.png)
4
XP300 Headset - Right View
1
2
3
4
56
Bluetooth® Volume: Press Chat (+) or Chat (–) to adjust
Bluetooth volume level. A tone will sound each time the
volume level changes.
Bluetooth LED: Flashes blue once per second when paired
with a device. Flashes blue twice per second when not
paired with a device. Flashes blue and red quickly when in
pairing mode.
Bluetooth Multi-Function Button (BT MFB):
Powers on the Bluetooth and performs several other
functions described in the “Bluetooth” section. (see pg. 17)
NOTE: The Bluetooth feature is normally powered on. If it is not
paired to another device, it will automatically turn off after 5
minutes to conserve battery power.
Mic Mute Button: Press to toggle between muting and
unmuting the microphone. A high beep will sound when the
mic is unmuted and a low beep will sound when the mic
is muted. When using the XBA Bluetooth Adapter, the mic
can also be muted by double-pressing the button on the
puck. When using the optional Talkback cable, the mic can
be muted directly from the switch on the Talkback cable.
Headset Charging Port: The headset may be charged by
connecting this Mini USB input to a free USB port on your
gaming console using the included Headset Charging
Cable. (see pg. 19)
NOTE: The Headset Charging Cable included with the XP300
can only be used to charge the headset and cannot be used as a
standard USB data cable.
Charging LED: Turns red when charging and turns off
when charged.
1
2
3
4
5
6
![](/img.php?id=1652814&img=bg7.png)
5
XP300 Transmitter
1
2
3
4
Power/Link LED: When the transmitter is powered on and
communicating with the headset, this LED will be on solid. When
the headset is turned off, the LED will turn off. A slowly pulsing LED
indicates that the transmitter can’t communicate with the headset.
This could happen when the headset is out of range, turned off or not
paired with the transmitter. (see pg 6)
Game Audio Input Jack
Insert the 3.5mm end of the included RCA Splitter Cable into this jack.
Auxiliary Input Jack: Provides a 3.5mm input for digital music players
or additional audio sources. (3.5mm cable sold separately)
Pairing Button: Press and hold to activate pairing mode. (See pg. 6)
1
2 3 4
![](/img.php?id=1652814&img=bg8.png)
6
Using the Transmitter
Transmitter Range
The transmitter sends game audio from your Xbox 360® to the headset
via digital radio frequency (RF) signal, so a direct line of sight is not
required. When you’re out of range, you may hear popping or clicking
sounds if the headset loses the RF signal. For best performance, place
the transmitter in an open area that is unobstructed by objects that
might absorb RF signals from the internal antenna. Avoid placing it on
a metal surface, such as the top of a home theater A/V receiver.
Pairing the Headset and Transmitter
The headset and transmitter in this package are “paired”, which means they’re synchronized to ensure they work together. When
the headset and transmitter are communicating, the POWER LED on the the transmitter will be on solid. If this LED is slowly pulsing
instead, it means the transmitter can’t communicate with the headset. This could happen when the headset is out of range, not turned
on or not paired with the transmitter. If the LED is slowly pulsing when the headset is on and within range, then they might need to be
“paired” as described below:
NOTE: Only one headset can be paired with the transmitter. If you pair two headsets with the same transmitter, they’ll interfere with each other
as they compete for the transmitter RF signal. This will cause one headset to shut off. So don’t try to pair two headsets with the same transmitter!
2 feet
Maintain a distance of at least
2 feet between the headset and
transmitter when pairing.
Optimum range: within 30 ft.
1. Make sure the headset and transmitter are turned off and
they are at least 2 feet away from each other.
2. Power on the transmitter by connecting it to a free USB
port on your gaming console. Then press and hold the
PAIR button on the transmitter. The transmitter LED will
begin to flash rapidly, then release the PAIR button.
3. Press and hold the headset POWER button for about 6
seconds until the LED begins to flash rapidly, then release
the button.
4. Wait for the headset and transmitter to pair. This process
could take up to 30 seconds.
If pairing is successful, the LED on the transmitter should be
on solid and the headset LED should be flashing about once
per second, indicating that the units are paired.
If pairing fails, repeat steps 1-4. It may take up to 5 attempts
to pair successfully.
![](/img.php?id=1652814&img=bg9.png)
7
Xbox 360® Setup (HDMI)
*All XBOX 360 models require an XBOX 360 Audio Adapter Cable for audio output when used with an HDMI connection (sold separately).
NOTE: If your HDMI TV has red/white RCA AUDIO OUT jacks you can use it to feed the sound from your TV to your Turtle Beach headset.
(AUDIO IN jacks will not send sound out to your headset, you need AUDIO OUT as shown in the alternate setup.)
Xbox 360
Audio Adapter Cable*
(sold separately)
HDMI Cable
(sold separately)
Transmitter USB Cable
RCA Splitter Cable
(included)
![](/img.php?id=1652814&img=bga.png)
8

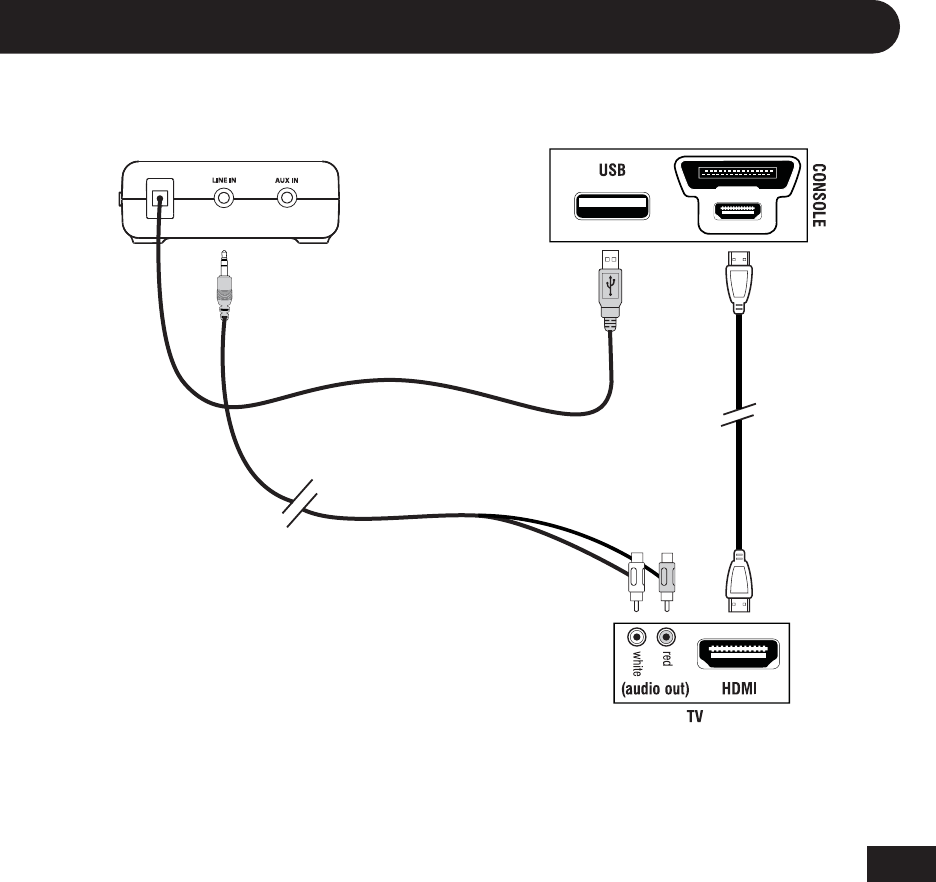

(Alternate Setup for HDTVs with audio outputs)
Transmitter USB Cable
RCA Splitter Cable
(included)
HDMI Cable
(sold separately)
![](/img.php?id=1652814&img=bgb.png)
9

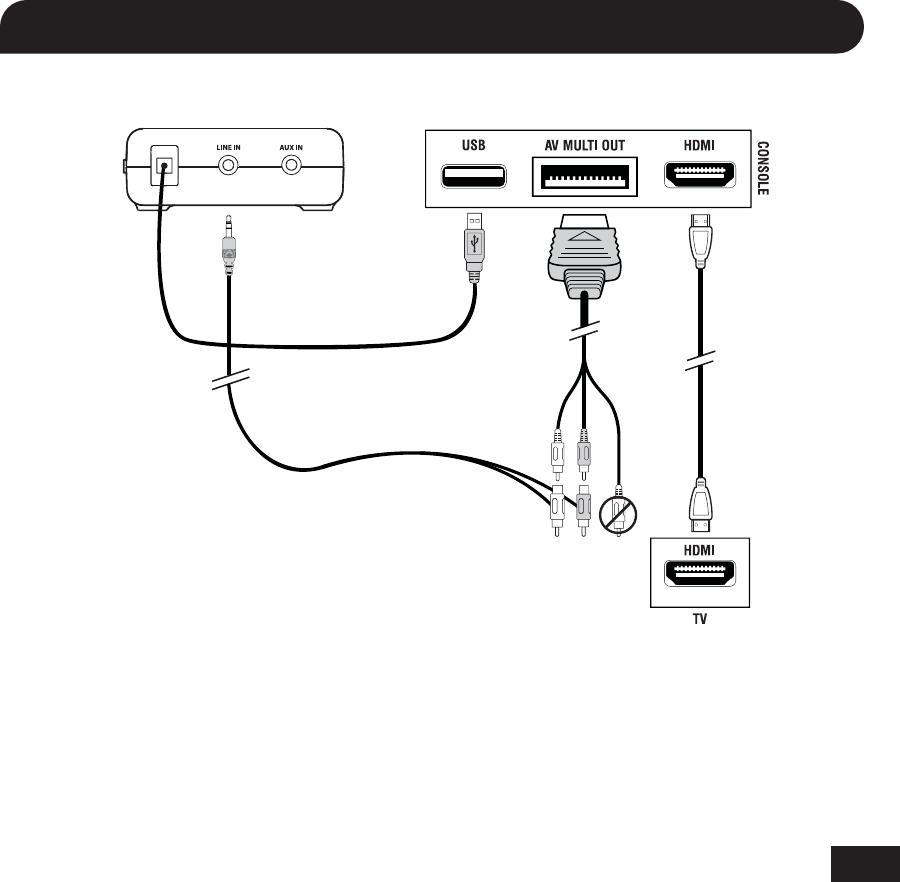

XBOX 360® Setup (RCA)
XBOX 360
AV Cable
(included with
Xbox 360 console)
Transmitter USB Cable
RCA Splitter Cable
(included)
![](/img.php?id=1652814&img=bgc.png)
10
1. Power on the Xbox 360 controller and plug the XBA into the
controller headset jack.
2. With the XBA powered-OFF, press and hold the button on the
XBA for 4 seconds to enter Bluetooth pairing mode. The LED will
begin to blink rapidly.
3. With the XP300 powered-ON, press and hold the Bluetooth
button (BT MFB) on the right ear cup for about 5 seconds to
power on the Bluetooth.
Connecting the XBA Bluetooth®Chat Adapter*
If this the first time you’ve powered-on the headset, the Bluetooth will automatically be in pairing mode.
If its not the first time the headset has been powered-ON, make sure the Bluetooth is powered-off and press and hold the BT MFB
button for about 5 seconds until you hear 3 fast beeps in the headset and the Bluetooth LED is flashing blue and red.
After a few seconds, the XBA and the XP300 will be paired. The XBA will automatically pair itself to the headset each time it’s powered
on so you will only need to complete the pairing process during initial setup.
*The XBA adapter is not compatible with the Xbox 360 chat pad and may not be compatible with third party controllers.
Xbox 360 Wireless Chat Setup
XBA Functions
Function Button Press LED
Power ON Single 1 blink / sec
Power OFF Hold 3 secs OFF
Mic MUTE Double Solid ON
Mic UNMUTE Double 1 blink / sec
Pairing Mode
(paired)
(not paired)
Hold 4 secs
2 blinks / sec
1 blink / sec
XBA Button
XBA LED
![](/img.php?id=1652814&img=bgd.png)
11
1. Insert the right angle plug into the headphone jack on
the Xbox 360 controller.
2. Insert straight plug into the controller jack on the left
ear cup of the headset.
In cases where the XBA Bluetooth Chat Adapter cannot be used,
such as with third-party controllers and the Xbox Chat Pad, an
optional talkback cable is available for a wired chat connection
between the headset and controller.
Xbox 360® Wired Chat Setup* (optional)
Configure Xbox 360 System Settings
1. Press the Xbox 360 Guide Button on the controller and select:
"Settings > Preferences > Voice"
2. Voice Volume = 10
3. Game Volume = 10
4. Voice Output = Play Through Headset
Voice Volume 10
Voice
Mute Kinect
Voice Output
Play Through Headset
Play Through Speakers
Voice Output
Game Volume 10
Xbox 360 Controller
Xbox 360
Input
*The Xbox 360 Talkback Cable is required for this setup and is
sold separately at www.TurtleBeach.com. Xbox 360
Talkback Cable*
(sold separately)
![](/img.php?id=1652814&img=bge.png)
12
PS3™ Setup (HDMI)
Transmitter USB Cable
PS3 AV Cable
(included with
PS3 console)
RCA Splitter Cable
(included)
HDMI Cable
(sold separately)
![](/img.php?id=1652814&img=bgf.png)
13
PS3TM Setup (RCA)
Transmitter USB Cable PS3 AV Cable
(included with
PS3 console)
RCA Splitter Cable
(included)
![](/img.php?id=1652814&img=bg10.png)
14
Audio Device Settings
Microphone Level 3
Input Device Turtle Beach Bluetooth Chat
Output Device Turtle Beach Bluetooth Chat
Back
X Enter
OK
In the PS3 Menu, select “Settings” > “Accessory Settings” > “Audio Device
Settings” > set the “Input” and “Output” to “TURTLE BEACH BLUETOOTH CHAT”
12/14 12:15 PM
0
Register to manage Bluetooth® devices such as
headsets, keyboards and mouse devices.
R
Re
Re
eg
eg
is
is
st
er
to
ste
ste
o
er to
er
o
to
m
mana
ma
an
a
a
age
n
a
n
ag
a
e
ge
g
eB
eB
eB
B
B
Bl
uet
o
Bl
u
Bl
ue
l
u
Bl
et
o
e
oot
h®
o
ooth
o
h
oth
h®
h®
®
®
®
®
®
®
®d
®d
®
d
dev
ic
dev
de
When using the XP300 with a PS3,the Bluetooth®is used for Playstation® Network (PSN™
) chat. Follow these instructions to pair the
Bluetooth with your PS3 console.
PS3 Chat Setup
Configure PS3 System Settings
1. With the XP300 Bluetooth powered OFF, go in the PS3 Menu
and select “Settings” > “Accessory Settings” > “Manage
Bluetooth Devices”
2. If you have never used a Bluetooth device or have deleted any
profiles from other devices previously used with your console,
the PS3 prompt will ask if you wish to register a device. Choose
“Yes” to start scanning. If any other Bluetooth devices have
previously been paired with your console they will appear in a
list. Choose “Start Scanning” at the bottom of the screen.
3. On the XP300 headset, press and hold the BT MFB for
5 seconds until the starts flashing blue and red and you hear 3
fast beeps — then release the button.
4. When the PS3 is finished scanning, it will prompt you to select
the Bluetooth device.
Select “TURTLE BEACH BLUETOOTH CHAT” from the list.
5. Enter “0000” as the Pass Key and select “OK”. The Bluetooth
LED on the headset will flash blue about once per second,
indicating that the Bluetooth has paired to your PS3.
![](/img.php?id=1652814&img=bg11.png)
15
Connecting a Digital Music Player
The XP300 transmitter features an auxiliary input for connecting digital music players or other analog sources so you can listen to your
own music along with the game audio. The Auxiliary Input volume can be adjusted directly from the digital music player.
Digital Music
Player
Auxiliary Input
3.5mm Cable
(sold separately)
Connect the digital music player to the
Auxiliary Input if you want to hear the
music along with the game audio.
DUALBAND
LINEINAUXIN
![](/img.php?id=1652814&img=bg12.png)
16
Transmitter USB Cable*
3.5mm Cable
(included with
DSS2)
Digital Optical
Cable
(included with
DSS2)
USB Power Cable*
(included with
DSS2)
Connecting a DSS or DSS2
The XP300 can be upgraded to Dolby® Digital surround sound by adding the Ear Force DSS or DSS2 surround sound processors
(sold separately). Visit www.turtlebeach.com/DSS2 to learn how you can upgrade your XP300 headset with surround sound.
*Both the XP300 transmitter USB cable and the DSS/DSS2 USB power
cable must be plugged into separate USB ports directly on the Xbox 360
console for power. Do not plug the transmitter USB cable into the USB OUT
port on the DSS or DSS2, as this may cause overloading of the USB ports.
XP300 Stereo
Sound Field
XP300 Sound Field with Dolby Digital
Surround Sound Processing
Setup
Add a DSS or DSS2 to Upgrade
to Surround Sound
![](/img.php?id=1652814&img=bg13.png)
17
The XP300 incorporates Dual Pairing Bluetooth technology that can be simultaneously paired to 2 Bluetooth enabled devices at once.
This lets you communicate with Xbox LIVE™
and PSN™
chat and answer calls on a Bluetooth enabled mobile phone. If you’re not using
either of these Bluetooth features, you should turn off the Bluetooth to conserve battery power. The XP300 will automatically remember
the last 2 paired devices upon powering on.
Pairing the Bluetooth for Xbox LIVE or PSN Chat
See "Xbox 360 Wireless Chat Setup" on page 10.
See "PS3 Chat Setup" on page 14.
Pairing a Bluetooth Enabled Mobile Phone
The XP300 Bluetooth must be powered off before you start:
1. On the XP300, press and hold the Bluetooth Button (BT MFB) for 5 seconds until the flashing LED changes from blue to
red—then release the button.
2. On your Bluetooth enabled mobile phone, activate the Bluetooth mode and search for Bluetooth devices as described in its user
manual.
3. When your device is finished scanning, select “TURTLE BEACH BLUETOOTH CHAT” from the list and follow the prompts to connect.
4. Enter “0000” as the Pass Key and select “OK”. The Bluetooth LED on the headset will start flashing blue about once per second,
indicating that the headset and phone are paired.
*NOTE: Only one Bluetooth device can be active on the headset at a time. For example, if you are making a call with the headset while on Xbox LIVE
chat, the chat will be deactivated until the call is over.
Using Bluetooth®
Mobile Phone
via Bluetooth*
![](/img.php?id=1652814&img=bg14.png)
18
Making Calls
Once the headset is successfully paired with your mobile phone, you can use it to make and receive calls. It can be used with voice
dialing if your phone supports this function.
1. Using voice dialing* – Press and hold the BT MFB button for 3 seconds until you hear a tone—then release. The voice recognition
prompt in your phone will now be activated. Say the name of the phone number or person whom you want to call. You can exit the
voice recognition state at any time by pressing the MFB for 3 seconds.
2. Using mobile phone keys to make a call – Dial the number on the mobile phone as normal. Once the call has been placed, the sound
will automatically be transmitted to the headset.
3. Redial – Double-click BT MFB button. You will hear two tones, and the last number called will be dialed.
4. Muting the microphone – During a call, the microphone muting can be toggled by Pressing the MUTE button. You will hear one tone,
indicating that the mic mute is active. While the mic is muted, a beep will be heard every 30 seconds to let you know that mic mute is
still activated.
NOTE: Some mobile phones may not have a redial or voice recognition function. If a phone does not have a redial function, then a double-click of the
MFB will initiate the voice recognition state instead. If a phone does not have either function, then a double-click or 3-second press of the MFB will
have no effect.
Receiving Calls
When the XP300 Bluetooth is powered on and there is an incoming call you will hear a phone ring chime in the headset.
You have three options when an incoming call is received:
1. Answer call – Press the BT MFB once to accept the call. Press it again to end a call. A tone is heard in the earpiece each time you
answer or end a call.
2. Reject call – Press and hold the BT MFB for 3 seconds until you hear a beep. The call is sent directly to your voicemail.
3. Do nothing – The “incoming call chime” will sound until your phone sends the caller to voicemail.
![](/img.php?id=1652814&img=bg15.png)
19
The XP300 features a rechargeable lithium polymer battery that provides more than 10 hours of continuous game play. When your
headset battery power is low, a tone will begin to sound every 10 seconds until the headset powers off. You can recharge your
headset while still gaming with the included Headset Charging Cable. Simply plug the mini USB end into your headset CHARGE port
and plug the other end into a free USB port on your game console.
If your headset is charging while it’s powered off, the LED on the headset will remain solid RED until the headset is charged, at which
time the headset LED will turn off.
Recharging the Headset
Headset Charging Cable
(included)
Headset
CHARGE Port
Game Console
USB Port
NOTE: Do not use the included Headset Charging Cable for Standard USB cable use. It does not include data lines.
![](/img.php?id=1652814&img=bg16.png)
20
Equalizer (EQ) Presets
The XP300 features multiple Equalizer presets to enhance your gaming audio experience. Press the TONE button on the XP300 headset
to cycle through the EQ presets as illustrated below:
Equalizer (EQ) Presets:
1. Flat
2. Bass Boost
3. Treble Boost
4. Bass and Treble Boost
Sound Field Expander Presets
Sound Field Expander Presets:
1. Normal
2. Narrow
3. Wide
The Sound Field Expander improves your ability to hear sounds coming from a distance by boosting sounds on the left and right sides
and lowering sounds in the center. Press the SOUND FIELD button to cycle through the three settings as illustrated below:
Tone Button
Sound Field Button
![](/img.php?id=1652814&img=bg17.png)
21
Chat Boost™
Chat Boost is a dynamic talkback expander built into the XP300 headset that automatically increases chat volume during loud
moments in your game, so you can always hear your teammates or other players, regardless of the game volume.
Typically, if you turn up a headset’s game volume, the incoming chat level from other players could become difficult to hear
over the game sound. However, with Chat Boost, as the game audio increases, the chat volume also increases. When the game
volume quiets down again, Chat Boost automatically returns the chat level to your original volume setting.
To properly set the Chat Boost function:
1. Turn down the volume control on the headset so there’s no game audio.
2. Adjust the chat volume control on the headset so you can hear the chat voices at a comfortable level.
3. Turn up the headset game volume and the chat volume will increase whenever the game gets louder, just as if the chat
volume control is being automatically turned up along with the game level.
WITHOUT Chat Boost,
chat volume is overwhelmed by loud game audio
WITH Chat Boost,
chat volume increases along with game volume
NOTE: If the chat volume on the headset is set too loud, Chat Boost might increase the volume so much that the voices
will distort. If that happens, turn down the chat volume on the headset.
Variable Mic Monitor
The XP300 headset includes a unique variable microphone
monitor feature that allows you to adjust the level of your voice
heard in the headset so you won’t have to shout. This can be
adjusted by turning the MIC MONITOR wheel on the left ear cup.
NOTE: Turning up the mic monitor may cause the mic to pick up room
sounds which will make the silence detector not automatically shut off
the headset when it’s not being used. If the power is not automatically
shutting down, turn down this mic monitor control.
Mic Monitor
![](/img.php?id=1652814&img=bg18.png)
22
XP300 Transmitter Technical Specifications
· 50mm diameter speakers with neodymium magnets
· Game audio frequency response: 20Hz - 20kHz, >120dB SPL @ 1kHz
· Condenser microphone frequency response: 50Hz - 15kHz
· Bluetooth® radio with dual-pairing mode
· Headphone amplifier: Stereo 27mW/ch, THD <1%
· Rechargeable Li-Po Battery (1000 mAh)
· Automatic shut down after approx 5 minutes of carrier loss or audio silence to conserve
battery power
· Battery booster circuit extends battery life for up to 15 hours
with up to 30 foot range
· Frequency response: 20Hz - 20kHz
· Stereo 3.5mm line input jack
· Stereo 3.5mm aux input jack
· Maximum analog input level: 2Vpp (700mV rms)
· USB Power – (5V DC @ 180mA max)
XP300 Headset Technical Specifications
· Game audio Dual Band WiFi Digital 2.4GHz/5.8GHz RF wireless reception
· Dual Band WiFi Digital 2.4GHz/5.8GHz RF wireless transmission
![](/img.php?id=1652814&img=bg19.png)
23
Troubleshooting
No sound
t$IFDLUIBUUIFIFBETFUWPMVNFDPOUSPMJTUVSOFEVQ
t$IFDLUIBUUIFUSBOTNJUUFS64#QPXFSBOE-JOF*ODBCMFTBSFQSPQFSMZDPOOFDUFE
t$IFDLUIBUUIFIFBETFUJTQPXFSFEPO5IF-&%POUIFMFGUFBSDVQTIPVMECFnBTIJOH
t$IFDLJGUIF-&%POUIFGSPOUPGUIFUSBOTNJUUFSJTPOTPMJE*GUIF-&%JTTMPXMZQVMTJOHJUJOEJDBUFTUIBUUIFUSBOTNJUUFSJTOU
communicating with the headset. If the headset is on solid and the transmitter LED is slowly pulsing, then the headset and
transmitter need to be “paired” as described in the section “Pairing the Headset and Transmitter”.
Audio Drops, Popping or Clicking Sounds
Audio dropouts, popping or clicking sounds on the headset are caused by poor reception. This can occur when:
t5IFIFBETFUBOEUSBOTNJUUFSBSFPVUPGSBOHF'PSCFTUQFSGPSNBODFTUBOEXJUIJOGFFUGSPNUIFUSBOTNJUUFS
t5IFSFTBXBMMPSPUIFSMBSHFPCKFDUCFUXFFOUIFIFBETFUBOEUSBOTNJUUFS
t5IFUSBOTNJUUFSJTJOBCBEMPDBUJPOUIBUJTJOUFSGFSJOHXJUIUIFBOUFOOB
t"XJSFMFTTCBTFTUBUJPOPSXJSFMFTTSPVUFSJTDBVTJOHBMPUPG3'BDUJWJUZUIBUTCMPDLJOHUIF3'TJHOBMGSPNUIFUSBOTNJUUFS
Voice Chat Drops
t.PTUJOHBNFWPJDFDIBUESPQTBSFTJNQMZDBVTFECZOFUXPSLQFSGPSNBODFPSiMBHw6TVBMMZUIFZTVCTJEFBGUFSBGFXNPNFOUTTP
please be patient. In extreme cases, you may have to leave a game and return to reset the chat function.
t*GZPVVTFBXJSFMFTTJOUFSOFUDPOOFDUJPOMPXTJHOBMTUSFOHUIGSPNZPVSNPEFNSPVUFSDBONBLFUIFWPJDFDIBUNBMGVODUJPO
A wired connection from your modem/router to your console is recommended for best results.
Mobile Phone Bluetooth® Issues
Some models of mobile phones may experience issues with the Bluetooth performance:
t/PLJBT4PNFUJNFTUIFBluetooth link will disconnect automatically and may need to be paired again.
t.PUP74PNFUJNFTUIFSFJTOPBVEJPPOIFBETFUXIFOUIFSFJTBOBDUJWFDBMM5IJTJTTVFIBQQFOTSBSFMZ5IF.PUP7EPFTOU
initiate SCO link when there is an active call. Single press the BT MFB button on the headset to initiate SCO link with the phone.
t)5$)FSP4PNFUJNFTUIFIFBETFU#MVFUPPUIXJMMGBJMUPSFDPOOFDUXJUI14BGUFSIBWJOHDPOOFDUFEXJUI)5$)FSP5IJTJTTVF
happens rarely. The user must reconnect the headset Bluetooth from PS3 Bluetooth system settings to fix this issue.
Force Shutdown
In the unlikely case that the headset becomes unresponsive and the main power button cannot be used to turn off the headset, the
Mute button on the headset can be used to force shutdown. Press and hold the MUTE button on the headset for 10 seconds to initiate
a forced shutdown.
![](/img.php?id=1652814&img=bg1a.png)
24
Safety Notice
To avoid potential damage to the device, always disconnect all cables before transporting it.
WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important
to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still
damage your hearing. If you experience ringing in your ears after listening with the headset, it means the volume is set too loud.
The louder the volume is set, the less time it takes to affect your hearing. So, please take care to listen at moderate levels.
t#FGPSFQMBDJOHBIFBETFUPOZPVSFBSTUVSOUIFWPMVNFEPXODPNQMFUFMZ
then slowly increase it to a comfortable level.
t5VSOEPXOUIFWPMVNFJGZPVDBOUIFBSQFPQMFTQFBLJOHOFBSZPV
t"WPJEUVSOJOHVQUIFWPMVNFUPCMPDLPVUOPJTZTVSSPVOEJOHT
![](/img.php?id=1652814&img=bg1b.png)
25
Manufacturer: Voyetra Turtle Beach
Manufacturers Address: 150 Clearbrook Rd. Suite 162, Elmsford, NY 10523
Product Name: Ear Force XP300
Type of Product: Wireless Headset
Model Number(s): TBS-2260-01
Year of Manufacture: 2011
We, Voyetra Turtle Beach, Inc. of Elmsford, New York, declare under our own responsibility that the above-referenced product complies
with the following directives and standards:
Low Voltage Directive 2006/95/EC
EN 50332-2:2003
EN 60950-1:2006+A11:2009
Electromagnetic Compatibility Directive 1999/5/EC
ESTI EN 301 489-1 V1.8.1 (2008)
ESTI EN 301 489-3 V1.4.1 (2002)
ESTI EN 301 489-17 V2.1.1 (2009)
R&TTE Directive 1999/5/EC
ESTI EN 300 328 V1.7.1 (2006-10)
ESTI EN 300 440-1 V1.4.1 (2008-05)
ESTI EN 300 440-2 V1.2.1 (2008-05)
All test reports have been reviewed and approved with a Positive Opinion from the following Notified Bodies:
The technical documentation required by this Directive is maintained at the corporate headquarters of Voyetra Turtle Beach,
150 Clearbrook Road. Suite 162, Elmsford, New York, 10562.
Authorized Person:
____________________________ Date:________________
Printed Name: Frederick Romano
Title: Executive Vice President
EC Declaration of Conformity
11/17/11
Bay Area Compliance Laboratories, Corp (Shenzhen)
6/F, the 3rd Phase of WanLi Industrial Building
ShiHua Road, FuTian Free Trade Zone, Shenzhen, Guangdong, China
Tel: +86-755-33320018, Fax: +86-755-33320008, Web: baclcorp.com
Shenzhen EBO Technology Co., Ltd.
No. 710 Yihua Building, Futian District, Shenzhen, China 518040
Tel: +86-755-29451282 Fax: 86-755-83709189 Web: ebotek.cn
![](/img.php?id=1652814&img=bg1c.png)
26
Product Name: Ear Force XP300
Model Number(s): TBS-2260-01
FCC Rules: FCC CFR Title 47 Part 15 Subpart B: 2009 CLASS B
FCC CFR Title 47 Part 15 Subpart C: 2008
Operating Environment: GENERAL OFFICE AND HOME USE
FCC COMPLIANT STATEMENT
This device complies with part 15 of the FCC rules. Operation is subjected to the following conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that may cause undesired operation.
INFORMATION TO USER
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
The user’s manual or instruction manual for an intention or unintentional radiator shall caution the user that the changes or modifications
not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
WARNING: Changes or modifications made to this equipment not expressly approved by VOYETRA TURTLE BEACH, INC. may void user’s
authority to operate this equipment.
![](/img.php?id=1652814&img=bg1d.png)
27
EC Declaration of Conformity
Manufacturer: Voyetra Turtle Beach
Manufacturers Address: 150 Clearbrook Rd. Suite 162, Elmsford, NY 10523
Product Name: Ear Force XBA
Type of Product: Bluetooth Dongle
Model Number(s): TBS-2275-01
Year of Manufacture: 2011
We, Voyetra Turtle Beach, Inc. of Elmsford, New York, declare under our own responsibility that the above-referenced product complies
with the essential requirements of Article 3 of the R&TTE1999/5/EC Directive and standards:
Electromagnetic Compatibility 2004/108/EC [Article 3.1(b) of the R&TTE Directive] comprising the harmonized standards
ESTI EN 301 489-1 V1.8.1 (2008-04)
ESTI EN 301 489-17 V2.1.1 (2009)
EN 61000-4-2:2001
EN 61000-4-3:2006
EN 55022:2006
All test reports have been reviewed and approved with a Positive Opinion from the following Notified Body:
SGS Taiwan Limited
No. 134, Wu Kung Road, Wuku Industrial Zone
Taipei County, Taiwan 248
Tel: +886-2-2299-3279
Fax: +886-2-2298-2698
The technical documentation required by this Directive is maintained at the corporate headquarters of
Voyetra Turtle Beach, 150 Clearbrook Road. Suite 162, Elmsford, New York, 10562.
Authorized Person:
____________________________ Date:________________
Printed Name: Frederick Romano
Title: Executive Vice President
7/13/11
![](/img.php?id=1652814&img=bg1e.png)
28
Product Name: Ear Force XBA
Model Number(s): TBS-2275-01
FCC Rules: FCC CFR Title 47 Part 15 Subpart B: 2009
FCC CFR Title 47 Part 15 Subpart C: 2008
Operating Environment: GENERAL OFFICE AND HOME USE
FCC COMPLIANT STATEMENT
This device complies with part 15 of the FCC rules. Operation is subjected to the following conditions:
(3) This device may not cause harmful interference, and
(4) This device must accept any interference received including interference that may cause undesired operation.
INFORMATION TO USER
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
5) Reorient or relocate the receiving antenna.
6) Increase the separation between the equipment and receiver.
7) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
8) Consult the dealer or an experienced radio/TV technician for help.
The user’s manual or instruction manual for an intention or unintentional radiator shall caution the user that the changes or modifications
not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
WARNING: Changes or modifications made to this equipment not expressly approved by VOYETRA TURTLE BEACH, INC. may void user’s
authority to operate this equipment.
![](/img.php?id=1652814&img=bg1f.png)
29
Limited Warranty for Turtle Beach Products
Voyetra Turtle Beach, Inc. ("VTB") warrants to the original end-user purchaser ("Purchaser") that the retail Turtle Beach hardware product
herein ("Product") will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser
("Warranty Period"). Any Extended Warranty or Service Plans purchased through a Retail store are not honored by VTB. The Warranty
refers to the repair/replacement of a defective product during this period and not a refund.
This limited warranty extends only to the Purchaser and is not transferable or assignable to any subsequent purchaser. This limited war-
ranty is applicable only in the country or territory where the Product was purchased from an authorized VTB retailer and does not apply to
a Product that has been purchased as used or refurbished (except refurbished by VTB) or was included as part of a non-VTB product.
WARRANTY SERVICE
In the USA and CANADA Warranty Service is provided by our TURTLE BEACH OFFICEs and in all other Countries it is provided by our local
International Distributors.
VTB does not warrant uninterrupted or error-free operation of the Product and is under no obligation to support the Product for all com-
puter operating systems or future versions of such operating systems.
If a defect should occur during the Warranty Period, Purchaser must contact VTB to obtain a Return Merchandise Authorization ("RMA")
number. Purchaser will be responsible for shipping costs incurred in returning the defective Product to an authorized VTB service center,
or to the repair facility located at VTB's corporate headquarters. A copy of the dated proof of purchase and a description of the problem
must be included with the defective Product. VTB will not be responsible for other products or accessories included with the defective
Product sent to VTB. The RMA number must be clearly indicated on the outside of the package. Packages without an RMA number will be
refused by VTB or its representatives and returned to sender at the sender's expense.
In the event of a defect, Purchaser's sole and exclusive remedy, and VTB's sole liability, is expressly limited to the correction of the defect
by adjustment, repair, or replacement of the Product at VTB's sole option and expense. VTB owns all Products it has replaced and all parts
removed from repaired Products. VTB uses new and reconditioned parts made by various manufacturers in performing warranty repairs
and building replacement products. If VTB repairs or replaces a product, the original Warranty Period is not extended, however, VTB war-
rants that repaired or replacement parts will be free from defects in material and workmanship for a period of thirty (30) days from the date
of repair or replacement, or for the remainder of the Warranty Period, whichever is greater.
This warranty does not apply to any Product that has had its serial number altered, removed or defaced, or any Product damage caused
by shipping, improper storage, accident, problems with electrical power, abuse, misuse, neglect, ordinary wear, acts of God (e.g. flood),
failure to follow directions, improper maintenance, use not in accordance with product instructions, unauthorized modification or service
of the Product or damage resulting from the use of the Product with hardware, software or other products not provided by or specifically
recommended by VTB.
![](/img.php?id=1652814&img=bg20.png)
30
THIS LIMITED WARRANTY IS PURCHASER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED. TO THE EXTENT PERMITTED BY APPLICABLE LAW, VTB HEREBY DISCLAIMS THE APPLICABILITY OF ANY IMPLIED WARRANTY
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE FOR THE PRODUCT. IF SUCH A DISCLAIMER IS PROHIBITED BY
APPLICABLE LAW, THE IMPLIED WARRANTY IS LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY.
IN NO EVENT SHALL VTB BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, OR DAM-
AGES, INCLUDING BUT NOT LIMITED TO ANY LOST PROFITS, DATA, OR LOSS OF USE, ANY THIRD PARTY CLAIMS, AND ANY INJURY TO
PROPERTY OR BODILY INJURY (INCLUDING DEATH) TO ANY PERSON, ARISING FROM OR RELATING TO THE USE OF THIS PRODUCT OR
ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR STRICT LIABILITY, EVEN IF VTB HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty supersedes all prior agreements or understandings, oral or written, relating to the Product, and no representation, promise
or condition not contained herein will modify these terms. Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights. You may also have
other rights, which vary from state to state. Any action or lawsuit for breach of warranty must be commenced within eighteen (18) months
following the purchase of the Product.
EXCLUSIONS FROM LIMITED WARRANTY:
This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product:
tJTVTFEGPSDPNNFSDJBMQVSQPTFTTVDIBT-"/$FOUFSTJODMVEJOHSFOUBMPSMFBTF
tJTNPEJmFEPSUBNQFSFEXJUI
tJTEBNBHFECZ"DUTPG(PEQPXFSTVSHFNJTVTFBCVTFOFHMJHFODFBDDJEFOUXFBSBOEUFBS
NJTIBOEMJOHNJTBQQMJDBUJPOPSPUIFSDBVTFTVOSFMBUFEUPEFGFDUJWFNBUFSJBMTPSXPSLNBOTIJQ
tTFSJBMOVNCFSJTEFGBDFEBMUFSFEPSSFNPWFE
tJTOPUVTFEJOBDDPSEBODFXJUIUIFEPDVNFOUBUJPOBOEVTFJOTUSVDUJPOTPS
tJTSFQBJSFENPEJmFEPSBMUFSFECZPUIFSUIBOBVUIPSJ[FESFQBJSDFOUFST
tQSPEVDUJTOPMPOHFSBWBJMBCMFCFDBVTFJUXBTEJTDBSEFE
![](/img.php?id=1652814&img=bg21.png)
31
Federal Communications Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
tReorient or relocate the receiving antenna.
t
Increase the separation between the equipment and receiver.
t
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
t
Consult the dealer or an experienced radio/ TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
RF Exposure Warning:
Headset:
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environ-
ment. The equipment must not be co-located or operating in conjunction with any other
antenna or transmitter.
Transmitter Box:
This equipment must be installed and operated in accordance with provided instructions and
the antenna(s) used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Radio Frequency (RF) Exposure Information:
Headset:
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a manner such that
the potential for human contact during normal operation is minimized. This device has also
been evaluated and shown compliant with the IC RF Exposure limits under portable exposure
conditions. (antennas are less than 20 cm of a person's body).
Transmitter:
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a manner such that
the potential for human contact during normal operation is minimized. This device has also
been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure
conditions. (antennas are greater than 20cm from a person's body).
This device has been certified for use in Canada. Status of the listing in the Industry Canada's
REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/
app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web
address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-210.Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne
doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment
les interférences qui peuvent affecter son fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
Headset:
La puissance de sortie émise par l'appareil de sans fil Dell est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l'appareil de sans fil Dell
de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique
a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des
conditions d'exposition à des appareils portables (les antennes sont moins de 20 cm du corps
d'une personne).
Transmitter:
La puissance de sortie émise par l'appareil de sans fil Dell est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l'appareil de sans fil Dell
de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique
a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des
conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du
corps d'une personne).
Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée corre-
spondant à l'appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industry
Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-
vous sur:http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
This product is CE marked according to the provisions of the Low Voltage Directive (2006/95/
EC), R&TTE Directive (1999/5/EC) and EMC Directive (1999/5/EC).
Frequency Range: 2.404-2.476GHz / 5.160-5.340GHz
t(SBOUFF$PEF3FH/VNCFS9(#($t7PZFUSB5VSUMF#FBDI*OD
IC: 3879A-2260
DESIGNED AND ENGINEERED BY TURTLE BEACH IN NEW YORK, USA
Copyright © 2012 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. No part of this guide may be reproduced without permission.
Turtle Beach, the Turtle Beach Logo, Voyetra, Ear Force, Chat Boost, Engineered For Gaming and the Dual Band logo are either trademarks
or registered trademarks of VTB, Inc. XBOX, XBOX 360 and XBOX LIVE are registered trademarks of Microsoft Corporation. Bluetooth and
the Bluetooth logo are registered trademarks of Bluetooth SIG Inc. All other trademarks are properties of their respective companies and
are hereby acknowledged. Assembled in China. PATENTS PENDING
![](/img.php?id=1652814&img=bg22.png)
32
For more products, accessories and general product information, please visit
TurtleBeach.com
For warranty information and product support, please visit
TurtleBeach.com/support
![](/img.php?id=1652814&img=bg23.png)
33
ENGINEERED FOR GAMING™
TB521-2260-01
