WINSONIC ELECTRIC SPK109 BLUETOOTH SPEAKER User Manual SPECIFICATIONS
Winsonic Electric Limited BLUETOOTH SPEAKER SPECIFICATIONS
User Manual
![](/img.php?id=2138292&img=bg1.png)
WINSONIC
SPK109
Bluetooth Speaker

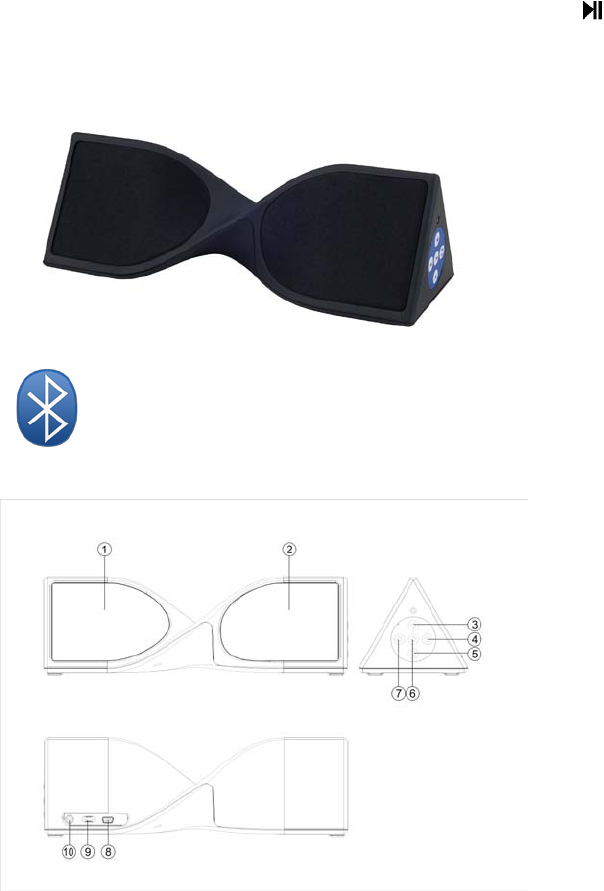

LOCATION OF CONTROLS
1. Left Speaker Grill
2. Right Speaker Grill
3. Vol + Button
4. Forward button
5. Vol - Button
6. Play/Pause
7. Backward Button
8. USB Charging
9. OFF/ON switch
10. AUX Jack
How to connect the SPK109 to your
Bluetooth device
1. Make sure your speaker is charged (follow
charge instruction)
2. Slide the ON/OFF Switch to ON position, the
LED will turn flash green indicating it is
searching.
3. Turn on the Bluetooth feature on your mobile
compatible device. Search for MERKURY
SPB09. Pair and connect to MERKURY SPB09.
If pairing is successful, the LED light will stay
on in GREEN.
4. You can now start playing your music
How to connect the SPK109 to Aux
function
1. Make sure your speaker is charged (follow
charge instruction)
2. Slide the ON/OFF Switch to ON position, the
LED will turn flash green indicating it is
searching.
3. Connect the aux cable to the aux input at the
back of the unit
4. Connect the other end to the headphone
output(3.5mm)of your smartphone or other
device, the LED light will turn off.
5. You can now start playing your music
Volume:
In Bluetooth mode
To turn up the volume, press the Vol+ Button
To turn down the volume, press the Vol- Button
NOTE: Volume can also be adjusted on your
Bluetooth Compatible Device, consult your
Bluetooth Compatible Device’s manual for
instructions.
Pause your music
Press the play/pause button to play or pause your
music
Forward/backward music
If you want play the next song or previous song,
press the backward or forward button
Charge the Built-in Li-Ion Battery
1. Connect the mini USB cable at the back of the
speaker. (USB charging)
2. Connect the other end of the cable to a USB
port or to a USB AC adapter. (not included)
This device complies with part 15 of the FCC rules.
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
NOTE: The manufacturer is not responsible for any
radio or TV interference caused
by unauthorized modifications or changes to this
equipment. Such modifications or changes could
void the user’s authority to operate the
equipment.
Power is so low that no RF exposure calculation is
needed.
When using it , maintain a distance of 20cm
from the body to ensure compliance with RF
exposure requirements.
