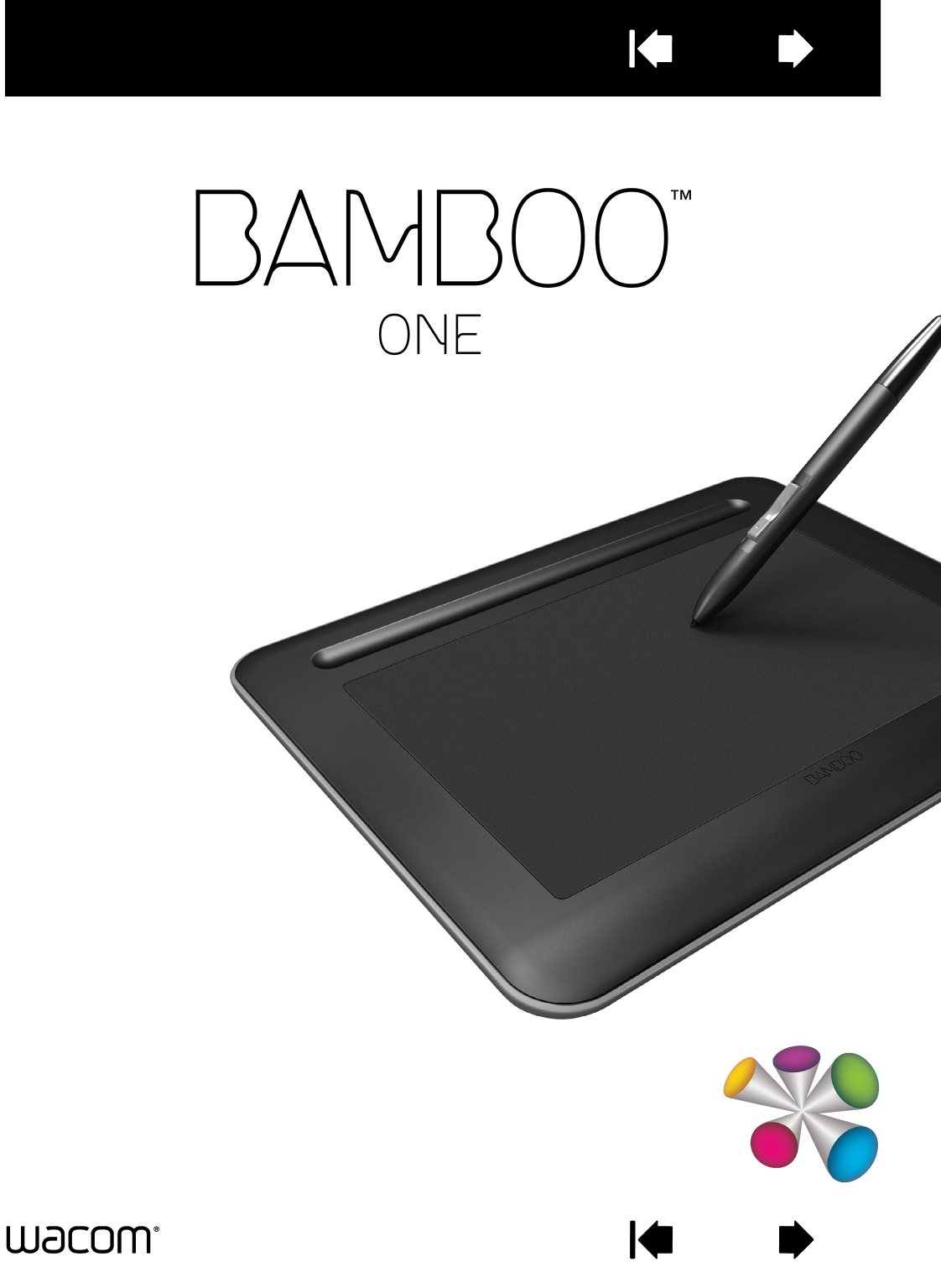

Bamboo™ One
User’s Manual for Windows® & Macintosh®
Version 1.0, Rev H2310
Copyright © Wacom Co., Ltd., 2010
All rights reserved. No part of this manual may be reproduced except for your express personal use.
Wacom reserves the right to revise this publication without obligation to provide notification of such changes.
Wacom does its best to provide current and accurate information in this manual. However, Wacom reserves the right
to change any specifications and product configurations at its discretion, without prior notice and without obligation
to include such changes in this manual.
The above year indicates when this manual was prepared. However, the date of release to the users of the “manual”
is simultaneous with the introduction into the market of the applicable Wacom product.
Reuse, recycling, and recovery. You are urged to recycle this product when replacing it with a newer
product or when it has outlived its useful life by bringing it to an appropriate collection point for recyclable materials in
your community or region. By doing this, you can help improve the environment of your community as well as
minimize the potential negative effects created should any hazardous substance that may possibly be present within
waste material reach the environment during the disposal process.
Within the European Union, users are required not to dispose of Waste Electrical and Electronic Equipment (WEEE)
as unsorted municipal waste, according to the Directive 2002/96/EC of the European Parliament and of the Council of
27 January 2003, or the corresponding local laws of the Member States. Products for which this is applicable will be
marked with the WEEE symbol shown at the beginning of this note unless this is not feasible because of the size or
the function of the product. Wacom products are subject to the Directive 2002/96/EC and therefore you should
always collect them separately and bring them to the appropriate collection point in your community or region.
Wacom pen tablet products comply with the European Union RoHS Directive 2002/95/EC (RoHS Directive).
Bamboo is a trademark and Wacom is a registered trademark of Wacom Co., Ltd.
Adobe and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United
States and/or other countries. Microsoft, Windows, and Vista are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries. Apple, the Apple logo, and Macintosh are
registered trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Any additional company
and product names mentioned in this documentation may be trademarked and/or registered as trademarks.
Mention of third-party products is for information purposes only and constitutes neither an endorsement nor a
recommendation. Wacom assumes no responsibility with regard to the performance or use of these products.
![](/img.php?id=1366104&img=bg3.png)
Contents Index
Contents 3
Index
3
TABLE OF CONTENTS
About the manual 4
Navigating the manual 5
WORKING WITH BAMBOO ONE 6
Tablet features 6
Bamboo One pen 7
Setting up your work area 8
Using the cordless pen 9
Holding the pen 9
About the active area 10
Pointing 11
Clicking 12
Dragging 12
Using the pen buttons 13
Writing and Inking with pressure sensitivity 14
Eye-hand coordination exercise 14
Working with the tablet 15
CUSTOMIZING 16
Opening the control panel 16
Control panel overview 17
Control panel settings 17
Customizing the pen 18
Adjusting tip feel and double-click 19
Customizing the pen buttons 20
Button functions 21
Tablet tracking 24
Mapping to multiple monitors 26
Portion of screen area 26
Portion of tablet area 27
Setting mouse speed 27
TROUBLESHOOTING 28
Testing your tablet and pen 29
Troubleshooting tables 30
General problems 30
Windows-specific problems 32
Macintosh-specific problems 33
Technical support options 35
Obtaining driver downloads 36
APPENDIX 37
Pen and digital ink capabilities in Windows 38
About the Windows Tablet PC Input Panel 39
Caring for your tablet and pen 40
Replacing the pen tip 40
Bamboo Dock 41
Uninstalling the tablet software 41
Managing your tablet preferences 42
Product specifications 43
General specifications 43
Bamboo One, small tablet (model CTE-460) 43
Bamboo One, medium tablet (model CTE-660) 43
Bamboo One pen (model EP-150) 43
Product information 44
Ordering parts and accessories 44
Radio and television interference 45
FCC notice 45
Industry Canada (Canada only) 45
CE declaration 45
License and Warranties
(Worldwide, except for Europe,
Africa and Middle East) 46
Software License 46
Limited Warranty 46
Warranty Service in the U.S.A. and Canada 47
Warranty on Sales outside of
the U.S.A. and Canada 48
Licence warranty conditions
(Europe, Africa and Middle East) 49
Software Licence Agreement 49
Limited Warranty 50
GLOSSARY 52
INDEX 54
![](/img.php?id=1366104&img=bg4.png)
Contents Index
Contents 4
Index
4
ABOUT THE MANUAL
This user’s manual provides quick access to information about Bamboo One. Just click on a navigation
button or highlighted word to move through the document. The information is common to Windows and
Macintosh computers and Windows screen captures are shown, unless otherwise noted.
•In the table of contents you can go directly to a topic by clicking on it.
•Working with Bamboo One is the learning chapter, and introduces you to the many capabilities of your
Bamboo One pen tablet. It describes the pen tablet, the features and functions of the Bamboo One
pen, and includes exercises for new users. If you are not familiar with a pen tablet, this chapter gives
you the basics.
•Customizing describes how you can change the control panel settings to optimize your Bamboo One
pen and tablet for the way you like to work.
• Want to test your tablet and pen? Need troubleshooting guidelines? Troubleshooting is where you will
find the answers to most common questions.
•The appendix includes a variety of information: an overview of the pen and digital inking capabilities
found in Microsoft Windows 7 and Vista, tips on caring for your tablet and pen, a how-to on uninstalling
the software, your license and warranty, and more.
Note: This manual does not contain information on installing your tablet. Please refer to your product
Quick Start Guide and to the automated software installer (located on the Bamboo One installation
CD) for complete details on installing your pen tablet.
If you are new to electronic documentation, be sure to read navigating the manual.
Here are some other points to keep in mind:
•S
MALL CAPITAL LETTERS are used to identify the names of keyboard keys, dialog boxes, and control panel
options.
• Remember that you can always use your viewer zoom-in tool to increase the size of the manual on your
display screen.
• The following kinds of information are not included with this product: information about your specific
computer hardware or operating system, or information about your application software. Your best
source for this information is the set of manuals and disks that came with your hardware, operating
system, or application.
Many applications have built-in support for pressure sensitivity. You can find a listing of applications that
support this feature at Wacom’s web site (see product information). For information on how best to use
Bamboo One features within a specific application, refer to the instructions in that application’s manuals.
Wacom’s philosophy is to continually improve all of its products. As a result, engineering changes and
improvements are made from time to time. Therefore, some changes, modifications, and improvements
may not be covered in this manual.
![](/img.php?id=1366104&img=bg5.png)
Contents Index
Contents 5
Index
5
NAVIGATING THE MANUAL
Use the navigation controls to move through the manual:
Go to front page.
Go to table of contents.
Go to index.
Go back to previous view.
Page back, or page forward.
Go to topic.
Topic continued.
Adobe Reader provides you with additional tools for using and printing the manual. Refer to the Adobe
Reader help for more information.
Contents
Index
topic
![](/img.php?id=1366104&img=bg6.png)
Contents Index
Contents 6
Index
6
WORKING WITH BAMBOO ONE
This section introduces you to the Bamboo One pen tablet, which consists of two basic elements: a tablet
that serves as your work area, and the Bamboo One pen you use on the tablet.
The quickest way to learn about your pen tablet is to become familiar with its appearance and features.
If you are new to using a pen tablet and tablet input tools, read the following sections to learn about the
Bamboo One pen and pen tablet.
Tablet features
Bamboo One pen
Setting up your work area
Using the cordless pen
Working with the tablet
TABLET FEATURES
USB cable Integrated pen rest
Status LED
Active area
See about the active area and
working with the tablet.
Pen tether
attachment points
(one on each side)
If using an optional
pen tether, connect
it to an attachment
point.
Bamboo One, small tablet shown.
![](/img.php?id=1366104&img=bg7.png)
Contents Index
Contents 7
Index
7

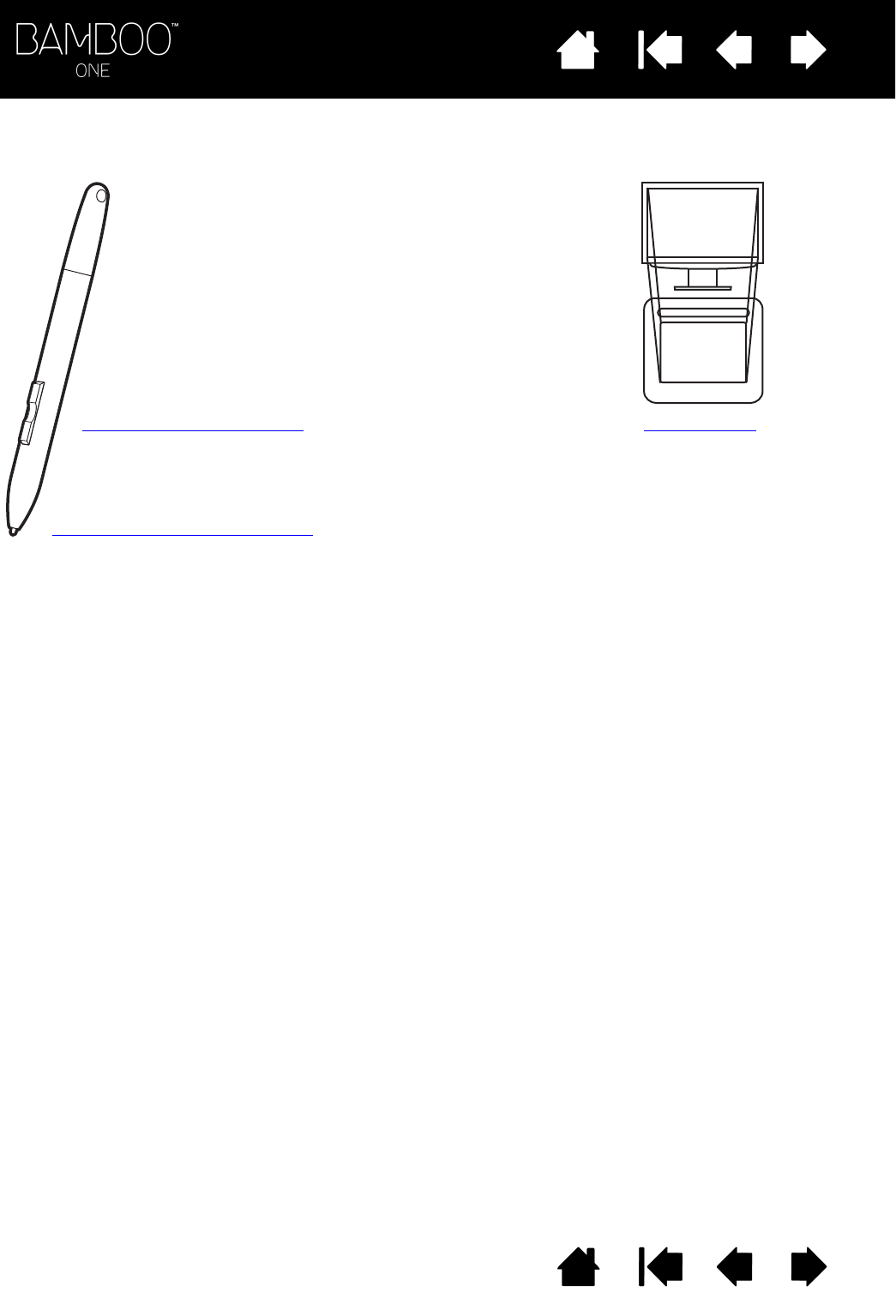

BAMBOO ONE PEN
Your Bamboo One pen is cordless and battery-free.
Bamboo One pen
The pen is ideally suited to enhance your workflow by
enabling the pen and digital ink features found within
Microsoft Windows 7, Vista, and Office 2007 or later.
Take advantage of digital mark-up for collaborative
editing and use digital ink to take notes in applications
that support handwriting recognition.
The pen is also an efficient freehand tool for pressure-
sensitive image editing.
Pen buttons
Replaceable nib (pen tip)
Tip: An optional pen tether can be used to ensure the pen
stays with your pen tablet. Loop one end of the tether
through the tether hole on the pen, and the other end of
the tether through a tether attachment point located the
tablet. See ordering parts and accessories.
![](/img.php?id=1366104&img=bg8.png)
Contents Index
Contents 8
Index
8
SETTING UP YOUR WORK AREA
To minimize fatigue, organize your work area so you can work comfortably. Position your tablet, pen, and
keyboard so they are easily accessible without unnecessary reaching. Your monitor should be positioned
so you can view it comfortably with a minimum of eyestrain. For best results, orient the tablet so the screen
cursor follows the same direction as your hand movements on the tablet.
Note regarding RSI: Wacom makes no representation, promise or guarantee that Wacom products will cure or
prevent, in whole or in part, mouse-induced repetitive stress symptoms, injuries or conditions.
Individual results may vary. Always obtain competent medical advice to determine the most appropriate
treatment for your specific situation.
See working with the tablet for more information.
Here are some other points to keep in
mind:
• Take short breaks between tasks to
stretch and relax your muscles.
• Use a gentle grip when working with
your pen.
• Alternate tasks and tools throughout
the day.
• Maintain a good posture at all times.
Minimize awkward postures and
repetitive movements that cause
discomfort.
• Change your position if you feel any
discomfort due to your work position.
![](/img.php?id=1366104&img=bg9.png)
Contents Index
Contents 9
Index
9
USING THE CORDLESS PEN
There are four basic techniques for using the pen: pointing, clicking, double-clicking, and dragging. If you
are unfamiliar with using the pen, try the exercises on the following pages.
Holding the pen
About the active area
Pointing
Clicking
Dragging
Using the pen buttons
Writing and Inking with pressure sensitivity
Eye-hand coordination exercise
HOLDING THE PEN
Hold the Bamboo One pen like you would hold a normal pen or pencil. Make sure the pen buttons are in a
convenient location where you can toggle them with your thumb or forefinger, but not accidently press
them while drawing or navigating with the pen. You can tilt the pen in any way that feels most comfortable.
Important: When the pen is not in use, place it in the pen rest or lay it flat on your desk.
To maintain the sensitivity of your pen tip, do not store the pen in a container where it will rest on its
tip. Leaving the Bamboo One pen on the tablet active area may interfere with screen cursor
positioning when using other pointing devices. Also, leaving the pen on the tablet active area when
not in use can prevent your computer from going to sleep.
Position for writing, drawing, and navigating.
Use the integrated pen rest to
store the pen between tasks.
This also makes the pen
available for quick, easy
access when you are working.
The rest allows horizontal
placement of the pen.
![](/img.php?id=1366104&img=bga.png)
Contents Index
Contents 10
Index
10
ABOUT THE ACTIVE AREA
The active area is the area of the tablet that senses pen movement. The screen area is the corresponding
area on the screen.
The tablet active area is a mapped representation of your computer screen (a one-to-one relationship), and
uses the entire screen. Wherever you place the pen on the tablet, the screen cursor will jump to the
corresponding point on the screen. This is the default setting for the pen.
Screen area
The pointer in the screen area
indicates pen position, and the
pointer follows the movements
of the pen.
Pointer
Active area
![](/img.php?id=1366104&img=bgb.png)
Contents Index
Contents 11
Index
11
POINTING
The Bamboo One pen positions the pointer (or cursor) on your screen. You can position the screen cursor
two different ways, like a pen (Pen Mode) or like a mouse (Mouse Mode).
•In P
EN MODE, the tablet active area is a mapped representation of your computer screen; wherever
you place the pen on the tablet, the screen cursor will jump to the corresponding point on the screen.
This is the default setting for the pen.
•In M
OUSE MODE, you move the cursor with a “pick up and slide” motion similar to using a traditional
mouse.
Try moving the screen cursor by lifting the pen and
placing the pen tip in a new location on the tablet.
The cursor instantly jumps to the new location.
When positioning the screen cursor and operating a pen button, the
pen tip needs to be within 5 mm (0.20 inch) of the tablet surface.
You do not need to touch the tablet with the pen tip in order to move
the screen cursor or use a pen button.
5 mm (0.20 inch)
Hints:
• If you find that using a pen is somewhat difficult, try the eye-hand coordination exercise.
• Pointing is easier when you orient the tablet so the screen cursor follows the same direction as your hand
movements on the tablet.
![](/img.php?id=1366104&img=bgc.png)
Contents Index
Contents 12
Index
12
CLICKING
You typically click to highlight or select something on the screen, and double-click to open it.
Clicking. Tap the pen tip once on the tablet, or press the pen tip on the tablet with enough force to
register a click. (If CLICK SOUND is selected in the Bamboo control panel and your computer speakers are
on, then you will hear a “click” sound when the pen tip is pressed hard enough to generate a button click.)
Try clicking on a folder icon by moving the screen cursor over the icon and pressing down on the pen tip.
The folder should highlight when you press.
Double-clicking. Quickly tap the tablet twice in the same place with the pen tip. This is like clicking twice
with a mouse button. Try double-clicking on a folder icon to open it.
DRAGGING
To drag, first point to an object. Then press the pen tip to the tablet and slide it across the tablet surface.
The selected object will move across the screen. To select text, move the screen cursor to the beginning of
a text line, then drag the pen across the tablet until the text is highlighted.
Hint: You can configure Windows to select when
the pen is over an icon and to launch the icon with
a single click. To turn on this feature, first open a
folder.
For Windows 7 and Vista, from the ORGANIZE pull-
down menu choose FOLDER AND SEARCH OPTIONS....
From the GENERAL tab select SINGLE-CLICK TO OPEN
AN ITEM (POINT TO SELECT).
For other Windows versions, from the TOOLS pull-
down menu choose FOLDER OPTIONS.... From the
GENERAL tab select SINGLE-CLICK TO OPEN AN ITEM
(POINT TO SELECT).
Hint: Set a pen button to DOUBLE CLICK. This is
easier than tapping twice with the pen tip.
First, try moving an icon on the screen.
Then, within a document, select some text by
pressing and dragging the pen tip across the text.
![](/img.php?id=1366104&img=bgd.png)
Contents Index
Contents 13
Index
13
USING THE PEN BUTTONS
The Bamboo One pen has two buttons. Each button has a programmable function that is selected when
you press the button. You can use a pen button whenever the pen tip is within 5 mm (0.20 inch) of the
tablet active area. You do not have to touch the pen tip to the tablet in order to use a button.
To assign new button functions, see customizing the pen buttons.
The upper pen button is set to RIGHT CLICK, and the lower button is
set to PAN/SCROLL by default.
• Use RIGHT CLICK to bring up application-specific or icon-
specific menus.
•P
AN/SCROLL lets you position a document or image in any
direction within the active window by pressing the pen button
and moving the pen tip across the tablet’s active area. As you
move the pen tip, the document or image is repositioned to
follow the direction of pen movement on the tablet. Release the
pen button or lift the pen tip from the tablet surface when you
are done.
In some application windows the document will precisely follow
the screen cursor as you move the pen tip, while in others it will
simply move in the same general direction as the screen cursor. Hint: Set a pen button to DOUBLE
CLICK. This is easier than tapping
twice with the pen tip.
Example of right click on computer
display.
Example of pan/scroll movement
on computer display.
![](/img.php?id=1366104&img=bge.png)
Contents Index
Contents 14
Index
14
WRITING AND INKING WITH PRESSURE SENSITIVITY
The Bamboo One pen responds to your hand movements, enabling you to create natural-looking pen and
brush strokes. The digital ink tools in Microsoft Windows 7, Vista, and Office 2007 or later, as well as the
drawing tools in many graphics applications, respond to the pressure you place on the pen.
For example, sliders are used in some applications to vary line characteristics (width, color, and opacity).
These characteristics can be controlled much better by the pen’s pressure sensitivity – you can vary line
width, blend colors, and change opacity with the pressure you exert upon the pen.
EYE-HAND COORDINATION EXERCISE
This exercise is designed to retrain your eye-hand coordination for using the pen:
1. Open any graphics application. Use the line tool to sketch a rectangular grid with line spacings of
about 20-25 mm (3/4 to 1 inch). You can use your traditional mouse to do this.
2. Choose a free-hand tool in your application and use the pen to add a dot at each grid intersection.
3. Place an X at each grid intersection.
4. Now sketch a circle around each intersection.
5. Clear your screen and make a simple illustration of your own. The more you use your pen, the easier
drawing and navigation will become.
To write, ink, or sketch with pressure sensitivity,
move the pen along the surface of the tablet while
applying various amounts of pressure downward on
the tip of the pen. Press hard for thick lines or
dense color. Press gently for thin lines or softer
color. Note that some applications require that you
first select a pressure-sensitive tool from the
application’s tool palette.
To adjust the tip feel, see adjusting tip feel and
double-click.
Visit our web site for a list of applications that
support pressure. See product information.
![](/img.php?id=1366104&img=bgf.png)
Contents Index
Contents 15
Index
15
WORKING WITH THE TABLET
The middle area of the tablet is the working, or active, area for the pen. Rest your hand on the tablet and
then work with the pen on the active area of the tablet just as if you were using a ball point pen on a piece
of paper. Wherever you place your pen on the tablet active area, the screen cursor will jump to the
corresponding point on the screen. See using the cordless pen for more information.
![](/img.php?id=1366104&img=bg10.png)
Contents Index
Contents 16
Index
16
CUSTOMIZING
After you master the basics of using your Bamboo One pen tablet, you may want to customize the way the
pen or tablet works. This chapter describes how to use the Bamboo control panel to adjust your tablet and
pen settings.
Opening the control panel
Control panel overview
Control panel settings
OPENING THE CONTROL PANEL
To open the Bamboo control panel, use the Bamboo One pen on the tablet:
•Windows
. Click on the Windows START button and choose ALL PROGRAMs. Then select BAMBOO and
choose the BAMBOO PREFERENCES option.
•Macintosh
. Open SYSTEM PREFERENCES from either the Dock, the Apple menu, or from the APPLICATIONS
folder. Then click on the BAMBOO icon.
After you have opened the control panel, you can begin customizing Bamboo One.
Notes:
When more than one Wacom tablet is installed on a single computer, any changes made in the
control panel will be applied only to the tablet that was last used before opening the control panel.
After logging in, each user can customize their personal settings in the control panel. Switching to
another user will automatically load the settings for that user.
![](/img.php?id=1366104&img=bg11.png)
Contents Index
Contents 17
Index
17
CONTROL PANEL OVERVIEW
Use the Bamboo control panel to customize your Bamboo One pen and tablet.
Experiment with different settings to find what works best for you. Any changes you make will take effect
immediately. Click DEFAULT to return a tab to the factory settings.
Tool Tips are available for most control panel items. Simply position the screen cursor over an item and let
it rest there; in a few moments the Tool Tip will pop up.
Your keyboard tab and arrow keys can be used to navigate the control panel.
CONTROL PANEL SETTINGS
The following sections provide detailed information about the control panel. They also contain useful
customizing tips.
Customizing the pen
Tablet tracking
Displays customizable
settings.
Closes the control
panel.
Displays information
about the control
panel and driver.
Resets the tab to its
default settings.
Displays this User’s
Manual.
![](/img.php?id=1366104&img=bg13.png)
Contents Index
Contents 19
Index
19
ADJUSTING TIP FEEL AND DOUBLE-CLICK
Open the Bamboo control panel. To create broad inking strokes or to click with a light touch, use a soft tip
setting. For maximum control while inking thin lines, use a firm tip setting.
When checked, an
audible “click” sound
will be heard
whenever a pen click
occurs and your
computer speakers
are turned on.
Customizes the
amount of pressure
needed to click,
write, or ink.
Drag the slider to a
softer or firmer
setting.
Adjusts the size of
the double-click area
and the double-click
speed. A larger
setting makes
double-clicking
easier.
Hints:
• Use a soft TIP FEEL for a wider range of pressure values with most pressure-sensitive applications.
• In some applications, a soft pressure setting can make the pen overreact – any small press on the pen is
magnified on the screen. If you experience this, try a firmer TIP FEEL setting.
• To make double-clicking easier, expand the tap area that accepts a double-click (the double-click distance).
A large double-click distance may cause a delay at the beginning of brush strokes in some drawing
applications. This may also cause a delay at the beginning of a drag action or inking stroke. If you notice such
effects, try setting a smaller double-click distance and using a pen button to double-click (see using the pen
buttons).
![](/img.php?id=1366104&img=bg14.png)
Contents Index
Contents 20
Index
20
CUSTOMIZING THE PEN BUTTONS
Open the Bamboo control panel to change the functions assigned to the pen buttons. Each pen button
can be set for a variety of mouse functions; the pull-down menus enable you to choose the function that
will be performed.
Select the function to perform when
pressing the upper or lower pen button.
When you bring the pen tip within 5 mm
(0.20 inch) of the tablet surface without
touching the tablet and press the upper or
lower pen button, the selected function
occurs.
Hint: To make double-clicking easier, set a
pen button to double-click automatically by
selecting DOUBLE CLICK.
You can change the SIDE SWITCH MODE for
the way you like to use the pen when making
right-clicks or other click functions. Click on
the ADVANCED button. In the dialog box that
appears:
Select HOVER CLICK to perform click functions
without touching the pen tip to the tablet
surface.
When CLICK & TAP is selected, you must first
press the pen button and then touch the pen
tip to the tablet surface in order to perform a
click function. CLICK & TAP enables the
precise placement of your click functions.
Hover click Click tap
![](/img.php?id=1366104&img=bg15.png)
Contents Index
Contents 21
Index
21
BUTTON FUNCTIONS
The following options are available for your pen button settings.
FUNCTION DESCRIPTION
CLICKS
•CLICK Default setting for the pen tip. This option simulates a primary mouse
button click.
•R
IGHT CLICK Simulates a right mouse button click, which displays a context menu.
•M
IDDLE CLICK Simulates a middle mouse button click.
•D
OUBLE CLICK Simulates a double-click. For easier double-clicking, use this function
instead of tapping twice with the tip of your pen.
•C
LICK LOCK Simulates holding down the primary mouse button. Press the tool
button once to initiate click lock. Press the button again to release
click lock. Click lock is useful for dragging objects or selecting blocks
of text.
•4
TH CLICK (BACK) Simulates a 4th mouse button click.
•5
TH CLICK (FORWARD) Simulates a 5th mouse button click.
KEYSTROKE... Enables you to simulate keystrokes.
MODIFIER... Enables you to simulate modifier keys.
PAN/SCROLL Enables you to move a document or image in any direction within the
active window using your Bamboo One pen.
BAMBOO DOCK Opens the Bamboo Dock. For more information please visit
http://bamboodock.wacom.com
SWITCH APPLICATION Brings up the application switching dialog with focus on the next open
application. On Windows 7 and Vista systems running Aero, Flip 3D
will be activated with focus on the next open application.
![](/img.php?id=1366104&img=bg16.png)
Contents Index
Contents 22
Index
22
•P
AN/SCROLL. Lets you position a document or image in any direction within the active pane by pressing
a pen button set for PAN/SCROLL and then moving the pen tip across the tablet’s active area.
FUNCTION DESCRIPTION
OPEN/RUN... Opens an application, file, or script.
PRESSURE HOLD Locks the pressure at the current pressure level until the button is
released. For example, you can paint with pressure sensitivity until you
reach the brush size that you like. You can then press the button and
continue painting with the same size brush until the button is released.
MODE TOGGLE... Toggles between PEN MODE and MOUSE MODE. See setting mouse
speed for details.
ERASE Sets a button so that when the button is pressed, the pen tip will act
like an eraser in applications that support the ERASE function.
INK TOGGLE (Macintosh) Toggles the “ink in any application” function of Ink on and
off. Ink automatically recognizes and converts your handwriting into
text and inserts it into a document. Handwriting recognition must be
turned on for this function to work. See your Macintosh help for
information on working with Ink.
TABLET PC
•T
ABLET PC INPUT PANEL (Tablet PCs and Windows 7 and Vista systems that support the Tablet
PC Input Panel.) Opens the Tablet PC Input Panel when you press a
tool button set to this function.
•J
OURNAL (Windows 7, Vista, and Tablet PC systems that include Microsoft
Journal.) Opens Microsoft Journal.
DISABLED Disables the button function.
DEFAULT Returns a button to its default setting.
When you select PAN/SCROLL, the PEN SCROLLING
SPEED dialog box prompts you to set a scrolling
speed that will be used in applications that do not
support grabber hand (pixel-level) panning within a
document or image.
A slower setting reduces the scroll rate and is useful
for close-up and detail work where you need precise
control of the image.
![](/img.php?id=1366104&img=bg17.png)
Contents Index
Contents 23
Index
23
•K
EYSTROKE.... Enables you to simulate keystrokes. Selecting this option displays the DEFINE KEYSTROKE
dialog box where you can enter a keystroke or keystroke sequence to play back.
•O
PEN/RUN.... Opens a dialog box where you can select a specific application, file, or script to launch.
•M
ODIFIER.... Enables you to assign modifier key(s) (such as SHIFT, ALT, or CTRL for Windows, or SHIFT,
OPTION, COMMAND, and CONTROL for Macintosh). Many applications use modifier keys to constrain the
size or placement of objects.
You can manually enter a keystroke or
keystroke combination in the KEYS entry box.
Keystroke combinations can include letters,
numbers, function keys (such as F3) and
modifier keys (such as SHIFT, ALT, or CTRL for
Windows, or SHIFT, OPTION, COMMAND, and
CONTROL for Macintosh).
You can also select special keystrokes or
keystroke combinations from the ADD
SPECIAL drop-down menu.
After defining a keystroke sequence, click
OK.
Important: Because the ENTER
(Windows) and RETURN (Macintosh)
keys can be selected as a defined
keystroke, it cannot be used to
select OK. You must use your
Bamboo One pen to click on the OK
button.
If prompted, enter a name for the keystroke
definition. The name will be displayed with
the respective control.
Clears the keystroke entry box.
Deletes only the last entry in the
keystroke entry box.
Click BROWSE... to locate an application, file,
or script to launch. The selection you make
appears in the APPLICATION TO RUN box.
Click OK to accept the selection. The dialog
box will close and the OPEN/RUN... option
will be assigned as your tool button option.
The next time you press the tool button, the
defined application, file, or script will launch.
In addition to choosing one or more modifier key options,
you can select the CLICK box if you want a mouse click to
occur whenever you press the tool button.
![](/img.php?id=1366104&img=bg18.png)
Contents Index
Contents 24
Index
24
TABLET TRACKING
The tablet TRACKING options enable you to define the relationship between pen movement on the tablet
surface and cursor movement on the monitor screen. By default the entire active area of the tablet maps to
the entire monitor. If more than one monitor is in use the tablet will map to all monitors. See mapping to
multiple monitors.
The TRACKING mode you select controls how
the screen cursor moves:
•Select P
EN MODE to set the cursor so that
its movement corresponds with the
position of your Bamboo One pen on the
tablet – wherever you place your pen on
the tablet, the cursor will jump to a
corresponding point on the screen. This is
known as absolute positioning, and is the
default setting for the Bamboo One pen.
Click DETAILS... to customize the tablet
mapping.
•Select M
OUSE MODE to move the screen
cursor with a “pick up and slide” motion
similar to using a traditional mouse.
Click DETAILS... for setting mouse speed.
Note: If you frequently switch between PEN
MODE and MOUSE MODE, you can assign
the MODE TOGGLE... function to one of
your pen buttons.
![](/img.php?id=1366104&img=bg19.png)
Contents Index
Contents 25
Index
25
When you click on the PEN MODE DETAILS... button, the PEN MODE DETAILS dialog box is displayed.
Use the SCREEN AREA options to select a screen area for
tablet to screen mapping.
•A
LL SCREENS. The entire monitor(s) area is mapped;
this is the default setting. See mapping to multiple
monitors for more information.
•M
ONITOR. The entire area of a single monitor that you
choose is mapped.
•P
ORTION. A portion of the desktop area is mapped.
Click SET... to open a dialog box where you can set
the portion of screen area.
FORCE PROPORTIONS. Check or uncheck the box to
determine the tablet to screen mapping relationship.
• When unchecked, the correct scale or proportions
are not maintained. The selected tablet area is
mapped to the selected display area. An inked word
on the tablet may appear distorted on the display
screen. This is the default setting.
• When checked, the correct vertical and horizontal
proportions are maintained between the tablet and
display. Inking a word on the tablet results in a
correctly proportioned word on the display screen.
Depending on your settings, some portions of the
tablet active area may no longer be usable when this
option is selected.
Use the TABLET AREA options to select a tablet area for
tablet to screen mapping.
•F
ULL. The entire active area of the tablet is mapped.
This is the default setting.
•P
ORTION. A portion of the tablet area is mapped.
Click SET... to open a dialog box where you can set
the portion of tablet area.
Returns settings to
their factory defaults.
![](/img.php?id=1366104&img=bg1a.png)
Contents Index
Contents 26
Index
26
MAPPING TO MULTIPLE MONITORS
If your computer has more than one monitor, Bamboo One will map to your monitors based upon how they
are configured in the DISPLAY PROPERTIES control panel. If ALL SCREENS is selected and you are in extended
monitor mode, the tablet will map to all monitors as if they were one large display. If the monitors are in
mirror mode, the tablet will map to the entire space on each monitor and the screen cursor will be
displayed on each monitor simultaneously.
See your hardware and operating system documentation for details on configuring your computer and
operating system for use with multiple monitors.
PORTION OF SCREEN AREA
The tracking options in the PEN MODE DETAILS dialog box allow you to define which portion of the display
screen your tablet will map to:
•A
LL SCREENS. Maps the entire monitor(s) area. This is the default setting.
•M
ONITOR. Maps the entire area of a single monitor that you choose.
•P
ORTION. Allows you to select a portion of the display for tablet to screen mapping. Click SET... to open
the PORTION OF SCREEN dialog box.
Choose a method for defining a portion of
the display:
• Drag corners of the foreground graphic
to select the screen area.
• Move the screen cursor to select the
screen area. Select the CLICK TO DEFINE
SCREEN AREA button. As you define
PORTION OF SCREEN, follow any MESSAGE
prompts to set the portion of your
display screen that will be used for
mapping.
After defining a portion of the screen, you
may need to use a different input device to
access other portions of the screen area.
![](/img.php?id=1366104&img=bg1b.png)
Contents Index
Contents 27
Index
27
PORTION OF TABLET AREA
The tracking options in the PEN MODE DETAILS dialog box allow you to define the tablet area that will be
mapped to the screen area:
•F
ULL. Maps the entire active area of the tablet for tablet to display mapping. This is the default setting.
•P
ORTION. Allows you to select a portion of the tablet active area for tablet to screen mapping.
Click SET... to open the PORTION OF TABLET dialog box.
SETTING MOUSE SPEED
To change the screen cursor acceleration and speed when in MOUSE MODE, click on the MOUSE MODE
DETAILS... button (located on the PEN tab).
Choose a method for defining a portion of
the tablet:
• Drag corners of the foreground graphic
to select the tablet area that will be
mapped to your selected screen area.
• Use your pen on the tablet to select the
tablet area. Select the CLICK TO DEFINE
TABLET AREA button. As you define
PORTION OF TABLET, follow any MESSAGE
prompts to set the portion of your tablet
that will be used for mapping.
Sets the screen cursor
acceleration when in
MOUSE MODE.
Sets the screen cursor
tracking speed when in
MOUSE MODE.
Returns settings to
their factory defaults.
Note: The dialog box will also appear when you set a tool button to MODE TOGGLE.... Although MOUSE MODE
settings can be accessed from a number of different locations within the control panel, only one
ACCELERATION and SPEED setting can be made.
![](/img.php?id=1366104&img=bg1c.png)
Contents Index
Contents 28
Index
28
TROUBLESHOOTING
Most of the time your tablet will work flawlessly. But if you are having trouble, Wacom recommends you do
the following:
1. If the pen tablet driver failed to load properly, first perform the recommended action in any error
message that may appear on your screen. If that does not solve the problem, refer to the
troubleshooting procedures in this chapter.
2. Look in the troubleshooting tables. Your problem may be described there and you can try the solution
offered.
3. Open the pen tablet Read Me file for late-breaking information.
4. Test your tablet and pen. See testing your tablet and pen.
5. If you are having a compatibility conflict between Bamboo One and a new hardware or software
product, check if a newer pen tablet software driver is available. See obtaining driver downloads for
information on downloading an updated software driver. Wacom periodically updates the software
driver to maintain compatibility with new products.
6. Check the FAQs (Frequently Asked Questions) on the Wacom web site for your region.
7. If you have tried the suggestions in this manual and still cannot resolve the problem, then contact
Wacom for Technical Support. See technical support options and the Read Me file for information on
where to obtain support for your region.
Testing your tablet and pen
Troubleshooting tables
Technical support options
Obtaining driver downloads
![](/img.php?id=1366104&img=bg1d.png)
Contents Index
Contents 29
Index
29
TESTING YOUR TABLET AND PEN
1. Turn on your computer and wait until the system has fully loaded.
2. Check the tablet. The tablet’s orange status LED will light whenever the tablet is properly connected
and your computer has registered it as a USB device. If the LED is on, continue with step 3.
If not:
• Make sure the tablet USB cable is securely connected to an active USB port on your computer.
• If you are connecting the tablet to a USB hub (or hub device such as a keyboard with USB ports), be
sure the USB hub is properly connected to your computer and is active.
• Check the cable for damage.
• Connect the tablet to a different USB port or try connecting to the USB port on another computer.
• If the status LED does not illuminate after your computer is on and has finished booting up, your
USB port may be disabled. Verify that you have connected the tablet to an active USB port.
3. Check the pen by first opening the Bamboo control panel. Click on the DEFAULT button to return the
pen to its default settings. Next:
• Touch the pen tip to the tablet active area. The status LED on the tablet should change from orange
to green each time the tip makes contact with the tablet surface.
• Without applying pressure to the pen tip, hold the pen tip within approximately 5 mm (0.20 inch) of
the tablet surface and press each pen button in turn. The status LED should again change from
orange to green each time a pen button is pressed
• While still within proximity, but without touching the tablet surface, move your pen across the active
area of the tablet. The screen cursor should move in the corresponding direction on your monitor or
display screen.
4. If any of these tests fail you may have defective hardware. See technical support options.
5. After testing, use the Bamboo control panel to reconfigure your tablet and pen for any custom settings
you may originally have been using.
![](/img.php?id=1366104&img=bg1e.png)
Contents Index
Contents 30
Index
30
TROUBLESHOOTING TABLES
If you encounter problems with your Bamboo One pen or tablet, refer to the following tables. Your problem
may be described here, and you can try the solution offered. Be sure you refer to the Read Me file for the
latest information updates.
For additional information, visit Wacom’s web site at http://www.wacom.com/productsupport and follow
the links to the FAQs.
General problems
Windows-specific problems
Macintosh-specific problems
GENERAL PROBLEMS
The computer does not have
an available USB port.
Check if there is an available USB port on a USB hub device. If not
available you will need to add a USB hub or USB card.
The tablet status LED does
not illuminate.
Verify that your tablet’s USB cable is properly connected to an active
USB port. If your are connecting to a USB hub device, make sure the
hub is connected to an active USB port and that the hub is active.
The pen works only in MOUSE
MODE, and does not ink or
sketch with pressure
sensitivity.
The tablet driver software was not installed or did not load properly.
Make sure the tablet driver software is installed and functioning.
Insert the Bamboo One installation CD into your computer and install
the driver software for the tablet.
The pen does not ink or
sketch with pressure
sensitivity.
Some applications require that you turn on the pressure capabilities
within the application or the selected tool before the pen will respond
as a pressure-sensitive tool.
Clicking is difficult. Try using a lighter TIP FEEL (see adjusting tip feel and double-click).
Select the CLICK SOUND option so that you can hear when the pen
registers a mouse click. Your computer speakers must be turned on
and the volume audible before you can hear CLICK SOUND.
Double-clicking is difficult. Be sure you are quickly tapping the tablet twice in the same place on
the tablet active area.
Using a pen button to double-click is recommended (review the
techniques in clicking).
• See adjusting tip feel and double-click:
• Try increasing the DOUBLE CLICK DISTANCE.
• Try using a lighter TIP FEEL.
Windows: Try setting your system to launch programs with a single
click. See clicking.
![](/img.php?id=1366104&img=bg1f.png)
Contents Index
Contents 31
Index
31
The pen selects everything,
will not stop selecting.
Open the Bamboo control panel. Move the TIP FEEL slider toward FIRM.
If this does not help, see testing your tablet and pen.
You notice a screen delay at
the beginning of pen or inking
strokes.
Try decreasing the DOUBLE CLICK DISTANCE (see adjusting tip feel and
double-click).
You have to press hard with
the pen when clicking,
drawing, or writing.
Open the Bamboo control panel and go to the PEN tab. Move the TIP
FEEL slider toward SOFT.
The pen tip does not function. Be sure you are using the pen that originally came with your pen tablet.
Other pens may not function properly on the Bamboo One tablet.
See testing your tablet and pen to verify pen operation. If any of the
tests fail you may have defective hardware.
The upper or lower pen button
does not work.
Be sure you press the pen button when the pen tip is within 5 mm
(0.20 inch) of the tablet active area – do this without pressing down on
the pen tip.
In the Bamboo control panel, click on the ADVANCED button.
If CLICK & TAP is selected, you will need to first press the pen button and
then touch the pen tip to the tablet surface in order to perform a click
function. See customizing the pen buttons.
From the Bamboo control panel, verify that the pen button is set to the
function you are expecting to occur.
See testing your tablet and pen to verify pen operation. If any of the
tests fail you may have defective hardware.
The screen cursor jumps
back.
Do not place the pen on the tablet active area when it is not in use or
when you are using another pointing device. Leaving your pen on the
tablet active area may interfere with screen cursor positioning when
using other input devices.
Cannot move the cursor
where you want to on the
screen, or the line you are
sketching does not line up
with the location of the pointer
in paint applications.
Open the Bamboo control panel. Verify that PEN MODE is selected.
If this does not help, click on the DEFAULT button to reestablish the
default tablet to screen mapping. If you are still having difficulty,
remove the tablet preferences (see Windows-specific problems or
Macintosh-specific problems for details).
![](/img.php?id=1366104&img=bg20.png)
Contents Index
Contents 32
Index
32
WINDOWS-SPECIFIC PROBLEMS
The computer does not go to
sleep.
When you are not using the pen, remove it from the tablet surface or
the tablet will continue to send data, keeping the computer awake.
When using the tablet the
screen cursor is very erratic or
jumps around.
On rare occasions the tablet may receive interfering radio frequencies
from a computer monitor or nearby AM radio station. If you notice
interference from a monitor, try moving the tablet at least 15 cm or six
(6) inches away from the monitor, or change the monitor refresh rate or
monitor resolution.
You suspect the tablet
preferences may be
corrupted, or want to make
certain that all settings are at
their factory defaults.
Use the Bamboo Preference File Utility to work with your preferences.
Close any open applications. Click the START icon and select ALL
PROGRAMS. Then select BAMBOO and BAMBOO PREFERENCE FILE UTILITY.
• It is a good idea to first back up your tablet preferences. In the
BAMBOO PREFERENCE FILE UTILITY dialog box, click BACKUP... and
follow the prompts.
• Then, delete the tablet preferences as follows:
Single user. In the BAMBOO PREFERENCE FILE UTILITY dialog box,
click the REMOVE button under MY PREFERENCES to delete the
preferences for the current user.
Multiple users. Click the REMOVE button under ALL USER
PREFERENCES to delete preferences for multiple users. Note that
administrator rights are required to delete preferences for all users.
Relaunch any currently open tablet-aware applications that you
may be running.
You can quickly restore tablet preferences that have been backed up
by clicking RESTORE... under MY PREFERENCES.
![](/img.php?id=1366104&img=bg21.png)
Contents Index
Contents 33
Index
33
MACINTOSH-SPECIFIC PROBLEMS
At startup, a dialog box
appears telling you that either
the driver failed to load or the
tablet preferences have not
yet been created.
The tablet was not detected at startup. Make sure the USB interface
cable is securely connected to the tablet and to an active USB port on
your computer. Make sure also that the tablet status LED is
illuminated. If your tablet is plugged into a USB hub, make sure the
hub is connected and active.
From the GO menu, select the UTILITIES folder and launch the SYSTEM
PROFILER. Select USB from the HARDWARE section of the CONTENTS list.
A Wacom USB tablet model should be listed. If a tablet model is not
listed, check the USB tablet cable connection or try plugging the tablet
into a different USB port.
If this does not help, contact Wacom for technical support.
See technical support options.
You suspect the tablet
preferences may be
corrupted, or want to make
certain that all settings are at
their factory defaults.
Use the Bamboo Utility to work with your preferences. Close any open
applications. Open the main APPLICATIONS folder. Then open the
BAMBOO folder and run the BAMBOO UTILITY.
• It is a good idea to first back up your tablet preferences. In the
BAMBOO UTILITY dialog box, select CURRENT USER or ALL USERS.
Then click BACKUP... and follow the prompts.
• Then, delete the tablet preferences as follows:
Single user. When the utility starts, select CURRENT USER and click
on the REMOVE button. Log out, then log back in. When the tablet
driver loads it will create a new preferences file with the factory
defaults.
Multiple users. When the utility starts, select ALL USERS and click
on the REMOVE button. Log out, then log back in. When the tablet
driver loads it will create new preferences files with the factory
defaults.
You can quickly restore tablet preferences for the CURRENT USER or ALL
USERS by clicking on the RESTORE... button within the utility.
Note: Do not manually remove the BAMBOO.PREFPANE file from the main
LIBRARY PREFERENCEPANES folder. This file is only to be removed
when uninstalling the tablet software driver, and then only when
using the BAMBOO UTILITY.
![](/img.php?id=1366104&img=bg22.png)
Contents Index
Contents 34
Index
34
Ink does not work correctly
with the tablet.
There may be a problem with the Ink preferences. Remove the
damaged preference files as follows. They will be re-created when you
enable handwriting recognition.
1. Open the SYSTEM PREFERENCES pane, choose SHOW ALL and select
INK. Then turn off handwriting recognition.
2. From the GO menu, choose your HOME. Open the LIBRARY and
PREFERENCES folders. Then remove the following preferences:
• com.apple.ink.framework.plist
• com.apple.ink.inkpad.plist
• com.apple.ink.inkpad.sketch
3. Go back to SYSTEM PREFERENCES and INK, and then enable
handwriting recognition.
4. Test the Ink function using your pen tablet and pen.
5. If this procedure does not resolve your problem with Ink, contact
Apple Support for further assistance. Wacom is not the software
manufacturer for Ink and we are limited in our abilities to support a
third party software application.
![](/img.php?id=1366104&img=bg23.png)
Contents Index
Contents 35
Index
35
TECHNICAL SUPPORT OPTIONS
If you have a problem with your pen tablet, first check the tablet installation guide to be sure the unit is
installed correctly. Then review the troubleshooting procedures within this manual.
If you cannot find the answer in this manual, you may find updated information about your problem in the
Read Me file for your platform (located on the Bamboo One installation CD). You can also check the
product FAQs (Frequently Asked Questions) on the Wacom web site for your region.
If you have an Internet connection you can download the latest software drivers from the Wacom web site
for your region. See obtaining driver downloads for your region.
If you cannot solve the problem and you think your pen tablet is not working properly, contact the Wacom
support staff for the area where your product was purchased. See the pen tablet Read Me file, located on
the Bamboo One installation CD, for contact information.
When you call, you should be at your computer with the following information available:
• This manual.
• Tablet serial and model number. (Look on the bottom of the tablet.)
• Driver version number. (See the Bamboo One installation CD or the Bamboo control panel.)
• The make and model of your computer, and operating system version number.
• A list of peripheral devices attached to your computer.
• The software application and version you were using when the problem occurred.
• The exact wording of any error message that appeared on your screen.
• What happened and what you were doing when the problem occurred.
• How you tried to solve the problem.
You can also contact the Wacom Customer Care Center by visiting the Wacom web site for your region and
completing an Email Inquiry form.
![](/img.php?id=1366104&img=bg24.png)
Contents Index
Contents 36
Index
36
OBTAINING DRIVER DOWNLOADS
Wacom periodically updates the tablet software driver to maintain compatibility with new products. If you
are having a compatibility problem between Bamboo One and a new hardware or software product, it may
be helpful to download a new pen tablet software driver (when available) from the Internet.
USA, Canada, Central and South America
Europe, Middle East and Africa
Japan
Asia Pacific (English)
China
Hong Kong
Korea
Taiwan
Worldwide Web: http://www.wacom.com/productsupport Software updates
Worldwide Web: http://www.wacom.eu/downloads Software updates
Worldwide Web: http://tablet.wacom.co.jp Software updates (Japanese)
Worldwide Web: http://www.wacom-asia.com Software updates (English)
Worldwide Web: http://www.wacom.com.cn Software updates
(Simplified Chinese)
Worldwide Web: http://www.wacom.com.hk Software updates
(Traditional Chinese)
Worldwide Web: http://www.wacomkorea.com Software updates (Korean)
Worldwide Web: http://www.wacom.com.tw Software updates
(Traditional Chinese)
![](/img.php?id=1366104&img=bg25.png)
Contents Index
Contents 37
Index
37
APPENDIX
This section contains information about digital inking, tips on caring for your tablet and pen, instructions on
how to uninstall the tablet software, your license and warranty, and more.
Pen and digital ink capabilities in Windows
About the Windows Tablet PC Input Panel
Caring for your tablet and pen
Bamboo Dock
Uninstalling the tablet software
Managing your tablet preferences
Product specifications
Product information
Ordering parts and accessories
Radio and television interference
License and Warranties (Worldwide, except for Europe, Africa and Middle East)
Licence warranty conditions (Europe, Africa and Middle East)
![](/img.php?id=1366104&img=bg26.png)
Contents Index
Contents 38
Index
38
PEN AND DIGITAL INK CAPABILITIES IN WINDOWS
Microsoft Windows 7 and Vista provide extensive support for pen* input. When using Bamboo One with a
computer running Windows 7 or Vista, your experience is enhanced by powerful note taking, handwriting
recognition, fast navigation, and other digital inking options designed to give you quick, intuitive results
with the pen.
•Note taking
. Use your Bamboo One pen to jot notes and capture quick sketches in Microsoft Journal.
Journal simulates a physical notebook, but with the advantages of digital note taking. You can choose
from a variety of pen, marker, and highlighter tools. Journal also includes a powerful search engine that
can even locate your handwritten content.
• Handwriting recognition. Because Windows 7 and Vista include powerful handwriting recognition
capabilities, you can use your Bamboo One pen to quickly enter handwritten information anywhere the
computer accepts typed input. You can convert your handwritten content to typed text at any time.
•Gestures
. Use your Bamboo One pen to make simple gestural movements on the tablet to trigger
customizable actions for navigation, editing, and other functions. To customize your gestures, select
the Flicks tab in the PEN AND INPUT DEVICES control panel.
• Digital Ink in Microsoft Office 2007. Use your Bamboo One pen to full advantage with the enhanced
digital mark-up and inking tools available in Microsoft Office 2007 or later applications running on
Windows 7 or Vista. Found on the REVIEW tab within applicable applications, these tools provide a
consistent set of inking options. For quick access, you can add specific inking tools to the Quick
Access Toolbar located at the top of each application.
To make the most of the pen in Microsoft Windows, be sure to study the documentation that came with
your system, including the Windows training tools and Tablet PC tutorial. You can access the Tablet PC
Pen Training from the START menu by choosing ALL PROGRAMS, TABLET PC, and TABLET PC PEN TRAINING.
Note: The following workarounds in the Wacom tablet driver improve drawing performance in Windows 7
and Vista:
The Pen Flicks and ‘press-and-hold-to-right-click’ features are disabled in graphics applications
using the Wintab API.
There is no pressure sensitivity in Journal and other Ink features when both the Flicks and ‘press-
and-hold-to-right-click’ features are disabled in the PEN AND INPUT DEVICES control panel.
* Pen features supported in all versions of Windows 7 and Vista except Windows 7 Starter and Home Basic, and
Windows Vista Home Basic.
![](/img.php?id=1366104&img=bg27.png)
Contents Index
Contents 39
Index
39
ABOUT THE WINDOWS TABLET PC INPUT PANEL
The Windows 7 or Vista Input Panel enables you to use handwriting or an on-screen keyboard to directly
enter text with your Bamboo One pen. There are a number of ways to launch the Input Panel:
• Click on the Input Panel icon which appears when you move the screen cursor into a text entry area.
• Click on the Input Panel tab, located by default on the left edge of the display screen.
• Click on the Tablet PC Input Panel icon located on the Windows taskbar. If the icon is not visible,
right-click on the taskbar, select T
OOLBARS, and TABLET PC INPUT PANEL.
To customize the Input Panel:
1. First open the Input Panel and then click on TOOLS in the menu bar.
2. Select OPTIONS to open the Input Panel Options dialog box.
3. Customize the Input Panel settings for the way you like to work.
To learn more about using your Bamboo One pen in Microsoft Windows and Office 2007 or later, study the
documentation that came with your system and Microsoft Office applications. Be sure to take advantage
of the Windows training tools, including the Tablet PC tutorial, available from Microsoft.
You can visit also the Wacom web site at www.wacom.com/vista for more information on working with your
Bamboo One pen in Windows.
![](/img.php?id=1366104&img=bg28.png)
Contents Index
Contents 40
Index
40
CARING FOR YOUR TABLET AND PEN
Keep your Bamboo One pen and tablet surface clean. Dust and dirt particles can stick to your pen and
cause excessive wear to the tablet surface. Regular cleaning with a soft, damp cloth will help to prolong
the life of your tablet surface and pen; you can also dampen the cloth using a very mild soap diluted with
water. Do not use volatile liquids, such as paint thinner or benzene, as they may damage the plastic case.
Keep your tablet and pen in a clean, dry place and avoid extremes in temperature. Room temperature is
best. Also, your pen and tablet are not made to come apart. Twisting the pen case can break the pen.
Taking apart the product will void your warranty.
Important: Take care to never spill liquids onto the tablet or pen. Be especially careful of getting the
pen buttons and tip wet – they contain sensitive electronic parts that will fail if liquid enters them.
REPLACING THE PEN TIP
The pen tip (nib) will wear with normal use. Replace the pen nib when it gets too short – less than 1 mm
(.04 inch) – or develops a flat point.
Clasp the old nib with a tweezer, needle-nosed pliers, or similar instrument and pull it straight out of the
pen. Then slide the end of the new nib straight into the barrel of the pen – firmly push the nib until it stops.
Warning: Prevent children from swallowing the pen tip or pen buttons. The pen tip (nib) or pen
buttons may accidentally be pulled out if children are biting on them.
To order replacement parts, see ordering parts and accessories.
Pen nib
Available as optional spare part.
See ordering parts and accessories.
1 mm (.04 inch) or less)
Important: When the Bamboo One pen is not in use, place it on the
pen rest or lay it flat on your desk. To maintain the sensitivity of your
pen, do not store the pen in a container where it will rest on the tip.
![](/img.php?id=1366104&img=bg29.png)
Contents Index
Contents 41
Index
41
BAMBOO DOCK
Use the Bamboo Dock to view or add applications (Minis) made for Bamboo One. From games and
sketching to composing music or sharing and connecting with friends, there is an ever-growing collection
of Minis to choose from. Choose your regional web site on http://bamboodock.wacom.com/ to see further
details.
To open Bamboo Dock:
•Windows
: Click START and choose (ALL) PROGRAMS. Then select BAMBOO DOCK from the BAMBOO DOCK
folder.
•Macintosh
: From the Finder GO menu or PLACES sidebar, choose APPLICATIONS and double-click on the
BAMBOO DOCK icon.
Draw to open or hide Minis and other options. Click the gears icon to set your Bamboo Dock preferences.
To uninstall Bamboo Dock:
Windows: Click START and choose (ALL) PROGRAMS. Then select BAMBOO DOCK and UNINSTALL. Follow the
prompts.
Macintosh: In the APPLICATIONS folder, locate and trash the BAMBOO DOCK application.
UNINSTALLING THE TABLET SOFTWARE
Follow the appropriate procedure below to remove the pen tablet driver software from your system.
Important: When you remove the pen tablet software from your system, your pen tablet will no
longer operate with full tablet functionality but will continue to function as a mouse device.
Windows 7 and Vista: Click on the Windows START button and choose CONTROL PANEL. In the CONTROL
PANEL window, click on UNINSTALL A PROGRAM. In the dialog box that appears, choose BAMBOO.
Click UNINSTALL and follow the prompts to remove the tablet driver. (If prompted, enter your administrator
login name and password.) Be sure to restart your computer after uninstalling the software.
Windows XP: Click START. In the start menu, select CONTROL PANEL. Then select ADD OR REMOVE
PROGRAMS. In the ADD OR REMOVE PROGRAMS window, choose BAMBOO and click on the REMOVE button.
Follow the prompts to remove the tablet driver. Be sure to restart your computer after uninstalling the
software.
Macintosh: From the GO menu, choose APPLICATIONS and open the BAMBOO folder. Double-click on the
BAMBOO UTILITY icon and select the TABLET SOFTWARE: REMOVE button. Enter your administrator login name
and password. After the removal is completed, click OK. Be sure to restart your computer after
uninstalling the software.
![](/img.php?id=1366104&img=bg2a.png)
Contents Index
Contents 42
Index
42
MANAGING YOUR TABLET PREFERENCES
Use the Bamboo preference file utility to manage your tablet preferences for a single or multiple users.
For Windows, first close any open applications. Then open the utility by clicking the START icon and
selecting ALL PROGRAMS. Select BAMBOO and BAMBOO PREFERENCE FILE UTILITY.
• To remove preferences for the current user, click on the REMOVE button under MY PREFERENCES.
• To delete preferences for multiple users, click on the REMOVE button under ALL USER PREFERENCES.
Administrator rights are required to delete preferences for all users. Relaunch any currently open
tablet-aware applications that you may be running.
• To back up your preferences, click on the BACKUP... button under MY PREFERENCES.
• To restore preferences that you had previously backed up, click on the RESTORE... button under MY
PREFERENCES.
Be sure to carefully follow any prompts that may appear.
For Macintosh, open the main APPLICATIONS folder. Then open the BAMBOO folder and run the BAMBOO
UTILITY.
• To remove preferences, select CURRENT USER or ALL USERS. Then click on the REMOVE button.
Log out, then log back in. When the tablet driver loads it will create a new preferences file with the
factory defaults.
• To back up your preferences, select CURRENT USER or ALL USERS. Then click on the BACKUP... button.
• To restore preferences that you had previously backed up, select CURRENT USER or ALL USERS.
Then click on the RESTORE... button.
Be sure to carefully follow any prompts that may appear.
![](/img.php?id=1366104&img=bg2b.png)
Contents Index
Contents 43
Index
43
PRODUCT SPECIFICATIONS
GENERAL SPECIFICATIONS
BAMBOO ONE, SMALL TABLET (MODEL CTE-460)
BAMBOO ONE, MEDIUM TABLET (MODEL CTE-660)
BAMBOO ONE PEN (MODEL EP-150)
Coordinate resolution 100 lpmm (2540 lpi)
Accuracy, pen +/- 0.5 mm (0.02 in)
Reading height with pen, average 5 mm (0.20 in)
Report rate 133 points per second
Communication interface USB
Connector USB A
Power requirements DC 5V, 40 mA or less, from USB port
Operating temperature 5 to 40 degrees C (41 to 104 degrees F)
Storage temperature -15 to +60 degrees C (14 to 140 degrees F)
Operating relative humidity 30% to 80% non-condensing
Storage relative humidity 30% to 90% non-condensing
Certifications and compliance FCC Class B, CE, VCCI Class B, BSMI, C-Tick, MIC, GOST-R, CCC,
RoHS, Chinese RoHS
Active area (W x D) 147.6 x 92.3 mm (5.82 x 3.63 in)
Physical size (W x D x H) 195 x 197 x 10.7 mm (7.68 x 7.76 x 0.42 in), including rubber feet
Cable length 1.5 m (4.95 ft)
Weight 300 g (0.66 lb), approximately, including cable
Power consumption 0.2 watts, approximately
Active area (W x D) 216.5 x 135.3 mm (8.53 x 5.33 in)
Physical size (W x D x H) 195 x 197 x 10.7 mm (7.68 x 7.76 x 0.42 in), including rubber feet
Cable length 1.5 m (4.95 ft)
Weight 300 g (0.66 lb), approximately, including cable
Power consumption 0.2 watts, approximately
Physical size (L x D) 148.0 x 12.0 mm (5.83 x 0.47 in)
Pressure levels, pen tip 1024 levels
Pen tip travel 0.1 mm (0.004 in), approximately
Weight 10 g (0.02 lb), approximately
Pen tip type Polyacetal (Part No. PSI-A034), white
![](/img.php?id=1366104&img=bg2c.png)
Contents Index
Contents 44
Index
44
PRODUCT INFORMATION
To learn more about Bamboo One, and about which software applications are currently tablet enhanced to
support the pressure sensitivity and other special functionality of your pen tablet and pen, visit the Wacom
web site for your region:
ORDERING PARTS AND ACCESSORIES
To purchase parts and accessories, refer to the tablet Read Me file and see who to call for your region.
You can also do the following:
• In the USA or Canada, call 1.888.884.1870 (toll-free) or visit Wacom’s web site at
http://www.WacomDirect.com (USA only).
•In Europe
, call +49 (0)180.500.03.75 or send an Email to spareparts@wacom.eu. Or, visit
http://shop.wacom.eu. You can also contact your local dealer, distributor, or technical support using
the appropriate number for your region.
• In Australia, Singapore, Taiwan and Korea, please visit: www.BuyWacom.com.au,
www.BuyWacom.com.sg, www.BuyWacom.com.tw and www.BuyWacom.co.kr, respectively.
• In other countries, please contact your local dealer or distributor.
Please note that not all parts and accessories are available in all regions.
USA, Canada, Central and South America http://www.wacom.com/productinfo
Europe, Middle East and Africa http://www.wacom.eu
Japan http://tablet.wacom.co.jp
Asia Pacific (English) http://www.wacom-asia.com
China (Simplified Chinese) http://www.wacom.com.cn
Hong Kong (Traditional Chinese) http://www.wacom.com.hk
Korea http://www.wacomkorea.com
Taiwan http://www.wacom.com.tw
Thailand http://www.wacom-thai.com
![](/img.php?id=1366104&img=bg2d.png)
Contents Index
Contents 45
Index
45
RADIO AND TELEVISION INTERFERENCE
The equipment described in this manual generates, uses, and can radiate radio-frequency energy. If it is not installed
and used properly—that is, in strict accordance with Wacom instructions—it may cause interference with radio and
television reception.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
You can determine whether the equipment is causing interference by disconnecting it from your computer. If the
interference stops, it was probably caused by the equipment.
If the equipment does cause interference to radio or television reception, you may be able to correct the interference
by using one or more of the following measures:
• Rotate the television or radio antenna until the interference stops.
• Move the equipment farther away from the television or radio.
• Plug the equipment and computer into an outlet that is on a different circuit from the television or radio.
If necessary, consult your Wacom dealer or an experienced radio/television technician for help.
Changes or modifications to this product not authorized by Wacom could void the FCC Certification and negate your
authority to operate the product.
INDUSTRY CANADA (CANADA ONLY)
Industry Canada, Class B
“This Class (B) digital apparatus complies with Canadian ICES-003”
“Cet appareil numerique de la classe (B) est conforme a la norme NMB-003 du Canada.”
CE DECLARATION
The Wacom Bamboo™ One digitizing tablet, models CTE-460 and CTE-660, has been tested and found to comply
with the following harmonized European Norms:
• EN 55024:1998;A1:2001+A2:2003
• EN 55022:2006 Class B
Based on the results of these tests, Wacom declares that the above mentioned device conforms to
Directive 2004/108/EC and indicates this conformity by the CE-sign on each device.
The device must be installed and operated always in strict accordance with the instructions given in this handbook.
Any changes or modifications to this product that were not specifically authorized will invalidate this declaration.
![](/img.php?id=1366104&img=bg2e.png)
Contents Index
Contents 46
Index
46
LICENSE AND WARRANTIES
(WORLDWIDE, EXCEPT FOR EUROPE, AFRICA AND MIDDLE EAST)
SOFTWARE LICENSE
This legal document is an agreement between you, the end-user, and Wacom Technology Corporation (Wacom).
1. Grant of License. The enclosed product includes computer programs embedded in firmware and accompanying
diskette or CD-ROM (the “Software”). The Software is licensed, not sold, to you for use only with Wacom products
upon the terms of this license, and Wacom reserves any rights not expressly granted to you. Wacom grants to you a
non-exclusive right to use this copy of the Software in conjunction with a Wacom product at a single location.
2. Ownership of Software. Although you may own the product in which the Software is originally recorded, Wacom
retains ownership of the Software itself. You acknowledge that the Software is Wacom’s property, and contains
valuable confidential, unpublished information developed or acquired by Wacom at great expense, including data
processing algorithms, innovations and concepts. The Software is protected by copyright and other federal and state
laws. You agree to use your reasonable best efforts to protect the Software from unauthorized reproduction,
distribution, disclosure, use, or publication.
3. Copy Restrictions. Unauthorized copying of the Software is expressly forbidden.
4. Use Restrictions. You may not decompile, reverse assemble, disassemble or reverse engineer the Software.
5. Termination. This License is effective until terminated. This License will terminate automatically without notice from
Wacom if you fail to comply with any provisions of the License.
6. Miscellaneous. This License is governed by the laws of the United States of America and the state of Washington
except in Asia Pacific and by the laws of Japan for Asia Pacific.
LIMITED WARRANTY
Wacom warrants the product, to the original consumer purchaser, except for the Software and consumable items
such as the pen nibs, to be free from defects in materials and workmanship under normal use and service for a period
of one (1) year, from the date of original retail purchase, as evidenced by a copy of the receipt and registration with
Wacom within 30 days of purchase.
The Software is licensed “as is.” Wacom makes no warranty with respect to its quality or performance. Wacom
cannot guarantee you uninterrupted service or the correction of any errors.
Upon discovery of a defect in the product, except in the Software, within the Warranty Period, you should contact
Wacom Technical Support via telephone, email, or fax to obtain an RMA (Return Merchandise Authorization) number
and instructions for shipping the product to a service location designated by Wacom. You should send the product,
shipping charges prepaid, to the designated service location, accompanied by the return authorization number, your
name, address and telephone number, proof of purchase date, and a description of the defect. Wacom will pay for
return shipping by United Parcel Service or by an equivalent service as chosen by Wacom.
![](/img.php?id=1366104&img=bg2f.png)
Contents Index
Contents 47
Index
47
Wacom’s sole obligation and entire liability under this warranty shall be, at Wacom’s option, either the repair or
replacement of the defective product or parts thereof of which Wacom is notified during the Warranty Period;
provided, however, that you are responsible for (i) the cost of transportation of the product to the designated service
location and (ii) any loss or damage to the product resulting from such transportation.
Wacom shall have no responsibility to repair or replace the product if the failure of the product has resulted from
accident, abuse, misuse, negligence, or unauthorized modification or repair, or if it has been handled or stored other
than in accordance with Wacom’s storage instructions.
Any descriptions, drawings, specifications, samples, models, bulletins, or similar material, used in connection with the
sale of the product, shall not be construed as an express warranty that the product will conform or comply with your
requirements.
EXCEPT FOR THE LIMITED WARRANTY DESCRIBED ABOVE, THERE ARE NO OTHER WARRANTIES MADE BY
WACOM ON THIS PRODUCT. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY WACOM, ITS
DEALERS, DISTRIBUTORS, AGENTS, OR EMPLOYEES SHALL CREATE A WARRANTY OR IN ANY WAY INCREASE
THE SCOPE OF THIS WARRANTY, AND YOU MAY NOT RELY ON ANY SUCH INFORMATION OR ADVICE. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STAT E TO STATE.
WACOM LIMITS THE DURATION OF ANY LEGALLY IMPLIED WARRANTIES INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE DURATION OF WACOM’S EXPRESS
WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
NEITHER WACOM NOR ANYONE ELSE WHO HAS BEEN INVOLVED IN THE CREATION, PRODUCTION, OR
DELIVERY OF THIS PRODUCT SHALL BE LIABLE FOR ANY DIRECT, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF
BUSINESS INFORMATION AND THE LIKE) ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT,
EVEN IF WACOM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
In the event that any of the above limitations are held unenforceable, Wacom’s liability for any damages to you or any
party shall not exceed the purchase price you paid, regardless of the form of any claim.
This Limited Warranty is governed by the laws of the United States of America and the state of Washington.
This Limited Warranty is valid for and only applies to products purchased and used inside the United States (and its
territories or possessions) and Canada.
WARRANTY SERVICE IN THE U.S.A. AND CANADA
To obtain Warranty service within the U.S. or Canada contact:
Wacom Customer Care Center
Phone: 1.360.896.9833
Email Inquiry form: http://www.wacom.com/productsupport/email.cfm
![](/img.php?id=1366104&img=bg30.png)
Contents Index
Contents 48
Index
48
WARRANTY ON SALES OUTSIDE OF THE U.S.A. AND CANADA
For products purchased or used outside of the United States and Canada, upon discovery of a defect in the product,
except in the Software, within the Warranty Period you should contact your local dealer or distributor. In all other
respects the terms of the warranty as set forth above apply to such sales.
Wacom Technical Support in Asia Pacific (except Japan and China)
Detailed Asia Pacific Limited Warranty policy and product registration may be found online at
http://www.wacom-asia.com
To obtain technical support or Warranty service within Southeast Asia, Oceania and Taiwan, please contact the
Wacom Customer Support Service.
Phone numbers can be found here: http://www.wacom-asia.com/support/
Should you have any questions about this Agreement, or if you desire to contact Wacom for any reason, please
contact in writing:
NORTH AND SOUTH AMERICA
CONTACT:
JAPAN
CONTACT:
Wacom Technology Corporation Wacom Co., Ltd.
1311 SE Cardinal Court Harmony Tower 18F, 1-32-2 Hon-Cho
Vancouver, Washington 98683 Nakano-Ku, Tokyo 164-0012
U.S.A. Japan
ASIA PACIFIC
CONTACT:
MAINLAND CHINA (EXCEPT HONG KONG)
CONTACT:
Wacom Co., Ltd. Wacom China Corporation
Asia Pacific Office Unit 2807, 28th Floor, SK Tower
Harmony Tower 18F, 1-32-2 Hon-Cho, No 6 Jia, Jianguomenwai Avenue,
Nakano-Ku, Tokyo 164-0012 Beijing, 100022, China
Japan E-mail: support@wacom.com.cn
![](/img.php?id=1366104&img=bg31.png)
Contents Index
Contents 49
Index
49
LICENCE WARRANTY CONDITIONS
(EUROPE, AFRICA AND MIDDLE EAST)
SOFTWARE LICENCE AGREEMENT
Important customer information
The scope of delivery of this product covers copyright-protected computer programs ("software"), which are the
inalienable intellectual property of WACOM Europe GmbH ("WACOM"). This software is an integral component of the
product and is also held on the associated data carrier. The software of WACOM and the associated rights of use are
not included with the purchase of this product from your retailer. WACOM grants you-the user-the right to use the
software exclusively in accordance with the conditions stipulated in this licence agreement. By purchasing this
product, you agree to the following licence conditions.
Conditions for using the software
WACOM issues the user with a personal, non-exclusive licence to use the software solely in connection with this
product and for the correct operation of the product. This licence may only be assigned to a third party in connection
with this product.
Use of this software includes the creation of permanent or temporary copies of the software by means of loading,
displaying, exporting, transferring or saving, for the purposes of exporting the commands and the data they contain or
for observing, researching or testing the software functions.
The customer may not license the software to a third party, lease, lend or in any other way provide access to the
software. The customer may not copy, change, transfer or edit the software without prior written agreement from
WACOM. The only exceptions to this are necessary procedures for creating a back-up copy and the scenarios
outlined in section 2.
The customer may not carry out any "reverse engineering", decompile or depacketise the software, or try by any other
means to discover the source code of the software. This restriction shall continue to apply after the termination of this
agreement. If the software contains interfaces to other programs that are not supported by WACOM, WACOM shall
provide the customer with the necessary information on request, as long as the customer can prove his right to use
the software and agrees to bear the copying and postage costs.
WACOM AND ITS SUPPLIERS CANNOT OFFER ANY GUARANTEE FOR THE PERFORMANCE OF THE SOFTWARE
OR FOR THE RESULTS PRODUCED THERE FROM. WACOM AND ITS SUPPLIERS OFFER NO GUARANTEES OR
ASSURANCES (EITHER EXPRESSLY OR IMPLICITLY, INCLUDING THOSE THAT MAY BE DERIVED FROM A
BUSINESS RELATIONSHIP OR FROM TRADE PRACTICE, OR FROM LEGAL PROVISIONS OR CUSTOMARY LAW)
WITH REGARD TO THE MARKETABILITY, FREEDOM FROM DEFECTS OF TITLE OR USEFULNESS OF THE
SOFTWARE.
WACOM AND ITS SUPPLIERS ACCEPT NO LIABILITY FOR DAMAGES, CLAIMS OR COSTS OF ANY KIND, NOR
FOR CONSEQUENTIAL DAMAGES, SECONDARY, ACCIDENTAL, INDIRECT OR PENAL DAMAGES, PARTICULAR
OR MISCELLANEOUS DAMAGES OR FOR DEMANDS OR INDEMNITY CLAIMS FOR REDUCED PROFITS OR
LOSSES. THIS SHALL ALSO APPLY IN THE CASE OF A REPRESENTATIVE OF WACOM BEING PREVIOUSLY
AWARE OF THE POSSIBILITY OF SUCH LOSSES, DAMAGES, CLAIMS OR COSTS, OR DEMANDS FROM THIRD
PARTIES.
![](/img.php?id=1366104&img=bg32.png)
Contents Index
Contents 50
Index
50
The existing limitations on liability shall not apply in the case of the assumption of explicit guarantees, or in case of
fraudulent behaviour on the part of WACOM, nor for damages arising from wilful or grossly negligent behaviour on the
part of WACOM, from damages leading to loss of life, personal injury or sickness or in the case of binding legal
provisions. For slight negligence, WACOM and its suppliers shall only be liable in the event of a breach of essential
contractual obligations. Liability when such an essential contractual obligation is breached is, however, limited to
damages typical to this type of contract, which WACOM must have determined at the conclusion of the contract
based on the known risks and circumstances at that time. Claims for reduced profits or expenses saved, indemnity
claims from third parties or claims for any other direct or consequential damages still cannot be asserted in this case.
The laws of the Federal Republic of Germany shall apply to this agreement. However, the applicability of the United
Nations Convention on Contracts for the International Sale of Goods is explicitly excluded. Krefeld is the sole place of
jurisdiction for all claims arising from this contractual relationship and all disputes between the parties resulting from
the formation, handling or termination of the contractual relationship, provided that the customer is a trader, a legal
entity under public law or a special fund under public law.
The jurisdiction agreement shall also apply for customers who do not have a general place of jurisdiction in Germany.
The jurisdiction agreement shall not apply if, due to legal provisions, a different sole place of jurisdiction must be
established for the case. Furthermore, WACOM is authorised to file a lawsuit against the headquarters of the
customer.
This licence constitutes the entire contractual agreement between the parties. It overrides all other verbal and written
contracts and agreements and may only be altered by means of a written and signed contract. Should one of the
provisions of these licence conditions be or become void, the validity of the other provisions shall not be affected, in
full or in part. Should a provision be invalid, the legally permissible regulation most closely resembling the invalid
regulation shall apply in its place.
LIMITED WARRANTY
WACOM guarantees to you, as the initial purchaser, that the product hardware, when used as intended, will remain
free from material defects and processing errors for a warranty period of TWO (2) YEARS and Cintiq products shall be
guaranteed for a warranty period of THREE (3) YEARS, commencing from the purchase date and provided that the
product was unused at the time of purchase. Defects in wear parts (e.g. pen tips) resulting from normal wear and tear
are exempt from the warranty. Furthermore, WACOM guarantees that the data carriers delivered with the product are
free from material defects and processing errors for a period of SIX (6) MONTHS from the date of purchase.
If the product-excluding any software-is discovered to be faulty it must be returned immediately to the place of
purchase in its original packaging within the warranty period together with your name, address and telephone number,
a description of the problem and a copy of the original receipt. The customer shall be liable for any possible damage
or loss of the product during transit for this purpose. Under the provisions of this warranty, WACOM only undertakes
to repair or replace the faulty product or parts at its own discretion, in cases where defects are proven and the
product is sent within the warranty period.
WACOM is not obligated to repair or replace the product if: (a) the damage to the product results from any accident,
misuse, improper use, negligence or unauthorised alteration or repair; (b) the product was not handled or stored
according to the instructions provided by WACOM; (c) the damage resulted from normal wear and tear; or d) the serial
number affixed by WACOM has been removed or rendered unintelligible.
If, when a claim made under this warranty is checked, it emerges that it is outside the permitted time period or is not
covered by the warranty or that the product is not faulty, the costs of any checks or repairs must be borne by the
customer.
![](/img.php?id=1366104&img=bg33.png)
Contents Index
Contents 51
Index
51
Any descriptions, drawings, specifications, samples, models, notifications or similar material provided in connection
with the purchase of the product cannot be taken as an explicit guarantee that the product corresponds to or fulfils
the customer's requirements.
If this product is faulty, the purchaser shall be entitled to assert legal claims against the vendor for liability due to
defects. These legal rights against the vendor are not limited by the existing warranty. The warranty grants the
customer many additional rights under the conditions stipulated in this text.
This limited warranty shall apply if the registered office of the vendor is in the EU or in Iceland, Norway, Jersey,
Switzerland, Russia, Ukraine, Croatia, Serbia, Tunisia, Turkey, Syria, Lebanon, Jordan, Israel, Egypt, United Arab
Emirates, Iran or South Africa.
The granting of this limited warranty is subject to the laws of the Federal Republic of Germany. However, the
applicability of the United Nations Convention on Contracts for the International Sale of Goods is explicitly excluded.
Krefeld is the sole place of jurisdiction for all claims arising from this contractual relationship and all disputes between
the parties resulting from the formation, handling or termination of the contractual relationship, provided that the
customer is a trader, a legal entity under public law or a special fund under public law.
The jurisdiction agreement shall also apply for customers who do not have a general place of jurisdiction in Germany.
The jurisdiction agreement shall not apply if, due to legal provisions, a different sole place of jurisdiction must be
established for the case. Furthermore, WACOM is authorised to file a lawsuit against the headquarters of the
customer.
Should one of the provisions of these limited warranty conditions be or become void, the validity of the other
provisions shall not be affected, in full or in part. Should a provision be invalid, the legally permissible regulation most
closely resembling the invalid regulation shall apply in its place.
If you have any questions about this agreement, or would like to contact WACOM for another reason, please contact
us by post at this address:
WACOM Europe GmbH
Europark Fichtenhain A9
47807 Krefeld
GERMANY
![](/img.php?id=1366104&img=bg34.png)
Contents Index
Contents 52
Index
52
GLOSSARY
Active area. The drawing area of the tablet where your Bamboo One pen is detected.
Aspect. The ratio between the vertical and horizontal dimension of the tablet or display.
Click force. The amount of force you must apply to the tip of your pen for a click to occur.
Digital ink. A broad category that typically describes handwritten content which has been created using
pen-based input on a computer. This handwritten content takes the form of sketches, ink mark-up, or
handwriting. The handwriting can optionally be converted to typewritten text or simply left alone for use in
its original format. Depending on your system and application settings, the handwritten text you make with
digital ink can be converted on-the-fly or at another time.
Double-click distance. The maximum distance (in screen pixels) that the cursor can move between clicks
and still be accepted as a double-click. Increasing the double-click distance makes double-clicking easier,
but may cause a delay in brush strokes in some graphics applications.
Journal. A Microsoft Windows application that electronically simulates a physical journal pad, but with the
advantages of digital note-taking. For example, you can create quick sketches and jot handwritten notes
that can be converted to text and sent on to colleagues for digital mark-up. Journal includes a variety of
pen, marker, and highlighter tools. Additionally, your handwritten content is searchable within Journal.
Mapping. The relationship between your Bamboo One pen position on the tablet and the cursor position
on the display screen.
Modifier. Modifier keys include SHIFT, ALT, and CTRL for Windows, or SHIFT, CONTROL, COMMAND, and OPTION
for Macintosh. You can customize your Bamboo One pen buttons to simulate a modifier key.
Mouse acceleration. A setting that allows you to adjust the screen cursor acceleration when your Bamboo
One pen is in mouse mode.
Mouse mode. A method for positioning the screen cursor. When you place the Bamboo One pen on the
tablet, you can move the screen cursor with a “pick up and slide” motion similar to using a traditional
mouse. This is known as relative positioning. See also pen mode.
Mouse speed. A setting that allows you to adjust the speed at which your screen cursor moves when your
Bamboo One pen is in mouse mode.
Nib. The replaceable pen tip.
![](/img.php?id=1366104&img=bg35.png)
Contents Index
Contents 53
Index
53
Pen mode. A method of positioning the screen cursor. Wherever you place your Bamboo One pen on the
tablet, the screen cursor will jump to the same corresponding point on the screen. This is known as
absolute positioning, and is the default setting for the Bamboo One pen. Also, PEN MODE allows you to
quickly position the screen cursor without having to first find it and then move it across the desktop.
See also mouse mode.
Pixel. The smallest unit of measure on your monitor screen.
Pressure sensitive. A quality of the Bamboo One pen tip that senses the amount of pressure being applied.
This is used to create natural-looking pen and brush strokes in applications that are pressure sensitive.
Pressure-sensitive application. Any application that supports pressure-sensitive input.
Proximity. The height above the tablet active area where the Bamboo One pen is detected. Refer also to
the pointing section.
Screen cursor. The pointer on the display screen. Screen cursors come in different shapes (such as an
I-beam, arrow, or box), depending on which application you are running.
Tablet PC Input Panel (TIP). The Microsoft Windows 7 and Vista Tablet PC Input Panel enables you to use
your Bamboo One pen to create handwritten notes or work with an on-screen keyboard. The Input Panel
dynamically converts your handwriting to text. The information you create can then be inserted into other
documents, spreadsheets, or illustrations. See also pen and digital ink capabilities in Windows.
USB. Universal Serial Bus. A hardware interface standard for connecting computer peripheral devices.
USB ports support hot-plugging, which allows you to connect or disconnect a USB device without turning
off your computer.
Wintab. An interface standard used by Windows applications for receiving tablet information.
Bamboo One supports all Wintab-compatible applications under Windows.
![](/img.php?id=1366104&img=bg36.png)
Contents Index
Contents 54
Index
54
INDEX
About the manual 4
Accessories and parts, ordering 44
Active area 10
Bamboo Dock 41
Bamboo One, working with 6
Button functions 21
Care, for tablet and pen 40
CE declaration 45
Click sound 12
Clicking, with pen 12
Control panel 17
opening 16
overview 17
Customizing
acceleration 27
double-click 19
pen 18
pen buttons 20
speed 27
tip feel 19
Digital inking capabilities 38
Double-click, customizing 19
Double-clicking, how to 12
Dragging, with pen 12
Drawing with pressure 14
Driver downloads, obtaining 36
Environmental conditions 40
Eye-hand coordination exercise 14
FCC notice 45
Features
Pen 7
tablet 6
Functions, button 21
General problems, troubleshooting 30
Holding the pen 9
Industry Canada notice 45
Information, product 44
Interference, radio and television 45
Macintosh-specific problems, troubleshooting 33
Manual, about 4
Mapping, to multiple monitors 26
Mouse speed, setting 27
Nib, replacing 40
Ordering parts and accessories 44
Overview, control panel 17
Parts and accessories, ordering 44
Pen
buttons
customizing 20
using 13
clicking with 12
customizing 18
double-clicking with 12
dragging with 12
holding 9
pointing 11
replacing tip 40
testing 29
using 9
using pen buttons 13
writing and sketching with pressure 14
Pointing, with pen 11
Preferences, managing 42
Pressure, writing and sketching with 14
Product information 44
Proportions and scale 25
Radio and television interference 45
Scale and proportions 25
Settings, control panel 17
Software
driver downloads 36
uninstalling 41
![](/img.php?id=1366104&img=bg37.png)
Contents Index
Contents 55
Index
55
Specifications
general 43
pen 43
product 43
tablet, medium 43
tablet, small 43
Tab l e t
features 6
mapping
area 25
for portion of screen area 26
for portion of tablet area 27
to multiple monitors 26
scale and proportions 25
storing 40
testing 29
tracking 24
working with 15
Technical support options 35
Testing
pen 29
tablet 29
Tip feel, customizing 19
Tip, replacing 40
Tracking, tablet 24
Troubleshooting 28
general problems 30
Macintosh-specific problems 33
tables 30
Windows-specific problems 32
Uninstalling tablet software 41
Windows-specific problems, troubleshooting 32
Work area, setting up 8
Working with Bamboo One 6
Writing with pressure 14
![](/img.php?id=1366104&img=bg38.png)
Contents Index
Contents 56
Index
56
WACOM INTERNATIONAL OFFICES
WACOM TECHNOLOGY CORPORATION WACOM EUROPE GMBH
1311 SE Cardinal Court Europark Fichtenhain A9
Vancouver, WA 98683 47807 Krefeld
U.S.A. Germany
Telephone: +1.360.896.9833 Internet: http://www.wacom.eu
Fax: +1.360.896.9724
WACOM CO., LTD.
JAPAN TABLET SALES DIVISION
WACOM CO., LTD.
ASIA PACIFIC DIVISION
Harmony Tower 18F, 1-32-2 Hon-Cho, Harmony Tower 18F, 1-32-2 Hon Cho,
Nakano-Ku, Tokyo 164-0012 Nakano-Ku, Tokyo 164-0012
Japan Japan
Internet: http://tablet.wacom.co.jp Telephone: +81.3.5309.1513
Fax: +81.3.5309.1514
WACOM CHINA CORPORATION WACOM KOREA CO., LTD.
Unit 2807, 28th Floor, SK Tower #1211, 12F, KGIT Sangam Center,
No 6 Jia, Jianguomenwai Avenue, 1601 Sangam-dong, Mapo-gu, Seoul 121-913, Korea
Beijing, 100022, China Telephone: +82.2.557.3894
Internet: http://www.wacom.com.cn Fax: +82.2.557.3895
WACOM AUSTRALIA PTY. LTD. WACOM SINGAPORE PTE. LTD.
Unit 8, Stage 1 Cumberland Green 5 Temasek Boulevard
2-8 South Street Rydalmere #12-09 Suntec Tower Five
NSW 2116 Australia Singapore 038985
Telephone: +61.2.9422.6700 Telephone: +65.6258.8640
Fax: +61.2.9420.2272 Fax: +65.6258.8697
WACOM TAIWAN INFORMATION CO., LTD. WACOM HONG KONG LIMITED
Suite 605, 6th floor, No. 205 Tun-Hwa North Road Room 2105, C C Wu Building
Taipei, 105 Taiwan 302-308 Hennessy Road
Telephone: +886.2.2712.2675 Wanchai, Hong Kong
Fax: +886.2.2712.9789 Telephone: +852.25739322
Fax: +852.25739500
