Users Manual
![](/img.php?id=1183071&img=bg1.png)
TABLE OF CONTENTS
Special notes on LCD monitors..................................................1
Information for your safety and comfort..................................2
Unpacking...................................................................................5
Attaching/Removing the base....................................................6
Screen position adjustment........................................................6
Connecting the power cord........................................................7
Safety precaution.......................................................................7
Cleaning your monitor...............................................................7
Power saving...............................................................................8
DDC..............................................................................................8
Connector Pin Assignment.........................................................9
Standard Timing Table..................................................................10
Installation.....................................................................................11
User controls..................................................................................12
Troubleshooting............................................................................19
![](/img.php?id=1183071&img=bg2.png)
EN-1
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitor and do not indicate a
problem.
NOTES
•Due to the nature of the fluorescent light, the screen may flicker during
initial use. Turn off the Power Switch and then turn it on again to make
sure the flicker disappears.
•You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
•The LCD screen has effective pixels of 99.99% or more. It may include
blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the
time.
•Due to the nature of the LCD screen, an afterimage of the previous screen
may remain after switching the image, when the same image is displayed
for hours. In this case, the screen is recovered slowly by changing the
image or turning off the Power Switch for hours.
![](/img.php?id=1183071&img=bg3.png)
EN-2
Information for your safety and
comfort
Safety instructions
Read these instructions carefully. Keep this document for future reference. Follow all
warnings and instructions marked on the product.
CAUTION for accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and
located as close to the equipment operator as possible. When you need to disconnect
power to the equipment, be sure to unplug the power cord from the electrical outlet.
Warnings
•Do not use this product near water.
•Do not place this product on an unstable cart, stand or table. If the
product falls, it could be seriously damaged.
•Slots and openings are provided for ventilation to ensure reliable operation of
the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This product should never
be placed near or over a radiator or heat register, or in a built-in installation
unless proper ventilation is provided.
•Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into the
product.
•To avoid damage of internal components and to prevent battery leakage, do
not place the product on a vibrating surface.
•Never use it under sporting, exercising, or any vibrating environ ment which
will probably cause unexpected short current or damage rotor devices, HDD,
Optical drive, and even exposure risk from lithium battery pack.
Safe listening
Follow these instructions, suggested by hearing experts,to protect your earing.
•Gradually increase the volume until you can hear it clearly and comfortably and
without distortion.
•After setting the volume level, do not increase it afteryour ears adjust.
•Limit the amount of time listening to music at high volume.
•Avoid turning up the volume to block out noisy surroundings.
•Turn the volume down if you can’t hear people speaking near you.
![](/img.php?id=1183071&img=bg4.png)
EN-3
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage points or other risks. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service person-
nel when:
•the power cord or plug is damaged, cut or frayed
•liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need for service
•the product does not operate normally after following the operating instructions
-----------------------------------------------------------------------------------------------------
Note: Adjust only those controls that are covered by the operating instructions,
since improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to
normal condition.
LCD Pixel Statement
The LCD unit is produced with high-precision manufacturing techniques. Nevertheless,
some pixels may occasionally misfire or appear as black or red dots. This has no effect on
the recorded image and does not constitute a malfunction.
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use. Users are
also at risk of physical injury after long hours of working in front of a computer. Long
work periods, bad posture, poor work habits, stress, inadequate working conditions,
personal health and other factors greatly increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis
or other musculoskeletal disorders. The following symptoms may appear in the hands,
wrists, arms, shoulders, neck or back:
•numbness, or a burning or tingling sensation
•aching, soreness or tenderness
•pain, swelling or throbbing
•stiffness or tightness
•coldness or weakness
If you have these symptoms, or any other recurring or persistent discomfort and/or pain
related to computer use, consult a physician immediately and inform your company’s
health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest,
or raising your sitting height to achieve maximum comfort. Observe the following tips:
•refrain from staying too long in one fixed posture
•avoid slouching forward and/or leaning backward
•stand up and walk around regularly to remove the strain on your leg muscles
![](/img.php?id=1183071&img=bg5.png)
EN-4
-----------------------------------------------------------------------------------------------------
Warning! We do not recommend using the product on a couch or bed. If this is
unavoidable, work for only short periods, take breaks regularly, and do some
stretching exercises.
-----------------------------------------------------------------------------------------------------
For more information and help in recycling, please visit the following websites:
Worldwide:
http://www.acer-group.com/public/Sustainability/sustainability01.htm
http://www.acer-group.com/public/Sustainability/sustainability04.htm
•take short rests to relax your neck and shoulders
•avoid tensing your muscles or shrugging your shoulders
•install the external display, keyboard and mouse properly and within comfort
able reach
•if you view your monitor more than your documents, place the display at the
center of your desk to minimize neck strain
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room
lighting, poorly focused screens, very small typefaces and low-contrast displays could
stress your eyes. The following sections provide suggestions on how to reduce eyestrain.
Eyes
•Rest your eyes frequently.
•Give your eyes regular breaks by looking away from the monitor and focusing
on a distant point.
•Blink frequently to keep your eyes from drying out.
Display
•Keep your display clean.
•Keep your head at a higher level than the top edge of the display so your eyes
point downward when looking at the middle of the display.
•Adjust the display brightness and/or contrast to a comfortable level for enhanced
text readability and graphics clarity.
•Eliminate glare and reflections by:
•placing your display in such a way that the side faces the window or any light
source
•minimizing room light by using drapes, shades or blinds
•using a task light
•changing the display’s viewing angle
•using a glare-reduction filter
•using a display visor, such as a piece of cardboard extended from the display’s
top front edge
•Avoid adjusting your display to an awkward viewing angle.
•Avoid looking at bright light sources, such as open windows, for extended
periods of time.
Developing good work habits
Develop the following work habits to make your computer use more relaxing and
productive:
•Take short breaks regularly and often.
•Perform some stretching exercises.
•Breathe fresh air as often as possible.
•Exercise regularly and maintain a healthy body.
![](/img.php?id=1183071&img=bg6.png)
EN-5
•LCD Monitor
UNPACKING

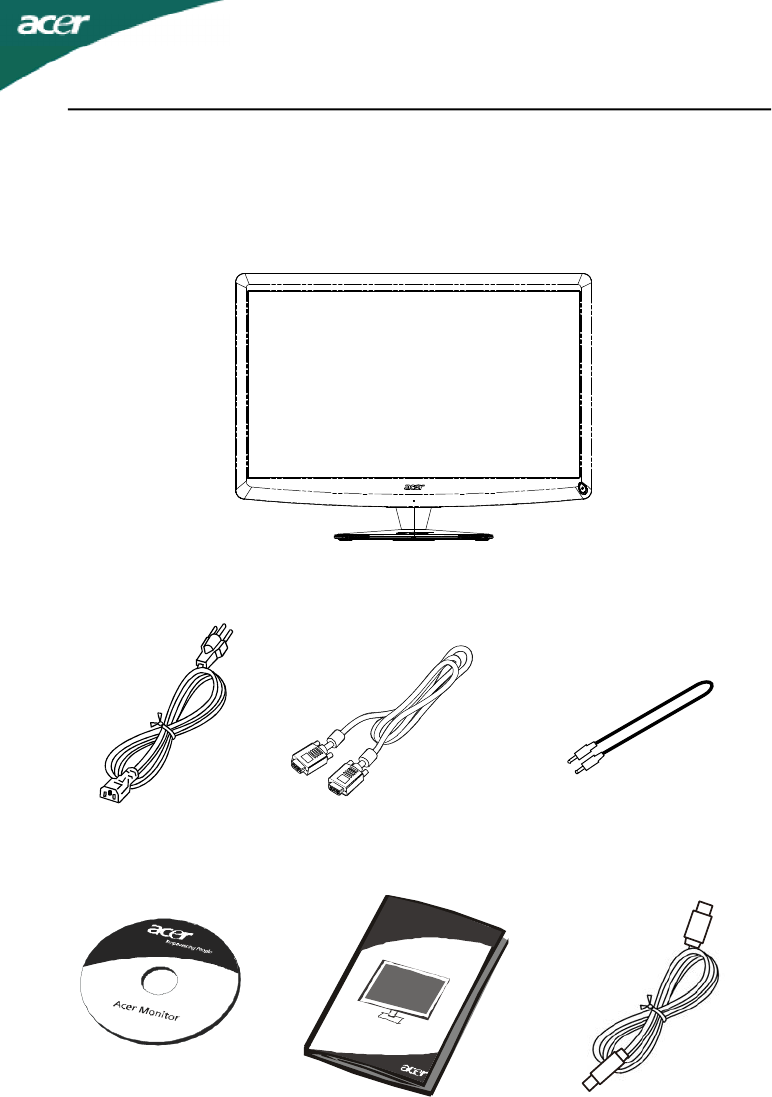

Please check the following items are present when you unpack the box,
and save the packing materials in case you will need to ship or transport
the monitor in future.
•User Manual
•AC Power Cord •D-Sub Cable
•Quick Start Guide
•Audio Cable
(Only Audio-Input Model)
(Optional)
•USB Cable
![](/img.php?id=1183071&img=bg7.png)
EN-6

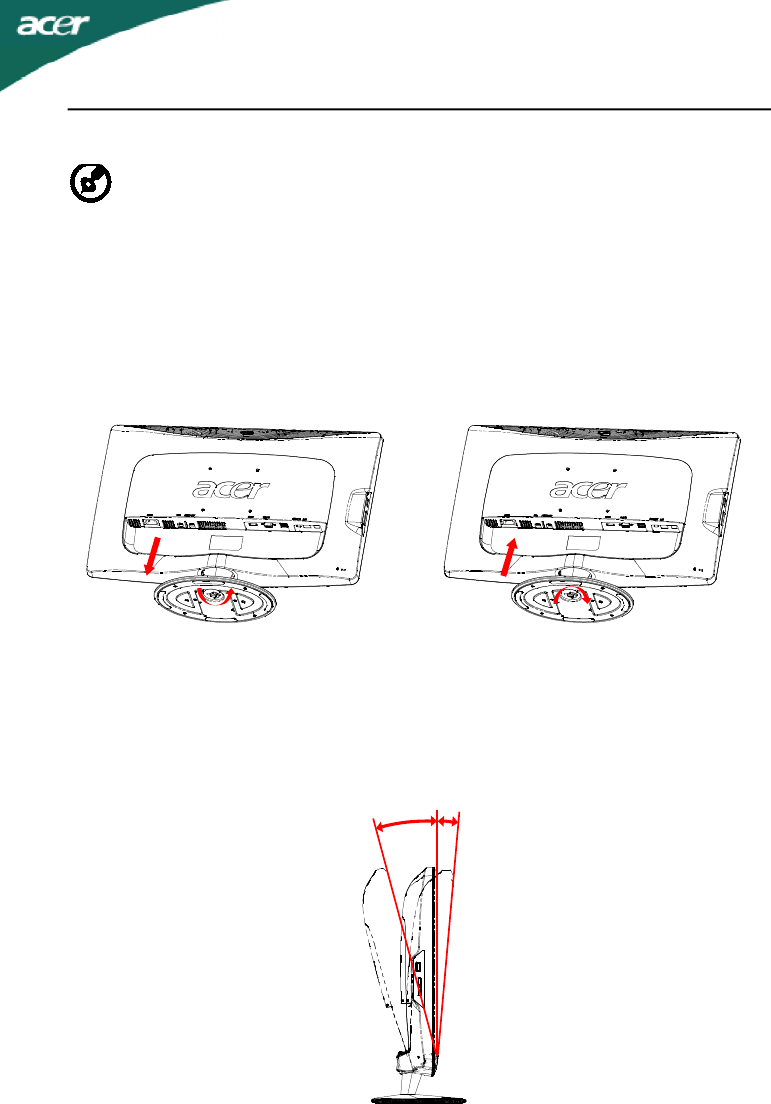

Attaching / Removing the Base
SCREEN POSITION ADJUSTMENT
In oder to optimize the best viewing position, you can adjust the tilt of
the monitor by using both of your hands to hold the edges of the monitor
as shown in the figure below.
The monitor can be adjusted to 15 degrees up or 5 degrees down as indi-
cated by arrow below.
--------------------------------------------------------------------
Note: Remove the monitor and monitor base from its packaging.
Carefully place the monitor face-down on a stable surface -- use a
cloth to avoid scratching the screen.
Install:
Align the release button on the
bottom of the monitor with the
corresponding
slots on the bottom of the base.
Remove:
Depress the release button as
indicated first before removing the
base and follow the arrow direction
to remove it.
15°
5°
![](/img.php?id=1183071&img=bg8.png)
EN-7
CONNECTING THE POWER CORD
•Check first to make sure that the power cord you use is the correct type
required for your area.
•This monitor has a universal power supply that allows operation in either
100/120V AC or 220/240 V AC voltage area. No user-adjustment is required.
•Plug one end of the power cord to the AC Inlet, plug another end to a
proper AC outlet.
•For unit using at 120 V AC:
Use a UL Listed Cord Set, Type SVT wire and plug rated 10 A/125 V.
•For unit using at 220/240 V AC (outside of U.S.):
Use a Cord Set consisting of H05VV-F cord and plug rated 10 A, 250 V. The
cord set should have the appropriate safety approvals for the country in
which the equipment will be installed.
SAFETY PRECAUTION
•Avoid placing the monitor, or any other heavy object, on the power cord
to avoid damage to the cable.
•Do not expose the monitor to rain, excessive moisture, or dust.
•Do not cover the ventilation slots or openings of the monitor. Always
put the monitor in a place where there is adequate ventilation.
•Avoid placing the monitor against a bright background or where sun-
light or other light sources may reflect on the face of the monitor. Place
the monitor just below eye level.
•Handle with care when transporting the monitor.
•Refrain from giving shock or scratch to the screen, as screen is fragile.
CLEANING YOUR MONITOR
Please carefully follow the below guidelines when cleaning the monitor.
•Always unplug the monitor before cleaning.
•Use a soft cloth to wipe the screen and cabinet front and sides.
![](/img.php?id=1183071&img=bg9.png)
EN-8
Power saving
The monitor will be driven into Power Saving mode by the control signal
from the display controller, as indicated by the amber-color power LED.
The power saving states will be kept until a control signal has been detected
or the keyboard or mouse is activated. The recovery time from Power Saving
state back to ON state is around 3 seconds. Long press Power Button for 3
seconds into Power Off Mode.
DDC
To make your installation easier, the monitor is able to Plug and Play with
your system if your system also supports DDC protocol. The DDC (Display
Data Channel) is a communication protocol through which the monitor
automatically informs the host system about its capabilities, for example,
supported resolutions and corresponding timing. The monitor supports
DDC2B standard.
State LED
Light
ONWhite
Power Saving
Mode Amber
![](/img.php?id=1183071&img=bga.png)
EN-9
CONNECTOR PIN ASSIGNMENT
15-Pin Color Display Signal Cable
1
6
11
5
10
15
19-Pin color display signal cable*
PINDESCRIPTIONPINDESCRIPTION
1.TMDS Data 2+10.TMDS Clock+
2.TMDS Data 2 Shield11.TMDS Clock Shield
3.TMDS Data 2-12.TMDS Clock-
4.TMDS Data 1+13.CEC
5.TMDS Data 1 Shield14.Reserved (N.C. on device)
6.TMDS Data1-15.SCL
7.TMDS Data 0+16.SDA
8.TMDS Data 0 Shield17.DDC/CEC Ground
9.TMDS Data 0-18.+5V Power
19.Hot Plug Detect
* only for certain models
PINDESCRIPTIONPINDESCRIPTION
1.Red9.+5V
2.Green10.Sync-Ground
3.Blue11.Monitor Ground
4.Monitor Ground12.DDC-Serial Data
5.DDC-Ground13.H-Sync
6.R-Ground14.V-Sync
7.G-Ground15.DDC-Serial Clock
8.B-Ground
![](/img.php?id=1183071&img=bgb.png)
EN-10
Standard Timing Table
ModeResolution
1VGA640x48060Hz
2MAC640x48067Hz
3VESA640x48072Hz
4VESA720x40070Hz
5VESA800x60056Hz
6SVGA800x60060Hz
7SVGA800x60072Hz
8CVT1024x60060Hz
9VESA1024x76860Hz
10VESA1024x76870Hz
11VESA1152x86475Hz
12VESA1280x72060Hz
13CVT1280x80060Hz
14VESA1280x96060Hz
15VESA1280x102460Hz
16VESA1360x76860Hz
17CVT1440x90060Hz
18VESA1600x120060Hz
19CVT1680x105060Hz
20CVT1920x108060Hz
21CEA1920x108060Hz
22CVT-RB1920x108060Hz
![](/img.php?id=1183071&img=bgc.png)
EN-11
INSTALLATION
To install the monitor to your host system, please follow the steps as given
below:
Steps
1.1-1Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the VGA video cable to the computer.
1-2HDMI Cable (Only HDMI-Input Model)(Optional)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the HDMI cable to the computer.
2.Connect the Audio Cable to PC Analog Audio output (Lime green connec-
tor) (Only Audio-Input Model).
3.Connect the LAN Cable (LAN Cable is for Display+ only, no function in PC
mode).
4.Connect the USB Cable to PC Host.
5.USB HUB: For USB Device connect.
6.Connect to the PC Microphone Audio Input (Pink connector).
7.Connect to the Earphone or External Speaker (Optional).
8.Card Reader for SD, MMC, MS, MS PRO and XD card.
9.Connect power cord: Connect the power cord to the monitor, then to a
properly grounded AC outlet.
10.Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
11.If the monitor still does not function properly, please refer to the
troubleshooting section to diagnose the problem.
1-1 1-2
1-11-2
2 6
5
5
8
3 4
7
9
86 7 5 42 3
Speaker
USB HUB
LAN HUB
USB HUB Card Reader
speakerspeaker
1X 2X 3X 4X 5X
![](/img.php?id=1183071&img=bgd.png)
EN-12
USER CONTROLS
Power Switch / Power LED:
To turn the monitor ON or OFF.
Lights up to indicate the power is turned ON.
Using the Shortcut Menu
Press the function button to open the shortcut menu. The shortcut menu lets you
quickly select the most commonly accessed settings.
1
2
3
4
5
6
Power
![](/img.php?id=1183071&img=bge.png)
EN-13
1Empowering:
Press the Empowering Key to open the Acer eColor Management OSD and access
the scenario modes.
2AUTO Auto Adjust
Press this button to activate the Auto Adjustment function. The Auto Adjustment
function is used to set the HPos, VPos, Clock and Focus.
3MENU OSD functions
Press this botton to activate the OSD menu.
4Volume Up / Down
Press to adjust volume (Only Audio-Input Model)(Optional)
5INPUT Input Key (PC Mode)
Use Input key to select from different video sources that may be connected to
your monitor.
(a) VGA input (b) HDMI input
As you cycle through the sources you will see the following messages on right top
side of screen to indicate currently selected input source. It may take 1 or 2
seconds for the image to appear.
VGA or HDMI
If either VGA or HDMI input is selected ,but the VGA and HDMI cables are not
connected, a floating dialog box indicates:
”Cable not Connect”
When the video cable is connected, but there is no active signal input, a floating
dialog box in indicates:
”no signal”
6Source Key
Use Source Key to select PC Mode or Plus Mode.
![](/img.php?id=1183071&img=bgf.png)
EN-14
Main
Menu
icon
Sub
Menu
icon
Sub
Menu
item
Description
N/AUser mode User defined. Settings can be fine-tuned to
suit any situation
N/AText mode
Optimal balance of brightness and contrast
prevent eyestrain. The most comfortable way
to read onscreen text
N/A Standard
mode
Default Setting. Reflects native display
capability
N/A Grahpic
mode
Enhances colors and emphasize fine detail.
Pictures and photographs appear in vibrant
colors with sharp detail.
N/A Movie
mode
Displays scenes in clearest detail. Presents
great visuals, even in unsuitably-lit
environments.
Acer eColor Management
Operation instructions
Step 1: Press ” ” Key to open the Acer eColor Management OSD and
access the scenario modes
Step 2: Press ” ” or ”” to select the mode
Step 3:Press ”Adjust/Exit” Key to confirm the mode and run Auto Adjust.
Features and Benefits
![](/img.php?id=1183071&img=bg10.png)
EN-15
Adjusting the OSD settings
--------------------------------------------------------------------
Note: The following content is for general reference only. Actual
product specifications may vary.
The OSD can be used for adjusting the settings of your LCD Monitor.
Press the MENU key to open the OSD. You can use the OSD to adjust the
picture quality, OSD Timeout and general settings. For advanced settings,
please refer to following page:
Adjusting the picture quality
1Press the MENU key to bring up the OSD.
2Using the / keys, select Picture from the OSD. Then navigate
to the picture element you wish to adjust. Use the to Enter to
the item page.
3Use the / keys to adjust the sliding scales.
4The Picture menu can be used to adjust the current Brightness, Contrast,
Colour Temp, Auto Config and other image-related qualities.
![](/img.php?id=1183071&img=bg11.png)
EN-16
Adjusting the OSD Timeout
1Press the MENU key to bring up the OSD.
2Using the directional keys, select OSD from the on screen display.
Then navigate to the feature you wish to adjust.
![](/img.php?id=1183071&img=bg12.png)
EN-17
Adjusting the setting
1Press the MENU key to bring up the OSD.
2Using the / keys, select Setting from the OSD. Then navigate to
the feature you wish to adjust. Use the to Enter to the item
page.
3The Setting menu can be used to adjust the screen Menu Language and
other important settings.
![](/img.php?id=1183071&img=bg13.png)
EN-18
Product information
1920 x 1080
H: 67KHz V: 60Hz
VGA Input
S/N:ETL53091326350380B3742
1Press the MENU key to bring up the OSD.
2Using the / keys, select Information from the OSD. Then the
basic information of LCD monitor will show up for current input.
![](/img.php?id=1183071&img=bg14.png)
EN-19
(VGA Mode)
TROUBLESHOOTING
Before sending your LCD monitor for servicing, please check the trouble-
shooting list below to see if you can self-diagnose the problem.
ProblemsCurrent StatusRemedy
No Picture
LED ON·Using OSD, adjust brightness and contrast
to maximum or reset to their default
settings.
LED OFF·Check the power switch.
·Check if AC power cord is properly
connected to the monitor.
LED displays
amber color
·Check if video signal cable is properly
connected at the back of monitor.
·Check if the power of computer system is
ON.
Abnormal
Unstable
·Check if the specification of graphics
adapter and monitor is in compliance
which may be causing the input signal
frequency mismatch.
Display is
missing, center
shift, or too
small or too
large in display
size
·Using OSD, adjust RESOLUTION, CLOCK,
CLOCK-PHASE, H-POSITION and V-
POSITION with non-standard signals.
·Using OSD, in case of missing full-screen
image, please select other resolution or
other vertical refresh timing.
·Wait for a few seconds after adjusting the
size of the image before changing or
disconnecting the signal cable or powering
OFF the monitor.
Abnormal
Sound
(Only Audio-
Input model)
(Optional)
No sound, or
sound level is
too low
·Check the audio cable with the host PC is
connected.
·Check if the volume setup of the host PC is
in minimum position and try to raise the
volume level.
![](/img.php?id=1183071&img=bg15.png)
EN-20
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:easy_lai@acer.com.tw
And,
Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland
Hereby declare that:
Product: LCD monitor
Trade Name: Acer
Model Number: D241H
SKU Number: D241H xxxxxx (“x” = 0~9, a ~ z, or A ~ Z)
Is compliant with the essential requirements and other relevant provisions of the following EC directives
,
and that
all the necessary steps have been taken and are in force to assure that production units of the
same product will continue comply with the requirements.
EMC Directive 2004/108/EC as attested by conformity with the following
harmonized standards:
-. EN55022, AS/NZS CISPR22, Class B
-. EN55024
-. EN61000-3-2 Class D
-. EN61000-3-3
Low Voltage Directive 2006/95/EC as attested by conformity with the following
harmonized standard:
-. EN60950-1
RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous
Substances in Electrical and Electronic Equipment
-. The maximum concentration values of the restricted substances by weight in homogenous material are:
Directive 2005/32/EC of the European Parliament and of the Council with regard to Eco-design
Requirements.
Lead 0.1%
Polybrominated Biphenyls (PBB’s) 0.1%
Mercury 0.1%
Polybrominated Dipheny
l Ethers (PBDE’s)
0.1%
Hexavalent Chromium
0.1%
Cadmium 0.01%
![](/img.php?id=1183071&img=bg16.png)
EN-21
R&TTE Directive 1999/5
/EC as attested by conformity with the following
harmonized standard:
l Article 3.1(a) Health and Safety
-. EN60950-1
-. EN62311
l Article 3.1(b) EMC
-. EN301 489-1
-. EN301 489-17
l Article 3.2 Spectrum Usages
-. EN300 328
Year to begin affixing CE marking 2009.
_______________________________
Oct. 9, 2009 -
Easy Lai /Manager Date
Regulation Center, Acer Inc.
![](/img.php?id=1183071&img=bg17.png)
EN-22
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The following local Manufacturer /Importer is responsible for this declaration:
Product: LCD Monitor
Trade Name: Acer
Model Number: D241H
SKU Number: D241H xxxxxx (“x” = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St.
San Jose, CA 95110
U. S. A.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
![](/img.php?id=1183071&img=bg18.png)
LCD Monitor Quick Setup Guide
English
Safety Instructions
Observe the folowing safety guidelines when connection and using your monitor:
•Be sure that your monitor is electrically rated to operate with the AC power available in your location.
•Locate your monitor near an easily accessible electrical outlet.
•Place the monitor on a solid surface and treat it carefully. The screen can be damaged if dropped, sharply hit, or touched
with a sharp or abrasive implement.
•Put your monitor in a location with low humidity and a minimum of dust.
•Never use your monitor if the power cable has been damaged. Do not allow anything to rest on the power cable, and keep
the cable away from where people could trip over it.
•Never insert anything metallic into the monitor openings. Doing so may create the danger of electric shock.
•To avoid electric shock, never touch the inside of the monitor. Only a qualified technician should open the monitor’s case.
•Be sure to hold the plug, not the cable, when disconnecting the monitor from an electrical outlet.
•Openings in the monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be
blocked or covered. Also, avoid using the monitor on a bed, sofa, rug, or other soft surface.
•Doing so may block the ventilation openings in the bottom of the cabinet. If you put the monitor in a bookcase or some
other enclosed space, be sure to provide adequate ventilation.
•Do not expose the monitor to rain or use it near water. If the monitor accidentally gets wet, unplug it and contact an
authorized dealer immediately. You can clean the exterior of the monitor with a damp cloth when necessary, but be sure
to unplug the monitor first. If your monitor does not operate normally-in particular, if there are any unusual sounds or smells
coming from it -unplug the monitor immediately and contact an authorized dealer or service center.
Troubleshooting Tips
No Power - The monitor power indicator is off.
Make sure the monitor power cable is fully inserted in the monitor’s power port and the electrical outlet.
Test the electrical oulet by plugging in a working electrical device such as a lamp.
Try another power cable on the monitor. You can use the computer’s power cable to perform this test.
No Video - The monitor power indicator is on but there are no image
on the screen.
Ensure that the video connector is properly connected to the computer.
Ensure that the computer is on and functioning properly.
Turn off the monitor and check the video cable pins. Make sure no pins are bent.
Operation Detail
Please refer to user guide in CD-ROM packaged with this monitor.
1.1-1 Connect Video Cable
a. Make sure both the monitor and computer are
powered-OFF.
b. Connect the VGA video cable to the computer.
1-2 HDMI Cable (Only HDMI-Input Model)(Optional)
a. Make sure both the monitor and computer are
powered-OFF.
b. Connect the HDMI cable to the computer.
2.Connect the Audio Cable to PC Analog Audio output
(Lime green connector) (Only Audio-Input Model).
3.Connect the LAN Cable (Optional).
4.Connect the USB Cable to PC Host.
5.USB HUB: For USB Device connect.
6.Connect to the PC Microphone Audio Input (Pink
connector).
7.Connect to the Earphone or External Speaker
(Optional).
8.Card Reader for SD, MMC, MS, MS PRO and XD card.
9.Connect power cord: Connect the power cord to the
monitor, then to a properly grounded AC outlet.
10.Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the
computer.
This sequence is very important.
11.If the monitor still does not function properly, please
refer to the troubleshooting section to diagnose the
problem.
Connecting Your Monitor to a Computer
1-1 1-2
1-11-2
2 6
5
5
8
3 4
7
9
86 7 5 42 3
Speaker
USB HUB
LAN HUB
USB HUB Card Reader
speakerspeaker
1X 2X 3X 4X 5X
![](/img.php?id=1183071&img=bg19.png)
LCD Monitor Quick Setup Guide
English
LAMP Disposal
Disposal of Waste Equipment by Users in Private Household in the
European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of
with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment. For more information about where you can drop
off your waste equipment for recycling, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORD-
ING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC
INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION CHECK
WWW.LAMPRECYCLE.ORG.
Regulations and safety notices
FCC notice
This device has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This device generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
device does cause harmful interference to radio or television reception, which can be determined
by turning the device off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the device and receiver.
•Connect the device into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/television technician for help.
CE declaration of Conformity
Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements
and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC,
and RoHS Directive 2002/95/EC and Directive 2005/32/EC of the European Parliament and of the
Council with regard to Eco-design Requirements.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain
compliance with EMC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class
B limits may be attached to this equipment. Operation with non-certified peripherals is likely to
result in interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user author-
ity, which is granted by the Federal Communications Commission, to operate this product.
In addition, the instructions shall include, as far as applocable, a warning that excessive sound
pressure from earphones and headphones can cause hearing loss.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC/IC Radiation Exposure Statement:
This equipment complies with FCC/ IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
![](/img.php?id=1183071&img=bg1a.png)
LCD Monitor Quick Setup Guide
English
LCD Panel
Driving systemTFT Color LCD
Size24.0" W/ 61cm
Pixel pitch0.276mm( H )x 0.276mm( V )
Brightness300cd/m2 (Typical)
Contrast80000:1 Max (ACM)
Viewable angle1700 (H) 1600 (V)
Response time2 ms
VGA
VideoR,G,B Analog Interface
H-Frequency30KHz - 80KHz
V-Frequency55Hz - 75Hz
Display Colors16.7M Colors
Dot Clock165MHz
Max. Resolution1920 x 1080 @ 60Hz
Plug & PlayVESA DDCCI/DDC2B
Power
Consumption
(at 100 nits)
On Mode34.4W (typ.)
Sleep Mode1.25W (typ.)
Off Mode0.75W (typ.)
Input Connector
D-Sub
HDMI (Only HDMI-Input Model)
Input Video Signal
Analog:0.7Vp-p(standard),
75 OHM, Positive
HDMI signal (Only HDMI-Input Model)(Optional)
Speakers2W x 2 (Only Audio-Input Model)(Optional)
Maximum Screen SizeHorizontal : 531 mm, Vertical : 299 mm
Power Source100-240VAC,50/60Hz
Environmental ConsiderationsOperating Temp: 50 to 350C, Storage Temp.: -200 to 600C, Operating Humidity: 10% to 85%
Dimensions574.8(W) x 430(H) x 172.3(D)mm
Weight (N. W.)6.9 kg Unit (net)
External Controls:
SwitchPower Button,Input Key, </ >, MENU/ENTER, Auto adjustment/ Exit, Empowering Key
Functions
Brightness, Contrast, H.Position, V.Position, Focus, Clock, Colour Temp, Auto configuration
(only Analog input model), OSD timeout, Wide Mode, DDCCI On/Off, ACM On/Off, Input
signal Selection (only Dual or HDMI input model), Language, Reset, Display information,
Exit
* All specifications are subject to change without notice.
Regulatory Compliance
SPECIFICATION
ADM(Acer_eDisplay_Management)
Regarding the features and operation instructions, please refer to the "Help" section in the ADM software
on the CD Manual.(For Windows 98SE/ME/NT 4.0/2000/XP/Vista)
![](/img.php?id=1183071&img=bg1b.png)
Acer Display+ LCD Monitor
Setup Guide
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Copyright © 2009.
All Rights Reserved.
Acer Display+ LCD Monitor Setup Guide
Original Issue: 10/2009
Acer Display+ LCD Monitor Setup Guide
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'
product names or trademarks are used herein for identification purposes only and belong to
their respective companies.
![](/img.php?id=1183071&img=bg1d.png)
3
English
Setting up
To set up Acer Display+ as an independent display, please follow the steps
below:
1 Connect the keyboard.
2 Connect the Ethernet cable or configure your Wi-Fi settings.
3 Connect external speakers (optional).
4 Connect the power cord to the monitor, then to a properly grounded AC
outlet.
5 Turn the monitor on.
6 If the monitor does not function properly, please refer to the
troubleshooting section to diagnose the problem.
To install Acer Display+ on your host system, please follow the steps below:
1 Connecting the video cable
a Make sure both the monitor and computer are switched off.
b Connect the VGA video cable to the computer.
2 Connecting the HDMI cable.
a Make sure both the monitor and computer are switched off.
b Connect one end of the HDMI cable to the back of the monitor and
the other end to the computer's port.
3 Connect the audio cable to the PC to play audio via display speaker.*
4 Connect external speakers.*
5 Connect the USB cable to the PC to enable the USB device and memory
cards to act as extended hub for the PC.*
6 Connect the microphone cable to the PC to enable the built-in microphone
on Acer Display+ to act as an extended microphone for PC use.*
7 Connect the power cord to the monitor, then to a properly grounded AC
outlet.
8 Turn on the monitor first, then the computer. This sequence is very
important.
9 If the monitor does not function properly, please refer to the
troubleshooting section to diagnose the problem.
Note: * Steps 3 to 6 are optional.
![](/img.php?id=1183071&img=bg1e.png)
4
English
Overview
![](/img.php?id=1183071&img=bg1f.png)
5
English
Keyboard
Number Item Description
1 Power button Turns the device on and off.
2 Microphone Internal microphone.
3 USB port Connects to USB 2.0 devices.
4 Multi-in-1 card
reader
Accepts Memory Stick (MS), Memory Stick
PRO (MS PRO), MultiMediaCard (MMC),
Secure Digital (SD), xD-Picture Card (xD)
5 AC-in Connects to an AC adapter.
6 Mic-in Accepts input from external microphones.
7 Audio-out Connects to external speakers.
8 HDMI Supports high-definition digital video
connections.
9 VGA-in Connects to a PC.
10 USB ports x 2 Connect to USB 2.0 devices.
11 Audio-in Accepts audio line-in devices.
12 Ethernet
(RJ-45) port
Connects to an Ethernet 10/100- or 10/100/
1000-based network.
13 Mini USB port Connects to a PC.
ESC Go back one function level.
<F11> Open the widget bar.
Enter Use this to select a widget in the widget bar and to
affix the widget on the selected section.
Navigation keys Navigate up, down, left and right through widget
settings options.
Colored dots Shortcut widget functions.
![](/img.php?id=1183071&img=bg20.png)
6
English
Widgets
Your Acer Display+ monitor has built-in widget-based functions such as
calendar, memo, weather, news, clock, and digital photo frame function for
browsing pictures even when the monitor is not connected to a computer.
Note: For instructions on how to configure the settings for each
widget, refer to "Settings" on page 14.
Customizing your screen
Customize your widgets' size and layout on your screen. You can place up to
three widget applications on your screen -- two small widgets on the left and a
big widget on the center-right. You can also set up the digital photo frame
function in full screen mode.
![](/img.php?id=1183071&img=bg21.png)
7
English
To customize your layout:
1 Press the Home key to open the widget toolbar on the right..
2 Use the up and down navigation keys to select a widget and press Enter.
3 Press Enter to place the widget on your selected container.
Note: To customize settings for each widget, click Settings.
![](/img.php?id=1183071&img=bg22.png)
8
English
Calendar
When you set the calendar as a small widget, use the left and right navigation
keys to switch months.
When you set the calendar as a big widget, use the left and right navigation
keys to switch months. You can also choose to show your Google calendar,
create events, and switch views (month / week / day / agenda).
Note: You need to be connected to the Internet to be able to
synchronize Google calendar in Acer Display+.
Note: You cannot set up a new Google account through Acer
Display+, however, you can log in to your Google calendar using
Acer Display+.
Month Week
Day Agenda
![](/img.php?id=1183071&img=bg23.png)
9
English
Adding an event
1 Click New Event and add the
information needed on the pop-
up window.
2 Click Save to save the event.
Deleting / modifying an
event
1 Select the event and click Delete on the pop-up window.
2 To modify an event, select the event and modify the details on the pop-up
window.
3 Click Save to save the changes.
Memo
You can display up to six written or voice notes on your screen.
To make notes:
1Select or .
2 Create your note.
3Select Save to add new memo, or Cancel to quit.
4 Press Enter to read or listen to the note.
5 To switch pages, click , (in the small widget), and , (in the
big widget).
6Select Delete to delete a note.
Note: When making voice notes, be sure to speak clearly in front
of the microphone. You can record up to a total of 60 minutes of
voice notes, with a maximum of 3 minutes per note.
![](/img.php?id=1183071&img=bg24.png)
10
English
News
You can set up your news widget to show only the headline, or to show the
headline and article.
When showing only the headline:
1 Press the right navigation key to go to the language page.
2 Press the right navigation key again to go to the news source page.
3 Select your preferred language and source, and press the left navigation
key to go back to the main view.
To show the headline and full article:
1 Select the news you want to read, then press Enter.
2 Press ESC to go back to the previous page.
When showing the headline and full article:
1 Press the right navigation key to go to the next news.
2 Press the left navigation key to go to the previous news.
3 Press the up and down keys to move to the next or previous page of the
selected news article.
![](/img.php?id=1183071&img=bg25.png)
11
English
Acer Display+ functions as a digital photo frame function for browsing pictures
and viewing slideshows from various sources — multi-in-1 card reader, USB and
Picasa.
When setup as a small widget:
1 Use the up and down navigation keys to navigate pictures in the same
folder.
2 Use the left and right navigation keys to switch folders.
3 Press Enter to show the slideshow toolbar.
4Select Slideshow to activate the slideshow on that selected widget section.
5Select Full screen to show full screen photo playback.
Note: The onscreen function bar will automatically hide itself after
30 seconds. Press any key to bring the function bar up again.
When setup as a big widget:
1 Use the up and down navigation keys to navigate pictures in the same
folder.
2 Use the left and right navigation keys to switch folders.
![](/img.php?id=1183071&img=bg26.png)
12
English
3 Press Enter to show the slideshow toolbar. Select Slideshow, Source or Full
screen .
When in full screen mode:
1 Use the left and right navigation keys to navigate pictures in the same
folder.
2 Use the up and down navigation keys to switch folders.
3 Press Enter to show the slideshow toolbar. Select Slideshow, Source or Full
screen .
Note: You need to be connected to the Internet to be able to
synchronize your Picasa account.
![](/img.php?id=1183071&img=bg27.png)
13
English
Time and Date
Use the left and right navigation keys to change time zones. Use the up and
down keys to change cities.
Weather
The weather widget is synchronized with Google weather. Use the left and
right navigation keys to switch countries/cities. Use the up and down navigation
kes to switch between temperature scales.
![](/img.php?id=1183071&img=bg28.png)
14
English
Settings
Calendar
You can set up your Google calendar on the Acer Display+. Click the Apply /
Cancel button to apply or cancel your selected settings. Click Back to go back to
the main view.
You can set upto 10 Picasa accounts and configure the slideshow effect / time
period for the photo slideshow. Click the Apply / Cancel button to apply or
cancel your selected settings. Click Back to go back to the main view.
![](/img.php?id=1183071&img=bg29.png)
15
English
News
The news widget is synchronized with Google news by default. You can also
subscribe to other RSS feeds. Click the Apply / Cancel button to apply or cancel
your selected settings. Click Back to go back to the main view.
Auto On/Off
You can configure your Acer Display+ to turn on and off automatically at
designated times and days. Click the Apply / Cancel button to apply or cancel
your selected settings. Click Back to go back to the main view.
![](/img.php?id=1183071&img=bg2a.png)
16
English
Network
You can set up Acer Display+ to connect to the Internet via LAN or wireless
network. Click the Apply / Cancel button to apply or cancel your selected
settings. Click Back to go back to the main view.
Time and Date
You can set up your time and date based on the central time zones or manually.
Click the Apply / Cancel button to apply or cancel your selected settings. Click
Back to go back to the main view.
![](/img.php?id=1183071&img=bg2b.png)
17
English
System
Change your settings back to the default, as well as adjust the volume in this
section. Click the Apply / Cancel button to apply or cancel your selected settings.
Click Back to go back to the main view.
Language
You can choose your preferred language under Language in the Settings page.
Click the Apply / Cancel button to apply or cancel your selected settings. Click
Back to go back to the main view.
Note: Language availability varies by region.
![](/img.php?id=1183071&img=bg2c.png)
18
English
Software update
To update your software:
1 Download the latest software code from http://csd.acer.com.tw and copy
to an SD card.
2 Insert the SD card and follow the instructions on the pop up window.
Important: Do not turn the display off while the update is
ongoing.
