PC / Android Smart Dual
Mode Wireless Controller
Manual
![](/img.php?id=2865598&img=bg2.png)

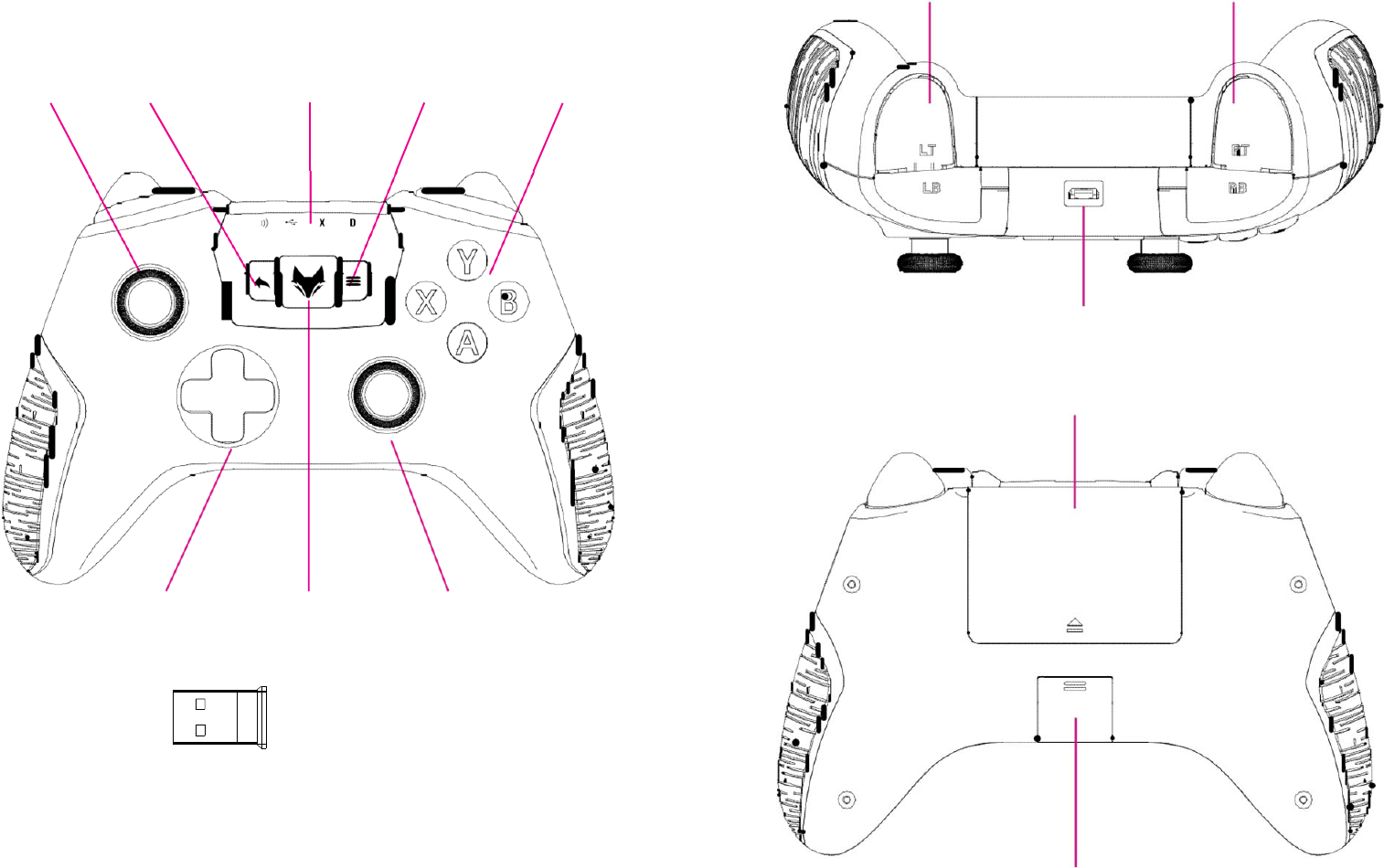

Left Analog Stick BACK MODE LED START ABXY
LT / LB RT / RB
Micro-USB Data Port
Dpad HOME Right Analog
Stick
2.4G USB Wireless Dongle
Battery Cover
Wireless Dongle Cover
![](/img.php?id=2865598&img=bg3.png)
Product Feature:
• 2.4G Wireless connection to PC or Android device
• Wired & Wireless dual Mode with super low latency
• Support with Xinput, Dinput & Mouse 3 Mode
• Compatible with PC Windows 7 / Vista / 8 / 10
• Compatible with Android 4.0 +
• Compatible with Steam OS
• Compatible with Xbox One streaming to Windows 10
• Smart Firmware upgrade
• Vibration feedback and Enhanced trigger button for
precise control
• Accurate analog sticks, large responsive D-pad
• Comfort grip for longer play time
• Include 3m long USB data Cable
Wireless Instruction:

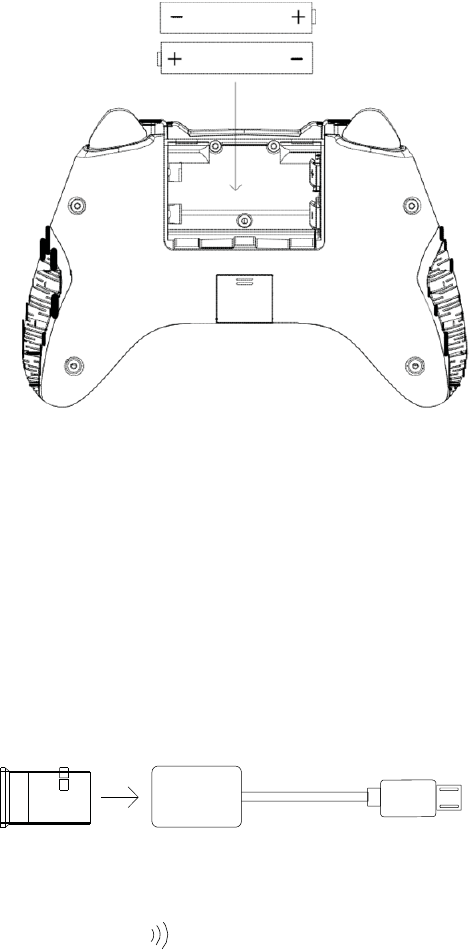

1. Remove the battery cover at the back of the
controller, follow the battery contact indication to
install two AA bat- teries
2. Install back the battery cover
3. Take out the USB Wireless Dongle under the Dongle
dock which at the back of the controller
4. Insert the USB wireless dongle into the USB port of
device which you would like to use (PC, Phone, Tablet,
Smart box, Smart TV)
* If some device not inlcude the standard USB port,
please insert the USB dongle into the OTG cable, then
insert the Micro-USB head of the OTG cable into the
the device Mi- cro-USB port
5. Press the HOME button, the controller will start
search
(the wireless LED will start flash then auto connect
to
the wireless dongle, the LED will keeps one when con-
nected
![](/img.php?id=2865598&img=bg4.png)
Wireless Mode The controller is in Wireless connection Mode
Wired Mode The controller is in Wired connection Mode
XINPUT Controller work as Xinput,support PC 360 Games、SteamTM OS、
Xbox OneTM Streaming to WindowsTM 10 and part Android Games
DINPUT Controller work as Dinput,support Most Android Games
and part PC Games
6. The controller will entering the sleep mode when not
any
operation in 5 mins. Single press HOME button again to
wake up.
Wired Instruction:

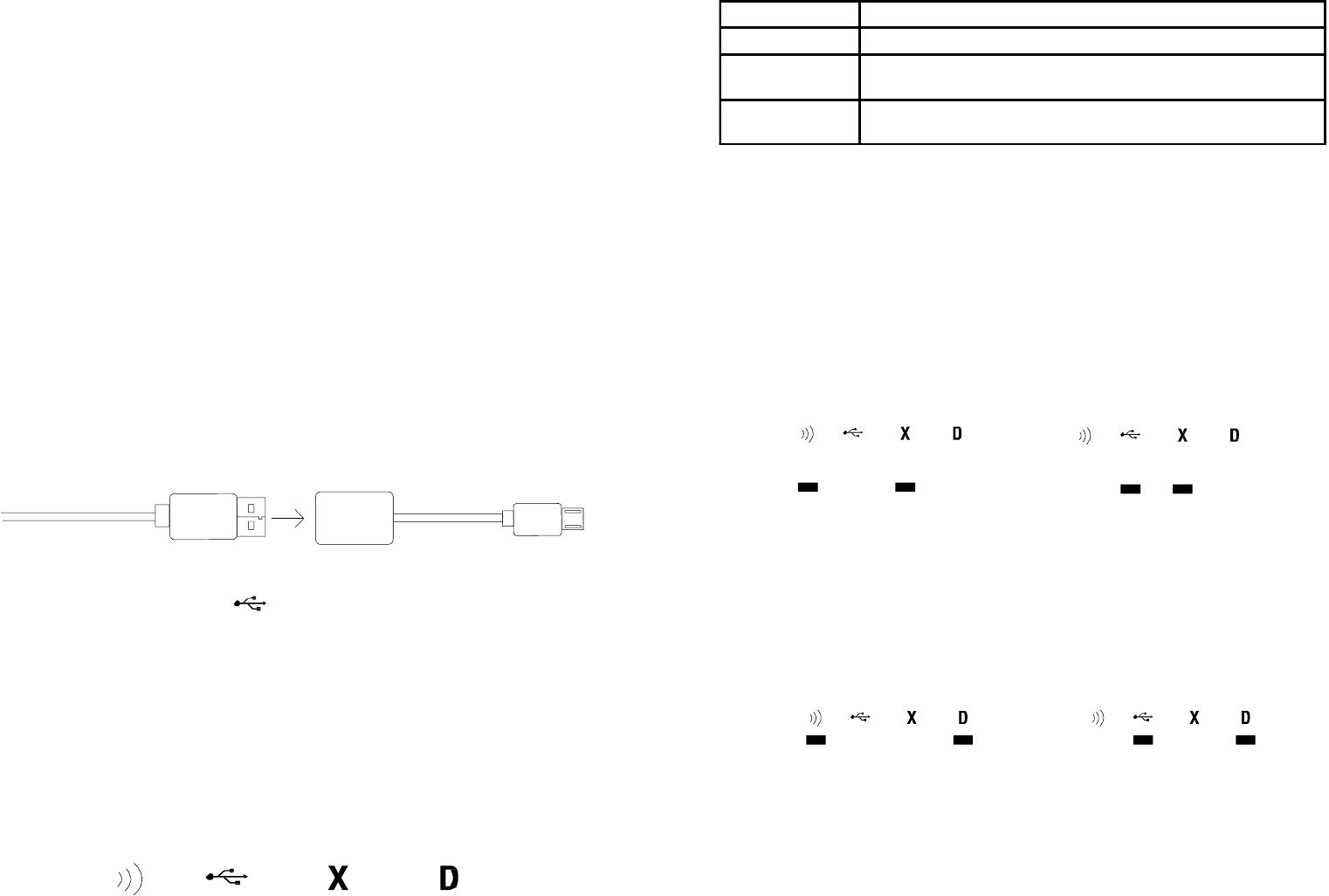

1. Connect the Micro-USB head of 3 meter USB cable
into the Micro-USB port at the top part of
controller
2. Insert the USB head of USB cable into the USB port of
de- vice which you would like to use (PC, Phone,
Tablet, Smart box, Smart TV)
* If some device not inlcude the standard USB port,
please insert the USB head of USB cable into the OTG
cable, then insert the Micro-USB head of the OTG cable
into the the device Micro-USB port
Device Mode Selection:
Controller Support with Xinput, Dinput & Mouse 3 Mode,
one button switch
1. Default Mode is XINPUT:support PC 360 Games、
SteamTM OS、Xbox OneTM Streaming to WindowsTM 10
and part Android Games
XINPUT Mode LED Indication
Wireless Mode + XINPUT Wired Mode + XINPUT
3. The wired Mode LED will keeps one when connected
2. Keeping press HOME button for 5 sec, the controller
will
switch to DINPUT mode from XINPUT mode:support Most
Android Games and part PC Games
DINPUT Mode LED Indication
LED Indication:
This controller inlcude FOUR
LED
Wireless Mode + DINPUT Wired Mode + DINPUT
Wireless Mode Wired Mode XINPUT DINPUT
3. Keeping press HOME button for 5 sec, the controller
will switch to MOUSE mode from DINPUT mode:support all
platform Mouse operation.
![](/img.php?id=2865598&img=bg5.png)

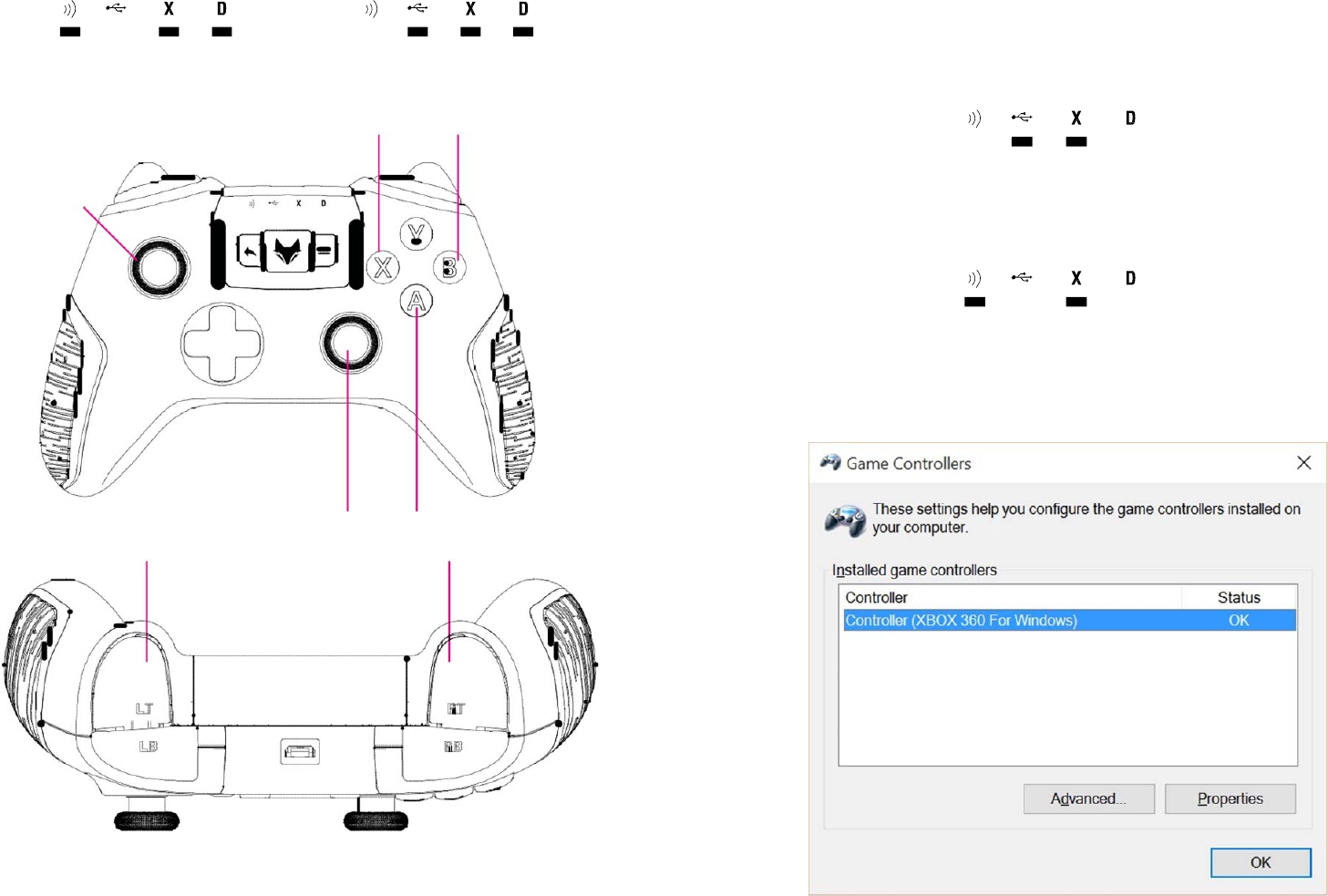

PC (WindowsTM 7 / Vista / 8 / 10) Instruction:
Wireless Mode + Mouse Wired Mode + Mouse
1. WIRED:Insert the USB head of USB cable into the USB
port of PC,default mode is XINPUT(PC 360),the LED will
keeps ON when success connected
Middle Button Right Button
Mouse Cursor 2. WIRELESS:Insert the USB dongle into the USB port of PC,
default mode is XINPUT(PC 360),the LED will keeps ON
when success connected

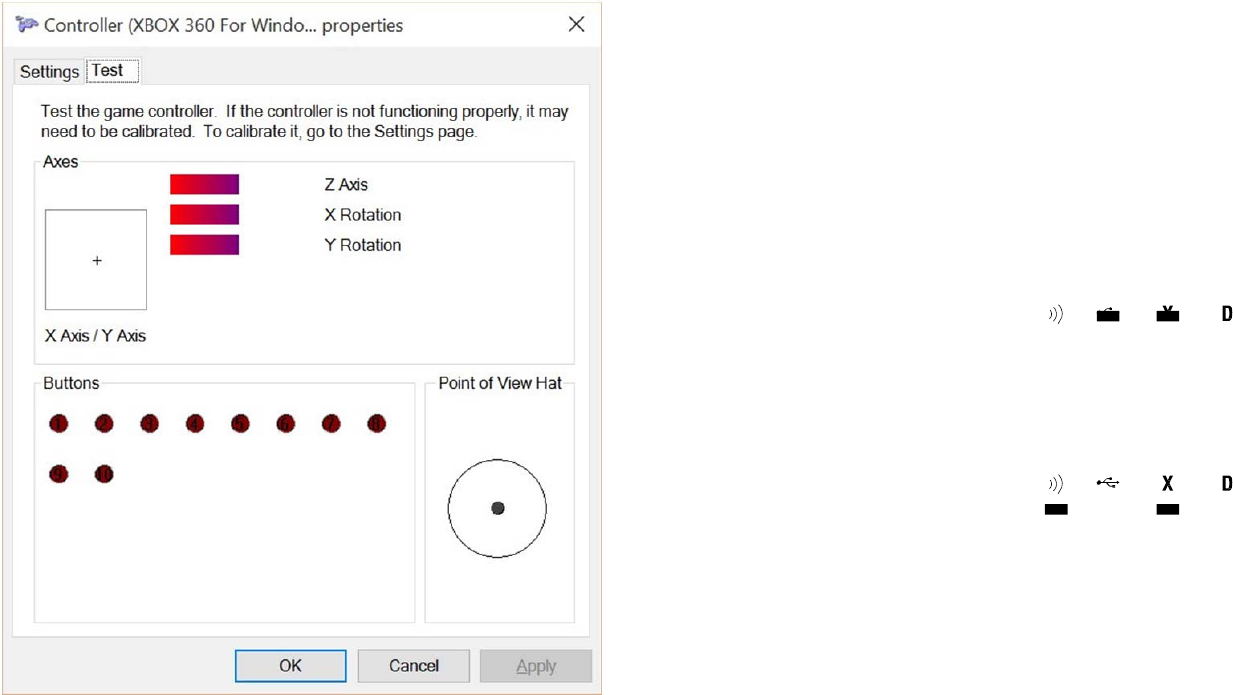

3. Entering to the“Game Controllers”of Control Panel
to test each button
Roll Up/Down Left Button
Back Forward
4. Keeping press HOME button for 5 sec, the controller
will switch back to XINPUT mode from MOUSE mode
![](/img.php?id=2865598&img=bg6.png)
4. Start Games (please switch to DINPUT mode if the
game not support the XINPUT mode)
PC (WindowsTM XP) Instruction:
1. Download and install the controller driver
Download URL:
https://www.microsoft.com/hardware/en-us/d/xbox-360-controller-
for-windows
2. WIRED:Insert the USB head of USB cable into the USB
port of PC,default mode is XINPUT(PC 360),the LED
will keeps ON when success connected
3. WIRELESS:Insert the USB dongle into the USB port of
PC, default mode is XINPUT(PC 360),the LED will keeps
ON when success connected
4. Entering to the“Game Controllers”of Control Panel
to test each button
5. Start Games (please switch to DINPUT mode if the
game not support the XINPUT mode)

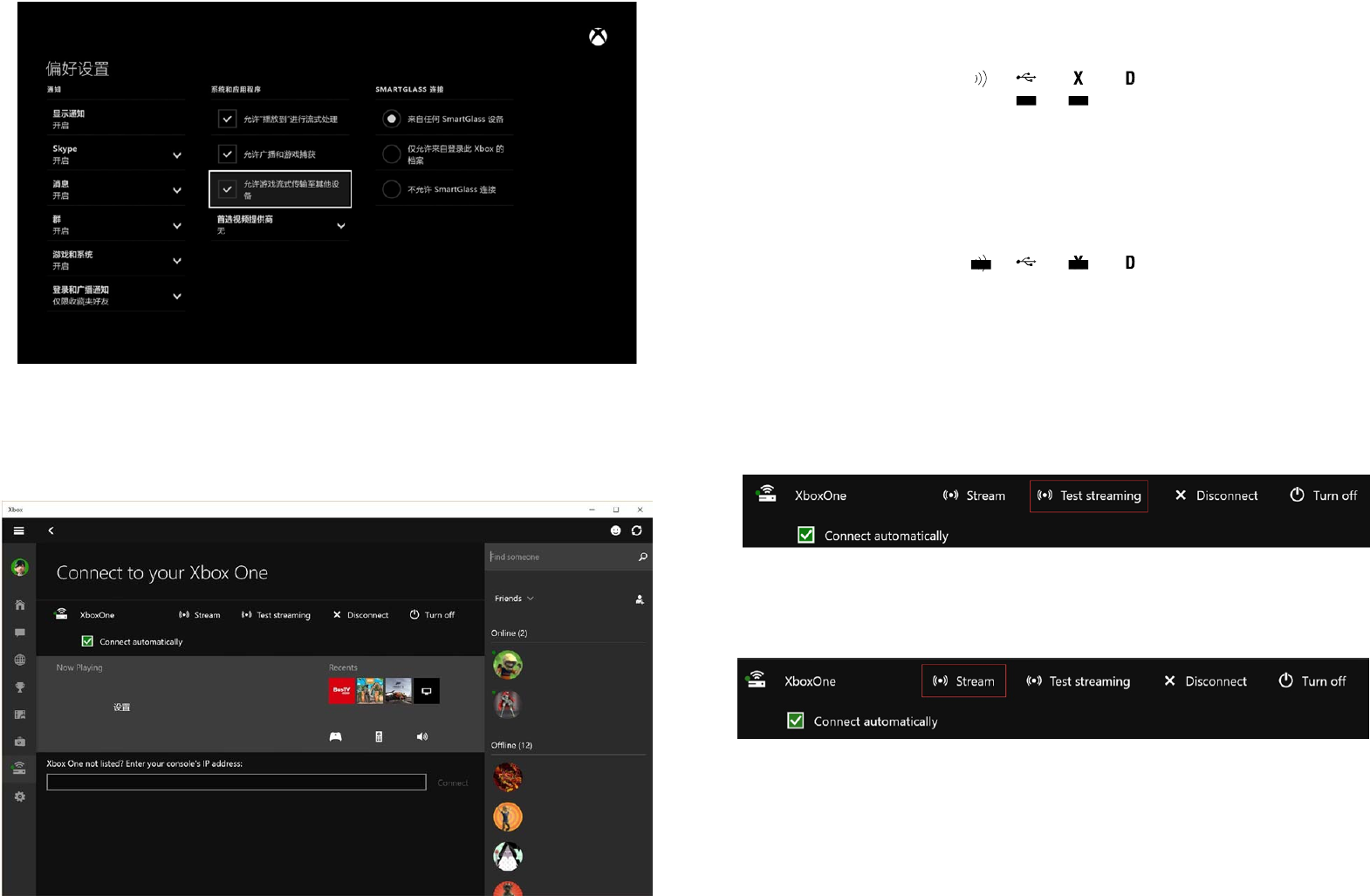

Xbox OneTM Streaming Games to WindowsTM 10:
1. Upgrade the Xbox One
TM
to the lastest firmware ,
enter- ing Settings > Preferences, and enable the
“Allow game streaming to other devices”
![](/img.php?id=2865598&img=bg7.png)
2. Upgrade Windows
TM
10 to the latest version
3. Start the XBOX APP in Windows 10,and login with
the same account which same as Xbox One
TM
console
4. Click the“Connected”from the left menu
5. WIRED:Insert the USB head of USB cable into the USB
port of PC,default mode is XINPUT(PC 360),the LED
will keeps ON when success connected
6. WIRELESS:Insert the USB dongle into the USB port of
PC, default mode is XINPUT(PC 360),the LED will keeps
ON when success connected
7. Entering to the“Game Controllers”of Control Panel
to test each button
8. Click Test streaming to test the network speed
9. Click Stream to start steaming Xbox One
TM
games
![](/img.php?id=2865598&img=bg8.png)
Android
TM
(4.0+)Instruction:
1. WIRED:Insert the USB head of USB cable into the
USB port of Android device (Phone, Tablet, Smart box,
Smart TV), default mode is XINPUT(PC 360),then
pressing HOME button for 5 sec to switch the DINPUT
(Android game) mode, the LED will keeps ON when
success con- nected
2. WIRELESS:Insert the USB dongle into the USB port of
An- droid device (Phone, Tablet, Smart box, Smart TV),
default mode is XINPUT( PC 360 ),then pressing HOME
button for
5 sec to switch the DINPUT (Android game) mode, the
LED
will keeps ON when success connected
* If some device not inlcude the standard USB port,
please insert the USB dongle or USB cable into the OTG
cable, then insert the Micro-USB head of the OTG cable
into the the device Micro-USB port
3. Start Games (please switch to XINPUT mode if the
game not support the DINPUT mode)
4. If needed, Switch to MOUSE mode for easy mouse
opera- tion

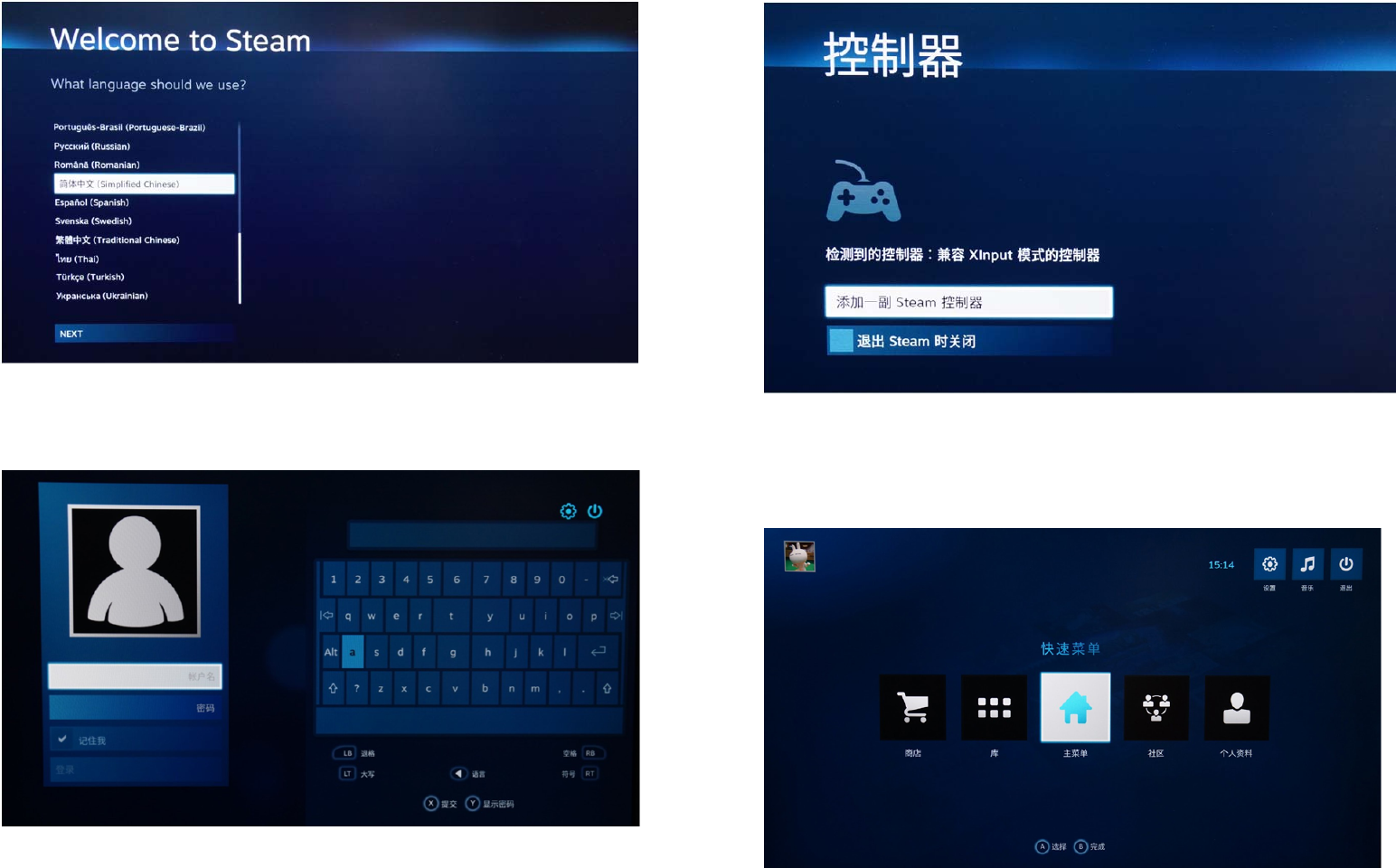

SteamTM OS Instruction:
1. Turn ON Steam
TM
OS
2. WIRED:Insert the USB head of USB cable into the USB
port of PC,default mode is XINPUT(PC 360),the LED
will keeps ON when success connected
3. WIRELESS:Insert the USB dongle into the USB port of
PC, default mode is XINPUT(PC 360),the LED will keeps
ON when success connected
4
. Start Steam
TM
OS
5
. Follow the screen incication to press the button
of the controller
![](/img.php?id=2865598&img=bg9.png)
6. Follow the screen guide
7
. Login Steam
TM
8
. Entering“ Setting”-“Controller”,make sure the
control- ler been recorized as XINPUT controller
9. Start Games, you could single press HOME button to
the access the quick menu
![](/img.php?id=2865598&img=bga.png)
Low Battery :
When the battery is low on the Wireless mode, the XINPUT
and DINPUT LED will start flashing, please replace with
two AA batteries or rechargeable battery
* rechargeable battery (sold separate)
Wireless singal:
When the wireless connection been shut down, the corre-
sponding LED of wirelless, XINPUT and DINPUT will start
flashing together, please ensure
1. If USB dongle been removed from the console
2. If the controller are out off the wireless range
3. If any strong radiation source around the controller
Some Android Box did not optimized the Wifi / Bluetooth
singal, it might interfere the controller. Please try use
USB extend cable to connect the USB dongle or use the USB
cable work as Wired mode
