YIDONG Technology W1000 Flat Computer User Manual
Shenzhen YIDONG Technology Co., Ltd. Flat Computer
User manual
![](/img.php?id=2480206&img=bg1.png)
UserManual
0
![](/img.php?id=2480206&img=bg2.png)
UserManual
1 http://www.irulu.com
Safety Precautions
1. This production is suitable for use in non-tropic areas below 2,000 meters, and the mark in the nameplate indicates the
product is suitable for use in non-tropic areas.
2. Prevent the Tablet PC from falling to the ground or being strongly impacted otherwise.
3. Do not use it in the long term in any environment where the air is too cold, too hot (<35℃), too humid or with too much dust. Do not
expose the Tablet PC to sunlight.
4. Avoid using it in the strong magnetic and strong static environment as much as possible.
5. Once any water or other liquid splashes onto the Tablet PC, close it immediately and do not use it until it dries out.
6. Do not clean the Tablet PC with any detergent containing chemical element or other liquid to avoid causing damage due to
corrosion and becoming damp. If cleaning is really necessary, clean it with dry soft cloth tissue paper.
7. Our company shall not bear any and all responsibilities for loss or deletion of material inside the machine caused due to abnormal
software and hardware operation, maintenance or any other accident.
8. Please back up your important material at any time to avoid loss.
9. Please do not disassemble the Tablet PC by yourself; otherwise you will lose the right to warranty.
10. Replacement with incorrect type batteries may cause explosion. Make sure to use original batteries.
![](/img.php?id=2480206&img=bg3.png)
UserManual
2 http://www.irulu.com
Packing List
Please check box for the following items
1. Device
2. User Manual
3. Product Warranty
4. USB Adaptor
5. OTA Cable
6. External pipo keyboard
Other accessories can be purchased at local retailers
The accessories may not be compatible with other devices
Power Adaptor Specification:
MODEL: STC-A0502000-Z
INPUT: AC 100-240V 50/60Hz 0.3A MAX
OUTPUT: 5.0V 2.0A
![](/img.php?id=2480206&img=bg4.png)
UserManual
3 http://www.irulu.com
Device description
①Touch screen:You can click and drag in the touch screen.
②Front Camera:You can take photos and videos etc.
③Volume-:Turn down the volume.
④Volume+:Turn up the volume.
⑤POWER:
Keep pressing button over 2 seconds for power on/ off, press
button once to turn on screen from sleep mode.
⑥ Earphone jack:3.5mm standard earphone jack.
⑦Micro SD/TF card:Micro SD/TF card slot.
⑧Micro HDMI:Micro HDMI Output
⑨ :Micro USB, Micro-5pin connector.
⑩MIC:Voice receiving
⑪Rear Camera:You can take photos and videos etc.
【TIPS 】:
1. When the battery is low, it will power off automatically.
2. Shutdown illegally, when you restart, device would scan
and repair the disk. The screen will stay at the progress bar for
a long time .
【Note】: The pictures in the user manual are just for your reference.
![](/img.php?id=2480206&img=bg5.png)
UserManual
4 http://www.irulu.com
Descriptions of Keys
Attention: Keyboard is optional, and configure the product according to the specific type of the tablet PC you have bought.
Movable base keyboard interface: which is convenient for alignment the Table PC and
the keyboard.
Keyboard group: The keyboard group provides full size QWERTY key and best
Type writing comforttability.
Base: Folding base of Tablet PC.
Use of tablet and keyboard
![](/img.php?id=2480206&img=bg6.png)
UserManual
5 http://www.irulu.com
Setting up for the first time

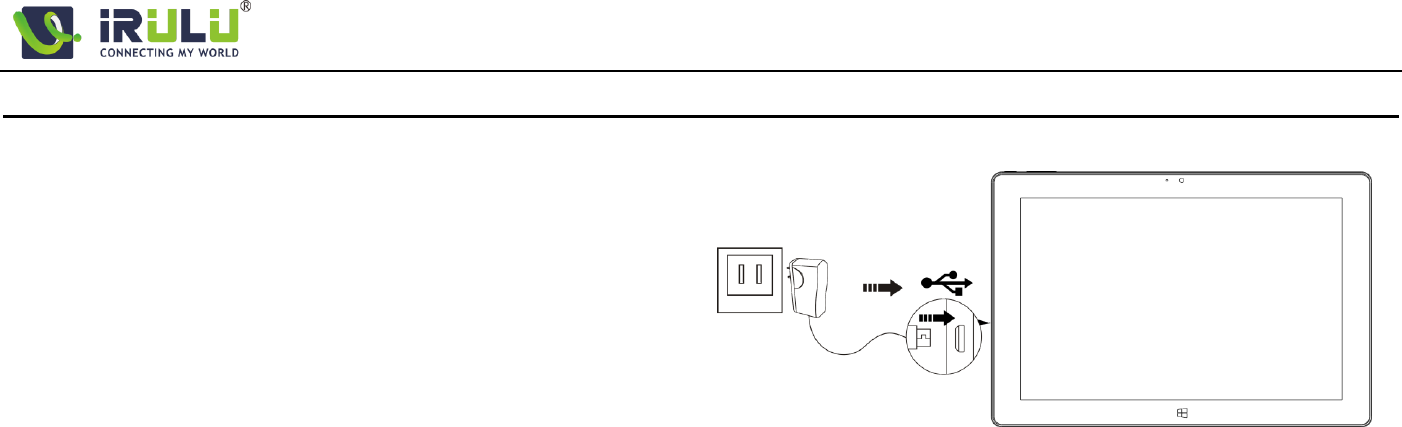

Charging your device:
For first-time use, you need to charge the device for ten hours.
After that you can recharge the device as needed.
Connect the DC-in jack to your device and plug the AC adapter
into any AC outlet.
【TIPS】:
1. This device adopts built-in polymer battery. Only the
specified charger should be used.
2. It is normal for the device’s surface to become warm during
charging or long periods of use. All devices are factory tested
before release.
3. If you do not use this set for a long time, please charge/release it once
one month to avoid deep discharge. The damage caused by battery over-consuming is not included in the warranty.
Battery Saving
To save battery running life, please see below key points. With below suggestions, battery can run longer time after fully charged
each time.
1. When device is not in use, press power button once to go to sleep mode.
2. Shut down the applications when not in use.
3. Turn off WLAN when not in use
4. Shut off application sync selection
5. Set a shorter time for display backlight
6. Reduce brightness of display
![](/img.php?id=2480206&img=bg7.png)
UserManual
6 http://www.irulu.com
Power On
Keep pressing power button over 2 seconds, device will start up opening screen.
Sleep Mode
After devise is on, press power button once and it goes to sleep mode. The screen is now on standby and under low battery
consumption. To wake up device, press one more time power button.
Power off
When you are not using the device, keep pressing power button over 2 seconds, the screen will display slide down.
![](/img.php?id=2480206&img=bg8.png)
UserManual
7 http://www.irulu.com

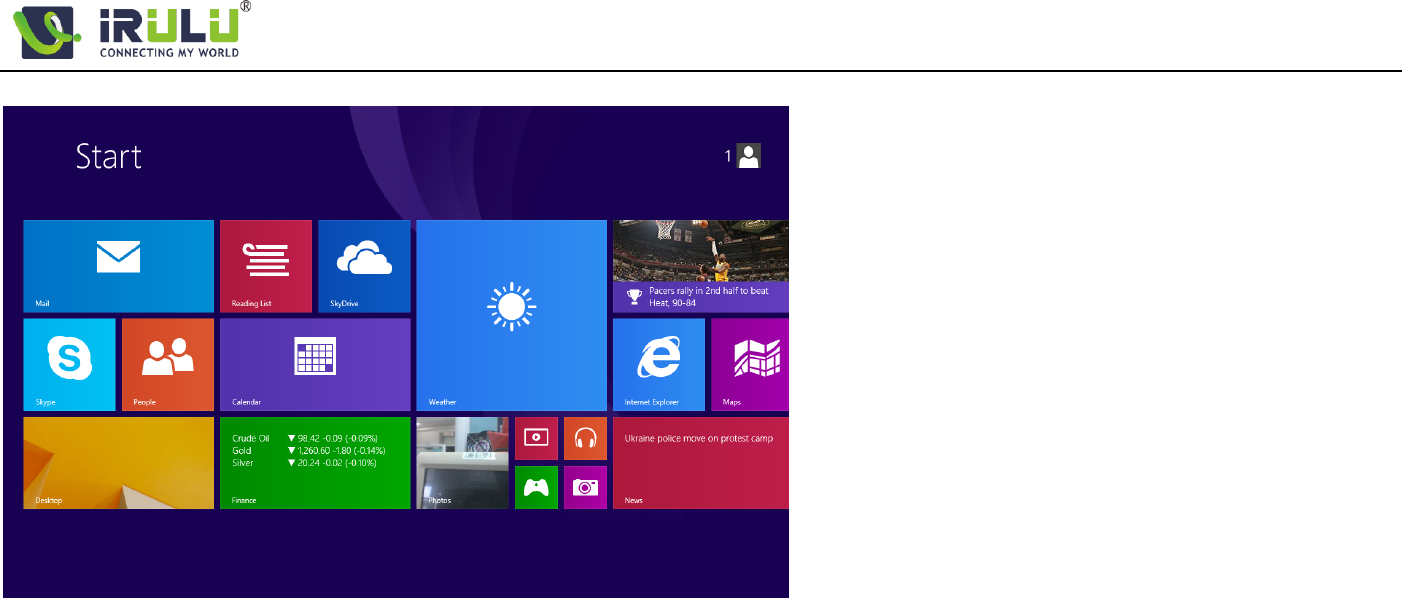

Windows 8.1 start image
On the start screen, you can see many programs fixed in the image. These application programs are displayed in the form of
“magnet”. As long as you click them, you can easily visit them. You need to log on your Microsoft account before the application
program completely runs.
![](/img.php?id=2480206&img=bg9.png)
UserManual
8 http://www.irulu.com
Image slide applications
Slide to right:Slide to the right from the left side of the screen to start the application program in running
Slide to left:Slide to the left from the right side of the screen to start Charm menu column.
.
Reduce:On the touch screen, narrow two fingers to reduce the image.
![](/img.php?id=2480206&img=bga.png)
UserManual
9 http://www.irulu.com
Enlarge:On the touch screen, widen two fingers to enlarge the image.
Slide downward: In start screen, slide from the top of the screen to view all application programs.
Slide with finger: In start screen, slide finger right and left to move the image.
![](/img.php?id=2480206&img=bgb.png)
UserManual
10 http://www.irulu.com
Slide upward:In the start screen, slide upward from the bottom of the screen to visit all application program (APPS) interfaces.
![](/img.php?id=2480206&img=bgc.png)
UserManual
11 http://www.irulu.com

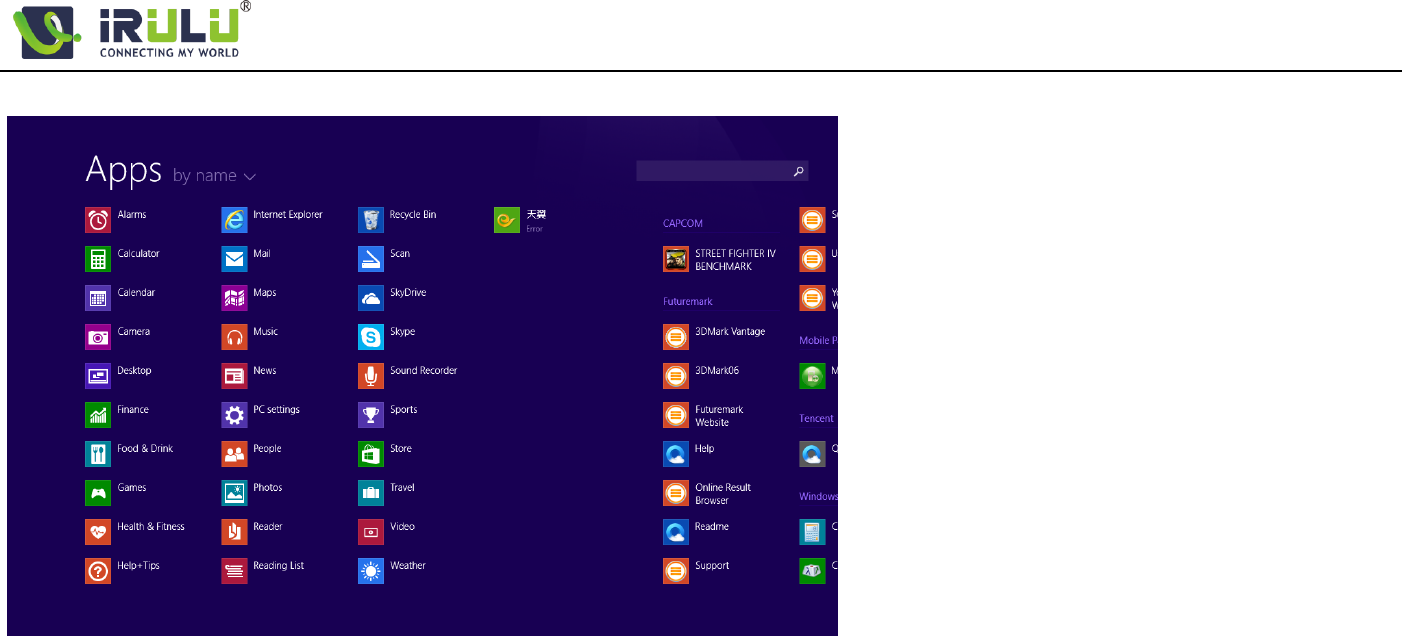

Introduction to app Interface
Besides the application programs already fixed on the start screen, you can also start other application programs in all application
programs, such as other software application programs attached to the Tablet PC.
![](/img.php?id=2480206&img=bgd.png)
UserManual
12 http://www.irulu.com

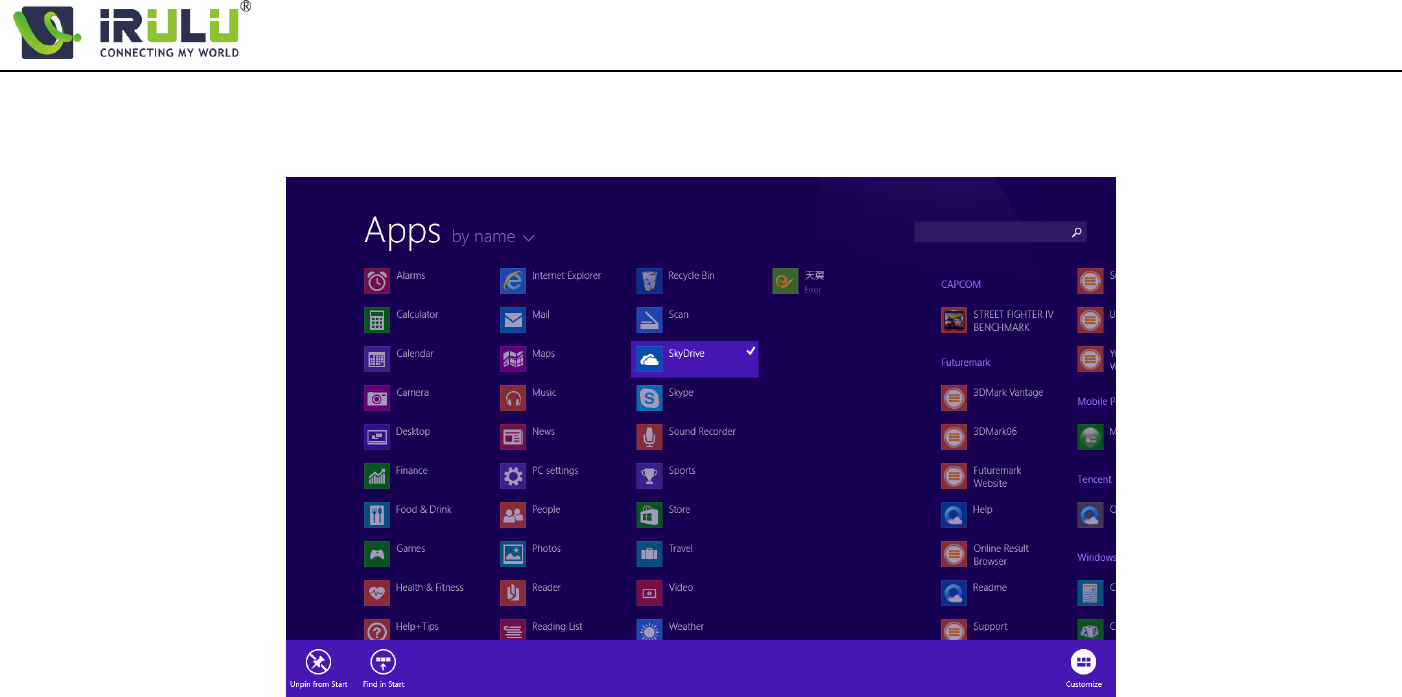

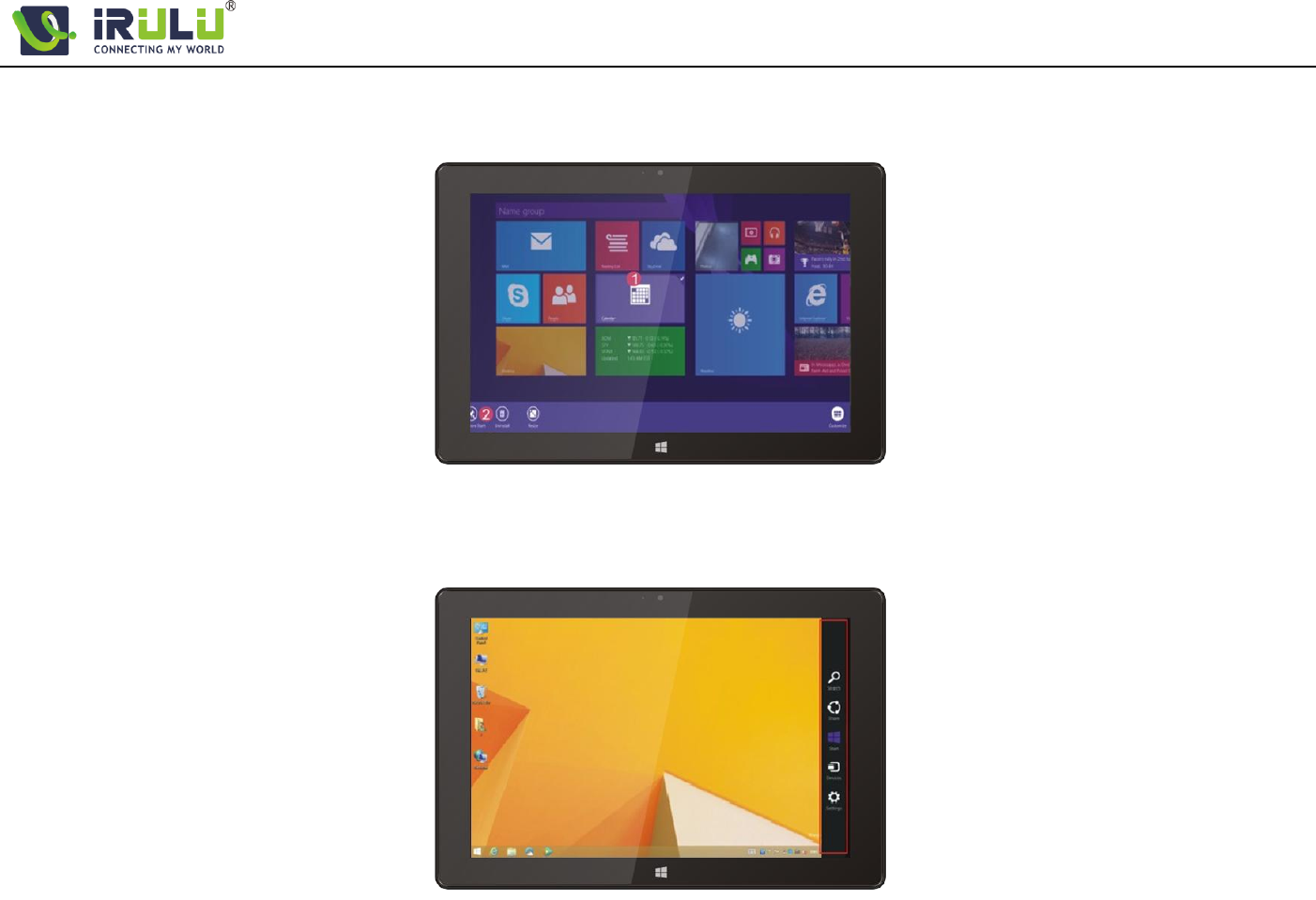

If you want to fix more application programs on the start interface, see the operation in the figure below, (1) lightly touch, press and
hold the application program magnet for about one second and then let go, and select (2) to fix to the start screen.
![](/img.php?id=2480206&img=bge.png)
UserManual
13 http://www.irulu.com
Conversely, if you want to cancel or delete a certain application in the start screen, (1) lightly touch, press and hold the application
program magnet for about one second and then let it go and run, and select (2) attribute column to cancel the programs such as
fixation and deletion and then it can be completed.

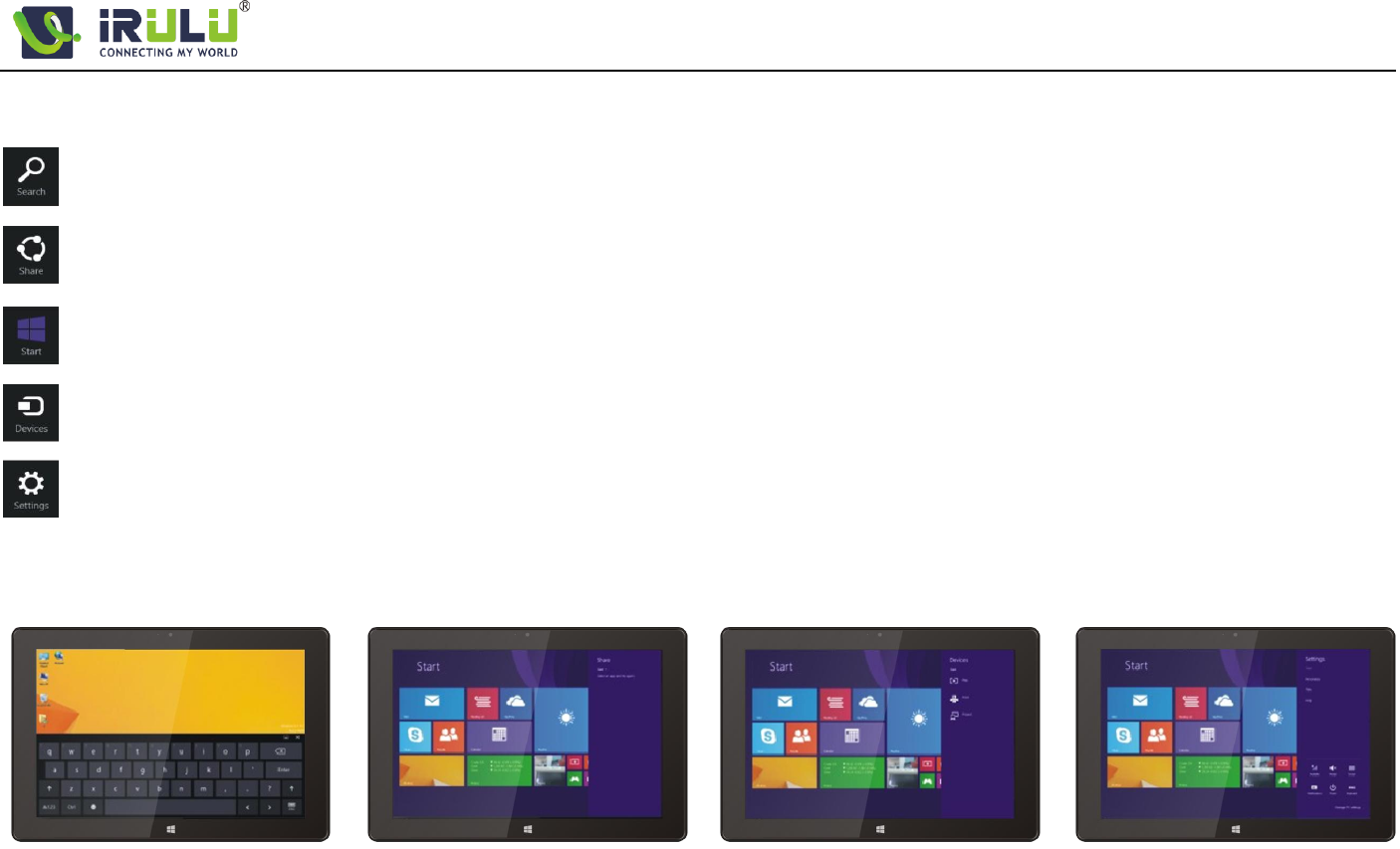

Charm menu column
Slide it to the left from the right side of the screen to start Charm menu column, including: Start, Device, Setup, Share, and Search
Program.
![](/img.php?id=2480206&img=bgf.png)
UserManual
14 http://www.irulu.com
Slide it to the left from the right side of the screen to start Charm menu column, including: Start, Device, Setup, Share, and Search
Program.
Can let you search the files and application programs in the Tablet PC.
Can let you share the program through social exchange website or e-mail.
Can return to the start screen. From the start screen, you can also use this function to return the application program that is
opened in the latest.
Can let you read, write and share files, connect external screen or printer with the device connected to the Tablet PC.
Can let you set up the Table PC.
Search menu Share menu Device Menu Set up Menu
![](/img.php?id=2480206&img=bg10.png)
UserManual
15 http://www.irulu.com

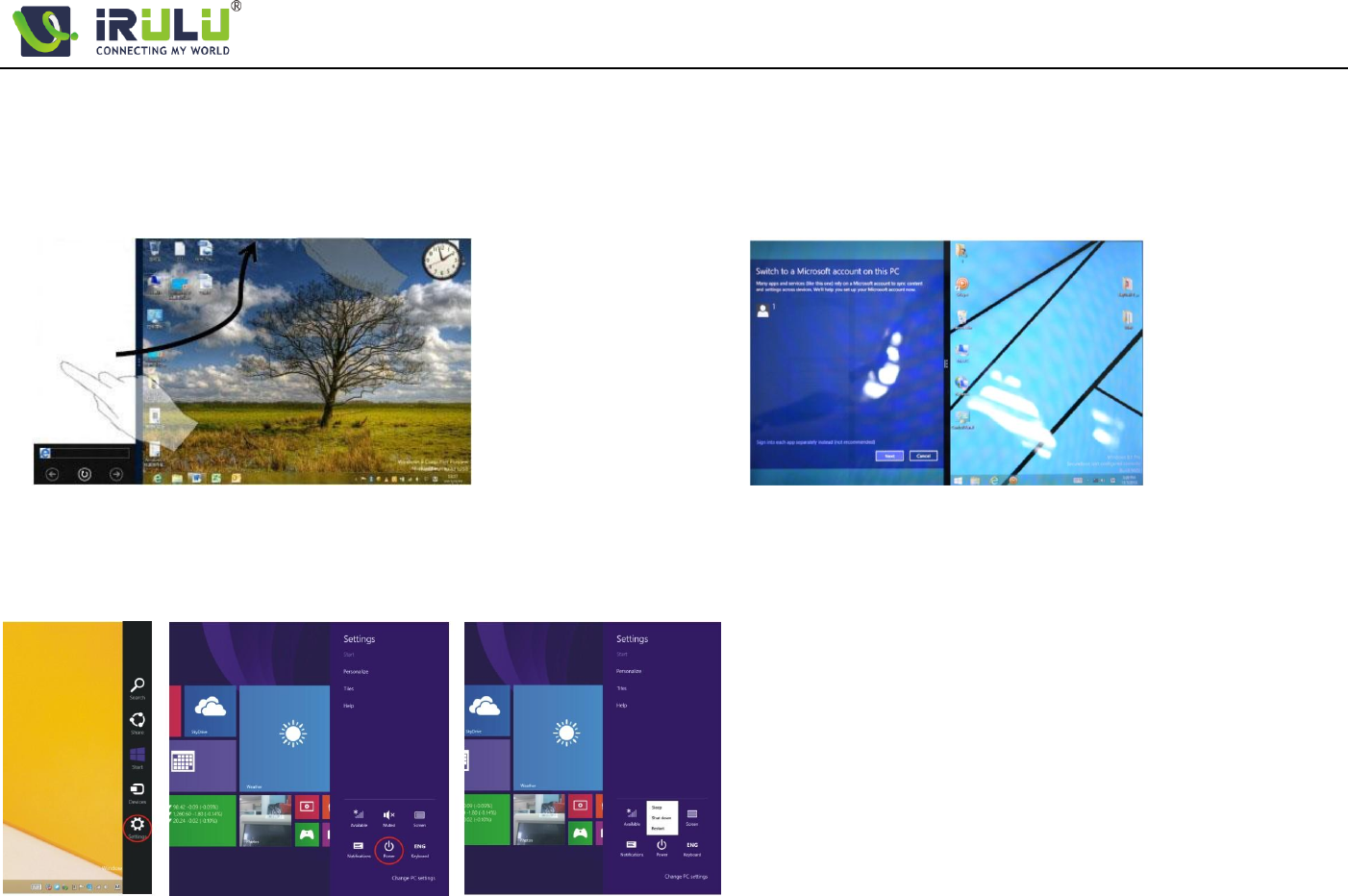

Dual-Screen Application
On my computer in (Figure 1), slide it inward from the left side of the screen, drag it and hold. Let go when seeing double interfaces
appear.
In (Figure 2), press the partition button on the middle partition line and drag right and left to partition the display proportion of the
double screens.
(Figure 1) (Figure 2)
Basic Operations
1. Dormancy, restart and power off
![](/img.php?id=2480206&img=bg11.png)
UserManual
16 http://www.irulu.com

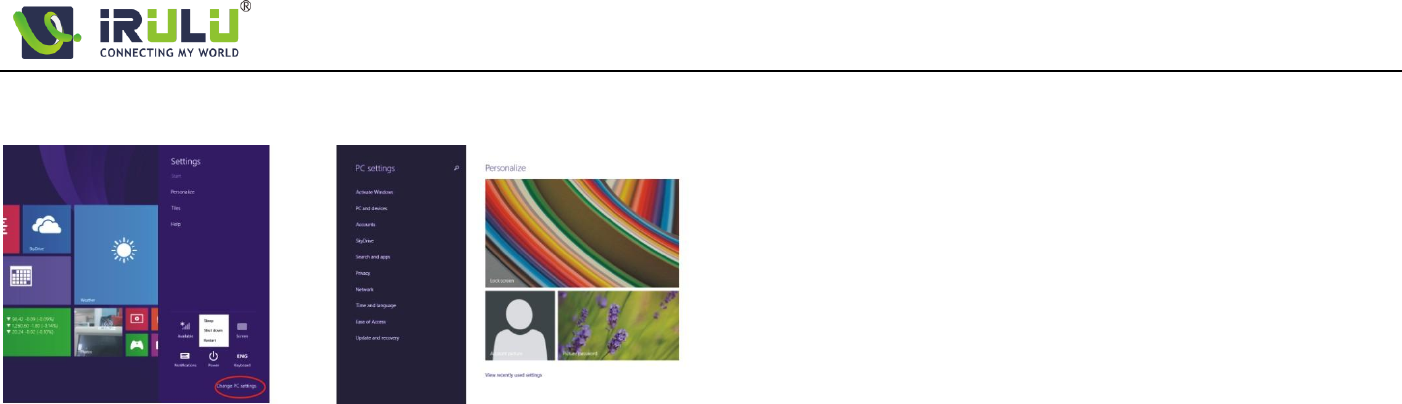

Security Management
User and password setup
Method for quick setup:
Click the “Setup” button in “Charm” setup, and select “Change computer setup”. Select “User” on the left and click “Create local
account” in “Your account” on the right side. After inputting the password of Complete Windows Live Id Account, input username,
password, confirm password and password prompt.
![](/img.php?id=2480206&img=bg12.png)
UserManual
17 http://www.irulu.com
Product Specification
OS
Windows 8.1 Bing
CPU
Intel Bay Trail-T Z3735F
System RAM
2GB DDRIII
Memory
32GB NAND Flash
LCD
10.1" 1280*800
Touch Panel
10 points Capacitive touch screen
WIFI
802.11 b/g/n
Camera
2.0 megapixel front-facing camera, 5.0 megapixel rear camera
Gravity
3D gravity sensor
Specifications are for reference, to prevail in kind
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
