Yifang Digital Technology NEXT2 nextbook, Android EBOOK User Manual Manual final 0810
Shenzhen Yifang Digital Technology Co., Ltd. nextbook, Android EBOOK Manual final 0810
User Manual
![](/img.php?id=1335297&img=bg1.png)
1
Precautions
z Do not subject the device to severe impact or drop it from high position.
z Do not use the player in extreme hot or cold, dusty or damp field. Do not expose
it to direct sunshine.
z Excessive sound pressure from earphones and headphones can cause hearing
loss.
z Avoid using the player in strong magnetic field.
z Keep the device away from water or other liquids. In the event that water or
other liquids enter the device, power off the product immediately, and clean the
device.
z Do not use chemical solution to clean the device in order to avoid corrosion.
Clean it with a dry cloth.
z We are not responsible for the damages or lost data caused by malfunction,
misusing, repairing the device or battery replacement.
z Do not attempt to disassemble, repair or modify the product. This will invalidate
guarantee.
z When not using the device for an extended period of time, please charge the
battery at least once per month to extend the battery life.
z Do not use the device in extremely hot, cold, dusty or damp environments.
z Avoid dropping or striking the unit .This may cause external and internal
physical damage to the player.
z Charge the battery if:
a) The battery level icon displays (An empty battery)
b) The device powers off automatically and off again when restarted.
c) No response when pressing keys with keys unlocked and battery
installed.
z To prevent damage from static shock, never use the device in very dry
conditions.
z When the device is being formatted or transferring a file, do not interrupt the
connection. Otherwise, data may be corrupt of lost.
z When the device is used as a portable HD, please use only per instructions.
Otherwise, permanent data loss could occur.
z This manual may not reflect the actual device’s operation since it is subject to
change without prior notification. Please comply with your actual device’s
operations always.
z Please use and install the exclusive supply apparatus only according to
manufacturer’s instruction.
z Please refer the information on exterior bottom enclosure for electrical and
safety information before installing or operating the apparatus.
z To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture. The apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall not be placed on
apparatus.
z Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
z The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
z Excessive sound pressure from earphones and headphones can cause hearing
![](/img.php?id=1335297&img=bg2.png)
2
loss.
z The direct plug-in adaptor is used as disconnect device, the disconnect device
shall remain readily operable.
z Only use attachments/accessories specified or provided by the manufacturer
(such as supply adapter, battery etc).
z The adaptor is CLASS II apparatus with double insulation, and no protective
earth provided.
- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
- To reduce the risk of electric shock, do not remove cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions in
the literature accompanying the appliance.
z Correct Disposal of this product. This marking indicates that this product
should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
z Do not install this equipment in a confined space such as a book case or similar
unit. The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
z No naked flame sources, such as lighted candles, should be placed on the
apparatus.
z Attention should be drawn to environmental aspects of battery disposal.
z Use the apparatus in moderate climates.
3
Listening Cautions
z Do not play your earphones or headphones at a high volume. Hearing experts
advise against continuous extended play.
z If you experience a ringing in your ears, reduce volume or discontinue use.
z Do not use while operating a motorized vehicle. It may create a traffic hazard
and is illegal in many areas.
z You should use extreme caution or temporarily discontinue use in potentially
hazardous situations.
z Even if your headphones or earphones are the open-air type designed to let
you hear outside sounds, don’t turn up the volume so high that you can’t hear
what’s around you.
z Sound can be deceiving. Over time you hearing “comfort level” adapts to
higher volumes of sound. So what sounds “normal” can actually be loud and
harmful to your hearing. Guard against this by setting your equipment at a safe
level BEFORE your hearing adapts.
To establish a safe level:
a. Start your volume control at a low setting.
b. Slowly increase the sound until you can hear it comfortably and clearly,
and without distortion. Once you have established a comfortable sound
level, leave it there.
4
Table of Content
Listening Cautions...............................................................................................3
Introduction..........................................................................................................5
Feature Summary................................................................................................ 5
Package Content.................................................................................................5
Buttons & Ports....................................................................................................5
Charging Battery..................................................................................................6
Installing Memory Card........................................................................................7
Transferring Files.................................................................................................7
Turning On/Off.....................................................................................................7

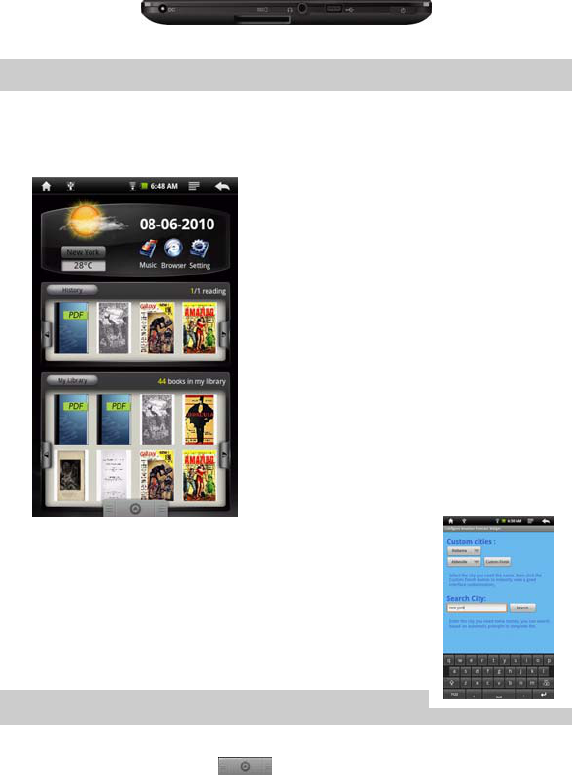

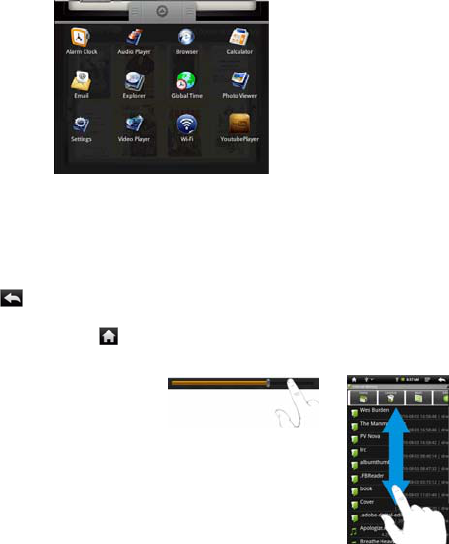

Home Screen.......................................................................................................8
Using the Touch Screen ......................................................................................9

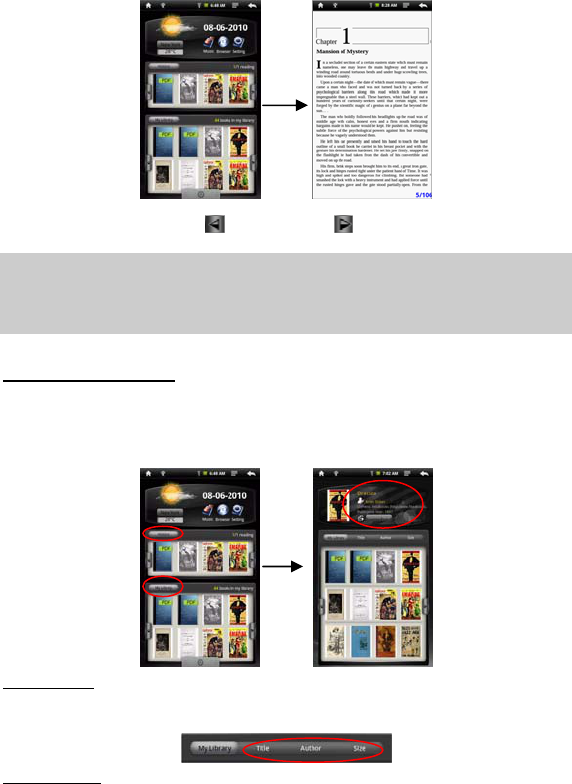

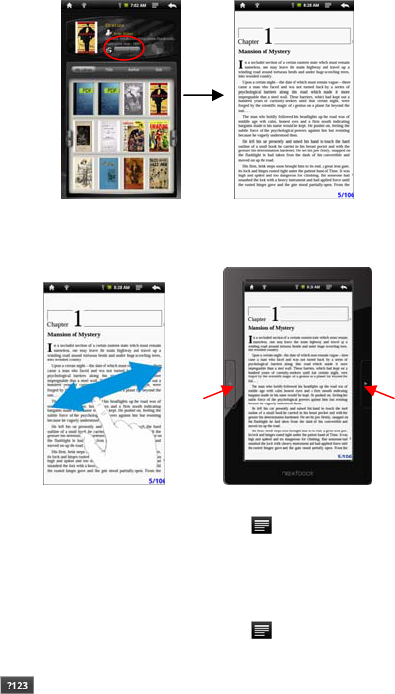

Reading E-Books ................................................................................................9

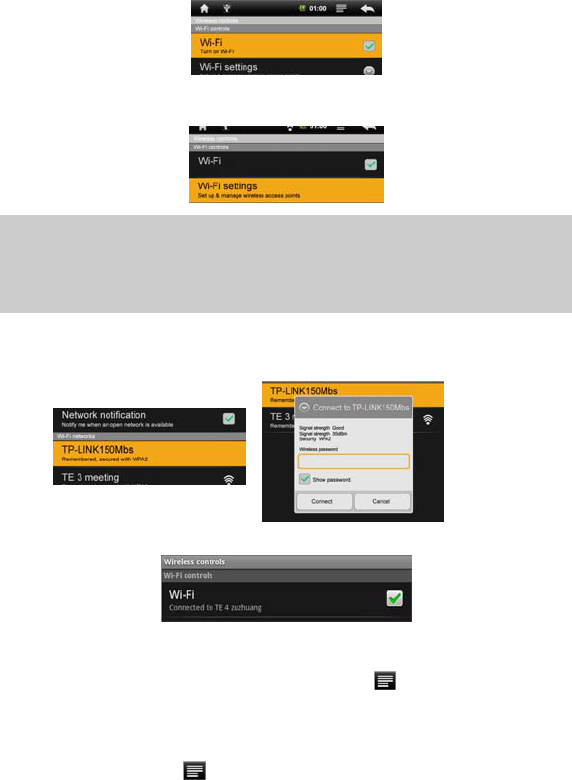

Access Internet..................................................................................................12
Playing Video.....................................................................................................18
Viewing Photos..................................................................................................19
File Explorer ......................................................................................................20
E-mail ................................................................................................................21
Manage Applications .........................................................................................23
System Settings.................................................................................................23
Troubleshooting.................................................................................................25
FCC Warning Statement....................................................................................25
Specifications ....................................................................................................26
5
Introduction
This device can give you amazing e-book reading experience – allowing you to
read large quantities of e-books stored in this device. Furthermore, this latest
generation of small, powerful, highly portable device combines many great
capabilities - Wi-Fi connectivity, music player, movie player, photo viewer etc.
with the convenience of a pocket-sized solution for your life on-the-go.
Feature Summary
E-book Reader
Allow you to read large quantities of e-books stored in the device.
Wi-Fi Connectivity
With the latest Wi-Fi technology, this device can connect you to the Internet
wherever you are.
7” Touch Screen
Touch or slide your finger in the screen, the screen responds instantly.
Third-party Application Support
This device supports the most popular applications. You can install or uninstall
applications on this device, such as MSN, YouTube, g-email etc.
Built-in G-sensor
Allows the user interface to rotate its orientation to landscape or portrait
automatically once this device is rotated.
Entertainment
Allows you to enjoy music, movie or pictures.
Package Content
z Main Unit
z USB cable
z AC Adaptor
z Operation Instruction
z Warranty Card

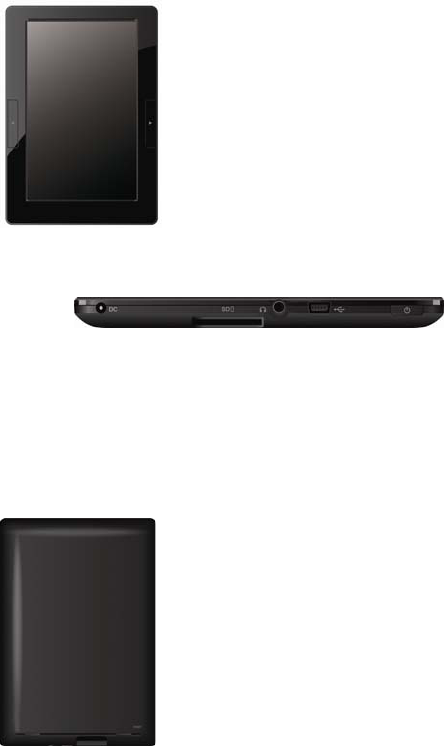

Buttons & Ports
Front View
![](/img.php?id=1335297&img=bg6.png)
6
Bottom View
Rear View
Charging Battery
The device has built-in rechargeable battery. No extra battery installation is required.
Just charge the device when it indicates low battery.
To charge the battery, plug the AC adaptor to any standard wall outlet and the
DC-IN port of the device. It takes about 3 hours to fully charge the battery.
a. Previous – press to go back to the
previous page.
b. Next – press to go forward to the
next page.
c. LCD Display
d. DC-IN port – connect to any standard electric source through the
provided AC adaptor.
e. SD Card Slot – acommodate any standard SD memory card.
f. Earphone Port – connect to stereo earphones (not provided with
the unit. )
g. USB Port – connect to computer through USB cable.
h. Power – press and hold to turn on or off the device; briefly press
to turn on or off the screen.
a b
c
d
e
f gh
i j j
i. Reset pin hole – used to reset your
device when the device freezes.
j. Built-in Speakers
![](/img.php?id=1335297&img=bg7.png)
7
Note:
a. You can operate the device even when it is being charged. But for extending the battery
life, you are suggested NOT to use the device when it is in charge.
b. You are recommended to charge the battery when you use the device for the first time.
c. For maximum performance, lithium-ion batteries need to be used often. If you don’t use
the device often, be sure to recharge the battery at least once per month.
Installing Memory Card
Besides the built-in memory, this device features a memory card slot to extend its
memory space. You can read e-book, music, image or video files from a SD card
directly.
To install a memory card, find the card slot at the bottom of the machine, and then
insert the memory card into the slot with the correct direction.
To access the memory card, enter the Explorer mode and select the “SDCard”
directory.
Transferring Files
Before reading or playing files, you need to transfer media files from computer to this
device.
(1) Connect this device to a computer with the supplied USB cable. This device will
turn on and ask you if you want to connect it or not. Choose “Connect” to connect
it.
(2) Once connected, two removable disk drives appear in your computer. One
represents the internal memory of this device, and the other represents the
memory card inserted into this device. Now you can copy files from or to these
disk drives.
(3) Once the data transfer completes, drag from the top bar downwards to display the
USB notification message.
(4) Choose “Turn off USB Storage” and then tap on “Turn Off” to disconnect the
device from computer.
(5) Remove the player from the PC safely.
a) Left-click the icon at the right bottom corner of the computer desktop.
b) Click the pop-up mini-window with message of “Stop the USB Mass Storage
Device – Drive (X)”.
c) Remove the player from the computer.
Turning On/Off
To turn on the device, press and hold the Power button on the unit until you see the
Drag downwards
![](/img.php?id=1335297&img=bg8.png)
8
boot-up screen. It may take a few minutes to start up the system, please wait before
you proceed.
To turn off the device, press and hold the Power button until you see the option
“Power Off”, tap on “Power Off” and then tap on “OK”.
Tip: This device will sleep with the screen off if it stays inactive for a few seconds. You can
briefly press the Power button to turn on the screen and wake it up.
Home Screen
Indications
Weather forcast Setting
You can change the city with weather forcast data.
y In the Home Screen, tap on the city name to display the city
selection screen.
y You can locate the city by selecting the state where the city
is and then selecting the city, or inputting the city name
directly.
You can change the temperature unit to Celsius or Fahrenheit
by tapping on the temperature.
Note: Wi-Fi connection is required to display weather forcast
information.
Display all Applications
Tapping on the Application Tab can display all applications installed on your
MID (alarm clock, calculator, GlobalTime etc.).
a. Go to Home Screen.
b. USB Connection
c. WIFI available
d. Battery incidation
e. Time
f. MENU: display overlay menu
g. Return: go back to the previous screen or
directory
h. Weather forecast for worldwide cities
(need Wi-Fi network)
i. Date
j. Application Shortcuts
k. Enter history
l. Left Arrow: Scroll left through e-books.
m. Right Arrow: Scroll right through e-books.
n. Recently read e-books.
o. Enter e-book library.
p. All of e-books
q. Display all applications
a b c d e f g
h
i
j
l
n
k
m
lm
o
p
q
![](/img.php?id=1335297&img=bg9.png)
9
Using the Touch Screen
This device is equipped with a touch-screen. Below are a few tips on how to use the
touch screen.
Main Touch Screen Actions
y In different applications, you can go back one level in the interface by tapping on
the Back icon (at the top right corner of the screen).
y Wherever you are in the interface, you can go back directly to the Home Screen
by tapping on the Home icon (in the top left corner of the screen).
Other Touch Screen Actions
y When watching a video or listening to
music, you can tap on the progres-
sion bar to go directly to a different
location in the video or song. You
can also use your finger to drag the cursor in the progression
bar to another location in the video or song.
y In the different browsers (File, Music, Video, Photo, etc.), you
can drag your finger up and down to scroll the file list up and
down.
y In the Web browser, you can scroll up and down by tapping on
the page and dragging it up or down (be careful however not to tap on a link!).
y Tap on the link to open the page.
Reading E-Books
Start Reading
y In the Home Screen, you can tap on a e-book cover to start reading immediately.
![](/img.php?id=1335297&img=bga.png)
10
y Tapping on the Left Arrow or Right Arrow can scroll through other e-book
covers that you do not see.
Note:
a. Make sure your e-books are in format supported by the device. You are recommended
to use PDF or EPUB e-book files.
b. Book covers for PDF files are all displayed the same since PDF files have no cover
data usually.
History and My Library
View e-book Information
In the Home Screen, you can tap on “History” to enter the reading history or tap on
“My Library” to enter the e-book library. In the History or e-book library, you can view
information about an e-book before you start reading.
Tap on an e-book, and the book name, author or publication year of the e-book
should display at the top screen.
Sort e-books
You can sort all e-books by title, author or file size by tapping on Title, Author or Size
in the e-book library.
Start Reading
To start reading an e-book, tap on “Continue Read”.
![](/img.php?id=1335297&img=bgb.png)
11
Page Up/Down
When you are reading the e-book, you can slide your finger on the screen left and
right OR press the PREVIOUS/NEXT button on the device to page up or down.
Increase Font Size
(1) When you are reading, tap on the Menu icon to display e-book settings.
(2) Tap on “Zoom In” to zoom in the page.
(3) Tap on a size that you want to zoom to and then tap on “OK” to confirm.
Jump to a Page
You can directly go to a page that you specify.
(1) When you are reading, tap on the Menu icon to display e-book settings.
(2) Tap on “Go to”.
(3) Tap on the page number input field to display the virtual keyboard.
(4) Tap on to switch to the numeric keyboard and then tap on the numbers to
input the page number.
![](/img.php?id=1335297&img=bgc.png)
12
(5) Once you finish inputting page number, tap on “OK” to jump to the specified page.
Use Bookmarks
You can add a bookmark on a page for continue reading later.
(1) When you are reading, tap on the Menu icon to display e-book settings.
(2) Tap on “Bookmarks” to display a bookmark menu, and then you can use the
menu to add, delete or display bookmarks.
Show Outline of the e-book
You can view the outline of the ebook and then choose your
desired chapter or section to read.
(1) When you are reading, tap on the Menu icon to
display e-book settings.
(2) Tap on “Outline” to display the outline of the e-book, and
then tap the chapter that you want to read.
Access Internet
You can surf on the Internet with your slim NEXTBOOK. First
of all, you need to configure a Wi-Fi network. For this procedure to work, you need to
be in a Wi-Fi zone that will allow you to connect to it. Every time this device is in
range of a network that you have already configured once, it will attempt to make a
connection.
Making WIFI Connection
Before launching an Internet application such as the web browser, you first need to
activate the WiFi and configure a WiFi network.
(1) In the Home Screen, tap on the Application Tab to display applications,
and then tap on the WI-FI icon to enter the network settings.
![](/img.php?id=1335297&img=bgd.png)
13
(2) Tap on the “Wi-Fi” setting to turn the Wi-Fi on if it is off.
(3) Select “Wi-Fi settings”, this device will scan automatically for available WiFi
networks and display them. The list of available networks shows all the wireless
networks in range of your device.
Note:
a) The available network list is constantly refreshed automatically.
b) When the Wi-Fi is enabled, this device will connect automatically to your configured
networks when they are in range.
c) If this device finds a network that has never been configured, it will display a notification
icon.
(4) Tap on the network you want to connect to, enter the network information
(password) if required and then tap on “Connect”. This device will now attempt to
establish a connection to that Wi-Fi hot spot with the network parameters you
entered.
If the connection is successful, the message Connected to XXX will appear under
the WIFI setting.
Advanced Connection
To manually scan for available Wi-Fi networks,
(1) In the “Wi-Fi settings” screen, tap on the Menu icon , and then tap on “Scan”.
(2) If the Wi-Fi network you want to connect to does not appear in the list, scroll down
the screen, then tap on “Add a Wi-Fi network”. Enter the required settings, then
tap on “Save”.
To access the advanced network parameters (“Regulatory domain”, “IP address”,
etc), tap on the Menu icon , and then tap on “Advanced”. Other parameters will
appear. The required information can be obtained from the person who manages the
network.
![](/img.php?id=1335297&img=bge.png)
14
Launching the WEB browser
Tap on the “Browser” icon in the Home Sreen to launch the WEB browser.
If you are already connected to a network, the Web browser will simply open and you
can start browsing the Web.
Note: Not all wireless networks offer access to the Internet. Some WiFi networks only link
several computers together, without any Internet connection.
Using the Virtual Keyboard
Tapping on any text input field can show up the virtual board. With the virtual
keyboard, you can enter website address or any text if required.
Indications
Selecting Input Method
If you have installed more than one input method on this device, you can select one
method by a) holding your tap on the button until the Android keyboard settings
appear; b) choosing “Input Method” and then choosing your desired one.
Using WEB Browser
y You can scroll up and down the screen by tapping on the page and dragging it up
or down (be careful however not to tap on a link!).
y To open a link, simply tap on it.
y You can open several web pages at a time, view them all at once on the screen,
and then tap on one of them to view it in full screen.
y To go back to the previous page that you browsed, tap on the Back icon .
y To display the available menu items, tap on the Menu icon .
y To go back directly to the Home screen, tap on the Home icon .
y Depending on where you are in the web browser, holding down on an item will
give you access to more options.
y To fill in a text field, tap in the field, then use the virtual keyboard to type in the
required text.
WEB Browser Menu Items
When you are viewing page, you can tap on the menu icon to display the menu
items.
Go Allows you to enter the address of a Web site you’d like to
visit. Enter the address with the virtual keyboard. Select “Go”
to open the website in the current window.
Bookmarks Will pen the “Bookmarks” manager. You will see three tabs:
“Bookmarks”, “Most visited”, and “History”.
“Bookmarks” show you a list of bookmarks. Just tap on one
of them to open it in the current window. Holding down on a
a. Caps Lock
b. Backspace.
c. Number and Characters /Letter
Switch.
d. Space
e. Enter
c
b
d
a
e
![](/img.php?id=1335297&img=bgf.png)
15
bookmark will give you access to several options (you will be
able to edit it, rename it, delete it, etc.). You can also use the
Menu icon which will allow you to bookmark the
last-viewed page.
“Most visited” and “History” allow you to access your “Most
visited” sites and your “History”. In the “History” tab, the Menu
icon allows you to clear the history.
New
window/
Windows
Allows you to open new windows. When you have several
windows currently opened, tap on “Windows” to display them
all at once on the screen. Just tap on one of the small
windows to view it in full screen, or tap on the Close icon in
the small window to close the window.
Refresh/
Stop “Stop” will stop loading the web page, if it is currently loading.
“Refresh” will refresh the current web page, if it has stopped
loading.
Forward Will go to the next page that you browsed.
More Will give you access to other options (“Find on page”, “Select
text”, “Page info”, “Downloads”, “Settings” etc.).
Playing Music
Tap on “Music” in the Home Screen to enter the music player mode.
Music Library
You should enter the music library once you start up the
music player. The Music Library shows your music files
sorted by categories (Artist, Album, Genre, etc.) if your
music files contain these song information tags. If some of
your music files do not contain information tags, they will
be classified as (Unknown) in the Music Library. When
new music is copied to this device, the Music Library will
be updated automatically.
y You can drag your finger up and down on the file list to
scroll through the list.
y Tap on a track to play a track.
y To return to the Home Screen, tap on / / .
Music Library Menu
Once you enter the music library, you should see the toolbar at the bottom of the
screen. Tap and hold your finger on the icon and you should see its name.
All Music List all music files.
Internet Search
Allows you to search for a specific song on Internet
by entering a few letters or a word and download
the song from the Internet.
Artist List music files by artist.
Album List music files by album.
Genre List music files by genre.
![](/img.php?id=1335297&img=bg10.png)
16
Playlist Display playlists.
Directory Browsing Navigate through music files and folders stored in
the internal memory and memory card.
Enter Play Interface Go to the Now Playing screen.
Return Return to Home Screen.
Search for Tracks
You can search for tracks in the internal memory or memory card by inputting a few
key words.
(1) In the music library, tap on the Directory Browsing icon in the menu.
(2) Choose the memory device in which you want to search for tracks.
(3) Tap on the Search icon , and then input a few key words of the track.
(4) Tap on to start searching. The track should be listed if found.
Sort Tracks/Folders
You can sort all tracks/folders by their leading leters in order of A to Z, the creation
time of the track/folder, the file size or the file type.
(1) In the music library, tap on the Directory Browsing icon in the menu.
(2) Choose the memory device to be sorted.
(3) Tap on the Sort icon (by file size) / (by file type) / (by leading letter)/
(by creation time) to sort the tracks/folders stored in the selected memory
device.
Set EQ Mode Manually
When you are listening to the music, tap on the Menu icon which allows you to
customize your equalizer setting. This device features a 7-band equalizer.
(1) Select a band, then drag your finger up/ down on the band to change the gain
level for these frequency ranges.
(2) Tap on “Save Effect” to confirm or tap on to return.
Playback Screen
a
b
c
d
e
f
g h i
j k l m
a. search for information about the track from Internet.
b. Volume level
c. Preset EQ mode
d. Repeat mode
e. Frequency chart
f. Progression bar
g. Fast rewind
h. Play/Pause icon
i. Fast forwarding
j. Change preset EQ mode
k. Change repeat mode
l. Add the track to playlist
m. Display lyric
n
![](/img.php?id=1335297&img=bg11.png)
17
y To pause/resume the song, tap on the Pause / Play icon.
y To play the previous/next song, tap on / .
y You can tap on the progression bar to go directly to a different location in the
song. You can also drag the cursor in the progression bar to another location in
the song. The volume bar can be dragged in the same way.
y To define the equalizer mode manually, tap on , and then drag your finger on
every frequency band to adjust the frequency level.
y Tapping continuously on the ID3 information tag will search for the information
about the track from the Internet.
y Tap on to add the track to playlist.
y Tap on to display the track lyric if the lyric file for the track exists in the device.
(Note: the track and its lyric file should be at the same directory.)
y You can tap on the Return icon to go back to the music library.
y To go back directly to the Home Screen, tap on the Home icon .
Playlist
A playlist is a list of audio tracks that the music player will automatically play one after
the other. On this device, you can play, create and edit as many playlists as you
want.
Create a Playlist
(1) While you are in the music list, select the Playlist menu item “ ”, a playlist panel
will open. You can now start modifying the playlist.
(2) Tap on the New Playlist icon to create a new playlist.
(3) Tap on the Edit icon beside the playlist name to add songs to the playlist.
(4) Tap on the songs you would like to add to your playlist. A check mark “√”should
appear before the song if selected.
(5) When you are satisfied with your new playlist, tap on the “ ” icon to save the
playlist.
Edit a Playlist
You can add track to or delete track from the playlist.
(1) In the Music Library, tap on the Playlist icon to display the playlists.
(2) Tap on the icon beside the playlist that you want to edit. You can now add
tracks to or delete tracks from the playlist.
(3) Tap on the songs you would like to add or delete, a check mark should appear or
disappear before the song. The song with check mark will be added to the playlist,
while the song without check mark will be deleted from the playlist.
(4) When you are satisfied with your playlist, tap on the icon to save the playlist.
Delete a Playlist
To delete an existing playlist,
(1) In the Music Library, tap on the Playlist icon to display the playlists.
(2) Tap on the icon beside the playlist that you want to delete, and then the
playlist will be deleted.
Note: You cannot delete the Recently Played playlist since a track is playing.
![](/img.php?id=1335297&img=bg12.png)
18
Playing a Playlist
(1) In the Music Library, tap on the Playlist icon to display the playlists.
(2) Tap on a playlist to open it. A panel showing the contents of the playlist will open.
(3) Tap on the first item in the playlist to start playing from the first track.
Playing Video
Tap on the Application Tab to display all applications, and then select
“Video Player” to enter the video mode.
Navigate through Video Files
You should see the video list when you enter the video player.
y You can drag your finger up and down on the video list to scroll the video list up
and down.
y Tap on a video to start playing.
y You can go back directly to the Home screen by tapping on the Return icon
or Home icon .
Playback Screen
y Tapping on the screen can display or hide the floating control bar.
y Tap on the / icon to pause/resume the video.
y Tap on “ ” to display the menu items.
y Tap on the progression bar to go directly to a different location in the video. You
can also use your finger to drag the cursor in the progression bar to another
location in the video. The volume bar can be dragged in the same way.
y Tap on the Bookmark icon to set a bookmark at the current spot in the video.
Please note only one bookmark can be set for one video, and the new bookmark
should cover the old one. Next time when you resume playing the video, you
should be prompted to “Play from beginning” and “Play from bookmark”. Select
“Play from bookmark”. In default, the video plays from beginning. To remove the
bookmark, tap on the icon to display the menu, and then choose “Delete
Bookmark”.
y Tap on to adjust the brightness of screen.
y Tap on / to rewind or fast forward the the video playback.
a b
c d e f g h i
a. Progression bar
b. Volume bar
c. Bookmark
d. Brightness
e. Previous video
f. Play/Pause icon
g. Next video
h. View Mode
i. Video settings
![](/img.php?id=1335297&img=bg13.png)
19
y Tap on to change the aspect ratio of screen to 4:3 or 16:9.
y Tap on to stop playing and return to the video list.
Video Playback Settings
Tap on the icon to display the video settings.
Play from beginning(this
will delete bookmark) Delete bookmark and play from beginning.
Delete Bookmark Delete the video bookmark.
Help Get instructions on playing video.
Repeat Single – plays the current video and then
stops ater playing.
Repeat One – Repeat the current video.
Repeat All – Repeat all videos.
Return Exit from the menu.
Viewing Photos
Tap on the Application Tab to display all applications, and then select
“Photo Viewer” to enter the photo mode.
Photo Thumbnails
The first screen of the Photo mode shows all
the photos and subfolders located in this
device or memory card in thumbnails.
To view a photo, tap on its thumbnail to
open it. If a photo is in a subfolder, open the
subfolder, and you will see your photo.
Viewing Photo
When you are viewing a photo, you can tap on the screen to show a floating toolbar
at the bottom of the screen.
y To start/pause a slideshow, tap on the Slideshow icon .
y To display the previous/next picture, tap on the Left icon / Right icon .
y To rotate the picture 90° counterclockwise, tap on the Rotate Left icon . To
rotate the picture 90° clockwise, tap on the Rotate Right icon .
y To magnify the current picture, tap on the Zoom In icon . When the picture is
enlarged, you can drag the picture vertically or horizontally to move the picture.
To decrease the picture size, tap on the Zoom Out icon .
![](/img.php?id=1335297&img=bg14.png)
20
y To set brightness of the screen, tap on .
y To go back to the photo browser, tap on the Back icon .
File Explorer
The file browser gives you the possibility to navigate the file system of this device
internal memory and memory card. Tap on the Application Tab to display
all applications, and then select “Explorer” to enter the file explorer mode.
Navigate through Files and Folders
y You can drag your finger up and down to scroll the file
list up and down.
y To open a file or folder, tap on the file/folder.
y Tap on the menu icon , you can manage the
applications (see details in the “Manage Application”
section).
y You can go back or forward one level in the interface by
tapping on the Back icon or Next icon .
y You can go back one level in the directory by tapping on
the LevelUp button .
y Wherever you are in the interface, you can go back
directly to the Home screen by tapping on the Return
icon or Home icon .
y Tap on the Home icon to go to the root directory.
Using the Toolbar
You can use the toolbar to navigate through your device’s internal memory/ memory
card, delete or copy files.
Home Go to the Home Screen.
LevelUp Go back one level in the directory.
Multi Select more than one file together.
Editor Copy, delete, move, paste or rename the file or folder.
Back Go back one level in the interface.
Next Go forward one level in the interface.
Copy/Move Files and Folders
(1) In the file list, scroll up and down by sliding your finger to
select the file/folder that you want to copy or move.
(2) Hold your tap on the selected file/folder until a pop-up menu
Tapping on the grey area
can hide/display the
toolbar.
Sliding your finger on the toolbar can scroll through all tools.
![](/img.php?id=1335297&img=bg15.png)
21
appears.
(3) Select “Copy” or “Move” from the pop-up menu.
(4) Navigate to the location where you wish to copy or move the file/folder to.
(5) Select the Editor icon from the toolbar and then choose “Paste”.
Delete Files and Folders
(1) In the file list, scroll up and down the list by sliding finger to select the file/folder
that you want to delete.
(2) Hold your tap on the selected file/folder until a pop-up menu appears.
(3) Select “Delete” from the pop-up menu, then select “Delete” to confirm or
“Cancel” to quit.
Rename Files and Folders
(1) In the file list, scroll up and down the list by sliding finger to select the
file/folder that you want to rename.
(2) Hold your tap on the selected file/folder until a pop-up menu appears.
(3) Select “Rename” from the pop-up menu.
(4) Tap on the inputting field to display the virtual keyboard, and then choose
letters from the virtual keyboard to rename the file/folders.
(5) Tap on “OK” to confirm the new name.
Select Multiple Items
You can select more than one file or folder together.
(1) In the top toolbar, tap on the Multi icon “ ”.
(2) Tap the files/folders you want to choose. The file/folder name turns red when
selected. (To deselect the file/folder, tap on it again. )
(3) Once you finished selection, you can delete, copy or move the selected files by
tapping on the Editor icon .
E-mail
This device has pre-installed an E-mail application. You can send or receive e-mails
from the Internet at any time with This device. Make sure you have an internet
connection before using the email service.
Tap on the Application Tab to display all applications, and then select
“Email” to launch the email application. You should enter the inbox if you have set up
an email account. Otherwise, set up an account first.
Setup a Email Account
First you need to setup an E-mail account for receiving or sending emails.
(1) You are prompted to setup an account once you start up the email application.
Tap on “Next” to start email setting.
(2) Input your email address and login password. You can set the account as default
by selecting the option “Send email from this account by default”. Then tap on
“Next” to continue.
(3) Type in required information for setting up the PO3/IMAP server. You can get the
information from the service provider, network administrator or the Internet.
(4) Tap on “Next” to continue after you set up the POP3 server. This device will
check the server settings and will proceed to the IMAP server setting if the setting
![](/img.php?id=1335297&img=bg16.png)
22
is correct. Setup the IMAP server as you do to POP3 server. Please note in the
“IMAP Server” field, you should input “imap.+ domain name”.
(5) This device will check the settings. When it prompts you that “Your account is set
up, and email is on its way”, your account is set up successfully.
(6) Input your name to be displayed in every email and then tap on “Done” to finish.
Note: If you have more than one account, every time when you start up the email
application, you enter the default email account.
Manage Accounts
You can setup more than one account and manage these accounts by checking
information about the account, adding another account or deleting an account.
Add another Account
Following these steps to add another account if you want.
(1) Launch the email application and then tap on the Menu icon to display the
menu item. Choose “Accounts” to display accounts.
(2) Tap on the Menu icon to display the menu item, and then choose “Add
account”.
(3) Follow the steps of setting up a Email Account to add an account.
Delete a Email Account
(1) When you are in the email box, tap on the Menu icon to display the menu
items.
(2) Tap on “Accounts” to display all email accounts.
(3) Hold your tap on the account that you want to delete until a menu pop up.
(4) Tap on “Remove Account”,and then tap on “OK” to confirm.
Check the Account Setting
(1) When you are in the email box, tap on the Menu icon to display the menu
items.
(2) Tap on “Accounts” to display all email accounts.
(3) Hold your tap on the account that you want to delete until a menu pop up.
(4) Tap “Account settings”,and then you should see all setting information about the
account. You can edit these settings as you want.
View Emails
You should enter your mailbox when you start up the email application.
y In the mailbox, you can slide your finger up and down to scroll through the email
list.
y Tap on an email to open it.
y Holding your tap on the email can display a menu. With the menu, you can open,
reply, forward or delete the email.
Email Menu Items
In the email list, tap on the Menu icon to display the menu.
Refresh Refresh the emails.
Compose Compose a new email.
Accounts View all email accounts.
Account Settings Check your account settings.
![](/img.php?id=1335297&img=bg17.png)
23
Manage Applications
This device provides support to many useful third-party applications. You can
purchase the applications to add more functions to your device. They are available
online at the Internet or directly on your product.
Pre-installed Applications
The device has pre-installed applications when it was manufactured. You can see
them by tapping Application Tab . They are video player, audio player,
photo viewer, alarm clock, calculator, calendar etc.
Install Applications
You can install applications manually following these steps:
(1) Download the installation file to your computer. Make sure the file is in format
of .apk which is supported by this device system.
(2) Connect this device to computer with the USB cable.
(3) Copy the installation file to this device.
(4) Disconnect this device form the computer.
(5) Turn on this device and enter the file explorer mode with the Explorer.
(6) Locate the installation file and open it.
(7) Follow the on-screen instructions to install the application.
(8) Once the application is installed successfully, you can find it in the application tab.
Uninstall Applications
(1) Display all applications by tapping on Application Tab .
(2) Select “Settings”, and then select “Applications”.
(3) Select “Manage Applications”.
(4) Tab on the application that you want to uninstall.
(5) Tab on “Uninstall” to uninstall the application.
Note: You cannot uninstall the pre-installed applications.
System Settings
In the Home screen, tap on “Settings” and choose a category: “Networks Controls”,
“Sound & Display”, “Date & Time”, etc.
y When a down arrow appears on the right of a parameter, this means that this
setting includes sub-parameters. Tap on it to reveal the list of sub-parameters.
y When a check box appears on the right of a parameter, tap on it to enable or
disable this option.
y When it is possible, you can use your finger to scroll the screen up and down to
reveal settings that you don’t initially see.
y When you have finished adjusting your settings, tap on the Back icon to go
back to the list of settings, or tap on the Home icon to go directly to the Home
screen. Your settings are saved instantly.
Networks
Controls
This menu allows you to manage your Wi-Fi and Bluetooth
connections as well as set up the Airplane mode.
Wi-Fi – tap on this line to enable or disable the Wi-Fi
connection.
![](/img.php?id=1335297&img=bg18.png)
24
Wi-Fi settings – allows you to set up and manage your
Wi-Fi networks.
Sound &
Display
Sound settings:
Media volume – Sets the volume for music and videos.
You can also adjust the sound by using the Volume buttons,
on the top of the device.
Notification Ringtone – Set your default notification
ringtone.
Audible selection – enables/disables the touchscreen click
sound.
SD card notifications – Disable SD card notification
sounds.
Display settings:
Animation – enables/disables the display of animations
when opening and closing applications.
Brightness – allows you to adjust the brightness of the
screen.
Screen timeout – allows you to adjust the delay before the
screen automatically turns off and locks itself. To turn the
screen back on, press the Power button once, and press it
again to unlock the screen.
Security &
Location
This screen gives you the possibility to allow certain
Android™ applications to determine your current location
via the WiFi or the GPS. You can also define a screen
unlock pattern and other security parameters.
Applications This screen allows you to manage your Android™
applications. You can view information about all the
applications installed on your device.
SD card &
MID Storage
This setting allows you un-mount the SD card or check SD
card and internal storage space.
Date & Time This setting allows you set up the date, time, time zone and
formats.
Locale &
Text
Set your preferred language and region, and configure text
settings for faster and more accurate text input.
Touch Panel
calibration
If the touch-screen is not responding properly, use this
setting and follow the instructions on the screen.
Update
Media
Library
Update the media library of this device manually.
About MID Display information about this device system.
25
Troubleshooting
Reset this device
y In the event that this device freezes, you can force the device to shut down
by holding the Power button for 15 seconds.
y Only if the Power button does not reset your device, then should you use
the “pinhole reset” button, located on the back the device.
Touch-screen Problems
If the touch-screen is not responding properly try to go to the “Touch-Screen
Calibration” settings screen.
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
CE in which countries where the product may be used freely: Germany, UK,
![](/img.php?id=1335297&img=bg1a.png)
26
Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark,
Luxembourg, Austria, Finland, Sweden, Norway and Iceland. France: except
the channel 10 through 13, law prohibits the use of other channels.
Specifications
NEXTBOOK Configurations
CPU
Based on ARM926EJ (dual-core)
Main CPU frequency:600MHz
Auxiliary CPU Frequency(DSP digital command control):550MHz
SDRAM 2X64MB
Built-in
operating
system
Android OS 1.5 or above
Hardware IBM PC or compatible PC, Note-book or Macintosh with USB port
Internal
Memory NAND Flash: 512MB,1GB,2GB,4GB,8GB,16GB(optional)
Memory Card
type
SD card: 1GB, 2GB, 4GB (SDHC), 8GB(SDHC),
16GB(SDHC)(optional)
System Requirements
Operation
System Windows2000/XP/Vista/windows 7and MAC OS 10.4 or above
USB Interface USB2.0 High speed
Features
Output Port 3.5mm earphone port, built-in speakers
Input Method Android keyboard, Google keyboard
E-book Format EPUB, PDF.
Audio
MP3(MPEG1/2/2.5 Audio Layer 1/2/3);
WMA(Version 4,4.1,7,8,9)
WAV(MS-ADPCM,IMA-ADPCM,PCM)
APE(Version 3.95,3.97,3.98,3.99,normal and fast except high and
extra high)
FLAC(FLAC Audio)
AAC(ADIF ,ATDS Header AAC-LC and AAC-HE ) (For license)
OGG
Video
Format
AVI(Xvid, Divx 4/5/6 except GMC&QPEL, Divx for License, Audio
Codec:MP3, AC3)
RM/RMVB(Real Video Codec 8/9/10 except G2, Audio Codec: Real
Audio)
FLV( Sonnati H.263, H.264 except O2 VP6) (For license)
MKV(H.264, MPEG4, XVID, DIVX4/5/6)
MOV(MPEG4, H.264, Audio Codec:MP3)
![](/img.php?id=1335297&img=bg1b.png)
27
Photo Format JPEG, BMP, GIF
WIFI Available
Language Multinational languages
Technical Parameter
Read speed 8.7-9MB/S(MLC flash)
Write speed 4.5-4.8MB/S(MLC flash)
SD read/write
speed Read speed:2.5-4MB/S; Write speed:1.5-3MB/S
Audio Bit Rate
MP3: 8~320Kbps
WMA: 8~320Kbps
OGG: Q1- Q10
Video
Resolution
AVI(Max.1280X720);RM/RMVB(Max.1280X720);FLV(Max.1280*720);
MKV(Max. 1280X720);MOV(Max. 1280X720)
Video Bit rate
Max. 6Mbps (MPEG4, XVID, DIVX4/5/6);
Max. 2.5Mbps (H.264, Real video 8/9/10);
Max. 2Mbps (Sorenson H.263).
Resolution JPEG(Baseline)(Max.8000*8000),GIF(Static)(Max.1000*1000)
Recording
format 3gpp(general quality:6kbps/8kHz)
Network
Connection
Media
WiFi (802.11 b/g)
Battery
Charge Time About 5 Hours
Battery Life
About10 hours of music playback;
About 6 hours of video playback;
About 6 hours of web browsing.
Display 7-inch TFT LCD, Touchpad (resistive touch pad), 800X480 pixel.
SNR 90dB above
Frequency
Response
Range
20Hz—20KHz
Power Supply Rechargeable lithium-ion polymer battery;
AC Adapter: AC Input 100-240V~50/60Hz, DC Output 5V/2A
Physical Parameters
Storage Temp. -20℃ ~ +65℃
Ambient
Tem p. 0℃ ~ +50℃
Operation
Relative
Humidity
20% ~ 90%(40℃)
Storage
Relative
Humidity
20% ~ 93%(40℃)
