ZTE Z753G WCDMA/GSM(GPRS) Dual-Mode Digital Mobile Phone User Manual ZTE T22
ZTE Corporation WCDMA/GSM(GPRS) Dual-Mode Digital Mobile Phone ZTE T22
ZTE >
User manual
1
Z753G
WCDMA/GSM Mobile Phone
User Manual
![](/img.php?id=2460374&img=bg2.png)
2
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep
your device in its best condition, please read this manual and
keep it for future reference.
Copyright
Copyright © 2014 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced, translated
or used in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
This manual has been designed with the utmost care to ensure
the accuracy of its content. However, all statements, information
and recommendations contained therein do not constitute a
warranty of any kind, either expressed or implied. Please refer to
For Your Safety to be sure to use your phone properly and safely.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (www.ztedevice.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
![](/img.php?id=2460374&img=bg3.png)
3
damages caused by unauthorized modifications of the software.
Images and screenshots used in this manual may differ from the
actual product. Content in this manual may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of the ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC logo is a trademark of the SD-3C, LLC.
Qualcomm® Snapdragon™ processors are products of
Qualcomm Technologies, Inc.
Qualcomm and Snapdragon are trademarks of Qualcomm
Incorporated, registered in the United States and other countries.
Used with permission.
Other trademarks and trade names are the property of their
respective owners.
Version No.: R1.0
Edition Time : November 4, 2014
![](/img.php?id=2460374&img=bg4.png)
4
Contents
Getting Started ....................................................... 11
Getting to Know Your Phone ............................................. 11
Knowing the Keys .............................................................. 13

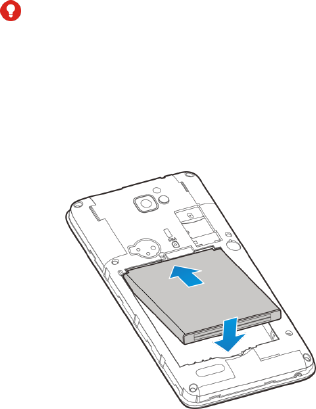

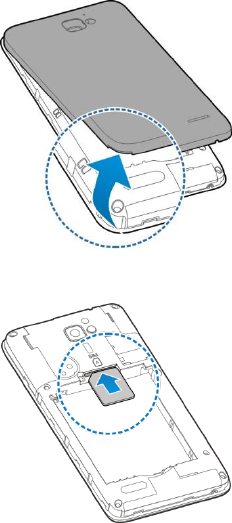

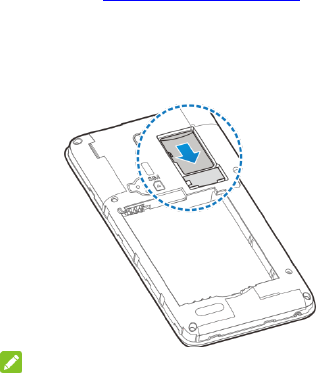

Installing the micro-SIM Card and Battery ......................... 13
Installing the microSDHC™ Card ...................................... 16
Charging the Battery.......................................................... 17
Extending the Battery Life ................................................. 19
Powering On/Off ................................................................ 19
Setting Up for the First Time .............................................. 19
Locking/Unlocking the Screen and Keys ........................... 20
Using the Touch Screen .................................................... 21
Getting to Know the Home Screen .................................... 22
Personalizing .......................................................... 24
Changing the System Language ....................................... 24
Setting the Date and Time ................................................. 24
Changing Ringtone and Notification Sound ....................... 24
Turning On/Off Touch Sound ............................................. 25
Adjusting Volume ............................................................... 25
Switching to Silent Mode ................................................... 25
Applying New Wallpapers .................................................. 26
Changing Screen Brightness ............................................. 27
Protecting Your Phone With Screen Locks ........................ 27
Protecting Your Phone With Encryption ............................. 28
5
Knowing the Basics ............................................... 30
Monitoring the Phone Status ............................................. 30
Managing Notifications ...................................................... 31
Managing Shortcuts and Widgets ...................................... 34
Organizing With Folders .................................................... 35
Rearranging the Favorites Tray ......................................... 36
Entering Text ...................................................................... 36

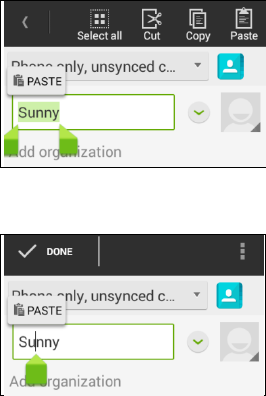

Editing Text ........................................................................ 39
Opening and Switching Apps ............................................. 41
Connecting to Networks and Devices .................. 42
Connecting to Mobile Networks ......................................... 42
Connecting to Wi-Fi® ......................................................... 43
Connecting to Bluetooth® Devices ..................................... 46
Connecting to Your Computer via USB .............................. 48
Connecting to Virtual Private Networks.............................. 50
Phone Calls ............................................................ 53
Placing and Ending Calls ................................................... 53
Answering or Rejecting Calls ............................................. 54
Working With the Call Log ................................................. 54
Calling Your Contacts ........................................................ 56
Checking Voicemail ........................................................... 56
Using Options During a Call............................................... 57
Managing Multi-party Calls ................................................ 57
Adjusting Your Call Settings ............................................... 59
People ..................................................................... 65
6
Checking Contact Details .................................................. 65
Adding a New Contact ....................................................... 65
Setting Up Your Own Profile .............................................. 66
Importing, Exporting, and Sharing Contacts ...................... 66
Working With Favorite Contacts ........................................ 68
Working With Groups ........................................................ 69
Searching for a Contact ..................................................... 70
Editing Contacts ................................................................ 71
Accounts................................................................. 73
Adding or Removing Accounts .......................................... 73
Configuring Account Sync ................................................. 74
Email ....................................................................... 76
Setting Up the First Email Account .................................... 76
Checking Your Emails ........................................................ 76
Responding to an Email .................................................... 77
Writing and Sending an Email ........................................... 78
Adding and Editing Email Accounts ................................... 79
Changing General Email Settings ..................................... 80
Gmail™ ................................................................... 81
Opening Your Gmail Inbox ................................................. 81
Switching Accounts ............................................................ 81
Writing and Sending a Message ........................................ 82
Replying to or Forwarding a Message ............................... 82
Working With Received Attachments ................................. 83
Working With Labels .......................................................... 83
7
Changing Gmail Settings ................................................... 84
Messaging .............................................................. 85
Opening the Messaging Screen ......................................... 85
Sending a Message ........................................................... 85
Replying to a Message ...................................................... 86
Forwarding a Message ...................................................... 86
Copying a Message ........................................................... 87
Changing Message Settings .............................................. 87
Calendar ................................................................. 88
Viewing Your Calendars and Events .................................. 88
Creating an Event .............................................................. 89
Editing or Deleting an Event .............................................. 90
Changing Calendar Settings .............................................. 90
Google+™ ............................................................... 91
Getting Started With Google+ ............................................ 91
Changing Google+ Settings ............................................... 92
Browser .................................................................. 93
Opening the Browser ......................................................... 93
Downloading Files ............................................................. 94
Changing Browser Settings ............................................... 94
Maps ....................................................................... 95
Activating Location Services .............................................. 95
Getting Your Location ........................................................ 95
Searching for a Location .................................................... 96
8
Getting Directions to Your Destination ............................... 96
Google Now™ and Search .................................... 98
Enabling Google Now ........................................................ 98
Searching With Text ........................................................... 98
Searching by Speaking ...................................................... 99
Changing Search Settings ................................................. 99
Camera .................................................................. 100
Capturing a Photo ........................................................... 100
Recording a Video ........................................................... 101
Customizing Camera Settings ......................................... 102
Gallery ................................................................... 104
Opening Gallery .............................................................. 104
Working With Albums ...................................................... 104
Working With Pictures ..................................................... 105
Retouching Your Pictures ................................................ 106
Playing Videos ................................................................. 107
Music ..................................................................... 108
Copying Music Files to Your Phone ................................. 108
Viewing Your Music Library ............................................. 109
Set a Song as the Default Ringtone ................................ 109
Playing Music .................................................................. 110
Managing Playlists............................................................111
Play Music ............................................................ 112
Playing Your Music .......................................................... 112
9
Managing Playlists ........................................................... 114
Video Player ......................................................... 115
Opening the Video Library ............................................... 115
Playing and Controlling Videos ........................................ 115
Managing Video Files ...................................................... 115
Sound Recorder ................................................... 117
Recording a Voice Memo ................................................. 117
Playing a Voice Memo ..................................................... 117
More Apps ............................................................ 119
Clock ................................................................................ 119
Calculator ........................................................................ 120
Chrome™ ........................................................................ 120
Downloads ....................................................................... 121
File Manager .................................................................... 121
Note ................................................................................. 121
Task Manager .................................................................. 122
YouTube™ ....................................................................... 122
Google Play™ Store ............................................ 123
Browsing and Searching for Apps .................................... 123
Downloading and Installing Apps ..................................... 123
Creating a Google Wallet™ Account ................................ 124
Requesting a Refund for a Paid App ................................ 125
Managing Your Downloads .............................................. 125
Settings ................................................................ 127
10
General Settings .............................................................. 127
Wireless and Networks .................................................... 130
Device ............................................................................. 131
Personal .......................................................................... 132
Accounts .......................................................................... 134
System ............................................................................ 135
Upgrading the Phone Software ........................... 136
Troubleshooting ................................................... 137
For Your Safety..................................................... 142
General Safety ................................................................ 142
RF Exposure Information (SAR) ...................................... 143
FCC Regulations: ............................................................ 145
Hearing Aid Compatibility (HAC) regulations for Mobile
phones ............................................................................. 147
Distraction ....................................................................... 148
Product Handling ............................................................. 149
Electrical Safety ............................................................... 153
CTIA Requirements ......................................................... 154
Radio Frequency Interference ......................................... 155
Explosive Environments .................................................. 157
![](/img.php?id=2460374&img=bgb.png)
11
Getting Started
Getting to Know Your Phone
Touch Screen
Recent Apps Key
Earpiece
Home Key
Back Key
Proximity & Light
Sensor
Front Camera
Indicator Light
Volume Key
![](/img.php?id=2460374&img=bgc.png)
12
Charging/
micro-USB Jack
Power Key
Back Camera
Flash
Headset Jack
Back Cover
Speaker
Speaker
Microphone
![](/img.php?id=2460374&img=bgd.png)
13
Knowing the Keys
Key
Function
Power Key
Press and hold to turn on or off Airplane
mode, enable silent mode, vibration mode or
sound, restart the phone, or to power off.
Press to switch your phone to Sleep mode or
wake it up.
Back Key
Touch to go to the previous screen.
Home Key
Touch to return to the Home Screen from
any application or screen.
Touch and hold to access Google search.
Recent App
Key
Touch to see recently used applications.
Volume Up/
Down
Press or hold to turn the volume up or down.
Installing the micro-SIM Card and
Battery
Switch off your phone before installing or replacing the battery or
the micro-SIM card.
1. Insert your fingernail into the slot at the bottom left of the back
cover and lift it up gently.
![](/img.php?id=2460374&img=bge.png)
14
2. Hold the micro-SIM card with the cut corner oriented as
shown and slip it into the card slot.
![](/img.php?id=2460374&img=bgf.png)
15
WARNING!
To avoid damage to the phone, do not use any other kind of
SIM card, or any non-standard micro-SIM card cut from a SIM
card. You can get a standard micro-SIM card from your
service provider.
3. Insert the battery by aligning the metal contacts on the
battery with the metal contacts in the battery compartment.
Gently push down on the battery until it clicks into place.
4. Align the back cover with the back of the phone and press the
cover back into place. Ensure that all the tabs are secure and
there are no gaps around the cover.
![](/img.php?id=2460374&img=bg10.png)
16
Installing the microSDHC™ Card
The microSDHC card can be installed and removed while the
phone is turned on. Unmount the microSDHC card before
removing it.
1. Remove the back cover.
2. Hold your microSDHC card with the metal contacts facing
down and slide it in.
NOTE:
Some applications may require a microSDHC card to work
normally or may store certain data on it. Therefore, it is
recommended that you keep a microSDHC card installed and
not remove or replace it randomly.
![](/img.php?id=2460374&img=bg11.png)
17
3. Replace the back cover.
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
If the battery is low, there will be a pop-up message on the
screen. As you charge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
WARNING!
Use only ZTE-approved chargers and cables. The use of
unapproved accessories could damage your phone or cause the
battery to explode.
1. Connect the adapter to the charging jack. Ensure that the
adapter is inserted with the correct orientation. Do not force
the connector into the charging jack.
![](/img.php?id=2460374&img=bg12.png)
18
2. Connect the charger to a standard AC wall outlet. If the phone
is on, you’ll see a charging icon, such as or , appear on
the status bar.
3. Disconnect the charger when the battery is fully charged.
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try again
after charging the phone for at least 10 minutes. Contact
customer service if you still cannot power on the phone after
prolonged charging.
![](/img.php?id=2460374&img=bg13.png)
19
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth and Wi-Fi
usage and GPS functionality can drain your battery. You can
follow the helpful tips below to conserve your battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn auto-sync, Wi-Fi, and Bluetooth off when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location; each query drains your battery.
Powering On/Off
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the
options menu. Touch Power off and then touch OK.
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Settings – Personal – Backup and
Reset), you need to do some settings before using it.
1. Touch the language field to select the language you want to
use and then touch Start.
2. Set the date, time, and time zone, or use date and time data
![](/img.php?id=2460374&img=bg14.png)
20
provided by the network. Then touch Next.
3. Touch New to create a Google account or touch Existing to
sign in to your account.
You can also touch Not now to set up an account later.
4. Configure the Google location options and touch Next.
5. Enter your name, which the phone uses to personalize some
apps, and touch .
6. You will be prompted to accept the terms of Google service.
Touch Next to continue.
7. Touch Finish to complete the setup.
NOTE:
If the SIM is not installed, the phone would prompt you to connect
to a Wi-Fi network before asking you to sign in to a Google
account.
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
the phone into sleep mode) when not in use and to turn the
screen back on and unlock it when you need it.
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
Key.
![](/img.php?id=2460374&img=bg15.png)
21
NOTE:
To save battery power, the phone automatically turns off the
screen after a certain period of time when you leave it idle. You
will still be able to receive messages and calls while the phone
screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Touch and hold any blank area of the screen.
NOTE:
If you have set an unlock pattern, PIN or password for your
phone (see the chapter Personalizing – Protecting Your Phone
With Screen Locks), you’ll need to draw the pattern or enter the
PIN/password to unlock your screen.
Using the Touch Screen
Your phone’s touch screen lets you control actions through a
variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
onscreen items such as application and settings icons, or
press onscreen buttons, simply touch them with your finger.
Touch and Hold
To open the available options for an item (for example, a
message or link in a Web page), touch and hold the item.
22
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag
To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone
sideways.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding application icons, shortcuts, folders,
widgets, and more. Your home screen extends beyond the initial
screen. Swipe the screen left or right to display additional
screens.
![](/img.php?id=2460374&img=bg17.png)
23
Status &
Notifications
Wallpaper
Favorite Tray
Shortcuts
Shortcut
Google Search
![](/img.php?id=2460374&img=bg18.png)
24
Personalizing
Changing the System Language
1. Touch the Home Key > > Settings > Language &
input > Language.
2. Select the language you need.
Setting the Date and Time
1. Touch the Home Key > > Settings > Date & time.
2. Uncheck Automatic date & time and Automatic time zone
if you want to set the date, time and time zone by yourself.
3. Set the date, time, time zone, and date/time format.
Changing Ringtone and Notification
Sound
You can customize the default ringtone for incoming calls and the
default notification sound quickly.
1. Touch the Home Key > > Settings > Sound.
2. Touch Phone ringtone or Default notification sound.
3. Scroll through the ringtone list and select the ringtone you
want to use.
4. Touch OK.
![](/img.php?id=2460374&img=bg19.png)
25
NOTE:
See chapter People – Editing Contacts – Set a Ringtone for a
Contact for how to assign a special ringtone to an individual
contact.
Turning On/Off Touch Sound
1. Touch the Home Key > > Settings > Sound.
2. Check or uncheck Touch sounds.
Adjusting Volume
1. Touch the Home Key > > Settings > Sound >
Volumes.
2. Drag the sliders to adjust the volume for each type of audio.
3. Touch OK to save.
NOTE:
You can adjust the media volume when a media application is in
use by pressing the Volume Up/Down Key. If no media
application is active, press the Volume Up/Down Key to adjust
ringtone volume (or the earpiece volume during a call).
Switching to Silent Mode
You can set the phone to silent mode by using one of the
following methods.
Press and hold the Power Key and then touch to enable
![](/img.php?id=2460374&img=bg1a.png)
26
silent mode, touch to enable silent mode with vibration,
or touch to disable silent mode.
Keep pressing the Volume Down Key when no media
application is active. When the icon appears on the
status bar, the phone is set to silent mode with vibration.
When the icon appears on the status bar, the phone is in
silent mode.
Touch the Home Key > > Settings > Sound > Silent
mode, and touch Vibrate or Mute.
Applying New Wallpapers
You can set the wallpaper for the Home Screen or Lock Screen.
1. From the home screen, tap and hold any blank area of a
home screen.
2. Tap Wallpaper.
3. Tap Wallpaper for home screen or Wallpaper for lock
screen.
4. Select a wallpaper source from Gallery, Live, Photos,
or Wallpapers and tap the image or animation you want
to use as the wallpaper.
5. For Gallery images, tap OK at the top of the screen. For Live
or Wallpapers, tap Set wallpaper. For Photos, tap SET
WALLPAPER.
NOTE:
Live Wallpapers and Photos are not available for the Lock
Screen.
![](/img.php?id=2460374&img=bg1b.png)
27
Changing Screen Brightness
1. Touch the Home Key > > Settings > Display >
Brightness.
2. Touch AUTO to make the phone adjust the screen brightness
automatically, or drag the slider to adjust the brightness
manually.
Protecting Your Phone With Screen
Locks
You can protect your phone by creating a screen lock. When it is
enabled, you need to touch and hold certain icon, look at the front
camera, draw a pattern or enter a numeric PIN or a password to
unlock the phone’s screen and keys.
1. Touch the Home Key > > Settings > Security.
2. Touch Screen lock.
3. Touch Long Press, Pattern, PIN or Password.
Touch Long press to enable screen lock and allow
unlocking with a ‘touch and hold’ gesture. You can unlock
the screen by touching and holding any blank area of the
screen.
If you touch Pattern, you’re guided to create a pattern you
must draw to unlock the screen. The first time you do this,
a short tutorial about creating an unlock pattern appears.
Then you’re prompted to draw and redraw your own
pattern.
![](/img.php?id=2460374&img=bg1c.png)
28
If you touch PIN or Password, you’re prompted to set a
numeric PIN or a password you must enter to unlock your
screen.
NOTE:
Screen lock options are listed in the approximate order of the
strength of their security, starting with None and Long press,
which provide no security. A pattern provides minimal security,
although it can be more convenient than the stronger options.
Protecting Your Phone With Encryption
You can encrypt all the data on your phone: Google Accounts,
application data, music and other media, downloaded information,
and so on. If you do, you must enter a numeric PIN or a
password each time you power on your phone.
WARNING!
Encryption is irreversible. The only way to revert to an
unencrypted phone is to perform a factory data reset which
erases all your data.
Encryption provides additional protection in case your phone is
stolen and may be required or recommended in some
organizations. Consult your system administrator before turning it
on. In many cases the PIN or password you set for encryption is
controlled by the system administrator.
Before turning on encryption, prepare as follows:
Set a lock screen PIN or password.
Charge the battery.
![](/img.php?id=2460374&img=bg1d.png)
29
Keep the phone connected to the charger.
Schedule an hour or more for the encryption process. You
must not interrupt it or you will lose some or all of your data.
When you're ready to turn on encryption:
1. Touch the Home Key > > Settings > Security >
Encrypt phone.
2. Read the information about encryption carefully.
The Encrypt phone button is dimmed if your battery is not
charged or your phone is not plugged in.
If you change your mind about encrypting your phone, touch
the Back Key.
WARNING!
If you interrupt the encryption process, you will lose data.
3. Touch Encrypt phone.
4. Enter your lock screen PIN or password and touch Next.
5. Touch Encrypt phone again.
The encryption process starts and displays its progress.
Encryption can take an hour or more, during which time your
phone may restart several times.
When encryption is completed, you're prompted to enter your
PIN or password.
Subsequently you must enter your PIN or password each time
you power on your phone in order to decrypt it.
![](/img.php?id=2460374&img=bg1e.png)
30
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
GPRS connected
No signal
EDGE connected
Signal strength
3G connected
Mobile data in use
HSPA connected
No SIM card installed
Flight mode
Alarm set
Battery dead
Ringer off
Battery low
Vibrate mode
Battery partially drained
Bluetooth on
Battery full
Wi-Fi in use
/
Battery charging
Wired headset connected
![](/img.php?id=2460374&img=bg1f.png)
31
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
/
New SMS/MMS
microSDHC card unmounted
New email
microSDHC card removed
New Gmail
message
Upcoming event
Problem with
SMS/MMS delivery
Call on hold
Missed call
New Wi-Fi network detected
Call in progress
Downloading data
USB connected
Sending data
/
Song is playing
GPS on
Updates available
![](/img.php?id=2460374&img=bg20.png)
32
Open/Close the Notification Panel
Notifications report the arrival of new messages, calendar
events, and alarms, as well as ongoing events. You can open
the notification panel to view the details of notifications.
To open the notification panel, swipe your finger down from
the top of the screen.
To close the notification panel, swipe your finger up from the
bottom of the screen or touch the Back Key.
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or
remove the notifications. The notification panel also supports
expandable notifications that let you perform additional actions
right from the notification itself.
To respond to a notification, just touch it.
To remove a notification, swipe it left or right.
To remove all notifications, touch in the top right corner.
Touch and hold a notification and then touch App info to
identify the application that created it. To turn off notifications
from that application if needed, uncheck Show notifications
in the App info screen.
Most apps that send notifications, such as Gmail, have
notification settings that you can adjust.
NOTE:
If you turn off notifications for an app, you may miss its important
![](/img.php?id=2460374&img=bg21.png)
33
alerts and updates. The notifications of some apps cannot be
turned off.
Use Quick Settings
The Quick Settings in the notification panel make it convenient to
view or change the most common settings for your phone.
In the notification panel, touch at the top of the notifications
list to get to the quick settings menu.
OWNER: Touch to add your personal information.
BRIGHTNESS: Touch to adjust the screen brightness.
SETTINGS: Touch to the setting menu.
WI-FI: Touch to turn on or off Wi-Fi.
DATA: Touch to enable or disable data access over the
mobile network.
AUTO ROTATE: Touch to turn on or off the Auto-rotate
feature.
BATTERY: Touch to see the battery information.
AIRPLANE: Touch to turn on or off the airplane mode.
BLUETOOTH: Touch to turn on or off Bluetooth.
LOCATION: Touch to turn on or off the GPS function.
SOUND: Touch to switch between vibration and sound.
SYNC: Touch to turn on or off account synchronization.
FLASHLIGHT: Touch to turn on or off flashlight.
![](/img.php?id=2460374&img=bg22.png)
34
Managing Shortcuts and Widgets
Add Shortcuts and Widgets
1. Touch and hold any blank area of a Home Screen.
2. Touch Widgets to view the available widgets.
3. Touch and hold a widget and drag it to the review area to add
it to a Home Screen.
Move Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the Home Screen.
2. Drag it to the place you need.
Remove Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the Home Screen.
2. Drag it to to remove it.
Adjust Widget Size
1. Touch and hold a widget on the Home Screen and then
release it.
2. An outline appears around the widget. Drag the outline to
resize the widget.
NOTE:
Not all widgets can be resized.
![](/img.php?id=2460374&img=bg23.png)
35
Organizing With Folders
You can create folders on the Home Screen and add several
shortcuts to a folder.
Create a Folder
1. Touch and hold the shortcut on the Home Screen you want to
add into a folder until appears.
2. Drag the shortcut to and release it. A new folder
will be created and the shortcut is added into the folder.
Rename a Folder
1. Touch a folder to open it.
2. Touch the folder name field and enter a new name.
Add Shortcuts to a Folder
1. Touch and hold a shortcut and then drag it onto a folder icon.
2. Release the shortcut and it will be added into the folder.
Remove Shortcuts From a Folder
1. Touch a folder to open it.
2. Touch and hold the shortcut you want to remove and then
drag it to the Home Screen.
3. Release the shortcut and it will be removed from the folder.
![](/img.php?id=2460374&img=bg24.png)
36
Rearranging the Favorites Tray
The Home Screen includes a customizable favorites tray at
the bottom visible from all Home Screens. You can drag apps,
shortcuts, folders, and other priority items in or out of the
favorites tray for instant access from any Home Screen.
To remove items from the favorites tray:
Touch and hold an item in the favorites tray and drag it out of the
tray.
To add items to the favorites tray:
Touch and hold an item on the Home Screen and drag it into the
favorites tray.
If the favorites tray is full, you need to first remove an item from
the tray.
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. You can touch the Back Key to hide the
onscreen keyboard.
![](/img.php?id=2460374&img=bg25.png)
37
Google Keyboard
The Google Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the keyboard
will change from portrait to landscape. The landscape keyboard
is not supported in all applications.
Touch the alphabetic keys to enter letters. Touch and hold
some specific keys to enter associated accented letters or
numbers. For example, to enter è, touch and hold and the
available accented letters and number 3 appear. Then slide
to choose è.
Touch to use uppercase. Double-tap to lock
uppercase. This key also changes to indicate the current
![](/img.php?id=2460374&img=bg26.png)
38
case you are using: for lowercase, for uppercase,
and when locked in uppercase.
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
touch to find more. Also, often used symbols are
displayed above the keyboard.
Touch to use Google’s networked voice input.
Touch and hold to change the input languages or set up
the Google keyboard.
Google Voice Typing
Google Voice typing uses the Google voice recognition service to
convert speech to text. You must have a data connection on a
mobile or Wi-Fi network to use it.
1. Touch to access the voice typing when you are using the
Google Keyboard.
2. When you see the microphone image, speak what you want
to type.
3. You can continue entering text to keep it or to delete it.
NOTE:
Say "comma," "period," "question mark," "exclamation mark," or
"exclamation point" to enter punctuation.
![](/img.php?id=2460374&img=bg27.png)
39
Input Settings
Choose input settings by touching the Home Key > >
Settings > Language & input from the Home Screen.
In the KEYBOARD & INPUT METHODS section, you can set
the default input method and choose the settings for input
methods.
Editing Text
Move the insertion point: Touch where you want to type.
The cursor blinks in the new position, and a tab appears
below it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text.
The nearest word highlights, with a tab at each end of the
selection. Drag the tabs to change the selection.
Cut or copy: Select the text you want to manipulate. Then
touch the Cut or Copy button to cut or copy the text
to the clipboard.
Replace text with the clipboard text: Select the text you
want to replace. Then touch or PASTE.
![](/img.php?id=2460374&img=bg28.png)
40
Insert text from the clipboard: Move cursor to the insertion
point and then touch and hold the tab below the cursor.
Release the finger and touch PASTE.
![](/img.php?id=2460374&img=bg29.png)
41
Opening and Switching Apps
Open an App
1. Touch the Home Key > .
2. Slide left or right on the screen and touch an app to open it.
Switch Between Recently Opened Apps
1. Touch the Recent App Key.
A list of the names and thumbnails of apps you’ve used
recently opens. If you’ve been using more apps recently than
can fit on the screen, you can scroll the list up and down.
2. Touch a thumbnail to open that app.
NOTE:
You can swipe a thumbnail sideways to remove it from the list.
![](/img.php?id=2460374&img=bg2a.png)
42
Connecting to Networks and
Devices
Connecting to Mobile Networks
Control Mobile Data Use
To enable or disable data access:
1. Touch the Home Key > > Settings > Mobile networks.
2. Check Data enabled to enable data access over the mobile
network. Clear the check box to disable data access.
To enable always-on data access:
1. Touch the Home Key > > Settings > Mobile networks.
2. Check Always-on mobile data to allow applications to
update data automatically.
NOTE:
When you enable this option, more data traffic will be generated
for automatic updates of applications data and your phone will
consume more power.
To get data services when roaming:
1. Touch the Home Key > > Settings > Mobile networks.
2. Check Data roaming.
![](/img.php?id=2460374&img=bg2b.png)
43
NOTE:
Data roaming may incur significant roaming charges.
Select Network Mode
1. Touch the Home Key > > Settings > Mobile networks.
2. Touch Preferred network type to select the network type.
Set Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
1. Touch the Home Key > > Settings > Mobile networks >
Access Point Names.
2. Touch .
3. Touch each item to enter the information you get from your
service provider.
4. Touch > Save to complete.
NOTE:
To set the APN to default settings, touch > Reset to default.
Connecting to Wi-Fi®
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 100 meters, depending on
the Wi-Fi router and your surroundings.
![](/img.php?id=2460374&img=bg2c.png)
44
Turn Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the O position to turn on Wi-Fi.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch
Connect.
NOTE:
Your phone automatically connects to previously used Wi-Fi
networks when they are in range.
Get Notified of Open Networks
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the O position.
3. Touch > Advanced.
4. Check Network notification.
When Wi-Fi is on, you receive notifications in the Status bar
when your phone detects an open Wi-Fi network. Uncheck
the option to turn off notifications.
Add a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID) or add a Wi-Fi network when you are out of
range.
To connect to a secured network, you first need to get the
![](/img.php?id=2460374&img=bg2d.png)
45
security details from the network's administrator.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the O position.
3. Touch +.
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch Save.
Forget a Wi-Fi Network
You can make your phone forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the phone
to connect to it automatically or if it is a network that you no
longer use.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the O position.
3. Touch the Wi-Fi network name and then touch Forget.
Adjust Advanced Wi-Fi Settings
1. Touch the Home Key > > Settings > Wi-Fi.
2. Touch > Advanced to adjust the following settings.
Network notification: Get notifications in the status bar
when Wi-Fi is on and an open network is available.
Keep Wi-Fi on during sleep: Set whether to keep Wi-Fi
on in sleep mode.
![](/img.php?id=2460374&img=bg2e.png)
46
Scanning always available: Let Google’s location
service and other apps scan for networks, even when
Wi-Fi is off.
Avoid no internet connections: Only use Wi-Fi network
when the Internet connection is good.
Install certificates: Check the installed certificates.
Wi-Fi optimization: Check to minimize battery usage
when Wi-Fi is on.
MAC address: Check the MAC address.
IP address: Check the phone’s IP address.
Connecting to Bluetooth® Devices
Bluetooth® is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can exchange
information wirelessly within a distance of about 10 meters. The
Bluetooth devices must be paired before the communication is
performed.
Turn Bluetooth On/Off
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the O or I position.
When Bluetooth is on, the icon will appear in the status bar.
![](/img.php?id=2460374&img=bg2f.png)
47
Change the Device Name
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the O position if Bluetooth is off.
3. Touch > Rename phone.
4. Edit the name and touch Rename.
Pair With Another Bluetooth Device
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the O position if Bluetooth is off.
Your phone automatically scans for and displays the IDs of all
available Bluetooth devices in range. You could touch
SEARCH FOR DEVICES if you want to scan again.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and touch Pair. Alternately, enter a Bluetooth
passkey and touch Pair.
Pairing is successfully completed when the other device
accepts the connection or the same passkey is entered.
NOTE:
The Bluetooth passkey may be fixed for certain devices such as
headsets and handsfree car kits. You can try entering 0000 or
1234 (the most common passkeys) or refer to the documents for
that device.
![](/img.php?id=2460374&img=bg30.png)
48
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Touch a Bluetooth device the phone has paired with or wait
for it to search for new devices and touch one of them.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
NOTE:
If the phone has not been paired with the sending device, you
may need to touch Bluetooth > [your phone’s name] in
Settings to keep the phone detectable through Bluetooth.
2. Flick down the status bar and touch .
3. Touch Accept to start receiving the data.
Depending on your storage setting and whether a microSDHC
card is installed, received files are stored automatically in a
dedicated folder (Bluetooth, for instance) in the phone storage or
microSDHC directory. You can access them with the File
Manager app. Received contacts (vCard files) are automatically
imported to your contact list.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
![](/img.php?id=2460374&img=bg31.png)
49
transfer music, pictures, and other files in both directions. Your
phone stores these files in internal storage or on a removable
microSDHC card.
If you are using USB tethering, you must turn that off before you
can use USB to transfer files between your phone and computer.
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
2. Open the Notification panel and touch (Connected as...).
3. Choose one of the following options:
Charge only: Charge your phone via USB.
Install driver: Select this option when features (Connect
to PC software, Media device) enabled for the first time, or
when they’re unavailable.
Media device (MTP): Transfer media files on Windows®
or Mac®.
Camera (PTP): Transfer photos using camera software.
Connect With Windows Media® Player
You can sync music on your phone and the computer installed
with Windows Media Player.
1. Connect the phone with your computer via USB and choose
Media device (MTP).
2. Open Windows Media Player and synchronize music files.
![](/img.php?id=2460374&img=bg32.png)
50
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
Remove the microSDHC Card From Your
Phone
If you need to remove the microSDHC card while the phone is on,
you should unmount it first.
1. Touch the Home Key > > Settings > Storage.
2. Scroll down and touch Unmount SD card > OK.
3. The icon appears in the status bar and you can now
safely remove the microSDHC card from the phone.
Erase microSDHC Card
1. Touch the Home Key > > Settings > Storage.
2. Scroll down the screen and touch Erase external SD card >
Erase SD card > Erase everything.
CAUTION:
The formatting procedure erases all the data on the microSDHC
card, after which the files CANNOT be retrieved.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
resources inside a secured local network. VPNs are commonly
![](/img.php?id=2460374&img=bg33.png)
51
deployed by corporations, schools, and other institutions to let
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Add a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch Add VPN profile and fill in the information provided by
your network administrator.
3. Touch Save.
The VPN is added to the list on the VPN screen.
Connect to a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch the VPN that you want to connect to.
3. When prompted, enter any requested credentials, and then
touch Connect.
When you are connected, the VPN connected icon appears in
the Status bar.
Modify a VPN
1. Touch the Home Key > > Settings > More > VPN.
52
2. Touch and hold the VPN that you want to modify.
3. Touch Edit profile and edit the VPN settings you want.
4. Touch Save.
![](/img.php?id=2460374&img=bg35.png)
53
Phone Calls
You can place calls from the Phone app, the People app, or other
apps or widgets that display contact information. Wherever you
see a phone number, you can usually touch it to dial.
Placing and Ending Calls
Place a Call by Dialing
1. Touch the Home Key > > .
2. In the dialer tab, enter the phone number with the on-screen
keypad. Touch to delete incorrect digits.
NOTE:
As you enter digits, your phone searches for contacts that
match. If you see the number you want to dial, touch it to
place the call immediately without entering the rest of the
number.
3. Touch the Phone icon below the keypad to dial.
NOTE:
To make an international call, touch and hold the 0 key to enter
the plus (+) symbol. Next, enter the country code, followed by the
city/area code and then the phone number.
End a Call
During a call, touch on the screen.
![](/img.php?id=2460374&img=bg36.png)
54
Answering or Rejecting Calls
When you receive a phone call, the Incoming Call screen opens,
displaying the Caller ID or the information about the caller that
you've entered in People. You can answer or reject the call, or
reject it with a text message.
Answer a Call
When you receive a phone call, slide down to answer the
call.
NOTE:
To silence the ringer before answering the call, press the
Volume Keys up or down.
Reject a Call
When you receive a phone call, slide up to reject the call.
You can also slide up to reject the call and send a preset
text message to the caller.
NOTE:
To edit the text response from within the Phone app, touch >
Settings > Quick responses.
Working With the Call Log
The Call Log is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your Contacts.
![](/img.php?id=2460374&img=bg37.png)
55
To open the call log, touch the history tab in the Phone app.
Place a Call From the Call Log
1. Open the call log.
2. Touch a number for more information about the call, or touch
beside it to call back.
Add a Call Log Number as a Contact
1. Open the call log.
2. Touch a number to view more call information.
3. Touch .
4. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch Create new contact.
Take Other Actions on a Call Log Entry
1. Open the call log.
2. Touch a number to view more call information. While viewing
the call details, you can:
Touch the number to call it.
Touch > Edit number before call to edit the number in
the dialer before calling it.
Touch to send a message.
If the number belongs to a contact you have, touch
to view contact details.
Touch > Remove from call log to delete the call log.
![](/img.php?id=2460374&img=bg38.png)
56
Calling Your Contacts
1. Touch the Home Key > and then touch the all contacts
tab .
2. Flick the screen up or down to view all your contacts with
phone numbers.
3. Touch a contact or number to call it.
Checking Voicemail
If you have set the phone to divert calls to voicemail, callers can
leave voicemail messages when they cannot reach you. Here’s
how to check the messages they left.
1. Touch the Home Key > > .
2. Touch and hold in the dialer. If prompted, enter your
voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE:
To set your voicemail service, touch > Settings > Voicemail
in the dialer and touch the voicemail settings you want to change.
For detailed information, please contact the service provider.
![](/img.php?id=2460374&img=bg39.png)
57
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch to switch to the dialer, for example to enter a
code.
Touch to turn on or off the speaker.
Touch to hold or unhold the current call.
Touch to make another call separately from the first call,
which is put on hold.
Touch to mute or unmute your microphone.
Touch to go to contacts.
Touch to merge the separate calls into a single
conference call.
Touch to put the caller you are speaking to on hold, and
switch to the other call that has been put on hold.
Touch to end the current call.
WARNING!
Because of higher volume levels, do not place the phone near
your ear during speakerphone use.
Managing Multi-party Calls
When the call waiting and three-way call features are available,
![](/img.php?id=2460374&img=bg3a.png)
58
you can switch between two calls or set up a conference call.
NOTE:
The call waiting and three-way call features need network
support and may result in additional charges. Please contact your
service provider for more information.
Switch Between Current Calls
When you’re on a call and another call comes in, your phone
screen informs you and displays the caller ID.
To respond to an incoming call while you’re on a call:
Slide down to answer the call. (This puts the first caller on
hold and answers the second call.)
To switch between two calls:
Touch on the screen.
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
1. On the dialer screen, enter a number and touch .
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
![](/img.php?id=2460374&img=bg3b.png)
59
To end the conference call, touch .
Adjusting Your Call Settings
Set Voicemail
Touch the Home Key > > Settings > Call settings >
Voicemail.
Touch service to select voicemail service provider. Your
carrier is the default.
Touch Setup > Voicemail number to edit the voicemail
number if necessary.
Touch Sound to set the notification sound for new
voicemails.
Check Vibrate to let the phone vibrate when receiving
new voicemails
Edit Quick Response to Rejected Callers
1. Touch the Home Key > > Settings > Call settings>
Quick responses.
2. Touch the text message to edit it.
Use Fixed Dialing Numbers
Fixed Dialing Numbers (FDN) allows you to restrict outgoing calls
to a limited set of phone numbers.
![](/img.php?id=2460374&img=bg3c.png)
60
1. Touch the Home Key > > Settings > Call settings >
Fixed Dialing Numbers.
2. The following options are available:
Enable FDN: Input the PIN2 code to enable the FDN
feature.
Change PIN2: Change the PIN2 code for FDN access.
FDN list: Manage the FDN list.
NOTE:
The PIN2 code is provided by your carrier. Entering an incorrect
PIN2 code more times than allowed can get your SIM card locked.
Contact the service provider for assistance.
Set TTY Mode
Select a TTY mode for your phone to work with a teletypewriter,
or turn TTY off.
1. Touch the Home Key > > Settings > Call settings >
TTY mode.
2. Select one of the following options. Consult your
teletypewriter manufacturer’s manual if necessary.
TTY Off: Users who can hear and talk can disable TTY
support.
TTY Full: Users who cannot talk or hear may use this
mode to send and receive text messages through a TTY
device.
TTY HCO: Users who can hear, but cannot talk, may use
this mode to listen to conversation of the other party and
![](/img.php?id=2460374&img=bg3d.png)
61
respond via text messages.
TTY VCO: Users who can talk, but cannot hear, may use
this mode to talk through the phone and receive
responses via text messages.
Use Hearing Aids
1. Touch the Home Key > > Settings > Call settings.
2. Check or uncheck Hearing aids to turn on or off hearing
aids compatibility.
Set DTMF Tones
You can set the length of Dual-tone multi-frequency (DTMF)
signal tones.
1. Touch the Home Key > > Settings > Call settings >
DTMF tones.
2. Touch Normal or Long
Set Speed Dials
You can touch and hold the 1 ~ 9 key from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
To assign a speed dial key:
1. Touch the Home Key > > Settings > Call settings >
Speed dial.
2. Touch a speed dial key.
![](/img.php?id=2460374&img=bg3e.png)
62
3. Enter a phone number or select one from the contact list.
4. Touch OK
Auto Answer
1. Touch the Home Key > > Settings > Call settings >
Auto answer.
2. Slide the switch to turn on or off auto answer.
Bar Certain Calls
Call barring feature allows you to forbid certain types of calls from
your phone.
1. Touch the Home Key > > Settings > Call settings >
Call Barring Settings.
2. Set the restriction of specific types of calls from your phone.
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. Touch the Home Key > > Settings > Call settings >
Call forwarding.
2. Touch an available option ( Always forward, Forward when
busy, Forward when unanswered, or Forward when
unreachable) to enable it
Other Options
1. Touch the Home Key > > Settings > Call settings >
![](/img.php?id=2460374&img=bg3f.png)
63
Additional settings.
2. Touch Caller ID to choose whether your number is displayed
when someone receives your outgoing call. Or check Call
waiting to get notified of incoming calls during a call.
NOTE:
Please contact the service provider to check whether the caller
ID and call waiting features are available
Internet Call Settings
To add an Internet calling account:
1. Touch the Home Key > > Settings > Call settings >
Accounts.
2. Touch Add account.
3. Follow the instructions from your Internet calling service
provider to configure the settings for your account.
4. Touch Save.
To configure which calls use Internet calling:
You can configure your phone to place all calls using Internet
calling, just calls to Internet calling addresses, or to ask each time
you place a call.
1. Touch the Home Key > > Settings > Call settings.
2. Touch Use Internet calling.
3. Touch the Internet calling option you want.
To change your IMS account settings:
![](/img.php?id=2460374&img=bg40.png)
64
1. Touch the Home Key > > Settings > Call settings.
2. Touch IMS Account to View and change your IMS account
settings.
![](/img.php?id=2460374&img=bg41.png)
65
People
You can put contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home Key > . From there,
you can touch the tabs on the top of the screen to quickly switch
to the contact groups or favorite contacts .
Checking Contact Details
1. Touch the Home Key > and touch the all contacts tab
to access your contact list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
NOTE:
If you have a lot of contacts stored, you'll see a slider when you
touch the right side of the screen. To go directly to a letter, touch
and hold the slider and drag it to a letter.
Adding a New Contact
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch to add a new contact.
3. Touch the account field near the top of the screen to choose
![](/img.php?id=2460374&img=bg42.png)
66
where to save the contact. If a sync account is selected, the
contacts will be synced automatically with your account
online.
4. Enter the contact name, phone numbers, email addresses,
and other information.
5. Touch DONE to save the contact.
Setting Up Your Own Profile
You can create your own name card in your phone.
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch Set up my profile or your name, whichever is at the
top of the contact list.
3. Edit your profile information and touch DONE.
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to your SIM or microSDHC
card. This is especially useful when you need to transfer contacts
between different devices. You can also quickly share your
contacts using Bluetooth, Email, Messages, etc.
Import Contacts From the SIM Card
1. Touch the Home Key > .
![](/img.php?id=2460374&img=bg43.png)
67
2. Touch > Import/Export > Manage SIM card contacts.
3. Select an account in which to save the contacts.
4. Touch > Export to phone.
5. Touch to select the contacts you need and then touch .
Import Contacts From the microSDHC Card
1. Touch the Home Key > .
2. Touch > Import/Export > Import from storage.
3. Select an account in which to save the contacts.
4. Select the vCard file(s) in the microSDHC card and touch OK.
Export Contacts to the SIM Card
1. Touch the Home Key > .
2. Touch > Import/Export > Export to SIM card.
3. Touch OK.
Export Contacts to the microSDHC Card
1. Touch the Home Key > .
2. Touch > Import/Export > Export to storage.
3. The phone will prompt you with the name of the vCard file.
Touch OK to create the file on the microSDHC card.
![](/img.php?id=2460374&img=bg44.png)
68
Share Contacts
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch > Multi-Select.
3. Touch the contacts you want to share to select them and then
touch .
4. Choose to share the contacts via Bluetooth, Drive, Email,
Gmail or Messaging.
Working With Favorite Contacts
In the favorite contacts tab, you can find your favorite
contacts and frequently contacted contacts.
Add a Contact to Favorites
You can add the contacts you use frequently to Favorites so that
you can find them quickly.
NOTE:
Contacts on the SIM card cannot be added to Favorites.
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch a contact and then touch next to the contact
name.
![](/img.php?id=2460374&img=bg45.png)
69
Remove a Contact From Favorites
1. Touch the Home Key > and touch the favorite contacts
tab .
2. Touch a favorite contact and then touch next to the
contact name.
Working With Groups
View Your Contact Groups
1. Touch the Home Key > and touch the contact groups
tab .
2. Scroll through the list to view the preset groups and any
groups you have created.
3. Touch a group to view its members.
Set Up a New Group
1. Touch the Home Key > and touch the contact groups
tab .
2. Touch to create a new group.
3. Touch the drop-down listbox near the top of the screen, which
will be there if you have added accounts to the phone, to
choose an account for the group.
4. Enter a group name
5. Touch Add member and select the contacts you wish to be
![](/img.php?id=2460374&img=bg46.png)
70
the group members.
6. Touch .
7. If necessary, touch Default below RINGTONE to set a
special ringtone for incoming calls from the group members.
8. Touch DONE.
Delete a Group
1. Touch the Home Key > and touch the contact groups
tab .
2. Touch a group and then touch > Delete.
3. Touch OK to disband the group. The contacts in the group
will not be deleted.
Edit a Group
1. Touch the Home Key > and touch the contact groups
tab .
2. Touch a group.
3. Touch > Rename group to edit the group name. Or touch
> Multi-Select to select the members you don’t need and
remove them.
Searching for a Contact
1. Touch the Home Key > .
2. Touch the search box at the top of the screen.
![](/img.php?id=2460374&img=bg47.png)
71
3. Input the contact name you want to search for. The contacts
matched will be listed.
Editing Contacts
Edit Contact Details
1. Touch the Home Key > .
2. Touch a contact you need to edit and then touch .
3. Edit the contact and touch DONE.
Set a Ringtone for a Contact
Assign a special ringtone to a contact, so you know who is
calling when you hear the ringtone.
1. Touch the Home Key > .
2. Touch a contact you want to set a ringtone for and then touch
> Set ringtone.
NOTE:
The contact must be saved on the phone, not the SIM card.
3. Select a ringtone you like and touch OK.
Delete Contacts
1. Touch the Home Key > .
2. Touch > Multi-Select.
![](/img.php?id=2460374&img=bg48.png)
72
3. Touch to select the contacts you want to remove and then
touch .
4. Touch OK to confirm.
![](/img.php?id=2460374&img=bg49.png)
73
Accounts
Adding or Removing Accounts
You can add multiple Google Accounts and Microsoft Exchange
ActiveSync® accounts. You may also add other kinds of
accounts depending on the apps installed on your phone.
Add an Account
1. From the Home Screen, touch > Settings.
2. Touch Add account.
3. Touch the type of account you want to add.
4. Follow the onscreen steps to enter the information about the
account. Most accounts require a username and password,
but the details may vary. You may also need to obtain some
information from IT support or your system administrator.
When the account is successfully added, it is displayed in the
ACCOUNTS list.
Remove an Account
Removing an account will delete it and all information
associated with it from your phone, such as emails and
contacts.
1. From the Home Screen, touch > Settings.
2. Touch the account (such as Google).
![](/img.php?id=2460374&img=bg4a.png)
74
3. Select an exact account and touch > Remove account >
Remove account.
Configuring Account Sync
Configure Auto Sync Setting
1. Touch the Home Key > > Settings > Data Usage.
2. Touch and check or uncheck Auto-sync data.
When automatic sync is turned on, changes you make
to information on your phone or on the web are
automatically synced with each other.
When auto sync is turned off, you need to sync manually
to collect emails, updates, or other recent information.
Sync Manually
1. Touch the Home Key > > Settings.
2. Touch the type and then the account you want to sync in the
ACCOUNTS section.
3. Touch > Sync now. Or touch the types of information
you want to sync.
Change an Account’s Sync Settings
1. Touch the Home Key > > Settings.
2. Touch the account whose sync settings you want to change.
The Sync settings screen appears, showing a list of
75
information the account can sync.
3. Check or uncheck items as you need. Checked types of
information on the phone and the web will be kept in sync
when auto-sync is turned on.
![](/img.php?id=2460374&img=bg4c.png)
76
Email
Touch in the Home Screen and select Email. Use it to
receive and send emails from your webmail or other accounts,
using POP3 or IMAP, or access your Exchange ActiveSync
account for your corporate email needs.
Setting Up the First Email Account
1. When you open Email for the first time, enter your email
address and password.
2. Touch Next to let the phone retrieve the network parameters
automatically.
NOTE:
You can also enter these details manually by touching
Manual setup or when automatic setup fails.
3. Follow the on-screen instructions to finish the setup.
Your phone will show the inbox of the email account and start to
download email messages.
Checking Your Emails
Your phone can automatically check for new emails at the interval
you set when setting up the account.
You can also check new emails manually by touching in any
of the email account’s boxes. Touch Load more messages at
the bottom of the email list to download earlier messages.
![](/img.php?id=2460374&img=bg4d.png)
77
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Reply to or Forward an Email
1. Open the email you want to reply to or forward from Inbox.
2. Do the following as you need.
To reply to the sender, touch .
To reply to the sender and all recipients of the original
email, touch .
To forward the email to someone else, touch .
3. Edit your message and touch Send.
Mark an Email as Unread
You can return a read email to the unread state—for example,
to remind yourself to read it again later. You can also mark a
batch of emails as unread.
While reading a message, touch > Mark as unread.
While in a message list (for instance, the inbox), touch the
checkboxes before the messages and then touch .
Delete an Email
You can delete an email from its folder. You can also delete a
batch of emails.
![](/img.php?id=2460374&img=bg4e.png)
78
While reading a message, touch > OK.
While in a message list (for instance, the inbox), touch the
checkboxes in front of the messages and then touch >
OK.
Writing and Sending an Email
1. Open your email Inbox and touch .
NOTE:
If you have more than one email account added on the
phone, touch the sender line to select the account you want
to use for sending the message.
2. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma. You can also touch
to select recipients from your contacts.
3. Enter the email subject and compose the email text.
4. Touch > Attach file to add images, videos and other
types of files as attachments.
5. Touch Send at the top right of the screen to send the
message.
![](/img.php?id=2460374&img=bg4f.png)
79
Adding and Editing Email Accounts
Add an Email Account
After setting up your first email account (see Email – Set Up the
First Email Account), you can add more email accounts and
manage them separately.
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch ADD ACCOUNT at the top
right of the screen.
3. Follow the prompts to set up the account as you did with the
first one.
Edit an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
your email signature, and details about the servers the account
uses to send and receive mails.
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch the account whose settings
you want to change.
3. Make the changes you want and touch the Back Key when
you’re finished.
![](/img.php?id=2460374&img=bg50.png)
80
Changing General Email Settings
General settings apply to all email accounts you add.
1. Open Email to get the Inbox screen.
2. Touch > Settings > General.
3. Make the changes and touch the Back Key when you finish.
![](/img.php?id=2460374&img=bg51.png)
81
Gmail™
After you sign in to your Google account on the phone, you can
send and retrieve Gmail messages with the Gmail app.
NOTE:
This feature may not be available in certain regions or with
certain service providers.
Opening Your Gmail Inbox
Touch > Google > Gmail in the Home Screen. The Inbox
screen appears.
If you haven’t signed in, you will be prompted to do so or create
a new account.
Touch > Refresh to refresh your Inbox and download new
messages.
Switching Accounts
Gmail displays conversations, messages, and settings from
one Google account at a time. If you have signed in to more
than one Google account on your phone, you can switch
accounts and view information in each account.
1. From your Inbox, touch at the top of the screen.
2. Touch the account you want to see. The account’s Inbox will
open.
![](/img.php?id=2460374&img=bg52.png)
82
Writing and Sending a Message
1. Open your Gmail Inbox and switch to the account you want
to use for sending the message.
2. Touch .
3. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma.
4. Enter the email subject and compose the email text.
5. To attach an image, touch > Attach file.
6. Touch at the top of the screen to send the message.
Replying to or Forwarding a Message
1. Open the Gmail message you want to reply to or forward to
another person.
2. Do the following as you need.
To reply to the sender, touch .
To reply to the sender and all recipients of the original
message, touch > Reply all.
To forward the message, touch > Forward.
Touch > Print, to print the message.
3. Edit your message and touch the send icon .
![](/img.php?id=2460374&img=bg53.png)
83
Working With Received Attachments
When a message has an attachment, Gmail displays
information about it in the ATTACHMENTS section of the email.
Depending on the attachment type, the applications installed on
your phone as well as your settings, you may touch to
preview, view, or save the attachment.
NOTE:
For documents with multiple pages, touching the Preview
option will only download the pages you view, while touching
other options may download the entire file and cost more time
and data.
Working With Labels
Message labels include both labels you create and default
labels such as Sent, Starred, and Outbox. You can organize
your emails by labeling them or adding stars to them. Labels
also help you sort your messages, just like folders.
To label or change labels:
1. Open the Gmail app and touch in the message list the
sender images at the left side of the messages you want to
label.
![](/img.php?id=2460374&img=bg54.png)
84
2. At the top of the screen, touch > Change labels.
3. Check or uncheck labels in the new screen and touch OK.
To add stars to messages:
1. Open the Gmail app and touch in the message list the
sender images in front of the messages you want to star.
2. At the top of the screen, touch > Add star.
To view messages by label:
1. Open the Gmail app and touch .
2. Touch a label below ALL LABELS to view messages with
that label.
Changing Gmail Settings
Touch > SETTINGS in any Gmail screen to change
General settings, which apply to all Gmail accounts, or other
settings that only apply to specific accounts.
![](/img.php?id=2460374&img=bg55.png)
85
Messaging
You can use Messaging to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messaging Screen
Touch in the Home Screen and select Messaging.
The Messaging screen opens where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for a message using keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Message
1. On the Messages screen, touch at the bottom.
2. Add recipients by one of the following ways.
Touch the To field and manually enter the recipient’s
number or the contact name. If the phone presents a
few suggestions, touch the one you want to add.
Select recipients from your contacts by touching .
3. Touch the Type message field and enter the content of your
message.
![](/img.php?id=2460374&img=bg56.png)
86
4. If you want to send a multimedia message, touch the paper
clip icon to attach a file or a slideshow to the message.
5. Touch .
NOTE:
You can also include email addresses as recipients for
multimedia messages.
NOTE:
Do not add any attachment if you want to send a text message.
Otherwise you may be charged for a multimedia message.
Replying to a Message
Messages you receive are appended to existing threads for the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
message you want to reply to.
2. Type your reply in the text box at the bottom. You can touch
the attach icon if you want to reply with an MMS.
3. Touch .
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
![](/img.php?id=2460374&img=bg57.png)
87
message you want to forward.
2. Touch the message.
3. Touch Forward in the menu that opens.
4. Enter a recipient for the message and edit the content if you
want.
5. Touch .
Copying a Message
You can copy text messages in the phone storage to the SIM
card, or vice versa.
To copy a text message from the phone to the SIM card,
touch the message and select Copy to SIM card.
To copy a text message from the SIM card to the phone,
touch > Settings > Manage SIM card messages in the
Messaging screen. Then touch and hold a message and
select Copy to phone memory.
Changing Message Settings
Touch > Settings in the Messages screen to change
Messages settings.
![](/img.php?id=2460374&img=bg58.png)
88
Calendar
Calendar on the phone works with the web-based Google
Calendar™ service for creating and managing events,
meetings, and appointments. It also works with the Microsoft
Exchange ActiveSync calendar once you sign into your
Exchange account on the phone.
To open Calendar, touch in the Home Screen and select
Calendar.
Viewing Your Calendars and Events
Select Visible Calendars
1. Open the Calendar app.
2. Touch > Calendars to display.
3. In the new screen, touch the calendars to check the
calendars you want to see or uncheck the calendars you’d
like to hide.
Events from hidden calendars are not shown in the Calendar
app.
Change Calendar Views
You can view your calendars in different forms. The app offers
four views: Month, Week, Day, and Agenda.
You can change to Day view from Month view by touching any
![](/img.php?id=2460374&img=bg59.png)
89
day in the grid.
In Month view, swipe vertically to see earlier months and
later months.
In Week or Day view, swipe horizontally to see earlier
weeks/days and later weeks/days.
When you are viewing earlier or later days, weeks, or
months, touch at the top to quickly switch to today.
View Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to switch to Day view. Then touch an
event to view its details.
Creating an Event
1. In any Calendar view, touch .
You can also touch a spot in Day or Week view twice to add
an event to that time spot.
2. If you have more than one calendar account, touch the
current account above the Event name box to choose one.
![](/img.php?id=2460374&img=bg5a.png)
90
3. Enter the event details and touch Save.
Editing or Deleting an Event
1. Find the event you want to edit or delete.
2. Open its details screen (see Viewing Your Calendars and
Events – View Event Details in this chapter).
3. Do one of the following as you need.
To…
do…
Edit the event,
touch at the bottom of the screen.
Touch Save to save your changes.
Delete the event,
touch at the bottom of the screen
and then touch OK.
Changing Calendar Settings
To change Calendar settings, open a Calendar view (Day,
Week, Month, or Agenda) and touch > Settings.
![](/img.php?id=2460374&img=bg5b.png)
91
Google+™
Google+ is a social networking service offered by Google. The
Google+ application on your phone enables you to manage your
data, chat with online contacts, organize them in different circles,
and share your selected information.
Touch > Google > Google+ in the Home Screen. The first
time you open the Google+ app, select the photo & video backup
and contact sync options.
NOTE:
For detailed guide for Google+, open Google+ and touch >
Help to view the online instructions.
Getting Started With Google+
Open the Google+ app and touch Everything field near the top
of the screen to use the following features:
Everything: Add a suggested person, or see posts people
have shared with you, a circle you are in, or everyone.
My Circles: Find people to add to your Google+ circles,
create new circles, view and organize people into circles
based on your relationships. You can also follow content
posted by people you find interesting.
Find communities: Search and join all kinds of online
communities, where people gather for the sharing and
discussion of a common topic.
![](/img.php?id=2460374&img=bg5c.png)
92
Photos: View photos you uploaded, photos of you, photos
from your posts and more.
Locations: See your friends’ locations on the map and
configure your location sharing settings.
Events: Manage your social calendar. You can add events,
invite people, and then share photos in real time from the
event.
Changing Google+ Settings
To change Google+ settings, open Google+ and touch >
Settings.
![](/img.php?id=2460374&img=bg5d.png)
93
Browser
Use Browser to view web pages and search for information.
Opening the Browser
Touch in the Home Screen and select Browser to start
this function. The last web page you were viewing is displayed.
If you have not used Browser recently, your home page opens.
Browser also opens when you touch a web link - for example, in
an email or a text message.
Open a Web Page or Search the Web
1. Open the Browser app.
2. Touch the address box at the top of the web page.
3. Enter the address (URL) of a web page. Or, enter terms you
want to search for. You can also touch to search by
voice.
4. Touch a URL or search suggestion or touch Go on the
keyboard to open the web page or search results.
NOTE:
Touch to open a new web page in a new tab.
![](/img.php?id=2460374&img=bg5e.png)
94
Downloading Files
Touch and hold an image or a link to a file or to another
webpage. In the menu that opens, touch Save image or Save
link.
The downloaded files are saved to your phone or the memory
card. You can view or open them in the Downloads app ( >
Downloads ).
Changing Browser Settings
You can configure a number of Browser settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the Browser settings screen, touch > Settings.
![](/img.php?id=2460374&img=bg5f.png)
95
Maps
Activating Location Services
To use Google Maps and find your location on Google Maps™,
you must have location services turned on in your phone.
1. Touch the Home Key > > Settings > Location.
2. Slide the Location switch at the top to turn location access
on or off.
3. When location access is enabled, touch Mode to select
location modes you want to use.
High accuracy: Get accurate location using both GPS
and Wi-Fi as well as mobile networks.
Battery saving: Use only Wi-Fi and mobile networks to
get your approximate location. This will drain less power
from your battery than using GPS.
Device only: Use GPS to pinpoint your location.
Getting Your Location
1. Touch in the Home Screen and select Maps.
2. Touch at the bottom.
The map centers on a dot and an arrow that indicate your
location and the direction the phone is facing.
![](/img.php?id=2460374&img=bg60.png)
96
Searching for a Location
1. Touch in the Home Screen and select Maps.
2. Touch the search bar at the top.
3. Enter the address or the type of business or establishment
you’re looking for. If suitable suggestions appear below the
search box, touch one to search for it.
NOTE:
You can also touch beside the search box to use voice
search.
4. Touch the search icon on the keyboard. Red points
indicating search results appear on the map.
5. Touch a red point to open a card at the bottom with
summary information about the location.
Slide the card up to find more information about the location
as well as options for getting directions and more.
Getting Directions to Your Destination
Maps can provide directions for travel by foot, public
transportation, or car.
1. Touch in the Home Screen and select Maps.
2. Touch beside the search box.
3. Select the mode of transportation and then enter a start and
end point. If your location is found, it will appear in the start
![](/img.php?id=2460374&img=bg61.png)
97
point field by default.
As suggested routes appear, touch one to see it on the map.
Slide the bottom card up to see the route directions in a list.
NOTE:
Touch (Start) to use Google Maps Navigation (beta) and
get turn-by-turn voice directions.
![](/img.php?id=2460374&img=bg62.png)
98
Google Now™ and Search
You can search for information on the web or on your phone
using Google Search, get information when you need with
Google Now without searching, or perform certain tasks by
speaking.
Enabling Google Now
Google Now gets you just the right information at just the right
time. It tells you today’s weather before you start your day, how
much traffic to expect before you leave for work, and more. You
can turn Google Now on or off from within the Google app.
The first time you open the Google app, see a brief explanation
of how Google Now works and touch Next. When you see Yes,
I’m in, choose it to begin.
1. Touch the Home Key > > Google > Google.
2. Touch > Settings.
3. Slide the ON/OFF switch next to Google Now.
Searching With Text
You can search for information on the Internet or on the phone
(such as music, messages, apps, and contacts) by entering
text.
1. Touch > Google > Google in the Home Screen.
![](/img.php?id=2460374&img=bg63.png)
99
2. Enter the terms you want to search for in the search box
and touch the search key on the keyboard, or touch a
search suggestion that appears below the search box.
Searching by Speaking
You can also search the web or perform certain tasks by
speaking.
1. Touch the Home Key > > Google > Google.
2. Touch the microphone icon to the right of the search box, or
just say ‘Ok Google’.
NOTE:
You can also touch the Home Key > > Google >
Voice Search.
3. Speak the terms you want to search for or the question you
want to ask. When you’re finished speaking, your speech is
analyzed and the search is initiated.
Changing Search Settings
Open the Google app and touch > Settings to set Google
Now, phone search and voice options, and to change privacy
settings for your account.
![](/img.php?id=2460374&img=bg64.png)
100
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the phone’s memory card or in
the phone’s internal storage. You can copy them to your
computer or access them in the Gallery app.
Capturing a Photo
1. Touch in the Home Screen and select Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
![](/img.php?id=2460374&img=bg65.png)
101
Number
Function
1
Switch between the front and back camera.
2
Change the flash setting, only available for the back
camera.
3
Select color effect (only available for the back
camera).
4
Change the camera settings.
5
Select scene mode (only available for the back
camera). You can take panoramic pictures, take
consecutive snapshots or enable smile detection.
6
Start/end video recording.
7
Touch the shutter button to take a picture.
8
View pictures and videos you have taken.
WARNING!
Keep a safe distance when using the flash. Do not point the
flash towards the eyes of people or animals.
3. Lightly touch .
Recording a Video
1. Touch in the Home Screen and select Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
3. Touch to start recording.
![](/img.php?id=2460374&img=bg66.png)
102
4. Touch to stop recording.
NOTE:
While the recording is in progress, you can touch to save
the frame as a separate photo.
Customizing Camera Settings
Before taking a photo, you can touch to open the following
camera setting options.
Grid: Show or hide the composition lines.
Self-timer: Set a time delay before the
camera takes a picture automatically after
you touch the shutter icon, or turn off this
feature.
Auto-review: Adjust the review time.
Picture size: Adjust the picture size.
Shutter tone: Select your preferred shutter
tone.
![](/img.php?id=2460374&img=bg67.png)
103
Video quality: Set the quality for the video
clips.
Time lapse: Set the time interval between
each frame when you shot time lapse
videos.
Silent camcorder: Check this option if you
want to capture silent video clips.
Geo-tagging: Select whether to store the
GPS location in captured pictures or your
recorder video files.
Restore defaults: Restore the default
camera settings.
![](/img.php?id=2460374&img=bg68.png)
104
Gallery
Opening Gallery
Touch in the Home Screen and select Gallery to view
albums of your pictures and videos.
Working With Albums
When you open Gallery, all pictures and videos on your phone
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to share.
3. Touch and select how you want to share the items.
To delete albums:
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to delete.
3. Touch > OK.
![](/img.php?id=2460374&img=bg69.png)
105
Working With Pictures
Touch a picture in an album to view the picture in full screen.
Double-touch the picture, or pinch two fingers together or
spread them apart to zoom out or in. Slide left or right to view
other pictures in the album.
![](/img.php?id=2460374&img=bg6a.png)
106
Number
Function
1
Touch to return to the album, where all its contents
are displayed in a grid.
2
Swipe horizontally to see more; double-tap a picture
to zoom in or out.
3
Delete, edit, share, or set the picture as wallpaper,
lock screen wallpaper, photos, or contact photo.
4
Browse the album contents in a slideshow.
5
Rotate the picture, view picture file detail, rename the
picture, or change the slideshow settings.
NOTE:
All options may not be available for certain albums or pictures.
Retouching Your Pictures
You can edit any photos you took and some other pictures in
Gallery. The changed picture is saved in the same album,
while the original image is never affected.
1. Touch while viewing a picture in full screen to open the
Edit interface.
2. Touch the icons along the bottom of the screen to edit the
picture.
![](/img.php?id=2460374&img=bg6b.png)
107
Apply effects such as bleach, blue crush, instant, and
so on.
Crop, straighten, mirror, or rotate the picture.
Adjust exposure, vignette, shadows, sharpness or set
to auto adjust and so on.
Apply a frame to the picture.
Decorate people in the picture with comical
moustaches, eye glasses, hats and more.
Apply a blur effect to the picture.
Select a color and draw anything on the picture.
Add some text to the picture and adjust its effect.
3. To undo or redo the changes you’ve made to the picture,
touch or at the top of the screen.
4. Touch Save to save the new picture.
Playing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the center to start playing.
Touch the video to view the playback controls.
![](/img.php?id=2460374&img=bg6c.png)
108
Music
Touch in the Home Screen and select Music to play audio
files stored on your phone. Music supports a wide variety of
audio formats, so it can play music you purchase from online
stores, music you copy from your CD collection, and so on.
Copying Music Files to Your Phone
Before using Music, you need to copy or download audio files to
your phone.
Copy From a Computer
1. Connect your phone and the computer with a USB cable.
2. Touch Media device (MTP) (if supported on the PC) to
browse the files in the phone storage and on the microSDHC
card.
3. Copy the music file from the PC and paste it to the phone
storage or microSDHC card.
Download From the Internet
You can download music files when browsing web pages. See
Downloading Files.
Receive via Bluetooth
You can receive music files from other devices via Bluetooth.
![](/img.php?id=2460374&img=bg6d.png)
109
See Receive Data via Bluetooth.
Viewing Your Music Library
Touch in the Home Screen and select Music and your
music library is displayed. All your audio files are cataloged
according to the information stored in the files.
Touch the tabs at the top of the screen to view your music
library organized by Songs, Playlists, Folders, Albums,
Artists, or Genres. You can also touch RECENTLY PLAYED
or FAVORITES to browse songs you recently played or you
have added as favorites.
NOTE:
If an audio file is being played, its summary information is
displayed at the bottom of the screen. Touch to open the
playback screen.
Set a Song as the Default Ringtone
The song will be used as the ringtone for all incoming calls,
except those from contacts to whom you have assigned special
ringtones (see People – Editing Contacts – Set a Ringtone for a
Contact).
1. Touch in the Home Screen and select Music to see
the music library.
2. Touch next to a song in any list.
![](/img.php?id=2460374&img=bg6e.png)
110
3. In the menu that opens, touch Use as ringtone.
NOTE:
If the song is being played and you’re in the playback screen,
you can touch > Use as ringtone.
4. Touch Phone Ringtone or Notification Ringtone.
Playing Music
Touch a song in the music library to listen to it. The following
playback screen appears.
![](/img.php?id=2460374&img=bg6f.png)
111
Number
Function
1
Album artwork.
2
Skip songs or pause and resume playback. Drag the
slider to jump to any part of the song. Playback control;
Touch for more options; Add to favourite song.
3
Touch to toggle repeat mode: no repeat, repeat the
current song, or repeat the current playlist; Touch to
play the current playlist in shuffle mode, where tracks
are played in random order.
4
Song and artist information.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Touch > Add to playlist next to a song to add it to a
playlist or create a new playlist.
Touch > Delete Playlist next to a playlist to delete the
playlist.
Touch > Rename Playlist next to a playlist to rename
the playlist.
Touch a playlist to view its content. You can touch >
Multi Select to select the song you want to remove.
![](/img.php?id=2460374&img=bg70.png)
112
Play Music
The Play Music application ( ) works with Google Music,
Google’s online music store and streaming service. You can
stream via mobile data or Wi-Fi and listen to you favorite songs
that you’ve added to your online Google Music library. You can
also play audio files you’ve copied directly to your phone from a
computer.
NOTE:
The availability of Google Music is dependent on your region. If
it is not available, or you don’t have a mobile data or Wi-Fi
connection, you can only play music stored on your phone.
Playing Your Music
Touch > Google > Play Music in the Home Screen. If you
are prompted, select an account to access its online music
library.
The app searches your online library and your phone for music
and playlists before displaying your combined music library,
organized by GENRES, ARTISTS, ALBUMS, and SONGS.
You can touch > My Library to view your library or touch
> Playlists to view existing playlists.
Touch a song to play it. When the song is playing, touch the
summary information at the bottom to display the playback
screen.
![](/img.php?id=2460374&img=bg71.png)
113
Number
Function
1
Song and artist information. Touch or drag down to
return to the music library.
2
Album artwork.
3
Give the song a thumbs-up.
4
Playback control. Skip songs, pause and resume
playback, use shuffle or repeat. Drag the progress bar
to jump to any part of the song.
5
Give the song a thumbs-down.
6
Touch to see the current playlist (queue).
7
Get more options.
![](/img.php?id=2460374&img=bg72.png)
114
You can still control the music when you are not in the playback
screen.
In the music library of the Play Music app, touch the
summary information at the bottom of the screen to restore
the playback screen.
In other apps, flick down the notification panel. Touch the
song title to restore the playback screen, or just pause/
resume playback or skip to the next/previous song.
When the screen is locked, the song information, album
cover as well as playback control is displayed on top of the
screen. You can pause/resume playback or skip songs.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
To view all your playlists, touch > Playlists.
Touch > Add to playlist next to a song or a playlist to
add it to a playlist or create a new playlist.
Touch > Delete next to a playlist to delete the playlist.
Touch a playlist to view its content. You can touch >
Remove from playlist next to the song you want to remove,
or touch and hold the song and slide left or right to remove
the song.
![](/img.php?id=2460374&img=bg73.png)
115
Video Player
Use the video player to play various kinds of videos.
Opening the Video Library
Touch in the Home Screen and select Video Player to
view your video library.
Playing and Controlling Videos
Touch a video in the video library to play it. Rotate the phone on
its side to watch the video in landscape view.
Touch the video to show the playback controls. You can pause
and resume the playback, or jump to any part of the video, hide
the control panel and more.
Managing Video Files
To delete videos:
1. Touch and hold a video in the video library.
2. To remove more videos, touch them.
3. Touch at the bottom left of the screen.
4. Touch OK to confirm.
![](/img.php?id=2460374&img=bg74.png)
116
To share videos:
1. Touch and hold a video in the video library.
2. To share more videos, touch them.
3. Touch at the bottom right of the screen and select how
you want to share them.
To rename a video:
1. Touch next to the video you want to rename.
2. Touch Rename.
3. Type the new video name and touch OK.
To view details of a video:
1. Touch next to the video you want to view the details of.
2. Touch Details.
![](/img.php?id=2460374&img=bg75.png)
117
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Recording a Voice Memo
1. Touch in the Home Screen and select Sound
Recorder.
2. Touch to start recording. Touch to cancel
recording if you change your mind. You can touch to
pause and to continue during the recording.
3. Touch to stop recording. The memo is automatically
saved.
If you don’t want to save the memo after recording it, touch
to delete it.
Playing a Voice Memo
To play a memo you just recorded:
Touch at the bottom of the screen.
To play any saved memo:
1. Touch at the top right of the screen to see all
recordings.
2. Touch the title of a memo to play it.
![](/img.php?id=2460374&img=bg76.png)
118
NOTE:
You can also touch next to the memo to share, rename,
delete it, add a tag, trim it, check its file information, or set it as
your phone ringtone.
![](/img.php?id=2460374&img=bg77.png)
119
More Apps
Clock
Set alarms or turn the phone into a bedside clock.
Set a New Alarm
1. Touch in the Home Screen and select Clock.
2. Touch a default alarm to configure it, or touch at the
bottom of the screen to create a new alarm.
3. Set up the alarm options, such as time, repeat, alarm sound,
label and so on.
4. Touch SAVE to save and exit.
Use Bed Clock
Bed clock displays the current time and the next alarm.
1. Touch in the Home Screen and select Clock.
2. If necessary, touch > Bed Clock Preferences in the
Alarm screen to set up bed clock options. Then touch the
Back Key to return to the Alarm screen.
Enable bed clock: Turn on or off the bed clock function.
Bed clock never sleeps: Keep the bed clock screen
turned on when charging the phone.
3. Touch > Bed Clock to open the bed clock screen.
![](/img.php?id=2460374&img=bg78.png)
120
Stopwatch and Countdown
1. Touch / in Clock app to use the countdown or
stopwatch.
2. Countdown allows you to set a time and count down to zero,
while Stopwatch allows you to record lap times.
World Time
1. Touch in Clock app to check local time for cities
around the world.
2. Touch + at the bottom to add a new city or country.
Calculator
Touch in the Home Screen and select Calculator.
NOTE:
Touch or to switch between different panels.
Chrome™
Use Google Chrome to browse the Internet. Chrome on your
phone can sync bookmarks, browsing history, and opened tabs
from your Google account.
![](/img.php?id=2460374&img=bg79.png)
121
Downloads
The Downloads app keeps a record of the files you have
downloaded using the Browser, Email, or Gmail app.
Touch in the Home Screen and select Downloads to
check the record.
Touch a file to open it with the appropriate applications.
Touch and hold a file, or check the box in front of it, to delete
or share it.
File Manager
Quickly access all of your images, videos, audio clips, and
other types of files on your phone and on the memory card.
Touch in the Home Screen and select File Manager. The
folders are organized by category, phone storage and the
memory card storage.
Touch folders and files to access stored items.
Touch PHONE / SD Card > to create a new folder in
the current directory.
Note
Touch in the Home Screen and select Note to save and
view your text notes.
Touch a category of note, and touch to create a new
![](/img.php?id=2460374&img=bg7a.png)
122
note. Then enter your text and touch SAVE to save it.
Touch a note to view its entire contents. You can also
edit, delete, share, or export it.
Task Manager
Touch in the Home Screen and select Task Manager to
view or stop applications.
Touch a task in the Tasks tab to switch to its screen, abort it,
or see its details.
Touch the Apps tab to manage all the apps on your phone.
Touch the Resources tab to view the real-time system
resources information.
YouTube™
Touch in the Home Screen and select YouTube.
You can watch YouTube videos or upload your own.
![](/img.php?id=2460374&img=bg7b.png)
123
Google Play™ Store
Touch in the Home Screen and select Play Store. You
can buy or rent music, books, movies, and apps and download
them to your phone.
NOTE:
The content you can access in Google Play store depends on
your region and your service provider.
Browsing and Searching for Apps
You can browse apps by category and sort them in different
ways. Touch a top-level category, such as GAMES and touch
an app from any subcategory.
You can also search for apps using an app’s name or
description, or the developer’s name. Just touch and enter
the search terms.
Downloading and Installing Apps
When you find the app you are interested in through browsing
or searching, touch it to open its details screen, where more
information about the app is displayed.
1. Touch INSTALL (free apps) or the price (paid apps). If the
app is not free, you need to sign in to your Google Wallet
account and select a payment method.
![](/img.php?id=2460374&img=bg7c.png)
124
CAUTION:
Once installed, some apps can access many functions or a
significant amount of your personal data. The Play Store will
show you what the app can access. Touch ACCEPT to
proceed, or touch the Back Key to cancel.
2. Wait for the app to be downloaded and installed
automatically. Payment needs to be authorized before paid
apps start downloading.
The app is successfully installed when the icon appears in
the status bar. You can find the new app after touching the
Home Key > .
Creating a Google Wallet™ Account
You must have a Google Wallet account associated with your
Google Account to purchase items from the Google Play Store
app.
Do one of the following:
On your computer, go to checkout.google.com to create a
Google Wallet account.
The first time you use your phone to buy an item from
Google Play Store, you’re prompted to enter your billing
information to set up a Google Wallet account.
![](/img.php?id=2460374&img=bg7d.png)
125
WARNING!
When you’ve used Google Wallet once to purchase items from
the Google Play Store app, the phone remembers your
password so you don’t need to enter it the next time. For this
reason, you should secure your phone to prevent others from
using it without your permission.
Requesting a Refund for a Paid App
If you are not satisfied with an app, you can ask for a refund
within 15 minutes of the purchase. Your credit card is not
charged and the app is uninstalled from your phone.
If you change your mind, you can install the app again, but you
can’t request a refund a second time. For details, please read
the Play Store help information.
1. Touch the Home Key > > Play Store.
2. Touch > My apps.
3. Touch the app to uninstall for a refund. The details screen for
the app opens.
4. Touch REFUND and then touch UNINSTALL. Your app is
uninstalled and the charge is cancelled.
Managing Your Downloads
After you’ve downloaded and installed an app, you can rate it,
view it in a list with your other downloaded apps, configure it to
update itself automatically, and so on.
![](/img.php?id=2460374&img=bg7e.png)
126
View Your Downloaded Apps
1. On the Apps screen of Play Store, touch > My Apps.
2. Your list of installed apps opens. You can touch one to rate it,
uninstall it, request a refund and so on.
Uninstall an App
1. On the Apps screen of Play Store, touch > My Apps.
2. Touch an app to open its details screen.
3. Touch UNINSTALL > OK.
![](/img.php?id=2460374&img=bg7f.png)
127
Settings
Touch in the Home Screen and select Settings. The
Settings app contains most of the tools for customizing and
configuring your device.
General Settings
Airplane Mode
In the Settings app, slide the Airplane mode switch to the O
position to turn on Airplane mode. All the phone’s radios that
transmit voice or data are turned off.
Wi-Fi
Turn Wi-Fi on or off and configure your Wi-Fi connections. See
Connecting to Networks and Devices – Connecting to Wi-Fi.
Bluetooth
Turn Bluetooth on or off and configure your Bluetooth
connections. See Connecting to Networks and Devices –
Connecting to Bluetooth Devices.
Mobile Networks
Control mobile data use, select mobile network and set access
point names. See Connecting to Networks and Devices –
Connecting to Mobile Networks.
![](/img.php?id=2460374&img=bg80.png)
128
Sound
Adjust different types of volume (see Personalizing – Adjusting
Volume), toggle sound and mute (see Switching to Silent Mode),
set up ringtone and notification sound (see Personalizing –
Changing Ringtone and Notification Sound), and select system
sounds (refer to Turning On/Off Touch Sound).
Touch Silent mode to turn off all sounds except media and
alarm, or enable silent mode with vibration.
Display
Brightness: Set the brightness of the display.
Wallpaper: Select a background image for the Home
Screen.
Auto-rotate screen: Click the checkbox will auto-rotate
screen.
Sleep: Set the length of time of inactivity before the screen
turns off.
Daydream: Set the daydream on the screen.
Font size: Set the font size of the text on the screen.
Pulse notification light: Flash the LED light to notify you of
missed calls, new messages, and other events.
Touch key light duration: Touch to set the duration of the
touch key light.
![](/img.php?id=2460374&img=bg81.png)
129
Date and Time
Set date, time, time zone, and how date and time are displayed.
You can also use network-provided data.
Language and Input
Language: Select a language and region for your system.
Spell checker: Select spell checker and change its
settings.
Personal dictionary: Add new words to the phone’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
KEYBOARD & INPUT METHODS: Configure text input
settings. See Knowing the Basics – Entering Text – Touch
Input Settings.
Voice Search:
Language: Select the language you use when entering
text by speaking or searching by speaking.
Speech output: Use it only when informative.
“Ok Google” Detection: Click to say Ok Google to
launch voice search.
Offline speech recognition: Select one or more
additional language packages so you can use speech
recognition when you do not have a network connection.
Block offensive words: Replace offensive words with
an asterisk (*) when you use Google voice recognition to
130
transcribe your voice into text.
Bluetooth headset: Click to records audio through
Bluetooth headset if available.
Text-to-speech output:
PREFERRED ENGINE: Select the speech synthesis
engine you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
Default language status: Check the default language
status.
Pointer speed: Select how fast the pointer/mouse should
scroll when you connect the phone to a trackpad or mouse
accessory.
Wireless and Networks
Data Usage
Touch the I/O switch to turn on or off mobile data.
You can check how much data has been used during the time
cycle you set, set a mobile data limit and warning, see what
apps have been using mobile data, or restrict background data
for individual apps.
![](/img.php?id=2460374&img=bg83.png)
131
NOTE:
The data usage is measured by your phone. Your carrier’s
data usage accounting may differ.
VPN
Set up and connect to virtual private networks. See Connecting
to Networks and Devices – Connecting to Virtual Private
Networks.
Default SMS App
In the Settings app, touch More under Wireless & networks
and select Default SMS app to choose the preferred
application for sending and receiving SMS.
Device
Storage
Check memory information for your memory card and internal
storage.
Unmount SD card: Unmount the memory card from your
phone so that you can safely remove the card while the
phone is on.
Erase external SD card: Erase all data on your memory
card and prepare it for use with your phone.
![](/img.php?id=2460374&img=bg84.png)
132
Power Saving Mode
Check how much power remains for the battery and what has
been using the battery, or select your preferred power save
mode.
Apps
See apps installed on your phone and manage them.
Touch an app in the DOWNLOADED, RUNNING, or ALL tab to
see its information. You can stop the app, uninstall the app,
clear data and cache.
Connect to PC
Touch to set the connection type for your phone. See Connect
Your Phone to a Computer via USB.
Call settings
Configure phone call related options, such as ringtone, voicemail
and Internet call. For more information, see Phone Calls –
Adjusting Your Call Settings.
Personal
Location
Activate location services to determine your location. See
Activating Location Services.
![](/img.php?id=2460374&img=bg85.png)
133
Security
Screen lock: Disable the screen lock or enable it with long
press, pattern, PIN, or password. See Personalizing –
Protecting Your Phone With Screen Locks.
Owner info: Set the text that you may display on the lock
screen.
Encrypt phone: Encrypt your data on the phone to protect
your privacy. See Personalizing – Protecting Your Phone
With Encryption.
Set up SIM/RUIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the SIM card.
Change SIM PIN: Change the PIN used to access the
SIM card.
Make passwords visible: Show the password.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Check this option to permit installation
of apps from sources other than the Play Store.
Verify apps: Disallow or warn before installation of apps
that may cause harm.
Storage type: Choose the storage type.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the memory
134
card.
Clear credentials: Delete all certificates.
Backup and Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google account.
Backup account: Select the Google Account that your data
is backed up to.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
Reset to factory: Reset your phone to factory default
settings. All your personal data from the phone’s internal
storage will be erased. You can also erase the data on the
memory card during the process.
Accounts
Manage your accounts and synchronization. Touch Add
account to sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have
added and adjust the accounts settings.
135
System
Accessibility
Configure accessibility plug-ins on your phone, such as using
TalkBack for low-vision users.
Printing
Configure cloud printing service options, manage print jobs and
more.
Software Update
You can check your system’s software version or check for
updates.
About Phone
View phone status, legal information and version.
![](/img.php?id=2460374&img=bg88.png)
136
Upgrading the Phone Software
There are several ways to upgrade your phone software:
1. Use the online upgrade tool for mobile terminal products.
2. Use the one-press upgrade package offered by your mobile
service provider.
3. Use the upgrade package on your microSDHC card.
NOTE:
Visit the ZTE official handset service support website
(http://www.ztedevice.com/support) and click your country or
region to learn more about the above upgrade methods, as well
as which phones and methods are supported.
![](/img.php?id=2460374&img=bg89.png)
137
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is too
weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
can not effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
![](/img.php?id=2460374&img=bg8a.png)
138
Problem
Possible causes
Possible solution
Echo or
noise
Poor network link quality
on the part of your
service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Poor local telephone line
quality.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have not
applied for services that
provide these features.
Contact your service
provider.
Battery not
charging
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s
temperature is below
0°C or higher than 45 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
Poor contact between
the battery and charger.
Check all connectors to
ensure that all
connections have been
properly made.
![](/img.php?id=2460374&img=bg8b.png)
139
Problem
Possible causes
Possible solution
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted. In
high temperature
environments, battery
life will be shortened.
Use a new battery.
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
![](/img.php?id=2460374&img=bg8c.png)
140
Problem
Possible causes
Possible solution
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
micro-SIM
card error
micro-SIM card
malfunction or damage.
Take the micro-SIM card
to your service provider
for testing.
micro-SIM card inserted
improperly.
Insert the micro-SIM
card properly.
Debris on the micro-SIM
card contacts.
Use a soft, dry cloth to
clean the micro-SIM
card contacts.
Unable to
connect to
the network
micro-SIM card invalid.
Contact your service
provider.
You are not within the
network’s service area.
Check the service area
with your service
provider.
Poor signal.
Move to an open space,
or if you are inside a
building, move closer to
a window.
Cannot
answer
incoming
calls
You have activated the
Call barring feature.
Go to Settings > Call
settings > Call Barring
Settings, and then
select Deactive All.
![](/img.php?id=2460374&img=bg8d.png)
141
Problem
Possible causes
Possible solution
You cannot
make
outgoing
calls.
You have activated the
Call barring feature.
Go to Settings > Call
settings > Call Barring
Settings, and then
select Deactive All.
You have activated the
Fixed dial numbers
feature.
Go to Settings > Call
settings > Fixed
Dialing Numbers and
disable it.
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
micro- SIM card’s PUK
code, use the PUK code
to unlock the micro- SIM
card.
Phone
crashes,
reboots,
freeze, or
cannot be
powered on
Some third-party
software is not
compatible with your
phone.
Reset the phone to
factory status.
Enter safety mode and
uninstall the software
that may cause the
problem.
Upgrade the phone
software.
![](/img.php?id=2460374&img=bg8e.png)
142
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15 mm away
from your ear or body
while making calls.
Your phone may
produce a bright or
flashing light.
Small parts may
cause choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
![](/img.php?id=2460374&img=bg8f.png)
143
Turn off when asked to
in hospitals and
medical facilities.
Don’t take your phone
apart.
Turn off when told to in
aircrafts and airports.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone for emergency
communications.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed
in positions that simulate RF exposure in usage against the
head with no separation, and near the body with the separation
of 10 mm. Although the SAR is determined at the highest
certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
![](/img.php?id=2460374&img=bg90.png)
144
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or
SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and
had been tested in accordance with the measurement methods
and procedures specified in IEEE1528. This device has been
tested and meets the FCC RF exposure guidelines when tested
with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can
be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-Z753G.
For this device, the highest reported SAR value for usage
against the head is 1.12 W/kg, for usage near the body is 1.41
W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the human
body. Carry this device at least 10 mm away from your body to
ensure RF exposure level compliant or lower to the reported
level. To support body-worn operation, choose the belt clips or
145
holsters, which do not contain metallic components, to maintain
a separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such
body-worn accessory should be avoided.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
This mobile phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
![](/img.php?id=2460374&img=bg92.png)
146
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
CAUTION:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
147
Hearing Aid Compatibility (HAC)
regulations for Mobile phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear implants.
Although analog wireless phones do not usually cause
interference with hearing aids or cochlear implants, digital
wireless phones sometimes do because of electromagnetic
energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC
regulations (ANSI C63.19- 2011). While some wireless phones
are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others to
this interference noise and phones also vary in the amount of
interference they generate. The wireless telephone industry has
developed a rating system for wireless phones to assist hearing
device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones
that are rated have the rating on their box or a label located on
the box. The ratings are not guarantees. Results will vary
depending on the user's hearing device and hearing loss. If
your hearing device happens to be vulnerable to interference,
you may not be able to use a rated phone successfully. Trying
out the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with hearing aids
for some of the wireless technologies that it uses. However,
there may be some newer wireless technologies used in this
148
phone that have not been tested yet for use with hearing aids. It
is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this phone for
information on hearing aid compatibility. If you have questions
about return or exchange policies, consult your service provider
or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements
and are likely to generate less interference to hearing devices
than phones that are not labeled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note that not all hearing
devices have telecoils in them.)
Your phone meets the M3/T4 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. For more information about FCC Hearing Aid
Compatibility, please go to http://www.fcc.gov/cgb/dro.
Distraction
Driving
Full attention must be given to driving at all times in order to
149
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating machinery in order
to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always turn off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and
keep it in a clean and dust-free place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
operations or lower image quality.
Clean the device and its accessories with a soft material such
as cleaning cloth for eyeglass lenses. Do not use alcohol or
other corrosive substances for cleaning or allow them to get
150
inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories.
Only authorized personnel can do so.
Do not expose or use your phone or its accessories in a
environment with or that can reach extreme temperatures,
minimum - [5] and maximum + [50] degrees Celsius.
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
151
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media to be close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and
serious injury could result.
152
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
watching video. If you have experienced seizures or blackouts or
have a family history of such occurrences, please consult a
physician.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
Predictive Text.
Take many breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone for
emergency communications.
153
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or
key rings, to contact or short-circuit in the battery terminals.
Never puncture the surface of the battery with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
154
Only qualified personnel can service or repair the phone or its
accessories.
If your phone (or its accessories) has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
have taken it to be checked at an authorized service center.
CTIA Requirements
Do not disassemble or open crush, bend or deform, puncture
or shred.
Do not modify or remanufacture, attempt to insert foreign
objects into the battery, immerse or expose to water or other
liquids, expose to fire, explosion or other hazard.
Only use the battery for the system for which it is specified.
Only use the battery with a charging system that has been
qualified with the system per CTIA Certification Requirements
for Battery System Compliance to IEEE 1725. Use of an
unqualified battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Do not short circuit a battery or allow metallic conductive
objects to contact battery terminals.
Replace the battery only with another battery that has been
qualified with the system per this standard, IEEE-Std-1725.
Use of an unqualified battery may present a risk of fire,
explosion, leakage or other hazard.
Promptly dispose of used batteries in accordance with local
155
regulations.
Battery usage by children should be supervised.
Avoid dropping the phone or battery. If the phone or battery is
dropped, especially on a hard surface, and the user suspects
damage, take it to a service center for inspection.
Improper battery use may result in a fire, explosion or other
hazard.
The phone shall only be connected to CTIA certified adapters,
products that bear the USB-IF logo or products that have
completed the USB-IF compliance program.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing
aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
156
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source. Increasing
the separation between them may reduce the interference. You
may also consult your hearing aid manufacturer to discuss
alternatives.
Medical Devices
Please consult your doctor and the device manufacturer to
determine if operation of your phone may interfere with the
operation of your medical device.
Hospitals
Turn off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive medical
equipment.
Aircraft
Turn off your wireless device whenever you are instructed to do
so by airport or airline staff.
Consult the airline staff about the use of wireless devices
onboard the aircraft. If your device offers a ‘flight mode’, this must
157
be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference with
electronic equipment, some vehicle manufacturers forbid the
use of mobile phones in their vehicles unless a hands-free kit
with an external antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone or
other radio equipment.
Areas with potentially explosive atmospheres include fueling areas,
below decks on boats, fuel or chemical transfer or storage
facilities, and areas where the air contains chemicals or particles,
such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios” or
“electronic devices” to avoid interfering with blasting operations.
