ZTE ZTEBLADEAPEX2 LTE/WCDMA/GSM Digital Mobile Phone User Manual ZTE T22
ZTE Corporation LTE/WCDMA/GSM Digital Mobile Phone ZTE T22
ZTE >
User manual
![](/img.php?id=2248567&img=bg1.png)
1
ZTE Blade Apex2
User Manual
![](/img.php?id=2248567&img=bg2.png)
2
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep
your device in its best condition, please read this manual and
keep it for future reference.
Copyright
Copyright © 2014 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced, translated
or used in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
This manual has been designed with the utmost care to ensure
the accuracy of its content. However, all statements, information
and recommendations contained therein do not constitute a
warranty of any kind, either expressed or implied. Please refer to
chapter For Your Safety to be sure to use your phone properly
and safely.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.ztedevice.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
![](/img.php?id=2248567&img=bg3.png)
3
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the software.
Images and screenshots used in this manual may differ from the
actual product. Content in this manual may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of the ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC logo is a trademark of the SD-3C, LLC.
Other trademarks and trade names are the property of their
respective owners.
Version No.: R1.0
Edition Time : 2014.1.29
![](/img.php?id=2248567&img=bg4.png)
4
Contents
Getting Started ....................................................... 11
Getting to Know Your Phone ............................................ 11
Knowing the Keys ............................................................ 12

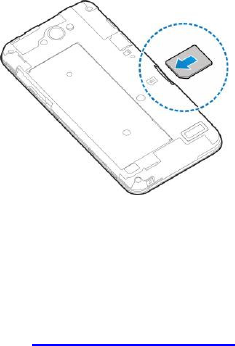

Installing the micro-SIM Card ........................................... 13
Installing the microSDHC™ Card ..................................... 14

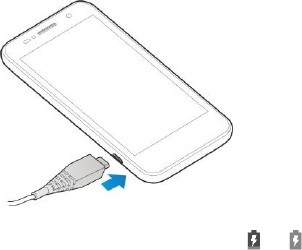

Charging the Battery ........................................................ 15
Extending the Battery Life ................................................ 17
Powering On/Off .............................................................. 17
Restarting the Phone ....................................................... 17
Setting Up for the First Time ............................................ 18
Locking/Unlocking the Screen and Keys .......................... 18
Using the Touch Screen ................................................... 19
Getting to Know the Home Screen ................................... 20
Personalizing ......................................................... 22
Changing the System Language ...................................... 22
Setting the Date and Time ............................................... 22
Changing Ringtone and Notification Sound ...................... 22
Adjusting Volumes ........................................................... 23
Switching to Silent Mode .................................................. 23
Applying New Wallpapers ................................................ 24
Changing Screen Brightness ........................................... 24
Protecting Your Phone With a Screen Lock ...................... 25
Protecting Your Phone With Encryption ............................ 26
Knowing the Basics ............................................... 28
5
Monitoring the Phone Status ............................................ 28
Managing Notifications ..................................................... 29
Managing Shortcuts and Widgets ..................................... 32
Organizing With Folders ................................................... 32
Rearranging the Favorites Tray ........................................ 33

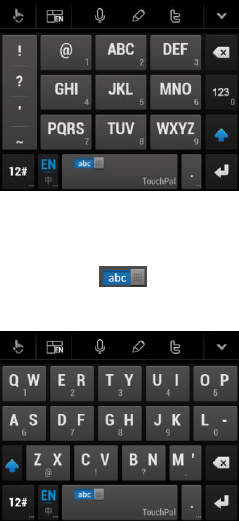

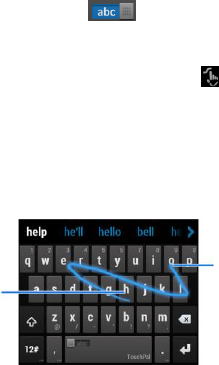

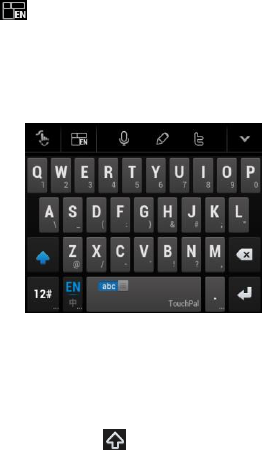

Entering Text .................................................................... 34

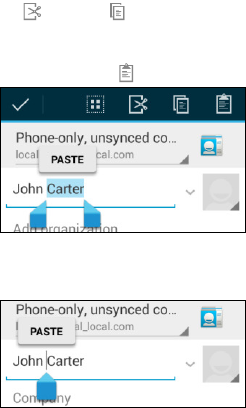

Editing Text ...................................................................... 40
Opening and Switching Apps ............................................ 42
Connecting to Networks and Devices.................. 43
Connecting to Mobile Networks ........................................ 43
Connecting to Wi-Fi® ........................................................ 44
Using Wi-Fi Direct® .......................................................... 48
Connecting to Bluetooth® Devices .................................... 49
Connecting to Your Computer via USB ............................. 52
Sharing Your Mobile Data Connection .............................. 54
Connecting to Virtual Private Networks ............................. 56
Phone Calls ............................................................ 59
Placing and Ending Calls ................................................. 59
Answering or Rejecting Calls ............................................ 59
Working With the Call Log ................................................ 60
Calling Your Contacts ....................................................... 62
Checking Voicemail .......................................................... 62
Using Options During a Call ............................................. 63
Managing Multi-party Calls ............................................... 64
Adjusting Your Call Settings ............................................. 65
6
People ..................................................................... 70
Checking Contact Details ................................................. 70
Adding a New Contact ..................................................... 70
Setting Up Your Own Profile............................................. 71
Importing, Exporting, and Sharing Contacts ..................... 71
Working With Favorite Contacts ....................................... 73
Working With Groups ....................................................... 74
Searching for a Contact ................................................... 75
Editing Contacts .............................................................. 75
Accounts ................................................................ 78
Adding or Removing Accounts ......................................... 78
Configuring Account Sync ................................................ 79
Email ....................................................................... 81
Setting Up the First Email Account ................................... 81
Checking Your Emails ...................................................... 81
Responding to an Email ................................................... 82
Writing and Sending an Email .......................................... 83
Adding and Editing Email Accounts .................................. 83
Changing General Email Settings .................................... 84
Gmail™ ................................................................... 85
Opening Your Gmail Inbox ............................................... 85
Switching Accounts .......................................................... 85
Writing and Sending a Message ...................................... 86
Replying to or Forwarding a Message .............................. 86
Working With Received Attachments ................................ 87
7
Working With Labels ........................................................ 87
Changing Gmail Settings .................................................. 88
Messaging .............................................................. 90
Opening the Messaging Screen ....................................... 90
Sending a Message ......................................................... 90
Replying to a Message ..................................................... 91
Forwarding a Message ..................................................... 91
Changing Message Settings............................................. 92
Calendar ................................................................. 93
Viewing Your Calendars and Events ................................. 93
Creating an Event ............................................................ 94
Editing or Deleting an Event ............................................. 95
Changing Calendar Settings............................................. 95
Google+™ .............................................................. 96
Getting Started With Google+ ........................................... 96
Signing out of Google+..................................................... 97
Browser .................................................................. 98
Opening the Browser ....................................................... 98
Downloading Files ............................................................ 99
Changing Browser Settings .............................................. 99
Maps ..................................................................... 100
Activating Location Services........................................... 100
Getting Your Location ..................................................... 100
Searching for a Location ................................................ 101
8
Getting Directions to Your Destination ............................ 101
Searching for Local Places ............................................ 102
Google Search ..................................................... 103
Searching With Text ....................................................... 103
Searching by Speaking .................................................. 103
Changing Search Settings ............................................. 104
Camera .................................................................. 105
Capturing a Photo .......................................................... 105
Customizing Camera Settings ........................................ 106
Recording a Video ......................................................... 107
Customizing Camcorder Settings ................................... 109
Gallery ................................................................... 110
Opening Gallery ............................................................ 110
Working With Albums ..................................................... 110
Working With Pictures .................................................... 111
Retouching Your Pictures ............................................... 112
Playing Videos ............................................................... 113
Music..................................................................... 114
Copying Music Files to Your Phone ................................ 114
Viewing Your Music Library ............................................ 115
Set a Song as the Default Ringtone ............................... 115
Playing Music ................................................................ 116
Managing Playlists ......................................................... 117
Play Music ............................................................ 118
9
Playing Your Music ......................................................... 118
Managing Playlists ......................................................... 120
FM Radio .............................................................. 121
Scanning and Saving Channels...................................... 121
Listening to FM Radio .................................................... 121
Other Options and Settings ............................................ 122
Sound Recorder ................................................... 123
Recording a Voice Memo ............................................... 123
Playing a Voice Memo .................................................... 123
More Apps ............................................................ 125
Backup & Restore .......................................................... 125
Calculator ...................................................................... 125
Cell broadcasts .............................................................. 125
Chrome™ ...................................................................... 125
Clock ............................................................................. 126
Downloads ..................................................................... 127
File Manager .................................................................. 128
Flashlight ....................................................................... 128
Mi-EasyAccess .............................................................. 128
News & Weather ............................................................ 129
NotePad ........................................................................ 129
Software Update Service ................................................ 130
Task Manager ................................................................ 130
Google Play™ Store ............................................ 131
Browsing and Searching for Apps ................................... 131
10
Downloading and Installing Apps ................................... 131
Creating a Google Wallet™ Account .............................. 132
Requesting a Refund for a Paid App .............................. 133
Managing Your Downloads ............................................ 133
Settings ................................................................. 135
Wireless and Networks .................................................. 135
Device ........................................................................... 137
Personal ........................................................................ 139
Accounts ....................................................................... 143
System .......................................................................... 143
Upgrading the Phone Software ........................... 145
Troubleshooting ................................................... 146
For Your Safety .................................................... 152
General Safety .............................................................. 152
Radio Frequency (RF) Exposure .................................... 153
Distraction ..................................................................... 155
Product Handling ........................................................... 156
Electrical Safety ............................................................. 160
Radio Frequency Interference ........................................ 161
Explosive Environments ................................................. 163
Declaration of RoHS Compliance ....................... 164
Disposal of Your Old Appliance .......................... 165
EC DECLARATION OF CONFORMITY ................ 166
![](/img.php?id=2248567&img=bgb.png)
11
Getting Started
Getting to Know Your Phone
Indicator Light
Earpiece
Volume Key
Light & Proximity
Sensors
Touch Screen
Front Camera
![](/img.php?id=2248567&img=bgc.png)
12
Knowing the Keys
Key
Function
Power Key
Press and hold to turn on or off airplane
mode, enable silent mode, vibration mode or
sound, restart, or to power off.
Press to switch your phone to sleep mode or
wake it up.
Charging/
USB Jack
Headset Jack
Back Cover
Back Camera
Flash
Speaker
Power Key
Auxiliary
Microphone
Main
Microphone
![](/img.php?id=2248567&img=bgd.png)
13
Key
Function
Volume Key
Press or hold to turn the volume up or down.
Installing the micro-SIM Card
Switch off your phone before installing or replacing the micro-SIM
card.
1. Insert your fingernail into the slot at the bottom left of the back
cover and lift it up gently.
2. Hold the micro-SIM card with the cut corner oriented as
shown and slip it into the card holder until you hear a click.
![](/img.php?id=2248567&img=bge.png)
14
3. Align the back cover with the back of the phone and press the
cover back into place. Make sure all the tabs are secure and
there are no gaps around the cover.
Installing the microSDHC™ Card
The microSDHC card can be installed and removed while the
phone is turned on. Unmount the microSDHC card before
removing it.
1. Remove the back cover.
2. Hold your microSDHC card with the metal contacts facing
down and slide it in.
![](/img.php?id=2248567&img=bgf.png)
15
NOTE: Some applications may require a microSDHC card to
work normally or may store certain data on it. Therefore, it is
recommended that you keep a microSDHC card installed and
not remove or replace it randomly.
3. Replace the back cover.
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
If the battery is low, there will be a pop-up message on the
screen. As you charge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
WARNING! Use only ZTE-approved chargers and cables. The
use of unapproved accessories could damage your phone or
cause the battery to explode.
![](/img.php?id=2248567&img=bg10.png)
16
CAUTION: Do not change the built-in rechargeable battery in
your phone by yourself. The battery can only be changed by ZTE
or ZTE authorised service provider.
Risk of explosion if battery replaced aced by an incorrect type.
Dispose of used batteries according to the instructions.
1. Connect the adapter to the charging jack. Ensure that the
adapter is inserted with the correct orientation. Do not force
the connector into the charging jack.
2. Connect the charger to a standard AC power outlet. If the
phone is on, you’ll see a charging icon, such as or ,
appear on the status bar.
3. Disconnect the charger when the battery is fully charged.
4. Adapter shall be installed near the equipment and shall be
easily accessible.
17
Extending the Battery Life
Active applications, screen brightness levels, Wi-Fi usage and
GPS functionality and other certain features can all drain your
battery. You can follow the helpful tips below to conserve your
battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn auto-sync, portable hotspot, Wi-Fi, and Bluetooth off
when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location; each query drains your battery.
Powering On/Off
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the
options menu. Touch Power off and then touch OK.
Restarting the Phone
If the screen freezes or takes too long to respond, try pressing
and holding the Power Key for about 8 seconds to restart the
phone.
![](/img.php?id=2248567&img=bg12.png)
18
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Settings – Personal – Backup &
Reset), you need to do some settings before using it.
Flick the language field to select the language and touch .
Then follow the prompts to set up Wi-Fi, Google Account, Google
location and other options.
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
the phone into sleep mode) when not in use and to turn the
screen back on and unlock it when you need it.
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
Key.
NOTE: To save battery power, the phone automatically turns off
the screen after a certain period of time when you leave it idle.
You will still be able to receive messages and calls while the
phone screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Touch and hold any blank area of the screen.
![](/img.php?id=2248567&img=bg13.png)
19
- or -
You can slide upwards to use Google search; touch
to use the camera; or touch the bottom of the screen and
slide left to access a few basic functions such as People,
Phone, and Camera.
NOTE: If you have set an unlock pattern, PIN or password for
your phone (see the chapter Personalizing – Protecting Your
Phone With a Screen Lock), you’ll need to draw the pattern or
enter the PIN/password to unlock your screen.
Using the Touch Screen
Your phone’s touch screen lets you control actions through a
variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
onscreen items such as application and settings icons, or
press onscreen buttons, simply touch them with your finger.
Touch and Hold
To open the available options for an item (for example, a
message or link in a Web page), touch and hold the item.
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag
![](/img.php?id=2248567&img=bg14.png)
20
To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone
sideways.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding application icons, shortcuts, folders,
widgets, and more. Your home screen extends beyond the initial
screen. Swipe the screen left or right to display additional
screens.
Status bar
Widget
Wallpaper
Shortcut
![](/img.php?id=2248567&img=bg15.png)
21
Touch to return to the home screen; touch and
slide upwards to use Google search.
Touch to go back to the previous screen.
Touch to see recently used applications.
Extended Home Screens
Your home screen extends beyond the initial screen, providing
more space to add icons, widgets, and more. Simply swipe left or
right on the screen to see the extended home screens.
![](/img.php?id=2248567&img=bg16.png)
22
Personalizing
Changing the System Language
1. Touch > > Settings > Language & input >
Language.
2. Select the language you need.
Setting the Date and Time
1. Touch > > Settings > Date & time.
2. Uncheck Automatic date & time and Automatic time zone
if you want to set the date, time and time zone by yourself.
3. Set the date, time, time zone, and date/time format.
Changing Ringtone and Notification
Sound
You can customize the default ringtone for incoming calls and the
default notification sound.
1. Touch > > Settings > Sound.
2. Touch Phone ringtone or Default notification sound.
3. Scroll through the ringtone list and select the ringtone you
want to use.
4. Touch OK.
![](/img.php?id=2248567&img=bg17.png)
23
TIP: See chapter People – Editing Contacts – Set a Ringtone for
a Contact for how to assign a special ringtone to an individual
contact.
Adjusting Volumes
1. Touch > > Settings > Sound > Volumes.
2. Drag the sliders to adjust the volume for each type of audio.
3. Touch OK to save.
TIP: You can adjust the media volume when a media application
is in use by pressing the Volume Key. If no media application is
active, press the Volume Key to adjust ringtone volume (or the
earpiece volume during a call).
Switching to Silent Mode
You can set the phone to silent mode by using one of the
following methods.
Press and hold the Power Key and then touch to enable
silent mode, touch to enable silent mode with vibration,
or touch to disable silent mode.
Keep pressing the lower end of the Volume Key when no
media application is active. When the icon appears on
the status bar, the phone is set to silent mode with vibration.
When the icon appears on the status bar, the phone is in
silent mode.
![](/img.php?id=2248567&img=bg18.png)
24
Applying New Wallpapers
You can set the wallpaper for the home screen or lock screen.
1. Touch to go to the home screen.
2. Touch and hold an empty area of the home screen and select
Home or Lock screen.
3. Select a wallpaper source from Gallery, Live Wallpapers,
Photos, or Wallpapers and choose the image or animation
you want to use as the wallpaper. Some cropping may be
needed for Gallery images.
4. Touch Save or OK at the top of the screen to crop Gallery or
Photos images or touch Set wallpaper.
NOTE: Live Wallpapers and Photos are not available for the
lock screen.
TIP: You can also use the Photos app to set images as the call
screen wallpaper.
Changing Screen Brightness
1. Touch > > Settings > Display > Brightness.
2. Touch AUTO to turn on or off automatic brightness
adjustment. When auto-adjustment is off, you can drag the
slider to adjust the brightness manually.
3. Touch OK.
TIP: You can turn on or off automatic adjustment without going to
the Settings menu. Just swipe down the status bar at the top of
the screen, touch and touch the BRIGHTNESS button. See
![](/img.php?id=2248567&img=bg19.png)
25
Knowing the Basics – Managing Notifications – Use Quick
Settings for more information.
Protecting Your Phone With a Screen
Lock
You can protect your phone by creating a screen lock. When
enabled, you need to touch and hold the screen, draw a pattern,
or enter a numeric PIN or a password to unlock the screen and
keys.
1. Touch > > Settings > Security.
2. Touch Screen lock.
3. Touch None, Slide, Pattern, PIN or Password.
Touch None to disable the screen lock feature.
Touch Slide to enable screen lock and allow unlocking
with a ‘touch and hold’ gesture. You can unlock the
screen by touching and holding a blank area of the lock
screen.
Touch Pattern to create a pattern you must draw to
unlock the screen.
Touch PIN or Password to set a numeric PIN or a
password that you must enter to unlock your screen.
IMPORTANT: If you forget the pattern you set, try five times and
touch Forget pattern? to sign in to the Google Account you have
added on the phone and reset the screen lock. You need an
active Internet connection. You can also upgrade the phone
![](/img.php?id=2248567&img=bg1a.png)
26
software. See Upgrading the Phone Software.
Protecting Your Phone With Encryption
You can encrypt all the data on your phone: Google Accounts,
application data, music and other media, downloaded information,
and so on. If you do, you must enter a numeric PIN or a
password each time you power on your phone.
WARNING! Encryption is irreversible. The only way to revert to
an unencrypted phone is to perform a factory data reset which
erases all your data.
Encryption provides additional protection in case your phone is
stolen and may be required or recommended in some
organizations. Consult your system administrator before turning it
on. In many cases the PIN or password you set for encryption is
controlled by the system administrator.
Before turning on encryption, prepare as follows:
Set a lock screen PIN or password.
Charge the battery.
Keep the phone connected to the charger.
Schedule an hour or more for the encryption process. You
must not interrupt it or you will lose some or all of your data.
When you're ready to turn on encryption:
1. Touch > > Settings > Security > Encrypt phone.
2. Read the information about encryption carefully.
The Encrypt phone button is dimmed if your battery is not
![](/img.php?id=2248567&img=bg1b.png)
27
charged or your phone is not plugged in.
If you change your mind about encrypting your phone, touch
.
WARNING! If you interrupt the encryption process, you will
lose data.
3. Touch Encrypt phone.
4. Enter your lock screen PIN or password and touch Next.
5. Touch Encrypt phone again.
The encryption process starts and displays its progress.
Encryption can take an hour or more, during which time your
phone may restart several times.
When encryption is completed, you're prompted to enter your
PIN or password.
Subsequently you must enter your PIN or password each time
you power on your phone in order to decrypt it.
![](/img.php?id=2248567&img=bg1c.png)
28
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
GPRS connected
No signal
EDGE connected
Signal strength
3G connected
Mobile data in use
HSPA connected
No micro-SIM card installed
4G connected
Alarm set
Flight mode
Ringer off
Battery dead
Vibrate mode
Battery low
Bluetooth on
Battery partially drained
Connected to a Wi-Fi
network
Battery full
Wi-Fi in use
/
Battery charging
Wired headset connected
![](/img.php?id=2248567&img=bg1d.png)
29
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
New SMS/MMS
microSDHC card removed
New email
Upcoming event
New Gmail
message
Call on hold
Problem with
SMS/MMS delivery
New Wi-Fi network detected
Missed call
Downloading data
Call in progress
Sending data
USB connected
USB tethering is on
/
Song is playing
Portable Wi-Fi hotspot or
Wi-Fi direct is on
Updates available
GPS on
Open/Close the Notification Panel
Notifications report the arrival of new messages, calendar events,
![](/img.php?id=2248567&img=bg1e.png)
30
and alarms, as well as ongoing events, such as when you've
configured your phone as a Wi-Fi hotspot. You can open the
notification panel to view the details of notifications.
To open the notification panel, swipe your finger down from
the top of the screen.
To close the notification panel, swipe your finger up from the
bottom of the screen or touch .
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or
remove the notifications. The notification panel also supports
expandable notifications that let you perform additional actions
right from the notification itself.
To respond to a notification, just touch it.
Slide down with one finger to expand certain notifications.
You can also swipe two fingers vertically or pinch-zoom to
expand or collapse certain notifications.
To remove a notification, swipe it left or right.
To remove all notifications, touch at the top.
Touch and hold a notification and then touch App info to
identify the application that created it. To turn off notifications
from that application if needed, uncheck Show notifications
in the App info screen.
NOTE: If you turn off notifications for an app, you may miss its
important alerts and updates. The notifications of some apps
cannot be turned off.
![](/img.php?id=2248567&img=bg1f.png)
31
Use Quick Settings
The Quick Settings in the notification panel make it convenient to
view or change the most common settings for your phone.
Open the notification panel and touch to find the following
Quick Settings.
OWNER: Touch the contact icon to open your profile in the
People app. See People – Setting Up Your Own Profile.
BRIGHTNESS: Touch to turn on or off automatic adjustment
of the screen brightness.
SETTINGS: Touch to open the Settings menu. See Settings
for more information.
WI-FI / WI-FI OFF: Touch to turn on or off the Wi-Fi feature.
DATA: Touch to turn on or off data access over mobile
networks.
BATTERY: Display the current battery status. Touch to open
the Battery menu in Settings.
AIRPLANE MODE: Touch to turn on or off the airplane mode.
BLUETOOTH / BLUETOOTH OFF: Touch to turn on or off
Bluetooth.
LOCATION / LOCATION OFF: Touch to turn on or off
location services.
![](/img.php?id=2248567&img=bg20.png)
32
Managing Shortcuts and Widgets
Add Shortcuts and Widgets
1. Touch > .
2. If you want to add a widget, touch WIDGETS.
3. Touch and hold a widget thumbnail or an app icon and drag it
to the home screen.
Move Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the home screen.
2. Drag it to the place you need.
NOTE: Drag the shortcut or the widget to (Remove) at the
top to remove it.
Adjust Widget Size
1. Touch and hold a widget on the home screen and then
release it.
2. An outline appears around the widget. Drag the outline to
resize the widget.
NOTE: Not all widgets can be resized.
Organizing With Folders
You can create folders on the home screen and add several
shortcuts to a folder.
![](/img.php?id=2248567&img=bg21.png)
33
Create a Folder
1. Touch and hold the shortcut on the home screen you want to
add into a folder until (Folder) appears.
2. Drag the shortcut to and release it. A new folder will be
created and the shortcut is added into the folder.
Rename a Folder
3. Touch a folder to open it.
4. Touch the folder name field and enter a new name.
Add Shortcuts to a Folder
1. Touch and hold a shortcut and then drag it onto a folder icon.
2. Release the shortcut and it will be added into the folder.
Remove Shortcuts From a Folder
1. Touch a folder to open it.
2. Touch and hold the shortcut you want to remove and then
drag it to the home screen.
3. Release the shortcut and it will be removed from the folder.
Rearranging the Favorites Tray
The home screen includes a customizable primary shortcuts area
at the bottom visible from all home screens. You can keep at
most four items in the primary shortcuts area. Drag shortcuts or
folders in or out of the area to rearrange the area.
![](/img.php?id=2248567&img=bg22.png)
34
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. You can also enter text by speaking with the
Google voice typing feature.
You can close the keyboard by touching .
Change Input Methods
1. When you use the onscreen keyboard to enter text, the icon
appears on the status bar.
2. Open the notification panel and touch Choose input
method.
3. Select an input method you need.
Android Keyboard
The Android Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the keyboard
will change from portrait to landscape. The landscape keyboard
is not supported in all applications.
![](/img.php?id=2248567&img=bg23.png)
35
Touch the alphabetic keys to enter letters. Touch and hold
some specific keys to enter associated accented letters or
numbers. For example, to enter è, touch and hold and the
available accented letters and number 3 appear. Then slide
to choose è.
Touch to use uppercase. Double-tap to lock
uppercase. This key also changes to indicate the current
case you are using: for lowercase, for uppercase, and
when locked in uppercase.
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
touch to find more.
Touch to enter miniature icons, such as expressions,
horoscopes, and animals.
Touch to use Google voice typing.
Touch and hold to change the input languages or set up
![](/img.php?id=2248567&img=bg24.png)
36
the Android keyboard.
TouchPal Keyboard
TouchPal Keyboard offers three layouts: T26, T12 and T+. You
can touch to select a layout or an input language.
You can also use TouchPal CurveTM to speed up text input by
replacing the key tapping operation with a tracing gesture where
you move your finger from letter to letter without lifting the finger
until you reach the end of the word.
The T26 Layout
The T26 layout offers an input experience similar to a computer
keyboard.
The alphabetic keys: Touch the keys to enter letters. Touch a
key and slide down to enter the number or symbol on the key.
You can also touch and hold a key and slide to choose more
characters.
The capital key: Touch to use uppercase or lowercase.
![](/img.php?id=2248567&img=bg25.png)
37
This key also changes to indicate the current case you are
using: for lowercase, for uppercase, and when
locked in uppercase.
Word prediction: Slide left or right on the space key to turn on
or off prediction, as indicated by and .
Languages: Touch or to select input language.
Pre-defined texts: Touch to enter digits, symbols,
emoticons and other pre-defined texts. You can touch 1/3, 2/3,
or 3/3 to turn pages, or touch to go back to the
alphabetic keys.
The delete key: Touch to delete text before the cursor.
You can also touch the key and slide left to delete a entire
word.
Voice input: Touch and speak through the microphone.
Edit text: Touch to open text editing options. You can
move the cursor, select, cut, copy, paste, or delete text.
More options: Touch to access the quick settings of
TouchPal keyboard, change keyboard skin, or check
messages from TouchPal.
Close the keyboard: Touch . You can touch the text field
again to show the keyboard.
The T12 Layout
The layout is similar to a phone pad in T12 mode.
![](/img.php?id=2248567&img=bg26.png)
38
Touch an alphabetic key repeatedly until the desired letter
appears. You can also touch and hold the key and slide left or
right to choose the letter or number you need.
If word prediction is enabled ( ), just touch the keys once
and choose the right word.
The T+ Layout
![](/img.php?id=2248567&img=bg27.png)
39
Touch to enter the left letter on the key; Double-tap or flick right to
enter the right letter/symbol on the key. You can also touch and
hold a key and slide left or right to choose more letters and
symbols.
If word prediction is enabled ( ), just touch the keys and
choose the right word.
To enable and use TouchPal Curve:
1. In the TouchPal keyboard screen, touch and check
TouchPal Curve®.
2. If prompted, touch OK to switch to the T26 layout.
3. Move your finger from letter to letter on the keyboard to
trace a word without lifting the finger until you reach the end
of the word.
NOTE: TouchPal Curve is only available in the T26 layout.
Tips for using TouchPal Curve:
Touch when you want to. If you want to enter a single letter, go
ahead and touch.
End of the word
Start of the word
![](/img.php?id=2248567&img=bg28.png)
40
Lift your finger at the end of the word. A space is added
automatically when you begin to trace the next word.
Google Voice Typing
Google Voice typing uses the Google voice recognition service to
convert speech to text. You must have a data connection on a
mobile or Wi-Fi network to use it.
1. Flick down the status bar when entering text and touch
Choose input method, and then select Google voice
typing.
Or touch to access the voice typing feature when you are
using the Android Keyboard.
2. When you see the microphone image, speak what you want
to type.
3. You can continue entering text to keep it or to delete it.
TIP: Say "comma," "period," "question mark," "exclamation
mark," or "exclamation point" to enter punctuation.
Input Settings
Choose input settings by touching > > Settings >
Language & input.
In the KEYBOARD & INPUT METHODS section, you can set the
default input method and choose the settings for input methods.
Editing Text
Move the insertion point: Touch where you want to type.
![](/img.php?id=2248567&img=bg29.png)
41
The cursor blinks in the new position, and a tab appears below
it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text. The
nearest word highlights, with a tab at each end of the selection.
Drag the tabs to change the selection.
Cut or copy: Select the text you want to manipulate. Then
touch the Cut or Copy button to cut or copy the text to
the clipboard.
Replace text with the clipboard text: Select the text you
want to replace. Then touch or PASTE.
Insert text from the clipboard: Move cursor to the insertion
point and then touch and hold the tab below the cursor.
Release the finger and touch PASTE.
![](/img.php?id=2248567&img=bg2a.png)
42
Opening and Switching Apps
Open an App
1. Touch > .
2. Slide left or right on the screen and touch an app to open it.
Switch Between Recently Opened Apps
1. Touch .
A list of the names and thumbnails of apps you’ve used
recently opens. If you’ve been using more apps recently than
can fit on the screen, you can scroll the list up and down.
2. Touch a thumbnail to open that app.
NOTE: You can swipe a thumbnail sideways to remove it from
the list.
![](/img.php?id=2248567&img=bg2b.png)
43
Connecting to Networks and
Devices
Connecting to Mobile Networks
Select Network Operator
1. Touch > > Settings > More… > Mobile
networks > Network operators.
2. Touch Search networks to search for all available networks.
3. Touch a network in the network list to register manually.
You can also touch Choose automatically to select preferred
network automatically.
Control Mobile Data Use
To enable or disable data access:
1. Touch > > Settings > More… > Mobile networks.
2. Check Data enabled to enable data access over the mobile
network. Clear the check box to disable data access.
To get data services when roaming:
1. Touch > > Settings > More… > Mobile networks.
2. Check Data roaming.
IMPORTANT: Data roaming may incur significant roaming
charges.
![](/img.php?id=2248567&img=bg2c.png)
44
Select Preferred Network Mode
1. Touch > > Settings > More… > Mobile
networks > Network Mode.
2. Touch the network mode you would prefer the phone to
connect with.
Set Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
1. Touch > > Settings > More… > Mobile
networks > Access Point Names.
2. Touch .
3. Touch each item to enter the information you get from your
service provider.
4. Touch Save to complete.
TIP: To set the APN to default settings, touch > Reset to
default.
Connecting to Wi-Fi®
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 100 meters, depending on
the Wi-Fi router and your surroundings.
![](/img.php?id=2248567&img=bg2d.png)
45
Turn Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position to turn on Wi-Fi.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch
Connect.
NOTE: Your phone automatically connects to previously used
Wi-Fi networks when they are in range.
Get Notified of Open Networks
1. Touch > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch > Advanced.
4. Check Network notification.
When Wi-Fi is on, you receive notifications in the Status bar when
your phone detects an open Wi-Fi network. Uncheck the option to
turn off notifications.
Add a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID) or add a Wi-Fi network when you are out of
range.
To connect to a secured network, you first need to get the
security details from the network's administrator.
![](/img.php?id=2248567&img=bg2e.png)
46
1. Touch > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch .
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch Save.
Forget a Wi-Fi Network
You can make your phone forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the phone
to connect to it automatically or if it is a network that you no
longer use.
1. Touch > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch the Wi-Fi network name and then touch Forget.
Connect to a WPS Network
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to
add your phone to access points which support WPS.
You can use one of the following two methods to connect your
phone to a wireless network using WPS.
Method one: WPS button
1. Touch > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
![](/img.php?id=2248567&img=bg2f.png)
47
3. Touch .
4. Press the WPS button on the access point and the access
point will recognize your phone and add it to the network.
Method two: PIN number
1. Touch > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch > WPS Pin Entry.
4. The WPS Pin number displays on the screen. Enter the Pin
number into the access point’s setup page.
After entering the Pin number, your phone automatically finds the
access point and configures the connection.
NOTE: For detailed information about the WPS feature of the
access point, please refer to its user documents.
Adjust Advanced Wi-Fi Settings
1. Touch > > Settings > Wi-Fi.
2. Touch > Advanced to adjust the following settings.
Network notification: Get notifications in the status bar
when Wi-Fi is on and an open network is available.
Keep Wi-Fi on during sleep: Set whether to keep Wi-Fi
on in sleep mode.
Scanning always available: Allow Google location
services and other apps to scan for networks even when
Wi-Fi is turned off.
![](/img.php?id=2248567&img=bg30.png)
48
Avoid poor connections: Only use Wi-Fi network when
the Internet connection is good.
Install certificates: Install certificates needed for
connecting to certain Wi-Fi networks.
Wi-Fi optimization: Minimize battery usage when Wi-Fi
is on.
MAC address: Check the MAC address.
IP address: Check the phone’s IP address.
Using Wi-Fi Direct®
Wi-Fi Direct allows Wi-Fi devices to connect to each other
without the need for wireless access points (hotspots).
NOTE: Activating this feature will disconnect your current Wi-Fi
network connection.
Connect to Another Device via Wi-Fi Direct
1. Touch > > Settings > Wi-Fi and turn Wi-Fi on.
2. Touch > Wi-Fi Direct. Your phone will search for other
devices enabled with Wi-Fi Direct connections.
3. Touch a device name below PEER DEVICES to connect with
it.
The other device will receive a connection prompt and need
to accept the request. Both devices may need to enter a
common PIN.
4. Once connected the device is displayed as “Connected” in
49
the PEER DEVICES list.
Send Data via Wi-Fi
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Wi-Fi. The method may vary
by application and data type.
3. Touch a device the phone has connected with or wait for it to
search for new devices and touch one of them.
Receive Data via Wi-Fi
When an attempt to transfer data via Wi-Fi is received, you can
see a notification in the status bar. Touch Accept to start
receiving the data.
Received files are stored automatically in a dedicated folder
(WiFiShare, for instance). You can access them with the File
Manager app.
Connecting to Bluetooth® Devices
Bluetooth® is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can
exchange information wirelessly within a distance of about 10
meters. The Bluetooth devices must be paired before the
communication is performed.
![](/img.php?id=2248567&img=bg32.png)
50
Turn Bluetooth On/Off
1. Touch > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON or OFF position.
When Bluetooth is on, the icon will appear in the status bar.
Change the Device Name
1. Touch > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
3. Touch > Rename phone.
4. Edit the name and touch OK.
Pair With Another Bluetooth Device
1. Touch > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
Your phone automatically scans for and displays the IDs of all
available Bluetooth devices in range. You could touch
SEARCH FOR DEVICES if you want to scan again.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and touch Pair. Alternately, enter a Bluetooth
passkey and touch Pair.
Pairing is successfully completed when the other device
51
accepts the connection or the same passkey is entered.
NOTE: The Bluetooth passkey may be fixed for certain devices
such as headsets and handsfree car kits. You can try entering
0000 or 1234 (the most common passkeys) or refer to the
documents for that device.
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Touch a Bluetooth device the phone has paired with or wait
for it to search for new devices and touch one of them.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
NOTE: If the phone has not been paired with the sending
device, you may need to check your phone’s device name in
the Bluetooth menu in Settings to keep the phone
detectable through Bluetooth.
2. When a pop-up box appears, indicating an incoming file via
Bluetooth, touch Accept to start receiving the data.
Depending on your storage setting and whether a microSDHC
card is installed, received files are stored automatically in a
dedicated folder (Bluetooth, for instance) in the phone storage or
microSDHC directory. You can access them with the File
Manager app. Received contacts (vCard files) are automatically
![](/img.php?id=2248567&img=bg34.png)
52
imported to your contact list.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your
phone stores these files in internal storage or on a removable
microSDHC card.
If you are using USB tethering, you must turn that off before you
can use USB to transfer files between your phone and computer.
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
2. Users have to use the connection to USB interfaces with USB
2.0 version or higher.
3. Open the Notification panel and touch (Connected as...).
4. Choose one of the following options:
Charge only: Charge your phone via USB.
USB mass storage: Transfer files between your PC and
the microSDHC card on your phone.
Install driver: Install the driver needed for some USB
connection modes (such as MTP).
Connect to PC software: Install apps or manage data on
the phone via PC software.
Media device (MTP): Transfer media files on Windows®
or Mac®.
![](/img.php?id=2248567&img=bg35.png)
53
Camera (PTP): Transfer photos using camera software.
Connect With Windows Media® Player
You can sync music on your phone and the computer installed
with Windows Media Player.
1. Connect the phone with your computer via USB and choose
Media device (MTP).
2. Open Windows Media Player and synchronize music files.
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
If you are accessing contents on the microSDHC card in USB
mass storage mode, open the Notification panel and touch Turn
off USB mass storage before unplug the USB cable.
Remove the microSDHC Card From Your
Phone
If you need to remove the microSDHC card while the phone is on,
you should unmount it first.
1. Touch > > Settings > Storage.
2. Scroll down and touch Unmount SD card > OK.
3. When the Unmount SD card menu changes to Mount SD
card you can now safely remove the microSD card from the
phone.
![](/img.php?id=2248567&img=bg36.png)
54
Sharing Your Mobile Data Connection
You can share your phone’s data capabilities through tethering or
by activating the mobile hotspot feature to create a portable Wi-Fi
hotspot.
Share Your Mobile Data Connection via USB
You can access the Internet on your computer via the USB
tethering feature of your phone. The feature needs data
connection on a mobile network and may result in data charges.
NOTE: If your phone has a microSDHC card or USB storage, you
can’t mount it on your computer while USB tethered.
1. Connect your phone to your computer with a USB cable.
2. Touch > > Settings > More... > Tethering &
portable hotspot.
3. Check USB tethering. A new network connection will be
created on your computer.
NOTE: To stop sharing your data connection, uncheck USB
tethering or disconnect the USB cable.
Share Your Mobile Data Connection via
Bluetooth
If your computer can obtain an Internet connection via Bluetooth,
you can configure your phone to share its mobile data connection
with your computer.
1. Pair your phone with your computer via Bluetooth.
![](/img.php?id=2248567&img=bg37.png)
55
2. Configure your computer to obtain its network connection via
Bluetooth. For more information, please see your computer's
documentation.
3. Touch > > Settings > More... > Tethering &
portable hotspot.
4. Check Bluetooth tethering. Your computer is now sharing
your phone's data connection.
NOTE: To stop sharing your data connection, uncheck
Bluetooth tethering.
Share Your Mobile Data Connection as a
Wi-Fi Hotspot
You can share your phone’s data connection with other devices
by turning your phone into a portable Wi-Fi hotspot. The feature
needs data connection on a mobile network and may result in
data charges.
NOTE: When the portable Wi-Fi hotspot feature is enabled, you
cannot use your phone’s applications to access the Internet via
its Wi-Fi connection. You still remain connected to the Internet
via your mobile data network.
1. Touch > > Settings > Portable hotspot.
2. Slide the switch to turn on Wi-Fi hotspot.
After a moment, the phone starts broadcasting its Wi-Fi
network name (SSID).
3. On another device, locate your phone via Wi-Fi and connect
with it to start using the phone’s mobile data.
![](/img.php?id=2248567&img=bg38.png)
56
NOTE: To stop sharing your data connection, turn off Portable
hotspot.
Rename or Secure Your Wi-Fi Hotspot
You can change the name of your phone's Wi-Fi network (SSID)
and secure your portable Wi-Fi hotspot.
1. Touch > > Settings > Portable hotspot.
2. Touch CONFIGURE. Set your name and security options as
follows:
Network SSID: Enter or edit a network SSID (name) that
other devices see when scanning for Wi-Fi networks.
Type: Broadcast or hide your network SSID. If the
broadcast is disabled, other users need to get your
network SSID to find the Wi-Fi hotspot.
Security: Choose a security option: None (not
recommended), WPA PSK or WPA2 PSK (other users
can access your mobile hotspot only if they enter the
correct password). When you select WPA PSK or WPA2
PSK, touch the Password field to edit the security
password.
3. Touch Save to save your settings.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
resources inside a secured local network. VPNs are commonly
deployed by corporations, schools, and other institutions to let
![](/img.php?id=2248567&img=bg39.png)
57
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Add a VPN
1. Touch > > Settings > More... > VPN.
2. Touch and fill in the information provided by your
network administrator.
3. Touch Save.
The VPN is added to the list on the VPN screen.
Connect to a VPN
1. Touch > > Settings > More... > VPN.
2. Touch the VPN that you want to connect to.
3. When prompted, enter any requested credentials, and then
touch Connect.
When you are connected, the VPN connected icon appears in
the Status bar.
Modify a VPN
1. Touch > > Settings > More... > VPN.
2. Touch and hold the VPN that you want to modify.
58
3. Touch Edit profile and edit the VPN settings you want.
4. Touch Save.
![](/img.php?id=2248567&img=bg3b.png)
59
Phone Calls
You can place calls from the Phone app, the People app, or other
apps or widgets that display contact information. Wherever you
see a phone number, you can usually touch it to dial.
Placing and Ending Calls
Place a Call by Dialing
1. Touch > > .
2. In the Phone tab , enter the phone number with the
on-screen keypad. Touch to delete incorrect digits.
NOTE: As you enter digits, your phone searches for contacts
that match. If you see the number you want to dial, just touch
it.
3. Touch below the keypad to place the call.
TIP: To make an international call, touch and hold the 0 key to
enter the plus (+) symbol. Next, enter the country code, followed
by the city/area code and then the phone number.
End a Call
During a call, touch on the screen.
Answering or Rejecting Calls
When you receive a phone call, the Incoming Call screen opens,
![](/img.php?id=2248567&img=bg3c.png)
60
displaying the Caller ID or the information about the caller that
you've entered in People. You can answer or reject the call, or
reject it with a text message.
Answer a Call
When you receive a phone call, drag over to answer
the call.
NOTE: To silence the ringer before answering the call, press the
Volume Keys up or down.
Reject a Call
When you receive a phone call, drag over to reject the
call.
You can also drag over to reject the call and send a
preset text message to the caller.
TIP: To edit the text response, touch > > Phone > >
Settings > Quick responses.
Working With the Call Log
The Call log is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your Contacts.
To open the call log, touch the Call log tab in the Phone
app.
![](/img.php?id=2248567&img=bg3d.png)
61
Place a Call From the Call Log
1. Open the call log.
2. Touch a number for more information about the call, or touch
beside it to call back.
NOTE: You can touch > Show missed only / Show outgoing
only / Show incoming only to switch to each call log type you
want to view.
Add a Call Log Number as a Contact
1. Open the call log.
2. Touch a number to view more call information.
3. Touch .
4. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch CREATE NEW
CONTACT.
Take Other Actions on a Call Log Entry
1. Open the call log.
2. Touch a number to view more call information. While viewing
the call details, you can:
Touch the number to call it.
Touch > Edit number before call to edit the number in
the dialer before calling it.
Touch to send a message.
If the number belongs to a contact you have, touch to
![](/img.php?id=2248567&img=bg3e.png)
62
view contact details.
Touch > Remove from call log to delete the call log.
Calling Your Contacts
1. Touch > > and then touch the Favorites tab
.
2. Flick the screen up or down to view all your contacts with
phone numbers.
TIP: Your favorite contacts and frequently called contacts or
numbers are listed at the top of the screen. You can search
for a contact by touching on the screen.
3. Touch a contact or number to call it.
Checking Voicemail
If you have set the phone to divert calls to voicemail, callers can
leave voicemail messages when they cannot reach you. Here’s
how to check the messages they left.
1. Touch > > .
2. Touch and hold in the dialer. If prompted, enter your
voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE: To set your voicemail service, touch > Settings >
Voicemail in the dialer and touch the voicemail settings you want
![](/img.php?id=2248567&img=bg3f.png)
63
to change. For detailed information, please contact the service
provider.
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch / to turn on or off the speaker.
Touch to mute or unmute your microphone.
Touch to make another call separately from the first call,
which is put on hold.
Touch to switch to the keypad when you need to enter a
code (for example, the PIN for your voicemail or bank
account) during the call.
Touch to put the call on hold.
Touch to put the caller you are speaking to on hold, and
switch to the other call that has been put on hold.
Touch for more call options. You can record phone
conversation.
Touch to merge the separate calls into a single
conference call.
Touch to end the current call.
WARNING! Because of higher volume levels, do not place the
phone near your ear during speakerphone use.
![](/img.php?id=2248567&img=bg40.png)
64
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE: The call waiting and three-way call features need network
support and may result in additional charges. Please contact your
service provider for more information.
Switch Between Current Calls
When you’re on a call and another call comes in, your phone
screen informs you and displays the caller ID.
To respond to an incoming call while you’re on a call:
Drag over to answer the call. (This puts the first caller
on hold and answers the second call.)
To switch between two calls:
Touch on the screen.
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
1. On the dialer screen, enter a number and touch .
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
![](/img.php?id=2248567&img=bg41.png)
65
are the first to hang up, all callers are disconnected.
To end the conference call, touch .
Adjusting Your Call Settings
Select Default Ringtone and Vibration
1. Touch > > Settings > Call settings.
2. Touch Phone ringtone to select the default ringtone for
incoming calls or check Vibrate when ringing to enable
vibration when the phone is ringing.
Set Voicemail
1. Touch > > Settings > Call settings > Voicemail.
2. Set the following options.
Touch Service to select voicemail service provider. Your
carrier is the default.
Touch Setup > Voicemail number to edit the voicemail
number.
Touch Sound to set the notification sound for new
voicemails.
Check Vibrate to let the phone vibrate when receiving
new voicemails.
Enable/Disable Phone Dial Pad Sound
1. Touch > > Settings > Call settings.
![](/img.php?id=2248567&img=bg42.png)
66
2. Check or uncheck Dial pad touch tones.
Edit Quick Response to Rejected Callers
1. Touch > > Settings > Call settings > Quick
responses.
2. Touch the text message to edit it.
3. Touch OK to save the new message.
Use Fixed Dialing Numbers
Fixed Dialing Numbers (FDN) allows you to restrict outgoing calls
to a limited set of phone numbers.
1. Touch > > Settings > Call settings > Fixed
Dialing Numbers.
2. The following options are available:
Enable FDN: Input the PIN2 code to enable the FDN
feature.
Change PIN2: Change the PIN2 code for FDN access.
FDN list: Manage the FDN list.
NOTE: The PIN2 code is provided by your carrier. Entering an
incorrect PIN2 code more times than allowed can get your
micro-SIM card locked. Contact the service provider for
assistance.
Set TTY Mode
Select a TTY mode for your phone to work with a teletypewriter,
or turn TTY off.
![](/img.php?id=2248567&img=bg43.png)
67
1. Touch > > Settings > Call settings > TTY mode.
2. Select one of the following options. Consult your
teletypewriter manufacturer’s manual if necessary.
TTY Off: Users who can hear and talk can disable TTY
support.
TTY Full: Users who cannot talk or hear may use this
mode to send and receive text messages through a TTY
device.
TTY HCO: Users who can hear, but cannot talk, may use
this mode to listen to conversation of the other party and
respond via text messages.
TTY VCO: Users who can talk, but cannot hear, may use
this mode to talk through the phone and receive
responses via text messages.
Set DTMF Tones
You can set the length of Dual-tone multi-frequency (DTMF)
signal tones.
1. Touch > > Settings > Call settings > DTMF
tones.
2. Touch Normal or Long.
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. Touch > > Settings > Call settings > GSM call
settings > Call forwarding.
![](/img.php?id=2248567&img=bg44.png)
68
2. Touch an available option ( Always forward, Forward when
busy, Forward when unanswered, or Forward when
unreachable) to enable it.
Internet Call Settings
To add an Internet calling account:
1. Touch > > Settings > Call settings > SIP
Accounts.
2. Touch ADD ACCOUNT.
3. Follow the instructions from your Internet calling service
provider to configure the settings for your account.
4. Touch SAVE.
To configure which calls use Internet calling:
You can configure your phone to place all calls using Internet
calling, just calls to Internet calling addresses, or to ask each time
you place a call.
1. Touch > > Settings > Call settings.
2. Touch Use Internet calling.
3. Touch the Internet calling option you want.
To configure your phone to receive Internet calls:
By default, your phone is configured to make Internet calls, but
not to ensure that you will receive them. However, you can
configure your phone to listen for Internet calls made to an
Internet calling account you have added to your phone.
1. Touch > > Settings > Call settings > SIP
![](/img.php?id=2248567&img=bg45.png)
69
Accounts.
2. Check Receive incoming calls. Checking this setting will
reduce your battery life between charges.
Other Options
1. Touch > > Settings > Call settings > GSM call
settings > Additional settings.
2. Touch Caller ID to choose whether your number is displayed
when someone receives your outgoing call. Or check Call
waiting to get notified of incoming calls during a call.
NOTE: Please contact the service provider to check whether the
caller ID and call waiting features are available.
![](/img.php?id=2248567&img=bg46.png)
70
People
You can put contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch > > . From there, you
can touch the tabs on the top of the screen to quickly switch to
contact groups or favorite contacts .
Checking Contact Details
1. Touch > > and touch the all contacts tab
to access your contact list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
TIP: If you have a lot of contacts stored, you'll see a slider on the
right side of the screen. To go directly to a letter, touch and hold
the slider and drag it to a letter.
Adding a New Contact
1. Touch > > and touch the all contacts tab .
2. Touch to add a new contact.
3. Touch the account field near the top of the screen to choose
where to save the contact. If a sync account is selected, the
contacts will be synced automatically with your account
![](/img.php?id=2248567&img=bg47.png)
71
online.
4. Enter the contact name, phone numbers, email addresses,
and other information.
5. Touch DONE to save the contact.
Setting Up Your Own Profile
You can create your own name card in your phone.
1. Touch > > and touch the all contacts tab .
2. Touch Set up my profile.
If a profile has already been set up, touch the listing under ME
and then touch > Edit.
3. Edit your profile information and touch DONE.
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to your micro-SIM or
microSDHC card. This is especially useful when you need to
transfer contacts between different devices. You can also quickly
share your contacts using Bluetooth, Email, Messaging, etc.
Import Contacts From the micro-SIM Card
1. Touch > > .
2. Touch > Import/export > Manage SIM card contacts.
![](/img.php?id=2248567&img=bg48.png)
72
3. If you have added contact accounts other than the phone,
select an account in which to save the contacts.
4. Touch the contacts you want to import one by one, or touch
> Import all.
Import Contacts From the microSDHC Card
1. Touch > > .
2. Touch > Import/export > Import from storage.
3. If you have added contact accounts other than the phone,
select an account in which to save the contacts.
4. Select the vCard file(s) in the microSDHC card or the phone
storage and touch OK.
Export All Contacts to the micro-SIM Card
1. Touch > > .
2. Touch > Import/export > Export to SIM card.
Export Contacts to the microSDHC Card
1. Touch > > .
2. Touch > Import/export > Export to storage.
3. The phone will prompt you with the name of the vCard file and
the directory in which the file will be saved. Touch OK to
create the file.
![](/img.php?id=2248567&img=bg49.png)
73
Share All Contacts
1. Touch > > and touch the All contacts tab.
2. Touch > Import/export > Share visible contacts.
3. Choose how to share the contacts. Options depend on
applications installed.
Working With Favorite Contacts
In the favorite contacts tab, you can find your favorite
contacts and frequently contacted contacts.
Add a Contact to Favorites
You can add the contacts you use frequently to Favorites so that
you can find them quickly.
NOTE: Contacts on the micro-SIM card cannot be added to
Favorites.
1. Touch > > and touch the all contacts tab .
2. Touch a contact and then touch next to the contact name.
Remove a Contact From Favorites
1. Touch > > and touch the favorite contacts tab
.
2. Touch a favorite contact and then touch next to the
contact name.
![](/img.php?id=2248567&img=bg4a.png)
74
Working With Groups
View Your Contact Groups
1. Touch > > and touch the contact groups tab
.
2. Scroll through the list to view the preset groups and any
groups you have created.
3. Touch a group to view its members.
Set Up a New Group
1. Touch > > and touch the contact groups tab
.
2. Touch to create a new group.
3. If you have added contact accounts other than the phone,
touch to choose an account for the new group.
4. Enter a group name and touch DONE.
5. Touch and select the contacts you wish to be the group
members.
6. Touch .
Delete a Group
1. Touch > > and touch the contact groups tab
.
2. Touch a group and then touch > Disband group.
![](/img.php?id=2248567&img=bg4b.png)
75
3. Touch OK to disband the group. The contacts in the group
will not be deleted.
Edit a Group
1. Touch > > and touch the contact groups tab
.
2. Touch a group and then touch .
3. Touch Rename group to edit the group name. Or touch
Select item(s) to select the members you don’t need and
remove them.
Searching for a Contact
1. Touch > > .
2. Touch at the bottom of the screen.
3. Input the contact name or any information the contact has to
search for it. The contacts matched will be listed.
Editing Contacts
Edit Contact Details
1. Touch > > .
2. Touch a contact you need to edit and then touch > Edit.
3. Edit the contact and touch DONE.
![](/img.php?id=2248567&img=bg4c.png)
76
Set a Ringtone for a Contact
Assign a special ringtone to a contact, so you know who is
calling when you hear the ringtone.
1. Touch > > .
2. Touch a contact you want to set a ringtone for and then touch
> Set ringtone.
NOTE: The contact must be saved on the phone, not the
micro-SIM card.
3. Select a ringtone you like and touch OK.
Join Contacts
As your phone synchronizes with multiple online accounts, you
may see duplicate entries for the same contact. You can merge
all the separate information of a contact into one entry in the
Contacts list.
1. Touch > > .
2. Touch a contact entry to display the contact’s details.
3. Touch > Edit > > Join.
4. Touch the contact whose information you want to join with the
first entry.
The information from the second contact is added to the first, and
the second contact is no longer displayed in the Contacts list.
You can repeat these steps to join another contact to the main
contact.
![](/img.php?id=2248567&img=bg4d.png)
77
Separate Contact Information
If contact information from different sources was joined in error,
you can separate the information back into individual contacts on
your phone.
1. Touch > > .
2. Touch a contact entry you have merged and want to
separate.
3. Touch > Edit > > Separate.
4. Touch OK to confirm.
![](/img.php?id=2248567&img=bg4e.png)
78
Accounts
Adding or Removing Accounts
You can add multiple Google Accounts and Microsoft Exchange
ActiveSync® accounts. You may also add other kinds of
accounts depending on the apps installed on your phone.
Add an Account
1. From the home screen, touch > Settings > Add
account.
2. Touch the type of account you want to add.
3. Follow the onscreen steps to enter the information about the
account. Most accounts require a username and password,
but the details may vary. You may also need to obtain some
information from IT support or your system administrator.
When the account is successfully added, it is displayed in the
ACCOUNTS section in the Settings menu..
Remove an Account
Removing an account will delete it and all information
associated with it from your phone, such as emails and
contacts.
1. From the home screen, touch > Settings.
2. Touch the account category in the ACCOUNTS section and
![](/img.php?id=2248567&img=bg4f.png)
79
then touch the account.
3. Touch > Remove account > Remove account.
Configuring Account Sync
Configure Auto Sync Setting
1. From the home screen, touch > Settings > Data
usage.
2. Touch and check or uncheck Auto-sync data.
When automatic sync is turned on, changes you make
to information on your phone or on the web are
automatically synced with each other.
When auto sync is turned off, you need to sync manually
to collect emails, updates, or other recent information.
Sync Manually
1. From the home screen, touch > Settings.
2. In the ACCOUNTS section, touch the account category and
then the account you want to sync.
3. Touch > Sync now.
Change an Account’s Sync Settings
1. From the home screen, touch > Settings.
2. In the ACCOUNTS section, touch the account category and
80
then the account. The Sync screen appears, showing a list
of information the account can sync.
3. When auto-sync is enabled, check or uncheck items as you
need. Checked types of information on the phone and the
web will be kept in auto-sync.
![](/img.php?id=2248567&img=bg51.png)
81
Email
Touch in the home screen and select Email. Use it to
receive and send emails from your webmail or other accounts,
using POP3 or IMAP, or access your Exchange ActiveSync
account for your corporate email needs.
Setting Up the First Email Account
1. When you open Email for the first time, enter your email
address and password.
2. Touch Next to let the phone retrieve the network parameters
automatically.
NOTE: You can also enter these details manually by touching
Manual setup or when automatic setup fails.
3. Follow the on-screen instructions to finish the setup.
Your phone will show the inbox of the email account and start to
download email messages.
Checking Your Emails
Your phone can automatically check for new emails at the
interval you set when setting up the account.
You can also check new emails manually by touching in
any of the email account’s boxes. Touch Load more messages
at the bottom of the email list to download earlier messages.
![](/img.php?id=2248567&img=bg52.png)
82
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Reply to or Forward an Email
1. Open the email you want to reply to or forward from Inbox.
2. Do the following as you need.
To reply to the sender, touch .
To reply to the sender and all recipients of the original
email, touch .
To forward the email to someone else, touch .
3. Edit your message and touch .
Mark an Email as Unread
You can return a read email to the unread state—for example,
to remind yourself to read it again later. You can also mark a
batch of emails as unread.
While reading a message, touch > Mark as unread.
While in a message list (for instance, the inbox), touch the
checkboxes before the messages and then touch .
Delete an Email
You can delete an email from its folder. You can also delete a
batch of emails.
![](/img.php?id=2248567&img=bg53.png)
83
While reading a message, touch > OK.
While in a message list (for instance, the inbox), touch the
checkboxes in front of the messages and then touch >
OK.
Writing and Sending an Email
1. Open your email Inbox and touch .
NOTE: If you have more than one email account added on
the phone, touch the sender line to select the account you
want to use for sending the message.
2. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma. You can also touch
to select recipients from your contacts, contact groups,
or history.
3. Enter the email subject and compose the email text.
4. Touch > Attach file to add audio files, images, videos
and other types of files as attachments.
5. Touch at the top of the screen to send the message.
Adding and Editing Email Accounts
Add an Email Account
After setting up your first email account (see Email – Setting Up
the First Email Account), you can add more email accounts and
manage them separately.
![](/img.php?id=2248567&img=bg54.png)
84
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch ADD ACCOUNT at the top
right of the screen.
3. Follow the prompts to set up the account as you did with the
first one.
Edit an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
your email signature, and details about the servers the account
uses to send and receive mails.
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch the account whose settings
you want to change.
3. Make the changes you want and touch when you’re
finished.
Changing General Email Settings
General settings apply to all email accounts you add.
1. Open Email to get the Inbox screen.
2. Touch > Settings > General.
3. Make the changes and touch when you finish.
![](/img.php?id=2248567&img=bg55.png)
85
Gmail™
After you sign in to your Google Acount on the phone, you can
send and retrieve Gmail messages with the Gmail app.
NOTE: This feature may not be available in certain regions or
with certain service providers.
Opening Your Gmail Inbox
Touch in the home screen and select Gmail. The Inbox
screen appears.
If you haven’t signed in, you will be prompted to do so or create
a new account.
Touch > Refresh to refresh your Inbox and download new
messages. To search for Gmail messages, touch and
enter the words to search for.
Switching Accounts
Gmail displays conversations, messages, and settings from
one Google Account at a time. If you have signed in to more
than one Google Account on your phone, you can switch
accounts and view information in each account.
1. From your Inbox, touch the current account at the top of the
screen.
2. From the menu that appears, touch the account you want to
see. The account’s Inbox will open.
![](/img.php?id=2248567&img=bg56.png)
86
Writing and Sending a Message
1. Open your Gmail Inbox and switch to the account you want
to use for sending the message.
2. Touch > Compose.
3. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma.
4. Enter the email subject and compose the email text.
5. To attach an image or a video, touch > Attach picture /
Attach video.
6. Touch at the top of the screen to send the message.
Replying to or Forwarding a Message
1. Open the Gmail message you want to reply to or forward to
another person.
2. Do the following as you need.
To reply to the sender, touch .
To reply to the sender and all recipients of the original
message, touch > Reply all.
To forward the message, touch > Forward.
3. Edit your message and touch the send icon .
![](/img.php?id=2248567&img=bg57.png)
87
Working With Received Attachments
When a message has an attachment, Gmail displays
information about it in the ATTACHMENTS section of the email.
Depending on the attachment type, the applications installed on
your phone as well as your settings, you may touch to
preview, view, or save the attachment.
TIP: For documents with multiple pages, touching the Preview
option will only download the pages you view, while touching
other options may download the entire file and cost more time
and data.
Working With Labels
Message labels include both labels you create and default
labels such as Sent, Starred, and Outbox. You can organize
your emails by labeling them or adding stars to them. Labels
also help you sort your messages, similar to folders.
To label or change labels:
1. Open the Gmail app and touch in the message list the
sender images at the left side of the messages you want to
label.
![](/img.php?id=2248567&img=bg58.png)
88
2. At the top of the screen, touch > Change labels.
3. Check or uncheck labels in the new dialog box and touch
OK.
To add stars to messages:
1. Open the Gmail app and touch in the message list the
sender images in front of the messages you want to star.
2. At the top of the screen, touch > Add star.
To view messages by label:
1. Open the Gmail app and touch the current account at the
top of the screen without checking any message.
2. Touch a label below ALL LABELS to view messages with
that label.
Changing Gmail Settings
Touch > Settings in any Gmail screen to change General
settings, which apply to all Gmail accounts, or other settings
89
that only apply to specific accounts.
![](/img.php?id=2248567&img=bg5a.png)
90
Messaging
You can use Messaging to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messaging Screen
Touch in the home screen and select Messaging.
The Messaging screen opens where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for a message using keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Message
1. On the Messaging screen, touch at the bottom.
2. Add recipients by one of the following ways.
Touch the To field and manually enter the recipient’s
number or the contact name. If the phone presents a few
suggestions, touch the one you want to add.
Select recipients from your contacts by touching .
3. Touch the Type message field and enter the content of your
message.
![](/img.php?id=2248567&img=bg5b.png)
91
4. If you want to send a multimedia message, touch > Add
subject to add a message subject or touch the paper clip
icon to attach a file or a slideshow to the message.
5. Touch or Send.
NOTE: You can also include email addresses as recipients for
multimedia messages.
NOTE: Do not add a message subject or any attachment if you
want to send a text message. Otherwise you may be charged
for a multimedia message.
Replying to a Message
Messages you receive are appended to existing threads for the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
message you want to reply to.
2. Type your reply in the text box at the bottom. You can touch
the attach icon if you want to reply with an MMS.
3. Touch or Send.
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
message you want to forward.
2. Touch and hold the message.
![](/img.php?id=2248567&img=bg5c.png)
92
3. Touch Forward in the menu that opens.
4. Enter a recipient for the message and edit the content if you
want.
5. Touch .
Changing Message Settings
Touch > Settings on the Messaging screen to change
message settings.
![](/img.php?id=2248567&img=bg5d.png)
93
Calendar
Calendar on the phone works with the web-based Google
Calendar™ service for creating and managing events,
meetings, and appointments. It also works with the Microsoft
Exchange ActiveSync calendar once you sign into your
Exchange account on the phone.
To open Calendar, touch in the home screen and select
Calendar.
Viewing Your Calendars and Events
Select Visible Calendars
1. Open the Calendar app.
2. Touch Menu > Calendars to display.
3. In the new screen, touch the calendars to check the
calendars you want to see or uncheck the calendars you’d
like to hide.
Events from hidden calendars are not shown in the Calendar
app.
Change Calendar Views
You can view your calendars in different forms. The app offers
four views: Month, Week, Day, and Agenda.
To change calendar views, touch the view you want at the
94
bottom of the screen.
You can also change to Day view from Month view by touching
any day in the monthly calendar.
In Month view, swipe vertically to see previous months and
future months.
In Week or Day view, swipe horizontally to see previous
weeks/days and future weeks/days.
When you are viewing earlier or later days, weeks, or
months, touch Today at the top to quickly switch to today.
View Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to switch to Day view. Then touch an
event to view its details.
Creating an Event
1. In any Calendar view, touch New event.
You can also touch a spot in Day or Week view twice to add
an event to that time spot.
2. If you have more than one calendar account, touch the
current account above the Event name field to choose one.
3. Enter the event details and touch DONE.
![](/img.php?id=2248567&img=bg5f.png)
95
Editing or Deleting an Event
1. Find the event you want to edit or delete.
2. Open its details screen (see Viewing Your Calendars and
Events – View Event Details in this chapter).
3. Do one of the following as you need.
To…
do…
Edit the event,
touch at the bottom of the screen.
Touch DONE to save your changes.
Delete the event,
touch at the bottom of the screen
and then touch OK.
Share the event,
touch and choose how to share.
Changing Calendar Settings
To change Calendar settings, open a Calendar view (Day,
Week, Month, or Agenda) and touch Menu > Settings.
You can change General settings, which apply to all accounts,
or other settings that only apply to specific accounts.
![](/img.php?id=2248567&img=bg60.png)
96
Google+™
Google+ is a social networking service offered by Google. The
Google+ application on your phone enables you to manage your
data, chat with online contacts, organize them in different circles,
and share your selected information.
Touch in the home screen and select Google+. The first
time you open the Google+ app, select the photo & video backup
and contact sync options.
NOTE: For detailed guide for Google+, open Google+ and touch
> Help to view the online instructions.
Getting Started With Google+
Open the Google+ app and touch at the top left to use the
following features:
Home: See posts people have shared with you, a circle you
are in, or everyone.
People: Find people to add to your Google+ circles, create
new circles, view and organize people into circles based on
your relationships. You can also follow content posted by
people you find interesting.
Photos: View photos you uploaded, photos of you, photos
from your posts and more.
Communities: Search and join all kinds of online
communities, where people gather for the sharing and
![](/img.php?id=2248567&img=bg61.png)
97
discussion of a common topic.
Locations: See your friends locations on the map and
configure your location sharing settings.
Hangouts: Chat with your Google+ contacts through text
messages or video call.
Events: Manage your social calendar. You can add events,
invite people, and then share photos in real time from the
event.
Search: Search for content posted on Google+.
Touch the headshot image next to your account name to view
and edit your basic information, view your posts and photos.
Signing out of Google+
If you are already signed in to the app, you can sign out by
following these steps.
1. Touch in the home screen and select Google+.
2. Touch > Sign out.
![](/img.php?id=2248567&img=bg62.png)
98
Browser
Use Browser to view web pages and search for information.
Opening the Browser
Touch in the home screen and select Browser to start this
function. The last web page you were viewing is displayed. If
you have not used Browser recently, your home page opens.
Browser also opens when you touch a web link - for example, in
an email or a text message.
To open a web page or search the web:
1. Open the Browser app.
2. Touch the address box at the top of the web page. If the
address box isn’t visible, scroll to the top of the page to
show it.
3. Enter the address (URL) of a web page. Or, enter terms you
want to search for. You can also touch to search by
voice.
4. Touch a URL or search suggestion or touch Go on the
keyboard to open the web page or search results.
TIP: Touch X at the bottom of the screen if you want to stop
opening the page.
TIP: Touch the tabs icon at the bottom of the screen to
open a new web page in a new tab.
![](/img.php?id=2248567&img=bg63.png)
99
Downloading Files
Touch and hold an image or a link to a file or to another
webpage. In the menu that opens, touch Save image or Save
link.
The downloaded files are saved to your phone or the memory
card. You can view or open them in the Downloads app
( > Downloads ).
Changing Browser Settings
You can configure a number of Browser settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the Browser settings screen, touch > Settings.
![](/img.php?id=2248567&img=bg64.png)
100
Maps
Activating Location Services
To use Google Maps and find your location on Google Maps™,
you must have location services turned on on your phone.
1. Touch > > Settings > Location.
2. Slide the Location switch at the top to turn location access
on or off.
3. When location access is enabled, touch Mode to select
location sources you want to use.
High accuracy: Get accurate location using both GPS
and Wi-Fi as well as mobile networks.
Battery saving: Use only Wi-Fi and mobile networks to
get your approximate location. This will drain less power
from your battery than using GPS.
Device only: Use GPS to pinpoint your location.
Getting Your Location
1. Touch in the home screen and select Maps.
2. Touch at the bottom.
The map centers on a circle that indicates your location.
![](/img.php?id=2248567&img=bg65.png)
101
Searching for a Location
1. Touch in the home screen and select Maps.
2. Touch .
3. Enter the address or the type of business or establishment
you’re looking for in the search box at the top. If suitable
suggestions appear below the search box, touch one to
search for it.
TIP: You can also touch beside the search box to use
voice search.
4. Touch the search icon on the keyboard. Red points
indicating search results appear on the map.
5. Touch a red point to open a card at the bottom with
summary information about the location.
Slide the card up to find more information about the location
as well as options for getting directions and more.
Getting Directions to Your Destination
Maps can provide directions for travel by foot, public
transportation, or car.
1. Touch in the home screen and select Maps.
2. Touch beside the search box.
3. Select the mode of transportation and then enter a start and
end point. If your location is found, it will appear in the start
point field by default.
![](/img.php?id=2248567&img=bg66.png)
102
As suggested routes appear, touch one to see it on the map.
Slide the bottom card up to see the route directions in a list.
NOTE: For driving routes, touch (Start) to use Google
Maps Navigation (beta) and get turn-by-turn voice directions for
driving.
Searching for Local Places
Google Maps helps you find all kinds of businesses and
establishments around you. You can rate these places and get
recommendations.
1. Touch in the home screen and select Maps.
2. Navigate the map view to the area you'd like to explore. You
can explore nearby locations or pan the map to another
location.
3. Touch the search bar at the top.
4. Touch the Explore nearby card and choose one option in
the new screen. Results will appear on cards.
5. Touch a location to see it on the map or get directions.
You can also slide up the bottom card to find out more
information, such as the street address, website, and street
view, or to call that place, save it to your Google Account, or
share it with others.
NOTE: The "Explore" feature is not available for all areas.
![](/img.php?id=2248567&img=bg67.png)
103
Google Search
You can search for information on the web or on your phone
using Google Search or perform certain tasks by speaking.
Searching With Text
You can search for information on the Internet or on the phone
(such as apps and contacts) by entering text.
1. Touch in the home screen and select Google.
2. Enter the terms you want to search for in the search box
and touch the search key on the keyboard, or touch a
search suggestion that appears below the search box.
Searching by Speaking
You can also search the web or perform certain tasks by
speaking.
1. Touch the Home Key > > Google.
2. Touch the microphone icon to the right of the search box.
NOTE: You can also touch the Home Key > > Voice
Search.
3. Speak the terms you want to search for or the question you
want to ask. When you’re finished speaking, your speech is
analyzed and the search is initiated.
![](/img.php?id=2248567&img=bg68.png)
104
Changing Search Settings
Open the Google app and touch > Settings to set phone
search options, voice recognition and output settings, and to
change privacy settings for your account.
![](/img.php?id=2248567&img=bg69.png)
105
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the phone’s memory card or in
the phone’s internal storage. You can copy them to your
computer or access them in the Gallery app.
Capturing a Photo
1. Touch in the home screen and select Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
Number
Function
1
Switch between the front and back camera.
2
Change the flash setting, only available for the back
![](/img.php?id=2248567&img=bg6a.png)
106
Number
Function
camera.
3
Select color effect (only available for the back
camera).
4
Select scene mode (only available for the back
camera).
5
Change the camera settings.
6
Slide to zoom in or out.
7
View pictures and videos you have taken.
8
Touch the shutter button to take a picture.
9
Switch between the camera and camcorder.
WARNING: Keep a safe distance when using the flash. Do
not point the flash towards the eyes of people or animals.
TIP: You can also use the Volume Key to zoom in or zoom
out.
3. Lightly touch the shutter icon to take the picture.
Customizing Camera Settings
Before taking a photo, you can touch to open the following
camera setting options.
Grid: Show or hide the composition lines.
Shutter tones: Change the shutter tone.
Picture size: Set the image size for your picture.
![](/img.php?id=2248567&img=bg6b.png)
107
Self-timer: Set a time delay before the camera takes a
picture automatically after you touch the shutter icon, or turn
off this feature.
Image settings: Adjust image exposure, brightness,
contrast, saturation, and sharpness.
White balance: Select how the camera should adjust colors
in different kinds of lighting, to achieve the most nature
looking colors on the picture. Or allow the camera to adjust
the white balance automatically.
ISO: Select ISO level or leave it at Auto.
Auto-review: Set whether to review the picture after you
shot it. You can also select the review time.
Geo-tagging: Select whether to store the GPS location in
captured pictures.
Anti-banding: Set the anti-banding value or leave it on
Auto. This feature can avoid stripes on pictures you take of
TV or computer screens.
Storage location: Change the storage location for captured
photos and videos.
Restore defaults: Restore the default camera settings.
Recording a Video
1. Touch in the home screen and select Camera.
2. Switch to camcorder mode by sliding the switch.
![](/img.php?id=2248567&img=bg6c.png)
108
3. On the viewfinder screen, make necessary adjustments.
Number
Function
1
Switch between the front and back camera.
2
Turn on/off flash.
3
Select color effect (only available for the back
camera).
4
Change camcorder settings.
5
Slide to zoom in or zoom out.
6
View photos and videos you have captured.
7
Start video recording.
8
Switch to camera mode.
TIP: You can also use the Volume Key to zoom in or zoom
out.
![](/img.php?id=2248567&img=bg6d.png)
109
4. Touch to start recording.
5. Touch to stop recording.
TIP: While the recording is in progress, you can touch to
save the frame as a separate photo.
Customizing Camcorder Settings
Before recording a video, you can touch to open the
following camcorder setting options.
Video quality: Set the quality for the video clips.
Silent camcorder: Check this option if you want to capture
silent video clips.
Time lapse: Set the time interval between each frame when
you shot time lapse videos.
White balance: Change the white balance scenario or
leave it on Auto.
Geo-tagging: Select whether to store the GPS location in
your recorder video files.
Storage location: Change the storage location for
captured photos and videos.
Restore defaults: Restore the default camcorder settings.
![](/img.php?id=2248567&img=bg6e.png)
110
Gallery
Opening Gallery
Touch in the home screen and select Gallery to view
albums of your pictures and videos.
Working With Albums
When you open Gallery, all pictures and videos on your phone
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to share.
3. Touch and select how you want to share the items.
To delete albums:
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to delete.
3. Touch > OK.
![](/img.php?id=2248567&img=bg6f.png)
111
Working With Pictures
Touch a picture in an album to view the picture in full screen.
Double-touch the picture, or pinch two fingers together or
spread them apart to zoom out or in. Slide left or right to view
other pictures in the album.
Touch the Gallery icon in the upper left corner to return to
the album.
Touch Slideshow to browse the album contents in a
slideshow.
Touch to rotate or rename the picture, check file details,
or change slideshow setting.
NOTE: All options may not be available for certain albums or
pictures.
![](/img.php?id=2248567&img=bg70.png)
112
Retouching Your Pictures
You can edit any photos you took and some other pictures in
Gallery. The changed picture is saved in the Edited album,
while the original image is never affected.
1. Touch Edit while viewing a picture in full screen to open the
PhotoEditor interface.
2. Touch the icons along the bottom of the screen to edit the
picture.
FX
Apply filters.
Modify
Crop, rotate, straighten, or flip (mirror) the picture.
Adjust
Adjust saturation, hue, sharpness, contrast and
other colour options.
Blur
Apply a blur effect to the picture.
Decorate
Decorate people in the picture with comical
moustaches, eye glasses, hats and more.
Add Text
Add some text to the picture and adjust its effect.
Doodle
Select a color and draw anything on the picture.
Border
Add a frame to the picture.
3. Touch to keep the change or to cancel it.
4. Touch Save to save the new picture.
NOTE: Touch History in the PhotoEditor screen to see the edits
you have made and undo or redo them.
![](/img.php?id=2248567&img=bg71.png)
113
Playing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the center and select a player to start playing.
Touch the video to view the playback controls.
TIP: You can touch to play the video in a small floating
window and continue with other tasks on the phone. You can
also touch > Trim while the video is playing in full screen to
cut a segment of the video clip and save it as a new video file.
![](/img.php?id=2248567&img=bg72.png)
114
Music
Touch in the home screen and select Music to play audio
files stored on your phone. Music supports a wide variety of
audio formats, so it can play music you purchase from online
stores, music you copy from your CD collection, and so on.
Copying Music Files to Your Phone
Before using Music, you need to copy or download audio files to
your phone.
Copy From a Computer
1. Connect your phone and the computer with a USB cable.
2. Touch Media device (MTP) to browse the files in the phone
storage and on the microSDHC card.
3. Copy the music file from the PC and paste it to the phone
storage or microSDHC card.
Download From the Internet
You can download music files when browsing web pages. See
Browser - Downloading Files.
Receive via Bluetooth
You can receive music files from other devices via Bluetooth.
![](/img.php?id=2248567&img=bg73.png)
115
See Connecting to Networks and Devices - Connecting to
Bluetooth Devices - Receive Data via Bluetooth.
Receive via Wi-Fi
You can receive music files from other devices via Wi-Fi. See
Connecting to Networks and Devices - Using Wi-Fi Direct -
Receive Data via Wi-Fi.
Viewing Your Music Library
Touch in the Home Screen and select Music and your
music library is displayed. All your audio files are cataloged
according to the information stored in the files.
Touch a card at the top of the screen to view your music library
organized by Artists, Albums, Songs, Playlists, Folders, or
Genre. You can also touch RECENT PLAYED or FAVORITE to
browse songs you recently played or you have added as
favorites.
NOTE: If an audio file is being played, its summary information
is displayed at the bottom of the screen. Touch to open the
playback screen.
Set a Song as the Default Ringtone
The song will be used as the ringtone for all incoming calls,
except those from contacts to whom you have assigned special
ringtones (see People – Editing Contacts – Set a Ringtone for a
Contact).
![](/img.php?id=2248567&img=bg74.png)
116
1. Touch in the home screen and select Music to see the
music library.
2. Touch next to a song in any list.
3. In the menu that opens, touch Use as ringtone.
TIP: If the song is being played and you’re in the playback
screen, you can touch > Use as ringtone.
Playing Music
Touch a song in the music library to listen to it. The following
playback screen appears.
Number
Function
1
Song, album, and artist information.
2
Album artwork and lyrics (if available).
![](/img.php?id=2248567&img=bg75.png)
117
3
Touch to return to the music library.
4
Add the song to your favorites.
5
Playback control. Skip songs or pause and resume
playback. Drag the slider to jump to any part of the
song.
6
Touch to shuffle the songs in the playlist or toggle
repeat modes.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Touch > Add to playlist next to a song to add it to a
playlist or create a new playlist.
Touch > Delete Playlist next to a playlist to delete the
playlist.
Touch > Rename Playlist next to a playlist to rename
the playlist.
Touch a playlist to view its content. You can touch > Multi
Select to select the song you want to remove.
![](/img.php?id=2248567&img=bg76.png)
118
Play Music
The Play Music application ( ) works with Google Music,
Google’s online music store and streaming service. You can
stream via mobile data or Wi-Fi and listen to you favourite
songs that you’ve added to your online Google Music library.
You can also play audio files you’ve copied directly to your
phone from a computer.
NOTE: The availability of Google Music is dependent on your
region. If it is not available, or you don’t have a mobile data or
Wi-Fi connection, you can only play music stored on your
phone.
Playing Your Music
Touch in the home screen and select Play Music. If you
are prompted, select an account to access its online music
library.
The app searches your online library and your phone for music
and playlists before displaying your combined music library,
organized by Artists, Albums, Songs, Playlists, and Genres.
You can touch > My Library / Playlists to view all the
music and playlists. To changes views of your library, swipe left
or right.
Touch a song to play it. When the song is playing, touch the
summary information at the bottom to display the playback
![](/img.php?id=2248567&img=bg77.png)
119
screen.
Number
Function
1
Song and artist information. Touch or drag down to
return to the music library.
2
Album artwork.
3
Give the song a thumbs-up.
4
Playback control. Skip songs, pause and resume
playback, use shuffle or repeat. Drag the progress
bar to jump to any part of the song.
5
Give the song a thumbs-down.
6
Touch to see the current playlist (queue).
7
Get more options.
![](/img.php?id=2248567&img=bg78.png)
120
You can still control the music when you are not in the playback
screen.
In the music library of the Play Music app, touch the
summary information at the bottom of the screen to restore
the playback screen.
In other apps, flick down the notification panel. Touch the
song title to restore the playback screen, or just pause/
resume playback or skip to the next song.
When the screen is locked, the song information, album
cover as well as playback control is displayed on top of the
screen. You can pause/resume playback or skip songs.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
To view all your playlists, touch > Playlists.
Touch > Add to playlist next to a song or a playlist to
add it to a playlist or create a new playlist.
Touch > Delete next to a playlist to delete the playlist.
Touch a playlist to view its content. You can touch >
Remove from playlist next to the song you want to remove,
or drag the handle icon to the left of each song to rearrange
its order in the playlist.
![](/img.php?id=2248567&img=bg79.png)
121
FM Radio
With the FM radio, you can search for radio channels, listen to
them, and save them on your phone. Note that the quality of the
radio broadcast depends on the coverage of the radio station in
your area. The wired headset that comes with your phone
works as an antenna, so always connect the headset when
using the radio. When you receive an incoming call while
listening to the radio, the radio will be turned off.
Scanning and Saving Channels
1. Plug in a wired headset and open FM Radio.
2. Touch > Scan & save all channels. All previously
saved channels will be removed.
Listening to FM Radio
1. Touch in the home screen and select FM Radio while
the headset is connected.
2. Touch one of the favorite channels or touch > All
channels and select a channel.
TIP: Touch in the All channels screen to add
corresponding channels to favorites so that you can access
them in the FM Radio main screen.
You can also touch or to switch to other channels.
![](/img.php?id=2248567&img=bg7a.png)
122
Other Options and Settings
To turn off FM radio automatically:
Touch > Timing turn off and select the time you want to
turn off the radio.
A count-down clock appears above the frequency and the radio
is turned off when the clock counts down to 0:00.
To turn off FM radio immediately:
Touch at the bottom left of the screen.
To set your radio region:
FM radio frequency ranges differ in different regions.
Touch > World region to select the region you are in.
NOTE: If you change the region setting, previously saved
channels are cleared except those you have added to favorites.
![](/img.php?id=2248567&img=bg7b.png)
123
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Recording a Voice Memo
1. Touch in the home screen and select Sound
Recorder.
2. Touch to start recording. Touch to cancel recording
if you change your mind. You can touch to pause and
to continue during the recording.
3. Touch to stop recording. The memo is automatically
saved.
If you don’t want to save the memo after recording it, touch × to
delete it.
Playing a Voice Memo
To play a memo you just recorded:
Touch at the bottom of the screen.
To play any saved memo:
1. Touch My recordings at the top right of the screen to see
all recordings.
2. Touch the title of a memo to play it.
![](/img.php?id=2248567&img=bg7c.png)
124
NOTE: You can also touch beside the memo to delete,
share, rename, trim it, add a tag, check its file information, or
set it as your phone ringtone.
![](/img.php?id=2248567&img=bg7d.png)
125
More Apps
Backup & Restore
Touch in the home screen and select Backup & restore.
You can back up your user data, such as contacts, messages
and gaming progress as well as installed applications to the
memory card regularly. If the data get lost, restore it from the
memory card.
Touch Settings > Help to view detailed guide.
Calculator
Touch in the home screen and select Calculator to use the
phone’s convenient built-in calculator for some basic as well as
advanced mathematical equations.
TIP: Touch or to switch between different panels.
Cell broadcasts
Touch in the home screen and select Cell broadcasts to
check received alerts in your area. Touch > Settings to
change the alert settings.
Chrome™
Touch in the home screen and select Chrome to browse the
![](/img.php?id=2248567&img=bg7e.png)
126
Internet. Chrome on your phone can sync bookmarks, browsing
history, and opened tabs from your Google Account, so that you
can maintain the same experience across your phone, your PC,
your tablet and other devices.
Clock
Touch in the home screen and select Clock to use a series
of timing tools.
Set a New Alarm
1. Touch the Alarm tab in the Clock app.
2. Touch an existing alarm to configure it, or touch Add alarm
at the bottom of the screen to create a new alarm.
3. Set up the alarm options, such as time, repeat, and alarm
sound.
4. Touch SAVE to save and exit.
NOTE: To enable or disable existing alarms directly, just touch
or .
Use Bed Clock
You can use the phone as a bedside clock.
1. Touch the Alarm tab in the Clock app.
2. If necessary, touch > Bed Clock Preferences to set up
the following bed clock options. Then touch to return
to the Alarm tab.
![](/img.php?id=2248567&img=bg7f.png)
127
Enable bed clock: Turn on or off the bed clock function.
Bed clock never sleeps: Keep the bed clock screen
turned on when charging the phone.
3. Touch > Bed Clock to open the bed clock screen.
Check World Time
Touch the World time tab in the Clock app to check local time
for cities around the world.
Touch at the bottom to add a new city or country.
Use the Stopwatch and Countdown
Touch the Stopwatch or Countdown tab in the Clock app to
use the stopwatch or the countdown timer.
Stopwatch allows you to record lap times, while Countdown
allows you to set a time and count down to zero.
Downloads
The Downloads app keeps a record of the files you have
downloaded using apps such as Browser and Email.
Touch in the home screen and select Downloads to check
the record.
Touch a file to open it with the appropriate applications.
Touch and hold a file, or check the box in front of it, to delete
or share it.
![](/img.php?id=2248567&img=bg80.png)
128
File Manager
Quickly access all of your images, videos, audio clips, and other
types of files on your phone and on the memory card.
Touch in the home screen and select File Manager. You
can find the file you need by category in the Category tab, or
touch Phone or SD Card to browse folders and files on the
phone storage or the microSDHC card.
Touch folders and files to access stored items.
Touch and hold an item to access option icons such as Copy,
Move, Share, or Delete.
To copy or move an item, navigate to a new location and
touch PASTE.
Touch to create a new folder in the current directory.
Flashlight
Touch in the home screen and select Flashlight to use the
phone’s flash for illumination.
Touch to turn on or off the flashlight, or to configure
flashlight settings.
Mi-EasyAccess
With Mi-EasyAccess, you can access selected applications
right from the lock screen when the screen lock is set as ‘Slide'
by sliding left on the bottom of the screen.
![](/img.php?id=2248567&img=bg81.png)
129
To select the applications you can access, touch > >
Mi-EasyAccess. Touch ‘+' to add an application, or touch
to remove one.
News & Weather
News & Weather offers weather forecasts and news stories
about common topics. You can also customize the news topics
that are displayed.
Touch in the home screen and select News & Weather.
Swipe left or right to view the weather forecasts and news
headlines under different news topics.
Touch to refresh news and forecast data; touch >
Settings to configure more options.
NotePad
Touch in the home screen and select NotePad to save and
view your text notes and memos.
Touch New to create a new note. Then enter your text and
touch Save to save it.
Touch a note to view its entire contents. With the option
icons at the bottom, you can edit, delete, or share it, or
export it as a text file (*.txt) to your phone storage or the
microSDHC card.
![](/img.php?id=2248567&img=bg82.png)
130
Software Update Service
Touch in the home screen and select System updates.
You can check your system’s software status, check for
updates, or change update settings.
Task Manager
Touch in the home screen and select Task Manager to
view or stop applications.
Touch a task in the Tasks tab to check the details of the
application or force it to stop.
Touch the Apps tab to manage all the applications on your
phone.
Touch the Resources tab to view the real-time use of the
system resources (CPU, RAM and storage).
![](/img.php?id=2248567&img=bg83.png)
131
Google Play™ Store
Touch in the home screen and select Play Store. You can
buy or rent music, books, movies, and apps and download them
to your phone.
NOTE: The content you can access in Google Play store
depends on your region and your service provider.
Browsing and Searching for Apps
You can browse apps by category and sort them in different
ways. Touch a top-level category, such as Games and touch an
app from any subcategory.
You can also search for apps using an app’s name or
description, or the developer’s name. Just touch and enter
the search terms.
Downloading and Installing Apps
When you find the app you are interested in through browsing
or searching, touch it to open its details screen, where more
information about the app is displayed.
1. Touch INSTALL (free apps) or the price (paid apps). If the
app is not free, you need to sign in to your Google Wallet
account and select a payment method.
CAUTION: Once installed, some apps can access many
functions or a significant amount of your personal data. The
![](/img.php?id=2248567&img=bg84.png)
132
Play Store will show you what the app can access. Touch
ACCEPT to proceed, or touch to cancel.
2. Wait for the app to be downloaded and installed
automatically. Payment needs to be authorized before paid
apps start downloading.
The app is successfully installed when the icon appears in
the status bar. You can find the new app after touching >
.
Creating a Google Wallet™ Account
You must have a Google Wallet account associated with your
Google Account to purchase items from the Google Play Store
app.
Do one of the following:
On your computer, go to checkout.google.com to create a
Google Wallet account.
The first time you use your phone to buy an item from
Google Play Store, you’re prompted to enter your billing
information to set up a Google Wallet account.
WARNING: When you’ve used Google Wallet once to purchase
items from the Google Play Store app, the phone remembers
your password so you don’t need to enter it the next time. For
this reason, you should secure your phone to prevent others
from using it without your permission.
![](/img.php?id=2248567&img=bg85.png)
133
Requesting a Refund for a Paid App
If you are not satisfied with an app, you can ask for a refund
within 15 minutes of the purchase. Your credit card is not
charged and the app is uninstalled from your phone.
If you change your mind, you can install the app again, but you
can’t request a refund a second time. For details, please read
the Play Store help information.
1. Touch > > Play Store.
2. Touch > My apps.
3. Touch the app to uninstall for a refund. The details screen for
the app opens.
4. Touch Refund and then touch Uninstall. Your app is
uninstalled and the charge is cancelled.
Managing Your Downloads
After you’ve downloaded and installed an app, you can rate it,
view it in a list with your other downloaded apps, configure it to
update itself automatically, and so on.
View Your Downloaded Apps
1. On the Apps screen of Play Store, touch > My apps.
2. Your list of installed apps opens. You can touch one to rate it,
uninstall it, request a refund and so on.
![](/img.php?id=2248567&img=bg86.png)
134
Uninstall an App
1. On the Apps screen of Play Store, touch > My apps.
2. Touch an app to open its details screen.
3. Touch Uninstall > OK.
![](/img.php?id=2248567&img=bg87.png)
135
Settings
Touch in the home screen and select Settings. The
Settings app contains most of the tools for customizing and
configuring your device.
Wireless and Networks
Wi-Fi
Turn Wi-Fi on or off and configure your Wi-Fi connections. See
Connecting to Networks and Devices – Connecting to Wi-Fi and
Connecting to Networks and Devices – Using Wi-Fi Direct.
Bluetooth
Turn Bluetooth on or off and configure your Bluetooth
connections. See Connecting to Networks and Devices –
Connecting to Bluetooth Devices.
Call Settings
Configure phone call related options, such as ringtone,
voicemail and Internet call. For more information, see Phone
Calls – Adjusting Your Call Settings.
Data Usage
Touch the ON/OFF switch to turn on or off mobile data.
![](/img.php?id=2248567&img=bg88.png)
136
You can check how much data has been used during the time
cycle you set, set a mobile data limit and warning, see what
apps have been using mobile data, or restrict background data
for individual apps.
NOTE: The data usage is measured by your phone. Your
carrier’s data usage accounting may differ.
Touch > Mobile hotspots to select Wi-Fi networks that are
mobile hotspots. Data usage on recognized mobile hotspots will
be restricted to avoid high mobile data bills.
Portable Hotspot
Share your phone’s mobile data connection with PCs or other
devices via Wi-Fi. See Connecting to Networks and Devices –
Sharing Your Mobile Data Connection – Share Your Mobile
Data Connection as a Wi-Fi Hotspot.
Airplane Mode
In the Settings app, touch More under Wireless & networks
and slide the switch beside Airplane mode. All the phone’s
radios that transmit voice or data are turned off.
Default SMS App
In the Settings app, touch More under Wireless & networks
and select Default SMS app to choose the preferred
application for sending and receiving SMS.
![](/img.php?id=2248567&img=bg89.png)
137
Tethering & Portable Hotspot
Share your phone’s mobile data connection with PCs or other
devices via USB, Bluetooth or Wi-Fi. See Connecting to
Networks and Devices – Sharing Your Mobile Data Connection.
VPN
Set up and connect to virtual private networks. See Connecting
to Networks and Devices – Connecting to Virtual Private
Networks.
Mobile Networks
Control mobile data use, select mobile network and set access
point names. See Connecting to Networks and Devices –
Connecting to Mobile Networks.
Cell Broadcasts
Configure the alert messages you would want to receive and
more.
Device
Sound
Adjust volumes (see Personalizing – Adjusting Volumes), set
up ringtone and notification sound (see Personalizing –
Changing Ringtone and Notification Sound), and select system
138
sounds.
Display
Brightness: Set the brightness of the display.
Wallpaper: Select a background image for the home
screen.
Auto-rotate screen: Check this option to let the phone
automatically change the orientation of some onscreen
content based on the position of the phone.
Sleep: Set the length of time of inactivity before the screen
turns off.
Daydream: Manage the Daydream function. When
Daydream is enabled, photos or animations will be
displayed as a screensaver.
Font size: Set the font size of the text on the screen.
Wireless display: Connect with TVs that support wireless
display and project your phone’s content on the TV screen.
Storage
Check memory information for your memory card and internal
storage.
Touch Unmount SD card to unmount the memory card from
your phone so that you can safely remove the card while the
phone is on.
![](/img.php?id=2248567&img=bg8b.png)
139
Battery
Check how much power remains for the battery and what has
been using the battery.
You can touch an app to adjust its settings in order to save
battery life.
Apps
See apps installed on your phone and manage them.
Touch an app in the DOWNLOADED, RUNNING, or ALL tab to
see its information. You can stop the app, uninstall the app, or
clear data and cache.
NOTE: Not all applications can be uninstalled.
Connect to PC
Select your USB connection type between your phone and PC.
See Connecting to Networks and Devices – Connecting to Your
Computer via USB.
Personal
Location Access
Activate location services to determine your location. See Maps
– Activating Location Services.
![](/img.php?id=2248567&img=bg8c.png)
140
Security
Screen lock: Disable the screen lock or enable it with Slide,
Pattern, PIN, or Password. See Personalizing – Protecting
Your Phone With a Screen Lock.
Make pattern visible: Show the pattern as you draw it.
Automatically lock: Set the time needed for the lock
protection to be activated after the screen turns off.
Power button instantly locks: Activate the screen lock as
soon as you press the Power Key.
Owner info: Set the text that you may display on the lock
screen.
Encrypt phone: Encrypt your data on the phone to protect
your privacy. See Personalizing – Protecting Your Phone
With Encryption.
Set up SIM/RUIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the micro-SIM card.
Change SIM PIN: Change the PIN used to access the
micro-SIM card.
Make passwords visible: Display passwords as you enter
them.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Check this option to permit installation
of apps from sources other than the Play Store.
![](/img.php?id=2248567&img=bg8d.png)
141
Verify apps: Disallow or display warnings before you install
applications that may cause harm.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the memory
card.
Clear credentials: Delete all certificates.
Language & Input
Language: Select a language and region for your system.
Spell checker: Check the spelling or text you enter or set
the spell checker options.
Personal dictionary: Add new words to the phone’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
KEYBOARD & INPUT METHODS: Configure text input
settings. See Knowing the Basics – Entering Text – Input
Settings.
Voice Search:
Language: Select the language you use when entering
text by speaking or searching by speaking.
Speech output: Set when to use speech output.
Block offensive words: Check to hide offensive words
the phone has transcribed.
Offline speech recognition: Select one or more
additional language packages so you can use speech
142
recognition when you do not have a network connection.
Bluetooth headset: Listen for your voice input through
a Bluetooth headset when it is connected to your phone.
Text-to-speech output:
PREFERRED ENGINE: Select the speech synthesis
engine you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
Pointer speed: Select how fast the pointer/mouse should
scroll when you connect the phone to a trackpad or mouse
accessory.
Backup & Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google Account.
Backup account: Select the Google Account that your data
is backed up to.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
Factory data reset: Reset your phone to factory default
settings. All your personal data from the phone’s internal
storage will be erased. You can also erase the data on the
143
microSDHC card or the internal SD card during the process.
Accounts
Manage your accounts and synchronization settings. Touch
Add account to sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have
added and adjust the account settings.
System
Date & Time
Set date, time, time zone, and how date and time are displayed.
You can also use network-provided data.
Accessibility
Configure accessibility plug-ins on your phone, such as using
TalkBack for low-vision users.
Printing
Configure cloud printing service options, manage print jobs and
more.
Developer Options
Developer options contains settings that are useful when
developing Android applications. The menu is hidden until you
144
touch Build number in the About phone menu 7 times.
WARNING: The developer option settings are intended for
development use only. The can cause your phone and
applications on it to break or misbehave.
About Phone
View phone status and legal information. You can also upgrade
your phone system.
![](/img.php?id=2248567&img=bg91.png)
145
Upgrading the Phone Software
There are several ways to upgrade your phone software:
1. Use the online upgrade tool for mobile terminal products.
2. Use the one-press upgrade package offered by your mobile
service provider.
3. Use the upgrade package on your microSDHC card.
NOTE: Visit the ZTE official handset service support website
(http://www.ztedevice.com/support) and click your country or
region to learn more about the above upgrade methods, as well
as which phones and methods are supported.
![](/img.php?id=2248567&img=bg92.png)
146
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is
too weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
can not effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
![](/img.php?id=2248567&img=bg93.png)
147
Problem
Possible causes
Possible solution
Echo or
noise
Poor network link quality
on the part of your
service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Poor local telephone line
quality.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have
not applied for services
that provide these
features.
Contact your service
provider.
Battery not
charging
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s
temperature is below
0°C or higher than
40 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
![](/img.php?id=2248567&img=bg94.png)
148
Problem
Possible causes
Possible solution
Poor contact between
the battery and charger.
Check all connectors to
make sure all
connections have been
properly made.
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted.
In high temperature
environments, battery
life will be shortened.
Use a new battery.
![](/img.php?id=2248567&img=bg95.png)
149
Problem
Possible causes
Possible solution
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
micro-SIM
card error
micro-SIM card
malfunction or damage.
Take the micro-SIM card
to your service provider
for testing.
micro-SIM card inserted
improperly.
Insert the micro-SIM
card properly.
Debris on the micro-SIM
card contacts.
Use a soft, dry cloth to
clean the micro-SIM
card contacts.
Unable to
connect to
micro-SIM card invalid.
Contact your service
provider.
![](/img.php?id=2248567&img=bg96.png)
150
Problem
Possible causes
Possible solution
the network
You are not within the
network’s service area.
Check the service area
with your service
provider.
Poor signal.
Move to an open space,
or if you are inside a
building, move closer to
a window.
You cannot
make
outgoing
calls.
You have activated the
Fixed dialing numbers
feature.
Go to Settings > Call
settings > Fixed
Dialing Numbers and
disable it.
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
micro-SIM card’s PUK
code, use the PUK code
to unlock the micro-SIM
card.
Unable to
enter
information
into the
phonebook
The phonebook’s
memory is already full.
Delete unnecessary
data from the contacts.
![](/img.php?id=2248567&img=bg97.png)
151
Problem
Possible causes
Possible solution
Phone
crashes,
reboots,
freeze, or
cannot be
powered on
Some third-party
software is not
compatible with your
phone.
Reset the phone to
factory status.
Enter safety mode and
uninstall the software
that may cause the
problem.
Upgrade the phone
software.
![](/img.php?id=2248567&img=bg98.png)
152
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15 mm away
from your ear or body
while making calls.
Your phone may
produce a bright or
flashing light.
Small parts may cause
choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
![](/img.php?id=2248567&img=bg99.png)
153
Turn off when asked to
in hospitals and
medical facilities.
Don’t take your phone
apart.
Turn off when told to in
aircrafts and airports.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone for emergency
communications.
Radio Frequency (RF) Exposure
General Statement on RF Energy
Your phone contains a transmitter and a receiver. When it is ON,
it receives and transmits RF energy. When you communicate
with your phone, the system handling your call controls the power
level at which your phone transmits.
Specific Absorption Rate (SAR)
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were
developed by the independent scientific organization ICNIRP and
include safety margins designed to assure the protection of all
persons, regardless of age and health.
The guidelines use a unit of measurement known as Specific
154
Absorption Rate, or SAR. The SAR limit for mobile devices is 2
W/kg and the highest SAR value for this device when tested at
the ear was 1.360W/kg*. As mobile devices offer a range of
functions, they can be used in other positions, such as on the
body as described in this user guide**.
As SAR is measured utilizing the device’s highest transmitting
power, the actual SAR of this device while operating is typically
below that indicated above. This is due to automatic changes to
the power level of the device to ensure it only uses the minimum
power required to communicate with the network.
* The tests are carried out in accordance with EN 50360, EN
62311, EN 62209-1, EN 62209-2, EN50566, EN62479.
** Please see body worn operation.
Body Worn Operation
Important safety information regarding radio frequency radiation
(RF) exposure:
To ensure compliance with RF exposure guidelines the phone
must be used with a minimum of 15 mm separation from the
body.
Failure to observe these instructions could result in your RF
exposure exceeding the relevant guideline limits.
Limiting Exposure to Radio Frequency (RF)
Fields
For individuals concerned about limiting their exposure to RF
155
fields, the World Health Organization (WHO) provides the
following advice:
Precautionary measures: Present scientific information does not
indicate the need for any special precautions for the use of
mobile phones. If individuals are concerned, they might choose
to limit their own or their children’s RF exposure by limiting the
length of calls, or using ‘hands-free’ devices to keep mobile
phones away from the head and body.
Further information on this subject can be obtained from the
WHO home page http://www.who.int/peh-emf (WHO Fact sheet
193: June 2000).
Regulatory Information
The following approvals and notices apply in specific regions as
noted.
Please find the section Declaration of RoHS Compliance and CE
DOC in the end of this manual.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
156
Operating Machinery
Full attention must be given to operating machinery in order to
reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always turn off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and
keep it in a clean and dust-free place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
operations or lower image quality.
Clean the device and its accessories with a soft material such
as cleaning cloth for eyeglass lenses. Do not use alcohol or
other corrosive substances for cleaning or allow them to get
inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
157
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories.
Only authorized personnel can do so.
Do not expose or use your phone or its accessories in a
environment with or that can reach extreme temperatures,
minimum - [5] and maximum + [40] degrees Celsius.
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
158
hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media to be close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the micro-SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and
serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
159
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
watching video. If you have experienced seizures or blackouts or
have a family history of such occurrences, please consult a
physician.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
Predictive Text.
Take many breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio signals,
which cannot guarantee connection in all conditions. Therefore,
you must never rely solely on any wireless phone for emergency
communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
160
headphones, Bluetooth stereo headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or
key rings, to contact or short-circuit in the battery terminals.
Never puncture the surface of the battery with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel can service or repair the phone or its
accessories.
If your phone (or its accessories) has been submerged in water,
161
punctured, or subjected to a severe fall, do not use it until you
have taken it to be checked at an authorized service center.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source. Increasing
the separation between them may reduce the interference. You
may also consult your hearing aid manufacturer to discuss
alternatives.
162
Medical Devices
Please consult your doctor and the device manufacturer to
determine if operation of your phone may interfere with the
operation of your medical device.
Hospitals
Turn off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive medical
equipment.
Aircraft
Turn off your wireless device whenever you are instructed to do
so by airport or airline staff.
Consult the airline staff about the use of wireless devices
onboard the aircraft. If your device offers a ‘flight mode’, this must
be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference with electronic
equipment, some vehicle manufacturers forbid the use of mobile
phones in their vehicles unless a hands-free kit with an external
antenna is included in the installation.
163
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone or
other radio equipment.
Areas with potentially explosive atmospheres include fueling
areas, below decks on boats, fuel or chemical transfer or storage
facilities, and areas where the air contains chemicals or particles,
such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios” or
“electronic devices” to avoid interfering with blasting operations.
![](/img.php?id=2248567&img=bga4.png)
164
Declaration of RoHS Compliance
To minimize the environmental impacts and take more
responsibilities to the earth we live on, this document shall serve
as a formal declaration that the ZTE Blade Apex2 manufactured
by ZTE CORPORATION is in compliance with the Directive
2011/65/EU of the European Parliament - RoHS (Restriction of
Hazardous Substances) with respect to the following substances:
1. Lead (Pb)
2. Mercury (Hg)
3. Cadmium (Cd)
4. Hexavalent Chromium (Cr (VI))
5. Polybrominated biphenyls (PBBs)
6. Polybrominated diphenyl ethers (PBDEs)
The ZTE Blade Apex2 manufactured by ZTE CORPORATION,
meets the requirements of EU 2011/65/EU.
![](/img.php?id=2248567&img=bga5.png)
165
Disposal of Your Old Appliance
1. When this crossed-out wheeled bin symbol
is attached to a product, it means the
product is covered by the European
Directive 2012/19/EU.
2. All electrical and electronic products should
be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance
will help prevent potential negative
consequences for the environment and
human health.
For this product’s recycling information based on WEEE directive,
please send an e-mail to weee@zte.com.cn
![](/img.php?id=2248567&img=bga6.png)
166
EC DECLARATION OF
CONFORMITY
It is hereby declared that following designated product:
Product Type: LTE/WCDMA/GSM Digital Mobile Phone
Model No: ZTE Blade Apex2, Blade Apex2, Orange Hi 4G,
KPN Smart 400
Complies with the essential protection requirements of the
Radio and Telecommunication Terminal Equipment Directive
(EC Directive 1999/5/EC) and the Electromagnetic
Compatibility Directive (2004/108/EC).
This declaration applies to all specimens manufactured
identical to the samples submitted for testing/evaluation.
Assessment of compliance of the product with the requirements
relating to the Radio and Telecommunication Terminal
Equipment Directive (EC Directive 1999/5/EC) was performed
by American TCB (Notified Body No.0700), based on the
following standards:
Safety
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EN 50332-1:2000/EN 50332-2:2003
EMC
EN 301 489-1 V1.9.2/-3 V1.6.1/-7 V1.3.1/-17
V2.2.1/-24 V1.5.1
![](/img.php?id=2248567&img=bga7.png)
167
Radio
EN 300 328 V1.8.1
EN 301 908-1 V6.2.1
EN 301 511 V9.0.2/EN 301 908-2 V5.4.1
EN 300440-1 V1.6.1/EN 300440-2 V1.4.1
EN 301908-13 V5.2.1
Health
EN 62311:2008/EN62209-2:2010
EN 50360:2001 + A1: 2012/ EN 62209-1:2006
EN 62479:2010
EN 50566:2013
This declaration is the responsibility of the manufacturer:
ZTE Corporation
ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park,
Nanshan District, Shenzhen, Guangdong, 518057,
P.R.China
Authorised person signing for the company:
Xu Feng Quality Director Of ZTE Corporation
Name in block letters & position in the company
Shenzhen, March 12, 2014
Place & date Legally valid signature
![](/img.php?id=2248567&img=bga8.png)
168
This equipment may be operated in:
AT
BE
CY
CZ
DK
EE
FI
FR
DE
GR
HU
IE
IT
LV
LT
LU
MT
NL
PL
PT
SK
SI
ES
SE
GB
IS
LI
NO
CH
BG
RO
TR
![](/img.php?id=2248567&img=bga9.png)
169
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This mobile phone has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation if this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
170
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
F
FC
CC
C
N
No
ot
te
e:
:
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user‘s authority to operate the equipment.
![](/img.php?id=2248567&img=bgab.png)
171
RF Exposure Information
(SAR)
This phone is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of
the United States.
During SAR testing, this device was set to transmit at its
highest certified power level in all tested frequency bands,
and placed in positions that simulate RF exposure in usage
against the head with no separation, and near the body with
the separation of 10 mm. Although the SAR is determined
at the highest certified power level, the actual SAR level of
the device while operating can be well below the maximum
value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required
to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
The exposure standard for wireless devices employing a
unit of measurement is known as the Specific Absorption
Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
172
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and
had been tested in accordance with the measurement
methods and procedures specified in IEEE1528. This
device has been tested and meets the FCC RF exposure
guidelines when tested with the device directly contacted to
the body.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-ZTEBLADEAPEX2.
For this device, the highest reported SAR value for usage
against the head is 1.04 W/kg, for usage near the body is
1.41 W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
173
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the
human body. Carry this device at least 10 mm away from
your body to ensure RF exposure level compliant or lower
to the reported level. To support body-worn operation,
choose the belt clips or holsters, which do not contain
metallic components, to maintain a separation of 10
mm between this device and your body.
RF exposure compliance with any body-worn accessory,
which contains metal, was not tested and certified, and use
such body-worn accessory should be avoided.
