ZTE ZTEWF832 CDMA 1X Fixed Wireless Terminal User Manual Q78 ZTEWF832
ZTE Corporation CDMA 1X Fixed Wireless Terminal Q78 ZTEWF832
ZTE >
User manual
ZTE WF832
CDMA Fixed Wireless Terminal
User Manual
Copyright © 2009 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
The manual is published by ZTE Corporation. We reserve the right to
make modifications on print errors or update specifications without prior
notice.
1
Contents
1 GENERAL INFORMATION ............................................. 1
1.1 WELCOME........................................................................ 1
1.2 SAFETY PRECAUTIONS ..................................................... 1
1.3 CLEANING AND MAINTENANCE........................................ 3
1.4 LIMIT WARRANTY ............................................................ 3
1.5 LIMITATION OF LIABILITY ................................................ 4
1.6 DECLARATION .................................................................. 4
2 GETTING STARTED ......................................................... 7
2.1 UNPACKING...................................................................... 7
2.2 TECHNICAL PARAMETERS................................................. 7
22.3 APPEARANCE.................................................................. 9
2.3.1 LED Indicator........................................................... 9
2.3.2 Interfaces ................................................................ 10
2.3.3 Power Switch ...........................................................11
2.4 INSTALLING.....................................................................11
2.5 POWER SUPPLY ...............................................................11
3 BASIC OPERATIONS...................................................... 13
3.1 MAKING A CALL............................................................. 13
3.1.1 Making a Domestic Call ......................................... 13
3.1.2 Making an International Call ................................. 13
3.1.3 Adjusting Volume during a Call .............................. 13
2
3.2 ANSWERING A CALL....................................................... 14
3.3 CALL METERING ............................................................ 14
3.4 OTHER FUNCTIONS......................................................... 15
4 ACCESS INTERNET........................................................ 16
5 TROUBLESHOOTING.................................................... 17
1
1 General Information
1.1 Welcome
Thank you for choosing the ZTE WF832 CDMA Fixed
Wireless Terminal (FWT).
1.2 Safety Precautions
Some electronic devices are susceptible to
electromagnetic interference sent by FWT if
inadequately shielded; Try to use the terminal at least 20
cm away from TV sets, radio and other automated office
equipment so as to avoid electromagnetic interference.
Operating of FWT may interfere with medical devices
like hearing aides and pacemakers. Consult a physician
or the manufacturer of the medical device before using
the FWT.
Be aware of the usage limitation when using FWT at
places such as oil warehouses or chemical factories,
where there are explosive gases or explosive products
being processed, because even if your terminal is in idle
state, it still transmits radio frequency (RF) energy.
Do not touch the antenna while calling.
Keep the antenna free from obstructions and position the
antenna straight up. This will ensure best call quality.
2
Please put the terminal on the safe place. The terminal
may cause injury if used as a toy by children.
Do not put other things on the terminal to avoid
overlaying radiator.
Please use original accessories or accessories approved
by ZTE. Using any unapproved accessories may affect
your FWT’s performance, damage your terminal or even
cause danger to your body and violate related national
regulations about telecom terminals.
As your FWT can produce electromagnetic field, do not
place it near magnetic items such as computer disks.
Do not expose your FWT to direct sunlight or store it in
hot areas. High temperatures can shorten the life of
electronic devices.
Prevent liquid from leaking into your terminal.
Do not attempt to dismantle the FWT by yourself.
Non-expert handling of the devices may damage them.
It is highly recommended to charge the battery before
initial use. The battery may be fully discharged during
storage and delivery.
Keep the length of line between terminals and phone less
than 3 meters when it is connected to outer telephone.
Do not unplug the connector of the data cable from the
phone when the power is on.
3
1.3 Cleaning and Maintenance
The terminal is not water-resistant, so do not use it in
high humidity places such as the bathroom.
If you want to clean your terminal, please use clean
fabric that is a bit wet or anti-static. Turn off your
terminal before you clean it.
Do not use chemical cleaning solvents or strong
detergents to clean your terminal, such as alcohol,
dilution agent and benzene.
Use the terminal within a temperature range of
-10°C~55°C and a humidity range of 25%~85%.
Do not use your terminal during thunderstorm.
1.4 Limit Warranty
The warranty does not apply to defects or errors in the
product caused by:
(a) Reasonable abrasion.
(b) Misuse including mishandling, physical damage,
improper installation, unauthorized disassembly of the
product.
(c) Water or any other liquid damage.
(d) Any unauthorized repair or modification.
(e) Power surges, lightning damage, fire, flood or other
events outside ZTE’s reasonable control.
(f) Use of the product with any unauthorized third party
4
products such as generic chargers.
(g) Any other cause beyond the range of normal usage
for products.
End User shall have no right to reject, return, or receive
a refund for any product from ZTE under the
above-mentioned situations.
This warranty is end user’s sole remedy and ZTE’s sole
liability for defective or nonconforming items, and is in
lieu of all other warranties, expressed, implied or statutory,
including but not limited to the implied warranties of
merchantability and fitness for a particular purpose, unless
otherwise required under the mandatory provisions of the
law.
1.5 Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect,
special, incidental or consequential damages resulting from or
arising out of or in connection with using this product, whether
or not ZTE had been advised, knew or should have known the
possibility of such damages.
1.6 Declaration
We, ZTE Corporation, declared that:
The user is cautioned that changes or modifications not
expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Your equipment is a radio transmitter and receiver. It is
5
designed and manufactured not to exceed limits for
exposure to radio frequency (RF) energy set by the
Federal Communications Commission (FCC) of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy
for the general population. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all
persons, regardless of age or health.
This equipment complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
The antenna(s) used for this transmitter must be
installed with providing a separation distance of at least
20cm from all persons.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
6
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV
technician for help.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user‘s
authority to operate the equipment.
![](/img.php?id=1170872&img=bgb.png)
7
2 Getting Started
2.1 Unpacking
Parts Quantity
Terminal 1
Ni-MH battery 1
External power adapter 1
Antenna 1
Line 1
User manual 1
Certificate of quality 1
CD with package 1,optional
Data cable 1,optional
2.2 Technical Parameters
Parameters Description
Air Interface
Protocol
IS-2000,downward compatible with
IS-95A/B
Frequency Range 800MHz
LED Display Power indicator/Battery indicator/
Off-hook indicator/DATA indicator/
RSSI signal strength indicator
![](/img.php?id=1170872&img=bgc.png)
8
External Interface z External power socket
z Data interface (DATA)
z Antenna connector (ANT)
z Phone/Call meter interface
(PHONE FAX)
Power Supply z Input:230V (AC), 50/60Hz
z Output:+12V (DC)
Voice Decoding 8K EVRC
Dimensions
(W×H×D)
220 mm×140 mm×40 mm
(Exclude antenna)
Battery z 1500mAH Ni-Hi battery
z Continuous Standby Time:
Approx. 10 hours (Depending on
the network condition)
z Continuous Talk Time : Approx. 2
hours (Depending on the network
condition)
Please refer to the real objects for the related parameters
about the battery and charger.
![](/img.php?id=1170872&img=bgd.png)
9
22.3 Appearance
2.3.1 LED Indicator
z PWR (power) Indicator
Indicator turns on when the outer power supply well.
z BATT (Battery) Indicator
Indicator turns on when the phone is power supplied by
battery.
Indicator turns blinking when the battery is in
low-voltage.
Note: FWT may not work normally when the battery is in
low-voltage.
![](/img.php?id=1170872&img=bge.png)
10
z PHONE (Off hook) Indicator
Indicator turns on when the phone is hook off, it turns
off when the phone is hook-on.
z DATA/FAX Indicator
Indicator turns on when FWT is dealing with data
service.
z RSSI (Signal strength) Indicator
Indicator turns on when RF signal is normal. Indicator
turns blinking when RF signal is weak. Indicator turns
off when there is no RF signal.

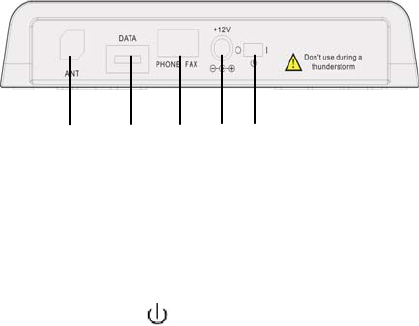

2.3.2 Interfaces
1. ANT: antenna connector
2. DATA: data interface
3. PHONE FAX: telephone/ call meter
4. External power socket
5. Power switch
1 2 3 4 5
![](/img.php?id=1170872&img=bgf.png)
11
2.3.3 Power Switch
ZTE WF832 may be turned on by switch at the rear
side of the FWT. Turn it to "∣" to power on, turn it to "О" to
power off.
2.4 Installing
To install ZTE WF832, please:
1. Connect a telephone to the PHONE interface.
2. Install the antenna to the antenna connector. Hold the
stick of the antenna and rotate the screw cap in clockwise
direction. Do not rotate antenna directly.
3. Connect the terminal to outer power supply using the
external power adapter.
4. Turn the power switch to "∣", and then the
terminal will get started. Make sure that the phone is on hook
before powering on.
5. If you want to power off the terminal: Turn the
switch to "О".
Note: The prompt of shut down will not be heard while the
terminal is power off when a new call comes in.
2.5 Power Supply
There are two ways of power supply:
1. External power supply
2. Spare rechargeable battery supply
12
When using the terminal, please connect it with the
external power adapter. Use the spare rechargeable battery of
the terminal in case of power failure or when there is no
available power socket nearby.
With external power supply, the terminal will
automatically check electricity quantity of the battery and
charge the spare battery.
If the spare battery will be used up, the indicator light
BATT will flash, please connect external power adapter for
charging in time.
![](/img.php?id=1170872&img=bg11.png)
13
3 Basic Operations
3.1 Making a Call
3.1.1 Making a Domestic Call
Make sure that ZTE WF832 and telephone connected
properly. Off hook the handset of the telephone, and then type
telephone number (add area code when making a long
distance call) on the keypad of the telephone, the terminal
will send it automatically within 4 seconds.
Note: when RSSI light turns off and there is no dialing tone
when picking up telephone’s handset, it indicates weak RF
signal or loosen antenna screw. Change the position of the
terminal or check the antenna installation.
3.1.2 Making an International Call
Type the country code, the area code and the desired
number; the terminal will send it automatically within 4
seconds. Delete the initial "0" from the area code when you
make a call.
Country code + Area code + Telephone number
3.1.3 Adjusting Volume during a Call
During conversation, you can press "*" key to decrease
14
the volume, press "#" key to increase the volume.
3.2 Answering a Call
When the phone rings, pick up the handset to answer. If
the hand free function is available on the telephone, you can
press the hand free key to answer a call.
Make sure to turn off the hand-free to guarantee next
call can come in.
3.3 Call Metering
Connect the call meter’s interface to PHONE FAX
interface of ZTE WF832, and then connect the phone to the
call meter. Call meter will begin to count when the phone is
connected successfully.
The default setting of FWT is to support reversal
metering and 16 KHz pulse metering. If FWT can’t support
normally, you can try to follow the instructions below to
switch metering model.
For the model of 12 KHz pulse call meter, you can do:
Set: Hook off the phone, type *983*7083# with a
sound of confirmation.
Factory default reset: Hook off the phone, type
*983*7084# with a sound of confirmation.
It is recommended that you restart FWT when you make use
of instructions to switch metering model.
![](/img.php?id=1170872&img=bg13.png)
15
Note: This function is network-dependent; the rate of
metering should be set at the outer call meter.
3.4 Other Functions
The terminal supports call forwarding; call waiting and
three-way call. Please consult with the network carrier for
details.
Note: This function is network-dependent.
![](/img.php?id=1170872&img=bg14.png)
16
4 Access Internet
ZTE WF832 FWT supports the speed of 153.6 kbps
Internet access through data cable.
Before using Internet service, Please make sure that:
1. FWT and the computer connected well with data
cable.
2. Run the "autorun.exe" file from the CD-ROM,
which come with the FWT, to install the PC Dial-up Software
If you use special USB data cable,you should install the
USB Driver.
3. Click Start ,and then select Program →
PC_DIAL_UVFWFV1.00.00 →Dial-Up Software
Instruction Manual.doc to get the information on how to
access Internet.
Note: This function is network-dependent.
![](/img.php?id=1170872&img=bg15.png)
17
5 Troubleshooting
Fault Solution
No dialing tone after off-hook
Check the installation of the
antenna, RSSI signal or restart
FWT
The phone is buzzing after
off-hooking
The phone is not compatible
with FWT, change another
phone
The system stops sending dial
tone 50 seconds after
off-hooking
Hook on, and then hook off
again to make a call
No caller number displayed
Please consult with the network
carrier about the CID mode of
FWT and the phone is
matching
It takes a longer time (about 10
minutes) before the charging.
May be the battery is fully
discharged or used up. It is
normal phenomenon.
Other abnormal phenomenon
Please first refer to the User
Manual, and then check
whether the parts such as
![](/img.php?id=1170872&img=bg16.png)
18
Fault Solution
power source and antenna are
connected correctly. If there are
no problems, please power off
and re-start the FWT again.
