orativo Lanix de C V LT500 Smartphone User Manual
Corporativo Lanix S.A. de C.V. Smartphone
User Manual.pdf
1
Contents
Get Started ........................................................... 2
Install SIM Card ............................................... 2
Insert Micro SD card ......................................... 2
Charge Mobile Phone........................................ 3
PC-Phone File Transfer ..................................... 4
Keys and Parts ..................................................... 5
Lock and Unlock the Screen .................................. 7
Notification Panel ................................................. 8
Arranging and Rearranging Widgets and Icons ..... 9
Adding Folders on your Screen ............................ 10
Adjusting Brightness ........................................... 11
Changing your Wallpaper ................................... 12
Make a Call ........................................................ 13
Call Log ............................................................. 14
Reject a Call by Sending a Busy Message ............. 15
Add a Contact .................................................... 15
Messaging .......................................................... 16
Receiving a New Message .............................. 16
Editing SMS and MMS ................................... 16
Message conversations .................................... 16
Browse the Web .................................................. 17
Enjoy Music ....................................................... 18
System Updates .................................................. 19
Download Applications From Android Market錯誤!
尚未定義書籤。
Manage Applications ........................................... 20
Maintenance & Safety ......................................... 22
![](/img.php?id=2686591&img=bg2.png)
2
Get Started
Install SIM Card
You must insert the SIM card before using the phone.
-> Steps:
1. Switch off the mobile phone.
2. Insert the SIM card correctly in the card slot(s) (See
figure below)
Insert Micro SD card
The phone supports Micro SD card, which is a multimedia
memory card used to multiply the memory of the device.
Please follow the instructions as above mentioned.
![](/img.php?id=2686591&img=bg3.png)
3
Charge Mobile Phone
Your phone is powered by a rechargeable battery. If your
phone comes up a message which notifies you that the
battery power is too low, at that moment, please recharge
the battery, if the charge is too low, it may shorten the life of
the battery.
Connect the charger to a power outlet and the micro USB
connector to the phone’s USB port. The LED flashlight on
the top of the phone is red. Once the phone has finished
charging, the light turns green and you should unplug the
charger.
![](/img.php?id=2686591&img=bg4.png)
4
PC-Phone File Transfer
Once the mobile phone is connected to a PC with USB, the
PC will charge the mobile phone automatically. In such case,
Connected as an installer will appear on your screen.
1. Drag the notification panel down and tap Connected as
an installer.
2. Select Media device (MTP).
3. The device is recognized as a Removable Disk by the
computer. Open the folder and transfer or copy files from
you phone to PC and vice-versa.
![](/img.php?id=2686591&img=bg5.png)
5
Keys and Parts
The phone gives you marvelous feelings to experience on
Camera, Video recorder, FM radio, Music and Sound
recorder. Let you install various APPs, games, and more
(supports APK format) by downloading from Android
Market.
2
1
10
12
3
4
11
5
9
6
7
8
![](/img.php?id=2686591&img=bg6.png)
6
1.Volume
Up/Down Key
To adjust the ringer volume, adjust
the voice volume during a call and
adjust media volume.
2.Headset port
To connect an earphone so you can
listen to music or radio, etc.
3.Receiver
To hear the voice of the other side
when calling.
4.Front
Camera
Allow you to take pictures while facing
the screen.
5.Power Key
Switch the phone on or off.
Press and hold to open phone options
menu.
6. Return
Go back to the previous screen;
Close the on-screen keypad, a dialog
box, an options menu, or the
notification panel.
7.Home Key
Go to home screen;
Press and hold to open a window
showing you most recently used
applications.
8.Menu
Switch to recently used applications.
9. USB jack
To connect charger or USB data cable
for data exchange.
10.Back
Camera lens
For taking photos.
11.Flashlight
To take photos in low-light conditions.
12.Speaker
To listen to music, and other sounds
offered by your phone.
![](/img.php?id=2686591&img=bg7.png)
7
Lock and Unlock the Screen
Press power button to enter Sleep mode and meanwhile the
screen will be locked; press power button again to wake up
and then drag the lock icon to the upside to unlock.
![](/img.php?id=2686591&img=bg8.png)
8

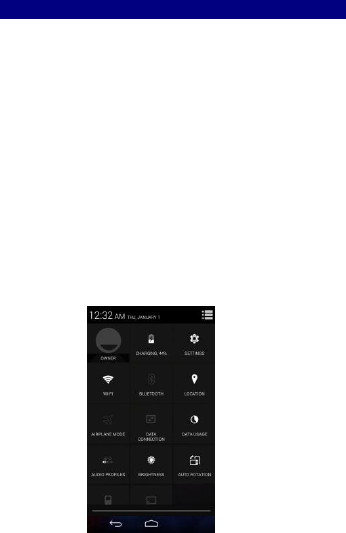

Notification Panel
Notification icons on the status bar report the new arrival of
messages, calendar events, alarm set and ongoing settings
such as when call forwarding is on or the current call status.
You can open the Notifications panel to open the message,
reminder, or event notification and see the mobile operator’s
name. Even you can switch on Data connection, WLAN,
Bluetooth, etc.
-> Opening the Notifications panel
Press and hold the status bar, slide your finger downward to
open the Notifications panel.
If you have several notifications, you can scroll down the
status bar to view more notifications.
-> Closing the Notifications panel
Do one operation of the following:
1. Press and hold the bottom bar of the Notifications panel,
then slide your finger up the screen.
2. Press BACK or Home directly.
![](/img.php?id=2686591&img=bg9.png)
9

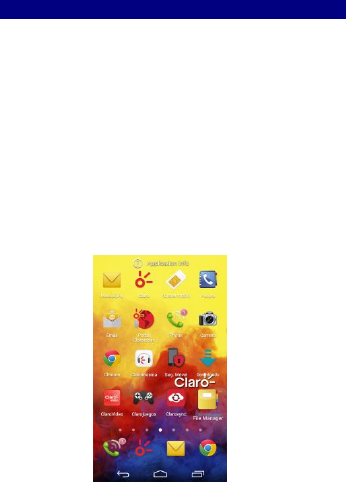

Arranging and Rearranging Widgets and Icons
Rearrange the widgets and icons on your Home screen to
give room for adding more items to the Home screen.
-> Press and hold the widget or icon you are desired to
move.
The phone vibrates and you'll see this icon App info on the
screen. Don't release your finger.
-> Drag the widget or icon to a new location on the screen.
Pause at the left or right edge of the screen to drag the
widget or icon onto another Home screen panel.
-> When the widget or icon is where you are desired to put
it, release your finger. If you've released your finger but a
message shows that there's no space to place the widget or
icon, drag it right or left again to another Home screen
panel.
![](/img.php?id=2686591&img=bga.png)
10
Adding Folders on your Screen
Use folders to group related applications and other shortcuts
to keep your Home screen tidy and organized.
-> Adding folder on your screen
Press and hold an application icon or a widget that you want
to move. The phone then vibrates. Don't release your finger.
Drag the application icon or widget and drop it on top of
another application icon or widget. Then, simply tap the
folder to open it so you can access the applications and
widgets inside the folder.
-> Renaming a folder
Tap the folder to open it, and enter a new folder name and
then tap anywhere on the screen.
-> Deleting folder
Drag out all the applications from the folder, then the folder
will be deleted automatically.
![](/img.php?id=2686591&img=bgb.png)
11

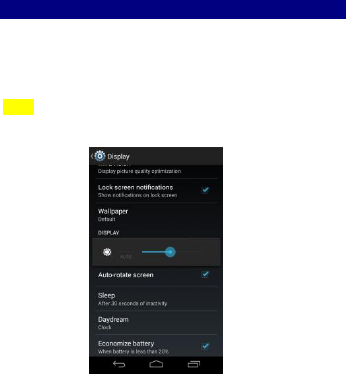

Adjusting Brightness
Drag the notification panel down and adjust brightness. Or
enter Settings->Display-> Brightness, and adjust the
brightness level here (by dragging the brightness slider to
the left to decrease or to the right to increase the screen
Brightness).
Note: Lower the brightness of the screen to prolong the
battery life.
![](/img.php?id=2686591&img=bgc.png)
12

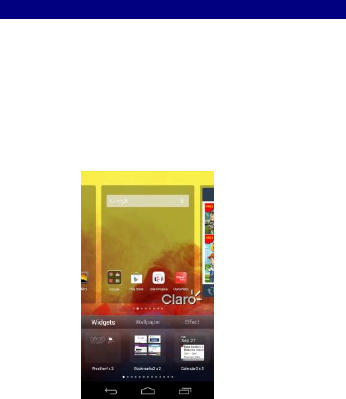

Changing your Wallpaper
Personalizing your Home screen wallpaper with your
favorite photo is a quick and easy way to change the feel of
your phone and give it a fresh look. Browse the collection of
wallpapers included in your phone by default or choose
from photos that you have taken with the camera.
-> Press and hold the screen where there is space.
-> The screen will vibrate and an optional context.
-> Select the wallpaper you want and confirm to set it as
wallpaper.
![](/img.php?id=2686591&img=bgd.png)
13

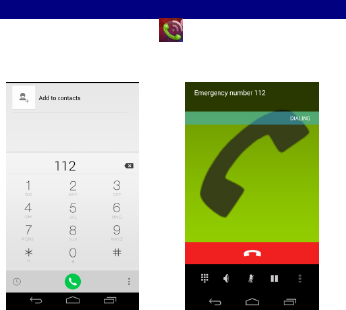

Make a Call
On the start screen choose and enter a complete phone
number to make a call.
![](/img.php?id=2686591&img=bge.png)
14

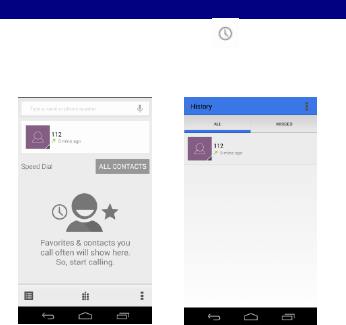

Call Log
Enter Phone interface, tap the icon in the left corner,
and then access Call log. In call log options, you can Make
calls, add new contact and send message etc.
![](/img.php?id=2686591&img=bgf.png)
15
Reject a Call by Sending a Busy Message
While there is an incoming call, you are inconvenient to
accept the call, and then you can send a busy message for
rejecting the call.
Drag the circle up to , some busy messages will show
on the screen, short tap any of them to send out.
Add a Contact
Tap and enter Contacts and then add a contact (see
figure below.)
Tap to add a new contact to Phone or SIM card.
![](/img.php?id=2686591&img=bg10.png)
16

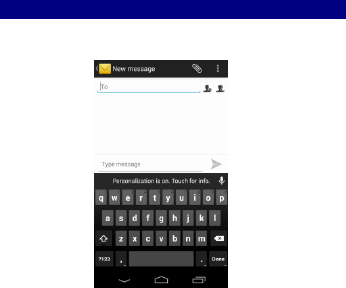

Messaging
Enter Messaging, and then compose new message. You
touch a text field where you want to enter text, to open the
keyboard.
Receiving a New Message
When there is a new message comes, a new message icon
will appears in the notifications area of the status bar to
notify you of a new text or multimedia message.
To open the message, press and hold the status bar, and then
slide the status bar down to open the Notifications panel. Or
go to Messaging, read the message directly.
Editing SMS and MMS
-> When you are composing a new text message, you can
select text for cutting or copying. Touch the text field or
portion that contains text. You can select all contexts, copy,
cut and paste. The selected text is highlighted in Blue.
-> A multimedia message may contain video, pictures, audio,
sideshow, etc. Thus, when you are supposed to edit a MMS,
you can just add videos, pictures and more to SMS and
change to MMS.
Message conversations
Text and multimedia messages that are sent to and received
from a contact (or a number) are grouped into conversations
or message threads in the All messages screen. Threaded
SMS or MMS let you see exchanged messages (similar to a
chat program) with a contact on the screen.
![](/img.php?id=2686591&img=bg11.png)
17

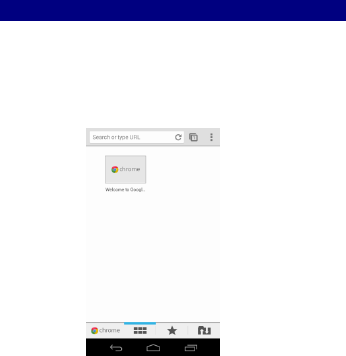

Browse the Web
Open the browser; click the URL on the screen to search or
tap website address.
The browser is fully optimized and comes with advanced
features that let you enjoy Internet browsing on your phone.
You must have an active data connection or Wi-Fi
connection to access the Internet.
![](/img.php?id=2686591&img=bg12.png)
18

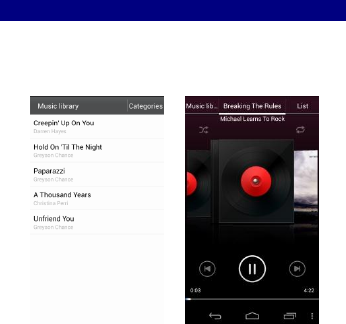

Enjoy Music
When you copy music to your Micro SD card, the Music player
searches the device for music files and builds a catalog of your
music, based on information about each file that is stored in the
file itself.
![](/img.php?id=2686591&img=bg13.png)
19

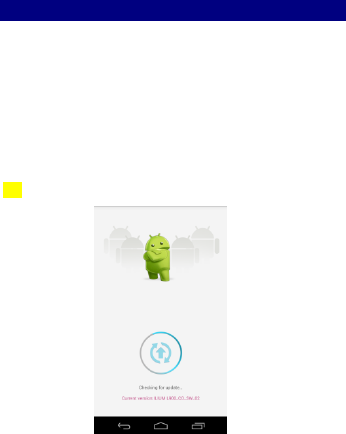

System Updates
Enter System Settings->About phone and access LANIX
OTA, the device will automatically search and check new
version of software.
To update your current software, you must download new
software online. The device will be in Recovery mode and
will start to update the system after successfully
downloading the new software. Then the device will reboot
once system updating is complete, a pop-up message will
appear to notify that the device has been successfully
updated.
Tip: It is suggested to use Wi-Fi to download new software.
![](/img.php?id=2686591&img=bg14.png)
20
Download Applications From Android Market
-> Add a Google account
-> Enter Android Market (Play Store) and download apps.
![](/img.php?id=2686591&img=bg15.png)
21
Manage Applications
Enter Setting >Apps, then manage the applications. Tap any
app to view the information of the applications, and you can
also force the apps to stop or uninstall the apps.
To install Apps, you need switch on “Unknown sources” in
Security settings.
![](/img.php?id=2686591&img=bg16.png)
22
Maintenance & Safety
Please read this safety information carefully so that you can use
your phone in complete safety:
1. Children: Be very careful with children and your phone. A
mobile phone contains a number of detachable parts. Exercise
great care when children are in close proximity to the phone. The
phone contains small parts that could be swallowed or cause
choking. If your phone is equipped with a camera or lighting
device, do not use it too near children or animals.
2. Hearing: Prolonged listening at full power using a lightweight
headset or headphones can damage your hearing. Reduce the
volume to the lowest possible level when listening to music or
conversations. Avoid high volumes over extended periods.
3. Driving: Exercise care when driving. Driving requires
maximum attention at all times in order to minimize the risk of
accidents. Using a mobile phone can distract the user and result
in an accident. You must fully comply with the local regulations
and laws in force regarding the use of cell phones whilst driving.
You are not allowed to use the phone whilst driving. A
hands-free kit should not be regarded as an alternative solution.
Flying: Turn your phone off when flying. Remember to turn your
phone off when you are in a plane (GSM + Bluetooth) as it may
cause interference.
4. Hospitals: Turn your phone off near any medical devices. It is
extremely dangerous to leave a phone switched on near medical
devices as it may cause interference. You must observe any
instructions or warnings in hospitals and treatment centers.
Remember to turn your phone off in service stations. Do not use
your device in a petrol station near fuel. It is dangerous to use
your phone inside a professional garage.
5. Electronic implants and pacemakers: Users who wear a
pacemaker or who are fitted with an electronic implant must hold
the phone on the opposite side to their implant as a precaution
when making a call. If you notice that your phone is causing
interference with a pacemaker, switch it off immediately and
contact the manufacturer of the pacemaker for advice on what
action to take.
6. Fire hazard: Do not leave your device near heat sources such
as radiators or cookers. Do not leave your phone charging near
flammable materials as there is a real risk of fire.
7. Contact with liquid: Do not expose the phone to liquid or
touch it with wet hands: any damage caused by water may be
irreparable.
8. Use only LANIX-approved accessories. The use of
unauthorized accessories may damage your phone or cause a
safety risk.
9. Do not destroy the batteries and chargers. Never use a battery
23
or charger that has been damaged. Keep batteries away from
magnetic objects as the latter might cause short-circuit between
the positive and negative terminals of your batteries and destroy
the battery or phone permanently. As a general rule, you should
not expose the batteries to very high or low temperatures (below
0°C or above 45°C). Differences in temperature may reduce
battery autonomy and service life.
10. Shocks and impact: Handle and use your phone with the
utmost care. Protect your phone: shocks and impact may damage
it. Some parts of your phone are made from glass and might
break if the phone is dropped or is subject to severe impact.
Avoid dropping your phone. Do not touch the screen with sharp
objects.
11. Electric shock: Do not try to dismantle your phone as there is
a very real risk of electric shock.
12. Maintenance: If you want to clean your handset, use a dry
cloth (do not use a solvent, such as benzene, or alcohol).
13. Recharge your phone in a well-ventilated area. Do not
recharge your device when it is resting on a soft surface.
14. Damage to magnetic strips: Keep your phone away from
credit cards as they may damage the data on the magnetic strips.
15. Do not use the mobile phone in the environment at too high
or too low temperature, never expose the mobile phone under
strong sunshine or too wet environment. The suitable
temperature for the phone is -10°c to +45°c, the maximum
charging temperature declared by the manufacturer is +40°c.
16. Due to the used enclosure material, the GSM mobile phone
shall only be connected to a USB Interface of version 2.0 or
higher. The connection to so called power USB is prohibited.
17. The power adapter is the disconnect device for this
equipment. The socket-outlet shall be near the equipment and
easily accessible.
18. This charger is for indoor use only, the charger type is
UD36A50100, output voltage/current is 5.0V/1.0A.
~ Important operating guidelines
1. To increase the life of your battery, only use LANIX chargers
and batteries. Replacing the battery with a non-compliant model
may result in the latter exploding.
2. Never throw batteries on a fire and follow the guidelines in
force for recycling used batteries and phones.
3. Be careful not to crush or damage the battery, as this could
cause an internal short circuit and overheating.
4. Do not take the battery apart.
5. The battery can be recharged several hundred times before
needing to be replaced. When it shows signs of losing its power,
24
it can be replaced.
6. If you do not use your mobile phone for an extended period,
remember to recharge the battery to optimize its use time.
7. Do not throw batteries away with household waste: recycle
them in accordance with the manufacturer’s guidelines. If the
battery is damaged, contact the after-sales service or the nearest
authorized LANIX dealer.
8. Unplug the charger from the wall socket when the battery is
fully charged in order to reduce your energy consumption.
9. Do not leave the battery being charged for more than a week
as this might result in an overload and reduce the life of the
product.
10. Handle the SIM cards with care: wipe them with a soft cloth
if they appear dirty.
11. Emergency calls: the emergency numbers may not be
accessible on all mobile telephone networks, in isolated areas or
areas where there is no coverage; check first with your operator.
12. Radio Frequency Exposure: Your mobile phone has been
designed and manufactured in accordance with the international
guidelines (ICNIRP1) on exposure to radio frequencies. These
guidelines, which are based on various studies and research,
have been developed by independent scientific organizations to
ensure the safety of everyone who uses a mobile phone.
~ General Notice
Due to the used enclosure material, the GSM mobile phone shall
only be connected to a USB Interface of version 2.0 or higher.
The connection to so called power USB is prohibited.
The adapter shall be installed near the equipment and shall be
easily accessible.
Do not use the mobile phone in the environment at too high or
too low temperature, never expose the mobile phone under
strong sunshine or too wet environment. The suitable
temperature for the phone is 0℃-50℃.
The maximum operating ambient temperature of the charger
declared by the manufacturer is 45℃.
Caution risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
![](/img.php?id=2686591&img=bg19.png)
25
FCC Statement
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This device has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy, and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution:
Any Changes or modifications not expressly approved by the
party responsible for compliance could void the user‘s authority
to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
The country code selection is for non-US model only and is not
available to all US model. Per FCC regulation, all WiFi product
marketed in US must fixed to US operation channels only.
R
RF
F
E
Ex
xp
po
os
su
ur
re
e
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
(
(S
SA
AR
R)
)
This device meets the government’s requirements for exposure to
radio waves.
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless device employs a unit of
26
measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are
conducted using standard operating positions accepted by the
FCC with the device transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the device while operating can be well below the
maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser
required to reach the network. In general, the closer you are to
a wireless base station antenna, the lower the power output.
The highest SAR value for the model device as reported to the
FCC when tested for use at the ear is 0.47 W/kg and when worn
on the body, as described in this user guide, is 1.19 W/kg
(Body-worn measurements differ among device models,
depending upon available accessories and FCC requirements.)
While there may be differences between the SAR levels of
various devices and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model
device with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model device is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: ZC4LT500.
For body worn operation, this device has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and be positioned a minimum of 1.0cm from
the body. Use of other accessories may not ensure compliance
with FCC RF exposure guidelines. If you do not use a
body-worn accessory and are not holding the device at the ear,
position the handset a minimum of 1.0cm from your body when
the device is switched on.
