2MTECH ZAMM-TM110 T-DMB(DAB) Navigation System User Manual

2MTECH Inc. T-DMB(DAB) Navigation System

Manual

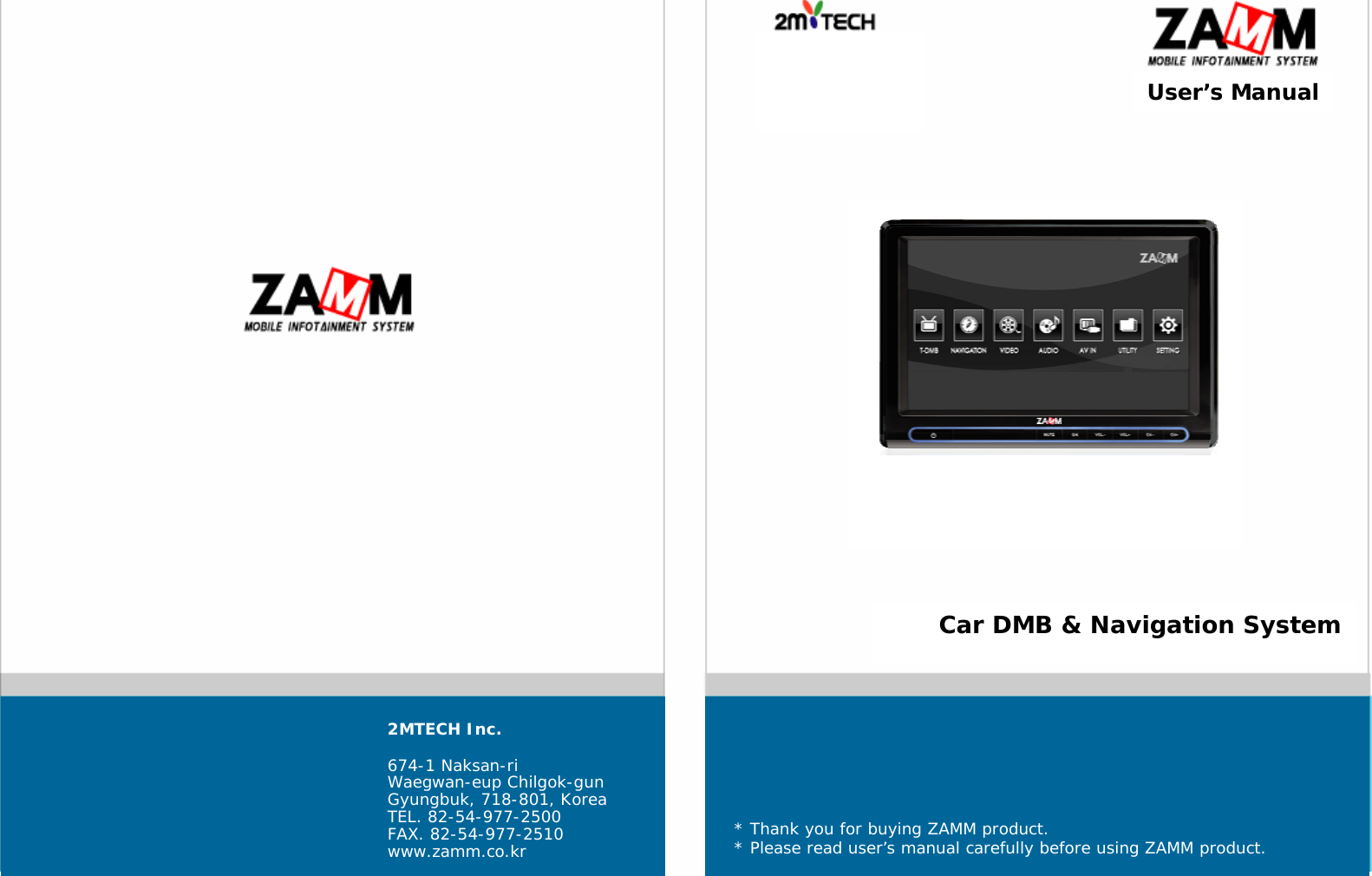

  User’s Manual Car DMB & Navigation System 2MTECH Inc.  674-1 Naksan-ri Waegwan-eup Chilgok-gun Gyungbuk, 718-801, Korea TEL. 82-54-977-2500 FAX. 82-54-977-2510 www.zamm.co.kr * Thank you for buying ZAMM product. * Please read user’s manual carefully before using ZAMM product.

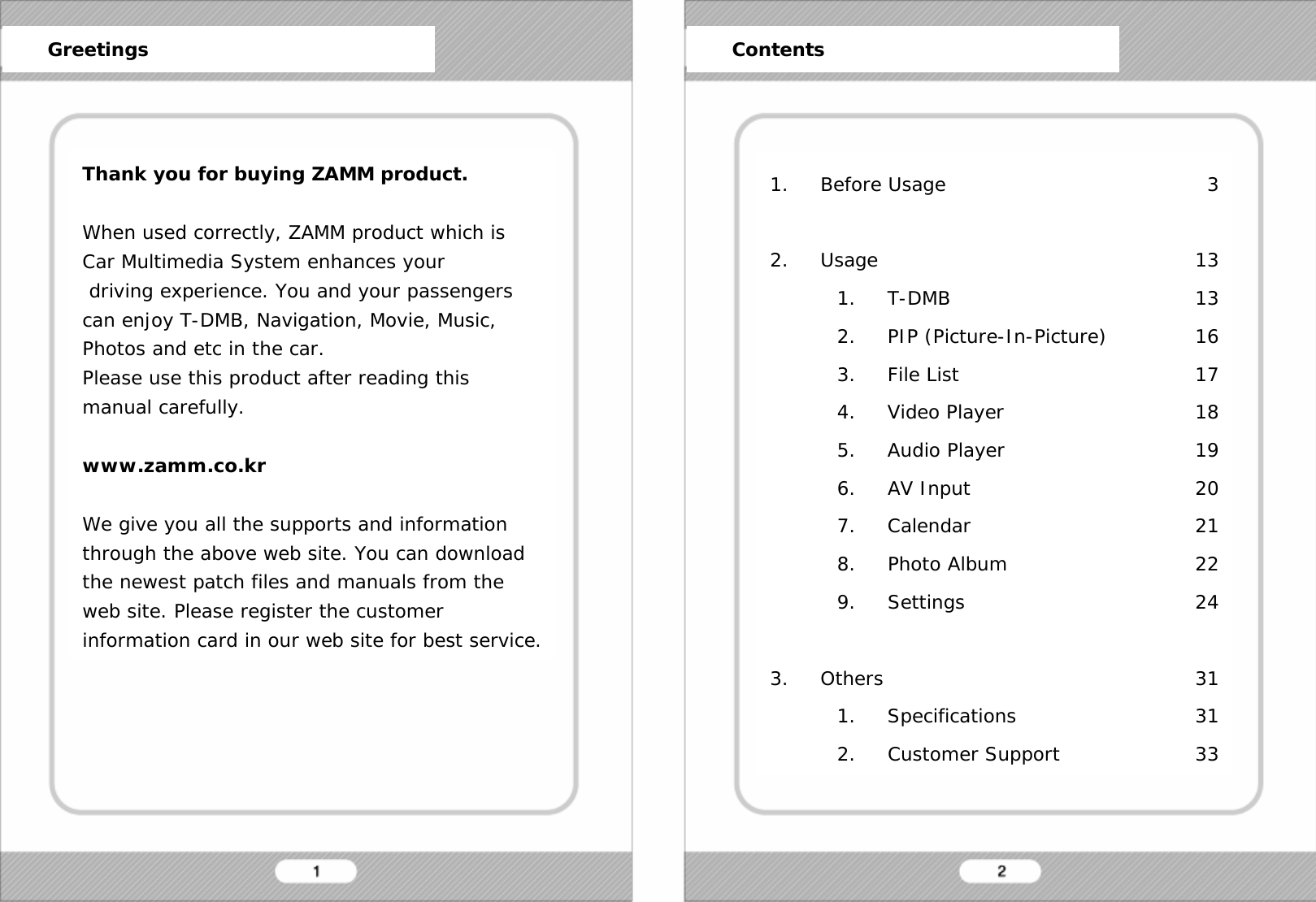

  Thank you for buying ZAMM product.  When used correctly, ZAMM product which is Car Multimedia System enhances your  driving experience. You and your passengers can enjoy T-DMB, Navigation, Movie, Music, Photos and etc in the car. Please use this product after reading this manual carefully.   www.zamm.co.kr  We give you all the supports and information through the above web site. You can download the newest patch files and manuals from the web site. Please register the customer information card in our web site for best service. 1. Before Usage  2. Usage 1. T-DMB 2. PIP (Picture-In-Picture) 3. File List 4. Video Player 5. Audio Player 6. AV Input 7. Calendar 8. Photo Album 9. Settings  3. Others 1. Specifications 2. Customer Support      Greetings      Contents 3  13 13 16 17 18 19 20 21 22 24  31 31 33

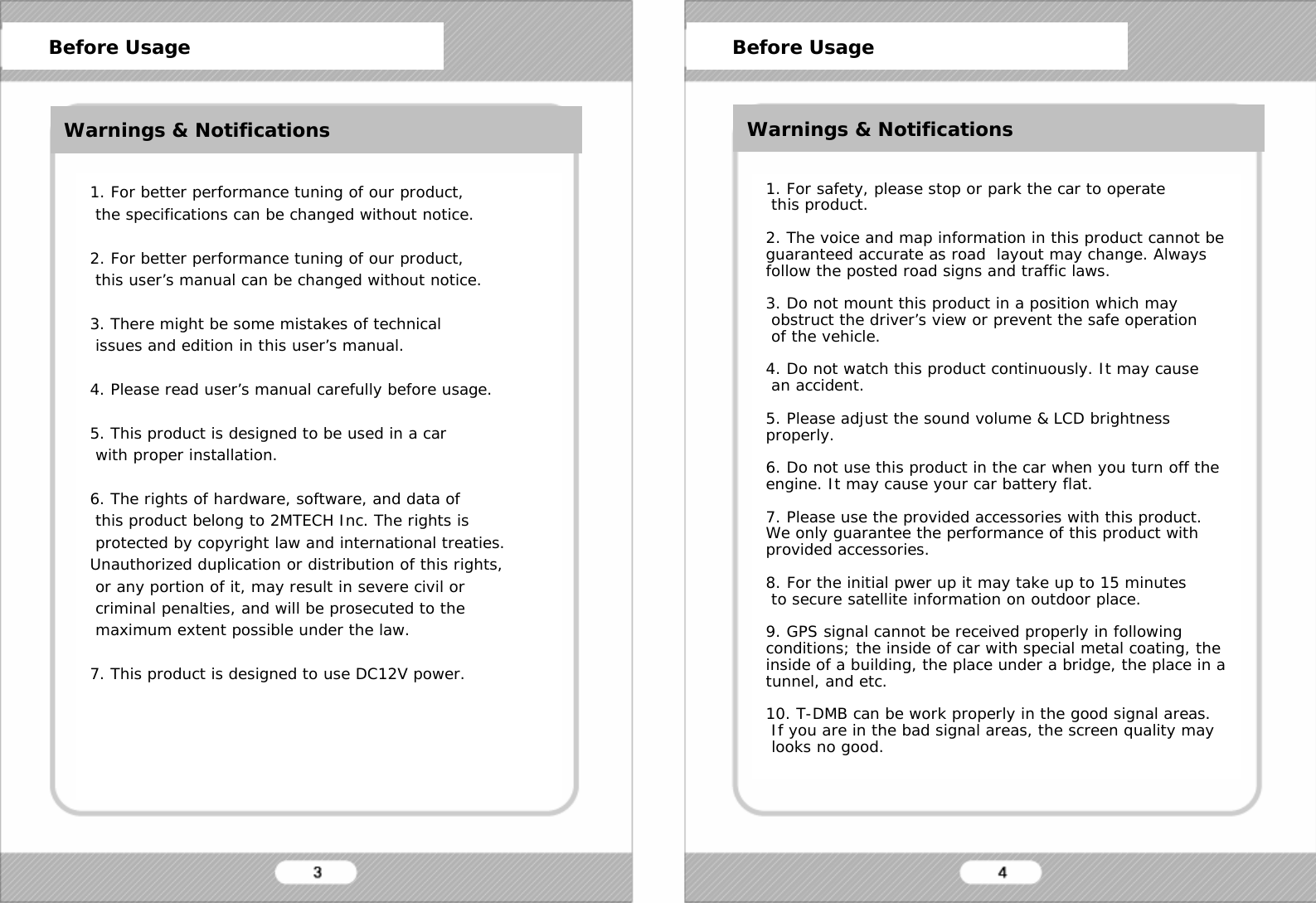

  1. For better performance tuning of our product,  the specifications can be changed without notice.  2. For better performance tuning of our product,  this user’s manual can be changed without notice.  3. There might be some mistakes of technical  issues and edition in this user’s manual.  4. Please read user’s manual carefully before usage.  5. This product is designed to be used in a car  with proper installation.  6. The rights of hardware, software, and data of  this product belong to 2MTECH Inc. The rights is  protected by copyright law and international treaties. Unauthorized duplication or distribution of this rights,  or any portion of it, may result in severe civil or  criminal penalties, and will be prosecuted to the  maximum extent possible under the law.   7. This product is designed to use DC12V power.      1. For safety, please stop or park the car to operate  this product.  2. The voice and map information in this product cannot be guaranteed accurate as road  layout may change. Always follow the posted road signs and traffic laws.  3. Do not mount this product in a position which may  obstruct the driver’s view or prevent the safe operation  of the vehicle.  4. Do not watch this product continuously. It may cause  an accident.  5. Please adjust the sound volume & LCD brightness properly.  6. Do not use this product in the car when you turn off the engine. It may cause your car battery flat.  7. Please use the provided accessories with this product. We only guarantee the performance of this product with provided accessories.  8. For the initial pwer up it may take up to 15 minutes  to secure satellite information on outdoor place.  9. GPS signal cannot be received properly in following conditions; the inside of car with special metal coating, the inside of a building, the place under a bridge, the place in a tunnel, and etc.  10. T-DMB can be work properly in the good signal areas.  If you are in the bad signal areas, the screen quality may  looks no good.       Before Usage      Before Usage Warnings & Notifications Warnings & Notifications

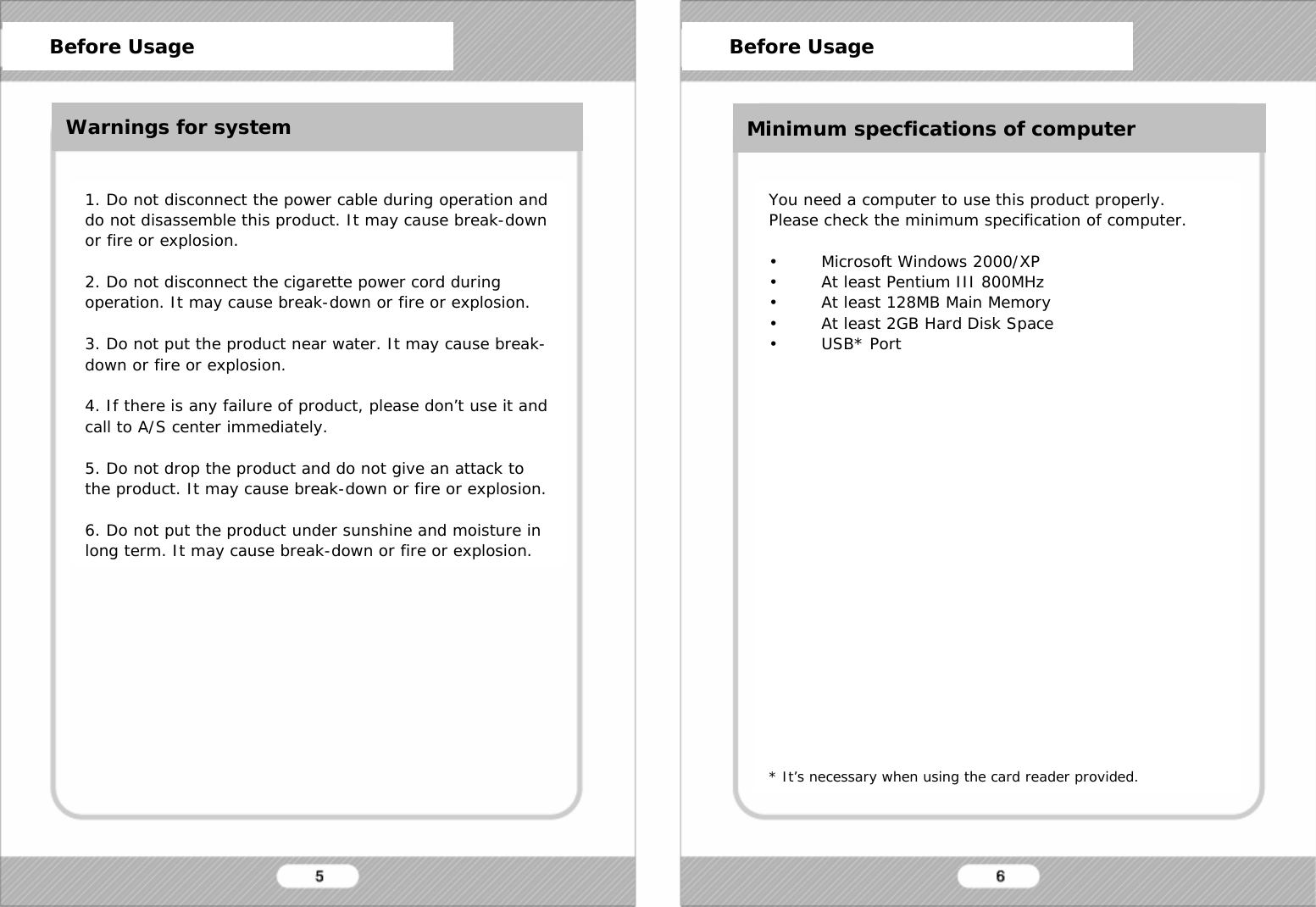

  Before Usage 1. Do not disconnect the power cable during operation and do not disassemble this product. It may cause break-down or fire or explosion.  2. Do not disconnect the cigarette power cord during operation. It may cause break-down or fire or explosion.  3. Do not put the product near water. It may cause break-down or fire or explosion.  4. If there is any failure of product, please don’t use it and  call to A/S center immediately.  5. Do not drop the product and do not give an attack to the product. It may cause break-down or fire or explosion.  6. Do not put the product under sunshine and moisture in long term. It may cause break-down or fire or explosion. You need a computer to use this product properly. Please check the minimum specification of computer.  • Microsoft Windows 2000/XP • At least Pentium III 800MHz • At least 128MB Main Memory • At least 2GB Hard Disk Space •USB* Port                     * It’s necessary when using the card reader provided.      Before Usage      Before Usage Warnings for system Minimum specfications of computer

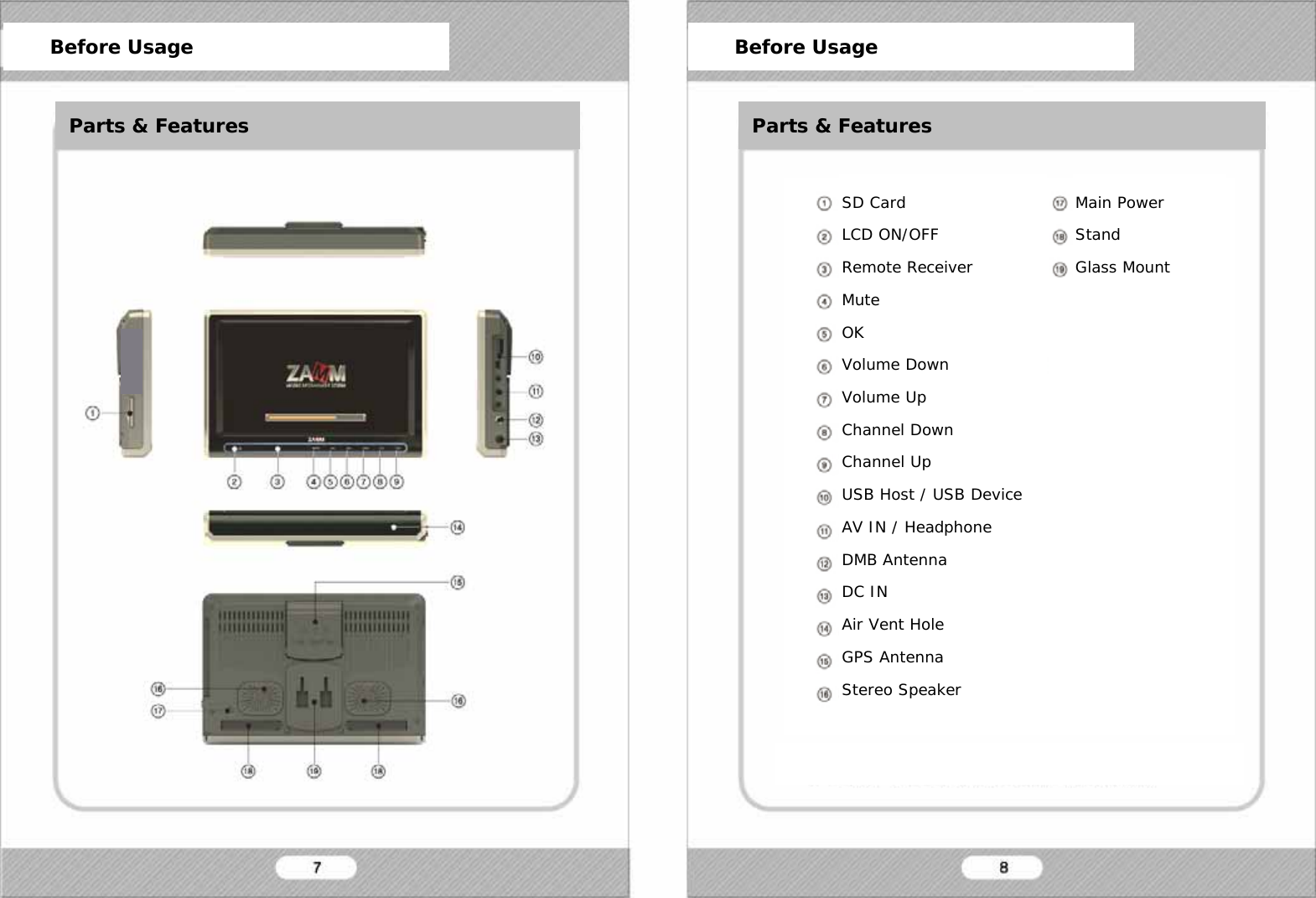

  Before Usage Before Usage Parts & Features       Before Usage      Before Usage Parts & Features Parts & Features SD Card LCD ON/OFF Remote Receiver Mute OK Volume Down Volume Up Channel Down Channel Up USB Host / USB Device AV IN / Headphone DMB Antenna DC IN Air Vent Hole GPS Antenna Stereo Speaker Main Power Stand Glass Mount

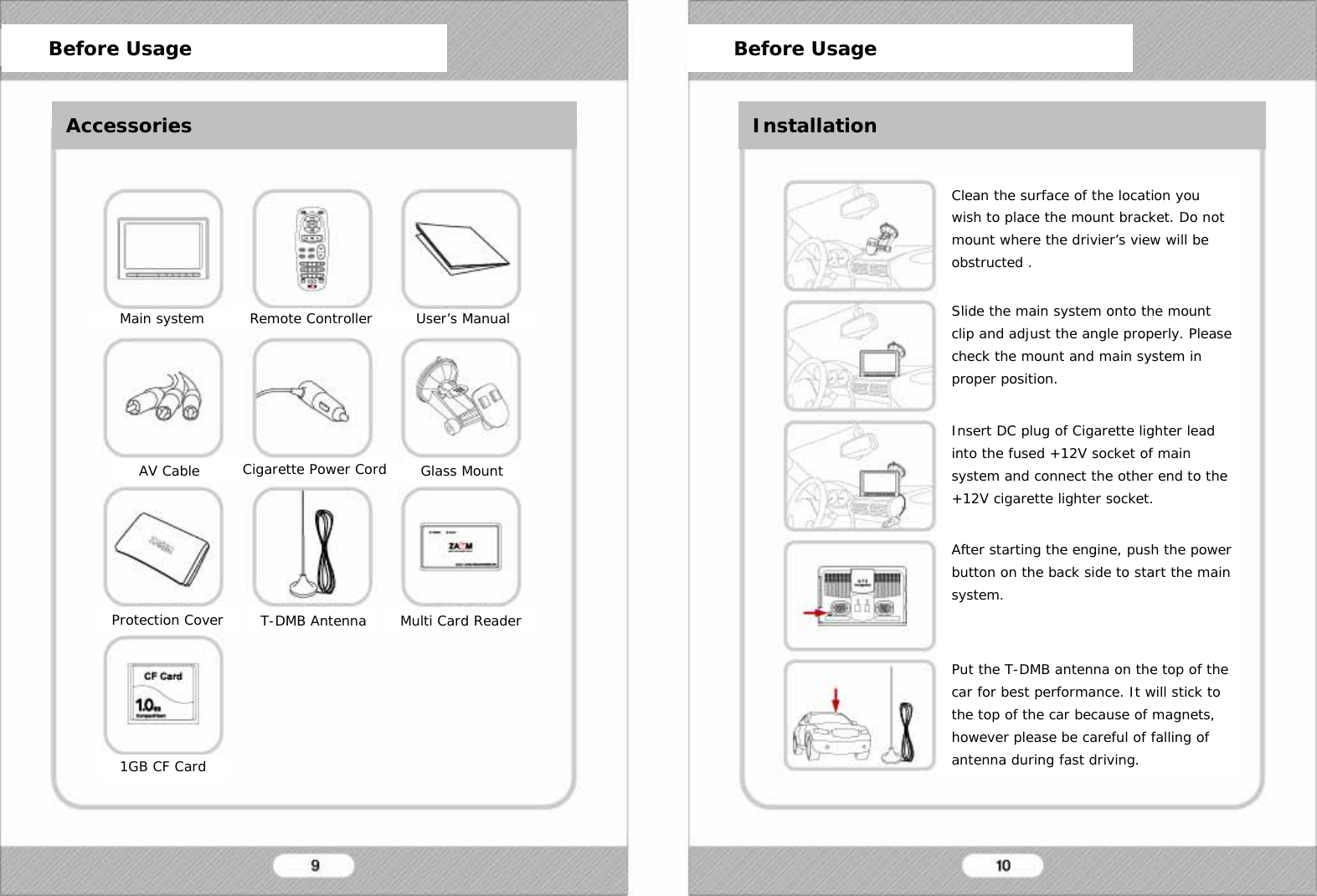

  Before Usage Before Usage Installation Main system Remote Controller User’s Manual AV Cable Cigarette Power Cord Glass Mount Protection Cover T-DMB Antenna Multi Card Reader 1GB CF Card Clean the surface of the location you wish to place the mount bracket. Do not mount where the drivier’s view will be obstructed .  Slide the main system onto the mount clip and adjust the angle properly. Please check the mount and main system in proper position.  Insert DC plug of Cigarette lighter lead into the fused +12V socket of main system and connect the other end to the +12V cigarette lighter socket.  After starting the engine, push the power button on the back side to start the main system.   Put the T-DMB antenna on the top of the car for best performance. It will stick to the top of the car because of magnets, however please be careful of falling of antenna during fast driving.      Before Usage      Before Usage Accessories Installation

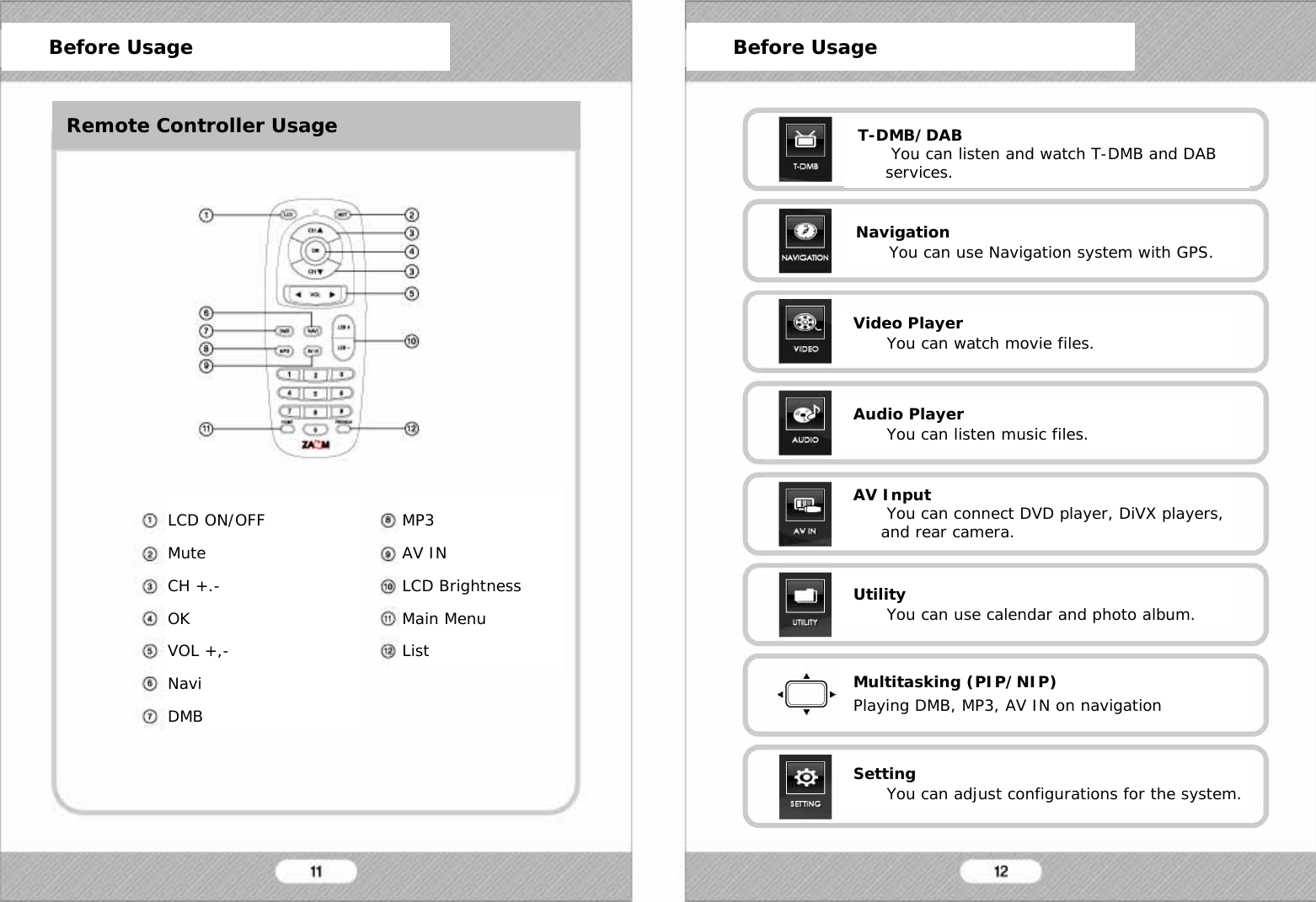

  LCD ON/OFF Mute CH +.- OK VOL +,- Navi DMB MP3 AV IN LCD Brightness Main Menu List      Before Usage      Before Usage Remote Controller Usage T-DMB/DAB       You can listen and watch T-DMB and DAB services. Navigation       You can use Navigation system with GPS. Video Player       You can watch movie files. Audio Player       You can listen music files. AV Input       You can connect DVD player, DiVX players, and rear camera. Utility       You can use calendar and photo album. Setting       You can adjust configurations for the system. Multitasking (PIP/NIP) Playing DMB, MP3, AV IN on navigation

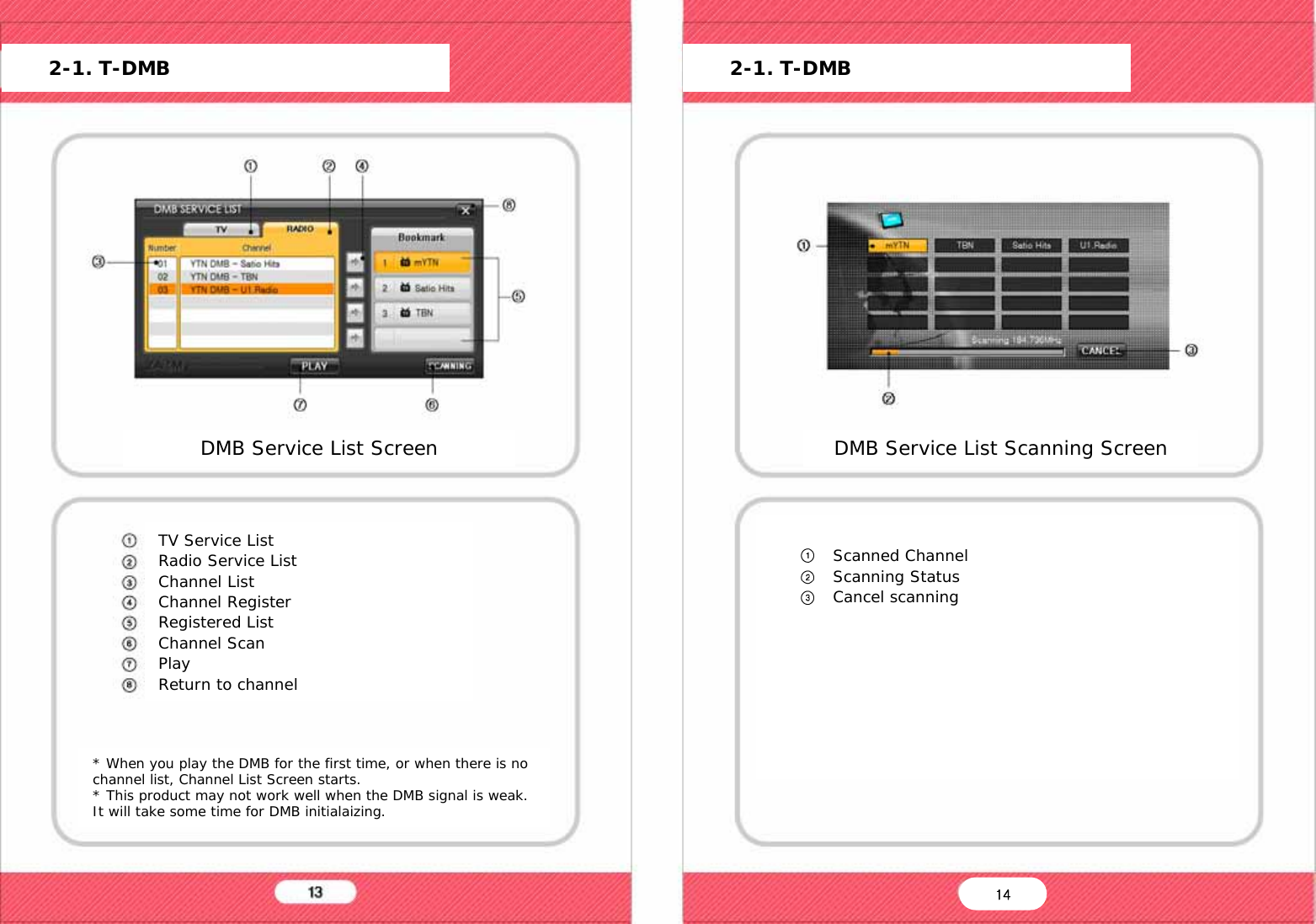

  DMB Service List Scanning Screen      2-1. T-DMB      2-1. T-DMB DMB Service List Screen TV Service List Radio Service List Channel List Channel Register Registered List Channel Scan Play Return to channel * When you play the DMB for the first time, or when there is no channel list, Channel List Screen starts. * This product may not work well when the DMB signal is weak. It will take some time for DMB initialaizing. Scanned Channel Scanning Status Cancel scanning 14

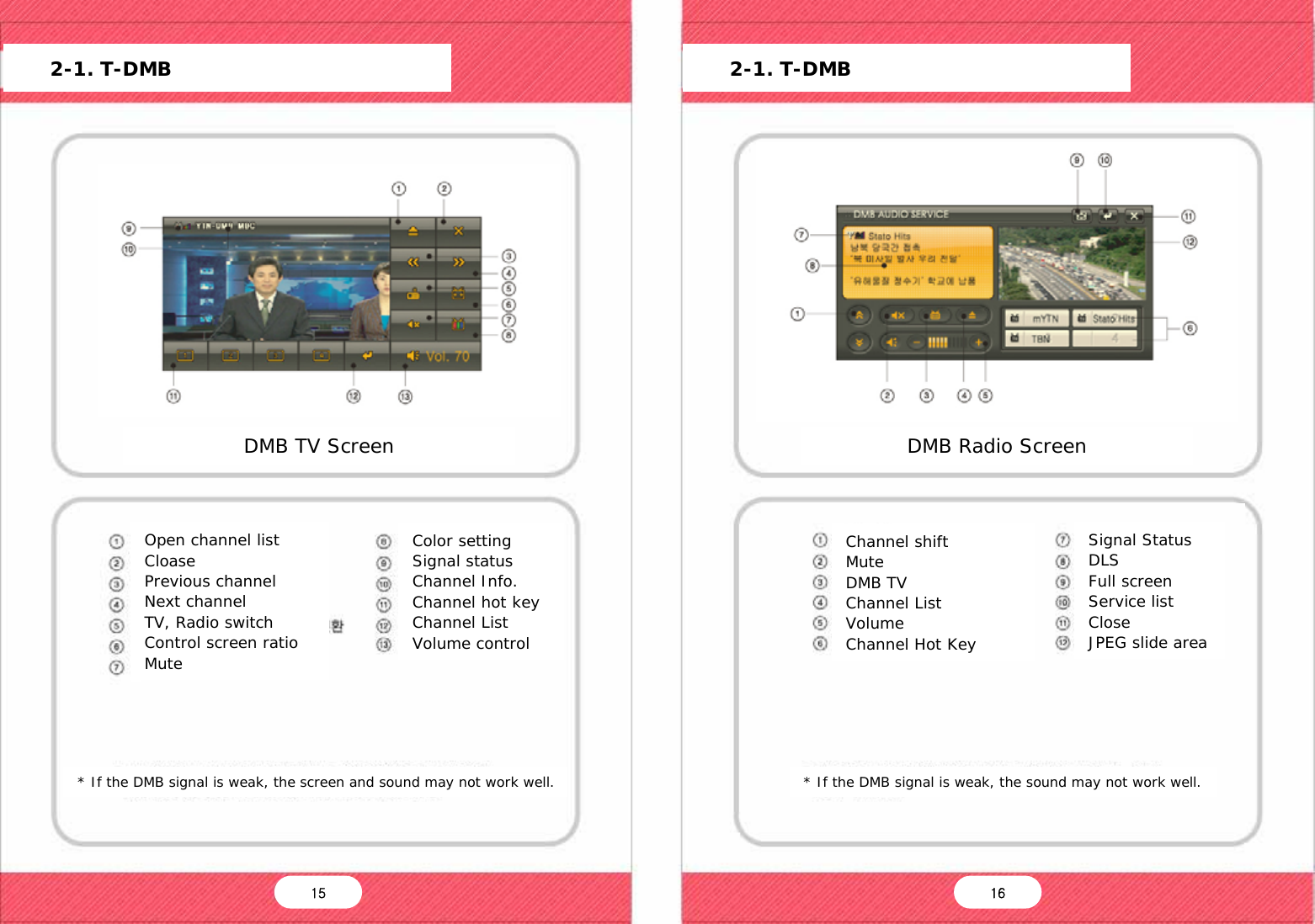

  * If the DMB signal is weak, the screen and sound may not work well. * If the DMB signal is weak, the sound may not work well.      2-1. T-DMB      2-1. T-DMB DMB TV Screen DMB Radio Screen Open channel list Cloase Previous channel Next channel TV, Radio switch Control screen ratio Mute Color setting Signal status Channel Info. Channel hot key Channel List Volume control Channel shift Mute DMB TV Channel List Volume Channel Hot Key Signal Status DLS Full screen Service list Close JPEG slide area 16 15

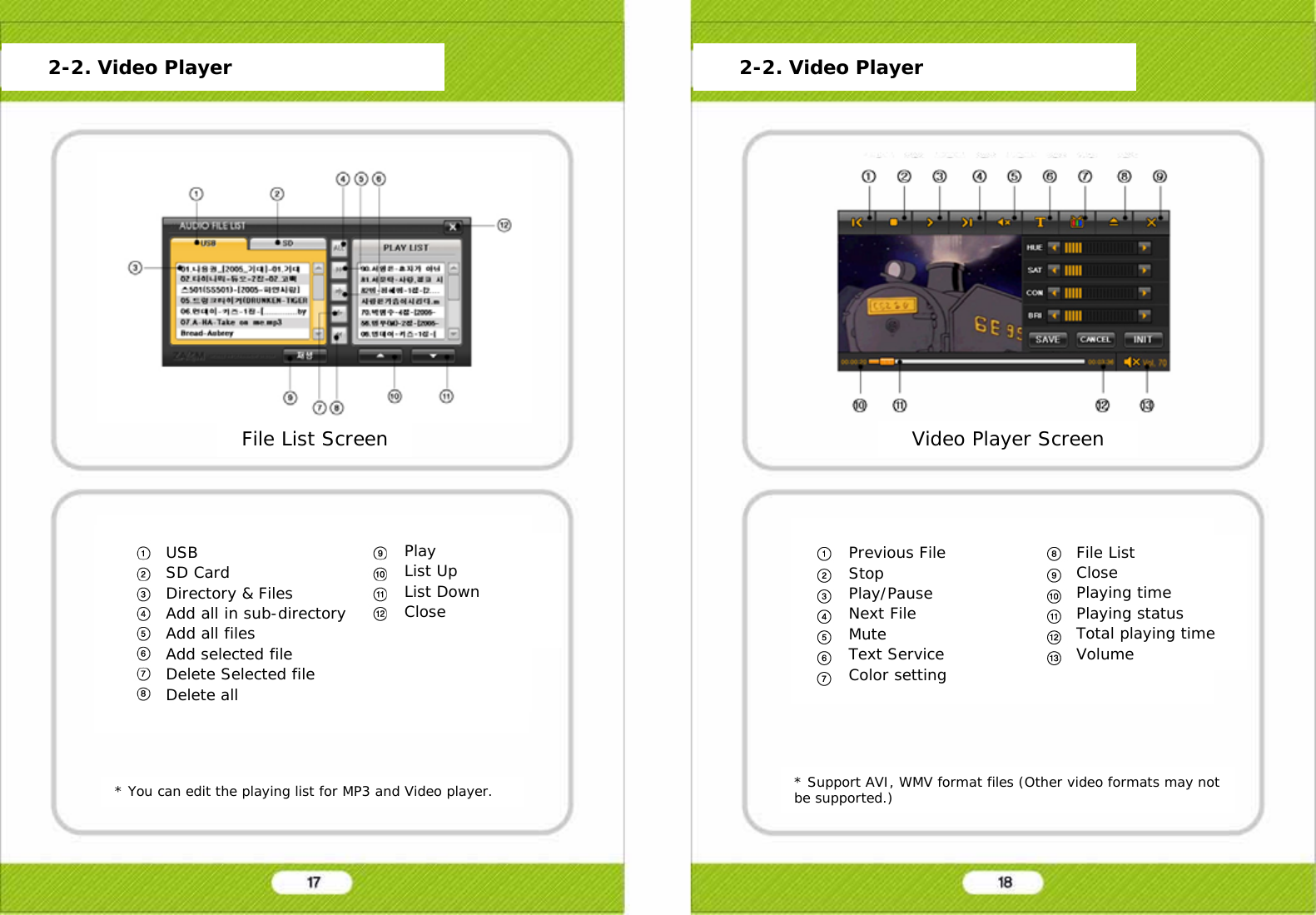

  File List Screen * You can edit the playing list for MP3 and Video player. * Support AVI, WMV format files (Other video formats may not be supported.)      2-2. Video Player      2-2. Video Player Video Player Screen USB SD Card Directory & Files Add all in sub-directory Add all files Add selected file Delete Selected file Delete all Play List Up List Down Close  Previous File Stop Play/Pause Next File Mute Text Service Color setting File List Close Playing time Playing status Total playing time Volume

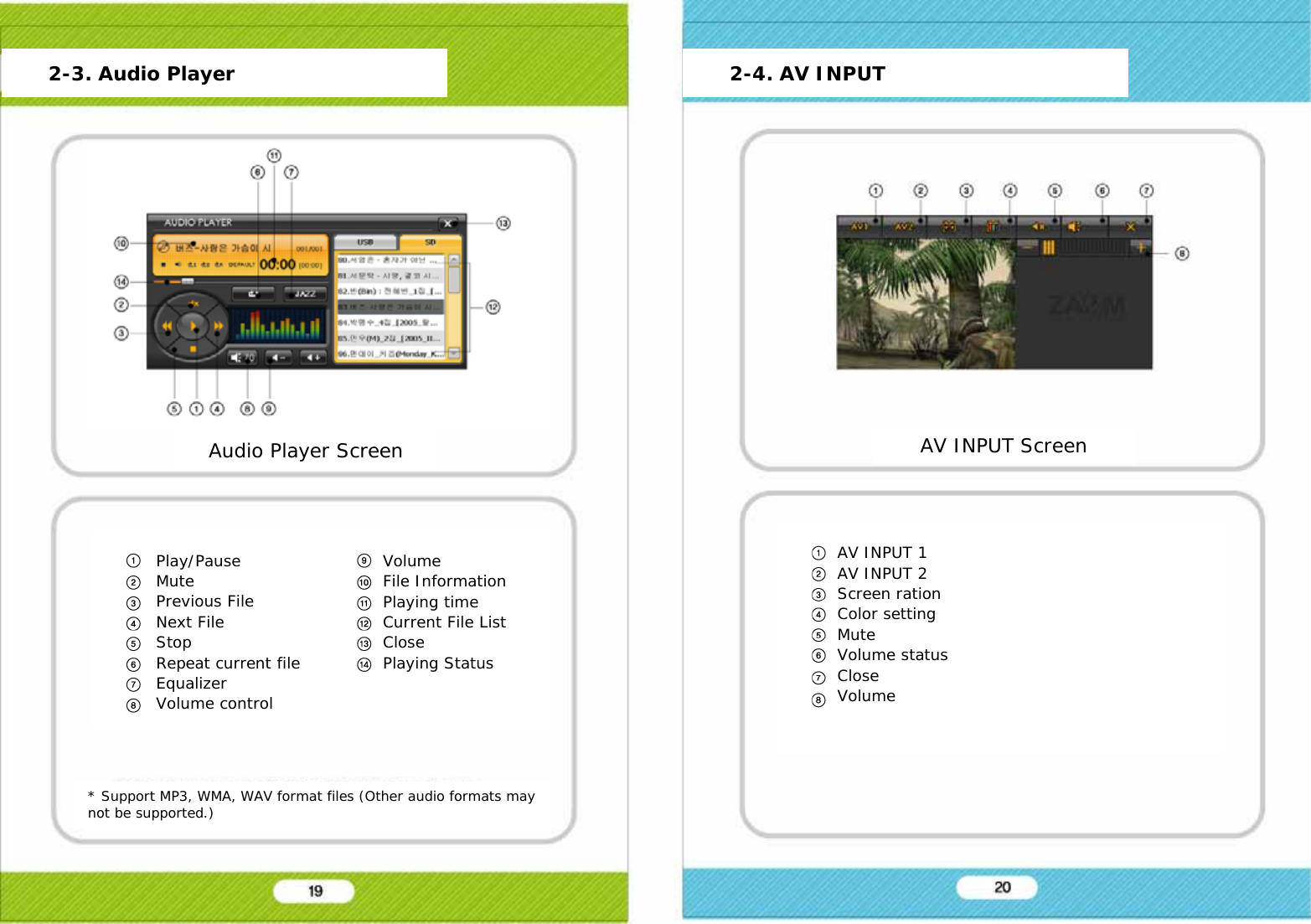

  * Support MP3, WMA, WAV format files (Other audio formats may not be supported.)      2-3. Audio Player      2-4. AV INPUT Audio Player Screen AV INPUT Screen Play/Pause Mute Previous File Next File Stop Repeat current file Equalizer Volume control Volume File Information Playing time Current File List Close Playing Status AV INPUT 1 AV INPUT 2 Screen ration Color setting Mute Volume status Close Volume

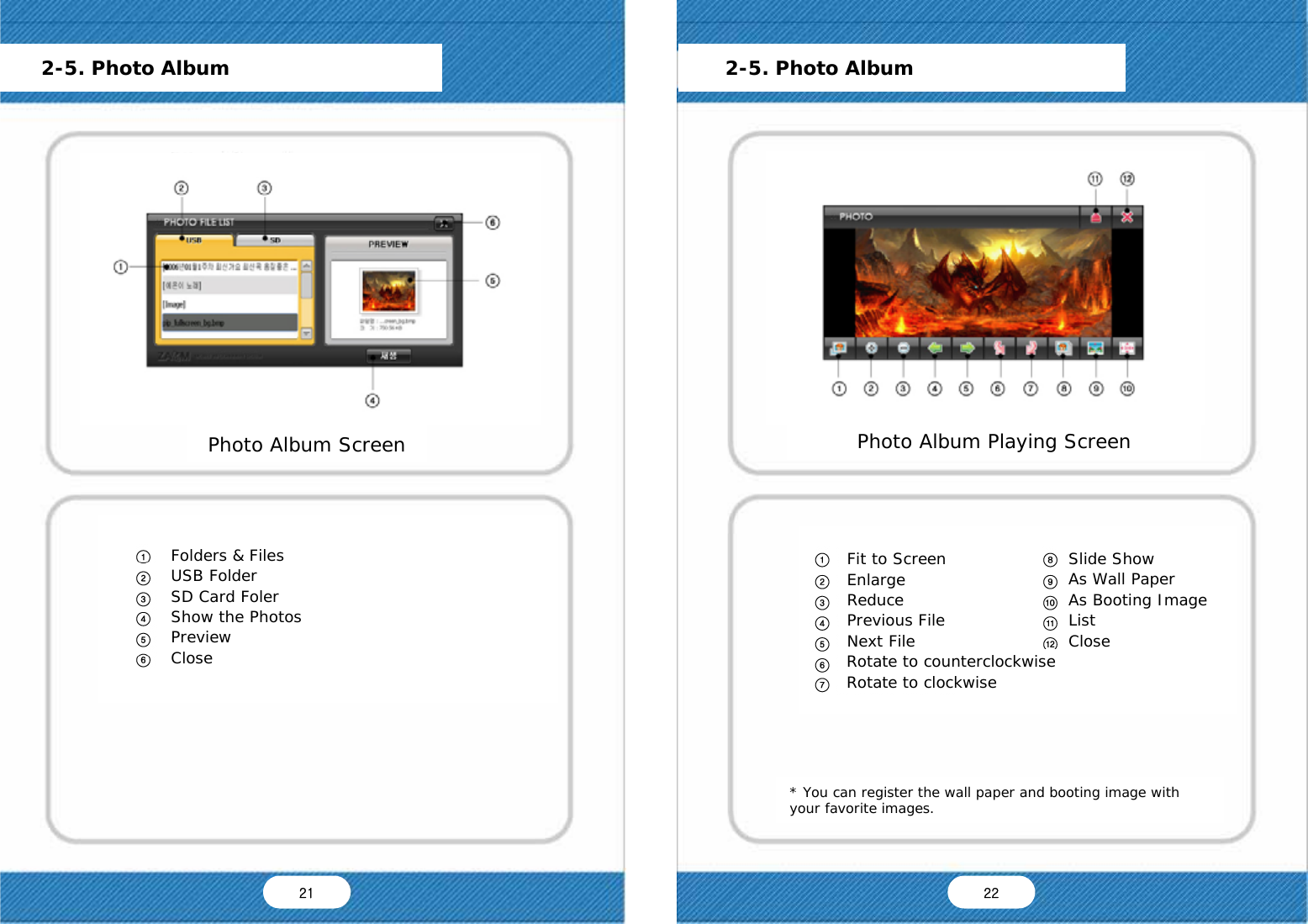

       2-5. Photo Album Photo Album Screen Folders & Files USB Folder SD Card Foler Show the Photos Preview Close Photo Album Playing Screen * You can register the wall paper and booting image with your favorite images.      2-5. Photo Album Slide Show As Wall Paper As Booting Image List Close Fit to Screen Enlarge Reduce Previous File Next File  Rotate to counterclockwise Rotate to clockwise 21  22

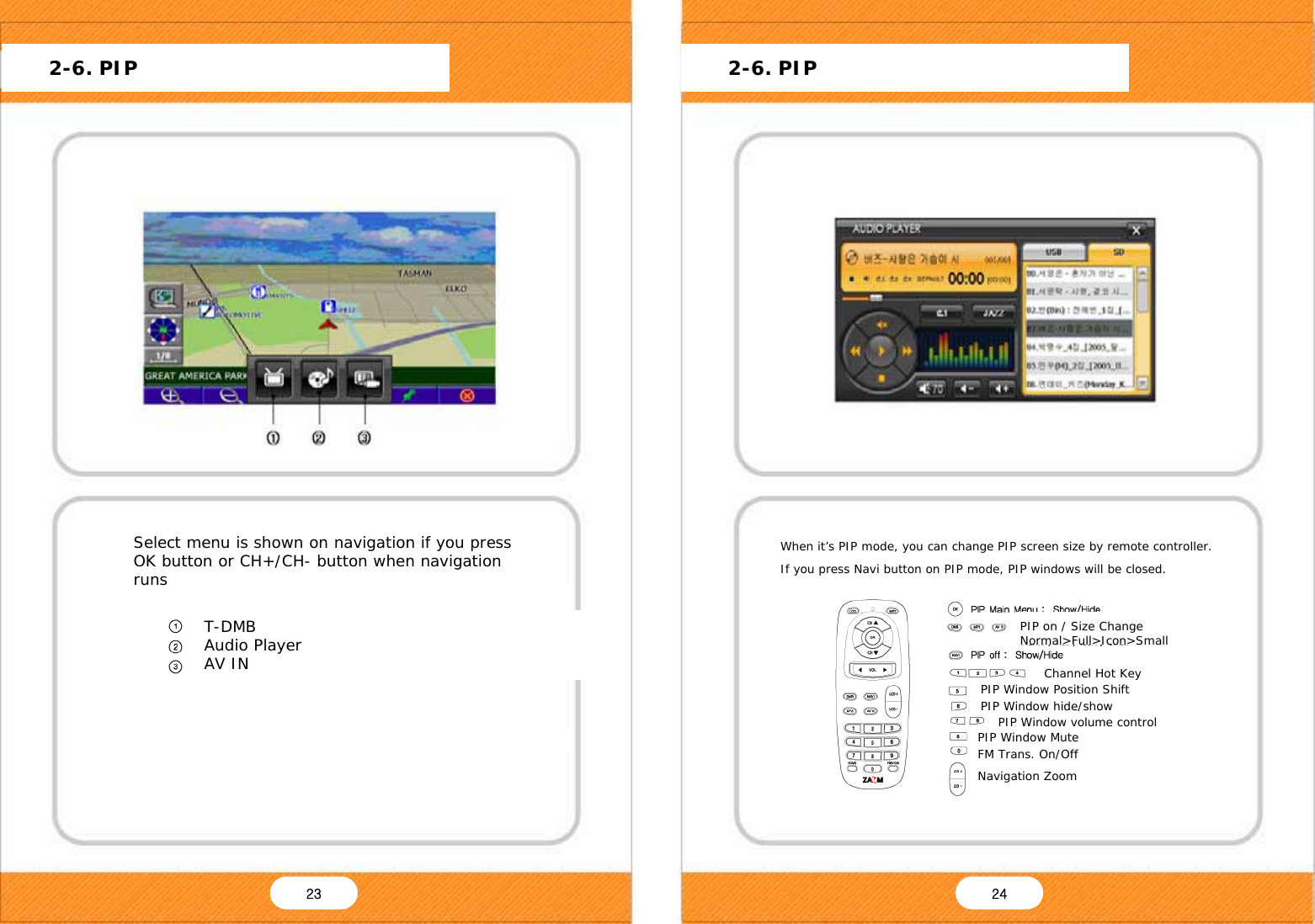

  PIP Main Menu : Show/Hide DMB TV Playing with Navigation  When navigation operates, push the CH+ button or DMB key on remote controller to start DMB. If you push NAVI key on remote controller when DMB operates, you can watch DMB with Navigation.  To start navigation;  - Touch the Navi Icon on main menu.  - Press the Navi key on the remote controller.  For further information about operating navigation, please find the additional navigation manual or refer to the web site www.zamm.co.kr. PIP Window Position Shift PIP Window hide/show      2-6. PIP      2-6. PIP PIP on / Size Change Normal>Full>Icon>Small PIP off : Show/Hide Channel Hot Key PIP Window volume control PIP Window Mute FM Trans. On/Off Select menu is shown on navigation if you press OK button or CH+/CH- button when navigation runs T-DMB Audio Player AV IN PIP Window Position Shift PIP Window hide/show PIP on / Size Change Normal>Full>Icon>Small Channel Hot Key PIP Window volume control PIP Window Mute FM Trans. On/Off Navigation Zoom  When it’s PIP mode, you can change PIP screen size by remote controller. If you press Navi button on PIP mode, PIP windows will be closed. 23  24

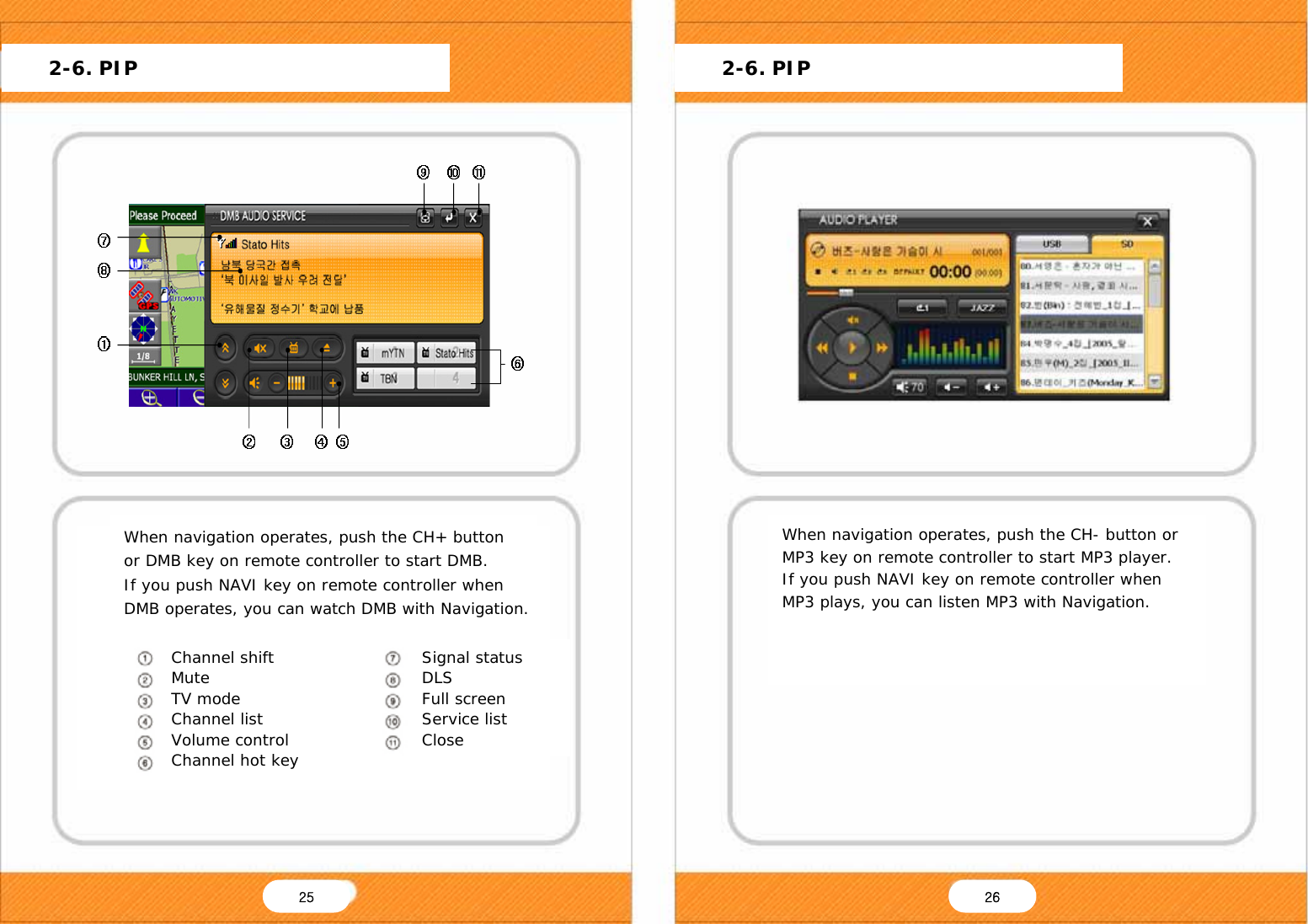

  When navigation operates, push the CH- button or MP3 key on remote controller to start MP3 player. If you push NAVI key on remote controller when MP3 plays, you can listen MP3 with Navigation.         2-6. PIP      2-6. PIP When navigation operates, push the CH+ button or DMB key on remote controller to start DMB. If you push NAVI key on remote controller when DMB operates, you can watch DMB with Navigation. Channel shift Mute TV mode Channel list Volume control Channel hot key Signal status DLS Full screen Service list Close 25  26

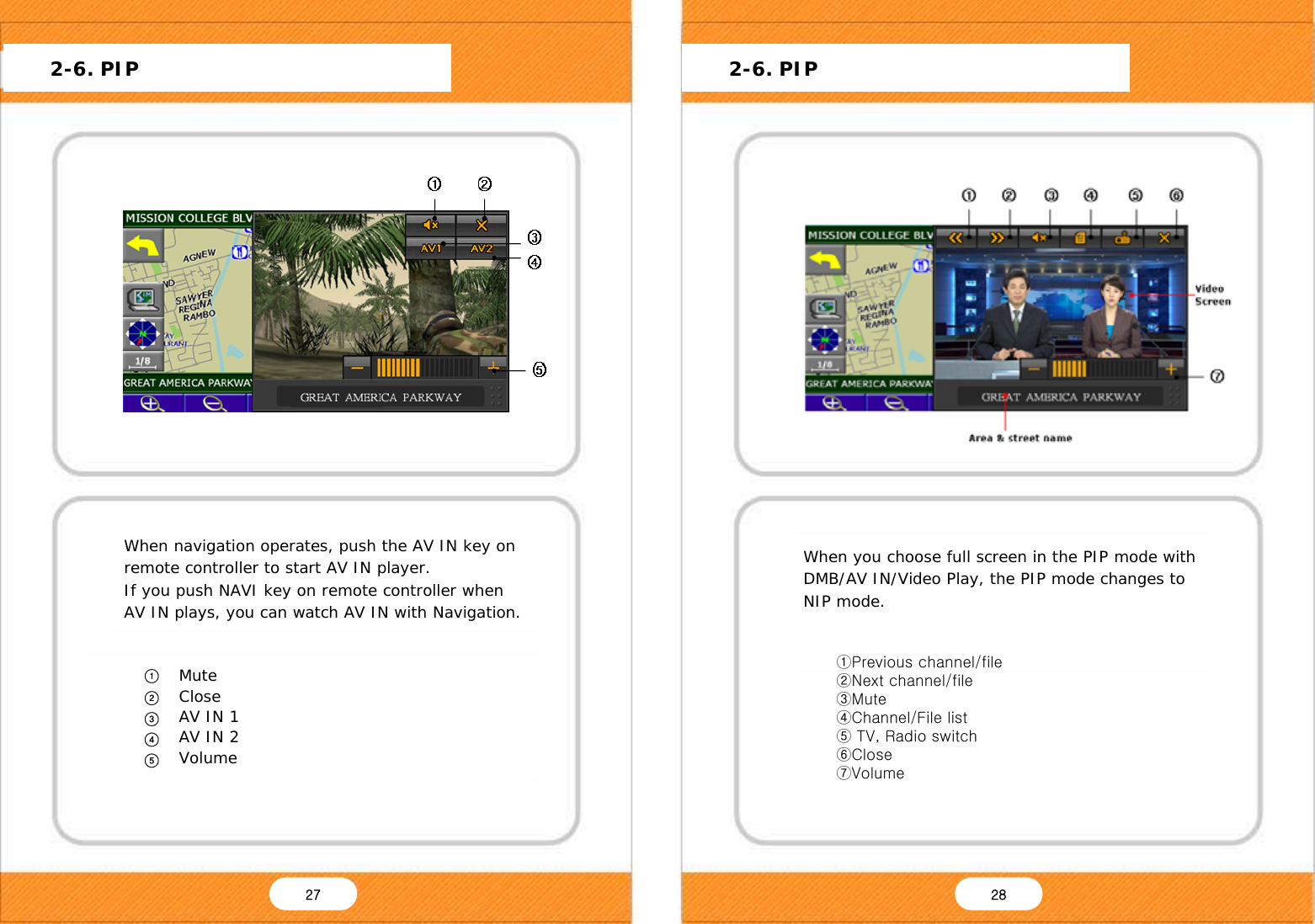

  When navigation operates, push the AV IN key on remote controller to start AV IN player. If you push NAVI key on remote controller when AV IN plays, you can watch AV IN with Navigation. When you choose full screen in the PIP mode with DMB/AV IN/Video Play, the PIP mode changes to NIP mode.      2-6. PIP      2-6. PIP Mute Close AV IN 1 AV IN 2 Volume 27  28 ①Previous channel/file ②Next channel/file ③Mute ④Channel/File list ⑤ TV, Radio switch ⑥Close ⑦Volume

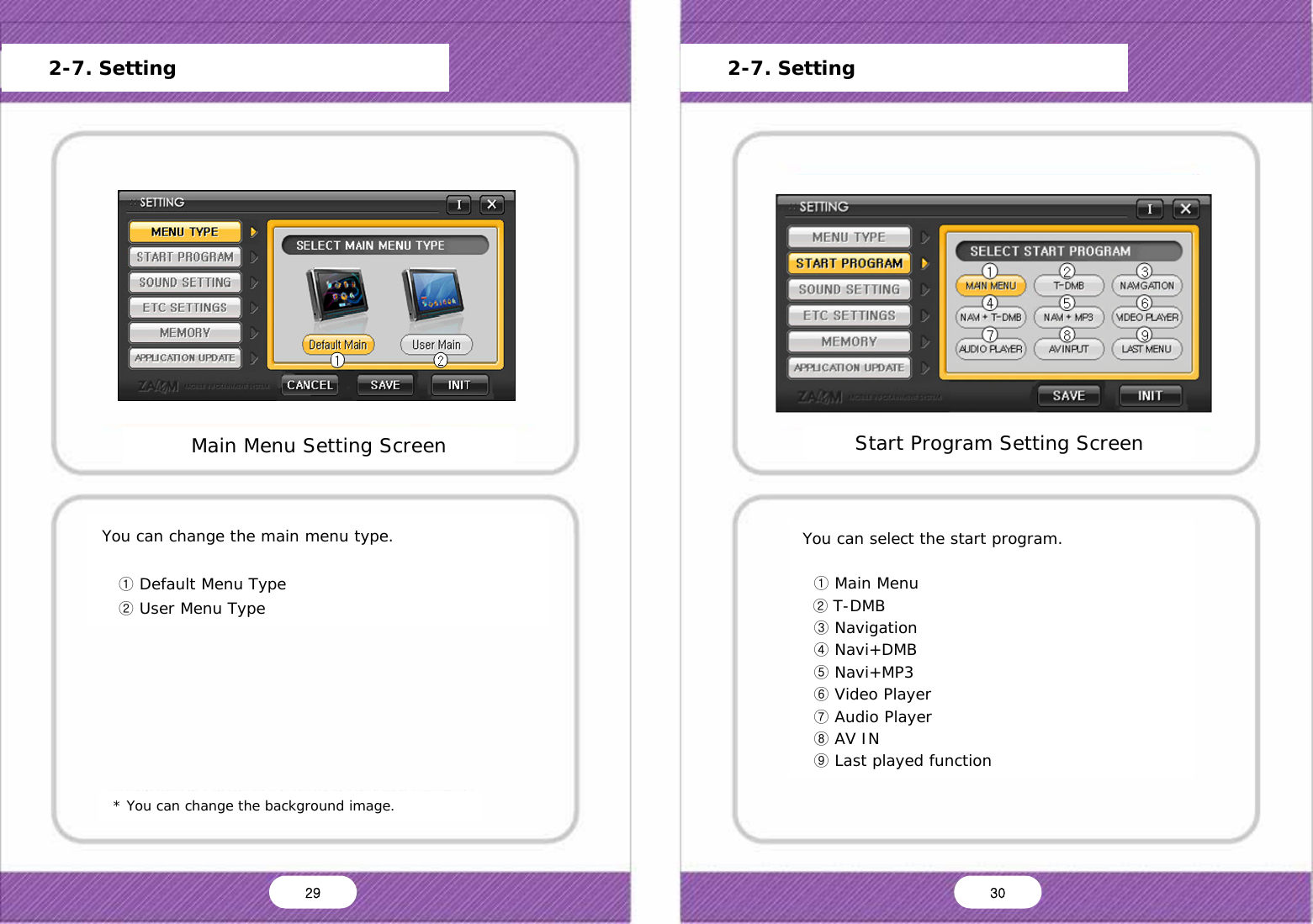

  You can change the main menu type.     ① Default Menu Type    ② User Menu Type * You can change the background image. Main Menu Setting Screen Main Menu Start Program Setting Sound Setting Screen Setting Storage Capacity Frimware Update Version Information Default OK Cancel      2-7. Setting Start Program Setting Screen Main Menu Start Program Setting Sound Setting Screen Setting Storage Capacity Frimware Update Version Information Default OK Cancel      2-7. Setting You can select the start program.    ① Main Menu   ② T-DMB   ③ Navigation   ④ Navi+DMB   ⑤ Navi+MP3   ⑥ Video Player   ⑦ Audio Player   ⑧ AV IN   ⑨ Last played function 29  30

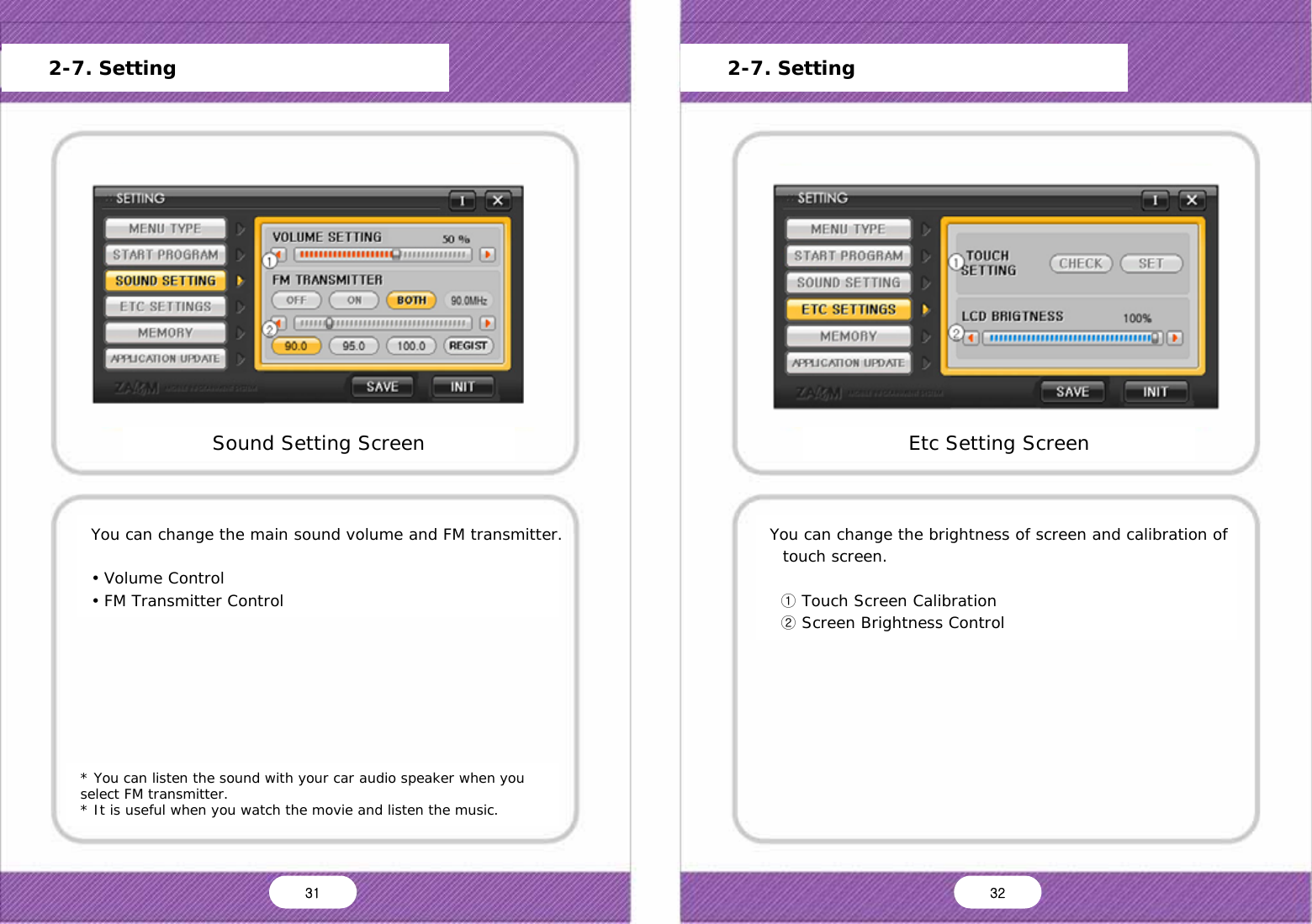

  * You can listen the sound with your car audio speaker when you select FM transmitter. * It is useful when you watch the movie and listen the music. You can change the main sound volume and FM transmitter.  • Volume Control • FM Transmitter Control Sound Setting Screen Main Menu Start Program Setting Sound Setting Screen Setting Storage Capacity Frimware Update Version Information Default OK Cancel      2-7. Setting You can change the brightness of screen and calibration of touch screen.    ① Touch Screen Calibration   ② Screen Brightness Control Etc Setting Screen Main Menu Start Program Setting Sound Setting Screen Setting Storage Capacity Frimware Update Version Information Default OK Cancel      2-7. Setting 31  32

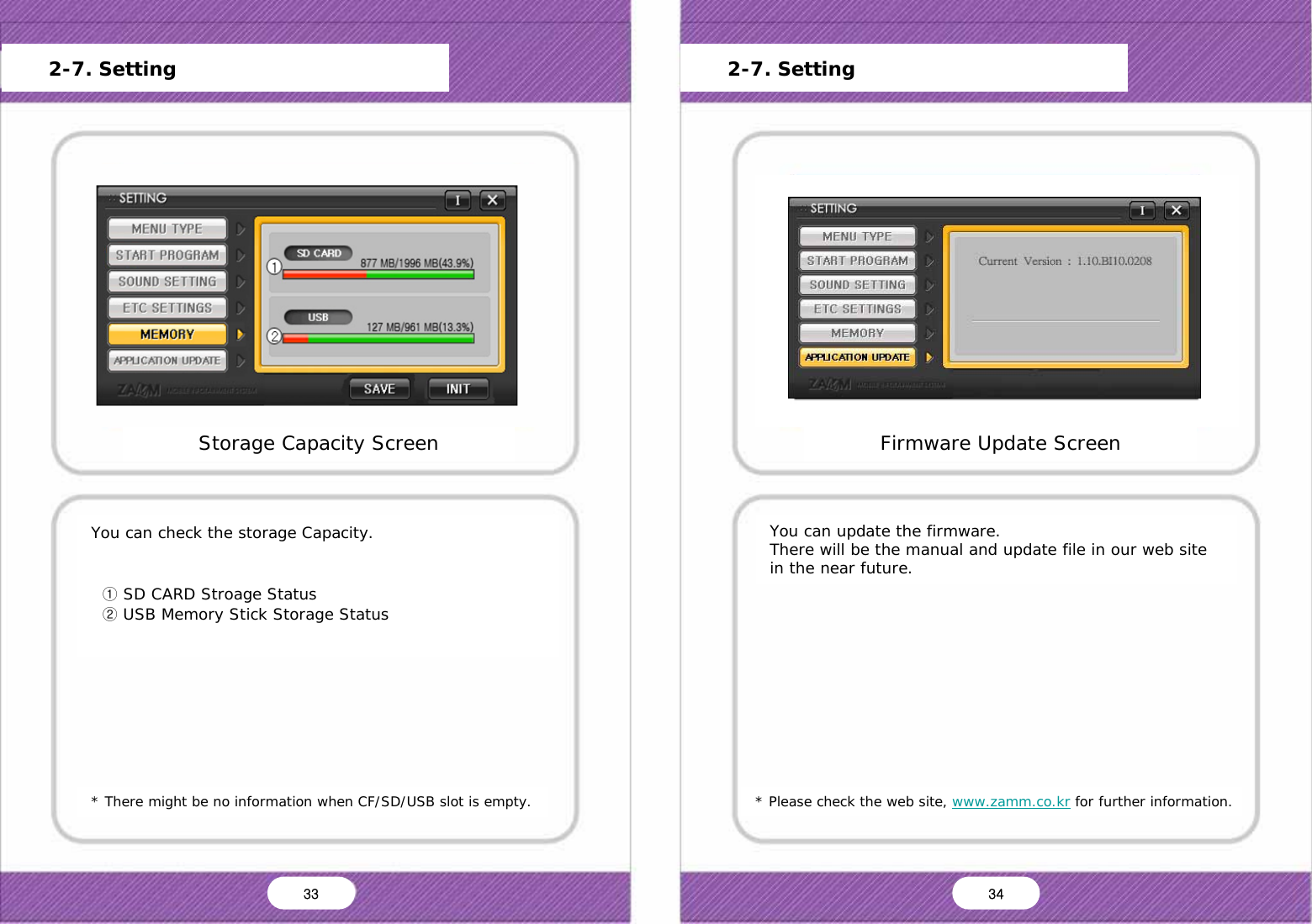

  * There might be no information when CF/SD/USB slot is empty. You can check the storage Capacity.     ① SD CARD Stroage Status   ② USB Memory Stick Storage Status * Please check the web site, www.zamm.co.kr for further information. You can update the firmware. There will be the manual and update file in our web site in the near future. Storage Capacity Screen Main Menu Start Program Setting Sound Setting Screen Setting Storage Capacity Frimware Update Version Information Default OK Cancel Firmware Update Screen Main Menu Start Program Setting Sound Setting Screen Setting Storage Capacity Frimware Update Version Information Default OK Cancel Yes No      2-7. Setting      2-7. Setting 33  34

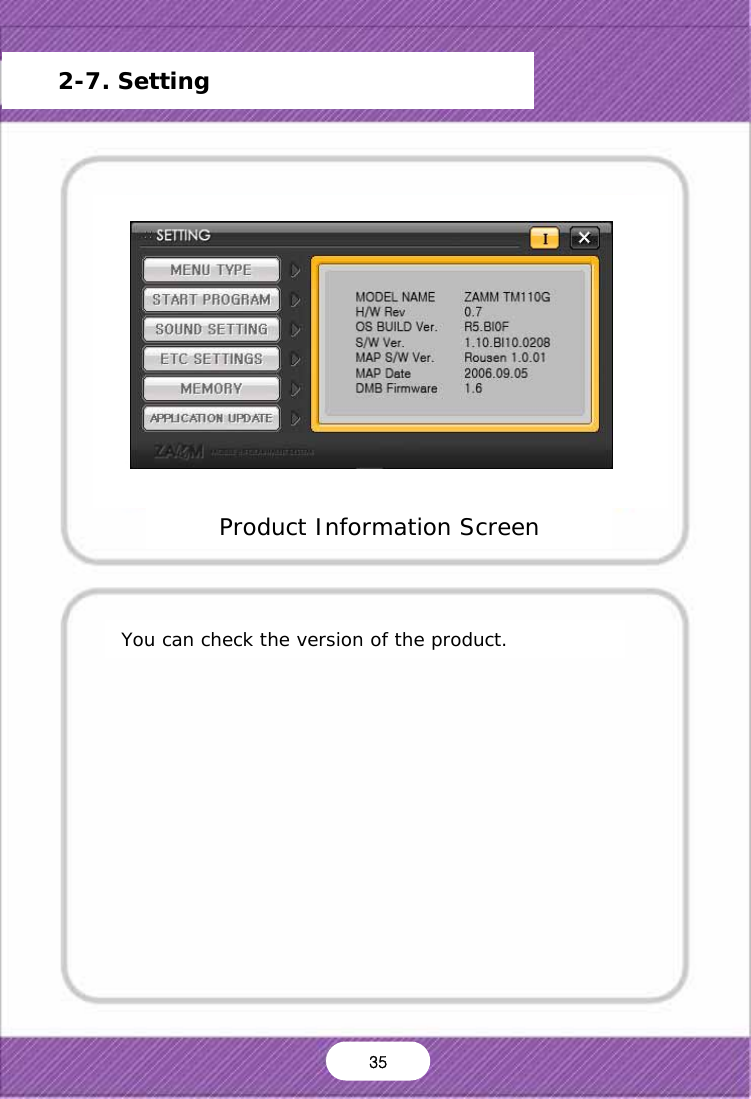

  You can check the version of the product. Product Information Screen      2-7. Setting Main Menu Start Program Setting Sound Setting Screen Setting Storage Capacity Frimware Update Version Information Default OK Cancel 35

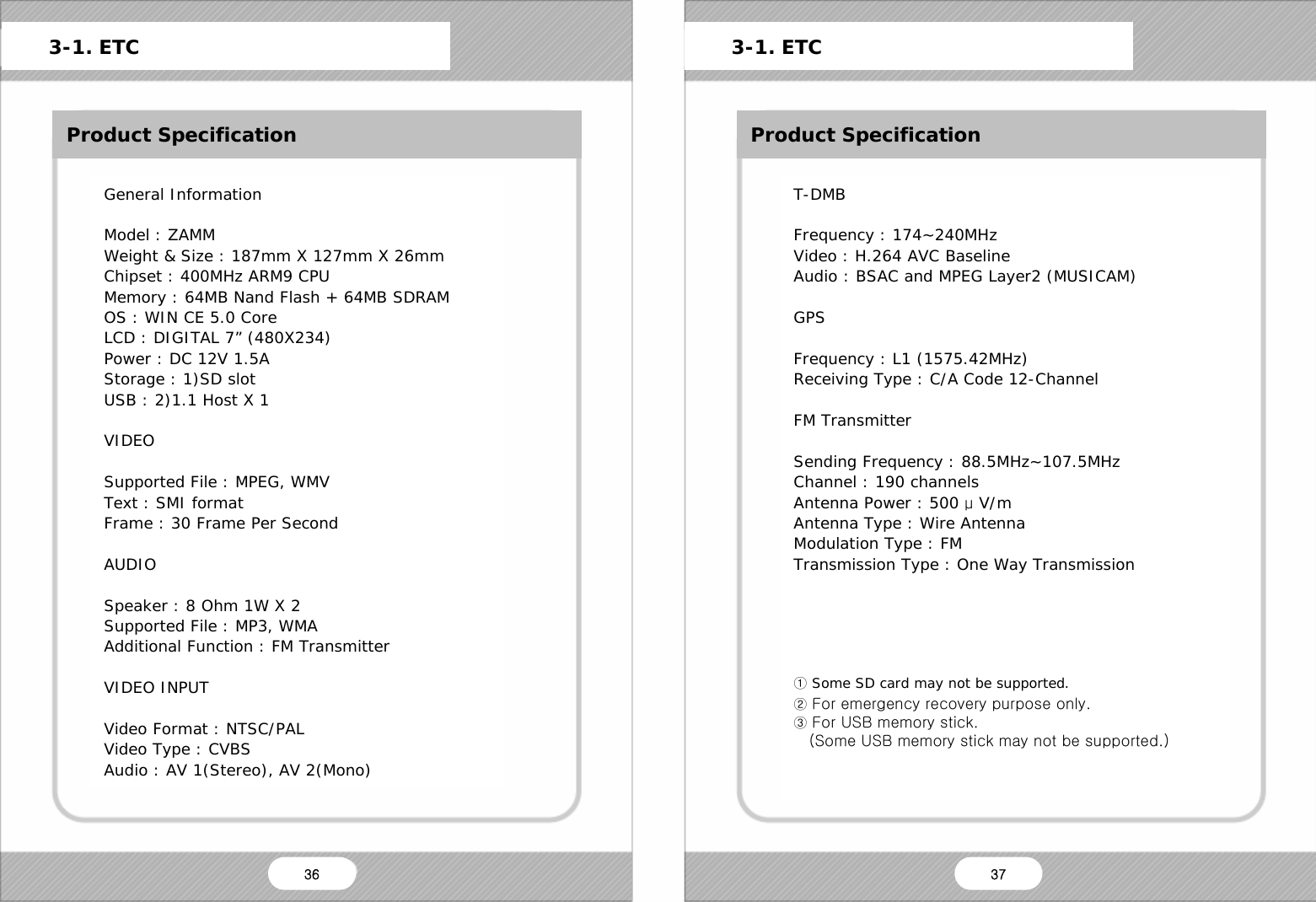

  ETC Product Specification General Information  Model : ZAMM Weight & Size : 187mm X 127mm X 26mm Chipset : 400MHz ARM9 CPU Memory : 64MB Nand Flash + 64MB SDRAM OS : WIN CE 5.0 Core LCD : DIGITAL 7” (480X234) Power : DC 12V 1.5A Storage : 1)SD slot USB : 2)1.1 Host X 1  VIDEO  Supported File : MPEG, WMV Text : SMI format Frame : 30 Frame Per Second  AUDIO  Speaker : 8 Ohm 1W X 2 Supported File : MP3, WMA Additional Function : FM Transmitter  VIDEO INPUT  Video Format : NTSC/PAL Video Type : CVBS Audio : AV 1(Stereo), AV 2(Mono)      3-1. ETC      3-1. ETC Product Specification T-DMB  Frequency : 174~240MHz Video : H.264 AVC Baseline Audio : BSAC and MPEG Layer2 (MUSICAM)  GPS  Frequency : L1 (1575.42MHz) Receiving Type : C/A Code 12-Channel  FM Transmitter  Sending Frequency : 88.5MHz~107.5MHz Channel : 190 channels Antenna Power : 500 μ V/m Antenna Type : Wire Antenna Modulation Type : FM Transmission Type : One Way Transmission      ① Some SD card may not be supported. ② For emergency recovery purpose only. ③ For USB memory stick.    (Some USB memory stick may not be supported.)   36  37

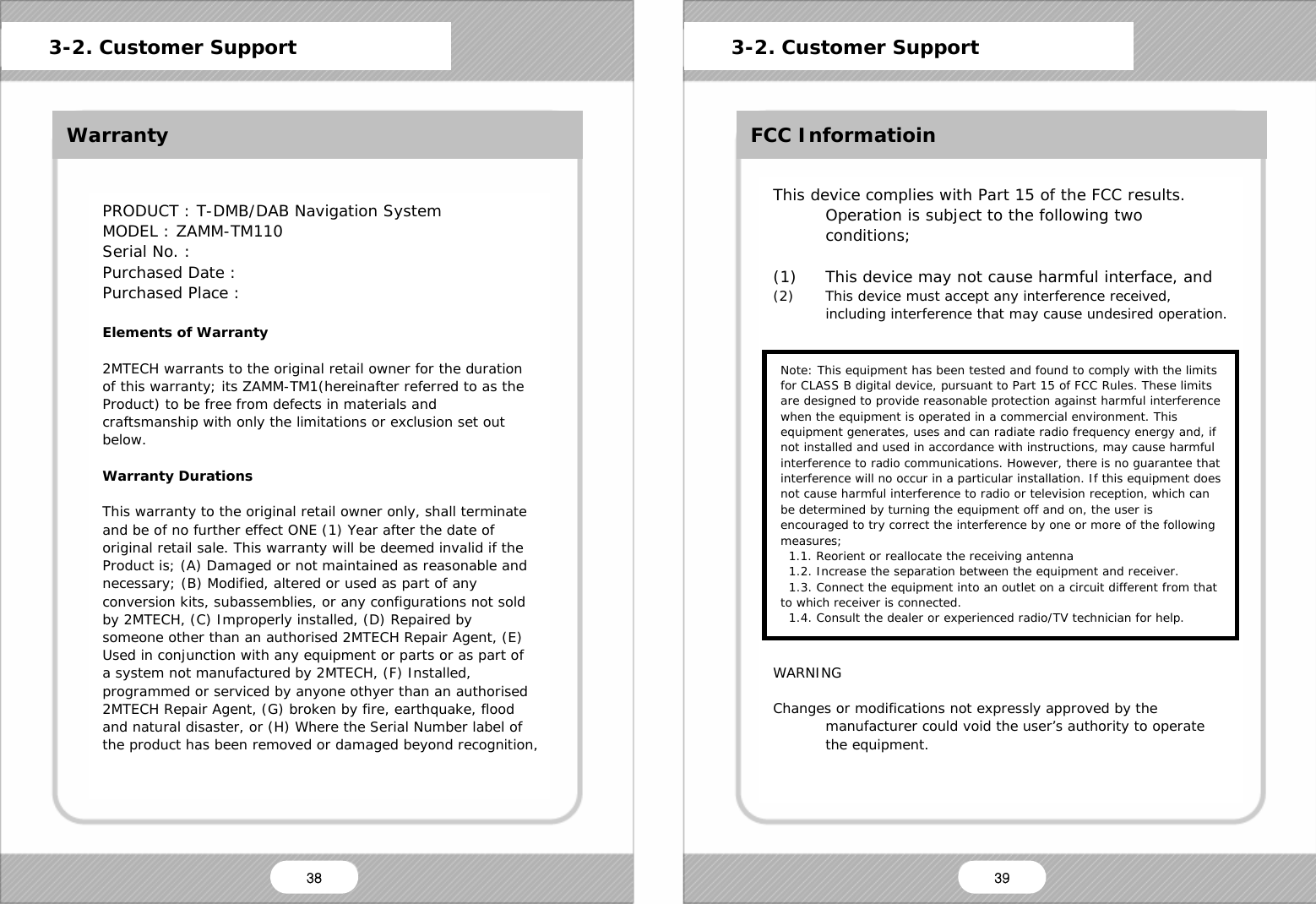

  Warranty PRODUCT : T-DMB/DAB Navigation System MODEL : ZAMM-TM110 Serial No. : Purchased Date : Purchased Place :  Elements of Warranty  2MTECH warrants to the original retail owner for the duration of this warranty; its ZAMM-TM1(hereinafter referred to as the Product) to be free from defects in materials and craftsmanship with only the limitations or exclusion set out below.  Warranty Durations  This warranty to the original retail owner only, shall terminate and be of no further effect ONE (1) Year after the date of original retail sale. This warranty will be deemed invalid if the Product is; (A) Damaged or not maintained as reasonable and necessary; (B) Modified, altered or used as part of any conversion kits, subassemblies, or any configurations not sold by 2MTECH, (C) Improperly installed, (D) Repaired by someone other than an authorised 2MTECH Repair Agent, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by 2MTECH, (F) Installed, programmed or serviced by anyone othyer than an authorised 2MTECH Repair Agent, (G) broken by fire, earthquake, flood and natural disaster, or (H) Where the Serial Number label of the product has been removed or damaged beyond recognition,         3-2. Customer Support      3-2. Customer Support FCC Informatioin This device complies with Part 15 of the FCC results. Operation is subject to the following two conditions;  (1) This device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation.                    WARNING  Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.  Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will no occur in a particular installation. If this equipment does not cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures;   1.1. Reorient or reallocate the receiving antenna   1.2. Increase the separation between the equipment and receiver.   1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.   1.4. Consult the dealer or experienced radio/TV technician for help.  38  39
