Changing expectations
Philips Ingenia 1.5T Magnetic Resonance System, the first-ever digital
broadband MR
452296267621.indd 1 12/15/2010 12:58:53 PM
The print quality of this copy is not an accurate representation of the original.
2
Ingenia 1.5T: The first-ever digital broadband MR
452296267621.indd 2 12/15/2010 12:59:03 PM
The print quality of this copy is not an accurate representation of the original.
3
Ingenia 1.5T: The first-ever digital broadband MR
As healthcare rapidly changes around the world, so
do the requirements for MR scanning. In addition to
performing the most common procedures better and
faster, there is a growing need for oncology and body
imaging, often on larger patients. More services and
faster delivery are the name of the game.
How do you keep pace with these changes, now and
in the future? With Philips Ingenia 1.5T, the first digital
broadband MR scanner.
Powered by the breakthrough dStream architecture,
the Ingenia 1.5T is the first MR system that brings MR
signal digitization where it has never been before – in
the RF coil, as close to the patient as possible. dStream
unleashes the power of digitization by delivering a high
purity MR signal for increased SNR, combined with
Imaging Space
enhanced workflow and ease of use for greater efficiency
in your daily operations.
Philips Ingenia is designed to avoid compromises. Better,
more consistent image quality for all applications pairs
with clinical versatility to expand into new areas such as
body/oncology, in a wide aperture system that promotes
excellent patient comfort. And productivity is enhanced
with every feature of the Ingenia, with automation where
it makes sense, while still giving you the control you
want or need.
Elevated clinical performance, accelerated patient
management and improved economic value – all for the
life of the system – the Ingenia 1.5T will change your
expectations on what MR is and should be.
Designed with patients in mind
Developed for a wide diversity of patients with
different ages, sizes and physical conditions, the
Ingenia 1.5T has features that will put your patients
at ease:
•70 cm bore provides more space and helps to
reduce anxiety.
•Smart software to reduce retakes increase
consistency and exam speed.
•Digital coil design greatly reduces coil weights and
leads to less patient repositioning in many exams.
•The ambient light ring on the magnet façade and
adjustable, in-bore lighting enhance the openness of
the system.
•Patient-perceived gradient acoustic noise is reduced
by more than 80%.
Architecture
Ingenia 1.5T
powered by
452296267621.indd 3 12/15/2010 12:59:04 PM
The print quality of this copy is not an accurate representation of the original.
4
At the heart of the Ingenia 1.5T is the new dStream
architecture. dStream comprises:
•DirectDigital RF receive technology, which digitizes
the MR signal directly in the RF coil, at the patient.
•FlexStream workflow, which increases system
versatility and throughput through better coil and
patient management.
•EasyExpand, which enables plug and play expansion of
clinical capabilities without major hardware upgrades.
Gain up to 40% SNR
DirectDigital RF receive technology digitizes the MR
signal at the patient, eliminating noise influences typical
of analog pathways, to capture the MR signal where it is
at its purest. The fiber-optic connection from the coil
to the image reconstructor enables lossless broadband
data transmission. This results in SNR gains of up to 40%,
which you can use to increase image quality and exam
speed. dStream architecture also brings next generation
parallel imaging dS-SENSE for even more speed or
resolution.
dStream architecture delivers clarity, speed and expandability
452296267621.indd 4 12/15/2010 12:59:11 PM
The print quality of this copy is not an accurate representation of the original.
5
As much as 30% improvement in throughput
Hinged upon the unique FlexCoverage Posterior coil
that provides neck-to-toe coverage without the need for
any manual removal or repositioning, FlexStream enables
imaging with fewer coils and reduces coil positioning and
patient setup time.
Easily expand clinical capabilities with
EasyExpand
With dStream’s EasyExpand, you never have to worry
about upgrading your RF receive channels to keep up
with advances in coil technology. Because digitization
occurs in the RF coil, the channels available are
determined by the coils, rather than the system. This
enables plug-and-play expansion of clinical capabilities
without major hardware upgrades, resulting in lower
lifecycle costs and improved economic value.
5
dStream architecture delivers clarity, speed and expandability
452296267621.indd 5 12/15/2010 12:59:16 PM
The print quality of this copy is not an accurate representation of the original.
6

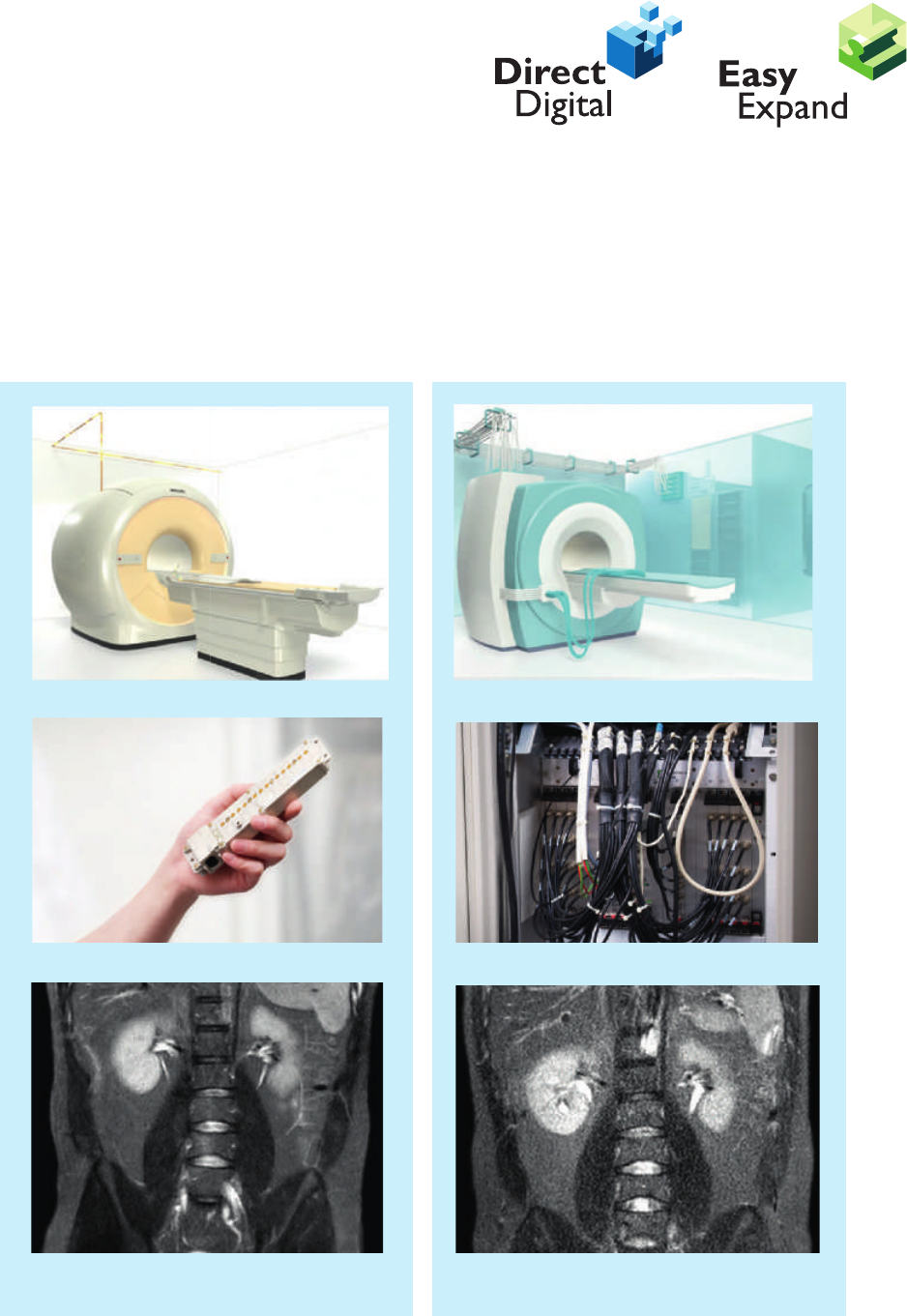

Revolutionary miniaturization of the receive electronics in Ingenia 1.5T makes it
possible to digitize MR signals in the RF coil, as close to the patient as possible.
dStream architecture enables DirectDigital and EasyExpand:
DirectDigital
Ingenia 1.5T delivers up to 40% higher SNR, which
can be combined with dS-SENSE parallel imaging for
outstanding image clarity and speed.
EasyExpand
With EasyExpand, the number of RF receive channels is
no longer a system specification. This enables plug-and-
play expansion of clinical capabilities without the need
for RF channel upgrades.
Breakthrough technology to enhance
and expand clinical capabilities
Revolutionary miniaturization of
receive electronics enables digitization
directly in the RF coil.
Single digital broadband fiber-optic
cable independent of number of
elements/channels in a RF coil.
452296267621.indd 6 12/15/2010 12:59:18 PM
The print quality of this copy is not an accurate representation of the original.
7
Ingenia 1.5T: Up to 40% improvement in SNR with
DirectDigital
Other MR: Signal loss resulting from digitization
performed away from the coil
Ingenia 1.5T Other MR
DirectDigital: miniaturized electronics in the coil Other MR: Large electronics rack distant from the coil
Ingenia 1.5T with DirectDigital Other MR: Digitization away from coil
Breakthrough technology to enhance
452296267621.indd 7 12/15/2010 12:59:25 PM
The print quality of this copy is not an accurate representation of the original.
88
FlexCoverage Posterior coil
Integrated in the tabletop, the FlexCoverage
Posterior coil is the answer for about 60% of
your routine applications, providing neck-to-
toe coverage, head-or-feet first, without coil
handling or positioning. The Posterior coil
combines effortlessly with other dStream
coils for large coverage, and fast and easy
patient setup.
FlexConnect connection
FlexConnect enables single-handed coil
connections as well as auto-eject for easy
table undocking.
FlexStream is a new concept in exam management designed to
streamline workflow, increase flexibility and reduce exam time,
bringing up to 30% improvement in your throughput.
FlexStream enhances workflow and productivity
FlexCoverage Anterior coil*
By combining the lightweight FlexCoverage
Anterior coil with the Posterior coil, you can
image anatomies from above the shoulder
to the toe. Due to its unique design, it
conforms comfortably to the patient’s body
shape, allowing strap-free use for fast and
easy positioning.
452296267621.indd 8 12/15/2010 12:59:30 PM
The print quality of this copy is not an accurate representation of the original.
99
FlexStream enhances workflow and productivity

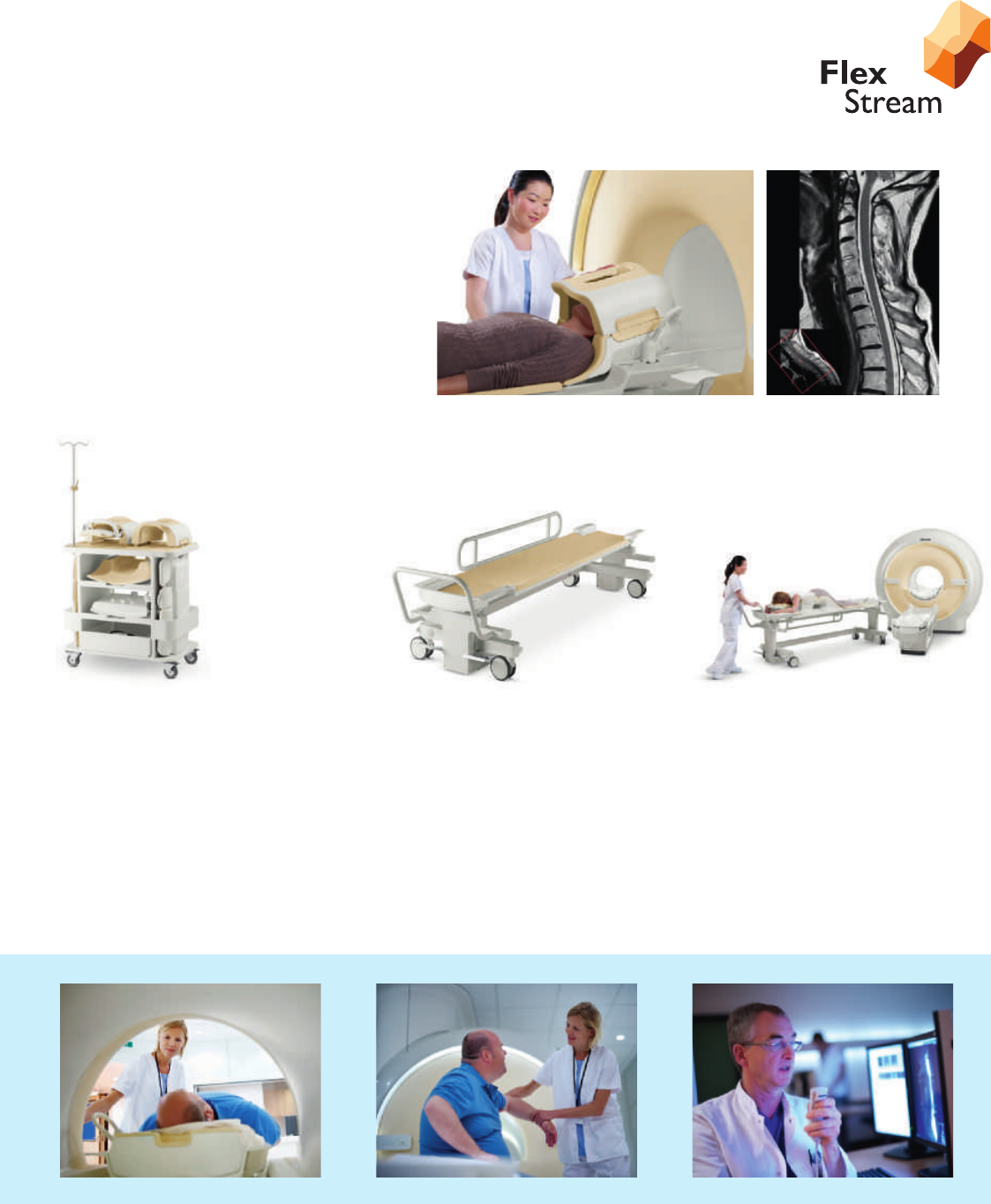

FlexCaddy coil storage cart*
If other dStream coils are required, choose
from a variety of coil solutions readily
available in the optional FlexCaddy coil
storage cart.
FlexTrak Patient Transport System*
FlexTrak dockable patient transport system
provides simplified patient preparation,
handling and transportation from the
preparation room to the MR scanner, as well
as easy exam set up.
FlexTrak Mammo*
Specialty dockable tables can instantly
convert your general purpose Ingenia 1.5T
into a specialty scanner for breast imaging,
intervention or therapy applications, while
ensuring high throughput.
* Optional
FlexStream workflow enables imaging patients with kyphosis due to the ability to tilt
the dS HeadSpine / HeadNeckSpine coils.
452296267621.indd 9 12/15/2010 12:59:36 PM
The print quality of this copy is not an accurate representation of the original.
10
Pushing the boundaries
The Ingenia 1.5T is designed to outperform other MR systems in many ways.
High performance Xtend imaging space
The industry leading Xtend design provides the largest
homogenous field-of-view in a commercial 70 cm
system. It also offers the best combination of magnet
homogeneity and gradient performance.
•70 cm bore for increased patient comfort and easy
positioning.
•An ultra-large, up to 55 cm field-of-view for extended
coverage.
•The industry’s highest homogeneity for a 70 cm system
(1.8 ppm over 50 cm FOV) for excellent image quality,
off-center imaging and fat suppression.
452296267621.indd 10 12/15/2010 12:59:43 PM
The print quality of this copy is not an accurate representation of the original.
11
2 station T1W2 station STIR Single Station T2W abdomen
Xtend benefits:
•Eyes-to-thighs imaging in as few as two stations.
•Simplified imaging even for large patients.
•Seamless matching of multi-station exams.
“Ingenia is well suited for performing both a
state-of-the-art MR examination of a limited
body area (e.g. liver or pelvic imaging) and a
whole body MR examination.”
Dr Thomas Kwee, MD (UMC Utrecht, The Netherlands)
452296267621.indd 11 12/15/2010 12:59:50 PM
The print quality of this copy is not an accurate representation of the original.
12
Fast routine imaging is enabled by:
dStream (dS) coil solutions
Tailored to your clinical needs and addressing a full range
of clinical situations, dStream coil solutions and have
been optimized for:
• Intrinsic signal-to-noise ratio.
• Imaging coverage.
• Parallel imaging performance.
dS-SENSE parallel imaging
Powered by dStream architecture, dS-SENSE enables
higher parallel imaging factors for more speed or
resolution. It includes quick, fully integrated reference
scans which are planned automatically.

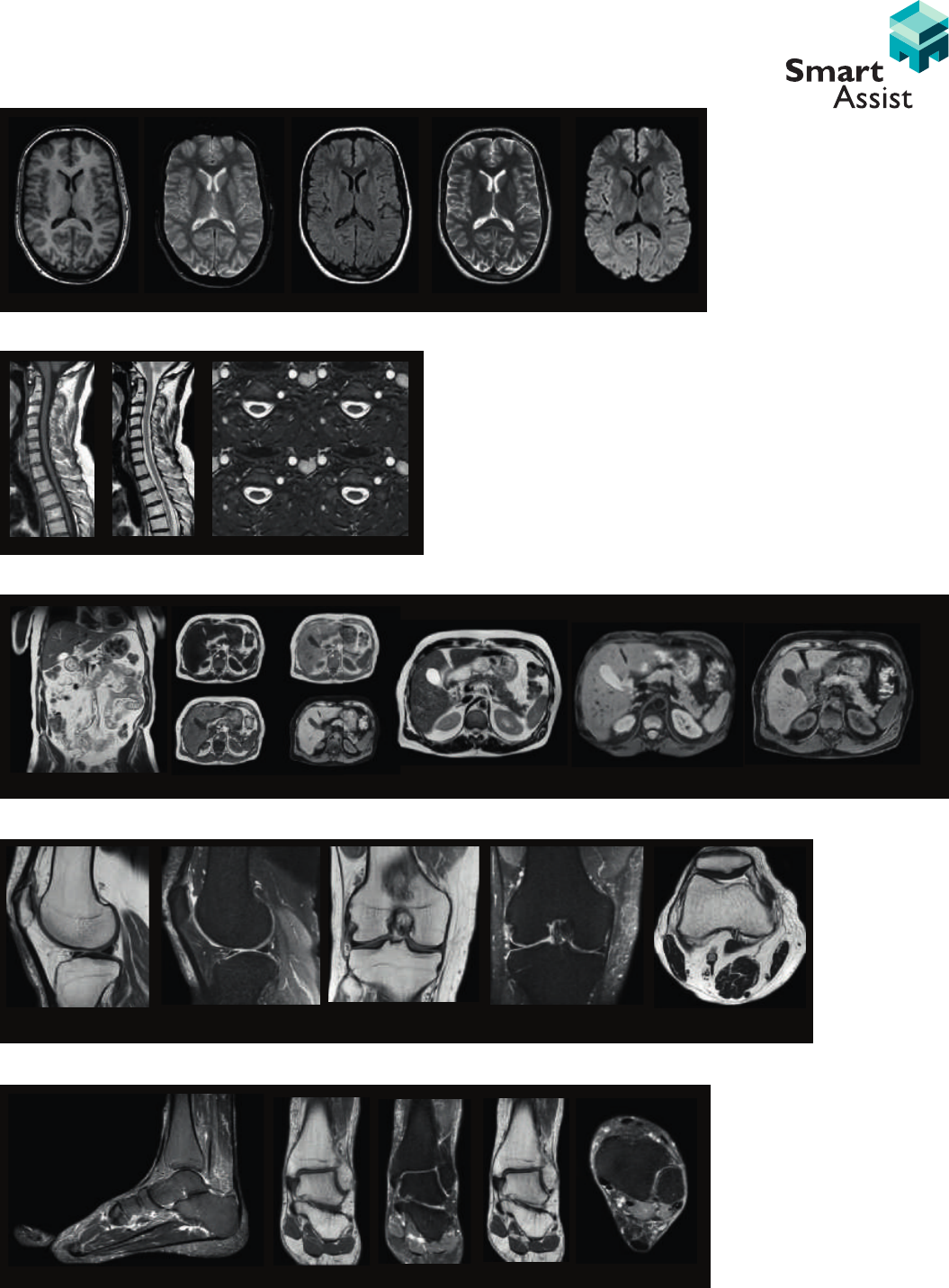

SmartAssist efficiency assistance
SmartAssist is the next generation of Philips powerful
combination of SmartExam and ExamCards. It can halve
the number of repetitive tasks for greater efficiency,
consistency and reproducibility.
It includes:
•SmartStart: Moves the table to isocenter and starts
the exam at the touch of a button.
•SmartSelect: Automatically determines which coils
and elements should be activated to produce the
highest SNR for the selected area.
•SmartExam: Positions slices on the target anatomy,
reducing operator input to as little as a single
mouse click. It is optionally available for brain, spine,
shoulder, knee and breast imaging.
•SmartLink: Simplifies the planning, viewing and
processing of multi-sequence, multi-station exams,
treating multi-station exams as one volume.
•SmartLine: Performs intelligent background
processing (such as volume view, diffusion, perfusion
etc.,) of multiple image datasets in parallel with image
acquisition.
Image obese patients with ease
The Ingenia 1.5T can accommodate even very large patients with ease.
•The patient support enables patients weighing up to 250 kg (550 lbs) to be
examined.
•The wide FlexTrak table top and 70 cm bore improve patient comfort.
•High-performance solid state RF power amplifiers allow uncompromised
access to the shortest, most complex RF pulses, even on large patients.
•Flexible, lightweight conforming coils accommodate patients with
different sizes.
Imaging excellence for your
most common applications
The Ingenia 1.5T system’s dStream architecture and dS coil
solutions result in high SNR that benefits every application.
You no longer have to trade resolution for speed: now you
can perform routine exams for brain, spine, knee, ankle and
liver within less than 8 minutes with excellent image quality.
452296267621.indd 12 12/15/2010 12:59:50 PM
The print quality of this copy is not an accurate representation of the original.
13
T1W FLAIRT2* T2 DWI
PDW SPAIR PDW SPAIR PDW SPAIR PDW SPAIRT1W
<8 minute Brain Exam
<8 minute Cervical Spine Exam
<8 minute Abdominal Exam
<8 minute Knee Exam
T1W T2W BFFE
T2W mDixon T2W DWI Dynamic mDixon water-only
<8 minute Ankle Exam
PDW T1WPDW SPAIR PDW SPAIR T2W
STIR T1W STIR PDW STIR
PDW
452296267621.indd 13 12/15/2010 1:00:06 PM
The print quality of this copy is not an accurate representation of the original.
14

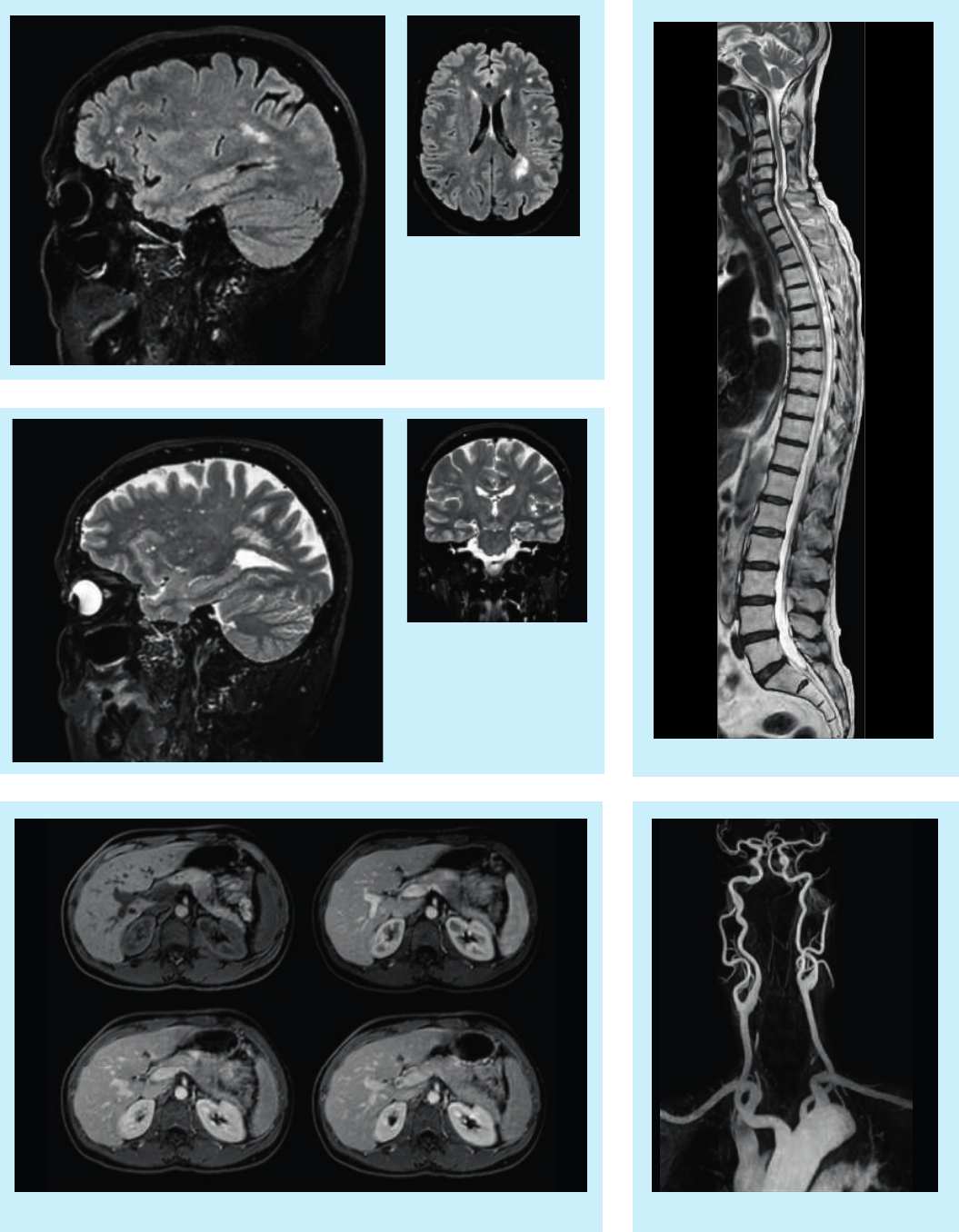

3D BrainView FLAIR.
Left: sagittal source image
Right: axial MPR
3D BrainView T2W.
Left: sagittal source image
Right: coronal MPR
MRA carotidsDynamic mDixon water-only of the upper abdomen
2 station T2W total spine imaging
452296267621.indd 14 12/15/2010 1:00:23 PM
The print quality of this copy is not an accurate representation of the original.
15

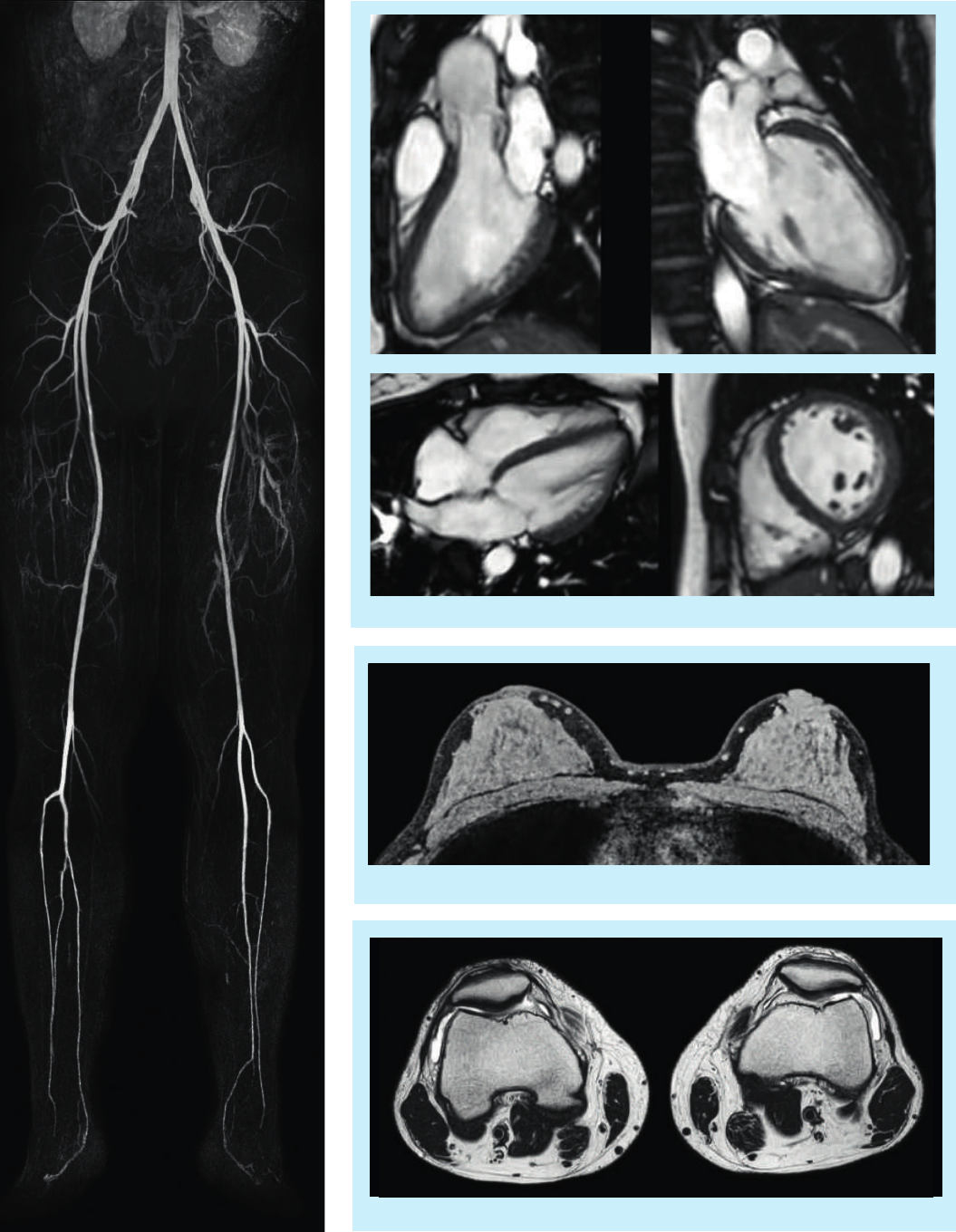

High resolution eTHRIVE with dS-SENSE factor 9
Cine imaging of the heart
T2W imaging of both knees using dS Torso
Peripheral MRA
452296267621.indd 15 12/15/2010 1:00:27 PM
The print quality of this copy is not an accurate representation of the original.
16
New solutions for emerging applications
In addition to the growth in traditional applications of MR, there is an increasing role for MR in
oncology and cardiology applications. Designed to address these trends, Ingenia 1.5T provides
advanced functionality for oncology and cardiac applications, safeguarding your investment.
Differentiate your practice with oncology imaging
As MR continues to demonstrate value in cancer
imaging, staging, treatment planning and monitoring,
offering oncology services is of growing interest.
The Ingenia 1.5T positions your practice to provide
outstanding oncology services.
Ingenia 1.5T advantages:
•The accuracy provided by the magnet’s high
homogeneity, combined with the exceptional linearity
of the gradient coil, makes it ideally suited to address
diagnostics through therapy planning.
•Fusion of anatomical and diffusion data delivers robust
and sensitive results in a timeframe comparable to
the gold standard PET-CT exam, bringing whole
body oncology staging and follow-up to the clinical
mainstream.
•The ultra-large FOV with 70 cm bore can facilitate
imaging in the treatment position for possible future
radiation therapy applications.
•FlexTrak Mammo, a dockable patient support and on-
console breast biopsy planning system, allows seamless
integration of breast MR into your department.

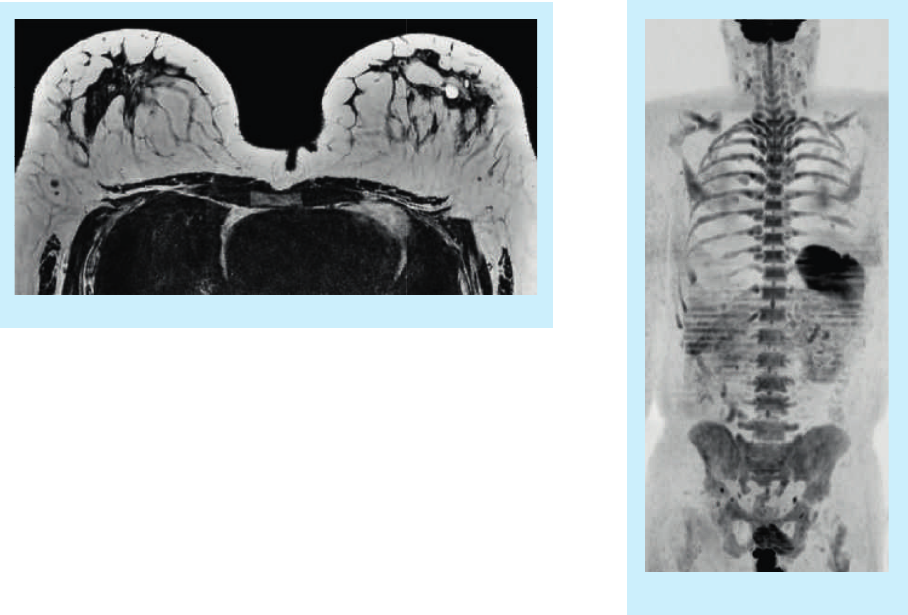

3D T2W VISTA Breast
High quality multi-station body DWI
452296267621.indd 16 12/15/2010 1:00:35 PM
The print quality of this copy is not an accurate representation of the original.
17
New solutions for emerging applications
Cardiac imaging made easy
Ingenia 1.5T with dStream and Elite Cardiac Clinical
Solutions advances cardiac MR workflow to mainstream
use.
•Powerful clinical tools such as kT-BLAST, PSIR, and
volumetric imaging for cutting edge, one-stop cardiac
MR exams.
•Supporting dStream coil solution and wireless VCG for
high quality cardiac imaging.
•Workflow support tools such as Real Time interactive
planning and Cardiac Explorer for task-guided
processing including automated segmentation, screen
layout and reporting.

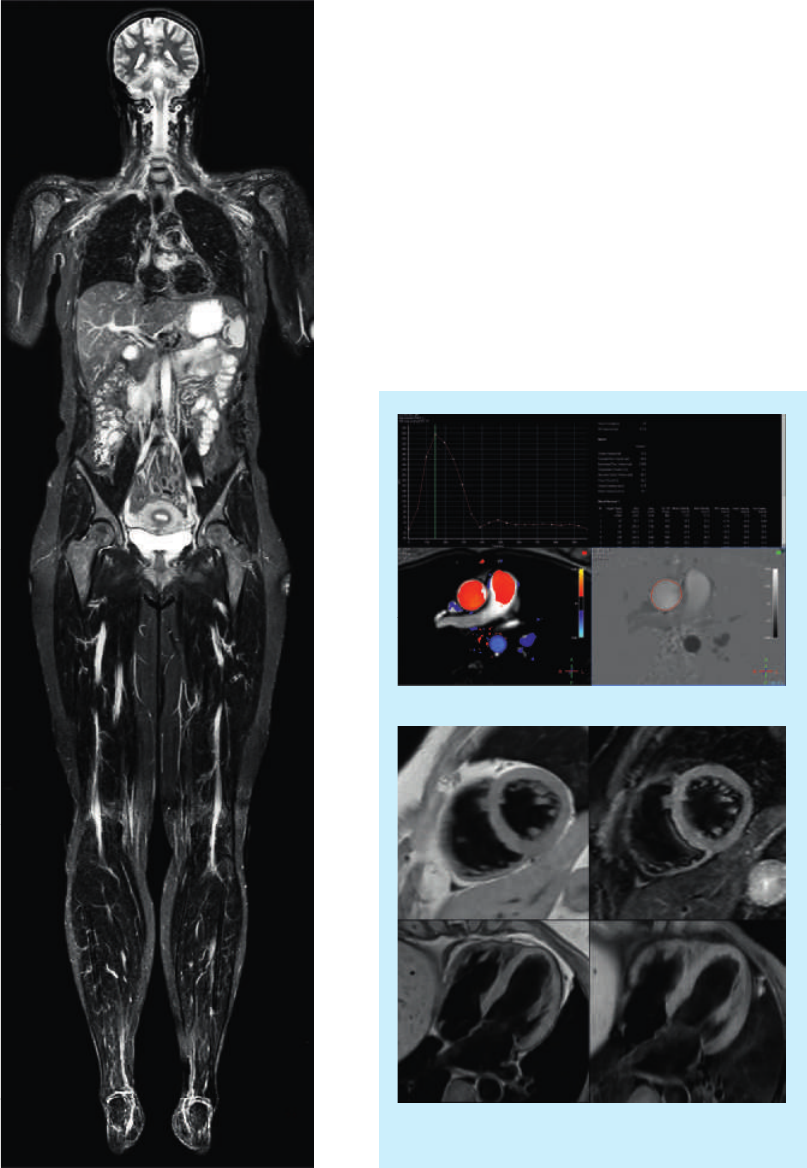

Quantitative flow analysis of the aorta
Black Blood cardiac imaging with and without fat
suppression
Fast whole body
T2W imaging
452296267621.indd 17 12/15/2010 1:00:43 PM
The print quality of this copy is not an accurate representation of the original.
18
Services – a full lifecycle solution
When you purchase a Philips MR system, you partner with a company that understands that
while technology is important, healthcare is about people. That’s why we’ve designed services
that not only keep your equipment running smoothly, but also help you provide outstanding
patient care, educate your staff, and improve operating efficiencies and organizational
performance. Our lifecycle solution is designed around your patients, your people, your
organization and your equipment to support success in every phase of system ownership,
from planning and start-up, through peak usage and renewal.
Ambient Experience integrates architecture, design
and enabling technologies, such as dynamic lighting and
sound, to allow patients to personalize their environment
and surround themselves in a relaxing atmosphere.
Start-up
Philips EasySite enables installation in an
average of only seven days, reducing costs
and getting you operational more quickly.
Lightweight and with a small footprint,
Ingenia MR systems can be installed in spaces
as small as 27 m² (291 Sq Ft).
Peak Usage
Your Ingenia 1.5T system is equipped with
features that save you money every day.
HeliumSave zero boil-off technology and
PowerSave technology help reduce Helium
and power consumption costs and spare the
environment.
Average waiting time dropped
Average waiting time for an MRI exam
at the Catharina Hospital was cut from
around 30 days to just 5 days.
452296267621.indd 18 12/15/2010 1:00:58 PM
The print quality of this copy is not an accurate representation of the original.
19
Philips EasyExpand allows you to easily add
new software options and coils as they
become available, without major hardware
changes. This helps you to keep your system
state-of-art while controlling costs.
Philips Utilization Services provide insights
into your department’s operations and help
you improve productivity. Rapid workflow
improvement consultancy projects based on
insights from Philips Utilization Services have
shown stunning results, with productivity
increases of 10% or more, drastically
reducing waiting lists and improving patient
services and staff satisfaction.
To ensure near 100% uptime, DigiDetect
proactively monitors your system, RF-pulse
to RF-pulse, ensuring that every component
is operating as specified. DigiDetect spots
potential problems and triggers corrective
actions to minimize downtime.
Renewal
Philips has a long tradition of providing
upgrades that keep your system on the
cutting edge. In fact, our MR scanners dating
back to 1999 can be upgraded to many of the
latest capabilities and performance without a
magnet swap.
For more information,
visit www.philips.com/healthcareservices
or contact your sales representative.
Online Experience
NetForum Communities are a platform for and by experienced professionals
who wish to share the latest in clinical innovations and download the most
advanced MR ExamCard solutions. Connecting to Philips Utilization Services
via NetForum provides you with actionable insights into your department’s
operations and workflow. The NetForum online experience is designed to
help you operate your facility to its full potential, customized to match your
ever-evolving clinical and business needs.
First-rate care
Our global network of skilled personnel
and worldwide spare parts availability helps
maintain high uptime that supports you in
delivering reliable imaging services to your
patients. Recent independent reports ranked
Philips MR as best-in-class in composite user
satisfaction ratings.
452296267621.indd 19 12/15/2010 1:01:19 PM
The print quality of this copy is not an accurate representation of the original.
© 2010 Koninklijke Philips Electronics N.V.
All rights are reserved.
Philips Healthcare reserves the right to make changes in specifications and/or to discontinue any product at any time without notice or
obligation and will not be liable for any consequences resulting from the use of this publication.
Printed in The Netherlands.
4522 962 67621 * DEC 2010
Philips Healthcare is part of
Royal Philips Electronics
How to reach us
www.philips.com/healthcare
healthcare@philips.com
Asia
+49 7031 463 2254
Europe, Middle East, Africa
+49 7031 463 2254
Latin America
+55 11 2125 0744
North America
+1 425 487 7000
800 285 5585 (toll free, US only)
Please visit www.philips.com/Ingenia15T
Courtesy:
University Medical Center, Utrecht, The Netherlands
510 (k) pending, not available for sale in the U.S.
452296267621.indd 20 12/15/2010 1:01:19 PM
The print quality of this copy is not an accurate representation of the original.
