www.icrcompany.com

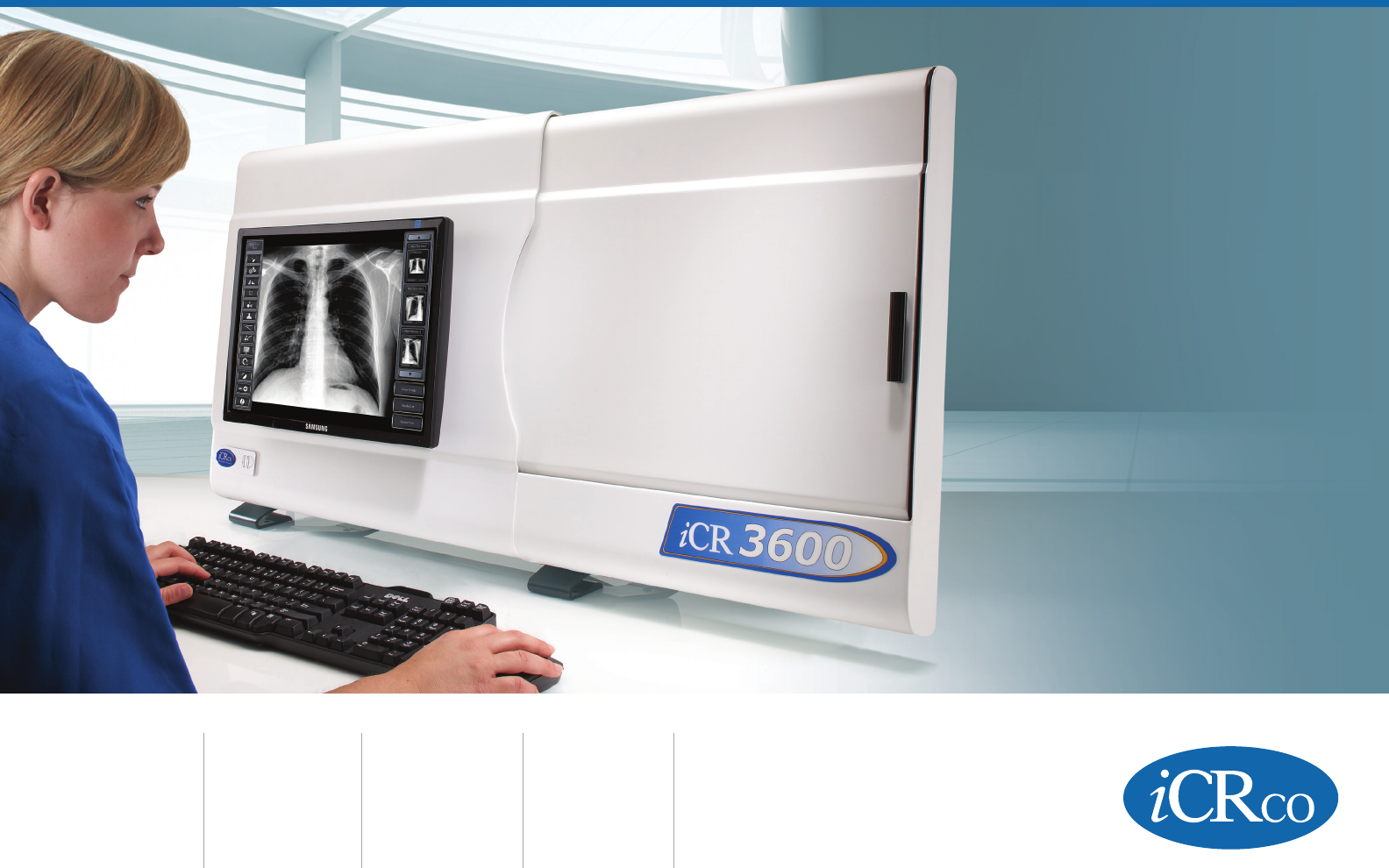

iCR3600
Experience the Future of Digital Radiography with iCRco
The iCR3600 will transform your oce
into a modern imaging facility. iCR3600
oers our patented True Flat Scan Path™
technology for exceptional image
quality, high throughput, and low cost
of ownership. Ideal for private practice
oces and imaging clinics, the iCR3600
will innovate your imaging workow.
In addition, iCR3600 is the true meaning
of an integrated solution. It is paired with
the superior image processing software
Clarity Captera™. With the robust and
feature rich Clarity Captera™, you get
superior quality images every time with
an option to further manipulate the
images to the physician’s preference.
iCRco has been a leader in bringing you
the most innovative technologies in
medical imaging for almost 20 years.
Our agship product is backed by a two
year guarantee and is the true complete
solution for your practice.
Stay Competitive
Improve Patient Care
Innovate Imaging Workow
True Flat
Scan Path™
technology —
Get 300,000+
artifact free
images per plate.
One internal
moving part
for maximum
uptime and
savings.
Unsurpassed
image quality
at 94 images
per hour.
User friendly
and intuitive
software.
Outer Dimensions
iCRco, INC. | 2580 WEST 237TH STREET, TORRANCE, CA 90505 | TEL: 310.921.9559 | FAX: 310.542.7236 | WWW.ICRCOMPANY.COM | INFOICRCOMPANY.COM
iCR3600 Specications*
Grayscale Resolution 16 bits/pixel source le, 65536 Shades of Gray
Image Access Time 35 seconds (14” x 17”)
Plate Throughput 94 Plates Per Hour Mixed Cassette Sizes
Cassette Sizes 14” x 17” (35 x 43 cm), 10” x 12” (25 x 30 cm), 8” x 10” (20 x 25 cm),
Odd plate sizes accepted and exible plates scanned using glass
cassette system
Weight 78 lbs (35 kg)
Dimensions W44” x D12” x H23” (W112 x D31 x H59 cm), Wall Mountable
Power Source 100-240V AC/ 2.5A max; 47-63Hz (Universal Power Supply)
Heat Generation Standby 230W, Maximum 1610W
Operating Conditions Temperature; 0-40°C/32-105°F, Temperature change: 0.5°C/min,
Humidity: 15%-95% RH, Magnetic Fields: max 1260 µT
(in Conformance with EN 61000-4-8: Level 3), 10 A/m
* Specications are subject to change without notice. Processing and display time dependent on processor
speed, RAM disk access time, and video card.
Clarity Captera™ Features
Spatial Resolution for iCR3600
Pixel/mm Pixel Size (Microns) Line Pairs DPI
5 155 3.1 163
10 100 4.5 254
iCR3600
Experience the Future of Digital Radiography with iCRco
© 2009 iCRco. All rights reserved. “True Flat Scan Path” and “Clarity Captera” are registered trademarks of iCRco. BR111709AUS
Although computed radiography technology has been widely accepted, other
major manufacturers follow the same pattern of removing the costly phosphor
plates and running them through rollers in their CR readers. iCRco has re-
invented how CR technology works with True Flat Scan Path™. This technology
ensures the phosphor plate never leaves the cassette to avoid any plate
handling, damage or wear during the scan process.
iCR3600SF includes Clarity Captera™ — Robust and feature rich acquisition software
Smart scanning- manipulate acquired images while additional cassettes are being scanned
ICE2 image processing; further manipulate images to your preference, automatically applies proper
algorithms for an anatomy
Smart search, sort, and lter options
Integration with front oce management systems like RIS and EMR
Full set of annotation tools
User preferred settings and privileges
Components are made from 98% recyclable parts.
iCRco is an ISO Certied Company • U.S. and International Patents Granted
Additional Patents Pending • Medical CE Compliant • FDA Approved • CE Approved
