Upgrading Enterprise OS

Software

Software version 11.3

Part No. 09-1551-001

Published May 1999

ii

3Com Corporation

5400 Bayfront Plaza

Santa Clara, California

95052-8145

©

3Com Corporation, 1999.

All rights reserved. No part of this documentation may be reproduced in

any form or by any means or used to make any derivative work (such as translation, transformation, or

adaptation) without permission from 3Com Corporation.

3Com Corporation reserves the right to revise this documentation and to make changes in content from

time to time without obligation on the part of 3Com Corporation to provide notification of such revision

or change.

3Com Corporation provides this documentation without warranty of any kind, either implied or

expressed, including, but not limited to, the implied warranties of merchantability and fitness for a

particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s)

described in this documentation at any time.

UNITED STATES GOVERNMENT LEGENDS:

If you are a United States government agency, then this documentation and the software described

herein are provided to you subject to the following restricted rights:

For units of the Department of Defense:

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions as

set forth in subparagraph (c) (1) (ii) for Restricted Rights in Technical Data and Computer Software Clause

at 48 C.F.R. 52.227-7013. 3Com Corporation, 5400 Bayfront Plaza, Santa Clara, California 95052-8145.

For civilian agencies:

Restricted Rights Legend:

Use, reproduction, or disclosure is subject to restrictions set forth in

subparagraph (a) through (d) of the Commercial Computer Software - Restricted Rights Clause at 48

C.F.R. 52.227-19 and the limitations set forth in 3Com Corporation’s standard commercial agreement for

the software. Unpublished rights reserved under the copyright laws of the United States.

If there is any software on removable media described in this documentation, it is furnished under a

license agreement included with the product as a separate document, in the hard copy documentation,

or on the removable media in a directory file named LICENSE.TXT. If you are unable to locate a copy,

please contact 3Com and a copy will be provided to you.

Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or

may not be registered in other countries.

3Com, Boundary Routing, Net Age, NETBuilder, NETBuilder II, OfficeConnect, SuperStack, and Transcend

are registered trademarks of 3Com Corporation. 3TECH and PathBuilder are trademarks of 3Com

Corporation. 3ComFacts is a service mark of 3Com Corporation.

CompuServe is a registered trademark of CompuServe, Inc. Windows is a registered trademark of

Microsoft Corporation. Solaris is a registered trademark of Sun Microsystems, Inc. SunOS is a trademark

of Sun Microsystems, Inc. UNIX is a registered trademark of Xopen Company Limited. IBM, APPN, and

SNA are registered trademarks of International Business Machines Corporation. HP is a registered

trademark of Hewlett-Packard Company. Novell is a registered trademark of Novell, Inc. ProComm Plus

for Windows is a registered trademark of DataStorm Corporation. Crosstalk for Windows is a registered

trademark of Attachmate Corporation.

Other brand and product names may be registered trademarks or trademarks of their respective holders.

The software contained in this product may contain encrypted product which may not be

exported or transferred from the U.S. or Canada without an approved U.S. Department of

Commerce export license.

Printed on recycled paper.

C

ONTENTS

A

BOUT

T

HIS

G

UIDE

Conventions 7

Year 2000 Compliance 8

1

O

VERVIEW

Upgrade Tools and Process 9

How the Utilities Work 10

Primary, Secondary, and Test Boot Sources 10

Automatic or Manual Recovery 10

Rules and Support Limitations 11

Take Time to Plan 11

2

I

NSTALLING

THE

U

TILITIES

ON

A

N

ETWORK

M

ANAGEMENT

S

TATION

Installing the Utilities on a Windows System 13

Installing the Utilities on a UNIX System 14

Preparing for the Installation 14

Procedure 14

Setting up for Auto Startup 16

3

P

LANNING

AND

P

REPARING

THE

U

PGRADE

Setting up for TFTP File Transfers 17

Setting up for FTP File Transfers 17

Automatic Recovery 18

Manual Recovery 19

Checking DRAM 20

Checking Flash Memory 20

Checking the Software Version 21

Planning Tables 21

4

U

PGRADING

U

SING

THE

NETB

UILDER

U

PGRADE

L

INK

A

PPLICATION

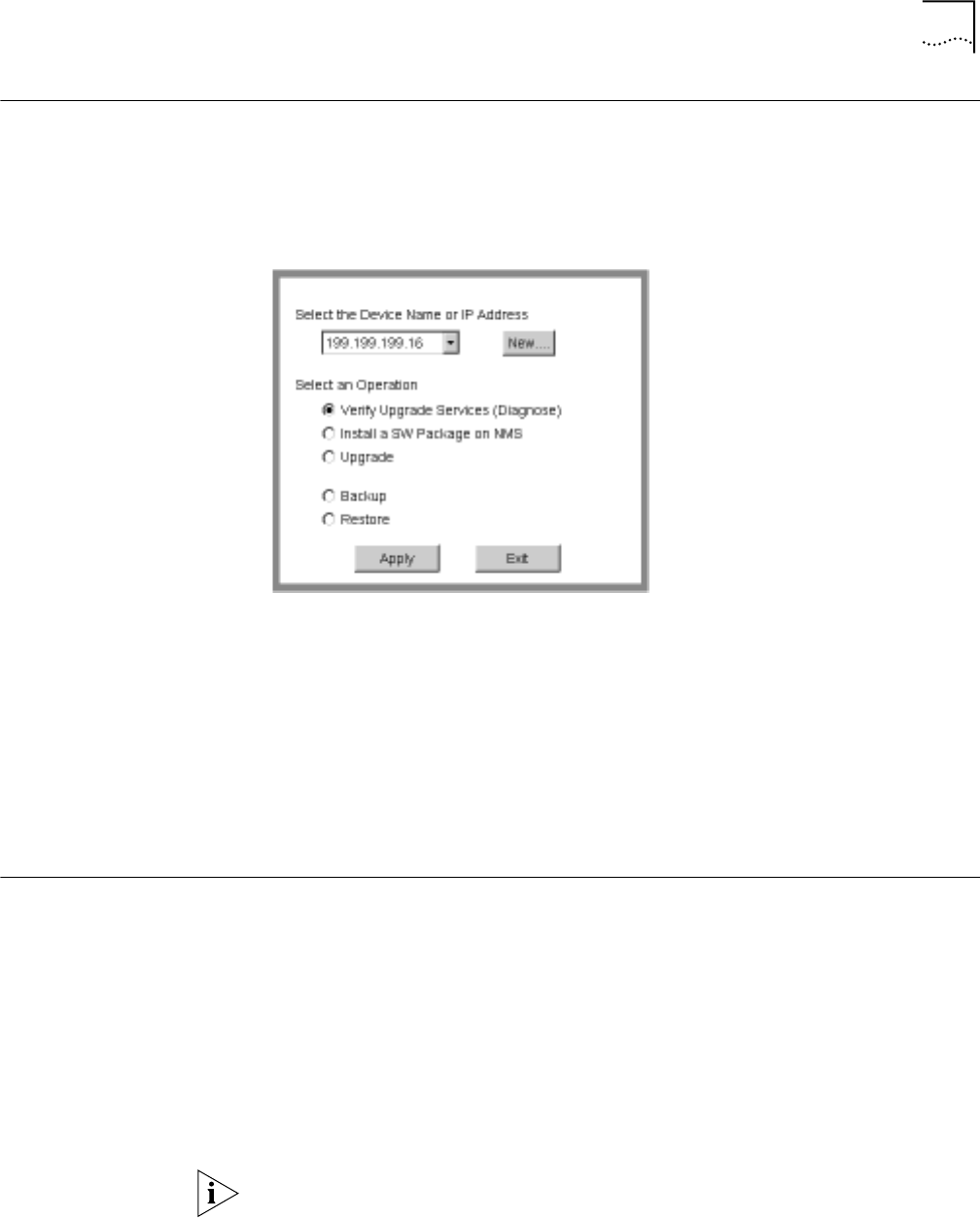

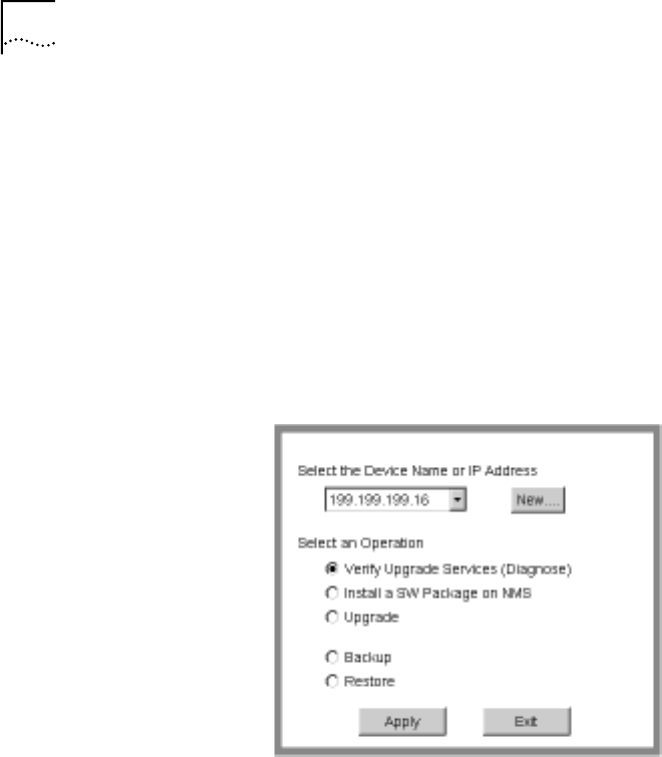

Status and Settings Pages 27

Settings Page 28

Verifying for Upgrading 29

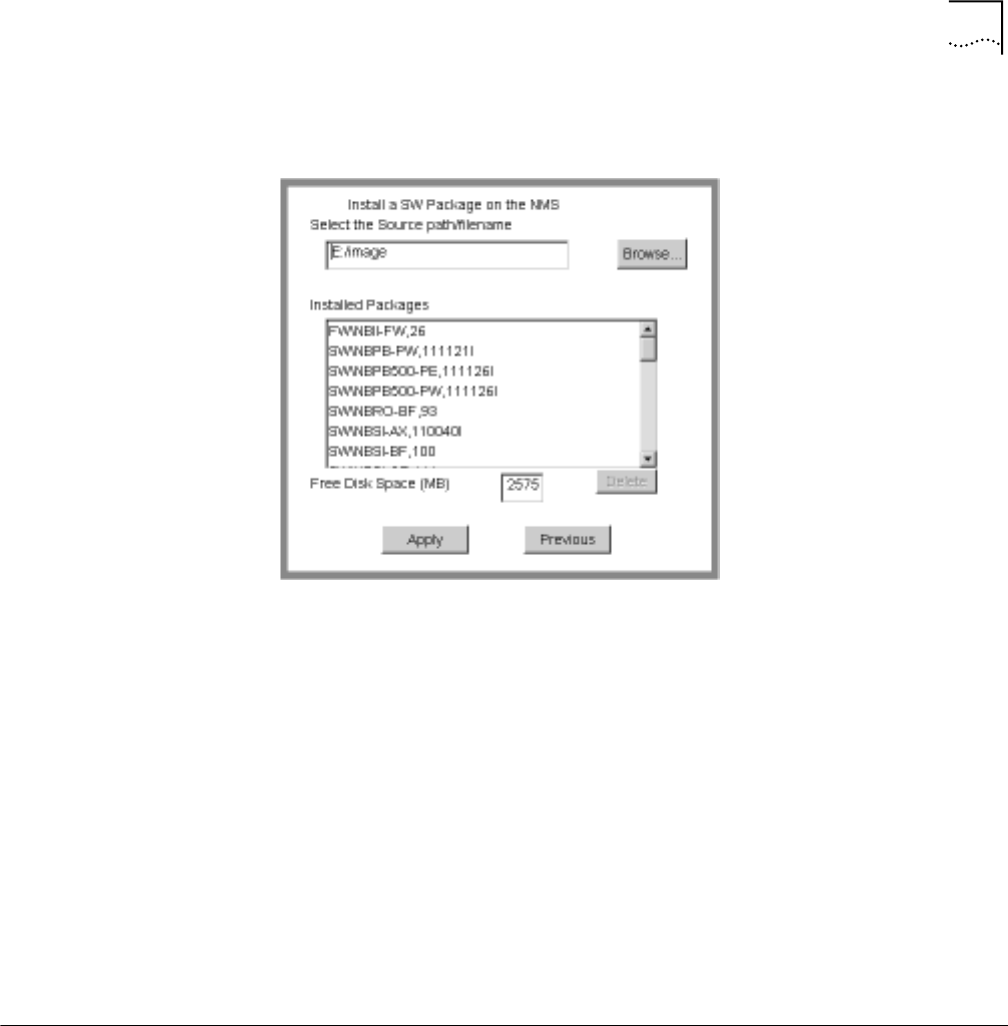

Installing Software on the NMS 29

Procedure 30

Upgrading Software 31

5

U

PGRADING

A

B

RIDGE

/R

OUTER

U

SING

THE

C

OMMAND

-L

INE

U

TILITIES

Preparing for the Upgrade 35

Setting up for TFTP File Transfers 36

Setting up for FTP File Transfers 36

Prediagnosing System Problems 37

Installing the Software on the NMS 37

Software Directories 38

Using the Bcmsysupgrade Utility to Upgrade 39

Filenames 40

NETBuilder II Bridge/Router 40

SuperStack II NETBuilder and OfficeConnect NETBuilder Bridge/Routers 41

PathBuilder S5xx Series Switch 41

Upgrading Software Only 41

Automatic Recovery 41

Manual Recovery 43

If the Bridge/Router or Switch Does Not Boot 44

Upgrading Hardware and Software 44

Automatic Recovery 44

Manual Recovery 47

If the Bridge/Router or Switch Does Not Boot 49

6

U

PGRADING

THE

S

OFTWARE

I

MAGE

O

NLY

Preparing for the Upgrade 51

Setting up for TFTP File Transfers 52

Setting up for FTP File Transfers 52

Using Upgrade Link 53

Verifying the Bridge/Router for Upgrading 54

Upgrading the Image 54

Using the Command-Line Utilities 57

Installing the NETBuilder Software 57

Prediagnosing System Problems 57

Upgrading Using Automatic Recovery 57

Upgrading Using Manual Recovery 58

Using the Enterprise OS User Interface 59

7

B

ACKING

U

P

AND

R

ESTORING

S

OFTWARE

Setting Up for TFTP File Transfers 62

Setting Up for FTP File Transfers 62

Backing Up the Software 63

Using NETBuilder Upgrade Link 63

Using the Command Line Utilities 63

Verifying the Device for Backing Up 63

Backing Up the Software 64

Using the Command-Line 64

Prediagnosing System Problems 64

Backing Up the Software 65

Directory Paths 65

Restoring Software from a Backup 66

Configuring IP Routing 66

Configuring SNMP 66

Mapping Hostnames Using the etc/snmp.cfg File 67

Restoring the Software Using Upgrade Link 68

Verifying the Device for Restoring 68

Restoring the Software 68

Restoring the Software Using the Command-Line 69

Prediagnosing System Problems 69

Restoring the Software 69

8

R

EFERENCE

FOR

THE

U

PGRADE

M

ANAGEMENT

U

TILITIES

Accessing and Downloading the Utilities 71

Downloading the Utilities 71

Downloading UNIX Files 71

Downloading Windows Files 71

Update Log File 72

Utility Descriptions and Syntax 72

Overview 72

Getting Help 73

bcmbackup 73

bcmconfig 74

bcmctrl 75

bcmdf 76

bcmdiagnose 77

bcminstall 78

bcmloadconfig 79

bcmnbrus 80

bcmrestore 80

bcmsetup 81

bcmsysupgrade 81

bcmuname 82

bcmupdate 83

UpgradeLink 84

A

T

ROUBLESHOOTING

Getting Help 85

Man Pages 85

HTML Help 85

General Troubleshooting Error Messages 85

Return Codes from bcmdiagnose 86

Hardware-Related Messages 87

Installation Troubleshooting Messages 87

Installing the Enterprise OS Upgrade Management Utilities 87

Determining Connectivity 88

Validating the SNMP Service Configuration 88

Testing the NMS/ TFTP Configuration 89

Creating an Upgrade File 89

Uploading an Upgrade File 90

Downloading an Upgrade File 91

B

C

HOOSING

A

S

OFTWARE

P

ACKAGE

NETBuilder II Upgrade Migration Path 93

SuperStack II NETBuilder Upgrade Migration Path 96

SuperStack II NETBuilder SI Upgrade Migration Path 98

OfficeConnect NETBuilder Upgrade Migration Path 99

PathBuilder Upgrade Migration Path 101

C

M

OUNTING

THE

CD-ROM

ON

A

UNIX P

LATFORM

Mounting the CD-ROM on Solaris 2.5.x 103

Mounting a Local CD-ROM Drive 103

Mounting from a Remote CD-ROM Drive 103

Mounting the CD-ROM on HP-UX 10.x 105

Mounting from a Local CD-ROM Drive 105

Mounting from a Remote CD-ROM Drive 105

Mounting the CD-ROM on IBM AIX 4.1.x Through 4.2.x 106

Mounting from a Local CD-ROM Drive 106

Mounting from a Remote CD-ROM Drive 106

Unmounting the CD-ROM 107

D

T

ECHNICAL

S

UPPORT

Online Technical Services 109

World Wide Web Site 109

3Com Knowledgebase Web Services 109

3Com FTP Site 109

3Com Bulletin Board Service 110

Access by Analog Modem 110

Access by Digital Modem 110

3Com Facts Automated Fax Service 110

Support from Your Network Supplier 110

Support from 3Com 111

Returning Products for Repair 112

G

LOSSARY

I

NDEX

3C

OM

C

ORPORATION

L

IMITED

W

ARRANTY

ABOUT THIS GUIDE

This guide describes how to upgrade your NETBuilder® bridge/router to

Enterprise OS software version 11.3. This guide also describes how to upgrade

your PathBuilder™ S5xx series switch to Enterprise OS software version 11.3.

You can also use this guide to upgrade your NETBuilder bridge/router to previous

software versions (8.0 through 11.2) by specifying the correct options.

You can upgrade your bridge/router from software version 8.0 through 11.2 to

any software version after 8.0 through 11.3 on the following platforms:

■NETBuilder II® bridge/router with DPE

■NETBuilder II bridge/router with CEC — The CEC module is not supported after

software version 10.1, but you can use the 11.2 utilities to upgrade a CEC

module to a DPE module, or to upgrade the CEC module to software version

10.1 or earlier.

■SuperStack® II NETBuilder SI bridge/router

■SuperStack II NETBuilder Token Ring bridge/router

■OfficeConnect® NETBuilder bridge/router

You can upgrade your PathBuilder S5xx series switch to Enterprise OS software

version 11.3 from version 11.1.1 and version 11.2.

This guide also describes how to complete an image-only upgrade for patches,

new packages, or software recovery. It also describes how to backup and restore

software on a network management station.

See the Enterprise OS Software Version 11.3 Release Notes for any changes or

additions to the information in this guide.

Conventions Table 1 and Table 2 list conventions that are used throughout this guide.

Table 1 Notice Icons

Icon Notice Type Description

Information note Important features or instructions

Caution Information to alert you to potential damage to a

program, system, or device

Warning Information to alert you to potential personal injury

8ABOUT THIS GUIDE

Year 2000 Compliance For information on Year 2000 compliance and 3Com products, visit the

3Com Year 2000 Web page:

http://www.3com.com/products/yr2000.html

Table 2 Text Conventions

Convention Description

Syntax The word “syntax” means you must evaluate the syntax provided and

supply the appropriate values. Placeholders for values you must supply

appear in angle brackets. Example:

Enable RIPIP using:

SETDefault !<port> -RIPIP CONTrol = Listen

In this example, you must supply a port number for <port>.

Commands The word “command” means you must enter the command exactly as

shown in text and press the Return or Enter key. Example:

To remove the IP address, enter:

SETDefault !0 -IP NETaddr = 0.0.0.0

This guide always gives the full form of a command in uppercase and

lowercase letters. However, you can abbreviate commands by entering

only the uppercase letters and the appropriate value. Commands are

not case-sensitive.

Screen displays This typeface represents information as it appears on the screen.

The words “enter”

and “type” When you see the word “enter” in this guide, you must type

something, and then press the Return or Enter key. Do not press the

Return or Enter key when an instruction simply says “type.”

[Key] names Key names appear in text in one of two ways:

■Referred to by their labels, such as “the Return key” or “the Escape

key”

■Written with brackets, such as [Return] or [Esc].

If you must press two or more keys simultaneously, the key names are

linked with a plus sign (+). Example:

Press [Ctrl]+[Alt]+[Del].

Menu commands

and buttons Menu commands or button names appear in italics. Example:

From the Help menu, select Contents.

Words in italicized

type Italics emphasize a point or denote new terms at the place where they

are defined in the text.

1OVERVIEW

This chapter provides an overview of the upgrade tools, process, and support

limitations.

Upgrade Tools and

Process The upgrade procedures in this guide use the Enterprise OS Upgrade Management

Utilities on a UNIX or Windows network management station (NMS).

Definition of network

management station An NMS is a UNIX or Windows system that has a TFTP/FTP server running in

addition to software, such as the Enterprise OS Upgrade Management Utilities, to

manage your network. For Windows, the utilities include the 3Com® TFTP/FTP

server.

If you are upgrading multiple bridge/routers, you can install and use the Network

Admin Tools utilities in the Transcend® Enterprise Manager or Transcend Network

Control Services, available separately. See the Transcend user guide for more

information.

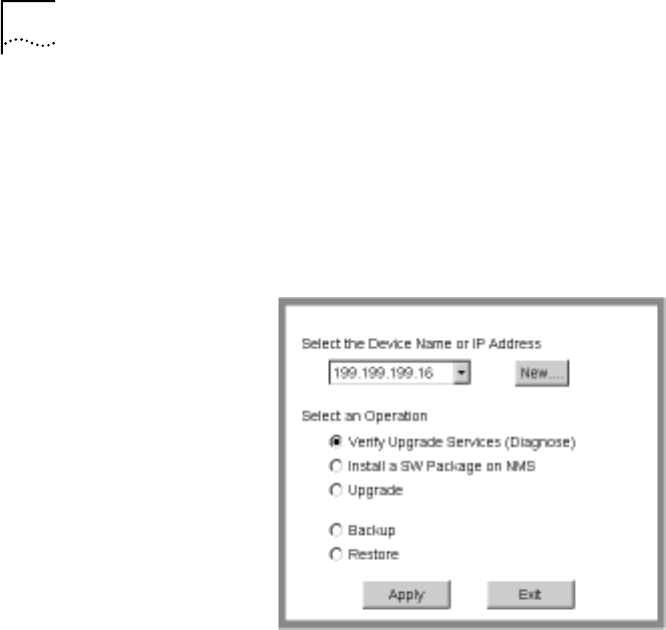

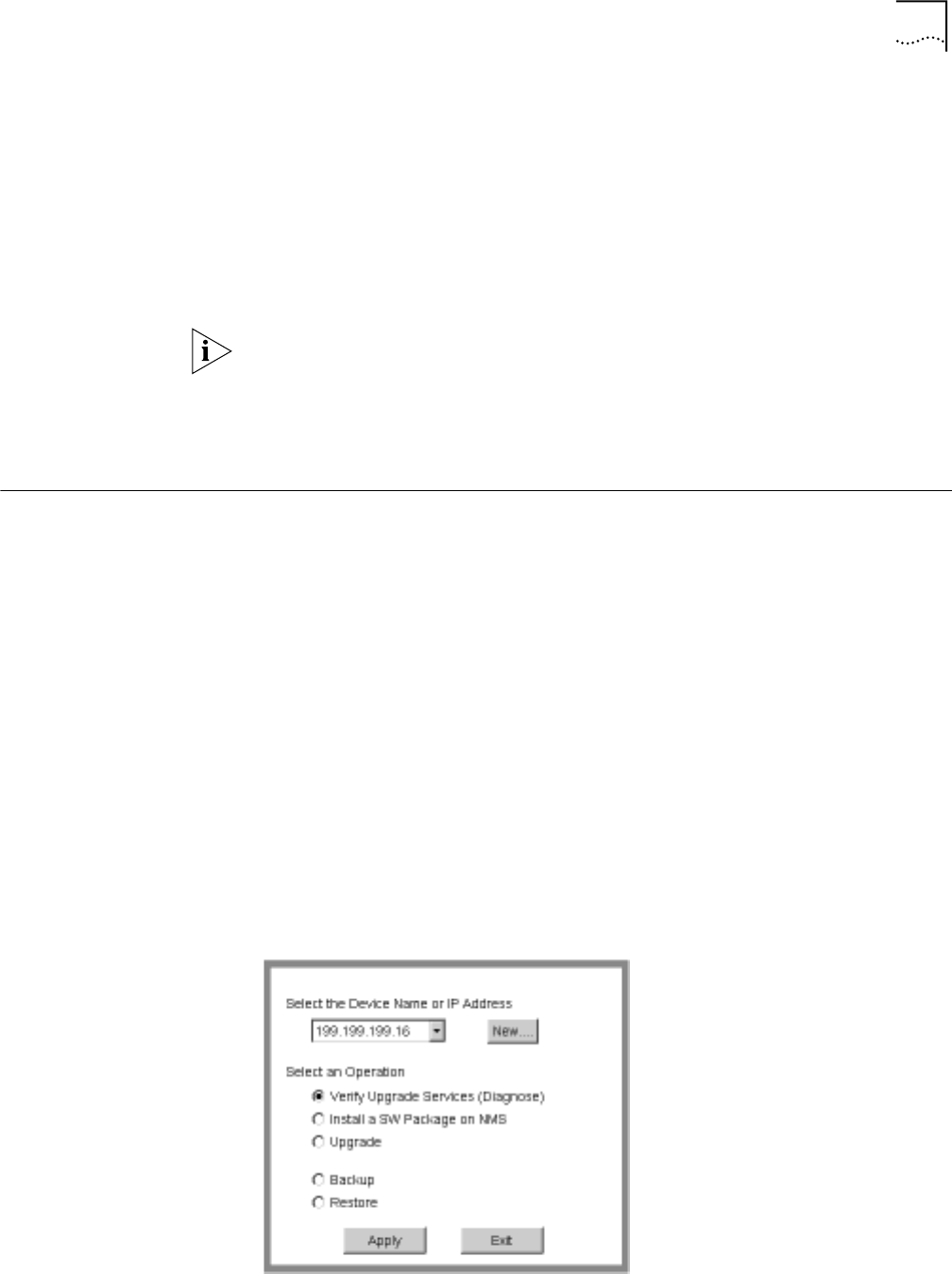

You can use the NETBuilder Upgrade Link application that comes with the utilities

provides an easy to use graphical user interface (GUI) to upgrade one or more

bridge/routers. Or you can access the utilities directly using the command-line.

When upgrading multiple bridge/routers simultaneously using command line

utilities, the topology of the network should be considered and the bridge/routers

should be upgraded in a sequence that will not disrupt the network.

If you are performing an image-only upgrade, you can use the utilities or

applications, or you can copy the software manually using the Enterprise OS user

interface.

The utilities are shipped with your software package on a CD-ROM and must be

installed on an NMS on the same network as the bridge/router. You can also

download the utilities from the 3Com web, FTP, or BBS sites.

The utilities run on the following operating systems:

■Solaris 2.x

■HP-UX 10.x

■IBM AIX 4.x or later

■Windows NT 4.x

■Windows 95/98

10 CHAPTER 1: OVERVIEW

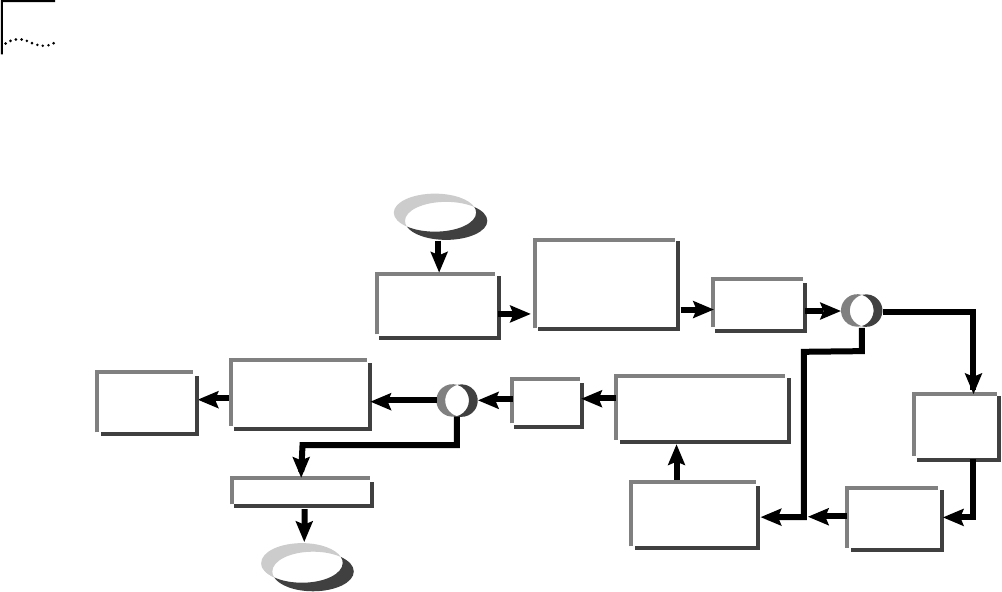

Figure 1 shows the typical upgrade process.

Figure 1 Upgrade Process

How the Utilities Work The software on your bridge/router or switch consists of a bootable image file and

configuration files that store all your settings. The Enterprise OS Upgrade

Management Utilities update all your software files after copying them to a UNIX

or Windows NMS. Because the upgrade occurs on a copy of the files on the NMS,

the bridge/router remains operational during the upgrade. The utilities then copy

the new image and updated files back to the bridge/router.

Primary, Secondary, and Test Boot Sources

The NETBuilder bridge/router or PathBuilder switch boots from a default directory,

called the primary boot source, which can be set using the SysconF command in

the Enterprise OS user interface. If you have more than one set of boot images,

you can specify a backup directory, called the secondary boot source. There is also

a test boot source, which the utilities use to test a new upgrade before making it

the primary boot source. Because the boot sources are only pointers to particular

directories, the utilities can dynamically change the boot sources without having

to move any files.

Automatic or Manual Recovery

If your switch or bridge/router has enough flash memory, you can have both sets

of software: the old version and the new version. After a successful test boot with

the new software, the primary boot source is changed to the new version. If the

test boot is not successful, the system automatically reboots with the old version.

Dual-image support is described in the procedures for automatic recovery.

If you have only enough flash memory for the new version, you can still recover

the old version from the NMS using the utilities. Single-image support is described

in the procedures for manual recovery.

For memory requirements for automatic or manual recovery, see Chapter 3.

Perform

hardware

upgrade

Verify

upgrade

Do final cleanup

Accept

upgrade? Reboot bridge/router,

test software images

and config files

Install software

and utilities

on NMS*

Yes

Yes

No

Reject

No

Back up config

and boot files

from bridge/router

to NMS

Update

config files

Is hardware

upgrade

required?

Restore old

software

version

If hardware

upgrade, reinstall

old hardware

Begin

Done!

?

?

Reset IP

config and

SNMP

Copy config

and boot files

to bridge/router

*NMS = network management station

Rules and Support Limitations 11

Rules and Support

Limitations Before planning your upgrade, refer to the following rules and support limitations:

■The utilities do not support Remote Boot and Configuration Services (RBCS) or

network booting.

■Upgrades from NETBuilder bridge/routers running version 7.x, or earlier, are not

supported.

■You cannot upgrade to a different platform. For example, you can only

upgrade an OfficeConnect® bridge/router to an OfficeConnect bridge/router.

You cannot upgrade a SuperStack® II NETBuilder bridge/router to a

SuperStack II NETBuilder SI bridge/router. The only exception is an upgrade

from a NETBuilder II® CEC module to a DPE module.

Take Time to Plan Because networks today have become increasingly complex, upgrading your

network requires a systematic approach. 3Com recommends that you plan your

upgrade carefully before implementing it. See Chapter 3 to plan your upgrade.

12 CHAPTER 1: OVERVIEW

2INSTALLING THE UTILITIES ON A

NETWORK MANAGEMENT STATION

Before you start the upgrade process, you must install the Enterprise OS Upgrade

Management Utilities on a network management station (NMS). If you are using

Transcend Enterprise Manager or Transcend Network Control Services, which has

the utilities bundled, you should install the latest utilities to take advantage of new

features and version support.

This chapter describes how to install the Enterprise OS Upgrade Management

Utilities on the following platforms:

■Solaris 2.x

■HP-UX 10.x

■IBM AIX 4.x or later

■Windows NT 4.x

■Windows 95/98

Installing the Utilities

on a Windows System You can install the utilities from a CD-ROM or from utilities that you have

downloaded to your hard disk. To install the utilities on a Windows system, follow

these steps:

1If you have installed utilities before or have Transcend, check the version by

entering:

bcmdiagnose

If the version is earlier than 11.3, continue to the next step. If you already have

11.3, you do not need to reinstall the utilities.

2Change to the utilities directory.

■If you are using the CD-ROM:

aInsert the CD-ROM into the CD-ROM drive.

bOpen a command window.

cChange to the CD-ROM directory.

For example, if E is the drive letter for the CD-ROM, enter:

E:

3If you download the utilities to your hard disk (see Chapter 8 for information

about downloading the utilities):

aDecompress the utilities.

bOpen a command window.

cChange to the utilities directory using:

<drive>:\<path>\

14 CHAPTER 2: INSTALLING THE UTILITIES ON A NETWORK MANAGEMENT STATION

4Run the setup program for Windows:

■To install all packages, including the utilities and package definitions for use

with Transcend if required, use:

bcmsetup <drive>: all

Where <drive> is the drive you want to install the utilities on.

The packages install in the default directory \usr\3Com\bcm\, and the following

paths are added to the autoexec.bat file:

<drive>:\usr\3com\bcm\bin\

<drive>:\usr\3com\common\bin\

5Reboot your system to use the path, which is required for all utility commands. Or,

if you do not want to reboot, you can enter the path manually at the command

prompt:

<drive>:\usr\3com\common\data\profile

6Use the bcmdiagnose utility to ensure that your installation is correct by entering:

bcmdiagnose

Installing the Utilities

on a UNIX System You can install the utilities from a CD-ROM or from utilities that you have

downloaded to your hard disk.

Preparing for the

Installation Before installing the utilities, verify the following items:

■Your NMS is running one of the supported operating systems.

Check the operating system you are running by entering:

uname -a

The version message may refer to Solaris 2.5 as SunOS 5.5.

■You need to upgrade utilities you have already installed. The utilities come

bundled with Transcend. To check the version, enter:

bcmdiagnose

■Your root password on the NMS (UNIX only).

■Your NMS is running a TFTP/FTP server.

Procedure To install the utilities on a UNIX system, follow these steps:

1Log on as root.

2Change to the utilities directory.

■If you are using the CD-ROM:

aMount the CD-ROM.

For more information on mounting instructions for each supported UNIX

operating system, see Appendix C.

bChange to the appropriate directory on the CD-ROM for your operating system

using:

cd /<cd-rom path>/<os>

Where <os> is the directory for your operating system:

Installing the Utilities on a UNIX System 15

■If you download the utilities to your hard disk (see Chapter 8 for information

about downloading the utilities):

aDecompress the utilities.

bChange to the utilities directory on your hard disk using:

cd /<path>/

3Run the setup program.

■To install all packages from the CD-ROM, including the utilities and package

definitions for use with Transcend, enter:

./bcmsetup all

■To install only the upgrade utilities, enter:

./bcmsetup bcm

The utilities are installed in the default directory /usr/3Com/bcm/.

If you are working in an HP-UX operating system, the bcmsetup command must

be uppercase, that is, BCMSETUP. The options that follow remain lowercase.

4Complete the following step for your UNIX shell:

■For a C-shell installation, add the contents of the following file to the .cshrc file

for each user you want to have access to the utilities, including root:

/usr/3Com/common/data/.login-bcm

Or you can enter the path after every logon:

source /usr/3Com/common/data/.login-bcm

■For a Bourne shell installation, add the contents of the following file to the

.profile file for each user you want to have access to the utilities, including root:

/usr/3Com/common/data/.profile-bcm

Or you can enter the path after every logon:

. /usr/3Com/common/data/.profile-bcm

5Return to normal privilege by entering:

exit

6Use the bcmdiagnose utility to ensure that your installation is correct by entering:

bcmdiagnose

Table 1 UNIX Directories

Operating System Directory Name

Solaris 2.5.x sunos5

HP-UX 10.x HP_UX

IBM AIX 4.1.x, 4.2x aix

16 CHAPTER 2: INSTALLING THE UTILITIES ON A NETWORK MANAGEMENT STATION

Setting up for Auto

Startup On a UNIX NMS, after you have completed the previous setup procedures you

need to set up the BootP server.

To set up the BootP server, enter:

bcmsteup -bootp

This command does not need to be used when you are operating on a

Windows 95/98/NT-based NMS.

3PLANNING AND PREPARING THE

UPGRADE

This chapter describes setting up a file transfer method, choosing automatic or

manual recovery, checking the required memory for each package, including

instructions for checking the memory, and provides planning tables to copy and fill

out for each bridge/router.

If you are upgrading multiple bridge/routers using Transcend Enterprise Manager

or Transcend Network Control Services, or are using the command-line utilities,

you should make sure each bridge/router has enough flash memory and DRAM for

the software package you have chosen. The Upgrade Link application

automatically checks the memory of the bridge/router.

For a list of all software packages and the recommended upgrade path for your

version, see Appendix B.

Setting Up a File

Transfer Method You can choose to transfer files using FTP or TFTP.

Setting up for TFTP File

Transfers To use TFTP, you need to set up your NMS in preparation for TFTP file transfers.

Make sure your TFTP server is running. On a Windows workstation, 3Com’s

3CServer is shipped along with the utilities. Upgrade Link launches 3CServer

during start up.

Specify the -tftp flag in all command line utilities which use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use TFTP file transfer. For

example, to specify TFTP file transfer use:

bcmsysupgrade -s:from_nb -tftp <device>

If neither flag is used, TFTP is used by default for software release 11.0 and lower,

but FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a bridge/router running software version 11.0 or lower, the FTP

password is overwritten with the following text string:

****

Setting up for FTP File

Transfers To use FTP, you need to set up your NMS in preparation for FTP file transfers.

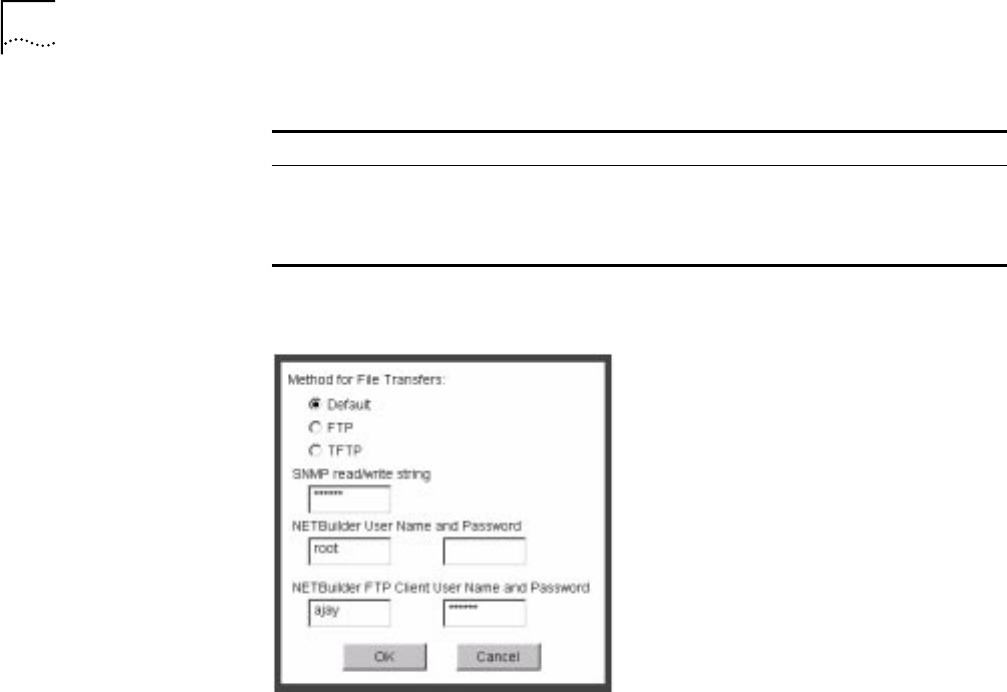

For Upgrade Link, the user name and password is specified in the Setting Page, as

shown on page 23.

18 CHAPTER 3: PLANNING AND PREPARING THE UPGRADE

On a UNIX NMS, follow these steps:

1Create a user on your system with /tftpboot as the home directory.

2When using the upgrade utilities via the command line or the Transcend Upgrade

Manager, specify this user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

Specify the -ftp flag in all command line utilities that use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use FTP file transfer. For

example, to specify FTP file transfer use:

bcmsysupgrade -s:from_nb -ftp <device>

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a bridge/router running software version 11.0 or lower, the FTP

password is overwritten with the following text string:

****

On a Windows NMS, follow these steps:

1Create a user in 3Com’s 3CServer FTP settings.

2When using the upgrade utilities via command line or the Transcend Upgrade

Manager, specify the ftp user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

You can specify the -ftp flag in the utilities (bcmsysupgrade, bcmbackup,

bcmrestore) if you want to use FTP file transfer.

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a bridge/router running software version 11.0 or lower, the FTP

password is overwritten with the following text string:

****

Choosing Automatic

Recovery or Manual

Recovery

If you have enough flash memory for dual-image support, complete your upgrade

using automatic recovery. If you have only enough memory for single-image

support, complete the upgrade using manual recovery. The following sections

describe the difference between automatic and manual recovery and the memory

requirements for each platform.

Automatic Recovery The default upgrade procedure uses automatic recovery. After backing up the

current software to the network management station (NMS), the new software is

copied into a test directory while the current software remains in the primary

directory. If you accept the upgrade after booting from the test directory, the new

software becomes the primary boot source, and the old software becomes the

secondary boot source.

If you are upgrading your hardware as well as the software, the procedure for

automatic recovery saves the software package that was originally on the new

hardware as the secondary boot source.

19

Manual Recovery An upgrade with manual recovery (using the -m option with the bcmsysupgrade

utility) formats the flash memory after backing up the current software, then

copies the upgraded files to the bridge/router. If the upgrade is not successful, you

must restore the software from the NMS.

If you are upgrading your hardware as well as the software, you can easily recover

your old hardware if the upgrade is not successful. However, because you erased

the flash memory on the new hardware, you will need to restore the original

software from the NMS if you want to return the new hardware to its original

state.

Table 2 lists the memory requirements for each software package on the platform

you are upgrading to. If you are upgrading to an earlier version of software, see

the guides that came with that version for the memory requirements.

Table 2 Version 11.2 Software Packages

Flash Memory Required for:

Software Package Model DRAM Required Automatic Recovery Manual Recovery

NETBuilder II with DPE: (The standard flash memory card from 3Com

is 20 MB)

(AC) - APPN/Connection Services DPE All DPE modules

ship with enough

DRAM for all

software packages.

40 MB 20 MB

(DW) - Multiprotocol Router DPE 40 MB 20 MB

(DE) - Multiprotocol Router with

56-bit Encryption DPE All DPE modules

ship with enough

DRAM.

40 MB 20 MB

(DS) - Multiprotocol Router with

128-bit Encryption DPE 40 MB 20 MB

SuperStack II NETBuilder Token Ring:

(TE) - Multiprotocol Router with

Encryption 327, 527 12 MB 8 MB 4 MB

SuperStack II NETBuilder SI:

(NW) - IP/IPX/AT Router 432, 442, 452, 462

532, 542, 552, 562 All SuperStack II NETBuilder SI bridge/routers ship with enough

DRAM (16 MB) and flash memory (8 MB) for automatic recovery.

(BF) - Boundary Router 433, 443, 453, 463

533, 543, 553, 563

(CF) - Multiprotocol Router 437, 447, 457, 467

537, 547, 557, 567

(AX) - APPN/Connection Services 438, 448, 458, 468

538, 548, 558, 568

(NE) - IP/IPX/AT Router with 56-bit

Encryption 432, 442, 452, 462

532, 542, 552, 562

(NS) - IP/IPX/AT Router with 128-bit

Encryption 432, 442, 452, 462

532, 542, 552, 562

(CE) - Multiprotocol Router with

56-bit Encryption 437, 447, 457, 467

537, 547, 557, 567

(CS) Multiprotocol Router with

128-bit Encryption 437, 447, 457, 467

537, 547, 557, 567

20 CHAPTER 3: PLANNING AND PREPARING THE UPGRADE

Checking DRAM To check how much DRAM you have installed on the switch or bridge/router, on

the NMS use:

bcmuname -M <device>

Where <device> is the IP address or hostname of the switch or bridge/router.

Checking Flash Memory To check how much flash memory you have installed on the switch or

bridge/router, on the NMS use:

bcmdf <device>[:<drive:>]

Where <device> is the hostname or the IP address of the switch or bridge/router.

Specify drive A for NETBuilder II bridge/routers or PathBuilder switches.

Do not specify a drive for SuperStack II or OfficeConnect bridge/routers.

OfficeConnect NETBuilder:

(FD) - FRAD 120 8 MB 4 MB 4 MB

(NW) - IP/IPX/AT Router 112, 122, 132, 142 8 MB 4 MB 4 MB for 132

2 MB for all others

(BF) - Boundary Router 113, 123, 143 8 MB 8 MB 4 MB

(OF) - Multiprotocol Router 117, 127, 137, 147 12 MB 8 MB 4 MB

(AF) - APPN 116, 126, 146 12 MB 8 MB 4 MB

(NE) - IP/IPX/AT Router with 56-bit

Encryption 112, 122, 132, 142 8 MB 4 MB 4 MB for 132

2 MB for all others

(NS) - IP/IPX/AT Router with 128-bit

Encryption 112, 122, 132, 142 8 MB 4 MB 4 MB for 132

2 MB for all others

(VE) - VPN IP/IPX/AT Router with

Quick Step VPN and 56-bit

Encryption

115, 125, 135, 145 8 MB 8 MB 4 MB

(OE) - Multiprotocol Router with

56-bit Encryption 117, 127, 137, 147 12 MB 8 MB 4 MB

(OS) - Multiprotocol Router with

128-bit Encryption 117, 127, 137, 147 12 MB 8 MB 4 MB

(VW)- Multiprotocol Rou;r 147 12 MB 8 MB 4MB

PathBuilder S5xx Switch

(PW) - Multiprotocol Router S500, S580, S593,

S594 160 MB 16 MB 4 MB

(PE) - Multiprotocol Router with

56-bit Encryption S500, S580, S593,

S594 160 MB 16 MB 4 MB

(PS) - Multiprotocol Router with

128-bit Encryption S500, S580, S593,

S594 160 MB 16 MB 4 MB

Table 2 Version 11.2 Software Packages (continued)

Flash Memory Required for:

Software Package Model DRAM Required Automatic Recovery Manual Recovery

Checking the Software Version 21

Checking the

Software Version To display the current software version and package you are running, use the

bcmuname utility on the NMS:

bcmuname -R <device>

Where <device> is the IP address or hostname of the bridge/router.

To display the current software version and package using the Enterprise OS user

interface, enter:

SHow -SYS VERSion

Planning Tables Photocopy the following planning tables, and fill out background information

about your bridge/routers before starting the upgrade process. The NETBuilder II

table is on page 22. The SuperStack II NETBuilder, SuperStack II NETBuilder SI,

OfficeConnect NETBuilder, and PathBuilder switch table is on page 23.

If you are upgrading both software and hardware, write down the information for

the new hardware. For example, if you are replacing a CEC 20 with a DPE module,

write down the information for the DPE module.

Planning Tables 22

NETBuilder II Planning Table

Check each appropriate option to use with the command-line utilities:

IP Address or Name Flash

Memory

Enough Flash Memory for

Automatic Recovery?

Enough Flash Memory for

Manual Recovery?

CEC Only: Firmware Version

(pre-10.3 upgrade only)

Current Software Version

and Two-Letter Code

New Software Version

and Two-Letter Code

Manual Recovery?

Hardware Upgrade?

Upgrading to a Software

Version Other than 11.0? Upgrading Unlike

Packages?

10.1.3.24 20

MB X X n/a 11.0 CF 11.1 CF ❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

Planning Tables 23

SuperStack II NETBuilder, SuperStack II NETBuilder SI, and OfficeConnect NETBuilder Planning Table

Check each appropriate option to use with the command-line utilities:

IP Address or Name Flash

Memory

Enough Flash Memory for

Automatic Recovery?

Enough Flash Memory for

Manual Recovery?

DRAM

Current Software Version

and Two-Letter Code

New Software Version

and Two-Letter Code

Manual Recovery?

Hardware Upgrade?

Upgrading to a Software

Version Other than 11.0? Upgrading Unlike

Packages?

10.1.3.24 8 MB X X 8

MB 9.3 BF 11.0 BF ❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

❑ -m ❑ -new_hw ❑ -V:<version you

are upgrading to>

❑ -k:<package you

are upgrading to>

24 CHAPTER 3: PLANNING AND PREPARING THE UPGRADE

4UPGRADING USING THE NETBUILDER

UPGRADE LINK APPLICATION

This chapter describes how to upgrade the software on a NETBuilder bridge/router

or a PathBuilder switch using the Upgrade Link application. Upgrade Link is an

easy to use GUI for the upgrade utilities that runs in a web server. Access to the

server is available via a web browser. If you are upgrading multiple bridge/routers,

you should use Transcend Enterprise Manager or Transcend Network Control

Services instead. Contact your network supplier for more information about

Transcend. Or if you want to write scripts, you can use the command-line utilities

as described in Chapter 5. Use the command-line utilities if you do not have a web

browser on your network management station (NMS).

An NMS is a UNIX or Windows system that has a FTP/TFTP server running in

addition to software, such as the Upgrade Management Utilities, to manage your

network. For Windows, the utilities include the 3Com FTP/TFTP server called

3CServer.

Preparing for the

Upgrade Before upgrading your system, confirm the following items:

■You have installed the utilities according to Chapter 2.

■You have set the path for the utilities (UNIX only). If you have not set the path,

complete the following step for your UNIX shell:

■For a C-shell installation, add the contents of the following file to the .cshrc

file for each user you want to have access to the utilities, including root:

/usr/3Com/common/data/.login-bcm

Or you can enter the path after every logon:

source /usr/3Com/common/data/.login-bcm

■For a Bourne shell installation, add the contents of the following file to the

.profile file for each user you want to have access to the utilities, including

root:

/usr/3Com/common/data/.profile-bcm

Or you can enter the path after every logon:

. /usr/3Com/common/data/.profile-bcm

■All configuration files are in the same directory as the boot image.

■You have booted your bridge/router from the primary boot source.

■You have a web browser installed with Java support, such as Netscape

Navigator 4.5 or Internet Explorer 4.x, and you have it in your path (UNIX).

CAUTION: Only one client at a time should access the Upgrade Link Server.

■There is sufficient disk space on the NMS for the amount of software you are

installing.

26 CHAPTER 4: UPGRADING USING THE NETBUILDER UPGRADE LINK APPLICATION

Minimal disk storage requirements depend on the number of different

software versions that are stored on the disk drive. Calculate:

■6 MB for each version of the NETBuilder II bridge/router or PathBuilder

switch image

■4 MB for each version of the SuperStack II, SuperStack II SI, or

OfficeConnect NETBuilder bridge/router image

While you must purchase one copy of software for each device, you only need

to install one copy of a version of software on the NMS.

Running Upgrade Link

Locally Upgrade Link contains its own web server. Client access to the web server is

available locally or remotely via a web browser. Running the Upgrade Link

application locally means that the web browser and the web server are running on

the same NMS.

To run Upgrade Link locally on a UNIX NMS, use:

UpgradeLink [-NoAuthentication] [-NoSecurity]

This command starts the NETBuilder Upgrade Server and the default browser. Two

command options are available.

■When NoAuthentication is specified, Upgrade Link will allow a remote client to

access the server without user authentication, see “Settings Page” for a

description of the available settings.

■When you specify NoSecurity, Upgrade Link starts and will accept connections

from all IP addresses. Otherwise, only those client IP addresses listed in the

/usr/3Com/common/data/allow file will be accepted by Upgrade Link.

For security, an administrator can enter the IP addresses of only those clients who

will be allowed to upgrade devices. An allow file is an ASCII text file containing the

IP addresses of clients to upgrade devices. The allow file looks like the following:

129.213.100.151

129.213.100.152

139.87.172.100

To run Upgrade Link locally on a Windows NMS, click the Start menu, then choose

Programs

⇒

Remote Upgrade Utilities

⇒

Upgrade Link.

Your default browser is launched. On Windows, the 3Com FTP/TFTP server is also

launched.

When you exit Upgrade Link, you will also exit the browser and, for Windows, the

FTP/TFTP server.

Running Upgrade Link

Remotely You can access the NETBuilder Upgrade Server remotely using a browser.

■Start the NETBuilder Upgrade Server on the NMS using:

bcmnbrus <port> [-NoSecurity | -NoAuthentication]

Status and Settings Pages 27

where port is the TCP socket on which the client can communicate with the

server. On UNIX systems, you can add this command to cron. On Windows

95/98/NT systems, this command can be run as a console application.

When NoSecurity is specified, the bcmnbrus command allows connections from all

IP addresses. Otherwise, only those client IP addresses listed in

the/usr/3Com/common/data/allow file will be accepted by Upgrade Link.

For security, an administrator can enter the IP addresses of only those clients who

will be allowed to upgrade devices. An allow file is an ASCII text file containing the

IP addresses of clients to upgrade devices. The allowed file looks like the following:

129.213.100.151

129.213.100.152

139.87.172.100

When NoAuthentication is specified, the bcmnbrus command allows the remote

client to access the server without user authentication, see “Settings Page” on

page 28 for a description of the available settings.

■Then, to access Upgrade Link from a web browser, enter the following URL:

http://<server_nam>:<port>/

Do not resize the browser window while the Upgrade Link application is running.

CAUTION: Only one client at a time should access the Upgrade Link Server.

Status and Settings

Pages After each procedure described in this section, the Status or Settings page

appears. Table 3 describes the buttons on the bottom of the Status page.

Table 3 Status page Buttons

Button Description

History Shows the last 20 successful operations performed on the

bridge/router or switch.

Home Returns to the Console page.

28 CHAPTER 4: UPGRADING USING THE NETBUILDER UPGRADE LINK APPLICATION

Settings Page The Setting Page lets you establish basic settings.

■You can choose the method of file transfers. TFTP is used by default for

NETBuilder bridge/router software release 11.0 and lower while FTP is used by

default for NETBuilder bridge/router software release 11.1 and higher and

Enterprise OS version 11.3.

■Enter an SNMP read/write string and the NETBuilder bridge/router or

PathBuilder switch user name and password.

■If -noAuthentication was not specified in Upgrade Link or on the bcmnbrus

command line, authentication will be used and you must enter the NETBuilder

or PathBuilder username and password.

■If -noAuthentication was specified in Upgrade Link or on the bcmnbrus

command line, no authentication is required and any user name and password

entries are ignored.

■If using FTP, enter the FTP client user name and password.

Abort Exits Upgrade Link and aborts the process. Some processes may need

to be completed even after clicking Abort. Upgrade Link displays a

message about any ongoing processes.

View Logs Opens a page listing the logs available for viewing.

Table 3 Status page Buttons (continued)

Button Description

Verifying for Upgrading 29

Verifying for

Upgrading Before upgrading, run the diagnostic utility in Upgrade Link to verify connectivity

to the switch or bridge/router by following these steps:

1Choose a switch or bridge/router from the pop-up list in the Console page, or click

New to enter the IP address or hostname. The pop-up list contains devices that

you have upgraded or backed-up before.

2Select Verify Upgrade Services (Diagnose) and click Apply.

The Settings Page appears. Select the appropriate settings as described in on

“Settings Page” on page 28 and click OK to close that window.

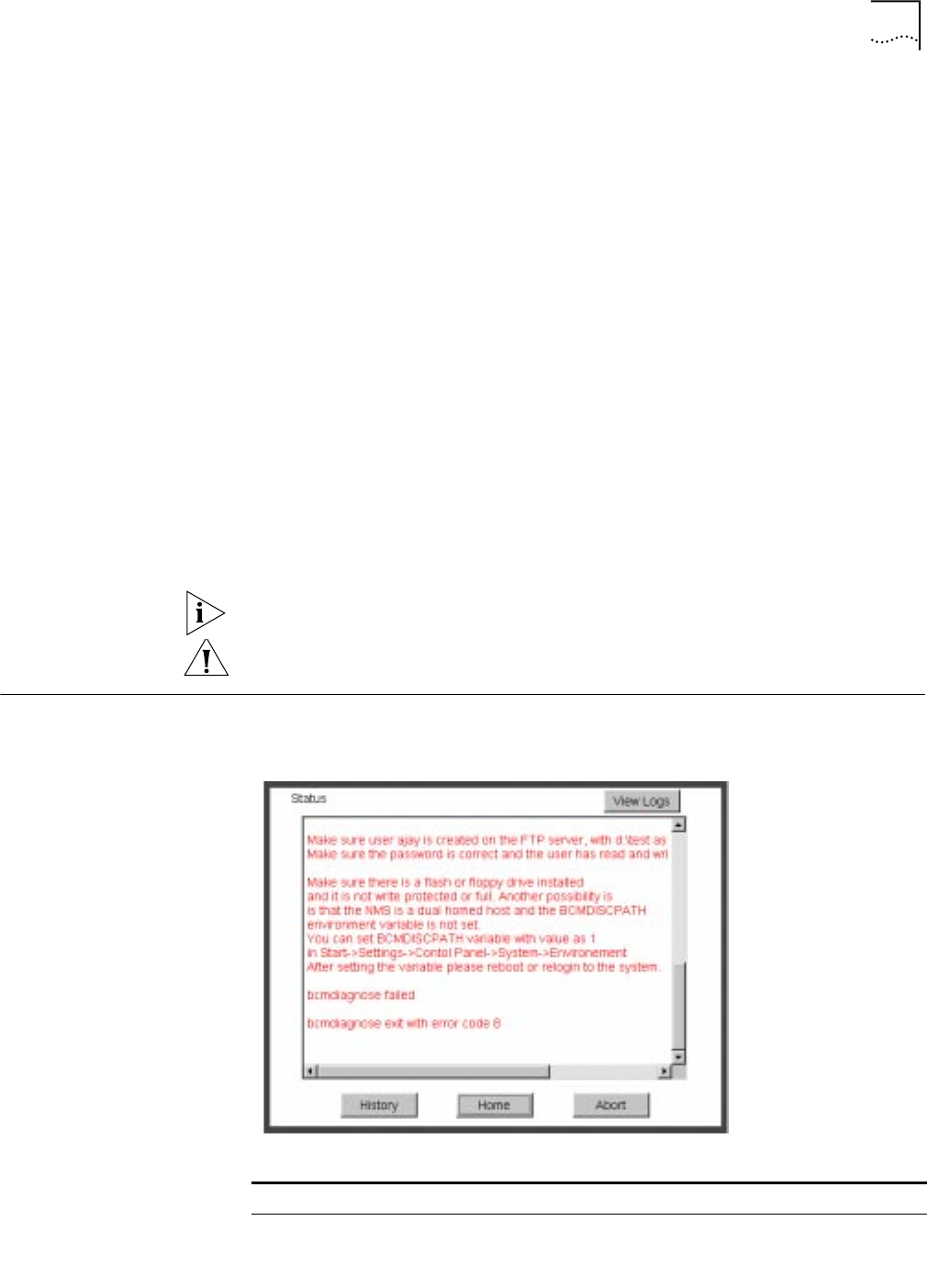

The Status page appears showing the results of the diagnostic tests.

3If the Status page shows a failure, check the SNMP read/write community string

and FTP/TFTP server settings.

If the Status page shows a success, click Home to continue with the upgrade and

return to the Console page.

Installing Software on

the NMS Upgrade Link installs the software on the NMS in the following directory:

Windows:

\%tftpboot%\image\<platform>\SW|FW\<version>\<pkg>

UNIX:

/tftpboot/image/<platform>/SW|FW/<version>/<pkg>

For UNIX, if there is not enough space on the disk, you can link /tftpboot to

another disk. For example, to link /tftpboot to the usr directory, enter:

ln -s /usr/tftpboot /tftpboot/

The utilities work only with the default directory names and structures.

30 CHAPTER 4: UPGRADING USING THE NETBUILDER UPGRADE LINK APPLICATION

Values

Procedure To install the new software on the NMS, follow these steps:

You must be logged in as root for this procedure (UNIX).

1You can install the software from a CD-ROM, a tar archive, or a boot image

(image-only upgrade). If you are installing from a CD-ROM, mount the CD-ROM

on the NMS.

See Appendix C for information on how to mount the CD-ROM on a UNIX system.

2For UNIX, log in as root.

3Run Upgrade Link if you have not already done so.

4Select Install a SW Package on NMS from the Console page.

tftpboot For UNIX: Directory specified in inetd or tftpd for tftpd files.

%tftpboot% For Windows (using the default 3Com TFTP server): Directory

specified in the 3Server configuration.

<platform> NETBuilder II with CEC Module: NBII

NETBuilder II with DPE Module: NBDPE

SuperStack II NETBuilder SI bridge/router: NBSI

SuperStack II NETBuilder Ethernet

bridge/router: NBRO

SuperStack II NETBuilder Token Ring

bridge/router: NBR2T

SuperStack II NETBuilder Ethernet/ISDN

bridge/router: NBRI

SuperStack II NETBuilder Token Ring/ISDN

bridge/router: NBR2TI

OfficeConnect NETBuilder bridge/router: NBOCF

PathBuilder S5xx switch: NBPB500

<package> Two letter designator shown on the CD-ROM label.

[SW | FW] The software or firmware directory.

<version> Software version 9.0 through 11.3.

Upgrading Software 31

5Click Apply.

The Install page appears.

6Enter the path for the software, or click Browse to use a file browse page.

■For UNIX CD-ROM, use the following path:

cdrom/<mount path>/image/

■For Windows CD-ROM, use the following path:

<CD-ROM drive>:\image\

■For Archive, enter the entire path including the filename.

■For an FTP site, enter the full URL

7Click Apply to install the software.

The Status page appears while the software is installing.

8Select a package from the list that you want to uninstall. Click Delete to begin

uninstalling the package. Confirm you selection when prompted.

9When the installation is complete, click Home to continue with the upgrade.

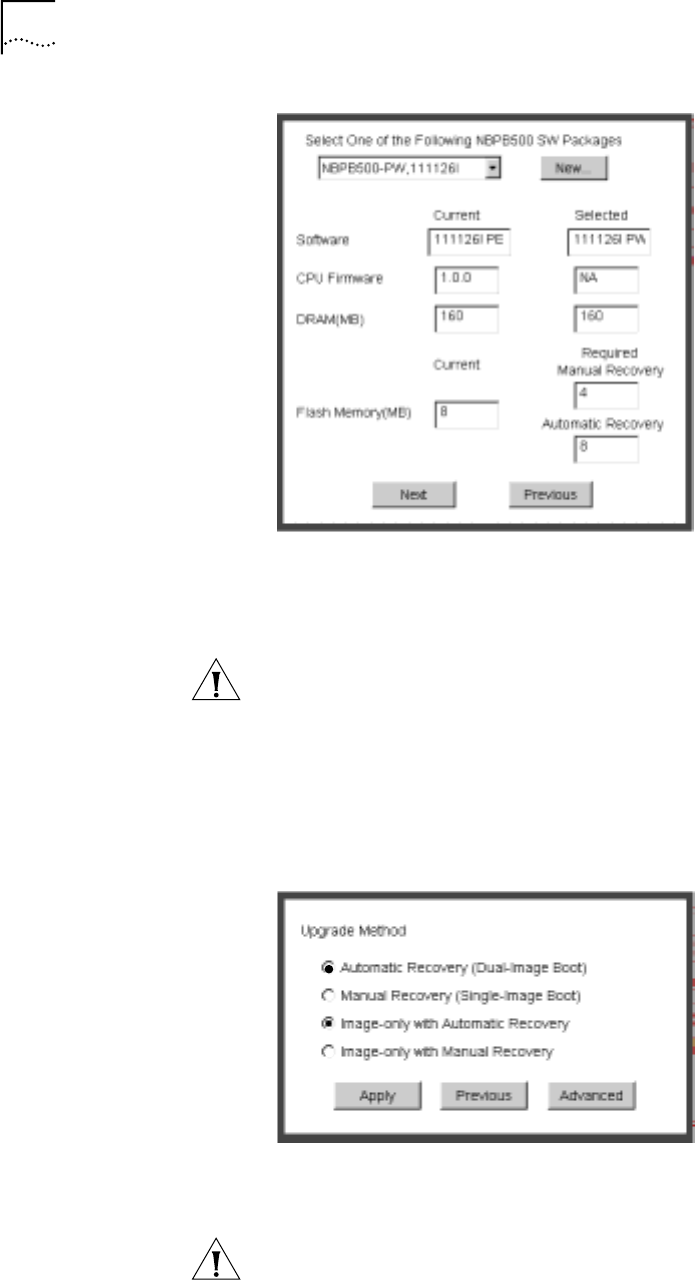

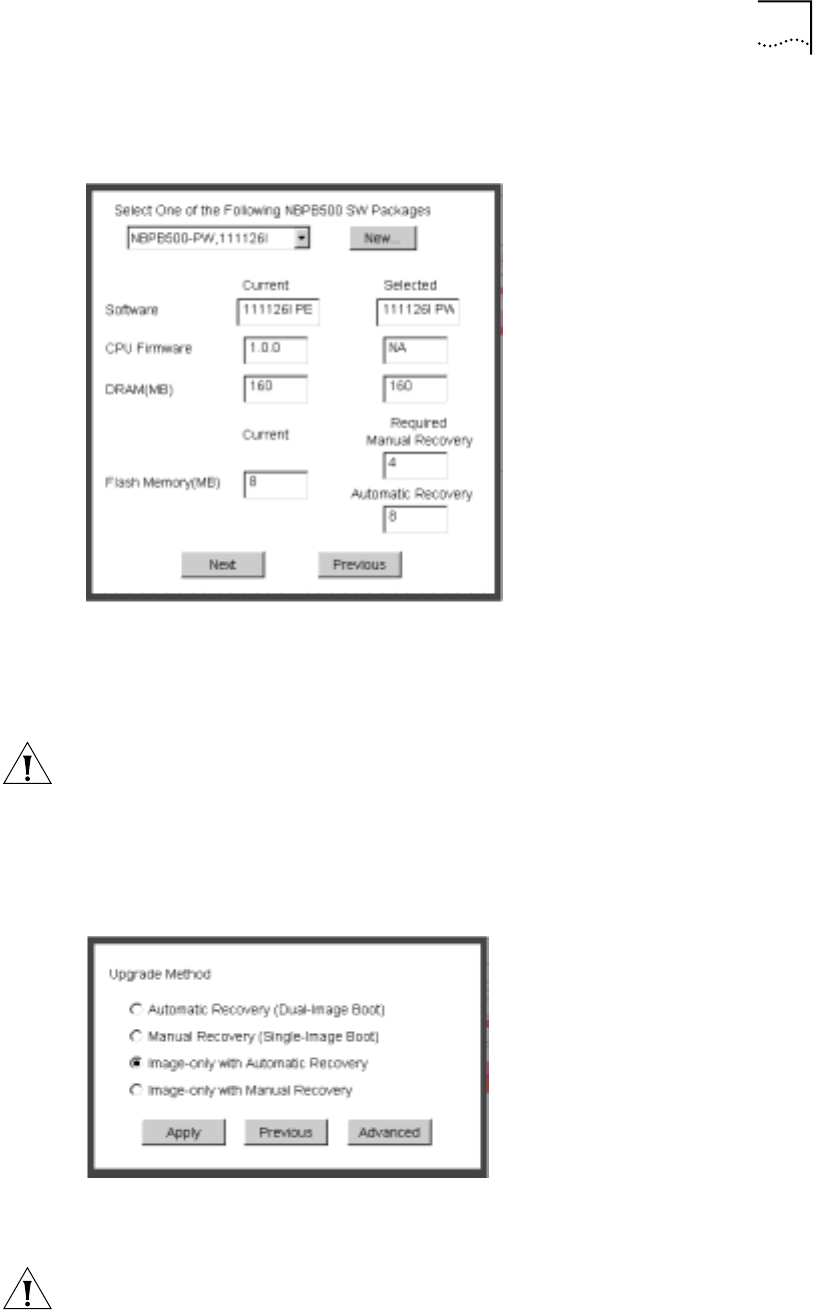

Upgrading Software To upgrade the software, follow these steps:

1Run Upgrade Link if you have not already done so.

2Choose a bridge/router from the pop-up list in the Console page, or click New to

enter the IP address or hostname. The pop-up list contains bridge/routers and

switches that you have upgraded or backed-up previously.

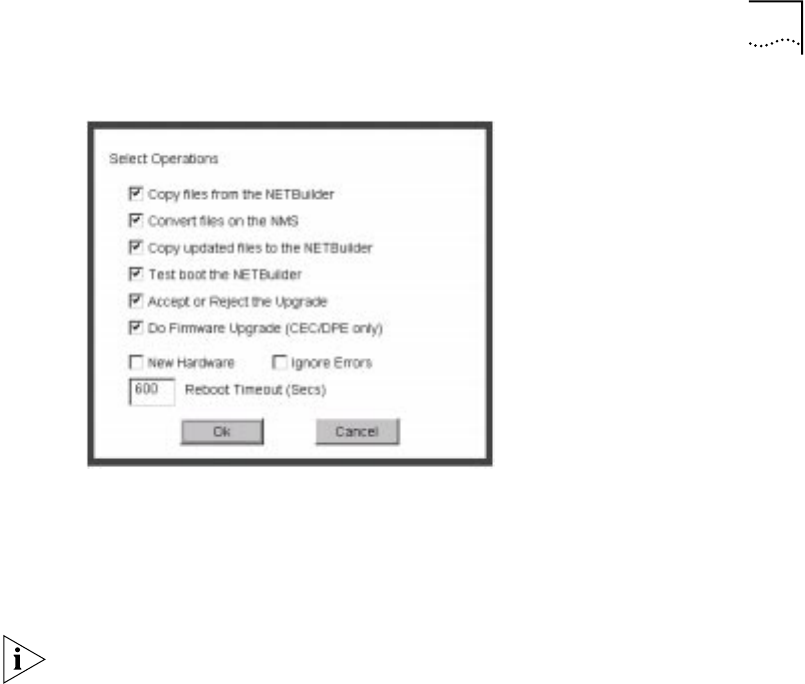

3Select Upgrade and click Apply.

The Settings Page appears. Select the appropriate settings as described in

“Settings Page” on page 28 and click OK to close the window.

The Upgrade page appears.

32 CHAPTER 4: UPGRADING USING THE NETBUILDER UPGRADE LINK APPLICATION

4Select a software package from the pop-up list. The list includes all packages you

have installed on the NMS for your platform. If your package is not listed, install

the software by clicking New and see “Installing Software on the NMS” on

page 29.

CAUTION: When upgrading to a package containing encryption, you will be

presented with an export restriction message. To upgrade to an encrypted

package, you must acknowledge this restriction notice, otherwise the upgrade will

not continue.

The Upgrade page shows information about your system, including the flash

memory requirements for a manual or automatic recovery upgrade.

5Click Next.

6The recommended upgrade method is selected based on the amount of memory

you have installed. If you do not wish to perform a customized upgrade, go to

step 12.

CAUTION: If you override the Upgrade Link selection, your upgrade may fail.

7Click on the Advanced button if you want to customize the upgrade process, that

is, you do not want to perform all of the upgrade stages at this time.

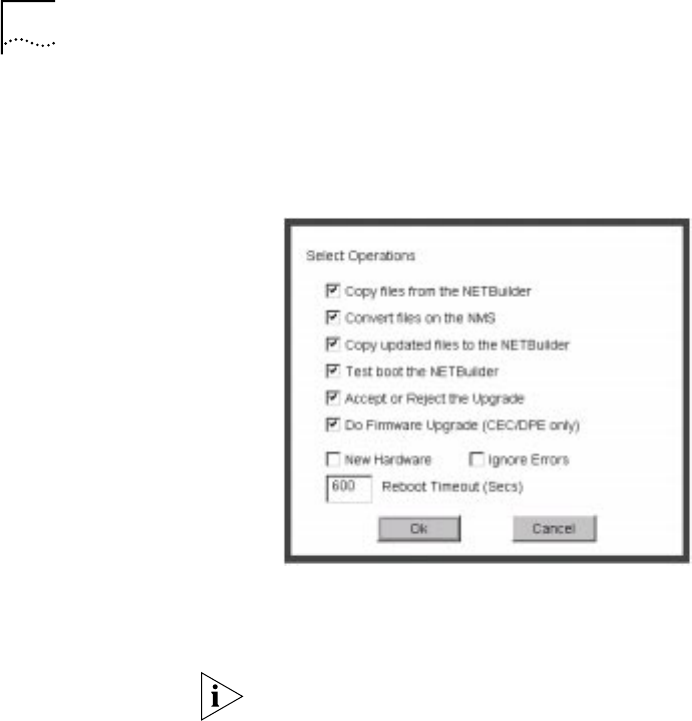

The Advanced page appears.

Upgrading Software 33

8Click the check box for each of the stages you want to complete in the current

operation.

9Click New Hardware if you are replacing your bridge/router with a new system.

For example, click New Hardware if you are replacing the CEC module with a DPE

module.

You cannot upgrade to a different platform. For example, you can only upgrade

an OfficeConnect bridge/router to an OfficeConnect bridge/router. You cannot

upgrade a SuperStack II NETBuilder bridge/router to a SuperStack II NETBuilder SI

bridge/router. The only exception is an upgrade from a NETBuilder II CEC module

to a DPE module.

10 If you want to alter the Reboot Timeout, enter a new number in the box. The

default setting is appropriate for most networks.

11 Click OK.

12 Click Apply to begin the upgrade.

The Status page appears.

13 If you are performing a hardware upgrade, replacing a CEC module with a DPE

module for example, a message to replace the hardware appears after the

software has been backed up to the NMS. Replace the hardware at this time.

14 When the upgrade is complete, the bridge/router reboots from the new software.

If the boot is not successful:

■For automatic recovery, the bridge/router reboots from the original software

after the reboot timeout (default = 10 minutes).

■For manual recovery, you must configure the bridge/router at the local

console to reestablish IP connectivity. Once connectivity is established, you can

restore the software to return the bridge/router to a preupgrade state. See

Chapter 7 for the procedure to restore connectivity and the software.

15 Click Home then Exit on the Console page to exit Upgrade Link.

34 CHAPTER 4: UPGRADING USING THE NETBUILDER UPGRADE LINK APPLICATION

5UPGRADING A BRIDGE/ROUTER USING

THE COMMAND-LINE UTILITIES

This chapter describes how to upgrade the software on a bridge/router or switch

using the command-line Upgrade Management Utilities. 3Com recommends

using the Upgrade Link application described in Chapter 4, but you can use the

command-line utilities instead if you want to write scripts or if you do not have a

web browser on your NMS. Use Transcend Enterprise Manager or Transcend

Network Control Services to upgrade multiple bridge/routers.

You can perform the following types of upgrades:

■Upgrading Software Only

■Automatic Recovery

■Manual Recovery

■Upgrading Hardware and Software

■Automatic Recovery

■Manual Recovery

Preparing for the

Upgrade Before upgrading your system, confirm the following items:

■You have installed the utilities according to Chapter 2.

■You have set the path for the utilities (UNIX only). If you have not set the path,

complete the following step for your UNIX shell:

■For a C-shell installation, add the contents of the following file to the .cshrc

file for each user you want to have access to the utilities, including root:

/usr/3Com/common/data/.login-bcm

Or you can enter the path after every logon:

source /usr/3Com/common/data/.login-bcm

■For a Bourne shell installation, add the contents of the following file to the

.profile file for each user you want to have access to the utilities, including

root:

/usr/3Com/common/data/.profile-bcm

Or you can enter the path after every logon:

. /usr/3Com/common/data/.profile-bcm

■All configuration files are in the same directory as the boot image.

■You have booted your bridge/router from the primary boot source.

■There is sufficient disk space on the NMS for the amount of software you are

installing.

36 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

Minimal disk storage requirements depend on the number of different

software versions that are stored on the disk drive. Calculate:

■6 MB for each version of the NETBuilder II bridge/router image

■6 MB for each version of the PathBuilder S5xx switch image

■4 MB for each version of the SuperStack II, SuperStack II SI, or

OfficeConnect bridge/router image

While you must purchase one copy of software for each bridge/router or

switch, you only need to install one copy of a version of software on the NMS.

Setting Up a File

Transfer Method You can choose to transfer files using FTP or TFTP.

Setting up for TFTP File Transfers

To use TFTP, you need to set up your NMS in preparation for TFTP file transfers.

Make sure your TFTP server is running. On a Windows workstation 3Com’s

3CServer is shipped along with the utilities. Upgrade Link launches 3CServer

during start up.

Specify the -tftp flag in all command line utilities which use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use TFTP file transfer. For

example, to specify TFTP file transfer use:

bcmsysupgrade -s:from_nb -tftp <device>

If neither flag is used, TFTP is used by default for software release 11.0 and lower,

but FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a NETBuilder bridge/router running software version 11.0 or lower,

the FTP password is overwritten with the following text string:

****

Setting up for FTP File Transfers

To use FTP, you need to set up your NMS in preparation for FTP file transfers.

For Upgrade Link, the user name and password is specified in the Setting Page, as

shown on page 23.

On a UNIX NMS, follow these steps:

1Create a user on your system with /tftpboot as the home directory.

2When using the upgrade utilities via the command line or the Transcend Upgrade

Manager, specify this user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

Specify the -ftp flag in all command line utilities that use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use FTP file transfer. For

example, to specify FTP file transfer use:

bcmsysupgrade -s:from_nb -ftp <device>

Prediagnosing System Problems 37

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a bridge/router running software version 11.0 or lower, the FTP

password is overwritten with the following text string:

****

On a Windows NMS, follow these steps:

1Create a user in 3Com’s 3CServer FTP settings.

2When using the upgrade utilities via command line or the Transcend Upgrade

Manager, specify the ftp user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

You can specify the -ftp flag in the utilities (bcmsysupgrade, bcmbackup,

bcmrestore) if you want to use FTP file transfer.

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a bridge/router running software version 11.0 or lower, the FTP

password is overwritten with the following text string:

****

Prediagnosing System

Problems Before you begin your upgrade, 3Com recommends that you run the

bcmdiagnose utility specifying the file transfer utility, FTP, or TFTP and the IP

address or hostname of the bridge/router you are upgrading.

Before using the bcmdiagnose utility, you should set the BCMFTPUSER and

BCMFTPPASS environment variables. When using FTP, an error message is

generated and the file transfer is aborted if these variables are not set.

The bcmdiagnose utility helps detect any problems with SNMP, FTP or TFTP

connectivity.

To run the bcmdiagnose utility on your NMS, use:

bcmdiagnose [ -ftp | -tftp ] [<device> | -h]

Where <device> is the IP address or hostname of the bridge/router you are

upgrading. The -ftp and -tftp flags force the specified file transfer types. See

Appendix A for more information about any error messages that may appear.

Installing the

Software on the NMS To install the NETBuilder software, follow these steps:

1 For UNIX, login as root.

2If you are using a CD-ROM, insert the CD-ROM into the CD-ROM drive on the

NMS.

aMount the CD-ROM (UNIX only).

See Appendix C for information on how to mount the CD-ROM.

3Make sure you are using version 11.3 of the Enterprise OS Upgrade Management

Utilities.

38 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

To check which version you have installed, enter:

bcmdiagnose -h

The version of the installed utilities is displayed in the following message:

bcmdiagnose version 11.3. Copyright 3Com Corporation 1999

If the version of the utilities you have installed is not version 11.3, you must first

install the 11.3 utilities according to Chapter 2.

4Install the software.

■From a CD-ROM:

For UNIX, enter:

bcminstall

The path option may be used to install the utilities on an NMS that has two

or more CD-ROM drives or to install from a remote CD-ROM drive. You

must explicitly specify the second or remote CD-ROM drive using:

bcminstall -cdrom [<path>]

For example, to install software from a second CD-ROM drive on a Solaris

machine, enter:

bcminstall -cdrom /cdrom/cdrom1/image

After the installation is complete, the screen shows an inventory of all

bridge/router packages installed, including previous versions you have

installed.

For Windows, open a command window and use:

bcminstall -cdrom <CD-ROM drive>:\image

■From a Tarred File, use:

bcminstall -tar <path>/<filename>

■From an Image File, use:

bcminstall -image <path>/<filename>

The image file is the NETBuilder bridge/routers boot file, for example, boot.29K or

boot.68k.

Software Directories The bcminstall utility installs the software on the NMS in the following directory:

Windows:

\%tftpboot%\image\<platform>\SW|FW\<version>\<pkg>

UNIX:

/tftpboot/image/<platform>/SW|FW/<version>/<pkg>

For UNIX, if there is not enough space on the disk, you can link /tftpboot to

another disk. For example, to link /tftpboot to the usr directory enter:

ln -s /usr/tftpboot /tftpboot

The utilities work only with the default directory names and structures.

Using the Bcmsysupgrade Utility to Upgrade 39

Values

Use the bcmuname utility to display your current platform, package, and version.

Using the

Bcmsysupgrade Utility

to Upgrade

This section describes how to use the bcmsysupgrade utility for the most common

software upgrades.

The command syntax for the bcmsysupgrade utility is:

bcmsysupgrade [options] <stage> <device>

See “bcmsysupgrade” on page 81 for more information.

The procedures described in the following sections assume you are performing a

like-package upgrade to version 11.3 with automatic recovery (see “Choosing

Automatic Recovery or Manual Recovery” on page 18 for more information).

An example of a like-package upgrade is from the CF package to the CF package.

A like-package upgrade is an upgrade where the software package in the version

you are upgrading from and the version you are upgrading to have the same

two-letter designator.

If your upgrade is not a like-package upgrade with automatic recovery, or you are

upgrading to a version other than the default, you must use the bcmsysupgrade

utility with other options. Be sure to use the same options during each stage of

the upgrade process. See Table 4 for a description of the options.

tftpboot For UNIX: Directory specified in inetd or tftpd for tftpd files.

%tftpboot% For Windows (using the default 3Com TFTP server): Directory

specified in the Win.ini file in the “[3Com.nm] TFTPROOT=”

section. The Win.ini file is located in the default Windows

directory, for example C:\windows or C:\winnt4.

<platform> NETBuilder II with CEC Module: NBII

NETBuilder II with DPE Module: NBDPE

SuperStack II NETBuilder SI bridge/router: NBSI

SuperStack II NETBuilder Ethernet

bridge/router: NBRO

SuperStack II NETBuilder Token Ring

bridge/router: NBR2T

SuperStack II NETBuilder Ethernet/ISDN

bridge/router: NBRI

SuperStack II NETBuilder Token Ring/ISDN

bridge/router: NBR2TI

OfficeConnect NETBuilder bridge/router: NBOCF

PathBuilder S5xx Switch: NBPB500

<package> Two letter designator shown on the CD-ROM label.

[SW | FW] The software or firmware directory.

<version> Software version 9.0 through 11.3.

40 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

For UNIX, after you have upgraded, check the /tftpboot/CLIENTS/<IP address or

mac address>/tmp/stages.log file to ensure that the options were used

consistently throughout the upgrade process.

For Windows, after you have upgraded, check the \%tftpboot%\CLIENTS\<IP

address or mac address>\tmp\stages.log file to ensure that the options were used

consistently throughout the upgrade process.

Table 4 lists the most common bcmsysupgrade options.

Whenever you specify an option with bcmsysupgrade, you must repeat that

option for all steps in the procedure.

Example To upgrade a bridge/router from the SW/NBII-WA,8.3 package to the SW/NBII-FF,

10.1005 package (unlike packages, manual recovery, and a different package

from 11.0), use:

bcmsysupgrade -s:from_nb -k:FF -V:101005 -m <device>

The same options must be used to upgrade configuration files:

bcmsysupgrade -s:update -k:FF -V:101005 -m <device>

See Chapter 8 for more information about how to use bcmsysupgrade for

specialized cases.

Filenames The following sections list the files that may be used when you upgrade a

NETBuilder system.

NETBuilder II Bridge/Router

■boot.29k — image file that boots the main processor module.

■mp6e.29k — image file that boots the MP 6-port Ethernet module.

■mpatm.29k — image file that boots the MP ATMLink module.

■mbri.68k — image file that boots the HSS 8-Port BRI module.

■4portwan.860 — image file that boots the HSS 4-Port WAN module.

■iofw_upd.29k — file that updates the firmware for HSS 3-port, HSS 4-port,

HSS 8-port, and MP modules.

■sys — file that is used during the upgrade process to determine the source OT

target software version.

Table 4 Common Options for Bcmsysupgrade

Task Option

Image-only upgrade

or

Upgrading to a software version other than 11.1

-V:<version you are upgrading to>

Upgrading unlike packages -k:<package you are upgrading to>

Upgrading with Manual Recovery -m

Specifying encryption license agreement. -EncryptionLicenseRead

Using TFTP file transfer. -tftp

Using FTP file transfer. -ftp

Upgrading Software Only 41

■ccsmacro — file that contains predefined user macros.

■fpupdate.29k (CEC Only) — file that updates the CEC module firmware.

You may also have several configuration files that will be upgraded by the utilities.

SuperStack II NETBuilder and OfficeConnect NETBuilder Bridge/Routers

■boot.68k — image file that boots the system.

■sys — file that may be used during the upgrade process to determine the

source or target software version.

You may also have several configuration files that will be upgraded by the utilities.

PathBuilder S5xx Series Switch

■boot.ppc — image file that boots the system.

■sys — file that may be used during the upgrade process to determine the

source or target software version.

Upgrading Software

Only This section describes how to upgrade the software on your existing hardware

using either automatic or manual recovery. If you are upgrading or replacing your

bridge/router, switch or main processor module (NETBuilder II), follow the

procedure in “Upgrading Hardware and Software” on page 44.

Automatic Recovery This section describes how to perform an upgrade of the Enterprise OS software

that does not include a hardware upgrade. See Chapter 3 for the memory

requirements for automatic recovery.

Whenever you specify an option with bcmsysupgrade, you must repeat that

option for all steps in the procedure. See Table 4 on page 40 or “bcmsysupgrade”

on page 81 for a list of the options available to use with the bcmsysupgrade utility.

To upgrade the bridge/router software to the default version, follow these steps:

1Back up your current software to the NMS using:

bcmsysupgrade [options] -s:from_nb <device>

where [-options] lets you specify the -EncryptionLicenseRead flag that indicates

you have read and understand the encryption license agreement notice and

<device> is the IP address or hostname of the bridge/router you are upgrading.

CAUTION: When upgrading to a package containing encryption, you must specify

the -EncyrptionLicenseRead option flag. If you attempt to upgrade to an

encrypted package and you have not specified the -EncryptionLicenseRead option,

the upgrade will fail.

The bcmsysupgrade utility only backs up the files in the primary boot source. To

archive both the primary and secondary boot sources, use bcmbackup instead of

bcmsysupgrade. See “bcmbackup” on page 73 for more information.

2NETBuilder II with CEC only — (The CEC module is not supported in software

version 11.3. However, you can use the utilities to upgrade your CEC module to

software version 10.1 or earlier.) If you are running CEC firmware versions 2.0 or

2.1, which are standard with NETBuilder II software versions 8.0, 8.1, and 8.2, you

must upgrade your CEC firmware before proceeding to the next step.

42 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

CAUTION: If you are running any other firmware version besides 2.0 or 2.1, you

should upgrade the firmware after upgrading the software.

To upgrade the CEC firmware, follow these steps:

aMake sure there is a floppy diskette with write access in the floppy drive on the

bridge/router. The diskette is formatted during the upgrade, so make sure that

the contents of the diskette you intend to use can be overwritten. Perform a

manually recoverable firmware upgrade using the option -m if you do not want

the floppy diskette formatted.

bUpgrade your firmware to version 2.6 using:

bcmsysupgrade -s:upgrade_cec_fw -V:<version you are upgrading to>

<device>

After the firmware has been upgraded, the bridge/router reboots.

3Update your configuration files using:

bcmsysupgrade -s:update <device>

4Copy the upgraded software to the bridge/router using:

bcmsysupgrade -s:to_nb <device>

5Test your new software using:

bcmsysupgrade -s:test_boot <device>

The bridge/router is rebooted, and the utilities confirm IP connectivity and that the

expected version of software is running.

6Verify that your upgrade completed successfully.

To verify that the software is working properly, you can perform a set of

operational integrity checks on the newly upgraded device. These may include:

■Some standard checks based on services active.

A basic service verification test can Ping to specific IP addresses.

■Connectivity checks based on network topology.

Examples of a connectivity verification include:

■Checking the connectivity between devices on different networks, through

designated bridge/routers.

■Testing typical device connections on terminals, printers, or hosts.

■Testing the connectivity with specific bridge/routers.

■Custom checks based on applications and typical network use.

For instance, you can check normal operation over the network and perform

file transfers, as well as run traces on specific routes or check routing tables.

7Accept or reject the upgrade.

■If your upgrade completed successfully, accept your upgrade using:

bcmsysupgrade -s:accept <device>

■If the upgrade process failed to meet your verification criteria, reject your

upgrade using:

bcmsysupgrade -s:reject <device>

The bridge/router is rebooted using the previous version of software.

Upgrading Software Only 43

8NETBuilder II with CEC only — (The CEC module is not supported in software

version 11.3. However, you can use the utilities to upgrade your CEC module to

software version 10.1 or earlier.) If the upgrade is successful, and if you have not

already done so in step 2, upgrade the CEC firmware by following these steps:

aMake sure there is a floppy diskette with write access in the floppy drive on the

bridge/router. Make sure that the contents of the diskette you intend to use

can be overwritten. Perform a manually recoverable firmware upgrade using

the option -m if you do not want the floppy diskette formatted.

bUpgrade your firmware to version 2.6 using:

bcmsysupgrade -s:upgrade_cec_fw -V:<version you are upgrading to>

<device>

After the firmware has been upgraded, the bridge/router reboots.

9NETBuilder II only — If the upgrade is successful, and the NETBuilder II

bridge/router has a multiport HSS module or an MP module, upgrade the

firmware for all these modules using:

bcmsysupgrade -s:upgrade_io_fw -m <device>

The bridge/router reboots after the firmware is upgraded.

Manual Recovery This section describes how to perform a software upgrade with manual recovery

of a bridge/router that does not include a hardware upgrade. See Chapter 3 for

the memory requirements for manual recovery.

Whenever you specify an option with bcmsysupgrade (such as -m), you must

repeat that option for all steps in the procedure. See Table 4 on page 40 or

“bcmsysupgrade” on page 81 for a list of the options available to use with the

bcmsysupgrade utility.

To upgrade the bridge/router, follow these steps:

1Back up your current software to the NMS using:

bcmsysupgrade [-options] -s:from_nb -m <device>

where [-options] lets you specify the -EncryptionLicenseRead flag that indicates

you have read and understand the encryption license agreement notice and

<device> is the IP address or hostname of the bridge/router you are upgrading.

CAUTION: When upgrading to a package containing encryption, you must specify

the -EncyrptionLicenseRead option flag. If you attempt to upgrade to an

encrypted package and you have not specified the -EncryptionLicenseRead option,

the upgrade will fail.

The bcmsysupgrade utility only backs up the files in the primary boot source. To

archive both the primary and secondary boot sources, use bcmbackup instead of

bcmsysupgrade. See “bcmbackup” on page 73 for more information.

2Update your configuration files using:

bcmsysupgrade -s:update -m <device>

3Copy the upgraded software to the bridge/router using:

bcmsysupgrade -s:to_nb -m <device>

4Accept your upgrade using:

bcmsysupgrade -s:accept -m <device>

44 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

The device reboots.

5Verify that your upgrade completed successfully.

To verify that the software is working properly, you can perform a set of

operational integrity checks on the newly upgraded device. These may include:

■Some standard checks based on services active.

A basic service verification test can Ping to specific IP addresses.

■Connectivity checks based on network topology.

Examples of a connectivity verification include:

■Checking the connectivity between devices on different networks, through

designated bridge/routers.

■Testing typical device connections on terminals, printers, or hosts.

■Testing the connectivity with specific NETBuilder bridge/router.

■Custom checks based on applications and typical network use.

For instance, you can check normal operation over the network and perform

file transfers, as well as run traces on specific routes or check routing tables.

6If you determine that the new software does not meet your requirements, you can

reject the upgrade and revert to the software version you were running before the

upgrade by using the bcmrestore utility.

To reject your upgrade, use:

bcmrestore <device>

7NETBuilder II only — If the upgrade is successful, and the NETBuilder II

bridge/router has a multiport HSS module or an MP module, upgrade the

firmware for all these modules using:

bcmsysupgrade -s:upgrade_io_fw -m <device>

The bridge/router reboots after the firmware is upgraded.

If the Bridge/Router or Switch Does Not Boot

If a failure causes the bridge/router or switch not to boot, or if the bridge/router or

switch is inaccessible using Telnet, you must configure the bridge/router at the

local console to reestablish IP connectivity. After connectivity is reestablished, you

can use the bcmrestore utility to return the bridge/router or switch to a

preupgrade state. See Chapter 7 for connectivity and recovery procedures.

Upgrading Hardware

and Software This section describes how to upgrade the software on a bridge/router on which

you are upgrading or replacing your bridge/router or switch or main processor

module (NETBuilder II) using either automatic or manual recovery. If you are

upgrading only the software, follow the procedure in “Upgrading Software Only”

on page 41.

Automatic Recovery This section describes how to perform a software and hardware upgrade with

automatic recovery. See Chapter 3 for the memory requirements for automatic

recovery.

Whenever you specify an option with bcmsysupgrade (such as -new_hw), you

must repeat that option for all steps in the procedure. See Table 4 on page 40 or

Upgrading Hardware and Software 45

“bcmsysupgrade” on page 81 for a list of the options available to use with the

bcmsysupgrade utility.

To upgrade the bridge/router software and hardware, follow these steps:

1Back up your current software to the NMS using:

bcmsysupgrade [options] -s:from_nb -new_hw <device>

where [-options] lets you specify the -EncryptionLicenseRead flag that indicates

you have read and understand the encryption license agreement notice and

<device> is the IP address or hostname of the bridge/router you are upgrading.

CAUTION: When upgrading to a package containing encryption, you must specify

the -EncyrptionLicenseRead option flag. If you attempt to upgrade to an

encrypted package and you have not specified the -EncryptionLicenseRead option,

the upgrade will fail.

The bcmsysupgrade utility only backs up the files in the primary boot source. To

archive both the primary and secondary boot sources, use bcmbackup instead of

bcmsysupgrade. See “bcmbackup” on page 73 for more information.

2NETBuilder II with CEC only — (The CEC module is not supported in software

version 11.1. However, you can use the utilities to upgrade your CEC module to

software version 10.1 or earlier.) If you are running CEC firmware versions 2.0 or

2.1, which are standard with NETBuilder II software versions 8.0, 8.1, and 8.2, you

must upgrade your CEC firmware before proceeding to the next step.

CAUTION: If you are running any other firmware version besides 2.0 or 2.1, you

should upgrade the firmware after upgrading the software.

To upgrade the CEC firmware, follow these steps:

aMake sure there is a floppy diskette with write access in the floppy drive on the

bridge/router. Make sure that the contents of the diskette you intend to use

can be overwritten. Perform a manually recoverable firmware upgrade using

the option -m if you do not want the floppy diskette formatted.

bUpgrade your firmware to version 2.6 using:

bcmsysupgrade -s:upgrade_cec_fw -V:<version you are upgrading to>

<device>

After the firmware has been upgraded, the bridge/router reboots.

3Update your configuration files using:

bcmsysupgrade -s:update -new_hw <device>

4Swap your hardware.

5Attach a console to the Console port on the bridge/router.

6Set up IP routing by following these steps:

aLog on to the bridge/router as root and press the Return key.

The password prompt is displayed.

bAt the password prompt, press the Return key.

The network manager prompt (Enterprise OS #) is displayed.

cSet up an IP address and subnet mask using:

SETDefault !<port> -IP NETaddr = <IP address> [<subnet mask>]

46 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

Where <port> is the port through which the bridge/router can be accessed by

the NMS.

dEnable IP routing by entering:

SETDefault -IP CONTrol = ROute

eEnable a route discovery protocol. For example, enable OSPF by using:

SETDefault !<port> -OSPF CONTrol = Enable

fCheck your configuration by pinging the bridge/router from the NMS:

ping <IP address>

Where <IP address> is the IP address of the bridge/router.

7Set up SNMP.

This guide does not describe in detail how to set up the SNMP Service. See Using

Enterprise OS Software and Reference for Enterprise OS Software for more

information.

To enable SNMP read/write access, you need to modify two parameters in the

SNMP Service: COMmunity and MANager.

aThe COMmunity parameter modifies the list of communities. For information

on how to use the COMmunity parameter, See Using Enterprise OS Software

and Reference for Enterprise OS Software.

By default all bridge/router configuration files are accessible to an SNMP-based

manager with read privileges. To change SNMP access to configuration files to

read/write for a network management station for a community named public,

enter:

ADD -SNMP COMmunity "public" RW

bWith the MANager parameter, create a new manager with read/write access to

the bridge/router. For security reasons, limit the number of network

management stations by entering the IP address of the network management

station that will have access. For example, enter:

ADD -SNMP MANager “sysadm” 129.213.224.1

8Copy the upgraded software to the bridge/router using:

bcmsysupgrade -s:to_nb -new_hw <device>

9Test your new software using:

bcmsysupgrade -s:test_boot -new_hw <device>

The bridge/router is rebooted, and the utilities confirm IP connectivity and that the

expected version of software is running.

10 Verify that your upgrade completed successfully.

To verify that the software is working properly, you can perform a set of

operational integrity checks on the newly upgraded device. These may include:

■Some standard checks based on services active.

A basic service verification test can Ping to specific IP addresses.

■Connectivity checks based on network topology.

Examples of a connectivity verification include:

■Checking the connectivity between devices on different networks, through

designated bridge/routers.

Upgrading Hardware and Software 47

■Testing typical device connections on terminals, printers, or hosts.

■Testing the connectivity with specific bridge/routers.

■Custom checks based on applications and typical network use.

For instance, you can check normal operation over the network and perform

file transfers, as well as run traces on specific routes or check routing tables.

11 Accept or reject the upgrade.

■If your software upgrade completed successfully, accept your upgrade using:

bcmsysupgrade -s:accept -new_hw <device>

■If the upgrade process failed to meet your verification criteria, reject your

upgrade using:

bcmsysupgrade -s:reject -new_hw <device>

The bridge/router is rebooted using the previous version of software.

12 NETBuilder II with CEC only — (The CEC module is not supported in software

version 11.1. However, you can use the utilities to upgrade your CEC module to

software version 10.1 or earlier.) If the upgrade is successful, and if you have not

already done so in step 2, upgrade the CEC firmware by following these steps:

aMake sure there is a floppy diskette with write access in the floppy drive on the

bridge/router. Make sure that the contents of the diskette you intend to use

can be overwritten. Perform a manually recoverable firmware upgrade using

the option -m if you do not want the floppy diskette formatted.

bUpgrade your firmware to version 2.6 using:

bcmsysupgrade -s:upgrade_cec_fw -V:<version you are upgrading to>

<device>

After the firmware has been upgraded, the bridge/router reboots.

13 NETBuilder II only — If the upgrade is successful, and the NETBuilder II

bridge/router has a multiport HSS module or an MP module, upgrade the

firmware for all these modules using:

bcmsysupgrade -s:upgrade_io_fw -m <device>

The bridge/router reboots after the firmware is upgraded.

Manual Recovery This section describes how to perform a software and hardware upgrade with

manual recovery. See Chapter 3 for the memory requirements for manual

recovery.

Whenever you specify an option with bcmsysupgrade (such as -m and -new_hw),

you must repeat that option for all steps in the procedure. See Table 4 on page 40

or “bcmsysupgrade” on page 81 for a list of the options available to use with the

bcmsysupgrade utility.

To upgrade the bridge/router, follow these steps:

1Back up your current software to the NMS using:

bcmsysupgrade [options] -s:from_nb -m -new_hw <device>

where [-options] lets you specify -EncryptionLicenseRead that indicates you have

read and understand the encryption license agreement notice and <device> is the

IP address or hostname of the bridge/router you are upgrading.

48 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

CAUTION: When upgrading to a package containing encryption, you must specify

the -EncyrptionLicenseRead option flag. If you attempt to upgrade to an

encrypted package and you have not specified the -EncryptionLicenseRead option,

the upgrade will fail.

The bcmsysupgrade utility only backs up the files in the primary boot source. To

archive both the primary and secondary boot sources, use bcmbackup instead of

bcmsysupgrade. See “bcmbackup” on page 73 for more information.

2Update your configuration files using:

bcmsysupgrade -s:update -m -new_hw <device>

3Upgrade your hardware.

4Attach a console to the Console port on the bridge/router.

5Set up IP routing by following these steps:

aLog on to the bridge/router as root and press the Return key.

The password prompt is displayed.

bAt the password prompt, press the Return key.

The network manager prompt (Enterprise OS #) is displayed.

cSet up an IP address and subnet mask using:

SETDefault !<port> -IP NETaddr = <IP address> [<subnet mask>]

Where <port> is the port through which the bridge/router can be accessed by

the NMS.

dEnable IP routing by entering:

SETDefault -IP CONTrol = ROute

eEnable a routing protocol. For example, enable RIP by using:

SETDefault !<port> -RIPIP CONTrol = (TAlk, LIsten)

fCheck your configuration by verifying that the bridge/router is accessible by

using the following at the network management station:

PING <IP address>

<IP address> is the IP address of the bridge/router.

6Set up SNMP.

This guide does not describe in detail how to set up the SNMP Service. See Using

Enterprise OS Software and Reference for Enterprise OS Software for more

information.

To enable SNMP read/write access, you need to modify two parameters in the

SNMP Service: COMmunity and MANager.

aThe COMmunity parameter modifies the list of communities. For information

on how to use the COMmunity parameter, see Using Enterprise OS Software

and Reference for Enterprise OS Software.

By default all configuration files are accessible to an SNMP-based manager

with read privileges. To change SNMP access to configuration files to read/write

for a network management station for a community named public, enter:

ADD -SNMP COMmunity "public" RW

bWith the MANager parameter, create a new manager with read/write access to

the bridge/router. For security reasons, limit the number of network

Upgrading Hardware and Software 49

management stations by entering the IP address of the network management

station that will have access.

For example, enter:

ADD -SNMP MANager “sysadm” 129.213.224.1

7Copy the upgraded software to the bridge/router using:

bcmsysupgrade -s:to_nb -m -new_hw <device>

8Accept your upgrade using:

bcmsysupgrade -s:accept -m -new_hw <device>

The bridge/router reboots.

9Verify that your upgrade completed successfully.

To verify that the software is working properly, you can perform a set of

operational integrity checks on the newly upgraded bridge/router. These may

include:

■Some standard checks based on services active.

A basic service verification test can Ping to specific IP addresses.

■Connectivity checks based on network topology.

Examples of a connectivity verification include:

■Checking the connectivity between devices on different networks, through

designated bridge/routers.

■Testing typical device connections on terminals, printers, or hosts.

■Testing the connectivity with specific NETBuilder bridge/routers.

■Custom checks based on applications and typical network use.

For instance, you can check normal operation over the network and perform

file transfers, as well as run traces on specific routes or check routing tables.

10 If you determine that the new software does not meet your requirements, you can

reject the upgrade, and revert to the software version you were running before

the upgrade, by using the bcmrestore utility.

To reject your upgrade, use:

bcmrestore -new_hw <device>

11 NETBuilder II only — If the upgrade is successful, and the NETBuilder II

bridge/router has a multiport HSS module or an MP module, upgrade the

firmware for all these modules using:

bcmsysupgrade -s:upgrade_io_fw -m <device>

The bridge/router reboots after the firmware is upgraded.

If the Bridge/Router or Switch Does Not Boot

If a failure causes the bridge/router not to boot, or if the bridge/router or switch is

inaccessible using Telnet, you must configure the bridge/router or switch at the

local console to reestablish IP connectivity. After connectivity is reestablished, you

can use the bcmrestore utility to return the bridge/router or switch to a

preupgrade state. See Chapter 7 for connectivity and recovery procedures.

50 CHAPTER 5: UPGRADING A BRIDGE/ROUTER USING THE COMMAND-LINE UTILITIES

6UPGRADING THE SOFTWARE IMAGE

ONLY

An image-only upgrade is an upgrade that replaces the NETBuilder bridge/router

or PathBuilder S5xx series switch boot image file but does not upgrade any

configuration files. You can perform an image-only upgrade in the following

cases:

■You are installing a patch release for your current version of software.

■You are upgrading to a different package of the same version.

■Your new version does not require updated configuration files (for example,

10.1 to 10.3).

■You are upgrading a PathBuilder S5xx series switch.

You can upgrade:

■Using Upgrade Link

■Using the Command-Line Utilities

■Using the Enterprise OS User Interface

You can also use Transcend Enterprise Manager or Transcend Network Control

Services to perform an image-only upgrade. See the guide that came with

Transcend for more information.

3Com recommends using the utilities instead of the Enterprise OS user interface.

The utilities automatically back up the software and perform all the necessary

copying and boot source settings automatically.

Preparing for the

Upgrade If you are using Upgrade Link or the command-line, confirm the following items:

■You have installed the utilities according to Chapter 2.

■You have set the path for the utilities (UNIX only). If you have not set the path,

complete the following step for your UNIX shell:

■For a C-shell installation, add the contents of the following file to the .cshrc

file for each user you want to have access to the utilities, including root:

/usr/3Com/common/data/.login-bcm

Or you can enter the path after every logon:

source /usr/3Com/common/data/.login-bcm

■For a Bourne shell installation, add the contents of the following file to the

.profile file for each user you want to have access to the utilities, including

root:

/usr/3Com/common/data/.profile-bcm

Or you can enter the path after every logon:

52 CHAPTER 6: UPGRADING THE SOFTWARE IMAGE ONLY

. /usr/3Com/common/data/.profile-bcm

■All configuration files are in the same directory as the boot image.

■You have booted your bridge/router or switch from the primary boot source.

■For Upgrade Link — You have a web browser installed with Java support, such

as Netscape Navigator 4.5 or Internet Explorer 4.x or later, and it is in your path

(UNIX).

■There is sufficient disk space on the NMS for the amount of software you are

installing.

Minimal disk storage requirements depend on the number of different

software versions that are stored on the disk drive. Calculate:

■6 MB for each version of NETBuilder II bridge/router images

■6 MB for each version of PathBuilder S5xx series switch images.

■4 MB for each version of SuperStack II, SuperStack II SI, or OfficeConnect

bridge/router images

While you must purchase one copy of software for each bridge/router or

switch, you only need to install one copy of a version of software on the NMS.

Setting Up a File

Transfer Method You can choose to transfer files using FTP or TFTP.

Setting up for TFTP File

Transfers To use TFTP, you need to set up your NMS in preparation for TFTP file transfers.

Make sure your TFTP server is running. On a Windows workstation, 3Com’s

3CServer is shipped along with the utilities. Upgrade Link launches 3CServer

during start up.

Specify the -tftp flag in all command line utilities which use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use TFTP file transfer. For

example, to specify TFTP file transfer use:

bcmsysupgrade -s:from_nb -tftp <device>

If neither flag is used, TFTP is used by default for software release 11.0 and lower,

but FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a NETBuilder bridge/router running software version 11.0 or lower,

the FTP password is overwritten with the following text string:

****

Setting up for FTP File

Transfers To use FTP, you need to set up your NMS in preparation for FTP file transfers.

For Upgrade Link, the user name and password is specified in the Setting Page, as

shown on page 23.

Using Upgrade Link 53

On a UNIX NMS, follow these steps:

1Create a user on your system with /tftpboot as the home directory.

2When using the upgrade utilities via the command line or the Transcend Upgrade

Manager, specify this user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

Specify the -ftp flag in all command line utilities that use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use FTP file transfer. For

example, to specify FTP file transfer use:

bcmsysupgrade -s:from_nb -ftp <device>

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a NETBuilder bridge/router running software version 11.0 or lower,

the FTP password is overwritten with the following text string:

****

On a Windows NMS, follow these steps:

1Create a user in 3Com’s 3CServer FTP settings.

2When using the upgrade utilities via command line or the Transcend Upgrade

Manager, specify the ftp user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

You can specify the -ftp flag in the utilities (bcmsysupgrade, bcmbackup,

bcmrestore) if you want to use FTP file transfer.

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a NETBuilder bridge/router running software version 11.0 or lower,

the FTP password is overwritten with the following text string:

****

Using Upgrade Link Upgrade Link contains its own web server. Client access to the web server is

available locally or remotely via a web browser. Running the Upgrade Link

application locally means that the web browser and the web server are running on

the same NMS.

See Chapter 4 for information on starting and using the Upgrade Link application.

54 CHAPTER 6: UPGRADING THE SOFTWARE IMAGE ONLY

Verifying the

Bridge/Router for

Upgrading

Before upgrading, run the diagnostic utility in Upgrade Link to verify connectivity

to the bridge/router by following these steps:

1Choose a bridge/router or switch from the pop-up list in the Console page, or click

New to enter the IP address or hostname. The pop-up list contains bridge/routers

or switches that you have upgraded or backed-up before.

2Select Verify Upgrade Services (Diagnose) and click Apply.

The Settings Page appears. Select the appropriate settings and click OK to close

the window.

The Status page appears showing the results of the diagnostic tests.

3If the Status page shows a failure, check the SNMP read/write community string

and FTP/TFTP server settings.

If the Status page shows a success, click Home to continue with the upgrade and

return to the console page.

Upgrading the Image To upgrade the image, follow these steps:

1Run Upgrade Link if you have not already done so.

2Choose a bridge/router or switch from the pop-up list in the Console page, or click

New to enter the IP address or hostname. The pop-up list contains bridge/routers

or switches that you have upgraded or backed-up before.

Using Upgrade Link 55

3Select Upgrade and click Apply.

The Upgrade page appears.

4Select a software package from the pop-up list. The list includes all packages you

have installed on the NMS for your platform. If your package is not listed, install

the software using the procedure in “Installing the Utilities on a Network

Management Station” on page 13.

CAUTION: If you select a NETBuilder bridge/router or PathBuilder switch software

package that includes encryption, a message regarding the license agreement

appears. To proceed with the installation you must accept this agreement.

The Upgrade window shows information about your system, including the flash

memory requirements for a manual or automatic recovery upgrade.

5Click Next.

6The recommended upgrade method is selected based on the amount of memory

you have installed. If you do not wish to perform a customized upgrade, go to

step 12.

CAUTION: If you override the Upgrade Link selection, your upgrade may fail.

56 CHAPTER 6: UPGRADING THE SOFTWARE IMAGE ONLY

7Click on the Advanced button if you want to customize the upgrade process, that

is you do not want to perform all of the upgrade at this time.

The Advanced Dialog box appears.

8Click New Hardware if you are replacing your bridge/router with a new system. For

example, click New Hardware if you are replacing the CEC module with a DPE

module.

You cannot upgrade to a different platform. For example, you can only upgrade

an OfficeConnect bridge/router to an OfficeConnect bridge/router. You cannot

upgrade a SuperStack II NETBuilder bridge/router to a SuperStack II NETBuilder SI

bridge/router. The only exception is an upgrade from a NETBuilder II CEC module

to a DPE module.

9If you want to alter the Reboot Timeout, enter a new number in the box. The

default setting is appropriate for most networks.

10 Click the check box for each of the stages you want to complete in the current

operation.

11 Click OK.

12 Click Apply to begin the upgrade.

The Status page appears.

13 If you are performing a hardware upgrade, replacing a CEC module with a DPE

module for example, a message to replace the hardware appears after the

software has been backed up to the NMS. Replace the hardware at this time.

14 When the upgrade is complete, the bridge/router reboots from the new software.

If the boot is not successful:

■For automatic recovery, the bridge/router reboots from the old software.

■For manual recovery, you must configure the bridge/router at the local

console to reestablish IP connectivity. Once connectivity is established, you can

restore the software to return the bridge/router to a preupgrade state. See

Chapter 7 for the procedure to restore connectivity and the software.

15 Click Home then Exit to exit Upgrade Link.

Using the Command-Line Utilities 57

Using the

Command-Line

Utilities

Use the command-line utilities within a script or execute the commands manually.

Otherwise, use Upgrade Link as described on page 53.

Installing the NETBuilder

Software You can upgrade from a CD-ROM, a tar file, or an image you have downloaded

from 3Com. If you are installing the software from a CD-ROM, complete the

procedure in “Installing the Software on the NMS” on page 37.

You can choose to transfer files using FTP or TFTP. Complete the procedure in

“Setting Up a File Transfer Method” on page 17.

Prediagnosing System

Problems Detect any problems with SNMP or FTP/TFTP connectivity using:

bcmdiagnose <device>

Where <device> is the IP address or hostname of the bridge/router you are

diagnosing.

Upgrading Using

Automatic Recovery To perform an image-only upgrade using automatic recovery, follow these steps.

See Chapter 3 for the memory requirements for automatic recovery.

Whenever you specify an option with bcmsysupgrade, you must repeat that

option for all steps in the procedure.

1Back up your current software to the NMS using:

bcmsysupgrade [-options] -s:from_nb -I -V:<software version> <device>

where [-options] lets you specify the EncryptionLicenseRead option that indicates

you have read and understand the encryption license agreement notice and

<device> is the IP address or hostname of the bridge/router or switch you are

upgrading.

CAUTION: When upgrading to a package containing encryption, you must specify

the -EncyrptionLicenseRead option flag. If you attempt to upgrade to an

encrypted package and you have not specified the -EncryptionLicenseRead option,

the upgrade will fail.

2Copy the configuration files into the new software directory on the NMS using:

bcmsysupgrade -s:update -I -V:<software version> <device>

3Copy the upgraded software to the bridge/router using:

bcmsysupgrade -s:to_nb -I -V:<software version> <device>

4Test your new software using:

bcmsysupgrade -s:test_boot -I -V:<software version> <device>

The bridge/router is rebooted, and the utilities confirm IP connectivity and that the

expected version of software is running.

5Verify that your upgrade completed successfully.

To verify that the software is working properly, you can perform a set of

operational integrity checks on the newly upgraded network. These may include:

■Some standard checks based on services active.

A basic service verification test can Ping to specific IP addresses.

■Connectivity checks based on network topology.

58 CHAPTER 6: UPGRADING THE SOFTWARE IMAGE ONLY

Examples of a connectivity verification include:

■Checking the connectivity between devices on different networks, through

designated bridge/routers.

■Testing typical device connections on terminals, printers, or hosts.

■Testing the connectivity with specific bridge/routers or switches.

■Custom checks based on applications and typical network use.

For instance, you can check normal operation over the network and perform

file transfers, as well as run traces on specific routes or check routing tables.

6Accept or reject the upgrade.

■If your software upgrade completed successfully, accept your upgrade using:

bcmsysupgrade -s:accept -I -V:<software version> <device>

■If the upgrade process failed to meet your verification criteria, reject your

upgrade using:

bcmsysupgrade -s:reject -I -V:<software version> <device>

The bridge/router or switch is rebooted using the previous version of software.

Upgrading Using

Manual Recovery To perform an image-only upgrade using manual recovery, follow these steps. See

Chapter 3 for the memory requirements for manual recovery.

Whenever you specify an option with bcmsysupgrade, you must repeat that

option for all steps in the procedure.

1Back up your current software to the NMS using:

bcmsysupgrade [-options] -s:from_nb -m -I -V:<software version> <device>

where [-options] lets you specify the EncryptionLicenseRead option that indicates

you have read and understand the encryption license agreement notice and

<device> is the IP address or hostname of the bridge/router you are upgrading.

CAUTION: When upgrading to a package containing encryption, you must specify

the -EncyrptionLicenseRead option flag. If you attempt to upgrade to an

encrypted package and you have not specified the -EncryptionLicenseRead option,

the upgrade will fail.

2Copy the configuration files into the new software directory on the NMS using:

bcmsysupgrade -s:update -m -I -V:<software version> <device>

3Copy the new software to the bridge/router using:

bcmsysupgrade -s:to_nb -m -I -V:<software version> <device>

4Accept the upgrade using:

bcmsysupgrade -s:accept -I -m -V:<software version> <device>

The bridge/router reboots.

5Verify that your upgrade completed successfully.

To verify that the software is working properly, you can perform a set of

operational integrity checks on the newly upgraded network. These may include:

■Some standard checks based on services active.

A basic service verification test can Ping to specific IP addresses.

Using the Enterprise OS User Interface 59

■Connectivity checks based on network topology.

Examples of a connectivity verification include:

■Checking the connectivity between devices on different networks, through

designated bridge/routers or switches.

■Testing typical device connections on terminals, printers, or hosts.

■Testing the connectivity with specific bridge/routers or switches.

■Custom checks based on applications and typical network use.

For instance, you can check normal operation over the network and perform

file transfers, as well as run traces on specific routes or check routing tables.

6If you determine that the new software does not meet your requirements, you can

reject the upgrade, and revert to the software version you were running before

the upgrade, by using the bcmrestore utility.

To reject your upgrade, use:

bcmrestore <device>

Using the

Enterprise OS User

Interface

If you have not installed the utilities, you can copy the boot image to the

bridge/router or switch using the Enterprise OS user interface. To copy the boot

image to the bridge/router or switch, follow these steps:

1Install the software on a FTP/TFTP server on the LAN.

2Attach a console or Telnet to the bridge/router or switch.

3Log in with Network Manager privilege.

4Change to the primary boot source directory using:

ChangeDir [<device>:]<path>

The default device is drive A.

5Complete one of the following procedures:

■If you have enough room on the bridge/router for both the current and new

image files, change the name of the current boot image using:

ReName <image name> <new name>

For example:

ReName boot.68k oldboot

■If you do not have enough room on the bridge/router for both images, copy

the current image to the FTP/TFTP server for backup using:

COpy <image name> <IP address of server>:<path/>

Then delete the image on the bridge/router or switch using:

RemoveFile <image name>

6Copy the new boot file from the FTP/TFTP server to the current (primary boot)

directory using:

COpy <IP address of server>:<path/><image name>

For example:

COpy 129.142.10.10:image/NBSI/SW/110/CF/boot.68k boot.68k

60 CHAPTER 6: UPGRADING THE SOFTWARE IMAGE ONLY

7Reboot the system by entering:

ReBoot

If the reboot is unsuccessful, the bridge/router or switch enters the monitor utility.

Boot from the old boot file using:

BT /<path>/<old name>

For example:

BT /primary/oldboot

7BACKING UP AND RESTORING

SOFTWARE

You should always back up your software and configuration files to a network

management station (NMS) in case your hardware or software fails. This chapter

describes how to back up and restore the software using Upgrade Link or the

command-line utilities.

Prerequisites Confirm the following items:

■You have installed the utilities according to Chapter 2.

■You have set the path for the utilities (UNIX only). If you have not set the path,

complete the following step for your UNIX shell:

■For a C-shell installation, add the contents of the following file to the .cshrc

file for each user you want to have access to the utilities, including root:

/usr/3Com/common/data/.login-bcm

Or you can enter the path after every logon:

source /usr/3Com/common/data/.login-bcm

■For a Bourne shell installation, add the contents of the following file to the

.profile file for each user you want to have access to the utilities, including

root:

/usr/3Com/common/data/.profile-bcm

Or you can enter the path after every logon:

. /usr/3Com/common/data/.profile-bcm

■For NETBuilder II with DPE — All boot sources (primary, secondary, and test) are

on drive A. The DPE module has flash memory drives A and B, but the

NETBuilder Upgrade Management Utilities only support drive A. Use the

bcmconfig utility or the SysconF command on the NETBuilder II user interface

to set up the boot sources if they are not on drive A.

■All configuration files are in the same directory as the boot image.

■You have booted your bridge/router from the primary boot source.

■For Upgrade Link — You have a web browser installed with Java support, such

as Netscape Navigator 4.5 or Internet Explorer 4.x, and it is in your path (UNIX).

62 CHAPTER 7: BACKING UP AND RESTORING SOFTWARE

Setting Up a File

Transfer Method You can choose to transfer files using FTP or TFTP.

Setting Up for TFTP File

Transfers To use TFTP, you need to set up your NMS in preparation for TFTP file transfers.

Make sure your TFTP server is running. On a Windows workstation, 3Com’s

3CServer is shipped along with the utilities. Upgrade Link launches 3CServer

during start up.

Specify the -tftp flag in all command line utilities which use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use TFTP file transfer. For

example, to specify TFTP file transfer use:

bcmsysupgrade -s:from_nb -tftp <device>

If neither flag is used, TFTP is used by default for software release 11.0 and lower,

but FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a NETBuilder bridge/router running software version 11.0 or lower,

the FTP password is overwritten with the following text string:

****

Setting Up for FTP File

Transfers To use FTP, you need to set up your NMS in preparation for FTP file transfers.

For Upgrade Link, the user name and password is specified in the Setting Page, as

shown on page 23.

On a UNIX NMS, follow these steps:

1Create a user on your system with /tftpboot as the home directory.

2When using the upgrade utilities via the command line or the Transcend Upgrade

Manager, specify this user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

Specify the -ftp flag in all command line utilities that use file transfers

(bcmsysupgrade, bcmbackup, bcmrestore) if you want to use FTP file transfer. For

example, to specify FTP file transfer use:

bcmsysupgrade -s:from_nb -ftp <device>

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a NETBuilder bridge/router running software version 11.0 or lower,

the FTP password is overwritten with the following text string:

****

Backing Up the Software 63

On a Windows NMS, follow these steps:

1Create a user in 3Com’s 3CServer FTP settings.

2When using the upgrade utilities via command line or the Transcend Upgrade

Manager, specify the ftp user name and password in the BCMFTPUSER and

BCMFTPPASS environment variables.

You can specify the -ftp flag in the utilities (bcmsysupgrade, bcmbackup,

bcmrestore) if you want to use FTP file transfer.

If no flag is used, TFTP is used by default for software release 11.0 and lower, but

FTP is used by default for software release 11.1 and higher. If the -ftp flag is

specified on a NETBuilder bridge/router running software version 11.0 or lower,

the FTP password is overwritten with the following text string:

****

Backing Up the

Software Back up your software using Upgrade Link or the command-line utilities.

Using NETBuilder

Upgrade Link Upgrade Link is an easy to use GUI for the utilities that runs in a web browser. See

Chapter 4 for information on running Upgrade Link locally or remotely. Make sure

you select and set up your file transfer method.

Using the Command

Line Utilities You can use the command-line utilities if you want to write scripts or if you do not

have a web browser on your NMS. See “Upgrading a Bridge/Router Using the

Command-Line Utilities”on page 63 for information on using the command-line

utilities. Make sure you select and set up your file transfer method.

Verifying the Device for

Backing Up Before backing up, run the diagnostic utility in Upgrade Link to verify connectivity

to the device by following these steps:

1Choose a bridge/router from the pop-up list in the Console page, or click New to

enter the IP address or hostname. The pop-up list contains devices that you have

upgraded or backed-up before.

64 CHAPTER 7: BACKING UP AND RESTORING SOFTWARE

2Select Verify Upgrade Services (Diagnose).

A Status window appears showing the results of the diagnostic tests.

3If the Status window shows a failure, check the SNMP read/write community

string for FTP/TFTP file transfer permissions.

If the Status window shows a success, click Home to continue with the backup.

Backing Up the Software

To back up the software, follow these steps:

1Run Upgrade Link if you have not already done so.

2Choose a bridge/router from the pop-up list in the Console page, or click New to

enter the IP address or hostname. The pop-up list contains bridge/routers that you

have upgraded or backed-up before.

3Select Backup and click Apply.

The Settings page appears.

4Select the appropriate settings and click OK.

The Backup page appears.

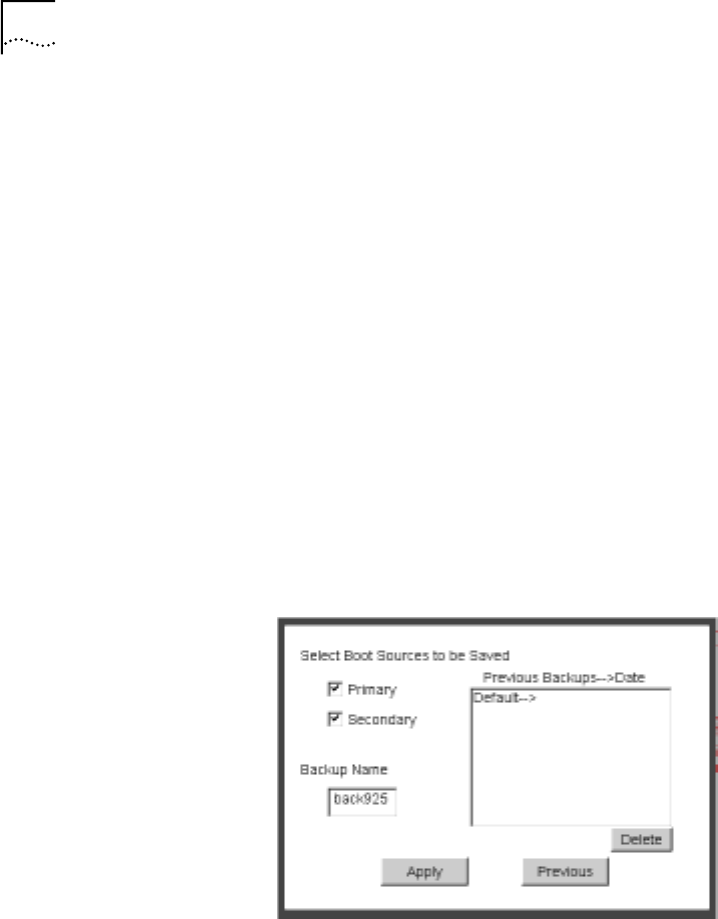

5Select the boot source you want to back up.

The box on the right shows information about the previous backups.

Assign a name to the current backup by entering a name in the edit box. Names

can be only eight characters long and may only contain alphanumeric characters.

6Click Apply to begin the backup.

The Status window shows when the backup is complete.

7Click Home then Exit to exit Upgrade Link.

Using the

Command-Line Use the command-line utilities if you have a script or if you do not have a web

browser. Otherwise, use Upgrade Link as described on page 63.

Prediagnosing System Problems

Detect any problems with SNMP or FTP/TFTP connectivity using:

bcmdiagnose [-ftp | -tftp] [<device> | -h]

Where <device> is the IP address or hostname of the bridge/router or switch you

are diagnosing.

Backing Up the Software 65

If bcmdiagnose shows a failure, check the SNMP read/write community string for

FTP/TFTP file transfer permissions.

Backing Up the Software

To back up your software to an NMS, use:

bcmbackup [both | primary | secondary] [-name:<backname>]<device>]

Values

Directory Paths All backups and upgrades use the following directory paths.

For UNIX:

/tftpboot/CLIENTS/<mac_address>/bcm/<backname><directory name on

bridge/router>/

For example:

/tftpboot/CLIENTS/0800020A399E/bcm/name/primary/

For Windows:

\%tftpboot%\CLIENTS\<mac_address>\bcm\<backname>\<directory name on

bridge/router>\

For example:

\tftpboot\CLIENTS\0800020A399E\bcm\name\primary\

Values

both Backs up both the primary and secondary boot source. This

value is the default.

primary Backs up the primary boot source.

secondary Backs up the secondary boot source.

<backname> Specifies the name of the backup for the boot blocks.

<device> The IP address or hostname of the bridge/router.

tftpboot For UNIX: Directory specified in inetd or tftpd for tftpd files.

%tftpboot% For Windows (using the default 3Com TFTP server): Directory

specified in the Win.ini file in the “[3Com.nm] TFTPROOT=”

section. The Win.ini file is located in the default Windows

directory, for example C:\windows or C:\winnt4.

CLIENTS Name of the directory.

<mac_ address> The MAC address of the bridge/router or switch.

<directory name

on bridge/router> The name of the boot directory on the bridge/router or

switch. If the primary boot source is set to “/,” the name of

the current version of software is used instead. If the

secondary boot source is set to “/,” then the directory is

called “secondar”.

66 CHAPTER 7: BACKING UP AND RESTORING SOFTWARE

Restoring Software

from a Backup If your bridge/router fails, you can restore software from a backup on the NMS. If

your hardware fails or you lose IP and SNMP configuration, you must first

reconfigure IP and SNMP on the bridge/router. If you still have connectivity, go to

“Restoring the Software Using Upgrade Link” on page 68 or “Restoring the

Software Using the Command-Line” on page 69.

Configuring IP Routing If the bridge/router failure interrupted IP connectivity, you must set up IP routing

before restoring software.

To set up IP routing, follow these steps:

1Attach a console to the Console port on the bridge/router.

2Log on as root and press the Return key.

The password prompt is displayed.

3At the password prompt, press the Return key.

The network manager prompt (Enterprise OS #) is displayed.

4Set up an IP address and subnet mask using:

SETDefault !<port> -IP NETaddr = <IP address> [<subnet mask>]

For more information on IP configuration, see Using Enterprise OS Software.

5Enable IP routing by entering:

SETDefault -IP CONTrol = ROute

6Enable a routing protocol. For example, enable OSPF using:

SETDefault !<port> -OSPF CONTrol = Enable

7Ensure your configuration by verifying that the bridge/router is accessible from the

NMS using:

PING <IP address>

Where <IP address> is the IP address of the bridge/router.

Configuring SNMP This chapter does not describe in detail how to set up the SNMP Service. See Using

Enterprise OS Software and Reference for Enterprise OS Software for more

information.

To enable SNMP read/write access, you need to modify two parameters in the

SNMP service: Community Manager and Manager.

1The Community Manager parameter modifies the list of communities. For

information on how to use the COMmunity parameter, see Using Enterprise OS

Software and Reference for Enterprise OS Software.

By default all bridge/router configuration files are accessible to an SNMP-based

manager with read privileges. To change SNMP access to configuration files to

read/write for a network management station with a community named “public,”

enter:

ADD -SNMP COMmunity “public” RW

Restoring Software from a Backup 67

2With the Manager parameter, create a new manager with read/write access to the

bridge/router. For security reasons, limit the number of network management

stations by entering the IP address of the network management station that will

have access. For example, enter:

ADD -SNMP Manager “sysadm” 129.213.224.1

Mapping Hostnames Using the etc/snmp.cfg File

/etc/snmp.cfg is used to configure a mapping between hostnames and/or IP

addresses and SNMP community strings. If the NETBuilder bridge/routeris

configured to accept a community string other than "public", you need to update

this file with the new community string. Follow the examples in the file when

adding your own entries.

The following is an example file showing how community strings are mapped to a

device.

#

# This file indicates which community strings are to be used

# with a particular device. Follow the examples below

# Timeout values are given in seconds.

#

# Name read write Timeout [Platform]

# foo public private 10 netbuilder

#

# [platform] is optional, and must be one of:

# netbuilder

# netbuilder2

# netbuilderro

# netbuilder+

# lanplex5004

# lanplex5012

# lanplex6004

# lanplex6004R4

# lanplex6012

# lanplex6012R4

# lanplex2500

# lanplex2016

# fms

# fmsII

# fmsbridge

# fmstp8i

# linkswitch

# linkswitch1000

# linkswitch2200

# linkswitch3000

# msh

# msh4bridge

# mshfddi

# mshlinkswitch

# mshtrbridge

# linkconverter

#

# Example:

# 192.0.10.4 private private 10

68 CHAPTER 7: BACKING UP AND RESTORING SOFTWARE

Restoring the Software

Using Upgrade Link Upgrade Link is an easy to use GUI for the utilities that runs in a web browser.

Upgrade Link is an easy to use GUI for the utilities that runs in a web browser. See

Chapter 4 for information on running Upgrade Link locally or remotely. Make sure

you select and set up your file transfer method.

Verifying the Device for Restoring

Before restoring, you should run the diagnostic utility in Upgrade Link to verify

connectivity to the bridge/router or switch by following these steps:

1Choose a device from the pop-up list in the Console page, or click New to enter

the IP address or hostname. The pop-up list contains bridge/routers that you have

upgraded or backed-up before.

2Select Verify Upgrade Services (Diagnose) then click Apply.

A Status window appears showing the results of the diagnostic tests.

3If the Status window shows a failure, check the SNMP read/write community

string for TFTP file transfer permissions.

If the Status window shows a success, click Home to continue with the

restoration.

Restoring the Software

To restore the software, follow these steps:

1Access Upgrade Link if you have not already done so.

2Choose a bridge/router or switch from the pop-up list in the Console page, or click

New to enter the IP address or hostname. The pop-up list contains bridge/routers

and switches that you have upgraded or backed-up before.

Restoring Software from a Backup 69

3Select Restore and click Next.

The Setting page appears.

4Select the appropriate settings and click OK.

The Restore page appears.

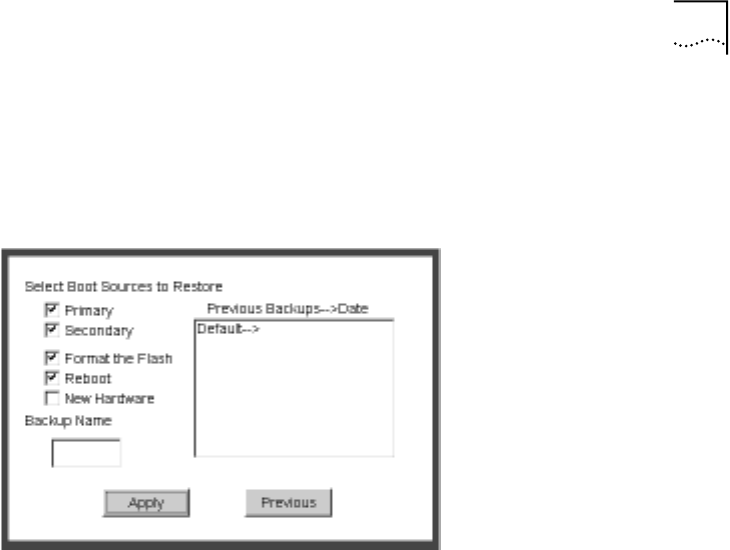

5Select the boot source you want to restore.

The boxes on the right show information about the backups, including the names

directories and dates. You can select a backup by double-clicking it, or by entering

the name in the edit box.

6Check the appropriate options:

■Format the Flash — formats the flash memory before restoring the software. If

you uncheck this option, Upgrade Link will attempt to restore the software in

the available space. If there is not enough space for the image, the restoration

will fail.

■Reboot — automatically reboots when the restoration is complete.

■New Hardware — must be checked if you are replacing the hardware.

7Click Apply to begin the restoration.

The Status window shows when the restoration is complete.

8Click Home then Exit to exit Upgrade Link.

Restoring the Software

Using the

Command-Line

Use the command-line utilities if you have a script or if you do not have a web

browser. Otherwise, use Upgrade Link as described on page 68.

Prediagnosing System Problems

Detect any problems with SNMP or TFTP connectivity using:

bcmdiagnose [ -ftp | -tftp] [<device> | -h]

Where <device> is the IP address or hostname of the bridge/router you are

diagnosing.

If bcmdiagnose shows a failure, check the SNMP read/write community string for

FTP/TFTP file transfer permissions.

Restoring the Software

If you are replacing the hardware, restore the software using:

70 CHAPTER 7: BACKING UP AND RESTORING SOFTWARE

bcmrestore -new_hw [ -<backname>] <device>

If you are not replacing the hardware, use:

bcmrestore [ -<backname>] <device>

Where <backname> is the name of the backup for the boot blocks.

8REFERENCE FOR THE

UPGRADE MANAGEMENT UTILITIES

This chapter describes the syntax and options for each utility, as well as how to

download the utilities, and where they are installed on your system.

Accessing and

Downloading the

Utilities

The Upgrade Management Utilities are provided on CD-ROM with every

Enterprise OS software package. See Chapter 2 to install the utilities from

CD-ROM.

The upgrade utilities are installed into the directory /usr/3Com/bcm/.

Downloading the

Utilities You can download the latest utilities from the following locations:

■FTP — ftp.3Com.com

■World Wide Web — http://www.infodeli.3Com.com/

■3Com Bulletin Board Service (3ComBBS) — See Appendix D for local BBS

numbers.

See the ruu112.txt file accompanying the utilities for instructions on

decompression and installation of the utilities.

Downloading UNIX Files

The UNIX files compressed with the UNIX compress utility. To use the downloaded

files, you must first expand the files using the UNIX decompress utility. For

instructions on how to download and decompress the utilities, see the

ruu111.txt file.

The following are the UNIX files:

Downloading Windows Files

The Windows files are compressed with a compression utility. To use the

downloaded files, you must first expand them using the decompress utility

PKUNZip. PKUNZip can be downloaded from the following URLs:

■http://www.pkware.com/

or

■http://infodeli.3com.com/infodeli/swlib

ruusol113.Z Contains the utilities for Solaris 2.x.

ruuhp113.Z Contains the utilities for HP-UX 9.0.5, 10.10, and 10.20.

ruuaix113.Z Contains the utilities for IBM AIX 3.2.5, 4.1.4, and 4.2.

ruu112.txt Contains the instructions for downloading and decompressing

the utilities.

72 CHAPTER 8: REFERENCE FOR THE UPGRADE MANAGEMENT UTILITIES

For instructions on how to decompress and install the utilities, see the

ruu110.txt file.

The following are the Windows files:

Update Log File The bcmsysupgrade utility creates log files in the

tftpboot/CLIENTS/<mac_address>/tmp directory. These log files include the

following:

■bcmsysupgrade.log.<stage> — contains a detailed listing of transactions

executed for a stage.

■stages.log — contains a history of bcmsysupgrade, bcmbackup, and

bcmrestore commands for all successfully completed stages and operations.

This file acts as an upgrade record of completed stages, and includes the date

and time of execution.

■bcmupdate.log — contains a list of the configuration files converted during

the upgrade process. The file contains all stderr and stdout text, the log and

stage files. This file is appended to the bcmsysupgrade.log file when the

upgrade procedure is completed.

Utility Descriptions

and Syntax This section describes each of the Upgrade Management Utilities as well as the

syntax and options. The error codes for individual Enterprise OS Upgrade

Management Utilities are accessible in the man pages for the utilities. Utilities are

in alphabetical order.

Overview Table 5 summarizes the functions of the upgrade utilities.

ruu113.zip Contains the utilities for Windows95, Window98, and

Windows NT 4.0.

ruu113.txt Contains the instructions for downloading and decompressing

the utilities.

Table 5 Network Management Utilities Functions

Utility Function

bcmbackup Backs up the current bridge/router operational state and files to the network

management station.

bcmconfig Manages the bridge/router boot source parameters.

bcmctrl Manipulates the bridge/router boot sources. Performs booting-related

functions. Queries or waits on file transfer states.

bcmdf Checks the media and displays the amount of used and free space.

bcmdiagnose Identifies the most common network management station installation and

bridge/router configuration problems.

bcmftp Sets the FTP username and password and initializes the FTP client on the

bridge/router.

bcminstall Installs bridge/router software and firmware on a network management

station.

bcmloadconfig Allows you to execute commands in a text file.

(continued)

Utility Descriptions and Syntax 73

Getting Help

Help is available in HTML or (UNIX) man pages.

Man Pages On a UNIX system, access the man pages by entering:

man bcm-intro

To access the man pages for a specific utility, use:

man <NMU_name>

where <NMU_name> is the name of the upgrade utility.

HTML Help To access the HTML help, enter the following URL in your browser:

/usr/3Com/bcm/gui/hlp/bcm-intro.html

Or to access help for a specific utility, use:

/usr/3Com/bcm/gui/hlp/<utility>.html

bcmbackup

Syntax bcmbackup [both | primary | secondary] <-ftp | -tftp> [-name: <backname>]

<device>

Description You can use this utility to prepare a network management station as a secondary

boot source, to archive the configuration as a backup copy, to obtain a baseline

configuration, or to perform an off-line configuration. The bcmbackup utility

copies the primary and secondary boot sources from a bridge/router or switch to a

network management station. The bcmbackup utility can be used instead of the

-s:from_nb stage of bcmsysupgrade, which captures only the primary boot source.

You can assign names to the backup directories, which allows you to maintain

multiple backups of the primary and secondary boot blocks. This symbolic name is

applicable to both the primary and secondary boot blocks. The default boot block

names are supported to maintain backward compatibility.

bcmrestore Restores a bridge/router to a previous operational state by copying files from

the network management station to the bridge/router and setting the boot

sources.

bcmsetup Places the latest version of the Enterprise OS Upgrade Management Utilities

on the network management station. Integrates the Upgrade Management

Utilities with Transcend.

bcmsysupgrade Performs all upgrade functions on NETBuilder bridge/routers and PathBuilder

Switches.

bcmuname Displays general information about the bridge/router.

bcmupdate Converts configuration files on the network management station for use with

a newer version of software.

UpgradeLink Launches Upgrade Link.

Table 5 Network Management Utilities Functions (continued)

Utility Function

74 CHAPTER 8: REFERENCE FOR THE UPGRADE MANAGEMENT UTILITIES

Values

Options No available options.

Example For example, to backup the primary boot block as MyBackup01 using FTP, enter:

bcmbackup primary -ftp -name:MyBackup01 199.199.199.2

bcmconfig

Syntax bcmconfig <device>[:<slot>] [<boot_source>] [options]

Description The bcmconfig utility performs EEPROM configuration of the device and retrieves

or sets the following parameters for each boot source:

■Path and name for load image

■Path and name for configuration files

The bcmconfig utility does not alter the running state of the bridge/router or

switch. It only determines what happens the next time the bridge/router or switch

is rebooted. The utility also detects the following error and warning conditions:

■Files/paths not present locally to the box or locally to this server.

■Inconsistency with other configurations in other blocks (such as subnet masks).

Values

Options Where <boot source> is master, the [options] are:

both Default value, which backs up both the primary and

secondary boot sources.

primary Backs up the primary boot source.

secondary Backs up the secondary boot source.

<device> Indicates the IP address or hostname of the bridge/router.

<-ftp | -tftp> Specifies the file transfer protocol to be used in the backup

process.

<backname> Specifies the name to be given to the backup file of the

boot blocks.

<device> Indicates the name or IP address of the bridge/router.

<slot> Indicates the slot number of an I/O module. (Use options marked

with *.)

<boot_source> Designates type of boot source: master, primary, secondary, test,

dump, or all.

-st[artup (once |Attempts to boot once.

forever |Attempts to boot forever.

local) Forces boot from local media.

Utility Descriptions and Syntax 75

Where <boot source> is primary, secondary, test, or dump, the [options] are:

bcmctrl

Syntax bcmctrl <device>[:<slot>] [-<option>[:<value>]]

Description The bcmctrl utility does the following tasks:

■Reboots a bridge/router. This follows a normal boot sequence, where the load

image and configuration files are found in the primary boot source.

■Performs a test reboot.

■Copies all the parameters in the test boot source to the primary boot source.

■Reports reboot and file transfer states.

■Reboots a specified multiprocessor module.

-configp[ath]:<file_path> Path to the configuration files.

-fi[le]:<file_name>* Name of boot file.

-bo[otdevice]: (network | Boots from network.

localA | Boots from local media A.

localB) Boots from local media B.

-configd[evice]: (bootdevice | Depends on -bootdevice.

local | Local media configuration.

network) Network configuration.

-fo[rmat]:(canonical | noncanonical) Address format.

-cl[ock]:(internal | external) Internal/external clocking.

-conn[ector]:(v35 | rs232) Connector type.

-ba[udrate]: <9.6KB | 19.2KB | 38.4KB | 56KB | 64KB |

128KB | 256KB | 448KB | 1536KB | 2048KB |

4MB | 16MB>

-sl[ot]:1..8 Boot slot.

-in[terface]:(a | b) Interface number.

-pa[ssword]:<wan_password> A character string from 0–5 characters.

-di[scovery]:(<localaddr> | <bootp>) Address discovery.

-ga[teway]:<IPADDRESS> Default gateway IP address.

-lo[calip]:<IPADDRESS> Bridge/router IP address.

-se[rver]:<IPADDRESS> TFTP boot server IP address.

-cf[gserver]:<IPADDRESS> Server where configuration files are stored.

-ma[sk]:<IPADDRESS> Bridge/router subnet mask.

-notraps Disables the sending of SNMP traps useful

during upgrading.

-re[tries]:0..255 Number of retries from 0–255.

-traps Enables the sending of SNMP traps; useful

after upgrade completes.

76 CHAPTER 8: REFERENCE FOR THE UPGRADE MANAGEMENT UTILITIES

Values

Options

The options marked with an asterisk will reboot the bridge/router or individual

modules.

bcmdf

Syntax bcmdf <device>[:<drive:>]

Description The bcmdf utility displays the amount of total and available disk space.

Values

Options No available options

<device> Identifies the bridge/router that receives the changes specified by the

bcmctrl utility.

<slot> Specifies the slot where the I/O module is located that receives the

changes specified by the bcmctrl utility.

-u[pdate] Copies the complete set of boot parameters from the test boot

source to the primary boot source.This operation is typically

performed after a successful test reboot to ensure that the next

normal reboot uses the same parameters.

-s[wap] Swaps the parameters in the primary and secondary boot sources.

-c[ommit] Cancels the test reboot countdown timer. This stops the automatic

test reboot begun by the test reboot parameter.

-r[eboot]* Reboots the bridge/router or switch or the I/O module specified by

the <slot> parameter.

-t[estreboot]:

[<seconds>]* Reboots the bridge/router or switch from the test boot source so

that if this command is not used again with the -c option, the

bridge/router automatically reboots with its primary configuration.

The optional seconds parameter indicates the length of time in

seconds the bridge/router should count down before automatically

rebooting. If you do not supply a value for <seconds>, the default

value of 120 seconds is used.

-q:r[eboot] Queries the reboot status of the bridge/router or switch or I/O

module specified by the <slot> parameter.

-q:t[ransfer] Queries the transfer status of the bridge/router or switch.

-w:r[eboot] Waits for the bridge/router or switch to reboot.

-w:t[ransfer] Waits for the last requested transfer to complete.

<device> The hostname or the IP address of the bridge/router or

switch.

<drive:> The device drive that holds the disk for which the amount of

total and available disk space will be counted and displayed.

Utility Descriptions and Syntax 77

bcmdiagnose

Syntax bcmdiagnose [ -ftp | -tftp ] [<device>] [-h]

Description The bcmdiagnose utility identifies the most common installation and configuration

problems. 3Com recommends that this utility be run immediately following

bcmsetup and before running any other upgrade management utility. The

bcmdiagnose utility validates that the upgrade management installation process

went as expected, and tests that the bridge/router or switch and network

management station are configured correctly. The bcmdiagnose utility validates

that:

■The upgrade utilities are installed correctly on the NMS.

■The bridge/router or switch is reachable over IP.

■The bridge/router SNMP Service is correctly configured.

■The TFTP server and file permissions are correctly configured.

■The boot images and the configuration files are in the same directory on

drive A.

■The software is compatible with the firmware (NETBuilder II bridge/router with

CEC only).

■When FTP is specified for file transfer, the FTP user name and password must

be correctly configured by setting the BCMFTPUSER and BCMFTPPASS

environment variables.

The bcmdiagnose utility displays troubleshooting messages and has two error

return codes:

■0 for success

■1 for failure

Values

Options

<device> Indicates the hostname or the IP address of the bridge/router or switch.

If bcmdiagnose is invoked without the bridge/router IP address or host

name, only the installation tests of the Enterprise OS Upgrade

Management Utilities is executed. If the device is specified, the

installation test is skipped, but the utility performs the IP, SNMP, and

TFTP server configuration tests.

-ftp Specifies FTP as the file transfer protocol to be used. FTP is the

default protocol for Enterprise OS software versions 11.1 and

higher.

-tftp Specifies TFTP as the file transfer protocol to be used. TFTP is the

default protocol for Enterprise OS software versions 11.0 and

lower.

[-h] Displays help message.

78 CHAPTER 8: REFERENCE FOR THE UPGRADE MANAGEMENT UTILITIES

bcminstall

Syntax bcminstall [-h | -cdrom [<path>] | -tar <path> | -r | -diskette | -image

<path> | <device>]

Description The bcminstall utility installs bridge/router software and firmware onto a network

management station from either a CD-ROM, tar files, an image file, a

bridge/router, or a network management station floppy diskette. You must install

all applicable Enterprise OS software packages before beginning the upgrade

process. On a UNIX system, you must have superuser privileges to run the

bcminstall utility.

The default method of installing a Enterprise OS package is to install it from a

CD-ROM drive on the network management station. The bcminstall utility copies

the files on the CD-ROM into a directory under /%tftpboot%/image. Using the

path option allows installation from a network management station that has two

or more CD-ROM drives, or from a remote CD-ROM drive. On a UNIX system, you

must specify the path if you are installing from a CD-ROM that is not cdrom0. For

example, to install a Enterprise OS software package from a second CD-ROM on

Solaris, enter:

bcminstall -cdrom /cdrom/cdrom1/image

The following example shows how to install a boot image for an image-only

upgrade from the directory /tmp/:

bcminstall -image /tmp/boot.68k

Options

Default If no command line options are specified, the bcminstall utility uses the network

management station local CD-ROM drive.

-h Displays a usage message. Installs using the first CD-ROM on

the network management station.

-cdrom [<path>] Installs using the CD-ROM from a directory path. Required for

Windows.

-tar <path> Installs a tarred package file.

-r Reports all installed bridge/router packages on the network

management station.

-diskette Installs from the network management station floppy drive

(version 9.1 and earlier).

-image <path> Installs an image file (for image-only upgrades only).

<device> The IP address of the bridge/router from which the

over-the-network installation occurs.

Utility Descriptions and Syntax 79

bcmloadconfig

Syntax bcmloadconfig [-s “<service1> [<service2>...]” | -l <line number>] [-i] -f

<config file path>/<filename> <device> [-b] [-t:<reboot timeout>]

Description You can execute multiple commands on the Enterprise OS user interface at once

by entering the commands in a text file, then loading the file. The bcmloadconfig

utility copies a specified configuration file to the bridge/router or switch and

executes the commands in the file.

The utility can execute only the SETDefault, SHow, SHowDefault, ADD, DELete,

and SAVEbgp commands. Blank lines and comment lines (lines beginning with the

# character) are allowed in the file. If the command requires more than one line,

the backslash (\) can be used to terminate the current line and to indicate that the

command continues on the next line. A line cannot contain more than one

command.

If you specify one or more services, only the commands belonging to those

services are executed. Up to 10 services can be specified. Instead of specifying a

service, you can specify a line number to indicate the starting line number within

the file to execute.

By default, the bcmloadconfig utility terminates whenever it detects a bad

command, a command that is not supported by the bcmloadconfig utility, or a

command that fails to execute successfully on the bridge/router. If -i is specified,

the utility continues execution when an error is encountered.

All commands and comments and any generated messages are written to the

CONFIG.LOG file in the /tftpboot/CLIENTS/<MAC address>/cfg/ directory on the

NMS. Any passwords specified in the commands are replaced by a string of

asterisks. Skipped commands are not written to the CONFIG.LOG file.

Values -s “<service1> [<service2>...]” Only commands found for these services are

executed. Up to 10 services may be specified.

The default is to execute the configuration

commands for all services.

-l <line number> The Line in the configuration file to be

executed. Comments and blank lines are

considered lines in the file.

-s and -l are mutually exclusive.

-i Continue executing commands even when

errors are detected.

-f <config file path> The directory containing the command file that

is to be executed. The default path is the

current working directory.

<filename> The name of the command file that is to be

executed. There is no default filename. This

parameter is required.

<device> The IP address or hostname of the

bridge/router that will execute the commands.

80 CHAPTER 8: REFERENCE FOR THE UPGRADE MANAGEMENT UTILITIES

bcmnbrus

Syntax bcmnbrus <port> [-NoSecurity] [-NoAuthentication]

Description The bcmnbrus utility launches the Upgrade Link application backend process.

Values

Options

bcmrestore

Syntax bcmrestore [both | primary | secondary] [options] <device>

Description The bcmrestore utility restores the Enterprise OS software from a backup on the

network management station to the bridge/router or switch. The software,

including the image and configuration files, is copied to the bridge/router, and the

primary boot source is set to the restored directory.

Values

Options

-b Specifies that after the configuration file is

copied to the bridge/router or switch a bcmctrl

-reboot is executed.

-t:<reboot timeout> Specifies a reboot time out period. If the device

does not boot within the reboot timeout

period (default: 600 seconds ) bcmloadconfig

returns an error.

<port> Specifies the TCP socket on which the client communicates with

the server. On UNIX systems you can add this command to cron

and on Windows 95/98/NT systems this command can be running

as a service.

-NoSecurity Indicates that the bcmnbrus utility will allow connections from all

IP addresses.

-NoAuthentica

tion Specifies that bcmnbrus will not prompt for a user name and

password.

both Restores both the primary and secondary boot sources. This value

is the default.

primary Restores the primary boot source.

secondary Restores the secondary boot source.

<device> Indicates the IP address or hostname of the bridge/router or

switch.

-ftp | -tftp Specifies the file transfer protocol to be used in the restore

process.

-NoF[ormat] Does not format the drive before restore.

-NoR[eboot] Does not reboot when restoration is complete.

-U[naccept] Rejects a previously accepted automatically recoverable upgrade

by swapping the primary and test boot sources.

Utility Descriptions and Syntax 81

bcmsetup

Syntax For UNIX:

bcmsetup <packages> [install_directory]

For Windows:

bcmsetup <drive:> [all | bcm | nat]

Description The bcmsetup utility places the latest version of the Enterprise OS Upgrade

Management Utilities on the network managment station. It also sets up the initial

package definitions for use by Transcend. You must be root to run the bcmsetup

utility.

Values

Options

Default For UNIX, unless an alternate installation directory is specified, the utilities are

installed in the /usr/3Com/bcm directory.

For Windows, the utilities are always installed in \usr\3Com\bcm.

bcmsysupgrade

Syntax bcmsysupgrade [options] <stage> <device>

Description The bcmsysupgrade utility is a master script that assists you in upgrading a

bridge/router to the latest version of software and/or firmware. The

bcmsysupgrade utility uses many of the other Enterprise OS Upgrade Utilities to

perform a complete upgrade of a bridge/router over the network.

Values

-new_hw Used to restore software to a new bridge/router or switch. Use

this option when a failed bridge/router or switch is exchanged for

a new one. After IP and SNMP connectivity is established, use this

option to copy the original software to the new bridge/router or

switch.

all Installs both the utilities and package definitions (bcm and

nat).

bcm Enterprise OS Upgrade Management Utilities.

nat Package definitions for use by Transcend.

[Install_directory]

UNIX only Defines the directory where the utilities and other files set up

with bcmsetup are to be located.

<drive:> Identifies the target drive where the utilities and other files set

up with bcmsetup are to be located.

<stage>

-s:from_nb Downloads configuration files from the bridge/router.

-s:update Upgrades configuration files on the network

management station.

-s:to_nb Uploads configuration and image files to the

bridge/router.

-s:test_boot * Test boots the upgraded configuration.

82 CHAPTER 8: REFERENCE FOR THE UPGRADE MANAGEMENT UTILITIES

Stages with an asterisk may reboot the bridge/router. The -s:accept stage only

reboots manual and patch upgrades.

Options

bcmuname

Syntax bcmuname [options] <device>[:<slot> | <drive>]

-s:accept* Accepts the upgrade (cannot be used with -s:reject

stage).

-s:reject* Rejects the upgrade (cannot be used with -s:accept

stage).

-s:upgrade_cec_fw* Upgrades the NETBuilder II CEC firmware.

-s:upgrade_io_fw* Upgrades the I/O firmware.

<device> Specifies the IP address or hostname of the target

bridge/router.

-EncryptionLicenseRead Specifies that the encryption license agreement has

been read and accepted. This flag must be used when

upgrading to any package with encryption.

-ftp | -tftp Specifies the file transfer protocol to be used in the

backup process. The default is FTP for bridge/routers

running Enterprise OS software version 11.1 or above.

The default is TFTP for bridge/routers running

Enterprise OS software version 11.0 or lower.

-d Runs bcmdiagnose utlility first.

-f Forces action, and ignores warnings. Use with extreme

caution!

-IUpgrades boot image only. The default is images and

configurations.

-k:<package> Package type to upgrade to. For <package>, use the

two-letter designator printed on the CD-ROM. The

default is to use the package being upgraded from.

-m Specifies a manually recoverable upgrade. The default

is automatic recovery.

-t Timeout value in seconds (defaults to 600, the range is

480 to 720 seconds).

-new_hw Indicates the replacement with like hardware.

(Examples, CEC with DPE, OCNB with OCNB)

-V:<version upgrading

to> When upgrading to a software version other than the

default, you must enter the software version you are

upgrading to. The default version is the same as the

version of the upgrade software. Run “bcmdiagnose”

to determine the version.

Utility Descriptions and Syntax 83

Description The bcmuname utility displays system information about the specified

bridge/router or switch or Intelligent I/O module (IIO). If no options are specified,

all the device-level options are printed.

Values

Options

If an option is required, it must be specified in very stage of the upgrade process.

bcmupdate

Syntax bcmupdate -f:<from_path> -t:<to_path> [options]

Description The bcmupdate utility converts the bridge/router or switch configuration files that

work with an older version of software to files that work with the newer version of

software. 3Com recommends that this utility only be invoked with the

bcmsysupgrade utility script.

Values

Options

<device> Specifies either the hostname or the IP address of the

bridge/router.

<slot> Specifies slot of an I/O module within the bridge/router. This

parameter is optional and is used only with the options

marked with (IIO).

<drive> Specifies the storage device (usually a flash drive) attached to

a bridge/router. This parameter is optional. When you specify

letters A: or B: they are assumed to be drive letters, any

numeric character is assumed to be a slot designator.

-2 Prints the @m mac address (used in bcmcp) (IIO).

-@ Prints the @M mac address (used in bcmcp) (IIO).

-a Prints all the above information (IIO).

-c Prints the contact information.

-d Prints the tftp directory that will be used by bcmcp.

-f:<sys_filename> Displays system information based on the contents of the

specified <path>/sys file.

-l Prints the machine location.

-M Prints the memory type.

-m Prints the machine platform name (IIO).

-n Prints the node name.

-r Prints the software release (IIO).

-R Prints the major software release.

-s Prints the software system name.

-t Prints the software or firmware type.

-w Prints the firmware release.

-f:<path> Path to upgrade from.

-t:<path> Path to upgrade to.

-v:<version> Version to upgrade from.

84 CHAPTER 8: REFERENCE FOR THE UPGRADE MANAGEMENT UTILITIES

When using the bcmupdate option on a Windows95, Windows98, or

Windows NT version 4.0 system, the following files are copied but not converted

or changed:

The filenames are numbers in the es directory, and the text files are located in the

filter directory.

UpgradeLink

Syntax UpgradeLink [-NoSecurity | -NoAuthentication]

Description The Upgrade Link utility runs the Upgrade Link application and launches your

default web browser. On Windows, it launches the 3Com TFTP server that is

installed with the utilities.

Upgrade Link is an easy to use GUI for upgrading, backing up, or restoring

software on a single bridge/router.

Options

-V:<version> Version to upgrade to.

-p:<platform> Bridge/router platform type.

-m Saves user macros.

-n Prints trace messages.

bgp bgpnet bgpol smt

bgpas dir bgppeer

ds egp dua

iineighb ipns area

iistuff systemna iicurcui

user name NatMap

-NoSecurity Indicates that the bcmnbrus utility will allow connections

from all IP addresses.

-NoAuthentication Specifies that bcmnbrus will not prompt for a user name

and password.

ATROUBLESHOOTING

This appendix describes error codes and messages that may be displayed during

the upgrade process as a result of running the bcmdiagnose utility or when

network dependencies have not been met.

Getting Help For UNIX, to obtain help information about a utility, use:

<utility> -h

Help is available in HTML or (UNIX) man pages.

Man Pages On a UNIX system, access the man pages by entering:

man bcm-intro

To access the man pages for a specific utility, use:

man <NMU_name>

where <NMU_name> is the name of the upgrade utility.

HTML Help To access the HTML help, enter the following URL in your browser:

/usr/3Com/bcm/gui/hlp/bcm-intro.html

Or to access help for a specific utility, use:

/usr/3Com/bcm/gui/hlp/<NMU_name>.html

For more information about using the Enterprise OS Upgrade Management

Utilities, see Chapter 8.

General

Troubleshooting Error

Messages

The master boot block startup value is set to monitor. This is not a

supported value.

Meaning: The master boot block startup value is set to monitor.

Action: Make sure that your bcmconfig <ipaddr> master -startup value is set

to try boot once or try forever.

The primary boot block must access the boot file locally. That is, all files

must physically reside on the NETBuilder.

Meaning: The primary boot source is set to boot from the network.

Action: Set the primary boot source to local. Make sure the bcmconfig

<ipaddr> primary -bootdevice value is set to either localA or localB.

86 APPENDIX A: TROUBLESHOOTING

The required file(s) <ipaddress>:<drive>:/<config file path> could not be

located.

Meaning: The bcmtest utility was unable to verify the presence of a file or

directory.

Action: Make sure that the required files and directories are available to the

bcmtest utility.

Return Codes from

bcmdiagnose The bcmdiagnose utility can display the following exit return codes:

Table 6 bcmdiagnose Return Codes

Code Meaning

0The operation was successful.

1A command line parsing error occurred.

2A command line argument is invalid.

3A installation error occurred.

4A Enterprise OS Upgrade Management utility failed.

5The device is not responding.

6Internal parsing error.

7A UNIX command failed.

8The device configuration is incompatible with the operation.

9The attempted operation is unsafe.

10 No arguments in a function call.

11 No sys file was found.

12 The boot image was not found.

13 The boot image is bad.

14 The module upgrade failed.

15 The module failed to reboot.

16 The boot image is not set.

17 Missing device address (DNS name or IP address).

18 The Enterprise OS software is not installed.

19 Error installing a Enterprise OS SW or FW package.

20 An error occurred during a UNIX file copy.

21 Enterprise OS software installation not performed.

22 Failed to perform a software upgrade.

22 Failed to perform firmware upgrade.

23 Test-Boot and/or reboot timed-out.

24 The Upgrade of the device and image is not supported.

25 A critical file was missing or corrupted in a file transfer.

Hardware-Related Messages 87

Hardware-Related

Messages The XX package must have 20 MB of memory installed on the CEC or DPE

module. There is only 12 MB available.

Meaning: The bcmsysupgrade utility cannot continue because it does not detect

a CEC 20 or DPE in the system. The software package requires a

CEC 20 or DPE module.

Action: If you have a CEC 20 module, run the Memory Expansion Board utility

supplied with the memory upgrade by putting the diskette in the

floppy drive and entering bt memupgrd.29k. The program updates

the EPROM.

The hardware configuration of this NETBuilder could not be confirmed.

Meaning: Your hardware may not support the software package you are

upgrading to. The bcmsysupgrade script allows the upgrade to

proceed even if the hardware configuration is not recommended.

Action: Ensure that the bridge/router meets the hardware requirements for

the package you are upgrading to, and that it is on the recommended

upgrade migration path.

The NETBuilder hardware will not safely support the upgrade.

Meaning: The hardware is not sufficient to safely support the software upgrade,

and the bridge/router configuration is not on the upgrade migration

path.

Action: Contact your 3Com supplier for information about a hardware

upgrade.

Installation

Troubleshooting

Messages

The troubleshooting messages in this section are displayed during installation.

Installing the

Enterprise OS Upgrade

Management Utilities

Testing the Enterprise OS Upgrade Utilities installation.

Meaning: This is an introductory message displayed when the bcmdiagnose

utility is initiated.

Action: None.

There is a problem with the installation of the Enterprise OS Upgrade

Utilities. The path /usr/3Com/bcm/bin and usr/3Com/common/bin should

be in the PATH environment variable.

Meaning: The installation process has searched for certain utilities in

/usr/3Com/bcm/bin and /usr/3Com/common/bin directories but

cannot find them unless the path /usr/3Com/bcm/bin is first.

Action: Check that /usr/3Com/bcm/bin and /usr/3Com/common/bin have

been added in the path environment variable.

There is a problem with the installation of the Enterprise OS Upgrade

Utilities. The path /usr/3Com/bcm/bin should be first in the PATH

environment variable.

Meaning: The installation process cannot find the necessary directories unless

the path /usr/3Com/bcm/bin is first.

Action: Check that /usr/3Com/bcm/bin is first in the path environment

variable.

88 APPENDIX A: TROUBLESHOOTING

There is a problem with the installation of the Enterprise OS Upgrade

Utilities. The location of the Enterprise OS Upgrade Utilities was not added

to the path environment variable or the directory does not contain all the

required programs.

Meaning: The installation process cannot find the utilities because it does not

know where to look for them.

Action: Check that a location for the utilities was specified in the path

environment variable.

There is a problem with the installation of the Enterprise OS Upgrade

Utilities. The version numbers of the Enterprise OS Upgrade Utilities are

not consistent.

Meaning: The bcmdiagnose utility has assumed that the version of the

Enterprise OS Upgrade Management Utilities in bcmcommon.sh is

correct and has checked that each executable utility has the same

version number. At least one utility is different.

Action: Check that you have specified version number for the utilities you are

installing correctly.

Determining

Connectivity Pinging <IP address>

Meaning: This is an introductory message that appears when the utilities are

attempting to reach a bridge/router with an IP address specified on

the command line.

Action: None.

The NETBuilder did not respond to a ping. Make sure the IP address or host

name is correct and that the NETBuilder is reachable via IP.

Meaning: The device that the utilities were trying to reach did not respond.

Action: Ensure the device can be reached using IP.

The NETBuilder responded to ping.

Meaning: The device which was specified in the IP address is reachable.

Action: None.

Validating the SNMP

Service Configuration Testing SNMP read access

Meaning: This is an introductory message. Check to see if the SNMP Service is

active on the bridge/router.

Action: None.

The NETBuilder is not responding to SNMP get requests. Ensure that the

SNMP Service is configured on the NETBuilder and that you have read and

write access via SNMP. Also check the values of the community strings in

the /etc/snmp.cfg file. They should match the NETBuilder’s SNMP

community strings.

Meaning: The bcmdiagnose utility has attempted to verify whether the

bridge/router specified by the <IP address> value has been configured.

Action: Configure the SNMP server on your bridge/router to allow read access

to your network management station. See the Network Management

chapter in Using NETBuilder Family Software.

Installation Troubleshooting Messages 89

The bridge/router is not responding to SNMP set requests. Ensure that the

SNMP service is configured on the bridge/router and that you have read

and write access via SNMP. Also check the values of the community strings

in the /etc/snmp.cfg file. They should match the bridge/router’s SNMP

community strings.

Meaning: The bcmdiagnose utility has attempted to verify whether the

bridge/router specified by the <IP address> value has been configured.

Action: Configure the SNMP server on your bridge/router to allow write

access to your network management station. See the Network

Management chapter in Using NETBuilder Family Software.

SNMP read access OK

Meaning: There is no problem with SNMP configuration on the bridge/router.

Action: None.

Testing SNMP write access

Meaning: This is an introductory message. Check to see if SNMP Service is active

on the bridge router.

Action: None.

SNMP write access OK

Meaning: There is no problem with SNMP configuration on the bridge/router.

Action: None.

Testing the NMS/ TFTP

Configuration Creating an Upgrade File

Testing file transfers using TFTP

Meaning: This is an introductory message displayed as the bcmdiagnose utility

begins its test.

Action: None.

The TFTP safe directory is <tftpboot_dir>. Make sure that the TFTP safe dir

exists.

Meaning: The TFTP safe directory is the root directory under which the utilities

will store your bridge/router files.

Action: Check that your TFTP safe directory exists.

The directory <tftpboot_dir> does not exist. Create <tftpboot_dir> with

full read/write/create file permissions. Make sure that this directory has

the proper file access permissions and is being used by the TFTP server.

Meaning: The bcmdiagnose utility has attempted to create a test file using the

TFTP safe directory and has failed.

Action: Assign full read/write/create file access permissions to the TFTP

directory.

Creating "test3.com"

Meaning: This information message is displayed while the UNIX copy command

tries to create the test file.

Action: None.

Could not remove "test3.com". Check that <tftpboot_dir> and

subdirectories have full read/write/create file permissions

Meaning: The UNIX remove command could not delete the test file.

Action: Assign full read/write/create file access permissions to the directories.

90 APPENDIX A: TROUBLESHOOTING

Could not create "test3.com". Check that <tftpboot_dir> and

subdirectories have full read/write/create file permissions.

Meaning: The UNIX copy command could not create the test file.

Action: Assign full read/write/create file access permissions to the directories.

The file "test3.com" was not created with read access. Make sure

<tftpboot_dir> has full read/write/create file permissions.

Meaning: When the UNIX copy command created the file, read access was

not assigned.

Action: Assign full read/write/create file access permissions to the directories.

The file "test3.com" was not created with write access. Make sure

<tftpboot_dir> has full read/write/create file permissions.

Meaning: When the UNIX copy command created the file, write access was

not assigned.

Action: Assign full read/write/create file access permissions to the directories.

Uploading an Upgrade File

Could not remove "<ipaddress> | DNSname>:a:/test3.com". Check that the

NETBuilder media is not write protected and that "<ipaddress> |

DNSname>:a:/test3.com" is not the name of a directory on the NETBuilder.

Meaning: The bcmrm utility could not delete the file on the bridge/router.

Action: Make sure that your floppy disk write protect tab allows writing to

the diskette.

Copying TestFile from the NMS to "<ipaddress> | DNSname>:a:/test3.com".

Meaning: This is a status message.

Action: None.

The bcmcp command could not write the file "testfile" on NBAddress or

DNS name. Make sure there is a flash or floppy drive installed and that it is

not write protected.

Meaning: The bcmcp utility has been denied write access to the bridge/router.

Action: Make sure there is a flash or floppy diskette installed and that it is not

write-protected.

The file "<ipaddress> | DNSname>:a:/test3.com" is not present on the

brouter even though bcmcp did not report an error.

Meaning: The bcmtest utility could not locate the file on the bridge/router.

Action: Check with your systems administrator.

The checksums of "test3.com" and "<ipaddress> | DNSname>:a:/test3.com"

are different even though bcmcp did not report an error.

Meaning: The bcmsum utility reported differing checksums on the local and

remote test files.

Action: Check your network connection for possible corruption on the line.

The bcmcp command could not reliably copy the "test3.com" file to the

bridge/router.

Meaning: This is an information message.

Action: None.

Installation Troubleshooting Messages 91

Downloading an Upgrade File

$local TestFile could not be removed. Make sure <tftpboot_dir> and

"test3.com" have full read/write/create file permissions.

Meaning: The UNIX remove command could not delete the test file.

Action: Assign full read/write/create file access permissions to the directories.

The bcmcp command could not write the file "testfile" on the NMS. Check

that the file access permissions are read/write/create in the TFTP server

safe directory. Make sure there is enough space available.

Meaning: The bcmcopy utility could not write the test file.

Action: Assign full read/write/create file access permissions to the

directories.The file “test3Com” is not present on the NMS even

though bcmcp did not report an error.

The file “test3Com” is not present on the NMS even though bcmcp did not

report an error.

Meaning: The UNIX test command could not validate that the test file exists on

the TFTP safe directory.

Action: Check with your systems administrator.

The checksums of "test3.com" and "<ipaddress> | DNSname>:a:/test3.com"

are different even though bcmcp did not report an error.

Meaning: The bcmsum utility reported differing checksums on the local and

remote test files.

Action: Check with your systems administrator.

The bcmcp command could not reliably copy the file "testfile" to the NMS.

Meaning: This is an information message.

Action: None.

Could not remove file "<ipaddress> | DNSname>:a:/test3.com". Check that

the NETBuilder media is not write protected and that "<ipaddress> |

DNSname>:a:/test3.com" is not the name of a directory on the NETBuilder.

Meaning: The bcmrm utility could not delete the test file.

Action: Check with your systems administrator.

"test3.com" could not be removed. Make sure <tftpboot_dir> and

"test3.com" have full read/write/create permissions.

Meaning: The UNIX remove command could not delete the test file.

Action: Assign full read/write/create file access permissions to the directories.

File transfers using TFTP are OK.

Meaning: No problem was found with TFTP file transfers between the network

management station and bridge/router.

Action: None.

92 APPENDIX A: TROUBLESHOOTING

BCHOOSING A SOFTWARE PACKAGE

This chapter lists software packages from 8.0 through 11.2 and provides

recommended equivalent packages in 11.3.

NETBuilder II Upgrade

Migration Path Table 7 outlines the recommended migration path from previous software

packages to the latest packages supported in version 11.3. Use this table to

identify the new software package that is most similar to the package you are

currently using. Packages are identified by the two-letter designator of the version

string, which is found on your product CD-ROM disk label.

You can also identify the software package using:

bcmuname -R <device>

Where <device> is the IP address or hostname of the system you are planning to

upgrade. Or enter the Enterprise OS user interface command:

SHow -SYS VERsion

Table 7 NETBuilder II Software Package Migration to 11.3

Recommended Upgrade Notes

From Version 8.0 To Version 11.3

LM DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

LT DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CP DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

WM DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

WT DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

(continued)

94 APPENDIX B: CHOOSING A SOFTWARE PACKAGE

FF DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CX AC (DPE) A hardware upgrade to a DPE module is required.

AP AC (DPE) A hardware upgrade to a DPE module is required.

From Version 8.1 To Version 11.3

LM DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

LT DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CP DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

WM DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

WT DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

FF DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CX AC (DPE) A hardware upgrade to a DPE module is required.

AP AC (DPE) A hardware upgrade to a DPE module is required.

From Version 8.2/8.3 To Version 11.3

CP DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

FF DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CX AC (DPE) A hardware upgrade to a DPE module is required.

AP AC (DPE) A hardware upgrade to a DPE module is required.

WA DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

(continued)

Table 7 NETBuilder II Software Package Migration to 11.3

Recommended Upgrade Notes

NETBuilder II Upgrade Migration Path 95

From Version 9.0/9.1 To Version 11.3

CP DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

FF DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CX AC (DPE) A hardware upgrade to a DPE module is required.

AP AC (DPE) A hardware upgrade to a DPE module is required.

From Version 9.3/9.3.1 To Version 11.3

DW (DPE) DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CP (CEC) DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

FF (CEC) DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CX (DPE) AC (DPE)

AP (DPE) AC (DPE)

From Version 10.1 To Version 11.3

DW (DPE) DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption.

CP (CEC) DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

FP (CEC) DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption. A hardware upgrade to a

DPE module is required.

CX (DPE) AC (DPE)

IA (CEC) AC (DPE) A hardware upgrade to a DPE module is required.

AP (DPE) AC (DPE)

From Version 10.3 To Version 11.3

DW (DPE) DW (DPE), DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption.

(continued)

Table 7 NETBuilder II Software Package Migration to 11.3

Recommended Upgrade Notes

96 APPENDIX B: CHOOSING A SOFTWARE PACKAGE

SuperStack II

NETBuilder Upgrade

Migration Path

Table 8 outlines the recommended migration path from prior version

software packages to the latest packages supported in version 11.3. Use this table

to identify the new software package that is most similar to the package you are

currently using.

Packages are identified by the two-letter designator of the version string, which is

found on your product diskette label.

You can also identify the package using:

bcmuname -R <device>

Where <device> is the IP address or hostname of the system you are planning to

upgrade. Or enter the Enterprise OS user interface command:

SHow -SYS VERsion

From Version 11.0 To Version 11.3

AC (DPE) AC (DPE)

DW (DPE) DW (DPE)

DE (DPE) DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption.

From Version 11.1 To Version 11.3

AC (DPE) AC (DPE)

DW (DPE) DW (DPE)

DE (DPE) DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption.

From Version 11.2 To Version 11.3

AC (DPE) AC (DPE)

DW (DPE) DW (DPE)

DE (DPE) DE (DPE) or DS (DPE) The DE package has all the features of DW plus 56-bit

encryption. The DS package has all the features of

DW plus 128-bit encryption.

Table 7 NETBuilder II Software Package Migration to 11.3

Recommended Upgrade Notes

SuperStack II NETBuilder Upgrade Migration Path 97

Table 8 SuperStack II NETBuilder Bridge/Router Software Package Migration to 11.3

Model Recommended Upgrade Notes

22x Series From Version 8.0 To Version 11.3

BA, RB, BX, AR, CF or CX n/a There is no equivalent package in version 11.3.

From Version 8.1 To Version 11.3

BX, BF, AR, CF or CX n/a There is no equivalent package in version 11.3.

From Version 8.2/8.3 To Version 11.3

BX, BF, AA, AB, CF, CX n/a There is no equivalent package in version 11.3.

From Version 9.0/9.1/9.3/10.1 To Version 11.3

BX, BF, AA, AB, CF, CX n/a There is no equivalent package in version 11.3.

32x Series From Version 8.3/9.0/9.1/9.3 To Version 11.3

FD, BF n/a There is no equivalent package in version 11.3.

CF TE

From Version 10.1 To Version 11.3

AF, BF n/a There is no equivalent package in version 11.3.

CF TE

From Version 11.0 To Version 11.3

TE TE

42x Series From Version 8.0/8.1 To Version 11.3

BX, AR, CF n/a There is no equivalent package in version 11.3.

From Version 8.2/8.3 To Version 11.3

BX, BF, AB, or CF n/a There is no equivalent package in version 11.3.

From Version 9.0/9.1/9.3 To Version 11.3

BX, BF, AB, or CF, EE n/a There is no equivalent package in version 11.3.

From Version 10.1 To Version 11.3

BX, BF, AB, AA, CF n/a There is no equivalent package in version 11.3.

From Version 11.0 To Version 11.3 .

EE n/a There is no equivalent package in version 11.3.

52x Series From Version 8.3/9.0/9.1/9.3 To Version 11.3

BF, CF n/a There is no equivalent package in version 11.3.

From Version 10.1 To Version 11.3

AF, CF n/a There is no equivalent package in version 11.3.

From Version 11.0 To Version 11.3

TE n/a There is no equivalent package in version 11.3.

98 APPENDIX B: CHOOSING A SOFTWARE PACKAGE

SuperStack II

NETBuilder SI Upgrade

Migration Path

Table 9 outlines the recommended migration path from prior version

software packages to the latest packages supported in version 11.3. Use this table

to identify the new software package that is most similar to the package you are

currently using.

Packages are identified by the two-letter designator of the version string, which is

found on your product diskette label.

You can also identify the package using:

bcmuname -R <device>

Where <device> is the IP address or hostname of the system you are planning to

upgrade. Or enter the Enterprise OS user interface command:

SHow -SYS VERsion

Table 9 SuperStack II NETBuilder SI Bridge/Router Software Package Migration to 11.3

Recommended Upgrade Notes

From Version 10.0 To Version 11.3

BX BF

BF BF

AB NW or NE The NE package has all the features of NW plus encryption.

AF AX

CF CF or CE The CE package has all the features of CF plus encryption.

CX AX

From Version 11.0 To Version 11.3

BF BF

NW NW, NE or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

NE NE or NS The NS package has all the features of NE plus 128-bit encryption.

CF CF, CE or CS The CE package has all the features of the CF package plush 56-bit

encryption. The CS package has all the features of the CF package plus

128-bit encryption.

CE CE or CS The CS package has all the features of the CE package plus 128-bit

encryption.

AX AX

From Version 11.1 To Version 11.3

BF BF

NW NW, NE or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

NE NE or NS The NS package has all the features of NE plus 128-bit encryption.

CF CF, CE or CS The CE package has all the features of the CF package plush 56-bit

encryption. The CS package has all the features of the CF package plus

128-bit encryption.

CE CE or CS The CS package has all the features of the CE package plus 128-bit

encryption.

AX AX

OfficeConnect NETBuilder Upgrade Migration Path 99

OfficeConnect

NETBuilder Upgrade

Migration Path

Table 10 outlines the recommended migration path from previous software

package versions to the latest packages supported in version 11.3. Use this table

to identify the new software package that is most similar to the package you are

currently using.

Packages are identified by the two-letter designator of the version string, which is

found on your product diskette label.

You can also identify the package using:

bcmuname -R <device>

Where <device> is the IP address or hostname of the system you are planning to

upgrade. Or enter the Enterprise OS user interface command:

SHow -SYS VERsion

From Version 11.2 To Version 11.3

BF BF

NW NW, NE or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

NE NE or NS The NS package has all the features of NE plus 128-bit encryption.

CF CF, CE or CS The CE package has all the features of the CF package plush 56-bit

encryption. The CS package has all the features of the CF package plus

128-bit encryption.

CE CE or CS The CS package has all the features of the CE package plus 128-bit

encryption.

AX AX

Table 9 SuperStack II NETBuilder SI Bridge/Router Software Package Migration to 11.3 (continued)

Recommended Upgrade Notes

Table 10 OfficeConnect Software Package Migration to 11.3

Recommended Upgrade Notes

From Version 9.2 To Version 11.3

BX BF

BF BF

AB NW, NE, or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

OF OF, OE, or OS The OE package has all the features of OF plus 56-bit encryption. The OS

package has all the features of the OF package plus 128-bit encryption.

n/a VE The VE package has 56-bit encryption.

From Version 9.3 To Version 11.3

BX BF

BF BF

AB NW, NE, or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

OF OF, OE, or OS The OE package has all the features of OF plus 56-bit encryption. the OS

package has all the features of OF plus 128-bit encryption.

AF AF

100 APPENDIX B: CHOOSING A SOFTWARE PACKAGE

FD FD

n/a VE VE has 56-bit encryption.

From Version 10.1 To Version 11.3

BX BF

BF BF

AB NW, NE or NS The NE package has all the features of NW plus 56-bit encryption. the NS

package has all the features of NW plus 128-bit encryption.

OF OF, OE or OS The OE package has all the features of OF plus 56-bit encryption. The OS

package has all the features of OF plus 128-bit encryption.

AF AF

FD FD

n/a VE The VE package has 56-bit encryption.

From Version 10.2 (model

13x only) To Version 11.3

BX BF

AB NW, NE, or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

OF OF, OE, or OS The OE package has all the features of OF plus 56-bit encryption. the OS

package has all the features of OF plus 128-bit encryption.

n/a VE The VE package has 56-bit encryption.

From Version 11.0 To Version 11.3

BF BF

NW or NE NW, NE, or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

OF or OE OF, OE, or OS The OE package has all the features of OF plus 56-bit encryption. the OS

package has all the features of OF plus 128-bit encryption.

VE VE The VE package has 56-bit encryption.

From Version 11.1 To Version 11.3

BF BF

NW or NE NW, NE, or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

OF or OE OF, OE, or OS The OE package has all the features of OF plus 56-bit encryption. the OS

package has all the features of OF plus 128-bit encryption.

VE VE The VE package has 56-bit encryption.

From Version 11.2 To Version 11.3

BF BF

NW or NE NW, NE, or NS The NE package has all the features of NW plus 56-bit encryption. The NS

package has all the features of NW plus 128-bit encryption.

OF or OE OF, OE, or OS The OE package has all the features of OF plus 56-bit encryption. the OS

package has all the features of OF plus 128-bit encryption.

VE VE The VE package has 56-bit encryption.

Table 10 OfficeConnect Software Package Migration to 11.3

Recommended Upgrade Notes

PathBuilder Upgrade Migration Path 101

PathBuilder Upgrade

Migration Path Table 11 outlines the recommended migration path from previous software

packages to the latest packages supported in version 11.3. Use this table to

identify the new software package that is most similar to the package you are

currently using. Packages are identified by the two-letter designator of the version

string, which is found on your product CD-ROM disk label.

You can also identify the software package using:

bcmuname -R <device>

Where <device> is the IP address or hostname of the system you are planning to

upgrade. Or enter the Enterprise OS user interface command:

SHow -SYS VERsion

Table 11 PathBuilder Software Package Migration to 11.3

Recommended Upgrade

From Version 11.1.1 To Version 11.3

PE PE

PS PS

PW PW

From Version 11.2 To Version 11.3

PE PE

PS PS

PW PW

102 APPENDIX B: CHOOSING A SOFTWARE PACKAGE

CMOUNTING THE CD-ROM ON A

UNIX PLATFORM

This appendix describes how to mount the CD-ROM for UNIX Solaris 2.5.x, HP-UX

10.x and IBM AIX 4.1.x through 4.2.x operating systems.

Mounting the

CD-ROM on

Solaris 2.5.x

If you are mounting the CD-ROM from a drive that is directly connected to the

network management station where you have installed the Enterprise OS Upgrade

Management Utilities, enter the commands in this section. If you are mounting the

CD-ROM remotely, proceed to “Mounting from a Remote CD-ROM Drive.”

Mounting a Local

CD-ROM Drive To mount the CD-ROM from a local drive, follow these steps:

1Insert the CD-ROM containing the bridge/router software into the CD-ROM drive.

2Mount the CD-ROM in a directory in your file system. You must have Superuser

(root) access throughout the installation process.

aAt the command prompt, enter:

/usr/bin/su

bAt the Password prompt, enter your root password.

Solaris 2.5.x uses a Volume Management Utility that by default mounts the

CD-ROM under the /cdrom directory.

3Verify that the mount occurred by entering:

ls /cdrom

The display shows the cdrom0 directory.

4If Solaris Volume Management is not installed, or has been deactivated, mount the

CD-ROM drive by entering:

mkdir /cdrom/cdrom0 (if you have not already done so)

mount -r -F hsfs /dev/sr0 /cdrom/cdrom0

After your CD-ROM has been mounted, you are ready to begin installing the

software.

Mounting from a

Remote CD-ROM Drive On the remote system, make sure that the CD-ROM is properly connected and

powered up. To allow other systems to access the remote system, follow these

steps:

1Insert the CD-ROM containing the bridge/router software into the CD-ROM drive.

2Mount the CD-ROM in a directory in your file system. You must have Superuser

(root) access to complete the installation process.

104 APPENDIX C: MOUNTING THE CD-ROM ON A UNIX PLATFORM

aAt the command prompt on the remote system, enter:

/usr/bin/su

bAt the Password prompt, enter your root password.

Solaris 2.5.x uses a Volume Management Utility that by default mounts the

CD-ROM under the /cdrom directory.

3Verify that the mount occurred by entering:

ls /cdrom

The display shows the cdrom0 directory.

4Verify that Solaris Volume Management is installed by entering:

ps -aux | grep vold

or

ps -ef | grep vold

If /usr/sbin/vold is displayed, then Volume Management is installed. Proceed to

step 5.

If Solaris Volume Management is not installed, or has been deactivated, mount the

CD-ROM drive by entering:

mkdir /cdrom (if you have not already done so)

mount -r -F hsfs /dev/sr0 /cdrom/cdrom0

5Make the CD-ROM directory (/cdrom/cdrom0) available for Network File System

(NFS) clients.

Edit the /etc/dfs/dfstab file by adding the following line:

share -F nfs -o ro /cdrom/cdrom0

aChange directories to /etc/init.d and enter:

./nfs.server start

bEnter:

shareall

or

exportfs -a

You may need to start the NFS daemons.

6On the local network management station (the one where you are installing the

software), at the command prompt, enter:

mkdir /cdrom/remote (if you have not already done so)

mount -r <remote_system>:/cdrom/cdrom0 /cdrom/remote

For <remote_system>, enter the IP address or host name of the remote system

that does not have a CD-ROM drive.

7You can verify that the mount occurred by entering:

cd /cdrom

8To display a directory of the CD-ROM, enter:

ls

After your CD-ROM has been mounted, you are ready to begin installing the

software.

Mounting the CD-ROM on HP-UX 10.x 105

Mounting the

CD-ROM on HP-UX

10.x

If you are mounting the CD-ROM from a drive that is directly connected to the

network management station where you have installed the Enterprise OS Upgrade

Management Utilities, enter the commands in this section. If you will mount the

CD-ROM remotely, proceed to “Mounting from a Remote CD-ROM Drive.”

Mounting from a Local

CD-ROM Drive To mount the CD-ROM from a local drive, follow these steps:

1Open a command window.

2Insert the CD-ROM.

3Confirm that the CD-ROM is mounted by entering:

mount | grep cdrom

If you receive no output command, you must mount the CD-ROM by entering:

su

mkdir /cdrom (if you have not already done so)

If you are running HP-UX 10.10, enter:

mount -r -t cdfs /dev/dsk/c0t2d0 /cdrom

If you are running HP-UX 10.20, enter:

mount -r /dev/dsk/c0t2d0 /cdrom

Mounting from a

Remote CD-ROM Drive To mount the CD-ROM from a remote drive, follow these steps:

1Open a command window.

2Insert the CD-ROM.

3Mount the CD-ROM by entering:

su

mkdir /cdrom (if you have not already done so)

If you are running HP-UX 10.x, enter:

mount -r /dev/dsk/c0t2d0 /cdrom

4Create the /etc/exports file if it does not already exist.

5Add the following line to the /etc/exports file, if you have not already done so:

/cdrom -ro

6If the /etc/exports file existed previously, enter:

/usr/etc/exportfs -a

7If the /etc/exports file did not exist previously, reboot to become an NFS server.

8On the local machine (the machine on which you are installing the bridge/router

software), enter:

su

mkdir /cdrom (if you have not already done so)

mount -r <remote machine>:/cdrom /cdrom

For <remote_system>, enter the IP address or host name of the remote system

that does not have a CD-ROM drive.

106 APPENDIX C: MOUNTING THE CD-ROM ON A UNIX PLATFORM

Mounting the

CD-ROM on IBM AIX

4.1.x Through 4.2.x

If you are mounting the CD-ROM from a drive that is directly connected to the

network management station, enter the commands in this section. If you will

mount the CD-ROM remotely, proceed to “Mounting from a Remote CD-ROM

Drive.”

Mounting from a Local

CD-ROM Drive To mount the CD-ROM from a local drive, follow these steps:

1Open a command window.

2Insert the CD-ROM.

3Confirm that the CD-ROM is mounted by entering:

mount | grep cdrom

If you receive no output command, you must mount the CD-ROM by entering:

su

mkdir /cdrom (if you have not already done so)

mount -v cdrfs -r /dev/cd0 /cdrom

Mounting from a

Remote CD-ROM Drive To mount the CD-ROM from a remote drive, follow these steps:

1Open a command window.

2Insert the CD-ROM.

3Enter:

su

mkdir /cdrom (if you have not already done so)

mount -v cdrfs -r /dev/cd0 /cdrom

4Create the /etc/exports file if it does not already exist.

5Add the following line to the /etc/exports file, if you have not already done so:

/cdrom -ro

6If the /etc/exports file existed previously, enter:

/usr/sbin/exportfs -a

7If the /etc/exports file did not exist previously, reboot to become an NFS server.

8On the local machine (the machine on which you are installing the bridge/router

utilities), enter:

su

mkdir /cdrom/remote (if you have not already done so)

mount -n <remote machine>:/cdrom /cdrom/remote

For <remote_system>, enter the IP address or host name of the remote system

that does not have a CD-ROM drive.

Unmounting the CD-ROM 107

Unmounting the

CD-ROM To unmount the CD-ROM, follow these steps:

1Make sure that no processes (shelltool, commandtool or any other application)

have /cdrom as the current working directory.

2Make sure that you have Superuser (root) access. If you do not have this access, at

the command prompt enter:

/usr/bin/su

3Unmount the CD-ROM as root.

On Solaris 2.5.x with or without “vold” running, at the # prompt enter:

umount /cdrom/cdrom0

eject /cdrom

108 APPENDIX C: MOUNTING THE CD-ROM ON A UNIX PLATFORM

DTECHNICAL SUPPORT

3Com provides easy access to technical support information through a variety of

services. This appendix describes these services.

Information contained in this appendix is correct at time of publication. For the

most recent information, 3Com recommends that you access the 3Com

Corporation World Wide Web site.

Online Technical

Services 3Com offers worldwide product support 24 hours a day, 7 days a week, through

the following online systems:

■World Wide Web site

■3Com Knowledgebase Web Services

■3Com FTP site

■3Com Bulletin Board Service (3Com BBS)

■3Com FactsSM Automated Fax Service

World Wide Web Site To access the latest networking information on the 3Com Corporation World Wide

Web site enter this URL into your Internet browser:

http://www.3com.com/

This service provides access to online support information such as technical

documentation and software library, as well as support options that range from

technical education to maintenance and professional services.

3Com Knowledgebase

Web Services This interactive tool contains technical product information compiled by 3Com

expert technical engineers around the globe. Located on the World Wide Web at

http://knowledgebase.3com.com, this service gives all 3Com customers and

partners complementary, round-the-clock access to technical information on most

3Com products.

3Com FTP Site Download drivers, patches, software, and MIBs across the Internet from the 3Com

public FTP site. This service is available 24 hours a day, 7 days a week.

To connect to the 3Com FTP site, enter the following information into your FTP

client:

■Hostname: ftp.3com.com

■Username: anonymous

■Password: <your Internet e-mail address>

110 APPENDIX D: TECHNICAL SUPPORT

You do not need a user name and password with Web browser software such as

Netscape Navigator and Internet Explorer.

3Com Bulletin Board

Service The 3Com BBS contains patches, software, and drivers for 3Com products. This

service is available through analog modem or digital modem (ISDN) 24 hours a

day, 7 days a week.

Access by Analog Modem

To reach the service by modem, set your modem to 8 data bits, no parity, and

1 stop bit. Call the telephone number nearest you:

Access by Digital Modem

ISDN users can dial in to the 3Com BBS using a digital modem for fast access up to

64 Kbps. To access the 3Com BBS using ISDN, call the following number:

1 847 262 6000

3Com Facts Automated

Fax Service The 3Com Facts automated fax service provides technical articles, diagrams, and

troubleshooting instructions on 3Com products 24 hours a day, 7 days a week.

Call 3Com Facts using your Touch-Tone telephone:

1 408 727 7021

Support from Your

Network Supplier If you require additional assistance, contact your network supplier. Many suppliers

are authorized 3Com service partners who are qualified to provide a variety of

services, including network planning, installation, hardware maintenance,

application training, and support services.

When you contact your network supplier for assistance, have the following

information ready:

■Product model name, part number, and serial number

■A list of system hardware and software, including revision levels

■Diagnostic error messages

■Details about recent configuration changes, if applicable

If you are unable to contact your network supplier, see the following section on

how to contact 3Com.

Country Data Rate Telephone Number Country Data Rate Telephone Number

Australia Up to 14,400 bps 61 2 9955 2073 Japan Up to 14,400 bps 81 3 5977 7977

Brazil Up to 28,800 bps 55 11 5181 9666 Mexico Up to 28,800 bps 52 5 520 7835

France Up to 14,400 bps 33 1 6986 6954 P.R. of China Up to 14,400 bps 86 10 684 92351

Germany Up to 28,800 bps 4989 62732 188 Taiwan, R.O.C. Up to 14,400 bps 886 2 377 5840

Hong Kong Up to 14,400 bps 852 2537 5601 U.K. Up to 28,800 bps 44 1442 438278

Italy Up to 14,400 bps 39 2 27300680 U.S.A. Up to 53,333 bps 1 847 262 6000

Support from 3Com 111

Support from 3Com If you are unable to obtain assistance from the 3Com online technical resources or

from your network supplier, 3Com offers technical telephone support services. To

find out more about your support options, please the 3Com technical telephone

support phone number at the location nearest you.

When you contact 3Com for assistance, have the following information ready:

■Product model name, part number, and serial number

■A list of system hardware and software, including revision levels

■Diagnostic error messages

■Details about recent configuration changes, if applicable

Here is a list of worldwide technical telephone support numbers:

Country Telephone Number Country Telephone Number

Asia Pacific Rim

Australia

Hong Kong

India

Indonesia

Japan

Malaysia

New Zealand

Pakistan

Philippines

1 800 678 515

800 933 486

+61 2 9937 5085

001 800 61 009

0031 61 6439

1800 801 777

0800 446 398

+61 2 9937 5085

1235 61 266 2602

P.R. of China

Singapore

S. Korea

From anywhere in S. Korea:

From Seoul:

Taiwan, R.O.C.

Thailand

10800 61 00137 or

021 6350 1590

800 6161 463

00798 611 2230

(0)2 3455 6455

0080 611 261

001 800 611 2000

Europe

From anywhere in Europe, call: +31 (0)30 6029900 phone

+31 (0)30 6029999 fax

Europe, South Africa, and Middle East

From the following countries, you may use the toll-free numbers:

Austria

Belgium

Denmark

Finland

France

Germany

Hungary

Ireland

Israel

Italy

0800 297468

0800 71429

800 17309

0800 113153

0800 917959

0800 1821502

00800 12813

1800 553117

1800 9453794

1678 79489

Netherlands

Norway

Poland

Portugal

South Africa

Spain

Sweden

Switzerland

U.K.

0800 0227788

800 11376

00800 3111206

0800 831416

0800 995014

900 983125

020 795482

0800 55 3072

0800 966197

Latin America

Argentina

Brazil

Chile

Colombia

AT&T +800 666 5065

0800 13 3266

1230 020 0645

98012 2127

Mexico

Peru

Puerto Rico

Venezuela

01 800 CARE (01 800 2273)

AT&T +800 666 5065

800 666 5065

AT&T +800 666 5065

North America 1 800 NET 3Com

(1 800 638 3266)

Enterprise Customers:

1 800 876-3266

112 APPENDIX D: TECHNICAL SUPPORT

Returning Products

for Repair Before you send a product directly to 3Com for repair, you must first obtain an

authorization number. Products sent to 3Com without authorization numbers will

be returned to the sender unopened, at the sender’s expense.

To obtain an authorization number, call or fax:

23 MAR 99

Country Telephone Number Fax Number

Asia, Pacific Rim +65 543 6500 +65 543 6348

Europe, South Africa, and

Middle East +31 30 6029900 +31 30 6029999

Latin America 1 408 326 2927 1 408 326 3355

From the following countries, you may call the toll-free numbers; select option 2 and then

option 2:

Austria

Belgium

Denmark

Finland

France

Germany

Hungary

Ireland

Israel

Italy

Netherlands

Norway

Poland

Portugal

South Africa

Spain

Sweden

Switzerland

U.K.

0800 297468

0800 71429

800 17309

0800 113153

0800 917959

0800 1821502

00800 12813

1800 553117

1800 9453794

1678 79489

0800 0227788

800 11376

00800 3111206

0800 831416

0800 995014

900 983125

020 795482

0800 55 3072

0800 966197

U.S.A. and Canada 1 800 NET 3Com

(1 800 638 3266)

Enterprise Customers:

1 800 876 3266

1 408 326 7120

(not toll-free)

GLOSSARY

automatic recovery An upgrade method that copies the primary boot source to the NMS, then copies

the upgraded software back to the bridge/router as the test boot source. After a

successful test boot, the upgraded software is designated as the primary boot

source while the original software still present on the flash memory, is designated

the secondary boot source. If the upgrade fails, the bridge/router automatically

reboots from the original software. Automatic recovery requires enough flash

memory to hold two software sets.

backup Copying the software, including the images and configuration files, from the

bridge/router to the NMS using Upgrade Link or the bcmbackup utility.

backup location See default directory structure.

baseline A copy of the bridge/router configuration files stored in a directory on the network

management station. Baselining establishes a known good configuration set by

checking for consistency between similar configuration files on the network

management station and the NETBuilder bridge/router. Baselining assumes that

the versions of software and firmware running on the NETBuilder system have not

changed since the baseline was established.

BCM Boot Change Management. Individual command-line utilities and scripts that use

SNMP to perform EEPROM boot block and file manipulation operations on the

NETBuilder bridge/router and between the NETBuilder bridge/router and Network

Management Stations. This includes file transfer using TFTP.

bcm utilities See NETBuilder Upgrade Management Utilities.

bcmupdate An upgrade management utility that is used to upgrade configuration files on a

network management station.

boot image A software file that is loaded into DRAM and executed by a bridge/router. The

main boot image files are named boot.29k and boot.68k.

BOOTP Bootstrap Protocol. Allows a bridge/router to obtain its IP address dynamically

from a network management station instead of from local EEPROM.

boot source A reference to a directory on the bridge/router where the boot and configuration

files are stored. You can set and view boot source information using the

bcmconfig utility or the Sysconf command.

CCS Compact Configuration Storage. An ASN.1-based file format used to store

bridge/router configuration information.

configuration files Files on the bridge/router that store parameter values and settings you have set in

the software.

114 GLOSSARY

default directory

structure The default directory structure specifies where to find new installations of your

bridge/router software and backups of your bridge/router software on the NMS.

dual-image The ability of a bridge/router to store two sets of image and configuration files.

FTP File Transfer Protocol. Allows the transfer of files between a host and a client.

image file See boot image.

manual recovery An upgrade method that copies the primary boot source to the NMS, formats the

flash memory on the bridge/router, then copies the upgraded software back to the

bridge/router. If the upgrade fails, you must restore the software from the backup

on the NMS. Manual recovery requires enough flash memory to hold one software

set, compared to automatic recovery which must have enough memory for two

sets.

network management

station A UNIX or Windows system that has a TFTP server running in addition to software,

such as the NETBuilder Upgrade Management Utilities, to manage your network.

NMS See network management station.

offline upgrade A method of copying configuration files to a network management station,

updating those files to the latest release, and then copying them back to the

bridge/router with the new images while the bridge/router remains operational.

primary boot source The default boot source used to boot the bridge/router.

primary image The boot image specified in the primary boot directory.

restore A method of copying a software backup from the network management station

to a bridge/router using Upgrade Link or the bcmrestore utility and returning a

bridge/router to its previous operational state. Restoring can be used when

different versions of software have been installed on the bridge/router.

Remote Upgrade

Utilities BCM utilities expressly used for remote upgrading. These utilities allow you to

manipulate NETBuilder bridge/router boot blocks and the NETBuilder bridge/router

file system via the SNMP protocol. These utilities also allow you to reboot the

NETBuilder bridge/router and to obtain accurate status information.

secondary boot source The boot source used in the event of primary boot source failure.

secondary image The software image designated for use by the bridge/router if the primary image is

inaccessible or cannot be booted. The secondary image is specified as the local

boot file in the secondary boot directory.

single-image The capability of a bridge/router to store only one set of software images and

configuration files.

SNMP Simple Network Management Protocol. An Internet protocol that defines a way to

monitor and set configuration and runtime parameters.

software set A combination of bootable images for a particular version of bridge/router

software along with the configuration files that have been created for the

operation of the bridge/router. For version 11.0 and later, the software includes

web application files like Quick Step VPN.

GLOSSARY 115

software package A defined subset of bridge/router services and protocols that are appropriate for a

particular model of the NETBuilder bridge/router family of products.

split image files A boot image that spans multiple diskettes. Split images occur on a few

SuperStack II NETBuilder bridge/router packages (for example, the CF package

prior to 9.1). If you are upgrading to one of these older packages, bcminstall will

automatically recombine the split image before performing your upgrade.

Telnet Terminal Emulation Link Protocol.

TEM/TNCS 3Com’s Transcend Enterprise Manager/Transcend Network Control Service, which

runs on Windows NT, Windows 95, Solaris, HP, and IBM platforms.

test boot source The boot source used during the test boot process.

test boot image The software image specified as the local boot file in the test source.

TFTP Trivial File Transfer Protocol. Allows file transfer between an IP host and an IP

client.

upgrade A method to bring a bridge/router up-to-date with later versions of software and

firmware without the need for reconfiguring individual bridge/router parameters

and settings. The upgrade is performed using the NETBuilder Upgrade

Management Utilities or Transcend.

Upgrade Management

Utilities A set of utilities to upgrade bridge/routers or switches. Some functions performed

by the utilities include copying software, firmware, and configuration files from

the bridge/router, and upgrading configuration files. In addition, the utilities can

configure the boot sources on the bridge/router, execute the test boot, and

configure the bridge/router boot sources to use the software in standard boot

situations.

Upgrade Link Backend The server application that fetches HTML and Java class files, runs the PERl scripts,

and accesses the file system.

Upgrade Link Front end The JAVA applet that runs in a browser. All the GUI components are part of the

front end.

Upgrade Migration Path The 3Com supported package for upgrading a bridge/router.

WINTEL All windows on INTEL platforms including Windows 95, Windows 98 and

Windows NT.

116 GLOSSARY

INDEX

Numbers

3Com bulletin board service (3Com

BBS) 110

3Com Knowledgebase Web Services 109

3Com URL 109

3ComFacts 110

B

Back up verification 63

bcmbackup 72

syntax 73

bcmconfig 72

syntax 74

bcmctrl 72

syntax 75

bcmdf 72, 76

syntax 76, 77

bcmdiagnose 37, 72

return codes 86

syntax 77

bcminstall 72

syntax 78

bcmloadconfig 72, 79

bcmrestore 44, 49, 73

rejecting upgrade 44, 49, 59

syntax 80

bcmsetup 73

syntax 81

bcmsum

syntax 81

bcmsysupgrade 40

repeating options 39

syntax 81

bcmuname 73

syntax 82

bcmupdate 73

syntax 83

bulletin board service 110

C

configuration,updating files 10

conventions

notice icons, About This Guide 7

text, About This Guide 8

D

disk storage requirements

network management station 26, 36,

52

F

fax service (3ComFacts) 110

files

backing up 72

locations 38

log files 72

firmware

I/O module upgrade 43, 44, 47, 49

installing on network management

station 72

monitoring bcm status 72

parameters, managing 72

rebooting 72

test booting 72

test media storage 72

testing media storage 72

upgrade 41, 45

FTP file transfer setup 52

H

hardware

replacing

setting up SNMP 66

setting up IP address 66

troubleshooting messages 87

I

identifying upgrade problems 72

images

updating files 10

IP address

setting up 66

L

log file 72

logging function 72

M

manual recovery

NETBuilder II upgrade 47

manual recovery,NETBuilder II upgrade 43

MIBs 109

migration paths

NETBuilder II 93

OfficeConnect 99

PathBuilder 101

SuperStack II 96, 98

N

NETBuilder II

migration paths 93

remote upgrade 43, 47

upgrading 73

using bcmdiagnose 37

NETBuilder Upgrade Management Utilities

files location 38

network management station

disk storage requirements 26, 36, 52

network supplier support 110

O

online technical services 109

P

patch upgrade

installation with auto recovery 58

patch upgrade,installation with auto

recovery 57

PathBuilder

image-only upgrade 51

migration paths 101

upgrading 73

PathBuilder upgrade

disk storage requirements 26

privilege level

changing SNMP access 46, 48

changing SNMP access to files 66

R

restoring bridge/router to previous

operational state 73

returning products for repair 112

S

Simple Network Management Protocol. See

SNMP

SNMP

changing file access 66

changing manager access 46, 48

setting up 66

for NETBuilder II upgrade

software

converting files on network

management station 73

displaying information 73

installing on network management

station 72

patch installation with auto

recovery 57, 58

rules and support limitations 11

upgrading 31

SuperStack II,upgrading 73

T

technical support

3Com Knowledgebase Web

Services 109

3Com URL 109

bulletin board service 110

fax service 110

118 INDEX

network suppliers 110

product repair 112

TFTP file transfer setup 52

Transcend Enterprise Manager 25

Transcend Network Control Services 25

troubleshooting messages

connectivity 88

creating an upgrade file 89

downloading an upgrade file 91

hardware-related 87

SNMP configuration 88

TFTP connection 89

uploading an upgrade file 90

utilities installation 87

validating safety 85

U

update script function 72

upgrade

bcmsysupgrade options 39, 40

identifying problems 72

migration paths

NETBuilder II 93

PathBuilder 101

patch installation

with auto recovery 57, 58

upgrading with bcmsysupgrade

utility 73

Upgrade Link

running locally 26

running remotely 26

Settings page 27

Status page 27

Upgrade Link application 25

Upgrade Management Utilities

accessing and downloading 71

accessing MAN pages 73, 85

commands 72

installation

troubleshooting messages 87

with bcmsetup 73

syntax 72

Upgrade verification 29

URL 109

W

World Wide Web (WWW) 109

3Com Corporation LIMITED WARRANTY

HARDWARE 3Com warrants its hardware products to be free from defects in workmanship and materials, under normal use and service, for

the following lengths of time from the date of purchase from 3Com or its authorized reseller:

If a product does not operate as warranted above during the applicable warranty period, 3Com shall, at its option and expense,

repair the defective product or part, deliver to Customer an equivalent product or part to replace the defective item, or refund

to Customer the purchase price paid for the defective product. All products that are replaced will become the property of

3Com. Replacement products may be new or reconditioned. Any replaced or repaired product or part has a ninety (90) day

warranty or the remainder of the initial warranty period, whichever is longer.

SOFTWARE 3Com warrants that the software programs licensed from it will perform in substantial conformance to the program

specifications therefor for a period of ninety (90) days from the date of purchase from 3Com or its authorized reseller. 3Com

warrants the media containing software against failure during the warranty period. No updates are provided. 3Com’s sole

obligation with respect to this express warranty shall be (at 3Com’s discretion) to refund the purchase price paid by Customer

for any defective software products, or to replace any defective media with software which substantially conforms to applicable

3Com published specifications. Customer assumes responsibility for the selection of the appropriate applications program and

associated reference materials. 3Com makes no warranty or representation that its software products will meet Customer’s

requirements or work in combination with any hardware or applications software products provided by third parties, that the

operation of the software products will be uninterrupted or error free, or that all defects in the software products will be

corrected. For any third party products listed in the 3Com software product documentation or specifications as being

compatible, 3Com will make reasonable efforts to provide compatibility, except where the non-compatibility is caused by a

“bug” or defect in the third party's product.

YEAR 2000 WARRANTY In addition to the Hardware Products Warranty and Software Products Warranty identified above, 3Com warrants that all

Heritage 3Com products sold or licensed to Customer on and after January 1, 1998 that are date sensitive will continue

performing properly with regard to such date data on and after January 1, 2000, provided that all other products used by

Customer in connection or combination with the 3Com products, including hardware, software, and firmware, accurately

exchange date data with the 3Com products, with the exception of those products identified at 3Com’s Web site,

http://www.3com.com/products/yr2000.html, as not meeting this standard. A product is considered a “Heritage 3Com product”

if it is a member of a product family which was manufactured by 3Com prior to its merger with US Robotics Corporation. This

Year 2000 limited warranty does not apply to Heritage US Robotics Corporation products. If it appears that any such product

does not perform properly with regard to such date data on and after January 1, 2000, and Customer notifies 3Com before the

later of April 1, 2000, or ninety (90) days after purchase of the product from 3Com or its authorized reseller, 3Com shall, at its

option and expense, provide a software update which would effect the proper performance of such product, repair such

product, deliver to Customer an equivalent product to replace such product, or if none of the foregoing is feasible, refund to

Customer the purchase price paid for such product.

Any software update or replaced or repaired product will carry a Year 2000 Warranty for ninety (90) days or until April 1, 2000,

whichever is later.

OBTAINING WARRANTY

SERVICE Customer must contact 3Com’s Corporate Service Center or an Authorized 3Com Service Center within the applicable

warranty period to obtain warranty service authorization. Dated proof of purchase may be required. Products returned to

3Com’s Corporate Service Center must be pre-authorized by 3Com with a Return Material Authorization (RMA) number

marked on the outside of the package, and sent prepaid and packaged appropriately for safe shipment, and it is recommended

that they be insured. The repaired or replaced item will be shipped to Customer, at 3Com’s expense, not later than thirty (30)

days after receipt of the defective product by 3Com.

Dead- or Defective-on-Arrival. In the event a product completely fails to function or exhibits a defect in materials or

workmanship within the first forty-eight (48) hours of installation but no later than thirty (30) days after the date of purchase,

and this is verified by 3Com, it will be considered dead- or defective-on-arrival (DOA) and a replacement shall be provided by

advance replacement. The replacement product will normally be shipped not later than three (3) business days after 3Com’s

verification of the DOA product, but may be delayed due to export or import procedures. When an advance replacement is

provided and Customer fails to return the defective product to 3Com within fifteen (15) days after shipment of the

replacement, 3Com will charge Customer for the replacement product, at list price.

3Com shall not be responsible for any software, firmware, information, or memory data of Customer contained in, stored on,

or integrated with any products returned to 3Com for repair, whether under warranty or not.

WARRANTIES EXCLUSIVE IF A 3COM PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY FOR BREACH OF THAT

WARRANTY SHALL BE REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT 3COM’S OPTION. TO THE FULL

EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, TERMS, OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR

OTHERWISE, INCLUDING WARRANTIES, TERMS, OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, AND SATISFACTORY QUALITY. 3COM NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR

IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS.

3COM SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED

DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON'S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND

THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY TO THE FULL EXTENT ALLOWED BY LAW, 3COM ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR

PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR

DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE,

Network Interface Cards Lifetime

Other hardware products

*unless otherwise specified above 1 year*

Spare parts and spares kits 90 days

USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF 3COM OR ITS AUTHORIZED RESELLER HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE

PURCHASE PRICE PAID, AT 3COM’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY

REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

DISCLAIMER Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental

or consequential damages for certain products supplied to consumers or the limitation of liability for personal injury, so the

above limitations and exclusions may be limited in their application to you. When the implied warranties are not allowed to be

excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty gives you

specific legal rights which may vary depending on local law.

GOVERNING LAW This Limited Warranty shall be governed by the laws of the State of California, U.S.A. excluding its conflicts of laws principles

and excluding the United Nations Convention on Contracts for the International Sale of Goods.

3Com Corporation, 5400 Bayfront Plaza, Santa Clara, CA 95052-8145 (408) 764-5000
